Product type	Compact stroller
Brand	Phil & Teds
Model	Smart
Recommended age	6 months to 4 years
Maximum child weight	20 kg / 44 lb
Maximum child height	101 cm / 39.9 inches
Basket capacity	3 kg / 7 lb
Compatible accessories	Peanut bassinet, Travel System adapter, Stormy Weather rain cover, Sunny Days sun cover
Safety standards	EN 1888:2005, ASTM F833-08, AS/NZS 2088:2009 + CPN8, SOR/85-379
Chassis cleaning	Brush, clean with non-abrasive cleaner and soft cloth, rinse with clean water, dry
Fabric cleaning	Warm water and mild soap, no detergent or bleach, air dry
Warranty	1 year against defects in materials and workmanship
Brake type	Foot brake
Harness	Safety harness to be used as soon as the child can sit up
Maintenance	Check for damage before use, occasional lubrication needed
Spare parts	Contact the store or manufacturer for approved parts

Frequently Asked Questions - Smart Phil & Teds

What is the maximum age and weight for using the Phil & Teds Smart stroller?

The stroller is designed for children from 6 months to 4 years with a maximum weight of 20 kg (44 lb) and a maximum height of 101 cm (39.9 inches).

How to clean the Smart stroller?

Brush the wheels and chassis, clean with a non-abrasive cleaner and soft cloth. Rinse with clean water after walks on sand or snow. The fabric is cleaned with warm water and mild soap, no detergent or bleach, and air dried.

Which accessories are compatible with the Smart?

Compatible official accessories include the Peanut bassinet, Travel System adapter (group 0), Stormy Weather rain cover, and Sunny Days sun cover.

How to fold the Smart stroller?

Use the folding mechanism located on the handlebar. Refer to the complete manual for detailed steps. Ensure the brake is engaged before any manipulation.

Is the Smart stroller suitable for jogging?

No, the stroller is not designed for jogging or rollerblading. It is intended for normal strolling use.

What is the basket capacity of the Smart?

The basket can support a maximum load of 3 kg (7 lb). Do not exceed this weight to avoid destabilizing the stroller.

How to maintain the safety harness?

Regularly check for fraying or wear on the straps and buckles. The harness must always be properly fastened and adjusted to hold the child securely.

Where can I find spare parts for my Smart stroller?

Contact the store where you purchased the stroller or the manufacturer via the website www.philandteds.com. Use only manufacturer-approved parts.

How to register my warranty?

Register your product on the online form at www.philandteds.com/register. Keep your proof of purchase for any claims.

Can I use the Smart with a newborn?

No, the seat is not suitable for children under 6 months. For newborns, use the Peanut bassinet or the Travel System adapter with a group 0 car seat.

USER MANUAL Smart Phil & Teds

Line drawing of a baby stroller with no text or symbols

smart™

Line drawing of a baby stroller with a cap and wheels, set against a solid red background (no text or symbols)

Line drawing of a baby stroller on a red background (no text or symbols)

Red line drawing of a baby car seat with no text or symbols

instructions - instructions - Gebrauchsanweisung - Instrucciones - instructies

Congratulations

on choosing the phil&teds smart, the complete compact stroller.

The smart has attained the

following safety standards:

EN 1888:2005

ASTM F833-08

AS/NZS 2088:2009 + CPN8

SOR85-379

IMPORTANT! KEEP FOR FUTURE REFERENCE.

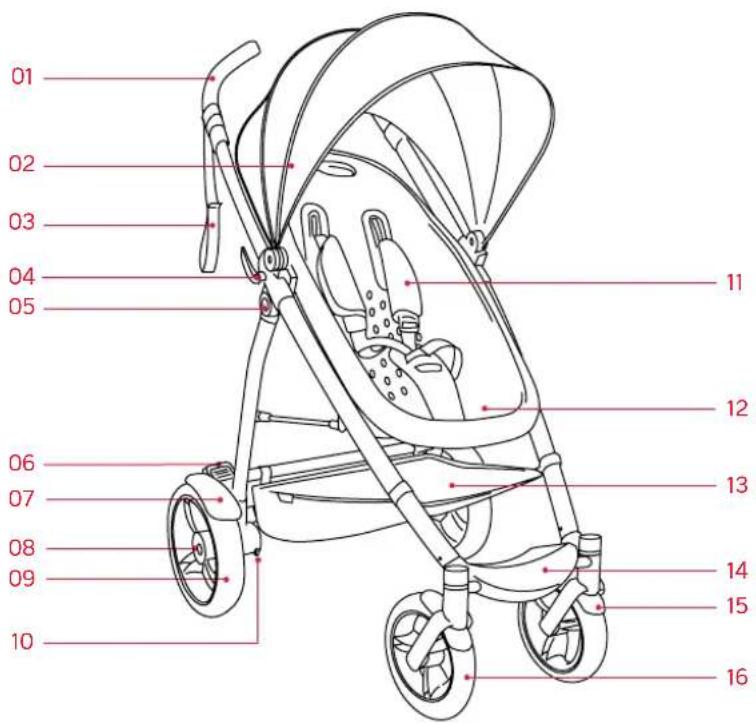

01 02 03 04 05 11 12 13 06 07 08 09 14 15 16

01 Handle
02 Sunhood
03 Wriststrap
04 Quick release fold
05 Universal connector
06 Brake
07 Rear guards
08 Rear axle
09 Rear wheels
10 Wheel release clip
11 Harness
12 Aerocore seatpad
13 Parcel tray
14 Foot rest
15 Front guards
16 Front wheels

smart™

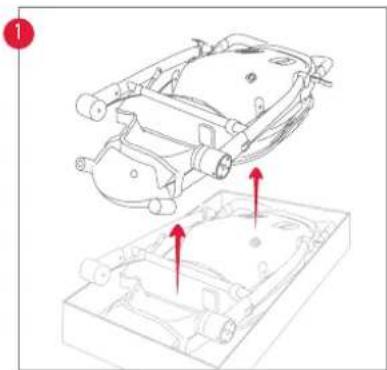

Technical line drawing of a mechanical assembly with red arrows indicating movement or force (no text or symbols present)

x2

Technical line drawing of a vehicle chassis with wheels and a red arrow indicating a component (no text or symbols)

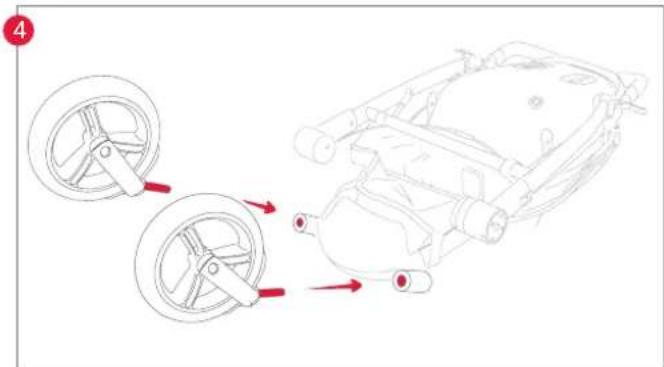

Diagram showing two wheel components with red arrows indicating assembly or motion, alongside a vehicle chassis diagram.

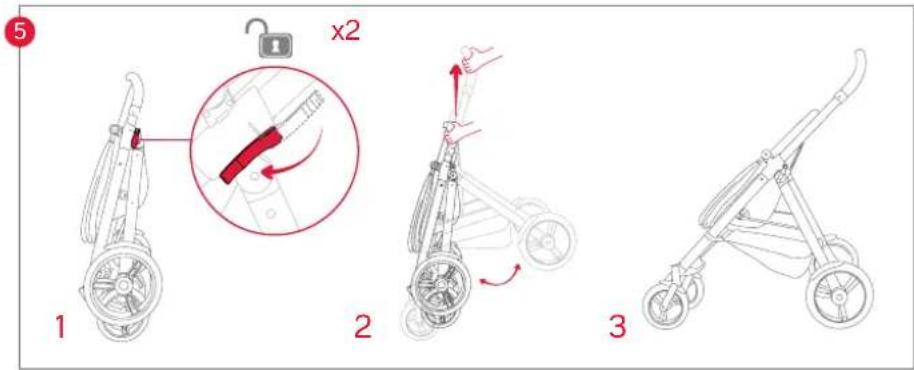

5 x2 1 2 3

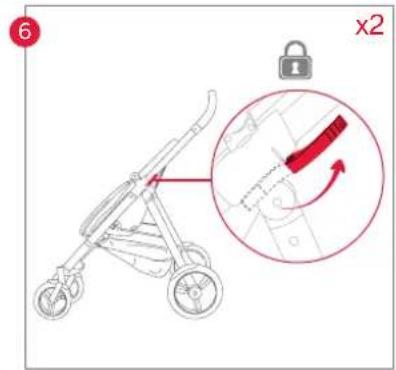

6 x2

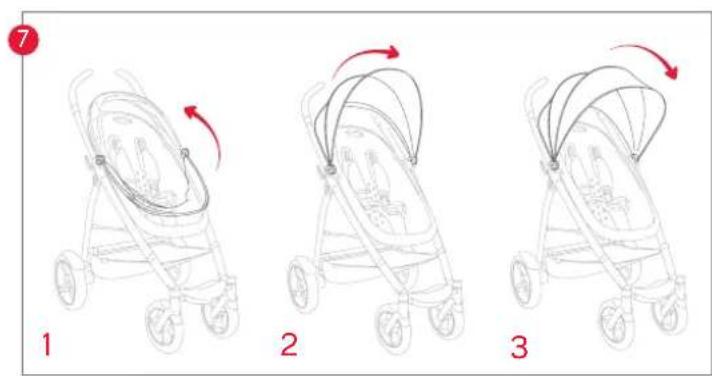

7 1 2 3

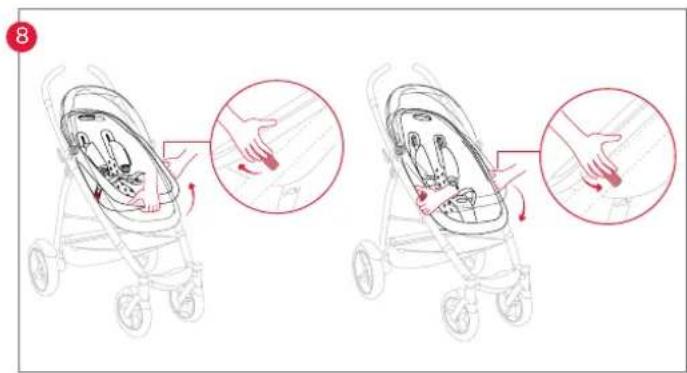

8

smart™

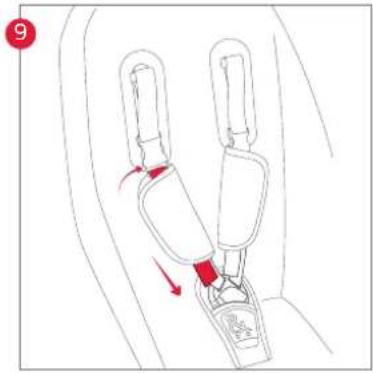

9

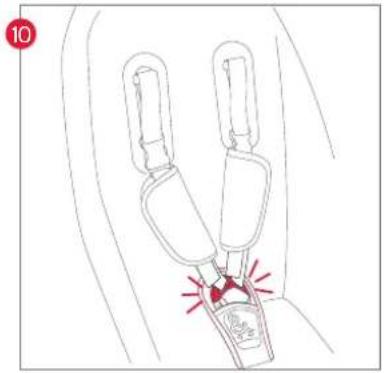

10

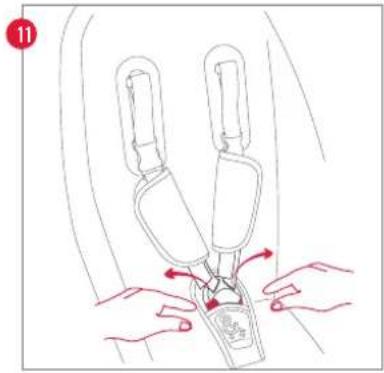

Line drawing of hands adjusting a seatbelt with a red arrow indicating rotation (no text or symbols)

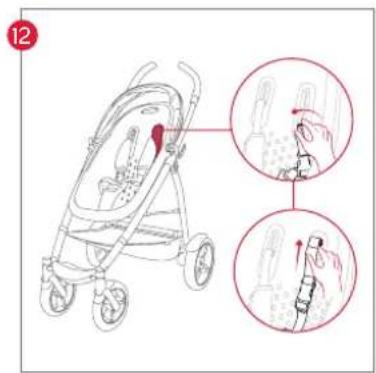

12

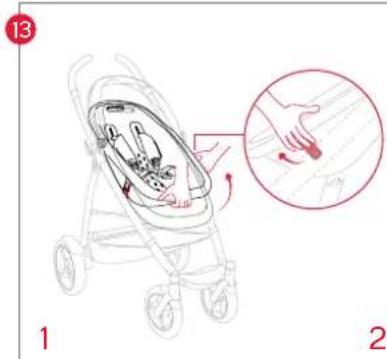

13 1 2

Diagram showing a stroller with hand positioning instructions, including magnified views of the interior and body parts.

Line drawing of a stroller with a baby inside, showing a magnified view of the child's abdomen (no text or symbols)

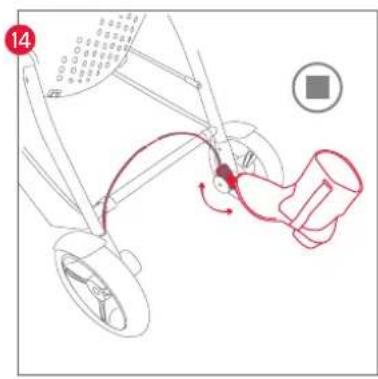

14

Diagram of a bicycle with labeled parts and motion arrows, including a play button icon

Line drawing of a baby seat with a red arrow indicating motion (no text or symbols)

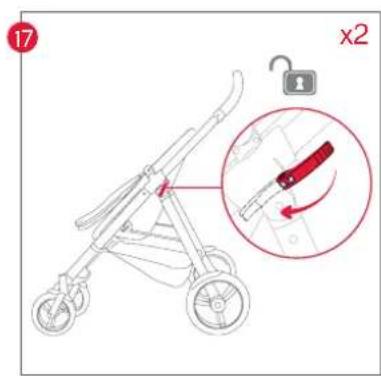

17 x2

18

Line drawing of a stroller with hand pressing upward (no text or symbols)

Line drawing of a stroller with red directional arrows indicating motion (no text or symbols)

smart™

Line drawing of a baby stroller with two wheels and a dome-shaped seat (no text or symbols)

Illustration showing a stroller with hand positioning and foot positioning, including zoomed-in detail and instruction arrows.

Line drawing of a baby stroller with four wheels and seat (no text or symbols)

Illustration showing a stroller with hand positioning and foot positioning, including magnified views of the seatbelt mechanism.

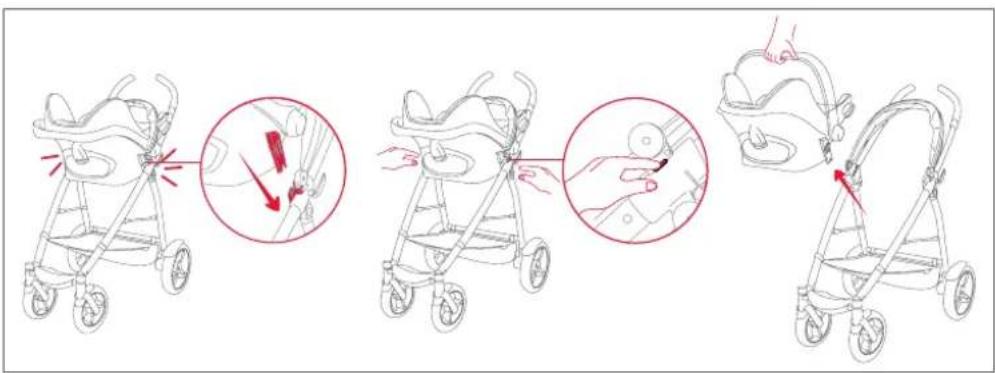

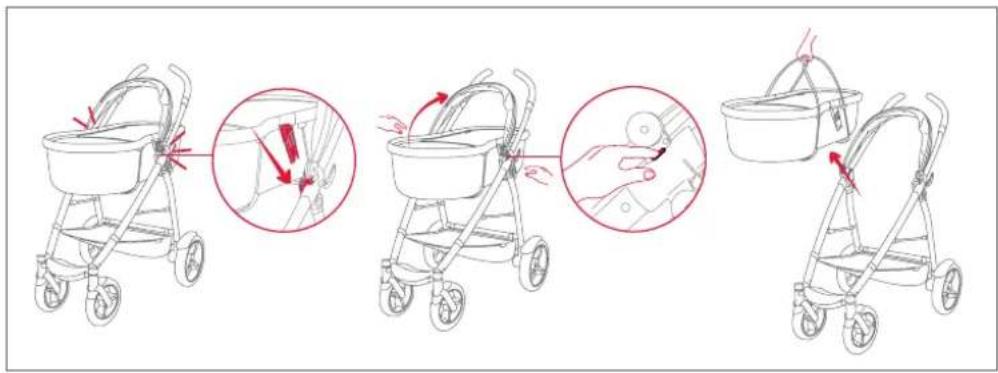

The ultra adaptable smart adapts to take the peanut (bassinet) and travel system.

Line drawing of a stroller with four wheels and a canopy cover (no text or symbols)

Line drawing of a baby stroller with a spherical canopy and wheels (no text or symbols)

Line drawing of a baby stroller with four wheels and seat (no text or symbols)

Seat

20kg / 44lbs (6 months to 4 years)

Peanut

9kg / 20lbs (newborn to 9 months)

Travel system

9kg / 20lbs (newborn to 9 months)

Parcel tray

3kg / 7lbs

This vehicle is intended for children from 6 months to 4 years (maximum load 20kg / 44lbs; maximum height 101cm / 39.9").

phil&teds®

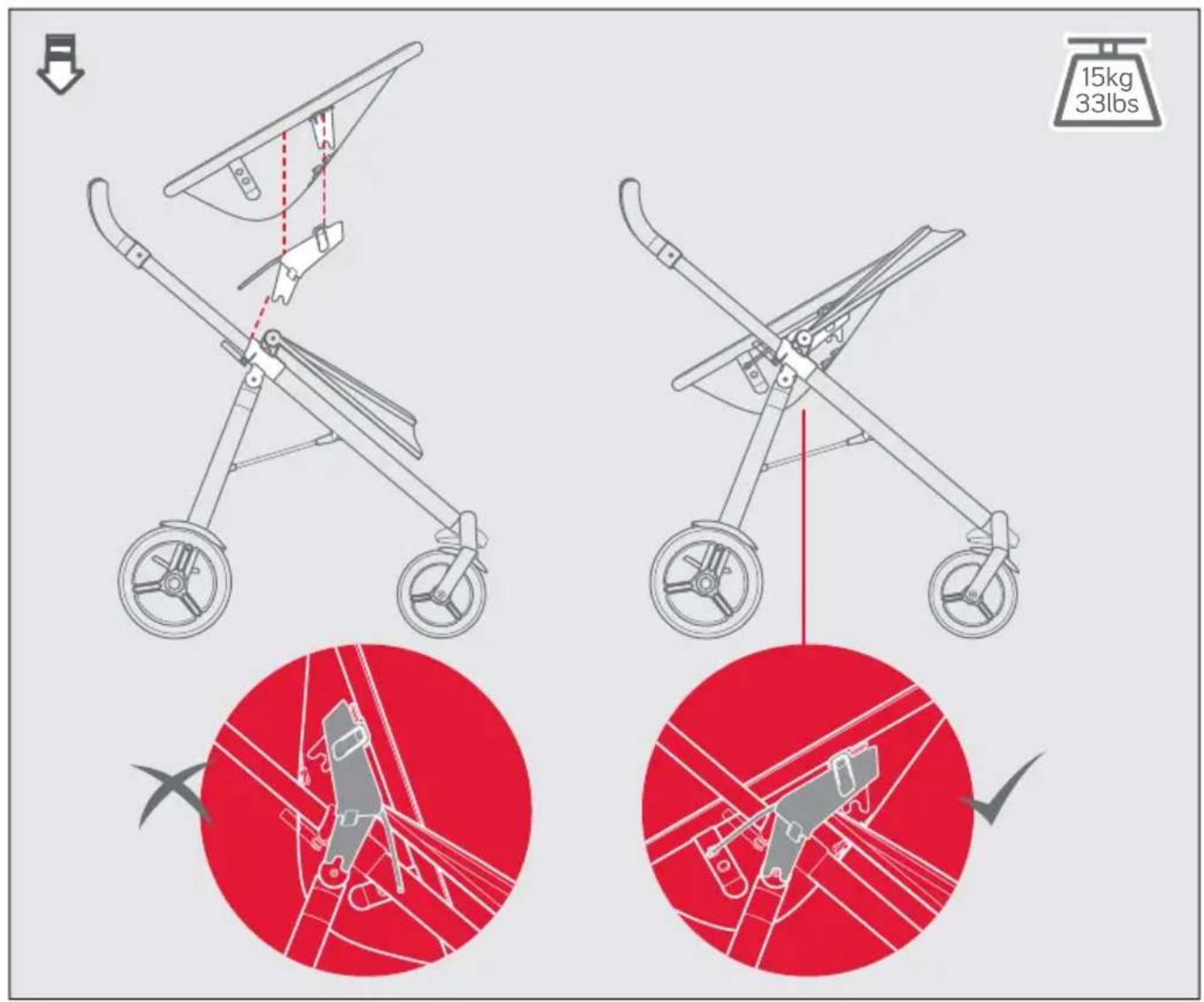

verso™

15kg 33lbs

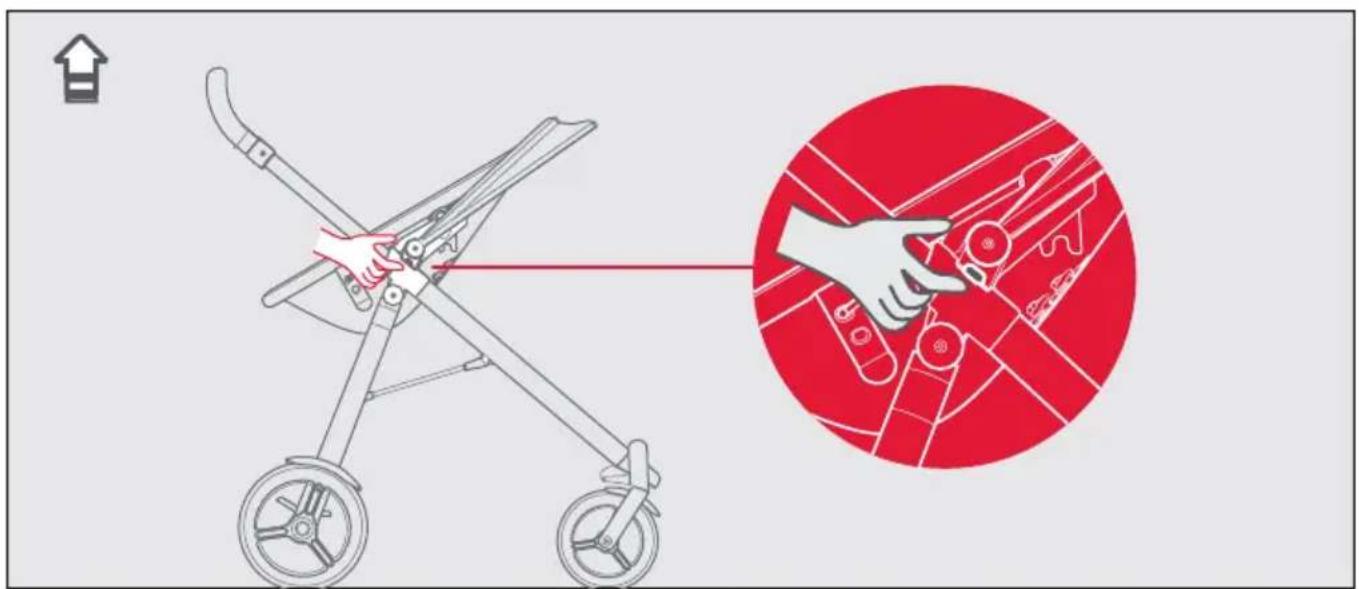

Illustration of a stroller with hands operating, showing a magnified view of the handle and wheel (no text or symbols)

smart™

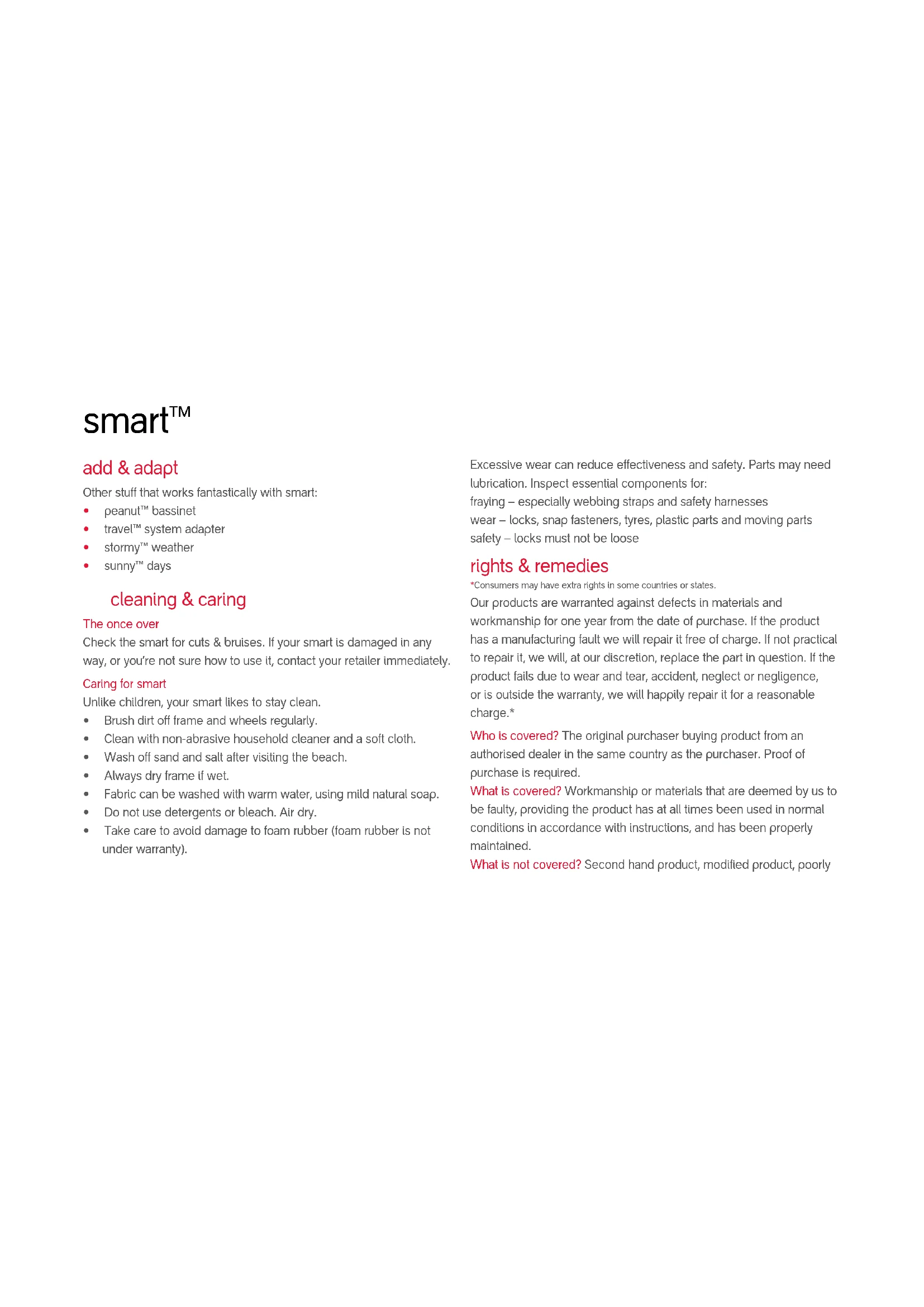

add & adapt

Other stuff that works fantastically with smart:

• peanut™ bassinet
• travel™ system adapter
  • stormy™ weather
• sunny™ days

cleaning & caring

The once over

Check the smart for cuts & bruises. If your smart is damaged in any way, or you're not sure how to use it, contact your retailer immediately.

Caring for smart

Unlike children, your smart likes to stay clean.

• Brush dirt off frame and wheels regularly.
- Clean with non-abrasive household cleaner and a soft cloth.
- Wash off sand and salt after visiting the beach.
• Always dry frame if wet.
• Fabric can be washed with warm water, using mild natural soap.
- Do not use detergents or bleach. Air dry.
- Take care to avoid damage to foam rubber (foam rubber is not under warranty).

Excessive wear can reduce effectiveness and safety. Parts may need lubrication. Inspect essential components for:

fraying – especially webbing straps and safety harnesses wear – locks, snap fasteners, tyres, plastic parts and moving parts safety – locks must not be loose

rights & remedies

*Consumers may have extra rights in some countries or states.

Our products are warranted against defects in materials and workmanship for one year from the date of purchase. If the product has a manufacturing fault we will repair it free of charge. If not practical to repair it, we will, at our discretion, replace the part in question. If the product fails due to wear and tear, accident, neglect or negligence, or is outside the warranty, we will happily repair it for a reasonable charge.*

Who is covered? The original purchaser buying product from an authorised dealer in the same country as the purchaser. Proof of purchase is required.

What is covered? Workmanship or materials that are deemed by us to be faulty, providing the product has at all times been used in normal conditions in accordance with instructions, and has been properly maintained.

What is not covered? Second hand product, modified product, poorly

maintained product, normal wear, fading and fabric cuts, improper use (by way of example): abnormal use; not following instructions; child left unattended; excessive load; transport damage i.e. airline or freight damage.

Customer costs within warranty. The customer is responsible for any inwards freight charge to return the product to the manufacturer or its representative for warranty and/or service.

Customer costs outside warranty. Where proof of purchase is not provided or the product is outside of the one year warranty period, the manufacturer (or agent) reserves the right to charge a service fee and/or charge for parts replaced/ repaired. A return freight charge will also apply.

Exclusions. Any consequential loss or damage to any person or property directly or indirectly as a result of using the product.

Who do I contact? Consult the service and warranty section of the phil&teds website (www.philandteds.com/warranty) which guides you through the warranty claim process. Note: you will need to provide proof of purchase.

log on & relax

Please register your product online by visiting www.philandteds.com/register

WARNINGS

IMPORTANT: Read instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.

European Safety Standard (EN 1888:2005) states:

WARNING

This vehicle is intended for children from 6 months to 4 years and up to a maximum weight of 20kg/44lbs.

WARNING

It may be dangerous to leave your child unattended.

WARNING

Ensure that all locking devices are engaged before use.

WARNING

Use a harness as soon as your child can sit unaided.

smart™

WARNING

The parking device shall be engaged during the loading and unloading of children.

WARNING

The buggy shall only be used for a maximum of 1 child.

WARNING

Accessories or replacement parts that are not approved by the manufacturer or distributor should not be used.

WARNING

Any load attached to the handle affects the stability of the stroller.

WARNING

Do not place more than 3kg/7lbs in the parcel tray.

WARNING

Always use the crotch strap in combination with the waist belt.

WARNING

Check that the stroller body or seat unit attachment devices are correctly engaged before use.

WARNING

This product is not suitable for running or skating.

WARNING

This seat is not suitable for children under 6 months old.

American Safety Standard (ASTM: F833-08) states:

WARNING

Never leave your child unattended in the stroller.

WARNING

This vehicle is intended for children from 6 months to 4 years and up to a maximum weight of 20kg/44lbs.

WARNING

To prevent the stroller from becoming unstable, do not place parcels or accessory items anywhere except in the storage basket and pockets provided. Do not hang items such as shopping bags from the frame.

WARNING

Do not place more than 3kg/7lbs in the parcel tray. Excessive weight may cause a hazardous unstable condition to exist.

WARNING

Always use the safety harness to avoid serious injury from falling or sliding out. Always secure all safety harness straps and ensure it's correctly fitted and adjusted to secure the child firmly.

Australia / New Zealand Safety Standard (AS/NZS:2088:2009 +CPN8) states:

WARNING

To avoid injury or death:

Always apply the breaks whenever the stroller is stationary.

• Do not leave children unattended.
- Secure the child in the harness at all times.
• Do not carry extra children or bags on this stroller.
• Make sure children are clear of any moving parts if you adjust the stroller.

WARNING

Not recommended for a child under 6 months old.

WARNING

Use the harness at all times.

WARNING

When not in use disconnect shoulder straps from the waist strap or buckle.

WARNING

It is unsafe to use accessories other than those approved by the vehicles manufacturer.

smart™

WARNING

Care should be taken if the stroller is used on stairs or escalators.

WARNING

The stroller should not be used near an open fire or exposed flame.

Canadian Safety Standard (SOR/85-379) states:

WARNING

Never leave your child unattended in the stroller.

WARNING

Always use the safety harness to avoid serious injury from falling or sliding out.

WARNING

The stroller may become unstable if a parcel bag, other than one recommended by the manufacturer, is used.

WARNING

Do not place more than 3kg/7lbs in the parcel tray.

WARNING

The stroller may become unstable if the recommended load is exceeded.

WARNING

Take care when folding or unfolding the stroller to prevent your fingers being entrapped.

Félicitations!

Line drawing of a baby stroller with a child inside, no text or symbols present

Line drawing of a baby stroller with a spherical canopy and wheels (no text or symbols)

Line drawing of a baby stroller with two wheels and a seat (no text or symbols)

Assise 20kg

Peanut 9kg

Line drawing of a stroller with a child inside, no text or symbols present

Line drawing of a baby stroller with a dome-shaped seat and wheels (no text or symbols)

Line drawing of a baby stroller with two wheels and a seat (no text or symbols)

Sitz 20kg

Peanut 9kg

Travel system 9kg

Gepäckablage 3kg

Line drawing of a stroller with two wheels and a canopy (no text or symbols)

Line drawing of a baby stroller with a spherical head and wheels (no text or symbols)

Line drawing of a baby stroller with wheels and seat (no text or symbols)

Asiento

Line drawing of a stroller with four wheels and a canopy (no text or symbols)

Line drawing of a baby stroller with a spherical canopy and four wheels (no text or symbols)

Line drawing of a baby stroller with four wheels and a seat (no text or symbols)

Zitje 20kg

Peanut 9kg

Travel system 9kg

Boodschappenmandje 3kg

WAARSCHUWINGEN WAARSCHUWING

European Safety Standard (EN 1888:2005):

WAARSCHUWING

American Safety Standard (ASTM: F833-08):

WAARSCHUWING

Australia / New Zealand Safety Standard (AS/NZS:2088:2009 +CPN8):

WAARSCHUWING

Canadian Safety Standard (SOR/85-379):

WAARSCHUWING

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

We (Phil and Teds Most Excellent Buggy Company Ltd) own the Intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survive!, & INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our intellectual property.

©Phil & Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010.

© Phil and Teds Most Excellent Buggy Company Ltd 2010. We (Phil and Teds Most Excellent Buggy Company Ltd) own the Intellectual property rights in our brands, designs and inventions featured in this publication. These include, without limitation, the phil&teds, adapt&survivel, & INLINE trade marks and INLINE DOUBLE BUGGY shape. We actively pursue people who infringe our Intellectual property.
