USER MANUAL KSE60X1 SMEG

Instructions Manual INDEX

RECOMMENDATIONS AND SUGGESTIONS 17

CHARACTERISTICS 18

INSTALLATION....19

USE 22

MAINTENANCE 23

Manuel d'Instructions SOMMAIRE

CONSEILS ET SUGGESTIONS....24
CARACTERISTIQUES....25
INSTALLATION 26
UTILISATION 29
ENTRETIEN 30

Illustration of a stove with steam rising and a flame inside, crossed by a green ribbon (no text or symbols)

Ingombro

740 min. 740 max. 1055 60

132 90 433 650 min.

300 150 108 259 490 260

Componenti

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

Montaggio Camino

Camino superiore

S V1V2V3 2 3 L

Hand inserting a device into a screen, showing green arrow indicating direction (no text or symbols)

Filtro antiodore (Versione Filtrante)

SOSTITUZIONE FILTRO ANTIODORE AL CARBONE ATTIVO

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Illuminazione

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

RECOMMENDATIONS AND SUGGESTIONS

The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm.

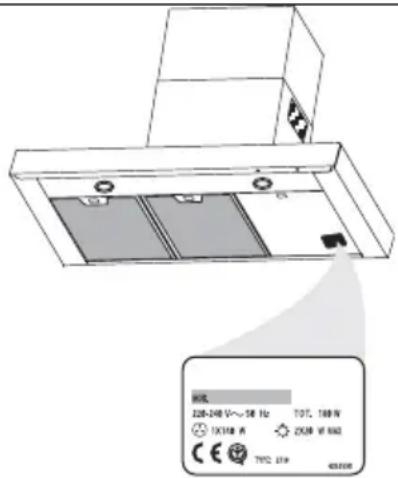

• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

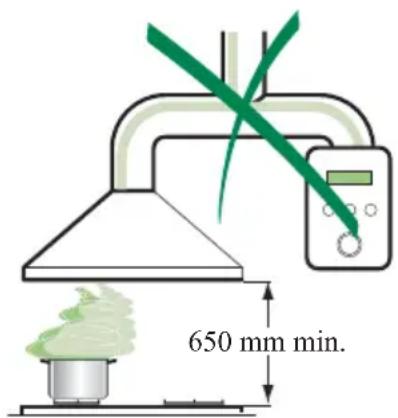

- Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

MAINTENANCE

• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean and/or replace the Filters after the specified time period.
• Clean the hood using a damp cloth and a neutral liquid detergent.

温度 220-240 V～58 Hz TOT, 140 W 131/140 A ZON 6V HAC C E C E TOT, 1.1W 400000

650 mm min.

Illustration of a stove with steam rising from a pot and a flame inside, crossed by a green ribbon (no text or symbols)

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

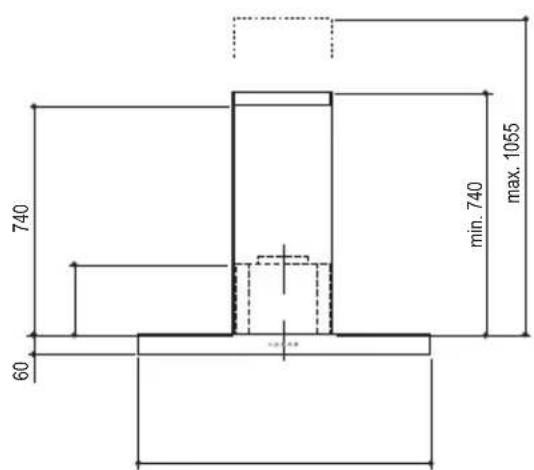

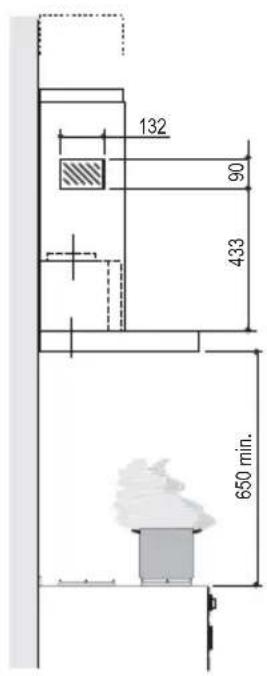

Dimensions

740 60 min. 740 max. 1055

132 90 433 650 min.

300 150 108 259 490 260

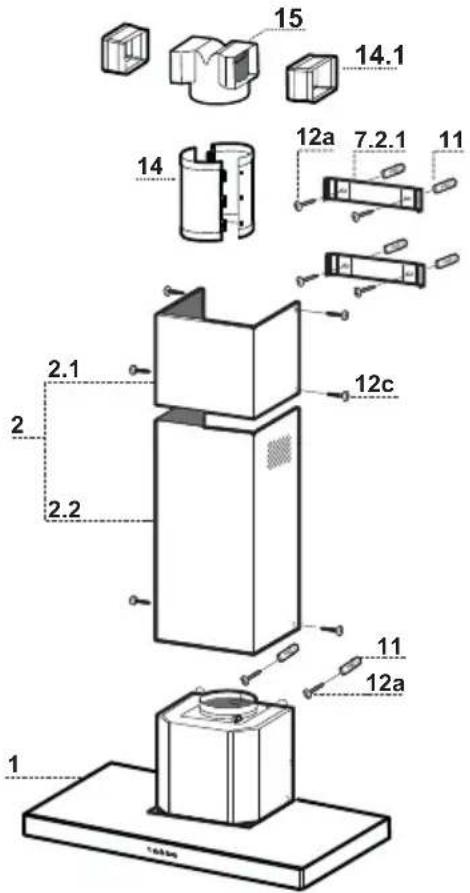

Components

Ref.	Q.ty	Product	Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filters
2	1	Telescopic Chimney comprising:
2.1	1	Upper	Section
2.2	1	Lower	Section
14	1	Hood Body Air Outlet Extension Piece consisting of two Half Shells
14.1	2	Air Outlet Connection Extension
15	1	Air Outlet Connection

Ref.	Q.ty	Installation Components
7.2.1	2	Upper Chimney Section Fixing Brackets
11	6	Wall Plugs
12a	6	Screws 4,2 x 44,4
12c	6	Screws 2,9 x 9,5

Q.ty	Documentation
1	Instruction Manual

1 2.1 2 2.2 14 15 14.1 12a 7.2.1 11 12c 11 12a 1 Tobbs

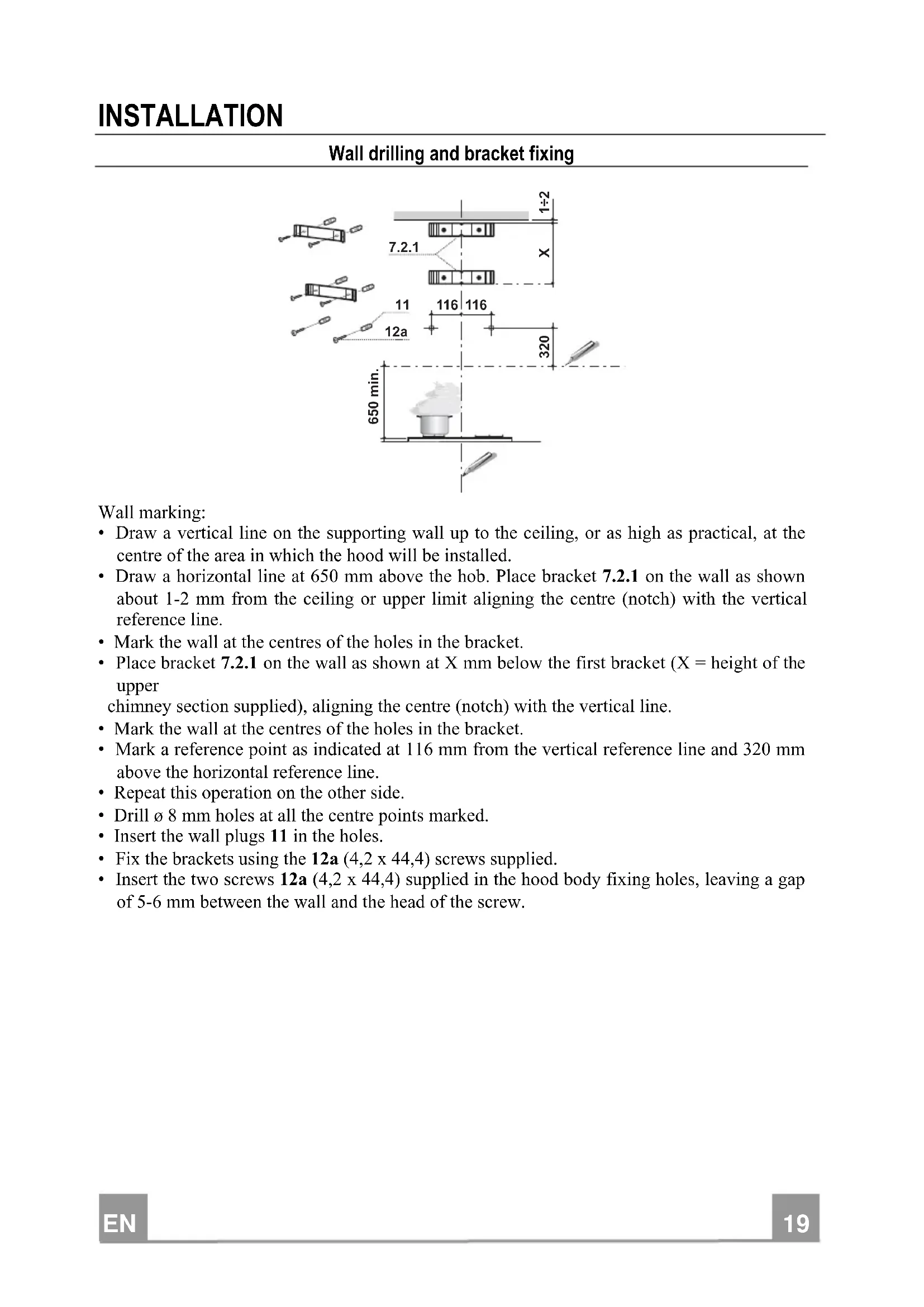

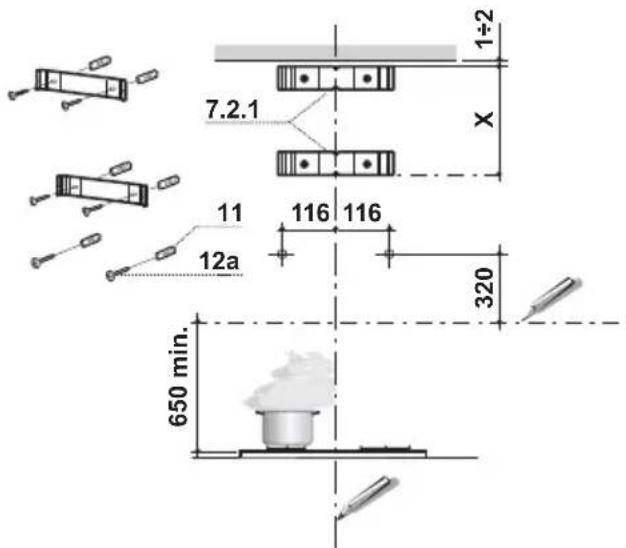

Wall drilling and bracket fixing

7.2.1 11 12a 116 116 320 650 min.

Wall marking:

• Draw a vertical line on the supporting wall up to the ceiling, or as high as practical, at the centre of the area in which the hood will be installed.
• Draw a horizontal line at 650 mm above the hob. Place bracket 7.2.1 on the wall as shown about 1-2 mm from the ceiling or upper limit aligning the centre (notch) with the vertical reference line.
  • Mark the wall at the centres of the holes in the bracket.
• Place bracket 7.2.1 on the wall as shown at X mm below the first bracket (X = height of the upper

chimney section supplied), aligning the centre (notch) with the vertical line.

• Mark the wall at the centres of the holes in the bracket.
• Mark a reference point as indicated at 116 mm from the vertical reference line and 320 mm above the horizontal reference line.
• Repeat this operation on the other side.
• Drill 8 mm holes at all the centre points marked.
• Insert the wall plugs 11 in the holes.
  • Fix the brackets using the 12a (4,2 x 44,4) screws supplied.
• Insert the two screws 12a (4,2 x 44,4) supplied in the hood body fixing holes, leaving a gap of 5-6 mm between the wall and the head of the screw.

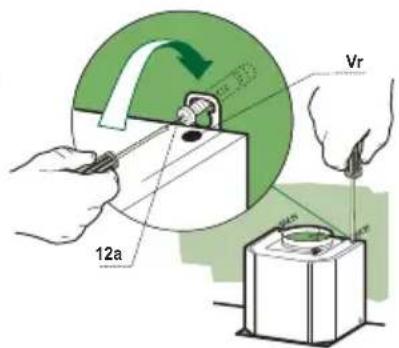

Mounting the hood body

• Before attaching the hood body, tighten the two screws Vr located on the hood body mounting points.
• Hook the hood body onto the screws 12a.
  • Fully tighten support screws 12a.
• Adjust screws Vr to level the hood body.

Connections

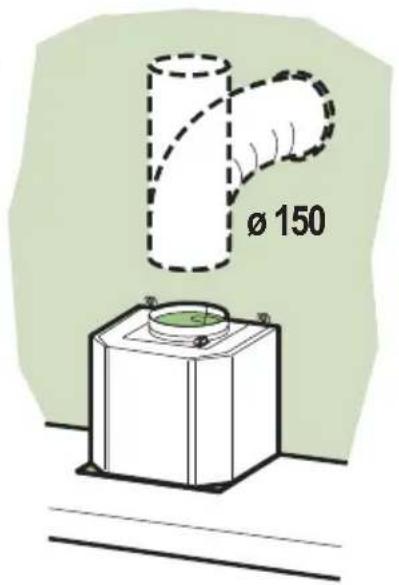

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 mm, the choice of which is left to the installer.

• Fix the pipe in position using sufficient pipe clamps (not supplied).
• Remove any activated charcoal filters.

12a Vr

Ø 150

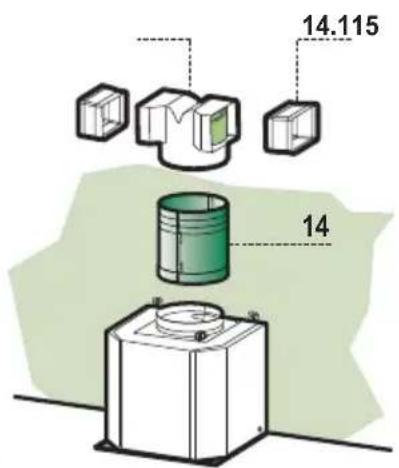

RECIRCULATION VERSION AIR OUTLET

• Assemble the two halves of the hood body extension piece 14
• Push fit the assembled hood body extension piece 14 onto the air outlet.
• Push fit connection 15 onto the hood body extension piece 14.
• Insert the connection extension pieces laterally 14.1 in connection 15.
• Make sure that the outlet of the extension pieces 14.1 is horizontally and vertically aligned with the chimney outlets.

If this is not the case, adjust the position by either reversing the connection extension pieces 14.1 or by cutting the hood body extension 14 along one of the thinner section channels denoting the prefixed lengths, then reassemble as described previously.

- Ensure that the activated charcoal filters have been inserted.

14.115 14

ELECTRICAL CONNECTION

- Connect the hood to the mains through a two-pole switch having a contact gap of at least 3 mm.

- Remove the grease filters (see paragraph Maintenance) being sure that the connector of the feeding cable is correctly inserted in the socket placed on the side of the fan.

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

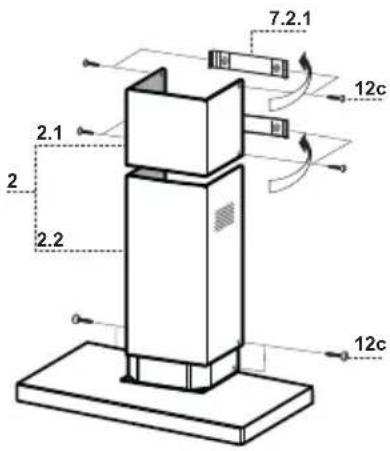

Chimney assembly

Upper exhaust Chimney

• Slightly widen the two sides of the upper chimney and hook them behind the brackets 7.2.1, making sure that they are well seated.
• Secure the sides to the brackets using the 4 screws 12c (2,9 x 9,5) supplied.

Lower exhaust Chimney

• Slightly widen the two sides of the chimney and hook them between the upper chimney and the wall, making sure that they are well seated.
• Fix the lower part laterally to the hood body using the 2 screws 12c (2,9 x 9,5) supplied.

7.2.1 12c 2.1 2 2.2 12c

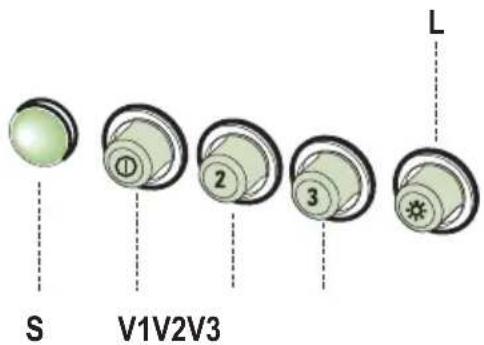

S V1V2V3 2 3 L

L Light Switches the lighting system on and off.

S Led Motor running led.

V1 Motor Switches the extractor motor on and off at low speed. Used to provide a contin-uos and silent air change in the presence of light cooking vapours.

V2 Speed Medium speed, suitable for most operating conditions given the optimum treated air flox/noise level ratio.

V3 Intensive Maximum speed, used for eliminating the highest cooking vapour emission, including long periods.

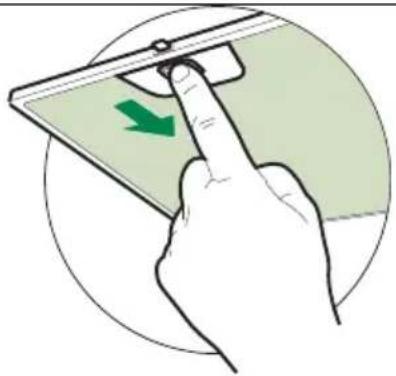

Grease filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Remove the filters one at a time by pushing them towards the back of the group and pulling down at the same time.
• Wash the filters, taking care not to bend them. Allow them to dry before refitting.
• When refitting the filters, make sure that the handle is visible on the outside.

Hand inserting a device into a screen, showing green arrow indicating direction (no text or symbols)

Activated charcoal filter (Recirculation version)

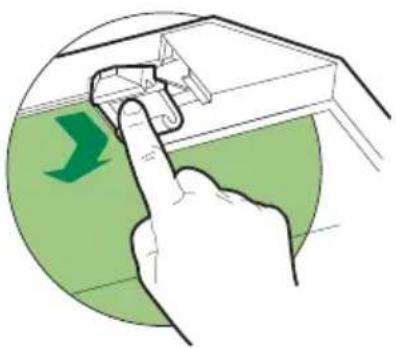

REPLACING THE ACTIVATED CHARCOAL FILTER

• The filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage.
• Remove the metal grease filters
• Remove the saturated activated carbon filter by releasing the fixing hooks
  • Fit the new filter by hooking it into its seating
• Replace the metal grease filters.

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Lighting

LIGHT REPLACEMENT

40 W incandescent light.

• Remove the metal grease filters.
• Unscrew the bulbs and replace them with new ones having the same characteristics.
• Replace the metal grease filters.

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

CONSEILS ET SUGGESTIONS

Illustration of a stove with steam rising from a pot and a flame, crossed by a green ribbon (no text or symbols)

Encombrement

740 min. 740 max. 1055 60

132 90 433 650 min.

300 150 108 259 490 260

Composants

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

Montage Cheminée

Cheminée supérieure

S V1V2V3 L

Illustration of a hand pressing a device on a screen with a green arrow indicating direction (no text or symbols)

Filtre anti-odeur (Version filtrante)

REPLACEMENT FILTRE AU CHARBON ACTIF

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Eclairage

REPLACEMENT LAMPES

Line drawing of a hand holding a tool with a screwdriver, against a circular background (no text or symbols)

Illustration of a cooking pot with steam rising, crossed by a green X (no text or symbols)

Platzbedarf

740 min. 740 max. 1055 60

132 90 433 650 min.

300 150 108 259 490 260

Komponenten

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

Kaminmontage

Oberer Kaminteil

S V1V2V3 2 3 L

Illustration of a hand pressing a device on a screen with a green arrow indicating direction (no text or symbols)

Geruchsfilter (Umluftversion)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Beleuchtung

AUSWECHSELN DER LAMPEN

Glühlampen 40W

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

ADVIEZEN EN SUGGESTIES

Illustration of a stove with steam rising from a pot and a flame, crossed by a green X (no text or symbols)

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

S V1V2V3 L

Hand inserting a device into a screen, showing green arrow indicating direction (no text or symbols)

Geurfilter (filterversie)

VERVANGING FILTER MET ACTIEVE KOOLSTOF

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Verlichting

VERVANGING VAN DE LAMPEN

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present

Illustration of a stove with steam rising and a flame symbol crossed out (no text or symbols)

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

S V1V2V3 2 3 L

Hand inserting a device into a screen, showing green arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Iluminación

Line drawing of a hand holding a tool with a screwdriver, no text or symbols present

CONSELHOS E SUGESTÕES

Illustration of a greenhouse with a pot and smokestack emitting vapor, crossed by a green diagonal line (no text or symbols)

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

Montagem da chaminé

Chaminé superior

S V1V2V3 2 3 L

Illustration of a hand pressing a device on a screen with a green arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Iluminação

Line drawing of a hand holding a screwdriver, no text or symbols present

Illustration of a greenhouse with a pot and smokestack emitting vapor, crossed by a green diagonal line (no text or symbols)

Габариты

740 60 min. 740 max. 1055

132 90 433 650 min.

300 150 108 259 490 260

Части

Diagram showing a mechanical component with an inset view of a lever mechanism (no text or symbols)

Установка дымохода

Верхний дымоход

S V1V2V3 L

Hand inserting a device into a screen, showing green arrow indicating direction (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating downward motion (no text or symbols)

Освещение

ЗАМЕНА ЛАМПОЧЕК

Line drawing of a hand using a tool to adjust or install a component, no text or symbols present
