USER MANUAL SJM114 KENWOOD

Line drawing of a Kenwood water heater with labeled price and volume (no text or symbols beyond branding)

Head Office Address:

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK

www.kenwoodworld.com

Designed and engineered by Kenwood in the UK

Made in China

19591/4

SJM100 series

SJM110 series

English 2 - 4

Nederlands 5 - 8

Français 9 - 11

Deutsch 12 - 14

Italiano 15 - 17

Português 18 - 20

Español 21 - 23

Dansk 24 - 26

Svenska 27 - 29

Norsk 30 - 32

Suomi 33 - 35

Türkçe 36 - 38

Česky39 - 41

Magyar42 - 45

Polski46 - 49

Русский50 - 53

Ελληνικά54 - 57

Slovenčina58 - 60

Українська 61 - 64

عربي ٦٧ -٦٥

English

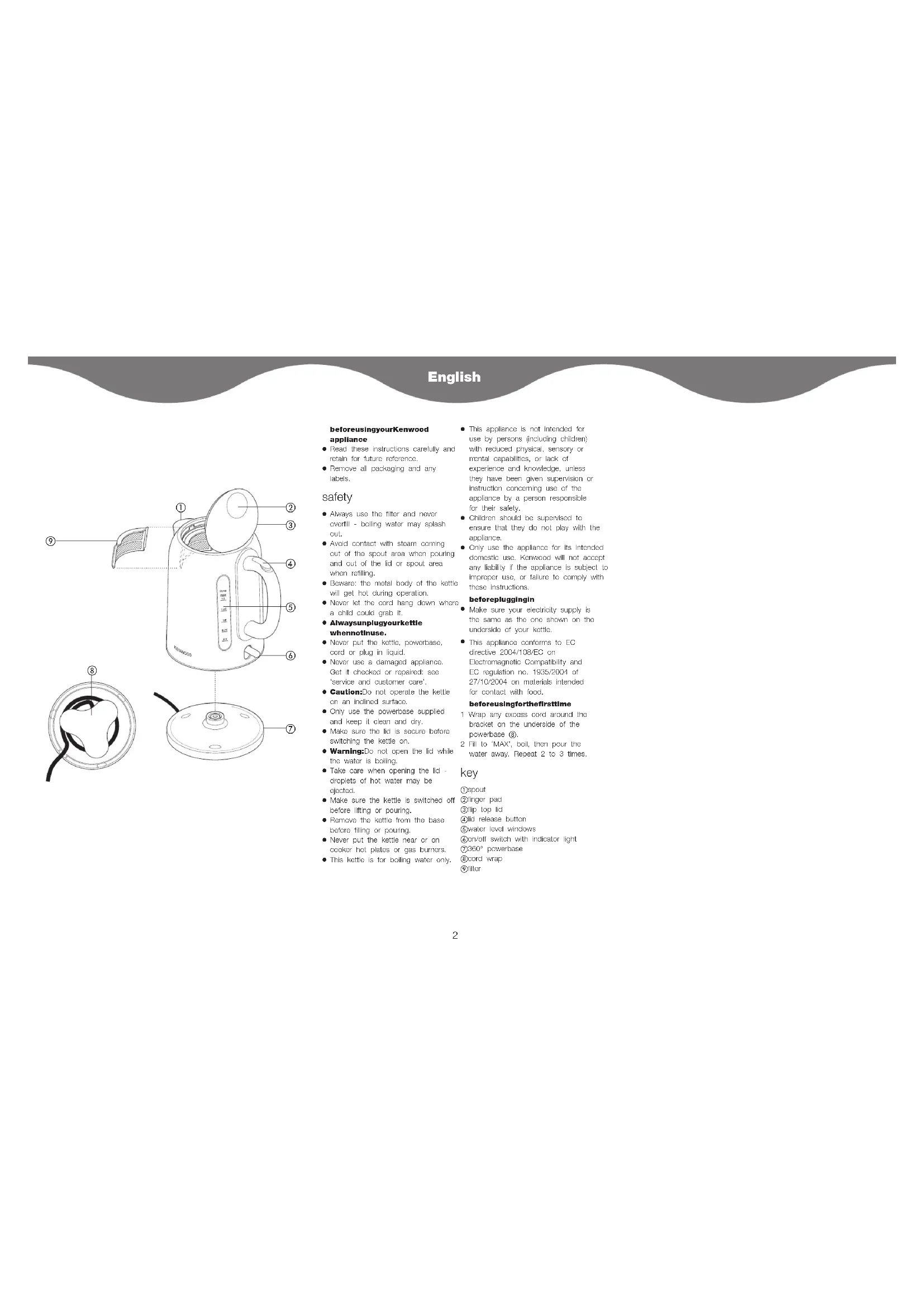

Labeled diagram of a KNN300 water heater with internal components and exploded view

beforeusingyourKenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.

safety

• Alwaysunplugyourkettle whennotinuse.

• Always use the filter and never overfill - boiling water may splash out.
• Avoid contact with steam coming out of the spout area when pouring and out of the lid or spout area when refilling.
• Beward: the metal body of the kettle will get hot during operation.
• Never let the cord hang down where a child could grab it.
• Never put the kettle, powerbase, cord or plug in liquid.
• Never use a damaged appliance. Gal it checked or repaired: see 'service and customer care'.
• Caution: Do not operate the kettle on an inclined surface.
• Only use the powerbase supplied and keep it clean and dry.
• Make sure the lid is secure before switching the kettle on.
• Warning: Do not open the lid while the water is boiling.
• Take care when opening the lid droplets of hot water may be oected.
• Make sure the kettle is switched off before lifting or pouring.
• Remove the kettle from the base before filling or pouring.

• Never put the kettle near or on cooker hot plates or gas burners.
  ● This kettle is for boiling water only.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

beforepluggingin

• Make sure your electricity supply is the same as the one shown on the underside of your kattla.
- This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

beforeusingforthefirsttime

1 Wrap any excess cord around the bracket on the underside of the powerbase ⑧.
2 Fill to 'MAX', boil, then pour the water away. Repeat 2 to 3 times.

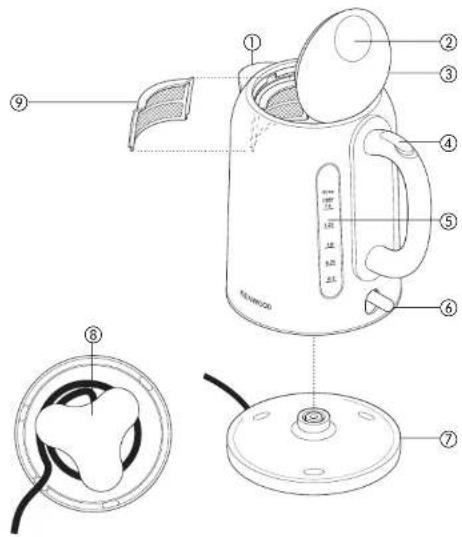

key

①epout
②finger pad
③ flip top ld
④ld release button
⑤water level windows
⑥on/off switch with indicator light
⑦360° powerbase
⑧cord wrap
⑨filler

to use your kettle

1 Fill the kettle through either the spout or lid. To open the lid, press the lid release button. The water level must be between 'MAX' and 1 cup (250mls).
- Be economical: do not boil more water than you need.
- To improve the quality of your drinks always use fresh water.
● Empty the kettle after each use.
2 Check the lid is closed. Close the lid by pushing down on the finger pad area ②.
3 Plug in and switch on.
4 Your kettle will boil and switch off automatically. To re-boil, wait a few seconds - the on/off switch needs time to reset.
- If you experience problems with your kettle switching on and off during use or switching off before boiling, check that the flat element free from scale - see "descaling".
- Your kettle is fitted with a filter to hold back limescale particles.
- If you find drops of water under your kettle, don't worry - it is just condensation.

boil-dry protection

- If you switch on with too little water, your kettle will cut out automatically. Switch off, remove from the powerbase and let it cool down before re-filling. When it has cooled down, the switch will reset itself.

care and cleaning

- Before cleaning, unplug your kettle and let it cool down.

the outside and powerbase

- Wipe with a damp cloth, then dry. Do not use abrasives - they will scratch the metal and plastic surfaces.

the inside

- Even though your kettle comes with a filter, you still need to clean the inside (and the filter) regularly.

the filter

1 Open the lid.
2 Slide the filter out ⑨.
3 either rinse under the tap or use a soft brush.

or when descaling your kettle, drop the filter in too. Rinse thoroughly.

4 Slide the filter back in to refit.

descaling

- Regular descaling of the flat element will improve the performance of your kettle. If the kettle is not descaled regularly the build up of limescale may result in the following:

• problems may be experienced with the kettle switching on and off during use or switching off before boiling.
• the kettle may take longer to boil.
  • the flat element may be damaged.

Please note: Failure to descale your kettle may invalidate your guarantee.

• When limescale starts to build up on the heating element, buy a suitable descaler and descale your kettle. After descaling, boil with fresh water several times and discard. Clean any descaler off the kettle - it can damage the parts.
• Some regions of the country have chalky water. This makes boiled water look cloudy and leaves a deposit on the side of the kettle. This is normal but can be removed with regular cleaning.
• Alternatively, to reduce limescale build up, use filtered water to fill your kettle.

service and customer care

- If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.

If you need help with:

• using your appliance or

- servicing or repairs Contact the shop where you bought your appliance.

- Designed and engineered by Kenwood in the UK.

- Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.
