Product Type	Hood
Brand	Zanussi
Model	ZFIX19A
Motor Speeds	3 speeds + stop (starts at 1st speed)
Lighting	Integrated LED, not user-replaceable
Grease Filter	Washable by hand or in dishwasher (short cycle, low temperature), at least once a month
Charcoal Filter	Non-washable, replace every 4 months (depending on use)
Power Supply	220-240 V ~ 50 Hz (standard estimate)
Installation	See installation instructions provided separately
Boost Function	Maximum speed for 8 minutes, then automatic return to previous setting
Usage Tips	Use appropriate speed according to cooking type (see table)
Stop	Press the 1st speed key again to turn off
Maintenance	Clean grease filters regularly and replace charcoal filter
Lighting Maintenance	Intervention by a technician only in case of malfunction
Recycling	Do not dispose of with household waste; take to a recycling center

Frequently Asked Questions - ZFIX19A ZANUSSI

How to clean the grease filter?

Remove the filter by pressing the lever of the clip under the hood, then tilt the front downwards. Clean it with a sponge and a non-abrasive detergent, or in the dishwasher (short cycle, low temperature). Replace it by following the reverse steps.

When should the charcoal filter be replaced?

The charcoal filter is not washable. It must be replaced at least every four months, or more often depending on intensity of use. First remove the grease filters, then press the tab of the charcoal filter to unclip it.

How to replace the LED bulb of the hood?

The LED bulb is integrated and can only be replaced by an authorized technician. In case of malfunction, consult the 'Maintenance' chapter of the safety instructions.

What to do if the hood does not turn on?

First check the electrical supply (fuse, circuit breaker). If the hood still does not respond, contact a technician, as the LED lighting and motor require professional intervention.

Why is my hood noisy?

Abnormal noise may come from a dirty grease filter or an object blocking ventilation. Clean the filters regularly. If the noise persists, check that the hood is correctly installed.

How to install the ZFIX19A hood?

Installation must follow the instructions in the separate booklet 'Installation Instructions'. Ensure you respect safety distances from the cooktop and ventilation guidelines.

Which speed to use for which type of cooking?

To reheat food with lid: speed 1. For gentle cooking with lid: speed 2. For frying or large quantity without lid: speed 3. The maximum speed (boost) automatically returns to the previous setting after 8 minutes.

The hood stops by itself after a few minutes, is this normal?

Yes, if you selected the maximum speed, the hood automatically returns to the previous speed after 8 minutes to save energy. This is a normal function.

How to completely turn off the hood?

Press the first speed key again (the one that turned on the appliance). The hood turns off.

Where can I find the installation manual for my hood?

The installation manual is a separate booklet provided with the appliance. If you have lost it, you can download it from the Zanussi website or on platforms like notice-facile.com by searching for model ZFIX19A.

USER MANUAL ZFIX19A ZANUSSI

PRODUCT DESCRIPTION

CONTROL PANEL OVERVIEW

DAILY USE

USING THE EXTRACTOR HOOD

Check the recommended speed in the table.

If the appliance is not for storage, it must be connected with a fixed duct.

www.zanussi.com/support

SAFETY INSTRUCTIONS AND INSTALLATION

WARNING! Refer to the safety booklet with installation instructions for safety and installation data. Carefully read the safety chapters before using or maintaining the appliance.

PRODUCT DESCRIPTION

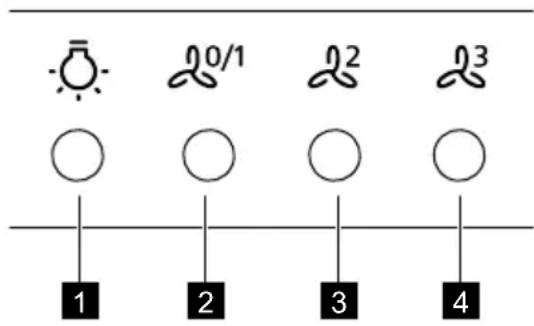

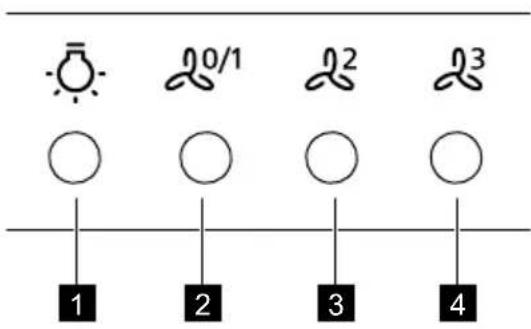

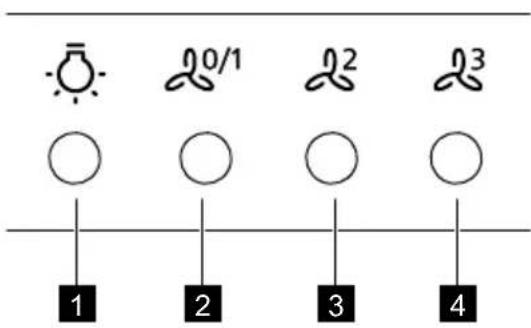

CONTROL PANEL OVERVIEW

1 Light bulb 2 First motor speed/Off 3 Second motor speed

4 Third motor speed

DAILY USE

USING THE EXTRACTOR HOOD

Check the recommended speed according to the table below.

20/1	Prilikom zagrijavanja hrane, kuhanje sPokrivenim posudama.
22	Prilikom kuhanja sPokrivenim posudama na više zona kuhanja ili plamenika, blago prženje.
23	Prilikom ključanja, prženja velikih količina hrane bezPoklopca, kuhanja na više zona kuhanja ili plamenika.
24	Prilikom ključanja, prženja velikih količine hrane bezPoklopca, visoka vlažnost. Napa radi na maksimalnej brzini. Nakon 8 minuta urežaj se vracá na prethodnu postavku.

It is recommended to leave the hood running for about 15 minutes after cooking.

To operate the hood:

www.zanussi.com/support

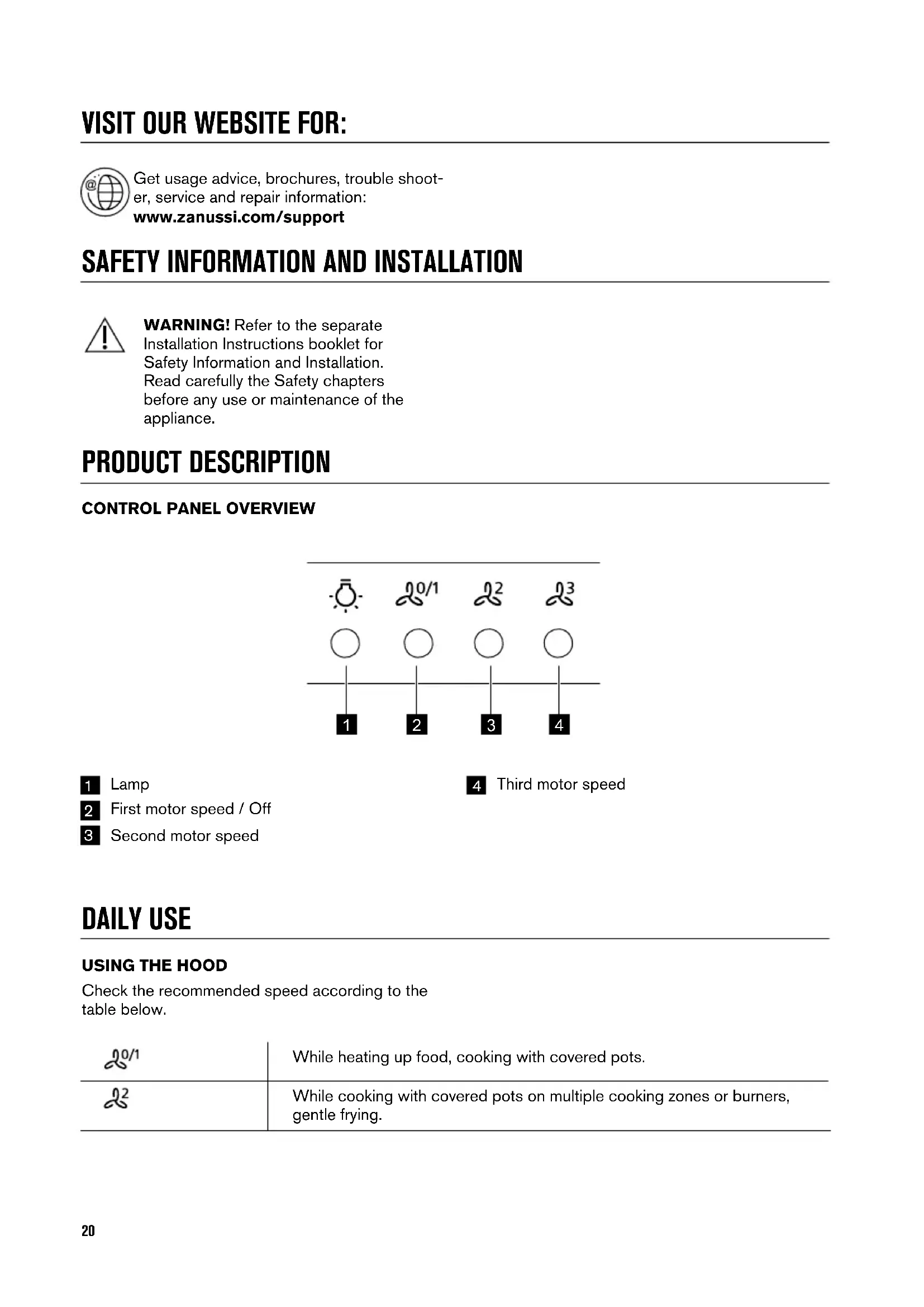

SAFETY INFORMATION AND INSTALLATION

WARNING! Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

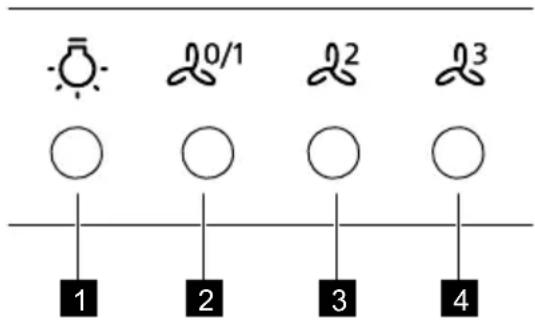

CONTROL PANEL OVERVIEW

1 Lamp 2 First motor speed / Off 3 Second motor speed

4 Third motor speed

DAILY USE

USING THE HOOD

Check the recommended speed according to the table below.

20/1	While heating up food, cooking with covered pots.
22	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
23	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
24	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 8 minutes the appliance returns to previous setting.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.

To operate the hood:

1. Press the first speed button to switch on the appliance.
2. If needed, press the light button to illuminate the cooking surface.

1. If needed, change the speed by pressing the desired button.

To turn off the appliance, press the first speed button again.

CARE AND CLEANING

CLEANING THE GREASE FILTER

Each filter must be cleaned at least once a month. Filters are mounted with the use of clips and pins on the opposite side.

To clean the filter:

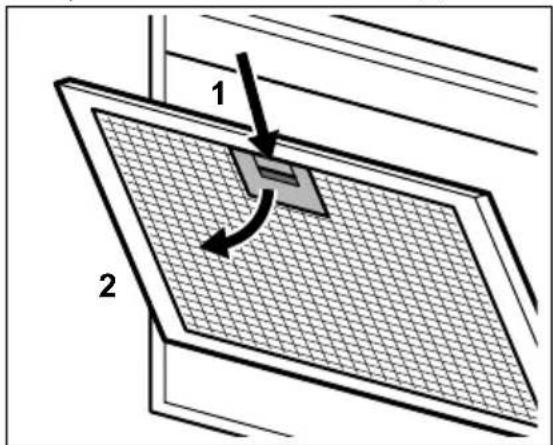

1. Press the handle of the mounting clip on the filter panel underneath the hood (1).

1. Slightly tilt the front of the filter downwards (2), then pull.

Repeat the first two steps for all filters.

1. Clean the filters using a sponge with non-abrasive detergents or in a dishwasher.

The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolor, but this has no influence on the performance of the appliance.

1. To mount the filters back, follow the first two steps in reverse order.

Repeat the steps for all filters if applicable.

REPLACING THE CHARCOAL FILTER

WARNING! The charcoal filter is non-washable!

The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter.

To replace the filter:

1. Remove the grease filters from the appliance. Refer to "Cleaning the grease filter" in this chapter.

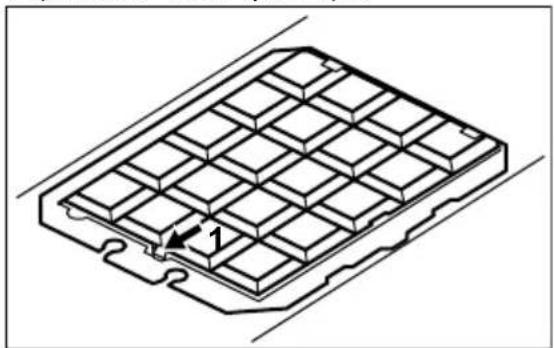

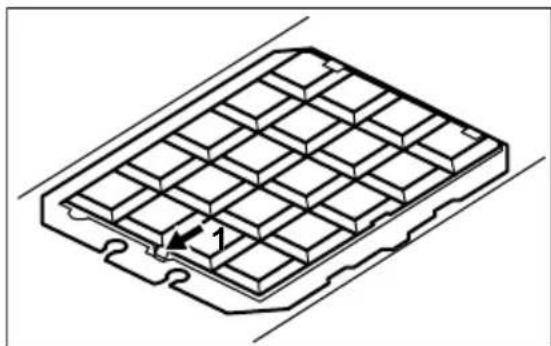

2. Press the tab (1) and slightly tilt the front of the filter.

1. To install a new filter, perform the same steps in reverse order.

In any case, it is necessary to replace the filters at least every four months.

REPLACING THE LAMP

This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to "Service" in the "Safety Instructions" chapter.

Recycle materials with the symbol. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked

with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

SAFETY INFORMATION AND INSTALLATION

www.zanussi.com/support

SAFETY INFORMATION AND INSTALLATION

SAFETY INFORMATION AND INSTALLATION

1. Before installing the appliance, read the safety instructions in the user manual (1).

1. Remove the appliance from the packaging carefully (2), then dispose of it.

For all appliances, the first two steps are the same.

1. If the appliance is not working properly, check the water supply and the drain hose.

The water pressure must be between the minimum and maximum values. If the water pressure is too high, it may affect the operation of the appliance.

1. To install the appliance in its final position, follow the instructions in the user manual.

If necessary, repeat the steps for all appliances.

KOMIP CY3ΓICIH AYbICTbIPY

ECKEPTY! Kemip cy3ricin kyyfao 6oMaIdbI!

Kemip cy3ricih TOny yaKbITb TaFam nicipydi H Typi MeH MaN cy3ricih KaHsaJIbIKbI KNI Ta3anaHaHaBHa 6aJnHaBlcTb 6oJaBl.

Cy3riHi aybIcTbipy yuH:

1. Mai cy3rjinepiH KypbInfbDaH anbHbI3.

OcbI Tapaydafti"MaCy3rinepiH Ta3anay" 6enimih kapaht3.

1. icikwehi 6acbin (1), cy3riHH andbihfbi XaFBiH a3dan eHkeTih3.

1. KaHa cy3riHi opHaTy ywiH ocbl kaamapdbI KepiciHwe opbHdaHbI3.

Ke3-KeIreH KaFdaa cy3rInepdi KeM DereHede TepT aai CaBbH aybictbipy KepeK.

UAMdbI AybICTbIPY

KypblfliLED waMbImeH xa6biktajFaH. Byn 6eJIki TeXnIK faHa aybictbpaDi. AkaynbI opbH aJFaH KaFdaJa "Kayinci3diK HycKaynapbl" TapaybHaarbl "KbI3MeT Kepcety" 6enimH kapaHbI3.

KOPSHAFAH OPTAFA KATbICTbI XAFDAJJIAP

Benri caIbIHfAH MaTePnAldapbl KaIta eHdeyDen ETKi3yre TaNCbIPbIHbI3. Opam MaTePnAldapbl H KaIa eHdeyDen ETKi3y yWIn TnicTI KOHTeINHePnepre caIbIHbI3. 3neKtpnIK KHe 3NEKTPoHNKaIbIK KypblfblnapDbIH KaNbIFbIH KaIta eHdeyDen ETKi3y apkblbl, KOp7aFaH opTaFA XHe aDAMhBI IN DeHCayNbIFbIHa

3nBH KeItipetIH XaFdaInapFA KOJ BepMeyre e3 yIeciH3di KocbIHb3. BeJI CaIbIHFaH KpybIFbIAPdbI TyPbICTbIK KaIbIKTapMeH 6ipre TactamaHb3. OHIMdi JxepriniKi KaIta OHey OpTaIbIFbHa eTk3iH3 Hemece JxepriniKi MeKemere xaBaplacbIHb3.

APMEKLEJET MUSU MAJAS LAPU, LAI IEPAZITOS AR:

www.zanussi.com/support

SAFETY INFORMATION AND INSTALLATION

www.zanussi.com/support

SAFETY INFORMATION AND INSTALLATION

WARNING! Safety information and installation are provided in a separate installation instruction booklet. Before using the appliance or performing any maintenance work, carefully read the safety sections.

PRODUCT DESCRIPTION

CONTROL PANEL OVERVIEW

Recommended speed values are shown in the table below.

It is recommended to let the extractor run for about 15 minutes after cooking.

Switching on the extractor:

1. To switch on the appliance, press the first speed selection button.

1. If necessary, press the light button to illuminate the cooking surface.
2. If necessary, change the speed by pressing the required button. To switch off the appliance, press the first speed button again.

The machine must be set to low temperature and short cycle. Rinsing the filter may change the setting; this will not affect the performance of the device.

4. To install the filters in place, perform the two steps described above in reverse order.

Repeat these steps with all filters, if applicable.

REPLACING THE CARBON FILTER

WARNING! The carbon filter is not washable!

The service life of the carbon filter varies depending on the type of preparation and the frequency of cleaning of the rinsing filter.

To replace the filter:

See the section "Cleaning the rinsing filter" in this manual.

1. Press the latch (1) and slightly tilt the front part of the filter.

3. To install a new filter, perform the same steps in reverse order.

In any case, the filter must be replaced at least once every four months.

REPLACING THE LAMP

The device comes with a LED lamp. This part can only be replaced by a qualified technician. In case of any malfunctions, see the "Service" section of the "Safety Instructions" chapter.

ENVIRONMENT PROTECTION

Materials with the symbol should be recycled. Put the packaging in the appropriate containers for recycling. By participating in the recycling of old electrical appliances, you help protect the environment and human health. Do not throw them away with household waste.

Household appliances marked with the symbol should be taken to a separate collection point for waste electrical and electronic equipment for recycling.

SAFETY INFORMATION FOR INSTALLATION

WARNING! Read the safety instructions before installing the appliance. Carefully read the safety chapters before using or maintaining the appliance.

PRODUCT DESCRIPTION

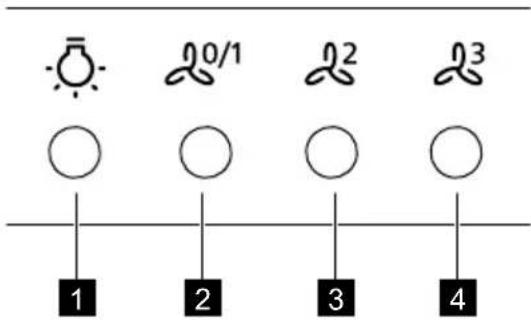

CONTROL PANEL
