USER MANUAL GVS HY8A2TESHYBRIDE CANDY

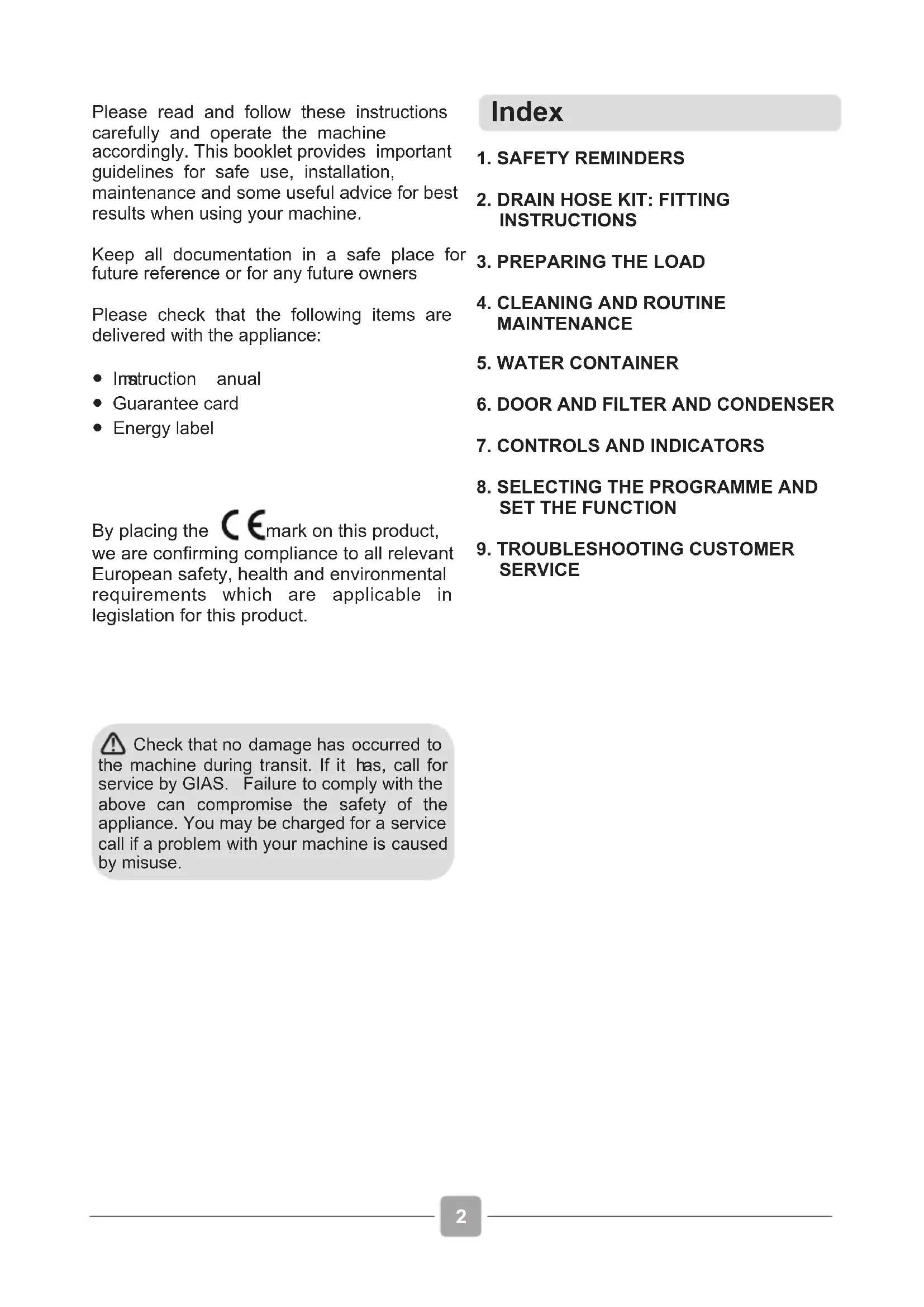

Index Please read and follow these instructions carefully and operate the machine accordingly. This booklet provides important guidelines for safe use, installation, maintenance and some useful advice for best .Please check that the following items are delivered with the appliance: results when using your machine.Keep all documentation in a safe place for future reference or for any future owners● m● ● Energy labelInstruction anualGuarantee card By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product. Check that no damage has occurred to the machine during transit. If it as, call for service by GIAS. Failure to comply with the above can compromise the safety of the appliance. You may be charged for a service call if a problem with your machine is caused by misuse. h

3. PREPARING THE LOAD4. CLEANING AND ROUTINE MAINTENANCE5. WATER CONTAINER6. DOOR AND FILTER AND CONDENSER7. CONTROLS AND INDICATORS 8. SELECTING THE PROGRAMME AND SET THE FUNCTION9. TROUBLESHOOTING CUSTOMER SERVICEDRAIN HOSE KIT: FITTING INSTRUCTIONS1. SAFETY REMINDS This appliance can be used by children aged from 8 years and above and persons with reduced physical,sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.Children shall not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.Children of less than 3 years should be kept away unless continuously supervised. WARNING Misuse of a tumble dryermay createa firehazard This appliances is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops , offices and other working environments; - Farm houses - By clients in hotels, motels and o t h e r r e s i d e n t i a l t y p e environments; - Bed and breakfast type environments" A different use of this appliance from house hold environment or from typical housekeeping functions,as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer’s warranty.

manual. Ensure that the instructions for installation and use are fully understood before operating the appliance. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use ( even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law. Do not touch the appliance when hands or feet are damp or wet Do not lean on the door when loading the machine or use the door to lift or Do not allow children to play with the machine or its controls This machine should only be used for its intended purpose as described in this

ENWARNING Do not use the product if the fluff filter is not in position or is WARNING Where the hot surface symbol is located the temperature rise

cleaning the appliance.

damaged; fluff could be ignited. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

WARNING: Never stop a tumble

dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

during operation of the tumble dryer may be in excess of 60 degrees

Remove the plug from the electricity supply Always remove the plug before Do not continue to use this machine if it appears to be faulty Lint and fluff must not be allowed to collect on the floor around the outside of The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged. Maximum load drying weight:

Installation Do not use adapters, multiple connectors and/or extensions. Never install the dryer against curtains and be sure to prevent items from falling or collecting behind the dryer. The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer.

Important: Caution: During transport ensure that the dryer is in an upright position, if it's necessary you can only flip in the side shown; If the product is in different side, wait at least 4 hours before switching on so that the oil c a n f l o w b a c k i n t o t h e compressor. Failure to do this could result in damage to the compressor.5

Do not dry unwashed items in the tumble dryer

WARNING Foam rubber materials can under certain circumstances when heated

Clothes should be spin dried or thoroughly wrung before they are put into the Lighters and matches must not be left in pockets and NEVER use flammable Glass fibre curtains should NEVER be put in this machine Skin irritation may Items that have been soiled with substances such as cookin il, acetone, alcohol,

tumble dryer. Clothes that are dripping wet should not be put into the dryer.

liquids near the machine.

g o p e t r o l , k e r o s e n e , s p o t removers, turpentine, waxes and wax removers should be WARNING Do not tumble dry fabrics treated with dry cleaning fluids

b e c o m e i g n i t e d b y spontaneous combustion. Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads MUST NOT be dried in the tumble dryer. Always refer to the laundry care labels for directions on suitability for drying

occur if other garments are contaminated with the glass fibres. The Laundry washed in hot water with an extra amount of detergent before being dried in the tumble dryer. Fabric softeners or similar products should be used as specified by the fabric

softener instructions. Ventilation Adequate ventilation must be provided in the room where the tumble dryer is located to p r e v e n t g a s e s f r o m appliances burning other fuels, including open fires, being drawn into the room during operation of the tumble dryer. Installing the rear of the appliance close to a wall or vertical surface. There should be a gap of at least 12 mm between the m a c h i n e a n d a n y obstrubtions.The inlet and outlet should be kept clear of obstruction.To e ns ure adequate ventilation the space between the bottom of the machine and the floor must not be obstructed. Check regularly that the air flowing through the dryer is not restricted. Check frequently the fluff filter after use, and clean, if necessary. Prevent items from falling or collecting behind the dryer as

ENDo not install the product in a low temperature room or in a room where there is a risk of frost occurring. At temperature around freezing point the product may not be able to operate properly: there is a risk of damage if the water is allowed to freeze in the hydraulic circuit (valves, hoses, pumps). For a better product performance the ambient room temperature must be between 5-35°C. Please note that operating in cold condition (between +2 and +5°C) might simply some water condensation and water drops on floor.

these may obstruct the air inlet and outlet NEVER install the dryer up against curtains. In cases where the dryer is installed on top of a washing machine, a suitable stacking kit must be used according to the follow configuration. - Stacking kit Mod 35100019: for minimum washing machine depth 49 cm - Stacking kit Mod 35900120: for minimum washing machine depth 51 cm The stacking kit shall be one of that above, obtainable from our spare service. The instructions for installation and any fixing attachments, are provided with the staking kit.

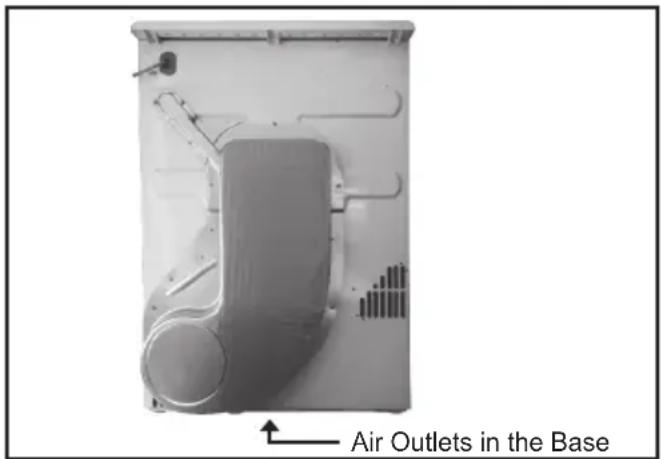

Air Outlets in the BaseEnvironmental Issues All packaging materials used are environmentally-friendly and recyclable. Please help dispose of the packaging via environmentally-friendly means. Your local council will be able to give you details of current means of disposal. To ensure safety when disposing of an old tumble dryer disconnect the mains plug from the socket, cut the mains power cable and destroy this together with the plug. To prevent children shutting themselves in the machine break the door hinges or the door lock.

European irective 20 /ED 12/19 U This appliance is marked according Individuals can play an important role in ensuring that WEEE does not become an environmental issue it is essential to follow some basic rules: WEEE should not be treated as household waste. WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present. to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment. GIAS Service To ensure the continued safe and efficient operation of this appliance we recommend that any servicing or repairs are only carried out by an authorised GIAS service engineer.

Electrical Requirements Tumble dryers are supplied to operate at a voltage of 220-240V, 50 Hz single phase. Check that the supply circuit is rated to at least 10 A.Electricity can be extremely dangerous.This appliance must be earthed. The socket outlet and the plug on the appliance must be of the same type.Do not use multiple adapters and/or extension leads.The plug should be accessible for disconnection after the appliance has been installed. You may be charged for a service call if a problem with your machine is caused by incorrect installation. is damaged, it must be replaced by a special cord which is ONLY obtainable from the spares service. It must be installed by a competent person. If the mains cord on this appliance switch it on at the mains until the installation is completed.For your safety, this dryer must be correctly installed. If there is any doubt about installation, call GIAS Service for advice. Do not plug the machine in and Adjusting the Feet Once the machine is in place the feet should be adjusted to en sure t ha t t he machine is level. C o n t a i n s f l u o r i n a t e d g r e e n h o u s e g a s e s . Hermetically sealed. GWP14308

INSTRUCTIONS To avoid emptying the water container after each drying cycle, the water can be discharged directly to a waste water drain pipe (the same drainage system as household sinks). Water Bye-Laws prohibit connection to a surface water drain. The waste water drain pipe should be located adjacent to the tumble dryer.The kit consists of:1 hose and 1 tap.WARNING! Switch off and remove the tumble dryer plug from the electricity supply before carrying out any work.Fit he s Follows:t Hose a1. Flip the machine slowly to the right side.2. The waste water pipe is situated at the right-hand side of the machine (see the picture). A grey hose connects to the bridge at the left hand side of the machine. Using pliers, remove the pipe retaining clip from the bridge.3. Pull the hose off the bridge connection.4. Attach the black hose from the kit, (using the connector a n d p i p e c l i p s supplied), to the hose removed from the bridge connection.5. Connect the new drain hose to the wasteWater pipe.6. Once the machine is in place, check the bottom to ensure that the new hose does not kink when pushing the tumble dryer into position.Connect to the mains electricity supply.

Caution:wait at least 4 hours before switching on so that the oil can flow back into the compressor. Failure to do this could result in damage to the compressor. If the product is in different side,

Before using the tumble dryer for the first time:

● Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.Please read this instruction book thoroughlyRemove all items packed inside drum Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item. Check that all fastenings are closed and that pockets are empty. Turn the articles inside out.Place clothes loosely in the drum to make surethat they don't get tangled.

ilk, nylon stockings, delicate embroidery, fabrics with metallic decorations, garments with PVC or leather trimmingsIMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).During the last 15 minutes the load is alwaystumbled in cool air. Only put into the tumble dryer laundry which hasbeen thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.

Check that the filter is clean before every drying cycle. Put dripping wet items into the tumble dryer, this may damage the appliance.ALWAYS NEVER Energy Saving

By care symbolsThese can be found on the collar or inside seam:Tumble drying at high temperature.Do not tumble dry.Suitable for tumble drying.Tumble drying at low temperature only.Sort the Load as Follows Do not overload the drum, large items when wet exceed the maximum admissible clothes load (for example: sleeping bags, duvets). If the item does not have a care label it must be assumed that it is not suitable for tumble drying.●

By type of fabricCottons/linen: Synthetics: Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cotton/synthetic mixes.By amount and thicknessWhenever the load is bigger than the dryer capacity, separate clothes according to thickness (e.g. towels from thin underwear).Towels, cotton jersey, bed and table linen.

MAINTENANCE WARNING! The Drum, door and load may be very hot. IMPORTANT Always switch off and remove the plug from the electricity supply before cleaning this appliance. For electrical data refer to the rating label on the front of the dryer cabinet (with the door open). Cleaning the Dryer ● Clean the filter and empty the water ● After each period of use, wipe the inside

● Wipe the outside of the machine and the DO NOT use abrasive pads or cleaning agents. To prevent the door sticking or the build

container after every drying cycle. door with a soft cloth. Regularly clean the condenser the drum and leave the door open for a while to allow circulation of air to dry it. of fluff clean the inner door and gasket with a damp cloth after every drying cycle.

EN5. WATER CONTAINER The water removed from the laundry during the drying cycle is collected in a container inside the door of the dryer. When the container is full the indicator on the control panel will light, and the container be emptied. However, we recommend that the container is emptied after each drying cycle.MUST NOTE: Very little water will collect during thefirst few cycles of a new machine as an internal reservoir is filled first. To remove the container tank in door drawer

1. Gently pull out the water container holding the handle. When it is full the water container will weigh about 6 kg.

(B) When empty, the water container back as shown; f

restart the cycle. (A)

2. T i l t t h e w a t e r

container to empty the water out through the spout. replace(C) irst insert the base of the container into position as shown (1) then gentle push the top into position (2) Button

NOTE: the option of drainage near to the dryer you c a n u s e t h e disch a r ge kit to provide a permanent drainage for the water collected in t h e container of the dryer. This means that you don't have to empty the water container. If you have OPERATION

Press the button. The dryer willstart automatically and the indicator will be continuously lit. If the door is opened during the programme to check the laundry, it is necessary to press to recommence drying after the door has been closed.

Following the completion of the cycle the drum will rotate intermittently to minimize creasing. This will continue until the machine is switched OFF or the door is opened. When the programme is complete the END indicator will light.Open the door and load the drum with laundry. Ensure that garments do not hinder closure of the door.Gently close the door pushing it slowly until you hear the door 'click' shut.Turn the Programme Selector dial to select the required drying programme (see Programme Guide).4. above the button

W h e n t h e c y c l e i s n e a r i n g completion the machine will enter the cool down phase, the clothes will be tumbled in cool air allowing the load to cool down.

Do not open the door during the automatic programs in order to obtain a proper drying.6. DOOR and FILTER Pull on handle to open the door.To restart the dryer, close the door and press

Start / Pause button.WARNING! When the tumble dryer is in use the drum and door may be VERY HOT.FilterIMPORTANT: To maintain the efficiency of the dryer check that the fluff filter is clean before each drying cycle.

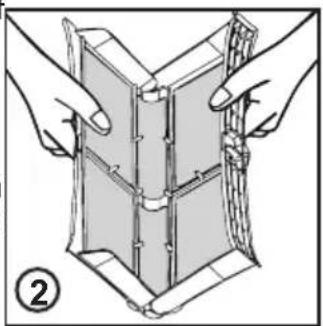

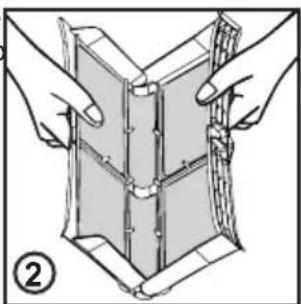

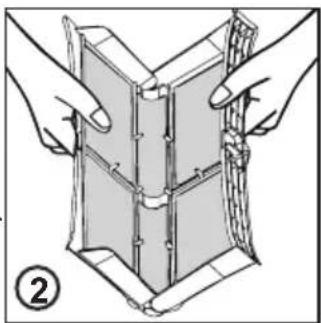

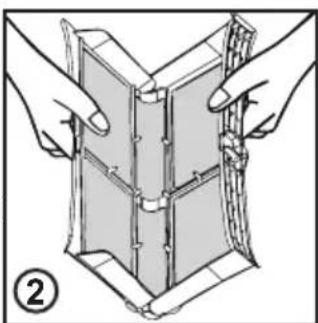

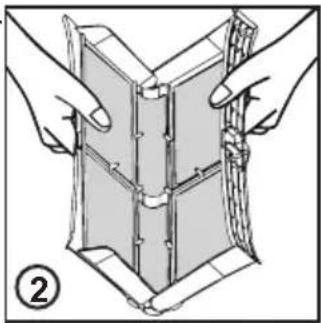

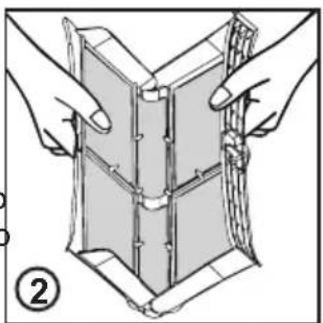

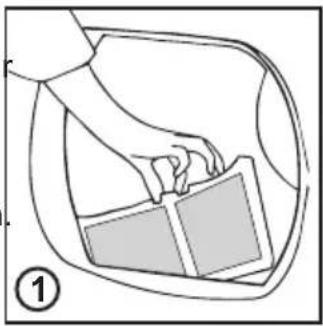

P u l l t h e f i l t e r upwards.Open filter as shown.Gently remove lint using a soft brush or your fingertips.Snap th e f il te r together and push back into place.

Filter Care Indicator Lights when the filter needs cleaning.If the laundry is not drying check that the filter is not clogged. IF YOU CLEAN FILTER UNDER WATER, REMEMBER TO DRY IT. t u

WARNING! If you open the door mid cycle, before the cool-down cycle has completed, he handle may be hot. Please se xtreme caution when attempting to empty the water reservoir during the cycle.

To Clean the Condenser Filter kickplate. 2. Turn the two locking levers anti-clockwise and pull out the front cover.

3. Gently remove the

filter frame and clean any dust or fluff with a cloth from the filter. Do not use water to clean the filter.4. Remove the sponge gently from its place and then wash the sponge by holding it under a running tap turning it so to remove any dust or fluff.5. Refit the front cover ensuring it is in the c o r r e c t w a y ( a s indicated by the arrow) and pushed firmly into place. Lock the two levers by turning them clockwise6. Refit the kickplate. R e m o v e t h e

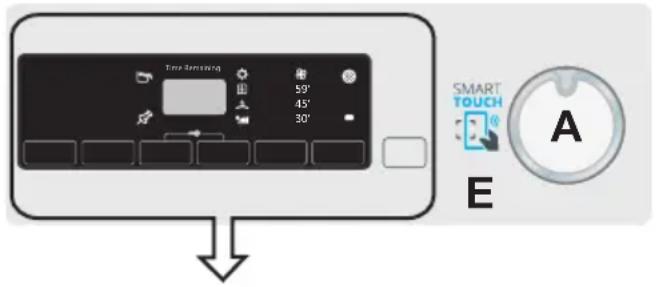

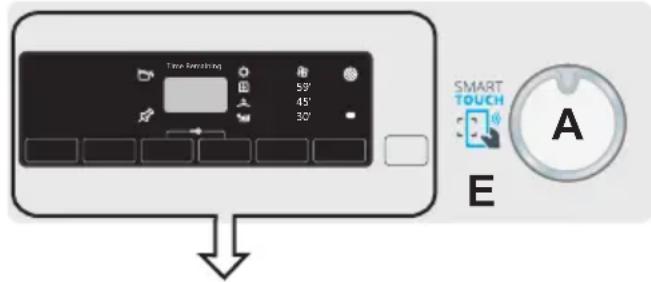

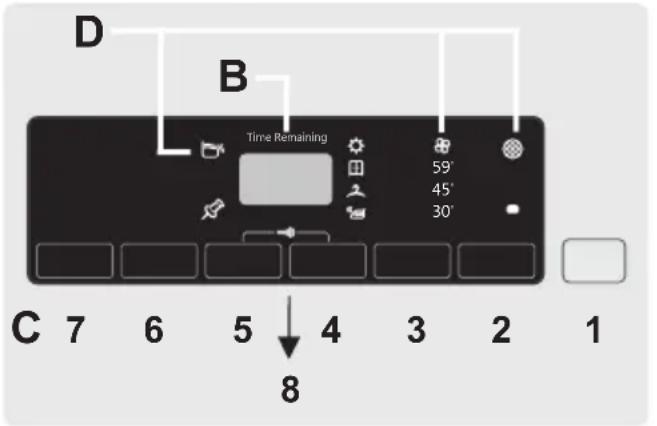

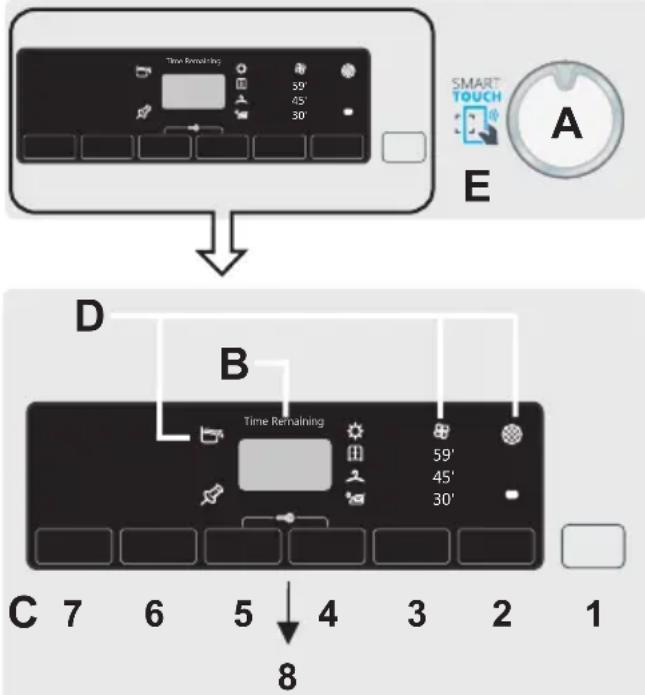

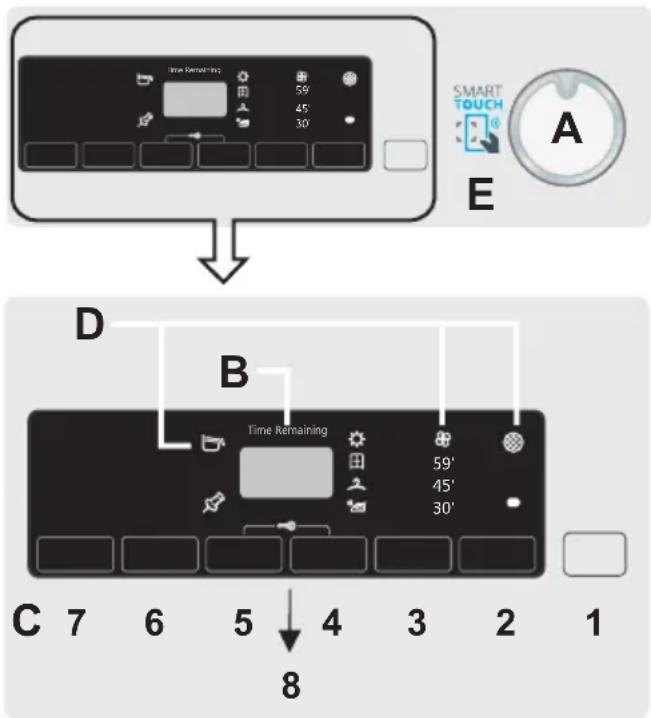

A-Programme Selector - Rotating the knob in both directions it's possible to select the desired drying program. To cancel the selections or switch off the dryer rotate the knob on OFF.B- Display Digit - The display shows the remaining time for drying, the postponed time in case of delayed start selection and other notifications setting.C-Buttons - 1.Start/Pause Button To start the selected program and/or suspend it.2.Super Easy Iron - This option allows to reduce folds and tangles, thanks to alternating movements of the drum during and after drying and automatically, setting the ironi drying level (the drying level setting can be modified after the option selection)The option ca be set up to five minutes after the start of the cycle and is activated only on automatic cycles. 3.Rapids Button - It's possible switch an automatic program to RAPID program, up to 3 minutes after the start of the cycle. The progressive pressure increases the time (30-45-59 minutes). After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.

30'30'45'45'59'59'Time RemainingTime Remaining4.Drying Selection ButtonIt allows to set the desired dryness level editable option up to 5 minutes after the starting of the cycle:- Ready to Iron : It leaves the garments slightly wet to facilitate ironing. - Dry Hanger : To get garment ready to be hang - Dry wardrobe : For laundry that can be directly stored -Extra-dry : To get completely dry garments, ideal for full load.This appliances is equipped with Drying Manager Function. On automatic cycles, each level of intermediate drying, prior to the reaching the selected one, is indicated by flashing the light indicator corresponding to the degree of d r y i n g r e a c h e d I n c a s e o f incompatibility, all LEDs flash quickly for 3 times.5.Delay Start Button - It allows to delay the start of the program from 1 to 24 hours in 1-hour intervals. The delay selected is shown on the display. After pressing the START button the time showed decrease hour after hour. Opening of the porthole with delayed start set, after re-closing the porthole, press start again to resume the counting. 6. Memo - This option allows you to store the options set on a cycle. STORAGE > When the cycle is running push the button "memory" for three seconds. The control light "memory" flashes for three times and stores the set options connected to the cycle selected in the flange. . Recall: After the selection of the cucle Push the button "memory" for recall the stored options (not the cycle) 7.Time cycle selection - It's possible transform a cycle from automatic to programmed, up to 3 minutes after the start of the cycle. The progressive pressure increases the time in 10-minute intervals. After this selection to reset the automatic dying functioning is necessary to switch off the dryer In case of incompatibility, all LEDs flash quickly for 3 times.Drying Guide The standard cycle COTTON DRY ( ) is the most energy efficient and best suited for drying normal wet cotton laundry. The table in last page shows the a p p r o x i m a te time a n d e n e r g y consumption of the main drying programmes. STechnical pecifications Drum capacity 115 Maximum load See energy label Height 85 cm Width 60 cm Depth 60 cm Energy class See energy label EN 61121 Programme To Use -DRY COTTON- COTTON OR -COTTON OR WHITES- OR SYNTHETICDELICATES -IRON DRY COTTON -EASY-CARE TEXTILE Information for Test Laboratory

Max. capacity declaredMax. 4 Kg Maximum Drying Weight CottonsSynthetics or Delicates The real duration of drying cycle depends by the starting humidity level of the laundry due to spin speed, type and amount of load, cleanliness of filters and ambient temperature.

Power consumption of off-mode 0,40 W Power consumption of on-mode 0,75 W D- Led Water tank - It lights up when it's necessary to empty the condensate water tank. Filter cleaning - It lights up when the cleaning of the filters is requested (the door and the lower filter.) Cooling - It lights up when the cycle is in the final cooling phase.

SMART TOUCH area - pressing the START/PAUSE button allows to a previously downloaded cycle to start whilst the Touch position is selected on the programme knob (for downloading cycles from the App see the relevant section of this user manual). The wool drying cycle of this mac hin e has bee n approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issues by the manufacturer of this machine. . In UK, Eire, Hong Kong and India the Woolmark trade mark is a Certification trade mark. M1530

This function allows to block unwanted changes of the set options on the bezel , during drying phase. Activation/ Inactivation: Push 4 and 5 buttons simultaneously for two seconds . The sign "LOC" appears on the display. Unlocking the option, on the display appears the sign "Unl", only once. In case of opening of 'porthole' with activated key lock, the cycle stops but the lock is kept: to restart the cycle, you must remove the lock and restore Start. When the dryer is off, the option is automatically inactivated. Key lock can be modified at any time of the cycle. Automatic Anti crease This option automatically activates an anti- creases movement of the drum, pre cycle in case of activation of the delay and at the end of drying cycle for 6 hours. It is activated every 10 minutes. To stop the movements set the knob to OFF Useful when it's not possible to remove immediately the laundry. Clean the filters before every cycle14

Mix & Dry This special cycles allows to shorten of 1/3 the drying time for Cotton loads, still assuring a high energy efficiency in A class.This special cycles allows to shorten around 1/4 the drying time for synthetics and mixed loads, still assuring a high energy efficiency in A class.15

SMART TOUCH This appliance is equipped with technology that allows you to interact, via the App, with smartphones based on Android operating system and equipped with NFC (Near Field Communication) function. Download on your smartphone the Smart Touch ● Candy simply-Fi App. The App is available for devices running both Android and iOS, both for tablets and for smartphones. However, you can interact with the machine and take advantage of the potential offered by Smart Touch only with Android smartphones equipped with NFC technology, according to following functional scheme: Candy simply-Fi Android smartphonewith NFC technologyInteraction with themachine + contentsAndroid smartphonewithout NFC technologyContents onlyAndroid TabletApple iPhoneApple iPadContents onlyContents onlyContents only FUNCTIONS The main functions available using the App are:

To download and Voice Assistant – A guide to help you choose the ideal cycle with only three voice inputs (clothes/fabrics, colour, drying level). ● Cycles – launch new drying programmes. Get all the details of the Touchfunctions, browsing the App in DEMOmode or go to:Smart www.candysmarttouch.com

FIRST TIME - Machine registration SMART "Settings" "Wireless & Networks" Enter the menu of your Android smartphone and activate the NFC function inside the menu. Depending on the smartphone modeland its Android OS version, theprocess of the NFC activation may be different. Refer to the smartphone manual for more details.

Open the App, create the user profile and register the appliance following the instructions on the phone display or the attached on the machine. Turn the knob to the Smart Touch position to enable the sensor on the dashboard.

"Quick Guide" More information, F.A.Q. and the video for an easy registration are available on: www.candysmarttouch.com/how-to

statistics and tips for a more efficient use of your machine. Smart Care – -Smart Check-up and a troubleshooting guide. ● My Statistics – Drying EN16

NEXT TIME – Regular usage Every time you want to manage the machine through the App, first you have to enable the mode by turning the knob to the indicator. Make sure you have unlocked your phone (from stand-by mode) and you have activated the NFC function then, follow the steps mentioned earlier. If you want to start a cycle, load the laundry and close the door. Select the desired function in the App (e.g.: starting a programme, the - cycle, update statistics, etc…). Follow the instructions on the phone display, the logo on the machine dashboard, when requested to do so by the App.

KEEPING IT ON Smart Touch NOTES: Place your smartphone so that the NFC antenna on its back matches the position of the Smart Touch logo on the appliance (as illustr below).

ate If you do not know the position of your NFC antenna, slightly move the smartphone in a circular motion over the logo until the App confirms the connection. In order for the data transfer to be successful, it is essential TO KEEP THE SMARTPHONEON THE DASHBOARD DURING THESE THE FEW SECONDS OF THE PROCEDURE; a message on the device will inform about the correct outcome of the operation and adviseyou when it is possible to move thesmartphone away.

Thick cases or metallic stickers on your smartphone could affect or prevent the transmission of data between machine and telephone. If necessary, remove them.

The replacement of some components ofthe smartphone (e.g. back cover, battery,etc...) with non-original ones, could result in the NFC antenna removal, preventing the full use of the App.

The management and the control of themachine via App is only possible "by proximity": it is therefore not possible to perform remote operations (e.g.: fromanother room; outside of the house).

WIRELESS PARAMETERS With this the Candy Hoover Group Srl, declares that this appliance marked with complies with the essential requirements of the Directive 2014/53/EU. To receive a copy of the declaration of c o n f o r m i t y, p l e a s e c o n t a ct t h e manufacturer at: www.candy-group.com Wireless StandardISO/IEC 14443 Type A and NFC Forum Type 4Frequency bandMagnetic field limit13,553-13,567 MHz (centre frequency 13,560 MHz)< 42dB A/m (at 10 meters)μParameterSpecifications17

TROUBLESHOOTING What Might be the Cause of... Defects you can remedy yourself Before calling service for technical advice please run through the following checklist. A charge will be made if the machine is found to be working or has been installed incorrectly or used incorrectly. If the problem persists after completing the recommended checks, please call Service, they may be able to assist you over the telephone. Time display to end could change during drying cycle. The time to end is continuously checked during the drying cycle and the time is adjusted to give the best estimation time. The displayed time may increase or decrease during the cycle and this is normal. Drying time is too long/clothes are not dry enough… The dryer does not operate…

● Has the machine been switched on again after opening the door Have you selected the correct drying time/programme? ● Were the clothes too wet? Were the clothes thoroughly wrung or spindried? ● Does the filter need cleaning? ● Is the dryer overloaded? Is there a working electricity supply to the dryer? Check using another appliance such as a table lamp. ● Is the plug properly connected to the mains supply? ● Is there a power failure? ● Has the fuse blown? ● Is the door fully closed? ● Is the dryer switched on, both at the mains supply and at the machine? ● Has the drying time or the programme been selected? The dryer is noisy…The Indicator is on…The Indicator is on…

Switch off the dryer and contact GIASService for adviceDoes the filter need cleaning Does the water container need emptying?CUSTOMER SERVICE Should there still be a problem with your dryer afte r com p l e t i n g al l th e recommended checks, please call service for advice. They may be able to assist you over the telephone or arrange for a suitable appointment for an engineer to call under the terms of your guarantee. However, a charge may be made if any of the following applies to your machine: ● Is found to be in working order. the installation instructions. ● Has been used incorrectly. ● Has not been installed in accordance with Spares Service Always use genuine spares, available direct from ervice. s For service and repairs call your local ervice engineer.s The manufacturer declines all responsibility in the event of any printing mistakes in this booklet. Themanufacturer also reserves the right to make appropriate modifications to its products without changing the essential characteristics.

The app has a function that allows you to confirm the functionality and status of the product at any time. To use the you will need an Android smartphone with NFC technology.More info can be found on the App.If the display of the machine is showing an error (by a code or blinking LEDs), you should turn on the App on your Android smartphone, with NFC on, Candy simply-Fi Smart Check-upCandy simply-Fi APPselecting "Read the error" on the "Help on line" menu place your smart phone against the Smart Touch logo on the control panel. You should now be able to read the fault directory to solve the issue. EN18

(A) (B) (C) ( 1 ) (2)
