Product type	Radio alarm clock
Brand	Dcybel
Model	Clockwise
Power supply	230 V~, 50 Hz, 4 W
FM frequency band	87.5 MHz - 108 MHz
Backup batteries	2 AAA batteries (not included)
Number of alarms	2
Alarm sounds	Bird chirps, Waves, Tropical forest, Waves with seagulls, FM
Snooze function	Yes (9 minutes)
Projector	Yes, adjustable, max distance 3 m
Station memory	Up to 20 FM stations
Sleep function	10 to 90 minutes (in 10-minute intervals)
Screen brightness adjustment	Yes (multiple levels)
Antenna	Wired antenna (FM)
Display	Digital
Use	Household use only
Compliance	European safety and electromagnetic compatibility standards
Maintenance	Unplug before cleaning, do not use abrasive products
Safety	Do not expose to water, do not open the device
Rating plate	Under the device

Frequently Asked Questions - Clockwise DCYBEL

How to set the time on the radio alarm clock?

Press and hold TIME/MEM until the hour digits flash. Use TUNE- or TUNE+ to set the hour, then press TIME/MEM to confirm. The minutes will then flash; set them in the same way. Finally, the day of the week flashes: set it with TUNE- or TUNE+ (1=Monday, 2=Tuesday... 5=Friday, Weekend=Saturday and Sunday) and confirm with TIME/MEM.

How to set an alarm?

In standby mode, press and hold VOL+/AL2 for alarm 2 (or VOL-/AL1 for alarm 1) until the hours flash. Set the hour with TUNE- or TUNE+, then confirm with the same alarm button. The minutes will then flash; set and confirm. Choose the alarm sound (chirps, waves, tropical forest, FM) with TUNE- or TUNE+, confirm. Finally, choose the alarm days (1-5, weekend, or 1-7) with TUNE- or TUNE+ and confirm.

How to use the projection function?

Press the PROJECTOR button to turn on the projector. Adjust the lens to direct the projection onto a wall or ceiling. The projected time is visible in a dark room up to 3 meters. To turn off, press PROJECTOR again. Do not look directly into the beam.

How to memorize a radio station?

First set the desired frequency with TUNE- or TUNE+. Press and hold PRESET until 'P' and a number flash. Use TUNE- or TUNE+ to select a location (01 to 20), then press PRESET to confirm. The station is memorized.

How to adjust the screen brightness?

Press the SNOOZE/DIMMER button repeatedly to cycle through the available brightness levels. Choose the one that suits the ambiance.

What to do if the radio alarm clock does not turn on?

Check that the device is properly plugged into a working electrical outlet. Make sure it is not in standby mode: press POWER to turn it on. If the problem persists, try replacing the backup batteries (2 AAA batteries) located in the compartment under the device.

How to install the backup batteries?

Open the cover of the battery compartment located at the bottom of the device. Insert two AAA batteries respecting the polarities (+/-). Close the cover. These batteries preserve the settings in case of a power outage.

How to use the sleep function?

In radio mode, press SLEEP repeatedly to select the listening duration (from 10 to 90 minutes in 10-minute intervals). The radio will automatically turn off after this time. To check the remaining time, press SLEEP once. To cancel, press until the symbol disappears from the screen.

How to stop the alarm?

When the alarm sounds, press POWER to stop it completely for that day. The alarm will ring again at the same time the next day. To use the snooze, press SNOOZE/DIMMER; the alarm will stop and ring again after approximately 9 minutes.

How to clean the radio alarm clock?

Always unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use abrasive products, solvents, or water that could penetrate inside.

USER MANUAL Clockwise DCYBEL

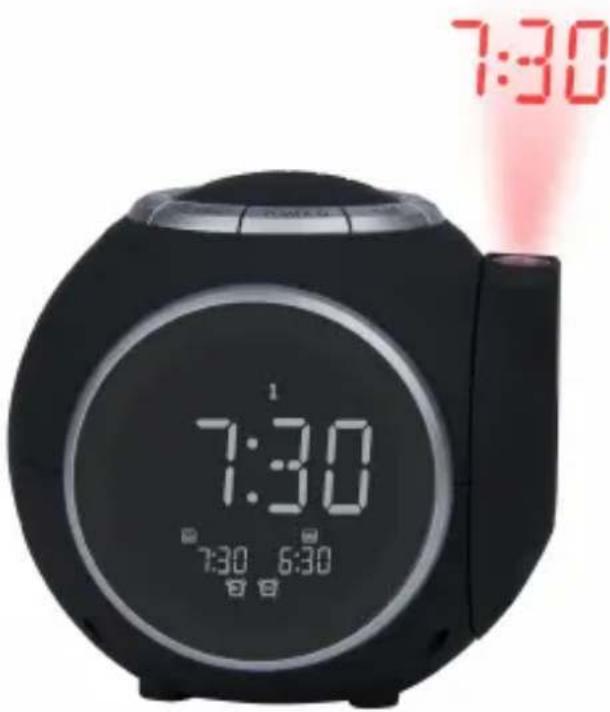

CLOCK RADIO WITH PROJECTION RADIO RÉVEIL AVEC PROJECTION WEKKERRADIO MET PROJECTIE

MODEL Clockwise

Downloaded from www.vandenborc.be

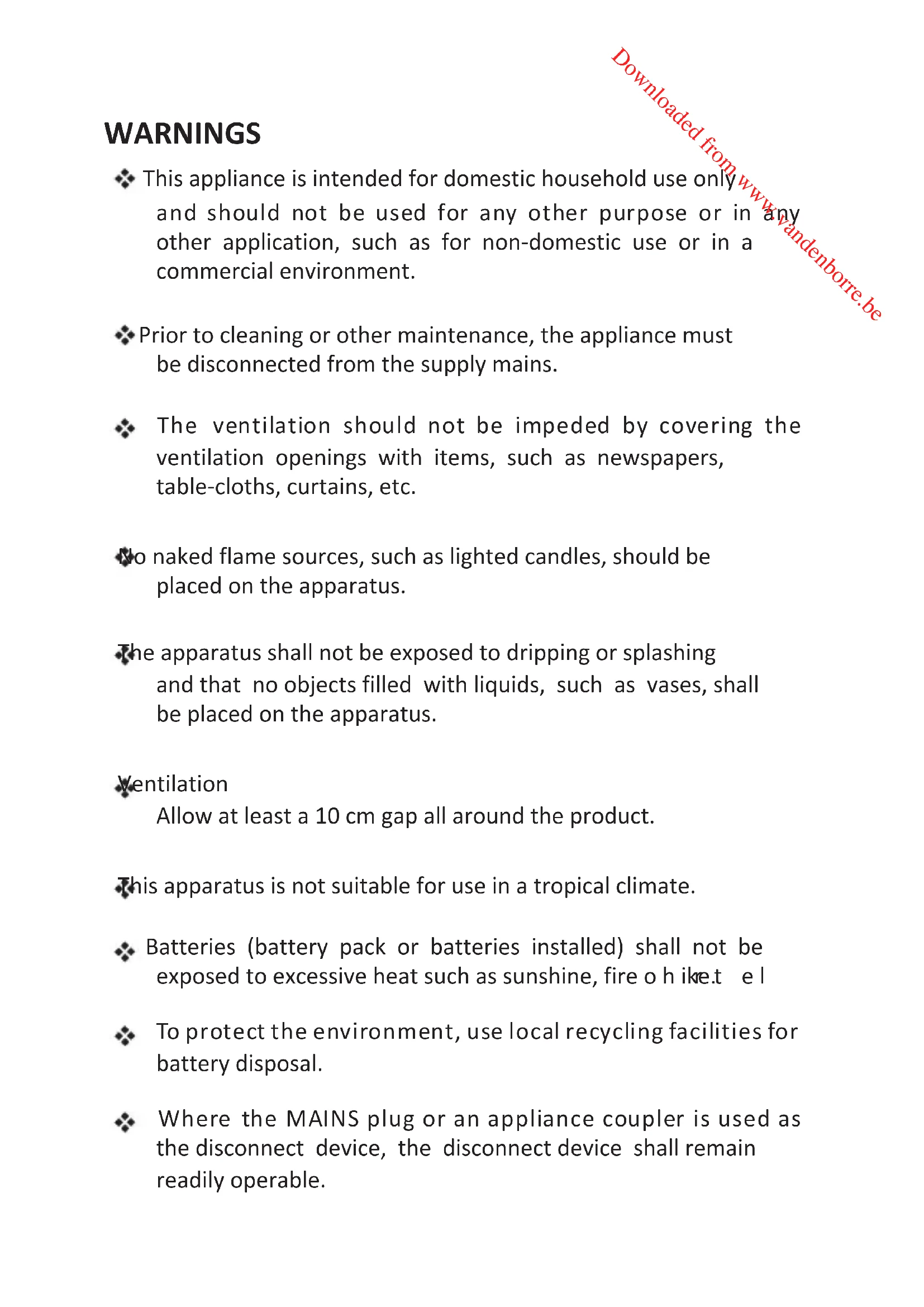

WARNING

This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment.
Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.
The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
Noaked flame sources, such as lighted candles, should be placed on the apparatus.
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
Ventilation

Allow at least a 10 cm gap all around the product.

This apparatus is not suitable for use in a tropical climate.
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire o h ike.t e l
To protect the environment, use local recycling facilities for battery disposal.
Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

IMPORTANT SAFETY INSTRUCTIONS

• Disconnect your clock radio from the mains power supply during thunderstorms.
• Always check that you have completely switched off your clock radio before you unplug the clock radio from the mains socket.
• Do not leave the clock radio in low temperatures and moisture can form inside the product, which may damage the circuit board.
• Do not leave the clock radio in high temperatures as electronic devices and plastic parts may warp in heat.
• Do not block or cover slots, holes or openings on the product by placing on soft furnishings such as carpets, rugs or beds as these are provided for functionality and/or ventilation to ensure safe operation of the product.
• Do not attempt to open the product. This product does not contain any user serviceable parts.
• Do not use your clock radio near emergency/intensive care medical equipment or If you have a pacemaker fitted or during the electrical storm.
• For household use only. Do not use outdoors.
• The marking plate is located on the bottom of the apparatus.

Symbol

This mark is applied to show the equipment conforms to European safety and electro-magnetic compatibility standards.

Battery handling and usage

Only adults should handle the batteries (not included). Do not allow a child to use this unit unless the battery cover is securely attached to the unit.

The battery type used in the unit is two AAA size batteries which are accessible and can be replaced.

Remove the battery cover from the unit and then remove the batteries.

LOCATION OF CONTROL

1.PROJECTOR
2. SLEEP
3. Speaker
4. botan/AL1
5. button/AL2

SNOOZE

1. button
2. BOUTNER
3. bultone
4. button +
5. Projection lens
6. b
7. button/MEM

BACKUP BATTERY INSTALLATION

We recommend that you use the backup batteries for your clock radio. With the backup batteries (2xA not supplied), your clock radio will retain your clock and alarm settings during power outages.

1. Remove the battery cover on the bottom of the unit.
2. Install two batteries into the battery compartment observing the correct polarities.
3. Attach the battery cover back to the unit.

IMPORTANT:

• Be sure that the batteries are installed correctly. Wrong polarity may damage the unit.
• Use only the specified size and type of battery.
• Do not mix old and new batteries.
• If the unit is not to be used for an extended period of time, remove the batteries. Old or leaking batteries can cause damage to the unit.
• Do not dispose of batteries in fire as they may explode.

SETTING THE CLOCK

1. Place the unit on a flat stable surface.

2. Plug the power adapter into the mains socket.

3. "0:00" will be displayed and the unit will go to standby state.

4. Press and holdTIME/MEM until the hour digit flashes.

5. While the hour digit is flashing, repeatedly press or press & hold to set the correct hour. Press to confirm

The minute digits will flash on the display.

1. While the minute digits are flashing, repeatedly press or press & hold to set TUNE+ the correct minutes. Press Time/TEM

2. "1" will flash on the display.

3. While the day of the week if flashing, repeatedly press or press &TONE- to set TUNE+ the correct day of the week. Press to calm

The day of the week displayed:

1 = Monday
2 = Tuesday
3 = Wednesday
4 = Thursday
5 = Friday

weekend = Saturday & Sunday

1. To turn on the radio, press POWER

2. Tune in to the desired station by repeatedly pressing TUNE+

3. The wire aerial located on the rear of the unit is for FM reception. The wire should be fully extended and positioned for optimum reception.

Press and hold for about 2 seconds and then release the button, the unit will scan the frequencies until a broadcasting station strong enough for good reception is found.

Automatic search: Press TIME/MEM. Your clock radio will auto scan for FM radio stations and automatically store them to the radio preset locations.

1. Repeatedly press to adjust the volume 2

2. To turn off the radio, press POWER

PRESETTING YOUR FAVOURITE RADIO STATION

Up to 20 FM radio stations can be preset.

1. Follow steps in "LISTENING TO THE RADIO" and tune in to the station that you wish to preset.

2. Press and hold Prrs with a flashing number "01" is shown on the display.

3. Repeatedly press TUNE- Tto select the desired memory slot.

4. Press again to store the station.

5. Repeat steps above to store desired stations.

To listen to preset radio stations, repeatedly press to select the desired radio station.

Before setting the alarm time, make sure the Clock has been set.

Setting Alarm 1 and/or Alarm 2

1. In standby state, press and hold VOL-/AL1 VOL until the hour digit flashes.

The alarm symbol / will appear on the display.

1. While the hour digit is flashing, repeatedly press or press T h o n e - / T l n e + to set thehour.

2. Press VOL-/AL1/votconf12

The minute digits will flash on the display.

1. While the minute digits are flashing, repeatedly press or press TUNE/TUNE+ to set the minutes.

2. Press VOL+AL1.VOL+/AL2

3. A wake-up sound symbol will flash on the display.

4. While this symbol is flashing, you can press MTo select the desired wake-up sound

Bird chirps Ocean waves Rainforest ambience

Waves with seagulls FM radio

1. Press V to confirm. VOL+/AL2

2. The alarm day symbol will flash on the display.

3. While this symbol is flashing, repeatedly press to select the desired alarm day.

The alarm days are:

1 2 3 4 5 = Monday to Friday

weekend = Saturday and Sunday

weekend 1 2 3 4 5 = Monday to Sunday

1. Press Volconl1 VOL+/AL2

To Stop Alarm(s)

When alarm 1 or 2 is sounding, the alarm sy or will flash on the display.

Press POWER to stop the alarm. The alarm will sound again at the same time on the following day

Snoopze Function

SNOOZE When the alarm sounds, pressDIMMER . The alarm will be turned off and come on again after ab 9 minutes.

To Cancel Alarm(s)

If you want to cancel the alarm 1 and/or 2, in standby state press/AL1 and/or VOL+/AL2

The alarm symbol (s) and/or will disappear from the display whilst the symbol will be displayed.

SLEEP TIMER

The sleep timer lets you decide how long you want to listen to a radio station of your choice before asleep.

1. In FM radio mode, repeatedly press to set the desired sleep time from 10 to 90 minutes in 10-minute increments.

The display will show the set sleep time and symbol

1. The radio will be turned off after the set sleep time has elapsed.

To check remaining sleep time, press SLEEP

To turn off the radio before the sleep time has elapsed, repeatedly press until the symbol disappears from the display.

SETTING THE BRIGHTNESS OF THE DISPLAY

Repeatedly press SNOOZE to change the brightness of the display according to your ambient light conditions.

USING THE PROJECTOR

The projector function allows you to display the time on a nearby wall or ceiling. The projected time c be best viewed at a dark room at a maximum distance of 3 metres.

1. Press Project on the projector.

2. Adjust the projector to change the angle of rotation at which the time appears.

3. Do not stare into the lens directly.

4. To turn off the projector, press PROJECTOR

TROUBLESHOOTING

No sound / power.

• Increase the volume by repeatedly presO1+/A12.
• Check that the unit is plugged in.
• Check that the unit is not in standby state. Press to run on the unit.

Radio reception is poor.

• Fully extend the wire aerial to get the best reception and sound quality.
• Retune for radio stations, refer to Listening to the Radio.
• Try moving your clock radio to another location to see if reception improves.
• Check that you do not have other electrical equipment too close to your clock radio, causing interference.

SPECIFICATIONS

Power input: AC 230V~, 50Hz
Power consumption:	4W
FM Frequency range:	87.5 MHz to 108 MHz

DISPOSAL

As a responsible retailer we care about the environment.

As such we urge you to follow the correct disposal procedure for the product, packaging materials and if applicable, accessories and batteries. This will help conserve natural resources and ensure that the materials are recycled in a manner that protects health and the environment.

You must follow laws and regulations about disposal. Waste electrical products and

batteries must be disposed of separately from household waste when the product reaches the end of its life.

Contact the store where you bought the product and your local authority to learn about disposal and recycling.

The batteries must be disposed of at your local recycling point.

We apologise for any inconvenience caused by minor inconsistencies in these instructions, which may occur as a result of product improvement and development.

Darty Holdings SAS © 14 route d'Aulnay 93140 Bondy, France 07 / 09 / 2016
