CTS9CEX - Range hood CANDY - Free user manual and instructions
Find the device manual for free CTS9CEX CANDY in PDF.
| Product type | Range hood |
| Brand | Candy |
| Model | CTS9CEX |
| Recommended distance above cooking surface | 65 to 75 cm |
| Air outlet diameter | 150 mm |
| Number of speeds | 3 (minimum, intermediate, maximum) + booster function |
| Lighting | LED (max 1.5 W), replacement requires bulb + socket + cable assembly |
| Grease filter type | Metal, monthly cleaning |
| Activated carbon filter | Optional for recirculation mode, annual replacement |
| Exhaust mode | External (ducted) or recirculation with carbon filter |
| Power supply | 220-240 V, 50 Hz (estimated) |
| Electrical class | I (grounding mandatory) |
| Recommended fuse | 3 A |
| Materials | Glass, metal |
| Maximum number of cooking zones above | 4 |
| Regular maintenance | Clean the grease filters every month |
| Carbon filter replacement | At least once a year |
| Warranty | Not specified, refer to the warranty certificate |
Frequently Asked Questions - CTS9CEX CANDY
User questions about CTS9CEX CANDY
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Range hood in PDF format for free! Find your manual CTS9CEX - CANDY and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CTS9CEX by CANDY.
USER MANUAL CTS9CEX CANDY
- Before installation, turn off the appliance and disconnect it from the power supply.

- For optimal performance, the cooker hood should be installed at a height of 65~75 cm above the hob/cooking surface.

For angled panel models
- drill 2x8mm additional holes and insert the fixing screws and locking screws before installation

- Lift the hood and hang it on the wall bracket using the hook.

For internal ventilation, an active carbon filter is used to filter smoke and steam. Before installing the active carbon filter, first remove the grease filter. Press the latch and pull the filter downwards.


CLOSE
IMPORTANT NOTE:
o Make sure the active carbon filter is securely and correctly fastened. Otherwise, it may loosen and cause a hazard. o With the active carbon filter installed, the suction power of the cooker hood will be reduced.
DESCRIPTION OF COOKER HOOD PARTS
CONFIGURATION 1




CONTROL BUTTONS
Button 1


Note:
INSTALLATION AND USER'S MANUAL
CONTENT
INTRODUCTION 35
SAFETY PRECAUTION 35
SPECIFICATION 37
INSTALLATION (VENT OUTSIDE) 38
INSTALLATION (VENT INSIDE) 43
DESCRIPTION OF COMPONENTS 44
OPERATION 44
MAINTENANCE 47
TROUBLESHOOTING 48
CONFORMITY WITH DIRECTIVES 48
ENVIRONMENTAL PROTECTION 49
INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required instructions related to the installation, use and maintenance of the appliance. In order to operate the unit correctly and safely, please read this instruction manual carefully before installation and usage.
The cooker hood uses high quality materials and features a streamlined design. Equipped with a large power electric motor and centrifugal fan, it provides strong suction power, low noise operation, non-stick grease filter, and easy installation.

By placing the marking on this product, we declare, on our own responsibility, compliance with all European safety, health, and environmental requirements stated in the legislation for this product.
SAFETY PRECAUTIONS
Never let children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, shops, or other commercial purposes.
The cooker hood and its filter should be cleaned regularly to keep it in good working condition.
Clean the cooker hood according to the instruction manual and keep the unit away from fire hazards.
Do not place the cooker hood directly above a gas cooker with an open flame.
Please ensure good ventilation in the kitchen.
Before connecting this appliance, check that the power supply cord is not damaged. A damaged supply cord must be replaced by qualified service personnel only.
There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
Regulations concerning the discharge of air must be fulfilled.
This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not flambé under the range hood.
CAUTION: Accessible parts may become hot when used with cooking appliance
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek advice from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or electrical shock.
Electrical Installation
All installation must be carried out by a competent person or qualified electrician. Before connecting the mains supply ensure that the mains voltage corresponds to the voltage on the rating plate.
Direct Connection
The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.
The installer must ensure that the correct electrical connection has been made and that it complies with the wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

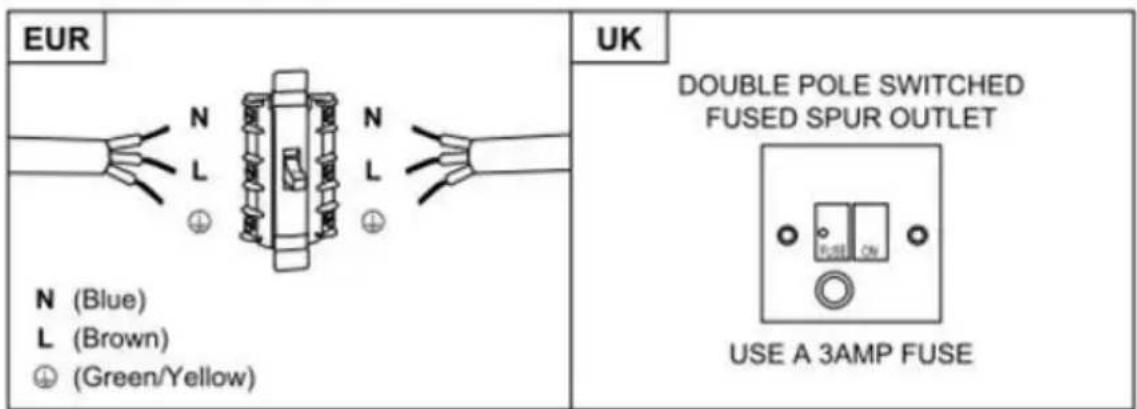

WARNING: This is a Class I appliance and MUST be earthed
This appliance is supplied with a 3 core mains cable coloured as follows:
Brown = L or Live
Blue = N or Neutral
Green and Yellow = E or Earth


The fuse must be rated at 3 Amps.
Standard Installation Accessories List
| Spec. | Illustration Picture | Qty |
| Casing | ![]() | 1 |
| Upper Chimney | ![]() | 1 |
| Lower Chimney | ![]() | 1 |
| Lower chimney bracket | ![]() | 1 |
| Upper chimney bracket | ![]() | 1 |
| Hanging Board | ![]() | 1 |
| φ8 rawl plugsφ8×φ6 white color | ![]() | 9 |
| ScrewsST4.0×30 | ![]() | 9 |
| φ7.2screwsST4.0×8 | ![]() | 2 |

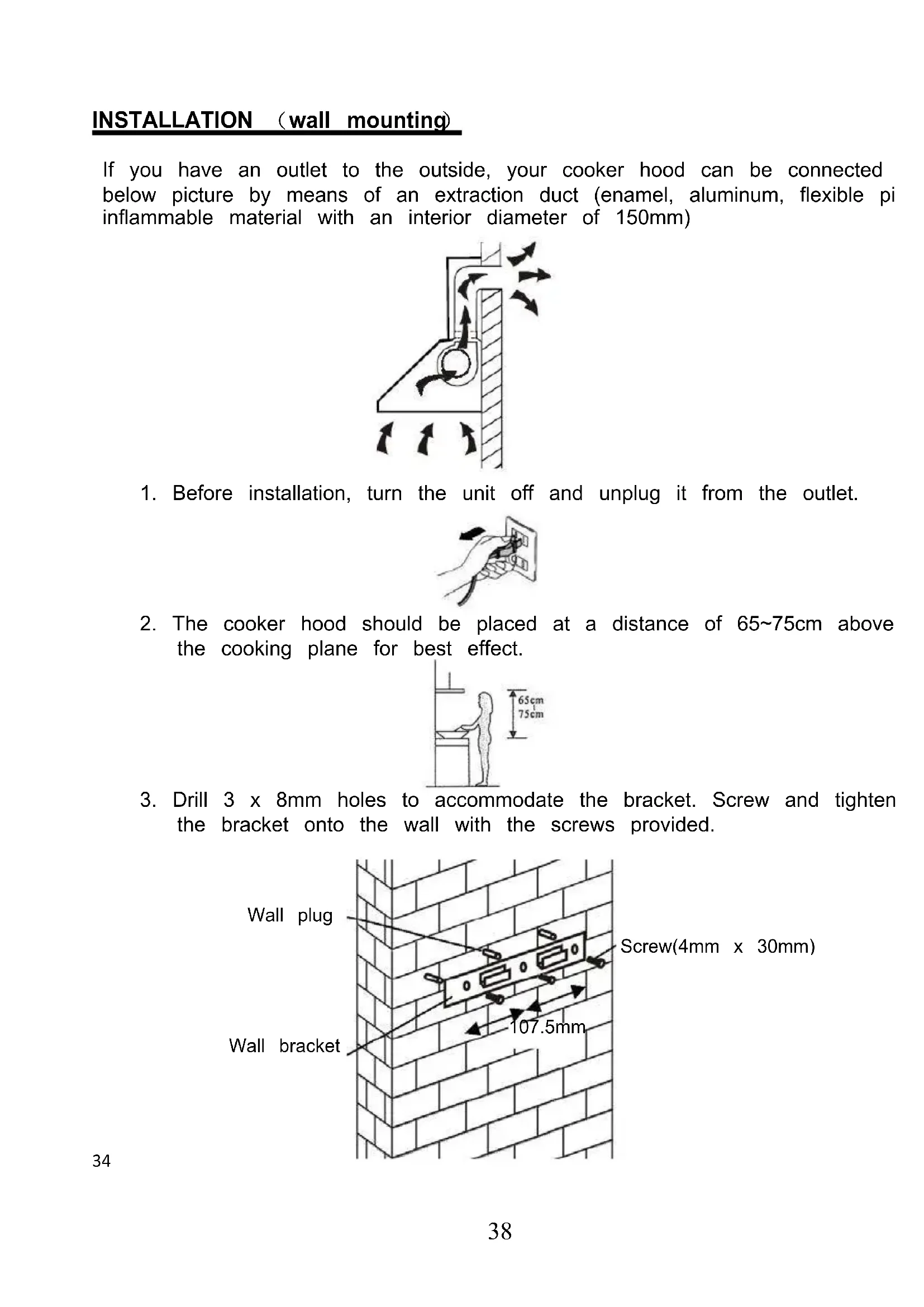

If you have an outlet to the outside, your cooker hood can be connected below picture by means of an extraction duct (enamel, aluminum, flexible pipe made of non-flammable material with an interior diameter of 150mm)

- Before installation, turn the unit off and unplug it from the outlet.

- The cooker hood should be placed at a distance of 65~75cm above the cooking plane for best effect.

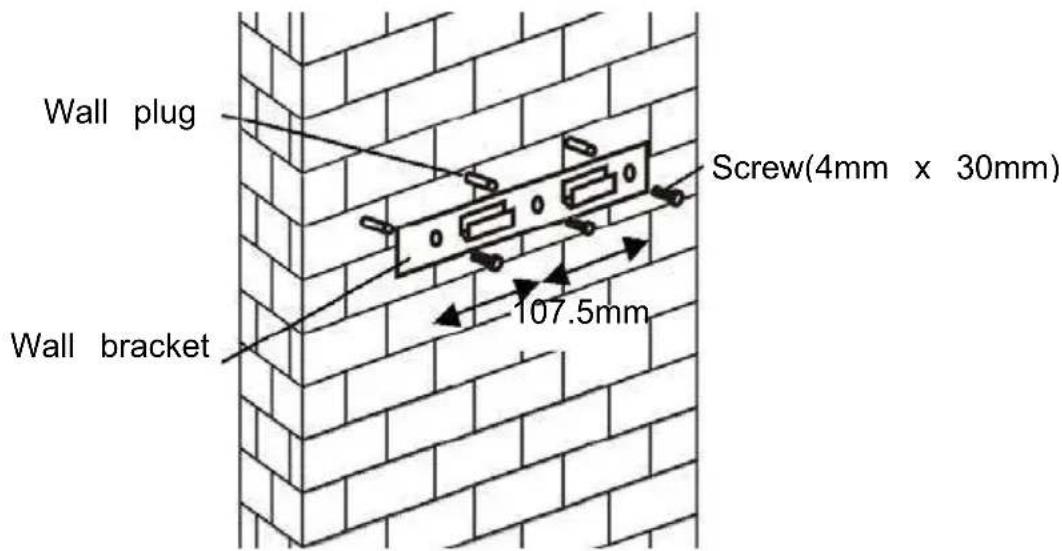

- Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten the bracket onto the wall with the screws provided.

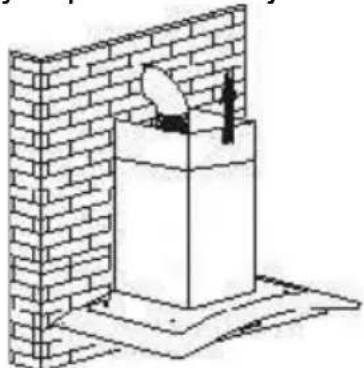

For inclined panel Model
Need to drill 2x8mm extra holes & fixing screws & screw plugs before installation. For inclined models

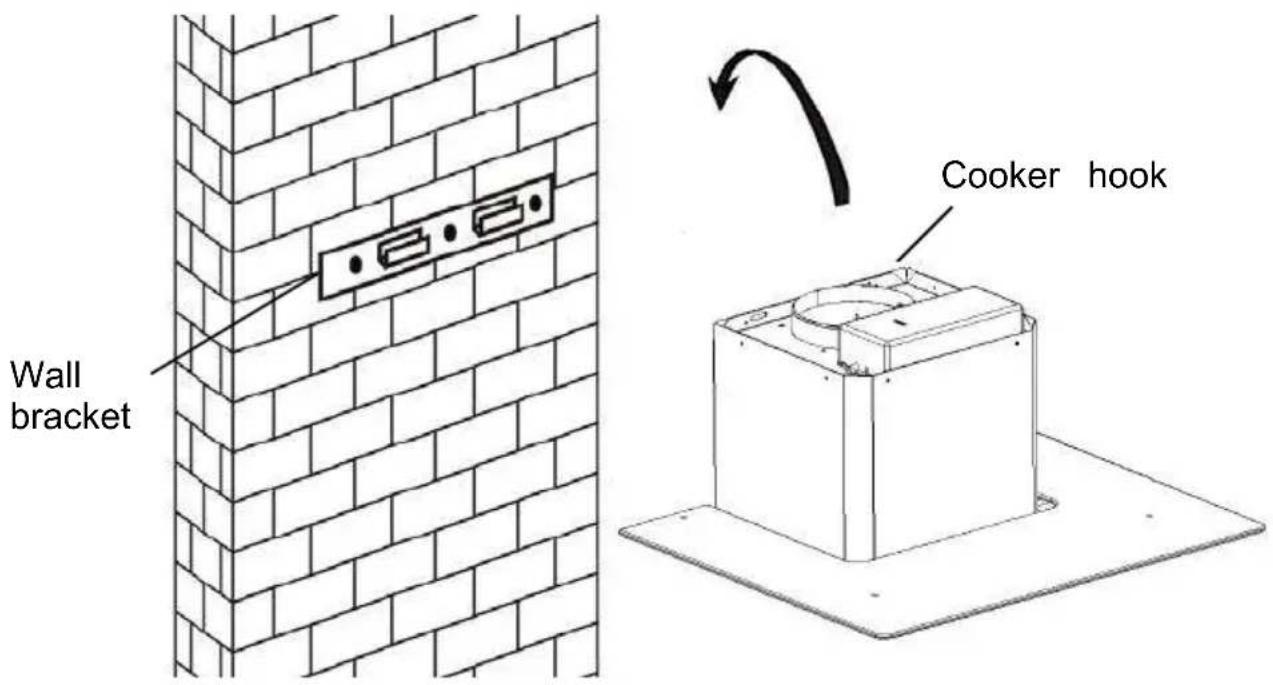

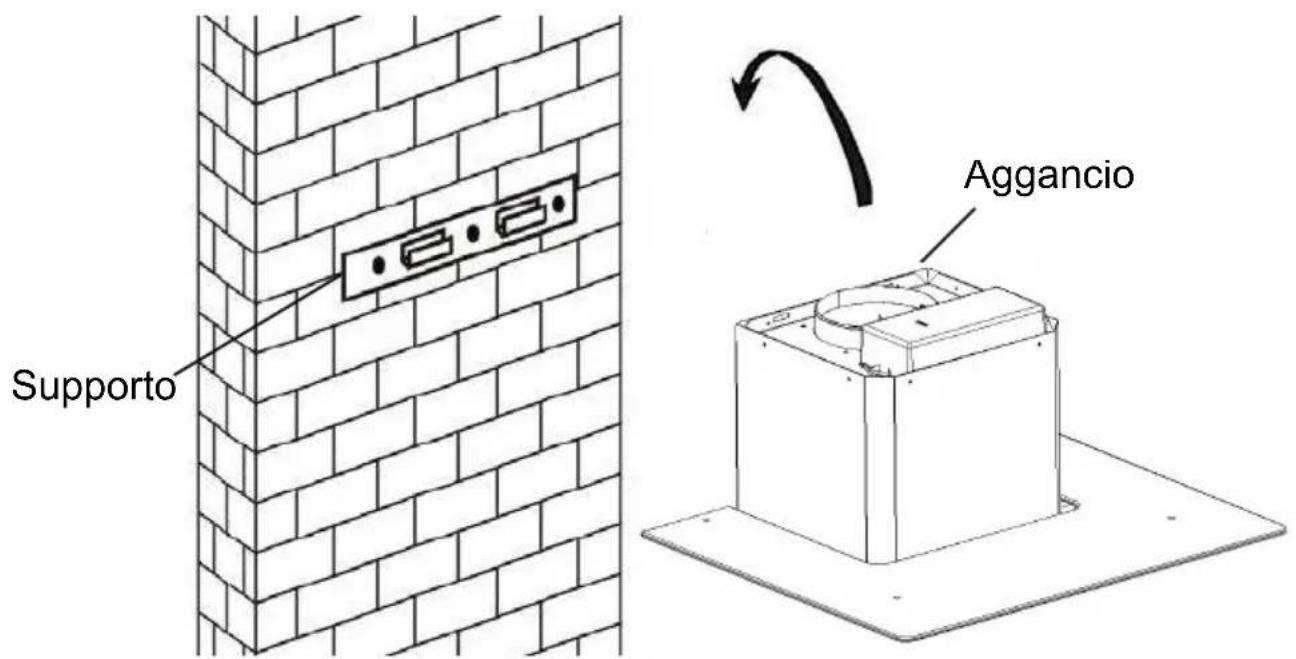

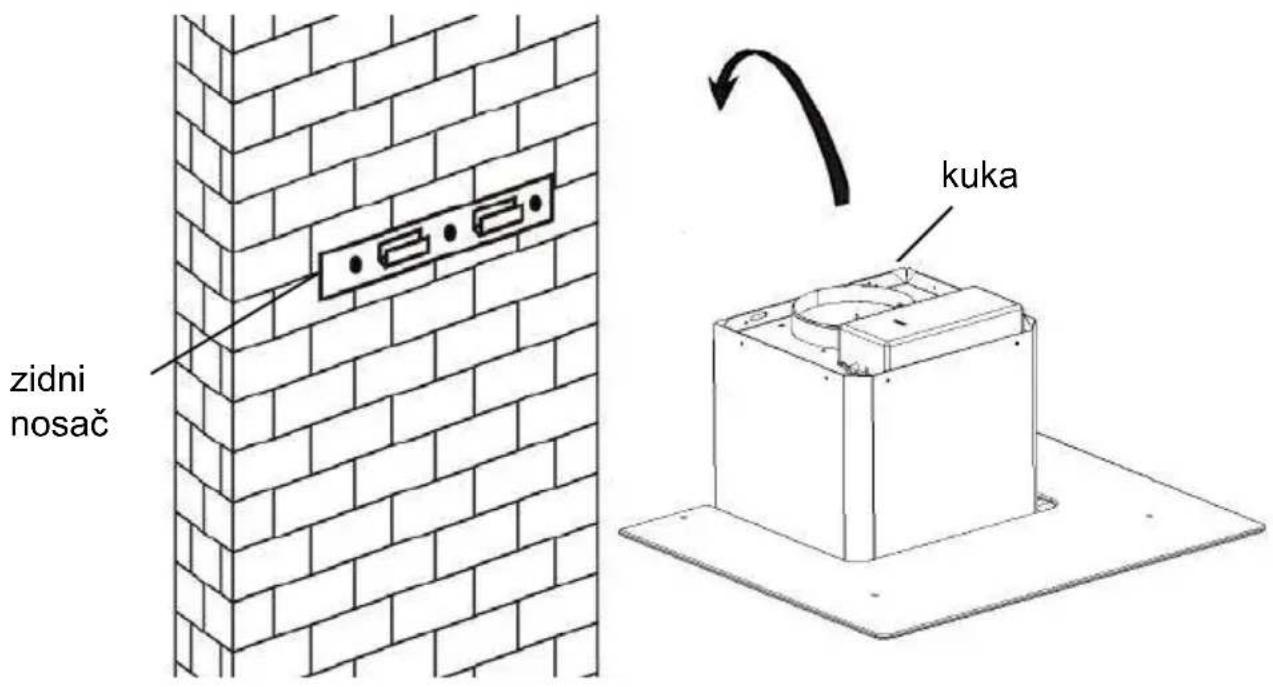

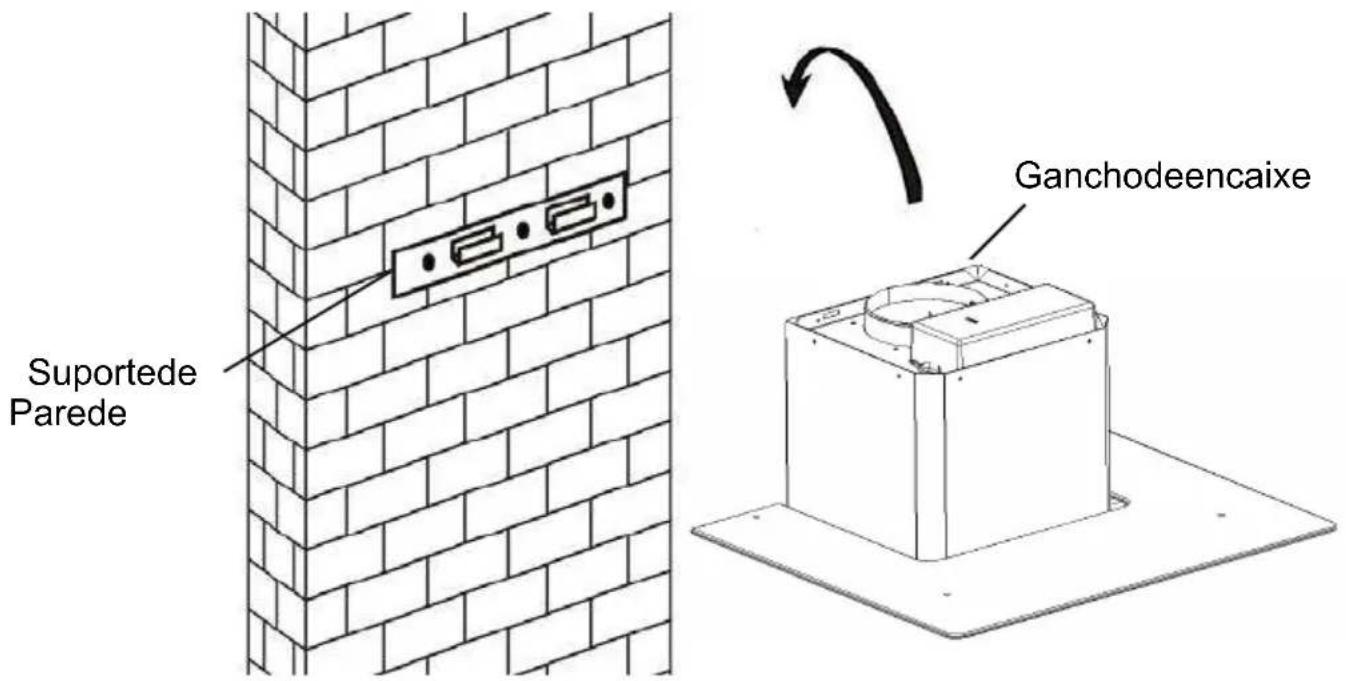

- Lift up the cooker hood and hang onto the wall bracket hook.

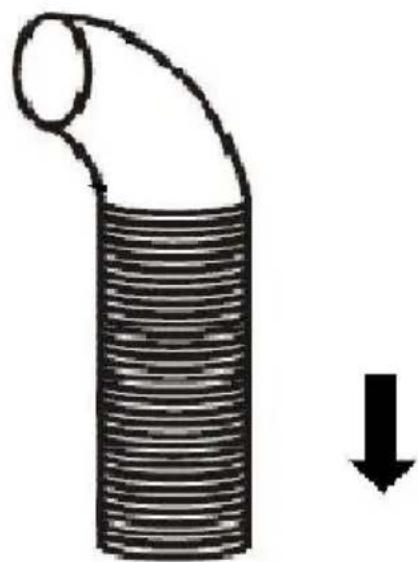

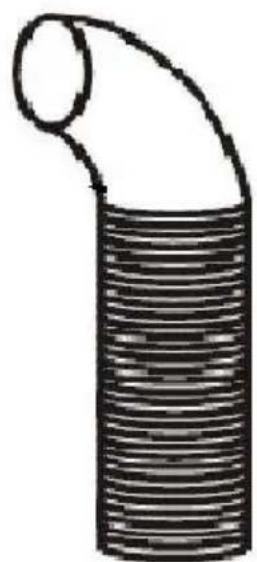

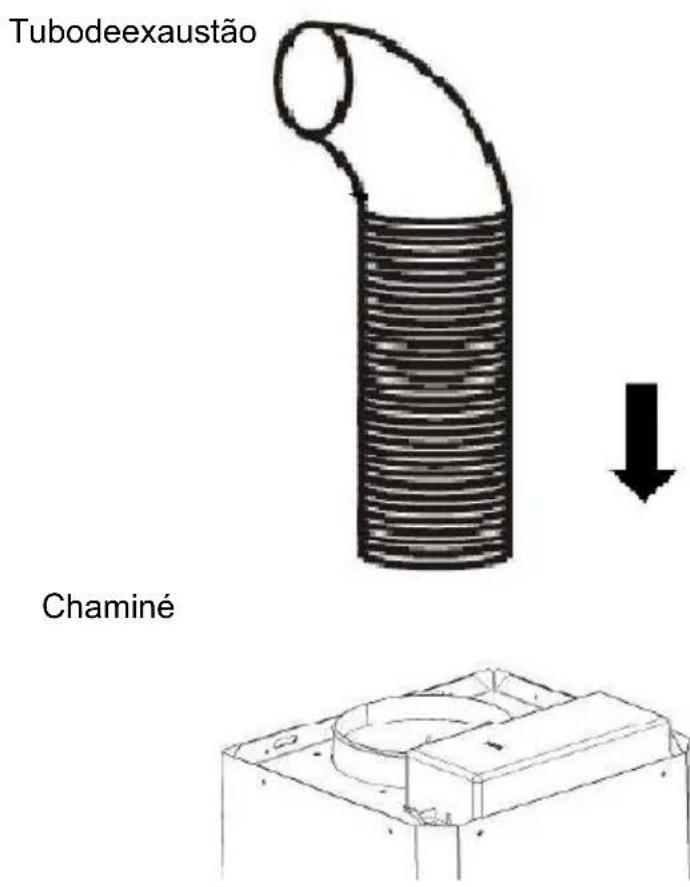

- Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below.
Exhaust pipe
Cooker hood

6.
i. Place the glass in the appropriate position on top of the cooker hood.
ii. Fix it with 4 screws and washers. To avoid cracking the glass, do not tighten the screws too strongly.

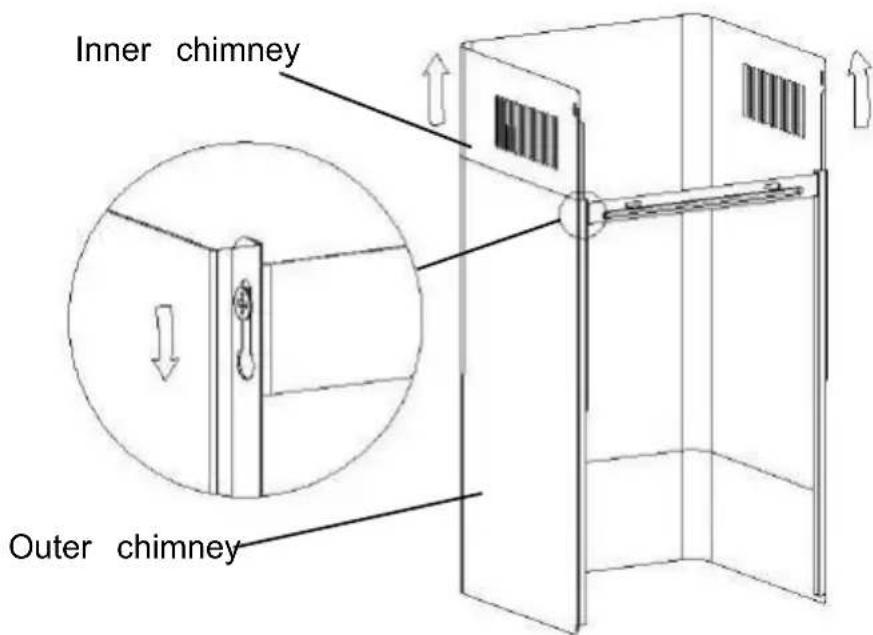

i. Insert the inner chimney into the outer chimney. Then pull the inner chimney upwards to adjust to the required height.

ii. Slide the chimney to adjust its height. When the desired height is reached, hang the fixing holes onto the screws as shown in the pictures below.

8.
i. Drill 2 x 8mm holes to accommodate plate II. Screw and tighten plate II onto the wall using the 2 screws provided. ii. Assemble the chimney onto the unit and fix it with 2 screws.

INSTALLATION (VENT INSIDE)
If you do not have an outlet to the outside, an exhaust pipe is not required. The installation is similar to the one shown in the section "INSTALLATION (VENT OUTSIDE)".

Activated carbon filters can be used to trap odors.

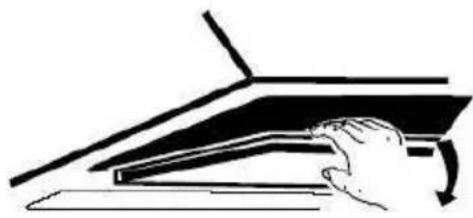

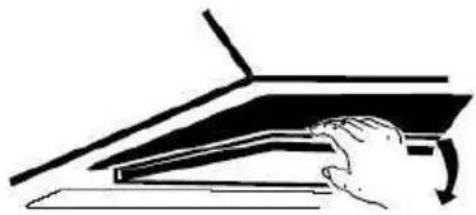

To install the activated carbon filter, first detach the grease filter. Press the lock and pull it downward.

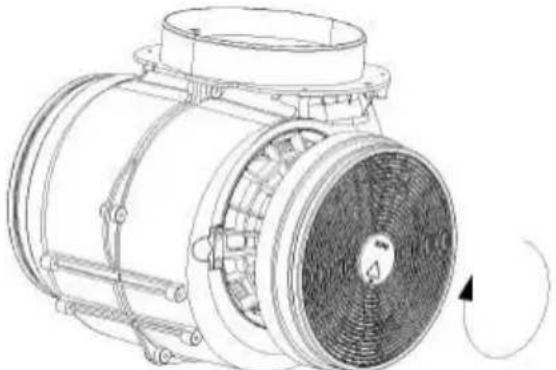

Plug the activated carbon filter into the unit and turn it clockwise. Repeat the same on the other side.

NOTE:
o Make sure the filter is securely locked. Otherwise, it could loosen and cause danger. o When the activated carbon filter is attached, the suction power will be lower.
CONFIGURATION 1




OPERATION
Button 1

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at low speed. Pressing it again turns off the fan.
It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.
Button 2

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at medium speed. Pressing it again turns off the fan.
This airflow speed is ideal for ventilation during standard cooking operations.
Button 3

This button has an indicator backlight. When you press it, the backlight turns on and the fan turns on at high speed. Pressing it again turns off the fan.
When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.
NOTE: If the Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.
Light button

CONFIGURATION 2





OPERATION
Off button 0
It is used to turn off the fan.
Low Speed button

It is used for ventilation in the kitchen. It is suitable for simmering and cooking that do not produce much steam.
Medium Speed button

2
Airflow speed is ideal for ventilation during standard cooking operations.
High Speed button

3
When high density of smoke or steam is produced, press the high-speed button for the most effective ventilation.
NOTE: If Low / Medium / High speed buttons are pressed at the same time, the unit will only operate at the highest speed.
Light button

CONFIGURATION 3
①
-

⊕

① On/Off button
It's used for turning on/off the fan.
+ Speed plus button
For increasing the speed of the fan
- Speed decrease button
For decreasing the speed of the fan.
Light button
8 Digital display
Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.
Quick timer: Press & hold for 1 second, Digital display will flash & enter 5 minutes count down, after 5 minutes motor will turn off automatically & Buzzer sound for 1 second.
Booster function
This hood has a booster function. To activate the booster, press to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.
MAINTENANCE
Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.
II. Monthly Cleaning for Grease Filter
ESSENTIAL: Clean the filter every month to prevent any risk of fire.
The filter collects grease, smoke, and dust... so the filter directly affects the efficiency of the cooker hood. If not cleaned, the grease residue (potentially flammable) will saturate the filter. Clean it with household cleaning detergent.
III. Annual Cleaning for Activated Carbon Filter
Apply SOLELY to units installed as a recirculation unit (not vented to the outside). This filter traps odors and must be replaced at least once a year
depending on how frequently the cooker hood is used.
IV. Changing a Light Bulb
Remove the screws on the glass, take off the hood glass. Find the bulb that requires replacement; it is located in the light fixture inside the exposed section of the canopy.

Disconnect the light wiring point and remove the bulb holders and wiring from the hood. Important: It is not possible to replace the bulbs individually; it will be necessary to obtain the bulbs, bulb holders, and wiring as a complete part. (LED light: MAX 1.5W)
Fit the replacement bulbs, bulb holders, and wiring in the same manner as the originals. Then reconnect the light wiring point.
Refit the hood glass and fasten the glass screws. Make sure the screws are fully tightened.
TROUBLESHOOTING
| Fault | Cause | Solution |
| Light on, but fan does not work | The fan blade is jammed. | Switch off the unit and repair qualified service personnel only. |
| The motor is damaged | ||
| Both light and fan do not work | Halogen light bulb bur | Replace the bulb with correct rating. |
| Power cord looses. | Plug in to the power supply ag | |
| Serious Vibration of the unit | The fan blade is damaged. | Switch of the unit and repair b qualified service personnel only. |
| The fan motor is not fixed tightly. | Switch off the unit and repair l qualified service personnel only. | |
| The unit is not hung properly on the bracke | Take down the unit and check whether the bracket is in prope location. | |
| Suction performance not good | Too long distance between the unit and the cooking plane | Readjust the distance to 65-75c |
CUSTOMER ASSISTANCE SERVICE
If you cannot identify the cause of the operating anomaly, switch off the appliance and contact the Assistance Service.
PRODUCT SERIAL NUMBER. Where can I find it?
It is important that you inform the Assistance Service of your product code and its serial number (a 16-character code which begins with a number). This can be found on the guarantee certificate or on the data plate located on the appliance.
This will help to avoid wasted journeys for technicians, thereby (and most significantly) saving the corresponding callout charges.
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery, and recycling of this product, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
INSTALLATION AND USE MANUAL
Table of Contents
INTRODUCTION 51
Installation (Evacuation) 55
Installation (Recycling) 60
The appliance must be connected directly to the mains using an omnipolar circuit breaker with a minimum opening of 3mm between the contacts.
The cable must not be bent or compressed.
Hood

6.
Installation (Recirculation mode)
Installation (Recirculation mode)

CLOSE
On
NOTE:
For decreasing the speed of the fan.

Light button
8 Digital display
Fan speed display: "1" for Low speed, "2" for Medium speed, "3" for High speed, "4" for Booster function.
Quick timer: Press & hold for 1 second, Digital display will flash & enter 5 minutes countdown, after 5 minutes motor & light will turn off automatically & Buzzer sounds for 1 second.
Booster function
Blue = N or Neutral
Installation (Wall mounting)

NOTE:
Hood

7
6.

NOTE:
For inclined panel model
- Lift the hood and hang it on the support


NOTE:
(Waste Electrical and Electronic Equipment - WEEE).

NOTE:
Regulations concerning the discharge of air have to be fulfilled.
- Lift and secure the chimney to the wall support after it has been placed.

- Fix the one-way valve for the air outlet of the hood. Then fit the air outlet pipe into the valve, as shown in the drawing below.


NOTE:
Screw (4mm x 30mm)
107.5mm
INSTALLATION (INDOOR VENTILATION)

NOTE:
- Before connecting the duct, turn off the hood and unplug it from the power outlet.

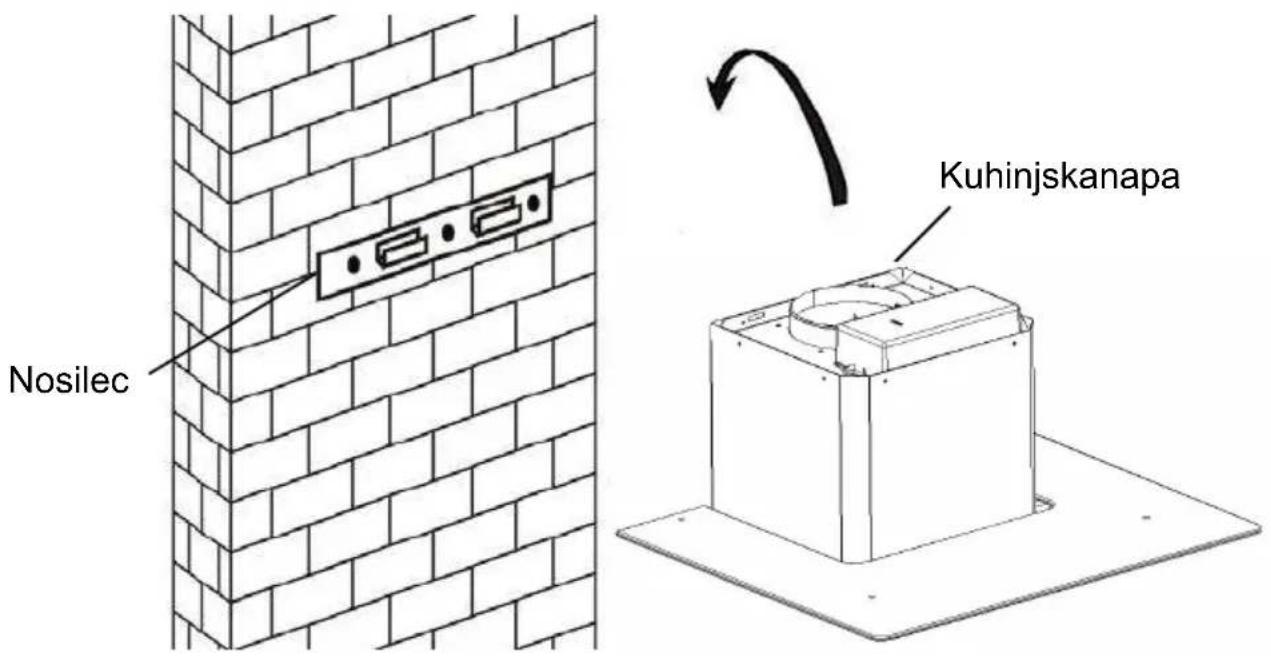

- Hang the hood on the support bracket, which is fixed to the wall.

- Place a one-way valve on the air outlet opening of the hood. Then attach the exhaust duct to it, as shown below.
Exhaust duct


Kitchen hood

6.
In this case, insert an activated carbon filter into the hood to retain odors. First, remove the grease filter, then insert the carbon filter. Push the latch and pull the grease filter downward.


Push the activated carbon filter into the hood and turn it clockwise. Repeat the procedure on the other side of the hood.

(MOUNTING) CLOSE
NOTE:
Disconnect the wire for the light bulb and disconnect the bulb holder and wire from the hood. Important: It is not possible to replace only the bulb; you need a kit – bulb, holder, and wire. (LED light: G4, MAX 1.5W)
Attach the new bulb with holder and wire in the same way as the burned-out bulb was attached. Then reconnect the wire.
Reinstall the glass and tighten the screws. Make sure they are fully tightened.
TROUBLESHOOTING
6.
NOTE:
INSTALLATION (OUTDOOR VENTILATION) 209
INSTALLATION (INDOOR VENTILATION) 214
DESCRIPTION OF COMPONENTS 215
OPERATION 215
MAINTENANCE 218
TROUBLESHOOTING 219
COMPLIANCE WITH DIRECTIVES 219
ENVIRONMENTAL PROTECTION 220
INTRODUCTION
Blue = N or Neutral
Range hood

6.
INSTALLATION (INDOOR VENTILATION)

NOTE:
This hood has a booster function. To activate the booster, press ⊕ to speed 4, enter into highest speed while the hood is in use and it will increase speed for 5 minutes, before slowing down again.
MAINTENANCE
Cooker hood

6.

6.
