Product Type	2-way speaker with separate tweeter
Brand	Jensen
Model	JRX650
Speaker Diameter	6.5 inches (165 mm)
RMS Power	50 Watts
Peak Power	200 Watts
Impedance	4 Ohms
Frequency Response	32 Hz - 30 kHz (-3 dB)
Crossover Frequency	2200 Hz / 3800 Hz (woofer/tweeter)
Sensitivity	91 dB (estimation)
Mounting Depth	84 mm (3.3 inches)
Cone Material	Polypropylene
Surround Material	Nitrile Rubber
Magnet Type	Neodymium (tweeter), optimized magnet (woofer)
Protective Grille	Metal mesh grille included
Wiring	Crimp terminals, polarity marked (striped wire = negative)
Warranty	1 year limited (USA and Canada)
Maintenance	Clean with a soft, dry cloth. Avoid solvents.
Safety	Observe polarity; disconnect battery before installation.
Included Accessories	Grilles, mounting brackets, cables

Frequently Asked Questions - JRX650 JENSEN

How to install the Jensen JRX650 speaker?

Follow the steps in the guide: disconnect the battery, remove the old speaker, position the new one, connect the wires respecting polarity (striped wire = negative), mount the speaker, and reconnect the battery.

What is the maximum power supported?

The JRX650 supports 50 Watts RMS and 200 Watts peak.

How to connect the wires correctly?

Connect the striped wire to the negative (-) terminal and the non-striped wire to the positive (+) terminal. Reversed polarity degrades sound quality.

What to do if the tweeter does not work?

The tweeter is thermally protected. If volume is excessive, a device cuts power. Lower the volume and wait for the tweeter to cool down: it will reset automatically.

What is the product warranty?

The limited warranty is one year from the date of purchase for the USA and Canada. It covers material and workmanship defects, but not damage due to improper installation.

How to clean the speakers?

Use a soft, dry cloth to wipe off dust. Never use solvents or harsh chemicals.

Can I use these speakers with an external amplifier?

Yes, using an external amplifier is recommended for better sound quality. Respect the 4 ohm impedance and RMS power.

What tools are needed for installation?

You will need a #2 Phillips screwdriver, an open-end wrench, a drill with bits, wire strippers, a crimping tool, and wire cutters.

What is the mounting depth?

The mounting depth is 84 mm (3.3 inches). Check available space before installation.

Are grilles included?

Yes, metal mesh grilles are included with the JRX650 to protect the speakers.

USER MANUAL JRX650 JENSEN

Thank you for purchasing this quality Jensen product! Your new JRX speaker system is the ultimate complement to your car stereo system. The JRX speakers feature polypropylene cones, nitrile rubber surrounds, optimized magnet systems and polycarbonate tweeters with neodymium magnets for unparalleled audio reproduction and outstanding durability. The JRX series will deliver the natural sound you have come to expect from Jensen.

The speaker system should be connected to your car radio or an additional car stereo amplifier, which we recommend for even better sound quality. Technical data plus installation tips and further advice are contained in this instruction manual.

Highlighted Features

• Black high gloss, warp-resistant, low-resonance steel basket

• Low distortion polypropylene woofer cones for smooth frequency response and great weather resistance

Nitrile rubber surrounds for excellent damping

• Vented spiders increase power handling and linearity

• Klippel laser-optimized magnet systems provide outstanding bass performance

Metal mesh grilles included on select models

JRX Speakers

INTRODUCTION

Welcome to Jensen!

This manual is designed to provide information for the owner, salesperson and installer. For those of you who want quick information on how to install this product, please turn to the Installation Section of this manual. Other information can be located by using the Table of Contents. We at Jensen have worked very hard to make sure all the information in this manual is current. But, as we are constantly finding new ways to improve our product, this information is subject to change without notice.

Installation

Specifications . Page 5

Warranty.. Page 6

If, after reading your manual, you still have questions regarding this product, we recommend that you see your Jensen dealer. If you need further assistance, you can call us direct at 1-800-323-4815.

Be sure to have your model number and date of purchase available when you call. Please read your warranty clearly and retain your receipt for possible future use.

Preparation

• Disconnect battery cable from negative (-) battery terminal.
  WARNING: Check vehicle's owner's manual before disconnecting the battery. Disconnecting the battery in some vehicles may require an anti-theft code when reconnecting. Some vehicles may run rough after reconnecting the battery and require that the on-board computer be reset at the dealership. Check with your local dealer if you are uncertain.
  Check all safety regulations in your vehicle's owner's manual.
  To ensure an obstacle-free fit, check and double check mounting depth of the speakers against available depth, as well as the location of window mechanics, door handles, and window handles.
• If using provided grilles, be sure mounting location is sufficient distance from door and/or window handles.

Required Tools

The following is a list of tools needed for installation:

2 Philips screwdriver

Battery post wrench
-Hand held drill w/assorted bits
Wire strippers
Wire crimpers
Wire cutters

Since some of these Jensen full range speakers are most often used as direct replacements for stock speakers, some of the following instructions will not apply. For custom installations see your authorized Jensen dealer.

INSTALLATION

Basic Installation Steps

Step 1: Remove existing speaker.
Step 2: Position new speaker and align with existing mounting holes.
Step 3: Attach the positive (+) and negative (-) speaker terminals (see FIGURE 2). Be sure to observe proper polarity when connecting the wires (the striped wire is the negative lead).
Step 4: If not using factory grilles, attach grille.
Step 5: Mount speaker (using factory hardware when possible).
Step 6: Reconnect negative battery terminal.

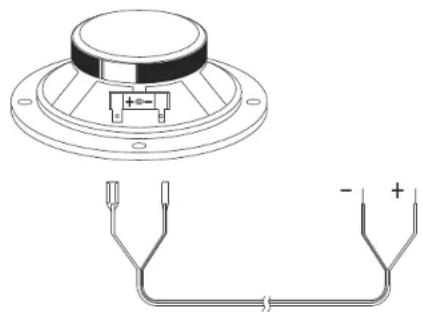

FIGURE 2 - CONNECTING SPEAKER WIRES

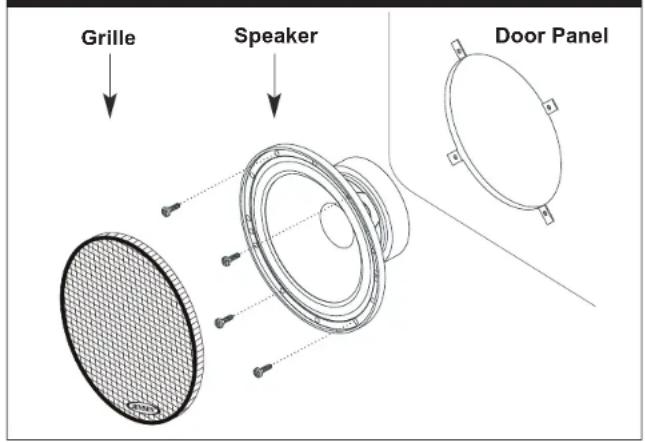

FIGURE 1 - DOOR PANEL INSTALLATION

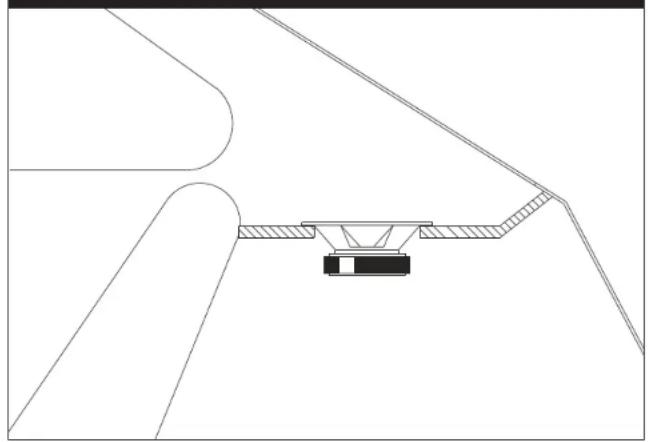

FIGURE 3 - REAR DECK INSTALLATION

JRX Speakers

INSTALLATION

Installing the Tweeter for the JRX650

The separate tweeters included with the JRX650 have a variety of mounting applications. During installation, make sure the tweeter is positioned and aimed towards the listener's ears.

NOTE

The JRX speakers include a device in the tweeter's crossover to protect it from damage. In the case of extreme overload, this device will reduce the power into the tweeter. If the tweeter is deactivated, please turn down the volume and wait for a moment. After cooling down, the tweeter protection will reset and the tweeter will return to normal operation.

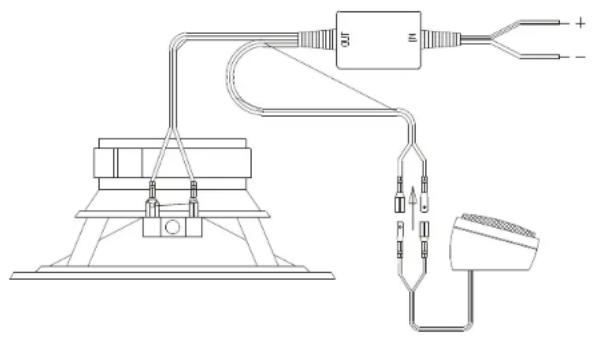

FIGURE 6 - WIRING THE SPEAKER/TWEETER

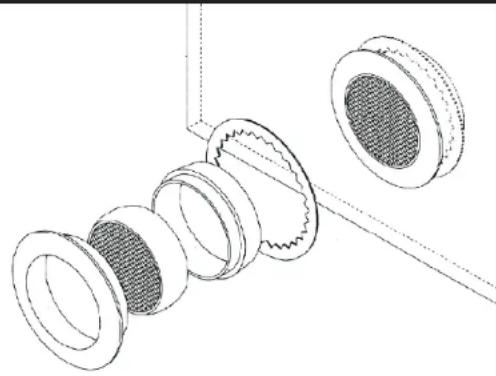

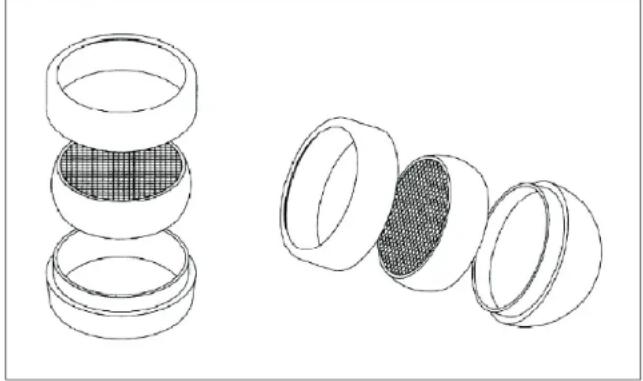

FIGURE 5 - FLUSH MOUNTINGFIGURE 4 - SURFACE MOI

SPECIFICATIONS

Woofer Diameter 3.5" 4" 4" x 6" 5.25"
Frequency Response	80Hz - 26kHz (-3dB)	60Hz - 26kHz (-3dB)	55Hz - 26kHz (-3dB)	42Hz - 26kHz (-3dB)
Crossover Frequency	4200Hz 3800Hz 3800Hz
Power Handling	35 Watts RMS	45 Watts RMS	50 Watts RMS	60 Watts RMS
	140 Watts Peak	180 Watts Peak	200 Watts Peak	240 Watts Peak
Midrange/Tweeter Driver	25mm Tweeter	25mm Tweeter	25mm Tweeter	25mm Tweeter
Sensitivity	88dB (1 watt @ 1 meter)	89dB (1 watt @ 1 meter)	89dB (1 watt @ 1 meter)	90dB (1 watt @ 1 meter)
Mounting Depth	38mm (1.5")	48mm (1.9")	54mm (2.125")	57mm (2.25")
Impedance	4 ohms	4 ohms	4 ohms	4 ohms
Grilles Included?	No	Yes	No	Yes

JRX357

Woofer Diameter

5"×7"／6"×8"

Frequency Response

36Hz-30kHz(-3dB)

Crossover Frequency

3800Hz/5000Hz

Power Handling

70 Watts RMS

Mldrange/Tweeter Driver

280 Watts Peak

Sensitivity

s (1 wall @ 1 meter)

Mounting Depth

57mm (2.25")

Impedance

4 ohms

Grilles Included?

No

JRX365

6.5"

36Hz-30kHz(-3dB)

3800Hz/5000Hz

70 Watts RMS

280 Watts Peak

25mm Tweeter

19mm SuperTweeter

90dB (1 watt @ 1 meter)

57mm (2.25")

4 ohms

Yes

JRX369

6"×9"

32Hz-30kHz(-3dB)

2200Hz/3800Hz

100 Watts RMS

400 Watts Peak

50mm Midrange

25mm Tweeter

91dB(1watt@1meter)

84mm (3.3")

4 ohms

Yes

JRX650

6.5"

34Hz-30kHz(-3dB)

3800Hz

80 Watts RMS

320 Watts Peak

25mm Tweeter

90dB(1 watt @ 1 meter)

60mm (2.35")

4 ohms

Yes

JRX Speakers

WARRANTY

Limited 1 Year Warranty - USA and Canada

Length of Warranty. This warranty from Audiovox Electronics Corporation shall be in effect for a period of 1 year from the date of the first consumer purchase.

Persons Protected. This warranty will be enforceable by the original owner during the warranty period so long as proof of date of purchase from an authorized dealer is presented whenever warranty service is required.

What is Covered. Except as otherwise specified below, this warranty covers all defects in material and workmanship in this product. The following are not covered: damage resulting from accident, misuse, abuse, neglect, product modification, improper installation, incorrect line voltage, unauthorized repair or failure to follow instructions supplied with the product; damage occurring during shipment (claims must be presented to the carrier); any plexiglass included with the product; elimination of car static or other electrical interferences; any product purchased outside USA or Canada, or on which the serial number has been defaced, modified or removed.

How You Can Get Service.

U.S. Purchasers. Please telephone Jensen Customer Service at 1-800-323-4815.

Canadian Purchasers. The product should be returned to the dealer from whom it was purchased and such dealer either will service or arrange for service of the product. If shipment of the product is required, it should be packed properly. The original dated bill of sale must always be included with the product as proof of warranty coverage.

What We Will Pay For. We will pay for all labor and material expenses required to repair the product, but you must pay any labor costs for the removal and/or installation of the product. If the product is shipped for warranty service, you must prepay the initial shipping charges, but Audiovox Electronics Corporation will pay

the return shipping charges if the product is returned to an address inside the USA or Canada.

Limitation of Implied or Statutory Warranties and Conditions. Exclusions. Audiovox Corp's liability is limited to the repair or replacement, at our option, of any defective product and shall not include special, indirect, incidental or consequential damages of any kind. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND ANY OBLIGATION, LIABILITY, RIGHT, CLAIM OR REMEDY IN CONTRACT OR TORT, WHETHER OR NOT ARISING FROM THE COMPANY'S NEGLIGENCE, ACTUAL OR IMPUTED. NO PERSON OR REPRESENTATIVE IS AUTHORIZED TO ASSUME FOR THE COMPANY ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT. IN NO EVENT SHALL COMPANY BE LIABLE FOR INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES.

INTRODUCCION

Gracias!

Installation Page 15

Spccifications Page 17

Garanti.. Page 18

88dB (1 watt @ 1 metre)

38mm (1.5")

4 ohms

Non

89dB (1 watt @ 1 metre)

48mm (1.9")

4 ohms

Qui

89dB (1 watt @ 1 metre)

54mm (2.125")

4 ohms

Non

90dB (1 watt @ 1 metre)

57mm (2.25")

4 ohms

Gui

JRX357 JRX365 JRX369

90dB (1 watt @ 1 metre)

90dB (1 watt @ 1 metre)

91dB (1 watt @ 1 metre)

90dB (1 watt @ 1 metre)

Des grilles comprises?

Non

Gui

Gui

Gui

JRX Speakers

GARANTI

RELATIVEMENT A LA VENTE DE CE PRODUIT. EN AUCUN CAS LA SOCIETE SERA RESPONSABLE POUR DES DOMMAGES ACCESSOIRES OU INDIRECTS.

Audiovox Electronics Corporation

Hauppauge, NY 11788

www.jensen.com

© 2011 Audiovox

v.012411

Printed in China/Impreso en China/Imprimé en China
