USER MANUAL AcousticDesign ADS12 QSC

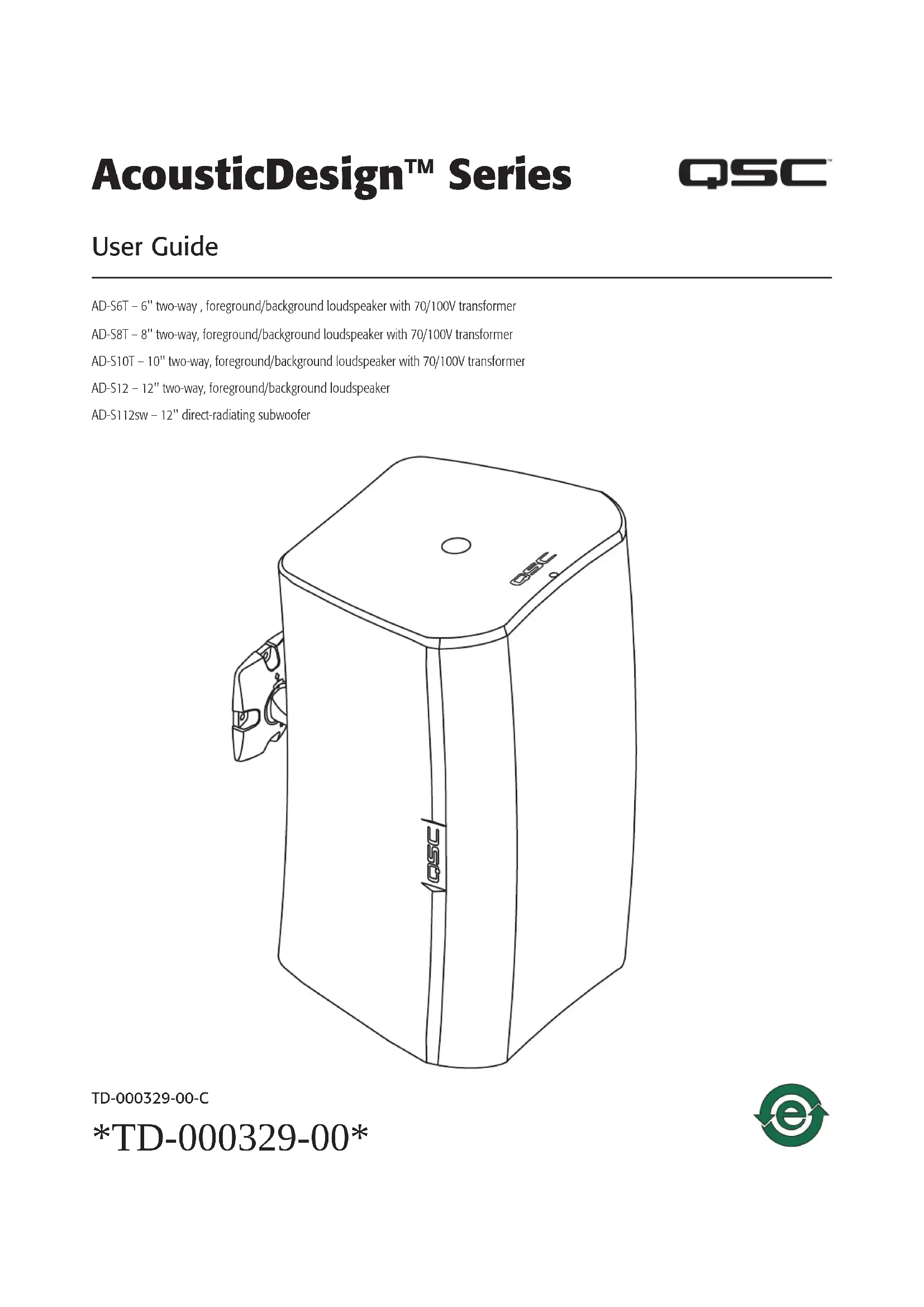

AcousticDesign™ Series User Guide AD-S6T – 6" two-way , foreground/background loudspeaker with 70/100V transformer AD-S8T – 8" two-way, foreground/background loudspeaker with 70/100V transformerAD-S10T – 10" two-way, foreground/background loudspeaker with 70/100V transformerAD-S12 – 12" two-way, foreground/background loudspeakerAD-S112sw – 12" direct-radiating subwoofer

The term “WARNING!” indicates instructions regarding personal safety. If the instructions are not followed the result may be bodily injury or death. The term “CAUTION!” indicates instructions regarding possible damage to physical equipment. If these instructions are not followed, it may result in damage to the equipment that may not be covered under the warranty. The term “IMPORTANT!” indicates instructions or information that are vital to the successful completion of the procedure. The term "NOTE" is used to indicate additional useful information. NOTE: The intent of the lightning fl ash with arrowhead symbol in a triangle is to alert the user to the presence of un-insulated "dangerous" voltage within the product's enclosure that may be of suffi cient magnitude to constitute a risk of electric shock to humans. NOTE: The intent of the exclamation point within an equilateral triangle is to alert the user to the presence of important safety, and operating and maintenance instructions in this manual.

IMPORTANT SAFETY INSTRUCTIONS

WARNING!: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. WARNING!: While it is possible for one person to lift a loudspeaker, it is important to use proper lifting techniques. Suggested reading: OSHA Technical Manual on Back Disorders and Injuries (http://www.osha.gov/dts/osta/otm/otm_vii/otm_vii_1.html#app_vii:1_2).

• Keep these instructions.

• Follow all instructions.

• Clean only with a dry cloth.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

• Only use attachments/accessories specifi ed by the manufacturer.

• Refer all servicing to qualifi ed service personnel.

• Adhere to all applicable, local codes.

• Consult a licensed, professional engineer when any doubt or questions arise regarding a physical equipment installation. Introduction AcousticDesign series is a line of premium surface-mount loudspeakers intended for permanent installation applications. Housed in rugged ABS molded enclosures, each loudspeaker (except the AD-S12 and AD-S112sw) features a 70/100V transformer for use with distributed-audio lines. The unique X-Mount™ Bracket and Euro-style connector, supplied with each AcousticDesign loudspeaker, are designed for maximum fl exibility and a quick install. Featuring a knurled ball-mount and discrete angle deployment marks, installers can set loudspeaker deployment angles quickly and securely. The Euro-style connector allows pre-wiring of the system and when combined with the quick “snap-on” deployment of the loudspeaker to the mount, installation is completed in a fraction of the time required versus competitive models. Unpacking Package Contents

3. Euro-style Connector, 4-pin

6. X-Mount™ Bracket (Yoke Mount for AD-S112sw)3

TD-000329-00-C Set the Transformer Tap Switch Refer to — Figure 1

1. Insert a 4mm fl at-tip screwdriver into Transformer Tap hole

and engage the slot.

2. At fully clockwise the transformer is in 8-bypass.

AD-S10T AD-S6T, AD-S8T Mount the Loudspeakers Install the X-Mount™ Bracket Refer to — Figure 4 WARNING!: Install the system in accordance with local building codes and regulations. Use a licensed contractor or professional engineer. QSC Audio Products is not responsible for damages resulting from the negligent installation of any bracket or loudspeaker.

1. Mount to a surface capable of supporting the weight of

TD-000329-00-C Adjust the Angle of the X-Mount™ Bracket Refer to — Figure 5 NOTE: This step may be done now or after mounting the loudspeaker.

1. Use a 5mm hex wrench to loosen the adjustment locking screws.

2. Orient the bracket as necessary.

3. Tighten the adjustment locking screws.

TD-000329-00-C Mount the Loudspeaker on the Bracket Refer to — Figure 6. NOTE: The loudspeaker can be placed on the mount in ANY direction (Up, Down, Left, Right).

1. Align the "X" slot with the X-Mount™ bracket and push the

loudspeaker onto the bracket. (1)

2. When seated, pull the loudspeaker down to lock the

loudspeaker onto the bracket. (2)

3. (Optional) Remove and retain the security tab (3); pull

straight out. To remove the loudspeaker, re-install the security tab, press in and then remove the loudspeaker. Connect a Safety Tether (Not supplied) WARNING!: DO NOT connect the tether to the mounting bracket or the screws holding the mounting bracket.

1. It is recommended that you connect a safety tether from the

safety ring (4) on the back of the loudspeaker to a spot on the wall that is structurally suffi cient to hold the weight of the loudspeaker in the event the loudspeaker should fall. Suspend the Loudspeaker Refer to — Figure 7 WARNING!: Suspend the loudspeaker in accordance with local building codes and regulations. Use a licensed contractor or professional engineer. QSC Audio Products is not responsible for damages resulting from the negligent installation of suspension cabling, or loudspeaker. The AcousticDesign loudspeakers (models AD-S8T, AD-S10T and AD-S12) may be suspended using the pull- back point and M10 eyebolts you install at the bottom of the enclosures. NOTE: Suspending the enclosure woofer side up positions the HF closer to the listener and helps improve bass response when coupled against the ceiling and wall planes.

1. Remove 2 M10 plugs (not shown) from the bottom of the loudspeaker enclosure.

2. Install two M10 -1.5 eyebolts (2) (accessory M10 Kit-C) in the M10 installation points on the bottom of the

loudspeaker enclosure.

3. Attach an appropriate cable to the tether Safety Ring (3) for the pull-back point.

Yoke-mount the Loudspeaker In addition to the mounting methods listed above, you can mount the loudspeaker using the optional Yoke mounting kit Refer to instructions provided in the Yoke kit. See the "Specifi cations" on page 12 for information. — Figure 6 —

TD-000329-00-C Install the Weather Cover (Optional) Refer to — Figure 8

1. Slide the nut (1), compression gasket (2), and weather cover / gasket (3) over the

wiring for the loudspeaker.

2. Terminate the wiring to the Euro-style connector, refer to "Wire the Loudspeaker"

3. Install the Euro-style connector.

4. Slide the weather cover/gasket (3) up next to the connection box, use a small

amount of wire, inside the cover, to provide strain relief.

5. Attach the weather cover to the enclosure with four screws (supplied).

6. Slide the compression gasket (2) into the weather cover receptacle.

7. Slide the nut over the weather cover receptacle and tighten.

Wire the Loudspeaker Use up to 12 gage wiring as appropriate. Refer to — Figure 9. 1. If you are using the optional weather cover, make sure the wiring is inserted through all three parts of the weather cover in the proper order.

2. Install the negative and positive wires in the "Input" +/- as shown. Tighten the wire-clamp screws.

3. Install the daisy-chaining wires into the "Thru" +/- as shown. These wires go to the next loudspeaker in the daisy-chain. Remove the Loudspeaker

1. Make sure all the wiring is disconnected, and the safety tether is removed.

2. If the security tab, located at the base of the loudspeaker mount, has NOT been removed, push the tab in and slide the loudspeaker in the opposite direction of how it was installed. 3. If the security tab has been removed, re-insert it, or use a small rod (<4 mm / 0.16") to push in and release the mount lock. — Figure 8 —

TD-000329-00-C Specifi cations AD-S6T AD-S8T AD-S10T Confi guration 6" 2-way with transformer 8” 2-way with transformer 10” 2-way with transformer Effective Frequency Range (-10 dB)

60 – 20 kHz 55 – 20 kHz 50 – 19 kHz Rated Voltage / Power

116 dB 119 dB 122 dB Nominal Impedance 8 8 8 Recommended Amplifi er Power 300 W 400 W 500 W Transformer Tap 70 V 60, 30, 15, 7.5 W and 8 bypass 60, 30, 15, 7.5 W and 8 bypass 100, 50, 25, 12.5 W and 8 Bypass Transformer Tap 100 V 60, 30, 15 W and 8 bypass 60, 30, 15 W and 8 bypass 100, 50, 25 W and 8 Bypass High-frequency Transducer 1” silk dome tweeter / 1” voice-coil horn loaded 1” Exit / 1.4” Voice-coil Compression Driver 1” Exit / 1.4” Voice-coil Compression Driver Low-frequency Transducer 6” weather resistant paper cone woofer, 38 mm / 1.5” voice-coil 8” Weather Resistant Paper Cone Woofer, 50 mm / 2” Voice-coil 10” Weather Resistant Paper Cone Woofer, 64 mm / 2.5” Voice-coil Input Connector Euro-style Connector with Parallel Output Enclosure Details Material ABS Polymer Finish Black RAL 9011 or White RAL 9010 Paint Grille Powder-coated Aluminum X-Mount Material Powder-coated Aluminum Ingress Protection Meets IP-54 for dust and splash resistance. Operating Environment Designed for indoor and outdoor use Operating Temperature Range -20 to 50 °C / -4 to 122 °F Testing: Qualifi ed for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° and 50° C Weight (Net) 6.2 kg / 13.6 lbs 11 kg / 24 lbs 14 kg / 31 lbs Dimensions (HWD) 365 mm x 215 mm x 215 mm 14.4" x 8.5" x 8.5" 440 mm x 254 mm x 251 mm 17.3" x 10.0" x 9.8" 516 mm x 318 mm x 298 mm 20.3" x 12.5" x 11.7" Included Accessories X-Mount™ system, Euro-style connector, input panel cover X-Mount™ system, Euro-style connector X-Mount™ system, Euro-style connector Optional Accessories N/A Yoke Mount Bracket Kit –

YMS8T-WHT / YMS8T-BLK

M10 Kit-C Yoke Mount Bracket Kit –

YMS10T-WHT / YMS10T-BLK

M10 Kit-C 1 Free-fi eld, -10 dB from on-axis sensitivity 2 IEC60268-1 noise signal for 2 Hrs 3 On-Axis, free-fi eld sensitivity, 2.83V, 1 m 4 Coverage angle measured with 3 - 10 kHz bandwidth 5 Calculated from rated noise voltage and sensitivity13

75° M10 Kit-C Directivity Factor (Q) 12 N/A Directivity Index 11 dB N/A Maximum SPL Continuous (1 m)

126 dB 121 dB Nominal Impedance 8 8 Recommended Amplifi er Power 600 W 600 W Transformer Tap 70 V N/A N/A Transformer Tap 100 V N/A N/A High-Frequency Transducer 1” Exit / 1.4” Voice-coil Compression Driver N/A Low-frequency Transducer 12” Weather Resistant Paper Cone Woofer, 64 mm / 2.5" Voice-coil 12” weather resistant paper cone woofer, 64 mm / 2.5” voice-coil Input Connector Euro-style Connector with Parallel Output Enclosure Details Material ABS Polymer Finish Black RAL 9011 or White RAL 9010 Paint Black RAL 9011 Paint Grille Powder-coated Aluminum Yoke Material Powder coated galvanized steel Ingress Protection Meets IP-54 for dust and splash resistance. Operating Environment Designed for indoor and outdoor use Operating Temperature Range -20 to 50 °C / -4 to 122 °F Testing: Qualifi ed for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° and 50° C Weight (Net) 16 kg / 35.0 lbs 13.2 kg / 29 lbs Dimensions (HWD) 596 mm x 354 mm x 323 mm 23.5" x 13.9" x 12.7" 596 mm x 354 mm x 322 mm 23.5" x 13.9" x 12.7" Included Accessories X-Mount™ system, Euro-style connector 596 mm x 354 mm x 323 mm 23.4" x 13.9" x 12.7" Optional Accessories Yoke Mount Bracket Kit –

35Vrms/150W 40Vrms/200W 45Vrms/250W

50Vrms/300W 50Vrms/300W
