TABLE DES MATIÈRES

SÉCURITÉ 5

Cloud Storage (Stockage Cloud)....76

This Class B digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3 (B).

Line drawing of a mobile stand with wheels and a vertical support structure, labeled 'Montage sur pied' below (no other text or symbols)

Technical line drawing of Dongle WiFi wireless device with two ports and a base unit (no text or symbols on the diagram itself)

INTRODUCTION

Technical diagram of a server rack with numbered components and labeled connectors

Technical line drawing of a dual-tiered rack structure with no visible text or symbols

444mm 600mm 444mm 222mm 400mm 275mm -4-M8×25

65 pouces 75 pouces

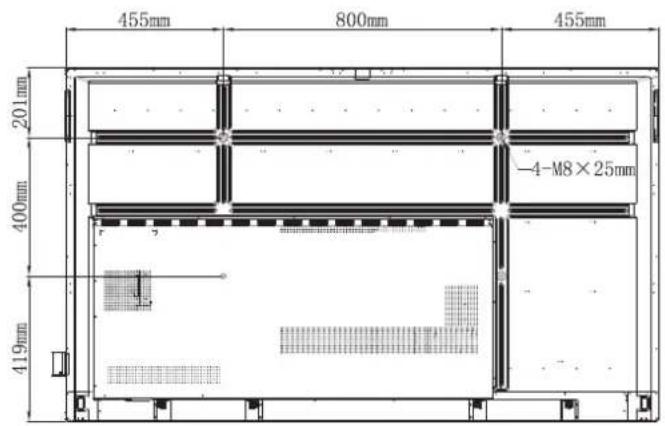

455mm 800mm 455mm 201mm 400mm -4-M8×25mm 419mm

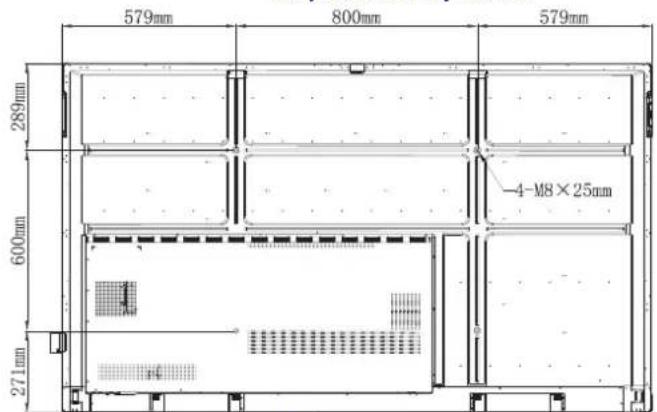

579mm 800mm 579mm 289mm 600mm 4-M8×25mm 271mm

86 pouces

CONFIGURATION ET INSTALLATION

Technical diagram of a mechanical assembly with a magnified inset showing a screwdriver inserted into a component (no text or symbols present)

Diagram showing a cylindrical object with a ring attached to a wall, and a dashed rectangular box with a red arrow pointing to it (no text or symbols present)

Diagram of a vertical mechanical or electrical component with a blue arrow indicating direction, mounted on a wall (no text or symbols present)

Technical diagram of a mechanical assembly with an inset showing a close-up of a component labeled 'C' (no text or symbols present)

Remarque :

Technical diagram of a mechanical assembly with a magnified inset showing a screw inserted into a component labeled A (no text or symbols present)

Diagram showing a two-wheel platform with wheels and a close-up of its mounting bracket (no text or symbols)

Technical line drawing of a mechanical device with a blue arrow indicating direction (no text or symbols)

CONFIGURATION ET INSTALLATION

Diagram of a device being inserted into a tray, showing a blue arrow indicating the process (no text or symbols present)

Diagram of a remote control panel with battery and indicator lights (no text or symbols)

Diagram of a smartphone with a blue arrow indicating the direction of change, showing no text or symbols.

MISE EN GARDE

Diagram showing connection between a plug and a power outlet, with a hand pointing to the plug's icon.

Technical line drawing of a mechanical component with a blue arrow indicating a directional change or movement (no text or symbols present)

Mechanical assembly diagram showing two parallel pipes mounted on a vertical support with a blue arrow indicating direction (no text or symbols present)

Diagram of a cable or connector with blue arrows indicating connection points, no text or symbols present

Diagram of a device with a cable and plug inserted into a panel, showing wiring and a blue arrow indicating direction (no text or symbols present)

Diagram showing a hand pointing at an electrical outlet connected to a plug, illustrating the connection mechanism.

Line drawing of a computer monitor with a hand pointing at the left button (no text or symbols)

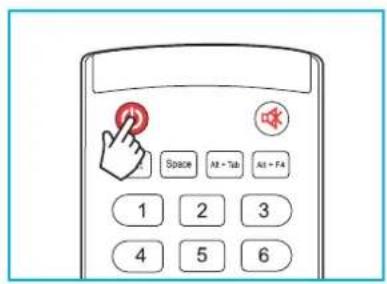

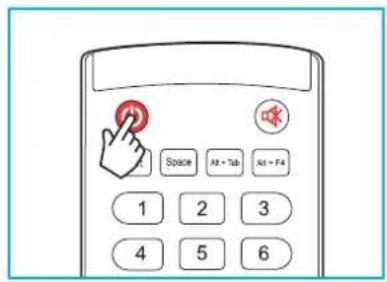

Space Alt - Tab Alt - F4 1 2 3 4 5 6

Mise hors tension

Shutdown Please confirm shutdown. The system will shut down in 10 seconds. Cancel OK

Connect your device to the internet Wi-Fi Skip Refresh NetworkDisplay Sam Wang Optoma-staff Optoma-LAB Optoma-LAB2 Optoma-LAB2 Optoma-LAB2 Optoma-LAB2 Add New Network FOTA (Firmware Over The Air) dialog prompt may appear upon completion of this quick start wizard. Please upgrade the system firmware as instructed by the FOTA dialog prompt. This will ensure the device is up to date with the latest and greatest features and functionality.

UTILISATION DE L'APPAREIL

Please set date and time for your device Date and Time Next Date 25/12/2017 Time 10:42 PM Select time zone GMT +8:00 Daylight saving time OFF Use 24-hour format (13:00) OFF

Legal Agree Terms and Conditions of Use Privacy Policy Cookies Policy Our policy Please read our legal policy before you start Read our Terms and Conditions of Use, Privacy Policy and Cookies Policy to learn about our practices.

OPÉRATIONS DE BASE

147235 15:54 June 09, 2020 Android HDMI 1 HDMI 2 HDMI 3 Browser GPS VGA Flicker Free Connect with iOS on TV Open

08:30 AM January 09 2005 Annuler Sauvegarder

Network | Ethernet Back Status Connected IP Address 10.0.20.183 Mac Address D4:9E:3B:7F:03:0D Proxy Settings None IP Settings Reset

OPÉRATIONS DE BASE

Input Password Cancel Confirm

OPÉRATIONS DE BASE

DEBUG MENU Disable USB/WiFi Drive >>> Active Standby <= HIDE => Exit >>>

DEBUG MENU USB WIFI Enable <= ON => USB Disk Enable <= ON => Back >>> ON OFF

System Update Version 20200604109016 iMirror Find a new version Version: 7.1.20 Size: 10.35MB Time: 6/5/2020 2:21:12 PM File Manager Storage Internal Storage 24% 14 GB free from 32 GB GP LIFD US 2.6% 10 GB free from 31 GB 790871 Clear AL Fm Internal Storage 14 GB free from 32 GB GP LIFD US 10 GB free from 31 GB

iMirror Find a new version Version: 7.1.20 Size: 10.25MP 12 PM experience File Manager Internal Storage 24 GB free from 32 GB SP UFD US 32 GB free from 31 GB Cloud Storage External Storage/ 20200612_175833 20200612_175925 20200613_139727

New Recent Welcome Options whiteboard is a ... General(4) 01 02 03 Corporate(4) SWOT BCG Matrix Timeline Create

13:37 June 13, 2020 790871 Team Share TapCast Pro Browser File Manager HDMI 1 HDMI 2

790871 13:39 June 13, 2020 Team Share TapCash Pro Browser File Manager HDMI 1 HDMI 2

OPÉRATIONS DE BASE

A: Tiger B: Cat C: Panda

0/1 Single drive 00:12 Viter Judge Responsible Selector Message Manager Exit

474023 Is Georgia in Europe? •False •True

6:42 ne 15, 2020 Responder: Press [OK] to responder GO! TapCast Pro Brow HDMI1 HDMI Water Judge Responder Selector Message Manager Exit

Selector Set person(s). Up to 1 1 START Amy Selected Reset

OPÉRATIONS DE BASE

e. Message

Answer Message Amy Send continent if Message turned on is the IFP Happy SEND

Simple icon set with a red dot, gear symbol, and cross (no text or labels)

866347 14:39 June 13, 2020 Team Share TapCast Pro Browser File Manager HDMI 1 HDMI 2

Blue square icon with three circular icons: a white X, a green document icon, and a gray folder icon (no text or symbols)

333903 OfficeSuite TapCast Pro Screen Lock Browser Visualizer Team Share Options Marketplace File Manager Keeper IMirror Calculator Joan on TV

TapCast Pro AirView: http://8000/screen TapCast-6735 Settings Population Shopping display User guide 1 Download App Please download to the same app and the app with the app 2 Connect to the same Network Please download your device and the Network with the same network 3 Launch TapCast Next TapCast (E) newborns on a list Ethernet

UTILISATION DES APPLICATIONS

Device List TapCast-6462 192.168.0.119 Enter PIN to connect TapCast TapCast password Please enter TapCast-6462 password password Cancel ok Connecting... Cancel

TapCast Cast your Screen Connected Start Storage Photo Document Upload AKP Camera Remote Applications Desktop Desktop with a...

UTILISATION DES APPLICATIONS

TapCast Ethernet Please enter the password

TapCast Screen Mirroring Connected Start Disconnect Screen Mirror Annotate

TapCast Pro AirView: http://8000/screens TapCast-6735 Download App Connect to the same Network Launch TapCast New TapCast 6735 Internet

Settings Device Name TapCast-6735 Run by default Show PIN code PIN code refresh frequency 10 minutes Split screen OFF Finish

TapCast Pro Grouping display... Share calling screen to other devices Only Valid for Screen Sharing Device IP Address Searching... Refresh OK Back

UTILISATION DES APPLICATIONS

Security PIN Set a 4-digit PIN to secure your cloud account on this device. Skip Setup

Optoma 921943 Storage Internal Storage 24% 24 GB free from 32 GB Cloud Storage Download Cloud Storage/ Add account AMY SMITH

Wildlife.wmv No Subtitles 475558 25.0MB English WMAV2 2.0 00:00:13 00:00:30

Close-up of a vibrant purple peony flower with green leaves, surrounded by small photos and decorative elements (no text or symbols)

408487 To connect Joan to your calendar, please enter the following PIN number into the Joan Portal: N1CXIK To edit Joan's calendar settings and functionality, visit the Joan Portal at portal.getjoan.com

UTILISATION DES APPLICATIONS

Legal services discussion Jim Burton Kelly Eaton, Alex Barres, Michael Archives getipun.com/13451453 TeamShare TapCast Pro FileManager HOM1 HOM2 HOM3

Joan Portal portal.getjoan.com/account/login?next=/ JOAN Welcome to the Joan portal Manage your desktops and keep tasks of their performance, optimize your workplace with the help of analysts, and have complete control of your join account. Everything you need in one simple dashboard. Sign in email: [e-mail] Password: ****** Cancel you account? SIGN IN or Sign in with Google Sign in with Office 365 Don't have an account and Sign in Products join 13 Company About Partners Affiliates Handy links Status Need more information? Help

UTILISATION DES APPLICATIONS

Joan Portal portal.getjoan.com/manage/resources/ Back desks and schedule teams with the Joan Desk Booking app. Manage Analytics Accessories Labs Settings Your trial posted ends in 26 days. To avoid service developments, please update your billing details. Advanced Which to Basic mode for a Simpler Portal View with less settings. Desktops Rooms Buildings Custom content Rooms These are the rooms joan sees in your calendar. Remove any room you don't want to manage with joan by checking the box next to the room name and clicking "Remove." Room names, email accounts or iCal-Link Building name Clear Start typing to show the list Select the buildings you what can form your website. Autoscan rooms Add a room Name Building & floor [e-mail] PRODUCTS COMPANY PARTNERS HANDY LINKS NEED MORE INFORMATION? Joan 4 About Joan 13 Shop Affiliates Status Joan Home Contact Distributors & Respondents Security Joan Support: © Mon-©i Bendjam CE1 (UTC +1) Email: [e-mail] ACCESSORIES join 4 join 13 join Home join on Displays join at Students ACCESSORIES About Blog Contact Customer Stories

Joan Portal portal.getjioan.com/manage/devices/ Book sets and schedule teams with the Joan Desk Booking app. Manage Analytics Accessories Labs Settings Your trial period ends at 30 days. To avoid service disruption, please update your billing details Advanced Switch to Basic mode for a simpler Portal View with less settings. Devices Reports Buildings Custom content Connected Joan devices See, filter, and manage all of your connected joan devices. + Add device Filter Search devices Buy new joan owner Device functionality Status JFP C.joon on displays Meeting room join In Room PRODUCTS Joan 5 join 13 Joan Having join on Displays join on Tablets Accumables COMPANY About Blog Contact Customer Places PARTNERS Affiliates Distributions & Posters HANDY LINKS Status Security NEED MORE INFORMATION? Visit our knowledge base or have a book at our System Status page for a realtime status overview. Joan Support: © Micro-Phil iaindipom CET (UTC +1) Email: © [e-mail] Help

UTILISATION DES APPLICATIONS

Jooi Portal portal.getjoan.com/manage/devices/add/ Book disks and schedule teams with the Jooi Desk Booking app. + Pair new device Jooh device TV or browser Tables, BETA Make sure the changing & configuration table is unplugged. The device will connect to the server and show a parking PIN. If you run into problems, please consult this article in our Knowledge Base. Device PIN Please note that more information additional users should use a custom display will contain your instructions for all or more. The price is considered by your website plan, email and editing journal. Pair device PRODUCTS Buy-in Show: 10 Add: 20 Use in Chinese Find-in: 100% Accession COMPANY Hessel Zhang Zhang! Customer Store PARTSERS: 45%eans product stores & retailers HANDY LIVES 80% eans NESSY NEED MORE INFORMATION? Add to non-mercials, add or have a book at our location. Add user for a website better available. Down shipments!! Only one item has lost it only. Email: My [e-mail] Help

loan Portal portal.getjoan.com/manage/devices/7914504-363e-461d-99db-S82757306u5 Book deals and schedule teams with the joan Desk Booking app. Edit device Device UUID: 7914504-363e-461d-99db-S82757306u5 Device: join on displays Name: BPC Created a strictly device name Functionality: Status Board join in Room ETS Adopt join to fit your needs Joan In Room BETA Show all the information about the opening meetings inside your meeting rooms. Improve your meeting by keeping track of the abstand, having viable meeting's agenda, tracking its time, and even seeing any upcoming meetings. Room: atcifot.pgrmail.Loom Join the start of the name to filter the bus Timeline: Asia/Taipei Help

UTILISATION DES APPLICATIONS

Visualiseur

Interior view of a modern meeting room with a large wooden table, white chairs, and bookshelves (no visible text or symbols)

Commande SET (DÉFINIR)

Type	Catégorie Paramètre		CMD Code hexa CMD			Réponse
						Succès Échec
DÉFINIR	Puissance	Mise hors tension	~xx00 n n	=0 7E 30 30	30 30 30 20 30 0d P F
		Redémarrer	~xx00 n n	=3 7E 30 30	30 30 30 20 33 0d P F
		Marche	~xx00 n n	=1 7E 30 30	30 30 30 20 31 0d P F
DÉFINIR	Mode puissance (Veille)	Eco.	~xx114 n n	=0 7E 30	30 31 31 34 20 30 0d P F
		Actif n=1 7E 30 30 31 31 34		20 31 0d P F
DÉFINIR	Aigu	0 ~ 100 ~xx95 n n	=0-100		7E 30 30 39 35 20 30 0dsur7E 30 30 39 35 20 31 30 30 0d	P	F
DÉFINIR	Basse	0 ~ 100	~xx96 n	n=0-100	7E 30 30 39 36 20 30 0dsur7E 30 30 39 36 20 31 30 30 0d	P	F
DÉFINIR	Balance	0 ~ 100	~xx99 n	n=0-100	7E 30 30 39 39 20 30 0dsur7E 30 30 39 39 20 31 30 30 0d	P	F
DÉFINIR	Contraste	0 ~ 100	~xx22 n	n=0-100	7E 30 30 32 32 20 30 0dsur7E 30 30 32 32 20 31 30 30 0d	P	F
DÉFINIR	Luminosité	0 ~ 100	~xx21 n	n=0-100	7E 30 30 32 31 20 30 0dsur7E 30 30 32 31 20 31 30 30 0d	P	F
DÉFINIR	Netteté	0 ~ 100 ~xx23 n n	=0-100		7E 30 30 32 33 20 30 0dsur7E 30 30 32 33 20 31 30 30 0d	P	F
DÉFINIR	Mode sonore	Standard	~xx252 n	n=1 7E	30 30 32 35 32 20 31 0d P F
		Réunion		n=4 7E	30 30 32 35 32 20 34 0d P F
		Utilisateur		n=2 7E	30 30 32 35 32 20 32 0d P F
		Salle de classe		n=3 7E	30 30 32 35 32 20 33 0d P F
		Film		n=5 7E	30 30 32 35 32 20 35 0d P F
DÉFINIR	Volume	0 ~ 100 ~xx81 n n	=0-100		7E 30 30 38 31 20 30 0dsur7E 30 30 38 31 20 31 30 30 0d	P	F
DÉFINIR	Vidéo coupée	Arrêt	~xx13 n	n=0 7E	30 30 31 33 20 30 0d P	F
		Marche		n=1	7E 30 30 31 33 20 31 0d	P	F
DÉFINIR	Muet	Arrêt	~xx80 n	n=0 7E	30 30 38 30 20 30 0d P	F
		Marche		n=1	7E 30 30 38 30 20 31 0d	P	F
DÉFINIR	Source d'Entrée	HDMI1	~xx12 n	n=1 7E	30 30 31 32 20 31 0d P	F
		HDMI2		n=15	7E 30 30 31 32 20 31 35 0d	P	F
		HDMI3		n=16	7E 30 30 31 32 20 31 36 0d	P	F
		VGA		n=5	7E 30 30 31 32 20 35 0d	P	F
		Emplacement dans PC		n=25	7E 30 30 31 32 20 32 35 0d	P	F
		Android		n=24	7E 30 30 31 32 20 32 34 0d	P	F
DÉFINIR	Ratio	4:3	~xx60 n	n=1 7E	30 30 36 30 20 31 0d P	F
		16:9		n=2	7E 30 30 36 30 20 32 0d	P	F
		PTP		n=14	7E 30 30 36 30 20 31 34 0d	P	F
DÉFINIR	Langue	Anglais	~xx70 n	n=1 7E	30 30 37 30 20 31 0d P	F
		Français		n=3	7E 30 30 37 30 20 33 0d	P	F

INFORMATIONS SUPPLÉMENTAIRES

Type	Catégorie Paramètre		CMD Code hexa CMD			Réponse
						Succès Échec
DéFINIR	Langue	Español	7E 30 30 37	n=5 7E	30 30 37 30 20 35 0d P F
		Chinois traditionnel		n=13 7E	30 30 37 30 20 31 33 0d P F
		Chinois simplifié		n=14 7E	30 30 37 30 20 31 34 0d P F
		Português n=6 7E 30 30 37	7E 30 30 37	30 20 36	0d P F
		Allemand n=2 7E 30 30 37	7E 30 30 37	30 20 32	0d P F
		Néerlandais n=8 7E 30 30	7E 30 30 37	37 30 20 38	0d P F
		Polish n=7 7E 30 30 37 30	30 30 37 30	20 37 0d P	F
		Russie n=17 7E	~xx70 n 30 30 37	30 20 31 37	0d P F
		République Tchèque		n=19 7E	30 30 37 30 20 31 39 0d P F
		Danois		n=10 7E	30 30 37 30 20 31 30 0d P F
		Suédois		n=9 7E	30 30 37 30 20 39 0d P F
		Italien		n=4 7E	30 30 37 30 20 34 0d P F
		Turc		n=22 7E	30 30 37 30 20 32 32 0d P F
		Arabe		n=20 7E	30 30 37 30 20 32 30 0d P F
		Roumanie		n=27 7E	30 30 37 30 20 32 37 0d P F
DéFINIR	Mode image	Présentation	~xx20 n	n=1 7E	30 30 32 30 20 31 0d P F
		Lumineux		n=2 7E	30 30 32 30 20 32 0d P F
		Cinéma		n=3 7E	30 30 32 30 20 33 0d P F
		Utilisateur		n=5 7E	30 30 32 30 20 35 0d P F
		HDR		n=21 7E	30 30 32 30 20 32 31 0d P F
DéFINIR	Teinte	0 ~ 100	~xx44 n	n=0-100	7E 30 30 34 34 20 30 0dsur7E 30 30 34 34 20 31 30 30 0d	P	F
DéFINIR	Couleur	0 ~ 100	~xx45 n	n=0-100	7E 30 30 34 35 20 30 0dsur7E 30 30 34 35 20 31 30 30 0d	P	F
DéFINIR	Netteté	0 ~ 100	~xx23 n	n=0-100	7E 30 30 32 33 20 30 0dsur7E 30 30 32 33 20 31 30 30 0d	P	F
DéFINIR	Rétroéclairage	0 ~ 100	~xx251 n	n=0-100	7E 30 30 32 35 31 20 30 0dsur7E 30 30 32 35 31 20 31 30 30 0d	P	F
DéFINIR	Temp. Couleur	Froid	~xx36 n	n=2 7E	30 30 33 36 20 32 0d P F
		Standard		n=1 7E	30 30 33 36 20 31 0d P F
		Chaud		n=4 7E	30 30 33 36 20 34 0d P F
DéFINIR	Figer	Libérer	~xx04 n	n=0 7E	30 30 30 34 20 30 0d P F
		Figer		n=1 7E	30 30 30 34 20 31 0d P F

INFORMATIONS SUPPLÉMENTAIRES
