Product Type	LED Monitor (LED TV)
Brand	LG
Model	24TL520S
Screen Size	24 inches
Dimensions with Stand (W x H x D)	563.1 x 367 x 150.1 mm
Dimensions without Stand (W x H x D)	563.1 x 340.9 x 58 mm
Weight with Stand	3.3 kg
Weight without Stand	3.25 kg
Power Consumption	25 W
Power Supply	AC/DC adapter 19 V, 2.0 A (AC input 100-240 V, 50/60 Hz)
Panel Type	LCD with LED backlight
VESA Standard	75 x 75 mm (M4 x L10 screws)
Connectivity	HDMI, USB, RF Antenna, PC Input (HDMI), CI Slot
Smart TV Functions	SmartShare, Wi-Fi Direct, Miracast, Intel WiDi, webOS
Security	Kensington Cable Support
Operating Temperature	0 °C to 40 °C
Operating Humidity	Below 80%
Storage Temperature	-20 °C to 60 °C
Storage Humidity	Below 85%
Supplied Accessories	Remote control, AAA batteries, power adapter, power cable, user manual
Maintenance	Clean with a soft, dry cloth; do not use chemicals

Frequently Asked Questions - 24TL520S LG

How to connect the LG 24TL520S monitor to Wi-Fi?

Press the Home button on the remote, select All Settings > Network > Wi-Fi Connection. Choose your network and enter the security key if necessary.

How to use the SmartShare function to share files?

Install the SmartShare PC application on your computer or LG TV Plus on your smartphone. Make sure all devices are connected to the same Wi-Fi network. On the TV, go to Home > Device Connector > Smartphone to cast content.

How to mount the TV on the wall?

Use a wall mount compatible with VESA 75x75 mm (M4 screws). Remove the table stand, attach the mounting interface to the back of the TV, then fix the wall mount. Leave a gap of 100 mm between the wall and the TV for ventilation.

What to do if the screen remains black and no sound?

Check that the TV is turned on and the power cord is plugged in. Try another wall outlet. If the problem persists, contact LG customer service.

How to safely clean the screen?

Turn off and unplug the TV. Use a soft, clean, dry cloth to gently wipe the screen. For stubborn stains, lightly dampen the cloth with water or diluted mild detergent, then wipe immediately with a dry cloth. Never use chemicals.

How to update the TV firmware?

Press Home > All Settings > General > About This TV > Check for Updates. You can enable automatic updates.

How to use the Kensington security system?

The Kensington connector is located at the back of the TV. Attach the security cable to the TV and to a fixed object (table, wall). The cable is sold separately.

How to set up channels for the first time?

Connect the antenna. Turn on the TV, follow the on-screen instructions for automatic channel search. You can also access settings to start a manual search.

The remote control does not work, what to do?

Check that there are no obstacles between the remote and the TV sensor. Replace the batteries (2x AAA) respecting polarity. If the problem persists, try resetting the remote by removing the batteries and pressing each button.

How to adjust brightness and contrast?

Press the Quick Settings button on the remote, then use the arrows to adjust brightness, contrast, and other picture settings. You can also access All Settings > Picture for advanced settings.

USER MANUAL 24TL520S LG

• Image shown may differ from your TV.
• Image shown on a PC or mobile phone may vary depending on the OS(Operating System).
• App icon positions may vary on the platform, depending on the software version.

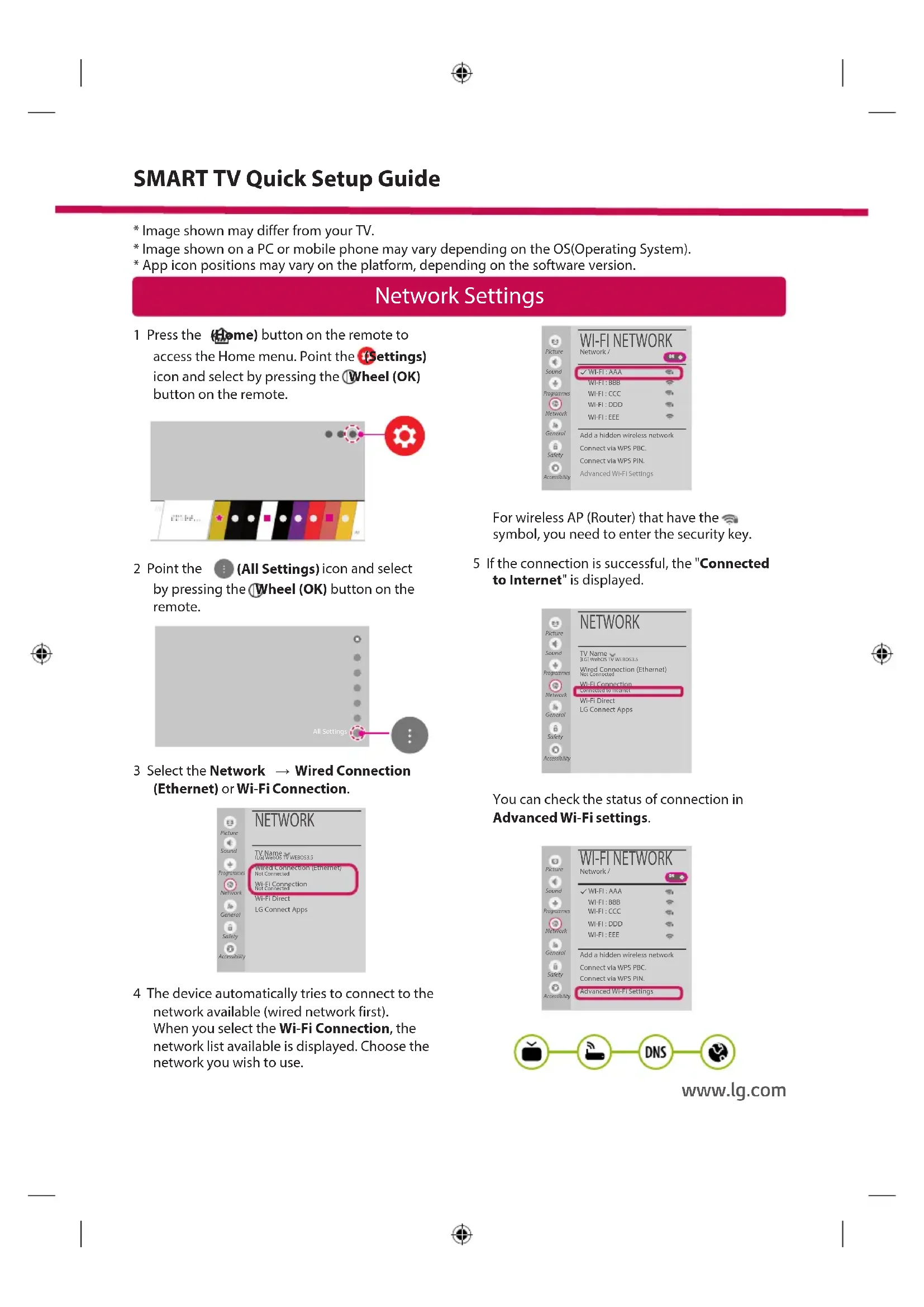

Network Settings

1 Press the (Home) button on the remote to access the Home menu. Point the Settings) icon and select by pressing the Wheel (OK) button on the remote.

2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

3 Select the Network Wired Connection (Ethernet) or Wi-Fi Connection.

4 The device automatically tries to connect to the network available (wired network first). When you select the Wi-Fi Connection, the network list available is displayed. Choose the network you wish to use.

For wireless AP (Router) that have the symbol, you need to enter the security key.

5 If the connection is successful, the "Connected to Internet" is displayed.

You can check the status of connection in Advanced Wi-Fi settings.

www.lg.com

Troubleshooting Network Problems

1 Press the Home button on the remote to access the Home menu. Point the Settings icon and select by pressing the Wheel (OK) button on the remote.

2 Point the (All Settings) icon and select by pressing the Wheel (OK) button on the remote.

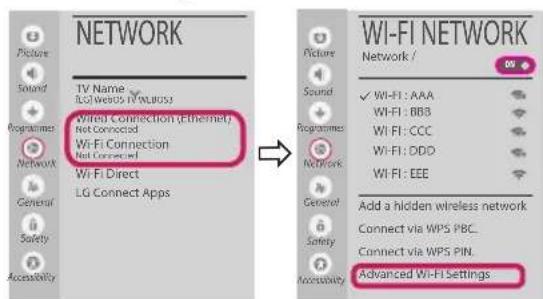

3 Select the Network Wired Connection (Ethernet) or Wi-Fi Connection Advanced Wi-Fi settings.

Follow the instructions below that correlate to your network status.

Check the TV or the AP (Router).

X

X

X

When X appears next to TV:

Check the connection status of the TV, AP (Router).
Power off and power on the TV, AP (Router).
If you are using a static IP, enter the IP directly.
4 Contact internet service provider or AP (Router) company.

Check the AP (Router) or consult your Internet service provider.

When X appears next to Gateway:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
Initialize (Reset) the AP (Router).
Contact internet service provider or AP (Router) company.

When X appears next to DNS:

Unplug the power cord of the AP (Router) and try to connect after 5 seconds.
Initialize (Reset) the AP (Router).
Check that the MAC address of the TV/AP (Router) is registered with your Internet service provider. (The MAC address displayed on the right pane of the network status window should be registered with your Internet service provider.)
4 Check the AP (Router) manufacturer's website to make sure your router has the latest firmware version installed.

SmartShare PC SW Installing & Setting

1 Install the SmartShare PC SW programme on your PC.
2 Go to www.lg.com. Then, select your region.
3 Select SUPPORT. Then, select Drivers & Software, SOFTWARE UPDATE or Software & Firmware.
4 Search for your model. Then, select SmartShare PC SW.
5 You can run the programme when installation is complete.

NOTE

• SmartShare service is only available if TV and other devices are connected via a single AP (Router).

SmartShare Connection to Smartphone

1 Check that Wi-Fi is enabled on your smartphone. To use SmartShare, both devices must on the same local network.
2 Install/run the app for sharing content on your smartphone (It's called LG TV Plus on LG phones).
3 Enable your smartphone to share content files with other devices.

4 Open Device Connector application.

(Home) Device Connector Smartphone CONTENT SHARE.

5 Select the file type you want to play (movie, audio or photo).
6 Select a movie, music or photo file to play on the TV.
7 Play the media file to view and enjoy it on your TV.

Updating the TV Firmware

• If the TV is turned on for the first time after it was shipped from the factory, initialization of the TV may take a few minutes.

1 (Home)

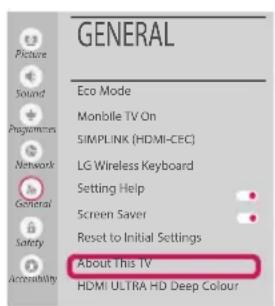

(Settings) (All Settings) General About This TV

CHECK FOR UPDATES

2 After checking the version of the software, update it.

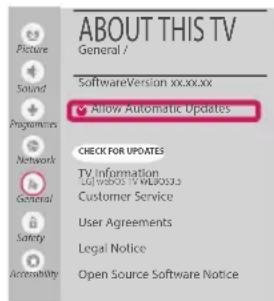

If you check the "Allow Automatic Updates", you can update the software automatically.

Wi-Fi Direct Setting

(Home) (Settings) (All Settings) Network Wi-Fi Direct If a local network is not available, you can connect a portable device directly to the TV using Wi-Fi Direct. With SmartShare, you can share files or screens of devices connected to Wi-Fi Direct.

1 When you open Wi-Fi Direct menu, a list of available devices appears.
2 When you are prompted to request connection, select Yes. Wi-Fi Direct is now connected to your TV.

Miracast Setting

Miracast allows a portable device to securely send video and sound to the TV wirelessly.

Home)/input) Screen Share

1 Miracast should be set to "ON" on your portable device.
2 When your TV is detected, select the device on your portable device. When connection is completed, the device screen appears on the TV screen.

If you turn Listen Mode to ON after launching the Screen Share app, you can connect the device without starting the Screen Share app.

WiDi (Wireless Display) Setting

Intel's WiDi (Wireless Display) technology enables easy and fast connection without wires or internet network for mirrored and dual monitor display on your TV. You can sit back and experience your favorite movies, videos, photos, online shows and more in full HD on your TV with great image clarity and sound.

(Home)/input) Screen Share

1 Intel's WiDi is set to On. Your laptop runs the Intel WiDi programme.

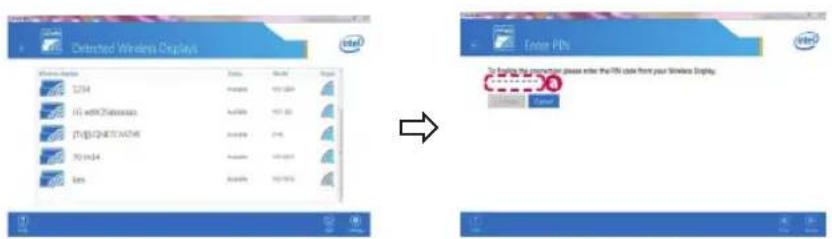

2 It detects LG webOS TVs available, which supports WiDi. In the list, select the TV you want and click Connect. Enter the number shown on the screen into the input field (on your laptop and then click Continue.

Notebook Screen

3 The laptop screen appears on the TV screen. The wireless environment may affect the screen display. If the connection is poor, the Intel WiDi connection may be lost.

• LG TVs do not need to register.

Please call LG Customer Service if you experience any problems.
