USER MANUAL MEX-N5100BT SONY

Bluetooth® Audio System

Operating Instructions

Bedienungsanleitung

Mode d'emploi

For the connection/installation, see page 28.

To cancel the demonstration (DEMO) display, see page 17.

For safety, be sure to install this unit in the dashboard of the car as the rear side of the unit becomes hot during use.

For details, see "Connection/Installation" (page 28).

Made in Thailand

Laser Diode Properties

• Emission Duration: Continuous
• Laser Output: Less than 53.3 W

(This output is the value measurement at a distance of 200mm from the objective lens surface on the Optical Pick-up Block with 7mm aperture.)

The nameplate indicating operating voltage, etc., is located on the bottom of the chassis.

C

Hereby, Sony Corporation, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For details, please access the following URL:

http://www.compliance.sony.de/

Notice for customers: the following information is only applicable to equipment sold in countries applying EU Directives

Manufacturer: Sony Corporation, 1-7-1 Konan

Minato-ku Tokyo, 108-0075 Japan

For EU product compliance: Sony Deutschland

GmbH, Hedelfinger Strasse 61, 70327 Stuttgart,

Germany

Warning if your car's ignition has no ACC position

Be sure to set the AUTO OFF function (page 17). The unit will shut off completely and automatically in the set time after the unit is turned off, which prevents battery drain. If you do not set the AUTO OFF function, press and hold OFF until the display disappears each time you turn the ignition off.

Disclaimer regarding services offered by third parties

Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony does not bear any responsibility in these sorts of situations.

Caution

IN NO EVENT SHALL SONY BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OR OTHER DAMAGES INCLUDING, WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF REVENUE, LOSS OF DATA, LOSS OF USE OF THE PRODUCT OR ANY ASSOCIATED EQUIPMENT, DOWNTIME, AND PURCHASER'S TIME RELATED TO OR ARISING OUT OF THE USE OF THIS PRODUCT, ITS HARDWARE AND/OR ITS SOFTWARE.

Dear customer, this product includes a radio transmitter.

According to UNECE Regulation no. 10, a vehicle manufacturers may impose specific conditions for installation of radio transmitters into vehicles.

Please check your vehicle operation manual or contact the manufacturer of your vehicle or your vehicle dealer, before you install this product into your vehicle.

Emergency calls

This BLUETOOTH car handsfree and the electronic device connected to the handsfree operate using radio signals, cellular, and landline networks as well as user-programmed function, which cannot guarantee connection under all conditions. Therefore do not rely solely upon any electronic device for essential communications (such as medical emergencies).

On BLUETOOTH communication

• Microwaves emitting from a BLUETOOTH device may affect the operation of electronic medical devices. Turn off this unit and other BLUETOOTH devices in the following locations, as it may cause an accident.
• where inflammable gas is present, in a hospital, train, airplane, or petrol station
• near automatic doors or a fire alarm
• This unit supports security capabilities that comply with the BLUETOOTH standard to provide a secure connection when the BLUETOOTH wireless technology is used, but security may not be enough depending on the setting. Be careful when communicating using BLUETOOTH wireless technology.
• We do not take any responsibility for the leakage of information during BLUETOOTH communication.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Table of Contents

Guide to Parts and Controls 5

Getting Started

Detaching the Front Panel 6

Resetting the unit 7

Setting the Clock. 7

Preparing a BLUETOOTH Device. 7

Connecting an iPod/USB Device 9

Connecting Other Portable Audio Device. 9

Listening to the Radio

Listening to the Radio. 10

Using Radio Data System (RDS) 10

Playback

Playing a Disc 11

Playing an iPod/USB Device. 11

Playing a BLUETOOTH Device. 12

Searching and Playing Tracks. 12

Handsfree Calling (via BLUETOOTH only)

Receiving a Call 13

Making a Call 13

Available Operations during Call 14

Useful Functions

SongPal with iPhone/Android Phone 15

Using Siri Eyes Free 16

Settings

Canceling the DEMO Mode 17

Basic Setting Operation 17

General Setup (GENERAL). 17

Sound Setup (SOUND) 18

Display Setup (DISPLAY) 19

BLUETOOTH Setup (BT) 20

SongPal Setup (SONGPAL) 20

Additional Information

Updating the Firmware. 20

Precautions 20

Maintenance 21

Specifications 22

Troubleshooting 23

Connection/Installation

Cautions 28

Parts List for Installation 28

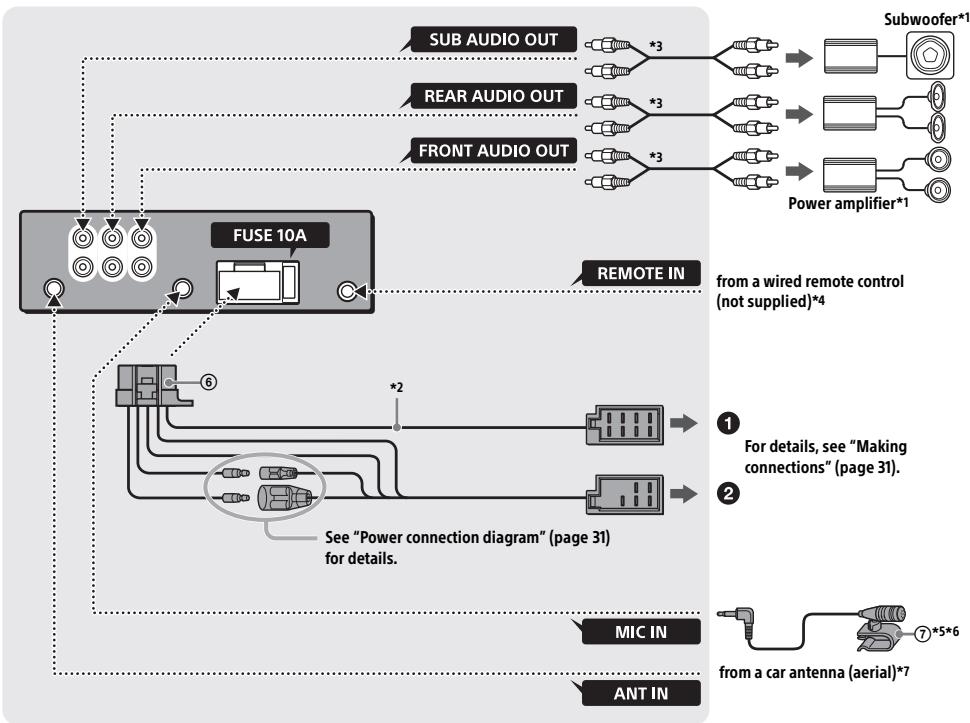

Connection (For MEX-N5100BT). 29

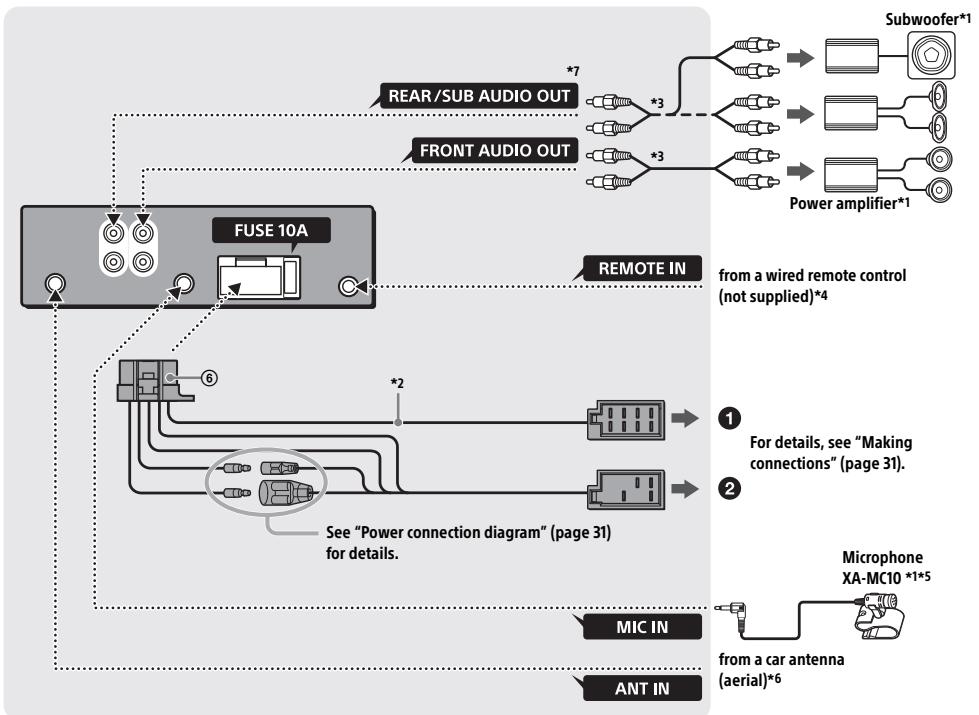

Connection (For MEX-N4100BT) 30

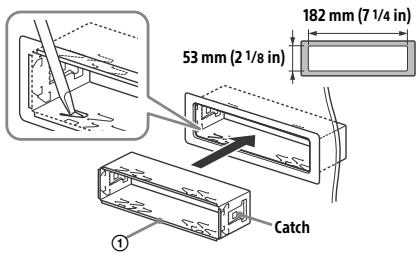

Installation 32

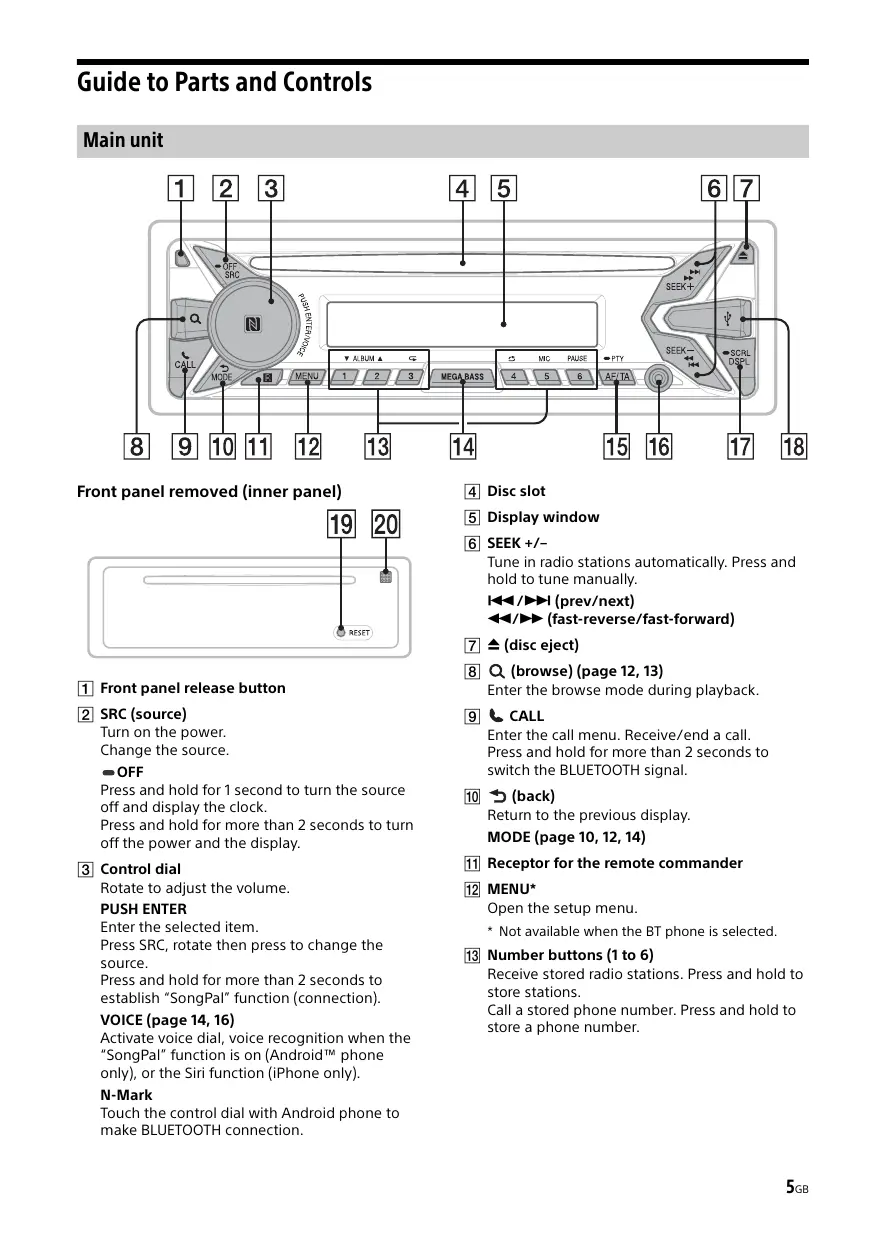

Guide to Parts and Controls

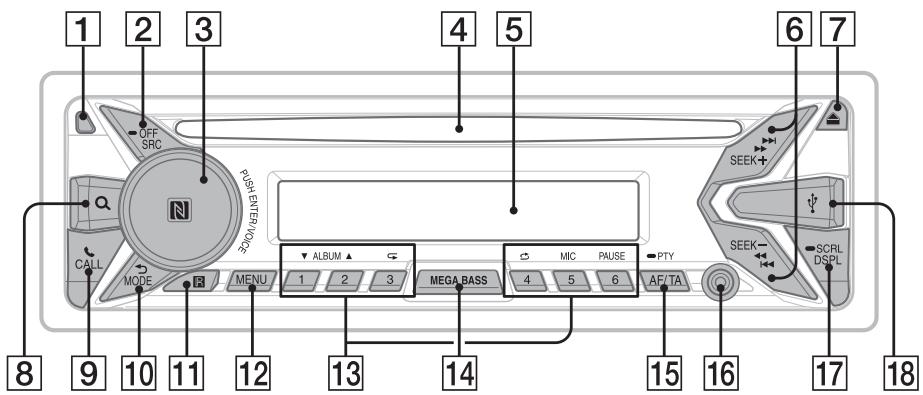

Main unit

Front panel removed (inner panel)

1 Front panel release button

2 SRC (source)

Turn on the power. Change the source.

OFF

Press and hold for 1 second to turn the source off and display the clock.

Press and hold for more than 2 seconds to turn off the power and the display.

3 Control dial

Rotate to adjust the volume.

PUSH ENTER

Enter the selected item.

Press SRC, rotate then press to change the source.

Press and hold for more than 2 seconds to establish "SongPal" function (connection).

VOICE (page 14, 16)

Activate voice dial, voice recognition when the "SongPal" function is on (Android™ phone only), or the Siri function (iPhone only).

N-Mark

Touch the control dial with Android phone to make BLUETOOTH connection.

4 Disc slot

Display window

6 SEEK+/-

Tune in radio stations automatically. Press and hold to tune manually.

14/14 (prev/next)
( fast-reverse/fast-forward)

7 (disc eject)

8 Q (browse) (page 12, 13)

Enter the browse mode during playback.

9CALL

Enter the call menu. Receive/end a call. Press and hold for more than 2 seconds to switch the BLUETOOTH signal.

10 (back)

Return to the previous display. MODE (page 10, 12, 14)

11 Receptor for the remote commander

12 MENU*

Open the setup menu.

• Not available when the BT phone is selected.

Number buttons (1 to 6)

Receive stored radio stations. Press and hold to store stations.

Call a stored phone number. Press and hold to store a phone number.

ALBUM▼/▲

Skip an album for audio device. Press and hold to skip albums continuously.

(repeat)

(shuffle)

MIC (page 14)

PAUSE

14 MEGA BASS

Press to turn on/off the MEGA BASS function.

AF (alternative frequencies)/TA (traffic announcement)

Set AF and TA.

• PTY (program type)

Press and hold to select PTY in RDS.

16 AUX input jack

17 DSPL(display)

Press to change display items.

SCRL (scroll)

Press and hold to scroll a display item.

18 USB port
19 RESET (inner panel) (page 7)
20 Microphone (inner panel) (MEX-N4100BT only) In order for the handsfree function to work properly, do not cover the microphone with tape, etc.

Getting Started

Detaching the Front Panel

You can detach the front panel of this unit to prevent theft.

1 Press and hold OFF ① until the unit turns off, press the front panel release button ②, then pull the panel towards you to remove.

Caution alarm

If you turn the ignition switch to the OFF position without detaching the front panel, the caution alarm will sound for a few seconds. The alarm will only sound if the built-in amplifier is used.

Serial numbers

Make sure the serial numbers on the bottom of the unit and the back of the front panel are matched correctly. Otherwise you cannot make BLUETOOTH pairing, connection and disconnection by NFC.

Attaching the front panel

Resetting the unit

Before operating the unit for the first time, after replacing the car battery, or changing the connections, you must reset the unit. Press RESET on the inner panel with a ball-point pen, etc., after detaching the front panel.

Note

Pressing RESET will erase the clock setting and some stored contents.

Setting the Clock

1 Press MENU, rotate the control dial to select [SET GENERAL], then press it.
2 Rotate the control dial to select [SET CLOCK-ADJ], then press it.

The hour indication flashes.

3 Rotate the control dial to set the hour and minute.
To move the digital indication, press SEEK + / -
4 After setting the minute, press MENU.
The setup is complete and the clock starts.

To display the clock

Press DSPL.

Preparing a BLUETOOTH Device

You can enjoy music, or perform handsfree calling depending on the BLUETOOTH compatible device such as a smartphone, cellular phone and audio device (hereafter "BLUETOOTH device" if not otherwise specified). For details on connecting, refer to the operating instructions supplied with the device.

Before connecting the device, turn down the volume of this unit; otherwise, loud sound may result.

Connecting with a Smartphone by One touch (NFC)

By touching the control dial on the unit with an NFC* compatible smartphone, the unit is paired and connected with the smartphone automatically.

• NFC (Near Field Communication) is a technology enabling short-range wireless communication between various devices, such as mobile phones and IC tags. Thanks to the NFC function, data communication can be achieved easily just by touching the relevant symbol or designated location on NFC compatible devices.

For a smartphone with Android OS 4.0 or lower installed, downloading the app "NFC Easy Connect" available at Google PlayTM is required. The app may not be downloadable in some countries/regions.

1 Activate the NFC function on the smartphone.

For details, refer to the operating instructions supplied with the smartphone.

2 Touch the N-Mark part of the unit with the N-Mark part of the smartphone.

Make sure that lights up on the display of the unit.

To disconnect by One touch

Touch the N-Mark part of the unit with the N-Mark part of the smartphone again.

Notes

• When making the connection, handle the smartphone carefully to prevent scratches.
• One touch connection is not possible when the unit is already connected to another NFC compatible device. In this case, disconnect the other device, and make connection with the smartphone again.

Pairing and connecting with a BLUETOOTH device

When connecting a BLUETOOTH device for the first time, mutual registration (called "pairing") is required. Pairing enables this unit and other devices to recognize each other.

1 Place the BLUETOOTH device within 1 m (3 ft) of this unit.
2 Press CALL, rotate the control dial to select [SET PAIRING], then press it.

flashes while the unit is in pairing standby mode.

3 Perform pairing on the BLUETOOTH device so it detects this unit.
4 Select [MEX-XXXX] (your model name) shown in the display of the BLUETOOTH device.

If your model name does not appear, repeat from step 2.

5 If passkey* input is required on the BLUETOOTH device, input [0000].

• Passkey may be called "Passcode," "PIN code," "PIN number" or "Password," etc., depending on the device.

When pairing is made, stays lit.

6 Select this unit on the BLUETOOTH device to establish the BLUETOOTH connection.

or lights up when the connection is made.

Note

While connecting to a BLUETOOTH device, this unit cannot be detected from another device. To enable detection, enter the pairing mode and search for this unit from another device.

To start playback

For details, see "Playing a BLUETOOTH Device" (page 12).

To cancel pairing

Perform step 2 to cancel the pairing mode after this unit and the BLUETOOTH device are paired.

Connecting with a paired BLUETOOTH device

To use a paired device, connection with this unit is required. Some paired devices will connect automatically.

1 Press CALL, rotate the control dial to select [SET BT SIGNL], then press it. Make sure that lights up.
2 Activate the BLUETOOTH function on the BLUETOOTH device.
3 Operate the BLUETOOTH device to connect to this unit.

or lights up.

Icons in the display:

Lights up when handsfree calling is available by enabling the HFP (Handsfree Profile).

Lights up when the audio device is playable by enabling the A2DP (Advanced Audio Distribution Profile).

Indicates the signal strength status of connected cellular phone.

To connect the last-connected device from this unit

Activate the BLUETOOTH function on the BLUETOOTH device.

Press SRC, then select [BT PHONE] or [BT AUDIO]. Press ENTER to connect with the cellular phone, or PAUSE to connect with the audio device.

Note

While streaming BLUETOOTH audio, you cannot connect from this unit to the cellular phone. Connect from the cellular phone to this unit instead.

Tip

With BLUETOOTH signal on: when the ignition is turned to on, this unit reconnects automatically to the last-connected cellular phone.

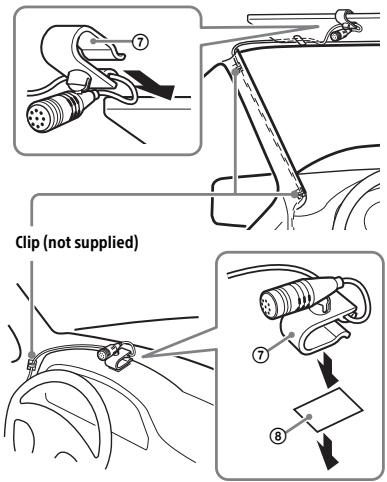

To install the microphone

For details, see "Installing the microphone (MEXN5100BT only)" (page 32).

Connecting with an iPhone/iPod (BLUETOOTH Auto Pairing)

When an iPhone/iPod with iOS5 or later installed is connected to the USB port, the unit is paired and connected with the iPhone/iPod automatically. To enable BLUETOOTH Auto Pairing, make sure [AUTOPAIR] in [BT] is set to [ON] (page 20).

1 Activate the BLUETOOTH function on the iPhone/iPod.
2 Connect an iPhone/iPod to the USB port.

Make sure that lights up on the display of the unit.

Notes

• BLUETOOTH Auto Pairing is not possible if the unit is already connected to another BLUETOOTH device. In this case, disconnect the other device, then connect the iPhone/iPod again.
• If BLUETOOTH Auto Pairing is not established, see "Preparing a BLUETOOTH Device" for details (page 7).

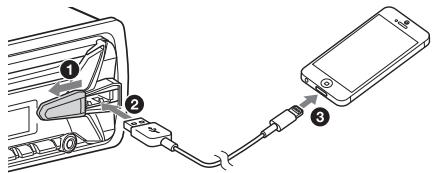

Connecting an iPod/USB Device

1 Turn down the volume on the unit.
2 Connect the iPod/USB device to the unit. To connect an iPod/iPhone, use the USB connection cable for iPod (not supplied).

Connecting Other Portable Audio Device

1 Turn off the portable audio device.
2 Turn down the volume on the unit.
3 Connect the portable audio device to the AUX input jack (stereo mini jack) on the unit with a connecting cord (not supplied)*.

• Be sure to use a straight type plug.

4 Press SRC to select [AUX].

To match the volume level of the connected device to other sources

Start playback of the portable audio device at a moderate volume, and set your usual listening volume on the unit.

Press MENU, then select [SET SOUND] [SET AUX VOL] (page 19).

Listening to the Radio

To listen to the radio, press SRC to select [TUNER].

Storing automatically (BTM)

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW).
2 Press MENU, rotate the control dial to select [SET GENERAL], then press it.
3 Rotate the control dial to select [SET BTM], then press it.

The unit stores stations in order of frequency on the number buttons.

Tuning

1 Press MODE to change the band (FM1, FM2, FM3, MW or LW).
2 Perform tuning.

To tune manually

Press and hold SEEK +/- to locate the approximate frequency, then press SEEK +/- repeatedly to fine adjust to the desired frequency.

To tune automatically

Press SEEK + /-.

Scanning stops when the unit receives a station.

Storing manually

1 While receiving the station that you want to store, press and hold a number button (1 to 6) until [MEM] appears.

Receiving the stored stations

1 Select the band, then press a number button (1 to 6).

Using Radio Data System (RDS)

Setting alternative frequencies (AF) and traffic announcement (TA)

AF continuously retunes the station to the strongest signal in a network, and TA provides current traffic information or traffic programs (TP) if received.

1 Press AF/TA to select [AF-ON], [TA-ON], [AF/TA-ON] or [AF/TA-OFF].

To store RDS stations with the AF and TA setting

You can preset RDS stations along with an AF/TA setting. Set AF/TA, then store the station with BTM or manually. If you preset manually, you can also preset non-RDS stations.

To receive emergency announcements

With AF or TA on, emergency announcements will automatically interrupt the currently selected source.

To adjust the volume level during a traffic announcement

Level will be stored into memory for subsequent traffic announcements, independently from the regular volume level.

To stay with one regional program (REGIONAL)

When the AF and REGIONAL functions are on, you will not be switched to another regional station with a stronger frequency. If you leave this regional program's reception area, set [REG-OFF] in [GENERAL] during FM reception (page 18).

This function does not work in the UK and some other areas.

Local Link function (UK only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

During FM reception, press a number button (1 to 6) on which a local station is stored. Within 5 seconds, press again a number button of the local station.

Repeat this procedure until the local station is received.

Selecting program types (PTY)

1 Press and hold PTY during FM reception.
2 Rotate the control dial until the desired program type appears, then press it.

The unit starts to search for a station broadcasting the selected program type.

NEWS (News), AFFAIRS (Current Affairs), INFO (Information), SPORT (Sports), EDUCATE (Education), DRAMA (Drama), CULTURE (Culture), SCIENCE (Science), VARIORED (Varied), POP M (Pop Music), ROCK M (Rock Music), EASY M (M.O.R. Music), LIGHT M (Light classical), CLASSICS (Serious classical), OTHER M (Other Music), WEATHER (Weather), FINANCE (Finance), CHILDREN (Children's program), SOCIAL A (Social Affairs), RELIGION (Religion), PHONE IN (Phone In), TRAVEL (Travel), LEISURE (Leisure), JAZZ (Jazz Music), COUNTRY (Country Music), NATIONAL M (National Music), OLDIES (Oldies Music), FOLK M (Folk Music), DOCUMENT (Documentary)

Setting clock time (CT)

The CT data from the RDS transmission sets the clock.

1 Set [SET CT-ON] in [SET GENERAL] (page 18).

Playback

Playing a Disc

1 Insert the disc (label side up).

Playback starts automatically.

Playing an iPod/USB Device

In these Operating Instructions, "iPod" is used as a general reference for the iPod functions on an iPod and iPhone, unless otherwise specified by the text or illustrations.

For details on the compatibility of your iPod, see "About iPod" (page 21) or visit the support site on the back cover.

MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices (such as a USB flash drive, digital media player, Android phone) compliant with the USB standard can be used. Depending on the digital media player or Android phone, setting the USB connection mode to MTP is required.

Notes

• For details on the compatibility of your USB device, visit the support site on the back cover.
• Playback of the following files is not supported.
  MP3/WMA/AAC/FLAC:

copyright-protected files
- DRM (Digital Rights Management) files
Multi-channel audio files

MP3/WMA/AAC:

• lossless compression files
  WAV:
  Multi-channel audio files

1 Connect an iPod/USB device to the USB port (page 9).

Playback starts.

If a device is already connected, to start playback, press SRC to select [USB] ([IPD] appears in the display when the iPod is recognized).

2 Adjust the volume on this unit.

To stop playback

Press and hold OFF for 1 second.

To remove the device

Stop playback, then remove the device.

Caution for iPhone

When you connect an iPhone via USB, phone call volume is controlled by the iPhone, not the unit. Do not inadvertently increase the volume on the unit during a call, as a sudden loud sound may result when the call ends.

Operating an iPod directly (Passenger control)

1 During playback, press and hold MODE until [MODE IPOD] appears.

Operations of the iPod become available.

Note that the volume can be adjusted only by the unit.

To exit passenger control

Press and hold MODE until [MODE AUDIO] appears.

Playing a BLUETOOTH Device

You can play contents on a connected device that supports BLUETOOTH A2DP (Advanced Audio Distribution Profile).

1 Make BLUETOOTH connection with the audio device (page 8).

2 Press SRC to select [BT AUDIO].
3 Operatethe audio device to start playback.
4 Adjust the volume on this unit.

Notes

• Depending on the audio device, information such as title, track number/time and playback status may not be displayed on this unit.
• Even if the source is changed on this unit, playback of the audio device does not stop.
• [BT AUDIO] does not appear in the display while running the "SongPal" application via the BLUETOOTH function.

To match the volume level of the BLUETOOTH device to other sources

Start playback of the BLUETOOTH audio device at a moderate volume, and set your usual listening volume on the unit.

Press MENU, then select [SET SOUND] [SET BTA VOL] (page 19).

Searching and Playing Tracks

Repeat play and shuffle play

1 During playback, press (repeat) or (shuffle) repeatedly to select the desired play mode.

Playback in the selected play mode may take time to start.

Available play modes differ depending on the selected sound source.

Searching a track by name (QuickBrowZerTM)

1 During CD, USB or BT AUDIO\*1 playback, press Q (browse)\*2 to display the list of search categories.

When the track list appears, press (back) repeatedly to display the desired search category.

1 Available only for audio devices supporting AVRCP (Audio Video Remote Control Profile) 1.4 or above.
2 During USB playback, press Q (browse) for more than 2 seconds to directly return to the beginning of the category list.

2 Rotate the control dial to select the desired search category, then press it to confirm.

3 Repeat step 2 to search the desired track. Playback starts.

To exit the Quick-BrowZer mode

Press Q (browse).

Searching by skipping items (Jump mode)

1 Press Q (browse).
2 Press SEEK+.
3 Rotate the control dial to select the item. The list is jumped in steps of 10% of the total number of items.
4 Press ENTER to return to the QuickBrowZer mode. The selected item appears.
5 Rotate the control dial to select the desired item, then press it. Playback starts.

Handsfree Calling (via BLUETOOTH only)

To use a cellular phone, connect it with this unit. For details, see "Preparing a BLUETOOTH Device" (page 7).

Receiving a Call

1 Press CALL when a call is received with a ringtone.

The phone call starts.

Note

The ringtone and talker's voice are output only from the front speakers.

To reject the call

Press and hold OFF for 1 second.

To end the call

Press CALL again.

Making a Call

You can make a call from the phonebook or call history when a cellular phone supporting PBAP (Phone Book Access Profile) is connected.

From the phonebook

1 Press CALL, rotate the control dial to select [PHONE BOOK], then press it.
2 Rotate the control dial to select an initial from the initial list, then press it.
3 Rotate the control dial to select a name from the name list, then press it.
4 Rotate the control dial to select a number from the number list, then press it.

The phone call starts.

From the call history

1 Press CALL, rotate the control dial to select [RECENT CALL], then press it. A list of the call history appears.
2 Rotate the control dial to select a name or phone number from the call history, then press it. The phone call starts.

By phone number input

1 Press CALL, rotate the control dial to select [DIAL NUMBER], then press it.
2 Rotate the control dial to enter the phone number, and lastly select [ ] (space), then press ENTER*. The phone call starts.

• To move the digital indication, press SEEK +/-.

Note

· appears instead of [#] on the display.

By redial

1 Press CALL, rotate the control dial to select [REDIAL], then press it. The phone call starts.

By preset number

1 Press SRC, rotate the control dial to select [BT PHONE], then press it.
2 Press a number button (1 to 6) to select the contact you want to call.
3 Press ENTER. The phone call starts.

Presetting phone numbers

You can store up to 6 contacts in the preset dial.

1 Select a phone number that you want to store in the preset dial, from the phonebook, call history or by inputting the phone number directly. The phone number appears in the display of this unit.
2 Press and hold a number button (1 to 6) until [MEM] appears. The contact is stored in the selected preset number.

By voice tags

You can make a call by saying the voice tag stored in a connected cellular phone that has a voice dialing function.

1 Press CALL, rotate the control dial to select [VOICE DIAL], then press it. Alternatively, press VOICE while the "SongPal" function is off.
2 Say the voice tag stored on the cellular phone. Your voice is recognized, and the call is made.

To cancel voice dialing Press VOICE.

Available Operations during Call

To adjust the ringtone volume

Rotate the control dial while receiving a call.

To adjust the talker's voice volume

Rotate the control dial during a call.

To adjust the volume for the other party (Mic gain adjustment)

Press MIC.
Adjustable volume levels: [MIC-LOW], [MIC-MID], [MIC-HI].

To reduce echo and noise (Echo Canceler/ Noise Canceler Mode)

Press and hold MIC. Settable mode: [EC/NC-1], [EC/NC-2].

To switch between handsfree mode and handheld mode

During a call, press MODE to switch the phone call audio between the unit and cellular phone.

Note

Depending on the cellular phone, this operation may not be available.

To check the status of SMS*

flashes when a new SMS is received, and stays lit when there are unread messages.

• Available only for a cellular phone supporting MAP (Message Access Profile).

SongPal with iPhone/Android Phone

Downloading the "SongPal" application (version 2.1 or later) is required from the App Store for iPhone or from Google Play for Android phone.

Notes

• For your safety, follow your local traffic laws and regulations, and do not operate the application while driving.
• "SongPal" is an app for controlling Sony audio devices which are compatible with "SongPal", by your iPhone/Android phone.
• What you can control with "SongPal" varies depending on the connected device.
• To make use of "SongPal" features, see the details on your iPhone/Android phone.
• For further details on "SongPal," visit the following URL: http://rd1.sony.net/help/speaker/songpal/

Establishing the SongPal connection

1 Make the BLUETOOTH connection with iPhone/Android phone (page 7).
2 Launch the "SongPal" application.
3 Press and hold ENTER on the unit for more than 2 seconds.

Connection to iPhone/Android phone starts. For details on the operations on iPhone/Android phone, see the help of the application.

If the device number appears

Make sure that the number is displayed (e.g., 123456), then select [Yes] on the iPhone/Android phone.

To terminate connection

Press and hold ENTER.

Selecting the source or application

You can operate to select the desired source or application on iPhone/Android phone.

To select the source

Press SRC repeatedly. Alternatively, press SRC, rotate the control dial to select the desired source, then press ENTER.

To display the source list

Press SRC.

Announcement of various information by voice guide (Android phone only)

When SMS, Twitter/Facebook/Calendar notifications, etc., are received, they are automatically announced through the unit speakers.

For details on settings, refer to the help of the application.

Activating voice recognition (Android phone only)

By registering applications, you can control an application by voice command. For details, refer to the help of the application.

To activate voice recognition

1 Press VOICE to activate voice recognition.
2 Say the desired voice command into the microphone when [Say Source or App] appears on the Android phone.

Notes

• Voice recognition may not be available in some cases.
  Voice recognition may not work properly depending on the performance of the connected Android phone.
• Operate under conditions where noise such as engine sound is minimized during voice recognition.

Replying a message of SMS (Android phone only)

You can reply a message by voice recognition.

1 Activate voice recognition, then input "Reply." The message input display appears on the "SongPal" application.
2 Input a reply message by voice recognition. The list of message candidates appears on the "SongPal" application.
3 Rotate the control dial to select the desired message, then press it. The message is sent out.

Making sound and display settings

You can adjust the settings relating to sound and display via iPhone/Android phone.

For details on settings, refer to the help of the application.

Using Siri Eyes Free

Siri Eyes Free allows you to use an iPhone handsfree by simply speaking into the microphone. This function requires you to connect an iPhone to the unit with BLUETOOTH Auto Pairing. Availability is limited iPhone 4s or later. Make sure that your iPhone is running the latest iOS version.

You must complete BLUETOOTH registration and connection configurations for the iPhone with the unit in advance. For details, see "Preparing a BLUETOOTH Device" (page 7).

1 Activate the Siri function on the iPhone. For details, refer to the operating instructions supplied with the iPhone.
2 Press VOICE. The voice command display appears.
3 After the iPhone beeps, speak into the microphone. The iPhone beeps again, then Siri starts responding.

To deactivate Siri Eyes Free Press VOICE.

Notes

• The iPhone may not recognize your voice depending on usage conditions. (For example, if you are in a moving car.)
• Siri may not function properly, or the response time may lag in locations where iPhone signals are difficult to receive.
  Depending on the iPhone's operating condition, Siri may not function properly, or may quit.
• If you play a track with an iPhone using the BLUETOOTH audio connection, when the track starts playback via BLUETOOTH, the Siri function automatically quits and the unit switches to the BLUETOOTH audio source.
• When Siri is activated during audio playback, the unit may switch to the BLUETOOTH audio source even if you do not specify a track to play.
• When connecting the iPhone to the USB port, Siri may not function properly, or may quit.
• When connecting the iPhone to the unit, do not activate Siri with the iPhone. Siri may not function properly, or may quit.
• There is no audio sound while Siri Eyes Free is activated.

Settings

Canceling the DEMO Mode

You can cancel the demonstration display which appears when the source is off and the clock is displayed.

1 Press MENU, rotate the control dial to select [SET DISPLAY], then press it.
2 Rotate the control dial to select [SET DEMO], then press it.
3 Rotate the control dial to select [SET DEMO-OFF], then press it. The setting is complete.
4 Press (back) twice. The display returns to normal reception/play mode.

Basic Setting Operation

You can set items in the following setup categories: General setup (GENERAL), Sound setup (SOUND), Display setup (DISPLAY), BLUETOOTH setup (BT), SongPal setup (SONGPAL) (Not available when the BT phone is selected.)

1 Press MENU.
2 Rotate the control dial to select the setup category, then press it. The items that can be set differ depending on the source and settings.
3 Rotate the control dial to select the options, then press it.

To return to the previous display Press (back).

General Setup (GENERAL)

CLOCK-ADJ (clock adjust) (page 7)

CAUT ALM (caution alarm) Activates the caution alarm: [ON], [OFF] (page 6). (Available only while the source is off and the clock is displayed.)

BEEP

Activates the beep sound: [ON], [OFF].

AUTO OFF

Shuts off automatically after a desired time when the unit is turned off: [NO], [30S] (30 seconds), [30M] (30 minutes), [60M] (60 minutes).

STEERING

Registers/resets the setting of the steering wheel remote control.

(Available when connected with the connection cable (not supplied).)(Available only while the source is off and the clock is displayed.) STR CONTROL (steering control) Selects the input mode of the connected remote control. To prevent a malfunction, be sure to match the input mode with the connected remote control before use.

USER

Input mode for the steering wheel remote control (automatically selected when [STR EDIT] is complete or [STR RESET] is performed)

EXTERNAL

Input mode for the wired remote control excluding the steering wheel remote control REDIT (steering edit)

Registers the functions (SOURCE, ATT, VOL +/-, SEEK +/-, VOICE, CALL) to the steering wheel remote control:

Rotate the control dial to select the function you want to assign to the steering wheel remote control, then press it.
While [REGISTER] is blinking, press and hold the button on the steering wheel remote control you want to assign the function to. When registration is complete, [REGISTERED] is displayed.
3 To register other functions, repeat steps 1 and 2.

STR RESET (steering reset)

Reset the setting of the steering wheel remote control: [YES], [NO].

Notes

• While making settings, only button operation on the unit is available. For safety, park your car before making this setting.
  If an error occurs while registering, all the previously-registered information remains. Restart registration from the function where the error occurred.
• This function may not be available on some vehicles. For details on the compatibility of your vehicle, visit the support site on the back cover.

AUX-A (AUX audio)

Activates the AUX source display: [ON], [OFF]. (Available only while the source is off and the clock is displayed.) (Not available when the "SongPal" connection is established.)

REAR/SUB (MEX-N4100BT only)

Switches the audio output: [SUB-OUT]

(subwoofer), [REAR-OUT] (power amplifier).

(Available only while the source is off and the clock is displayed.)

CT (clock time)

Activates the CT function: [ON], [OFF].

REGIONAL

Restricts reception to a specific region: [ON], [OFF]. (Available only when FM is received.)

BTM (page 10)

(Available only when the tuner is selected.)

FIRMWARE

Checks/updates the firmware version. For details, visit the following support site:

http://support.sony-europe.com/

FW VERSION (firmware version)

Displays current firmware version.

FW UPDATE (firmware update)

Enters firmware update process: [YES], [NO].

(Available only while the source is off and the clock is displayed.)

Sound Setup (SOUND)

This setup menu is available when any source except for the BT phone is selected.

MEGABASS (mega bass)

Reinforces bass sound in synchronization with the volume level: [ON], [OFF].

(Automatically sets to [OFF] when [C.AUDIO+] is set to [ON].)

C.AUDIO+ (ClearAudio+)

Reproduces sound by optimizing the digital signal with the Sony recommended sound settings: [ON], [OFF].

(Automatically sets to [OFF] when [EQ10 PRESET] is changed and/or [MEGABASS] is set to [ON].)

EQ10 PRESET

Selects an equalizer curve from 10 equalizer curves or off: [OFF], [R AND B], [ROCK], [POP], [DANCE], [HIP-HOP], [ELECTRONICA], [JAZZ], [SOUL], [COUNTRY], [CUSTOM].

The equalizer curve setting can be memorized for each source.

EQ10 SETTING

Sets [CUSTOM] of EQ10.

BASE

Selects a preset equalizer curve as a basis for further customizing: [BAND1] 32 Hz, [BAND2] 63 Hz, [BAND3] 125 Hz, [BAND4] 250 Hz, [BAND5] 500 Hz, [BAND6] 1 kHz, [BAND7] 2 kHz, [BAND8] 4 kHz, [BAND9] 8 kHz, [BAND10] 16 kHz.

The volume level is adjustable in 1 dB steps, from -6 dB to +6 dB.

POSITION (listening position)

F/R POS (front/rear position)

Simulates a natural sound field by delaying the sound output from speakers to suit your position:

[FRONT L] (front left),
[FRONT R] (front right),
[FRONT] (center front),
4 [ALL] (center of your car), [OFF] (no position set)
ADJ POSITION (adjust position)
Fine-tunes the listening position setting: [+3] - [CENTER] - [-3].
SW POS (subwoofer position)
[NEAR] (near),
[NORMAL] (normal),
[FAR] (far)

BALANCE

Adjusts the sound balance: [RIGHT-15] - [CENTER] - [LEFT-15].

FADER

Adjusts the relative level: [FRONT-15] - [CENTER] - [REAR-15].

DSEE (digital sound enhancement engine)

Improves digitally compressed sound by restoring high frequencies lost in the compression process.

This setting can be memorized for each source other than the tuner.

Selects the DSEE mode: [ON], [OFF].

AAV (advanced auto volume)

Adjust the playback volume level of all playback sources to the optimum level: [ON], [OFF].

RB ENH (rear bass enhancer)

Rear Bass Enhancer enhances the bass sound by applying a low pass filter setting to the rear speakers. This function allows the rear speakers to work as a subwoofer if one is not connected. (Available only when [SW DIREC] is set to [OFF].) (MEX-N4100BT: Available only when [REAR-OUT] is selected in [REAR/SUB].)

RBE MODE (rear bass enhancer mode)

Selects the rear bass enhancer mode: [1], [2], [3], [OFF].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency: [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].

LPF SLOP (low pass filter slope)

Selects the LPF slope: [1], [2], [3].

SW DIREC (subwoofer direct connection)

You can use the subwoofer without a power amplifier when it is connected to the rear speaker lead. (Available only when [RBE MODE] is set to [OFF].)

(MEX-N4100BT: Available only when [REAR-OUT] is selected in [REAR/SUB].)

Be sure to connect a 4-8 ohm subwoofer to either of the rear speaker leads. Do not connect a speaker to the other rear speaker lead.

Selects the subwoofer mode: [1], [2], [3], [OFF].

Selects the subwoofer phase: [NORM], [REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency: [50Hz],

[60Hz], [80Hz], [100Hz], [120Hz].

LPF SLOP (low pass filter slope)

Selects the LPF slope: [1], [2], [3].

([ATT] is displayed at the lowest setting.)

Selects the subwoofer phase: [NORM], [REV].

LPF FREQ (low pass filter frequency)

Selects the subwoofer cut-off frequency: [50Hz],

[60Hz], [80Hz], [100Hz], [120Hz].

LPF SLOP (low pass filter slope)

Selects the LPF slope: [1], [2], [3].

HPF (high pass filter)

HPF FREQ (high pass filter frequency)

Selects the front/rear speaker cut-off frequency:

[OFF], [50Hz], [60Hz], [80Hz], [100Hz], [120Hz].

HPF SLOP (high pass filter slope)

Selects the HPF slope (effective only when [HPF

FREQ] is set to other than [OFF]): [1], [2], [3].

AUX VOL (AUX volume level)

Adjusts the volume level for each connected auxiliary device: [+18dB] - [0dB] -[-8 dB].

This setting negates the need to adjust the volume level between sources.

BTA VOL (BLUETOOTH audio volume level)

Adjusts the volume level for each connected BLUETOOTH device: [+6dB] - [0dB] - [-6dB]

This setting negates the need to adjust the volume level between sources.

• Does not appear when [F/R POS] is set to [OFF].

Display Setup (DISPLAY)

DEMO (demonstration)

Activates the demonstration: [ON], [OFF].

DIMMER

For MEX-N5100BT:

Dims the display: [ON], [OFF], [AT] (auto)

([AT] is available only when the illumination control lead is connected, and turn on the head light).

For MEX-N4100BT:

Changes the display brightness: [ON], [OFF].

ILLUM (illumination) (MEX-N4100BT only)

Changes the illumination color: [1], [2].

BUTTON-C (button color) (MEX-N5100BT only)

Sets a preset color or customized color for the buttons.

COLOR

Selects from 15 preset colors, 1 customized color.

CUSTOM-C (custom color)

Registers a customized color for the buttons.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] - [32] ([0] cannot be set for all color ranges).

DSPL-C (display color) (MEX-N5100BT only)

Sets a preset color or customized color for the display.

COLOR

Selects from 15 preset colors, 1 customized color.

CUSTOM-C (custom color)

Registers a customized color for the display.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] - [32] ([0] cannot be set for all color ranges).

ALL-C (all color) (MEX-N5100BT only)

Sets a preset color or customized color for the display and buttons.

COLOR

Selects from 15 preset colors, 1 customized color.

CUSTOM-C (custom color)

Registers a customized color for the display and buttons.

RGB RED, RGB GRN, RGB BLUE

Adjustable color range: [0] - [32] ([0] cannot be set for all color ranges).

SND SYNC (sound synchronization)

Selects the color with sound synchronization: [ON], [OFF].

WHT MENU (white menu) (MEX-N5100BT only)

You can display the menu more clearly (white) without concern for color setting: [ON], [OFF].

START-WHT (start white) (MEX-N5100BT only)

When SRC is pressed, the display and buttons on the main unit turn white once, then change to the customized color: [ON], [OFF].

AUTO SCR (auto scroll)

Scrolls long items automatically: [ON], [OFF].

(Not available when the AUX or tuner is selected.)

BLUETOOTH Setup (BT)

PAIRING (page 8)

PHONE BOOK (page 13)

REDIAL (page 14)

RECENTCALL page 14

VOICE DIAL (page 14)

DIAL NUMBER (page 14)

RINGTONE

Selects whether this unit or the connected cellular phone outputs the ringtone: [1] (this unit), [2] (cellular phone).

AUTO ANS (auto answer)

Sets this unit to answer an incoming call automatically: [OFF], [1] (about 3 seconds), [2] (about 10 seconds).

AUTOPAIR (auto pairing)

Start BLUETOOTH pairing automatically when iOS device version 5.0 or later is connected via USB:[ON],[OFF].

BT SIGNL (BLUETOOTH signal) (page 8)

Activates/deactivates the BLUETOOTH function.

BT INIT (BLUETOOTH initialize)

Initializes all the BLUETOOTH related settings (pairing information, preset number, device information, etc.): [YES], [NO].

When disposing the unit, initialize all the settings.

(Available only while the source is off and the clock is displayed.)

SongPal Setup (SONGPAL)

Establish and terminate "SongPal" function (connection).

Additional Information

Updating the Firmware

You can update the firmware of this unit from the following support site:

http://support.sony-europe.com/

To update the firmware, visit the support site, then follow the online instructions.

Precautions

Cool off the unit beforehand if your car has been parked in direct sunlight.
- Do not leave the front panel or audio devices brought in inside the car, or it may cause malfunction due to high temperature in direct sunlight.
- Power antenna (aerial) extends automatically.

Moisture condensation

Should moisture condensation occur inside the unit, remove the disc and wait for about an hour for it to dry out; otherwise the unit will not operate properly.

To maintain high sound quality

Do not splash liquid onto the unit or discs.

Notes on discs

• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight.
• Before playing, wipe the discs with a cleaning cloth from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners.
  This unit is designed to play discs that conform to the Compact Disc (CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this unit.
• Discs that this unit CANNOT play

Discs with labels, stickers, or sticky tape or paper attached. Doing so may cause a malfunction, or may ruin the disc.
- Discs with non-standard shapes (e.g., heart, square, star). Attempting to do so may damage the unit.
-8 cm (3 1/4 in) discs.

Notes on CD-R/CD-RW discs

• If the multi-session disc begins with a CD-DA session, it is recognized as a CD-DA disc, and other sessions are not played.

• Discs that this unit CANNOT play

• CD-R/CD-RW of poor recording quality.

• CD-R/CD-RW recorded with an incompatible recording device.

• CD-R/CD-RW which is finalized incorrectly.

• CD-R/CD-RW other than those recorded in music CD format or MP3 format conforming to ISO9660 Level 1/Level 2, Joliet/Romeo or multi-session.

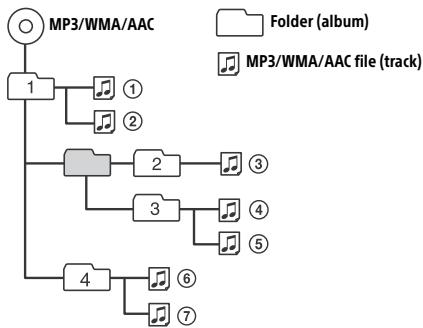

Playback order of MP3/WMA/AAC files

About iPod

• You can connect to the following iPod models. Update your iPod devices to the latest software before use.

Compatible iPhone/iPod models

Compatible Model	Bluetooth®	USB
iPhone 5s	○	○
iPhone 5c	○	○
iPhone 5	○	○
iPhone 4s	○	○
iPhone 4	○	○
iPhone 3GS	○	○
iPhone 3G*		○
iPod touch (5th generation)	○	○
iPod touch (4th generation)	○	○
iPod touch (3rd generation)*		○
iPod touch (2nd generation)*		○

Compatible Model	Bluetooth®	USB
iPod classic*		○
iPod nano (7th generation)*		○
iPod nano (6th generation)*		○
iPod nano (5th generation)*		○
iPod nano (4th generation)*		○
iPod nano (3rd generation)*		○

• "SongPal" does not support iPhone 3G, iPod touch (3rd generation), iPod touch (2nd generation), iPod classic, and iPod nano.
• "Made for iPod," and "Made for iPhone," mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.

If you have any questions or problems concerning your unit that are not covered in this manual, consult your nearest Sony dealer.

Maintenance

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 6) and clean the connectors with a cotton swab. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Specifications

Tuner section

FM

Tuning range: 87.5 - 108.0 MHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Intermediate frequency:

FM CCIR: -1,956.5 to -487.3 kHz and

+500.0 to +2,095.4 kHz

Usable sensitivity: 8 dBf

Selectivity: 75 dB at 400 kHz

Signal-to-noise ratio: 73 dB

Separation: 50 dB at 1 kHz

Frequency response: 20 - 15,000 Hz

MW/LW

Tuning range:

MW:531-1,602kHz

LW:153-279kHz

Antenna (aerial) terminal:

External antenna (aerial) connector

Sensitivity: MW: 26 V, LW: 50 V

CD Player section

Signal-to-noise ratio: 120 dB

Frequency response: 10 - 20,000Hz

Wow and flutter: Below measurable limit

The maximum number of: (CD-R/CD-RW only)

• folders (albums): 150 (including root folder)

• files (tracks) and folders: 300 (may less than 300 if folder/file names contain many characters)

displayable characters for a folder/file name: 32 (Joliet)/64 (Romeo)

Corresponding codec: MP3 (.mp3), WMA (.wma) and AAC (.m4a)

USB Player section

Interface: USB (High-speed)

Maximum current: 1 A

The maximum number of recognizable tracks: 10,000

Corresponding codec:

MP3 (.mp3), WMA (.wma), WAV (.wav), AAC

(.m4a), AAC (.mp4) and FLAC (.flac)

Wireless Communication

Communication System:

BLUETOOTH Standard version 3.0

Output:

BLUETOOTH Standard Power Class 2

(Max. +4 dBm)

Maximum communication range:

Line of sight approx. 10m (33 ft)*1

Frequency band:

2.4 GHz band (2.4000 - 2.4835 GHz)

Modulation method: FHSS

Compatible BLUETOOTH Profiles*2:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

MAP (Message Access Profile)

HID (Human Interface Device Profile)

Corresponding codec:

SBC (.sbc) and AAC (.m4a)

*1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna (aerial)'s performance, operating system, software application, etc.

*2 BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.

Power amplifier section

Output: Speaker outputs

Speaker impedance: 4 - 8 ohms

Maximum power output: 55W× 4 (at 4 ohms)

General

Outputs:

Audio outputs terminal:

MEX-N5100BT: front, rear, sub

MEX-N4100BT: front, rear/sub switchable

Power antenna (aerial)/Power amplifier control

terminal (REM OUT)

Inputs:

Remote controller input terminal

Antenna (aerial) input terminal

MIC input terminal

Power requirements: 12 V DC car battery (negative ground (earth))

Rated current consumption: 10 A

Dimensions:

Approx. 178mm× 50mm× 177mm

(71/8 in × 2 in × 7 in) (w/h/d)

Mounting dimensions:

Approx. 182mm× 53mm× 160mm

(71/4 in × 21/8 in × 65/16 in) (w/h/d)

Mass: Approx. 1.2kg (2 lb 11 oz)

Package contents:

Main unit (1)

Microphone (1) (MEX-N5100BT only)

Parts for installation and connections (1 set)

Optional accessories/equipment:

Microphone:XA-MC10 (MEX-N4100BT only)

Your dealer may not handle some of the above listed accessories. Please ask the dealer for detailed information.

Design and specifications are subject to change without notice.

Copyrights

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.

Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.

iPhone, iPod, iPod classic, iPod nano, iPod touch, and Siri are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

Google, Google Play and Android are trademarks of Google Inc.

libFLAC

Copyright (C) 2000-2009 Josh Coalson
Copyright (C) 2011-2013 Xiph.Org Foundation

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
• Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of the Xiph.org Foundation nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND COLNTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE FOUNDATION OR COLNTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,

SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures. For details on using the fuse and removing the unit from the dashboard, see "Connection/Installation" (page 28). If the problem is not solved, visit the support site on the back cover.

General

No sound or the sound is very low.

The position of the fader control [FADER] is not set for a 2-speaker system.
The volume of the unit and/or connected device is very low.
- Increase the volume of the unit and connected device.

No beep sound.

An optional power amplifier is connected and you are not using the built-in amplifier.

The contents of the memory have been erased.

The reset button has been pressed.
- Store again into the memory.
The power supply lead or battery has been disconnected or not connected properly.

Stored stations and correct time are erased. The fuse has blown.

Makes a noise when the position of the ignition is switched.

The leads are not matched correctly with the car's accessory power connector.

During playback or reception, the demonstration mode starts.

If no operation is performed for 5 minutes with [DEMO-ON] set, the demonstration mode starts. -Set [DEMO-OFF] (page 19).

The display disappears from/does not appear in the display window.

The dimmer is set to [DIM-ON] (page 19).
The display disappears if you press and hold OFF. Press OFF on the unit until the display appears.
The connectors are dirty (page 21).

The operation buttons do not function. The disc will not eject.

The connection is not correct.

• Check the connection of the unit.
  If the situation does not improve, press RESET (page 7).
  The contents stored in memory are erased.
  For your safety, do not reset the unit while you are driving.

Radio reception

Stations cannot be received.

The sound is hampered by noises.

The connection is not correct.

• Check the connection of the car antenna (aerial).
• If the auto antenna (aerial) will not extend, check the connection of the power antenna (aerial) control lead.

Preset tuning is not possible.

The broadcast signal is too weak.

RDS

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal. -Deactivate TA (page 10).

No traffic announcements.

Activate TA (page 10).
The station does not broadcast any traffic announcements despite being TP.

Tune in another station.

PTY displays [ ]

The current station is not an RDS station.
RDS data has not been received.
The station does not specify the program type.

Program service name flashes.

There is no alternative frequency for the current station.
- Press SEEK +/- while the program service name is flashing. [PI SEEK] appears and the unit starts searching for another frequency with the same PI (program identification) data.

CD playback

The disc does not play.

Defective or dirty disc.
The CD-R/CD-RW is not for audio use (page 21).

MP3/WMA/AAC files cannot be played.

The disc is incompatible with the MP3/WMA/AAC format and version. For details on playable discs and formats, visit the support site on the back cover.

MP3/WMA/AAC files take longer to play than others.

The following discs take a longer time to start playback.

-A disc recorded with a complicated tree structure.
-A disc recorded in Multi Session.
-A disc to which data can be added.

The sound skips.

Defective or dirty disc.

USB device playback

You cannot play items via a USB hub.

This unit cannot recognize USB devices via a USB hub.

A USB device takes longer to play.

The USB device contains files with a complicated tree structure.

The sound is intermittent.

The sound may be intermittent at a high-bit-rate of more than 320 kbps.

Audio file cannot be played.

USB device formatted with file systems other than FAT16 or FAT32 are unsupported.*

• This unit supports FAT16 and FAT32, but some USB device may not support all of these FAT. For details, refer to the operating instruction of each USB device or contact the manufacturer.

NFC function

One touch connection (NFC) is not possible.

If the smartphone does not respond to the touching.

• Check that the NFC function of the smartphone is turned on.
• Move the N-Mark part of the smartphone closer to the N-Mark part on this unit.
• If the smartphone is in a case, remove it.

NFC receiving sensitivity depends on the device. If One touch connection with the smartphone fails several times, make BLUETOOTH connection manually.

BLUETOOTH function

The connecting device cannot detect this unit.

Before the pairing is made, set this unit to pairing standby mode.
While connected to a BLUETOOTH device, this unit cannot be detected from another device. - Disconnect the current connection and search for this unit from another device.
When the device pairing is made, set the BLUETOOTH signal output to on (page 8).

Connection is not possible.

The connection is controlled from one side (this unit or BLUETOOTH device), but not both. Connect to this unit from a BLUETOOTH device or vice versa.

The name of the detected device does not appear.

Depending on the status of the other device, it may not be possible to obtain the name.

No ringtone.

Adjust the volume by rotating the control dial while receiving a call.
Depending on the connecting device, the ringtone may not be sent properly. - Set [RINGTONE] to [1] (page 20).
The front speakers are not connected to the unit. Connect the front speakers to the unit. The ringtone is output only from the front speakers.

The talker's voice cannot be heard.

The front speakers are not connected to the unit. Connect the front speakers to the unit. The talker's voice is output only from the front speakers.

A call partner says that the volume is too low or high.

Adjust the volume accordingly using mic gain adjustment (page 14).

Echo or noise occurs in phone call conversations.

Lower the volume.
Set EC/NC Mode to [EC/NC-1] or [EC/NC-2] (page 14).
If the ambient noise other than the phone call sound is loud, try reducing this noise. E.g.: If a window is open and road noise, etc., is loud, shut the window. If an air conditioner is loud, lower the air conditioner.

The phone is not connected.

When BLUETOOTH audio is played, the phone is not connected even if you press CALL. Connect from the phone.

The phone sound quality is poor.

Phone sound quality depends on reception conditions of cellular phone.

Move your car to a place where you can enhance the cellular phone's signal if the reception is poor.

The volume of the connected audio device is low (high).

Volume level will differ depending on the audio device.

• Adjust the volume of the connected audio device or this unit.

The sound skips during playback of a BLUETOOTH audio device.

Reduce the distance between the unit and the BLUETOOTH audio device.
If the BLUETOOTH audio device is stored in a case which interrupts the signal, remove the audio device from the case during use.
Several BLUETOOTH devices or other devices which emit radio waves are in use nearby. -Turn off the other devices.
- Increase the distance from the other devices.
The playback sound stops momentarily when the connection between this unit and the cellular phone is being made. This is not a malfunction.

The connected BLUETOOTH audio device cannot be controlled.

Check that the connected BLUETOOTH audio device supports AVRCP.

Some functions do not work.

Check if the connecting device supports the functions in question.

A call is answered unintentionally.

The connecting phone is set to answer a call automatically.

Pairing failed due to a timeout.

Depending on the connecting device, the time limit for pairing may be short.

• Try completing the pairing within the time.

BLUETOOTH function cannot operate.

Turn off the unit by pressing OFF for more than 2 seconds, then turn the unit on again.

No sound is output from the car speakers during handsfree call.

If the sound is output from the cellular phone, set the cellular phone to output the sound from the car speakers.

Siri Eyes Free is not activated.

Perform the handsfree registration for an iPhone that supports Siri Eyes Free.
Set the Siri function on the iPhone to on.
Cancel the BLUETOOTH connection with the iPhone and the unit, and reconnect.

SongPal operation

Application name is mismatched with the actual application in "SongPal".

Launch the application again from the "SongPal" application.

While running the "SongPal" application via BLUETOOTH, the display automatically switches to [BT AUDIO].

The "SongPal" application or BLUETOOTH function has failed.
Run the application again.

The "SongPal" application is automatically disconnected when the display switches to [IPD].

The "SongPal" application on iPhone/iPod does not support iPod playback.

• Change the source of the unit to other than [IPD], then establish the "SongPal" connection (page 15).

Error displays/Messages

CD ERROR: The disc cannot be played. The disc will be ejected automatically.

Clean or insert the disc correctly, or make sure the disc is not blank or defective.

CD NO MUSIC: There is no playable file. The disc will be ejected automatically.

Insert a disc containing playable files (page 22).

CD PUSH EJT: The disc could not be ejected properly.
Press (eject).

HUB NO SUPRT: USB hubs are not supported.

IPD STOP: iPod playback has finished.

Operate your iPod/iPhone to start playback.

NO AF: No alternative frequencies.
Press SEEK + / - while the program service name is flashing. The unit starts searching for another frequency with the same PI (program identification) data ([PI SEEK] appears).

NO TP: No traffic programs.

The unit will continue searching for available TP stations.

OVERLOAD: The USB device is overloaded.

Disconnect the USB device, then press SRC to select another source.
The USB device has a fault, or an unsupported device is connected.

READ: Now reading information.

Wait until reading is complete and playback starts automatically. This may take some time depending on the disc structure.

USB ERROR: The USB device cannot be played.
Connect the USB device again.

USB NO DEV: A USB device is not connected or recognized.
Make sure the USB device or USB cable is securely connected.

USB NO MUSIC: There is no playable file.
Connect a USB device containing playable files (page 22).

USB NO SUPRT: The USB device is not supported.
For details on the compatibility of your USB device, visit the support site on the back cover.

LLor: The beginning or the end of the disc has been reached.

: The character cannot be displayed.

For BLUETOOTH function:

BT BUSY: The BLUETOOTH device is busy.
Wait for a while, then try again.
ERROR: The selected operation could not be performed.
Wait for a while, then try again.

NO DEV: The BLUETOOTH device is not connected or recognized.
Make sure the BLUETOOTH device is securely connected, or the BLUETOOTH connection is established with the BLUETOOTH device.

P EMPTY: No phone numbers are stored.

UNKNOWN: A name or phone number cannot be displayed.

WITHHELD: The phone number is hidden by the caller.

For SongPal operation:

APP ----: A connection with the application is not established. → Make the "SongPal" connection again (page 15).

APP DISCNCT: The application is disconnected. → Make the "SongPal" connection (page 15).

APP DISPLAY: A screen setting display of the application is open. → Exit the screen setting display of the application to enable button operation.

APP LIST: The contents list of the CD/USB/iPod is open. → Exit the list of the application to enable button operation.

APP MENU: A setting display of the application is open. → Exit the setting display of the application to enable button operation.

APP NO DEV: The device with the application installed is not connected or recognized. → Make the BLUETOOTH connection and establish the "SongPal" connection again (page 15).

APP SOUND: A sound setting display of the application is open. → Exit the sound setting display of the application to enable button operation.

OPEN APP: The "SongPal" application is not running. → Launch the application.

For steering wheel remote control operation:

ERROR: An error occurred during the function registration. → Register again from the function where the error occurred (page 17).

TIMEOUT: The function registration failed due to a timeout. → Try completing the registration while [REGISTER] is blinking (about 6 seconds) (page 17).

If these solutions do not help improve the situation, consult your nearest Sony dealer.

If you take the unit to be repaired because of CD playback trouble, bring the disc that was used at the time the problem began.

Connection/Installation

Cautions

• Run all ground (earth) leads to a common ground (earth) point.
• Do not get the leads trapped under a screw, or caught in moving parts (e.g., seat railing).
• Before making connections, turn the car ignition off to avoid short circuits.
• Connect the power supply lead (6) to the unit and speakers before connecting it to the auxiliary power connector.
• Be sure to insulate any loose unconnected leads with electrical tape for safety.

Precautions

• Choose the installation location carefully so that the unit will not interfere with normal driving operations.
• Avoid installing the unit in areas subject to dust, dirt, excessive vibration, or high temperature, such as in direct sunlight or near heater ducts.
• Use only the supplied mounting hardware for a safe and secure installation.

Note on the power supply lead (yellow)

When connecting this unit in combination with other stereo components, the amperage rating of the car circuit to which the unit is connected must be higher than the sum of each component's fuse amperage rating.

Mounting angle adjustment

Adjust the mounting angle to less than 45^ .

Parts List for Installation

①

(2)

(3)

(4)

(5)

(6)

For MEX-N5100BT

⑦

(8)

• This parts list does not include all the package contents.
• The bracket ① and the protection collar ③ are attached to the unit before shipping. Before mounting the unit, use the release keys ② to remove the bracket ① from the unit. For details, see "Removing the protection collar and the bracket" (page 32).
• Keep the release keys ② for future use as they are also necessary if you remove the unit from your car.

Connection (For MEX-N5100BT)

1 Not supplied
2 Speaker impedance: 4 - 8 × 4
3 RCA pin cord (not supplied)
4 Depending on the type of car, use an adaptor for a wired remote control (not supplied).
*5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet.

6 For details on installing the microphone, see "Installing the microphone (MEX-N5100BT only)" (page 32).
7 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.

Connection (For MEX-N4100BT)

1 Not supplied
2 Speaker impedance: 4 - 8 × 4
3 RCA pin cord (not supplied)
4 Depending on the type of car, use an adaptor for a wired remote control (not supplied).
*5 Whether in use or not, route the microphone input cord such that it does not interfere with driving operations. Secure the cord with a clamp, etc., if it is installed around your feet.

6 Depending on the type of car, use an adaptor (not supplied) if the antenna connector does not fit.
7 AUDIO OUT can be switched to SUB or REAR.

Making connections

If you have a power antenna (aerial) without a relay box, connecting this unit with the supplied power supply lead ⑥ may damage the antenna (aerial).

To the car's speaker connector

1	Rear speaker (right)	⊕	Purple
2		⊗	Purple/black striped
3	Front speaker (right)	⊕	Gray
4		⊗	Gray/black striped
5	Front speaker (left)	⊕	White
6		⊗	White/black striped
7	Rear speaker (left)	⊕	Green
8		⊗	Green/black striped

To the car's power connector

12	continuous power supply	Yellow
13	power antenna (aerial) / power amplifier control (REM OUT)	Blue/white striped
14*	switched illumination power supply	Orange/white striped
15	switched power supply	Red
16	ground (earth)	Black

• MEX-N5100BT only

Subwoofer Easy Connection

You can use a subwoofer without a power amplifier when it is connected to a rear speaker cord.

Notes

• Preparation of the rear speaker cords is required.

• Use a subwoofer with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage.

Memory hold connection

When the yellow power supply lead is connected, power will always be supplied to the memory circuit even when the ignition switch is turned off.

Speaker connection

• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with adequate power handling capacities to avoid damage.

Power connection diagram

Make sure your car's auxiliary power connector, and match the connections of cords correctly depending on the car.

Auxiliary power connector

Common connection

12	continuous power supply	Yellow
15	switched power supply	Red

When the positions of the red and yellow leads are inverted

12	switched power supply	Yellow
15	continuous power supply	Red

When the car without ACC position

After matching the connections and switching power supply leads correctly, connect the unit to the car's power supply. If you have any questions and problems connecting your unit that are not covered in this manual, consult the car dealer.

Installing the microphone (MEXN5100BT only)

To capture your voice during handsfree calling, you need to install the microphone ⑦.

Cautions

• It is extremely dangerous if the cord becomes wound around the steering column or gearstick. Be sure to keep it and other parts from interfering with your driving operations.
• If airbags or any other shock-absorbing equipment is in your car, contact the store where you purchased this unit, or the car dealer, before installation.

Note

Before attaching the double-sided tape ⑧ , clean the surface of the dashboard with a dry cloth.

Using the wired remote control

1 To enable the wired remote control, set [STR CONTROL] in [SET STEERING] to [EXTERNAL] (page 17).

Installation

Removing the protection collar and the bracket

Before installing the unit, remove the protection collar ③ and the bracket ① from the unit.

1 Pinch both edges of the protection collar ③ , then pull it out.

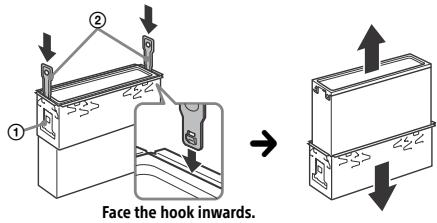

2 Insert both release keys ② until they click, and pull down the bracket ①, then pull up the unit to separate.

Mounting the unit in the dashboard

Before installing, make sure the catches on both sides of the bracket ① are bent inwards 2mm (3/32 in).

1 Position the bracket ① inside the dashboard, then bend the claws outward for a tight fit.

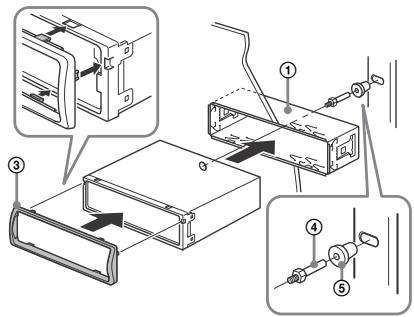

2 Mount the unit onto the bracket ①, then attach the protection collar ③.

Notes

• If the catches are straight or bent outwards, the unit will not be installed securely and may spring out.
• Make sure the 4 catches on the protection collar (3) are properly engaged in the slots of the unit.

Detaching and attaching the front panel

For details, see "Detaching the Front Panel" (page 6).

Resetting the unit

For details, see "Resetting the unit" (page 7).

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. I consult your nearest Sony dealer.

FW VERSION (Firmwareversion)

MEGABASS (Kraftvoller Bass)

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

MAP (Message Access Profile)

HID (Human Interface Device Profile)

Communication BLUETOOTH

Raccordement/Installation

Attention 30

La lecture commence.

La lecture commence.

La lecture commence.

Appels en mains libres (via BLUETOOTH uniquely)

C.AUDIO+ (AudioClair+)

DEMO (demonstration)

Permet d'activer la démonstration : [ON], [OFF].

DIMMER

Interface:USB (haute vitesse)

Raccordement/Installation

Attention

http://rd1.sony.net/help/speaker/songpal/

AAV (Advanced Auto Volume)

RB ENH (Rear Bass Enhancer)

RBE MODE (modo Rear Bass Enhancer)

START-WHT (Start White) (solo MEX-N5100BT)

BLUETOOTH Standard version 3.0

Uscita:

BLUETOOTH Standard Power Class 2 (max. +4 dBm)

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

MAP (Message Access Profile)

HID (Human Interface Device Profile)

Interface: USB (High-speed)

Maximale voeding: 1 A

BLUETOOTH-standard Power Class 2

(max. +4 dBm)

Maximaal communicatiebereik:

A2DP (Advanced Audio Distribution Profile) 1.3

AVRCP (Audio Video Remote Control Profile) 1.5

HFP (Handsfree Profile) 1.6

PBAP (Phone Book Access Profile)

SPP (Serial Port Profile)

MAP (Message Access Profile)

HID (Human Interface Device Profile)

Bijbehorende codec:

SBC (.sbc) en AAC (.m4a)

Copyright (C) 2000-2009 Josh Coalson

Copyright (C) 2011-2013 Xiph.Org Foundation

Hereby, Sony Corporation, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For details, please access the following URL: http://www.compliance.sony.de/

Eesti keel

Sony Corporation declares that this equipment is already in use. This equipment has been used for a number of applications, including the development of software for the Internet and the development of a new system for the Internet.

Româna

If you have any questions or for the latest support information on this product, please visit the web site below:

Site d'assistance

Register your product online now at:

www.sony-europe.com/myproducts
