USER MANUAL LSWV36 BLACK & DECKER

If you have a question or experience a problem with your Black & Decker purchase, go to

• Before any use, be sure everyone using this unit reads and understands all safety instructions and other information contained in this manual.

• Save these instructions and review frequently prior to use and in instructing others.

Keep long hair and loose clothing away from openings and moving parts.

warNING: When using an electric tool, basic safety

precautions should always be followed to reduce risk of fire, electric shock, and personal injury, including the following.

Some dust created by this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers

• compounds in insecticides, herbicides and pesticides

• arsenic and chromium from chemically treated lumber To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles. read aLL aNd UNderSTaNd aLL INSTrUcTIONS BefOre USING. SafeTy GUIdeLINeS - defINITIONS It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information.

daNGer: Indicates an imminently hazardous situation which,

if not avoided, will result in death or serious injury.

warNING: Indicates a potentially hazardous situation which,

if not avoided, could result in death or serious injury. caUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. NOTIce: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• with integral batteries or a separate battery pack must be recharged only with the specified charger for the battery. A charger that may be suitable for one type of battery may create a risk of fire when used with another battery.

with specifically designated battery pack. Use of any other batteries may create a risk of fire.

• accidental starting. Be sure switch is in the locked or off position before inserting battery pack. Carrying units with your finger on the switch or inserting the battery pack into a unit with the switch on invites accidents.

use unit if switch does not turn it on or off. A unit that cannot be controlled with the switch is dangerous and must be repaired.

• battery pack from unit or place the switch in the locked or off position before making any adjustments, changing accessories, or storing the unit. Such preventative safety measures reduce the risk of starting the unit accidentally.

• Wear safety glasses or goggles at all times when this unit is in use. Also use face or dust mask. Safety glasses are available at extra cost at your local Black & Decker Service Center or authorized service facility.

• place outlet of sweeper near eyes or ears when operating.

• When not in use, the unit should be stored in a dry, high or locked-up place - out of reach of children.

• Keep proper footing and balance at all times.

• Keep unit clean for best and safest performance. Follow instructions for proper maintenance.

• attempt to repair the sweeper. To assure product safety and reliability, repairs, maintenance, and adjustments should be performed by Black & Decker service centers or authorized service centers, always using Black & Decker replacement parts.

operate sweeper in a gaseous or explosive atmosphere. Motors in these units normally spark, and the sparks might ignite fumes.

Do not use electric units in damp or wet locations. Don’t use the unit in the rain.

• Watch what you are doing. Use common sense. Do not operate unit when you are tired.

• Do not use this unit for any job except that for which it is intended.

• when cleaning on stairs.

allow to be used as a toy. Close attention is necessary when used by or near children. Not recommended for use by children.

attempt to clear clogs from unit without first removing battery.

• as described in this manual. Use only manufacturer’s recommended attachments.

• put any objects into openings. Do not use with any opening blocked; keep free of dust, lint, hair and everything that may reduce air flow.

• hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

• immerse any part of the unit in liquid.

• handle charger, including charger plug, and charger terminals with wet hands.

• from the work area a minimum of 30 feet (10 meters) when starting or operating the unit.

• before using the unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can ricochet, be thrown, or otherwise cause injury or damage during operation.

• charger supplied by the manufacturer to recharge.

• in handling batteries in order not to short the battery with conducting materials such as rings, bracelets and keys. The battery or conductor may overheat and cause burns.

• the batteries. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

This manual contains important safety instructions for battery chargers.

• Before using charger, read all instructions and cautionary markings on charger, battery pack, and product using battery pack.

Do not allow any liquid to get inside charger. To reduce the risk of injury, charge only designated Black & Decker batteries. Other types of batteries may burst causing personal injury and damage. Under certain conditions, with the charger plugged in to the power supply, the charger can be shorted by foreign material. Foreign materials of a conductive nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

The charger and battery pack are specifically designed to work together.

Black & Decker Any other uses may To reduce the risk of electrical shock; do not expose to rain, do not use on wet surfaces. Store indoors.

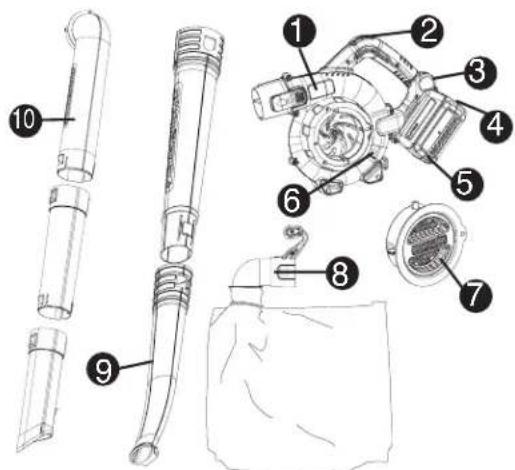

6. Fan Cover Release Button

• have them replaced immediately.

Take it to an authorized service center.

• take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

For safe operation, read this manual and manuals originally supplied with tool before using the charger. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.

Inserting or removing the battery from the charger may ignite the dust or fumes.

If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts. result in risk of fire, electric shock or electrocution.

The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each individual extension contains at least the minimum wire size.

• This will reduce risk of damage to electric plug and cord.

• Use of improper extension cord could result in risk of fire, electric shock, or electrocution. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.

Do not run appliance over cord. Keep cord away from heated surfaces.

The charger is ventilated through slots in the top and the bottom of the housing.

The charger is intended to use on a flat, stable surface (i.e., table

More Not more American Wire Gauge Than Than

The standard charger providedwill charge a fully depleted battery in about 2 hours. A 80% charge is available in 1 hour.

1. Plug the charger into an appropriate outlet before inserting the

2. Insert the battery pack into the charger as shown in .

The green LED () will flash indicating that the battery is being charged.

The completion of charge is indicated by the green LED () remaining on continuously. The pack is fully charged and may be used at this time or left on the charger. Recharge discharged batteries as soon as possible after use or battery life may be greatly diminished.

This charger is designed to detect certain problems that can arise with the battery packs or the power source. Problems are indicated by one LED

flashing in different patterns.

The charger can detect a weak or damaged battery. The red LED flashes in the pattern indicated on the label. If you see this bad battery blink pattern, do not continue to charge the battery. Return it to a service center or a collection site for recycling.

When the charger detects a battery that is excessively hot or excessively cold, it automatically starts a Hot/Cold Pack Delay, suspending charging until the battery has normalized. After this happens, the charger automatically switches to the Pack Charging mode. This feature ensures maximum battery life. The red LED flashes in the pattern indicated on the label when the hot / cold pack delay is detected.

The charger and battery pack can be left connected with the green

Provide fresh air. If symptoms persist, seek medical attention. Burn hazard. Battery liquid may be flammable if exposed to spark or flame.

• Charge the battery packs only in chargers.

• This may cause premature cell failure.

Never attempt to open the battery pack for any reason. If battery pack case is cracked or damaged, do not insert into charger. Do not crush, drop or damage battery pack. Do not use a battery pack or charger that has received a sharp blow, been dropped, run over or damaged in any way (i.e., pierced with a nail, hit with a hammer, stepped on). Damaged battery packs should be returned to service center for recycling.

For example, do not place battery in aprons, pockets, tool boxes, product kit boxes, drawers, etc., with loose nails, screws, keys, etc.

The US Department of Transportation Hazardous Material Regulations (HMR) actually prohibit transporting batteries in commerce or on airplanes (i.e., packed in suitcases and carry-on luggage) UNLESS they are properly protected from short circuits. So when transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. NOTE: LI-ION batteries should not be put in checked baggage.

1. The best storage place is one that is cool and dry away from

direct sunlight and excess heat or cold.

2. Long storage will not harm the battery pack or charger.

The back of the battery is equipped with a state of charge indicator. This can be used to display the current level of charge in the battery during use and during charging. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

Press the state of charge indicator button ().

• The four LED’s () will illuminate indicating the percent of charge in the battery. See chart in .

If LED light does not lluminate, charge battery.

This battery is designed to not operate when a charge below 20% of its capacity is reached. After the battery charge is depleated, the toll will not operate until after the battery has been recharged.

Make certain the tool is switched off before removing or installing battery.

Insert battery pack into tool until fully seated and an audible click is heard (). Make sure battery pack is fully seated and fully latched into position.

Depress the battery release button in the back of the battery packand pull battery pack out of tool. Before assembly, make sure that the tool is switched off and the battery has been removed.

LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged.

1. Longest life and best performance can be obtained if the battery

pack is charged when the air temperature is between 60°F and 80°F (16°- 27°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to touch

while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

3. If the battery pack does not charge properly:

a. Check current at receptacle by plugging in a lamp or other appliance b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. c. Move charger and battery pack to a location where the surrounding air temperature is approximately 60°F - 80°F (16° - 27°C). d. If charging problems persist, take the tool, battery pack and charger to your local service center.

4. The battery pack should be recharged when it fails to produce

sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse affect on the battery pack.

5. Foreign materials of a conductive nature such as, but not limited

to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there is no battery pack in the cavity. Unplug charger before attempting to clean.

6. Do not freeze or immerse charger in water or any other liquid.

. Do not allow any liquid to get inside charger. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling.

Ensure the sweeper is switched off and the battery is removed before attaching or removing the sweeper tubes. The tube assembly must be assembled to the housing before use.

To attach the two piece sweeper tubes to the sweeper, line up the tube with the sweeper housing as shown in . Push the tube into the sweeper housing until the lock lever engages the lock hole in the tube.

• To attach the fan cover to the sweeper, line up the tabs on the cover with the sweeper housing slots as shown in . Push the cover into the sweeper housing until the locking/release button is fully engaged. (This comes pre-assembled from the factory).

• Remove sweeper tube if attached.

• Push the collection bag on to the sweeper housing until the lock lever engages the lock hole as shown in figure E.

• Attach collection bag clip to the lower rear of the unit as shown in figure E1.

Ensure the sweeper is switched off and the battery is removed before attaching or removing the vacuum tubes. The vacuum tube and collection bag must be assembled to the housing before use.

• Vacuum tubes must be assembled together before use.

• Align the notches and the triangles on upper and lower tubes. (figure F)

• Push the lower tube firmly into the upper tube, until the triangles click into place. (Never operate apart).

• In the interest of safety, it is not intended for the tubes to be separated once assembled.

• Remove the fan cover from the side of the sweeper housing by pressing the spring loaded release button (located on the lower right side of the sweeper housing) and pulling the cover off (figure G). Fan cover can be stored in pouch on collection bag.

• Attach the vacuum tube assembly to the fan inlet on the sweeper housing (figure H) by lining up the tabs on the tube with the slots on the sweeper housing and push inwards until the locking/release button is fully engaged. (figure H1)

• Vacuum tube assembly can be stored by hanging on a wall with a nail, using the built in hang hole on the underside of the tube.

installation or any other reason, wait 10 seconds for the fan to stop rotating before disassembly.

• Do not use in vacuum mode without the vacuum tubes and collection bag in place.

• Always switch off and remove the battery when:

• Changing from blower to vacuum.

• The power supply cord has become damaged or entangled.

• You leave blower/vac unattended.

• Clearing a blockage.

• Checking, adjusting, cleaning or working on blower/vac.

To switch the sweeper on, slide the on/off switch forward. To switch the sweeper off, slide the on/off switch back.

The max power / max runtime feature () is located on the tool handle. It allows you to optimize the tools performance and boost the power as needed.

• To choose max power, rotate dial to setting 6. (most vacuuming tasks require max power.)

• To maximize runtime rotate dial to setting 1.

• For a combination of both, rotate dial to setting from 2 to 5.

Always wear safety glasses. Wear a filter mask if the operation is dusty. Use of gloves, long pants and substantial footwear is recommended. Keep long hair and loose clothing away from openings and moving parts. THIS SWEEPER IS FOR HOUSEHOLD USE ONLY. Ensure the sweeper is switched off and the battery is removed before attaching or removing the sweeper tubes. The sweeper tube must be assembled to the housing before use. Install battery after assembly just prior to use.

• Hold the sweeper with one hand as shown in and sweep from side to side with the nozzle several inches above the hard surface. Slowly advance keeping the accumulated pile of debris in front of you.

Ensure the sweeper is switched off and the battery is removed from tool before attaching or removing the vacuum tubes. The vacuum tube and collection bag must be assembled to the housing before use. Install battery after assembly just prior to use.

• Attach the collection bag to the power head as shown in figure E.

• Remove the fan cover from the side of the sweeper housing by pressing the spring loaded release button (located on the lower right side of the sweeper housing) and pulling the cover off (figure G).

• Attach the vacuum tube assembly to the fan inlet on the sweeper housing (figure H) by lining up the tabs on the tube with the slots on the sweeper housing and push inwards until the locking/release button is fully engaged. (figure H1)

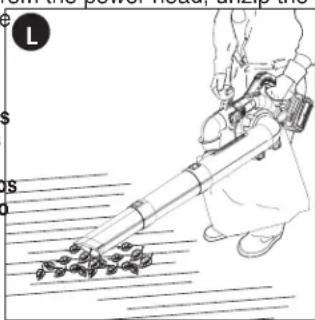

• Position the tube slightly above the debris/leaves. Turn the unit on, then using a side to side sweeping motion the debris/leaves will be sucked up the tube, mulched and deposited into the collection bag (figure L) . As the bag fills the power of the suction will decrease. To empty collection bag, switch off your product and remove the battery from the tool. Remove the collection bag from the power head, unzip the collection bag to empty. Re-assemble before continuing to operate.

(FIGURE M) CAUTION: TURN OFF UNIT AND REMOVE BATTERY FROM TOOL. If the unit motor stops, the fan has become jammed. If this happens,turn the unit off then remove the battery. Remove the bag and vacuum tube. Remove the jamming material using a small wooden stick. Do not use a metal implement or anything, which may damage the fan or scratch the plastic. Ensure the fan will turn by hand before reassembling the unit. If the unit stops picking up debris or the performance substantially reduces it may have become clogged. Switch the unit off then remove the battery. Remove the vacuum tube and look down the tube to ensure no debris is blocking it. If necessary remove debris with a small wooden stick. Do not use a metal implement or anything, which may scratch or damage the tube. Remove the bag. If the bag is full, empty the bag. If necessary remove any debris from around the fan or unit outlet using a small wooden stick. Do not use a metal implement or anything which may damage the fan or scratch the plastic. Ensure the fan will turn by hand before reassembling the unit

• Vacuuming wet leaves or wet debris.

• Vacuuming litter or non-organic debris.

• Vacuuming debris with an already filled bag.

• Vacuuming large twigs or sticks.

Submerging the tip of the vacuum tube into a pile of leaves or debris

• Use the unit primarily for hard surface vacuuming.

• Vacuum dried leaves and debris.

• If attempting to vacuum damp debris, alternate vacuuming damp leaves or debris with vacuuming dry leaves or debris. The dried debris will help to remove damp debris from inside the unit.

• Empty the bag often and do not overfill the bag to avoid creating a jam at the bag outlet.

• Hold the bottom of the vacuum tube above any leaf piles to vacuum from the top and work down and avoid submerging the vacuum tube into the pile of leaves. MaINTeNaNce cLeaNING aNd STOraGe

wARning: SHOCk HAzARD. DO nOt pOUR OR SpRAY

wAtER On tHE tOOL in An AttEMpt tO CLEAn. CAUtiOn: tURn OFF AnD REMOVE BAttERY FROM tOOL. Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. Clean out any clippings, which may have accumulated in the fan chamber on the Sweeper/Vac using a small wooden stick. Your Sweeper/Vac should be stored in a dry place. Do not store the tool on or adjacent to fertilizers or chemicals. Such storage can cause rapid corrosion of the metal parts. acceSSOrIeS

warNING: DO NOT use this product with any type of

accessory or attachment. Such usage might be hazardous.12 For assistance with your product, visit our website

for the location of the service center nearest you or call the BLACK & DECKER help line at

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal on the LI-ION battery (or battery pack) indicates that the costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by . RBRC™ in cooperation with and other battery users, has established programs in the United States to facilitate the collection of spent LI-ION batteries. Help protect our environment and conserve natural resources by returning the spent LI-ION battery to an authorized service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC™ is a registered trademark of the Rechargeable Battery Recycling Corporation. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Unit will not turn on.

• Battery will not charge.

• Unit will not blow air.

• Unit will not vacuum effectively.

• Unit jammed when vacuuming.

• Check battery installation.

Check battery charging requirements.

Install fan cover for sweeper mode or vac tube for vac mode.

• Insert battery into charger until green LED appears.

• Plug charger into a working outlet. Refer to “Important Charging Notes” for more details.

Check current at receptacle by plugging in a lamp or other appliance.

Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

• Move charger and tool to a surrounding air temperature of above 40 degree F(4.5°C) or below 105 degree F(+40.5°C).

Install fan cover for sweeper mode. Refer to instructions on removing jams. If the tool still will not blow air, stop using the tool and take it to a service center.

Empty collection bag. Refer to instructions on removing jams. If the tool still will not vacuum, stop using the tool and take it to a service center.

Turn the unit off then remove the battery. Remove the bag and vacuum tube. Refer to instructions on removing jams. (page 10)13 contact the manager of your nearest Black & Decker Service Center. This product is not intended for commercial use. This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for warranty information. If your warning labels become illegible or are missing, call for a free replacement.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003.

All Black & Decker Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the Black & Decker location nearest you. To find your local service location, refer to the yellow page directory under “Tools—Electric” or call:

Black & Decker (U.S.) Inc. warrants this product for three years against any defects in material or workmanship. The defective product will be replaced or repaired at no charge in either of two ways. The first is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer). Returns should be made within the time period of the retailer’s policy for exchanges (usually 30 to 90 days after the sale). Proof of purchase may be required. Please check with the retailer for their specific return policy regarding returns that are beyond the time set for exchanges. The second option is to take or send the product (prepaid) to a Black & Decker owned or authorized Service Center for repair or replacement at our option. Proof of purchase may be required. Black & Decker owned and authorized Service Centers are listed under “Tools-Electric” in the yellow pages of the phone directory. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state or province to province. Should you have any questions, See ‘Tools-Electric’ – Yellow Pages – for Service & Sales Imported by Black & Decker (U.S.) Inc., 701 E. Joppa Rd. Towson, MD 21286 U.S.A.14
