USER MANUAL 60PJ102C LG

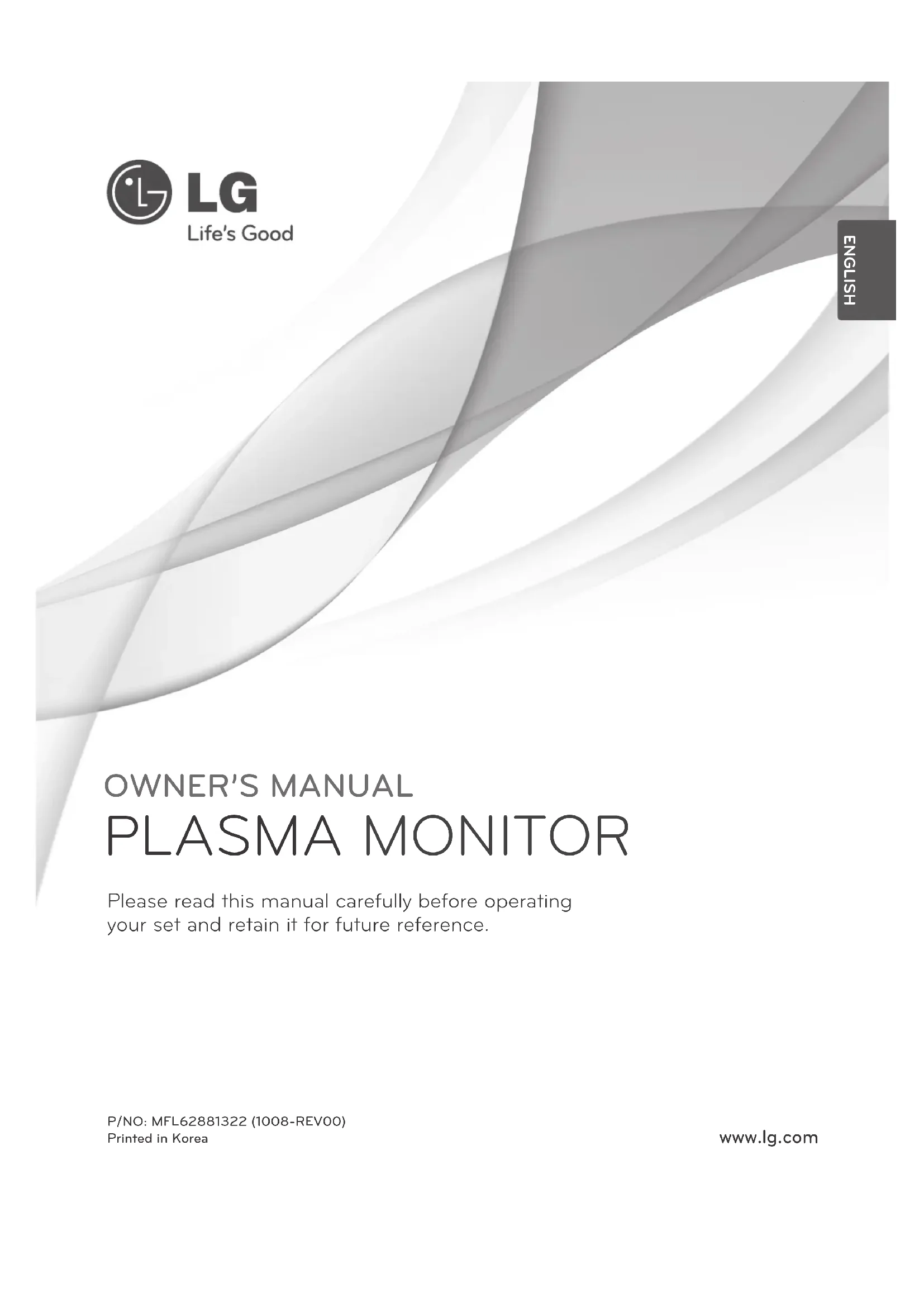

PLASMA MONITOR Please read this manual carefully before operating your set and retain it for future reference. P/NO: MFL62881322 (1008-REV00)Printed in Korea ENGLISH2 WARNING / CAUTION WARNING / CAUTION The lightning flash with arrowhead symbol, within an equilateral trian- gle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equi- lateral triangle is intended to alert the user to the presence of important operat- ing and maintenance (servicing) instructions in the literature accompanying the appliance.

PERSONNEL. WARNING/CAUTION TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK. DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. CAUTION Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product. WARNING This is a class A product. In a domestic environ- ment this product may cause radio interference in which case the user may be required to take adequate measures.3 SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.Keep these instructions.Heed all warnings.Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth.Do not block any ventilation openings. Install in accordance with the ma nufacturer’s instruc-tions.Do not install near any heat sources such as radiators, heat registers, stoves, or other appa-ratus (including amplifiers) that produce heat.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong, The wide blade or the third prong are pro-vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.Protect the power cord from being walked on or pinched particularly at plugs, conven-ience receptacles, and the point where they exit from the apparatus.Only use attachments/accessories speci-fied by the manufacturer.Use only with the cart, stand, tripod, brack-et, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lighting storms or when unused for long periods of time.Refer all servicing to qualified service per-sonnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is dam- aged, liquid has been spilled or objects have fallen into the apparatus, the appara-tus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Never touch this apparatus or antenna during a thunder or lighting storm.

When mounting a Monitor on the wall, make sure not to install the Monitor by the hanging power and signal cables on the back of the Monitor.

Do not allow an impact shock or any objects to fall into the product, and do not drop onto the screen with something.

CAUTION concerning the Power Cord: It is recommend that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appli- ance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, exten- sion cords, frayed power cords, or damaged or cracked wire insulation are dangerous . Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontin- ue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not make the Monitor with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the Monitor.

WARNING - To reduce the risk of fire or elec- trical shock, do not expose this product to rain, moisture or other liquids. Do not touch the Monitor with wet hands. Do not install this product near flammable objects such as gasoline or candles or expose the Monitor to direct air conditioning.

Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the appara- tus (e.g. on shelves above the unit).

GROUNDING Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a Monitor with a three-prong grounded AC plug must be connected to a three-prong ground- ed AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. Power Supply Short-circuit Breaker

Mains plug is the disconnecting device. The plug must remain readily operable.

As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by Remote Control.5 SAFETY INSTRUCTIONS

Cleaning When cleaning, unplug the power cord and scrub gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the Monitor as electric shock may occur. Do not clean with chemicals such as alcohol, thinners or benzene.

Moving Make sure the product is turned off, unplugged and all cables have been removed. It may take 2 or more people to carry larger Monitors. Do not press against or put stress on the front panel of the Monitor.

Ventilation Install your Monitor where there is proper venti- lation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials (e.g.) plastic while plugged in. Do not install in excessively dusty places.

Take care not to touch the ventilation openings. When watching the Monitor for a long period, the ventilation openings may become hot.

If you smell smoke or other odors coming from the Monitor or hear strange sounds, unplug the power cord contact an authorized service center.

Do not press strongly upon the panel with hand or sharp object such as nail, pencil or pen, or make a scratch on it.

Keep the product away from direct sunlight.

Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. You may be injured or the product can be damaged. A protection device is required for the set where shocks from the outside may occur.

The product should be installed where its weight can be supported. If the surface of the area where the product is installed is weak, the product may fall causing personal injury.

Do not hang on the product or apply shock to the product. The product may fall causing personal injury.

Install the product on a flat floor. If not (e.g., stairway and slope), the product may lose its balance and fall causing per- sonal injury or damage to product.

Disconnect the plug from the outlet before installation. Otherwise, it may cause an electric shock or fire.

Wear working gloves when installing the product. Otherwise, it may cause personal injury. The edges of the product are sharp. Be careful not to be injured by the edges during or after installation.6 PREPARATION PREPARATION PREPARATION ACCESSORIES Ensure that the following accessories are included with your Set. If an accessory is missing, please contact the dealer where you purchased the Set. ■ Image shown may differ from your Set.Owner’s Manual 60PJ101C 60PJ102C 60PJ103C 60PJ104C

Standard ScrewQuantity60PJ1*** 600 400 M8 4Separate purchasePAC60C1B(Accessory Box) FRONT PANEl ARRAY Place each set as shown in the figure below.

This set operates on an AC power. The volt- age is indicated on the Specifications page. Never attempt to operate the set on DC power. CONTROl (TX, RX) Connector to compensate the luminance dif- ference. Connect using LAN Cable inside the Accessory box. Connect LAN Cable to TX, and connect to RX connector of other sets. RS-232C INPUT(CONTROl&SERVICE) PORT OUT For control the another set, connect a RS-232C Cable from RS-232C out port to another set’s RS-232C input port.

Connect to the RS-232C port on a PC.

DVI (VIDEO) signal to DVI port with DVI cable. USB Input (For service) Used for software updates. HDMI/DVI Connect an HDMI/DVI signal to HDMI/DVI. RGB OUTPUT You can watch the RGB signal on another set, connect RGB OUTPUT to another set’s PC input port. RGB INPUT Connect the set output connector from a PC to the appropriate input port. AUDIO (RGB/DVI) 1/8" headphone jack for analog PC audio input REMOTE CONTROl IN For a wired IR Receiver. COMPONENT INPUT Connect a component video/audio device to these jacks. Speaker Ports Connect to optional external speaker(s).

EXTERNAL EQUIPMENT SETUP

DVD / STB Receiver CONNECTION OVERVIEW ■ Here shown may be somewhat different from your set.9

EXTERNAL EQUIPMENT SETUP

WATCHING RGB OUTPUTS

Use this function when displaying ANALOG RGB inputs of a PC to the other product.

• TousedifferentproductsconnectedtoeachotherConnectoneendofthesignalinputcable(15- pin D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN connector of other products. DVI OUT DVI IN(SERVICE ONLY) USB HDMI

EXTERNAL EQUIPMENT SETUP

CONNECTING INTENSITY COMPENSATION

CONNECTOR It is a connector to compensate the luminance difference, and connect it using the LAN Cable inside the Accessory box. DVI OUT DVI IN(SERVICE ONLY) USB HDMI

CONTROL BACK PANEL Connect LAN Cable to TX, and connect to RX connector of other sets.

EXTERNAL EQUIPMENT SETUP

IR RECEIVER It has the role of enabling to receive the signal of the remote control by connecting to the set.

NOTE ► Install the IR receiver in the first set connected to the computer and the RS-232C cable. ► The IR signal of the remote control is sent through the RS-232C cable in cascade. Remote Control Sensor

RS-232C Cable (Maximum 15 m)12 EXTERNAl EqUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connect the RGB output of the PC to the RGB IN jack on the monitor. Turn on the PC and the monitor. Select an input signal.Press the INPUT button on the remote control to select the input signal. RGB INPUT

Move Input List Input Label Exit ComponentDVI-D

EXTERNAL EQUIPMENT SETUP

Connect the HDMI output of the external equipment (digital set-top box, DVD, etc.) to HDMI/DVI jack on the monitor. Turn on the external equipment. (Refer to the external equipment's manual for operatinginstructions.) Select an input signal.Press the INPUT button on the remote control to select the input sig- nal.

external equipment14 EXTERNAl EqUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

Connect the digital set-top box or the DVI output of the PC to HDMI/DVI jack on the monitor. Connect the audio output of the digital set-top box or the PC audio output to the AUDIO (RGB/DVI) jack on the monitor. Turn on the digital set-top box or the PC and the monitor. Refer to the digital set-top box or the PC manual for operating instructions.) Select an input signal.Press the INPUT button on the remote control to select the input signal.

Move Input List Input Label Exit ComponentDVI-D

EXTERNAL EQUIPMENT SETUP

Select DVI-D. ComponentDVI-D NOTE ► It does not support HDCP(High-bandwidth Digital Content Protection) function when it is Cascade connect- ed. ► HDCP function may not be supported for some models of the distributor. ► This function works in the only PC mode.

Connect the DVI output of the PC to the DVI IN jack on the monitor.

Turn on the PC and the monitor.

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

COMPONENT INPUT BNC Cable(not included)Audio Cable(not included)DVD/STB Receiver HDMI RGB

Select Component.ComponentDVI-D Connect the video/audio cable as shown in the below figure and then, connect the power cord •Connecttheinputterminalwithapropercolormatch. Select an input signal.Press the INPUT button on the remote control to select the input signal. Component Input ports To get better picture quality, connect a DVD player to the component input ports as shown below. Component ports on the TV Y PB PRVideo output ports on DVD player Y P B PRY B-Y R-YY Cb CrY Pb Pr17

EXTERNAL EQUIPMENT SETUP

REMOTE CONTROl KEY FUNCTIONS (Separate purchase : PAC60C1B) When using the remote control, aim it at the remote control sensor on the Monitor. INPUTAV MODE BACK

SET ALL TILE MODE MUTE (POWER) INPUT AV MODE Switches the Monitor on from standby or off to standby. To turn on the 4 sets at once in standby mode, wait 10 seconds before pressing the power button. External input mode rotate in regular sequence. It helps you select and set images and sounds when connecting AV devices. SET 1 to 4 SET ALL TILE MODE MUTE You can run SET only that you wanted. (If you press a SET1 button, You can operate 60PJ101C only.) When you select one of Set1 - Set 4, the power key works for all sets. You can operate together all sets. When SET ALL is selected, each set may have dif- ferent settings. Must be displayed with various other products. Switches the sound on or off. MENU NATURAL AUTO CONFIG THUMBSTICK (Up(Volume Up)/ Down(Volume Down)/Left/Right)

BACK ISM EXIT Displays on screen menus one by one. Exits the current menu. Memorizes menu changes. The image is omitted by the distance between the screens to be naturally shown. Automatic adjustment function. (Operational for the analog signal only) Allows you to navigate the on-screen menus and adjust the system settings to your preference. Accepts your selection or displays the current mode. Allows the user to move return one step in an inter- active application. The Color block with the screen moved a little. Clears all on-screen displays and returns to monitor viewing from any menu.18

EXTERNAL EQUIPMENT SETUP

EXTERNAL EQUIPMENT SETUP

MENU NATURAL AUTO CONFIGSET 1SET 3SET 2SET 4SET ALLTILE MODE MUTE Installing Batteries ■ Open the battery compartment cover on the back of the remote control. ■ Insert the specified type of batteries with correct polarity, match “+” with “+”, and match “-” with “-”. ■ Install two 1.5V AAA batteries. Don’t mix used batteries with new batteries. ■ To remove the batteries, perform the installation actions in reverse.

RGB COMP DVI HDMI ID MODE (Picture ID) Select it when using PC depends on connector. Memorizes menu changes. Select it when using the DVD or the Digital set-top box depends on connector. Select it when using PC depend on connector. Select it when using DVD, PC or Digital set-top box depend on connector. When the sets display the same image, the lumi- nance difference between the sets can be adjusted by setting the same Picutre ID. ID MODE BLUE KEY(OFF) operates as Input Label in the Input List entrance state.

USER MENUS USER MENU ON SCREEN MENUS SElECTION AND ADJUSTMENT Your Monitor's OSD (On Screen Display) may differ slightly from that shown in this manual.OPTIONPICTURE AUDIO TIME

Move to the pop up menu.■Imageshown may differ from your Monitor.

Move ●Language●ISM Method : Normal●Factory Reset●Set ID : 1●Tile ModeOPTIONR G20 APPENDIX APPENDIX APPENDIX TROUBLESHOOTING Abnormal OperationThe remote controldoesn’t work ■ Check to see if there is any object between the Monitor and the remote control causing an obstruction. Ensure you are pointing the remote con-trol directly at the Monitor. ■ Ensure that the batteries are installed with correct polarity (+ to +, - to -). ■ Install new batteries.Monitor turns off sud-denly ■ Is the sleep timer set? ■ Check the power control settings. Power interrupted.Video ProblemsNo picture & No sound ■ Check whether the product is turned on. ■ Is the power cord inserted into wall power outlet? ■ Test the wall power outlet, plug another product’s power cord into the outlet where the product’s power cord was plugged in.Picture appears slowlyafter switching on ■ This is normal, the image is muted during the product startup process. Please contact your service center, if the picture has not appeared after five minutes.No or poor color orpoor picture ■ Adjust Color in menu option. ■ Keep a sufficient distance between the product and the VCR. ■ Are the video cables installed properly? ■ Activate any function to restore the brightness of the picture.Horizontal/vertical barsor picture shaking ■ Check for local interference such as an electrical appliance or power tool. No picture when con-necting HDMI ■ If the HDMI cables don’t support High Speed HDMI, it can cause flickers or no screen display. In this case use the latest cables that support High Speed HDMI.21 APPENDIX HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. Audio Problems No output from one of the speakers ■ Adjust Balance in menu option. Unusual sound from inside the product ■ A change in ambient humidity or temperature may result in an unusual noise when the product is turned on or off and does not indicate a fault with the prod- uct. No sound when connecting HDMI ■ Check High Speed HDMI cable. PC Mode Problems The signal is out of range ■ Adjust resolution, horizontal frequency, or vertical frequency on the PC. ■ Check the input source. Vertical bar or stripe on background & Horizontal Noise & Incorrect position ■ Activate the Auto configure feature or adjust size, phase, or H/V position. (Option) Screen color is unsta- ble or single color ■ Check the signal cable. ■ Reinstall the PC video card. When connecting the HDMI cable to the PC, there is no audio. ■ Check the manual for the video card in the PC to see if it supports HDMI audio and how to set it up properly.22 APPENDIX APPENDIX PRODUCT SPECIFICATIONS ■ The specifications shown above may be changed without prior notice for quality improvement. ■ For the power supply and power consumption, refer to the label attached to the product. MODELS 60PJ101C / 60PJ102C / 60PJ103C/ 60PJ104C 60PJ101C-WA60PJ102C-WA60PJ103C-WA60PJ104C-WA Dimensions (Width x Height x Depth) without stand 1362.7 mm x 788.0 mm x 72.2 mm Weight without stand

Environment condition Operating Temperature Operating Humidity 0 °C to 40 °C Less than 80 % Storage Temperature Storage Humidity -20 °C to 60° C Less than 85 % Operating altitude Storage altitude 0 m to 2000 m 0 m to 3000 m ■ The product specifications can change without prior notice for product improvement.23 APPENDIX SUPPORTED DISPlAY RESOlUTION PC Mode – Preset Mode DTV Mode Component HDMI(DTV) 480i 576i 480p 576p 720p 1080i 1080p

Turn on the PC and the monitor.

D'ÉLECTROCUTION, NE RETIREZ PAS

ET D'ÉLECTROCUTION, N'EXPOSEZ PAS

CONTROL11 红外接收器 (IR RECEIVER) It has the role of enabling to receive the signal of the remote control by connecting to the set. DVI OUT DVI IN(SERVICE ONLY)USBHDMIRGB OUTRGB INSPEAKER(8)TXRX CONTROL AC-IN

Move Input List Input Label Exit ComponentDVI-D

Move Input List Input Label Exit ComponentDVI-D
