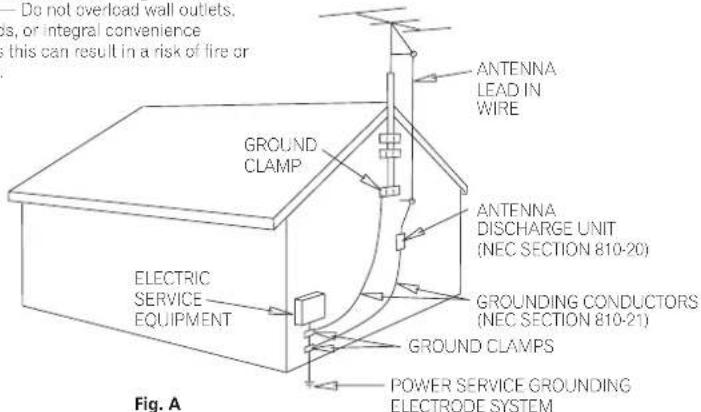

OUTDOOR ANTENNA GROUNDING If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.

LIGHTNING For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges.

POWER LINES — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or

circuit as contact with them might be fatal. OVERLOADING Do not overload wall outlets. extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

OBJECT AND LIQUID ENTRY - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
SERVICING - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
DAMAGE REQUIRING SERVICE Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
- When the power-supply cord or plug is damaged,
If liquid has been spilled, or objects have fallen into the product.
If the product has been exposed to rain or water. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
If the product has been dropped or damaged in any way.
- When the product exhibits a distinct change in performance - this indicates a need for service. REPLACEMENT PARTS - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
SAFETY CHECK—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

WALL OR CEILING MOUNTING - The product should not be mounted to a wall or ceiling.

HEAT The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

NEC-NATIONAL ELECTRICAL CODE

D1-4-2-2_En

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: Plasma Display

Model Number: PRO-1010HD / PRO-810HD

Product Category: Class B Personal Computers & Peripherals

Responsible Party Name: PIONEER ELECTRONICS [USA] INC. Customer Support Division

Address: P.O. BOX 1760, LONG BEACH, CA., 90801-1760 U.S.A.

Phone: [phone]

URL http://www.pioneerelectronics.com

Should this product require service in the U.S.A. and you wish to locate the nearest Pioneer Authorized Independent Service Company, or if you wish to purchase replacement parts, operating instructions, service manuals, or accessories, please call the number shown below.

800-421-1404

Please do not ship your product to Pioneer without first calling the Customer Support Division at the above listed number for assistance.

Pioneer Electronics (USA) Inc.

Customer Support Division

PO. BOX 1760, Long Beach,

For warranty information please see the Limited Warranty sheet included with your product.

Should this product require service in Canada, please contact a Pioneer Canadian

Authorized Dealer to locate the nearest Pioneer Authorized Service Company in Canada.

Alternatively, please contact the Customer Satisfaction Department at the following address:

Pioneer Electronics of Canada, Inc.

Customer Satisfaction Department

300 Allstate Parkway, Markham, Ontario L3R OP2

1(877)283-5901

For warranty information please see the Limited Warranty sheet included with your product.

300, Allstate Parkway, Markham, Ontario L3R OP2

1(877)283-5901

Notes on Installation Work:

This product is marketed assuming that it is installed by qualified personnel with enough skill and competence. Always have an installation specialist or your dealer install and set up the product. PIONEER cannot assume liabilities for damage caused by mistake in installation or mounting, misuse, modification or a natural disaster.

Note for Dealers:

After installation, be sure to deliver this manual to the customer and explain to the customer how to handle the product.

Thank you very much for purchasing this PIONEER product.

Before using your Plasma Display, please read the "Safety Precautions" and these "Operating Instructions" carefully so you will know how to operate the Plasma Display properly. Keep this manual in a safe place. You will find it useful in the future.

Contents

Safety Precautions

Before Proceeding 2

How to Use This Manual 2

Checking Supplied Accessories. 4

Part Names and Functions 5

Main Unit 5

Remote Control Unit. 6

Connection Panel 8

Installation and Connections 10

Installation of the Unit 10

About the Input Connectors on this Unit 11

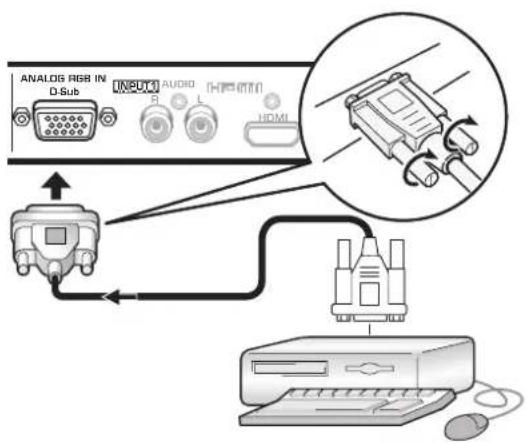

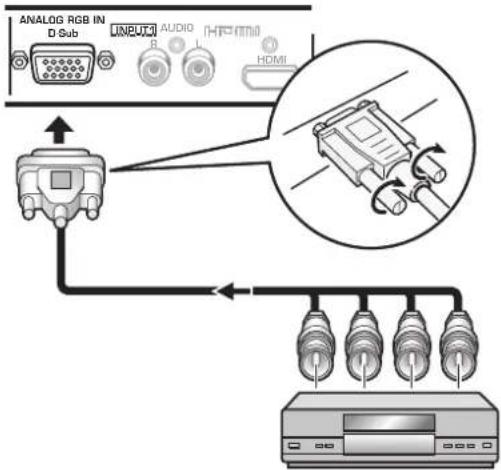

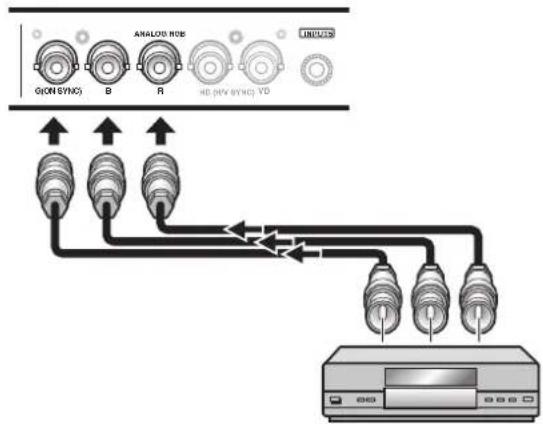

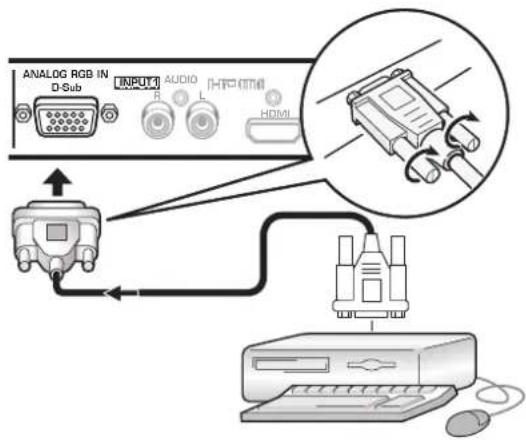

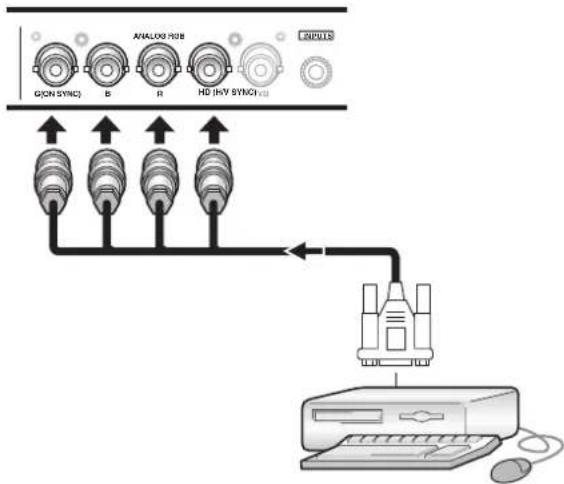

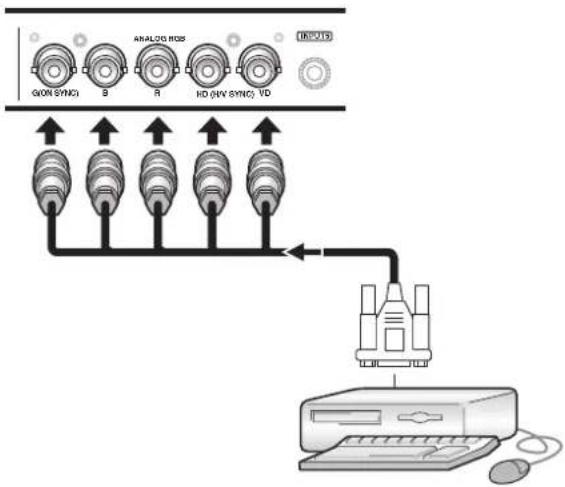

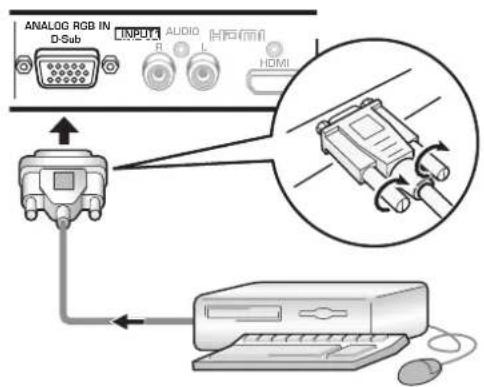

Connection to INPUT1 (D-sub) and INPUT5 .... 11

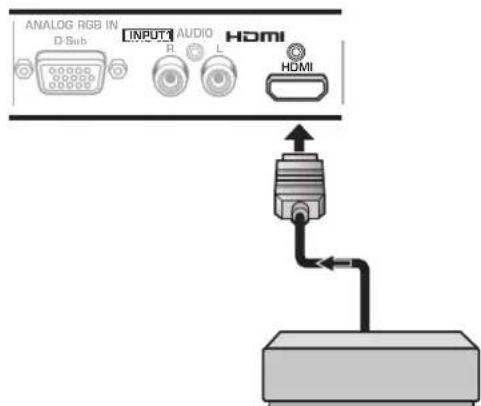

Connection to INPUT1 (HDMI) 15

Connection to INPUT2 16

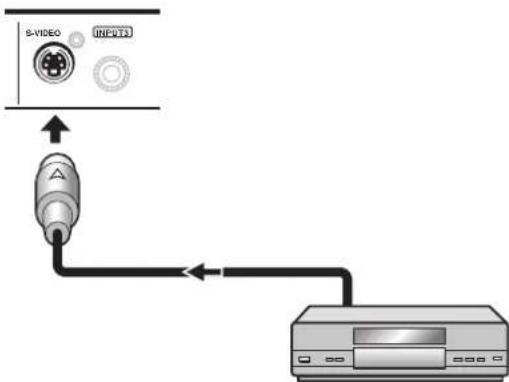

Connection to INPUT3 16

Connection to INPUT4 16

About DTV Set Top Box Connection 17

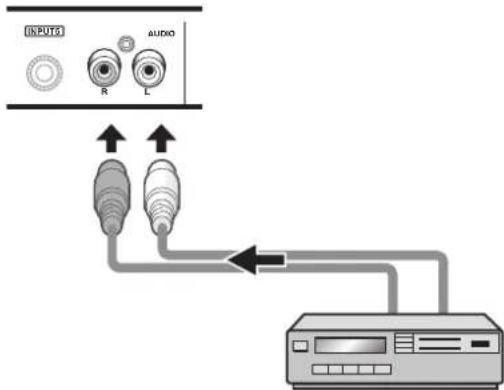

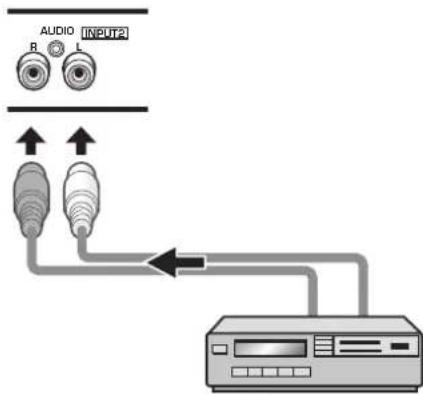

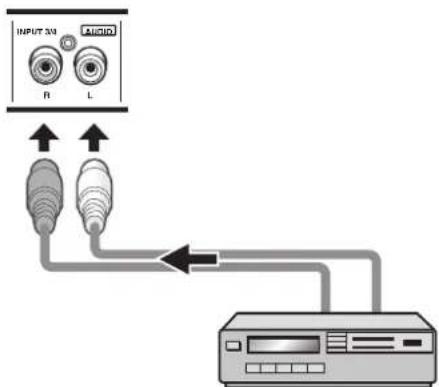

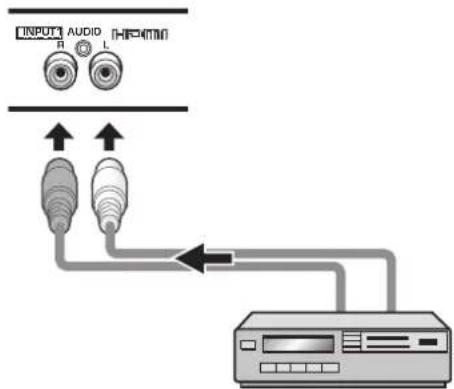

Audio connections 18

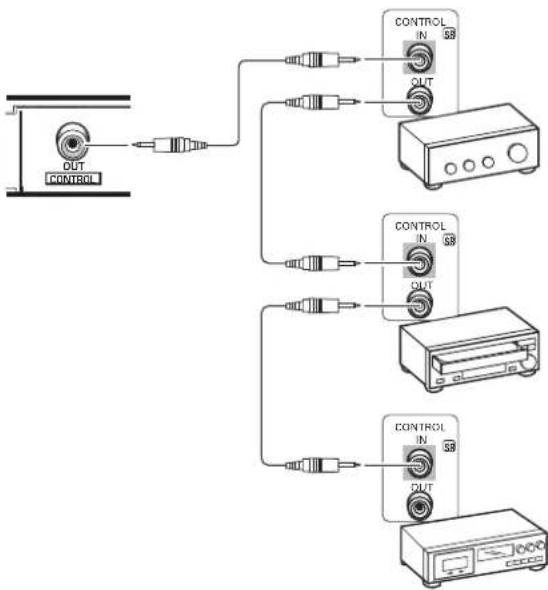

Connecting Control Cords. 19

Power Cord Connection 20

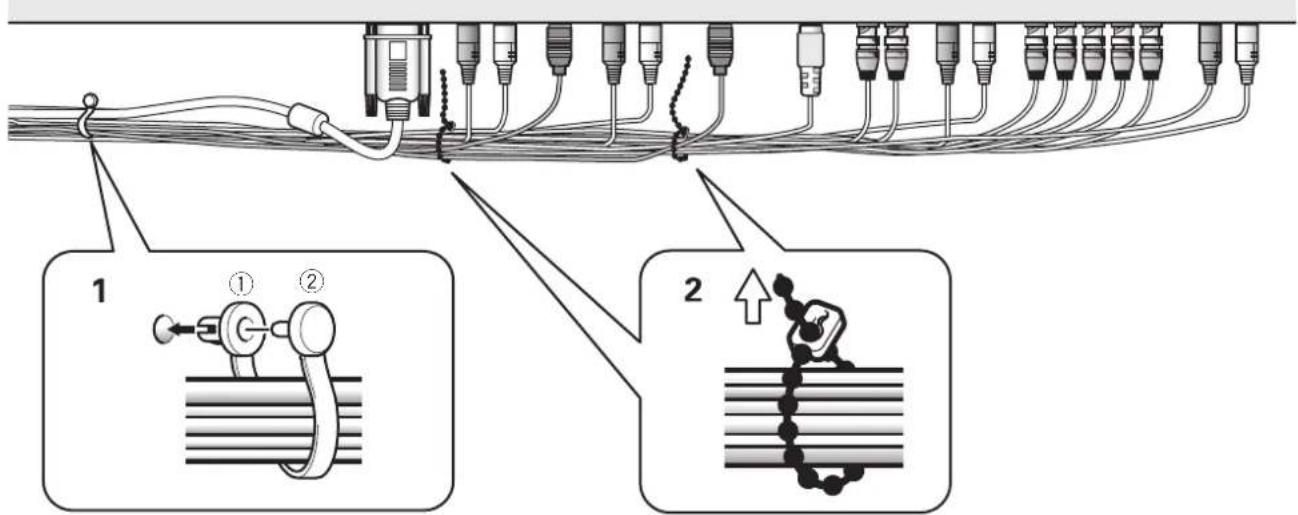

How to Route Cables 21

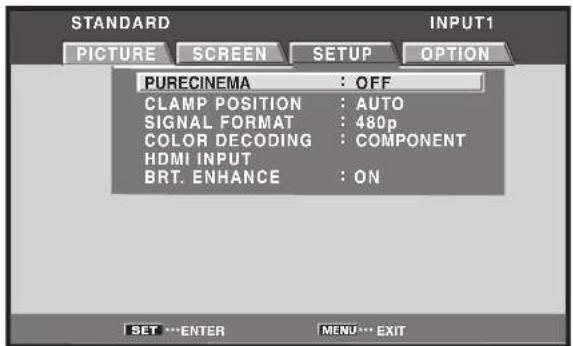

System Settings 22

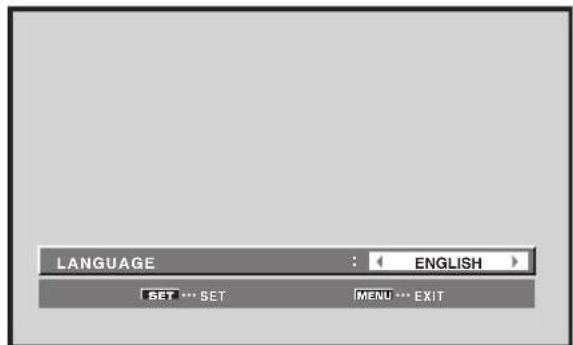

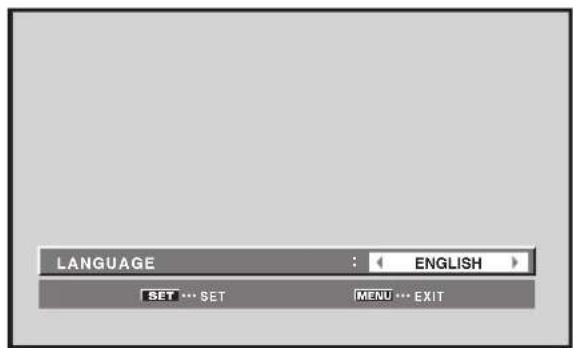

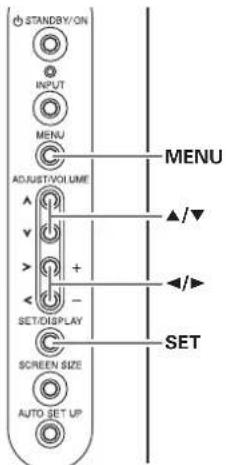

Setting the Onscreen Display Language 22

Settings After Connections (INPUT1, 2, 5) 23

Setting SR+MODE Mode 27

Operation 29

Selecting Input Source 29

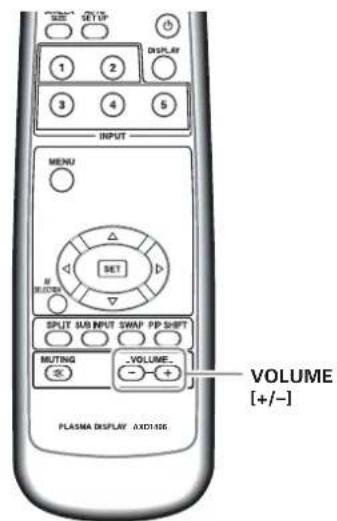

Adjusting Sound Volume 30

Muting the Sound 30

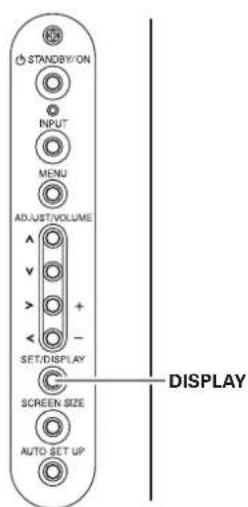

Confirming Current Status 30

Changing Screen Size 30

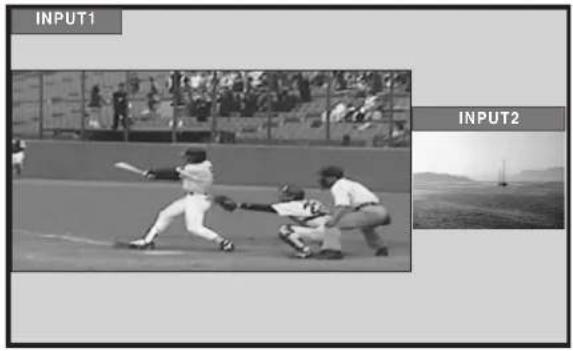

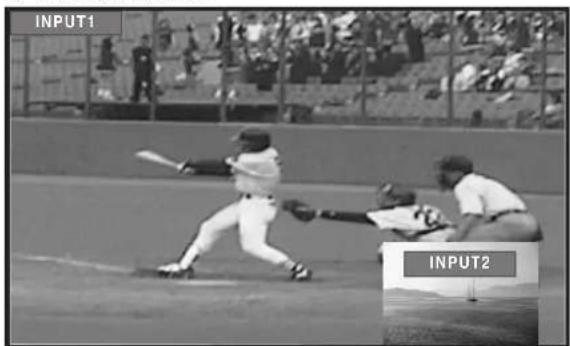

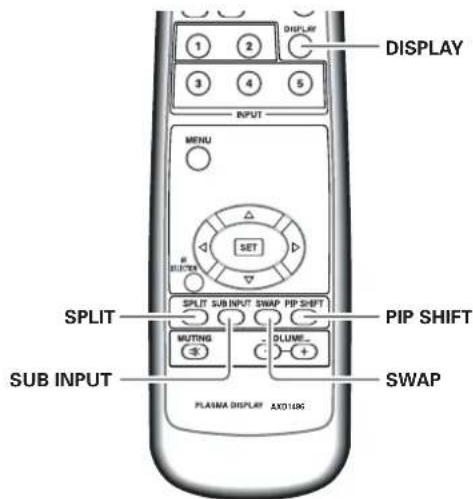

Multiscreen Display 32

Setting AV SELECTION 33

Picture and Screen Adjustment 35

Picture Adjustment (1) 35

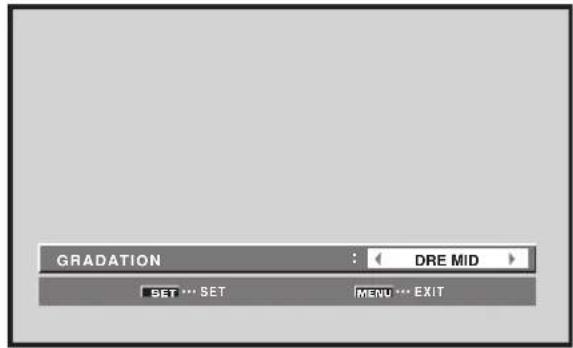

Picture Adjustment (2) 36

Picture Adjustment (3) 37

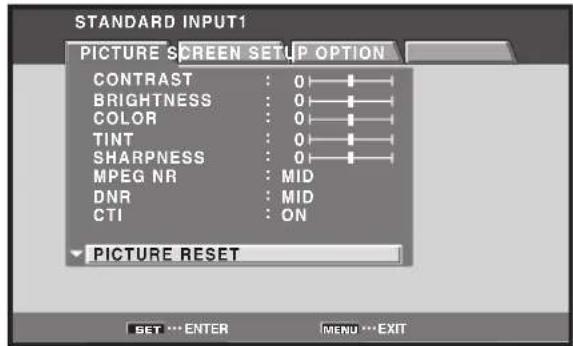

Returning to the Original Picture

Adjustment Values. 38

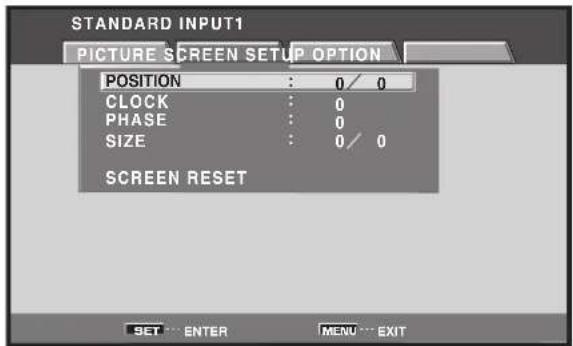

Adjusting Screen POSITION, CLOCK,

and PHASE (Automatic Adjust) 39

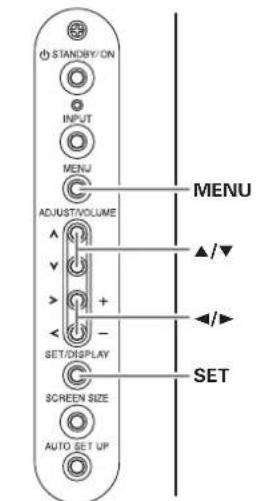

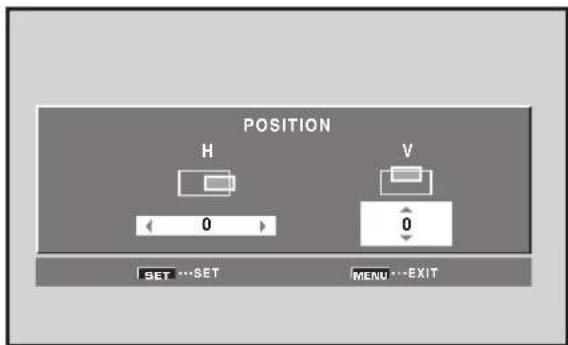

Adjusting Screen POSITION, CLOCK,

and PHASE (Manual Adjust) 39

Other Operations 42

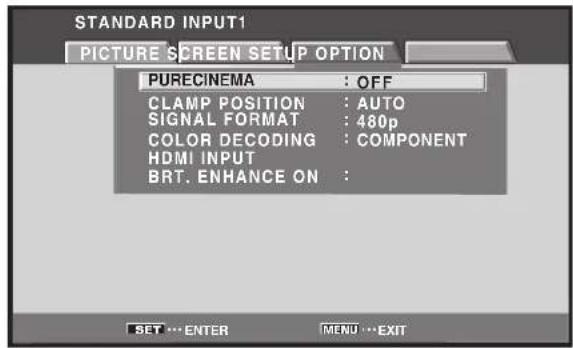

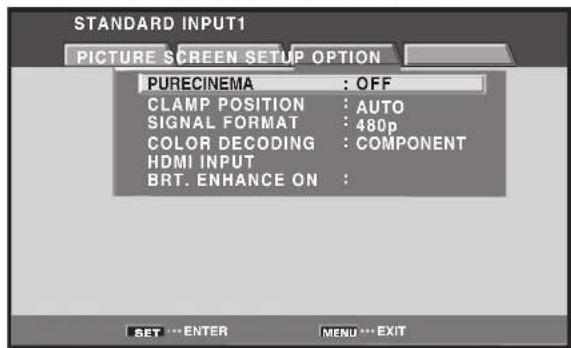

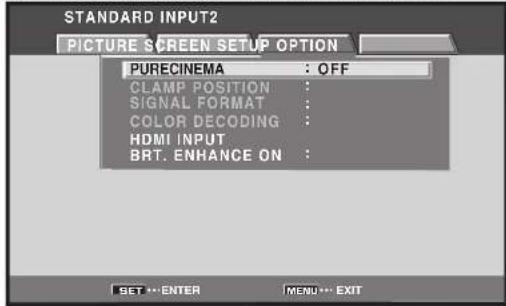

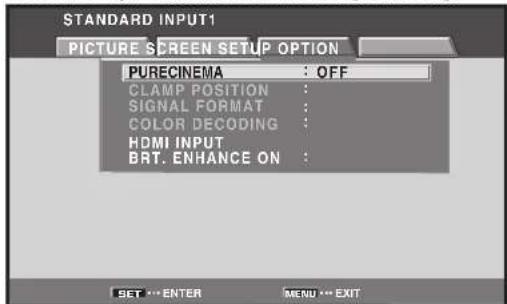

Setting the PURECINEMA Mode 42

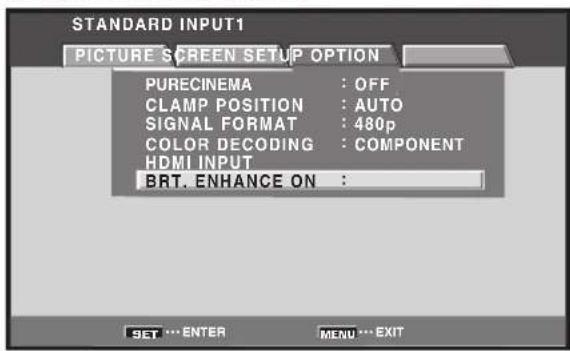

Setting Screen Center Brightness

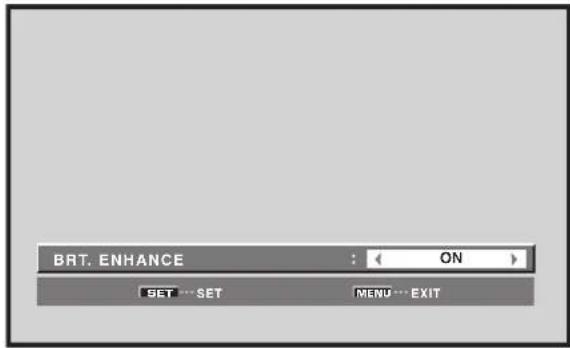

Compensation (BRT. ENHANCE) 43

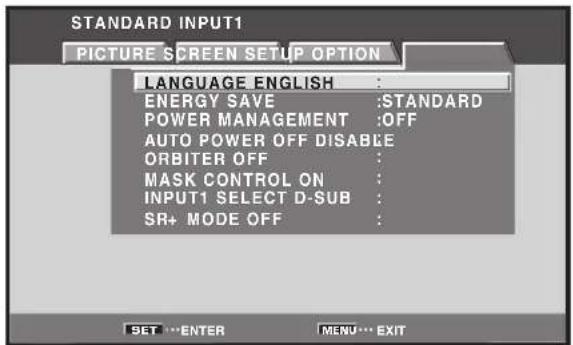

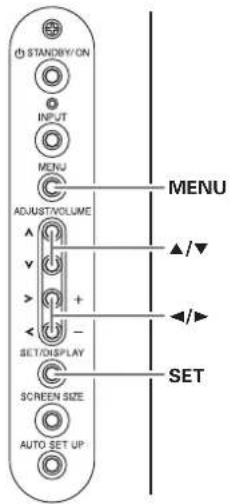

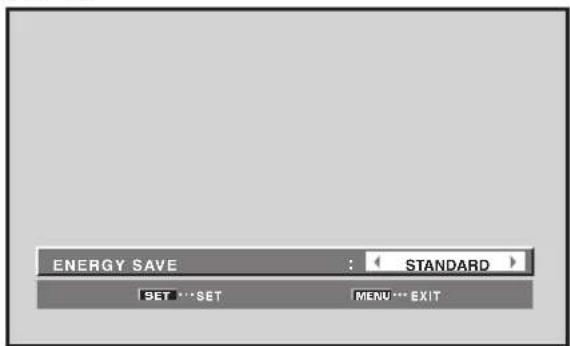

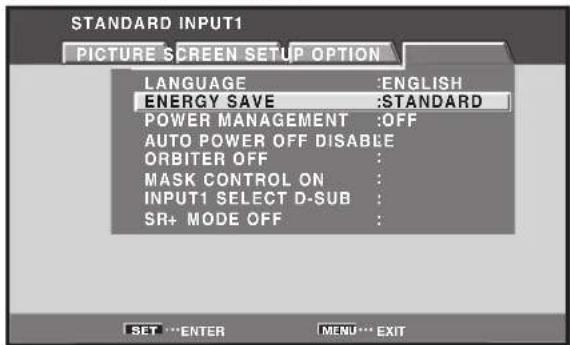

Energy Saving Settings (ENERGY SAVE) 43

Automatic Power-off

(POWERMANAGEMENT) 44

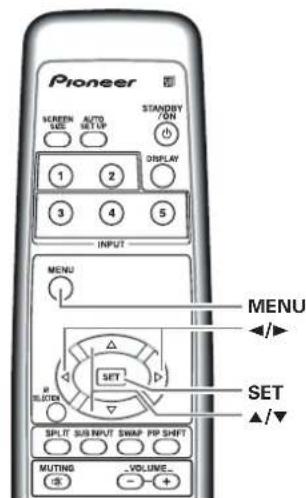

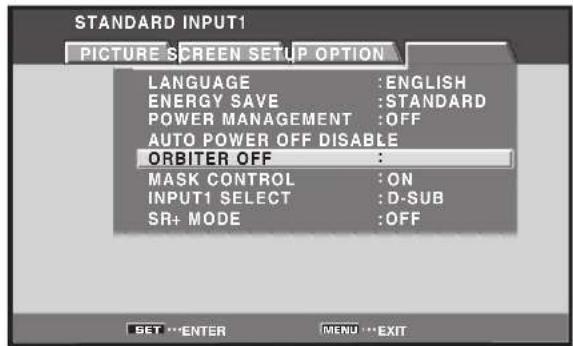

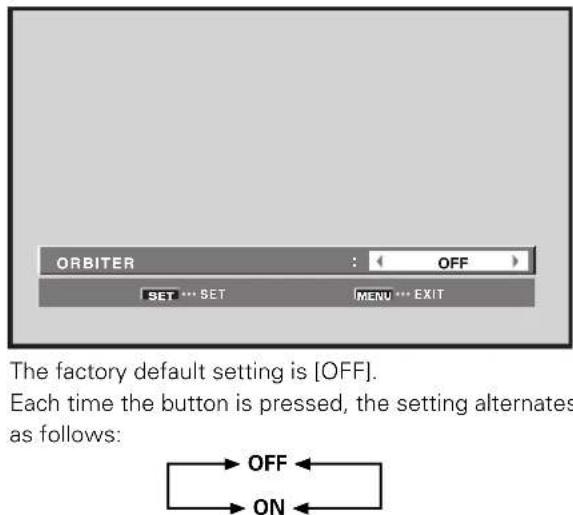

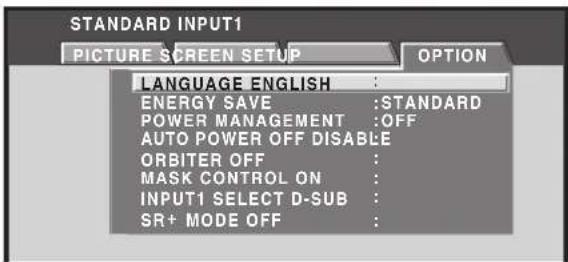

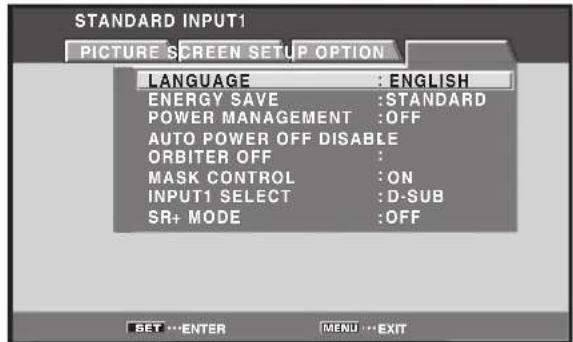

Setting the Orbiter (ORBITER) 46

Side Mask Position (MASK CONTROL) 47

Additional Information 48

Cleaning. 48

Troubleshooting 48

Precautions Regarding Use 50

STANDBY and ON Indicators 50

Specifications 51

Appendix 1 52

Appendix 2 53

Appendix 3 55

Explanation of Terms. 55

Before Proceeding

How to Use This Manual

This manual is set up to follow the course of actions and operations in the order that would seem most logical for someone setting up this unit.

Once the unit has been taken out of the box and it has been confirmed that all the parts have been received (page 4), it may be beneficial to look over the section "Part Names and Functions" starting on page 5 to become acquainted with the plasma monitor and remote control unit, as their respective buttons and controls will be referred to throughout this manual.

The section "Installation and Connections" starting on page 10 covers all the necessary points regarding installation of the plasma display and connections to a wide variety of components.

The section "System Settings" starting on page 22 covers the on-screen settings necessary for correct operation of the plasma display with its connected components. Depending on the connections made, this section may or may not be necessary.

The remainder of the sections in this manual is dedicated to the basic operations associated with selecting a source component up to the more complex operations associated with adjusting the plasma display picture to match the requirements of specific components and personal preferences.

Regarding menu displays

The example menu displays provided in this manual are those for the PRO-1010HD model. The PRO-810HD display differs as shown:

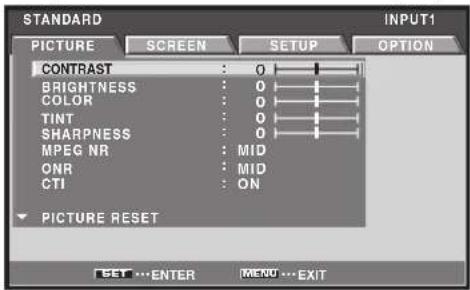

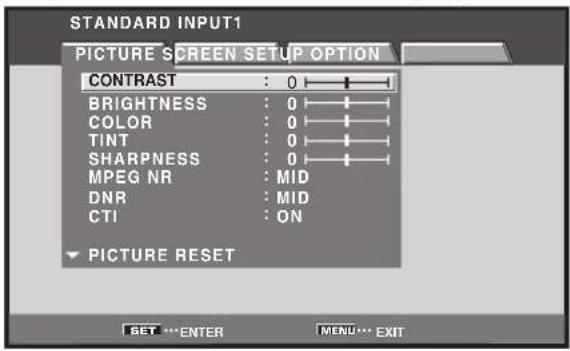

Example of PRO-1010HD Menu Display:

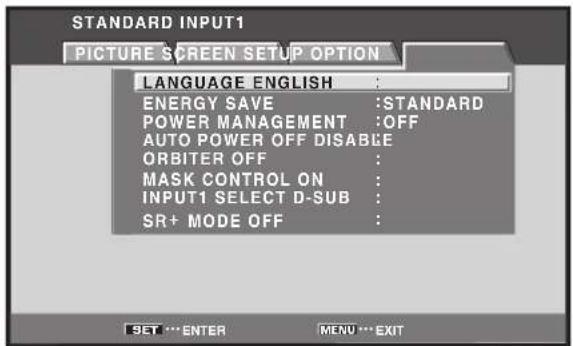

Example of PRO-810HD Menu Display:

Please note that the actual contents displayed are the same for both the PRO-1010HD and PRO-810HD.

Apple and Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft is a registered trademark of Microsoft Corporation.

NEC and PC-9800 are trademarks of NEC Corporation.

VESA and DDC are registered trademarks of Video Electronics Standards Association.

Power Management and Sun Microsystems are registered trademarks of Sun Microsystems, Inc.

VGA and XGA are registered trademarks of International Business Machines Co., Inc.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

TMDS is registered trademark of Silicon Image Inc.

This product includes FontAvenue® fonts licensed by NEC Corporation. FontAvenue is a registered trademark of NEC Corporation.

About operations in this manual

Each operation is described in its proper operating order. These Operating Instructions will refer to the operating controls found on the remote control unit, with the exception of those buttons found only on the main plasma display itself. When the plasma display controls include equivalent buttons to those found on the remote control unit, the commands can be performed on the main unit as well.

The following illustrations are an example of the actual operations used for the section "PICTURE adjustment". The examples are provided to allow you to confirm whether the operation is performed correctly or not.

Note

The screen images depicted in these Operating Instructions should be considered typical images; some difference will be seen in practice, depending on the screen item displayed and its contents, the input source and various other control settings.

Picture and Screen Adjustment

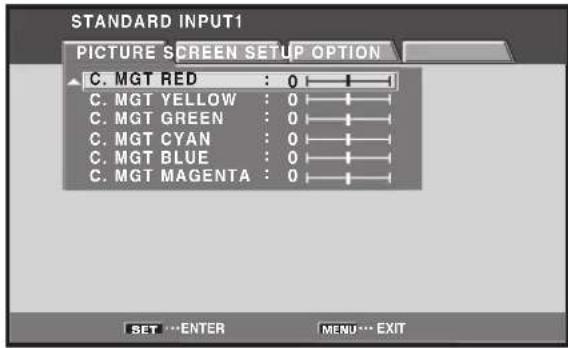

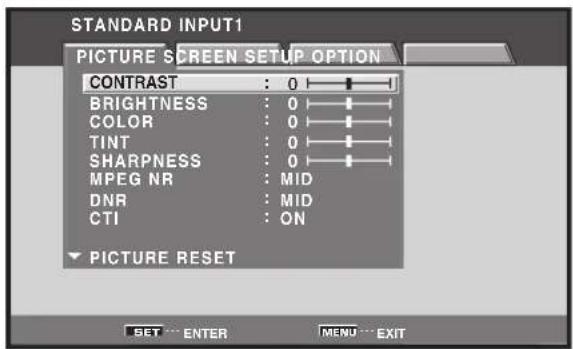

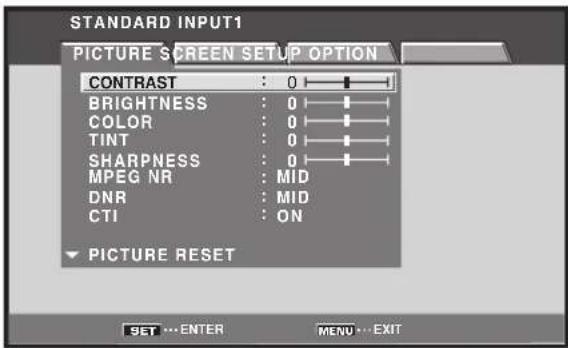

Picture Adjustment (1)

You can save picture adjustment setting values for each INPUT and each AV SELECTION mode.

panel

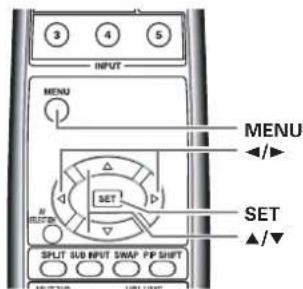

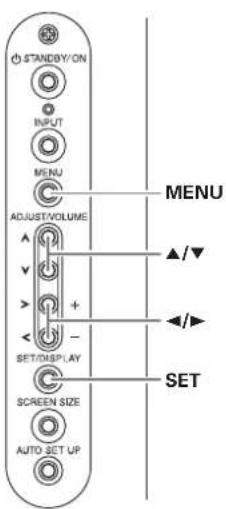

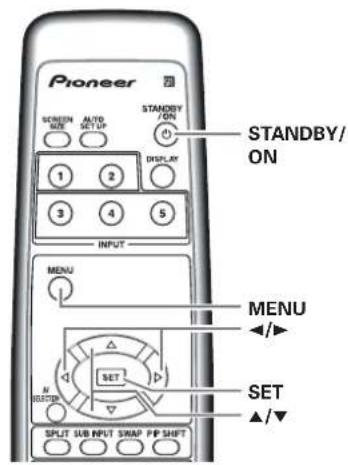

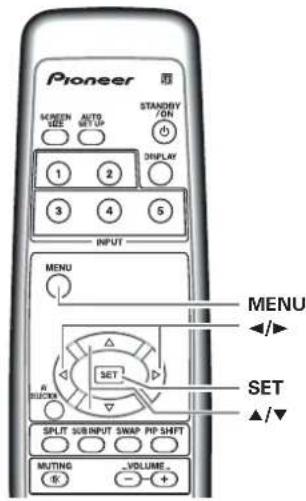

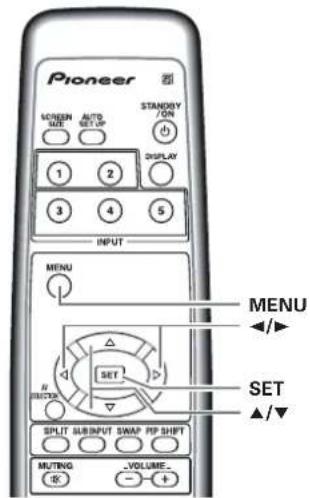

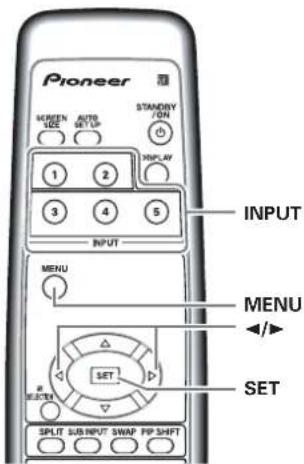

Remote control unitDisplay operating

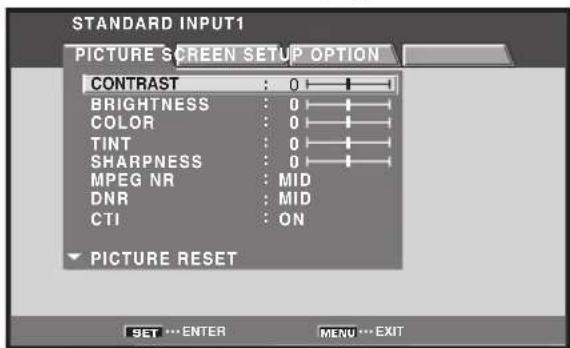

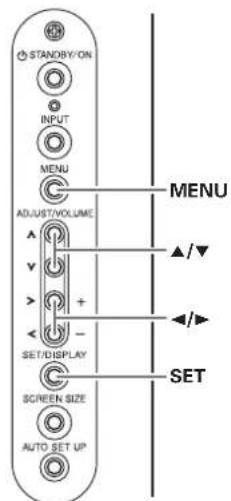

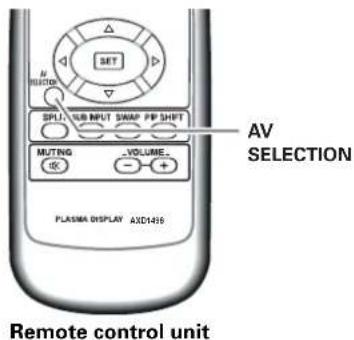

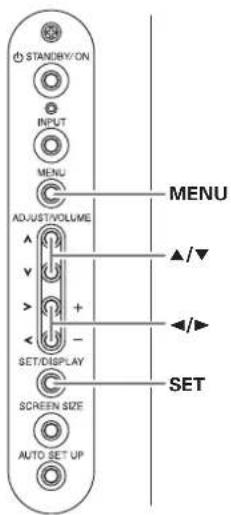

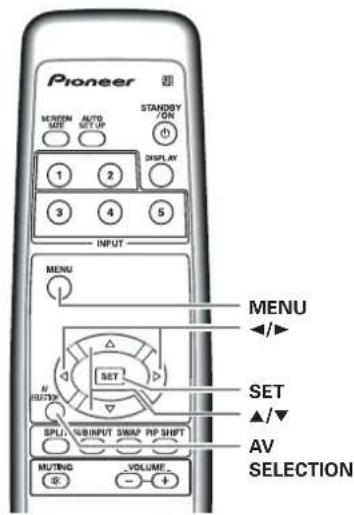

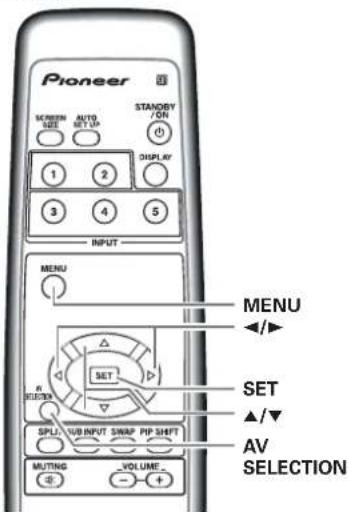

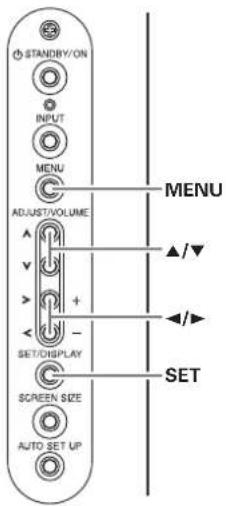

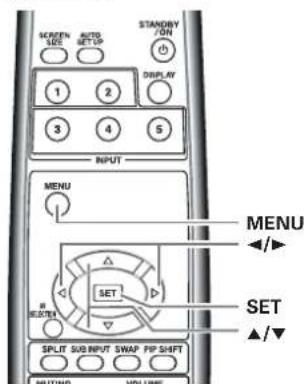

1 Press the AV SELECTION button to select the desired mode (Refer to page 33).

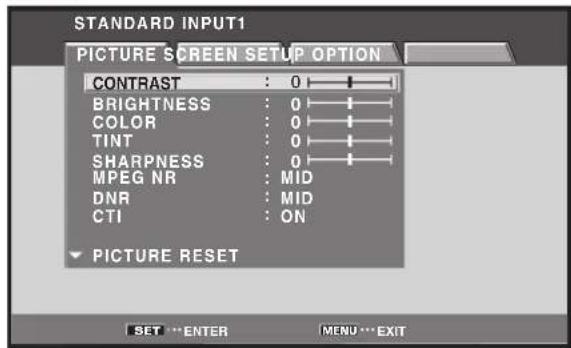

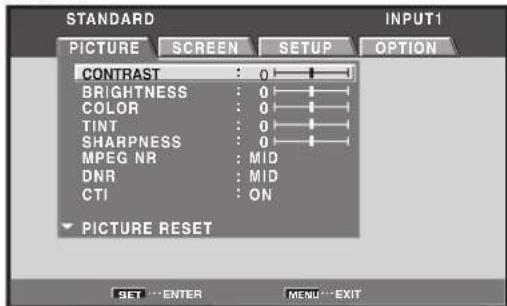

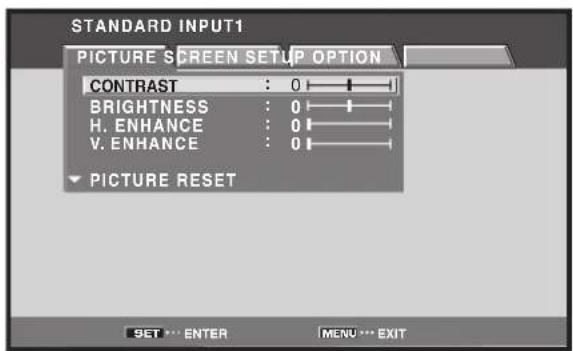

2 Press the MENU button to display the menu

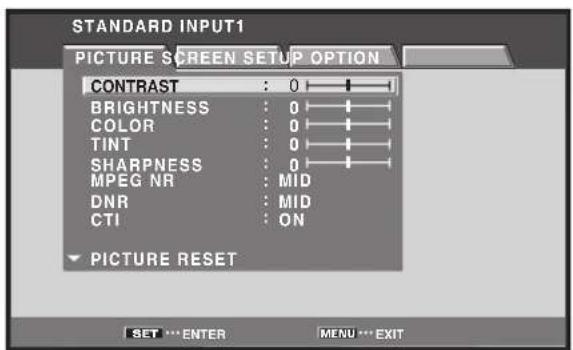

3 Use the / buttons to select the item, then press the SET button.

4 Use the buttons to adjust picture quality to the desired setting.

5 Press the SET button.

Adjustment values are saved, and you return to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

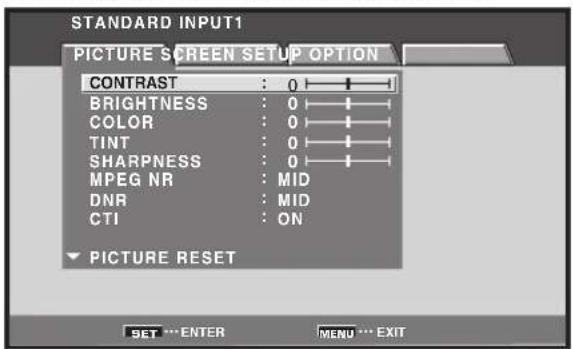

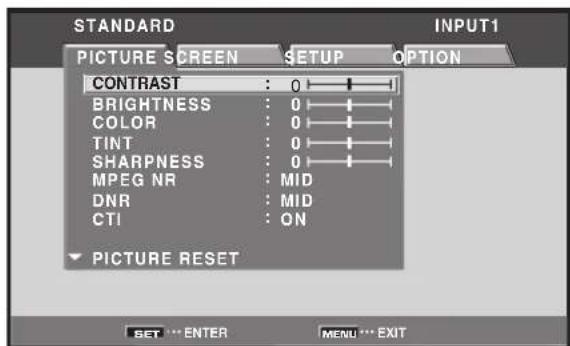

Adjustment and setting items during video signal input Decrease Increase

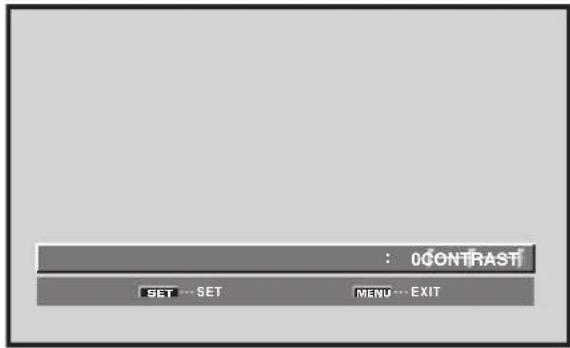

CONTRAST . Contrast becomes weaker. Contrast becomes stronger. BRIGHTNESS ... Picture becomes darker. Picture becomes brighter

COLOR ....... Colors become weaker Colors become stronger

TINT Skin tonas become purplsh Skin tonas become greenish

SHARPNESS... Picture becomes softer Picture becomes sharper

MPEG NR

Lisa when there is mosquito noise in the picture when viewing a digital broadcast, playing a DVD etc.

Each time you press the buttons, the setting changes as follows:

• As you change from LOW MID HIGH, the effect becomes stronger.

DNR

This function reduced graininess to provide a clearer picture.

Each time you press the buttons, the setting changes as follows:

As you change from LOW MID HIGH, the effect becomes stronger.

CTI

This lets you brighten color contour as desired. Each time you press the buttons, the sett

charges as follows:

ON CTIs operating
OFF-CTIs not operating.

35

Checking Supplied Accessories

Check that the following accessories were supplied.

①Power cord

②Remote control unit

③AA (R6) batteries (x 2)

④ Cleaning cloth (for wiping front panel)

⑤Speed clamps (x 2)

6Bead bands (x 2)

- Operating Instructions
Warranty

Part Names and Functions

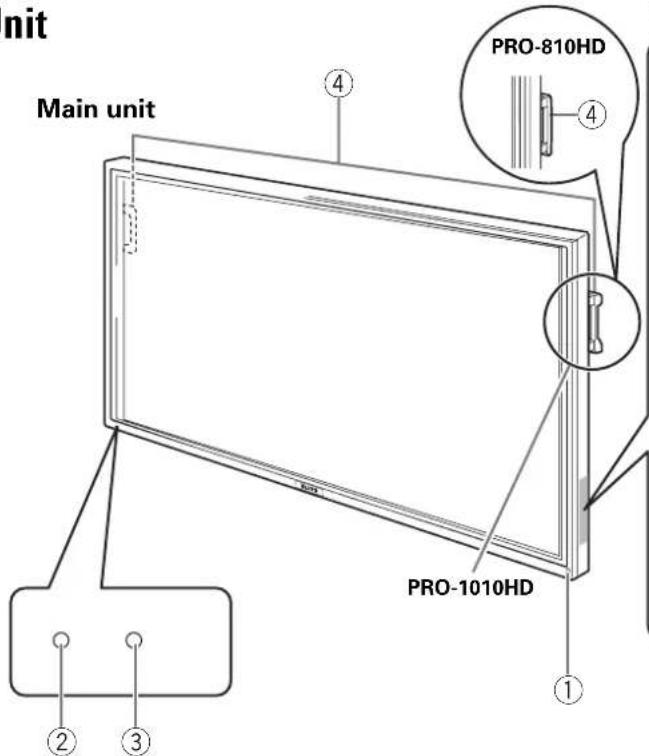

Main Unit

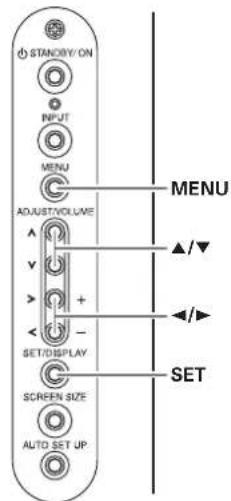

Operation panel on the main unit

Main unit

①Remote control sensor

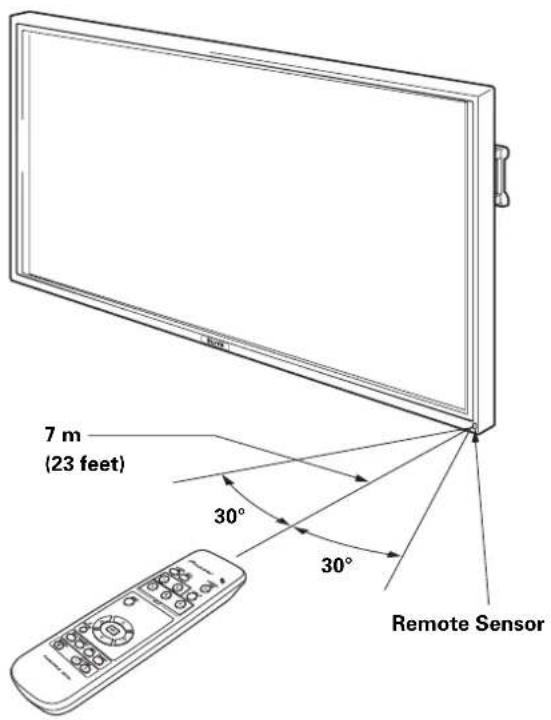

Point the remote control toward the remote sensor to operate the unit (page 7).

②ONindicator

Lights green when the plasma display is operating (page 29).

When flashing, the indicator is used to indicate error messages (page 50).

③STANDBY indicator

Lights red when the unit is in standby mode (page 29). When flashing, the indicator is used to indicate error messages (page 50).

④ Handles

The plasma displays utilize differing methods of handle attachment, but the handles themselves are used in the same way.

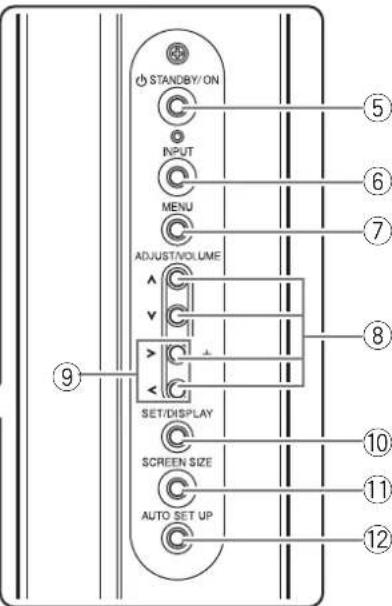

Operation panel on the main unit

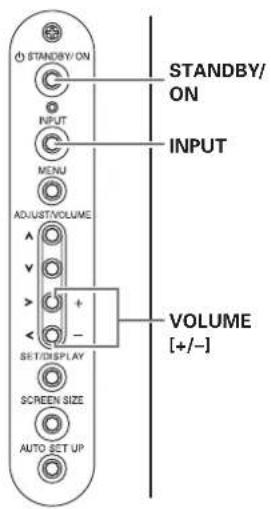

⑤STANDBY/ON button

Press to put the display in operation or standby mode (page 29).

⑥INPUT button

Press to select the input (page 29).

⑦ MENU button

Press to open and close the on-screen menu (pages 22 to 47).

ADJUST 人 / M buttonss

Use these buttons to move the onscreen cursor between selection options, and to perform adjustments. Instructions for use are given with each command option onscreen (pages 22 to 47).

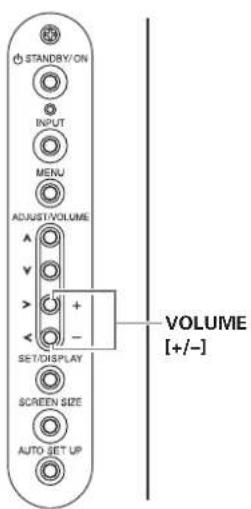

9VOLUME (+ / - ) buttons

When not indicated for use in onscreen menu items, these buttons are used for adjusting the sound volume (pages 29 and 30).

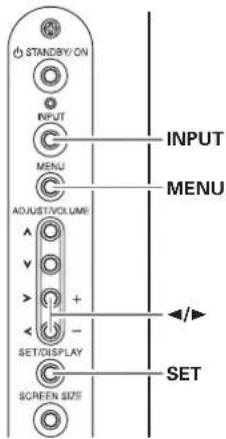

SET/DISPLAY button

Use to confirm onscreen menu selections, and to change settings (pages 22 to 47).

When not indicated by onscreen menus, used to display the current set status (page 30).

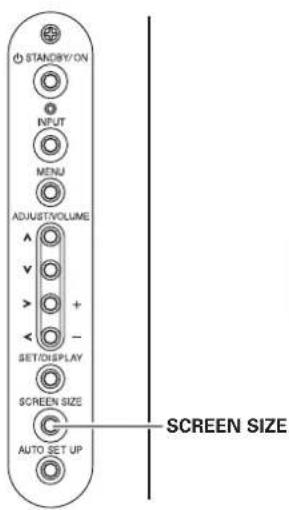

①SCREEN SIZE button

Press to select the screen size (page 30).

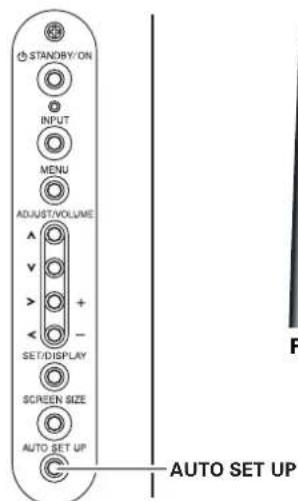

2AUTO SET UP button

When using computer signal input, automatically sets the [POSITION], [CLOCK] and [PHASE] to optimum values (page 39).

Remote Control Unit

When handling the remote control unit

• Do not drop the remote control unit or expose it to moisture.
• Do not use the remote control unit in a location subject to direct sunlight, heat radiation from a heater, or in a place subject to excessive humidity.
• When the remote control unit's batteries begin to wear out, the operable distance will gradually become shorter. When this occurs, replace all batteries with new ones as soon as possible.

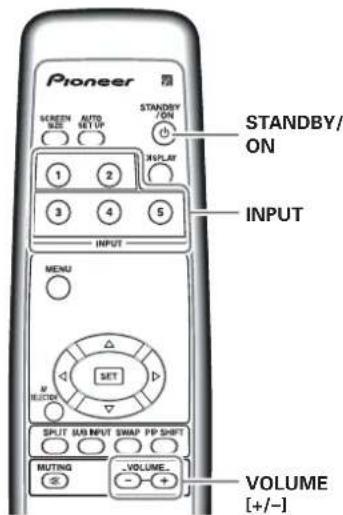

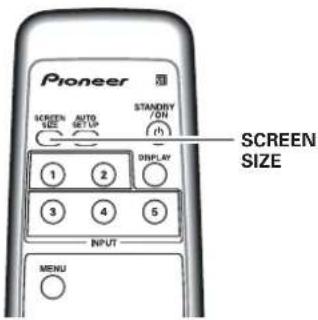

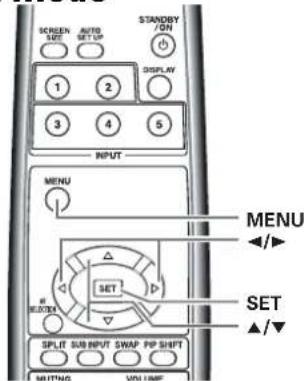

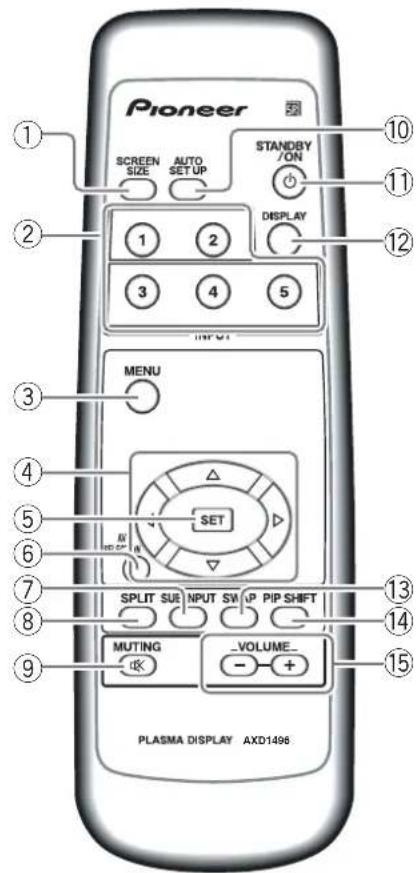

① SCREEN SIZE button

Press to select the screen size (pages 30 to 32).

②INPUT buttons

Press to select the input (page 29).

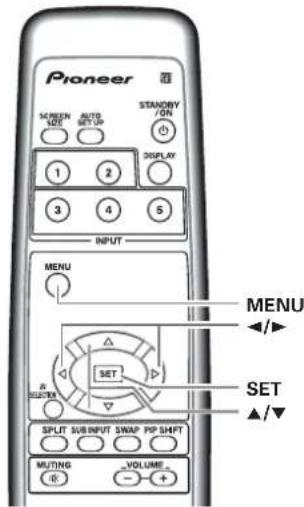

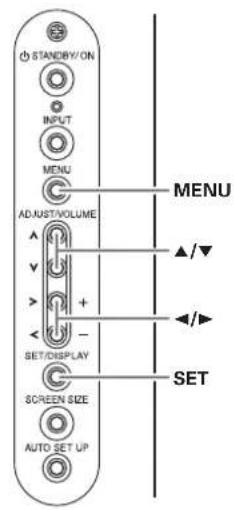

③ MENU button

Press to open and close the on-screen menu (pages 22 to 47).

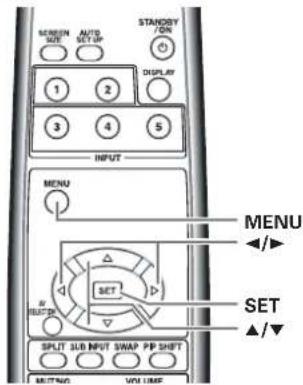

④ ADJUST (▲/▼/▶/←) buttons

Use to navigate menu screens and to adjust various settings on the unit (pages 22 to 47).

⑤SET button

Press to adjust or enter various settings on the unit (pages 22 to 47).

⑥AVSELECTION button

Press to switch to Picture settings.

(VIDEO mode: DYNAMIC, STANDARD, MOVIE, GAME, USER

PC mode: STANDARD, USER)

⑦SUB INPUT button

During multi-screen display, use this button to change inputs to subscreens (page 32).

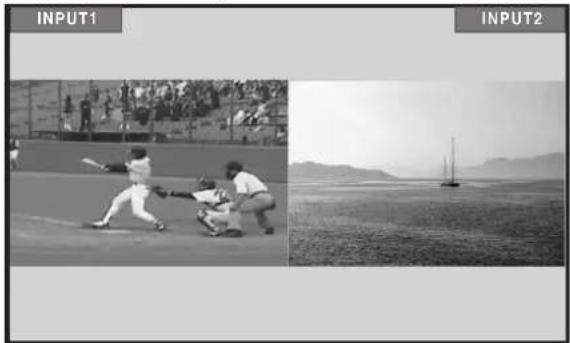

⑧SPLIT button

Press to switch to multi-screen display (page 32).

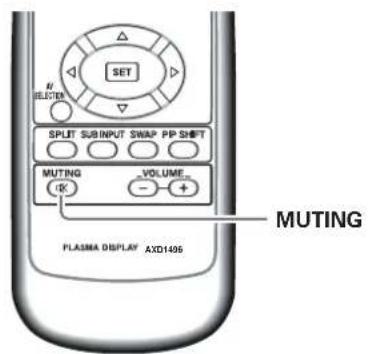

⑨MUTING button

Press to mute the volume (page 30).

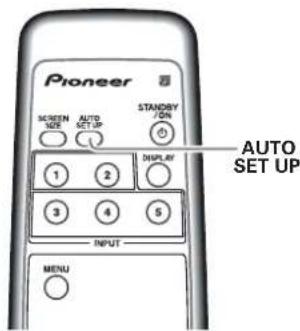

10 AUTO SET UP button

When using computer signal input, automatically sets the [POSITION], [CLOCK] and [PHASE] to optimum values (page 39).

1STANDBY/ON button

Press to put the unit in operation or standby mode (page 29).

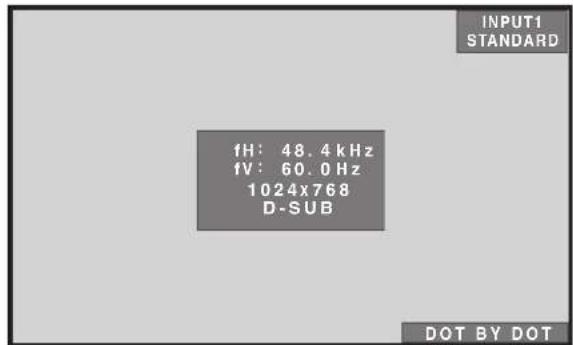

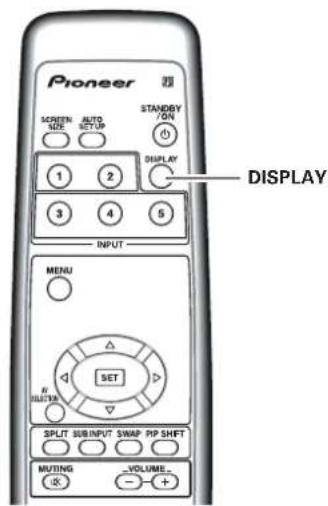

12DISPLAY button

Press to view the unit's current input and setup mode (page 30).

⑬SWAP button

During multi-screen display, use this button to switch between main screen and subscreen (page 32).

14PIP SHIFT button

When using PinP mode with multi-screen display, use this button to move the position of subscreen (page 32).

15VOLUME (+ / - ) buttons

Use to adjust the volume (pages 29 and 30).

Operating range of the remote control unit

When operating the remote control unit, point it at the remote sensor (R) located on the front panel of the main unit. The remote control unit is operable up to 7 m (23 feet) from the unit and within a 30^ angle on each side of the sensor.

If you are having difficulty with operation of the remote control unit

The remote control unit may not operate if there are objects placed between it and the display.
- Operational distance will gradually become shorter as the batteries begin to wear out, replace weak batteries with new ones as soon as possible.
This unit discharges infrared rays from the screen. Placing a video deck or other component that is operated by an infrared remote control unit near this unit may hamper that component's reception of the remote control's signal, or prevent it from receiving the signal entirely. Should this occur, move the component to a position further away from this unit.
Depending on the installation surroundings, this unit's remote control unit may be influenced by the infrared rays discharged from the plasma display, hampering reception of its rays or limiting its operational distance. The strength of infrared rays discharged from the screen will differ according to the picture displayed.

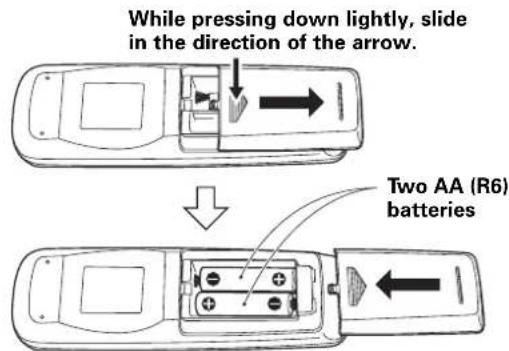

Inserting the batteries in the remote control unit

CAUTION

• Insert batteries so that the plus (+) and minus (-) sides are aligned according to the markings in the battery case.
• When not using the remote control unit for a long period of time (1 month or more), remove the batteries from the remote control unit to prevent leaking of battery fluid. If battery liquid has leaked, thoroughly wipe the inside of the case until all liquid is removed, and then insert new batteries.

When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country/area. D3-4-2-3-1_EN

NO!

• Do not mix new batteries with used ones.
  The voltage of batteries may differ even if they are the same shape. Please do not mix different kinds of batteries together.
• Do not charge, short, disassemble or throw the provided batteries in a fire.

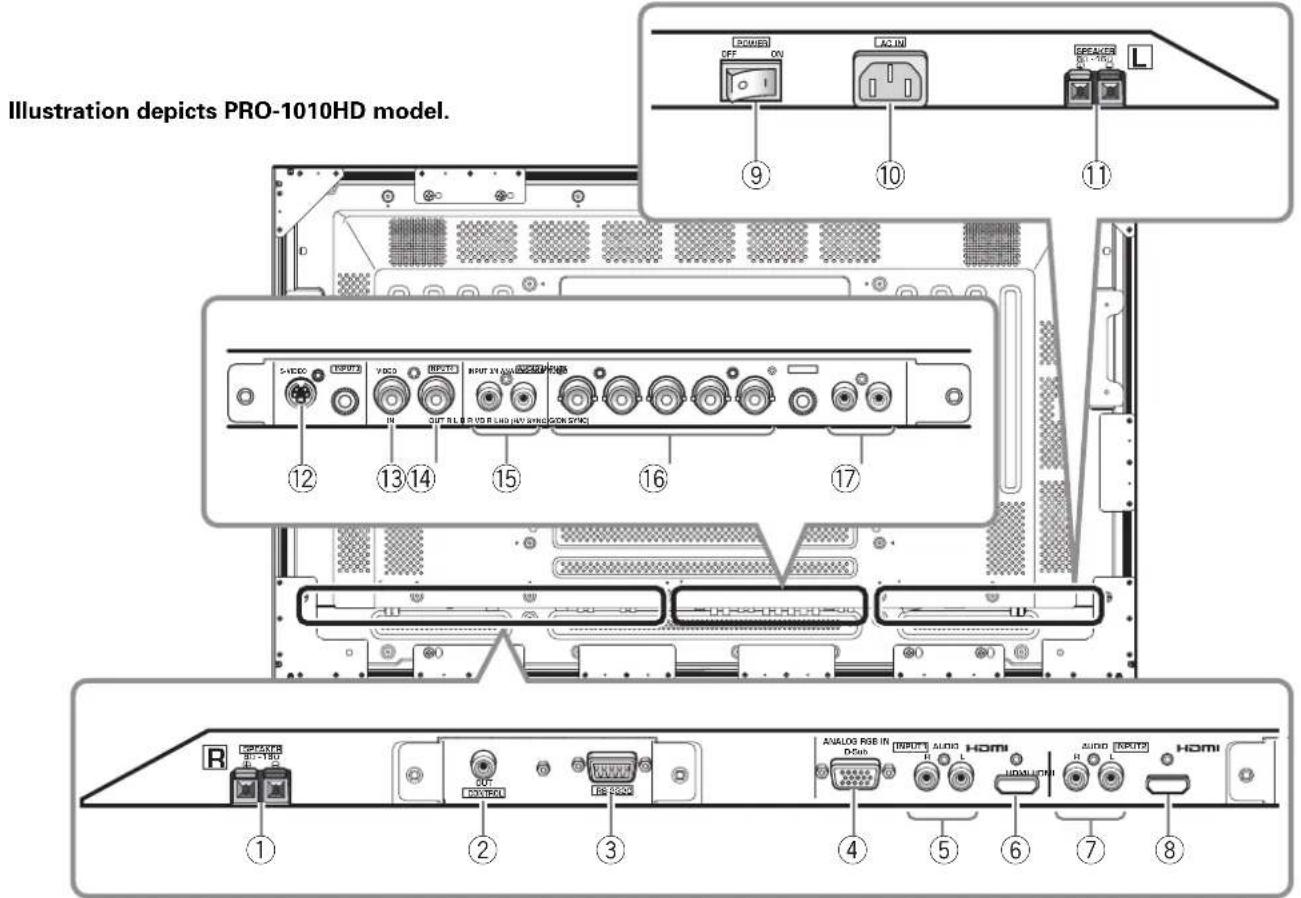

Connection Panel

Plasma Display Section

The plasma display is provided with 6 video input connectors, 1 video output connector, audio input/output jacks and speaker terminals together with a CONTROL OUT connector for connecting to PIONEER components bearing the mark.

For instructions regarding connections, consult the pages noted in parentheses by each item.

① SPEAKER (R) terminal

For connection of an external right speaker. Connect a speaker whose impedance is 8-16 Ω.

② CONTROL OUT

For connection of PIONEER components that bear the mark. Making CONTROL connection enables control of this unit as a component in a system (page 19).

③ RS-232C

Never connect any component to this connector without first consulting your Pioneer installation technician.

This connector is used for plasma display setup adjustments.

④ ANALOG RGB IN (INPUT1) (mini D-sub 15 pin)

For connecting components equipped with RGB outputs jacks, such as a personal computer or external RGB decoder; or components equipped with component output jacks, such as a DVD recorder. Make sure that the connection made corresponds to the format of the signal output from the connected component (pages 12 to 15). Select this INPUT or the HDMI INPUT for INPUT 1 in [INPUT1 SELECT] in the menu (page 23).

⑤ AUDIO (INPUT1) (RCA pin jack)

Use to obtain sound when INPUT1 is selected. Connect this jack to the audio output connector of the device connected to the plasma display's INPUT1 (D-sub or HDMI (analog audio)) (page 18).

Note

The left audio channel (L) jack is not compatible with monaural input sources.

⑥HDMI (INPUT1) (HDMI jack)

For connection of components that have a digital video output terminal such as a digital set top box, DVD player, etc. compatible with HDCP. Before attempting to connect one of these devices, read its operating instructions to make sure that it can be connected (page 15).

(HDCP = High -bandwidth Digital Content Protection) (HDMI = High Definition Multimedia Interface) Select this INPUT or the ANALOG RGB IN 4 in [INPUT1 SELECT] in the menu (page 23).

⑦AUDIO(INPUT2) (RCA Pin jackets)

Use to obtain sound when INPUT2 (analog audio) is selected.

Connect these jacks to the audio output connectors of components connected to INPUT2 (page 18).

Note

The left audio channel (L) jack is not compatible with monaural input sources.

⑧HDMI (INPUT2) (HDMI jack)

For connection of components that have a digital video output terminal such as a digital set top box, DVD player, etc. compatible with HDCP. Before attempting to connect one of these devices, read its operating instructions to make sure that it can be connected (page 16).

(HDCP = High-bandwidth Digital Content Protection)
(HDMI = High Definition Multimedia Interface)

⑨MAIN POWER switch

Use to switch the main power of the plasma display on and off.

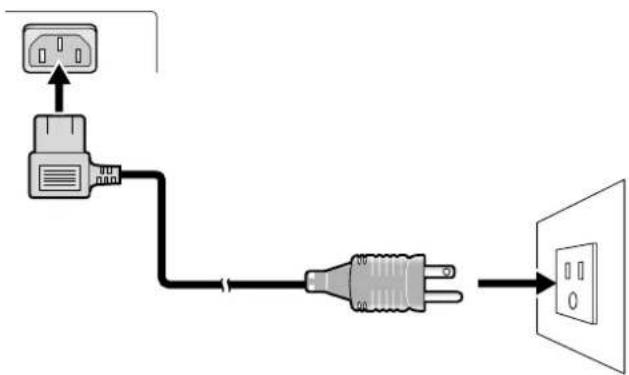

10AC IN

A power cable is furnished with the plasma display; connect one end of the power cable to this connector, and the other end to a standard AC power source.

1SPEAKER (L) terminal

For connection of an external left speaker. Connect a speaker that has an impedance of 8-16 Ω.

12S-VIDEO (INPUT3) (S-video jack)

For connection of components that have an S-video output jack such as a video deck, video camera, laser disc player, or DVD recorder (page 16).

⑬VIDEO IN (INPUT4) (BNC jack)

For connection of components that have a composite video output jack such as a video deck, video camera, laser disc player, or DVD recorder (page 16).

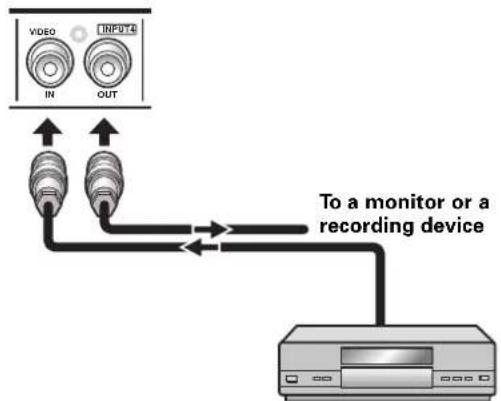

④VIDEO OUT (INPUT4) (BNC jack)

Use theVIDEO OUT (INPUT4) jack to output the video signal to an external monitor or other component.

Note

The video signal will not be output from the VIDEO OUT (INPUT4) jack when the main power of this display is off or in standby mode (page 16).

15 AUDIO R/L (INPUT3/4) (RCA Pin jacks)

Use to obtain sound when INPUT3 or INPUT4 is selected. Connect these jacks to the audio output connectors of components connected to INPUT3 or INPUT4 (page 19).

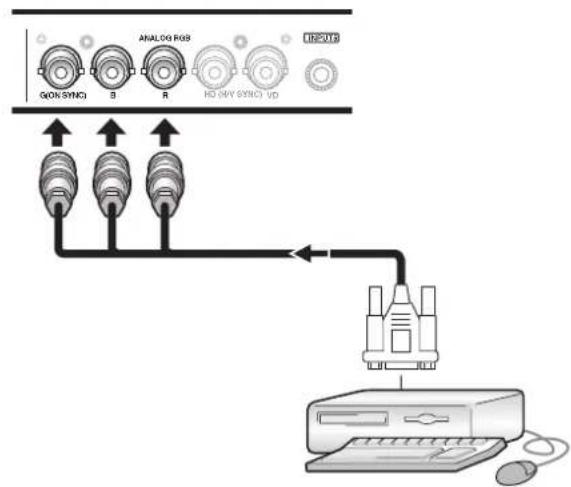

ANALOG RGB (INPUT5) (BNC jacks)

For connecting components equipped with RGB outputs jacks, such as a personal computer or external RGB decoder; or components equipped with component output jacks, such as a DVD recorder. Make sure that the connection made corresponds to the format of the signal output from the connected component (pages 12 to 15).

⑦AUDIO R/L (INPUT5) (RCA Pin jacks)

Use to obtain sound when INPUT5 is selected. Connect these jacks to the audio output connectors of components connected to INPUT5 (page 19).

Installation and Connections

Installation of the Unit

Installation using the optional PIONEER stand or installation bracket

• Please be sure to request installation or mounting of this unit or the installation bracket by the dealer where purchased.
• When installing, be sure to use the bolts provided with the stand or installation bracket.
  For details concerning installation, please refer to the instruction manual provided with the stand or installation bracket.

Installation using accessories other than the PIONEER stand or installation bracket (sold separately)

• When possible, please install using parts and accessories manufactured by PIONEER. PIONEER will not be held responsible for accident or damage caused by the use of parts and accessories manufactured by other companies.
  For custom installation, please consult the dealer where the unit was purchased.

Wall-mount installation of the unit

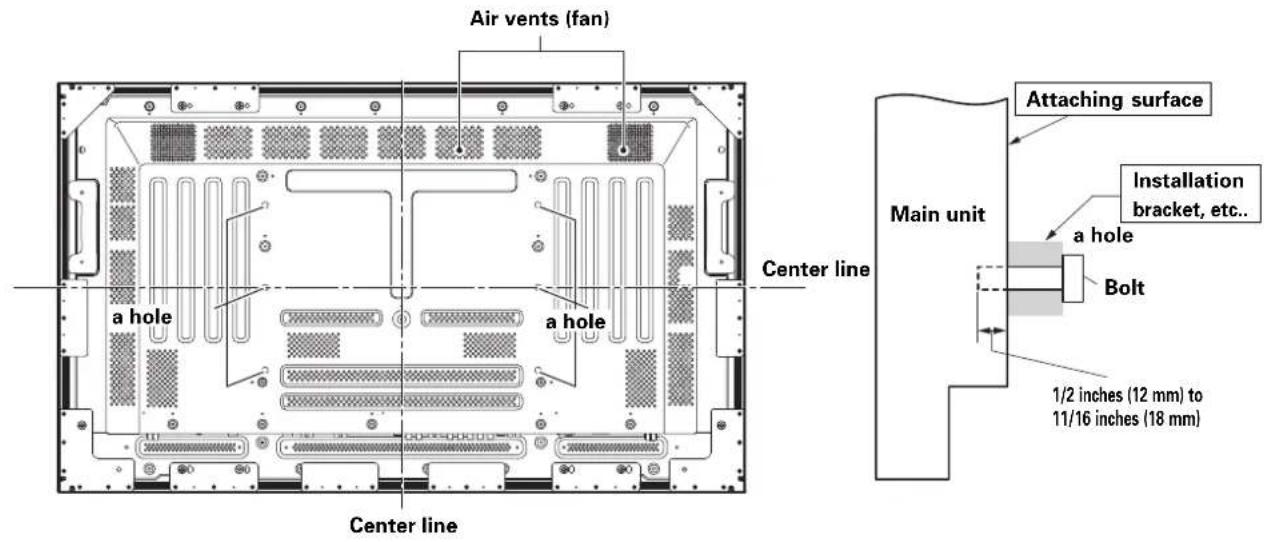

This unit has been designed with bolt holes for wallmount installation, etc. The installation holes that can be used are shown in the diagram below.
- Be sure to attach in 4 or more locations above and below, left and right of the center line.
Use bolts that are long enough to be inserted 1/2 inch (12 mm) to 11/16 inch (18 mm) into the main unit from the attaching surface for both a holes. Refer to the side view diagram below.
- As this unit is constructed with glass, be sure to install it on a flat, unwarped surface.

CAUTION

Toavoid malfunction, overheating of this unit, and possible fire hazard, make sure that the vents on the main unit are not blocked when installing. Also, as hot air is expelled from the air vents, be careful of deterioration and dirt build up on rear surface wall, etc..

CAUTION

Please be sure to use an M8 (Pitch = 1.25 mm) bolt (Only this size bolt can be used).

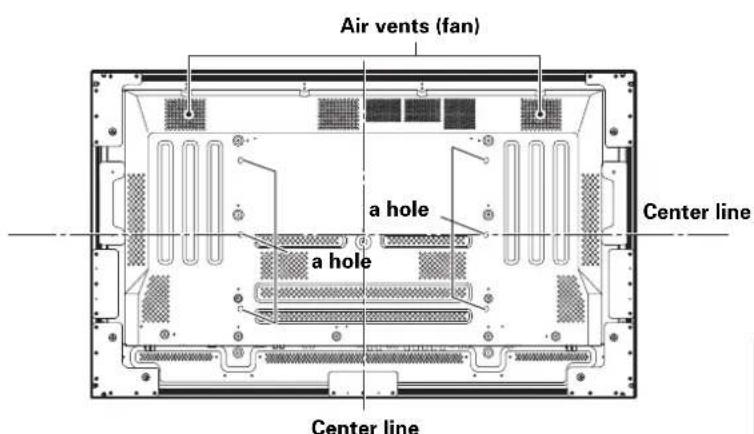

Side view diagramRear view diagram (PRO

Rear view diagram (PRO-810HD)

CAUTION

This display unit weighs at least 67 lbs (30 kg) and has little front-to-back depth, making it very unstable when stood on edge. As a result, two or more persons should cooperate when unpacking, moving, or installing the display.

CAUTION

This unit incorporates a thin design. To ensure safety if vibrated or shaken, please be sure to take measures to prevent the unit from tipping over.

■ Optional line (sold separately) (For details, please consult the dealer where this unit was purchased.)

1 Table top stand: PRO-1010HD / PRO-810HD display stand.
2 Wall installation unit: Wall installation bracket designed as a wall interface for securing the unit.

CAUTION

• Handles should not be removed or reattached by anyone other than the professional installation technician or service personnel.
  If handles must be removed due to specific installation conditions, the mounting screws should be stored carefully together with the handles. To ensure safety, the mounting screws should be tightened to a minimum torque of 2N·m (20 kgf·cm) when reattaching the handles.

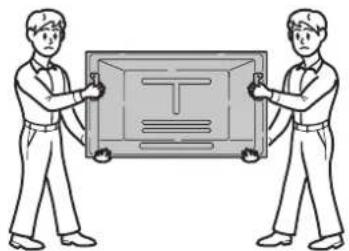

• When moving the display, it should always be carried by two persons holding the rear handles in the manner shown.

NO!

• Never attempt to move the plasma display by holding only one of the handles.
• When installing the plasma display, do not use the handles as means of hanging the display; also do not use them as devices to prevent tipping over (see illustration).

About the Input Connectors on this Unit

Consult the following chart when making connections to a plasma display (pages 12 to 21).

Input ConnectorConnectedcomponent and signals		INPUT1*1(D-sub)	INPUT1*4(HDMI)	INPUT2*4	INPUT3	INPUT4	INPUT5*1
AV component	Analog RGB	○					○
	Component video	○					○
	S-video				○
	Composite video					○
	Digital video		○	○
Personal computer (PC)	Analog RGB	○*2					○
	S-video				○*3
	Composite video					○*3

1 Although INPUT1 (D-sub)/INPUT5 are compatible with various kinds of signals, setup using the on-screen menu is necessary after connections are made in order match the characteristics of the source component (pages 23 to 25).
2 INPUT1 (D-sub) is compatible with Microsoft's Plug & Play (VESA DDC 1/2B).
3 Depending on the video output board of the computer, this type of connection may not be possible.
4 Although INPUT1 (HDMI)/INPUT2 are compatible with various kinds of signals, setup using the on-screen menu is necessary after connections are made in order match the characteristics of the source component (pages 25 to 27).

Connection to INPUT1 (D-sub) and INPUT5

Various components can be connected to the INPUT1(Dsub) and INPUT5 jacks. After connections are made, on-screen setup is necessary to match the characteristics of the connected component. Please see pages 23 to 25 for on-screen setup after connection.

INPUT5 terminal Output source	[ON SYNC] G	B	R	[H/V SYNC] HD VD]
Video component/ Personal computer (PC) with RGB output	○ G ON SYNC	○ B	○ R	×	×
	○ G	○ B	○ R	○ H/V SYNC	×
	○ G	○ B	○ R	○ HD	○ VD
Video component with component video output	○ Y	○ C	○ B/PB CR/PR	×	×

X: Do not connect anything. Connect to this jack.

Note

Components compatible with INPUT1 (D-sub) are also compatible with INPUT5.

When making connections to INPUT1 (D-sub), please refer to appendix 3 on page 55.

For the screen sizes and input signals that INPUT1 (D-sub) and INPUT5 are compatible with, please refer to appendix 1 (page 52) and appendix 2 (pages 53 to 54).

Stabilizing to the floor

• Use screws (sold separately) to attach and stabilize the stand.
• When stabilizing the stand to the floor, use M6 with a length above 20 mm (25/32 inch). Units: mm (inch)

Connection to AV components

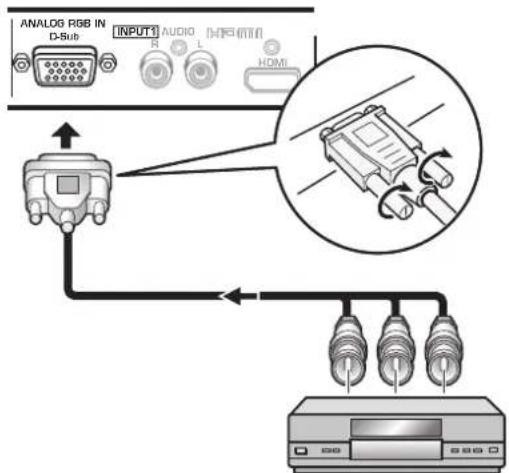

Connection to AV component equipped with component video jacks

Make component video connections for AV components equipped with component video jacks.

When connecting to ANALOG RGB IN (INPUT1)

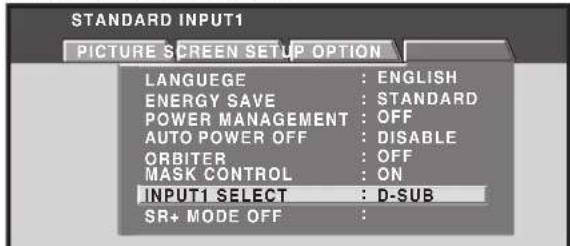

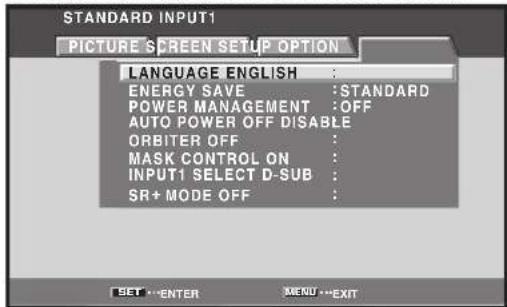

When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection.

Please see pages 23 to 25.

When connecting to ANALOG RGB (INPUT5)

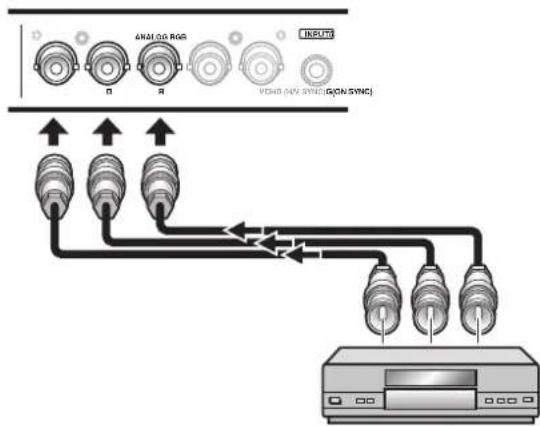

Connect the Y signal to the G jack, the CB/PS signal to the B jack, and the CR/PR signal to the R jack.

On-screen setup is necessary after connection.

Please see pages 23 to 25.

INPUT5 jacks are all BNC jacks.

If necessary, use commercially available BNC/pin-plug conversion adapters to make connections.

Note

This unit are designed to support component video signals with standard, stable signal levels and sync signals. As a result, some image disruption may be generated during use of various special trick play functions on video components.

Connection of G ON SYNC analog RGB source

Make G ON SYNC connections for a component with output that has the synchronization signal layered on top of the green signal.

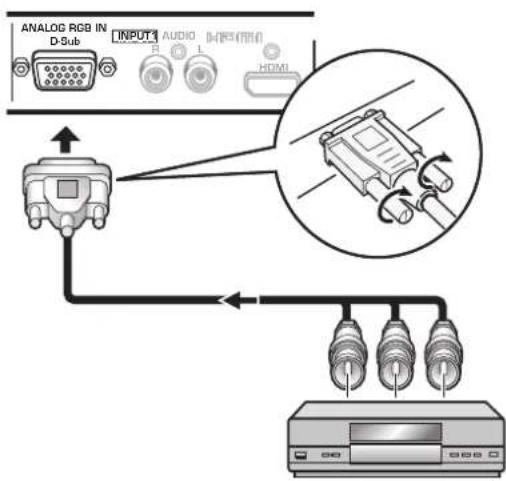

When connecting to ANALOG RGB IN (INPUT1)

When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection.

Please see pages 23 to 25.

When connecting to ANALOG RGB (INPUT5)

On-screen setup is necessary after connection.

Please see pages 23 to 25.

Note

When making G ON SYNC connections, do not make any connections to the VD or HD jacks. If connections are made, the picture may be not displayed normally.

Connection of composite SYNC analog RGB source

Make composite SYNC connections for a component with output that has the vertical synchronization signal layered on top of the horizontal synchronization signal.

When connecting to ANALOG RGB IN (INPUT1)

When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection.

Please see pages 23 to 25.

When connecting to ANALOG RGB (INPUT5)

On-screen setup is necessary after connection.

Please see pages 23 to 25.

Note

When making composite SYNC connections, do not connect anything to the VD jack. If connected to, the picture may not be displayed properly.

Connection to a personal computer

Connection method differs depending on the computer type. When connecting, please thoroughly read the computer's operating instructions.

Before making connections, be sure to make sure that the personal computer's power and display's main power is off.

For the PC input signals and screen sizes that the display is compatible with, please refer to the plasma display's Operating Instructions.

Connection of separate SYNC analog RGB source

Make separate SYNC connections for a personal computer that has RGB output separated into 5 output signals: green, blue, red, horizontal synchronization signal, and vertical synchronization signal.

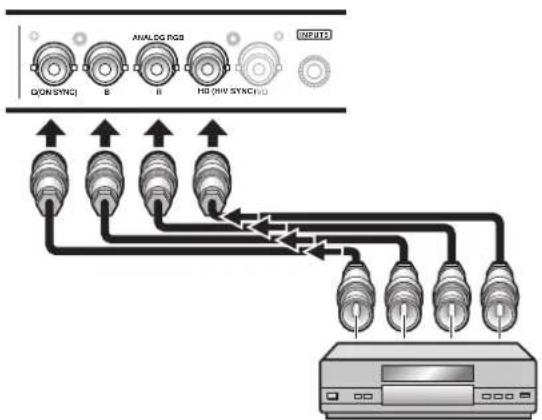

When connecting to ANALOG RGB (INPUT5)

On-screen setup is necessary after connection. Please see pages 23 to 25.

When connecting to ANALOG RGB IN (INPUT1)

Connect the cable corresponding to the shape of the input terminal on the display and the personal computer's output terminal.

Secure by tightening the terminal screws on both units. When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection. Please see pages 23 to 25.

Note

Depending on the type of computer model being connected, a conversion connector or adapter etc. provided with the computer or sold separately may be necessary.

For details, please read your PC's instruction manual or consult the maker or nearest dealer of your computer.

Connection of G ON SYNC analog RGB source

Make G ON SYNC connections for a personal computer with output that has the synchronization signal layered on top of the green signal.

When connecting to ANALOG RGB IN (INPUT1)

When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection. Please see pages 23 to 25.

When connecting to ANALOG RGB (INPUT5)

On-screen setup is necessary after connection. Please see pages 23 to 25.

Note

When making G ON SYNC connections, do not make any connections to the VD or HD jacks. If connections are made, the picture may be not displayed normally.

Connection of composite SYNC analog RGB source

Make composite SYNC connections for a personal computer with output that has the vertical synchronization signal layered on top of the horizontal synchronization signal.

When connecting to ANALOG RGB IN (INPUT1)

When using D-sub INPUT for INPUT1, select [D-sub] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use the HDMI INPUT and this INPUT.

On-screen setup is necessary after connection. Please see pages 23 to 25.

When connecting to ANALOG RGB (INPUT5)

On-screen setup is necessary after connection. Please see pages 23 to 25.

Notes

• When making composite SYNC connections, do not connect anything to the VD jack. If connected to, the picture may not be displayed properly.

Some types of computer devices manufactured by Apple Computer, Inc. are equipped with both G ON SYNC and composite SYNC outputs. This type of component should be connected using the G ON SYNC connection (page 14).

Connection to INPUT1 (HDMI)

Connect an AV component with a digital video output (digital set top box, DVD player, etc.) compatible with HDCP (High-bandwidth Digital Content Protection).

Before attempting to connect one of these components, read its operating instructions to make sure that it can be connected.

AVcomponent with a digital video output

When using the HDMI INPUT for INPUT1, select [HDMI] in [INPUT1 SELECT] in the menu (page 23).

Note

You cannot simultaneously use D-sub INPUT and this INPUT.

After connection is made, on-screen setup is necessary to match the connected component. Please see page 25 to 27.

Notes

Use a HDMI (High Definition Multimedia Interface) cable for connection.
- When connecting a component with DVI connector, use an DVI/HDMI conversion cable to make a connection.
It is not a jack intended to be used with a personal computer.
See appendix 1 (page 52) for information regarding signal and display formats supported by INPUT1.

HIGH-DEFINITION MULTIMEDIA INTERFACE

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

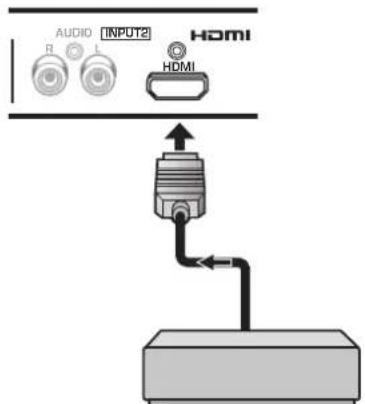

Connection to INPUT2

Connect an AV component with a digital video output (digital set top box, DVD player, etc.) compatible with HDCP (High-bandwidth Digital Content Protection).

Before attempting to connect one of these components, read its operating instructions to make sure that it can be connected.

AVcomponent with adigital video output

After connection is made, on-screen setup is necessary to match the connected component. Please see page 25 to 27.

Notes

-Use a HDMI (High Definition Multimedia Interface) cable for connection.
- When connecting a component with DVI connector, use an DVI/HDMI conversion cable to make a connection.
It is not a jack intended to be used with a personal computer.
See appendix 1 (page 52) for information regarding signal and display formats supported by INPUT2.

Connection to INPUT3

Connect an AV component that has S-video output jack to S-VIDEO (INPUT3) jack.

AV component

Connection to INPUT4

Connect an AV component that has a video output jack to INPUT4 jack. The VIDEO OUT (INPUT4) jack can be used to output the video signal to a separate monitor, recording device or other component with video input capability.

Note

A video signal will not be output from theVIDEO OUT (INPUT4) jack when the main power of this display is off or in standby mode.

AV component

About DTV Set Top Box Connection

To ensure proper connection, please carefully read the instruction manual supplied with the DTV set top box.

The set top box output signals that this display is compatible with are as follows.

Video signal type	Video signal	Video signal format	Jacks where connection is possible
			INPUT1 (D-sub)	(HDMI)			INPUT4I	NRE03BRE021
HDTV	1080i (1125i) 720p (750p)	Component	◎					◎
		RGB	◎					◎
		Digital		◎	◎
SDTV	480i (525i)	Composite					◎
		S-Video				◎
		Component	◎					◎
		RGB	◎					◎
		Digital		◎	◎
	480p (525p)	Component	◎					◎
		RGB	◎					◎
		Digital		◎	◎

Audio connections

Before making connections, be sure to check that the audio component's power and the unit's main power is off.

Connecting the speakers

This unit is equipped with a 7W + 7W internal amplifier. If speakers are to be connected to the unit, following the accompanying connection instructions.

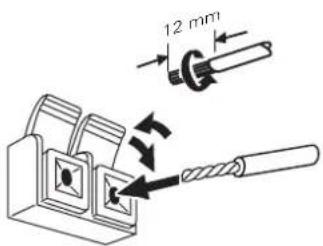

Twist exposed wire strands together.

Push tab to the open position, and insert the wire. Then, close tab firmly to secure the wire in place.

Notes

After connecting the wires, pull gently on the cables to confirm that the wire cores are fastened securely in their terminals. Insecure connections will result in noise or interrupted sound.
- Do not allow the wire cores of the and speaker cables to protrude excessively, since they may touch each other, causing a short circuit. This will produce excessive load on the plasma display, causing operation to malfunction or stop.

Making connections to the audio inputs on this unit

This unit features four audio inputs. The following chart shows the video inputs and the corresponding audio input terminals.

Video input	Audio input jacks	Sound output
INPUT1	Pin jacks (L/R)*1	Sound of the selected video input is output from the SPEAKER (L/R) terminals.
INPUT2	Pin jacks (L/R)
INPUT3	Pin jacks (L/R)*2
INPUT4	Pin jacks (L/R)*2
INPUT5	Pin jacks (L/R)

1 The audio input jack is the same for INPUT1 D-sub and HDMI.
^2 The audio input jack is the same for INPUT3 and INPUT4.

Audio connection for component connected to INPUT1 (D-sub or HDMI)

The audio line for the component connected to D-sub or HDMI INPUTs of INPUT1 can be connected to the AUDIO R/L (INPUT1) pin jacks.

Sound is output from the SPEAKER (L/R) terminals according to the video input selection.

Note

When using HDMI analog audio, set AUDIO to ANALOG (or AUTO) (Please see page 27).

Audio connection for component connected to INPUT2

The audio line for the component connected to INPUT2 can be connected to the AUDIO R/L (INPUT2) pin jacks.

Sound is output from the SPEAKER (L/R) terminals according to the video input selection.

Note

When using AUDIO INPUT2, set the AUDIO to ANALOG (or AUTO) (Please see page 27).

Audio connection for component connected to INPUT5

The audio line for the component connected to INPUT5 can be connected to the AUDIO R/L (INPUT5) pin jacks.

Sound is output from the SPEAKER (L/R) terminals according to the video input selection.

Audio connection for component connected to INPUT3 or INPUT4

Audio input to the AUDIO R/L (INPUT3/4) pin jacks is possible for a component connected to either INPUT3 or INPUT4.

Sound is output from the SPEAKER (L/R) terminals according to the video input selection.

Connecting Control Cords

Connect control cords between this unit and other PIONEER equipment having the logo. You can then operate the connected equipment by sending commands from its remote control unit to the remote control sensor on this unit.

After the CONTROL IN terminals have been connected, the remote control sensors on the connected equipment do not accept commands from the remote control units. Face the remote control units to the remote control sensor on this unit when operating the connected equipment.

Notes

Make sure that the power is turned off when making connections.
- Complete all component connections before making control cord connections.

The control cables (commercially available) are mono sound cables with mini plugs (no resistance).

About SR+

The CONTROL OUT terminal on the rear of this unit supports SR+ that allows linked operations with a PIONEER AV receiver. SR+ presents functions such as the input switch linkage operation function and the DSP surround mode display function. For more information, see the user's manual for the PIONEER AV receiver supporting SR+ .

Note

If you use SR+ , be sure to perform SR+ related function settings on your PIONEER AV receiver. When doing this, assign the appropriate setting on the receiver side for INPUT1 to INPUT5 of this unit (because this unit does not feature a built-in tuner, there is no TV function).

Power Cord Connection

Connect the power cord after all component connections have been completed.

1 Connect the power cord to this unit.
2 Plug the power cord into a power outlet.

CAUTION

• Use only the power cord provided.
• For the plasma display, a three-core power cord with a ground terminal is used for efficiency protection. Always be sure to connect the power cord to a three-pronged grounded outlet and make sure that the cord is properly grounded. If you use a power source converter plug, use an outlet with a ground terminal and screw down the ground line.

NO!

• Do not use a power supply voltage other than that indicated (AC 120 V, 60 Hz) as this may cause fire or electric shock.

How to Route Cables

Speed clamps and bead bands are included with the plasma display for bunching cables together. Once components are connected, follow the following steps to route cables.

The illustration depicts PRO-1010 HD model.

• A s viewed from the rear of the display.

1 Organize cables together using the provided speed clamps.

Insert 1 into an appropriate hole on the rear of the unit, then snap 2 into the back of 1 to fix the clamp.

Speed clamps are designed to be difficult to undo once in place. Please attach carefully.

2 Bunch separated cables together and secure them with the provided bead bands.

Do not allow excessive stress to be placed on the ends of cables.

Note

Cables can be routed to the right or left.

The illustration depicts PRO-1010 HD model.

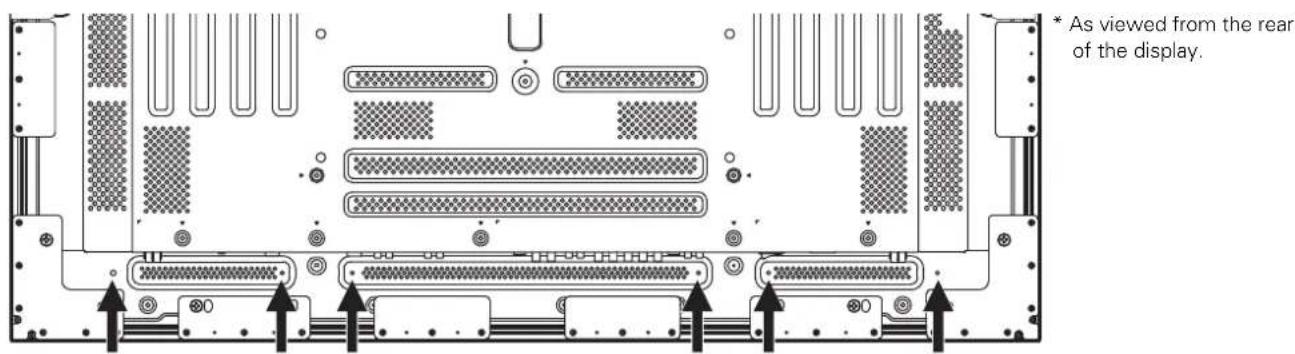

To attach the speed clamps to the display

Connect the speed clamps using the 6 holes marked with below, depending on the situation.

To remove speed clamps

Using pliers, twist the clamp 90^ and pull it outward. In some cases the clamp may have deteriorated over time and may be damaged when removed.

System Settings

Setting the Onscreen Display Language

The onscreen display language has been set to English as the factory default. To change to another language, the screen setting must be changed. Follow the procedures below to change the setting.

Display operating panel

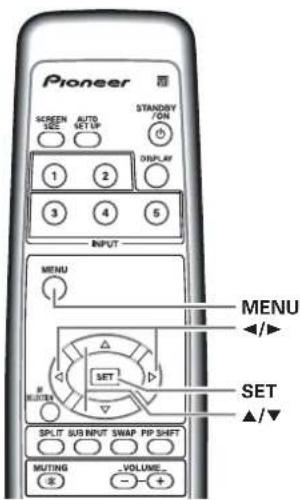

Remote control unit

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The ON indicator on the front panel will light green.

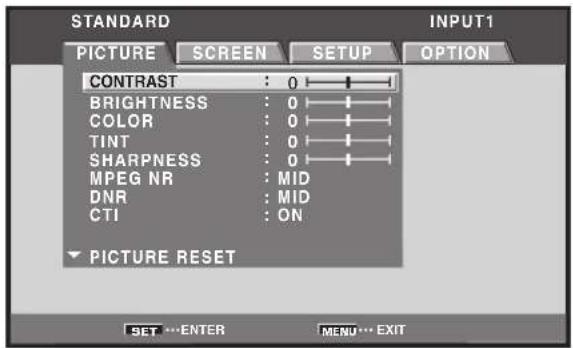

3 Press the MENU button to display the menu screen.

4 Use the buttons to select [OPTION].

5 Use the / buttons to select [LANGUAGE], then press the SET button.

6 Use the buttons to select the desired language.

Each time the buttons are pressed, the language alternates between those available, in the following order:

7 With the desired language displayed, press the SET button.

The selected language will be set in memory, and the screen will return to that shown in step 4.

8 After completing settings, press the MENU button to return to the normal display.

Note

When the onscreen display language is set to any of INPUT 1 to INPUT 5, the same display language will be set, regardless of the type of input.

Settings After Connections (INPUT1, 2, 5)

After components have been connected to INPUT1, INPUT2 or INPUT5, on-screen setup is necessary. Follow the procedure described below and make settings as they apply to the type of components connected.

Setting INPUT1 SELECT

For INPUT1 you can use D-sub INPUT and HDMI INPUT. Select the one you want to use.

Display operating panel

Remote control unit

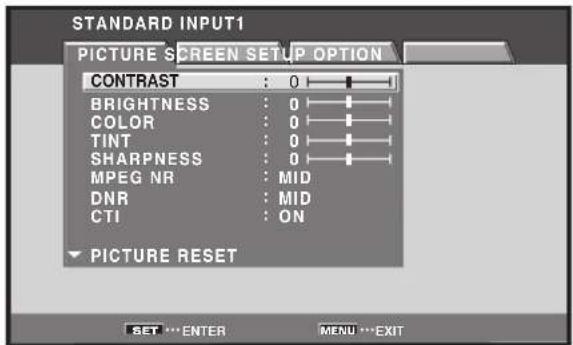

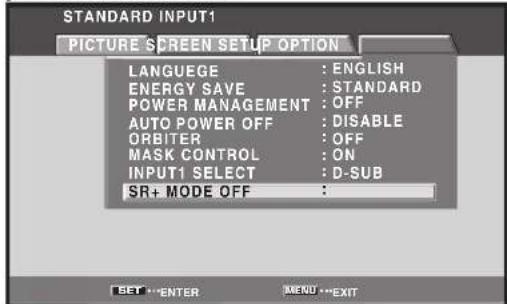

1 Press the MENU button to display the menu screen.

2 Use the / buttons to select [OPTION].

3 Use the / buttons to select [INPUT1 SELECT], then press the SET button.

4 Use the buttons to select the desired INPUT.

The factory setting is [D-SUB]. Each time you press the buttons, the setting changes as follows:

5 Press the SET button.

This completes INPUT1 SELECT setting, and returns you to the display shown in step 3.

[ SIGNAL FORMAT] / [ COLOR DECODING] setup (INPUT1 (D-SUB), 5)

Notes

These settings are required (for INPUT1 (D-sub) or INPUT5) only when providing input signals with the following refresh rates: ① 31.5kHz horizontal / 60 Hz; ② 45kHz horizontal / 60 Hz vertical; ③ 48.4kHz horizontal / 60 Hz vertical or 56.1 kHz horizontal / 70 Hz vertical. Adjustment for other signal frequency formats is performed automatically, so no manual setting is required (Setting [SIGNAL FORMAT] is not possible).
The [COLOR DECODING] setting is not supported when inputting a computer signal, or when the [SIGNAL FORMAT] function has been used to select a signal other than [480p] or [720p].
- Perform [SIGNAL FORMAT] and [COLOR DECODING] settings individually for INPUT1 (D-sub) or INPUT5.

Display operating panel

Remote control unit

System Settings

1 Select INPUT1 (D-sub), or INPUT5.
2 Press the MENU button to display the menu screen.

3 Use the / buttons to select [SETUP].

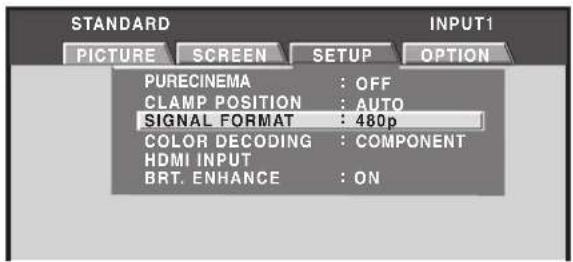

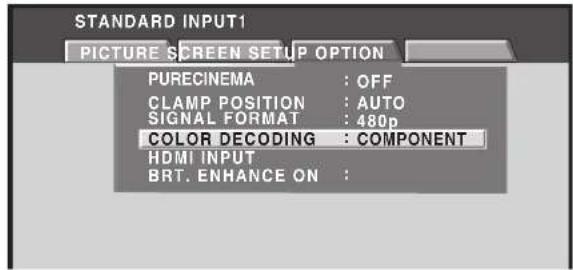

4 Use the / buttons to select [SIGNAL FORMAT], then press the SET button.

5 Use the buttons to select the display mode.

① When the input signal has a refresh rate of 31.5kHz horizontal / 60 Hz vertical, pressing will cause the display mode to change alternately as follows:

② When providing input signals with refresh rates of 45kHz horizontal / 60 Hz Vertical, pressing the buttons causes the display mode to alternate as follows:

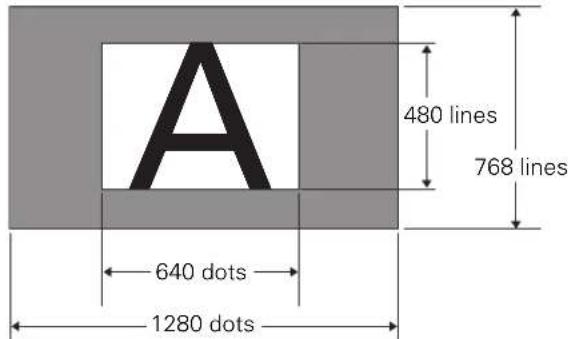

[720-PC] indicates resolution of 1280 × 720 .

3When the input signal has a refresh rate of 48.4 kHz horizontal / 60 Hz vertical, or 56.1 kHz horizontal / 70 Hz vertical, pressing will cause the display mode to change alternately as follows:

If the [PC AUTO] setting is selected, screen resolution will automatically switch between [XGA] and [WXGA] as required.

Notes

The [PC AUTO] setting supports automatic signal selection only when using RGB separate SYNC inputs.
- When G ON SYNC or Composite SYNC signals are input, selecting [PC AUTO] will cause the screen resolution to be set to [XGA] only.
- When using G ON SYNC or Composite SYNC with WXGA inputs, set [SIGNAL FORMAT] manually to [WXGA].

6 Press the SET button.

The setting is stored in memory and the screen returns to that shown in step 4.

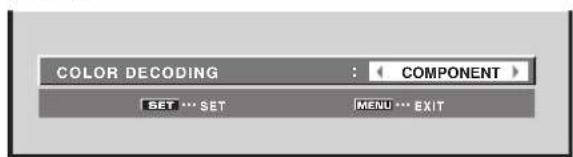

7 When a component other than a computer is connected, use the / buttons to select [COLOR DECODING] then press the SET button (INPUT1 (D-sub) or INPUT5).

Use the / buttons to select the input signal format.

Each time you press the buttons, the setting changes as follows:

The table below shows what settings are appropriate and available for the type of connections made.

Set [SIGNAL FORMAT] and [COLOR DECODING] as follows. Please take care when making settings. Incorrect settings can adversely affect the plasma display.

SETUP Connected component	SIGNAL FORMAT	COLOR DECODING
Component video output of a DVD player, etc.	480p	COMPONENT
Component video output from digital tuner, etc.	720p	COMPONENT
RGB video output of a video deck etc., with RGB output	480p	RGB
RGB video output of a PC	VGA, WVGA, 720-PC, XGA, WXGA	Not supported

9 Press the SET button.

This completes [COLOR DECODING] setting, and returns you to the display shown in Step 7.

10 After completing settings, press the MENU button to return to the normal display.

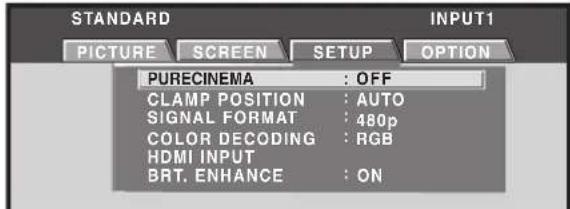

[CLAMP POSITION] setup (INPUT1 (D-sub), 5)

Depending on the signal, analog RGB signals may result in the screen image appearing with a whitish or greenish cast. In such cases, set [CLAMP POSITION] to [LOCKED]. Normally, leave this setting at [AUTO].

Display operating panel Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [SETUP].

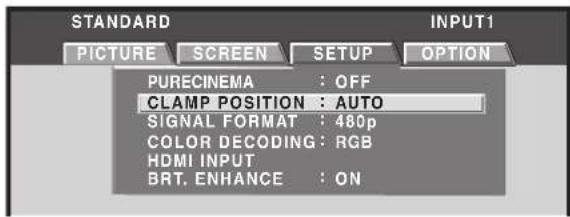

3 Use the / buttons to select [CLAMP POSITION] then press the SET button.

4 Use the buttons to select [LOCKED].

The factory default setting is [AUTO]. Each time you press the buttons, the setting changes as follows:

5 Press the SET button.

This completes [CLAMP POSITION] setting, and returns you to the display shown in Step 3.

6 After completing settings, press the MENU button to return to the normal display.

Notes

Make this [CLAMP POSITION] setting individually for INPUT1 (D-sub) or INPUT5.
- When using this setup, be sure to carefully check the signal output of the component that you are using. For details, please refer to the instruction manual supplied with the component you are connecting.

Setting HDMI (INPUT1 (HDMI), 2)

Perform setting after completing HDMI connection to either INPUT1 or INPUT2.

Follow the procedures below and make settings as they apply to the type of components connected.

Notes

• Perform HDMI setting individually for INPUT1 or INPUT2. Remember that for INPUT1, setting is possible only when [HDMI] is selected with [INPUT1 SELECT].
• Setting is not possible when INPUT1 (D-sub), or INPUT3 through INPUT5 are selected.

PICTURE SELECT

This function allows you to switch the input signal format to automatic or manual when inputting the digital signal.

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [SET UP].

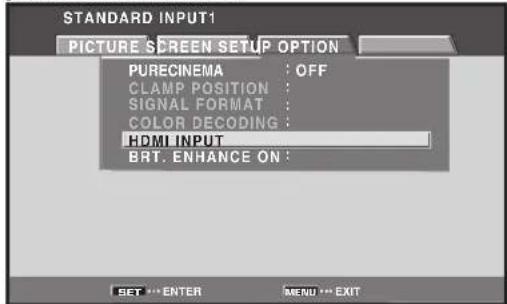

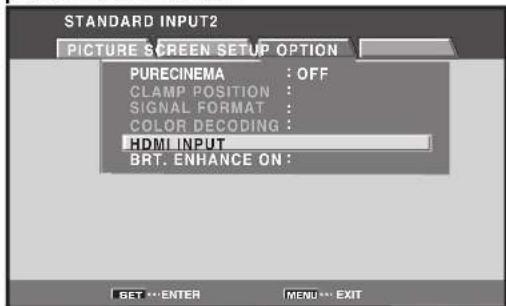

3 Use the / buttons to select [HDMI INPUT], then press the SET button.

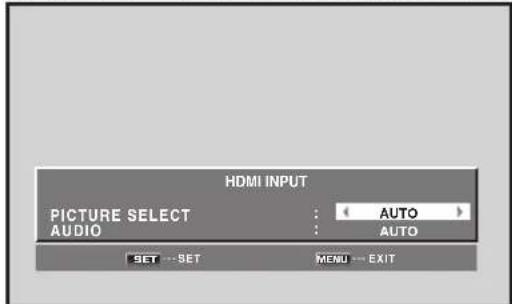

4 Use the / buttons to select [PICTURE SELECT].

5 Use the / buttons to select [PICTURE SELECT] setting.

The unit has been factory set at the AUTO setting. Each time you press the buttons, the setting changes as follows:

AUTO: Automatically identifies input video signals.

COLOR1: Accepts Y C B/PB CR/PR (4 : 2 : 2) signals.

COLOR2: Accepts Y C B/PB CR/PR (4 : 4 : 4) signals.

COLOR3: Select COLOR3 for too dark or distorted picture when accepts RGB signals.

COLOR4: Select COLOR4 to remove white glare in the picture when accepts RGB signals.

Note

Even when AUTO is selected, automatic switching may not occur properly with some input signals. In this event, select COLOR1, COLOR2, COLOR3 or COLOR4 manually in accordance with the actual signal input.

6 Press the SET button.

This completes [PICTURE SELECT] setting, and returns you to the display shown in step 3.

7 After completing settings, press the MENU button to return to the normal display.

AUDIO

This function allows you to switch the audio signal to automatic or manual when inputting the digital signal.

1 Press the MENU button to display the menu screen.

2 Use the / buttons to select [SET UP].

3 Use the / buttons to select [HDMI INPUT], then press the SET button.

4 Use the / buttons to select [AUDIO].

5 Use the buttons to select [AUDIO] setting.

The unit has been factory set at the AUTO setting. Each time you press the buttons, the setting changes as follows:

AUTO: Automatically identifies input audio signals.

DIGITAL: Accept digital audio signals.

ANALOG:Accept analog audio signals.

Note

Even when AUTO is selected, automatic switching may not occur properly with some input signals. In this event, select DIGITAL or ANALOG manually in accordance with the actual signal input.

6 Press the SET button.

This completes [AUDIO] setting, and returns you to the display shown in step 3.

7 After completing settings, press the MENU button to return to the normal display.

Setting SR+MODE Mode

Display operating panel

Remote control unit

SR+MODE setting is required when using the CONTROL OUT jack on the rear of this unit to connect another Pioneer product (Refer to page 19 for connection details).

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [SR+MODE], then press the SET button.

4 Use the buttons to select [SR+MODE].

The factory setting is [OFF]. Each time you press the

buttons, the setting changes as follows:

• OFF .... You cannot use the CONTROL OUT jack.
  ON .... You can use the CONTROL OUT jack

5 Press the SET button.

This completes [SR+MODE] setting, and returns you to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

Note

SR + MODE setting is not related to the input signal and is effective for all inputs.

Operation

Selecting Input Source

This section explains the basic operation of the plasma display. Outlined on the following pages is how to turn the main power on and off, put this display in the operation or standby mode and how to select connected components.

Before you begin, make sure you have:

• Made connections between the plasma display and AV components or personal computer as described in the section "Installation and Connections" starting on page 10.
• Set up the on-screen menu to input signals from components connected to INPUT1, INPUT2 and INPUT5 as described in the section "System Settings" starting on page 22.

If no connections are made to these terminals, on-screen setup is not necessary.

Display operating panel

Remote control unit

1 Set the rear panel MAIN POWER switch to ON.

The STANDBY indicator on the front panel will light red.

2 Press the STANDBY/ON button to turn the power ON.

The ON indicator on the front panel will light green.

3 Press the INPUT button on the remote control unit or the display to select the input.

Input changes each time the display's INPUT button is pressed as follows:

• When the menu screen is displayed, changing the signal input will cause the menu screen to turn off.

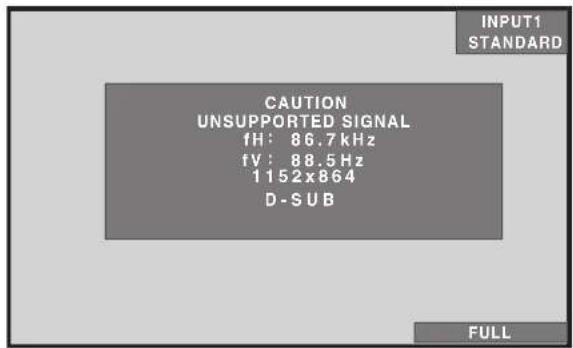

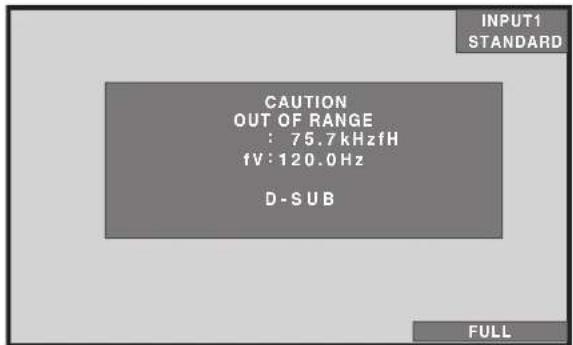

• If the input computer signal is not supported by the display, the following message will be displayed:

4 Use VOLUME (+ / - ) buttons on the remote control unit or the display to adjust the sound volume.

If no audio connections are made to the plasma display, this step is not necessary.

5 When viewing is finished, press the STANDBY/ON button to put the display in standby mode.

6 Set the rear panel MAIN POWER switch to OFF.

The STANDBY indicator may continue to light for a short while even after the main power is turned off. This is a result of residual electric load impressed on the circuitry, and the light will turn off presently.

Note

Please do not leave the same picture displayed on the screen for a long time. Doing so may cause a phenomenon known as screen burn which leaves a ghost, or residual, image of the picture on the screen.

Adjusting Sound Volume

Display operating panel

Remote control unit

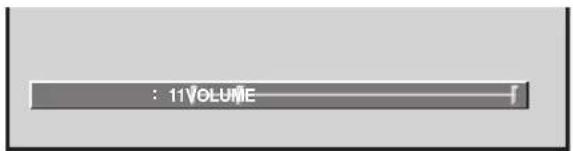

Press the VOLUME buttons.

Press the [-] or [+] button to respectively decrease and increase the volume of sound from the speakers.

Muting the Sound

Press the MUTING button on the remote control unit.

Press the MUTING button again to restore the sound. Pressing VOLUME ^+ also quits muting.

Confirming Current Status

Display operating panel

Remote control unit

Press the DISPLAY button.

The currently selected input, AV selection, screen size and refresh rates will be displayed for about 3 seconds.

Note
The displayed refresh rates may be slightly different from actual values.

Changing Screen Size

This unit incorporates screen modes of various height and width ratios. For optimal viewing, we recommend that you select the screen mode that best matches the video source that you are viewing. Although these modes are designed for full display of a picture on a wide screen, it is our hope that you make use of them with a full understanding of the manufacturer's intentions.

Screen size selection

The size and range of the picture on the screen can be switched between 5 screen sizes during video signal input, and 3 sizes during PC signal input.

Remote control unit

Display operating panel

1 Press the SCREEN SIZE button.

The current SCREEN SIZE mode is displayed at the bottom right of the screen.

2 Press the SCREEN SIZE button again in the SCREEN SIZE mode indications displayed at the bottom right of the screen.

The setting changes as follows:

During video signal input

During PC signal input

With INPUT1 and INPUT5, the screen modes you can select differ depending on the input signal. For details, please refer to the Supported Video Signal chart on page 52, or the Supported PC Signal chart on pages 53 to 54.

Notes

• When the [WIDE], [ZOOM], or [FULL] setting is used to display a non-wide screen 4:3 picture fully on a wide screen, a portion of the picture may be cut off or appear deformed.

• Be aware that when the display is used for commercial or public viewing purposes, selecting the [WIDE], [ZOOM], [CINEMA] or [FULL] mode settings may violate the rights of authors protected under copyright law.

• When [DOT BY DOT] (except with the PRO-1010HD at 1280 x 768 or the PRO-810HD at 1024 x 768) or [4:3] screen size is selected, and when MASK CONTROL is ON (Page 47), the display position moves slightly each time the power is turned on in order to prevent image burning.

During video signal input

How the picture looks
WIDE	Suitable for when viewing news or sports programs. Movies or sports programs can be viewed with an expansive powerful image.
4:3	Suitable for when viewing news or sitcoms. The video software can be viewed in its original screen frame size.
FULL	Suitable for wide screen images (squeeze).
ZOOM	Mainly suitable for viewing Cinemascope size and other such movie images. Provides a more expansive, powerful image.
CINEMA	Primarily suitable for viewing VistaVision cinema sizes.

① DOT BY DOT

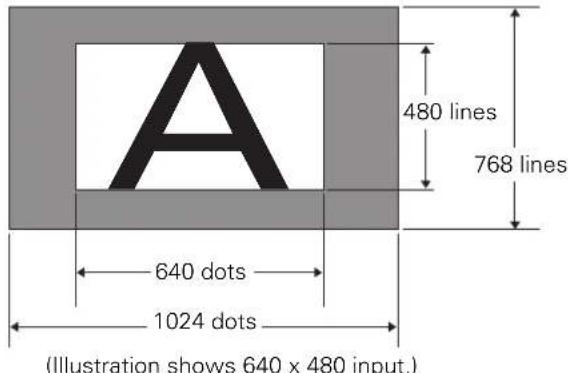

The input signal and the screen maintain a dot to line ratio of 1:1 and is thus highly faithful to the source.

[PRO-1010HD]

(Illustration shows 640 × 480 input.)

Operation

[PRO-810HD]

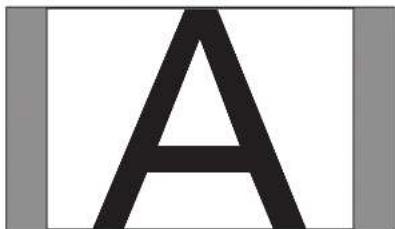

• The PRO-810HD is designed with horizontally oblong elements, with the result that the image displayed will appear more oblong than the original input signal.

② 4:3

The display fills the screen as much as possible without altering the aspect ratio of the input signal.

③FULL

The display is presented with a widescreen aspect ratio of 16:9 and fills the entire screen.

Note

When viewing at aspect ratio 4:3 continuously for numerous hours, or for repeated short periods of time each day, some after image may be burned into the screen.

To avoid such burning of after images in the screen, use aspect ratios other than 4:3 whenever possible, unless necessary to avoid infringement of copyright.

Multiscreen Display

The plasma display's multiscreen function allows the simultaneous display of two inputs. The multiscreen display include three modes, 2-SCREEN, PinP, and PoutP.

1 Press the remote control unit's SPLIT button.

Each time the button is pressed the multiscreen display changes in the following order:

① 2-SCREEN

The main screen is displayed on the left and the subscreen on the right.

②PinP

The subscreen is displayed in one of the four corners of the main screen.

③PoutP

The subscreen is displayed outside the right side of the main screen.

2 Press the remote control unit's SUB INPUT button to select the subscreen input source.

To exchange the main screen and subscreen inputs:

Press the remote control unit's SWAP button.

• When 2-SCREEN mode has been selected: The right and left sides of the display will switch; what was previously the main screen will now show the subscreen, and vice versa.
• When PinP or PoutP has been selected: What was previously the main screen image will now appear in reduced size as the subscreen image, and vice versa.

To change the position of the subscreen in PinP mode:

Press the remote control unit's PIP SHIFT.

Each time the button is pressed, the position of the subscreen moves in the following order:

To display the currently selected input:

Press the DISPLAY button.

If the DISPLAY button is pressed while in multiscreen mode, the main screen and sub-screen will each be displayed with its currently selected input.

Notes

• When using the plasma display in a profit-making activity, or when exhibiting images publicly, using the screen size function to compress or stretch the image may result in infringement of the copyrights of the image owners.
• If the multiscreen display is left on for an extended period of time, or if the same multiscreen display is repeatedly shown for short periods on an everyday basis, a residual image pattern may be burned onto the screen.
• When selecting the 2-SCREEN mode, the screen image may appear somewhat rougher, depending on the source used.
  The multiscreen mode will be canceled if a menu is opened.
  The screen size cannot be changed during multiscreen display.

The sound of the input selected in the main screen is output when using the multiscreen function.
- Since the main screen uses circuitry providing higher picture quality than the circuitry for the subscreen, main screen and subscreen picture quality differs.
- When performing picture quality adjustment, there are some items that do not affect subscreen picture quality.

Setting AV SELECTION

Tolet you enjoy the best picture, you can select between 5 settings during video signal input, and 2 during PC signal input.

1 Press the AV SELECTION button.

The current AV SELECTION mode is displayed at the top right of the screen.

2 Press the AV SELECTION button again in the AV SELECTION mode indications displayed at the top right of the screen again.

Each time you press the AV SELECTION button in the AV SELECTION mode indications displayed at the top right of the screen, the setting changes as follows:

During video signal input

During PC signal input

The factory setting is DYNAMIC for video signal input and STANDARD for PC signal input. You are recommended to usually use STANDARD.

Operation

• During video signal input

DYNAMIC... Raises contrast for bright picture with strong contrast.

STANDARD Provides standard picture quality.

MOVIE .........Lowers picture brightness making dark images like movies easily visible.

GAME ......... Lowers picture brightness making it easier on the eyes when playing TV games.

USER The same setting as STANDARD when shipped from the factory.

• During PC signal input

STANDARD ....... Provides standard picture quality.

USER The same setting as STANDARD when shipped from the factory.

You can use each of the AV SELECTION modes as a base, and make adjustments as desired. For details, please refer to page 35.

Note

There are times when you cannot switch the AV SELECTION mode, such as during menu screen display and when there is no signal input.

Picture and Screen Adjustment

Picture Adjustment (1)

You can save picture adjustment setting values for each INPUT and each AV SELECTION mode.

Display operating panel

Remote control unit

1 Press the AV SELECTION button to select the desired mode (Refer to page 33).
2 Press the MENU button to display the menu.

3 Use the / buttons to select the item, then press the SET button.

4 Use the buttons to adjust picture quality to the desired setting.

5 Press the SET button.
Adjustment values are saved, and you return to the display shown in step 3.
6 After completing settings, press the MENU button to return to the normal display.
Adjustment and setting items during video signal input Decrease Increase

CONTRAST... Contrast becomes weaker Contrast becomes stronger
BRIGHTNESS... Picture becomes darker Picture becomes brighter
COLOR.... Colors become weaker Colors become stronger
TINT... Skin tones become purplish Skin tones become green
SHARPNESS... Picture becomes softer Picture becomes sharper

MPEG NR

Use when there is mosquito noise in the picture when viewing a digital broadcast, playing a DVD etc.

Each time you press the buttons, the setting changes as follows:

As you change from LOW MID HIGH, the effect becomes stronger.

DNR

This function reduced graininess to provide a clearer picture.

Each time you press the buttons, the setting changes as follows:

• As you change from LOW MID HIGH, the effect becomes stronger.

CTI

This lets you brighten color contour as desired.

Each time you press the buttons, the setting changes as follows:

ON CTI is operating.
OFF ... CTI is not operating.

Picture and Screen Adjustment

Adjustment items during PC signal input

Decrease Increase

CONTRAST ....... Contrast becomes weaker Contrast becomes stronger

BRIGHTNESS... Picture becomes darker Picture becomes brighter

H. ENHANCE ... Horizontal images become softer Horizontal images become sharper

V. ENHANCE ... Vertical images become softer Vertical images become sharper

Picture Adjustment (2)

You can save picture adjustment values for each INPUT and each AV SELECTION mode.

Display operating panel

Remote control unit

1 Press the AV SELECTION button to select the desired mode (Refer to page 33).
2 Press the MENU button to display the menu.

3 Use the / buttons to select the item (second page of the menu), then press the SET button.

4 Use the buttons to adjust picture quality to the desired setting.

5 Press the SET button.

Adjustment values are saved, and you return to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

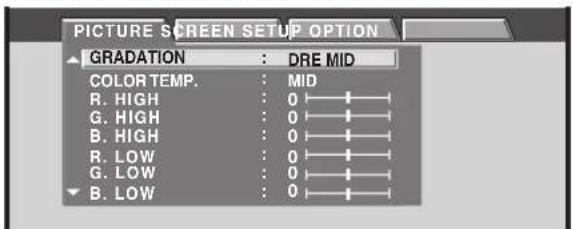

- Setting items during video input GRADATION

This function sets DRE which boosts characteristics and contrast of pictures.

Note

This setting is not possible when in the DYNAMIC mode in [AV SELECTION].

Each time you press the buttons, the setting changes as follows:

• DRE LOW...... Boosts contrast with DRE.
• DRE MID ....... Boosts contrast more than DRE LOW to provide the standard setting.
• DRE HIGH.... Boosts contrast more than DRE MID to provide a brighter picture.
  GAMMA1.8 ... Provides a brighter setting than standard.
  GAMMA2.0...Provides standard brightness characteristics.
  GAMMA2.2... Provides darker characteristics than standard.

COLOR TEMP.

Sets white color tone as desired.

Note

This setting is not possible when in the DYNAMIC mode in [AV SELECTION].

Each time you press the buttons, the setting changes as follows:

• LOW ....... Provides yellowish color tone with low warmth.
• MID-LOW ... Provides a color tone between MID and LOW.
  MID . Provides natural color tone (Standard).
• MID-HIGH ... Provides color tone between HIGH and MID.
• HIGH ....... Provides a bluish, very warm color tone.
• MANUAL/**... Saves desired adjusted color temperature settings.

The abbreviations of the color tone modes on which manual adjustments are based are indicated in the ** section as shown below. LOW->LO, MID LOW->ML, MID->MD, MID HIGH-> MH, HIGH->HI

Decrease Increase

R. HIGH ... Adjusts the red of bright parts Becomes softer Becomes stronger
G. HIGH Adjusts the green of bright parts Becomes softer Becomes stronger
B. HIGH ... Adjusts the blue of bright parts Becomes softer Becomes stronger
R. LOW Adjusts the red of dark parts Becomes softer Becomes stronger
G. LOW ... Adjusts the green of dark parts Becomes softer Becomes stronger
B. LOW Adjusts the blue of dark parts Becomes softer Becomes stronger

Notes

• This setting is not possible when in the DYNAMIC mode in [AV SELECTION].
• If you adjust R. HIGH, G. HIGH, B. HIGH, R. LOW, G. LOW or B. LOW, COLOR TEMP automatically switches to MANUAL/
  R. HIGH, G. HIGH, B. HIGH, R. LOW, G. LOW and B. LOW adjustment values are reflected in COLOR TEMP. MANUAL/** settings. The values are not reflected if anything other than MANUAL/** is selected.

When adjusting color temperature to desired settings

① With COLOR TEMP, use the buttons to set the color temperature close to that desired, then press the SET button.
② With R. HIGH, G. HIGH, B. HIGH, R. LOW, G. LOW or B. LOW, use the buttons to make fine adjustments to the settings made in ① , then press the SET button.
③ The adjusted values made in ② in COLOTEMP. MANUAL/** is saved.

- Setting items during PC signal input GRADATION

This function sets picture characteristics.

Each time you press the buttons, the setting changes as follows:

GAMMA1.8...Provides a brighter setting than standard.
GAMMA2.0 ... Provides standard brightness characteristics.
GAMMA2.2...Provides darker characteristics than standard.

The following functions make fine adjustments to color temperature (white color tone).

Decrease Increase

R. HIGH ... Adjusts the red of bright parts Becomes softer Becomes stronger
G. HIGH Adjusts the green of bright parts Becomes softer Becomes stronger
B. HIGH ... Adjusts the blue of bright parts Becomes softer Becomes stronger
R. LOW Adjusts the red of dark parts Becomes softer Becomes stronger
G. LOW ... Adjusts the green of dark parts Becomes softer Becomes stronger
B. LOW Adjusts the blue of dark parts Becomes softer Becomes stronger

Picture Adjustment (3)

You can save picture adjustment values for each INPUT and each AV SELECTION mode.

Display operating panel

Remote control unit

1 Press the AV SELECTION button to select the desired mode (Refer to page 33).
2 Press the MENU button to display the menu.

3 Use the / buttons to select the item (third page of the menu), then press the SET button.

4 Use the buttons to adjust picture quality to the desired setting.

5 Press the SET button.

Adjustment values are saved, and you return to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

Setting items during video signal and PC signal input

The following functions make finer adjustments to hue by adjusting each color.

Decrease Increase

C.MGT. RED...Moves red closer to magenta Moves red closer to yellow
C.MGT.YELLOW...Moves yellow closer to red Moves yellow closer to green
C.MGT.GREEN ...Moves green closer to yellow Moves green closer to cyan
C.MGT.CYAN ...Moves cyan closer to green Moves cyan closer to blue
C.MGT.BLUE ...Moves blue closer to cyan Moves blue closer to magenta
C. MGT. MAGENTA ... Moves magenta closer to blue Moves magenta closer to red

Returning to the Original Picture Adjustment Values

Returning adjusted values to the initial values at the time of shipment from the factory.

1 Select the INPUT and AV SELECTION mode for the values you want to return to the initial factory settings.

2 Press the MENU button to display the menu.

3 Use the / buttons to select [PICTURE RESET], then press the SET button.

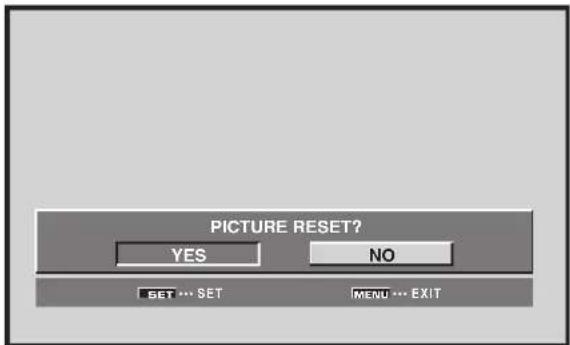

4 Use the / buttons to select [YES], then press the SET button.

All the picture adjustment data for the currently selected INPUT and AV SELECTION mode is reset to the initial factory settings, and you return to the display shown in step 3.

5 After completing settings, press the MENU button to return to the normal display.

Note

[PICTURE RESET] only applies to the currently selected INPUT and AV SELECTION. It cannot be simultaneously applied to multiple INPUTS and AV SELECTION settings.

Adjusting Screen POSITION, CLOCK, and PHASE (Automatic Adjust)

During PC signal input, by pressing the AUTO SET UP button on either remote control unit or the unit's operating panel, the unit will automatically set the screen position, clock and phase to best match the current image input.

When the button is pressed, the optimum settings are automatically selected for the current input source.

Remote control unit
Display operating Panel

Press the AUTO SET UP button on either the display or remote control unit.

Notes

• This setting is supported only when a computer signal is connected to INPUT1 (D-sub) or INPUT5.
• Perform this adjustment individually for each input function (INPUT1 (D-sub) or INPUT5), and each signal type.
  Optimum settings may not be possible for low-luminance and certain other signals. In such cases, use the adjustment methods explained on the this page, "Adjusting Screen POSITION, CLOCK, and PHASE (Manual Adjust)".
• If you run AUTO SET UP, POSITION, CLOCK and PHASE are automatically set even if you manually adjust them following the procedures in the next section.

Adjusting Screen POSITION, CLOCK, and PHASE (Manual Adjust)

Follow the procedure to save adjustment values for each INPUT.

Display operating panel

Remote control unit

1 Press the MENU button to display the menu screen.

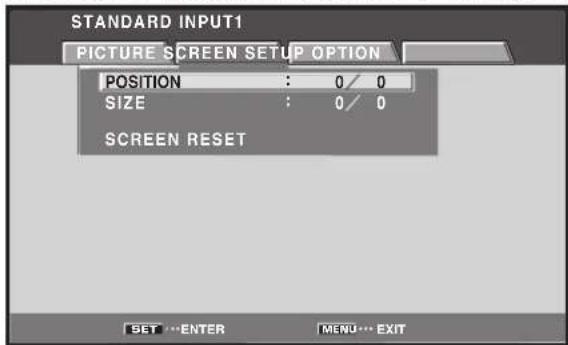

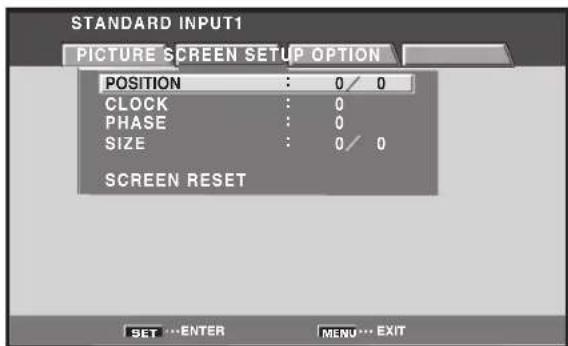

2 Use the buttons to select [SCREEN]. (MENUDuringPCsignalinputviaINPUT1orINPUT5.)

(MENU during video signal input via INPUT1 through 5.)

3 Use the / buttons to select the adjustment item, then press the SET button.

4 Use the and buttons to select the desired value.

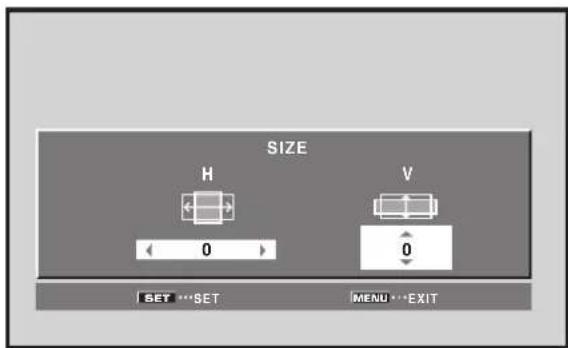

• When the [POSITION] or [SIZE] item is selected, the buttons control movement in the Horizontal direction (H), and the buttons control movement in the Vertical direction (V).

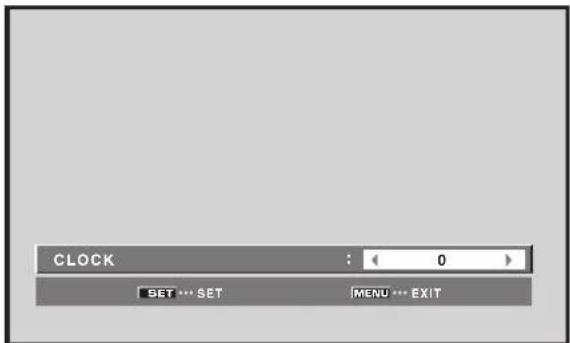

• Use the buttons for the adjustments of [CLOCK] and [PHASE].

5 Press the SET button.

Pressing the SET button writes the value into the memory and returns the display to the step 3 screen.

6 After completing settings, press the MENU button to return to the normal display.

Adjustment items during PC signal input

POSITION

H Adjust the picture's position to the left or right.
V... Adjust the picture's position upward or downward.

CLOCK Adjust letter breakup or noise on the screen. This setting adjusts the display's internal clock signal frequency that corresponds to the input video signal.

PHASE... Adjust so that there is minimum flicker of screen letters or color misalignment. This setting adjusts the phase of the internal clock signal adjusted by the [CLOCK] setting.

SIZE

H Enlarges and shrinks size in a horizontal direction.
V. Enlarges and shrinks size in a vertical direction.

Adjustment items during video signal input

POSITION

H Adjust the picture's position to the left or right.
V... Adjust the picture's position upward or downward.

SIZE

H Enlarges and shrinks size in a horizontal direction.
V. Enlarges and shrinks size in a vertical direction.

Notes

• Setting of [CLOCK] and [PHASE] is possible during PC signal input via INPUT1 and INPUT5.
• When the [CLOCK] frequency is changed, the [POSITION] command's horizontal [H] option may require readjustment.
• If the adjustment items in the [SCREEN] mode are adjusted excessively, the picture may not be displayed properly.
• During video signal input and PC signal input, INPUT1 and INPUT5 adjustment values are saved separately.

To reset [SCREEN] mode settings to the default

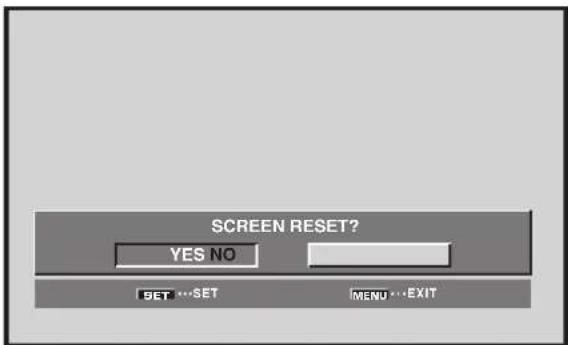

1 In step 3 in the previous procedure, use the / buttons to select [SCREEN RESET], then press the SET button.

2 Use the / buttons to select [YES], and press the SET button.

All [SCREEN] adjustment values for the selected INPUT return to the factory settings.

Other Operations

Setting the PURECINEMA Mode

Allows even higher fidelity DVD playback of film recordings and other images.

Note

Make settings individually for each input.

Display operating panel

Remote control unit

1 Press the MENU button to display the menu

screen.

2 Use the / buttons to select [SETUP].

3 Use the / buttons to select [PURECINEMA], and press the SET button.

4 Use the buttons to select the desired [PURECINEMA] mode.

Status at the time of factory default setting
During 480p and 720p signal input: OFF
During input of a video signal other than those above: STANDARD
Each time the button is pressed, the screen mode setting changes as shown:

OFF [PURECINEMA] function is disabled.
STANDARD When playing DVDs and Hi-Vision film images recorded at 24 frames/sec, the recorded data is automatically detected and adjustments made to allow optimum experience of the original beauty of the film image.
ADVANCE When playing DVDs of film images recorded at 24 frames/sec, the recorded video information is automatically detected and signals are converted to 72Hz for playback thus recreating the fluid movement of a movie theater screen, and the sense of film's true visual quality.

Note

You cannot select [STANDARD] during progressive signal such as 480p or 720p input.

5 Press the SET button.

The [PURECINEMA] function is set and the screen returns to that shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

Setting Screen Center Brightness Compensation (BRT. ENHANCE)

This function makes compensations to improve screen center brightness.

Note

Perform settings for each INPUT.

1 Press the MENU button to display the menu.

2 Use the buttons to select [SET UP].

3 Use the / buttons to select [BRT. ENHANCE], then press the SET button.

4 Use the buttons to select [BRT. ENHANCE] settings.

The factory default setting is [ON]. Each time you press the buttons the settings changes as follows:

ON .... Provides screen brightness compensation
- OFF ... Provides uniform screen brightness

5 Press the SET button.
[BRT. ENHANCE] is set, and you return to the display shown in step 3.
6 After completing settings, press the MENU button to return to the normal display.

Energy Saving Settings (ENERGY SAVE)

The power control function allows screen brightness to be suppressed as a means of lowering power consumption and reducing display deterioration.

Display operating panel

Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

3 Use the / buttons to select [ENERGY SAVE] then press the SET button.

4 Press the buttons to select [ENERGY SAVE] setting.

The factory default setting is [STANDARD]. Each time the buttons is pressed, the setting changes as follows:

STANDARD... Brightness is controlled in accordance with input signal to produce bright, easily viewed image.
- MODE1 Brightness is controlled in accordance with input signal, but power consumption is less than that used in [STANDARD] mode.
- MODE2 Brightness is controlled in accordance with input signal, but power consumption is less than that used in [MODE1].
- MODE3 Brightness is set at fixed level, regardless of input signal level. Effective at reducing screen aging due to burned lag images, etc.

5 Press the SET button.

[ENERGY SAVE] is set, and you return to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

Note

The [ENERGY SAVE] setting affects all input sources.

Automatic Power-off (POWER MANAGEMENT)

The unit is equipped with [POWER MANAGEMENT] and [AUTO POWER OFF] functions; when set, the function automatically switches the unit to either standby mode or power off mode whenever a sync signal is not detected (a warning message is displayed on the screen before the functions operate).

Notes

• Power Management function setting is only effective D-SUB is selected with [INPUT1 SELECT], and there is PC signal input via INPUT1.
• Setting the Auto Power Off function is only effective in cases other than the above.
  Always turn off the unit's main power switch when not using the display for extended periods of time.

Display operating panel

Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

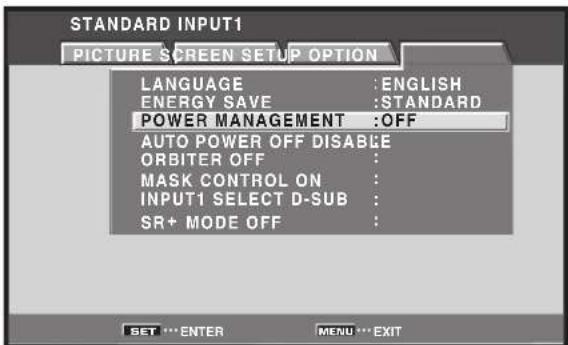

3 Use the / buttons to select [POWER MANAGEMENT] or [AUTO POWER OFF], then press the SET button.

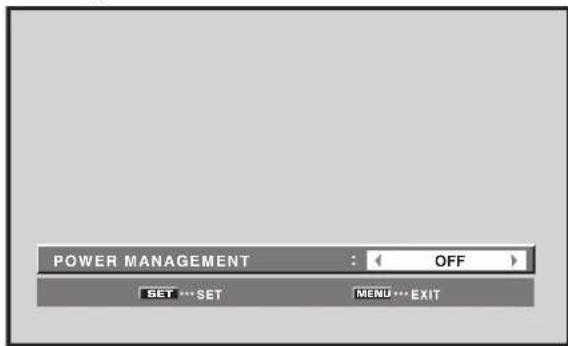

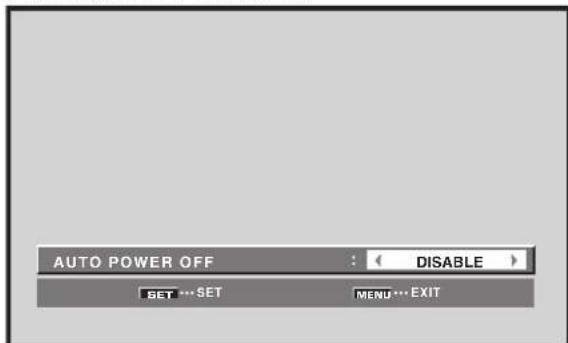

4 Press the / buttons to confirm selection of the [POWER MANAGEMENT] or [AUTO POWER OFF].

5 Press the SET button.

[POWER MANAGEMENT] or [AUTO POWER OFF] is set, and you return to the display shown in step 3. Selecting POWER MANAGEMENT

Selecting AUTO POWER OFF

At the time of shipment from the factory, the POWER MANAGEMENT setting is [OFF], and the AUTO POWER OFF setting is [DISABLE].

Each time the button is pressed, the setting alternates as follows:

OFF/DISABLE...

The unit will continue in operating mode, regardless of the presence/absence of an input sync signal.

• POWER MANAGEMENT: ON......

If a sync signal is not detected, a warning message is first displayed for 8 seconds, after which the unit automatically enters the standby mode, and the STANDBY indicator lights red. If a sync signal (^*1) is input again later, the unit automatically returns to normal operating mode.

*1 Except when input signal is G ON SYNC or composite SYNC.

• AUTO POWER OFF: ENABLE...

If no sync signal is detected for 8 minutes or more, a warning message will be displayed for 30 seconds, after which the unit's power will switch to power off mode.

Other Operations

6 After completing settings, press the MENU button to return to the normal display.

To return to operating mode:

To return to normal operation from the [POWER MANAGEMENT] function's standby mode, either operate your computer or press the STANDBY/ON button on this unit or the remote control unit once.
To return to normal operation from the [AUTO POWER OFF] function's power off condition, press the STANDBY/ON button on the unit or on the remote control unit.

Setting the Orbiter (ORBITER)

The function gradually moves the display position of the screen after a set amount of time (approximately every 8 minutes, the screen position is moved at random horizontally or vertically).

When displaying a still image, setting [ORBITER] to [ON] helps prevent the screen from being burnt with a lag image.

This function is not supported when using the multiscreen function or menu display.

Display operating panel

Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the / buttons to select [OPTION].

3 Use the / buttons to select [ORBITER], and press the SET button.

4 Press the / buttons to activate the setting.

5 Press the SET button.

[ORBITER] is set, and you return to the display shown in step 3.

6 After completing settings, press the MENU button to return to the normal display.

Note

The [ORBITER] setting affects all input sources.

Side Mask Position (MASK CONTROL)

When screen size is set to [DOT BY DOT], or [4:3], or when using multiscreen display, the positions of all elements change slightly each time the power is turned on in order to alleviate burning of lag images on the screen.

Display operating panel Remote control unit

1 Press the MENU button to display the menu screen.

2 Use the buttons to select [OPTION].

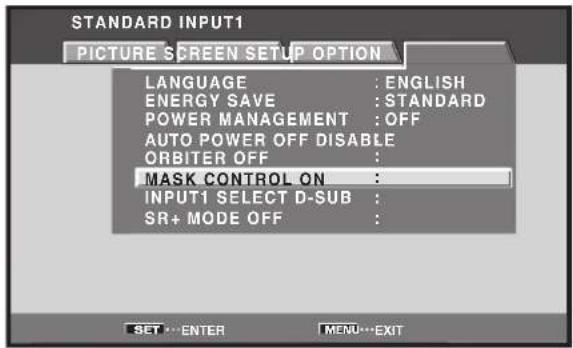

3 Use the / buttons to select [MASK CONTROL], and press the SET button.

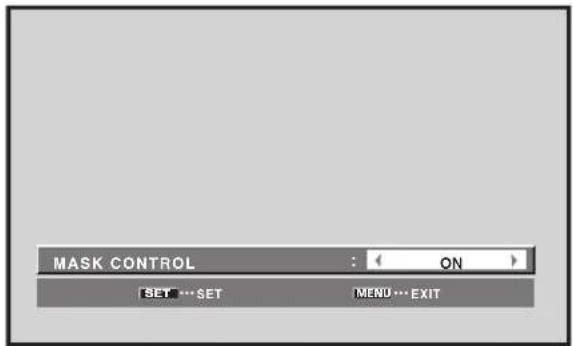

4 Press the / buttons to activate the setting.

The factory default setting is [ON].

Each time the button is pressed, the setting alternates as follows:

5 Press the SET button.

[MASK CONTROL] is set, and you return to the display shown in step 3.
6 After completing settings, press the MENU button to return to the normal display.

Note

The [MASK CONTROL] setting affects all input sources.

Additional Information

Cleaning

Regular cleaning will extend the life and performance of this unit. The recommended way to clean the display and related parts is described below.

Before cleaning, be sure to unplug the power cord from the power outlet.

Cleaning the display panel body and remote control

Do not under any circumstances use solvents such as benzine or thinner for cleaner. Use of such liquids may cause deterioration or peeling of paint from the display or remote control unit.

Wipe the display and remote control gently with a soft cloth. In the case of excessive dirt buildup, dampen a soft cloth with a diluted neutral cleaning detergent and after wringing the cloth thoroughly, wipe the component and then dry it with a dry soft cloth.

Cleaning the screen

After dusting, wipe the screen gently using the supplied cleaning cloth or a soft cloth. Do not use tissue or a rough cloth. As the surface of the screen is easily scratched, do not rub it or hit it with a hard object.

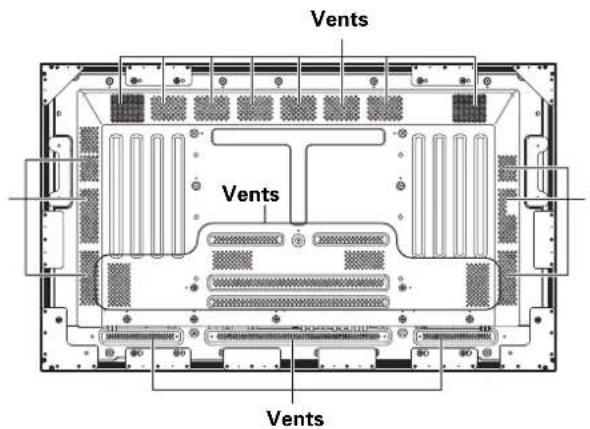

Cleaning the vents

As a general rule, use a vacuum cleaner about once a month to clean the vents on the rear panel of the display of dust buildup (set the vacuum cleaner to its weakest setting when doing this).

Using the unit without cleaning it of dust will cause the internal temperature to increase, resulting in possible breakdown or fire.

Illustration depicts PRO-1010HD model.

Troubleshooting

What may at first seem to be an malfunction, may be remedied with a quick check.

Please check to see a warning is displayed on the screen. If displayed, refer to the table below and check the mode. If there is no display check to see the problem is listed on page 49. The problem may also be caused by something other than this unit so please also check the other components being used such as a video deck. If the problem can still not be solved please consult the dealer where this unit was purchased.

About the self diagnosis mode

Messages appear on the center of this unit's screen to indicate operation or connection faults. After message confirmation, check the condition of the unit.

ERRORMESSAGE	REMEDY
CAUTIONOUT OF RANGEorCAUTIONUNSUPPORTED SIGNALorSIGNAL NG	The current input signal isnot supported by the unit.Check the Computer signalcompatibility table onpages 53 to 54,and changethe computer's outputsignal setting appropriately.
WARNINGTHERMAL ALERTSHUT DOWN (**)	Turn off main power (page9).Is ambient temperaturetoo high?Remove any objectsblocking the cooling ventson the plasma display.
WARNINGFAN FAILURESHUT DOWN (**)	Cooling fan hasmalfunctioned.Immediately turn offpower,remove power plugfrom its outlet,and consulta Pioneer service center oryour dealer.
ERRORINVALID KEY ENTRY	An invalid operation hasbeen attempted. Checkinput signals,connectionsand other settings(forexample,multiscreen).
SHUT DOWN (**)	Turn off main power,waitfor 1-2 minutes,then tryturning power on again.Ifproblem persists,removepower plug from its outletand consult a Pioneerservice center or yourdealer.

In the above, messages contents indicated by (^**) represent numerals.

General problems

Problem Possible Solution
• No power.	• Is the power cord disconnected? (page 20) • Has the MAIN POWER switch been switched on? (page 9)
• Unit cannot be operated.	• External influences such as lightning, static electricity, etc., may cause improper operation. In this case, operate the unit after first turning the MAIN POWER off/on, or unplugging the power cord and re-plugging it in after 1 to 2 minutes.
• Remote control does not operate.	• Are batteries inserted with polarity (+,-) correctly aligned? (page 7) • Are batteries worn out? (Replace with new batteries.) • Is any object occluding the remote signal receiver? (page 7) • Point the remote control unit toward the remote signal receiver when operating (page 7).
• Picture is cut off.	• Is the selected screen size correct? Switch to another screen size (page 30). • Are [SCREEN] mode adjustments such as picture size made correctly? (pages 30 to 32 and 39 to 41)
• Strange color, light color, or dark, or color misalignment.	• Adjust the picture tone (page 35). • Is the room too bright? The picture may look dark in a room that is too bright. • Is [CLAMP POSITION] setup correct? (page 25) • Is the [HDMI INPUT] setting appropriate? (Only during HDMI input) (Pages 25 to 27).
• Power is suddenly turned off.	• T he unit's internal temperature has increased (Air vents are blocked). Remove any objects blocking vent or clean (page 48). • Is the [POWER MANAGEMENT] function set to [ON]? (page 44)
• No picture.	• Is connection to other components correct? (pages 12 to 16) • Has setup been done correctly after connection? (pages 23 to 28) • Is the correct input selected? (page 29) • Is a non-compatible signal being input? (pages 52 to 54) • Is the [PICTURE] setting correct? (page 35)

Problems commonly mistaken as breakdown

Problem Possible Solution
The screen is displayed in a small size.	Is the correct screen size selected? (pages 30 to 32 and 39)
Letter breakup on screen.	Adjust using [SCREEN] mode on the menu screen (page 39).If there is still no improvement, this unit may be limiting the displayable range. Check the Computer signal compatibility table (pages 53 to 54).
A sharp sound is sometimes heard from the cabinet.	Expansion/contraction caused by surrounding temperature change may result in sound being heard from the cabinet. This is not a malfunction.
Bright portions of image appear to be losing intensity.	When the video input signal's level is too high, the bright portions may appear to be losing their intensity.Increase the adjustment level of the contrast and check the picture (page 35).
Speckles or noise appears on screen.	May be caused by radio wave interference from appliances with motors such as hair dryers,electric vacuum cleaners, electric power drills, ignition systems of cars, motorcycles etc., switch devices such as thermostats etc., neon signs or electrical discharge from power lines etc.
Stripes appear on the screen.	May be caused by radio wave mingling from TV station, FM station, amateur radios, public radios (simplified radios) etc., or a nearby personal computer, TV, or video/audio component.A strong electromagnetic field may cause picture distortion and similar problems.
Sound is heard from inside the unit.	Normal sound of the cooling fan and internal sliding parts of the plasma display panel. Not a malfunction.
F an isn't moving.	Fan is set to operate only after ambient temperature exceeds 35°C (95°F) (differs depending on installation conditions). Not a malfunction.
Fan speed changes.	Fan speed changes automatically in accordance with ambient conditions. Not a malfunction.

Precautions Regarding Use

Panel sticking and after-image lag

• Displaying the same images such as still images for a long time may cause after-image lagging. This may occur in the following two cases.

1. After-image lagging due to remaining electrical load

When image patterns with very high peak luminance are displayed for more than 1 minute, after-image lagging may occur due to the remaining electric load. The after-images remaining on the screen will disappear when moving images are displayed. The time for the after-images to disappear depends on the luminance of the still images and the time they had been displayed.

2. After-image (lag image) due to burning

Avoid displaying the same image on the Plasma Display continuously over a long period of time. If the same image is displayed continuously for several hours, or for shorter periods of time over several days, a permanent after-image may remain on the screen due to burning of the fluorescent materials. Such images may become less noticeable if moving images are later displayed, but they will not disappear completely.

The same kind of burning of a lag image may also be produced after extended multi-hour use, or recurrent daily use for shorter periods of a single [4:3] screen size, or [DOT BY DOT] image. Except in cases where violation of intellectual property rights may be involved (pages 30 to 32), it is recommended that lag-image burning be avoided by selecting a screen size that displays images over the entire screen (pages 30 to 32).

• In addition, the [ENERGY SAVE] function (page 43), [ORBITER] function (page 46), and [MASK CONTROL] function (page 47), can also be used to reduce the chance of lag image formation.

About the plasma panel's protection function

The brightness of this display will deteriorate slightly when an image with little movement such as a photograph or computer image is continuously displayed. This is caused by the plasma panel's protection function which detects images with slight movement and automatically adjusts brightness to protect the display, and is not a malfunction.

The screen-saver function begins operating when the display detects no or little screen movement for a period of about three minutes; the function is an automatic feature and cannot be turned OFF.

Pixel failure

The plasma display screen is composed of a high numbers of tiny pixel elements constructed in a high-precision array, but on occasion one or more of the pixels may fail to light, or may light erratically. This is an inevitable by-product of the manufacturing process and not a malfunction.

Concerning infrared light

In principle, the plasma display radiates infrared light. Depending on the environment in which the monitor is installed and used, infrared remote control units for other nearby appliances may fail to operate properly, or noise may be heard in wireless headphones. In such cases, move the affected appliance to a location where its infrared sensor is not affected.

Electromagnetic interference

This unit is built in compliance with official standards for electromagnetic interference, but it nonetheless may produce a low level of radio noise. This noise may be noticeable if AM radios, computers, or video appliances are installed too close to the display. In such cases, remove the affected appliance to a location where it is not affected.

Additional cautions

If the power is automatically turned off during operation of this unit, the following reasons may be the cause.

①Is the [POWER MANAGEMENT] function or [AUTO POWER OFF] function set to [ON/ENABLE]? (page 44).
The surrounding temperature has risen above 40^ (104^) The display should be used within ambient temperature conditions below 40^ (104^)
③ The internal temperature has risen abnormally due to blocked cooling vents, overheating of internal electronic parts, or other factors.

If the power is automatically turned off for a reason other than the above reasons, there could be a malfunction. In this case, unplug the power cord from the power outlet and request repair from your nearest sales outlet.

The plasma display panel of this unit is very bright and viewing it a close distance will cause eye strain.
We recommend that you view the screen from a suitable distance (3 to 6 m).
- In order to protect the panel and internal circuitry, this display is provided with a cooling fan designed to turn on/off and change speed automatically in accordance with ambient temperature conditions (the fan sound will change in accordance with its speed). The display should be used within ambient temperature conditions below 40^ (104^) .

STANDBY and ON Indicators

When the ON indicator is flashing green, an error message is indicated. Consult any onscreen messages (page 48) and check ambient conditions (temperature, etc.) and respond accordingly (page 49).

If the problem persists, disconnect the power plug and consult your dealer or a service center.

Other than this, if the power turns off by itself, or refuses to turn on, or if the STANDBY indicator conditions flashing red, a malfunction may be indicated. Immediately disconnect the power plug and consult your dealer or a service center.

Specifications

General (PRO-1010HD)

Light emission panel 50-inch AC Plasma Panel 109.8 (W) x 62.1 (H) x 126.1 (diagonal) cm

Number of pixels 1280 x 768

Power supply AC 120 V,60 Hz

Rated current 3.1 A

Standby power consumption 0.6 W

External dimensions

1250 W) x 746 H) x 105 D: Not including handles) mm

49-1/4 (W) x 29-3/8 (H) x 4-1/8

(D: Not including handles) in.

Weight 49 kg (108 lbs.)

Operating temperature range .0 to 40^ (32 to 104^ )

General (PRO-810HD)

Light emission panel 43-inch AC Plasma Panel 95.2 (W) x 53.6 (H) x 109.3 (diagonal) cm

Number of pixels 1024 x 768

Power supply AC 120 V,60 Hz

Rated current 2.6 A

Standby power consumption 0.6 W

External dimensions

1102 (W) x 662 (H) x 105 (D: Not including handles) mm

43-3/8 (W) × 26-1/16 (H) × 4-1/8

(D: Not including handles) in.

Weight 39 kg (86 lbs.)

Operating temperature range. 0 to 40^ (32 to 104^ )

Input/output

Video

INPUT1

Input Mini D-sub 15 pin (socket connector)

• RGB signal (G ON SYNC compatible)

RGB ... 0.7 Vp-p/75 Ω/no sync.

HD/NS, VD ... TTL level

sitive and negative polarity.

12.2 kΩ

G ON SYNC

1 Vp-p/75 Ω/negative sync.

*Compatible with Microsoft Plug & Play (VESA DDC1/2B)

• Component video signal

Y ... 1 Vp-p/75 Ω negative sync.

CB/PR, CR/PR ... 0.7 Vp-p (color100%)/75 Ω

HDMI

Digital signal

3.3VT.M.D.S./50Ω

INPUT2

InputHDMI

Digital signal

3.3VT.M.D.S./50Ω

INPUT3

InputS jack (Mini DIN 4 pin)

Y/C separate video signal

Y. 1 Vp-p/75 Ω/negative sync.

C. .0.286 Vp-p/75 Ω (NTSC)

INPUT4

Input BNC jack

Composite video signal

1 Vp-p/75 Ω/negative sync.

Output BNC jack

75Ω/with buffer

INPUT5

Input BNC jack (x5)

• RGB signal (G ON SYNC compatible)

RGB ... 0.7 Vp-p/75 Ω/no sync.

HDNS, VD ... TTL level

/positive and negative polarity/

2.2 kΩ

G ON SYNC ...

1 Vp-p/75 Ω/negative sync.

• Component video signal

Y...1 Vp-p/75 Ω negative sync.

C_B / P_B, C_R / P_R

0.7 Vp-p (color 100%) / 75 Ω

Audio

Input AUDIO INPUT (for INPUT1)

Pin jack (x2)

L/R ... 500 mVrms/more than 10 kΩ

AUDIO INPUT (for INPUT2)

Pin Jack (x2)

L/R ... 500 mVrms/more than 10 kΩ

AUDIO INPUT (for INPUT3/4)

Pin jack (x2)

L/R ... 500mVrms/more than 10 kΩ

AUDIO INPUT (for INPUT5)

Pin Jack (x2)

L/R ... 500mVrms/more than 10 kΩ

Output SPEAKER

L/R ... 8-16 Ω/7 W +7 W (at 8 Ω)

Control

RS-232C ... D-sub 9 pin (pin connector)

Additional Information

Accessories

Power cord 1
Remote control unit 1
AA (R6) batteries 2
Cleaning cloth (for wiping front panel) 1
Speed clamps. 2
Bead bands 2
Operating Instructions 1
Warranty. 1
Due to improvements, specifications and design are subject to change without notice.

Appendix 1

Video signal compatibility table (INPUT1 (D-sub), INPUT5)

:Notavailable.

Digital signal compatibility table (INPUT1 (HDMI), INPUT2)

Refresh rate		Signal format	Screen size					Remarks
Vertical fv (Hz)	Horizontal fh (kHz)		4:3 FULL	ZOOM	CINEMA	WIDE
60 (59.94)	15.734	Component	○	○	○	○	○	480i (525i)/SDTV
		RGB	○	○	○	○	○
	31.5	Component	○	○	○	○	○	480p (525p)/SDTV
		RGB	○	○	○	○	○
	33.75	Component		○			○	1080i (1125i)/HDTV
		RGB		○			○
	45.0	Component		○			○	720p (750p)/HDTV
		RGB		○			○

Not available.

Vertical fv (Hz)	Aspect Ratio	Screen size					Remarks
		4:3 FULL		ZOOM	CINEMA	WIDE
60 (59.94)	720x480i	○	○	○	○	○	480i (525i)/SDTV
	720x480p	○	○	○	○	○	480p (525p)/SDTV
	1280x720p		○			○	720p (750p)/HDTV
	1920x1080i		○			○	1080i (1125i)/HDTV

Appendix 2

Computer signal compatibility table (PRO-1010HD) (INPUT1 (D-sub) and INPUT5)

Not available.

Resolution (Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical	Horizontal	DOT BY DOT FULL 4:3
640x400	56.4Hz	24.8kHz			1280x768	NEC PC-9800
720x400	70.1Hz	31.5kHz			1280x768	NEC PC-9800
	85.1Hz	37.9kHz			↑
640x480	60Hz	31.5kHz	640x480	1024x768	1280x768
	66.7Hz	35.0kHz	↑	↑	↑	Apple Macintosh 13"
	72.8Hz	37.9kHz	↑	↑	↑
	75Hz	37.5kHz	↑	↑	↑
	85Hz	43.3kHz	↑	↑	↑
848x480	60Hz	31.0kHz	848x480		1280x768
800x600	56Hz	35.2kHz	800x600	1024x768	1280x768
	60Hz	37.9kHz	↑	↑	↑	(1072x600)
	72Hz	48.1kHz	↑	↑	↑
	75Hz	46.9kHz	↑	↑	↑
	85Hz	53.7kHz	↑	↑	↑
832x624	74.6Hz	49.7kHz	832x624	1024x768	1280x768	Apple Macintosh 16"
1024x768	60Hz	48.4kHz	1024x768		1280x768	(1376 x 768)
	70Hz	56.5kHz	↑		↑
	75Hz (74.9Hz)	60.0kHz (60.2kHz)	↑		↑	() indicates Apple Macintosh 19"
	85Hz	68.7kHz	↑		↑
1280x720	60Hz	44.7kHz	1280x720		1280x768
1280x768	56Hz	45.1kHz	1280x768
	60Hz	47.8kHz	↑
	70Hz	56.1kHz	↑

[Meaning of symbols] : Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
: Picture will be enlarged but some fine detail will be hard to see.

Note

In rare cases, a normal picture may not be obtained when switching between compatible signal formats on the output device (PC). Should this happen, turn off the power, and then turn it back on again.

Computer signal compatibility table (PRO-810HD) (INPUT1 (D-sub) and INPUT5)

Resolution(Dot x Line)	Refresh rate		Screen size (Dot x line)			Remarks
	Vertical DOT	BtoE0ntial 4	3		FULL
640x400	56.4Hz	24.8kHz			1024x768	NEC PC-9800
720x400	70.1Hz	31.5kHz			1024x768	NEC PC-9800
	85.1Hz	37.9kHz			↑
640x480	60Hz	31.5kHz	640x480	768x768	1024x768
	66.7Hz	35.0kHz	↑	↑	↑	Apple Macintosh 13"
	72.8Hz	37.9kHz	↑	↑	↑
	75Hz	37.5kHz	↑	↑	↑
	85Hz	43.3kHz	↑	↑	↑
848x480	60Hz	31.0kHz	848x480		1024x768
800x600	56Hz	35.2kHz	800x600	768x768	1024x768
	60Hz	37.9kHz	↑	↑	↑	(1072x600)
	72Hz	48.1kHz	↑	↑	↑
	75Hz	46.9kHz	↑	↑	↑
	85Hz	53.7kHz	↑	↑	↑
832x624	74.6Hz	49.7kHz	832x624	768x768	1024x768	Apple Macintosh 16"
1024x768	60Hz	48.4kHz	1024x768	768x768		(1376 x 768)
	70Hz	56.5kHz	↑	↑
	75Hz(74.9Hz)	60.0kHz(60.2kHz)	↑	↑		() indicates Apple Macintosh 19"
	85Hz	68.7kHz	↑	↑
1280x720	60Hz	44.7kHz			1024x768
1280x768	56Hz	45.1kHz			1024x768
	60Hz	47.8kHz			↑
	70Hz	56.1kHz			↑

[Meaning of symbols] : Optimal picture. Adjustment of picture position, refresh rate, phase etc., may be necessary.
: Picture will be enlarged but some fine detail will be hard to see.
: Simple reproduction. Fine detail will not be reproduced.

Note

In rare cases, a normal picture may not be obtained when switching between compatible signal formats on the output device (PC).

Should this happen, turn off the power, and then turn it back on again.

Appendix 3

INPUT1 (Mini D-sub 15 pin female connector) pin allocation.

Pin No.	Input
1	R
2	G
3	B
4	NC (No connection)
5	GND
6	GND
7	GND
8	GND
9	DDC + 5V
10	GND
11	NC (No connection)
12	DDC SDA
13	HD or H/V SYNC
14	VD
15	DDC SCL

Explanation of Terms

Aspect ratio

The TV screen's width to height ratio is referred to as its aspect ratio. The aspect ratio on standard TVs is 4:3 and on wide TVs or High Definition TVs it is 16:9.

S jack (S-VIDEO jack)

This jack separates and transmits the video signal as two signals; the luminance (Y) signal and the color (C) signal. Because of this, picture reproduction is superior to that obtained at the composite input/output jacks.

S-video signal

The video signal is composed of two signals; the chroma signal (color signal) which reproduces color and the luminance signal which reproduces light and darkness. With standard video components, these two signals are combined into one and are handled as a video signal referred to as the composite signal. The S-video signal, however, is a signal that handles these two signals separately. Because they are not combined as in the composite video signal, the high quality of both signals can be retained.

Component video signal

General term for video signal format composed of the Y.CBCR, Y.PBPR and Y.B-Y.R-Y luminance signal + color signal.

The component video signal is sometimes simply called the color difference signal.

G ON SYNC

This indicates a video signal in the form of a synchronization signal added to the G (GREEN) signal of the RGB signal.

VGA

General term for Video Graphics Array.

Generally this indicates a 640 dot x 480 line resolution.

WVGA

General term for Wide Video Graphics Array.

Generally this indicates a 848 dot x 480 line resolution.

XGA

General term for eXtended Graphics Array.

Generally this indicates a 1024 dot x 768 line resolution.

WXGA

General term for Wide eXtended Graphics Array.

Generally this indicates a 1280 dot x 768 line resolution.

Published by Pioneer Corporation. Copyright © 2004 Pioneer Corporation. All rights reserved.

Installation et raccordements 10

10 Touche SET/DISPLAY

(HDCP = High-bandwidth Digital Content Protection)
(HDMI = High Definition Multimedia Interface)

⑬VIDEO IN (INPUT4) (prise BNC)

16 ANALOG RGB (INPUT5) (prises BNC)

Installation et raccordements

G ON SYNC ... 1,0 Vcc/75 Ohms/synchrono negative

*Compatibilité Microsoft Plug & Play (VESA DDC1/2B)

• Composantes du signal video Y ... 1 Vcc/75 Ohms/synchro négative CB/PB, CR/PR ... 0,7 Vc-c (couleur 100%)/ 75 Ohms

HDMI

Published by Pioneer Corporation. Copyright © 2004 Pioneer Corporation. All rights reserved.

16ANALOG RGB (INPUT5) (tomas BNC)

Tenga cuidado al hacer los ajustes. Ajustes IncorrectosSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO

CONFG. Componente conectado	FORMATO SERIAL	DESCODIFIC. COLOR
Salida de video componente de un reproductor DVD, etc.	480p	COMPONENTE
Salida de video componente de un sintonizador digital, etc.	720p	COMPONENTE
Salida de video RGB de una videograbadora, etc., conRIA RGB	480p	RGB
Salida de video RGB de un PC	VGA, WVGA, 720-PC, XGA, WXGA	No se sojahta

(INPUT1 (D-sub) e INPUT5)

Copyright © 2004 Pioneer Corporation.

Published by Pioneer Corporation.

Copyright © 2004 Pioneer Corporation

All rights reserved.

PIONEER CORPORATION

4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90810-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R OP2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico,D.F. 11000 TEL: [phone]
