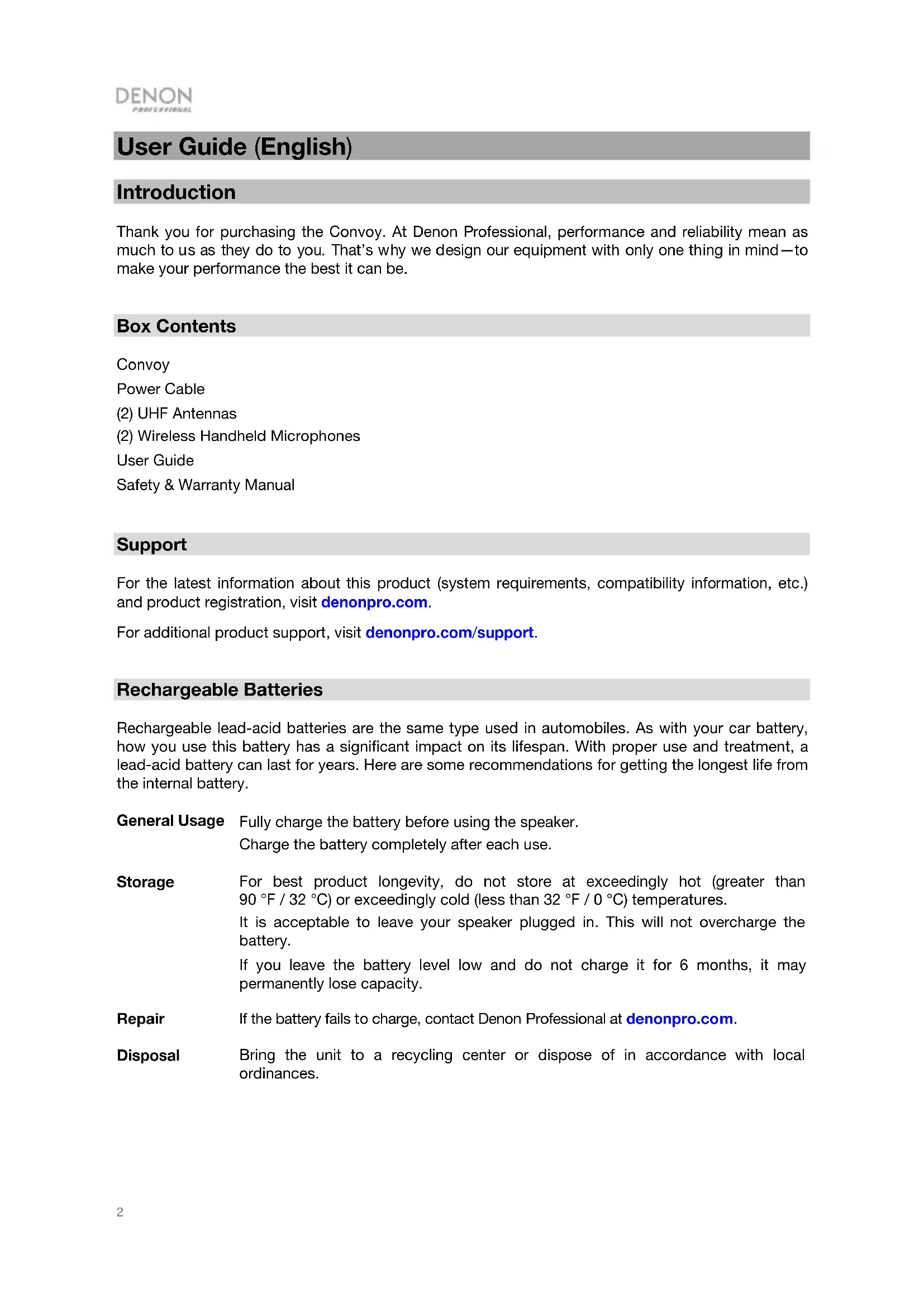

User Guide English (2–9) Guía del usuario Español (10–17) Guide d’utilisation Français (18–25) Guida per l’uso Italiano (26–33) Benutzerhandbuch Deutsch (34–41) Appendix English (42–43)2 User Guide (English) Introduction Thank you for purchasing the Convoy. At Denon Professional, performance and reliability mean as much to us as they do to you. That’s why we design our equipment with only one thing in mind—to make your performance the best it can be.

Support For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit denonpro.com. For additional product support, visit denonpro.com/support.

Rechargeable Batteries Rechargeable lead-acid batteries are the same type used in automobiles. As with your car battery, how you use this battery has a significant impact on its lifespan. With proper use and treatment, a lead-acid battery can last for years. Here are some recommendations for getting the longest life from the internal battery. General Usage Fully charge the battery before using the speaker. Charge the battery completely after each use. Storage For best product longevity, do not store at exceedingly hot (greater than 90 °F / 32 °C) or exceedingly cold (less than 32 °F / 0 °C) temperatures. It is acceptable to leave your speaker plugged in. This will not overcharge the battery. If you leave the battery level low and do not charge it for 6 months, it may permanently lose capacity. Repair If the battery fails to charge, contact Denon Professional at denonpro.com. Disposal Bring the unit to a recycling center or dispose of in accordance with local ordinances.3 Important Safety Precautions Please note: Denon Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Denon Professional and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. Please also refer to the included safety and warranty manual for more information. Caution: To reduce the risk of electric shock, do not connect Convoy to a power outlet while the grille is removed.

Sound Level Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S. Occupational Safety and Health Administration (OSHA) has specified permissible exposures to certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in excess of these limits may result in hearing loss. When using equipment capable of generating high SPL, use hearing protection while such equipment is under operation. Hours per da

1. Make sure all items listed in the Box Contents are included in the box.

2. Read the Safety & Warranty Manual before using the product.

3. Make sure that you have completely charged the battery prior to first use for maximum

4. Turn down the Master Volume on Convoy.

6. Connect your devices.

7. Switch everything on in the following order:

8. Raise the volume to a comfortable level.

9. Return the Master Volume to zero and turn off Convoy when you are finished.

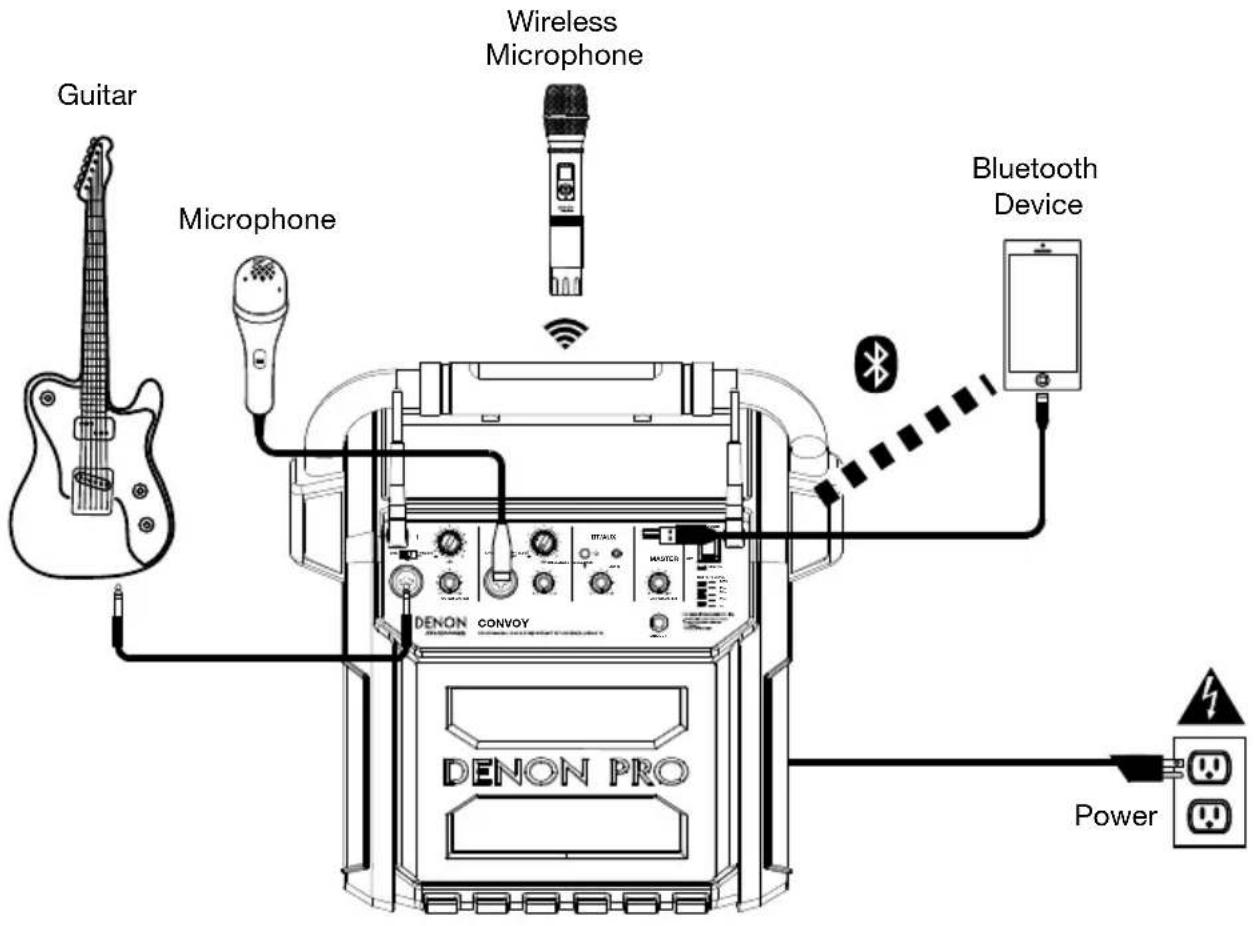

Example Items not listed under Introduction > Box Contents are sold separately.

Wireless Microphone Microphone Guitar Power Bluetooth Device5 Features Front Panel

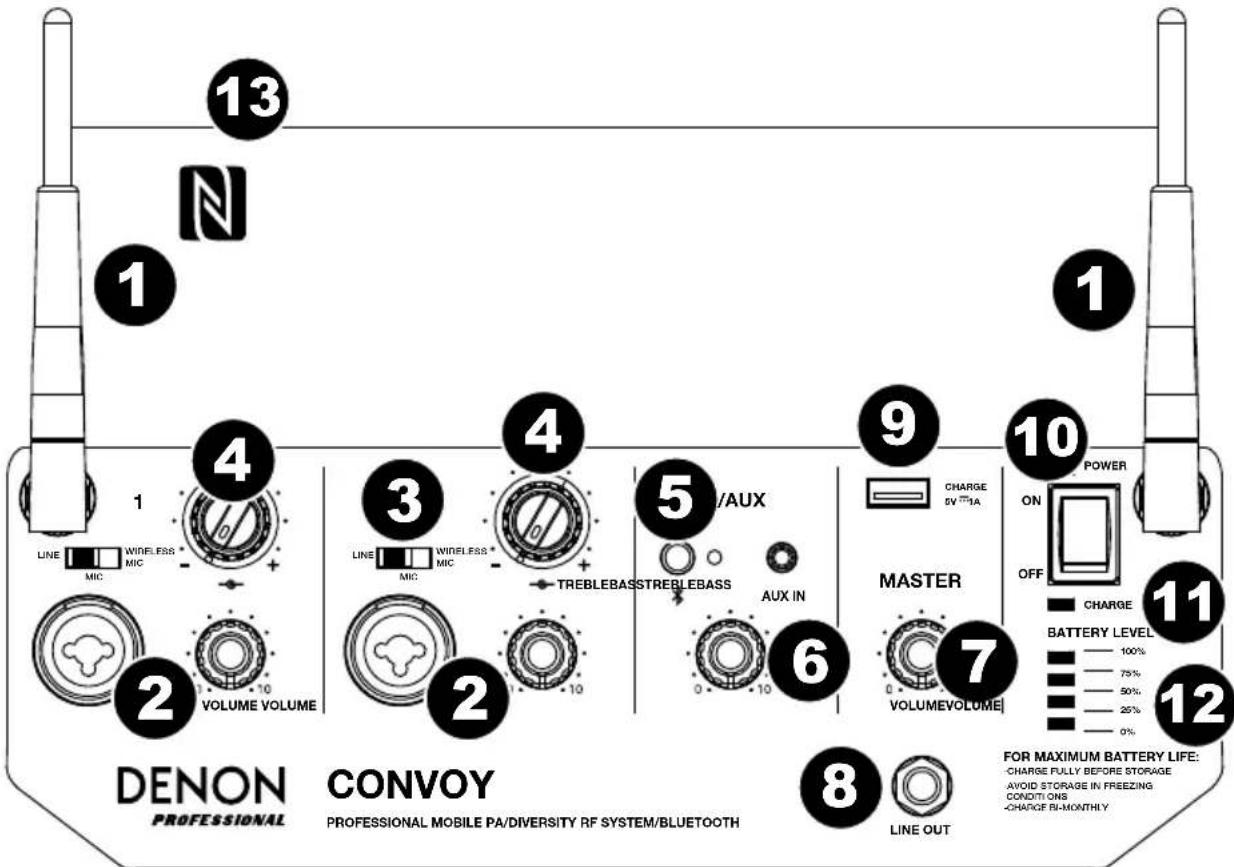

1. Antennas: Connect the two included diversity antennas here to use wireless microphones.

2. Combo Inputs with Volume Control: Use a standard 1/4" (6.35 mm) TRS or XLR cable

(not included) to connect your sound source to each input. Use the Volume knob to adjust the level of each one.

3. Line/Mic/Wireless Mic Switch: Use this switch to set the Input to accept a Line-level, a

Mic-level, or a wireless mic sound source. Note: When using an instrument with passive pickups, set the switch to the Mic setting. When using an instrument with active pickups, set the switch to the Line setting.

4. Bass/Treble Control: Adjust outer knob to control the Line/Mic/Wireless Mic Bass level.

Adjust inner knob to control the Line/Mic/Wireless Mic Treble level.

5. Bluetooth: Press this button to connect/disconnect from a paired Bluetooth device.

6. Auxiliary Input with Volume Control: This stereo 1/8” (3.5 mm) input can be used to

connect a CD player, MP3 player, or other audio source. The Volume control adjusts auxiliary input and Bluetooth volume.

7. Master Volume Control: This adjusts the loudspeaker's main mix volume, which includes

Instrument/Microphone Inputs, wireless microphone signals, Auxiliary Input, and the audio of a paired Bluetooth device.

8. Line Out: This 1/4" (6.35 mm) TRS output can be connected to an auxiliary input or to a

mixer. The Line Out is post-Master Volume Control.

9. USB Charging Port: Connect your device’s charge cable here to charge it. USB charging

only functions when the unit’s power is turned on. Note: To charge smartphones and tablets faster, put the device’s screen to sleep.

10. Power Switch: Use this switch to power the loudspeaker on or off. Make sure all Volume

knobs are set to "zero" before powering it on. When the loudspeaker is powered on, the Power LED above it will be lit.

11. Charge Indicator: This LED will illuminate when Convoy is connected to AC power to

indicate it is charging. Once charging is complete, the LED will go off.

12. Battery Level Indicator: While the unit is powered on, these four lights indicate the power

left in the battery. Battery life varies based on volume and usage.

13. NFC (Near-Field Communication) (top panel): Touch and briefly hold your supported and

enabled device to the NFC logo to pair the device. See Pairing a Bluetooth Device Using NFC for more information. Rear Panel

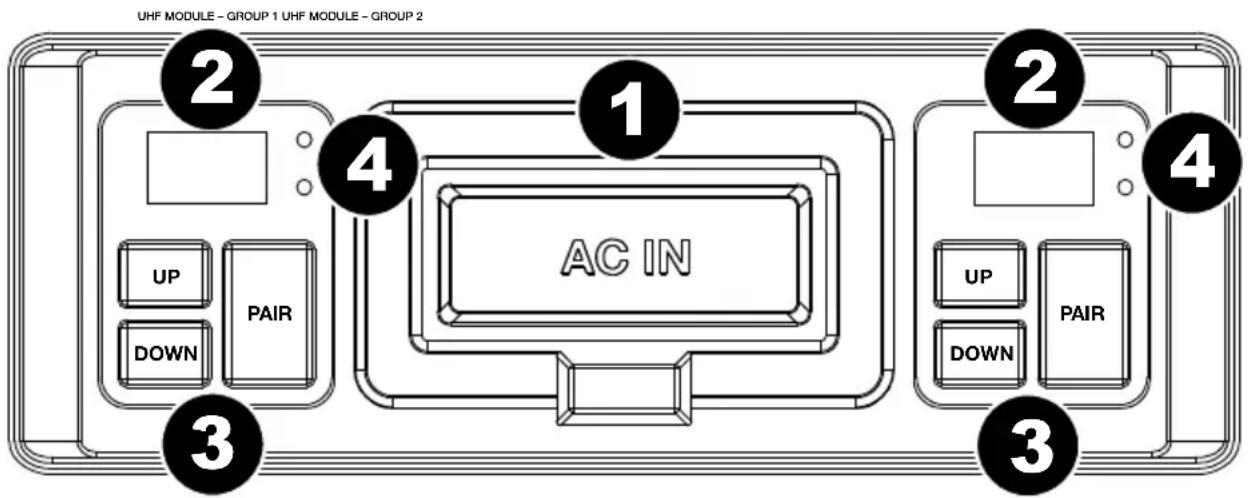

1. Power Cable Input: Insert the included power cable here to charge the unit. Please note

that when the power cable is connected, the battery will still charge while the unit is in use.

2. Display: Shows the selected wireless mic group or channel.

3. Wireless Receivers: Sync wireless transmitters such as the included hand-held

microphone to these receivers. Use the Up/Down buttons to select a channel. Press the Pair button to link the channel to the wireless transmitter. See Operation > Wireless Microphone Setup for more details. Note: The left side UHF module is always set to Group 1 and the right side UHF module is always set to Group 2.

4. RF/IR LEDs: The RF LED illuminates when a wireless mic frequency has been matched to

your wireless microphone. The IR LED will illuminate when the Pair button is pressed and the receiver pairs to your wireless mic. PAIR

Operation Wireless Microphone Setup To use a wireless mic, follow these setup steps:

included) in the wireless microphone.

3. Adjust the Line/Mic/Wireless Mic switch to

the Wireless Mic position for the channel that you want to use with the wireless mic.

4. Pair the wireless mic to Convoy.

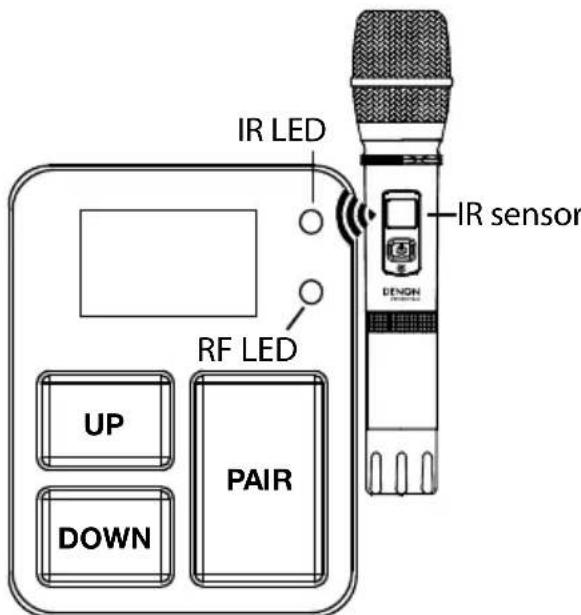

a. Turn on Convoy and the wireless mic. b. Use the Up/Down buttons to select a channel with the best reception, from 1–16. c. Place the wireless microphone IR sensor near the receiver’s IR LED and press the Pair button on the receiver. Wait for about 3 seconds until the IR LED stops flashing. When it finds an interference-free channel, the RF LED will illuminate on the receiver showing the mic is matched to that channel.

5. As you speak, adjust the channel Volume

knob on Convoy for more or less output signal.

6. Repeat steps 1-5 to pair to another wireless

mic. Note: The left side UHF module is always set to Group 1 and the right side UHF module is always set to Group 2. Note: When using two wireless microphones (or other transmitters) with Convoy, the two IR receivers must be set to separate UHF groups. Pairing two transmitters on the same group may result in feedback. To change the wireless channel, use the Up/Down buttons on the receiver. The wireless microphone may show a different channel or group on its display, but the wireless connection will remain active. However, if the wireless channel or group is changed from the transmitter, you will need to resync with the receiver by following the steps above. If the signal is interrupted or the receiver becomes disconnected from the wireless microphone, the RF LED will no longer be lit. Follow the directions above to resync the receiver and transmitter.

1. Turn on your Bluetooth device.

2. Turn on Convoy using the power switch.

3. Press the Bluetooth button on the Convoy to pair it with a Bluetooth device.

4. Navigate to your Bluetooth device’s setup screen, find Convoy and connect. The

Bluetooth LED will light up solid when it is "paired”. Note: If your device requires a passcode or PIN, enter 0000.

5. If your Bluetooth device is not able to connect to Convoy, press the Bluetooth button on

Convoy to break previous Bluetooth connections and reset the Bluetooth module.

6. Start playback from your Bluetooth device.

7. To disconnect a connected Bluetooth device and connect to another Bluetooth device,

press the Bluetooth button. Repeat Step 3. Note: If you experience trouble connecting or playing music, update your device's OS. Pairing a Bluetooth Device Using NFC NFC (near-field communication) allows data exchange from devices, such as pairing, by gently bumping them together. Check in your device’s manual to see if this feature is supported. To use NFC to pair with Convoy:

1. In order to use NFC, your device must be turned on and unlocked.

2. Enter your device’s Settings menu and check that NFC is turned On (one-time step).

4. Touch and briefly hold your device to the NFC logo located on Convoy’s top panel.

5. Follow the pairing instructions that appear on your phone. If a passcode is required, enter

6. To unpair, gently bump your device against the NFC logo.

Using the Aux Input Connect your smartphone, MP3 player, or similar device to the Aux Input. Adjust the output volume on your source device and then adjust the overall volume using the Aux Input Volume Control on Convoy.9 Troubleshooting If the sound is distorted: Try lowering the volume control of your sound source, musical instrument, or microphone. Also, try to reduce the overall volume of Convoy using the Master Volume knob. If there is too much bass: Try adjusting the Bass control on Convoy and on your sound source to lower the bass level. This will allow you to play the music louder before clipping (distortion) occurs. If there is a high-pitched whistling noise when using microphones: This is probably feedback. Point the microphone away from the speaker. If you can’t hear the microphone over the music volume: Turn down the music volume from your source. If you can't hear your instrument: Check the setting of the Line/Mic/Wireless Mic switch. If you are using an instrument with passive pickups, set the switch to the Mic setting. If you can’t play music from a flash drive: The USB port is only for charging USB devices. If you cannot connect your audio device to Convoy via Bluetooth:

• Have your audio device (e.g., smartphone or tablet) and Convoy as close together as possible while trying to connect. Make sure both the audio device and Convoy are unobstructed by walls, furniture, etc.

• Reset the Bluetooth connection on Convoy to disconnect Convoy from any other audio device and restart the search process. If this does not work right away, power off Convoy and then power it back on. See Pairing a Bluetooth Device for more information.

Controls (2) Volume controls for Line/Mic/Wireless Mic channels (2) Line/Mic/Wireless Mic selectors (1) Volume control for Bluetooth and Aux channels (1) Master Volume (1) Bluetooth pairing button (1) Power on/off switch Indicators Power On, battery level, Bluetooth pairing status Wireless Specifications System Type: Dual Channel Diversity UHF Wireless System Analog/Digital: Analog Frequency Range: 584-594.85 MHz (US), 863-865 MHz (EU) Operating Range: 100 ft. / 30.5 meters Line-of-sight Channel Selection: Manual Form Factor: Handheld Type: Dynamic Polar Pattern: Cardioid Frequency Response: 50 Hz-15 kHz Battery Type: 2 x AA Battery Life: Up to 14 hours Bluetooth Specifications Profile: A2DP, AVRCP Range: Up to 100 feet / 30.5 meters * Connection: Manual pairing or NFC Batter

Specifications are subject to change without notice.

• Bluetooth and wireless reception and range are affected by walls, obstructions, and movement. For optimal performance, place the product in the center of the room so it is unobstructed by walls, furniture, etc. ** Battery life may vary based on temperature, age, and volume usage of product. Trademarks & Licenses Denon is a trademark of D&M Holdings Inc., registered in the U.S. and other countries. Denon Professional products are produced by inMusic Brands, Inc., Cumberland, RI 02864, USA. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Denon Professional is under license. All other product names, company names, trademarks, or trade names are those of their respective owners.denonpro.com
