USER MANUAL TKG AS 1003 R KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/28 Fax +32 2 359 95 50

Food Slicer Allesschneider Trancheuse Cortafiambres Krajalnica Allessnijder TKG AS 1003 230V~ 50Hz 150W I/B Version 181009 Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fig. 3 Fig. 4 Fig. 2 Fig. 1 Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

8. Slice thickness adjustment lever

Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

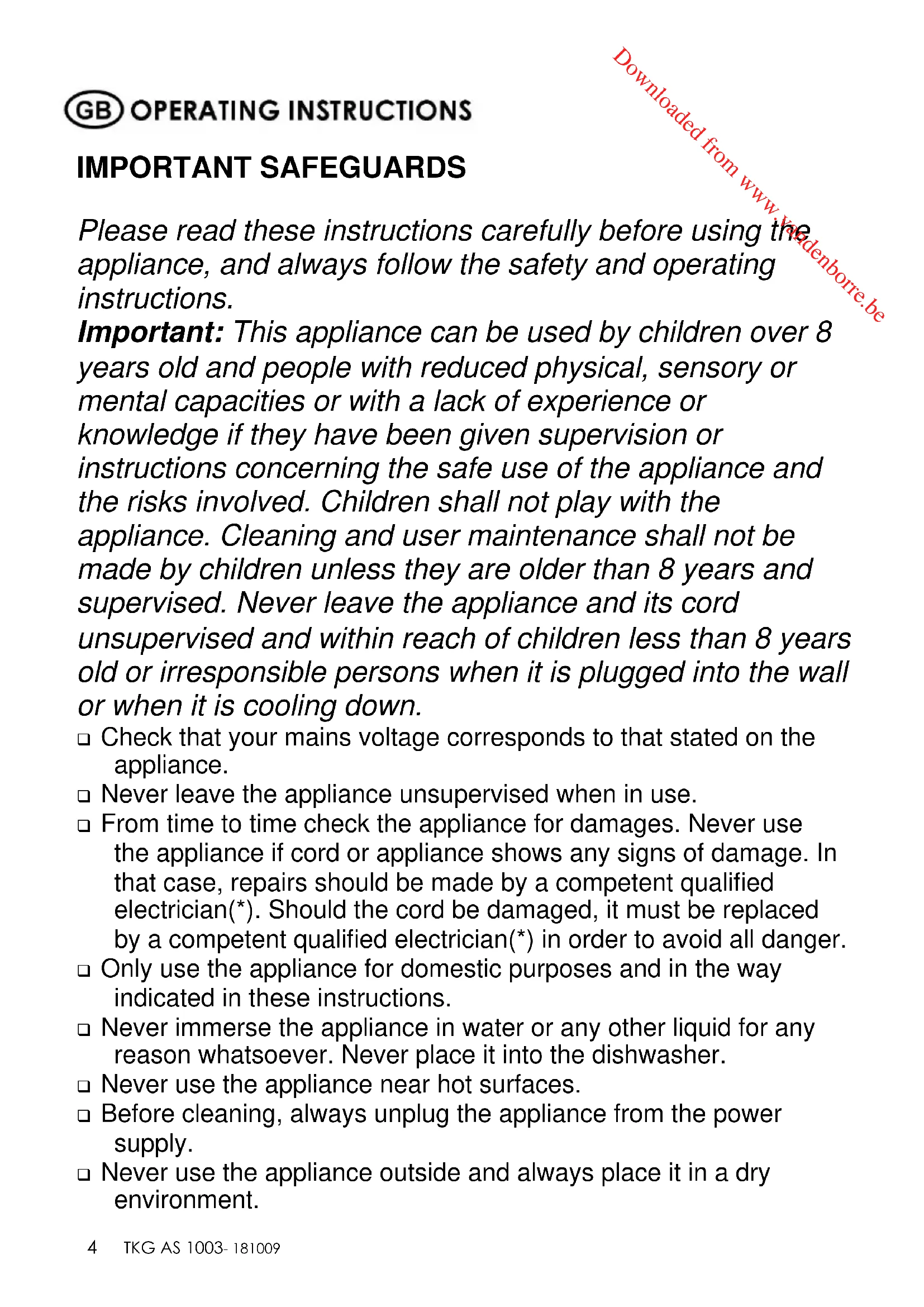

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: This appliance can be used by children over 8 years old and people with reduced physical, sensory or mental capacities or with a lack of experience or knowledge if they have been given supervision or instructions concerning the safe use of the appliance and the risks involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised. Never leave the appliance and its cord unsupervised and within reach of children less than 8 years old or irresponsible persons when it is plugged into the wall or when it is cooling down. ❑ Check that your mains voltage corresponds to that stated on the appliance. ❑ Never leave the appliance unsupervised when in use. ❑ From time to time check the appliance for damages. Never use the appliance if cord or appliance shows any signs of damage. In that case, repairs should be made by a competent qualified electrician(*). Should the cord be damaged, it must be replaced by a competent qualified electrician(*) in order to avoid all danger. ❑ Only use the appliance for domestic purposes and in the way indicated in these instructions. ❑ Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. ❑ Never use the appliance near hot surfaces. ❑ Before cleaning, always unplug the appliance from the power supply. ❑ Never use the appliance outside and always place it in a dry environment. Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

❑ Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. ❑ Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. ❑ Make sure the appliance is set on a flat surface. ❑ Unplug the appliance when not in use. ❑ Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and preparations. Never cut frozen food with this slicer. ❑ Never cut food only by using your hands. Always use the slide and its food guide unless it is impossible because of the size and dimension of the article. Make sure never to touch the knife. ❑ This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section "Important information" in the instruction manual. ❑ The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance. ❑ It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. ❑ Make sure the appliance is unplugged when disassembling it before cleaning or other. ❑ Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. (*) Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. IMPORTANT INFORMATION This appliance is not intended for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes.

Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

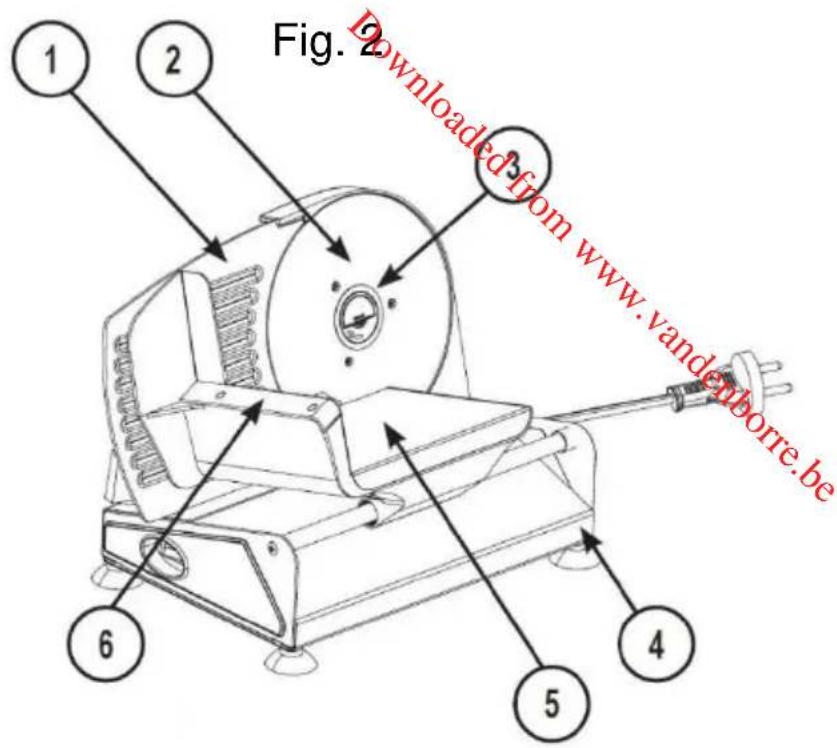

For a safe use, your appliance is fitted with a complete device (carriage (5) with a thumb guard (6) and pusher) which allows protecting your hands by giving an exceptional use comfort. The platform allows making to and from motions along the blade to cut the slices. Use the handle to move it. The pusher allows you to keep the food when slicing by holding your hand far from the blade. Therefore it is recommended to always use it except if the food is too large and in this case keep it as far as possible from the blade.

• Clean all parts of the appliance before the first use.

• Make sure the appliance is steady and add the pusher on the carriage (5).

• Plug in the appliance. The slicer is now ready for use.

• Place a plate or a dish behind the blade to collect the slices.

• Free the carriage from the blade and lay the food to be sliced on its stainless steel plate.

• Push the food against the mobile side of the appliance with the pusher and select the slicing thickness by turning the adjustment lever (8).

• Place the switch (7) to the position ON. The blade will start rotating. To stop, place the switch (7) in position OFF.

• Push the carriage to bring the food to the blade (2). Therefore use the handle of the carriage and keep the pressure on the mobile side of the appliance thanks to the pusher.

• If it becomes difficult to slice the food (important braking of the blade), move back a little bit and start the operation again by approaching the blade slowly.

• To avoid food sticking to the appliance and to improve the slicing, you can moisten or oil the blade with a wet towel beforehand.

• Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts. CLEANING

• The switch has to be in OFF position and the appliance has to be unplugged from the power supply before it can be cleaned.

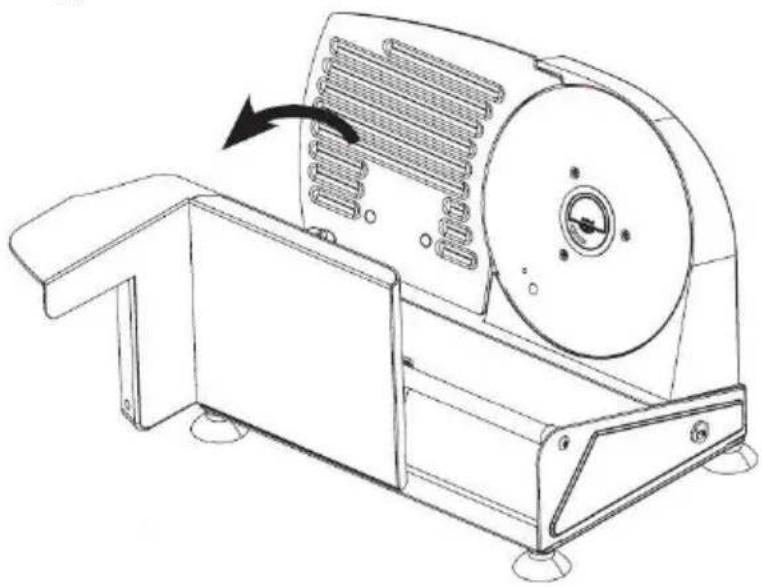

• Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher (the carriage tilts to make the cleaning easier).

• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

• Do not immerse in water or any other liquid.

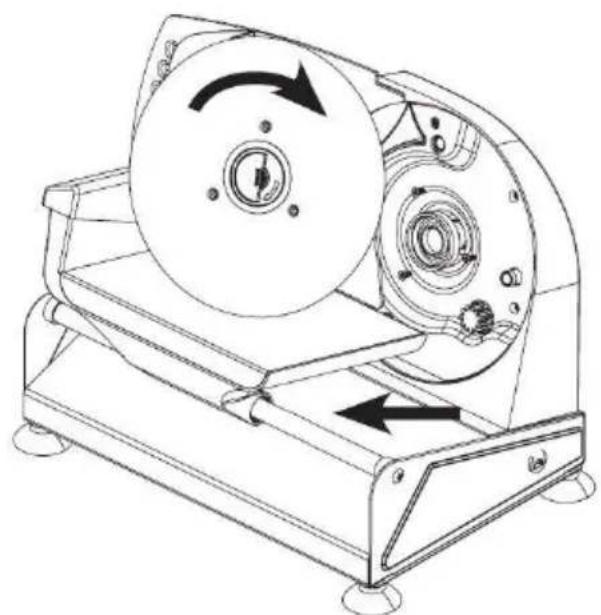

• Dry all parts well before storage. REMOVING THE BLADE (Fig. 4)

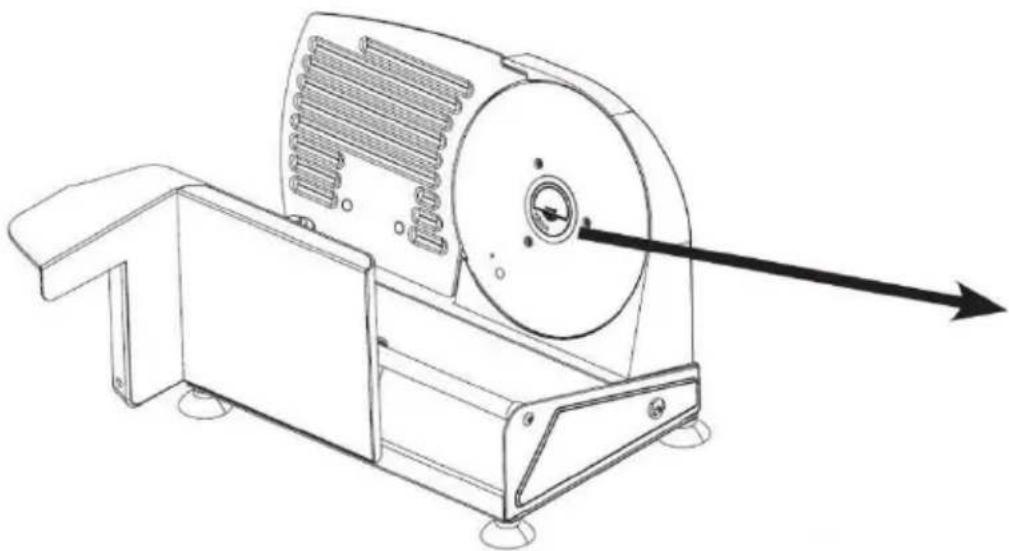

• To clean the appliance thoroughly, it is possible to remove the blade.

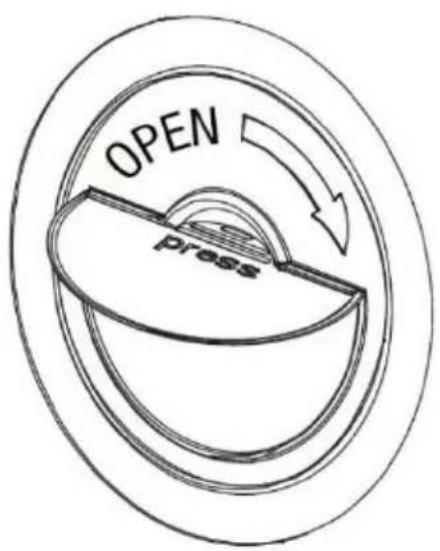

• Put the switch on the off-position, unplug the appliance and turn the locking device (3) located in the middle of the blade.

• Make sure you replace the blade in its exact original position after cleaning. Screw the locking device back on.

• When the blade is detached, make sure that no water penetrates into the appliance!

• Caution! Handle the blade with care, otherwise you might get injured as it is very sharp.

Downloaded from www.vandenborre.beCopies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

The user manual is by simple request also available in electronic format from the after-sales service (see warranty card). ErP Declaration – Regulation 1275/2008/EC We, Team Kalorik Group SA/NV, hereby confirm that our product meets the requirements of regulation 1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the power consumption, which should according to regulation 1275/2008/EC put the product in off or standby mode after finishing the main function, but this is practically impossible, as it would compromise the main function of the product so strongly, that using the product would no longer be possible! For this reason we always tell the customer in our instruction manual to unplug the appliance immediately after use.
