Product Type	TV stand with built-in speakers
Brand	Sony
Model	SUB553S (SU-B553S)
TV Compatibility	Sony KDL-55HX85x (55-inch) TVs
Dimensions (W x D x H)	772 mm x 295 mm x 295 mm
Stand Weight	6.4 kg
Material	Steel and ABS plastic
Color	Black (estimated)
Power	Powered by TV via included cable
Speakers	2 full-range speakers
Main Features	TV stand with integrated audio system, adjustable speaker position
Care and Cleaning	Wipe with a soft, dry cloth; for stubborn stains, use mild soap then dry
Safety	Mandatory attachment of TV to stand; recommendation for wall anchoring to prevent tipping
Assembly	Requires a Phillips screwdriver; max torque 1.5 N·m
Included Parts	Stand, hinge, neck, screws (10), instruction manual
Repairability	Sony customer support available; optional parts (retaining strap set)
Warranty	Information not provided in the manual; contact Sony customer service
Country of Manufacture	Not specified (likely China)

Frequently Asked Questions - SUB553S SONY

Which TVs are compatible with the SUB553S stand?

The stand is designed for Sony 55-inch TVs, models KDL-55HX85x (the 'x' indicates model-specific digits).

How to assemble the TV stand?

First attach the neck to the stand with 4 screws, then prepare the TV by removing its base. Attach the hinge to the back of the TV with 3 screws, then install the TV on the stand and secure it with 3 additional screws. Tighten screws to a torque of approximately 1.5 N·m.

How to secure the TV to the stand to prevent tipping?

Sony recommends anchoring the TV stand to the wall using a panel, corner brackets, and a strong rope or chain. Use M4×12 screws to attach the stand to the panel and an M6 anchor bolt for the wall. Optional retaining strap sets are available.

How to clean the TV stand?

Wipe regularly with a soft, dry cloth. Stubborn stains can be removed with a cloth slightly dampened with mild soap, then dry immediately. Never use thinner or benzene.

Can I use this stand with a TV of another brand?

No, this stand is designed exclusively for Sony KDL-55HX85x TVs. Use with other models may cause falls or damage.

How to connect the audio cables between the TV and the stand?

Use the provided TV stand cable to connect the TV to the stand. Ensure cables are properly connected and bundle them with the cable tie provided with the TV. Do not bundle the AC power cord with other cables.

What to do if no sound comes from the TV stand?

First check the cable connection between the TV and the stand. Then, in the TV menu, go to Settings > Sound > TV Position and select Speakers built into stand.

Is there a warranty for this stand?

The manual does not mention a specific warranty. Contact Sony customer service at the numbers provided (1-877-899-7669 for Canada, 1-800-488-7669 for the United States) or visit www.sony.com/accessories.

Where to find spare parts or accessories?

Sony offers an optional retaining strap set. To obtain it, contact Sony customer service with the model name SU-B553S. The screws and other included parts are not sold separately.

What is the height of the TV stand?

The total height of the stand (including neck) is approximately 295 mm (sum of dimensions A and B). The width is 772 mm and the depth is 295 mm.

USER MANUAL SUB553S SONY

© 2012 Sony Corporation

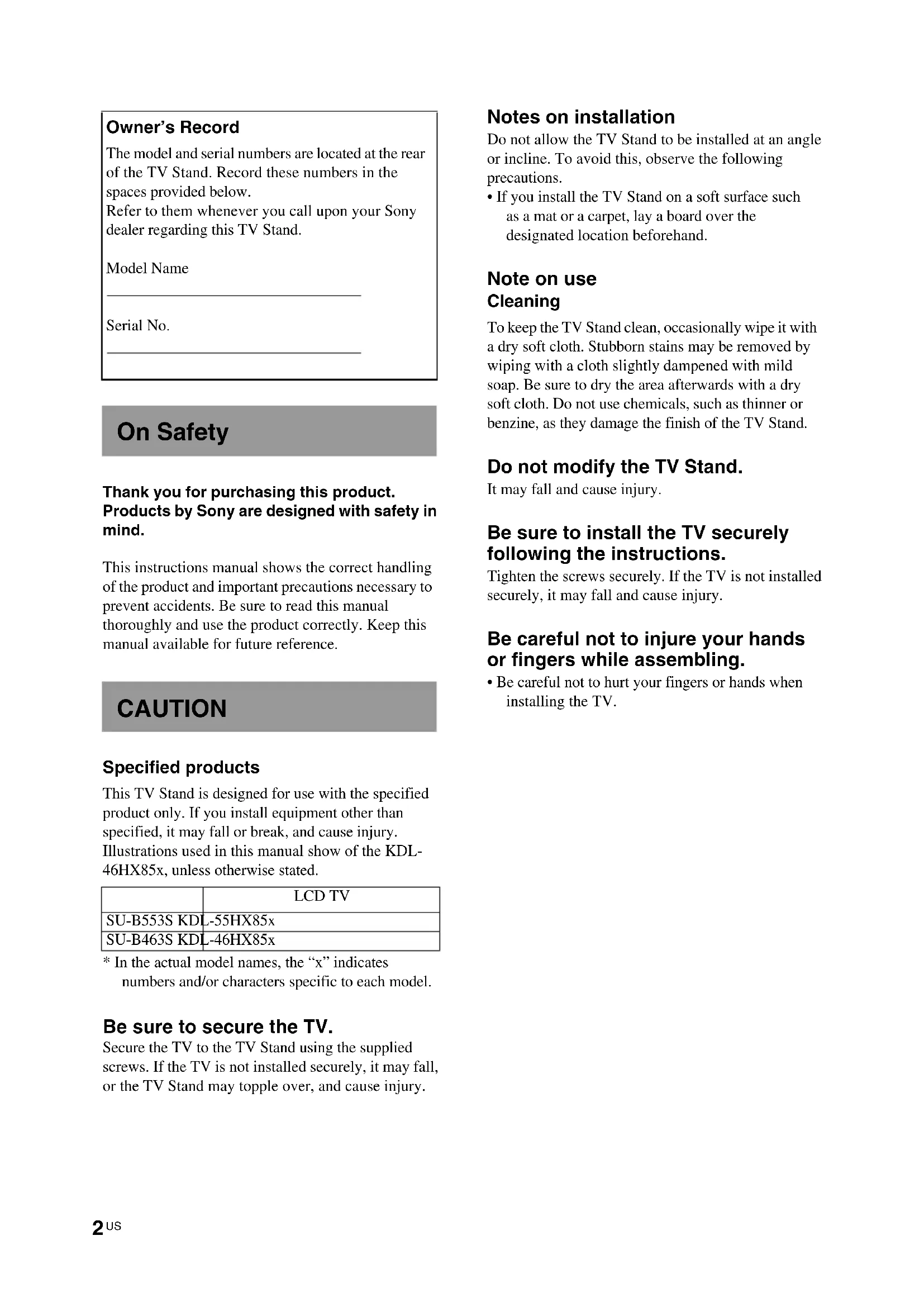

Owner's Record

The model and serial numbers are located at the rear of the TV Stand. Record these numbers in the spaces provided below.

Refer to them whenever you call upon your Sony dealer regarding this TV Stand.

Model Name

Serial No.

On Safety

Thank you for purchasing this product. Products by Sony are designed with safety in mind.

This instructions manual shows the correct handling of the product and important precautions necessary to prevent accidents. Be sure to read this manual thoroughly and use the product correctly. Keep this manual available for future reference.

CAUTION

Specified products

This TV Stand is designed for use with the specified product only. If you install equipment other than specified, it may fall or break, and cause injury. Illustrations used in this manual show of the KDL-46HX85x, unless otherwise stated.

	LCD TV
SU-B553S KDL-55HX85x
SU-B463S KDL-46HX85x

* In the actual model names, the “x” indicates numbers and/or characters specific to each model.

Be sure to secure the TV.

Secure the TV to the TV Stand using the supplied screws. If the TV is not installed securely, it may fall, or the TV Stand may topple over, and cause injury.

Notes on installation

Do not allow the TV Stand to be installed at an angle or incline. To avoid this, observe the following precautions.

- If you install the TV Stand on a soft surface such as a mat or a carpet, lay a board over the designated location beforehand.

Note on use

Cleaning

To keep the TV Stand clean, occasionally wipe it with a dry soft cloth. Stubborn stains may be removed by wiping with a cloth slightly dampened with mild soap. Be sure to dry the area afterwards with a dry soft cloth. Do not use chemicals, such as thinner or benzine, as they damage the finish of the TV Stand.

Do not modify the TV Stand.

It may fall and cause injury.

Be sure to install the TV securely following the instructions.

Tighten the screws securely. If the TV is not installed securely, it may fall and cause injury.

Be careful not to injure your hands or fingers while assembling.

- Be careful not to hurt your fingers or hands when installing the TV.

Step 1: Checking the parts

Name	Quantity
Stand	1
Joint	1
Neck	1
TV Stand Neck AttachmentScrew(PSW5 × 16) (×3)Joint Screw(PSW5 × 16) (×3)Neck Screw(PSW5 × 16) (×4)
Instructions manual 1

Refer to the operating instructions supplied with your TV for information on how to remove the Table-Top Stand from the TV.

Step 2: Installing the TV

Before assembling

• Be sure to have a Phillips screwdriver that fits the screws prior to the assembly.
• When using an electric screwdriver, set the torque setting to approximately 1.5 N · m {15 kgf·cm}.

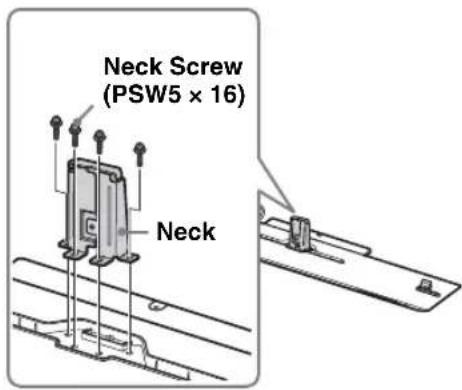

1 Attach the Neck to the TV Stand with the four Neck Screws (PSW5 × 16) (supplied).

2 Prepare the TV.

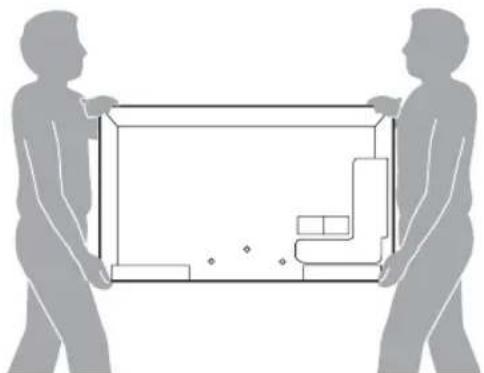

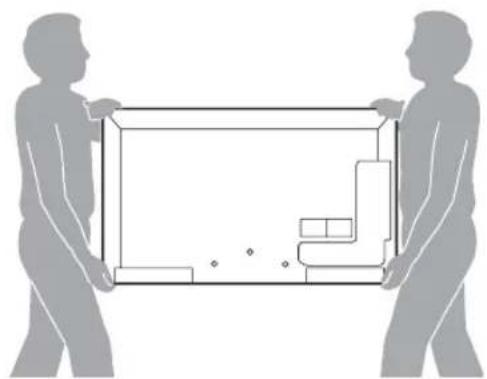

When moving the TV, be sure that two or more persons install the TV on the TV Stand as shown in the illustration. If one person does the installation work alone, this may result in an accident or injury.

(Continued)

3

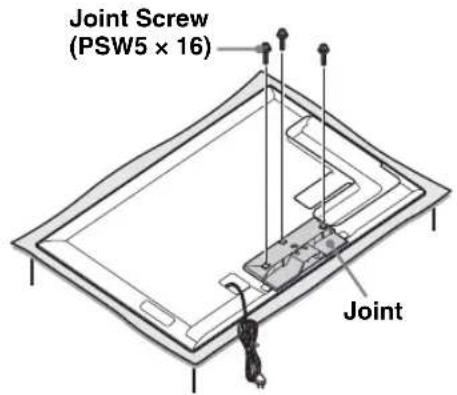

Attach the supplied Joint to the rear of the TV with the three screws (PSW5 × 16) (supplied).

Slide the supplied Joint up to attach.

• Make sure to keep the removed screws.
• When removing the Table-Top Stand from the Display, lay the display face down on a stable work surface that is larger than the Display.
• To prevent damaging the surface of the LCD display, make sure to place a soft cloth on the work surface.

CAUTION

• If pressure or shock is applied to the surface of the Display, the LCD display may break or become damaged.
• Lay the display face down on a stable and level surface with the Table-Top Stand hanging over the edge of the surface. Having the display face and the base of the Table-Top Stand on the same level surface will create an unstable working condition and can damage the Display.

4

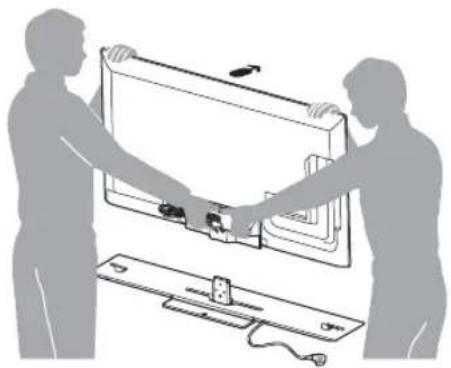

Install the TV onto the TV Stand.

When installing the TV on the TV Stand, hold the TV as shown in the illustration and install it on the two brackets of the TV Stand.

Arrow direction shows front of the TV

Stand.

5

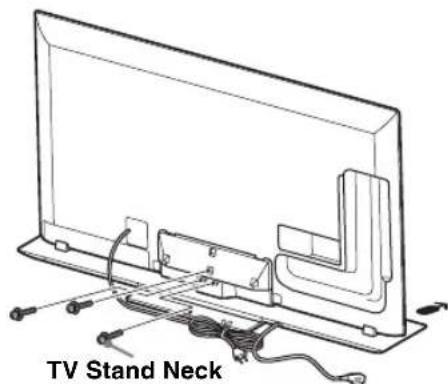

Secure the TV and the TV Stand with the three TV Stand Neck Attachment Screws (PSW5 × 16) (supplied).

Attachment Screw (PSW5 × 16)

6

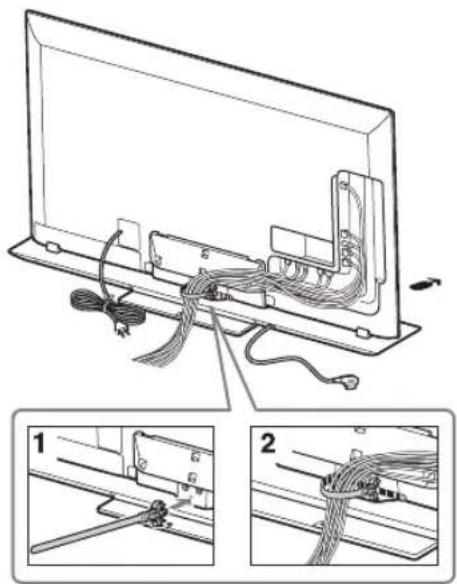

Bundling the cables.

Use the cable clamper supplied with the TV.

[NO TEXT] - Do not bundle the AC power cord together with other cables.

Step 3: Safety measures to prevent toppling over

WARNING

Be sure to take measures to prevent the TV Stand from toppling over, and causing possible injury and damage.

Securing the TV and the TV Stand

Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death.

Preventing the TV and the TV Stand from toppling

• Secure the TV to a wall and/or board.
• Do not allow children to play or climb on furniture and TV sets.
• Avoid placing or hanging items on the TV.
• Never install the TV on: – slippery, unstable and/or uneven surfaces. – furniture that can easily be used as steps, such as a chest of drawers. • Install the TV where it cannot be pulled, pushed, or knocked over.
• Route all AC power cords and connecting cables so that they are not accessible to curious children.

Recommended measures to secure the TV and the TV Stand

Consider the following measures when securing your TV to a board (not supplied).

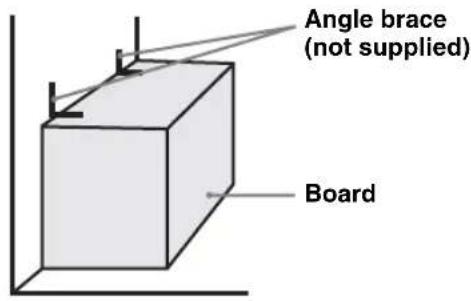

①Secure the board for the TV.

Make sure the board can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the board. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.
• Attach the other side to the board.

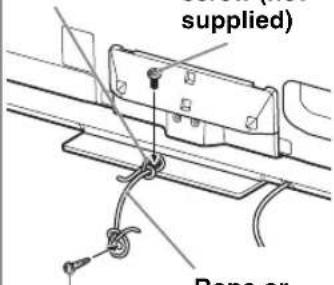

②Secure the TV to the board.

Use the optional hardware listed below (not supplied):

• M4 × 12 machine screw (screwed into the TV Stand) • A screw or similar (attach it to the board)
• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain.

An alternative way to secure the TV is with an optional Sony Support Belt Kit.

Screw hole on the TV Stand M4 × 12 machine screw (not supplied)

Screw (not supplied) Rope or chain (not supplied)

Contact Sony Customer Support to obtain the optional Support Belt Kit by providing your TV Stand model name (SU-B553S/B463S).

• For United States call: 1-800-488-7669 or visit: www.sony.com/accessories • For Canada call: 1-877-899-7669

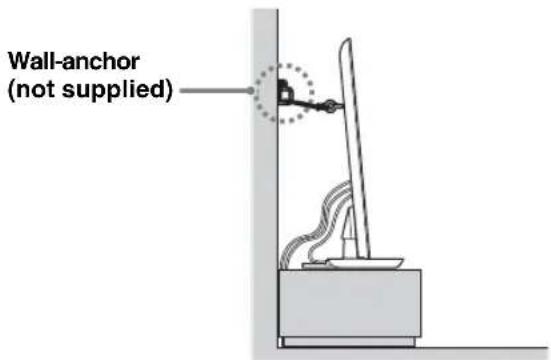

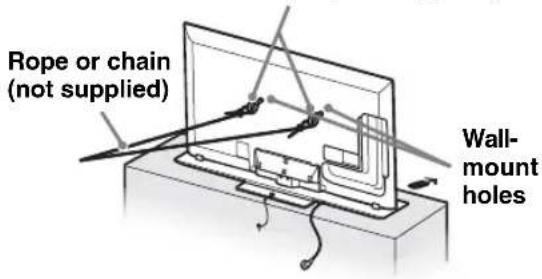

③ Anchor the TV to the Wall.

Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).

• TV SET is shipped with screws attached to the rear of the TV. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV on a wall.
• Securing the TV to the board without securing the TV and the board to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended.

Anchor bolts (M6, not supplied)

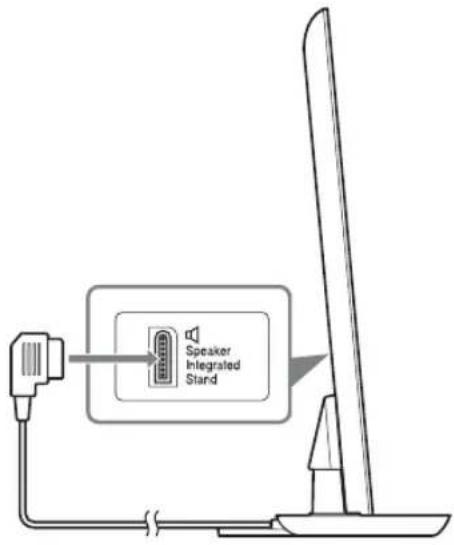

Step 4:

Connecting the TV

Connect the TV with a Speaker Integrated Stand to the TV Stand using the cable of the TV Stand.

Step 5: Performing the TV settings

Set to "Speaker Integrated Stand" in "TV Position" menu.

Press the HOME button of the remote of the TV and select the menu as follows:

Settings > Sound > TV Position > Speaker

Integrated Stand

Troubleshooting

Sound

No sound from the TV Stand:

• Check the cable connection. Abnormal sound:
• Check the sound setting. Set “TV Position” to “Speaker Integrated Stand” in the “Sound” setting.

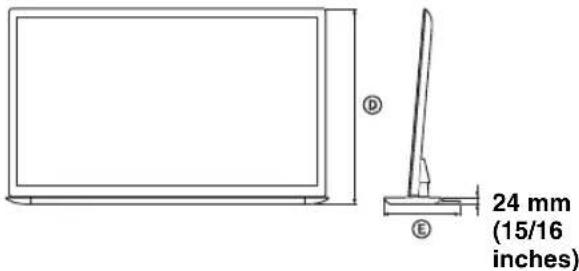

Specifications

		SU-B553S SU-B463S
Dimensions: mm (inches)	A	72 (2 7/8) 65 (2	5/8)
	B	223 (8 7/8) 190	(7 1/2)
	C	1,294 (51) 1,097	(43 1/4)
	D	772 (30 3/8) 663	(26 1/8)
	E	295 (11 5/8) 255	(10 1/8)
Stand Weight:		6.4 kg (14.2 lb)	5.3 kg (11.7 lb)

Speakers

Full Range (2)

Design and specifications are subject to change without notice.

2 Prepare a TV.

③Mount the TV on the wall.

Mount the TV on the wall using the screws, wall bracket, and chain (or rope).
