CFVEB522 - Other computer accessories PANASONIC - Free user manual and instructions

Product Type	Port replicator (docking station) for laptop
Brand	Panasonic
Model	CFVEB522
Compatibility	Panasonic CF-52 series laptop (only)
Dimensions (W × H × D)	408 mm × 68 mm × 225 mm
Weight	Approx. 1.5 kg
Power supply	15.6 V DC via specified AC adapter (CF-AA5803A)
Expansion bus connector	100 pins
Available ports	4 USB ports, 1 LAN port (1000BASE-T/100BASE-TX/10BASE-T), 1 external display port (VGA), 1 serial port, 1 DisplayPort, 1 DC-IN jack, Kensington lock
Operating temperature	5 °C to 35 °C
Operating humidity	30% to 80% (non-condensing)
Main functions	Allows connecting multiple peripherals without plugging/unplugging cables each time you move
Display switching	Priority to DisplayPort; switching via Fn+F3 between internal display, DisplayPort, and analog interface
Connection	Laptop turned off, AC adapter connected to replicator, then slide laptop onto connector
Disconnection	Laptop turned off, slide the RELEASE lever backward, then lift the laptop
Safety	Do not use with other AC adapters; do not connect in presence of liquid; do not touch the bus connector; unplug immediately if malfunction
Maintenance	Avoid moisture, dust, and high temperatures; do not place metal objects or liquids on the product
Supplied accessories	Port replicator, instruction manual
Warranty	Consult Panasonic technical support in case of issues

Frequently Asked Questions - CFVEB522 PANASONIC

Which laptop models are compatible with the CFVEB522 port replicator?

This port replicator is only compatible with Panasonic laptops from the CF-52 series. It cannot be used with other models.

How to connect the laptop to the port replicator?

Turn off the laptop and disconnect all cables. Connect the AC adapter to the DC-IN jack on the replicator. Slide the laptop onto the replicator aligning the connectors, then gently lower until the bus connector clicks into place.

Can I connect or disconnect the port replicator while the laptop is on?

No, it is strictly prohibited to connect or disconnect the replicator when the laptop is on, in sleep mode, or in hibernation. Doing so may damage the hardware.

What ports are available on the port replicator?

The replicator features 4 USB ports, one LAN port (compatible with 1000BASE-T, 100BASE-TX, 10BASE-T), one external display port (analog interface), one serial port, one DisplayPort, and a DC-IN jack. It also includes a Kensington security lock.

How to switch between different displays?

Use the Fn+F3 key combination. The switching order is: internal LCD display, internal LCD + external display (DisplayPort), external display (DisplayPort), internal LCD + external display (analog interface), external display (analog interface), then external display (analog interface) + external display (DisplayPort).

What is the required power supply voltage for the port replicator?

The replicator requires a 15.6 V DC power supply. Use exclusively the specified Panasonic AC adapter (model CF-AA5803A) supplied with the laptop.

What to do in case of replicator malfunction?

Immediately disconnect the AC adapter and remove the laptop. If the product is damaged, emits smoke, an unusual odor, or is abnormally hot, contact Panasonic technical support.

Can I use an interface cable longer than 3 meters?

It is not recommended to use an interface cable longer than 3 meters, as this may cause operational issues.

What are the dimensions and weight of the port replicator?

Dimensions are 408 mm × 68 mm × 225 mm (width × height × depth) and weight is approx. 1.5 kg.

How to clean the port replicator?

Avoid any contact with water, moisture, steam, or dust. Use a dry, soft cloth to wipe it. Do not use chemical products.

USER MANUAL CFVEB522 PANASONIC

3D rendering of a device casing with internal components and mounting brackets (no text or symbols)

Panasonic®

Port Replicator

for CF-52 Series

Personal Computers

Model No. CF-VEB522

ENGLISH	OPERATING INSTRUCTIONS
	Precautions 6Names and Functions of Parts 7Connecting/Disconnecting 8Switching the Display 10

E

Use of an interface cable longer than 3 m {9.84 feet} is not recommended.

11-E-1

Schnittstellenkabel

Information on Disposal for Users of Waste Electrical & Electronic Equipment (private households)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

Please dispose of this item only in designated national waste electronic collection schemes, and not in the ordinary dust bin.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

36-E-1

DEUTSCH

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

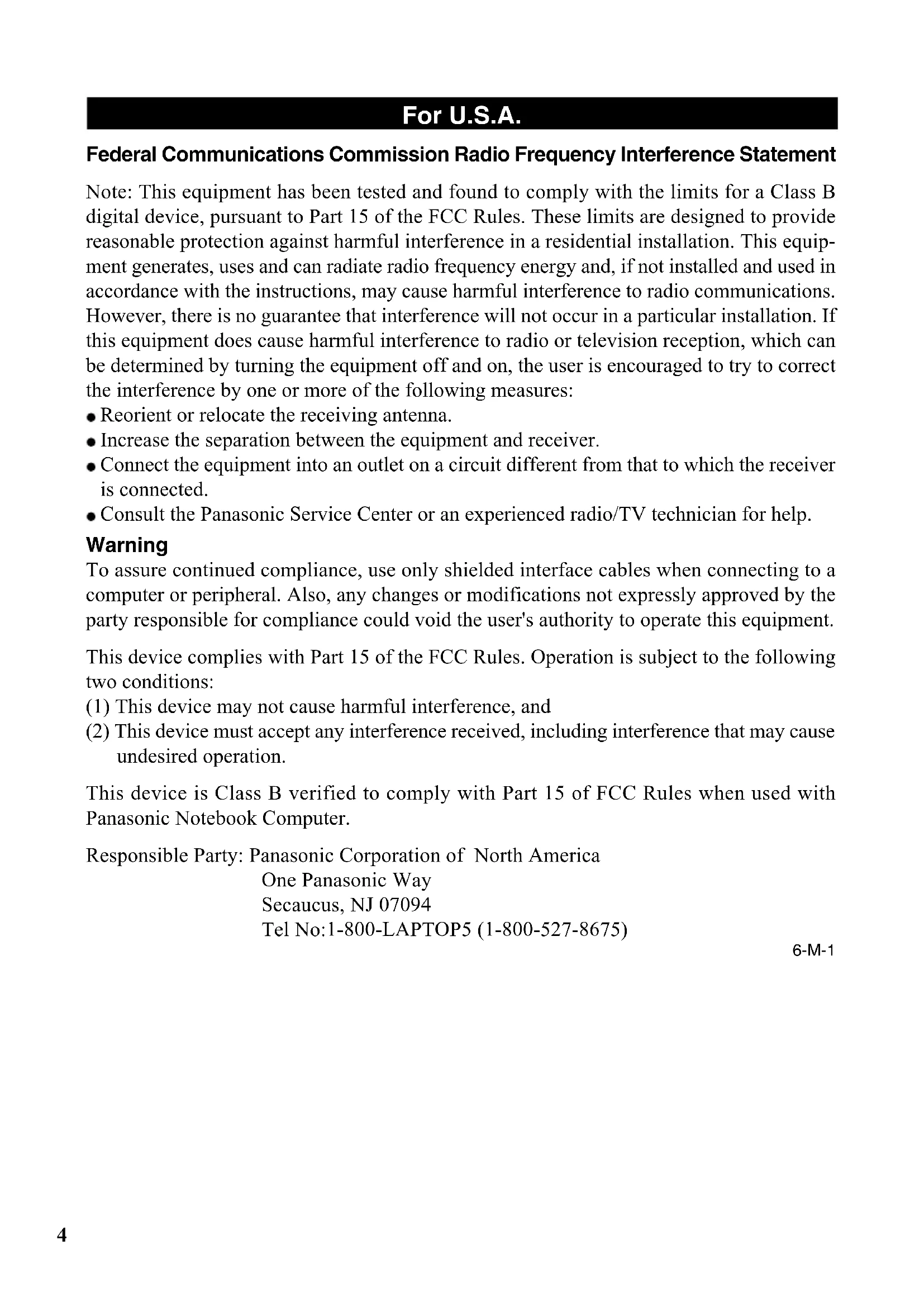

Federal Communications Commission Radio Frequency Interference Statement

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced radio/TV technician for help.

Warning

To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral. Also, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

This device is Class B verified to comply with Part 15 of FCC Rules when used with Panasonic Notebook Computer.

Responsible Party: Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Tel No:1-800-LAPTOP5 (1-800-527-8675)

6-M-1

ENGLISH

Thank you for purchasing the port replicator for the Panasonic CF-52 note-book computer series ^*1 .

By connecting your peripheral devices to the port replicator, you can save yourself the trouble of having to connect and disconnect several cables every time you transport the computer.

*1 This port replicator cannot be used for other models.

Parts Inclusion

Port Replicator ...... 1	Operating Instructions ...... 1

- Specifications

Item	Description
Power Supply Input	DC 15.6 V [Do not use other than the specified AC adaptor (Model No. CF-AA5803A)].
Expansion Bus Connector	100-pin
Physical Dimensions (Width × Height × Depth)	408 mm × 68 mm × 225 mm{16.1" × 2.7" × 8.9"}
Weight	Approx. 1.5 kg {3.3 lb.}
Operating Environment Temperature / Humidity	5 to 35 °C {41 to 95 °F} / 30 to 80 % RH(No condensation)

Refer to “Specifications” in the “Operating Instructions” accompanying the computer for information on the connectors and ports on the rear panel of the port replicator.

- Do Not Place Containers of Liquid or Metal Objects on Top of This Product

If water or other liquid spills, or if paper clips, coins, or foreign matter get inside this product, fire or electric shock may result.

- If foreign matter has found its way inside, immediately unplug the AC plug and remove the unit from this product. Then contact your technical support office.

- If a Malfunction Occurs, Immediately Unplug the AC Plug and Remove the Unit From This Product

• This product is damaged
- A foreign object is inside this product
- Smoke is emitted
• An unusual smell is emitted
- Unusually hot

Continuing to use this product while any of the above conditions are present may result in fire or electric shock.

- If a malfunction occurs, immediately unplug the AC plug and remove the unit from this product. Then, contact your technical support office.

- Use Only the Specified AC Adaptor With This Product

Using an AC adaptor other than the one supplied (attached to your product or supplied by Panasonic) may result in a fire.

- Do Not Touch This Product and Cable When It Starts Thundering

Electric shock may result.

- Do Not Place This Product on Unstable Surfaces

If balance is lost, this product may fall over or drop, resulting in an injury.

- Do Not Connect a Telephone Line, or a Network Cable Other Than the One Specified, Into the LAN Port

If the LAN port is connected to a network such as the ones listed below, a fire or electric shock may result.

- Networks other than 1000BASE-T, 100BASE-TX or 10BASE-T

- Phone lines (IP phone (Internet Protocol Telephone), Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)

- Do Not Keep This Product Wherever There is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.

Otherwise, possibly resulting in fire or electric shock.

- Do Not Leave This Product in High Temperature Environment for a Long Period of Time

Leaving this product where it will be exposed to extremely high temperatures such as near fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts. Continued use in such a resulting condition may lead to short-circuiting or insulation defects, etc. which may in turn lead to a fire or electric shocks.

Names and Functions of Parts

The port replicator allows your peripheral devices to function exactly as if they were connected directly to the computer. (Refer to “Description of Parts” in the “Operating Instructions” accompanying the computer.)

CAUTION

Do not touch the expansion bus connector, pins or springs of the port replicator.

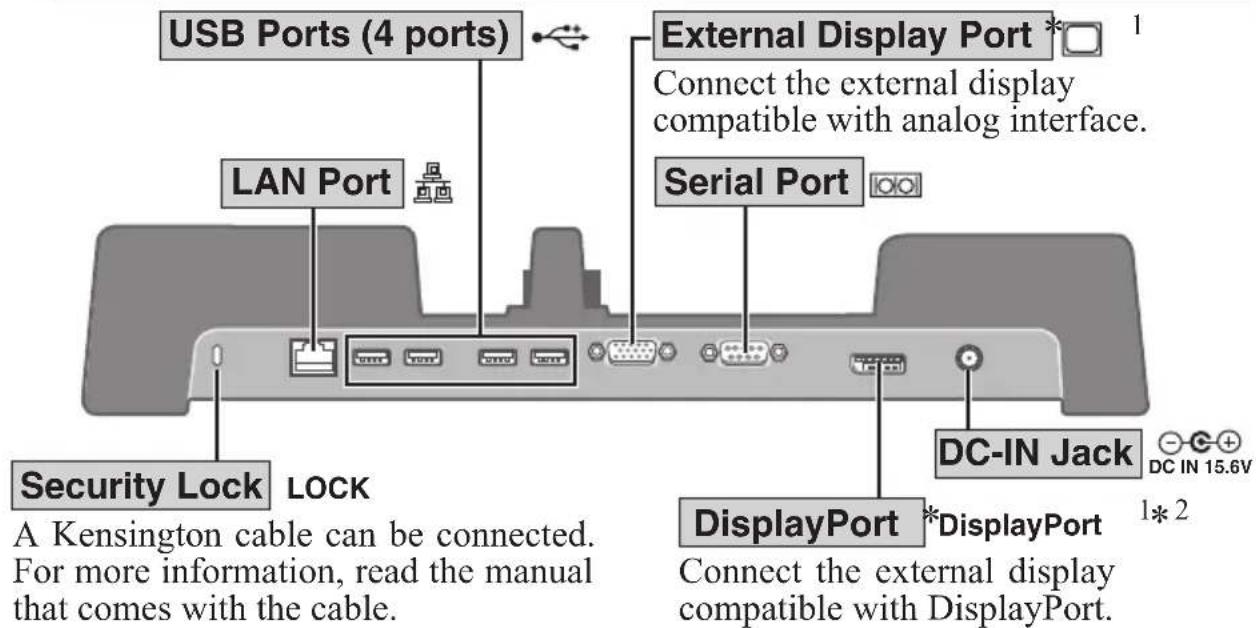

- Rear

When using the LAN function with the computer attached to the port replicator, use the port replicator's LAN Port.

Do not use the computer's LAN Port although it is visible when opening the cover of the rear of the computer and using the Modem Port.

USB Ports (4 ports) LAN Port External Display Port *1 Connect the external display compatible with analog interface. Serial Port Security Lock LOCK DC-IN Jack DC IN 15.6V DisplayPort *DisplayPort 1*2 Connect the external display compatible with DisplayPort. A Kensington cable can be connected. For more information, read the manual that comes with the cable.

*1 Display may be impossible using some connected external displays. For display switching when an external display compatible with analog interface and external display compatible with DisplayPort are connected at the same time, refer to “Switching the Display” (→ page 10).
^*2 Not applicable to .

● Front/Right Side

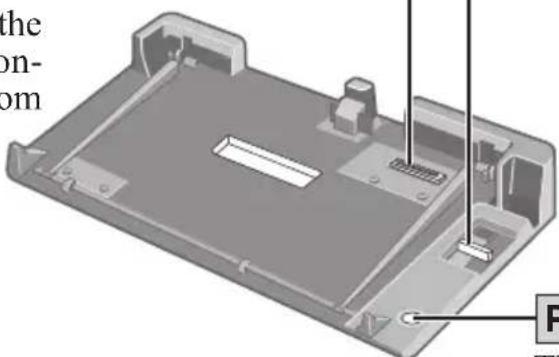

Expansion Bus Connector

This connects to the expansion bus connector on the bottom of the computer.

3D diagram of a device casing with internal components and a labeled component (no readable text or symbols)

Lever

Slide the lever all the way back to release the computer.

Power Switch

This operates identically to the power switch on the computer.

Connecting/Disconnecting

CAUTION

Do not connect or disconnect the port replicator while the computer is powered on or in the sleep (Windows Vista), standby (Windows XP) or hibernation mode.

Connecting

1 Power off the computer, and disconnect all cables from the computer.

2 Connect the plug of the AC adaptor that came with the computer to the DC-IN jack of the port replicator and plug the other end into an AC outlet.

Diagram of a cable connection between two devices, one with a connector and the other with a cable (no text or symbols)

CAUTION

- Refer to the “Operating Instructions” accompanying computer for information on proper handling of the AC adaptor and AC cord.

3 Slide the computer onto the port replicator, align the back of the computer with the back of the port replicator, and then slowly lower the computer to connect the expansion bus connector.

3D rendering of a mechanical component with mounting holes and internal structure (no text or symbols)

CAUTION

- Do not connect the computer to a port replicator while the computer is connected to the AC adaptor or other cables.

- Do not attempt to make connections if there is any object between the computer and the port replicator. Doing so could damage the computer and the port replicator.

4 Press the computer firmly against the port replicator. This will cause the expansion bus connector on the bottom of the computer to connect to the expansion bus connector of the port replicator.

3D rendering of a mechanical device with two arrows pointing to features (no text or symbols visible)

CAUTION

● While connecting the computer to the port replicator:

• Do not attempt to move the port replicator.
• Do not open the display wider than necessary (180° or more).
• It is impossible to remove the battery pack and the hard disk drive.

- If the computer malfunctions while the port replicator is attached, disconnect the port replicator and check to see if the computer operates normally. If the computer operates normally, the port replicator may be malfunctioning. Contact Panasonic Technical Support.

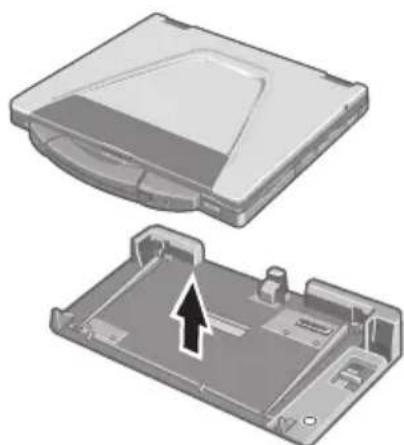

Disconnecting

1 Power off the computer and close the display.

2 Slide the lever all the way back. The computer's connector disengages the expansion bus connector of the port replicator.

Close-up of a computer hard drive showing internal components and a black arrow indicating a location (no text or symbols visible)

CAUTION

● After sliding the lever, do not release it suddenly. The lever may be locked again.
- Do not slide the lever while pressing against the computer from above. Doing so could damage the computer.

3 Lift up the computer to remove it from the port replicator.

Two views of a flat electronic device showing internal components and a highlighted section (no text or symbols visible)

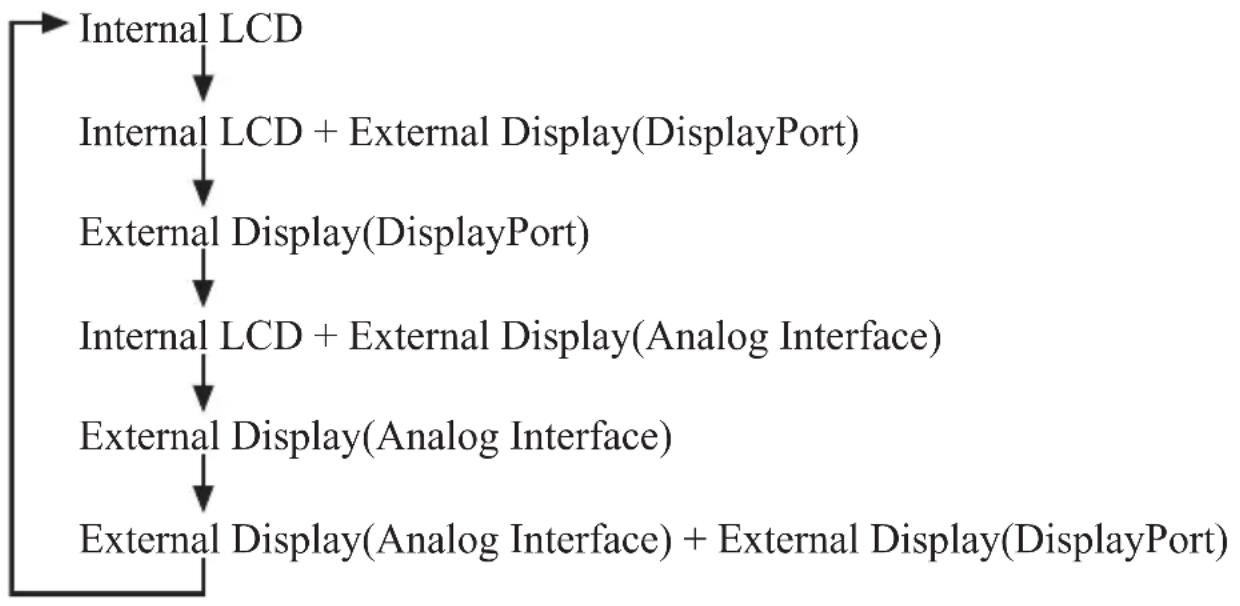

Switching the Display

When 2 external displays compatible with analog interface and DisplayPort respectively are connected at the same time and when [Display] is set to [External Monitor] or [Simultaneous] in the Setup Utility, the display compatible with DisplayPort will take priority over the display compatible with analog interface. The displays switch by pressing Fn + F3 as follows.

DEUTSCH

Diagram of a cable and plug connection (no text or symbols)

3D rendering of a mechanical device housing with mounting brackets and internal components (no text or symbols visible)

VORSICHT

3D rendering of a computer case with two arrows pointing to the lid (no text or symbols visible)

VORSICHT

Close-up of a mechanical component with a highlighted section and arrow (no visible text or symbols)

VORSICHT

Two views of a computer flash drive showing internal components (no text or symbols)

Diagram of a cable and plug connection (no text or symbols)

ATTENTION

3D rendering of a mechanical device casing with internal components and mounting holes (no text or symbols visible)

ATTENTION

3D rendering of a computer monitor with two arrows pointing to the lid (no text or symbols visible)

ATTENTION

Close-up of a mechanical component with a black arrow pointing to a detail (no visible text or symbols)

ATTENTION

Two views of a flat electronic device showing internal components and an arrow indicating a specific part (no text or symbols present)
