DO8306TP - Grill plate DOMO - Free user manual and instructions

Brand	DOMO
Model	DO8306TP
Product type	Grill plate / Teppanyaki
Plate coating	Non-stick
Number of cooking zones	1 (single surface)
Temperature setting	Variable (positions 0 to 5)
Indicator light	Yes (indicates power on)
Plug	Removable with integrated thermostat
Handles	Cool Touch (heat-resistant)
Drip tray	Removable for grease and moisture
Included accessories	Wooden or heat-resistant plastic spatulas
Power supply	Mains, grounded plug (voltage and frequency as per label)
Recommended use	On a flat, heat-resistant surface
Maintenance and cleaning	Clean the plate with a soft sponge and warm soapy water; removable tray washable; do not immerse the appliance
Safety	Manual shutdown; do not use with an extension cord; not recommended for children under 16 without supervision
Warranty	2 years (from purchase date); accessories and wear parts 6 months
After-sales service	Linea 2000 (Belgium) – [phone], [e-mail]
Spare parts and accessories	Available online on the official DOMO website
Country of origin	Not specified

Frequently Asked Questions - DO8306TP DOMO

How to use the DO8306TP grill plate for the first time?

Remove all packaging and stickers. Clean the plate with a damp cloth. Place it on a heat-resistant surface. Plug it in and heat empty for 10 minutes (max position) to eliminate manufacturing residues. A slight smoke may appear (normal). Then clean with paper towels. Before first cooking, lightly oil the plate.

What utensils to use on the non-stick plate?

Use only the supplied wooden or heat-resistant plastic spatulas. Never use metal utensils (forks, knives) that could scratch and permanently damage the non-stick coating.

How to adjust the temperature on the DO8306TP model?

Turn the thermostat from position 0 (off) to 5 (maximum). The red indicator light turns on. For grilling meat, preheat on max then place the food. For gentle cooking, choose an intermediate position. After use, turn back to 0 and unplug.

Can I use the plate with an extension cord?

No, using an extension cord is prohibited. The short power cord is designed to avoid tangling and overheating risks. Plug directly into a grounded wall outlet.

How to clean the plate after use?

Unplug and let cool completely. Remove food residues using a wooden or plastic spatula. Clean the plate with a soft sponge soaked in warm water and dish soap. Never immerse the appliance in water. The grease drip tray is removable and can be washed separately with warm soapy water.

What to do if the plate no longer heats up?

Check that the plug is properly connected and that the thermostat is not on 0. If the indicator light does not come on, the appliance may be defective. Contact after-sales service (Linea 2000, [phone]) or an authorized technician. Do not attempt to repair yourself.

Can I leave the appliance unattended while cooking?

No, never leave the appliance unattended while it is operating. Surfaces become hot and pose a risk of burns or fire.

What is the warranty period for the DO8306TP plate?

The warranty is 2 years from the date of purchase upon presentation of the receipt. Accessories and wear parts are guaranteed for 6 months. The warranty does not cover defects due to misuse, unauthorized repair, or normal wear.

Can I use the plate on a glass or plastic table?

No, always place the appliance on a flat, heat-resistant surface (e.g., stone, metal, or treated wood worktop). Avoid heat-sensitive surfaces such as glass, plastic, or tablecloths.

How to store the grill plate?

Ensure it is clean and completely cooled. Store it in a dry place, away from dust. Do not leave the cord wrapped around the appliance. The drip tray can be stored separately.

USER MANUAL DO8306TP DOMO

Black rectangular grating with two handles and a central heating element, isolated on white background (no text or symbols)

DO8306TP

Handleiding Teppanyaki XXL

Mode d'emploi Plancha XXL

Gebrauchsanleitung Teppanyaki XXL

Instruction booklet Teppanyaki XXL

Manual de instrucciones Teppanyaki XXL

Istruzioni per l'uso Teppanyaki XXL

Návod k použití Stolní deskový gril XXL

Návod na použitie Stolný doskový gril XXL

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Close-up of a black electronic component with a white arrow pointing to it (no visible text or symbols)

MILIEURICHTLIJNEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black electronic component with a white arrow pointing to it, no visible text or symbols.

MISE AU REBUT

FR

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a circular knob and cable (no visible text or symbols)

TIPPS

Close-up of a black electronic component with a white arrow pointing to it (no visible text or symbols)

ENTSORGEN

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

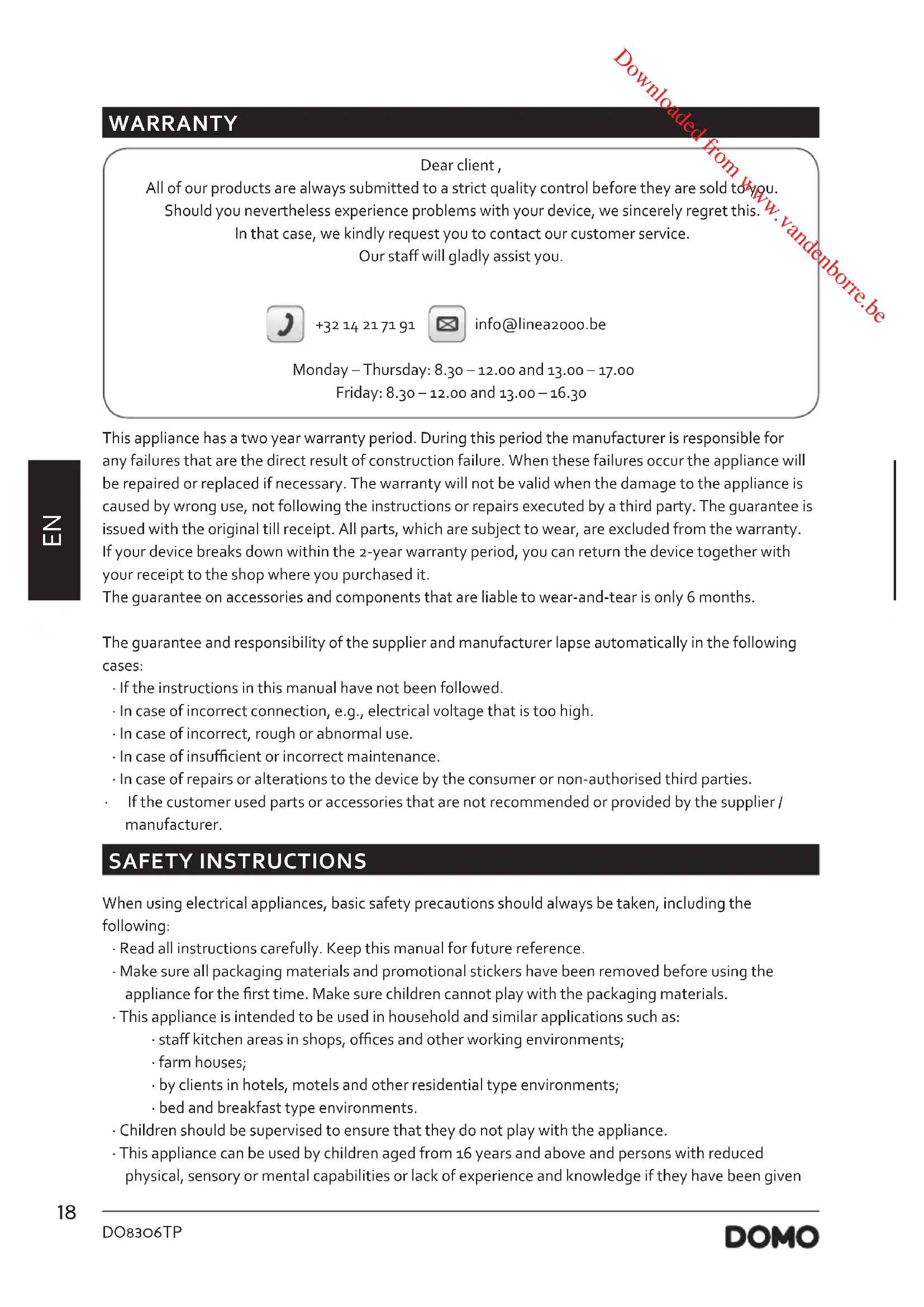

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

· This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliances

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

- The supply cord should be regularly examined for signs of damage, and if the cord is damaged, the appliance must not be used.

- The appliance must be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA.

· The appliance is to be connected to a socket-outlet having an earthing contact.

- The surfaces of the appliance are likely to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

· Never leave the appliance unattended while it is functioning.

- Do not use or store this appliance outdoors.

· Do not move the appliance while in use or when still hot. Allow to cool before moving the appliance.

- Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency match the indications on the rating label of the appliance.

- The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.

- Only use the utensils delivered with the appliance.

- Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO / BENCO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

· To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.

- Unwrap the cord completely to prevent overheating of the cord.

- Do not let the power supply cord hang over the edge of counter, or touch hot surfaces.

- Do not allow the power cord supply to run underneath or around the unit.

- Do not place on or near a hot gas or electric burner or sink, or in a heated oven.

- Do not place near flammable materials, gases or explosives.

· Do not place near objects that may catch fire such as curtains, towels ...

- Make sure the appliance is correctly assembled, then plug the cord in the wall outlet. To disconnect, turn controls to "OFF" or "o" position then remove plug from wall. Never pull the cord or appliance to remove the plug from the socket.

· Do not use the appliance if there is any water in it or the parts are still wet after cleaning.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Do not use the product on a surface which could be damaged by heat or steam.

· Always place the appliance on a flat and stable surface.

· Any injury or damage caused by failure to comply with these rules are at your own risk.
· Neither the manufacturer, importer or the supplier may be held liable.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

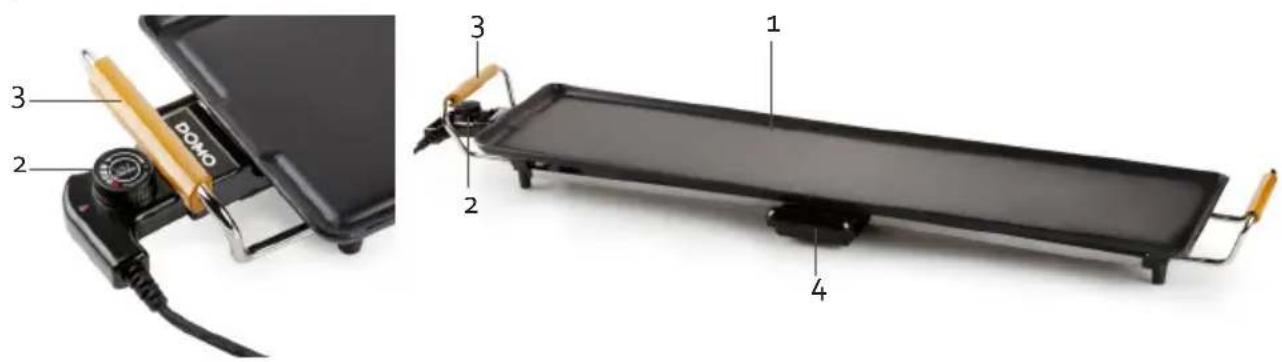

PARTS

1. Backing surface with non-stick Teflon coating
2. Removable adaptor with thermostat and indicator light
3. 'Cool touch' handles
4. Catch basin for fat and moisture

3 2 DOMO 3 2 1 4

BEFORE THE FIRST USE

• Remove all packaging materials and clean the appliance carefully before using for the first time (see cleaning).
• The appliance heats up during use, so place the appliance on a heat-resistant surface and never put it on a plastic table or plastic tablecloth.
• Make sure there is adequate ventilation around the appliance. Turn the teppanyaki plate on for 10 minutes without putting any food on it. There will be a small amount of smoke and a slight odour that will disappear quickly. This is normal. Clean the teppanyaki plate with absorbent paper or a clean dry cloth to remove any residue.
• It is recommended that you grease the griddle with a small amount of oil when using it for the very first time.

Make sure that sharp objects such as forks do not damage the special coating on the teppanyaki. Small fragments could become loose and your appliance could get irreparably damaged. Always use the wooden spatulas or a heat resistant plastic model.

USE

Set the thermostat to o and plug the adaptor into the appliance. Put the plug in the socket.

SETTING THE TEMPERATURE

• You can set the temperature of the appliance as desired. The temperature ranges from a minimum of (0) to a maximum of (5). A medium temperature is recommended.
  · This switch is also the on/off switch, and o is the off position.
• Turn the temperature regulator to the desired position. The red indicator light will light up to show that the appliance is in use.

Close-up of a black electrical connector with a circular knob and wire (no visible text or symbols)

TIPS

• Defrost frozen food before laying it on the teppanyaki.
• In order to grill meat adjust the thermostat to maximum and make sure that the appliance is thoroughly heated before laying the meat on the griddle.
• If you only need to use a part of the teppanyaki, then place the food in the middle to obtain the ideal cooking result.

CLEANING AND MAINTENANCE

- Set the thermostat to minimum (o), remove the plug from the socket and wait until the teppanyaki has cooled down completely.

- It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.

- Do not immerse any part of the teppanyaki plate in water or any other liquid. Should water get on the electrical contacts, dry them off carefully.

- Wipe the baking tray clean with a soft cloth or kitchen roll. For the removal of dried food residues, use a soft sponge with hot water and a small amount of dish-washing detergent.

- The catch basin for fat and moisture can be removed for easy cleaning. Clean it in hot water using a mild detergent.

- Do not use any corrosive or abrasive products or brushes.

Close-up of a black electronic component with a white arrow pointing to it, no visible text or symbols.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a black mechanical component with a knob and threaded shaft (no visible text or symbols)

CONSEJOS

Close-up of a black electronic component with a white arrow pointing to it (no visible text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black mechanical component with a metallic tip and threaded end (no visible text or symbols)

SUGGERIMENTI

Close-up of a black electronic component with a small arrow pointing to it (no visible text or symbols)

MISURE AMBIENTALI

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Diagram of a device with labeled parts including a zoomer, power cord, and heating element

PŘED PRVNÍM POUŽITÍM

Close-up of a black mechanical component with a metallic tip and threaded shaft (no visible text or symbols)

TIPY:

Close-up of a black electronic component with a white arrow pointing to it (no visible text or symbols)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a black electrical connector with a circular knob and cable (no visible text or symbols)

TIPY:

Close-up of a black plastic clip or clip with an arrow pointing to it, no visible text or symbols.

OHL'AD NA ŽIVOTNÉ PROSTREDIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)
