| Product Type | Power conditioner with surge protection and filtering |
| Brand | Furman |
| Model | PLPro DMC E |
| Dimensions (H x W x D) | 1.75 in x 19 in x 10.5 in |
| Weight | 5.5 kg |
| Power Input | 220-240 VAC, 50/60 Hz, 16 A |
| Rated Current | 16 A (3680 watts) |
| Operating Voltage | 180 to 274 VAC |
| Surge Protection | SMP (Series Multi-Stage Protection) and EVS (Extreme Voltage Shutdown) |
| Noise Filtering | LiFT (Linear Filtering Technology) - 10 dB attenuation at 10 kHz, 40 dB at 100 kHz, 50 dB at 500 kHz |
| Number of Outlets | 1 front + 10 rear (11 outlets total) |
| USB Charger | Yes, on front panel |
| Lighting | Two retractable Smooth Track LED lamps with dimmer, plus rear BNC socket for gooseneck lamp (12 VAC 0.5 A) |
| Display | Precise digital RMS voltmeter and ammeter, tri-color voltage indicator |
| Circuit Breaker | 16 A, resettable |
| Power Consumption | 6 watts |
| Surge Response Time | 1 nanosecond |
| Construction | Steel chassis, brushed black anodized aluminum front panel |
| Safety Standards | CE |
| Warranty | 5 years limited |
| Maintenance and Cleaning | Clean with a damp cloth only; do not use solvent |
| Safety | Do not expose to water or moisture; refer all servicing to qualified personnel |
| Spare Parts and Repairability | Gooseneck lamp available as option (GN-I, GN-LED); repair by Furman or authorized technician |
Frequently Asked Questions - PLPro DMC E Furman
User questions about PLPro DMC E Furman
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power conditioner in PDF format for free! Find your manual PLPro DMC E - Furman and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PLPro DMC E by Furman.
USER MANUAL PLPro DMC E Furman

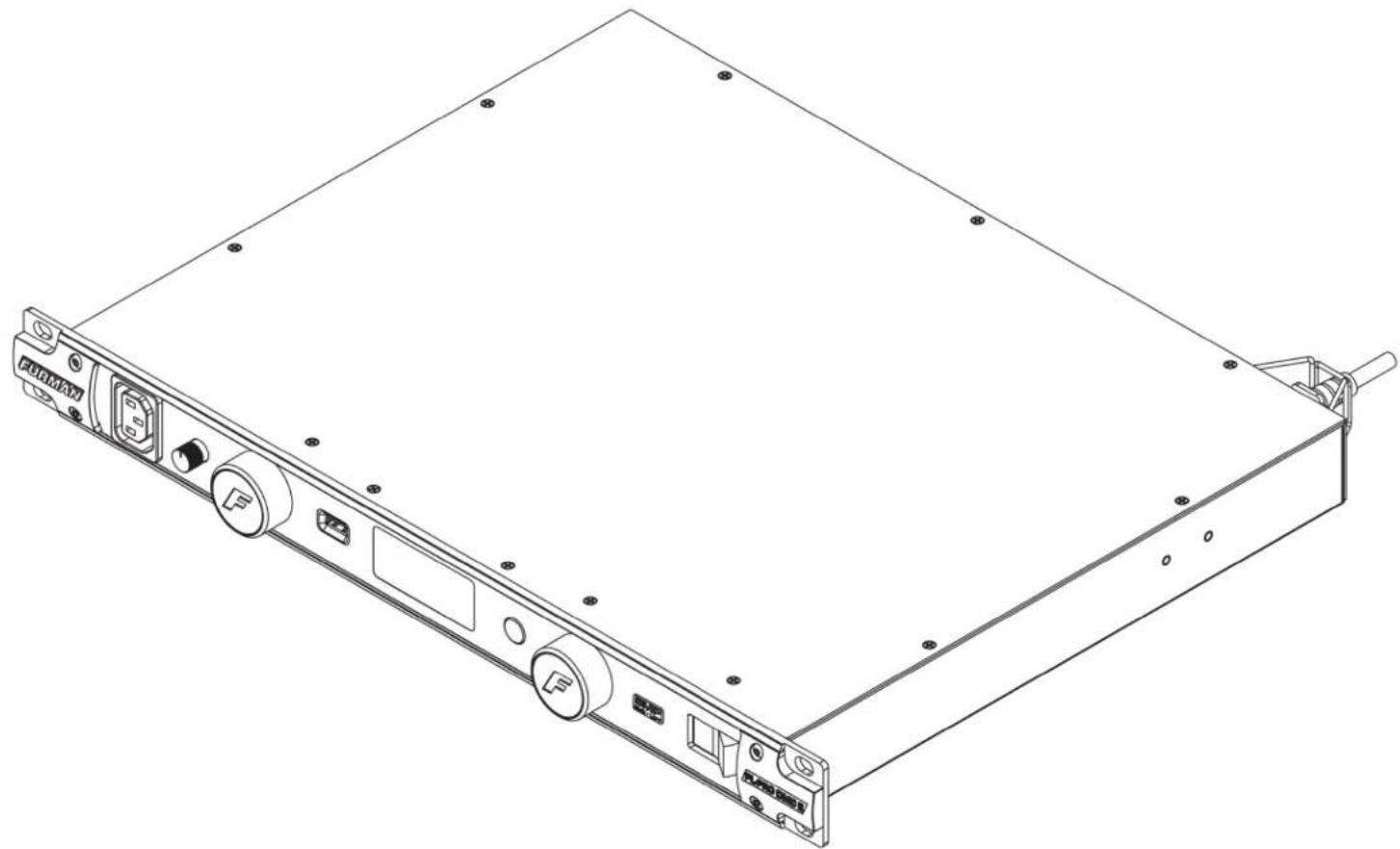

PL-PRO DMC E POWER CONDITIONER
CONDITIONNEUR D'ALIMENTATION PL-PRO DMC E / PL-PRO DMC E ACONDICIONADOR DE ENERGÍA PL-PRO DMC E NETZSCHUTZGERÄ / ПРОВОДНИК СИЛЫ PL-PRO DMC E
SÉRIE CLASSIQUE GUIDE DE L'UTILISATEUR / SERIE CLÁSICA MANUAL DEL PROPIETARIO KLASSISCHE REIHE HANDBUCHTEXT / КЛАССИЦИСТИЧЕСКАЯ СЕРИЯ ТЕКСТ ИНСТРУКЦИИ ПО ЭКСПЛУАТАЦИИ

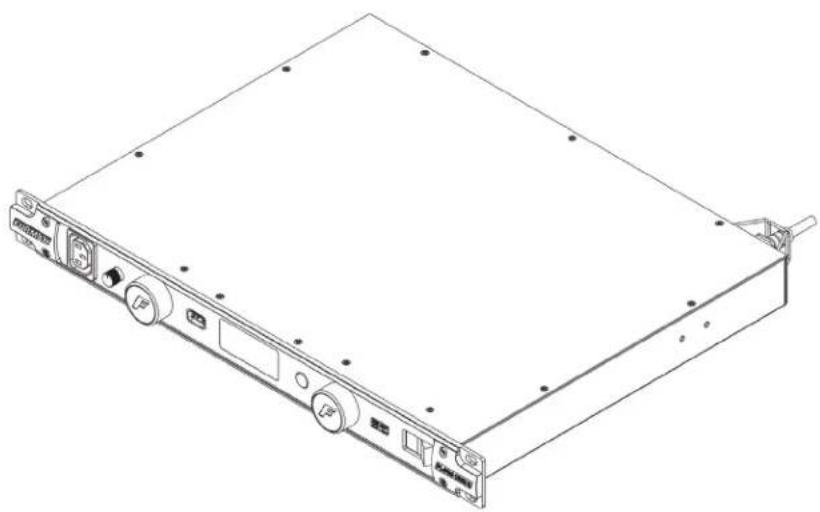

FURMAN®
PL-PRO DMC E OWNER'S MANUAL
PL-PRO DMC E GUIDE DE L'UTILISATEUR
PL-PRO DMC E MANUAL DEL
PROPIETARIO

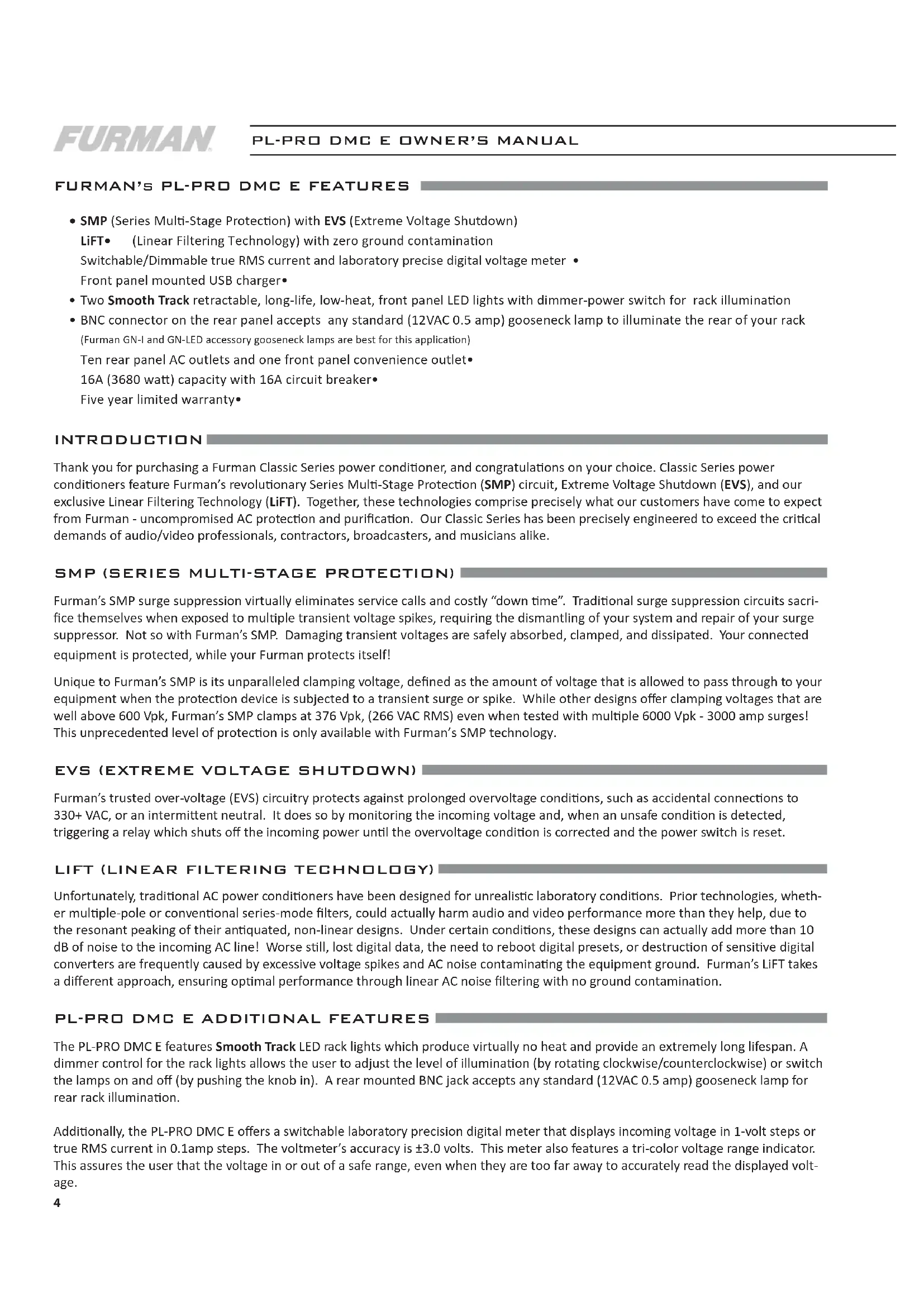

- SMP (Series Multi-Stage Protection) with EVS (Extreme Voltage Shutdown)
LiFT• (Linear Filtering Technology) with zero ground contamination
Switchable/Dimmable true RMS current and laboratory precise digital voltage meter
Front panel mounted USB charger•
- Two Smooth Track retractable, long-life, low-heat, front panel LED lights with dimmer-power switch for rack illumination
- BNC connector on the rear panel accepts any standard (12VAC 0.5 amp) gooseneck lamp to illuminate the rear of your rack (Furman GN-I and GN-LED accessory gooseneck lamps are best for this application)
Ten rear panel AC outlets and one front panel convenience outlet•
16A (3680 watt) capacity with 16A circuit breaker
Five year limited warranty•
INTRODUCTION
Thank you for purchasing a Furman Classic Series power conditioner, and congratulations on your choice. Classic Series power conditioners feature Furman's revolutionary Series Multi-Stage Protection (SMP) circuit, Extreme Voltage Shutdown (EVS), and our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect from Furman - uncompromised AC protection and purification. Our Classic Series has been precisely engineered to exceed the critical demands of audio/video professionals, contractors, broadcasters, and musicians alike.
SMP (SERIES MULTI-STAGE PROTECTION)
Furman's SMP surge suppression virtually eliminates service calls and costly "down time". Traditional surge suppression circuits sacrifice themselves when exposed to multiple transient voltage spikes, requiring the dismantling of your system and repair of your surge suppressor. Not so with Furman's SMP. Damaging transient voltages are safely absorbed, clamped, and dissipated. Your connected equipment is protected, while your Furman protects itself!
Unique to Furman's SMP is its unparalleled clamping voltage, defined as the amount of voltage that is allowed to pass through to your equipment when the protection device is subjected to a transient surge or spike. While other designs offer clamping voltages that are well above 600 Vpk, Furman's SMP clamps at 376 Vpk, (266 VAC RMS) even when tested with multiple 6000 Vpk - 3000 amp surges! This unprecedented level of protection is only available with Furman's SMP technology.
EVS (EXTREME VOLTAGE SHUTDOWN)
Furman's trusted over-voltage (EVS) circuitry protects against prolonged overvoltage conditions, such as accidental connections to 330+ VAC, or an intermittent neutral. It does so by monitoring the incoming voltage and, when an unsafe condition is detected, triggering a relay which shuts off the incoming power until the overvoltage condition is corrected and the power switch is reset.
LIFT (LINEAR FILTERING TECHNOLOGY)
Unfortunately, traditional AC power conditioners have been designed for unrealistic laboratory conditions. Prior technologies, whether multiple-pole or conventional series-mode filters, could actually harm audio and video performance more than they help, due to the resonant peaking of their antiquated, non-linear designs. Under certain conditions, these designs can actually add more than 10 dB of noise to the incoming AC line! Worse still, lost digital data, the need to reboot digital presets, or destruction of sensitive digital converters are frequently caused by excessive voltage spikes and AC noise contaminating the equipment ground. Furman's LiFT takes a different approach, ensuring optimal performance through linear AC noise filtering with no ground contamination.
PL-PRO DMC E ADDITIONAL FEATURES
The PL-PRO DMC E features Smooth Track LED rack lights which produce virtually no heat and provide an extremely long lifespan. A dimmer control for the rack lights allows the user to adjust the level of illumination (by rotating clockwise/counterclockwise) or switch the lamps on and off (by pushing the knob in). A rear mounted BNC jack accepts any standard (12VAC 0.5 amp) gooseneck lamp for rear rack illumination.
Additionally, the PL-PRO DMC E offers a switchable laboratory precision digital meter that displays incoming voltage in 1-volt steps or true RMS current in 0.1amp steps. The voltmeter's accuracy is ± 3.0 volts. This meter also features a tri-color voltage range indicator. This assures the user that the voltage in or out of a safe range, even when they are too far away to accurately read the displayed voltage.
The PL-PRO DMC E is equipped with a front panel convenience AC outlet as well as ten rear panel AC outlets. The PL-PRO DMC E's 16 amp (3680 watt) capacity is supplied from a robust 1.5mil., 2.5 meter detachable AC cord with security clip (IEC C-19 to Schuko is standard, other plug end AC cords are available as an accessory option).
SAFETY INFORMATION
To obtain best results from your Furman Classic Series power conditioner, please read this manual carefully before using.
WARNING
To reduce the risk of electrical shock, do not expose this equipment to rain or moisture. Dangerous high voltages are present inside the enclosure. Do not remove the cover. Refer servicing to qualified personnel only. The lightning flash with an arrowhead symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
IMPORTANT SAFETY INSTRUCTIONS
(Please read prior to installation)
- Please read and observe all safety and operating instructions before installing your Furman Classic Series power conditioner. Retain these instructions for future reference.
- Your Classic Series conditioner should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
- Do not place your Classic Series conditioner near high heat sources such as radiators, heat registers, stoves, or other appliances that produce extreme heat.
- The Furman PL-PRO DMC E should only be connected to a 220-240 VAC, 50Hz/60Hz, 16 amp grounded electrical outlet. Do not defeat the ground or change polarization of the power plug.
- Route the AC power cord and other cables so that they are not likely to be walked on, tripped over, or stressed. Pay particular attention to the condition of the cords and cables at the plugs and at the point where they exit your Furman conditioner. To prevent risk of fire or injury, damaged cords and cables should be replaced immediately.
-
Clean your Furman conditioner with a damp cloth only. Do not use solvents or abrasive cleaners. Never pour liquid on or into the unit.
-
Your Furman conditioner should be serviced by qualified service personnel when:
-
The power supply cord or the plug has been frayed, kinked, or cut.
- Objects have fallen or liquid has been spilled into the unit.
- The unit has been exposed to rain or extreme moisture.
- The unit does not appear to operate normally.
- The "Protection OK" indicator is not lit.
- The unit has been dropped, or the enclosure has been damaged.
-
The retractable LED lights have failed.
-
Your Furman conditioner requires that a safety ground be present for proper operation. Any attempt to operate the unit without a safety ground is considered improper operation and could invalidate the warranty.
-
Do not attempt to service your Furman conditioner beyond what is described in this manual. All other servicing should be referred to qualified service personnel.
OPERATION
RETRACTABLE SMOOTH TRACK RACK LIGHTS, REAR PANEL LAMP AND DIMMER CONTROL: The Furman Classic Series power conditioners utilize a dimmer control for the two retractable Smooth Track light tubes. The dimmer knob controls the brightness of both front panel lamps. Turn it clockwise to increase brightness; turn it counterclockwise to decrease brightness. The knob is also a momentary power switch for the lamps: push it in to turn the lamps on or off. When the lamps are not in use, we recommend turning the dimmer fully counterclockwise, or pushing the knob to the off setting to maximize the life of the LED's. Whether the light tubes are fully extended or flush with the front panel, there will be no appreciable heat regardless of the dimmer setting due to the efficiency of our full light spectrum LED's.
All Furman Classic Series Conditioners feature a rear rack BNC socket which will accept any 12 VAC (0.5A) gooseneck lamp assembly (such as the Furman GN-LED or GN-I). Simply slide the BNC plug over the socket and rotate clockwise until the connector snaps into the locked position. The rear rack lamp can be powered on or off with the rear light switch which is adjacent to the BNC connector.
EXTREME VOLTAGE SHUTDOWN (EVS) INDICATOR:
The Extreme Voltage LED indicator is normally off. It is located within the meter lens assembly directly above the blue voltage / current LED's, though during normal use it will NOT be visible.
The Extreme Voltage indicator monitors a hazard common in the entertainment, remote broadcast, and AV contractor industries: wiring faults. For example: accidental connection to 330VAC where 220-240VAC is expected, or an open series neutral from a 208 to 330VAC electrical service. The Furman EVS circuit senses voltages that are so high that operation would be impossible and shuts the power down before damage can occur.
Upon initially applying power to these units, the Extreme Voltage indicator will light and a red “Extreme Voltage” label will appear at the top of the meter lens if the input voltage is above the extreme voltage cutoff.
NOTE: If the mains power is above the high cutoff voltage and has caused the EVS circuit to remove power from the PL-PRO DMC E's outlets, it cannot restore power without the operator manually turning the unit off, then on again. Avoid turning the unit back on without first checking the source of the problem and changing the AC source (if necessary).
PROTECTION OK INDICATOR:
Although the Furman SMP circuit assures virtually maintenance-free protection from transient voltage spikes and surges, nature has a way of occasionally creating electrical forces that are beyond the capabilities of ANY surge suppression device to absorb without some degree of damage (such as a direct lightning hit in an outdoor application). In the rare instance that this occurs, the green “Protection OK” LED indicator located at the bottom right of the meter lens assembly will dim.
NOTE: Furman's Classic Series power conditioners do not compensate for high or low AC line voltage. If you frequently move your rack to different locations, derive power from generators, use very long extension cords, travel internationally, or are in an area prone to brownouts, you may benefit from the use of one of Furman's AC Voltage Regulators.
SWITCHABLE DIGITAL VOLTAGE AND TRUE RMS CURRENT METER:
Furman's laboratory precision AC digital voltmeter continually measures incoming voltages within a typical tolerance of +/-1.5VAC [+/-3.0VAC]. It should be noted that the voltage reading is incoming.
Furman's laboratory precision True RMS digital current meter continually measures the total circuit AC load, within a typical tolerance of +/- 0.5 amp. Because these meters feature true RMS technology, the current readings are accurate regardless of load conditions (capacitive, inductive, or resistive).
To switch between voltage and current, press the button labeled "Line Voltage/Current". Hold this button down for two seconds to dim the brightness of the display.
VOLTAGE RANGE INDICATOR:
This indicator is located in the lower left corner of the digital volt / amp meter lens assembly. When AC voltage is within 5 volts (+/-) of a nominal 216 to 244 VAC, this tri-color indicator will be green (optimal). However, if the voltage is between 205 to 215VAC or between 245 to 255 VAC, the indicator will turn amber (caution - not optimal). If the incoming voltage is in an extreme range (below 205 or above 255), the indicator will turn red. This range is far from optimal, and may be potentially damaging to some equipment.
USB CHARGER:
The Furman PL-PRO DMC E's USB charger provides an easy way to recharge many popular electronic accessories as well as cellular communication devices by simply plugging the re-charge cord into the front panel socket. Please note that as there are currently many standards for USB, some devices may not be compatible with our charger.

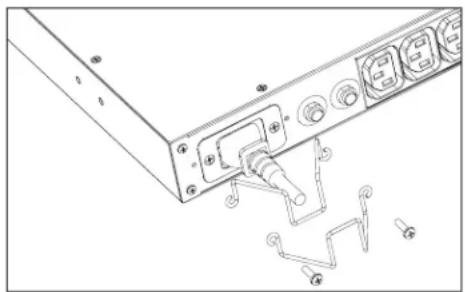

INLET AC CORD SECURITY CLAMP:
The Furman PL-PRO DMC E's detachable AC cord is supplied with a two piece security clamp. The two piece chrome wire security clamp (located In the AC cord bag) is easily attached to the threaded holes on either side of the AC inlet, and can be installed in seconds with a standard Phillips screw driver.
1.) Symptom: No power to the AC outlets.
Possible Cause: The circuit breaker (located on the rear panel - adjacent to the AC inlet cord) has tripped due to excessive load.
Action Needed: Unplug one piece of equipment from the Furman conditioner and push the round reset tab into the circuit breaker bezel.
2.) Symptom: No power to the AC outlets, "Protection OK" indicator is not lit.
Possible Cause: Either the AC outlet to which your Furman conditioner is connected has no AC voltage present, or the protection circuitry in your unit has been compromised.
Action Needed: Plug the Furman conditioner into an AC receptacle where a nominal 220-240 VAC is present. If the problem persists, contact Furman for service.
3.) Symptom: Extreme Voltage (EVS) indicator lit.
Possible Cause: Input voltage is above 275V causing power to the unit's outlets to be shut down. Additionally, if the voltage is below 175V at turn on, the unit will not allow AC voltage to reach the outlets.
Action Needed: Correct the line voltage, then turn the Furman conditioner on. If the voltage present is below 215 VAC or above 245 VAC, consider installing a Furman voltage regulator.
SERVICE
If you require technical support or equipment service, please contact the Furman Service Department at 707-763-1010. You may also email techsupport@furmansound.com.
All equipment being returned for repair must have a Return Authorization (RA) number. To get an RA number, please call the Furman Customer Service Department.
Before returning any equipment for repair, please be sure that it is adequately packed and cushioned against damage in shipment, and that it is insured. We suggest that you save the original packaging and use it to ship the product for servicing. Also, please provide a note giving your name, address, phone number, RA number and a description of the problem.
5 YEAR LIMITED WARRANTY
SAVE YOUR SALES RECEIPT! The receipt is your proof of purchase and confirms the product was purchased at an authorized Furman dealer. It will need to be submitted to Furman in order to process any warranty claims. Furman, a brand of Panamax Inc., warrants its PL-PRO DMC E (the "Product") as follows: Furman warrants to the original purchaser of the product that the product sold hereunder will be free from defects in material and workmanship for a period of five years from the date of purchase. If the product does not conform to this Limited Warranty during the warranty period (as herein above specified), purchaser shall notify Furman of the claimed defects via email (techsupport@furmansound.com). If the defects are of such type and nature as to be covered by this warranty, Furman shall authorize purchaser to return the product to Furman headquarters. Warranty claims MUST be accompanied by a copy of the original purchase invoice or receipt showing the purchase date. Shipping charges to Furman headquarters
must be prepaid by the purchaser of the product. Furman shall, at its own expense, furnish a replacement product or, at Furman's option, repair the defective product. Return shipping charges back to purchaser will be paid by Furman. THE FOREGOING IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Furman does not warrant against damages or defects arising out of improper use or abnormal handling of the product, or against defects or damages arising from improper installation. This warranty shall be cancelable by Furman at its sole discretion if the product is modified in any way without written authorization from Furman or Panamax Inc. This warranty also does not apply to products upon which repairs have been affected or attempted by persons other than pursuant to written authorization by Furman or Panamax Inc. THIS WARRANTY IS EXCLUSIVE. The sole and exclusive obligation of Furman shall be to repair or replace the defective product in the manner and for the period provided above. Furman shall not have any other obligation with respect to the products or any part thereof, whether based on contract, tort, strict liability or otherwise. Under no circumstances, whether based on this Limited Warranty or otherwise, shall Furman be liable for incidental, special, or consequential damages. This Limited Warranty states the entire obligation of Furman with respect to the product. If any part of this Limited Warranty is determined to be void or illegal, the remainder shall remain in full force and effect.
SPECIFICATIONS
CURRENT RATING:
16 amps
OPERATING VOLTAGE:
180 to 274 VAC
OVER VOLTAGE SHUTDOWN:
275 VAC typically
SPIKE PROTECTION MODES:
Line to neutral, zero ground leakage
SPIKE CLAMPING VOLTAGE:
376 VAC peak @ 3,000 Amps, 266 VAC RMS
RESPONSE TIME:
1 nanosecond
MAXIMUM SURGE CURRENT:
6,500 amps
NOISE ATTENUATION:
10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz
Linear attenuation curve from 0.05 - 100 Ohms line impedance
DIMENSIONS:
44.45mm H x 482.6mm W x 266.7mm D.
WEIGHT:
5.5 kg
CONSTRUCTION:
Steel chassis, 3mm brushed and black anodized aluminum front panel; glass epoxy printed circuit boards
POWER CONSUMPTION:
25 VA
SAFETY AGENCY LISTING:
CE

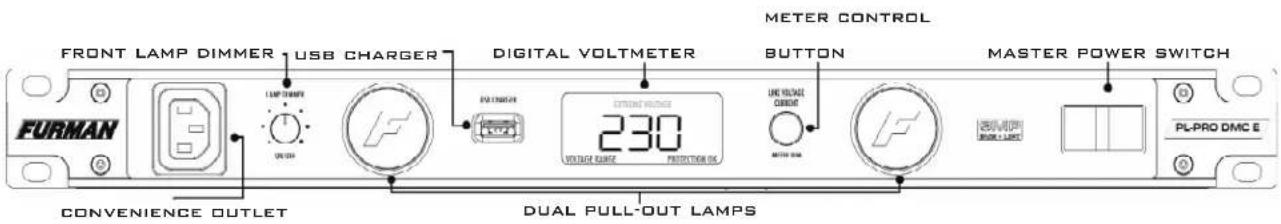

PL-PRO DMC E FRONT PANEL


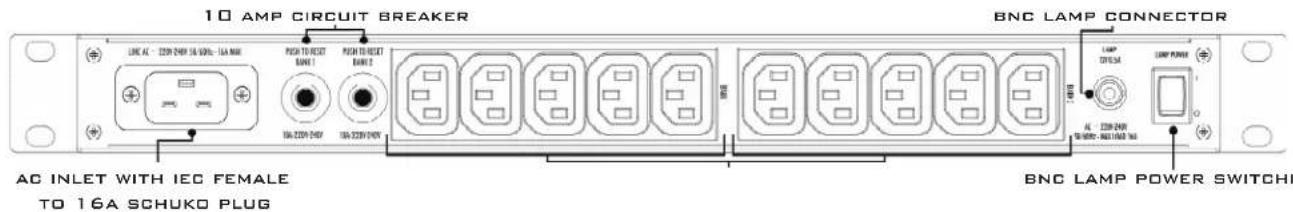

10 AMP CIRCUIT BREAKER BNC LAMP CONNECTOR AC INLET WITH IEC FEMALE TO 16A SCHUKO PLUG BNC LAMP POWER SWITCHICARACTÉRISTIQUES DU MODULE FILTRE PL-PRO DMC E DE FURMAN
