USER MANUAL SHF41LR PIONEER

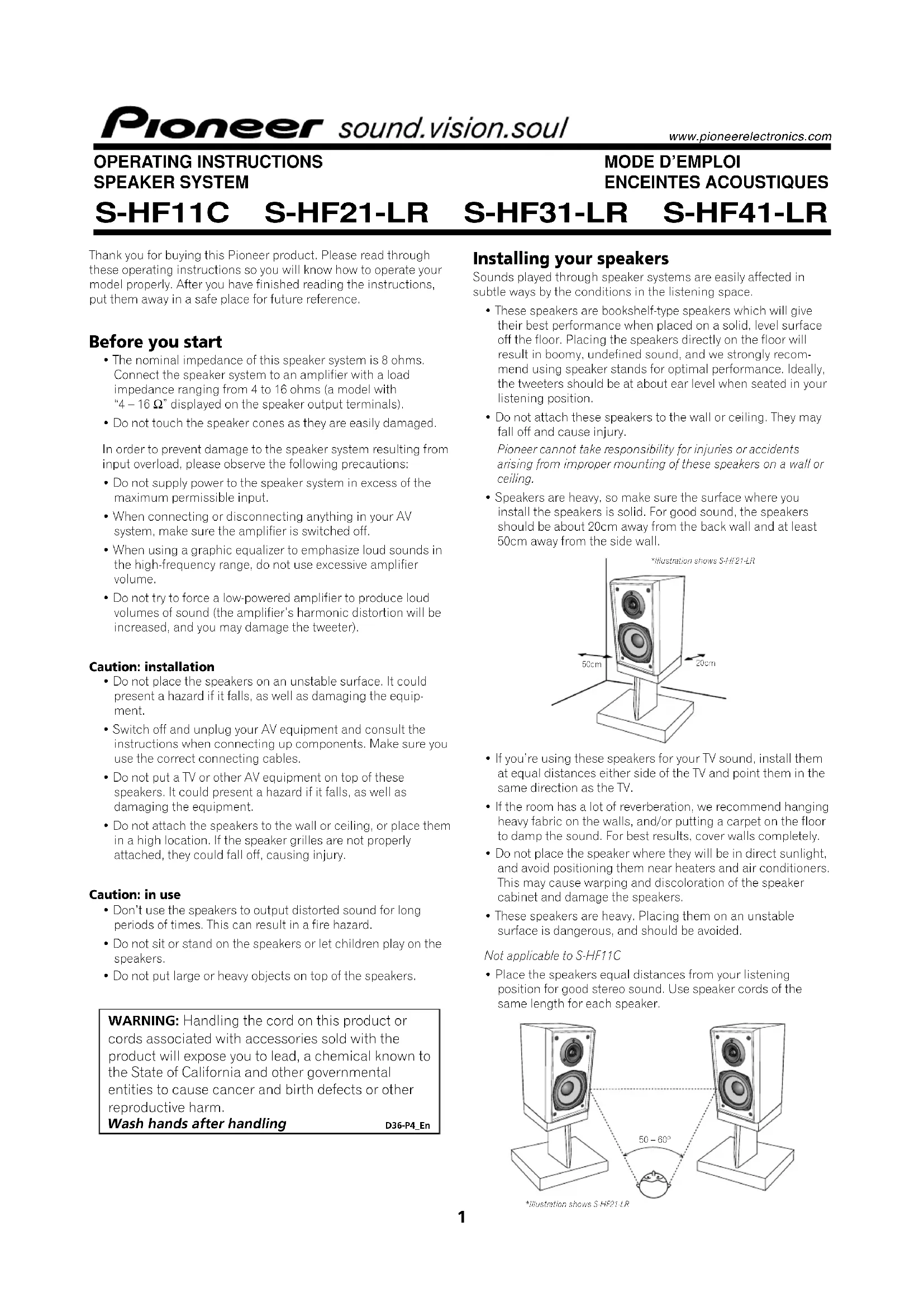

Thank you for buying this Pioneer product. Please read throughthese operating instructions so you will know how to operate yourmodel properly. After you have finished reading the instructions,put them away in a safe place for future reference. Before you start

• The nominal impedance of this speaker system is 8 ohms.Connect the speaker system to an amplifier with a loadimpedance ranging from 4 to 16 ohms (a model with“4 – 16 Ω” displayed on the speaker output terminals).• Do not touch the speaker cones as they are easily damaged.In order to prevent damage to the speaker system resulting frominput overload, please observe the following precautions:• Do not supply power to the speaker system in excess of themaximum permissible input.• When connecting or disconnecting anything in your AVsystem, make sure the amplifier is switched off.• When using a graphic equalizer to emphasize loud sounds inthe high-frequency range, do not use excessive amplifiervolume.• Do not try to force a low-powered amplifier to produce loudvolumes of sound (the amplifier’s harmonic distortion will beincreased, and you may damage the tweeter). Caution: installation
• Do not place the speakers on an unstable surface. It couldpresent a hazard if it falls, as well as damaging the equip-ment.• Switch off and unplug your AV equipment and consult theinstructions when connecting up components. Make sure youuse the correct connecting cables.• Do not put a TV or other AV equipment on top of thesespeakers. It could present a hazard if it falls, as well asdamaging the equipment.• Do not attach the speakers to the wall or ceiling, or place themin a high location. If the speaker grilles are not properlyattached, they could fall off, causing injury. Caution: in use
• Don’t use the speakers to output distorted sound for longperiods of times. This can result in a fire hazard.• Do not sit or stand on the speakers or let children play on thespeakers.• Do not put large or heavy objects on top of the speakers.

WARNING: Handling the cord on this product or

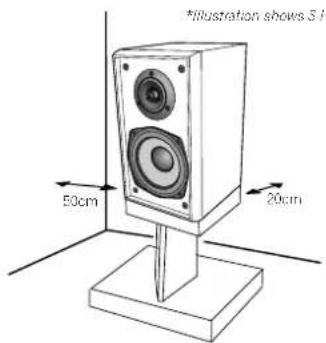

cords associated with accessories sold with the product will expose you to lead, a chemical known to the State of California and other governmental entities to cause cancer and birth defects or other reproductive harm. D36-P4_En Wash hands after handling Installing your speakers Sounds played through speaker systems are easily affected insubtle ways by the conditions in the listening space.• These speakers are bookshelf-type speakers which will givetheir best performance when placed on a solid, level surfaceoff the floor. Placing the speakers directly on the floor willresult in boomy, undefined sound, and we strongly recom-mend using speaker stands for optimal performance. Ideally,the tweeters should be at about ear level when seated in yourlistening position.• Do not attach these speakers to the wall or ceiling. They mayfall off and cause injury.Pioneer cannot take responsibility for injuries or accidentsarising from improper mounting of these speakers on a wall orceiling.• Speakers are heavy, so make sure the surface where youinstall the speakers is solid. For good sound, the speakersshould be about 20cm away from the back wall and at least50cm away from the side wall. 50cm 20cm *Illustration shows S-HF21-LR

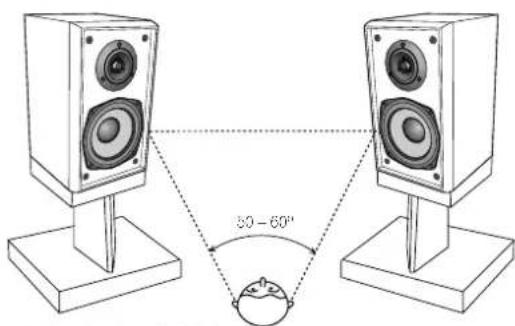

• If you’re using these speakers for your TV sound, install them at equal distances either side of the TV and point them in thesame direction as the TV.• If the room has a lot of reverberation, we recommend hangingheavy fabric on the walls, and/or putting a carpet on the floorto damp the sound. For best results, cover walls completely.• Do not place the speaker where they will be in direct sunlight,and avoid positioning them near heaters and air conditioners.This may cause warping and discoloration of the speakercabinet and damage the speakers.• These speakers are heavy. Placing them on an unstablesurface is dangerous, and should be avoided.Not applicable to S-HF11C• Place the speakers equal distances from your listeningposition for good stereo sound. Use speaker cords of thesame length for each speaker.50 – 60º*Illustration shows S-HF21-LR www.pioneerelectronics.com S-HF11C S-HF21-LR S-HF31-LR S-HF41-LR OPERATING INSTRUCTIONS SPEAKER SYSTEM

ENCEINTES ACOUSTIQUES2 Pioneer assumes no liability whatsoever for damages resulting from assembly, improper mounting, insufficient reinforce- ment, misuse of the product, acts of nature, etc. Choosing speaker cables These speakers do not include speaker cables used for connecting to a stereo. Note the following when selecting speaker cables.

• Use heavy-gauge speaker cable if possible, and keep the cables to the minimum necessary length.

• If the length of cable required for the left and right speakers require cables differs, use cables of the same length, matched to the longer distance.

• Cables have differing characteristics. Keep this in mind when using any cable.

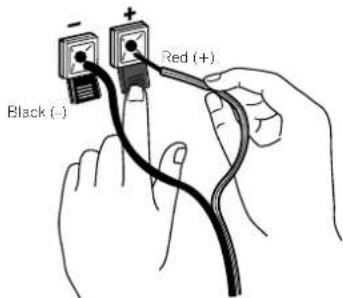

• Select cables with as little resistance as possible, and make sure the cables to the speaker terminals and amp are firm and secure. Connecting to an amplifier Before connecting to your amplifier, make sure that the amp is switched off. Make sure that you match up the speaker terminals on the speakers with those on your amplifier so that the positive (+) terminals and negative (–) terminals are paired. 1 Twist off the protective shielding on the ends of the speaker cable. Twist together any stray strands of speaker wire. 2 Insert the speaker cable as shown. Connect the speaker cables to the input terminals on the backs of the speakers. For input terminal polarity, red is positive (+) and black is negative (–). S-HF41-LR speaker system On the back of the receiver, loosen a speaker terminal, insert the exposed wire, then tighten the terminal. S-HF11-C / S-HF21-LR / S-HF31-LR speaker system On the back of the speaker, push open a tab, insert the exposed wire, then release the tab to secure the wire. Red (+) Black (–) 3 Connect the other end of the speaker cable to the speaker terminals on your amplifier. S-HF41-LR speaker system only: You can also use banana plugs to connect up the speaker.

• After connecting the plugs, pull lightly on the cables to make sure that the ends of the cables are securely connected to the terminals. Poor connections can create noise and interrup- tions in the sound.

• If the cables' wires happen to be pushed out of the terminals, allowing the wires to come into contact with each other, it places an excessive additional load on the amp. This may cause the amp to stop functioning, and may even damage the amp. Detatching and replacing the front grille The front grille of this speaker system is removable. Proceed as follows: 1 Hold both sides (top/bottom or left/right) of the grille, and pull it towards you to detach it from the speaker system. 2 To replace the grille, align the holes in the grille’s corners with the projections on the front of the speaker, and push each of the corners into place. Magnetic shielding This speaker system is magnetically shielded. However, depending on the installation location, color distortion may occur if the speaker system is installed extremely close to the screen of a television set. If this happens, turn off the television, then turn it on again after 15 to 30 minutes. If the problem persists, place the speaker system away from the television set. Cleaning the speaker cabinet With normal use, wiping with a dry cloth should be sufficient to keep the cabinet clean. If necessary, clean with a cloth dipped in a neutral cleanser diluted five or six times with water, and wrung out well. Do not use furniture wax or cleansers. Never use alcohol, thinners, benzine, insecticide sprays or other chemicals on or near this unit since these will corrode the surfaces. Striped half of speaker cable to positive (+) speaker terminal Other half of speaker cable to negative (–) speaker terminal3 Specifications S-HF11C Enclosure ................................................... Bass-reflex bookshelf type (magnetically shielded) Configuration ................................................................................ 2-way Woofer .......................................... 13 cm (5

/4 (D) in. Weight ........................................ 7.1kg / 15 lbs. 10 oz. (each speaker) Specifications and design subject to possible modification without notice, due to improvements. Published by Pioneer Corporation. Copyright © 2005 Pioneer Corporation. All rights reserved. S001_En Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion-and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts. To establish a safe level:

• Start your volume control at a low setting.

• Slowly increase the sound until you can hear it comfortably and clearly, and without distortion. Once you have established a comfortable sound level:

• Set the dial and leave it there. Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime. We Want You Listening For A Lifetime Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late, this manufacturer and the Electronic Industries Association’s Consumer Electronics Group recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your protection. Decibel Level Example 30 Quiet library, soft whispers

Living room, refrigerator, bedroom away from traffic 50 Light traffic, normal conversation, quiet office 60 Air conditioner at 20 feet, sewing machine 70 Vacuum cleaner, hair dryer, noisy restaurant

Average city traffic, garbage disposals, alarm clock at two feet.

Subway, motorcycle, truck traffic, lawn mower 100 Garbage truck, chain saw, pneumatic drill 120 Rock band concert in front of speakers, thunderclap 140 Gunshot blast, jet plane 180 Rocket launching pad Information courtesy of the Deafness Research Foundation.4 WARRANTY PERIOD For the period specified below from date of original retail purchase (the warranty period) from an authorized Pioneer dealer, Pioneer Electronics (USA) Inc. (PUSA), and Pioneer Electronics of Canada, Inc. (POC) warrants that products distributed by PUSA in the U.S.A., and by POC in Canada that fail to function properly under normal use due to a manufacturing defect when installed and operated according to the operating instructions enclosed with the unit will be repaired or replaced with a unit of comparable value, at the option of PUSA or POC, without charge to you for parts or actual repair work. Parts supplied under this warranty may be new or rebuilt at the option of PUSA or POC. WARRANTY PERIOD

Loudspeakers ..................................................................................................................................... 2 YEAR 2 YEAR This warranty covers the product during the warranty period whether in the possession of the original owner or any subsequent owner. In the event service is required, the product must be delivered within the warranty period, transportation prepaid, fro m within the Country of purchase as explained in this document. You will be responsible for removal and installation of the product.

This warranty does not cover any product which is used in any trade or business, or in an industrial or commercial application. This warranty does not apply to any speaker that has been subjected to power in excess of its published power rating. This warranty does not cover the cabinet or any appearance item, any damage to the product resulting from alterations or modifications not authorized in writing by PUSA or POC, accident, misuse or abuse, or damage due to lightning or to power surges. This warranty does not cover the cost of parts or labor which would be otherwise provided without charge under this warranty obtained from any source other than a PUSA OR POC Authorized Service Company or other designated location. This warranty does not cover defects or damage caused by the use of unauthorized parts or labor, or from improper maintenance. ALTERED, DEFACED OR REMOVED SERIAL NUMBERS VOID THIS WARRANTY. YOUR RIGHTS PUSA and POC excludes any obligation on its part for incidental or consequential damages related to the failure of products to function properly under the conditions set forth above. IN THE U.S.A. - PUSA LIMITS ITS OBLIGATIONS UNDER ANY IMPLIED WARRANTIES INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, TO A PERIOD NOT TO EXCEED THE WARRANTY PERIOD. NO WARRANTIES SHALL APPLY AFTER THE WARRANTY PERIOD. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, AND SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. IN CANADA - EXCEPT AS EXPRESSLY PROVIDED HEREIN, THERE ARE NO REPRESENTATIONS, WARRANTIES, OBLIGA- TIONS OR CONDITIONS, IMPLIED, STATUTORY OR OTHERWISE, APPLICABLE TO THIS PRODUCT.

PUSA and POC have appointed a number of Authorized Service Companies throughout the U.S.A., and Canada should your product ever require service. To receive warranty service you will need to present your sales receipt or, if rented, your rental contract showing place and date of original owner's transaction. Should it become necessary to ship your unit, you will need to package the product carefully and send it, transportation prepaid by a traceable, pre-insured method, to an Authorized Service Company. Carefully package the product using adequate padding material to prevent damage in transit. The original container is ideal for this purpose. Include in the package your name, address, telephone number where you can be reached during business hours, a copy of your sales receipt and a detailed description of the problem. PUSA or POC, as appropriate, will pay for the cost of returning the repaired or replacement product to you within the Country of purchase. For additional information about this limited warranty or to locate the nearest PUSA or POC Authorized Service Company, please contact: IN THE

CUSTOMER SERVICE DEPARTMENT CUSTOMER SERVICE DEPARTMENT
