USER MANUAL Centennial MTW5700TQ MAYTAG

Aux États-Unis..................................................................74 Au Canada.......................................................................74 GARANTIE ..........................................................................753 WASHER SAFETY You can be killed or seriously injured if you don't immediately You can be killed or seriously injured if you don'tfollow All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed. Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.This is the safety alert symbol.This symbol alerts you to potential hazards that can kill or hurt you and others.All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”These words mean:follow instructions.instructions. DANGER WARNING4 INSTALLATION REQUIREMENTS Tools and Parts Gather the required tools and parts before starting installation. The parts supplied are in the washer basket. Tools needed for connecting the drain hose and water inlet hoses: NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates for future reference. Parts supplied:

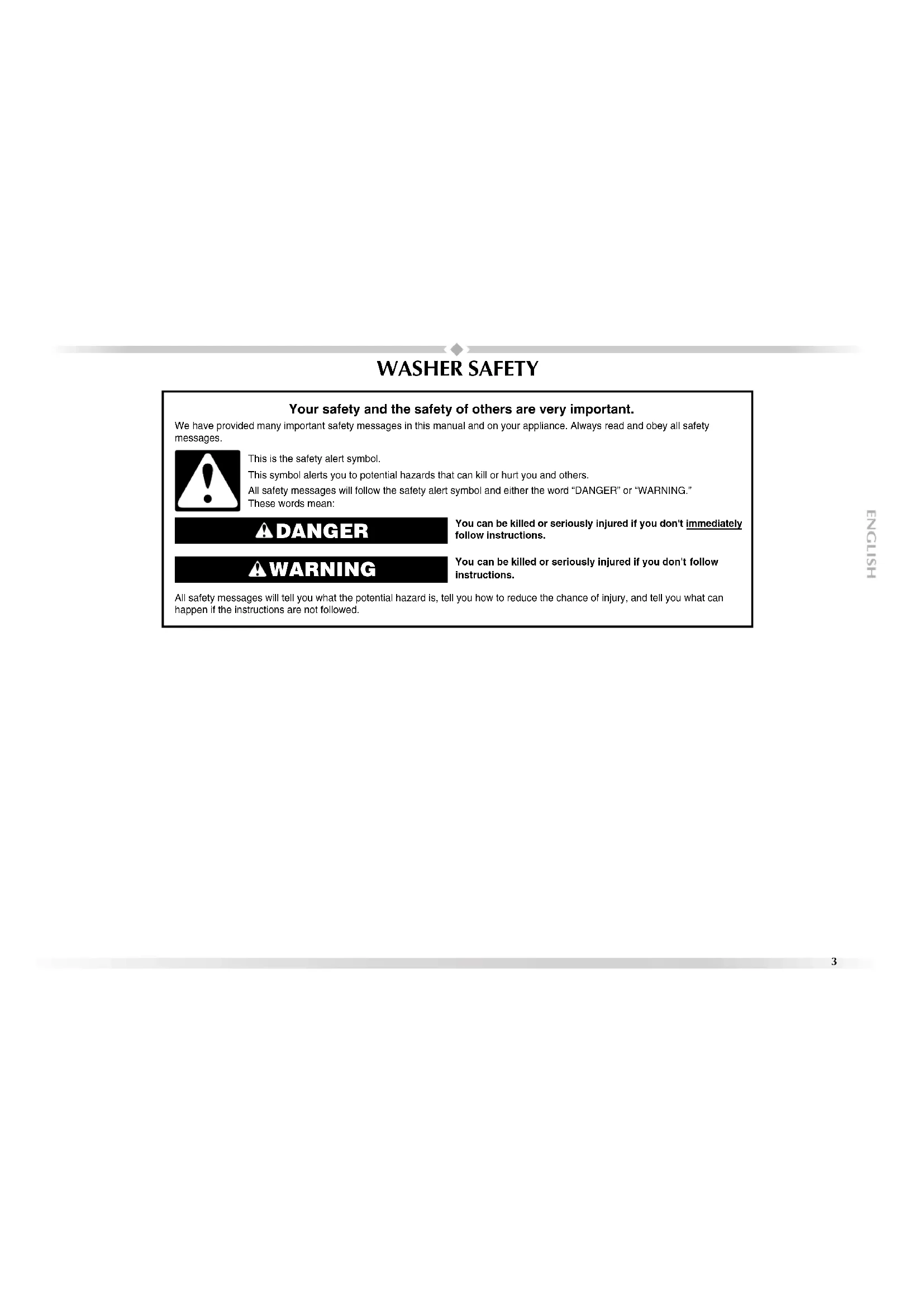

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■ Read all instructions before using the washer. ■ Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable, or explosive substances as they give off vapors that could ignite or explode. ■ Do not add gasoline, dry-cleaning solvents, or other flammable, or explosive substances to the wash water. These substances give off vapors that could ignite or explode.■ Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time. ■ Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. ■ Before the washer is removed from service or discarded, remove the door or lid. ■ Do not reach into the washer if the drum, tub or agitator is moving. ■ Do not install or store the washer where it will be exposed to the weather.■ Do not tamper with controls. ■ Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in this manual or in published user-repair instructions that you understand and have the skills to carry out.■ See “Electrical Requirements” for grounding instructions. WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following: ■ Pliers that open to 1⁹⁄₁₆" (3.95 cm) ■ Flashlight (optional) A. Drain hose form B. Water inlet hoses (2) C. Flat water inlet hose washers (4) D. Beaded tie strap ABCD5 Tools needed for securing the drain hose and leveling the washer: Alternate Parts Your installation may require additional parts. If you are interested in purchasing one of the items listed here, call the toll-free number on the cover or in the “Assistance or Service” section. Location Requirements Selecting the proper location for your washer improves performance and minimizes noise and possible washer “walk.” Your washer can be installed in a basement, laundry room, closet, or recessed area. See “Drain System.” IMPORTANT: Do not install or store the washer where it will be exposed to the weather. Proper installation is your responsibility. You will need: ■ A water heater set to deliver 120°F (49°C) water to the washer. ■ A grounded electrical outlet located within 4 ft (1.2 m) of where the power cord is attached to the back of the washer. See “Electrical Requirements.” ■ Hot and cold water faucets located within 3 ft (90 cm) of the hot and cold water fill valves, and water pressure of 20-100 psi (138-690 kPa) for best performance. ■ A level floor with a maximum slope of 1" (2.5 cm) under entire washer. Installing the washer on carpeting is not recommended. ■ A sturdy floor to support the washer weight (washer, water and load) of 315 lbs (143 kgs). Do not store or operate your washer in temperatures at or below 32°F (0°C). Some water can remain in the washer and can cause damage in low temperatures. See “Washer Care” for winterizing information. Installation spacing for recessed area and closet installations The following spacing dimensions are recommended for this washer. This washer has been tested for installation with spacing of 0" (0 cm) clearance on the sides. Recommended spacing should be considered for the following reasons: ■ Additional spacing should be considered for ease of installation and servicing. ■ Additional spacing should be considered on all sides of the washer to reduce noise transfer. ■ For closet installation with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation openings are acceptable. ■ Companion appliance spacing should also be considered. *Required spacing ■ Adjustable or open end wrench ⁹⁄₁₆" (14 mm) ■ Level■ Wood block■ Ruler or measuring tape If You Have: You Will Need to Buy: Laundry tub or standpipe taller than 96" (2.4 m) Sump pump system (if not already available) 1" (2.5 cm) diameter standpipe 2" (5 cm) diameter to 1" (2.5 cm) diameter standpipe adapter, Part Number 3363920 and connector kit Part Number 285835 Overhead sewer Standard 20 gal. (76 L) 39" (99 cm) tall drain tub or utility sink, sump pump and connectors (available from local plumbing suppliers) Floor drain Siphon break, Part Number 285834; additional drain hose, Part Number 8318155 and connector kit, Part Number 285835 Water faucets beyond reach of fill hoses 2 longer water fill hoses: 6 ft (1.8 m) Part Number 76314, 10 ft (3.0 m) Part Number 350008 Lint clogged drain Drain protector, Part Number 367031 A. Front view B. Side view C. Closet door with vents

Drain System The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain system. Select the drain hose installation method you need. See “Tools and Parts.” Standpipe drain system—wall or floor (views A & B) The standpipe drain requires a minimum diameter standpipe of 2" (5 cm). The minimum carry-away capacity can be no less than 17 gal. (64 L) per minute. A 2" (5 cm) diameter to 1" (2.5 cm) diameter standpipe adapter kit is available. See “Tools and Parts.” The top of the standpipe must be at least 39" (99 cm) high and no higher than 96" (244 cm) from the bottom of the washer. Laundry tub drain system (view C) The laundry tub needs a minimum 20 gal. (76 L) capacity. The top of the laundry tub must be at least 39" (99 cm) above the floor and no higher than 96" (244 cm) from the bottom of the washer. Floor drain system (view D) The floor drain system requires a siphon break that may be purchased separately. See “Tools and Parts.” The siphon break must be a minimum of 28" (71 cm) from the bottom of the washer. Additional hoses might be needed. Electrical Requirements ■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical supply is required. A time- delay fuse or circuit breaker is recommended. It is recommended that a separate circuit serving only this appliance be provided. ■ This washer is equipped with a power supply cord having a 3 prong grounding plug. ■ To minimize possible shock hazard, the cord must be plugged into a mating, 3 prong, grounding-type outlet, grounded in accordance with local codes and ordinances. If a mating outlet is not available, it is the personal responsibility and obligation of the customer to have the properly grounded outlet installed by a qualified electrician.

39"(99 cm)28"(71 cm) Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING7 ■ If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.■ Do not ground to a gas pipe. ■ Check with a qualified electrician if you are not sure the washer is properly grounded. ■ Do not have a fuse in the neutral or ground circuit. INSTALLATION INSTRUCTIONS Before You Start NOTE: To avoid floor damage during installation, set the washer onto cardboard before moving across floor. IMPORTANT: ■ Be sure the foam shipping base has been removed from the bottom of the washer as directed in the Unpacking Instructions. ■ If foam shipping base has not been removed, be sure lid is secured with tape before laying washer on its back.■ Removing the foam shipping base is necessary for proper operation. Remove Shipping Base and Packing Ring

1. Place cardboard supports from shipping carton on floor behind washer for support.2. Secure the lid with tape.

3. Using 2 or more people, tip the washer onto its back and place on cardboard supports.

4. Remove foam shipping base. 5. Set washer upright.

GROUNDING INSTRUCTIONS For a grounded, cord-connected washer:This washer must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electrical shock by providing a path of least resistance for electric current. This washer is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded.Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper outlet installed by a qualified electrician.For a permanently connected washer:This washer must be connected to a grounded metal, permanent wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the appliance. WARNING Excessive Weight HazardUse two or more people to move and install washer.Failure to do so can result in back or other injury.8

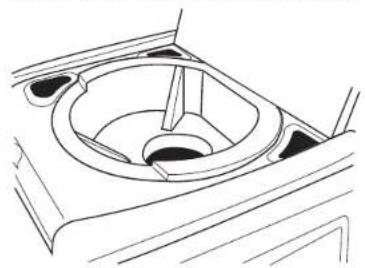

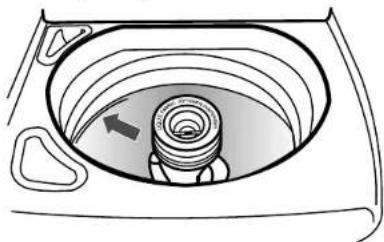

6. Remove tape from lid. Open lid and remove foam packing ring from washer tub. Keep

foam packing ring in case you need to move the washer in the future. Connect Drain Hose Proper connection of the drain hose protects your floors from damage due to water leakage. Read and follow these instructions. The drain hose is connected to your washer and is stored inside the washer cabinet. Remove drain hose from washer cabinet Pull the corrugated drain hose out of the washer by first grabbing the pull tie. Continue to pull the hose until the end emerges. Do not force excess drain hose back into the rear of the washer. Laundry tub drain or standpipe drain Connecting the drain hose form to the corrugated drain hose To keep drain water from going back into the washer: ■ Do not force excess drain hose into standpipe. Hose should be secure but loose enough to provide a gap for air. ■ Do not lay excess hose on the bottom of the laundry tub. A. Drain hose reliefs

1. Feed end of drain hose into one end of form. Place end of drain hose

form into the drain hose relief.

2. Bend the hose over the top of the form and feed into the other end of

the form. Attach the other end of the form into the other drain hose relief. The hose must extend 4½" (11.4 cm) beyond the form. 4.5"(11.4 cm)

Floor drain Do not install the drain hose form on to the corrugated drain hose. You may need additional parts. See Floor drain under “Tools and Parts.” Connect the Inlet Hoses

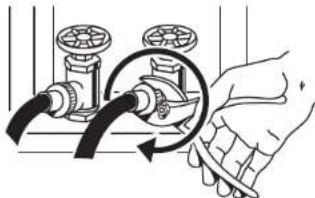

1. Insert new flat washers (supplied) into each end of the inlet hoses. Firmly seat the washers

in the couplings. Connect the inlet hoses to the water faucets Make sure the washer basket is empty.

2. Attach the hose labeled hot to the hot water faucet. Screw on coupling by hand until it is

seated on the washer.

3. Attach the hose labeled cold to the cold water faucet. Screw on coupling by hand until it

is seated on the washer.

4. Using pliers, tighten the couplings with an additional two-thirds turn.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result. Clear the water lines ■ Run water through both faucets and inlet hoses, into a laundry tub, drainpipe or bucket, to get rid of particles in the water lines that might clog the inlet valve screens. ■ Check the temperature of the water to make sure that the hot water hose is connected to the hot water faucet and that the cold water hose is connected to the cold water faucet. Connect the inlet hoses to the washer

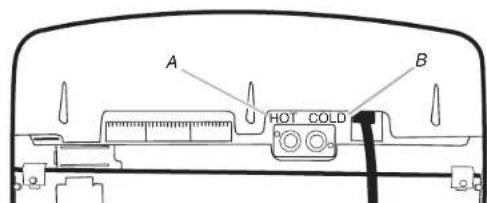

1. Attach the hot water hose to the inlet valve labeled hot.

2. Attaching one hose coupling first makes it easier to tighten the connection with pliers.

3. Screw on coupling by hand until it is seated on the washer.

A. CouplingB. WasherTighten the couplings with an additional two-thirds turn. A. Hot water inlet valveB. Cold water inlet valve HOT COLD

4. Using pliers, tighten the coupling with an additional two-thirds turn.

NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result.5. Attach the cold water hose to the inlet valve labeled cold. 6. Screw on coupling by hand until it is seated on the washer. 7. Using pliers, tighten the coupling with an additional two-thirds turn. NOTE: Do not overtighten or use tape or sealants on the valve. Damage to the valves can result. Check for leaks ■ Turn on the water faucets and check for leaks. A small amount of water might enter the washer. You will drain this in a later step. NOTE: Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Record hose installation or replacement dates for future reference. ■ If you connect only one water hose, you must cap off the remaining water inlet port. ■ Periodically inspect and replace hoses if bulges, kinks, cuts, wear, or leaks are found. Secure the Drain Hose

1. Drape the power cord over the console.2. Remove any cardboard used to move washer.

3. Fasten the drain hose to the laundry tub leg or drain standpipe with the beaded tie strap.

See view A or B.If the washer faucets and the drain standpipe are recessed, put the formed end of the drain hose into the standpipe. Tightly wrap the tie strap around the water inlet hoses and the drain hose. See view C. Level the Washer One washer foot has been installed at a different height on your new washer. The other three feet were preset at the factory. Properly leveling your washer will minimize noise and vibration.1. Slide the washer to its final location.2. Push on upper front panel to be sure the washer is on its rear feet.

3. Lower right front foot until it contacts the floor. By hand, firmly rotate foot as much as an

additional 1½ turns. The other three feet have been preset at the factory. Beaded tie strap COLD HOT CBA WARNING Excessive Weight Hazard Use two or more people to move and install washer. Failure to do so can result in back or other injury.11

4. Check the levelness of the washer by first placing a level on the lid near the console.

Next, place the level on the side of the washer in the crease between the top of the washer and the cabinet. Level the front. Level the side.

5. If the washer is not level, move the washer out slightly, tip back, prop up the front of the

washer on a wood block. Adjust the feet up or down as necessary by twisting the feet. Repeat steps 1 through 4 until washer is level.

6. Use a ⁹/₁₆" or 14 mm open-end wrench to turn the locknut counterclockwise on the foot

tightly against the washer cabinet. IMPORTANT: If the locknut is not tight against the washer cabinet, the washer may vibrate. Complete Installation

1. Check the electrical requirements. Be sure that you have the correct electrical supply and

the recommended grounding method. See “Electrical Requirements.”

2. Check that all parts are now installed. If there is an extra part, go back through the steps to

see which step was skipped.

3. Check that you have all of your tools.

4. Keep the foam packing ring from the washer tub in case you need to move the washer in

the future. Dispose of/recycle all packaging materials.

5. Check that the water faucets are on.

6. Check for leaks around faucets and inlet hoses.

7. Plug into a grounded 3 prong outlet.

8. Remove any protective film or tape remaining on the washer.

9. Read “Washer Use.”

10. To test and to clean your washer, measure ¹⁄₂ of the detergent manufacturer’s

recommended amount of powdered or liquid detergent for a medium-size load and pour it into the detergent dispenser. Close the lid. Press POWER. Select a normal cycle and press Start. Allow it to complete one whole cycle. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING12

BENEFITS AND FEATURES

Your washer has several benefits and features that are summarized here. Some items may not apply to your model. Benefits IntelliFill

Water Level Control This washer senses the load size and composition through a series of fills and wash motion. It then adjusts the water level for the best cleaning and rinsing performance. It eliminates the guesswork. The water level is just right for every wash load size. Auto Temp Control The Auto Temp Control on this washer electronically senses and maintains a uniform water temperature by regulating incoming water temperatures. Using Care Control will help dissolve detergent. Dispensers The dispensers make your washer truly automatic. It is unnecessary for you to return to the washer during the cycle to add detergent, bleach, or fabric softener. Laundry products are added to the load at the proper time in the wash cycle. Stain Cycle Cleaning Action The Stain Cycle option uses Direct Inject Cleaning Action to help ensure better soil and stain removal. Stain Cycle reduces the need for pretreatment. Water flushes through the dispenser to dissolve the detergent. The detergent mixture is then sprayed onto the load while the washer spins at low speed. This cleaning action will last up to 10 minutes depending on the cycle selected. The washer then stops spinning, fills with water to the appropriate level and continues washing with the selected cycle. Features Your new washer includes these features that help to reduce noise, increase the ease of use and improve wash performance. Electronic Controls Electronic controls with preset cycles are easy to use whether you are a beginner or an “expert.” Quiet Operation This washer is insulated with sound-dampening materials to reduce washer operation sounds and noises. On some models, an additional tub wrap is added for superb vibration- and sound-dampening. The washer has an additional bottom sound pad that is included separately for installation by the customer. Suspension System To reduce washer “walk” and “out of balance” conditions, your new washer combines: ■ 4 Spring damper struts to isolate vibration ■ Balance ring at the top and bottom of the wash basket to minimize vibration ■ Operating software designed to sense and correct off-balance loads Stainless Steel Basket The stainless steel basket is corrosion resistant and enables higher spin speeds for more water extraction than traditional top-load washers, reducing drying time. See-through Tempered Glass Lid with Solid Hold Lid Hinge (on some models) Some models feature a see-through glass lid. Made of shatter-proof tempered glass, it shows the deep cleaning action of the wash load inside. With the solid hold lid hinge, the large lid is flexible enough to open completely and conveniently, and it won’t snap or slam down. Self-Clean Wash and Rinse Filter System This washer filters 100% of the wash and rinse water. The water is filtered then recirculated. The force filter traps sand and dirt, flushing them down the drain, so they are not redeposited onto the clean clothes. Delay Wash (on some models) Delay Wash allows you to load your washer and pause the start of the cycle for up to 8 hours. End of Cycle Signal The End of Cycle Signal produces an audible sound when the wash cycle is finished. This signal is helpful when you are removing items from the washer as soon as it stops.13 WASHER USE NOTE: Your washer model may vary from the model shown. Starting Your Washer WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. The following is a guide to starting your washer. Periodic references to other sections of this manual provide more detailed information.1. Place a load of sorted clothes into the washer. See “Laundry Tips.” ■ Load evenly to maintain washer balance. Mix large and small items. ■ Load only to the top of the basket as shown. Overloading can cause poor cleaning. Items should move easily through the wash water.2. Pour measured powdered or liquid detergent into the detergent dispenser. Do not put detergent directly into the wash tub or onto clothes in the washer. Fire Hazard Never place items in the washer that are dampened with gasoline or other flammable fluids. No washer can completely remove oil. Do not dry anything that has ever had any type of oil on it (including cooking oils). Doing so can result in death, explosion, or fire. WARNING14

3. Add color-safe bleach (powdered or liquid) to the detergent dispenser, if needed. Be sure

to match powdered color-safe bleach with powdered detergent or match liquid color-safe bleach with liquid detergent.

4. Pour measured liquid chlorine bleach into the liquid chlorine bleach dispenser, if needed.

Bleach is automatically dispensed at the proper time during the wash cycle. ■ Do not overfill. Do not dilute. Do not use more than 1 cup (250 mL) for a full load. Use less with a smaller load size. ■ Follow the garment and the chlorine bleach manufacturer’s directions for proper use. ■ To avoid spilling, use a cup with a pouring spout. Do not let bleach splash, drip, or run down into the washer basket. ■ At the end of the cycle, a small amount of water may be left in the dispenser. This is normal. NOTE: Use only liquid chlorine bleach in this dispenser.

5. Pour measured liquid fabric softener into the fabric softener dispenser, if desired.

IMPORTANT: Dilute all fabric softener with water for a total of ¹⁄₂ cup (118 mL). ■ Do not overfill. The dispenser holds ¹⁄₂ cup (118 mL). ■ Do not spill or drip any fabric softener onto the clothes. NOTES:

Use only liquid fabric softener in this dispenser. ■ Do not use fabric softener dispensing balls in this washer. Dispensing balls will not operate correctly with this washer.

6. Close the washer lid.

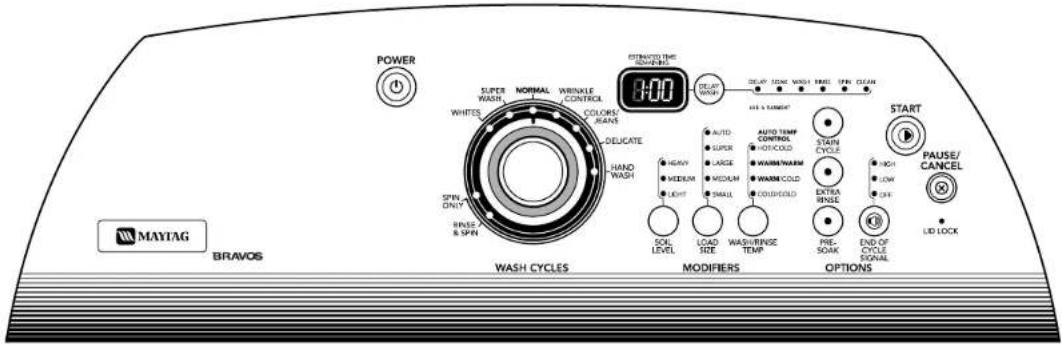

7. Press POWER. This turns on the washer display.

8. Select a Wash Cycle. See “Cycles.”

9. Adjust the Modifiers, if desired. See “Modifiers.”

10. Select desired Options. See “Options.”

11. On some models, select Delay Wash, if desired. See “Delay Wash” in the “Modifiers”

12. Press START. The wash cycle begins, and the display shows the estimated remaining time.

The lid will lock. NOTE: If you do not press Start within 5 minutes of pressing Power, the washer automatically shuts off. Pausing or Restarting the Washer Add a Garment You can place additional clothing in the wash when the “Add a Garment” status light is glowing without sacrificing wash performance. To add a garment or pause the washer at any time

1. Press PAUSE/CANCEL once.

2. Wait until the Lid Lock light turns off, then open the lid.

PAUSE/CANCEL twice will cancel the wash cycle. Stopping the Washer You can stop the wash cycle and drain the tub by pressing the Pause/Cancel button twice or the Power button once. Changing Cycles, Modifiers and Options You can change Cycles, Modifiers and Options anytime before Start is pressed. Not all Modifiers and Options are available for all cycles. ■ A short tone sounds when a change is selected. ■ Three short tones sound if an unavailable combination is selected. The last selection will not be accepted. Changing Cycles after pressing Start

1. Press PAUSE/CANCEL twice to cancel the cycle. The washer will drain.

3. Select the desired wash cycle.

4. Select the desired Modifiers and Options.

The washer restarts at the beginning of the new cycle. NOTE: If you do not press Start within 5 minutes of pausing the washer, the washer automatically shuts off. Changing Modifiers and Options after pressing Start You can change a Modifier or Option anytime before the selected Modifier or Option begins by choosing the desired Modifiers and/or Options. NOTE: An error tone will sound if your selection is unavailable.15 To manually drain the washer and spin the load

1. Press PAUSE/CANCEL twice to cancel the wash cycle and drain the washer.

When the spin is complete, the lid unlocks. Items can be removed from the washer. Status Lights These lights show which portion of the cycle the washer is operating. They also indicate when you can add other garments to the wash load. Indicator lights An indicator light shows which Cycle, Modifiers and Options you have selected. Estimated Time Remaining When a wash cycle is started, the estimated time remaining for the cycle, including fills and drains, will be displayed. The time will count down to the end of the cycle. Cycles Turn the knob to choose the right wash cycle for the type of fabrics you are washing. When the knob points to a cycle, the indicator light for the cycle will glow. If the default settings for the Modifiers and Options are suitable for your wash load, you may press Start to begin the wash cycle. Preset Cycle Settings For ease of use, preset cycle settings provide the recommended fabric care settings for each cycle. To use the preset cycle settings:

2. Select the cycle you want by turning the knob. The preset cycle settings will be displayed

(see the following chart). NOTE: The preset cycle times may vary slightly depending on your model.

3. Press START. The wash cycle will begin.

Preset Cycle Settings *Cycle time in minutes will appear in the display while you are making selections. The total cycle time will appear, including an estimated time for drain and fill times, once Start is pressed. NOTE: Load only to the top of the basket. Overloading can cause poor cleaning. See “Starting Your Washer.” Whites This cycle introduces liquid chlorine bleach to the load at the proper time for improved whitening of your heavily soiled white fabrics. Cycle combines high-speed wash action and high-speed spin. The default option setting for this cycle is Extra Rinse to thoroughly remove detergent and bleach. For maximum soil and stain removal, liquid chlorine bleach should be used. Super Wash Use this cycle for heavily soiled cotton or sturdy items. Cycle combines high-speed wash action and high-speed spin. Stain Cycle is the default option for this cycle, but it may be turned off. See “Changing Cycles, Modifiers and Options.” Normal Use this cycle for normally soiled cottons and linens, such as sheets, blankets and towels. This cycle combines medium-high speed wash action and high-speed spin. Cycle Preset Minutes Soil Level* Wash/Rinse Temp Whites 73 Heavy Hot/Cold Super Wash 68 Heavy Hot/Cold Normal 46 Normal Warm/Cold Wrinkle Control 46 Medium Warm/Cold Colors/Jeans 45 Normal Cold/Cold Delicate 35 Medium Warm/Cold Handwash 36 Light Cold/Cold Rinse & Spin 33 Not applicable Not applicable Spin Only 16 Not applicable Not applicable16 Wrinkle Control Use this cycle to wash loads of no-iron fabrics such as sport shirts, blouses, casual business clothes, permanent press and blends. This cycle uses medium-speed wash action, a medium- speed spin and a cool down process to reduce wrinkling. Colors/Jeans Use this cycle for dark or highly dyed natural fabrics such as jeans or other cotton items that may be susceptible to dye loss. This cycle uses low to medium-speed wash action and high- speed spin. For best results use cold or warm water. Delicate Use this cycle to wash lightly soiled garments indicating “Machine Washable Silks” or “Gentle” cycle on the care label. This cycle uses low-speed wash action and low spin speeds for increased fabric care and less wrinkling. When washing waterproof items, such as plastic-lined mattress pads, shower curtains, tarpaulin (tarps) or waterproof or water-resistant sleeping bags, use the Delicate or Handwash cycle with the lowest spin speed setting available for the washer model that you have. Handwash Use this cycle to clean lightly soiled special care garments or for items labeled as “Machine Washable Wool.” (Check label instructions to make sure that the garment is washable.) This cycle uses intermittent-low speed wash action and low-speed spin for the gentlest fabric care with less wrinkling. When washing waterproof items, such as plastic-lined mattress pads, shower curtains, tarpaulin (tarps) or waterproof or water-resistant sleeping bags, use the Delicate or Handwash cycle with the lowest spin speed setting available for the washer model that you have. Garments are labeled “Handwash” because: ■ The fiber construction may be sensitive to wash action. ■ The fabric contains sensitive dyes that may bleed. NOTE: Some “Handwash” items naturally shrink when washed. Keep this in mind when you purchase items labeled “Handwash.” Items that shrink should be dried flat. When these items are still wet, “block” them by gently stretching to the original measurements. Rinse & Spin Use this option to get a deep rinse followed by a high-speed spin. The time display will include an estimate of how long it will take to fill and drain the washer. When to use Rinse & Spin: ■ For loads that need rinsing only. ■ For completing a cycle after the power has been off. To use or change Rinse & Spin setting:

1. Turn knob to RINSE & SPIN until the Rinse & Spin indicator light glows.

Spin Only An extra drain and spin may help shorten drying times for some heavy fabrics or special-care items. Spin Only may also be used for draining the washer after canceling a cycle or completing a cycle after a power failure. To use or change Spin Only setting:

1. Turn knob to SPIN ONLY until the Spin Only indicator light glows.

Modifiers Modifiers allow you to further customize your cycles and save energy. Soil Level Soil level (wash time) is preset for each wash cycle. See “Preset Cycle Settings” in “Cycles.” As you press the Soil Level pad, the cycle time (minutes) will increase or decrease in the Estimated Time Remaining display and a different wash time will appear. To get the minimum wash time, press the pad until the indicator light next to Light Soil Level illuminates. This is the shortest wash time available for that cycle. ■ For most loads, use the time recommended in the preset cycle settings. ■ For heavy soil and sturdy fabrics, press Soil Level to select more wash time, if needed. ■ For light soil and delicate fabrics, press Soil Level to select less wash time, if needed. Load Size This washer automatically selects Auto for the water level when the cycle is selected. The Auto feature senses the size of the load and adds the correct amount of water for the load size. You can also manually change the water level settings. Wash-Rinse Temp Select a water temperature based on the type of load you are washing. Use the warmest wash water safe for fabrics. Follow garment label instructions. Warm rinses leave the loads drier and more comfortable to handle than with cold rinses. However, warm rinses also increase wrinkling. Cold rinses may help with wrinkling and save energy. Temperature Guide NOTE: In wash water temperatures colder than 60°F (15.6°C), detergents do not dissolve well. Soils may be difficult to remove. Wash Water Temperature Suggested Fabrics Hot Whites and pastels Warm Bright colors Cold Colors that bleed or fade17 Auto Temp Control Auto Temp Control electronically senses and maintains a uniform wash and rinse water temperature. Auto Temp Control regulates incoming hot and cold water and is automatically turned on when a cycle is selected. (See “Preset Cycle Settings” in “Cycles.”) Auto Temp Control is available with Warm/Warm, Warm/Cold and Cold/Cold settings. The water temperature in the Hot/Cold setting depends on the water temperature at the water inlet faucets. ■ Auto Temp Control ensures consistent cleaning. ■ Today’s detergents work well at temperatures above 60°F (15.6°C). Delay Wash (on some models) You can use the Delay Wash feature to delay the start of a wash cycle for up to 8 hours (depending on your model).

1. Load the washer and fill the dispensers.

4. Select the desired Cycle, Modifiers and Options.

5. Press DELAY WASH. 1H (one hour) will be displayed in the time display window. The

indicator light for Delay Wash will glow.

6. For a longer delay time, press DELAY WASH. The Start time will increase by 1-hour steps.

7. Press START. The countdown in hours to the wash cycle will show in the time display

window and the indicator light will begin to flash. NOTE: The Start indicator light will not flash when Delay Wash is chosen. You must press Start to initiate a countdown for the cycle to begin. To change the Delay Wash time: ■ Press PAUSE/CANCEL. ■ Press DELAY WASH to select the desired delay time. ■ Press START to begin the countdown. To cancel Delay Wash: Press START again to begin the cycle right away or press PAUSE/CANCEL twice. Options Use these pads to select the desired options for your wash cycle. Stain Cycle This option provides enhanced cleaning action for tough stains. The Heavy Duty cycle automatically includes Stain Cycle. Choosing Stain Cycle will add approximately 10 minutes to a cycle. Stain Cycle should be started on a dry load only and cannot be selected after the tub has started filling with water. Stain Cycle may be selected as an option with other cycles. See table for details. Extra Rinse An extra rinse can be used to aid in the removal of detergent or bleach residue from garments. This option provides an additional rinse with the same water temperature as the first rinse. This is the default rinse setting for the Whites cycle. Pre Soak Use this option for set-in stains and soil that need extra time for removal. Soaking in this washer is different than in a conventional washer. The washer sprays the load with water and detergent at extra-low spin speed followed by a brief pause. This action is repeated. Pre Soak cycles through a series of sprays followed by a pause to allow the detergent to work on the soils. The Pre Soak feature is followed by the selected cycle. Using Pre Soak will extend your wash cycle. Cycle Stain Cycle (Adds time to the wash cycle) Whites Option Super Wash Default Normal Option Wrinkle Control Option Colors/Jeans Option Delicate Not available Handwash Option Rinse & Spin Not available Spin Only Not available18 End of Cycle Signal Volume The End of Cycle Signal produces an audible sound when the wash cycle is finished. This signal is helpful when you are removing items from the washer as soon as it stops. Select On or Off. Operating Controls Power Press POWER to turn the washer on or off. Start Press START to start your washer after a cycle has been selected. Be sure all desired Modifiers and Options have been selected. The lid must be closed for the washer to start. Pause/Cancel Press PAUSE/CANCEL once to pause or stop the washer at any time. Press PAUSE/CANCEL once to unlock the lid and add a garment. Press START to complete the cycle from where it was stopped. Press PAUSE/CANCEL twice to stop the wash cycle. The washer will then drain and turn off. Lid Lock When the Lid Lock status light glows, the washer lid is locked. NOTE: You must wait until the Lid Lock Light turns off before the lid can be opened. Normal Sounds Your new washer may make sounds your old one didn’t. Because the sounds might be unfamiliar, you may be concerned about them. These sounds are normal. During washing If you select the Stain Cycle option, you will hear a spin/spray noise at the start of the cycle. During drain If water is drained quickly from your washer (depending on your installation), you may hear air being pulled through the pump during the end of draining. During wash and spin This washer does not have a transmission. The motor provides direct drive for agitation and spin. You will hear sounds that are different from those of a conventional washer. LAUNDRY TIPS Preparing clothes for washing Follow these recommendations to help you prolong the life of your garments. ■ Close zippers, snaps, and hooks to avoid snagging other items. Remove pins, buckles, and other hard objects to avoid scratching the washer interior. Remove non-washable trim and ornaments. ■ Empty pockets and turn them inside-out. ■ Turn down cuffs; brush away lint and dirt. ■ Turn synthetic knits inside-out to avoid pilling. ■ Tie strings and sashes so they will not tangle. ■ Mend tears, loose hems, and seams. ■ Treat spots and stains. ■ Stained or wet garments should be washed promptly for best results. Sorting ■ Separate heavily soiled items from lightly soiled ones, even if they would normally be washed together. Separate lint-givers (towels, chenille) from lint-takers (corduroy, synthetics, permanent press). When possible, turn lint-givers inside-out. ■ Separate dark colors from light colors, colorfast items from noncolorfast items. ■ Sort by fabric and construction (sturdy cottons, knits, delicate items). ■ When washing waterproof items, such as plastic-lined mattress pads, shower curtains, tarpaulin (tarps) or waterproof or water-resistant sleeping bags, use the Delicate or Handwash cycle with the lowest spin speed setting available for the washer model that you have. Unloading ■ Remove clothes from washer after the cycle is completed. Metal objects such as zippers, snaps, and buckles may rust if left in the washer basket for a long time.19 WASHER CARE Cleaning Your Washer Use a soft, damp cloth or sponge to wipe up any spills such as detergent or bleach from the outside of your washer.Clean your washer interior by mixing 1 cup (250 mL) of chlorine bleach and 2 cups (500 mL) of detergent. Pour this mixture into your washer and run it through a complete cycle using hot water. Select the Super Load Size. Repeat this process if necessary.Remove any hard water deposits using only cleaners labeled as washer safe.Cleaning the liquid fabric softener dispenser:

1. To remove the fabric softener dispenser from the agitator, wrap both hands behind the top

of the fabric softener dispenser and interlock fingers. Lift up while pulling toward you.

2. Separate the top and base of the dispenser. Rinse all three dispenser parts (the base, the

inner cone-shaped cup and the top) under warm water.3. For ease of assembly, reassemble the dispenser with the parts upside down. IMPORTANT: Be sure the inner cone-shaped cup is straight and placed completely in the top of the dispenser before installing the base.

4. Reinstall the dispenser. Be sure it is completely seated. The rim must be tight to the top of

the agitator. NOTE: To avoid damage to the washer or clothing, do not wash clothes with the liquid fabric softener dispenser removed or add detergent or bleach to this dispenser; it is for liquid fabric softener only. Water Inlet Hoses Replace inlet hoses after 5 years of use to reduce the risk of hose failure. Periodically inspect and replace inlet hoses if bulges, kinks, cuts, wear or leaks are found. When replacing your inlet hoses, mark the date of replacement on the label with a permanent marker. Vacation, Storage and Moving Care Install and store your washer where it will not freeze. Because some water may stay in the hoses, freezing can damage your washer. If storing or moving your washer during freezing weather, winterize it. Non-use or vacation care: Operate your washer only when you are at home. If you will be on vacation or not using your washer for an extended period of time, you should:■ Unplug washer or disconnect power. ■ Turn off the water supply to the washer. This helps avoid accidental flooding (due to a water pressure surge) while you are away. To winterize washer: 1. Shut off both water faucets.2. Disconnect and drain water inlet hoses.3. Put 1 qt (1 L) of R.V.-type antifreeze in the basket.

4. Run washer on the Rinse & Spin setting for about 30 seconds to mix the antifreeze and

remaining water.5. Unplug washer or disconnect power. To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet hoses. Turn on both water faucets.

2. Plug in washer or reconnect power.

3. Run the washer using any cycle and a Super Load Size water level to clean the washer

and remove the antifreeze, if used. Use ¹⁄₂ the manufacturer's recommended amount for a medium-size load. To transport the washer:

1. Shut off both water faucets.2. Disconnect and drain water inlet hoses.

3. If the washer will be moved during freezing weather, put 1 qt (1 L) of R.V.-type antifreeze

in the basket. Run washer on the Rinse & Spin setting for about 30 seconds to mix the antifreeze and remaining water.4. Disconnect the drain from the drain system.5. Unplug the power cord.6. Place the inlet hoses into the basket.7. Drape the power cord and drain hose over edge into the basket.

8. Place foam packing ring from the original shipping materials in the top of washer. If you

do not have the original foam packing ring, place heavy blankets, towels, etc. into basket opening. Close the lid and put a piece of tape over the lid and down to the front of the washer. Keep lid taped until the washer is placed into the new location. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING20 Reinstalling the washer

1. Follow the “Installation Instructions” to locate, level and connect the washer.

2. Run the washer using any cycle and a Super Load Size water level to clean the washer

and remove the antifreeze, if used. Use ¹⁄₂ the manufacturer's recommended amount for a medium-size load. TROUBLESHOOTING First try the solutions suggested here and possibly avoid the cost of a service call... Washer and Components Washer displaying code messages ■ “LF” (Washer is taking too long to fill) Check the following: Are the water inlet hoses kinked or clogged? Are the water inlet valve screens clear? Press PAUSE/CANCEL to clear display. Is the drain hose installed properly? See “Connect the Drain Hose.” ■ “Ld” (Washer is taking too long to drain water from the wash tub) Check the following: Is the drain hose kinked or clogged? Is the drain hose installed properly? See “Connect the Drain Hose.” Press PAUSE/CANCEL to clear display. ■ “uL” (Unbalanced Load) If the load is unbalanced, the washer will display this code while running an imbalanced load correction routine at the end of the wash cycle and before the final spin. If the code remains and the wash cycle dial is flashing after the recovery routine has stopped, open lid and redistribute the load. Close lid and press START. ■ “oL” (Over Load) Is the washer overloaded? The washer has attempted to fill and begin the wash cycle. If the washer is overloaded, it will drain any water and detergent that was added during the fill. To correct the overload, remove several items and add detergent. Close lid and press START. ■ “Sd” (Suds Detected) Did you add too much detergent? Always measure detergent. Follow detergent manufacturer’s directions. If excessive suds are detected, the washer will display this code while running a suds reduction correction routine at the end of the wash cycle. The suds reduction routine removes extra suds and assures proper rinsing of your garments. If the code remains and the wash cycle dial is flashing after the recovery routine has stopped, re-select your desired cycle using cold water. Press START. Do not add detergent. ■ “lid” (Lid Opened) Is the lid open? Close the lid to clear the display. ■ “HC” (Cold and Hot hoses switched) This code will appear at the end of the wash cycle to indicate that the cold and hot water inlet hoses are switched. If an error code does not appear but you are experiencing poor washing performance, check to see whether the inlet hoses are reversed. See “Connect the Inlet Hoses.” ■ “dL” (Door/Lid cannot lock) Indicates lid is not locked. Check for items caught in the lid keeping it from closing. Press PAUSE/CANCEL once to clear the code. ■ “dU” (Door/Lid cannot unlock) Is there excessive weight on the lid, such as a basket of laundry? Excessive weight will keep the lid from unlocking. Press PAUSE/CANCEL once to clear the code. ■ “F##” code Press PAUSE/CANCEL once to clear code. Press START. If code appears again, call for service. Noisy, vibrating, off-balance ■ Is the washer level? Does the washer rock when pushed against the corners? The washer must be level. The front and rear feet must be in firm contact with the floor. Check that the locknuts are tightened. See “Level the Washer.” ■ Is the floor flexing, sagging or not level? Flooring that flexes or is uneven can contribute to noise and vibration of the washer. A ³⁄₄" (1.9 cm) piece of plywood under the washer will reduce the sounds. See “Location Requirements.” ■ Is the load balanced? Evenly distribute the load in the washer basket and make sure the height of the load does not exceed the top row of basket holes. See “Starting Your Washer.” ■ Do you hear clicking or other noises when the cycle changes from washing to draining or spinning? When the drive system shifts or the washer basket settles between cycles you may hear noises that are different from your previous washer. These are normal washer noises. ■ Is the washer gurgling or humming? When the washer drains, the pump will make a continuous humming with periodic gurgling or surging sounds as the final amounts of water are removed. This is normal. ■ Are you washing a small load? You will hear more splashing sounds when washing small loads. This is normal. ■ The washer basket moves while washing. This is normal.21 Washer leaks ■ Are the fill hoses tight?■ Are the fill hose washers properly seated? Check both ends of each hose. See “Connect the Inlet Hoses.” ■ Did you pull the drain hose from the washer cabinet and install it in a standpipe or laundry tub? The drain hose should be pulled from the washer cabinet and secured to the drainpipe or laundry tub. See “Connect Drain Hose” and “Secure the Drain Hose.” ■ Is the sink or drain clogged? Sink and drainpipe must be able to carry away 17 gal. (64 L) of water per minute. If sink or drainpipe is clogged or slow, water can back up out of drainpipe or sink. ■ Is water splashing off the tub ring or the load? The wash load should be balanced and not overloaded. If the wash load is unbalanced or overloaded, incoming water can deflect off the load. ■ Is the washer properly installed? The washer must be level. The feet should be properly installed and the nuts tightened. See “Level the Washer.” ■ Was the cycle interrupted and then the Stain Cycle option selected? The Stain Cycle option should be started on a dry load only. The Stain Cycle option cannot be selected after the tub has started filling with water. ■ Check household plumbing (laundry tubs, faucets, drainpipe, water pipes) for leaks. Dispenser operation ■ Are the laundry products in the correct dispensers? Add the correct amounts of detergent (powdered or liquid), liquid chlorine bleach, or fabric softener to the correct dispenser. You can add powdered or liquid color-safe bleach to the detergent dispenser. Be sure to match powdered color-safe bleach with powdered detergent or match liquid color-safe bleach with liquid detergent. Use only liquid chlorine bleach in the bleach dispenser. ■ Is there water remaining in the bottom of a dispenser? Did the dispenser drain properly? A small amount of water may be left in a dispenser at the end of the cycle. This is normal. ■ Did you put powdered or liquid color-safe bleach into the liquid chlorine bleach dispenser (on some models)? Add powdered or liquid color-safe bleach directly to the detergent dispenser. Do not use the chlorine bleach dispenser for color-safe bleach. ■ Is the fabric softener dispenser clogged? Clean the fabric softener dispenser. See “Washer Care.” Washer Operation Washer won’t fill, rinse or agitate; washer stops ■ Is the power cord plugged into a grounded 3 prong outlet? Plug power cord into a grounded 3 prong outlet. ■ Are you using an extension cord? Do not use an extension cord. ■ Is there power at the plug? Check electrical source or call electrician. ■ Is the indicator on the Cycle Control knob properly lined up with a cycle? Turn the Cycle Control knob to the right slightly. ■ Are the water inlet valve screens clogged? Turn off the water and remove inlet hoses from the washer. Remove any accumulated film or particles. Reinstall hoses, turn on water and check for leaks. ■ Are the hot and cold water faucets turned on? Turn on the water. ■ Is the water inlet hose kinked? Straighten the hoses. ■ Does the water level seem too low, or does the washer appear to not fill completely? The Auto Water Level feature senses the size of the load and adds the correct amount of water for the load size. A different water level may be selected by pressing LOAD SIZE. ■ Are you using Auto Water Level? The Auto feature senses the size of the load and adds the correct amount of water for the load size. ■ Has a household fuse blown, or has a circuit breaker tripped? Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. ■ Is the washer in a normal pause in the cycle? The washer may pause during certain cycles. Allow the cycle to continue. ■ Is the washer overloaded? Wash smaller loads. See “Starting Your Washer” for maximum load size. Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. WARNING22 ■ Is there oversudsing? Cancel the current cycle. Select SPIN ONLY to drain the load. Re-select your desired cycle and press START. Do not add detergent. Use cold water. ■ Is the lid open? The lid must be closed during operation. The washer will not operate with the lid open. ■ Did you add more items to the load once the washer started? Once the load is wet, there may appear to be space for more items. Do not add more than 1 or 2 garments after the cycle has started. For best results determine load size with dry items only. Washer continues to fill or drain, or the cycle seems stuck ■ Is the top of drain hose lower than the control knobs on washer? The top of the drain hose must be at least 39" (99 cm) above the floor. See “Drain System.” ■ Does the drain hose fit too tightly in the standpipe, or is it taped to the standpipe? The drain hose should be loose yet fit securely. Do not seal the drain hose with tape. The hose needs an air gap. See “Installation Instructions.” Washer won’t drain or spin; water remains in washer ■ Is the drain hose clogged, or the end of the drain hose more than 96" (244 cm) above the floor? See “Drain System.” ■ Is the lid open? The lid must be closed during operation. The washer will not operate with the lid open. Wash/Rinse temperature ■ Are the hot and cold water inlet hoses reversed? If the hot and cold water inlet hoses are reversed, the washer will display an “HC” error code at the end of the cycle. If an error code does not appear but you are experiencing poor washing performance, check to see whether the inlet hoses are reversed. See “Connect the Inlet Hoses.” ■ Are you washing many loads? As your frequency of loads washed increases, the water temperature may decrease for hot and warm temperatures. This is normal. ■ Do you have an ENERGY STAR

qualified washer? The wash water temperatures may feel cooler to you than those of your previous washer. This is normal. ■ Does the wash water temperature feel lower than usual? As washing progresses, the wash temperature will decrease slightly for hot and warm washes. This is normal. To reduce wrinkling, the warm rinse is regulated to be cooler than the warm wash. Excessive sudsing ■ Is there excessive sudsing? Always measure detergent. Follow detergent manufacturer’s directions. If you have very soft water, you might need to use less detergent. ■ Was the cycle interrupted and then the Stain Cycle option selected? The Stain Cycle option should be started on a dry load only. The Stain Cycle option cannot be selected after the tub has started filling with water. Cycle did not run Stain Cycle option ■ Did you select the Stain Cycle option? The Stain Cycle option must be selected for it to be included in a wash cycle. The Stain Cycle option should be started on a dry load only. Stain Cycle cannot be selected after the tub has started filling with water. ■ The Stain Cycle option is a default in the Super Wash cycle and may be added to other cycles. Clothing Care Load too wet ■ Did you use the right cycle for the load being washed? Select a cycle with higher spin speed. ■ Did you use a cold rinse? Cold rinses leave loads wetter than warm rinses. This is normal. ■ Did you wash an extra large load? A large unbalanced load could result in a reduced spin speed and wet clothes at the end of the cycle. Evenly distribute the load and make sure the height of the load does not exceed the top row of basket holes. Residue or lint on load ■ Did you sort properly? Sort lint givers (towels, chenille) from lint takers (corduroy, synthetics). Also sort by color. ■ Did you overload the washer? The wash load must be balanced and not overloaded. Clothes should move freely. Lint or powdered detergent can be trapped in the load if the washer is overloaded. Wash smaller loads. See “Starting Your Washer” for maximum load size. ■ Did you use enough detergent? Follow detergent manufacturer’s directions. Use enough detergent to hold the lint in the water.23 ■ Did you line dry your clothing? If so, you can expect some lint on the clothing. The air movement and tumbling of a dryer removes lint from the load. ■ Was paper or tissue left in pockets? ■ Is your water colder than 60°F (15.6°C)? Wash water colder than 60°F (15.6°C) may not completely dissolve the detergent. ■ Did you use the proper Soil Level and Wash Cycle for the load? Reducing wash time (duration) and wash speed are ways to reduce lint. ■ Did you add detergent to the dispenser? For best results, use the dispenser to dissolve the detergent. Load is wrinkled, twisted or tangled ■ Did you unload the washer promptly? Unload the washer as soon as it stops. ■ Did you use the right cycle for the load being washed? To reduce wrinkling, tangling and twisting, select a cycle with low wash and spin speeds, such as Delicate or Handwash/Wool. ■ Did you overload the washer? The wash load must be balanced and not overloaded. Loads should move freely during washing to reduce wrinkling, tangling and twisting. ■ Was the wash water warm enough to relax wrinkles? If safe for the load, use warm or hot wash water. Use cold rinse water. ■ Are the hot and cold water hoses reversed? A hot rinse followed by spin will cause wrinkling. Check that the hot and cold water hoses are connected to the correct faucets. If the hot and cold water inlet hoses are reversed, the washer will display an “HC” error code at the end of the cycle. If an error code does not appear but you are experiencing poor washing performance, check to see whether the inlet hoses are reversed. See “Connect the Inlet Hoses.” Stains, gray whites, dingy colors ■ Did you properly sort the load? Dye transfer can occur when mixing whites and colors in a load. Sort dark clothes from whites and lights. ■ Was the wash temperature too low? Use hot or warm washes if safe for the load. Make sure your hot water system is adequate to provide a hot water wash. ■ Did you use enough detergent, or do you have hard water? Use more detergent for washing heavy soils in cold or hard water. Water temperature should be at least 60°F (15.6°C) for soap to dissolve and work properly. For best performance, use the detergent manufacturer's recommended amounts. ■ Did you follow the manufacturer’s directions when adding detergent and fabric softener? Measure detergent and fabric softener. Use enough detergent to remove soil and hold it in suspension. Dilute fabric softener and add to the rinse portion of a cycle only. Do not drip fabric softener onto clothes. ■ Is there above average iron (rust) in water? You may need to install an iron filter. ■ Did you add detergent to the dispenser? For best results, use the dispenser to dissolve the detergent. ■ Did you add fabric softener directly to the load? Use your fabric softener dispenser. Do not drip fabric softener onto clothes. ■ Did you use a fabric softener dispensing ball? Use the fabric softener dispenser provided with the washer. Dispensing balls will not operate correctly with this washer. ■ Did you unload the washer promptly? To avoid dye transfer, unload the washer as soon as it stops. ■ Did you add detergent, chlorine bleach or fabric softener too late in the cycle? Detergent, chlorine bleach, and fabric softener should be added to the dispensers before starting the washer. Garments damaged ■ Were sharp items removed from pockets before washing? Empty pockets, zip zippers, snap or hook fasteners before washing to avoid snagging and tearing of load. ■ Were strings and sashes tied to avoid tangling? Straps and strings can easily become entangled in the load, causing strain on seams and tearing. ■ Were items damaged before washing? Mend rips and broken threads in seams before washing. ■ Did you overload the washer? The wash load must be balanced and not overloaded. Loads should move freely during washing. ■ Did you add chlorine bleach properly? Do not pour chlorine bleach directly onto load. Wipe up bleach spills. Undiluted bleach will damage fabrics. Do not place load items on top of the bleach dispenser when loading and unloading the washer (on some models). Do not use more than the manufacturer's recommended amount for a full load. ■ Did you follow the garment manufacturer’s care label instructions?24

ASSISTANCE OR SERVICE

Before calling for assistance or service, please check “Troubleshooting.” It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new MAYTAG

appliance. To locate factory specified parts in your area, call the following customer assistance telephone number or your nearest designated service center. In the U.S.A. Call the Maytag Services, LLC Customer Assistance toll free: 1-800-688-9900. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Installation information.■ Use and maintenance procedures.■ Accessory and repair parts sales. ■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). ■ Referrals to local dealers, repair parts distributors and service companies. Maytag

appliances designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States. To locate the Maytag

appliances designated service company in your area, you can also look in your telephone directory Yellow Pages. For further assistance If you need further assistance, you can write to Maytag

appliances with any questions or concerns at: Maytag Services, LLC ATTN: CAIR

Center P.O. Box 2370 Cleveland, TN 37320-2370 Please include a daytime phone number in your correspondence. In Canada Call the Whirlpool Canada LP Customer Interaction Centre toll free: 1-800-807-6777, or visit our website at www.whirlpool.ca. Our consultants provide assistance with: ■ Features and specifications on our full line of appliances.■ Use and maintenance procedures.■ Accessory and repair parts sales. ■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada. For further assistance If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at: Customer Interaction Centre Whirlpool Canada LP 1901 Minnesota Court Mississauga, Ontario L5N 3A7 Please include a daytime phone number in your correspondence.25

MAYTAG CORPORATION MAJOR APPLIANCE WARRANTY

ONE YEAR LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Maytag Corporation or Maytag Limited (hereafter “Maytag”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Maytag designated service company. This limited warranty applies only when the major appliance is used in the country in which it was purchased.

ITEMS MAYTAG WILL NOT PAY FOR

1. Service calls to correct the installation of your major appliance, to instruct you how to use your major appliance, to replace or repair house fuses or to correct house wiring or plumbing. 2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Those consumable parts are excluded from warranty coverage.

3. Repairs when your major appliance is used for other than normal, single-family household use.

4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Maytag.

5. Any food loss due to refrigerator or freezer product failures.

6. Replacement parts or repair labor costs for units operated outside the United States or Canada.

7. Pickup and delivery. This major appliance is designed to be repaired in the home.

8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

9. Expenses for travel and transportation for product service in remote locations.

10. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions. 11. Replacement parts or repair labor costs when the major appliance is used in a country other than the country in which it was purchased. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. MAYTAG SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE. Outside the 50 United States and Canada, this warranty does not apply. Contact your authorized Maytag dealer to determine if another warranty applies. If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling Maytag. In the U.S.A., call 1-800-688-9900. In Canada, call 1-800-807-6777. 9/06 Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product. Dealer name ______________________________________________________________________________ Address __________________________________________________________________________________ Phone number_____________________________________________________________________________ Model number ____________________________________________________________________________ Serial number _____________________________________________________________________________ Purchase date _____________________________________________________________________________26
