USER MANUAL TDW8101G TP-LINK

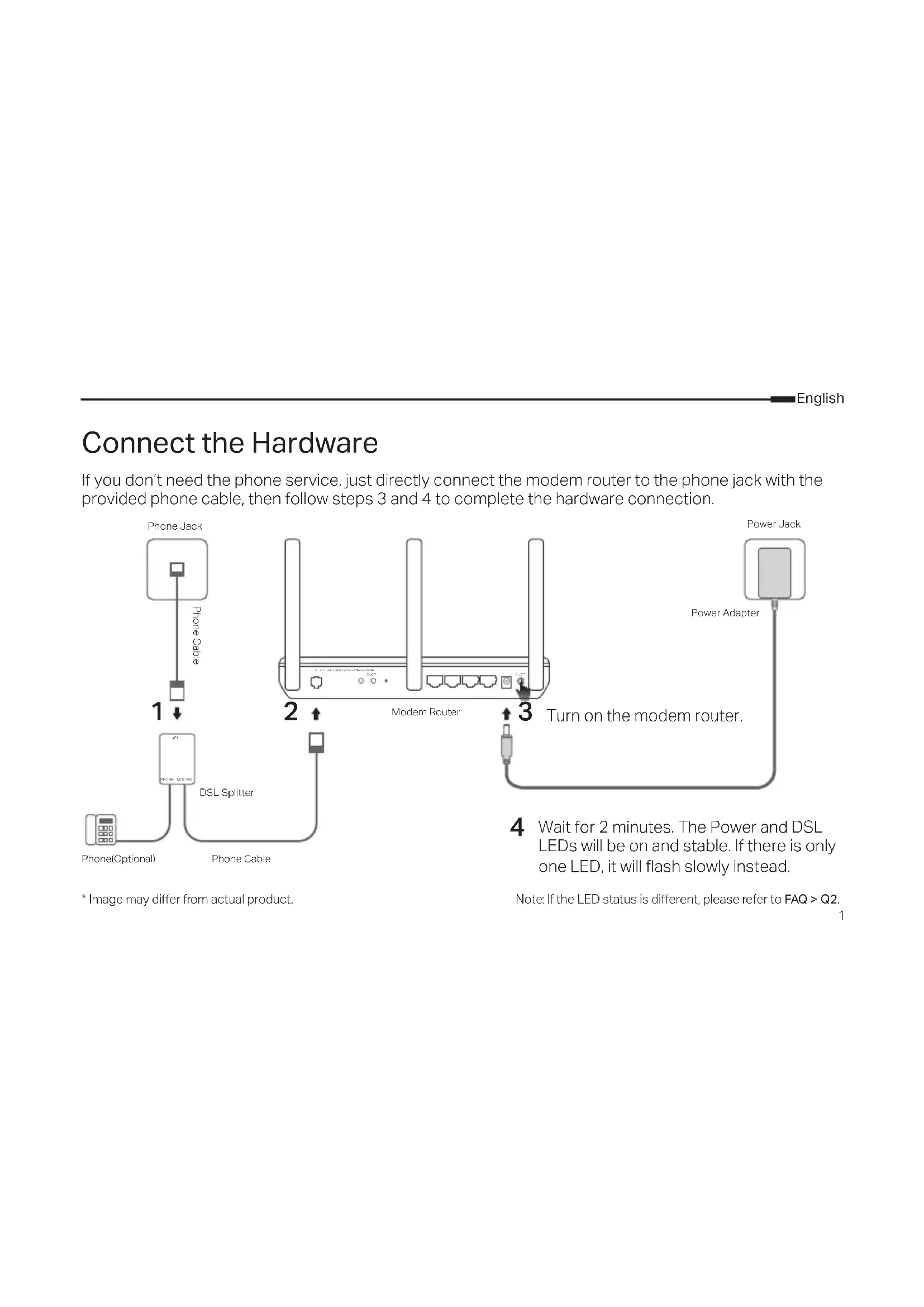

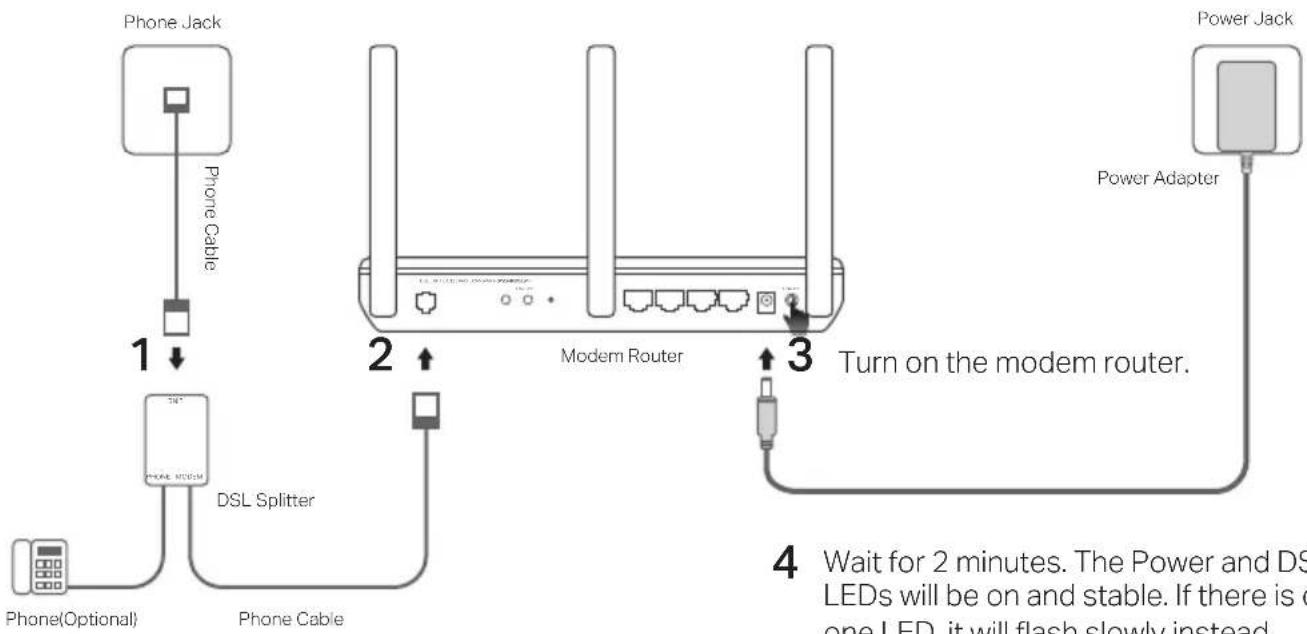

Quick Installation Guide Guía de Instalación Rápida Guide d'installation rapide Guia de Instalação Rápida Wireless DSL Modem Router 7106508613 REV1.3.0 TP-Link Technologies Co., Ltd. Specications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd. Copyright © 2020 TP-Link Technologies Co., Ltd. All rights reserved. For technical support, replacement services, user guides and other information, please visit https://www.tp-link.com/support, or simply scan the QR code.CONTENTS 1 / English 6 / Español 11 / Français 16 / Português1 English Connect the Hardware If you don’t need the phone service, just directly connect the modem router to the phone jack with the provided phone cable, then follow steps 3 and 4 to complete the hardware connection.

• Image may dier from actual product. Note: If the LED status is dierent, please refer to FAQ > Q2. Wait for 2 minutes. The Power and DSL LEDs will be on and stable. If there is only one LED, it will ash slowly instead. Phone JackPhone CableModem Router Turn on the modem router. Power JackDSL SplitterPhone(Optional)Phone CablePower AdapterEnglish

Configure via Web Browser 2 Configuring the modem router via a web browser A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1. http://tplinkmodem.net B Create a password for future login attempts, or use admin for both username and password for some routers. C Go to Quick Setup or Quick Start page and follow the step-by-step instructions to complete the initial configuration. 1 Connecting your computer to the modem router via a wired or wireless connection Wired Connect your computer to the LAN (or 1/2/3/4) port using an Ethernet cable. DSL LAN1 LAN2 LAN3 LAN4/WAN POWER POWERON/OFFWPS RESETWiFiON/OFF Wireless Connect wirelessly by using the SSID (network name) and Wireless Password printed on the product label at the bottom of the modem router. Now you can enjoy your internet. Ethernet Cable3 English If you already have a modem or your internet comes directly from an Ethernet wall outlet, you can switch to Wireless Router mode. Follow the steps below and set up. 1 Connect your computer to the router (LAN 1/2/3 port) via a wired or wireless connection. Note: The SSIDs (network names) and wireless password are printed on the product label. 2 Configure the modem router via a web browser. A Launch a web browser and type in http://tplinkmodem.net or 192.168.1.1. Note: If the login page does not appear, please refer to FAQ > Q1. B Create a password for future login attempts, or use admin for both username and password for some routers. Already Have a Modem? C Go to Advanced > Operation Mode page and switch to Wireless Router Mode, wait until the restart finished. 3 Connect the modem to the router’s LAN4/ WAN port via an Ethernet cable. 4 Go to Basic > Internet to nish the setup. Now you can enjoy your internet. For more advanced settings, refer to the User Guide on TP-Link’s ocial website at www.tp-link.com. DSL LAN1 LAN2 LAN3 LAN4/WAN POWER POWER ON/OFFWPS RESETWiFiON/OFF DSL LAN1 LAN2 LAN3 LAN4/WAN POWER POWER ON/OFF WPS RESETWiFi ON/OFF Ethernet CableModemPower Adapter http://tplinkmodem.netEnglish

FAQ (Frequently Asked Questions) Q1. What can I do if the login page does not appear? A1. If the computer is set to a static or xed IP address, change the settings to obtain an IP address automatically from the modem router. A2. Verify http://tplinkmodem.net is correctly entered in the web browser and press Enter. A3. Use another web browser and try again. A4. Reboot your modem router and try again. A5. Disable and enable the active network adapter. Q2. What can I do if the LED status is not correct? A1. Check your cables and make sure they are all plugged in correctly, including the telephone lines and power adapter. A2. Restore your modem router to its factory default settings. A3. Remove the DSL splitter, directly connect the modem router to the phone jack and then recongure the modem router by following the instructions in this Quick Installation Guide. A4. Contact your ISP to verify if the DSL line is in good status. A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support. Tether App The TP-Link Tether app provides a simple, intuitive way to access and manage your router. You can block unwelcome devices, set up Parental Controls, congure your wireless settings and more. Scan the QR code to download the TP-Link Tether app from the Apple App Store or Google Play. Note: Tether is not supported by some routers. Please check the app description before downloading.5 English Q3. What can I do if I cannot access the internet? A1. Make sure the telephone and Ethernet cables are plugged in correctly. A2. Try to log in to the web management page of the modem router using the default address at http://tplinkmodem.net. If you can, try the following answers. If you cannot, change your computer to obtain an IP address automatically from the modem router. A3. Consult your ISP and make sure all the VPI/VCI (or VLAN ID), Connection Type, account username and password are correct. If they are not, replace them with the correct settings and try again. A4. Restore the modem router to its factory default settings and recongure the modem router by following the instructions in this Quick Installation Guide. A5. If you have tried all the suggestions above and the problem still exists, contact our Technical Support. Q4. What can I do if I forget my password?

• Web management page password: A. Refer to FAQ > Q5 to reset the router, and then create a password for future login attempts, or use admin for both username and password for some routers.

• Wireless network password: A1. The default Wireless Password/PIN is printed on the product label of the modem router. A2. If the default wireless password has been changed, log in to the web management page of the router to retrieve or reset your wireless password. Q5. How do I restore the modem router to its factory default settings? A1. With the modem router powered on, press and hold down the RESET button of the modem router until there is an obvious change of LEDs, and then release the button. A2. Log in to the web management page of the modem router and go to the system management page to restore the modem router.Español
