USER MANUAL DFN06 Royal Sovereign

White disposable fan with four blades and a plastic clip at the base (no visible text or symbols)

Page en français

Read and retain these instructions for future reference

For any customer support needs,

please choose the support tab on www.royalsovereign.com

www.royalsovereign.com

Royal Sovereign International, Inc.

6 INCH CLIP-ON FAN

Model DFN-06 Series

INTRODUCTION

Thank you for choosing Royal Sovereign to provide you and your family with all of the “Home Comfort” requirements for your home, apartment or office. This 6 inch Clip-On Fan can be set-up in just minutes and can be easily moved from room to room. This manual will provide you with valuable information necessary for the proper care and maintenance for your new 6 inch Clip-On Fan. Please take a few moments and read the instructions thoroughly.

CONTENTS

Precautions 4

Parts & Fan Assembly 5

Operation 6

Cleaning and Maintaining 6

Specifications 7

Warranty 8

Exclusions 8

Page en français 9

PRECAUTIONS FOR USE

Electrical Specifications and Power Cord

Check to ensure that the electrical service being used is adequate for the model you've chosen. The electrical rating of your new fan is defined on the serial sticker on the unit. Please refer to the rating when checking electrical requirements to ensure they meet the electrical codes of your location.

• Do not use this appliance if it malfunctions or is dropped or damaged in any manner.
• Do not use outdoors. Do not place on or near a hot gas, electric burner, a microwave, or a heated oven.
  • To protect against fire, electric shock or injury, do not place cord, plug, or appliance in water or other liquid.
• The wrong use conflicting with the safeguards voids the customer of the right for warranty service.

- Do not modify any part of this product.

• Always place the fan on a stable, dry, level surface when operating.

- Do not insert any fingers, pencils or any other objects into the product or block the airflow in any way.

- Ensure that the power supply you use has an appropriate voltage rating.

- Do not use this unit with any extension cords or adapter plugs.

- If the cord or plug is damaged in any way, please call the Royal Sovereign Service Department

- Turn the unit off and unplug, when cleaning the fan or when the fan will not be used for an extended time period.

General Use

- Do not block air outlets with any obstacles.

• Do not insert any objects into the fan.
• Do not pour water on the housing or control panel.
• Do not place heavy items or sit on the fan.
• Never pull or damage the power cord in any way.

- This appliance is not intended for use by persons (including children) with reduced mental capabilities, unless they have been given supervision or instruction concerning the use of appliance by a person responsible for their safety.

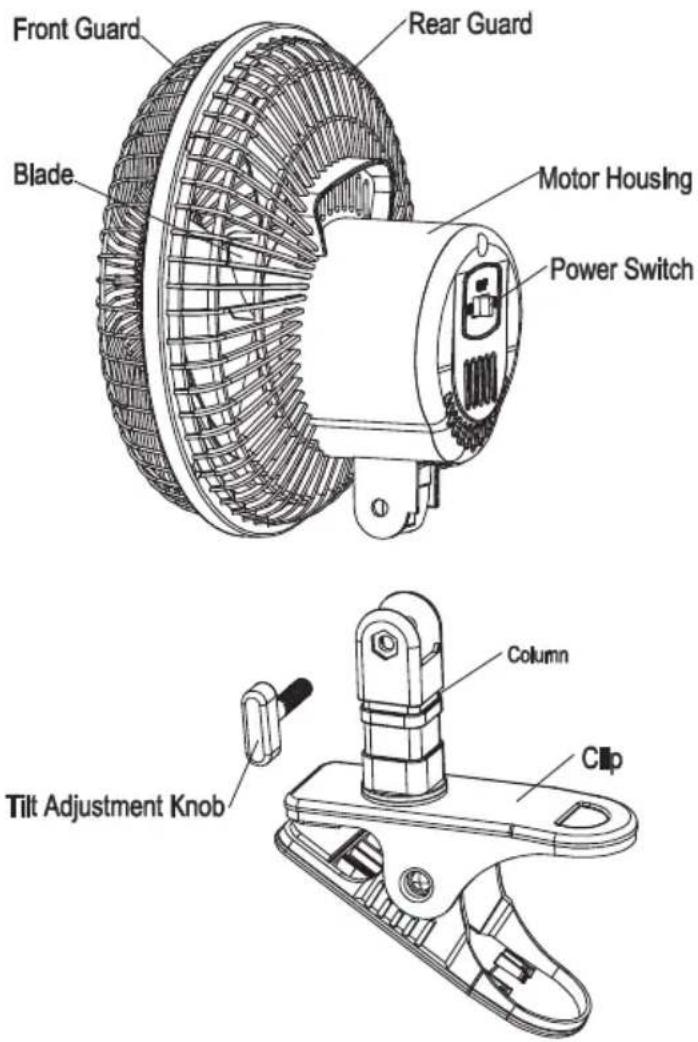

PARTS

Front Guard Rear Guard Blade Motor Housing Power Switch Column Tilt Adjustment Knob Clip

FAN ASSEMBLY

1. Remove the Tilt Adjustment Knob and Nut from the bottom of the Motor Housing by turning the Knob counterclockwise.
2. Align the holes in the Column of the Clip with the holes in the bottom of the Motor Housing and then insert the bottom of the Motor Housing into the Column.
3. Insert and hold the Nut into the corresponding slot on one side of the Column and then securely screw and tighten the Tilt Adjustment Knob into the hole on the other side of the Column and through the Nut (see Fig. 1).

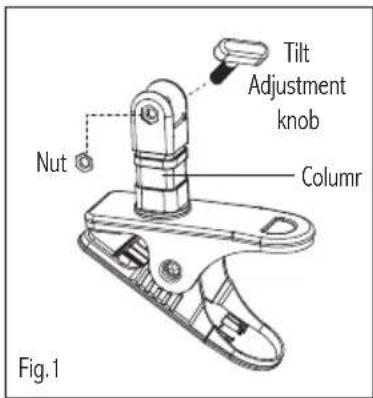

Tilt Adjustment knob Nutm Column Fig.1

OPERATION

1. Make sure the Power Switch is in the "OFF" position and then plug the power cord into a standard 120-volt AC electrical outlet.
2. Attach the Clip to a flat, level, steady, and stable surface not thicker than 1 1/4" (see Fig. 2).
3. To turn the Fan on and/or to change speed, slide the Power Switch left to "LO" or right to "HI" (see Fig.3).
4. To adjust the Fan up or down or left or right, turn the Fan off, loosen the Tilt Adjustment Knob by turning it counterclockwise, adjust the position of the Fan to the desired angle, tighten the Tilt Adjustment Knob, and then turn the Fan on to the desired speed.

CAUTION: Always turn the Fan off before adjusting the angle. NOTE: Fan swivels 360°.

1. To turn the Fan off, slide the Power Switch to the "OFF" position and unplug the power cord from the electrical outlet.

WARNING: Always unplug the product from the electrical outlet when it is not in use or will be left unattended.

Fig.2 3/4" - 1 1/4"

Fig.3 Power Switch OFF LOHI

CLEANING AND MAINTAINING

• Always unplug the appliance when cleaning your fan. Wipe the unit with a soft wet cloth. Don't use solvents or abrasives.
• Allow sufficient drying time before operating again.
  • To prevent damage, do not attempt to dismantle the fan with a sharp instrument
• We recommend that the fan be cleaned and packed in its original packaging and stored in a cool, dry place.

SPECIFICATIONS

Model DFN-06
Voltage/Frequency AC 120V, 60Hz
Input power 17W
Dimension (L) X (W) x (H) 7.3" × 7.6" × 11.8"
Weight 0.75Kg/1.65lbs

WARRANTY

Royal Sovereign warrants each fan to be free from defects in material and workmanship. Our obligation under this warranty is limited to the repair or replacement, free of charge, when delivered to an authorized Royal Sovereign service center, of any defective part(s) thereof, other than parts damaged in transit. This warranty is in effect to the original purchaser, for a period of one year from the date of purchase and is not transferable. This warranty shall apply only if the fan is used in accordance with the factory provided instructions which accompany it.

EXCLUSIONS

This warranty excludes and does not cover defects, malfunctions or failures of your Royal Sovereign Fan, caused by repairs by unauthorized persons or service centers, mishandling, improper installation, modification or unreasonable use including incorrect voltage, acts of God, or failure to provide reasonable and necessary maintenance. This warranty is in lieu of any and all expressed warranties. In no event shall Royal Sovereign be liable for consequential or incidental damages. This limitation would not apply if you live in a location that does not permit the exclusion of limitation of incidental or consequential damages.

ROYAL SOVEREIGN INTERNATIONAL, INC.

2 Volvo Drive Rockleigh, NJ 07647 USA

TEL: [phone] FAX: [phone]

RS HOLLAND B.V.

Industrieweg 6K, 4104AR, Culemborg, The Netherlands

Tel: [phone] Fax: [phone]

RS CANADA INC.

1025 Westport Crescent, Mississauga, Ontario, Canada L5T1E8

TEL: [phone] FAX: [phone]

RS INTERNATIONAL AUSTRALIA PTY. LTD.

30 Prime Drive, Seven Hills, NSW 2147, AUSTRALIA

TEL: [phone] FAX: [phone]

www.royalsovereign.com
