HyperX Cloud Core Headset

Find the language and latest documentation for your HyperX Cloud Core Headset here.

HyperX Cloud Core Headset Installation Guide

For instructions in English
Para instrucciones en español
Für Anleitungen in Deutsch
Pour des instructions en français
...... Per le istruzioni in italiano
Por as instruções em português
Instrukcje w jezyku polskim
Для инструкции на русском
C. Turkce talimatlar icin
Japanese
Thai
......Українська
Vietnamese

Simplifi ed Chinese ..... 中文说明

Traditional Chinese .... 中文說明

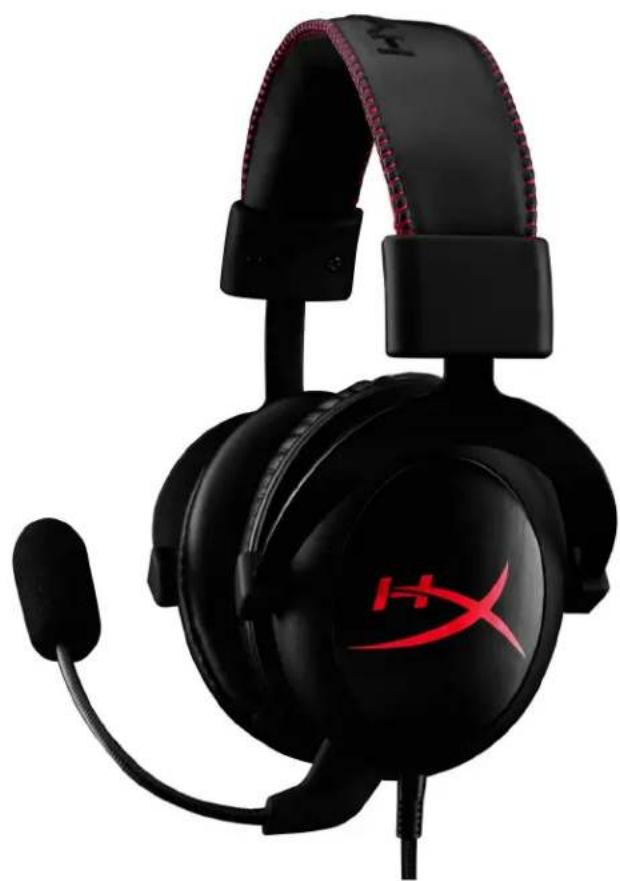

HyperX Cloud Core Headset

Black and red HX3 video headset with headband and earplift (no text or symbols visible)

Part Numbers: KHX-HSCC-BK

KHX-HSCC-BK-BR

KHX-HSCC-BK-ER

KHX-HSCC-BK-FR

KHX-HSCC-BK-LR

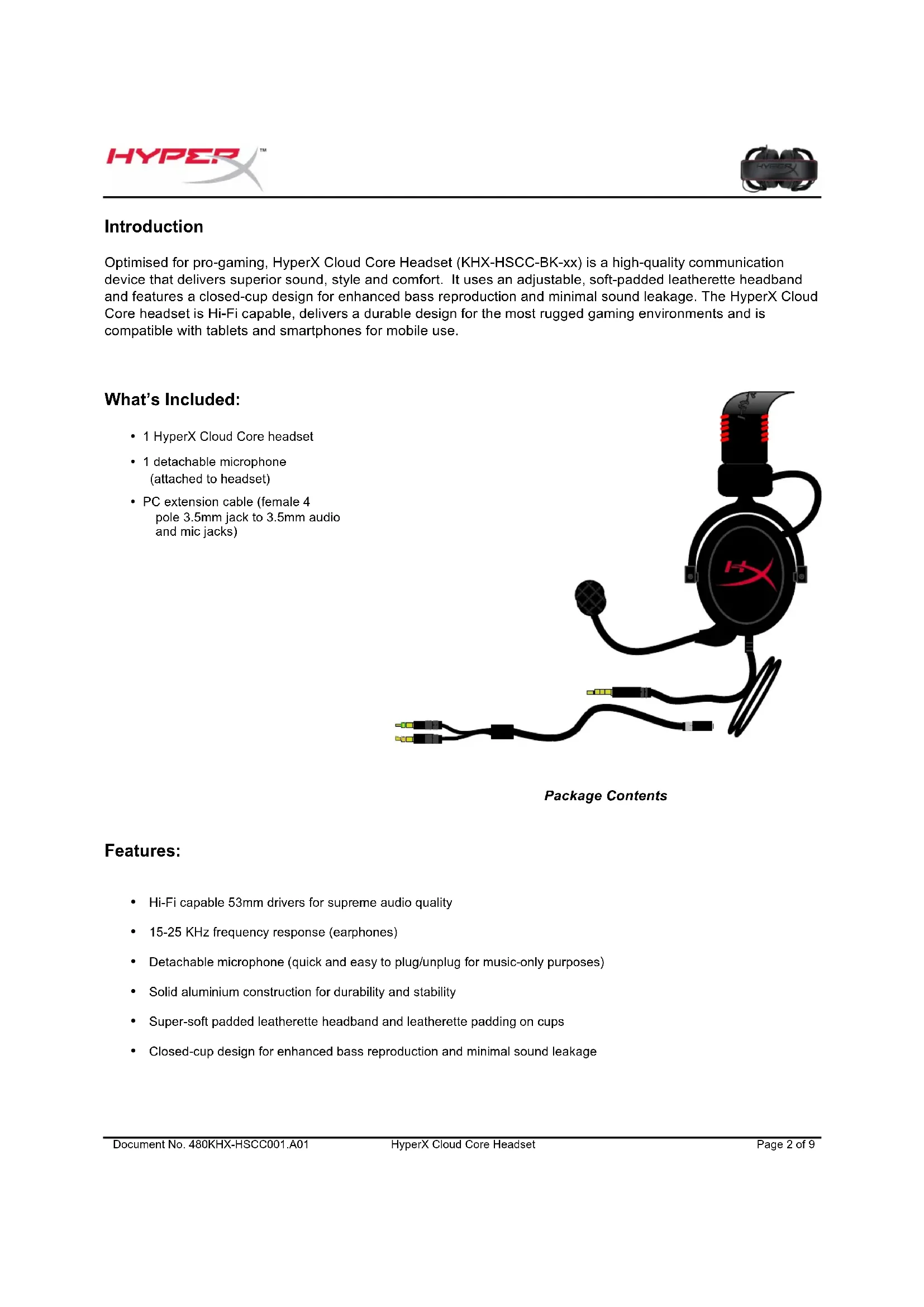

Introduction

Optimised for pro-gaming, HyperX Cloud Core Headset (KHX-HSCC-BK-xx) is a high-quality communication device that delivers superior sound, style and comfort. It uses an adjustable, soft-padded leatherette headband and features a closed-cup design for enhanced bass reproduction and minimal sound leakage. The HyperX Cloud Core headset is Hi-Fi capable, delivers a durable design for the most rugged gaming environments and is compatible with tablets and smartphones for mobile use.

What's Included:

• 1 HyperX Cloud Core headset

• 1 detachable microphone (attached to headset)

• PC extension cable (female 4 pole 3.5mm jack to 3.5mm audio and mic jacks)

Illustration of a black HPS headset with attached cable and connector (no text or symbols)

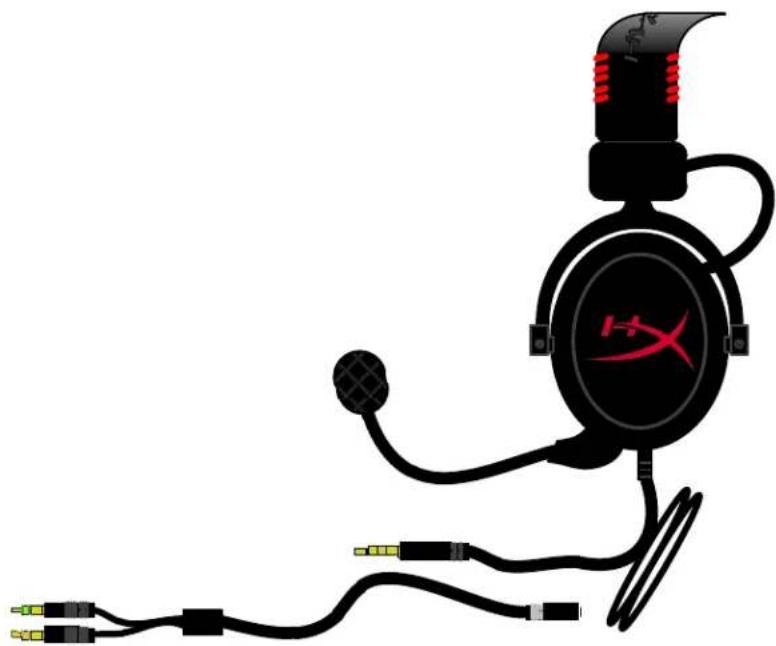

Package Contents

Features:

• Hi-Fi capable 53mm drivers for supreme audio quality
• 15-25 KHz frequency response (earphones)
- Detachable microphone (quick and easy to plug/unplug for music-only purposes)
• Solid aluminium construction for durability and stability
• Super-soft padded leatherette headband and leatherette padding on cups
- Closed-cup design for enhanced bass reproduction and minimal sound leakage

Technical Specifications:

Headset

• Transducer type: Dynamic 53mm
- Operating principle: Closed
• Frequency response: 15Hz-25KHz
• Nominal impedance: 60 ohm per system
• Nominal SPL: 98+/-3dB
- THD: < 2%
• Power handling capacity: 150mW
• Sound coupling to the ear: Circumaural
• Ambient noise attenuation: Approx. 20 dBa
• Headband pressure: 5 N
• Weight with microphone and cable: 350g
• Connection: Mini 3.5mm jack plug (4 pole)

• Cable length and type: 1m mini 3.5mm jack plug (4 pole) + 2m stereo and mic extension cable

Microphone

• Microphone transducer type: Condenser (back electret)
- Operating principle: Pressure gradient
- Polar pattern: Cardioid
• Power supply: AB powering
• Supply voltage: 2V
• Current consumption: Max 0.5 mA
• Nominal impedance: ≤2.2 k ohm
• Open circuit voltage at f = 1 kHz 20 mV / Pa
• Frequency response: 100 - 12,000 Hz (microphone)
• THD: 2% at f = 1 kHz
• Max. SPL: 105dB SPL (THD ≤ 1.0% at 1KHz)
• Microphone output: -39+/-3dB
- Dimensions: 6*5mm
• Length mic boom: 150MM (including gooseneck)
- Capsule diameter: 6mm

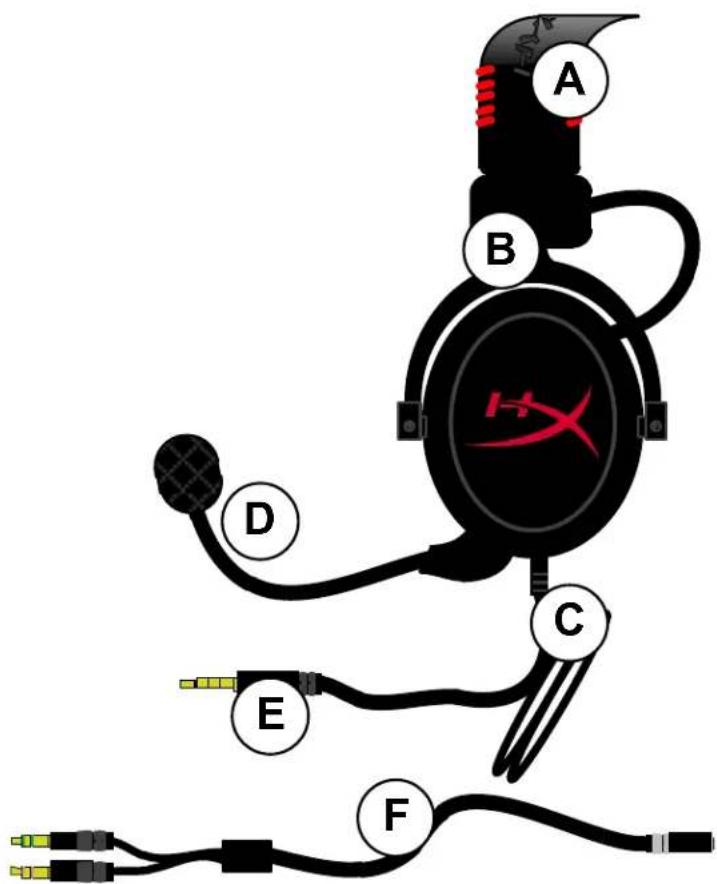

Overview

A B C D E F

A. Leatherette headband w/ HyperX logo

B. Aluminium arm to adjust headband

C. Attached cable w/ 3.5mm input jack

D. Detachable microphone with adjustable arm and condenser

E. Mini 3.5mm jack plug (4 pole)

F. PC extension cable

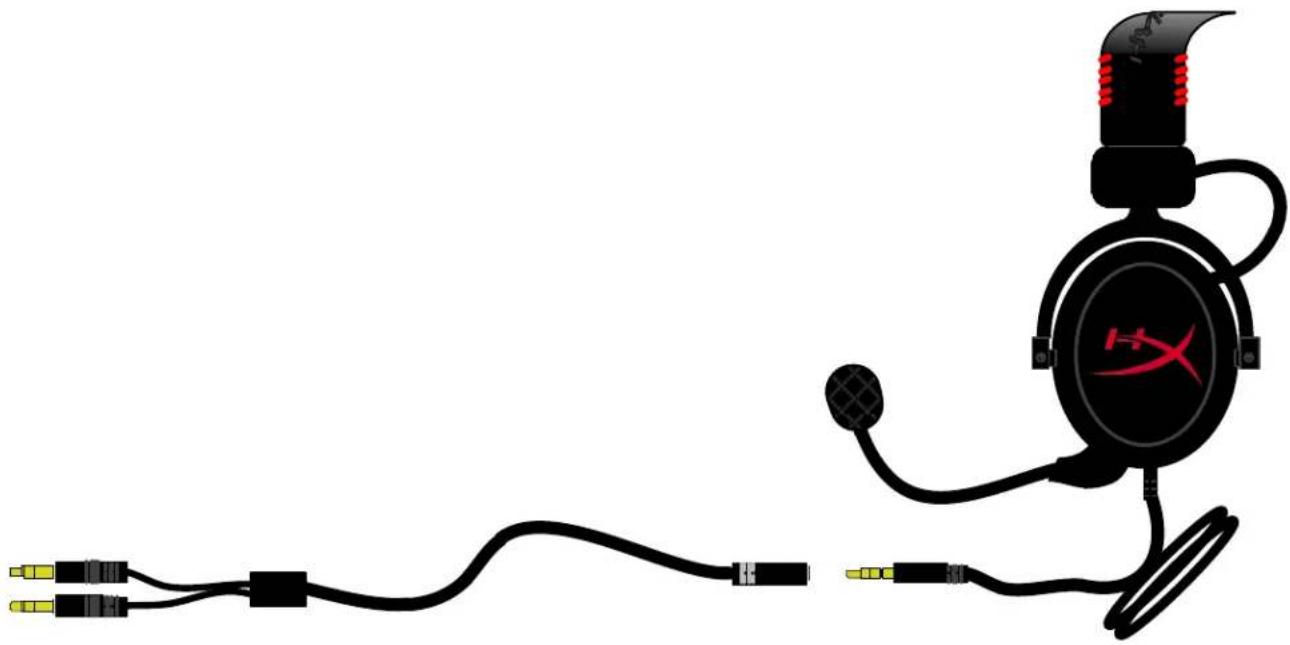

Usage (PC extension cable)

To connect your headset directly to your computer (or other device) that has both a headset jack and a microphone jack. Connect the headset's 3.5mm jack to the female jack on the PC extension cable. The extension cable audio jack, which has green stripes, plugs into the port signified by a green input or earphones symbol 🎨The extension cable microphone jack, which has pink stripes, plugs into the port signified by a pink input or a microphone symbol 🔊.

Illustration of a black headset with red logo and connecting cable, no text or symbols present

Using with PC extension cable

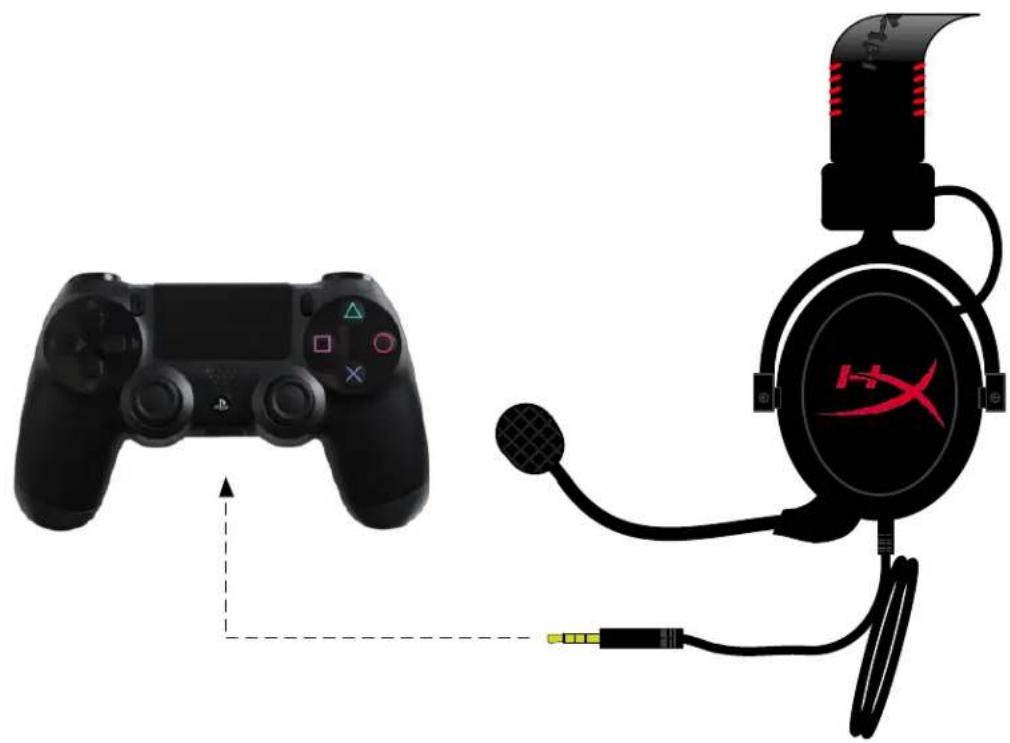

Usage (PlayStation® 4)

To use the HyperX Cloud Core headset with PlayStation 4 (PS4 ^TM ), connect the 3.5mm jack on the headset directly to the PS4 game controller and follow these steps:

1. Turn on your PS4 game console.
2. Navigate to the Settings menu and select it.
3. Highlight the 'Devices' menu option and select it.
4. Scroll down to 'Audio Devices' and select it.
5. Choose 'Output to Headphones' and select 'All Audio.'

Illustration of a game controller and its headset with a small game controller shown alongside (no text or symbols)

Using with PS4

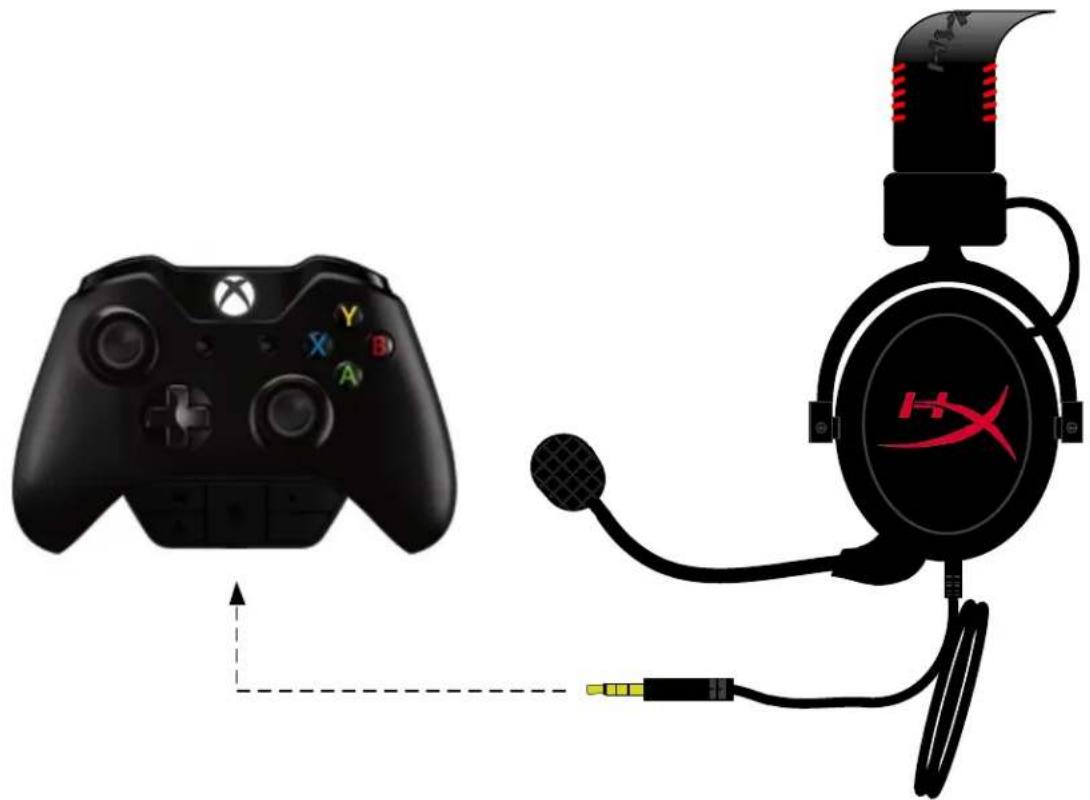

Usage (Xbox ^® One)

To use the HyperX Cloud Core headset with Xbox One, you will need the Xbox One adapter (sold separately) that plugs into the Xbox One controller (pictured below). Connect the 3.5mm jack on the headset directly to the Xbox One adapter.

Illustration of a game controller and a H3X headset with audio jack (no text or symbols)

Using with Xbox One

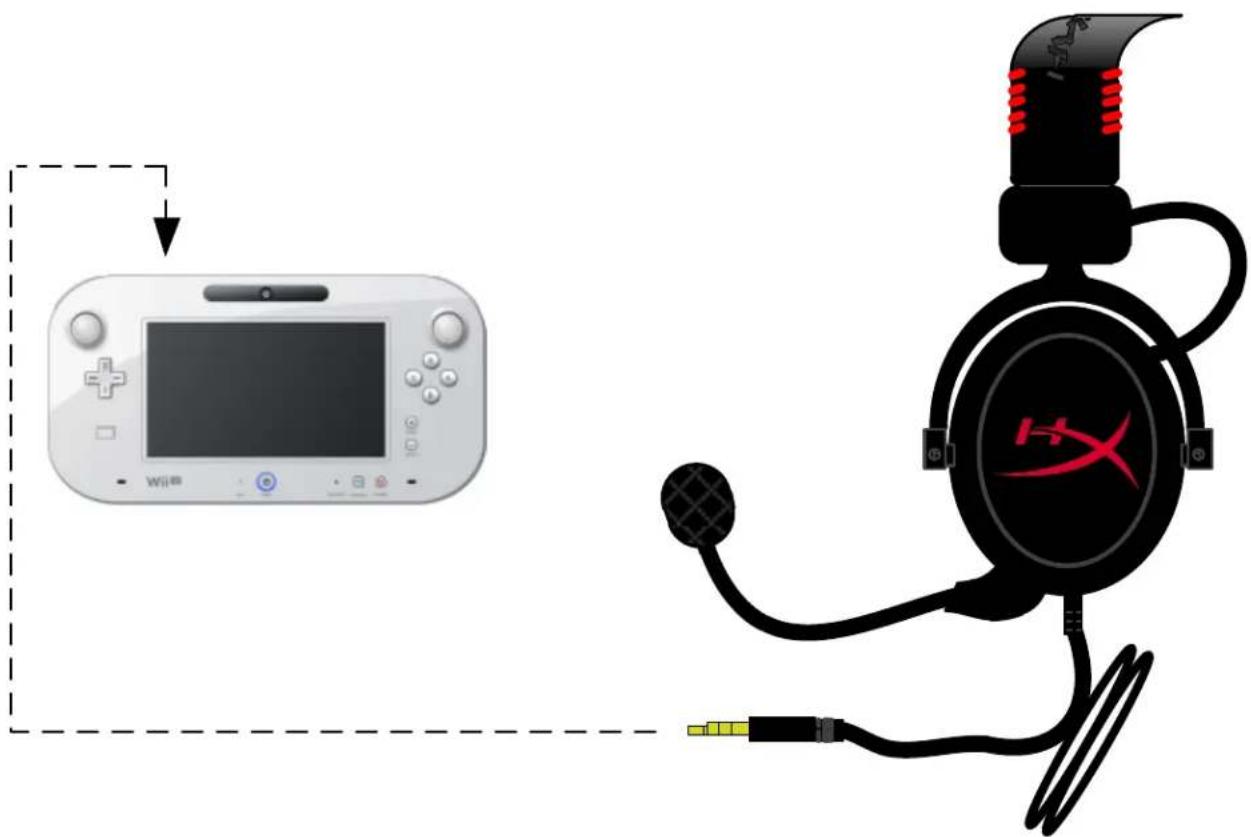

Usage (Wii U)

To use the HyperX Cloud Core headset with Wii U ^® , connect the 3.5mm jack on the headset directly to the Wii U gamepad controller.

Illustration of a KHC headset connected to a gaming console, with no visible text or symbols on the device or background.

Using with Wii U ^TM

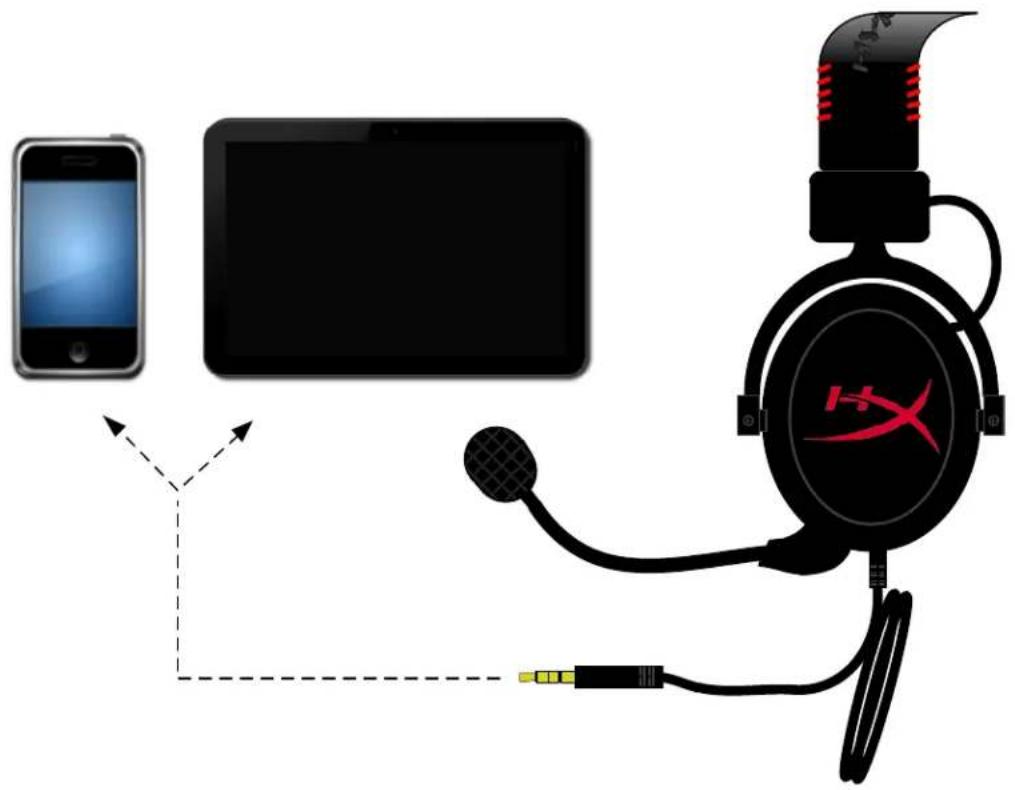

Usage with Mobile Device (Phone or Tablet)

To use the HyperX Cloud Core headset with a mobile device, plug the 3.5mm jack directly into the headset jack on your phone or tablet.

Illustration of a H2X headset connected to a smartphone and tablet, with no visible text or symbols.

Using with mobile device (phone or tablet)

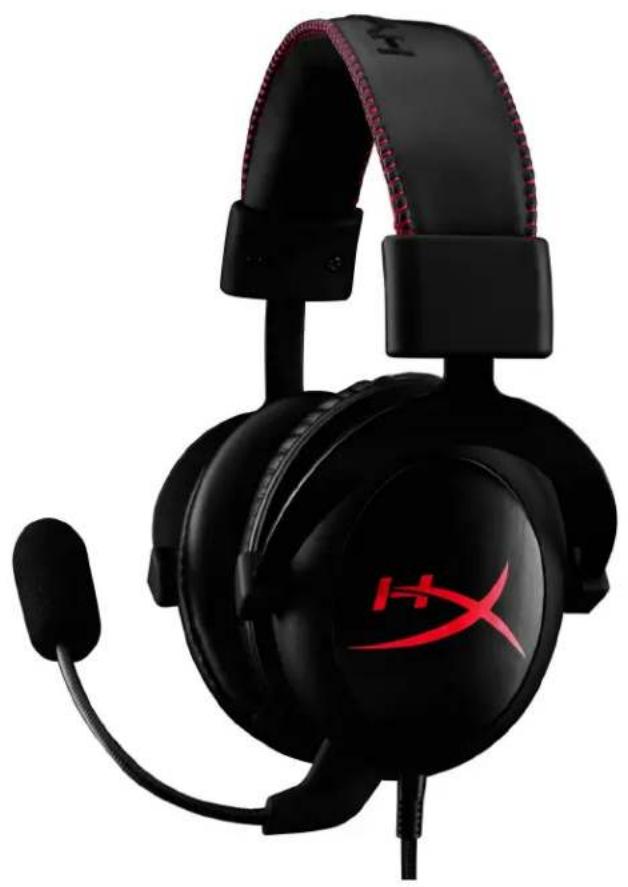

Audífonos HyperX Cloud Core
