Product Type	LED TV (LCD screen with LED backlight)
Brand	LG
Model	32LN5130
Screen size (diagonal)	32 inches (81 cm)
Dimensions with stand (W x H x D)	738,0 x 497,0 x 207,0 mm
Dimensions without stand (W x H x D)	738,0 x 449,0 x 79,0 mm
Weight with stand	7,0 kg
Weight without stand	6,4 kg
Power supply	AC 100-240 V~ 50/60 Hz
Energy consumption	See label on the back of the TV
Video inputs	HDMI, Component, Composite, USB
Audio input	Stereo jack (audio input shared with composite)
Audio output	Headphone jack (stereo), built-in speakers
USB playback formats	Photo (JPEG), Music (MP3), Video (DivX, MP4, MKV, AVI, etc.)
Remote control	Yes, with AAA batteries included
VESA wall mount	200 x 100 mm (M4 x 14 screws)
Main functions	Auto channel search, program list, timer, parental control, teletext, picture modes (Vivid, Standard, Cinema, Sport, Game)
Care and cleaning	Wipe with a soft, dry cloth; for stains, use a slightly damp cloth then wipe with a dry cloth.
Safety	Child lock (password), stable wall mounting, keep away from heat sources and moisture
Spare parts and repairability	Contact an authorized LG after-sales service for repairs; parts available through retailer

Frequently Asked Questions - 32LN5130 LG

How to attach the stand to the TV?

Place the screen face down on a protected flat surface. Align the stand with the holes on the back of the TV and tighten the provided screws (P5x25 or M4x14 depending on the model). Be careful not to overtighten to avoid damaging the casing.

What to do if the remote control does not work?

Check that the batteries are correctly installed (+ and - poles) and not depleted. Make sure there is no obstacle between the remote control and the TV sensor. Try moving the remote closer to the TV.

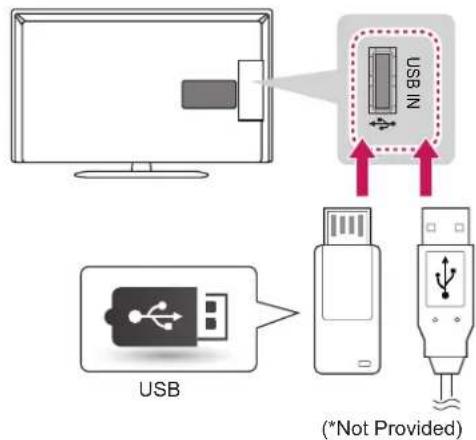

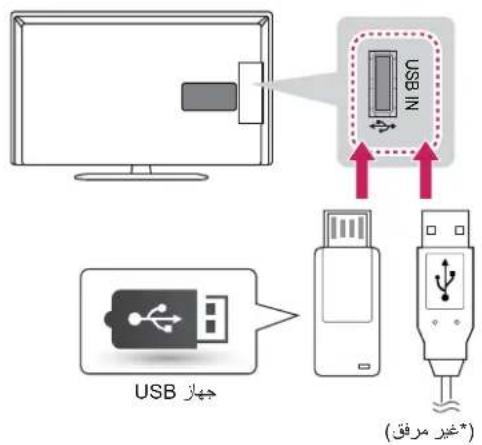

How to connect a USB device to play videos?

Plug the USB flash drive into the TV's USB port. Press SETTINGS, go to the USB menu, then select VIDEO. Browse the files and press OK to play the video. Supported formats include DivX, MP4, AVI, MKV, etc.

How to adjust the picture size?

Press Q.MENU then select Picture format. You can choose from 16:9, 4:3, Zoom, etc. Available options depend on the input source.

The TV turns off by itself, what to do?

Check the timer settings in the TIME menu. If the 'Auto sleep' option is enabled, the TV will turn off after a period of inactivity. Disable it if you do not want this function.

How to automatically search for channels?

Press SETTINGS, go to CONFIGURATION then select 'Auto search'. Choose 'Start' to begin the search. The TV will memorize all available channels.

Can I mount the TV on the wall?

Yes, the TV is compatible with a VESA 200x100 mm wall mount. Use M4 x 14 screws (not included) and an LG-approved wall mount. Make sure the wall can support the weight and consult a professional if needed.

How to clean the screen without damaging it?

Turn off the TV and unplug it. Use a soft, clean, dry cloth to remove dust. For stains, slightly dampen the cloth with clean water or a mild detergent, then immediately wipe with a dry cloth. Do not spray liquid directly onto the screen.

Why is there no sound?

Check that the volume is not muted (MUTE button) or set to zero. Make sure the selected audio source is correct. If using an external audio system, check the connection and that the internal speakers are not disabled in the AUDIO menu.

How to activate parental control?

Press SETTINGS, go to LOCK. Enter the default password (0000) to activate the lock system. You can then block channels or input sources by pressing the blue button on the remote control.

USER MANUAL 32LN5130 LG

*LG LED TV applies LCD screen with LED backlights.

Please read this manual carefully before operating your set and retain it for future reference.

LN510*

LN511*

LN512*

LN513*

LN515*

P/NO:MFL67710803(1301-REV00)

Printed in Korea

TABLE OF CONTENTS

3 SAFETY INSTRUCTIONS

8 INSTALLATION PROCEDURE

8 ASSEMBLING AND PREPARING

8 Unpacking

10 Parts and buttons
11 Lifting and moving the TV
12 Setting up the TV
12 - Attaching the stand
13 Mounting on a table
15 Mounting on a wall

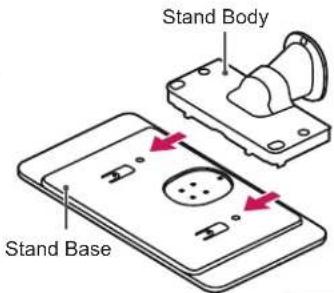

16 - Attaching the shelf stand

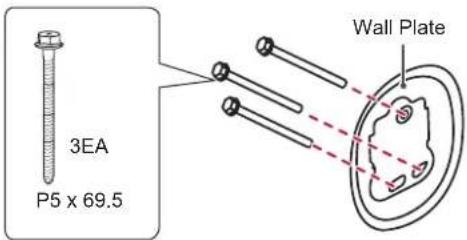

17 - How to attach to masonry walls
18 Tidying cables

19 MAKING CONNECTIONS

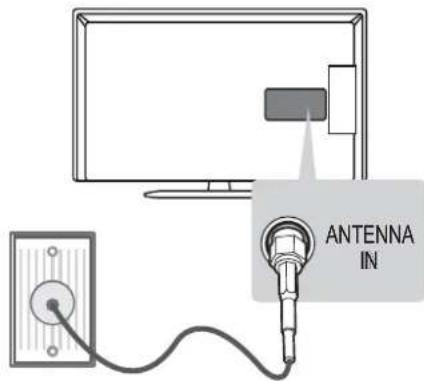

19 Antenna connection

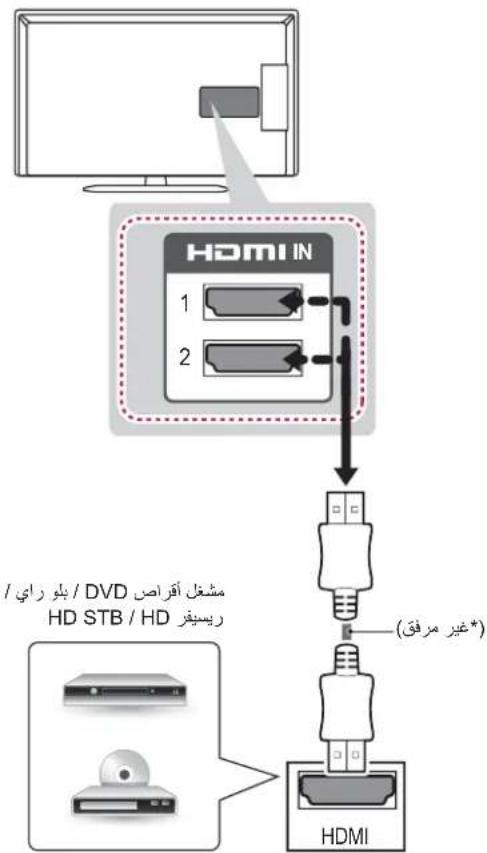

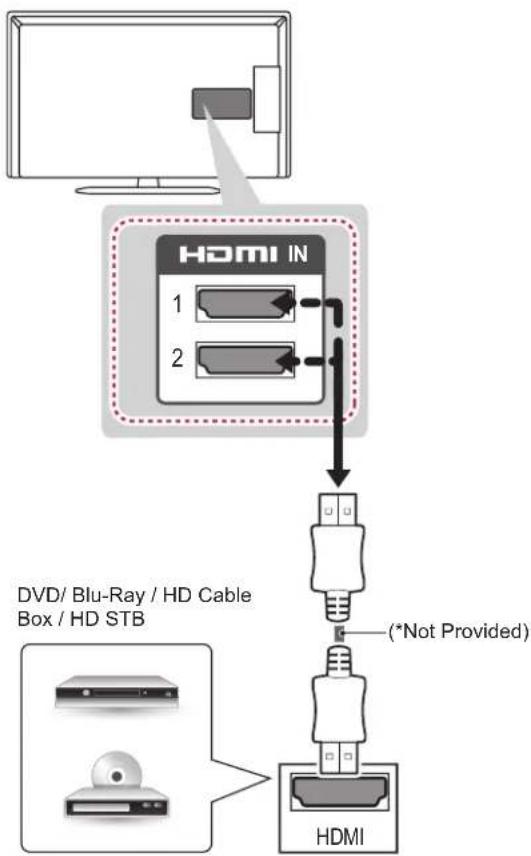

20 HDMI connection

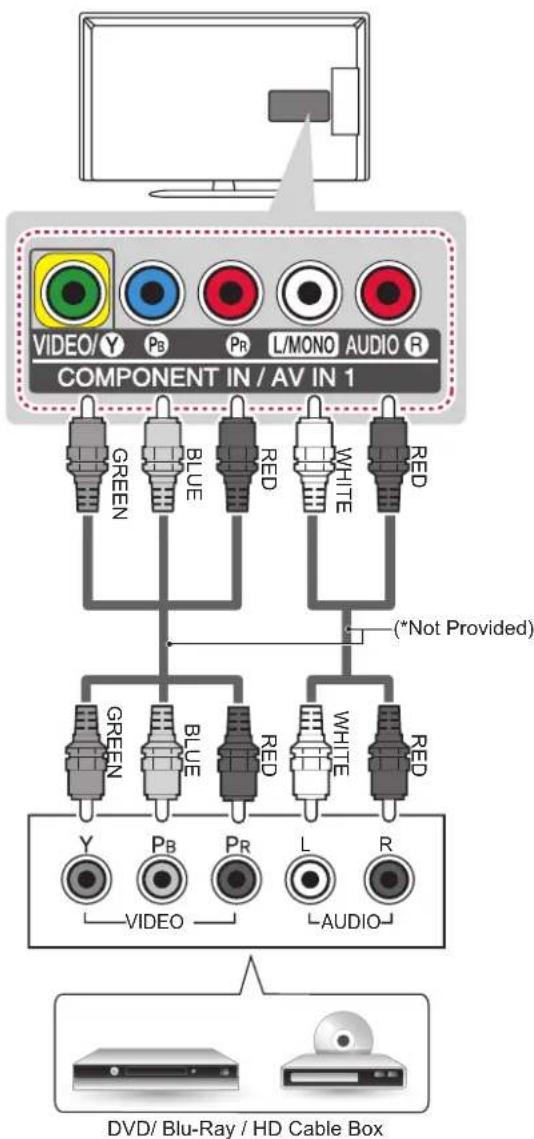

20 Component connection

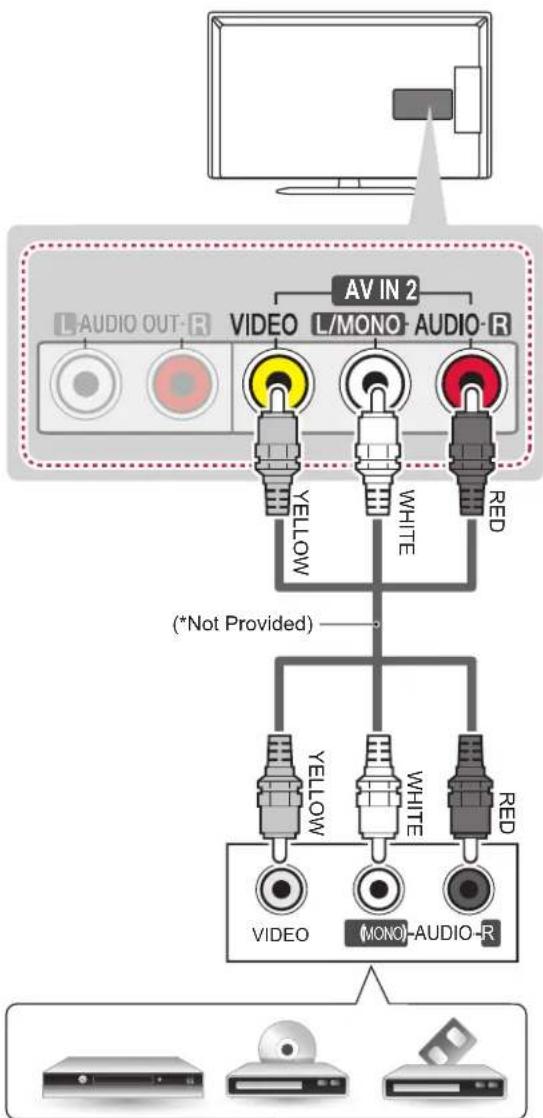

21 Composite connection
21 USB connection
22 Audio System connection

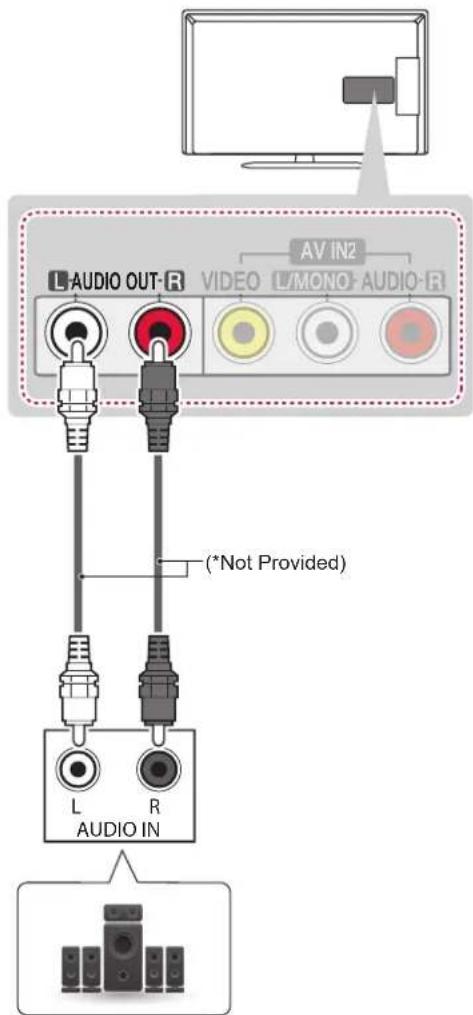

22 - External Stereo Connection

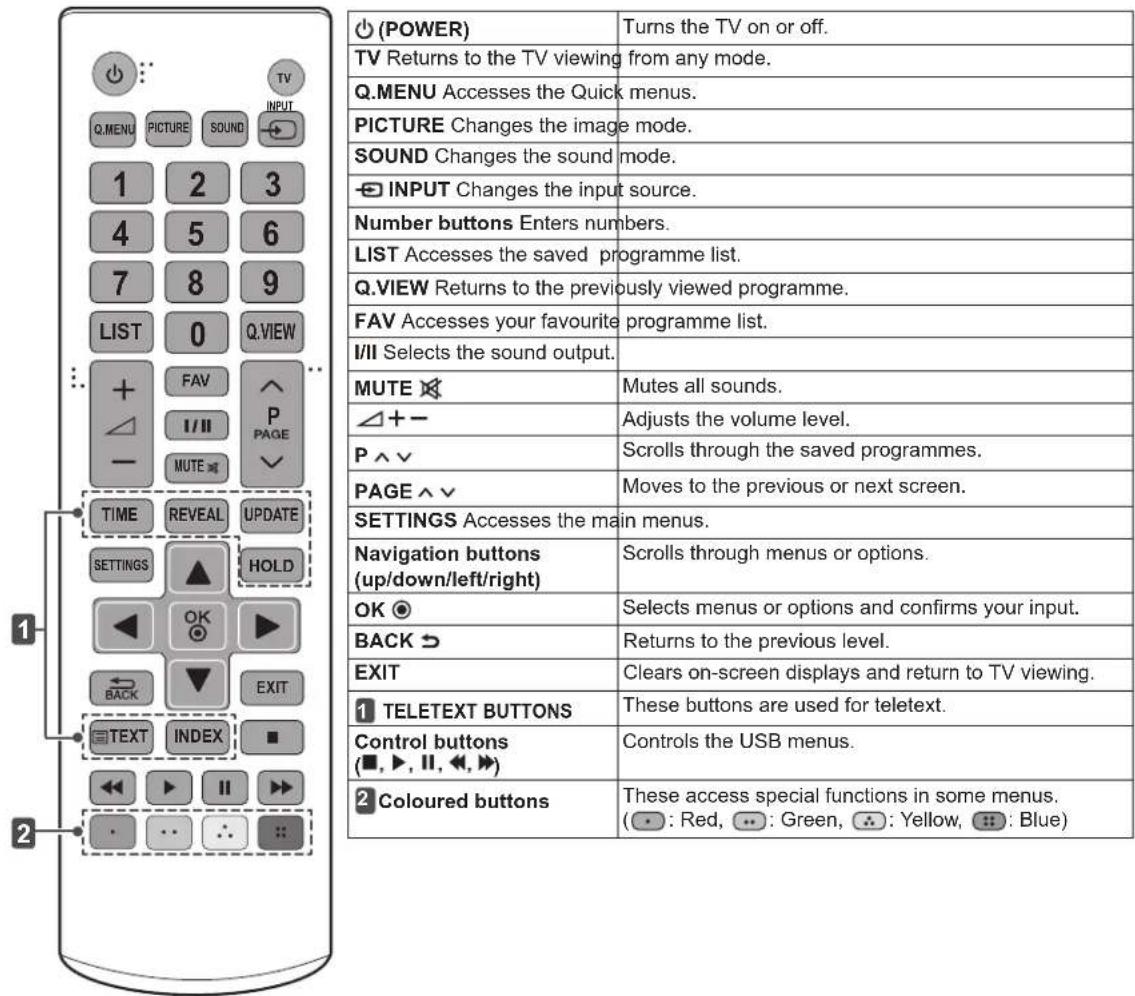

23 REMOTE CONTROL

24 WATCHING TV

24 Turning the TV on for the first time
24 Watching TV
24 Managing programmes
24 - Automatically setting up programme
25 - Manually setting up programme
26 - Editing your programme list
26 - Selecting a programme on the programme list
26 Using additional options
26 - Adjusting aspect ratio
27 - Using the input list

28 ENTERTAINMENT

28 Connecting USB storage devices

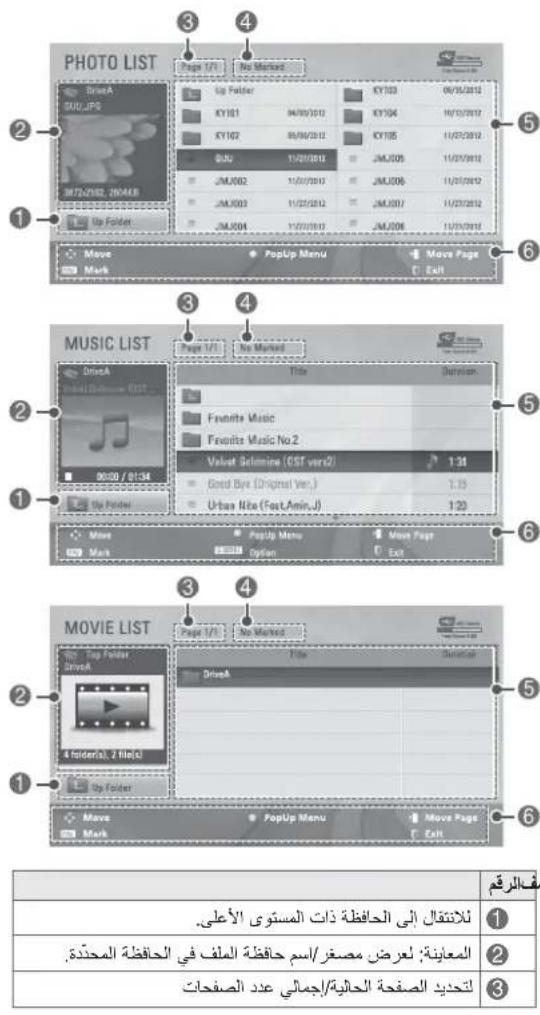

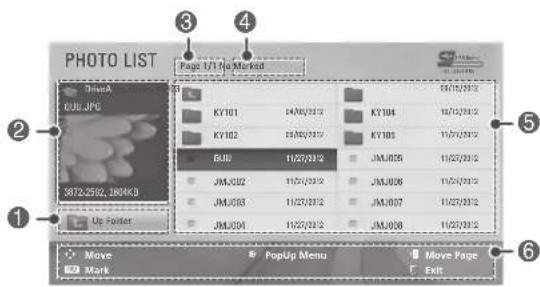

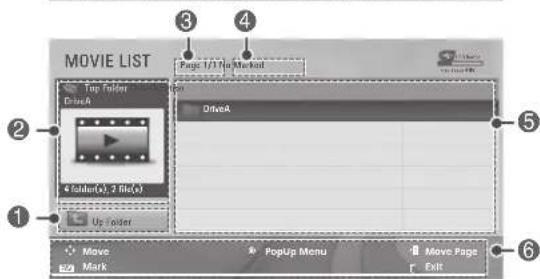

29 Browsing files

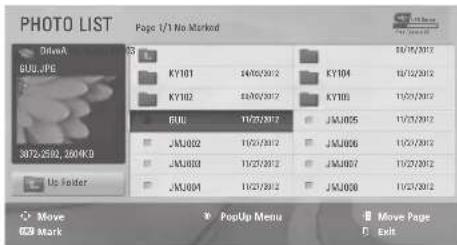

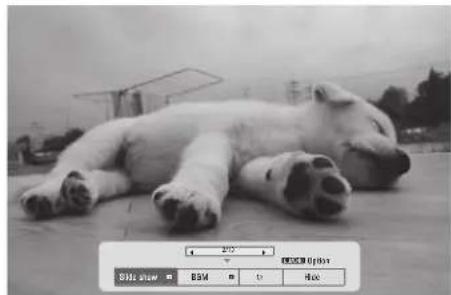

30 Viewing photos

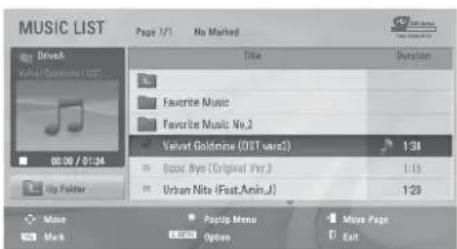

31 Listening to music

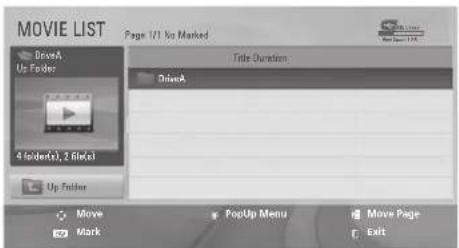

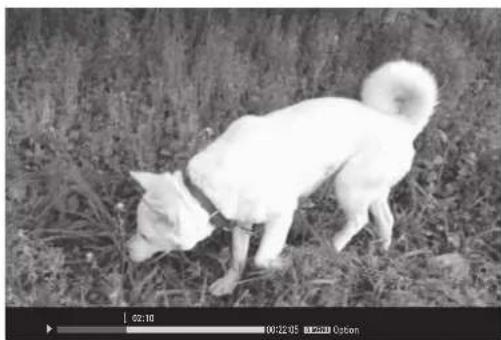

32 Viewing movies
34 DivX® VOD Guide

35 CUSTOMIZING TV SETTING

35 Accessing main menus
35 Customizing Settings
35 - SETUP Settings
36 - PICTURE Settings
38 - AUDIO Settings
39 - TIME Settings
40 - OPTION Settings
40 - LOCK Settings

41 TELETEXT

41 Switch On/Off
41 Simple Text
41 - Page selection
41 - Programming a colour button in LIST mode
41 Fastext
41 - Page selection
41 Special Teletext Function

42 MAINTENANCE

42 Cleaning your TV
42 - Screen, frame, cabinet and stand
42 - Power cord

42 TROUBLESHOOTING

43 SPECIFICATIONS

46LICENSES

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

• Do not place the TV and remote control in the following environments:
• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
  Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases Otherwise, this may result in fire, electric shock, malfunction or product deformation.

• Do not place the product where it might be exposed to dust. This may cause a fire hazard.

• Mains Plug is the TV connecting/disconnecting device to AC mains electric supply. This plug must remain readily attached and operable when TV is in use.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off. You may be electrocuted due to excess moisture.

Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured.

• Insert power cable plug completely into wall socket otherwise if not secured completely into socket, fire ignition may break out.

• Ensure the power cord does not come into contact with hot objects such as a heater. This may cause a fire or an electric shock hazard.

• Do not place a heavy object, or the product itself, on power cables. Otherwise, this may result in fire or electric shock.

Bend antenna cable between inside and outside building to prevent rain from flowing in. This may cause water damaged inside the Product and could give an electric shock.

• When mounting TV onto wall make sure to neatly install and isolate cabling from rear of TV as to not create possibility of electric shock / fire hazard.

• Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

• Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

C

• Unplug the TV from AC mains wall socket if you do not intend to use the TV for a long period of time. Accumulated dust can cause fire hazard and insulation deterioration can cause electric leakage/shock/fire.

Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

• When installing the antenna, consult with a qualified service technician. If not installed by a qualified technician, this may create a fire hazard or an electric shock hazard.

We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

CAUTION

Install the product where no radio wave occurs.

There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock.

• Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product.

If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
- Only use the attachments / accessories specified by the manufacturer.

Only use the specified type of battery. This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Batteries should not be exposed to excessive heat. eg keep away from direct Sunlight, open fireplace and electric heaters.

• Do not place non-rechargeable batteries in charging device.

Make sure there are no objects between the remote control and its sensor.

• Signal from Remote Control can be interrupted due to external/internal lighting eg Sunlight, fluorescent lighting. If this occurs turn off lighting or darken viewing area.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough.

Otherwise, the product may fall over, which may cause injury or damage the product.

• Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

• Please follow the installation instructions below to prevent the product from overheating.

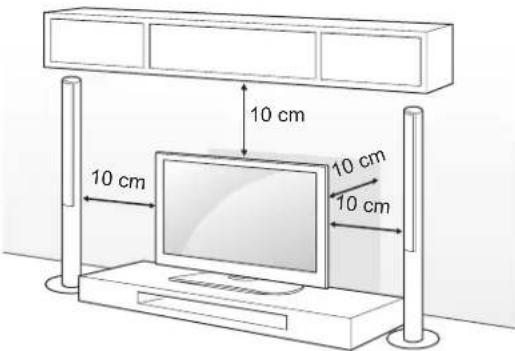

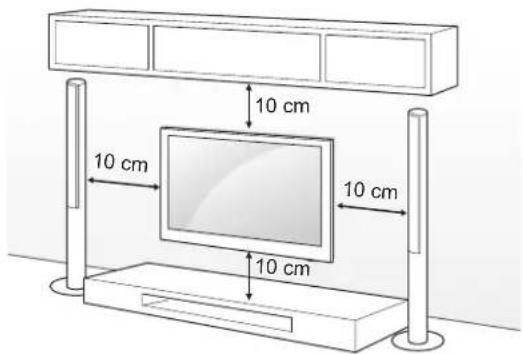

• The distance between the product and the wall should be more than 10cm
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain.
  Otherwise, this may result in fire.

Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.

Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

• Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.
• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it, as it may cause damage to screen.

• Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary or permanent distortion/damage to screen.

• When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

• When unplugging the cable, grab the plug and unplug it, by pulling at the plug. Don't pull at the cord to unplug the power cord from the power board, as this could be hazardous.

• When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables.

The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

• When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.

• Contact the service centre once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.

The panel is a high technology display product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.

• You may find different brightness and colour of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking.

Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.

ASSEMBLING AND PREPARED

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure the safety and product life span.
  Any damages or injuries by using unapproved items are not covered by the manufacturer's warranty.
• Some models have a thin film attached on to the screen and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
  Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10mm thick and 18mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

Remote control and batteries (AAA) (See p.23)

Owner's manual Cable holder

Depending on model) (See p.18

Power Cord

Stand Screws

3EA,P5 x 25

4EA,M4×14

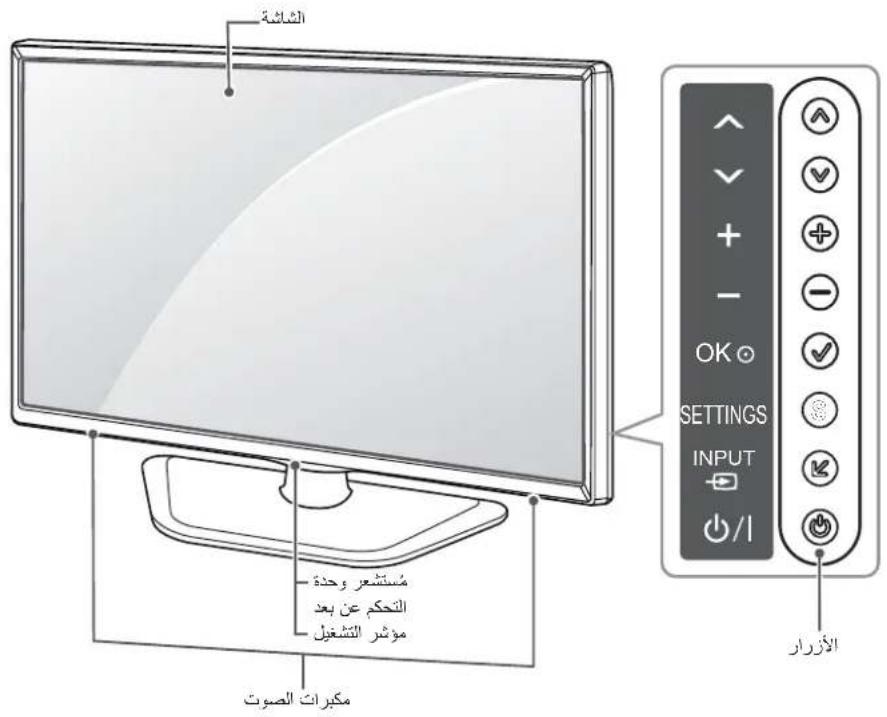

Button Description
^✓	Scrolls through the saved programmes.
+ -	Adjusts the volume level.
✓	Selects the highlighted menu option or confirms an input.
$	Accesses the main menu, or saves your input and exits the menus.
✓	Changes the input source.
◎	Turns the power on or off.

Lifting and moving the TV

Please note the following advice to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

• It is recommended to move the TV in the box or packing material that the TV originally came in.
  Before moving or lifting the TV, disconnect the power cord and all cables.

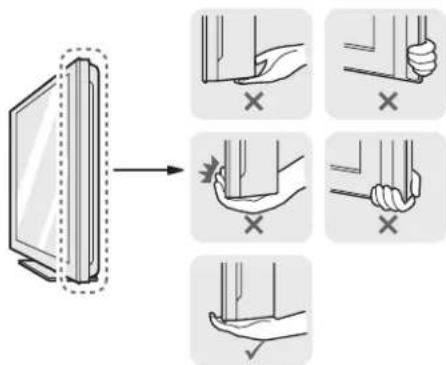

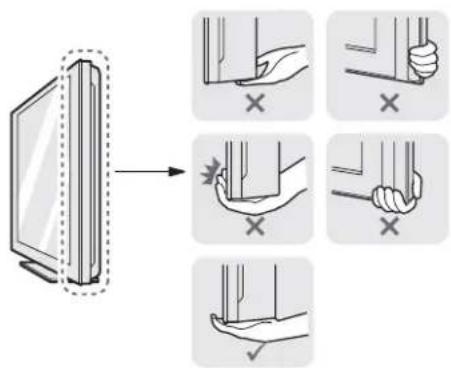

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

Setting up the TV

Image shown may differ from your TV.

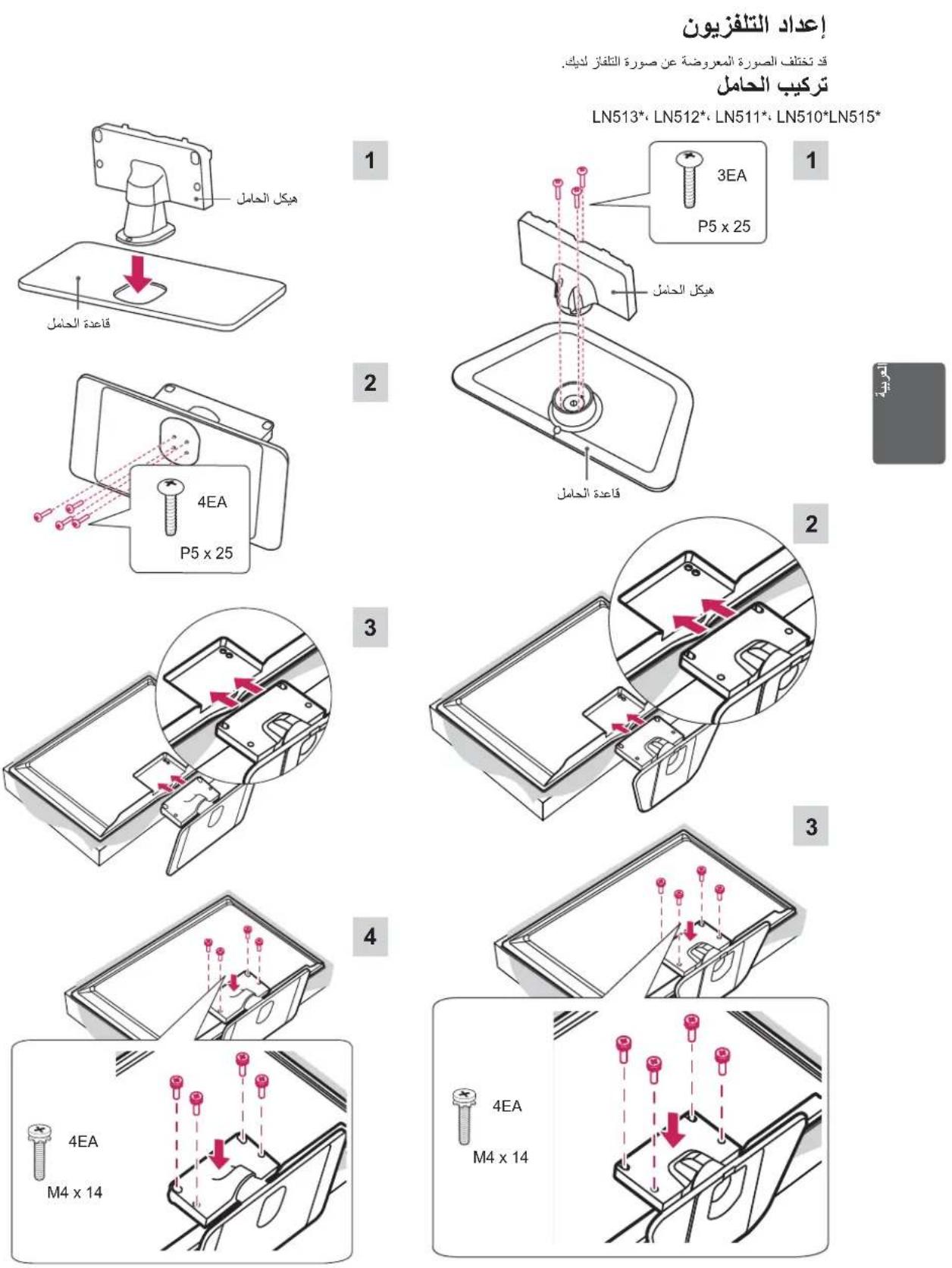

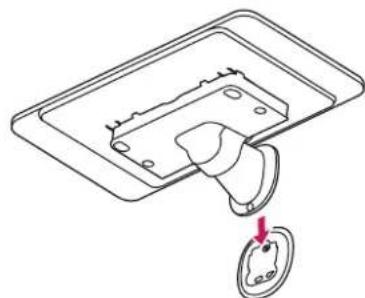

Attaching the stand

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.
  Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)

Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

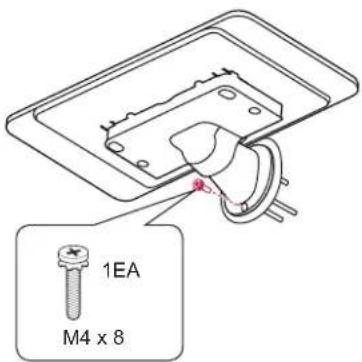

NOTE

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Mounting on a table

1 Lift and tilt the TV into its upright position on a table. -Leave a 10cm (minimum) space from the wall for proper ventilation.

2 Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

Fix the TV to a table to prevent from tilting forward, damage, and potential injury. To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.

WARNING

• To prevent TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eyebolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

WARNING

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

» Using cabinets or stands recommended by the manufacturer of the television.
Only using furniture that can safely support the television.
» Ensuring the television is not overhanging the edge of the supporting furniture.
Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
Educating children about the dangers of climbing on furniture to reach the television or its controls.

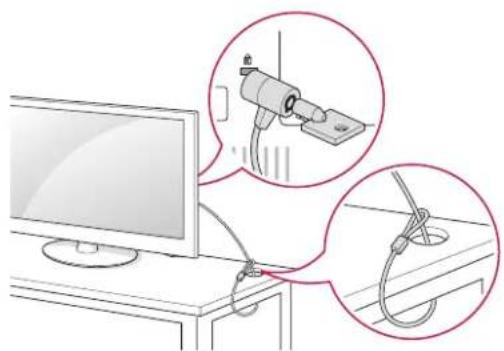

Using the Kensington security system

(This feature is not available for all models.)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel.

LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase(Wall Mounting Bracket)

Model 32LN510*,	32LN511*, 32LN512*, 32LN513*, 32LN515*	39/42LN510*, 39/42LN511*, 39/42LN512*, 39/42LN513*
VESA (A x B) 200 x 100 200 x 200
Standard screw M4	M6
Number of screws 4	4
Wall mount bracket	LSW130B LSW230B

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over tighten the screws as this may cause damage to the TV and void your warranty.
• Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the manufacturer's warranty.

NOTE

• Use the screws that are listed on the VESA standard screw specifications.
• The wall mount kit includes an installation manual and necessary parts.
• The wall mount bracket is not provided. You can obtain additional accessories from your local dealer.
  The length of screws may differ depending on the wall mount. Make sure to use the proper length.
  For more information, refer to the manual supplied with the wall mount.

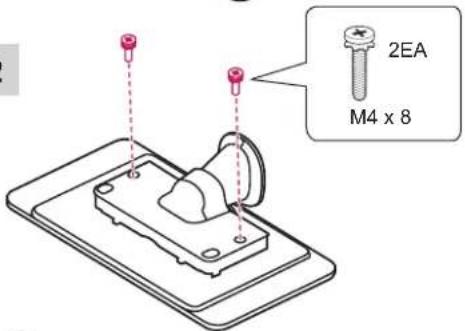

Attaching the shelf stand

Image shown may differ from your TV.
- You can use the shelf stand by putting STB (Set top box).

LN515*

1

2

NOTE

To install wall mount anchor, you can refer to p.17.

3

5

CAUTION

Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the Stand may tilt after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

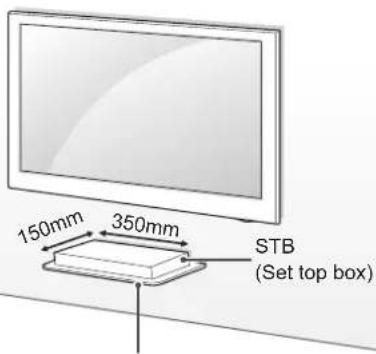

Shelf Stand

Shelf Stand conditions of use

STB Dimensions (W x D) 350mm x 150mm
STB Weight 2.5kg
Maximum supported weight 3.5kg

How to attach to masonry walls

(This feature is not available for all models.)

Use the anchors for wall material of concrete, light concrete, strong natural stone, soft natural stone masonry brick and hallow block that do not crack.

Please follow the below direction

• Check the material of the wall and the thickness of the finishing.
• When installing the product on wall material not designated, install the product so that each fixated location can withstand the pull out load of 70 kgf (686 N) and shear load of 100 kgf (980 N) or above.
• Use the 08mm drill bit for concrete and hammer (Impact) drill.

1

2

3

Wall mount anchor

4

Wall mount screw

5

ENG

6

1. Use a drill bit 08 mm to drill a hole for the anchor location within a depth of 80 mm - 100 mm.
   2 Clean the drilled hole.
   3 Insert the sealed anchor to the hole. (When inserting the anchor, use a hammer.)
   4 Set the wall mount on the wall by aligning to the location of the hole. and, set the angle adjusting part to face upward.
   5 Align the wall mount bolt to the hole and tighten it. Then, fasten the bolts at torque of 45 kgf/cm - 60 kgf/cm.

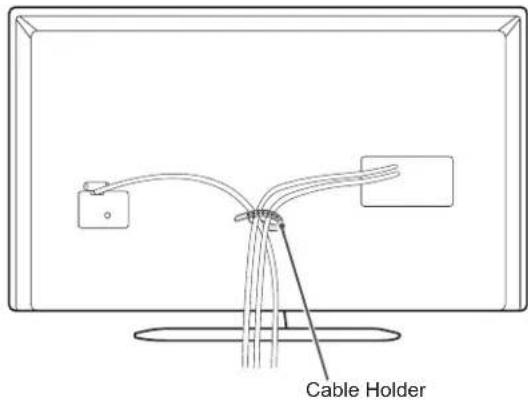

Tidying cables

Use Cable Holder to neatly secure and position cables together.

CAUTION

• Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

MAKING CONNECTIONS

This section on MAKING CONNECTIONS mainly uses diagrams for the LN510* models. Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device. Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, gaming devices, and other external devices.

NOTE

The external device connection may differ from the model.
- Connect external devices to the TV regardless of the order of the TV port.
- If you record a TV programme on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information of recording, refer to the manual provided with the connected device.
Refer to the external equipment's manual for operating instructions.
- If you connect a gaming device to the TV, use the cable supplied with the gaming device.

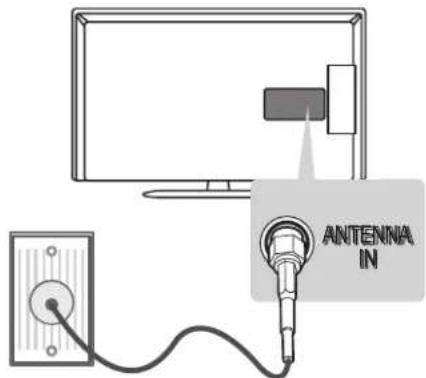

Antenna connection

Connect the TV to a wall antenna socket with an RF cable (75Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
  If the image quality is poor, install a signal amplifier properly to improve the image quality.
  If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
  An antenna cable and converter are not supplied.

HDMI connection

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown.

Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

It is recommended to use the TV with the HDMI connection for the best image quality.
- Use the latest High Speed HDMI™ Cable.
High Speed HDMI Cables are tested to carry an HD signal up to 1080p.
Supported HDMI Audio format: Dolby Digital(Upto 48kHz), PCM(Up to 192 kHz, 32k/44.1k/48k/88k/96k/176k/192k) *DTS Not Supported.

Component connection

Transmits analogue video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

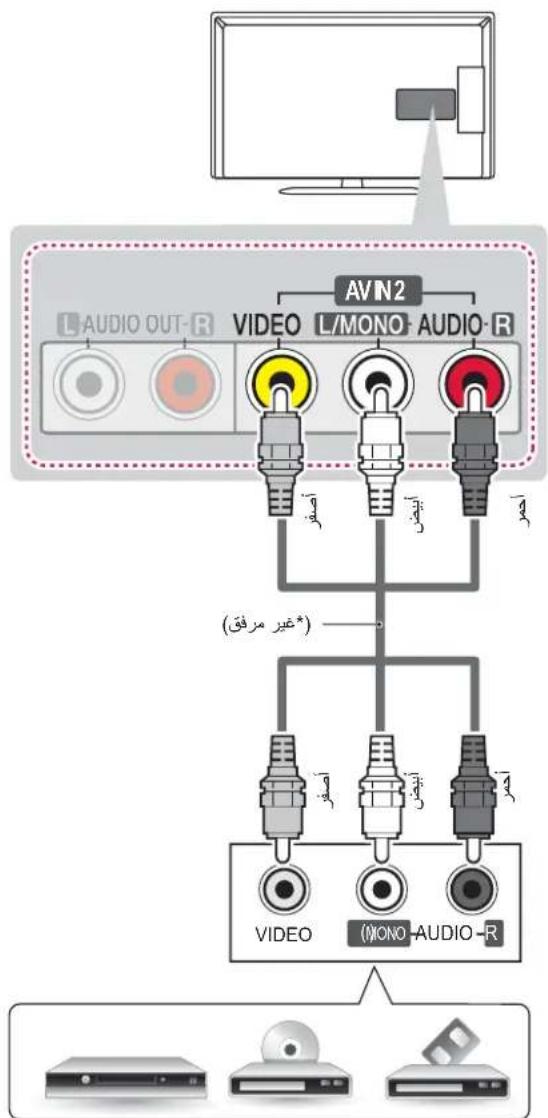

Composite connection

Transmits analogue video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

DVD/ Blu-Ray / HD Cable Box / VCR

USB connection

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the USB menu to use various multimedia files.

Audio System connection

Use an external audio system instead of the built-in speaker.

If you use an optional external audio device instead of the built-in speaker, set the TV speaker feature to off.

External Stereo Connection

Use to connect to an external amplifier, or surround sound system.

External Stereo

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the land ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.
• In Analogue TV and some countries, some remote control buttons may not work.

Make sure to point the remote control toward the remote control sensor on the TV.

WATCHING TV

Turning the TV on for the first time

When you turn the TV on for the first time, the Initial setting screen appears. Select a language and customize the basic settings.

1 Connect the power cord to a power outlet. The Power indicator turns red and the TV switches to Standby mode.
2 In Standby mode, press the power button on the remote control or local key to turn the TV on. The Initial setting screen appears if you turn the TV on for the first time.

NOTE

• You can also access Initial Setting by accessing OPTION in the main menu.

3 Follow the on-screen instructions to customize your TV settings according to your preferences.

Language	Selects a language to display.
Mode Setting	Selects Home Use for the home environment.
Time Setting	Selects the time zone and daylight saving.
Auto Tuning	Scans and saves available programmes automatically.

NOTE

• To display images in the best quality for your home environment, select Home Use.
• Store Demo is suitable for the retail environment.
• If you select Store Demo, any customized settings will switch back to the default settings of Store Demo in 5 minutes.

4 When the basic settings are complete, press the OK.

NOTE

If you do not complete the Initial setting, it will appear whenever the TV turns on.
- Disconnect the power cord from the power outlet when you do not use the TV for a long period of time.

5 To turn the TV off, press the power button on the remote control.

Watching TV

1 In Standby mode, press (Power) to turn the TV on.
2 Press INPUT and select TV.
3 To turn the TV off, press (POWER). The TV switches to Standby mode.

Managing programmes

Automatically setting up programme

Use this to automatically find and store all available programmes.

1 Press SETTINGS and the Navigation buttons to scroll to SETUP and press OK.
2 Press the Navigation buttons to scroll to Auto Tuning and press OK.
3 Press the Navigation buttons to scroll to To Start and select To Start to begin auto tuning. The TV scans and saves available programmes automatically.
4 When you return to the previous menu, press BACK.

Manually setting up programme

Manual Tuning lets you manually tune and arrange the stations in whatever order you desire.

1 Press SETTINGS and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Storage.
4 Press the Navigation buttons or Number buttons to select the desired programme number.
5 Press the Navigation buttons to scroll to System.
6 Press the Navigation buttons to scroll to TV System.
7 Press the Navigation buttons to scroll to Band.
8 Press the Navigation buttons to scroll to V/UHF or Cable.
9 Press the Navigation buttons to scroll to Channel.
10 Press the Navigation buttons and then select the desired channel number with the Navigation buttons or Number buttons.
11 Press the Navigation buttons to scroll to Search.
12 Press the Navigation buttons to scroll and start Searching.
13 Press the OK to store it.
14 When you return to the previous menu, press BACK.

NOTE

To store another programme, repeat steps 3 to 13.

Assigning a station name

You can assign a station name with five characters to each programme number.

1 Press SETTINGS and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Name.
4 Press the Navigation buttons to scroll to select the position and make your choice of the second character, and so on. You can use an alphabet A to Z, the number 0 to 9, +/-, and blank and press OK.
5 Press the OK to store it.
6 When you return to the previous menu, press BACK.

Fine Tuning

Normally fine tuning is only necessary if reception is poor.

1 Press SETTINGS and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Manual Tuning.
3 Press the Navigation buttons to scroll to Fine.
4 Press the Navigation buttons to fine tune for the best picture and sound.
5 Press the OK to store it.
6 When you return to the previous menu, press BACK.

Editing your programme list

When a programme number is skipped, it means that you will be unable to select it using P button during TV viewing.

If you wish to select the skipped programme, directly enter the programme number with the NUMBER buttons or select it in the Programme edit menu.

This function enables you to skip the stored programmes.

1 Press SETTINGS and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to Programme Edit.
3 Edit programmes using the following buttons.

Button Description
Red button	Deletes a programme. Press the Red button twice. The selected programme is deleted, all the following programmes are shifted up one position.
Yellow button	Moves a programme. Press the Yellow button again to release this function.
Blue button	Selects a programme number to be skipped. Press the Blue button again to release the skipped programme.

4 When you return to the previous menu, press BACK.

Selecting a programme on the programme list

1 Press LIST to access the programme list.
2 Press the Navigation buttons to select to desired programme and press OK.
3 When you return to the previous menu, press LIST.

NOTE

• You may find some blue programmes. They have been set up to be skipped by auto programming or in the programme edit mode.
• Some programmes with the programme number shown in the programme list indicate there is no station name assigned.

Using additional options

Adjusting aspect ratio

Resize an image to view at its optimal size by pressing Q.MENU or accessing Aspect Ratio in the PICTURE menu.

NOTE

The available ratio varies depending on the input source.

• 16:9: Resizes images to fit the screen width.

• Just Scan: Displays video images in the original size without removing parts of the edge of the image. (This function works in Component/HDMI (720P/1080i/1080p) Mode.)

NOTE

If you select Just Scan, you may see image noises at the edge of the original signal.

• Original: When your TV receives a wide screen signal it will automatically change to the picture format broadcasted.

4:3:Resizes images to the previous standard 4:3.

14:9: You can view a picture format of 14:9 or a general TV programme in the 14:9 mode. The 14:9 screen is viewed in the same way as in 4:3, but is moved to the up and down.

• Zoom : Formats an image to fit the screen width. The top and bottom of the image may not appear.

• Cinema Zoom 1: Formats an image to the cinemascope ratio, 2.35:1.
  To change the ratio of the cinema zoom, press < or > and its range is from 1 to 16.

NOTE

If you enlarge or reduce an image, the image may be distorted.

Using the input list

Selecting an input source

1 Press INPUT to access the input sources. - The connected device displays on each input source.
2. Press the Navigation buttons or input button to scroll to one of the input sources and press OK.
- Image shown may differ from your TV.

Input source	Description
TV Watch TV over the air and cable broadcast.
AV Watch video	from a VCR or other external devices.
Component Select it when using the DVD or the Digital set-top box depends on connector.
HDMI	Watch video from a HTS or other high definition devices.

ENTERTAINMENT

Depending on model)

• Image shown may differ from your TV.

Connecting USB storage devices

Connect USB storage devices (external HDD, USB memory) to the TV and use multimedia features (See "Browsing files" on p.29).

Connect a USB flash memory or USB memory card reader to the TV as shown on the following illustration.

To disconnect a USB storage device, make sure to end the connection properly to prevent damages to the TV or files.

1 Press Q.MENU to access the quick menus.
2 Press the Navigation buttons to scroll to Eject and press OK.
3 Disconnect the USB storage device only when the message says that it is safe to remove.

CAUTION

• Do not turn the TV off or remove a USB storage device while the USB storage device is connected to the TV, as this could result in loss of files or damage to the USB storage device.
• Back up your files saved on a USB storage device frequently, as you may lose or damage the files and this may be not covered by the manufacturer's warranty.

Tips for using USB storage devices

• Only a USB storage device is recognizable.
• If the USB storage device is connected through a USB hub, the device is not recognizable.
• A USB storage device using an automatic recognition programme may not be recognized.
• A USB storage device which uses its own driver may not be recognized.
  The recognition speed of a USB storage device may depend on each device.
• Please do not turn off the TV or unplug the USB device when the connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged.
• Please do not connect the USB storage device which was artificially manoeuvred on the PC. The device may cause the product to malfunction or fail to be played. Never forget to use only a USB storage device which has normal music files, image files or movie files.
• Please use only a USB storage device which was formatted as a FAT16, FAT32, NTFS file system.
• Please connect a USB storage device with the cable offered by the device maker.
• Some USB storage devices may not be supported or operated smoothly.
• Be sure to back up important files since data stored in a USB memory device may be damaged. We will not be responsible for any data loss.
• If a USB memory device is connected to a USB multi-card reader, its volume data may not be detected.
• If the USB memory device does not work properly, disconnect and reconnect it.
  How fast a USB memory device is detected differs from device to device.
• The recommended capacity is 1 TB or less for a USB external hard disk and 32 GB or less for USB memory.
• Any device with more than the recommended capacity may not work properly.
• USB storage devices below USB 2.0 are supported as well. But they may not work properly in the movie list.
  Maximum of 999 folders or files can be recognized under one folder.
  If there are a lot of folders or files all within one folder, the device may not be able to access these properly.
• For external USB HDDs, it is recommended that you use devices with a rated voltage of less than 5V and a rated current of less than 500 mA.

Browsing files

Access the photo, music, or movie lists and browse files.

1 Connect a USB storage device.
2 Press SETTINGS to access the main menus.
3 Press the Navigation buttons to scroll to USB and press OK.
4 Press Navigation buttons to scroll to PHOTO LIST, MUSIC LIST or MOVIE LIST and press OK.

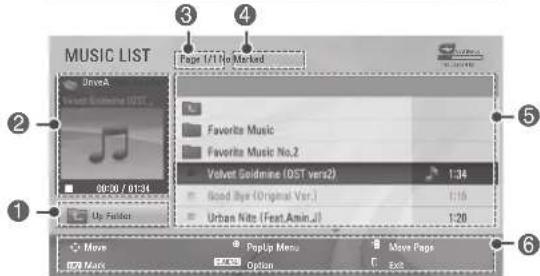

No.	Description
1	Moves to the upper level folder.
2	Preview: Displays the thumbnail/folder name of the file in the selected folder.
3	Current page/Total pages

4	Total number of marked files
5	Contents under the folder focused on 1
6	Available buttons on the remote control

Supported file format

Type Supported file format
Photo	JPEG Baseline: 64 x 64 to 8192 x 8192 Progressive: 64 x 64 to 1024 x 768 • You can play JPEG files only. • Non-supported files are displayed in the form of predefined icon.
Music	MP3 Bit rate 32kbps to 320kbps • Sampling rate MPEG1 Layer3: 32 kHz, 44.1 kHz, 48 kHz • Sampling rate MPEG2 Layer3: 16 kHz, 22.05 kHz, 24 kHz • Sampling rate MPEG2.5 Layer3: 8 kHz, 11.025 kHz, 12 kHz
Movie	DAT,MPG,MPEG,VOB,AVI,DIVX,MP4,MKV,TS,TRP,TP,ASF,WMV,FLV) Movie(*.mpg/*.mpeg/*dat/*.ts/*.trp/*.tp/*.vob/*.mp4/*.mov/*.mkv/*.divx/*.avi/*.asf/*.wmv/*.flv/*.avi(motion-jpeg)/*. mp4(motion-jpeg)/*.mkv(motion-jpeg)) supporting file Video format: DivX3.11, DivX4.12, DivX5.x, DivX6, Xvid1.00, Xvid1.01, Xvid1.02, Xvid1.03, Xvid1.10 beta-1/beta-2, Mpeg-1, Mpeg-2, Mpeg-4, H.264/AVC, VC1,JPEG, Sorenson H.263 Audio format: Dolby Digital, Mpeg, MP3,LPCM, ADPCM, WMA Bit rate: within 32 kbps to 320 kbps(MP3) External Subtitle format: *.smi/*.srt/*.sub(MicroDVD,Subviewer1.0/2.0)/*,ass/*.ssa/*.txt(TMPPlayer)/*.psb(PowerDivX) Internal Subtitle format: only, XSUB (It is the subtitle format used in DivX6 files)

Viewing photos

View image files saved in a USB storage device. The displays on the screen may differ from the model.

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to USB and press OK.
3 Press the Navigation buttons to scroll to PHOTO LIST and press OK.
4 Press the Navigation buttons to scroll to a folder/file you want and press OK.
5 View photos by using the following menus/buhtons.

Button Description
Navigation button	Scrolls through the files.
OK Views the	highlighted file or enters the mark mode.
P√	Moves to the previous or next page.
FAV Enters the	mark mode.
Menu Description
View Views the	selected photo.
Mark All Selects all files
Close Ends the	Mark Mode.

NOTE

Non-supported files are displayed the preview image by icon only
- Abnormal files are displayed in the form of bitmap

6 The following options are available while viewing photos.

Option Description
Slideshow	Starts or stops a slideshow with selected photos. If there are no selected photos, all photos saved in the current folder display during a slideshow. To set a slideshow speed, select Option.
BGM	Turns the background music on or off. To set the background music folder, select Option.
(Rotate)	Rotates photos clockwise (90°, 180°, 270°, 360°). NOTE ·The supported photo size is limited. You cannot rotate a photo if the resolution of the rotated width is larger than the supported resolution size.
Hide	Hides the option window. To display the options, press OK.

Q.MENU options for photo list

1 Press Q.MENU.

A pop-up window will appear.
2 Press the Navigation buttons to scroll to Set photoview.and press OK.
3 Press the Navigation buttons to scroll to one of the following options and press OK.

Set photo view.

Option Description
Slide Speed	Selects a slideshow speed (Fast, Normal, Slow).
Music Folder	Selects a music folder for the background music.

Set video.

Allows you to change Video presets.

(See p.36).

Set audio.

Allows you to change Audio presets.

(See p.38).

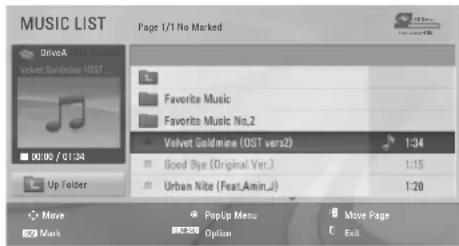

Listening to music

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to USB and press OK.
3 Press the Navigation buttons to scroll to MUSIC LIST and press OK.
4 Press the Navigation buttons to scroll to a folder/file you want and press OK.
5 Play music by using the following menus/buttons.

Button Description
Navigation button	Scrolls through the files.
OK Views the	highlighted file or enters the mark mode.
P A V	Moves to the previous or next page.
FAV Enters the	the mark mode.
Menu Description
Play	Plays the selected music file.
Play with Photo	Displays photos during playback.
Mark All Selects all files.
Close Exits the	the Mark Mode.

6 Control playback by using the following buttons.

Button	Description
	Stops playback
	Plays a music file

II	Pauses or resumes playback
→	Skips to the next file
←	Skips to the previous file
or	When playing, When you press the ← button, the pre-vious music file will be played. When you press the ➔ button, the next music file will be played.
EXIT	When you press the EXIT button, only the music will be stopped and the player will not return to normal TV viewing.
or v	When using the ∧ or ∨ button during playback a cursor indicating the position can be played.

Q.MENU options for music list

1 Press Q.MENU
A pop-up window will appear.
2 Press the Navigation buttons to scroll to music list option and press OK.
3 Press the Navigation buttons to scroll to one of the following options and press OK.

NOTE

• Option values changed in MOVIE LIST does not affect PHOTO LIST and MUSIC LIST.
• Option value changed in PHOTO LIST and MUSIC LIST are changed likewise in PHOTO LIST and MUSIC LIST excluding MOVIE LIST.

Set audio.

Allows you to change Audio presets. (See p.38).

NOTE

The TV will not play copy protected files.
- If the TV is not in use for some time during playback, the information box as a screensaver will appear to prevent image burn. To return to the Music list screen, press OK or BACK.

Viewing movies

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to USB and press OK.
3 Press the Navigation buttons to scroll to MOVIE LIST and press OK.
4 Press the Navigation buttons to scroll to a folder/file you want and press OK.
5 Play movie by using the following menus/buttons.

Button Description
Navigation button	Scrolls through the files.
OK Views the highlighted file or enters the mark mode.
P ~√	Moves to the previous or next page.
FAV Enters the mark mode.
Menu Description
Play	Play the selected movie file. Once a movie file finishes playing, the next selected one will be played automatically.
Mark All Mark all movie files on the screen.
Delete Deselect all marked movie files.
Close Exit the Mark Mode.

6 Control playback by using the following buttons.

Button Description
	Stops the playback
	Plays a video
	Pauses or resumes the playback
	Scans backward in a file
	Scans forward in a file
Q.MENU Show the Option menu.
BACK	Hide the menu on the full-sized screen.
EXIT	Return to normal TV viewing.
< >	Skipping to specific points in a file during playback. The time of a specific point will appear on the status bar. In some files, this function may not work properly.

Tips for using playing video files

Some user-created subtitles may not work properly.
Some special characters are not supported in subtitles.
- HTML tags are not supported in subtitles.
- Subtitles in languages other than the supported languages are not available.
- Changing font and colour in subtitles is not supported.
- Subtitles in languages other than one specified are not supported.
Video files with subtitle files of 1 MB or larger may not be played properly.
The screen may suffer temporary interruptions (image stoppage, faster playback, etc.) when the audio language is changed.
- A damaged movie file may not be played correctly, or some player functions may not be usable.
- Movie files produced with some encoders may not be played correctly.
- If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.
HD videos with a maximum of 1920x1080@25/30P or 1280x720@50/60P are supported, depending on the frame.
Videos with resolutions higher than 1920x1080@25/30P or 1280x720@50/60P may not work properly depending on the frame.
- Movie files other than the specified types and formats may not work properly.
- Max bitrate of playable movie file is 20 Mbps. (only, Motion JPEG: 10 Mbps)

We do not guarantee smooth playback of profiles encoded level 4.1 or higher in H.264/AVC.
- DTS Audio codec is not supported.
- A movie file more than 30 GB in file size is not supported for playback. The file size limit is dependent on the encoding environment.
- A DivX movie file and its subtitle file must be located in the same folder.
- A video file name and its subtitle file name must be identical for it to be displayed.
- Playing a video via a USB connection that doesn't support high speed may not work properly.
- Files encoded with GMC(Global Motion Compensation) and Qpel (Quarterpel Motion Estimation) may not be played.
- When you are watching the movie by Movie List function, you can adjust an image by Energy Saving and AV Mode key on the remote control. User setup for each image mode does not operate.
- Trick Mode does not support other functions than if video files do not have index information.
Video file names that contain special characters may not be playable.

Video options

1 Press Q. MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set Video Play, Set Video or Set Audio and press OK.

NOTE

• Option values changed in MOVIE LIST does not affect PHOTO LIST and MUSIC LIST.
• Option value changed in PHOTO LIST and MUSIC LIST are changed likewise in PHOTO LIST and MUSIC LIST excluding MOVIE LIST.
• When replaying the video file after stopping, you can play from where it stopped previously.

When you select the Set Video Play

1 Press the Navigation buttons to scroll to show the Picture Size, Audio Language, Subtitle Language.
2 Press the Navigation buttons to scroll to make appropriate adjustments.

Menu Description
Picture Size Selects your desired picture format during movie play.
Audio Language	Changes the Language Group of the audio during movie play. Files with a single audio track cannot be selected.
Subtitle Language	Turn on/off the subtitle.
Language Activated for SMI subtitle and can select the language within the subtitle.
Code Page Can	select the font for subtitle. When set to default, same font as general menu will be used.
Sync Adjusts the	time synchronisation of the subtitle from -10 secs to +10 secs by steps of 0.5 secs during movie play.

Code Page Support Language
Latin1 English, French	ch, Spanish, Portuguese, Malaysia, Indonesia
Cyrillic Russian
Thai Thai
Hebrew Hebrew
Arabic Arab, Parsi,	Krudish
Unicode(UTF-16)	Vietnamese language

NOTE

Only 10,000 of sync blocks can be supported within the subtitle file.
- When playing a video, you can adjust the Picture Size by pressing Q.MENU or accessing Aspect Ratio in the PICTURE menu.

When you select the Set video,

1 Press the Navigation buttons to scroll to make appropriate adjustments. (See p.36)

When you select the Set audio,

1 Press the Navigation buttons to scroll to show the Sound Mode, Auto Volume, Balance.
2 Press the Navigation buttons to scroll to make appropriate adjustments. (See p.38)

DivX® VOD Guide

DivX® VOD Registration

In order to play purchased or rented DivX® VOD contents, you should register your device with 10 digit DivX registration code from your device at www.divx. com/vod.

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to USB and press OK.
3 Press the Navigation buttons to scroll to DivX(R) VOD and press OK.
4 Press the Navigation buttons to scroll to Registration and press OK.
5 View the registration code of your TV.

6 When you are finished, press EXIT. When you return to the previous menu, press BACK

NOTE

• Movie files are supported as follows
• Resolution : under 720x480, 720x576 WxH pixels
• Frame rate: under 30 frames/sec(720x480), under 25 frames/sec(under 720x576)
  Video Codec:MPEG 1,MPEG 2,MPEG 4,H.264/ AVC,DivX 3.11,DivX 4.12,DivX 5.x,DivX 6,Xvid 1.00,Xvid 1.01,Xvid 1.02,Xvid 1.03,Xvid 1.10-beta1,Xvid 1.10-beta2,JPEG,VC1,Sorenson H.263/H.264.

DivX® VOD Deregistration

You should deregister your device with 8 digit DivX deregistration code from your device at www.divx.com/ vod.

NOTE

• Once the deregistration is executed, you must register your device again to see DivX® VOD contents.

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to USB and press OK.
3 Press the Navigation buttons to scroll to DivX(R) VOD and press OK.
4 Press the Navigation buttons to scroll to Deregistration and press OK.
5 Press the Navigation buttons to select Yes to confirm.

6 When you are finished, press EXIT. When you return to the previous menu, press BACK.

CUSTOMIZING TV SETTING

• Image shown may differ from your TV.

Accessing main menus

1 Press SETTINGS to access the main menus.
2 Press the Navigation buttons to scroll to one of the following menus and press OK.
3 Press Navigation buttons to scroll to the setting or option you want and press OK.
4 When you are finished, press EXIT.

Menu Description
	SETUP	Sets up and edit programmes.
	PICTURE	Adjusts the image size, quality, or effect.
	AUDIO	Adjusts the sound quality, effect, or volume level.
	TIME	Sets the time, date, or timer feature.
	OPTION	Customizes the general settings.
	LOCK	Locks or unlocks programmes and programmes
	INPUT	Views the input sources with their labels
	USB	Displays photo and play music, movie content stored on your USB.

Customizing Settings

SETUP Settings

1 Press SETTINGS and the Navigation buttons to scroll to SETUP.
2 Press the Navigation buttons to scroll to the setting or option you want and press OK.

3 When you return to the previous menu, press BACK.

• Image shown may differ from your. TV.

The available programme settings are described in the following:

Setting Description

Auto Tuning Tunes and stores all avail-able programmes through antennas inputs (See p.24).

Manual Tuning Tunes and stores the pro-grammes you want manu-ally (See p.25).

Programme Edit Edits programmes(See p.26).

PICTURE Settings

1 Press SETTINGS and the Navigation buttons to scroll to PICTURE.
2 Press the Navigation buttons to scroll to the setting or option you want and press OK.
3 When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

The available picture settings are described in the following.

Setting Description
Aspect Ratio Change	Changes the image size to view im-ages at its optimal size (See p.26).
Energy Saving	Reduces the power consumption by adjusting the screen brightness.
	Option
	Off The Energy Saving is off
	Minimum/ Medium/ Maximum	Selects the brightness level.
	Screen off	The screen turns off in 3 seconds.
	NOTE ·When you select Screen Off, the screen will be turned off in 3 seconds and Screen Off will start. ·If you adjust “Energy Saving-Maximum”, Backlight feature will not work.

Setting Description
Picture Mode	Selects one of the preset image or customizes options in each mode for the best TV screen performance. You are also able to customize advanced options of each mode.
	Mode
	Vivid	Adjusts the video image for the retail environment by enhancing the contrast, brightness, colour, and sharpness.
	Standard Adjusts the image for the normal environment.
	Cinema	Optimizes the video images for a cinematic look to enjoy movies as if you are in a movie theatre.
	Sport	Optimizes the video image for high and dynamic actions by emphasizing primary colours such as white, grass, or sky blue.
	Game	Optimizes the video image for a fast gam-ing screen such as PCs or games.

Basic image options

Setting Description
Backlight	Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the brightness level, the screen becomes darker and the power consumption will be reduced without any video signal loss.
Contrast	Increases or decreases the gradient of the video signal. You may use Contrast when the bright part of the picture is saturated.
Brightness	Adjusts the base level of the signal in the picture.
Sharpness	Adjusts the level of crispness in the edges between the light and dark areas of the picture. The lower the level, the softer the image.
Colour	Adjusts intensity of all colours.
Tint	Adjusts the balance between red and green levels.
Colour Temperature	Choose one of three automatic colour adjustments. Set to warm to enhance hotter colours such as red, or set to cool to see less intense colours with more blue. You can control red, green, blue to adjust colour details.
Advanced Control	Customizes the advanced options.
Reset	Restores the options of each mode to the factory default.

Advanced image options (Depending on model)

Setting Description

Dynamic Contrast Adjustments the contrast to keep it at the best level according to the brightness of the screen. The picture is improved by making bright parts brighter and dark parts darker.

Dynamic Colour Adjusts screen colours so that they look livelier, richer and clearer. This feature enhances hue, saturation and luminance so that red, blue and green white look more vivid.

Noise Reduction Reduces screen noise without compromising video quality.

Gamma You can adjust brightness of dark area and middle gray level area of the picture. » Low: Make the dark and middle gray level areas brighter. » Medium: Express the original picture level. » High: Make the dark and middle gray level area darker.

Black Level Sets black evel of the screen to proper level. This function is available in the following modes: RF, AV or HDMI. » Low: The reflection of the screen gets darker. » High: The reflection of the screen gets brighter.

Motion Eye Care Adjusts screen brightness to prevent eye glare.

Film Mode Makes video clips recorded in film look more natural. This feature operates only in 480i / 576i / 1080i / 1080p(24Hz) Resolution.

Colour Gamut Advanced Control Maximizes the utilization of colour to increase colour quality. Standard: Displays standard set of colours. Wide: Increase number of colours used.

Edge Enhancer Shows clearer and distinctive yet natural edges of the video.

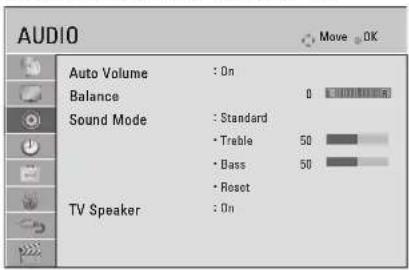

AUDIO Settings

1 Press SETTINGS and the Navigation buttons to scroll to AUDIO.
2 Press the Navigation buttons to scroll to the setting or option you want and press OK.
3 When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

The available audio settings are described in the following.

Setting Description
Auto Volume	Activates the Auto Volume feature to keep the volume level consistent whenever you change programmes. The volume level may not be consistent due to different signal conditions of broadcasting stations.
Balance	Adjust balance between the left and right speakers according to your room environment.

Setting Description
Sound Mode	Selects one of the preset sound modes or customizes options in each mode.
	Mode
	Standard Select when you want standard-quality sound.
	Music Select when you listen to music.
	Cinema Select when you watch movies.
	Sport Select when you watch sports events.
	Game Select when you play games.
	Option
	Treble Controls the dominant sounds in the output. When you turn up the treble, it will increase the output to the higher frequency range.
	Bass Controls the softer sounds in the output. When you turn up the bass, it will increase the output to the lower frequency range.
	Reset Resets the sound mode to the default setting.
TV Speaker Turns off the internal speaker of the TV when using an external Hi-Fi system.

This feature may not be applied based on country broadcasting circumstance.

Stereo/Dual Reception

When a programme is selected, the sound information for the station appears with the programme number and station name.

Press I/II button to select the Multi Audio menu.

Broadcast On	Screen Display
Mono	MONO
Stereo	STEREO
Dual	DUAL I , DUAL II , DUAL I + II
NICAM NICAM

Mono sound selection

If the stereo signal is weak in stereo reception, you can switch to mono. In mono reception, the clarity of sound is improved.

Language selection for dual language broadcast

If a programme can be received in two languages (dual language), you can switch to DUAL I, DUAL II or DUAL I+II.

DUAL I Sends the primary broadcast language to the loudspeakers.

DUAL II Sends the secondary broadcast language to the loudspeakers.

DUAL I+I Sends a separate language to each loudspeaker.

Nicam Reception

If the TV is equipped with a receiver for NICAM reception, high quality NICAM (Near Instantaneous

Companding Audio Multiplex) digital sound can be received.

Sound output can be selected according to the type of broadcast received.

1 When NICAM mono is received, you can select NICAM MONO or FM MONO.
2 When NICAM stereo is received, you can select NICAM STEREO or FM MONO. If the stereo signal is weak, switch to FM MONO.
3 When NICAM dual is received, you can select NICAM DUAL I, NICAM DUAL II or NICAM DUAL I+II or FM MONO.

Speaker Sound Output Selection

In AV, Component, HDMI mode, you can select output sound for the left and right loudspeakers.

Select the sound output.

L+R: Audio signal from audio L input is sent to the left loudspeaker and audio signal from audio R input is sent to the right loudspeaker.

L+L: Audio signal from audio L input is sent to left and right loudspeakers.
R+R: Audio signal from audio R input is sent to left and right loudspeakers.

TIME Settings

1. Press SETTINGS and the Navigation buttons to scroll to TIME.
   2 Press the Navigation buttons to scroll to the setting or option you want and press OK.
   3 When you return to the previous menu, press BACK.

2. Image shown may differ from your TV.

The available audio settings are described in the following.

Setting	Description
Clock	Sets the time.
Off Time/On Time	Sets the time to turn on or off the TV automatically. To use this function, you should set the current time and date in advance.
	NOTE ·If you do not press any button within 2 hours after the TV turns on by the On Time feature, the TV enters the Standby mode automatically. ·If you set both Off time and On time features to the same time, the Off time feature overrides the On time feature.
Sleep Timer	Sets the length of time until the TV to turns off. When you turn the TV off and turn it on again, the Sleep timer feature will be set to off.

OPTION Settings

1 Press SETTINGS and the Navigation buttons to scroll to OPTION.
2 Press the Navigation buttons to scroll to the setting or option you want and press OK.
3 When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

The available audio settings are described in the following.

Setting Description
Language Selects	a desired language.
	Menu Selects	a language for the display text.
Input Label Indicates which device is connected to which input port.
Initial Setting Cus tormizes the TV settings to suit your preference. The initial setup screen will appear when you turn on the TV for the first time.
		Home Use Selects it for the Home environment.
		Store Demo Selects it for the retail environment.

LOCK Settings

1 Press SETTINGS and the Navigation buttons to scroll to LOCK.
2 Press the Navigation buttons to scroll to the setting or option you want and press OK.
3 When you return to the previous menu, press BACK.

• Image shown may differ from your TV.

The available audio settings are described in the following.

Setting Description
Lock System Activates or deactivates the lock system.
Set Password Changes the 4-digit password. The default PIN is "0 0 0 0".
Block Programme	Blocks the programmes that contain inappropriate contents for children by pressing the Blue button. The Lock icon appears in front of the blocked programmes. The programmes can be selected but the screen blank and the audio is muted.
Input Block Blocks	the input sources.

TELETEXT

• This feature is not available in all countries. Teletext is a free service broadcast by most TV stations which gives up-to-the minute information on news, weather, television programmes, share prices and many other topics.

The teletext decoder of this TV can support the SIMPLE and FASTEXT systems. SIMPLE (standard teletext) consists of a number of pages which are selected by directly entering the corresponding page number. FASTEXT are more modern methods allowing quick and easy selection of teletext information.

Teletext Service - only via Digital Tuner access where TV broadcast available.

Switch On/Off

Press the TEXT button to switch to teletext. The initial page or last page viewed appears on the screen.

Two page numbers, TV station name, date and time are displayed on the screen headline. The first page number indicates your selection, while the second shows the current page displayed.

Press the TEXT button to switch off teletext. The previous mode reappears.

Simple Text

Page selection

1 Enter the desired page number as a three digit number with the NUMBER buttons. If during selection you press a wrong number, you must complete the three digit number and then re-enter the correct page number.
2 The P button can be used to select the preceding or following page.

Programming a colour button in LIST mode

If the TV is in SIMPLE text or FASTEXT mode, press the

INDEX button to switch to LIST mode. Four teletext page numbers of your choice can be colour coded and easily selected by pressing the corresponding coloured button on the remote control handset.

1 Press a coloured button.
2 Using the Number buttons, select the page you wish to programme.
3 Press the OK button. The selected page is stored as the selected page number, blinking once to confirm this. From now on, you can select this page with the same coloured button.
4 The three other coloured buttons are programmed in this way.

Fastext

The teletext pages are colour coded along the bottom of the screen and are selected by pressing the corresponding coloured button.

Page selection

1 Press the INDEX button to select the index page.
2 You can select the pages which are colour coded along the bottom line with corresponding coloured buttons.
3 AS with SIMPLE teletext mode, you can select a page by entering its three digit page number with the Number buttons in FASTEXT mode.
4 The P button can be used to select the preceding or following page.

Special Teletext Function

Index

Select the each index page.

Time

When viewing a TV programme, select this menu to display the time at the top right hand corner of the screen.

In the teletext mode, press this button to select a sub page number. The sub page number is displayed at the bottom of the screen. To hold or change the sub page, press the Red/Green, or NUMBER buttons.

Hold

Stops the automatic page change which will occur if a teletext page consists of 2 or more sub pages.

The number of sub pages and the sub page displayed is, usually, shown on the screen below the time.

When this menu is selected the stop symbol is displayed at the top left-hand corner of the screen and the automatic page change is inactive.

Reveal

Select this menu to display concealed information, such as solutions to riddles or puzzles.

Update

Displays the TV picture on the screen while waiting for a new teletext page. The display will appear at the top left hand corner of the screen. When the updated page is available then display will change to the page number. Select this menu again to view the updated teletext page.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
  To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to ⊕). ⊙
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

SPECIFICATIONS

Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product.

MODELS		32LN510* 39LN510* 42LN510*
		32LN5100-TA32LN510Y-TA	39LN5100-TA39LN510Y-TA
Dimensions(W x H x D)	With stand (mm)	738.0 x 497.0 x 207.0 894.0 x 587.0 x 236.0 968.0 x 629.0 x 236.0
	Without stand(mm)	738.0 x 449.0 x 79.0 894.0 x 537.0 x 79.0 968.0 x 579.0 x 79.0
Weight With stand (kg)		7.0 9.7 10.7
		Without stand (kg)	6.4 8.6 9.6
Power requirement		AC 100-240 V~ 50 / 60 Hz AC	100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS		32LN511* 39LN511* 42LN511*
		32LN5110-TB32LN511Y-TB	39LN5110-TB39LN511Y-TB
Dimensions(W x H x D)	With stand (mm)	738.0 x 497.0 x 207.0 894.0 x 587.0 x 236.0 968.0 x 629.0 x 236.0
	Without stand(mm)	738.0 x 449.0 x79.0 894.0 x 537.0 x 79.0 968.0 x 579.0 x 79.0
Weight With stand (kg)		7.0 9.7 10.7
		Without stand (kg)	6.4 8.6 9.6
Power requirement		AC 110-240 V~ 50 / 60 Hz AC	100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS		32LN512* 39LN512* 42LN512*
		32LN5120-TC32LN512Y-TC	39LN5120-TC39LN512Y-TC
Dimensions(W x H x D)	With stand (mm)	738.0 x 497.0 x 207.0 894.0 x 587.0 x 236.0 968.0 x 629.0 x 236.0
	Without stand(mm)	738.0 x 449.0 x?79.0 894.0 x 537.0 x 79.0 968.0 x 579.0 x 79.0
Weight With stand (kg)		7.0 9.7 10.7
		Without stand (kg)	6.4 8.6 9.6
Power requirement		AC 120-240 V~ 50 / 60 Hz AC	100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS		32LN513* 39LN513* 42LN513*
		32LN5130-TI32LN513Y-TI	39LN5130-TI39LN513Y-TI
Dimensions(W x H x D)	With stand (mm)	738.0 x 497.0 x 207.0 894.0 x 587.0 x 236.0 968.0 x 629.0 x 236.0
	Without stand(mm)	738.0 x 449.0 x ?79.0 894.0 x 537.0 x 79.0 968.0 x 579.0 x 79.0
Weight With stand (kg)		7.0 9.7 10.7
		Without stand (kg)	6.4 8.6 9.6
Power requirement		AC 130-240 V~ 50 / 60 Hz AC	100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS		32LN515*
		32LN5150-TA32LN5150-TL32LN515Y-TA32LN515Y-TL
Dimensions(W x H x D)	With stand (mm)	738.0 x 497.0 x 212.0
	Without stand(mm)	738.0 x 449.0 x 79.0
Weight With stand (kg)		7.7
		Without stand (kg)	6.4
Power requirement		AC 110-240 V~ 50 / 60 Hz
Environment condition		Operating Temperature 0 °C to	40 °C
		Operating Humidity Less than	80 %
		Storage Temperature -20 °C to	60 °C
		Storage Humidity Less than 85 %

		Analogue TV
New Zealand, Singapore	Television System PAL/SECAM-B	G/D/K, PAL-I
	Programme Coverage	BG: VHF/UHF 1 to 69, CATV 01 to 47 I: VHF/UHF 1 to 69, CATV 01 to 47 DK: VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System	PAL B/B
	Programme Coverage B/B: VHF/UHF 0 to 75, CATV: 2 to 44
Indonesia, Israel, Myanmar, Sri Lanka	Television System PAL/SECAM	B/G/D/K, PAL-I, NTSC-M
	Programme Coverage	BG: VHF/UHF 1 to 69, CATV 01 to 47 I: VHF/UHF 1 to 69, CATV 01 to 47 DK: VHF/UHF 1 to 69, CATV 01 to 47 M: VHF/UHF 2 to 78, CATV 01 to 71
Vietnam, Malaysia Televison System PAL/SECAM-B/G/D/K		PAL-I, NTSC-M
		Programme Coverage	BG: VHF/UHF 1 to 69, CATV 01 to 47 I: VHF/UHF 1 to 69, CATV 01 to 47 DK: VHF/UHF 1 to 69, CATV 01 to 47 M: VHF/UHF 2 to 78, CATV 001 to 71
Iran, Algeria, Tunisia, Digital model	Television System PAL/SECAM	B/G/D/K, PAL-I, NTSC-M
	Programme Coverage	BG: VHF/UHF 1 to 69, CATV 01 to 47 I: VHF/UHF 1 to 69, CATV 01 to 47 DK: VHF/UHF 1 to 69, CATV 01 to 47 M:VHF/UHF 2 to 78, CATV 01 to 71
Analogue model, India, Thailand, South Africa, --	Television System PAL/SECAM	B/G/D/K, PAL-I, NTSC-M
	Programme Coverage	BG: VHF/UHF 1 to 69, CATV 01 to 47 I: VHF/UHF 1 to 69, CATV 01 to 47 DK: VHF/UHF 1 to 69, CATV 01 to 47 M:.VHF/UHF 2 to 78, CATV 01 to 71
	External Antenna Impedance 75	Ω

HDMI-DTV supported mode

Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)
720x480 31.469	31.5	59.9460
720x576 31.2550
1280x720 37.5	44.9645	5059.9460
1920x1080 33.72	33.7528.12526.972733.71633.7556.2567.4367.5	59.94605023.972429.97630.005059.9460

Component port connecting information

Component ports on the TV Y	P	B	PR
Video output ports on DVD player	Y	PB	PR
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

Signal Component
480i/576i O
480p/576p O
720p/1080i	O
1080p	O (50 Hz / 60 Hz only)

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

DOLBY DIGITAL

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

ABOUT DIVXVIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274"

LG

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

For any Suggestion, Opinion, Complaints, Please Call

80054inUAE

0800 54 54 54 in South Africa

080 100 54 54 in Morocco

19960 in Egypt

Other countries, Please contact our local dealer or log into

http://www.lg.com

MANUEL D'UTILISATION

TÉLÉVISEUR LED

Corps du support /
Base du support

(uniquement LN510*

Signal Composant
480i/576i	O
480p/576p	O
720p/1080i	O
1080p	O (unicquement 50 Hz / 60 Hz)

LICENCES

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

LG

Life's Good

MODELOS		32LN510* 39LN510* 42LN510*
		32LN5100-TA32LN510Y-TA	39LN5100-TA39LN510Y-TA
Dimensoes(L x A x P)	Incluindo suporte (mm)	738,0 x 497,0 x 207,0 894,0	x 587,0 x 236,0 968,0 x 629,0 x 236,0
	Excluindo suporte (mm)	738,0 x 449,0 x 79,0 894,0	x 537,0 x 79,0 968,0 x 579,0 x 79,0
Peso	Incluindo suporté(kg)	7,0 9,7 10,7
	Excluindo suporté(kg)	6,4 8,6 9,6
Requisito de alimentação		AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELOS		32LN511* 39LN511* 42LN511*
		32LN5110-TB32LN511Y-TB	39LN5110-TB39LN511Y-TB
Dimensoes(L x A x P)	Incluindo suporte (mm)	738,0 x 497,0 x 207,0 894,0	x 587,0 x 236,0 968,0 x 629,0 x 236,0
	Excluindo suporte (mm)	73.8,0 x 449,0 x 79,0 894,0	x 537,0 x 79,0 968,0 x 579,0 x 79,0
Peso	Incluindo suporté(kg)	7,0 9,7 10,7
	Excluindo suporté(kg）	6,4 8,6 9,6
Requisito de alimentação		AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELOS		32LN512* 39LN512* 42LN512*
		32LN5120-TC32LN512Y-TC	39LN5120-TC39LN512Y-TC
Dimensoes(L x A x P)	Incluindo suporte (mm)	738,0 x 497,0 x 207,0 894,0	x 587,0 x 236,0 968,0 x 629,0 x 236,0
	Excluindo suporte (mm)	73,8,0 x 449,0 x 79,0 894,0	x 537,0 x 79,0 968,0 x 579,0 x 79,0
Peso	Incluindo suporté(kg)	7,0 9,7 10,7
	Excluindo suporté(kg )	6,4 8,6 9,6
Requisito de alimentação		AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELOS		32LN513* 39LN513* 42LN513*
		32LN5130-TI32LN513Y-TI	39LN5130-TI39LN513Y-TI
Dimensoes(L x A x P)	Incluindo suporte (mm)	738,0 x 497,0 x 207,0 894,0	x 587,0 x 236,0 968,0 x 629,0 x 236,0
	Excluindo suporte (mm)	733,0 x 449,0 x 79,0 894,0	x 537,0 x 79,0 968,0 x 579,0 x 79,0
Peso	Incluindo suporté(kg)	7,0 9,7 10,7
	Excluindo suporté(kg )
Requisito de alimentação		AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELOS		32LN515*
		32LN5150-TA32LN5150-TL32LN515Y-TA32LN515Y-TL
Dimensoes(L x A x P)	Incluindo suporte (mm)	738,0 x 497,0 x 212,0
	Excluindo suporte (mm)	738,0 x 449,0 x 79,0
Peso	Incluindo suporté(kg)	7,7
	Excluindo suporté(kg)	6,4
Requisito de alimentação		AC 100-240 V~ 50 / 60 Hz

1. = 23, = 43,0 < 0 < 23,0 < 43

S APQ = S AOB + S_ OBC

jua 1997.

J1-2

all

http://www.lg.com

. www.lg.com 8888888888888888888888888888888888888

Jalal Jn jyjaiin

DOLBY. DIGITAL

HDMI High-Definition Multimedia Interface, HDMI 12.0 "..HDMI Licensing, LLC

HOMI

Rovi 45,DivX,LLC 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45,DivX 45

DivX pJ 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

"..s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s s

Rovicorporation 24

“7,519,274;7,515,710;7,460,668;7,295,673

Gssal jiajusgi caggl

الإستعمال الحرفية
PAL/SECAM-B/G/D/K, PAL-I	الإستعمال الحرفية
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)	الإستعمال الحرفية
PAL B/B	الإستعمال الحرفية	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{B}/\texttt{B} \)	الإستعمال الحرفية
PAL/SECAM-B/G/D/K, PAL-I, NTSC-M	الإستعمال الحرفية	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\mathrm{F}:\texttt{DK} \)\( \texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
PAL/SECAM-B/G/D/K, PAL-I, NTSC-M	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)\( \texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
PAL/SECAM-B/G/D/K, PAL-I, NTSC-M	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\mathrm{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}: \texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)\( \texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
PAL/SECAM-B/G/D/K, PAL-I, NTSC-M	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l} \texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\textTT\texttt{U}\textTT\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)\( \texttt{x}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{j}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textcdots\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{H}:\texttt{DK} \)\( \texttt{x}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{i}\texttt{k}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{O}\texttt{H}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)\( \texttt{x}\texttt{l}\textddot{\texttt{k}}\texttt{l}\mathrm{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{k}\texttt{k}\texttt{l}\texttt{k}\texttt{k}\texttt{l}\texttt{I}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{BG} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{I} \)\( \texttt{v}\texttt{v}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{DK} \)\( \texttt{x}\texttt{l}\textddot{\texttt{k}}\texttt{l}\texttt{k}\texttt{l}\texttt{I}\texttt{V}\texttt{H}\texttt{U}\texttt{H}\texttt{F}:\texttt{M} \)	الإستعمال
\( \texttt{v}\texttt{v}\texttt{l}\texttt{k}\texttt{k}\texttt{k}\texttt{l}\texttt{k}\texttt{k}\texttt{l}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{I}\texttt{I}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{l}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{I}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\text TT\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\textTT\texttt{k}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{I}\mathrm{II}\mathrm{I} \)	الإستعمال

#

AaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaa

aallge yssal gale l jai bll d xui jy hll aal 12j 100

42LN510*	39LN510* 32LN510*		32LN5100-TA32LN510Y-TA	32LN5100-TA32LN510Y-TA
42LN5100-TA42LN510Y-TA	39LN5100-TA39LN510Y-TA
\( Y7, \times Y7, \times Y7, \)	\( Y7, \times OAV, \times A9, \)	\( Y, Y, X \&V, X VTA, \)	(μ)	\( x \)
\( V9, \times O9, \times 97, \)	\( V9, \times O9, \times A9, \)	\( V9, \times E9, \times VTA, \)	(μ)	\( x \)
\( 1, y \)	\( 9, y \)	\( y, \)	(μ)	\( y \)
\( 9,7 \)	\( 7,7 \)	\( 7,8 \)	(μ)	\( y \)
\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \)	\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0,\)	\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /1, \)	\( y \)
\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim/0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim/0, \)	\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, 1, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, 1.	\( /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0\),	\( y \)
\( 42LN511* \)	39LN511* 32LN511*		32LN5110-TB32LN511Y-TB	32LN5110-TB32LN511Y-TB
\( 42LN5110-TB42LN511Y-TB	39LN5110-TB39LN511Y-TB
\( Y7, \times Y7, \times Y7, \)	\( Y7, \times OAV, \times A9, \)	\( Y, Y, X \&V, X VTA, \)	(μ)	\( x \)
\( V9, \times O9, \times 97, \)	\( V9, \times O9, \times A9. \)	\( V9, \times E9, \times VTA, \)	(μ)	\( x \)
\( 1, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, 1, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y, y,y,y, y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y.y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,yy,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y/y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y,y(y)	\( y \)
\( 42LN512* \)	39LN512* 32LN512*		32LN5120-TC32LN512Y-TC	32LN5120-TC32LN512Y-TC
\( Y7, \times Y7, \times Y7, \)	\( Y7, \times OAV, \times A9, \)	\( Y, Y, X \&V, X VTA, \)	(μ)	\( x \)
\( V9, \times O9, \times 97, \)	\( V9, \times O9, \times A9. \)		(μ)	\( x \)
\( 1, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y	\( V9, \times E9, \times VTA, \)	\( V9, \times E9, \times VTA, \)	(μ)	\( y \)
\( 9,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,6,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,8,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,10,\)	\( y \)
\( 42LN513* \)	39LN513* 32LN513*		32LN5130-TI32LN513Y-TI	32LN5130-TI32LN513Y-TI
\( 42LN513Y-TI \)	39LN513Y-TI	\( Y, Y, X \&V, X VTA, \)	(μ)	\( x \)
\( Y9, \times O9, \times 97, \)	\( Y9, \times O9, \times A9. \)		(μ)	\( x \)
\( 1, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, y, 1.	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( y \)
\( 9,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,\)	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( y \)
\( 9,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,7,\)	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( y \)
\( 10, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0, \sim /0,\)	\( 10, \sim /0, \sim /0, \sim /0, \sim /0,\)	\( 10, \sim /0, \sim /0, \sim /0,\)	\( y \)
\( 42LN514* \)	32LN514* 32LN514*		32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA
	32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TA32LN5140-TT
	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( x \)
	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( x \)
	\( Y9, \times E9, \times VTA, \)	\( Y9, \times E9, \times VTA, \)	(μ)	\( x \)
	\( Y9,\)	\( Y9,\)	(μ)	\( x \)
	\( Y9,\)	\( Y9,\)	(μ)	\( x \)
	\( Y9,\)	\( Y9,\)	(μ)	\( x \)
	\( Y9,\)	\( Y9,\)	(μ)	\( x \)
	\( Y9,\)	\( Y9,\)	(σ)	\( y \)
	\( Y9,\)	\( Y9,\)	(σ)	\( y \)
	\( Y9,\)	\( Y9,\)	(σ)	\( y \)
	\( Y9,\)	\( Y9,\)	(σ)	\( y \)
	\( Y9,\)	\( Y9,\)	(σ)	\( y \)

aill

jolit

aalld jll jil jiaaii

Caiyaiy

1

2

aaiiaai

3

pplisliy dgy jyj yj gssal aai al jy jy

aagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaaagaa

4

Cagaaa

y

j 1

aaii aai i 1

Aaiybln Aiiy jai yjll aiiaai jai

yVAN 1

P15

1

aai aaii

j 1

g aalge jll aaiial, aeg jll caiial g yae laie

jai jai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

( xt^2 - 5t^2) x + y^2 = 4

Aasii jill jlll s yuue aayyall ay

a

1

3

OK

EXIT 4

AvMode,Energy Saving

jgl 1

52jgaiill 10

Aa 1

y

Aaallll llll Jyssll Q.MENU 1

ydua juyd Juaia Juaia Juaia Juaia Juaia 2

OK biai, ciouai

四边形 AOBC 为正方形

aie 1 aie

gagall g

yagaaal a, gaaal a 1a yaaai jai

y

J 1

10

ydi ydi ydi ydi ydi ydi

（）Picture Size 1

Subtitle Language (C) Audio Language

(

Aaill 2

1
OK 1
OK 2
OK 3
OK 4
OK 5

yall jaiil qaii (38aiial jai)

gall

1
OK 1
OK 2
OK 3
OK 4
OK 5

الإستعمال	الإستعمال
الإستعمال الحرفية مصحيى و صحيى علifierة بعس و صحيى علifierة بعس و صحيى علifierة بعس و صحيى علifierة بعس	الإستعمال
الإستعمال الحرفية مصحيى و صحيى علifierة بعس و صحيى علifierة بعس و صحيى علifierة بعس	الإستعمال
الإستعمال الحرفية مصحيى و صحيى علifierة بعس و صحيى علifierة بعس	(الإستعمال)
OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OKOK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok OK Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok Ok OK Ok OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok ok okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay Okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okayokay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okayOkay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay okay.	الإستعمال	الإستعمال
الإستعمال الحرفية مصحيى و صحيى علifierة بعس و صحيى علifierة بعس و صحيى علifierة بعس	(الإستعمال)
الإستعمال الحرفية مصحيى و صحيى علifierة بعس و صحيى علifierة بعس و صحيى علifierة بعس	(الإستعمال)
OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKORKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOKOK

#

j

aaiy jaiy jaiy jaiy jaiy jaiy jaiy

USB 1

aasssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

OK 1 bai, USB j j j j j kai 3

4

OK le beol 1

aiee aiee

	الإستعمال
8192 x 8192 64 x 64 : محيى الحرفية 768 x 1024 64 x 64 : محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG محيى الحرفية .jpeg JPEG MPEGJPEGMPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEG JPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPEGJPGPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJP JPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPjpJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJPJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJSRJS R	JPEG
MKV.MP4.DIVX.AVI.VOB.MPEG.MPG.DAT (FLV.WMV.ASF.TP.TRP.TS /*.ts/*.dat/*.mpeg/*.mpg) محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحرفiec محيى الحerva /*.mov/*.mp4/*.vob/*.tp/*.trp /(motion-jpeg) *.avi/ *.flv/ *.wmv/ *.asf/ *.avi ((motion-jpeg) *.mkv/(motion-jpeg) *.mp4 DivX5.x DivX4.12 DivX3.11 : محيى الحرفiec محيى الحرفiec محيى الحerva /*.xvid1.02 Xvid1.01 Xvid1.00 DivX6 Xvid1.10 beta-1/beta-2 Xvid1.03 H.264/AVC Mpeg-4 Mpeg-2 Mpeg-1 Sorenson H.263 JPEG VC1 MP3 Mpeg DolbyDigital WMA ADPCM LPCM 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 × 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320× 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320 x 320
MicroDV)*.sub/*.srt/*.smi*.ssa/*.ass (D. Subviewer1.0/2.0 (PowerDivX) *.psb/ (TMPlayer) *.txt	②
(DivX6).ppm.daf.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.la.mal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lal.lall

USB

1
Q.MENU 1
E (C) Eject J 2
OK
3

#

Lgusol USB 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

J121 1

juljua

JINI JINI JINI INPUI 1

J 1

2

OK

Aaiaaii jilil sss jie aiaaaallls

(.720P/1080i/1080p) Component/HDMI

边

y

Jalts Jaxy aay yac uus jut jkssll sic:

1

c

P jlll llll llll llll llll

julilisaloo

jai jia jia jia jia jia jia 6

7

V/UHF 8

9

a 10

1,2,3,4,5,6

11

12

sall jol OK le bai 13

BAck 14

边 a_2 为

.13 3 2

jafai 0aL

jlll jai (a) 1

jI,INPUT 2

Ae 3

jil jil

a

L

a a a a a a a a a a a a a a a

JEESESESESESESESESESESESESESESESESESESESESESESESESESE

(jg)OK jie (1)SETUP

Auta Tuning 2

( 12 + 13 - 15) × 10 =

3

aJy jai jai jai (a) To Start

Lalb

BACK 4

jLalil 0aLima

g 1

aill 1 1

y

1

y

j0e 2

jiae gaiy baiy jaiy jaiy jaiy jaiy jaiy

sii sii jilil

四

!

aaiy

31

山

一

aaii aaii aiiaai

yall yj jll yjj yj

a

i j 1

gill

1 + u7 = 70%

m = 311

#

jell plll 1

aaiy

1

JU 1 USB 1 JUSUB 1 Jusy

a

J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1 J 1

HD /DVD

g

a yaii jie jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia

Aolssn Jnnn nnnn nn nnnn HDMI 1

设 x = a

HDMI High Speed HDMI 1080P 48 Dolby Digital HDMI Audio 48/16 44.1/1632 (jus 192) PCM (jus 16 48/16 DTS (jus 192/16 176/16 96/16 88/16

g

75 aaii) RF Js piai bail l g jaa jaii jaa

有 SE = PG

中

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

C 1

glbl 1

1

ailll g aalll jaaai aalll

y 1

JyIe Jnssuys Jia Jia Jia Jia Jia

aai jaiy 1 aai y jaiy

aai jaii

aaii aaii aaii aaii aai i aai i aai

y 1

A 1

1jzg 1jz

aaii gai i jia jia jia jia jie s jia jai jai

Jaiwail jilill 10s yj 10

g d 1

aalall

aalaii aiee iie eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae eae

a

1

j 2

3

Jnnn

S OBC = S COD + S_ BOC

1 1

a 1

gial yal jy aai laiy yai gai

y 1

jll jaiie 1e cll gaii j

jlll j 1

aall pssss sas aes sas cals

y

J 1

a 1

1 2

y j 100000000000000000000000000000000000000000000000000000000

a 1 a 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

j 1 j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

e 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

g jie sall yjaiy
yjaiy
