Comfort Mini - Battery charger ANSMANN - Free user manual and instructions

Product type	Battery charger
Brand	Ansmann
Model	Comfort Mini
Power supply	USB 5V, min. 1A (recommended), max. 2.4A
Number of compartments	2
Charging current (AA)	800 mA
Charging current (AAA)	400 mA
Maintenance charging current (AA)	13 mA
Maintenance charging current (AAA)	6.5 mA
Compatible battery types	Rechargeable NiMH (AA/AAA)
Maximum capacity (AA)	3000 mAh
Maximum capacity (AAA)	1100 mAh
LED display	Three-color LED (red, orange, green) per compartment
Smart functions	Quick test, pre-charge, analysis, fast charge, IQ cutoff, Top-Off charge, maintenance charge
Protection	Against reverse polarity, against overcharging
Maintenance	Clean with a soft, dry or slightly damp cloth
Warranty	3 years
Compliance	European directives

Frequently Asked Questions - Comfort Mini ANSMANN

What types of batteries can I charge with the Comfort Mini?

You can charge rechargeable NiMH batteries of type AA (Mignon) and AAA (Micro). Do not recharge non-rechargeable batteries.

How do I know when charging is complete?

The LED of each compartment turns solid green when charging is complete. The charger then switches to maintenance mode.

What does a blinking orange light mean?

A blinking orange indicates a pause due to insufficient USB power. Use a USB source of at least 1A for normal operation.

Can I charge batteries of different capacities at the same time?

Yes, the charger can combine different types or capacities of NiMH batteries, as each compartment is monitored individually.

What to do if the LED does not turn on?

Check the USB connection and power source. Make sure the USB cable is properly plugged in. Test with another USB power supply.

How to clean the charger?

Before cleaning, unplug the charger and remove the batteries. Use a soft, dry or slightly damp cloth (possibly with a little mild dish soap). Do not use abrasive products.

Is the charger safe to use with children?

The product can be used by children over 8 years of age under supervision. Do not allow children to play with the charger. Keep them away from the packaging.

What is the warranty period?

Ansmann offers a 3-year warranty on the device. The warranty does not cover damage caused by improper use.

Can I use the charger with a power bank?

Yes, you can use a power bank as a USB power source, provided it delivers at least 1A for fast charging.

How to dispose of the charger at the end of its life?

Do not dispose of the charger with household waste. Use collection points for electrical devices in accordance with local regulations.

USER MANUAL Comfort Mini ANSMANN

CONCEPT MINI A B C AMGANN D

PERFECT 7 CHARGING TECHNOLOGY 1 2 3 4 5 6 7 IQ

BEDIENUNGSANLEITUNG

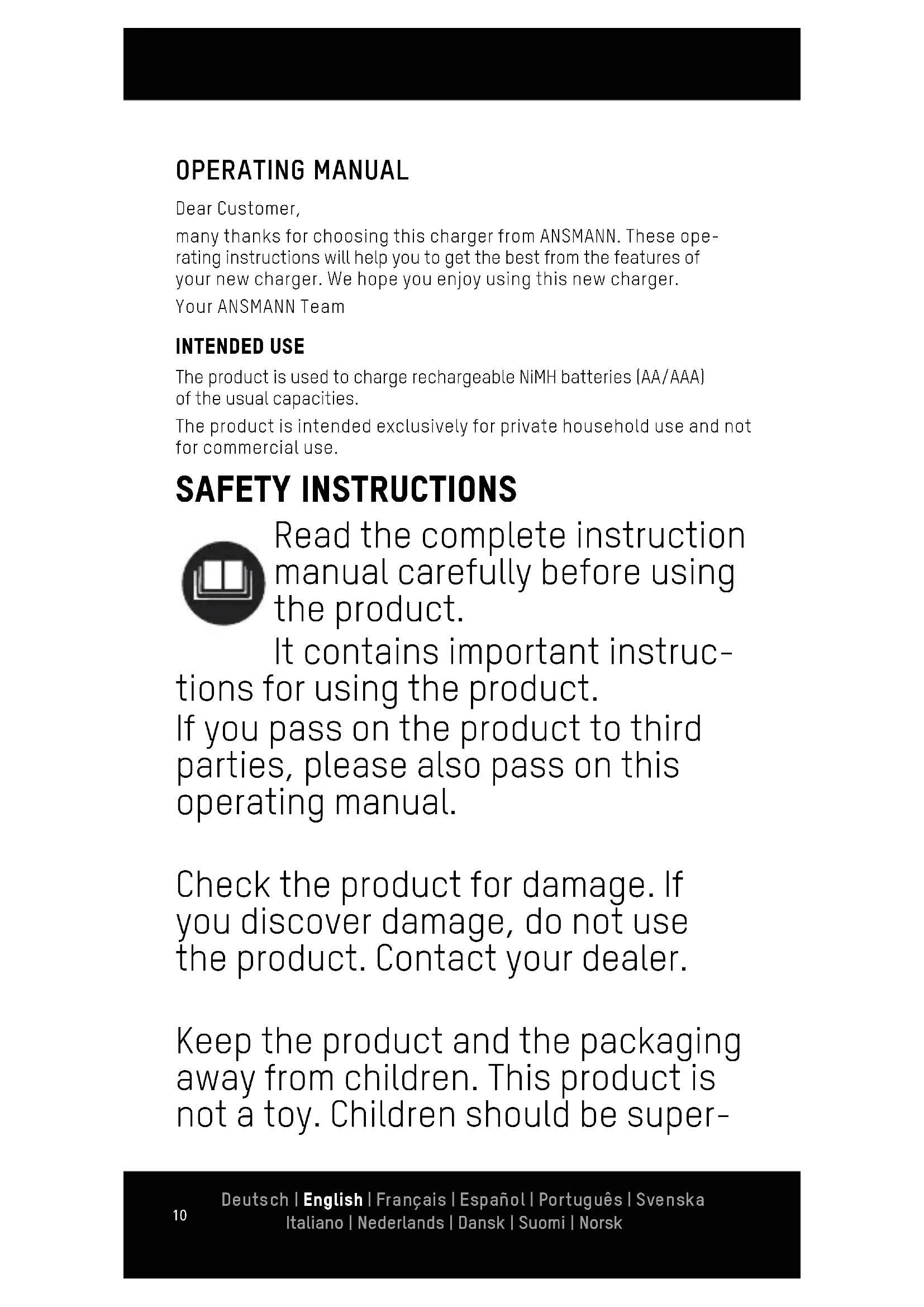

many thanks for choosing this charger from ANSMANN. These operating instructions will help you to get the best from the features of your new charger. We hope you enjoy using this new charger.

Your ANSMANN Team

INTENDED USE

The product is used to charge rechargeable NiMH batteries (AA/AAA) of the usual capacities.

The product is intended exclusively for private household use and not for commercial use.

SAFETY INSTRUCTIONS

Read the complete instruction manual carefully before using the product.

It contains important instructions for using the product.

If you pass on the product to third parties, please also pass on this operating manual.

Check the product for damage. If you discover damage, do not use the product. Contact your dealer.

Keep the product and the packaging away from children. This product is not a toy. Children should be super-

vised in order to ensure that they do not play with the product.

This product may be used by children 8 years of age and older and by persons with limited physical, sensory or mental abilities or lack of experience and knowledge, only if they are supervised or instructed in the safe use of the product and are aware of the hazards. Children are not allowed to play with the device. Cleaning and care must not be carried out by children without supervision.

■Do not attempt to open the charger!
■Before using the charger, read all instructions and safety instructions on the charger and the battery.
■Please also read the operating instructions of all other devices connected to the product.
■Always insert rechargeable batteries with the correct polarity (+ and -) as shown in the charge slot.

■Do not attempt to charge non-re-chargeable batteries.
■Always place the product on a flat, stable and heat-resistant surface.
■Do not use the product near flammable liquids or gases.
■Make sure that the ventilation slots on the bottom housing of the charger are not covered.
■Do not leave the product unattended during use.

Only use the product in dry indoor areas and protect it from sture.

PRODUCT DESCRIPTION (SEE PAGE 2)

A: Charging compartment
B: Opening to allow for the easy removal of the batteries
C: Multi-colored LED display (red, orange, green)
D: USB power supply connector

OVERVIEW OF FUNCTIONS

Quick charger with USB input for 1-2 NiMH batteries of the sizes Micro AAA / Mignon AA incl. USB cable

Microprocessor controlled charging with single cell monitoring Automatic start of charging and charging current adjustment after insertion of the batteries with correct polarity

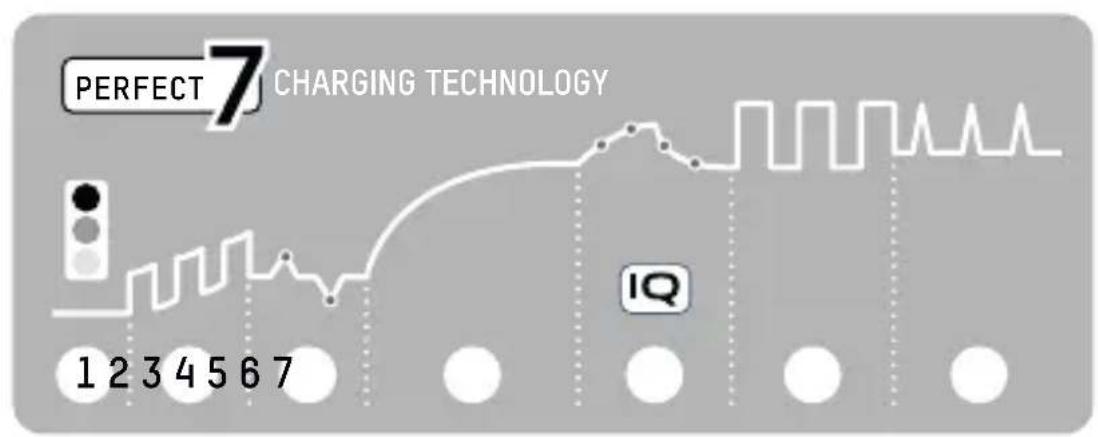

Status indication via 3-colour LED per charging slot Intelligent "PERFECT 7 CHARGING" function (SEE PAGE 2):

1. Capacity quick test: Residual capacity is determined before charging begins and displayed for 5 seconds
2. Gentle pre-charging: Weak or deeply discharged battery is pre-charged with lower current if necessary
3. Battery analysis: Battery behavior is analyzed and evaluated to determine whether it is still reliably usable or defective
4. Quick charge: Battery is charged at maximum current
5. IQ switch-off: Intelligent monitoring of the battery for reliable charging and multiple protection against overcharging
6. Top-off charge: Ensures that the battery is gently charged to 100% capacity
7. Trickle charge: Battery is kept in a fully charged state by means of charging pulses

OPERATION

■ Connect the charger with the included USB cable.
- Connect the USB cable to any suitable USB port (e.g. power supply, PC, Power bank...).
- Insert the battery into the charging slot with the correct polarity (see engraving in the charging slot).
- The product displays the charge status of the battery for 5 seconds and then automatically starts the charging process.
- As soon as a battery is fully charged, the charger switch to trickle charge.

• You can now remove the fully charged battery.
  ■ After all batteries have been removed, disconnect the product from the power supply

LED INDICATION

	Red Orange Green
Capacity indication (for the first 5s after insertion)	<25% 25-75% >75%
Charging	On
Error	Flashing
Full / trickle charge	On
Pause (*1)	Flashing

(*1) If the connected USB device does not supply enough current (recommended min. 1A), the device will pause a charging slot. You can still charge your batteries without any problems, but the charging process takes longer due to this pause.

TROUBLESHOOTING

Problem Possible cause Resolution

No LED indication - No connection to USB power source- USB power supply defective	- Check the connection- Use a different USB power supply
Battery is not recognized	- Battery inserted with reverse polarity
LED is flashing orange - Battery slot pauses, as the current of the USB power source is too low to charge all batteries at the same time	- Use USB power source with a minimum of 1A output current- Or accept the longer charging time

CARE AND MAINTENANCE

Cleaning

Disconnect the power supply to the product and remove all batteries before cleaning.

Only use a soft, dry or slightly damp cloth for cleaning (if necessary, add a little mild washing-up liquid). Never use abrasives or solvents for cleaning.

TECHNICAL DATA

Power source USB 5V, min. 1A for fastest charging, max. 2.4A

Charging slots 2

Charge current AA: 800mA / AAA: 400mA

Trickle charge current AA: 13mA / AAA: 6.5mA

Suitable battery types

(different types or capacities can be combined)

Number of cells Batterie size (NiMH) Max. capacity

1-2	Mignon AA 3000 mAh
	Micro AAA 1100 mAh

Charging times

Typ Capacity approx. Charge time Charge current

Micro AAA	1000 mAh 3 h800 mAh 2,4 h	400 mA
Mignon AA	2650 mAh 4 h2500 mAh 3,75 h2100 mAh 3 h1300 mAh 2 h	800 mA

DISPOSAL

Dispose of the product in accordance with legal provisions. The "waste bin" symbol indicates that, in the EU, it is not permitted to dispose of electrical equipment in household waste. Use the return and collection systems in your area or contact the retailer from whom you purchased the product.

Batteries and rechargeable batteries are special waste and shall not be disposed of in the normal household waste. Always hand used batteries and rechargeable batteries in to the collection point intended for this. In this way you will fulfil your legal obligations and contribute to environmental protection.

LIABILITY DISCLAIMER

The information contained within these operating instructions can be changed without prior notification. ANSMANN accepts no liability for direct, indirect, incidental or other damage or consequential damage arising though improper handling or through disregard of the information contained within these operating instructions. We

accept no liability or warranty claims or guarantee claims in the event of incorrect use of the product.

WARRANTY NOTICE

The device has a three-year guarantee. The guarantee does not apply to damage to the device arising through a failure to comply with the operating instructions. Your statutory warranty rights are not affected by this. You can find our warranty conditions online at: www.ansmann.de

Subject to technical changes. We assume no liability for printing errors.

CE The product complies with the requirements from the relevant EU directives.
