USER MANUAL Peabi Palmer

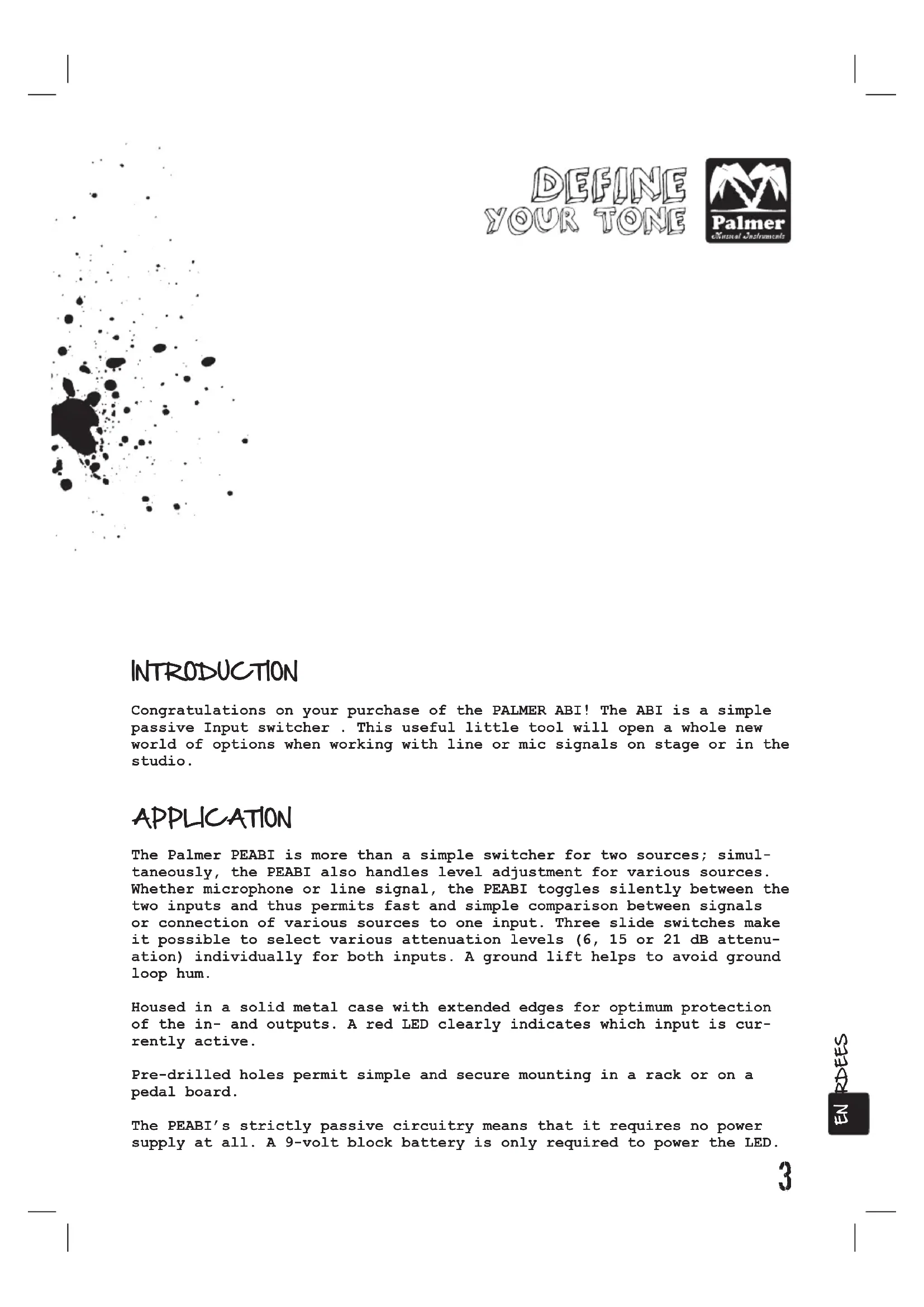

Congratulations on your purchase of the PALMER ABI! The ABI is a simple passive Input switcher. This useful little tool will open a whole new world of options when working with line or mic signals on stage or in the studio.

APPLICATION

The Palmer PEABI is more than a simple switcher for two sources; simultaneously, the PEABI also handles level adjustment for various sources. Whether microphone or line signal, the PEABI toggles silently between the two inputs and thus permits fast and simple comparison between signals or connection of various sources to one input. Three slide switches make it possible to select various attenuation levels (6, 15 or 21 dB attenuation) individually for both inputs. A ground lift helps to avoid ground loop hum.

Housed in a solid metal case with extended edges for optimum protection of the in- and outputs. A red LED clearly indicates which input is currently active.

Pre-drilled holes permit simple and secure mounting in a rack or on a pedal board.

The PEABI's strictly passive circuitry means that it requires no power supply at all. A 9-volt block battery is only required to power the LED.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions before operating the unit.
2) Please heed all safety warnings and keep these instructions for future reference.
3) Follow all instructions.
4) Do not use this apparatus near water or moisture.
5) Clean only with dry cloth
6) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat.
7) Only use attachments/accessories specified by the manufacturer.
8) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, if liquid has been spilled or objects have fallen into the apparatus, if the apparatus has been exposed to rain or moisture, if it does not operate normally, or has been dropped.

DO NOT ATTEMPT TO SERVICE THIS EQUIPMENT. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. DO NOT MAKE ANY INTERNAL ADJUSTMENTS OR ADDITIONS TO THIS EQUIPMENT OR TAMPER WITH INTERNAL ELECTRONIC COMPONENTS AT ANY TIME. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE SHOCK HAZARDS AND VOID THE WARRANTY OF THIS EQUIPMENT.

As a result of PALMER's policy of continuous product improvement, technical specifications and appearance are subject to change, and modifications may be made to existing products from time to time without prior notice.

PANELS

DEFINE YOUR TONE

GROUND LIFTSWITCH

With the ABI you can interconnect two mains powe red devices (for example 2 mixers). This constellation can induce a ground loop hum. Should this occur, use this switch to lift the ground of the second input.

SWITCH

With this switch you can toggle between the two inputs. The switch is latching, the LED indicates, which input is active.

3 INPUT/OUTPUT

Connect mic (only dynamic mics and such that do not require phantom power) or line signals to the inputs A and B.

Output: The selected input is routed to the output.

PAD INPUT A

Use this switch to attenuate input A by 15dB.

5 PAD INPUTB

To offer more flexibility, input B can be padded in two steps (15dB or 6dB). Both switches can be used simultaneously to achieve maximum pacing.

6 LED

LED: This LED lights when input B is selected (Note: A battery must be inserted)

SPECIFICATIONS

item number peabi
product type: switcher
type: passive
switching function: input switch
number of channels 2
number of inputs: 1
input connectors: XLR
number of outputs: 2
output connectors: XLR
transformer isolated outputs: no
controls: input pad
display segments: channel number
power supply: 9 V block
power consumption: n.a. A
housing material: sheet steel
housing surface: powder coated
width: 100 mm
depth: 120 mm
height: 60 mm

Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject to modifications.

DEFINE YOUR TONE

LIMITATION OF LIABILITY

If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy shall be repair or replacement. Adam Halls' maximum liability under this limited warranty is expressly limited to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware components that malfunction in conditions of normal use.

Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by a third party or made by you for a third party.

This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limitation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages. This limitation of liability however, will not apply to claims for personal injury.

This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to state or from country to country. You are advised to consult applicable state or country laws for a full determination of your rights.

REQUESTING WARRANTY- SERVICE

To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which you purchased the product.

ECDECLARATION OF CONFORMITY

These devices meet the essential requirements and further relevant specifications of Directives 2004/108/EC (EMC) and 2006/95/EC (LVD). For more information, see www.adamhall.com.

CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased

this product, or their local government office, for details on where and how they can recycle this item in an environmentally friendly manner. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

WEEE-DECLARATION

Your Palmer product was developed and manufactured with high quality materials and components which can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed of separately from normal waste at the end of its operational lifetime. Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment. This will help to protect the environment in which we all live.

BATTERIES AND ACCUMULATORS

The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.

DEFINE YOUR TONE

LIMITED WARRANTY

This Limited Warranty applies to all products distributed through Adam Hall.

The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional independent warranty claims towards Adam Hall.

Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall authorized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 3 years from the date of purchase.

The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your proof of the purchase date. Should products of the brands named above be in need of repair within the limited warranty period, you are entitled to warranty services according to the terms and conditions stated in this document.

This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transferable to anyone, who obtains ownership of the Adam Hall branded product from the original purchaser. During the Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All component parts or hardware products removed under this Limited Warranty become the property of Adam Hall.

In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to provide you with a replacement unit of Adam Hall's choice that is at least equivalent to your Adam Hall branded product in hardware performance.

Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam Hall branded product. This Limited Warranty does not apply, - to wear parts (e.g. accumulator) - to any product from which the serial number has been removed or that has been damaged or rendered defective as the result of an accident - in case of, misuse, abuse, or other external causes

• by operation outside the usage parameters stated in the user's documentation shipped with the product
• by use of spare parts not manufactured or sold by Adam Hall
• by modification or service by anyone other than Adam Hall
  These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam Hall regarding the Adam Hall branded product you have purchased.
