Product Type	CD Car Stereo with RDS Tuner
Brand	Sony
Model	CDX-S2000
Dimensions (W × H × D)	178 × 50 × 176 mm
Weight	1.2 kg
Power Supply	12 V DC, negative ground
Maximum Output Power	50 W × 4 (at 4 ohms)
Compatible CD Player	Audio CD, CD-R, CD-RW (audio)
Frequency Response (CD)	10 – 20,000 Hz
Signal-to-Noise Ratio (CD)	120 dB
Radio Tuner	FM (87.5 – 108 MHz), MW, LW
RDS Functions	AF, TA/TP, PTY, CT, REG, PI Seek
Built-in Equalizer	EQ3 with 7 presets (XPLOD, VOCAL, CLUB, JAZZ, NEW AGE, ROCK, CUSTOM)
Display	CD TEXT, automatic scrolling of long names
Sound Settings	Balance (BAL), Fader (FAD), bass/mid/treble
Detachable Faceplate	Yes, with anti-theft alarm
Compatible Remote Controls	Mini remote RM-X114, Command satellite RM-X4S (optional)
Fuse	10 A
Mini Remote Battery	Lithium CR2025
Maintenance	Clean connectors with alcohol, replace fuse
Supplied Accessories	Installation and connection kit, faceplate case

Frequently Asked Questions - CDX-S2000 SONY

How to reset the Sony CDX-S2000 car stereo?

Remove the faceplate and press the RESET button on the front of the unit with a pointed object (ballpoint pen). Note: this erases the clock and stored stations.

How to set the clock?

Press DSPL for 2 seconds. The hours flash: adjust with the volume +/- button, then press SEL to go to minutes. Adjust minutes and confirm with DSPL.

How to remove the faceplate for security?

Press OFF (hold until off if no ACC position), then press the release button (⚠) and pull the faceplate towards you. Store it in the supplied case.

Why won't the CD play or does it skip?

Check that the disc is not dirty, scratched, or inserted upside down. CD-R/RW must be finalized. If the problem persists, clean the faceplate connectors (with a cotton swab dipped in alcohol) or reset the unit.

How to use the RDS function for traffic information?

Press the TA button until TA-ON appears. The unit automatically searches for stations broadcasting traffic messages. The volume can be preset by pressing TA for 2 seconds after adjustment.

How to store a radio station?

Select the desired station, then press the number button (1 to 6) for 2 seconds until MEM appears. The station is stored on that button.

What to do if the display remains off?

Press and hold the OFF button until the display reappears. If this does not work, clean the connectors between the faceplate and the unit.

How to adjust the equalizer?

Press SOURCE to select the source, then press EQ3 repeatedly to choose a curve (ROCK, JAZZ, etc.). To customize, press SEL to select LOW/MID/HI and adjust with the volume.

How to replace the mini remote battery?

Open the battery compartment, remove the old battery and insert a CR2025 lithium battery respecting polarity. Keep the battery out of reach of children.

What does the 'ERROR' message on the screen mean?

The CD is dirty, inserted upside down, or unreadable. Clean the disc, check its orientation, or insert another CD. If the problem persists, press RESET.

USER MANUAL CDX-S2000 SONY

FM/MW/LW Compact Disc Player

Operating Instructions

For installation and connections, see the supplied installation/connections manual.

Thank you for purchasing this Sony Compact Disc Player. You can enjoy its various features even more with:

• CD TEXT information (displayed when a CD TEXT disc* is played)
• Optional controller accessories

Card remote commander RM-X114

Rotary commander RM-X4S

* A CD TEXT disc is an audio CD that includes information such as the disc name, artist name, and track names. This information is recorded on the disc.

CLASS 1 LASER PRODUCT

This label is located on the bottom of the chassis.

Table of Contents

Location of controls 4

Precautions 5

Notes on discs 6

Getting Started

Resetting the unit....7

Detaching the front panel 7

Setting the clock 8

CD Player

Playing a disc....9

Display items....9

Playing tracks repeatedly — Repeat Play .... 10

Playing tracks in random order — Shuffle Play .... 10

Radio

Storing stations automatically — Best Tuning Memory (BTM)....10

Receiving the stored stations....11

Storing only the desired stations ..... 11

RDS

Overview of RDS 12

Automatic retuning for best reception results — AF (Alternative Frequencies) ..... 12

Receiving traffic announcements — TA (Traffic Announcement)/TP (Traffic Programme)....13

Presetting RDS stations with the AF and TA setting 14

Tuning in stations by programme type — PTY (Programme types) ..... 14

Setting the clock automatically — CT (Clock Time) ..... 15

Other Functions

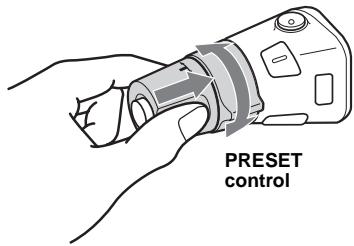

Using the rotary commander.... 16

Adjusting the balance and fader ..... 17

Quickly attenuating the sound ..... 17

Changing the sound and display settings .. 17

Setting the equalizer (EQ3). 18

Additional Information

Maintenance 19

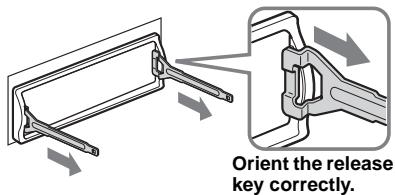

Removing the unit. 20

Specifications 21

Troubleshooting 22

Error displays/Messages 23

Location of controls

Refer to the pages listed for details.

1 Volume +/- button 2 SEL (select) button

Selecting items.

3 MODE button

Changing the operation.

4 Display window 5 OFF (Stop/Power off) button* 7, 9 6 ≜ (eject) button 9 7 (front panel release) button 7 8 SOURCE (Power on/Radio/CD) button

Selecting the source.

9 AF button 12, 13, 14 10 ATT (attenuate) button 17 11 SENS/BTM button 10, 11, 14 12 RESET button (located on the front side of the unit, behind the front panel) 7 13 Number buttons

Radio:

Storing the desired station on each number button.

CD:

③: REP 10 ④: SHUF 10

14 PTY (program type) button 15 15 DSPL (display mode change) button 9, 12 16 TA button 13, 14 17 EQ3 button 18 18 Receptor for the card remote commander

19 SEEK +/- button

Radio:

Tuning in stations automatically/finding a station manually.

CD:

Skipping tracks/fast-forwarding, reversing a track.

* Warning when installing in a car without an ACC (accessory) position on the ignition switch

After turning off the ignition, be sure to press and hold OFF on the unit until the display disappears.

Otherwise, the display does not turn off and this causes battery drain.

Card remote commander RM-X114 (optional)

The corresponding buttons of the card remote commander control the same functions as those on this unit.

1 DSPL button 2 MENU button* 3 SOURCE button 4 SEEK (+/−) buttons 5 SOUND button 6 OFF button 7 VOL (+/-) buttons 8 MODE button 9 LIST button* 10 DISC*/PRESET (+/-) buttons 11 ENTER button* 12 ATT button

* Not available for this unit

Note

If the display disappears by pressing OFF, it cannot be operated with the card remote commander unless SOURCE on the unit is pressed, or a disc is inserted to activate the unit first.

Tip

Refer to "Replacing the lithium battery" for details on how to replace the battery (page 19).

Precautions

• If your car has been parked in direct sunlight, allow the unit to cool off before operating it.
• Power aerial will extend automatically while the unit is operating.

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks onto the unit or discs.

Notes on discs

• To keep a disc clean, do not touch its surface. Handle the disc by its edge.
• Keep your discs in their cases or disc magazines when not in use.
• Do not subject discs to heat/high temperature. Avoid leaving them in a parked car or on a dashboard/rear tray.

- Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

- Do not use any discs with labels or stickers attached.

The following malfunctions may result from using such discs:

• Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
• Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.

- Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.

- You cannot play 8 cm CDs.

- Before playing, clean the discs with a commercially available cleaning cloth. Wipe each disc from the centre out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analogue discs.

Notes on CD-R/CD-RW discs

- You can play CD-Rs (recordable CDs)/CD-RWs (rewritable CDs) designed for audio use on this unit. Look for these marks to distinguish CD-Rs/CD-RWs for audio use.

These marks denote that a disc is not for audio use.

• Some CD-Rs/CD-RWs (depending on the equipment used for its recording or the condition of the disc) may not play on this unit.
• You cannot play a CD-R/a CD-RW that is not finalized*.

* A process necessary for a recorded CD-R/CD-RW disc to be played on the audio CD player.

Getting Started

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit.

Remove the front panel and press the RESET button with a pointed object, such as a ballpoint pen.

Note

Pressing the RESET button will erase the clock setting and some stored contents.

Detaching the front panel

You can detach the front panel of this unit to protect the unit from being stolen.

Caution alarm

If you turn the ignition switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds. If you connect an optional amplifier and do not use the built-in amplifier, the beep sound will be deactivated.

1 Press OFF*.

CD playback or radio reception stops (the key illumination and display remain on).

* If your car has no ACC (accessory) position on the ignition switch, be sure to turn the unit off by pressing OFF until the display disappears to avoid car battery drain.

2 Press ↑, then pull it off towards you.

Notes

• If you detach the panel while the unit is still turned on, the power will turn off automatically to prevent the speakers from being damaged.
• Do not drop or put excessive pressure on the front panel and its display window.
• Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in a parked car or on a dashboard/rear tray.

Tip

When carrying the front panel with you, use the supplied front panel case.

continue to next page →

Attaching the front panel

Attach part Ⓐ of the front panel to part Ⓑ of the unit as illustrated and push the left side into position until it clicks.

Note

Do not put anything on the inner surface of the front panel.

Setting the clock

The clock uses a 24-hour digital indication.

Example: To set the clock to 10:08

1 Press DSPL for 2 seconds.

The hour indication flashes.

① Press the volume +/- button to set the hour. ② Press SEL.

The minute indication flashes.

③ Press the volume +/- button to set the minute.

2 Press DSPL.

10:08

The clock starts. After the clock setting is completed, the display returns to normal play mode.

Tip

You can set the clock automatically with the RDS feature (page 15).

CD Player

Playing a disc

Insert the disc (labelled side up).

Playback starts automatically.

If a disc is already inserted, press SOURCE repeatedly until “CD” appears to start playback.

To	Press
Stop playback	▲ or OFF
Eject the disc	▲
Skip tracks– AutomaticMusic Sensor	SEEK (-/+) (◄◄/►►) [once for each track]
Fast-forward/reverse– Manual Search	SEEK (-/+) (◄◄/►►) [hold to desired point]

Notes

• While the first/last track on the disc is playing, if SEEK (-) or SEEK (+) is pressed, playback skips to the last/first track of the disc.
• When the last track on the disc is over, playback restarts from the first track of the disc.

Display items

When the disc/track changes, any prerecorded title*1 of the new track is automatically displayed (if A.SCRL (Auto Scroll) is set to “ON,” names exceeding 8 characters will be scrolled (page 17)).

Displayable items

• Track number/Elapsed playing time
• Clock • Disc name*1/Artist name*2
• Track name*1

To	Press
Switch display item	DSPL

*1 When pressing DSPL, "NO NAME" indicates that there is no prerecorded name to display. *2 Only for CD TEXT discs with the artist name.

Notes

• Some characters cannot be displayed. Characters and signs which cannot be displayed appear as “*.”
• For some CD TEXT discs with very many characters, information may not scroll.
• This unit cannot display the artist name for each track of a CD TEXT disc.

Tip

When A.SCRL (Auto Scroll) is set to "OFF" and the disc/track is changed, the disc/track name does not scroll.

Playing tracks repeatedly

— Repeat Play

The current track will repeat itself when it reaches the end.

During playback, press ③ (REP) repeatedly until “REP-ON” appears in the display. Repeat Play starts.

To return to normal play mode, select "REP-OFF."

Playing tracks in random order

— Shuffle Play

You can select to play the tracks in the current disc in random order.

During playback, press ④ (SHUF) repeatedly until “SHUF-ON” appears in the display. Shuffle Play starts.

Shuffle Play starts.

To return to normal play mode, select "SHUF-OFF."

Radio

The unit can store up to 6 stations per band (FM1, FM2, FM3, MW, and LW).

Caution

When tuning in stations while driving, use Best Tuning Memory to prevent accidents.

Storing stations automatically

— Best Tuning Memory (BTM)

The unit selects the stations with the strongest signals within the selected band, and stores them in the order of their frequency.

1 Press SOURCE repeatedly to select the radio. 2 Press MODE repeatedly to select the band. 3 Press SENS (BTM) for 2 seconds. The unit stores stations in the order of their frequencies on the number buttons. A beep sounds when the setting is stored.

Notes

• If only a few stations can be received due to weak signals, some number buttons will retain their former settings.
• When a number is indicated in the display, the unit starts storing stations from the one currently displayed.

Receiving the stored stations

1 Press SOURCE repeatedly to select the radio. 2 Press MODE repeatedly to select the band. 3 Press the number button (① to ⑥) on which the desired station is stored.

If preset tuning does not work — Automatic tuning/Local Seek Mode

Automatic tuning:

Press SEEK (+) or SEEK (-) to search for the station.

Scanning stops when the unit receives a station. Repeat the operation until the desired station is received.

Local Seek Mode:

If the automatic tuning stops too frequently, press SENS (BTM) repeatedly until “LOCAL-ON” appears in the display.

Only the stations with relatively strong signals will be tuned in.

To cancel the local seek mode, press SENS (BTM) twice when receiving FM.

Note

When receiving MW or LW, to cancel the local seek mode, press SENS (BTM) ("LOCAL-OFF" appears).

Tip

If you know the frequency of the station you want to listen to, press and hold (SEEK) (+) or (SEEK) (-) to locate the approximate frequency, then press (SEEK) (+) or (SEEK) (-) repeatedly to fine adjust to the desired frequency (manual tuning).

If FM stereo reception is poor

— Monaural Mode

During radio reception, press SENS (BTM) repeatedly until “MONO-ON” appears in the display.

"MONO" indicator is displayed.

The sound improves, but becomes monaural (“ST” disappears).

To return to normal radio reception mode, press SENS (BTM) (“MONO-OFF” appears).

Storing only the desired stations

You can manually preset the desired stations on any chosen number button.

1 Press SOURCE repeatedly to select the radio. 2 Press MODE repeatedly to select the band. 3 Press SEEK (+) or SEEK (-) to tune in the station that you want to store. 4 Press the desired number button (① to ⑥) for 2 seconds until “MEM” appears. The number button indication appears in the display.

Note

If you try to store another station on the same number button, the previously stored station will be erased.

RDS

Overview of RDS

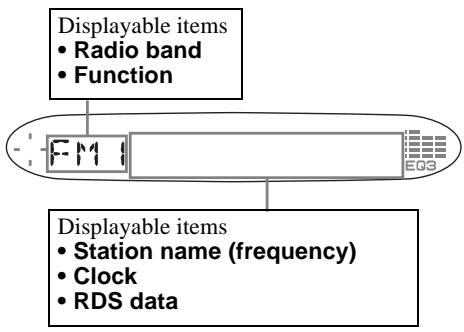

FM stations with Radio Data System (RDS) service send inaudible digital information along with the regular radio programme signal. For example, one of the following will be displayed upon receiving a station with RDS capability.

To	Press
Switch Clock/Station name	DSPL

RDS services

RDS data offers you other conveniences, such as:

• Automatic retuning of a programme, helpful during long-distance drives. — AF → page 12
• Receiving traffic announcements, even when enjoying another programme/source. — TA → page 13
• Selecting stations by the type of programme. — PTY → page 14 • Automatic clock time setting. — CT → page 15

Notes

• Depending on the country/region, not all of the RDS functions are available.
• RDS will not work properly if the signal strength is too weak or if the station you are tuned to is not transmitting RDS data.

Automatic retuning for best reception results

— AF (Alternative Frequencies)

The AF function allows the radio to always tune into the area's strongest signal for the station you are listening to.

1 Select an FM station (page 10). 2 Press AF repeatedly until "AF-ON" appears.

The unit starts searching for an alternative frequency with a stronger signal in the same network.

If “NO AF” flashes, the currently tuned station does not have an alternative frequency.

Notes

• If you want to change the on/off setting while playing a CD, press AF.
• When there is no alternative frequency in the area or when you do not need to search for one, turn the AF function off by selecting "AF-OFF."

For stations without alternative frequencies

Press SEEK (+) or SEEK (−) while the station name is flashing (within 8 seconds).

The unit starts searching for another frequency with the same PI (Programme Identification) data (“PI SEEK” appears). If the unit cannot find the same PI, the unit returns to the previously selected frequency.

Staying with one regional programme

When the AF function is on: this unit's factory setting restricts reception to a specific region, so you won't be switched to another regional station with a stronger frequency.

If you leave this regional programme's reception area or would like to take advantage of the whole AF function, press AF for 2 seconds until "REG-OFF" appears.

Note

This function does not work in the United Kingdom and in some other areas.

Local Link function (United Kingdom only)

This function enables you to select other local stations in the area, even if they are not stored on your number buttons.

1 Press a number button (① to ⑥) that has a local station stored on it. 2 Within 5 seconds, press the number button of the local station again. 3 Repeat this procedure until the desired local station is received.

Receiving traffic announcements

— TA (Traffic Announcement)/TP (Traffic Programme)

By activating TA and TP, you can automatically tune in an FM station broadcasting traffic announcements. These settings function regardless of the current FM programme/source, CD; the unit switches back to the original source when the bulletin is over.

Press TA repeatedly until "TA-ON" appears.

The unit starts searching for traffic information stations.

“TP” indicates reception of such stations, and “TA” flashes during an actual traffic announcement. The unit will continue searching for stations available with TP if “NO TP” is indicated.

To cancel all traffic announcements, select "TA-OFF."

To	Press
Cancel current announcement	TA

Tip

You can also cancel the current announcement by pressing SOURCE or MODE.

Presetting the volume of traffic announcements

You can preset the volume level of the traffic announcements so as not to miss hearing them.

1 Press the volume +/- button to adjust the desired volume level. 2 Press TA for 2 seconds. “TA” appears and the setting is stored.

Receiving emergency announcements

If either AF or TA is on, the unit will switch to emergency announcements, if one comes in while listening to an FM station or CD.

Presetting RDS stations with the AF and TA setting

When you preset RDS stations, the unit stores each station's AF/TA setting (on/off) as well as its frequency. You can select a different setting (for AF, TA, or both) for individual preset stations, or the same setting for all preset stations. If you preset stations with "AF-ON" the unit automatically stores stations with the strongest radio signal.

Presetting the same setting for all preset stations

1 Select an FM band (page 10). 2 Press AF and/or TA to select "AF-ON" and/or "TA-ON." Note that selecting "AF-OFF" and "TA-OFF" applies to non-RDS stations as well as RDS stations. 3 Press SENS (BTM) until "BTM" flashes.

Presetting different settings for each preset station

1 Select an FM band, and tune in the desired station (page 10). 2 Press AF and/or TA to select "AF-ON" and/or "TA-ON." 3 Press the desired number button (1 to 6) until "MEM" appears. Repeat from step 1 to preset other stations.

Note

If you want to change the AF/TA setting while you are playing a CD, press AF or TA.

Tuning in stations by programme type

— PTY (Programme types)

You can tune in a station by selecting the type of programme you would like to listen to.

Programme types	Display
News	NEWS
Current Affairs	AFFAIRS
Information	INFO
Sports	SPORT
Education	EDUCATE
Drama	DRAMA
Culture	CULTURE
Science	SCIENCE
Varied	VARIED
Popular Music	POP M
Rock Music	ROCK M
Easy Listening	EASY M
Light Classical	LIGHT M
Classical	CLASSICS
Other Music Type	OTHER M
Weather	WEATHER
Finance	FINANCE
Children's Programmes	CHILDREN
Social Affairs	SOCIAL A
Religion	RELIGION
Phone In	PHONE IN
Travel	TRAVEL
Leisure	LEISURE
Jazz Music	JAZZ
Country Music	COUNTRY
National Music	NATION M
Oldies Music	OLDIES
Folk Music	FOLK M
Documentary	DOCUMENT

Note

You cannot use this function in some countries/regions where no PTY (Programme Type selection) data is available.

1 Press PTY during FM reception.

The current programme type name appears if the station is transmitting the PTY data.

"----" appears if the received station is not an RDS station, or if the RDS data is not received.

2 Press PTY repeatedly until the desired programme type appears.

The programme types appear in the order shown in the table.

“NONE” appears if the programme type is not specified in the RDS data.

3 Press SEEK (+) or SEEK (-).

The unit starts searching for a station broadcasting the selected programme type.

Setting the clock automatically

— CT (Clock Time)

The CT data from the RDS transmission sets the clock automatically.

Selecting "CT-ON"

During radio reception, press SEL and ② simultaneously.

The clock is set.

After one second, the display returns to normal radio reception mode.

To select “CT-OFF,” press SEL and ② simultaneously again.

Notes

• The CT function may not work even though an RDS station is being received.
• There might be a difference between the time set by the CT function and the actual time.

Other Functions

You can also control the unit with a rotary commander (optional).

Using the rotary commander

First, attach the appropriate label depending on how you want to mount the rotary commander. The rotary commander works by pressing buttons and/or rotating controls.

By pressing buttons

Press	To
SOURCE	Change source (Radio/CD)/Power on
MODE	Change radio band
ATT	Attenuate sound
OFF*	Stop playback or radio reception/Power off
SEL	Adjust and select
DSPL	Change the display item

* If your car has no ACC (accessory) position on the ignition key switch, after turning off the ignition, be sure to press and hold OFF until the display disappears.

By rotating the control

Rotate and release to:

• Skip tracks. – Tune in stations automatically.

Rotate, hold, and release to:

– Fast-forward/reverse a track. – Find a station manually.

By pushing in and rotating the control

Push in and rotate the control to:

- Receive preset stations.

Changing the operative direction

The operative direction of controls is factory-set as shown below.

If you need to mount the rotary commander on the right hand side of the steering column, you can reverse the operative direction.

Press SEL for 2 seconds while pushing the VOL control.

Adjusting the balance and fader

You can adjust the balance and fader.

1 Press SEL repeatedly until "BAL" or "FAD" appears.

Each time you press SEL, the item changes as follows:

LOW → MID → HI* → BAL (left - right) → FAD (front - rear)

* When EQ3 is activated (page 18).

2 Press the volume +/- button to adjust the selected item.

Note

Adjust within 3 seconds after selecting the item.

Quickly attenuating the sound

Press ATT.

After “ATT-ON” momentarily appears, “ATT” appears in the display.

To restore the previous volume level, press ATT again.

Tip

When the interface cable of a car telephone is connected to the ATT lead, the unit decreases the volume automatically when a telephone call comes in (Telephone ATT function).

Changing the sound and display settings

The following items can be set:

• AMBER/GREEN ^*1 — to change the illumination colour to amber or green. • CT (Clock Time) (page 15) • A.SCRL (Auto Scroll)*2 (page 9)
• DEMO ^*3 — to turn the demonstration display on or off.
• Select “ON” to activate the demonstration display (The demonstration starts about 10 seconds after the unit is turned off).
• Select “OFF” to deactivate the demonstration display.

- BEEP — to turn the beeps on or off.

Selecting the desired item

Press SEL and the desired button simultaneously.

SEL + 1: AMBER/GREEN*1

SEL + 2: CT

SEL + 3: A.SCRL*2

SEL + 4: DEMO*3

SEL + 6: BEEP

*1 CDX-S2000C only *2 When no CD is playing, this item will not appear. *3 When the unit is turned off.

Note

The displayed item will differ depending on the source.

To cancel the item, press SEL and the desired button simultaneously again.

Setting the equalizer (EQ3)

You can select an equalizer curve for 7 music types (XPLOD, VOCAL, CLUB, JAZZ, NEW AGE, ROCK, CUSTOM, and OFF (equalizer OFF)).

You can store a different equalizer setting for each source.

Selecting the equalizer curve

1 Press SOURCE to select a source (Radio or CD). 2 Press EQ3 repeatedly until the desired equalizer curve.

Each time you press EQ3, the item changes.

To cancel the equalizing effect, select "OFF."

Adjusting the equalizer curve

You can store and adjust the equalizer settings for different tone ranges.

1 Press SOURCE to select a source (Radio or CD). 2 Press EQ3 repeatedly to select the desired equalizer curve. 3 Adjusting the equalizer curve.

① Press SEL repeatedly to select the desired tone range.

Each time you press SEL, the tone range changes.

LOW → MID → HI (→ BAL → FAD )

② Press the volume +/- button repeatedly to adjust to the desired volume level.

The volume level is adjustable by 1 dB steps from -10 dB to +10 dB.

③ Repeat step ① and ② to adjust the equalizer curve.

To restore the factory-set equalizer curve, press SEL for 2 seconds.

After 3 seconds, the display returns to normal play mode.

Note

When EQ3 is set to "OFF," you cannot adjust the equalizer curve settings.

Additional Information

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit as this could damage the unit.

Cleaning the connectors

The unit may not function properly if the connectors between the unit and the front panel are not clean. In order to prevent this, detach the front panel (page 7) and clean the connectors with a cotton swab dipped in alcohol. Do not apply too much force. Otherwise, the connectors may be damaged.

Notes

• For safety, turn off the ignition before cleaning the connectors, and remove the key from the ignition switch.
• Never touch the connectors directly with your fingers or with any metal device.

Replacing the lithium battery

Under normal conditions, battery will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.

Do not recharge, disassemble, or dispose of in fire.

Removing the unit

1 Remove the protection collar.

① Detach the front panel (page 7). ② Engage the release keys together with the protection collar.

③ Pull out the release keys to remove the protection collar.

2 Remove the unit.

① Insert both release keys together until they click.

② Pull the release keys to unseat the unit.

③ Slide the unit out of the mounting.

Specifications

CD Player section

Signal-to-noise ratio	120 dB
Frequency response	10 – 20,000 Hz
Wow and flutter	Below measurable limit

Tuner section

FM

Tuning range	87.5 – 108.0 MHz
Aerial terminal	External aerial connector
Intermediate frequency	10.7 MHz/450 kHz
Usable sensitivity	9 dBf
Selectivity	75 dB at 400 kHz
Signal-to-noise ratio	67 dB (stereo),69 dB (mono)
Harmonic distortion at 1 kHz
	0.5 % (stereo),0.3 % (mono)
Separation	35 dB at 1 kHz
Frequency response	30 – 15,000 Hz

MW/LW

Tuning range	MW: 531 – 1,602 kHz
	LW: 153 – 279 kHz
Aerial terminal	External aerial connector
Intermediate frequency	10.7 MHz/450 kHz
Sensitivity	MW: 30 μV
	LW: 40 μV

Power amplifier section

Outputs	Speaker outputs(sure seal connectors)
Speaker impedance	4 – 8 ohms
Maximum power output	50 W × 4 (at 4 ohms)

General

Outputs	Audio outputs (rear)Power aerial relay control terminalPower amplifier control terminal
Inputs	Telephone ATT control terminalRemote controller inputAerial input terminal
Tone controls	Low: ± 10 dB at 60 Hz (XPLOD)Mid: ± 10 dB at 1 kHz (XPLOD)High: ± 10 dB at 10 kHz (XPLOD)
Power requirements	12 V DC car battery(negative earth)
Dimensions	Approx. 178 × 50 × 176 mm(w/h/d)
Mounting dimensions	Approx. 182 × 53 × 161 mm(w/h/d)
Mass	Approx. 1.2 kg
Supplied accessories	Parts for installation and connections (1 set)Front panel case (1)
Optional accessories	Card remote commanderRM-X114Rotary commanderRM-X4S

Design and specifications are subject to change without notice.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

General

No sound.

• Press the volume + button to adjust the volume.
• Cancel the ATT function.
• Set the fader control to the centre position for a 2-speaker system.

The contents of the memory have been erased.

• The RESET button has been pressed. →Store again into the memory.
• The power lead or battery has been disconnected.
• The power connecting lead is not connected properly.

No beep sound.

• The beep sound is cancelled (page 17).
• An optional power amplifier is connected and you are not using the built-in amplifier.

The display disappears from/does not appear in the display window.

• The display disappears if you press and hold OFF. →Press and hold OFF again until the display appears.
• Remove the front panel and clean the connectors. See “Cleaning the connectors” (page 19) for details.

Stored stations and correct time are erased. The fuse has blown.

Makes noise when the ignition key is in the ON, ACC, or OFF position.

The leads are not matched correctly with the car's accessory power connector.

No power is being supplied to the unit.

• Check the connection. If everything is in order, check the fuse.
• The car does not have an ACC position. →Press SOURCE (or insert a disc) to turn on the unit.

The power is continuously supplied to the unit.

The car does not have an ACC position.

The power aerial does not extend.

The power aerial does not have a relay box.

CD playback

A disc cannot be loaded.

• Another CD is already loaded.
• The CD has been forcibly inserted upside down or in the wrong way.

Playback does not begin.

• Defective or dirty CD. - CD-R/CD-RW that is not finalized. - You tried to playback a CD-R/CD-RW not designed for audio use. - Some CD-Rs/CD-RWs may not play due to its recording equipment or the disc condition.

A disc is automatically ejected.

The ambient temperature exceeds 50° C.

The operation buttons do not function. CD will not be ejected.

Press the RESET button.

The sound skips from vibration.

• The unit is installed at an angle of more than 45° .
• The unit is not installed in a sturdy part of the car.

The sound skips.

Dirty or defective disc.

Radio reception

Preset tuning is not possible.

• Store the correct frequency in the memory.
• The broadcast signal is too weak.

The stations cannot be received. The sound is hampered by noises.

• Connect a power aerial control lead (blue) or accessory power supply lead (red) to the power supply lead of a car's aerial booster (only when your car has built-in FM/MW/LW aerial in the rear/side glass).
• Check the connection of the car aerial.
• The auto aerial will not go up.

→ Check the connection of the power aerial control lead.

- Check the frequency.

Automatic tuning is not possible.

• The local seek mode is set to “ON.” → Set the local seek mode to “OFF” (page 11).
• The broadcast signal is too weak.

→ Perform manual tuning.

The "ST" indication flashes.

• Tune in the frequency accurately.
• The broadcast signal is too weak.

→ Set the monaural reception mode to “ON” (page 11).

A programme broadcast in stereo is heard in monaural.

The unit is in monaural reception mode.

→ Cancel monaural reception mode (page 11).

RDS

The SEEK starts after a few seconds of listening.

The station is non-TP or has weak signal.

→Press repeatedly until “TA-OFF” appears.

No traffic announcements.

• Activate "TA."
• The station does not broadcast any traffic announcements despite being TP.

→ Tune in another station.

PTY displays “----”

• The current station is not an RDS station. • RDS data has not been received.
• The station does not specify the programme type.

Error displays/Messages

Error displays

The following indications will flash for about 5 seconds, and an alarm sound will be heard.

ERROR

• A CD is dirty or inserted upside down. →Clean or insert the CD correctly.
• A CD cannot play because of some problem. →Insert another CD.

FAILURE

The connection of speakers/amplifiers is incorrect. → See the installation guide manual of this model to check the connection.

HI TEMP

The ambient temperature is more than 50°C. → Wait until the temperature goes down below 50°C.

OFFSET

There may be an internal malfunction.

→ Check the connection. If the error indication remains on in the display, consult your nearest Sony dealer.

RESET

The CD unit cannot be operated because of some problem. →Press the RESET button on the unit.

Messages

L.SEEK +/-

The local seek mode is on during automatic tuning (page 11).

NO AF

There is no alternative frequency for the current station.

“……” or “……”

You have reached the beginning or the end of the disc and you cannot go any further.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

Welcome!

CLASS 1 LASER PRODUCT

Note

— BTM (Best Tuning Memory)

— AF (Alternative Frequencies)

— TA (Traffic Announcement)/TP (Traffic Programme)

Main unit

Specifications

CD player

CLASS 1 LASER PRODUCT

Note

Main unit

positive pole up

Specifications

CD player

CLASS 1 LASER PRODUCT

Note on CD-R/CD-RW discs

Note

— AF (Alternative Frequencies)

Fuse (10 A)

Caution

Main unit

side up

CLASS 1 LASER PRODUCT

Notes on CD-R/CD-RW discs

Note

— Best Tuning Memory (BTM)

— AF (Alternative Frequencies)

— TA (Traffic Announcement)/TP (Traffic Programme)

Warning

Main unit

• side up

Notes on lithium batteries

Specifications

CD player section

• Lead-free solder is used for soldering certain parts.
• Halogenated flame retardants are not used in the certain printed wiring boards.
• Halogenated flame retardants are not used in cabinets.
• Paper is used for the packaging cushions.

http://www.sony.net/
