OM470RVS - Oven ETNA - Free user manual and instructions

Product Type	Built-in oven
Brand	Etna
Model	OM470RVS
Dimensions (W x H x D)	595 x 596 x 566 mm
Built-in dimensions (W x H x D)	560 x 590 x 550 mm
Volume	72 L
Weight	32.0 kg
Power supply	220-240 V ~ 50 Hz
Maximum power	2900 W
Energy efficiency class	A+
Consumption in conventional mode	1.06 kWh/cycle
Consumption in convection mode	0.69 kWh/cycle
Number of functions	11
Main functions	Traditional, Convection, ECO, Traditional + convection, Radiant heat, Double grill + convection, Double grill, Pizza, Bottom heat, Defrost, Dough proofing
Included accessories	Baking tray, Oven rack
Child safety	Yes, by button lock (press 3 seconds)
Cleaning	Removable door, removable inner glass, removable shelf rails
Lamp replacement	Lamp on top and on side, accessible
Kitchen timer	Programmable from 1 min to 9 h
Cooking programming	Duration and end time programmable
Rapid preheating	Yes, dedicated button
Interior lighting	On/off by button

Frequently Asked Questions - OM470RVS ETNA

How to set the oven clock?

Plug in the oven. The display flashes '00:00'. Press the Cook time / clock setting button. Turn the selection knob to set the hour, press again, set the minutes, then confirm by pressing the same button a third time.

How to activate child safety?

Press the Kitchen timer / child safety button for 3 seconds. The lock symbol appears on the screen. To deactivate, repeat the same action.

What to do if the food does not cook properly?

Check that the door is properly closed. Check the fuses or the circuit breaker. Make sure the set temperature is correct. Consult the function table in the manual to choose the appropriate mode.

How to clean the oven door?

You can remove the door by opening it fully, folding down the locking levers, then lifting it off the hinges. Then remove the cover at the top of the door to access the inner glass. Clean with a soft cloth and soapy water, then reassemble in reverse order.

How to replace the oven lamp?

Disconnect the power supply. Depending on the location: top lamp: turn the cover to the left and remove the lamp; side lamp: use a flat-head screwdriver to slightly unscrew the cover, then remove the lamp. Use protection as the lamp may be hot. Replace with a lamp of the same type (consumable not covered by warranty).

What accessories are included with the oven?

The oven comes with a baking tray and an oven rack. Consult the cooking tips to choose the appropriate accessory.

How to program a delayed cooking (delayed start)?

Place the dish in the oven, select a function and temperature. Press Cook time to set the cooking time. Then press End time and set the time when cooking should finish. Press Start/Pause: the oven will start automatically at the calculated time to finish at the set time.

Why is there condensation inside the oven?

This phenomenon is normal when cooking dishes that release a lot of steam (large pieces of meat, pies). Wipe off condensation after cooking. To avoid it, do not let hot food cool down in a closed oven.

How to save energy with this oven?

Keep the door closed during cooking. If cooking time exceeds 30 minutes, turn off the oven 5 to 10 minutes before the end to use residual heat. Cook multiple dishes at once if possible. Use ECO mode for economical cooking.

What to do if the oven does not work or seems broken?

First check if a fuse has blown or if the circuit breaker has tripped. If the fan continues to run after the oven is off, that is normal. If the problem persists, unplug the appliance and contact Etna after-sales service with the model and serial number (located inside the door).

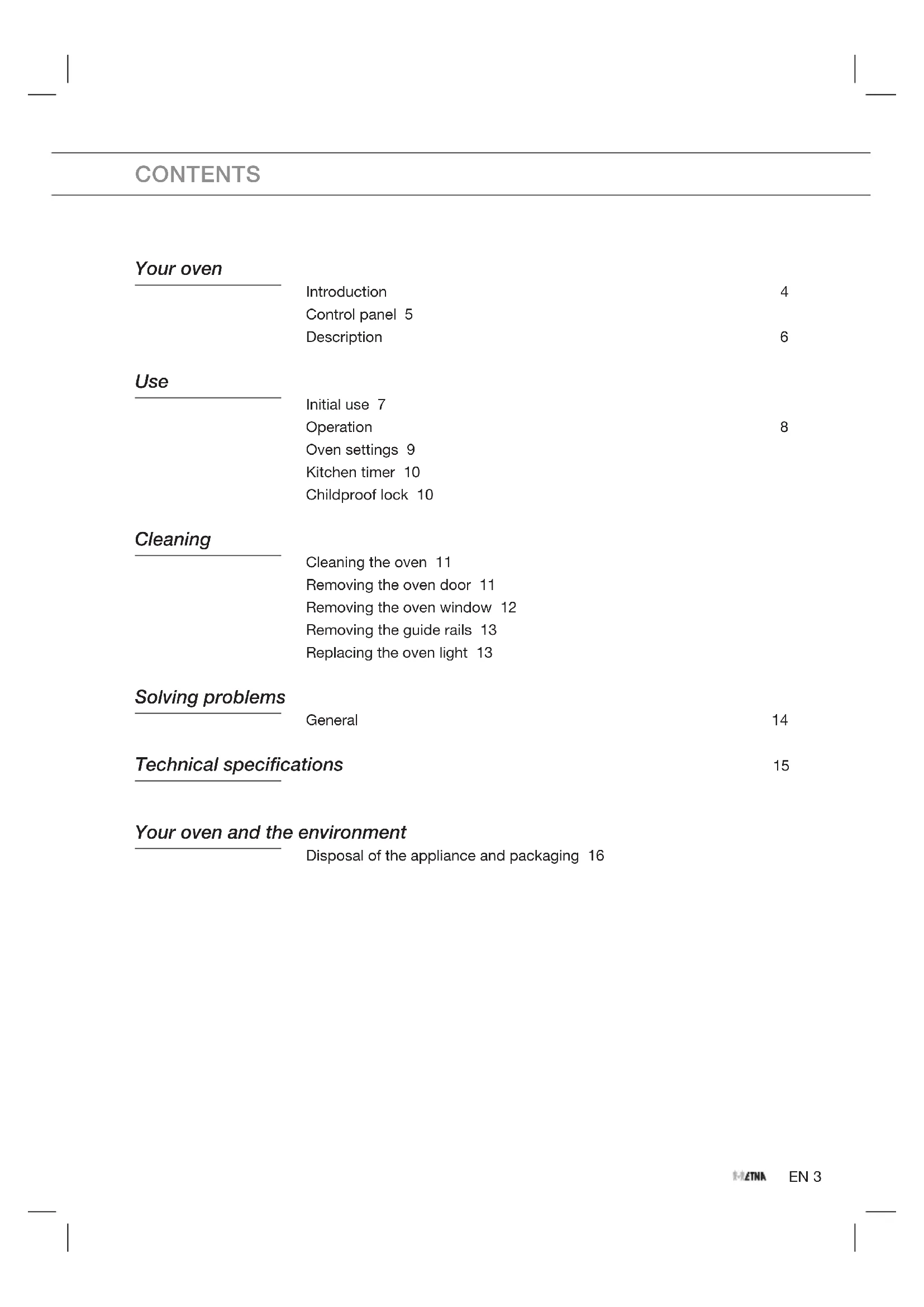

USER MANUAL OM470RVS ETNA

Specifications techniques 15

Initial use 7

Operation 8

Oven settings 9

Kitchen timer 10

Childproof lock 10

Cleaning

Cleaning the oven 11

Removing the oven door 11

Removing the oven window 12

Removing the guide rails 13

Replacing the oven light 13

Solving problems

General

14

Technical specifications

15

Your oven and the environment

Disposal of the appliance and packaging 16

Introduction

Congratulations on the purchase of this Etna oven. This product is designed to offer optimum user-friendliness. The oven has a wide range of settings enabling you to select the correct cooking method every time.

This manual shows how you can best use this oven.
In addition to information about operating the oven, you will also find background information that may be useful when using the appliance.

Please read the separate safety instructions carefully before using the appliance!

Read this manual before using the appliance and keep it in a safe place for future use.

Installation instructions are supplied separately.

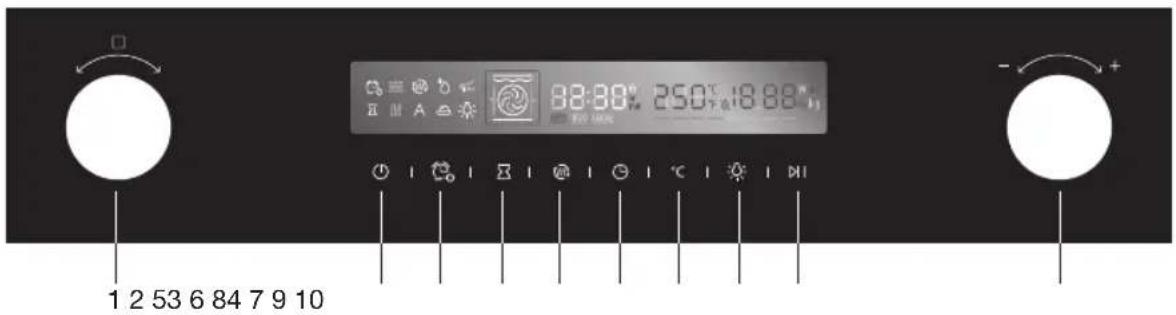

Control panel

1.	functions knob	Turn this knob to switch On the oven and to choose a heating mode.
2.	Switch Off the oven.
3.	Kitchen timer / Childproof lock key	Use timer function / use childproof lock with 3s touch.
4.	g end time key Set an end time to the cooking duration.
5.	preheat key Use this to preheat quickly.
6.	Cooking time / Clock setting key	Set a duration time then select function / set clock in standby mode.
7.	rature setting key Touch to set temperature.
8.	lighting On / Off key Switch oven lighting On or Off.
9.	Pause key Start or pause the cooking process.
10.	ion dial knob Change the adjustment values shown in the display.

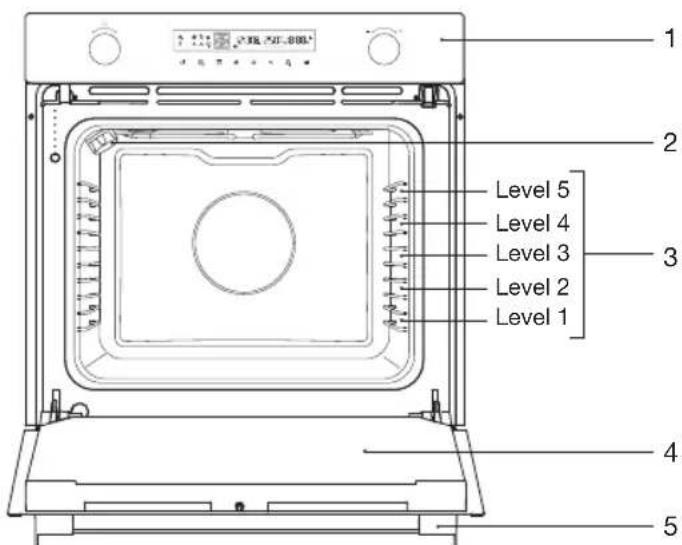

Description

1. Control panel
2. Light
3. Rack levels
4. Oven door
5. Handle

The following accessories are supplied with your oven:

• Baking tray

Oven rack

Note

Consult the cooking guidelines in this user manual to select the correct accessory for your dishes.

Initial use

Prepare for use

• Remove all accessories from inside the oven and clean them thoroughly with warm soapy water. Close the door and switch the empty oven to maximum temperature for approximately 30 minutes. After this, switch on the grill for 15 minutes. Allow the oven to cool down before cleaning it with warm water.

Setting the current time

When the oven is connected to mains power '00:00' will appear in the display.

1. Touch the cooking time / clock setting key. The hour display will flash.
2. Turn the selection dial knob to enter the correct hour.
3. Touch the cooking time / clock setting key. The minute indicator will flash.
4. Turn the selection dial knob to enter the correct minute.
5. Touch the cooking time / clock setting key again to confirm the set time.

The time can be adjusted by touching the cooking time / clock setting key until the 'hours' indicator starts to flash. Set the clock as described above.

No aluminium on the oven floor

• Never cover the base of the oven with aluminium foil and also never place baking trays or tins on the base of the oven. Foil actually blocks the heat, damaging the enamel and negatively influencing the cooking result.

Clean immediately

• Spilled food containing sugar or fruit juices, such as prune juice or rhubarb, can damage the colour of the enamel. We recommend you clean such spillages immediately.

Remarks

• When heating the oven for the first time, you will notice a 'new-oven smell'. This is normal.
• The temperature can be changed during cooking.
• Cooking times are rough estimates and can vary depending on a number of conditions.
• For certain dishes, the oven should be preheated.
• If you use baking paper, this should be able to withstand high temperatures.

USE

• A lot of steam is released when cooking larger pieces of meat or dishes using dough, such as pies. This can cause condensation on the oven door. This is a normal occurrence and does not influence the functioning of the appliance. When the cooking process has ended, dry the door and the glass.
• Prevent condensation from forming and do not allow hot food to cool in a closed oven.

Operation

Using the oven

The oven has 11 oven functions. Consult 'Oven settings' to select the correct oven function to cook the dish.

1. Place the dish in the oven.
2. Turn the oven functions knob and select the desired setting by choosing the right symbol in the display.
3. Set the oven to the desired temperature using the selection dial knob.
4. Touch the start / pause key to start the chosen function. The oven light switches on.
5. If desired touch the cooking time / clock setting key and use the selection dial knob to set a cooking time.
6. Touch the start / pause key to confirm the chosen cooking time. The oven switches on. The selected oven function and the temperature are flashing. As soon as the oven has reached the desired temperature, the oven function symbol and the temperature indication are displayed continuously.

At the end of the set cooking time the oven will switch off.

A signal will sound.

Touch the start / pause key to pause or end the cooking process.

1. Touch the Off key to end the cooking process.

Note

• For some dishes, the oven must be preheated first! Touch the quick preheat key. Consult the information about the dish.
• If desired set a cooking time and an end time (see chapter 'Setting a cooking time and end time').

Oven settings

Use the table to select the right oven function. Also consult the cooking instructions on the food packaging.

Note

Only use oven dishes that can withstand a temperature of 250^ .

Function Temperature Use
	Conventional 30 ~ 250 °C	For traditional baking and roasting on one level. Especially suitable for cakes with moist toppings.
	Convection 50 ~ 250 °C	For baking and roasting on one or more levels. Heat comes from the ring heater surrounding the fan evenly.
	ECO 140 ~ 240 °C For energy-saving cooking.
	Conventional + Fan 50 ~ 250 °C	For baking and roasting on one or more levels. The fan distributes the heat from the heating elements evenly around the cavity.
	Radiant Heat 150 ~ 250 °C	For grilling small amounts of food and for browning food. Please put the food in the center part under the grill heating element.
	Double Grill + Fan 50 ~ 250 °C	For grilling flat items and for browning food. The fan distributes the heat evenly around the cavity.
	Double Grill 150 ~ 250 °C For grilling flat items and for browning food
	Pizza 50 ~ 250 °C	For pizza and dishes which need a lot of heat from underneath. The bottom heater and ring heater will work.
	Bottom Heat 30 ~ 220 °C	For adding extra browning to the bases of pizzas, pies, and pastries. Heating come from the bottom heater.
	Defrost - For gently defrosting frozen food.
	Dough Proving 30 ~ 45 °C	For making yeast dough and sourdough to prove and culturing yogurt.

Kitchen timer

The clock has different kitchen timer functions. The kitchen timer can be set from 1 minute to up to 9 hours. The kitchen timer can only be used if the current time is set.

Setting the kitchen timer

1. Touch the kitchen timer / childproof lock key to select the kitchen timer function.
2. Set the kitchen timer to the required number of hours using the selection dial knob.
3. Touch the kitchen timer / childproof lock key again.
4. Set the kitchen timer to the required number of minutes using the selection dial knob.

5. Touch the kitchen timer / childproof lock key again to confirm the setting.

6. When the set time has elapsed, a beep will sound and the cooking time / clock setting key will disappear from the display.

Setting a cooking time and end time

1. Place the dish in the oven and choose an oven function and temperature.
2. Touch the cooking time / clock setting key and set a cooking time with the selection dial knob.
3. Touch the cooking end time key and set a switch off time with the selection dial knob.
4. Touch the start / pause key. The oven starts at the set end time minus the cooking time.

Childproof lock

The childproof lock function can be used to prevent undesired use of the oven.

1. Touch kitchen timer / childproof lock key for 3 seconds. The 'lock symbol' appears in the display. The childproof lock function is activated.
2. Touch the kitchen timer / childproof lock key again for 3 seconds. The 'lock symbol' disappears from the display. The childproof lock function is deactivated.

CLEANING

Cleaning the oven

Clean the oven regularly to prevent fat and leftover food from accumulating, especially on interior and exterior surfaces, the door and seal.

• Clean exterior surfaces with a soft cloth and soapy warm water. Wipe afterwards with a clean, damp cloth and dry the surfaces.
• Remove splashes and stains on the interior surfaces with a soapy cloth. Wipe afterwards with a clean, damp cloth and dry the surfaces.
  Clean the interior of the oven.

Important

Take care that NO water enters the vents.
NEVER use abrasive cleaning materials or chemical solvents.
- ALWAYS ensure that the door seal stays clean. This prevents accumulation of dirt and allows you to close the door properly.

Removing the oven door

Note

Keep your fingers away from the hinges of the oven door.

The hinges are spring loaded and can cause injury if they spring back. Make sure that the hinge latches are applied correctly to lock the hinges.

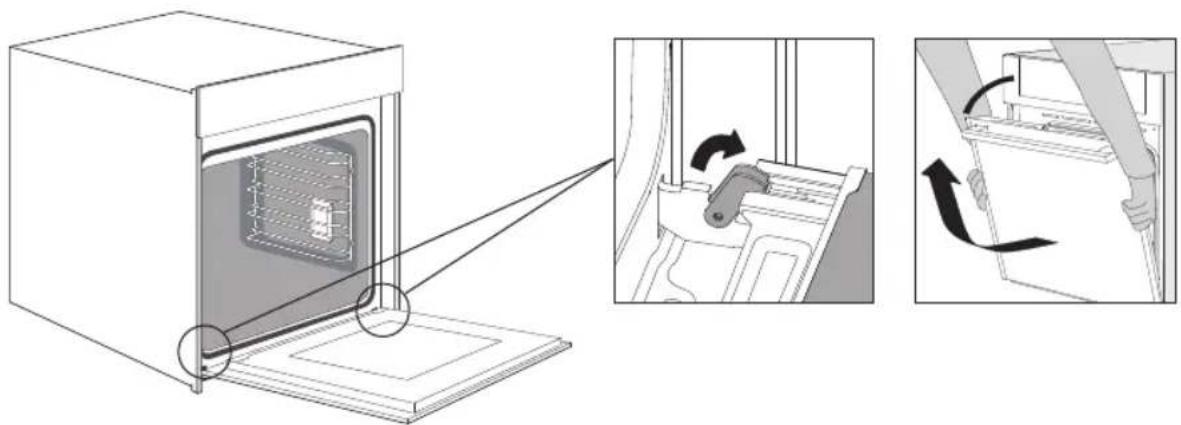

1. First, fully open the door (as far as it will go).
2. Fold open the two locking levers on the left and right.
3. Slowly close the door as far as the limit stop. With both hands, slightly lift the door and pull it out from both hinge beds on the appliance.

CLEANING

To replace the door repeat these actions in reverse. If the door does not open or close properly, make sure the hinges are positioned correctly in their slots.

Removing the oven window

The glass in the oven door can be cleaned from the inside, but you do need to remove the glass from the door to do this. First remove the oven door (see chapter 'Removing the oven door').

1. Press on the right and left side of the cover.

1. Remove the cover. After removing the door cover, that rest parts of the appliance door can be easily taken off so that you can go on with the cleaning.

1. When the cleaning of the appliance door has finished, put the cover back in place and press on it until it clicks audibly into place.

Replace the glass in the oven door in reverse order.

CLEANING

Removing the guide rails

Use conventional cleaning products to clean the guide rails.

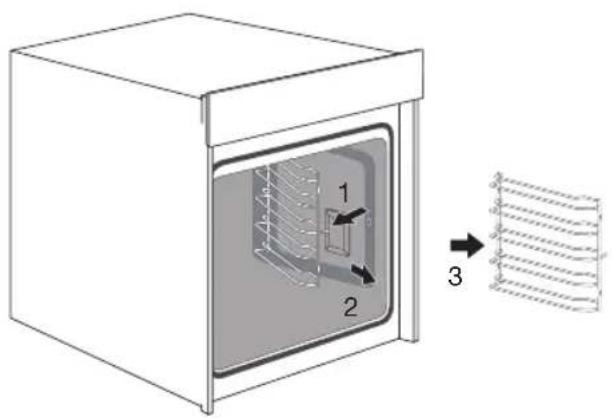

1. Grasp the guide rails at the front and pivot them towards the middle of the oven.

2. Remove the guide rails from the holes in the side wall.

3. Take the guide rails out of the oven.

Replacing the oven light

The light is a consumer item and therefore does not fall under the guarantee.

The lamp in this household appliance is only suitable for illumination of this appliance.

The lamp is not suitable for household room illumination.

Cut the power to the appliance by removing the plug from the socket or switching off the fuse in the fuse box!

Top cavity lamp

• Turn the cover to the left to remove it.

• Turn the bulb out of the fitting.

Side wall cavity lamp

• Use a flat-blade screwdriver to snap and remove the lamp cover from the holder.
• Be careful not to damage the enamel.
• Turn the bulb out of the fitting.

Note

The light can be very hot! Use protection to remove the bulb.

General

Try the solutions below if you have problems with your oven.

You could save yourself the time and effort of an unnecessary phone call to customer services.

The food is not cooked

• Close the door properly.
• Check whether a fuse has blown and whether a circuit breaker has been activated.

Food is overcooked or undercooked

• Check whether the temperature has been set.

There is condensation on the interior of the oven

• This is normal. Wipe the oven clean after use.

The fan keeps working after the oven is switched off

• This is normal. Once the oven has been switched off, the cooling fan may continue to run for a little while.

Air flow can be felt at the door and the exterior of the appliance

This is normal.

Steam escapes from the door or the vents

This is normal.

Storing or repairing the oven

Repairs should only be performed by a qualified service technician.

If maintenance is required, take the plug from the socket and contact the Etna customer service.

Have the following information to hand when you call:

• The model number and serial number (stated on the inside of the oven door) and guarantee details.
• A clear description of the problem.

Choose a clean, dry place if you have to store the oven temporarily, as dust and moisture can damage the appliance.

Model OM470ZT / OM470RVS
Power source 220-240 V ~ 50 Hz
Energy consumption
Maximum power	2900 W
Grill function (small)	2000 W
Grill function (large)	2900 W
Top heat	900 W
Bottom heat	1000 W
Hot air	1800 W
Cooling method Motor cooling fan
Dimensions
Appliance dimensions:	W 595 x H 596 x D 566 mm
Built-in dimensions:	W 560 x H 590 x D 550 mm
Volume 72 L

Data determined according to standard EN 60350-1 and Commission Regulations (EU) No 65/2014 and (EU) No 66/2014.

ETNA
Model identification OM470ZT / OM470RVS Unit
Energy Efficiency Index per cavity (EEI cavity) 94
Energy Efficiency Class per cavity A+
Energy consumption required to heat a standardised load in a cavity of an electric heatedoven during a cycle in conventional mode per cavity (electric final energy) (EC electric cavity)	1.06 kWh/cycle
Energy consumption required to heat a standardised load in a cavity of an electric heatedoven during a cycle in fan-forced mode per cavity(electric final energy) (EC electric cavity)	0.69 kWh/cycle
Number of cavities 1
Heat source per cavity (electricity or gas) electricity
Volume per cavity (V) 72 L
Type of oven
Mass of the appliance (M)	32.0 KG
(1) 1 kWh/cycle = 3.6 MJ/cycle.
Data determined according to standard EN 60350-1 and Commission Regulations (EU) No 65/2014 and (EU) No 66/2014.
Energy saving tips • During cooking, the oven door should remain closed except for turning food over. Do not open the door frequently during cooking to maintain the oven temperature and to save energy. • If cooking time is more than 30 minutes, the oven may be switched off 5-10 minutes before the end of the cooking time to save energy. The residual heat will complete the cooking process. • Plan oven use to avoid turning the oven off between cooking one item and the next to save energy and reduce the time for re-heating the oven. • Wherever possible cook more than one item at a time.

Disposal of the appliance and packaging

This product is made from sustainable materials. However, the appliance must be disposed of responsibly at the end of its useful life. The government can provide you with information about this.

The appliance packaging is recyclable. The following materials have been used:

cardboard
polyethylene wrapping (PE)
CFC-free polystyrene (hard PS foam)

Dispose of these materials responsibly in accordance with legal provisions.

The product has a pictogram of a rubbish bin with a cross through it. This indicates that household appliances must be disposed of separately. This means that the appliance may not be processed via the regular waste flow at the end of its useful life. You should take it to a special municipal waste depot or a sales outlet that offers to do this for you.

Collecting household equipment separately prevents harm to the environment and public health. The materials used in manufacturing this appliance can be recycled, which provides considerable savings in energy and raw materials.

Declaration of conformity

We hereby declare that our products comply with the relevant European directives, standards and regulations as well as all requirements referred to in the standards.

The appliance identification card is located on the inside of the appliance.

When contacting the service department,

have the complete type number to hand.

You will find the addresses and phone numbers of the service organisation on the guarantee card.

804578
