USER MANUAL DUR192LRT MAKITA

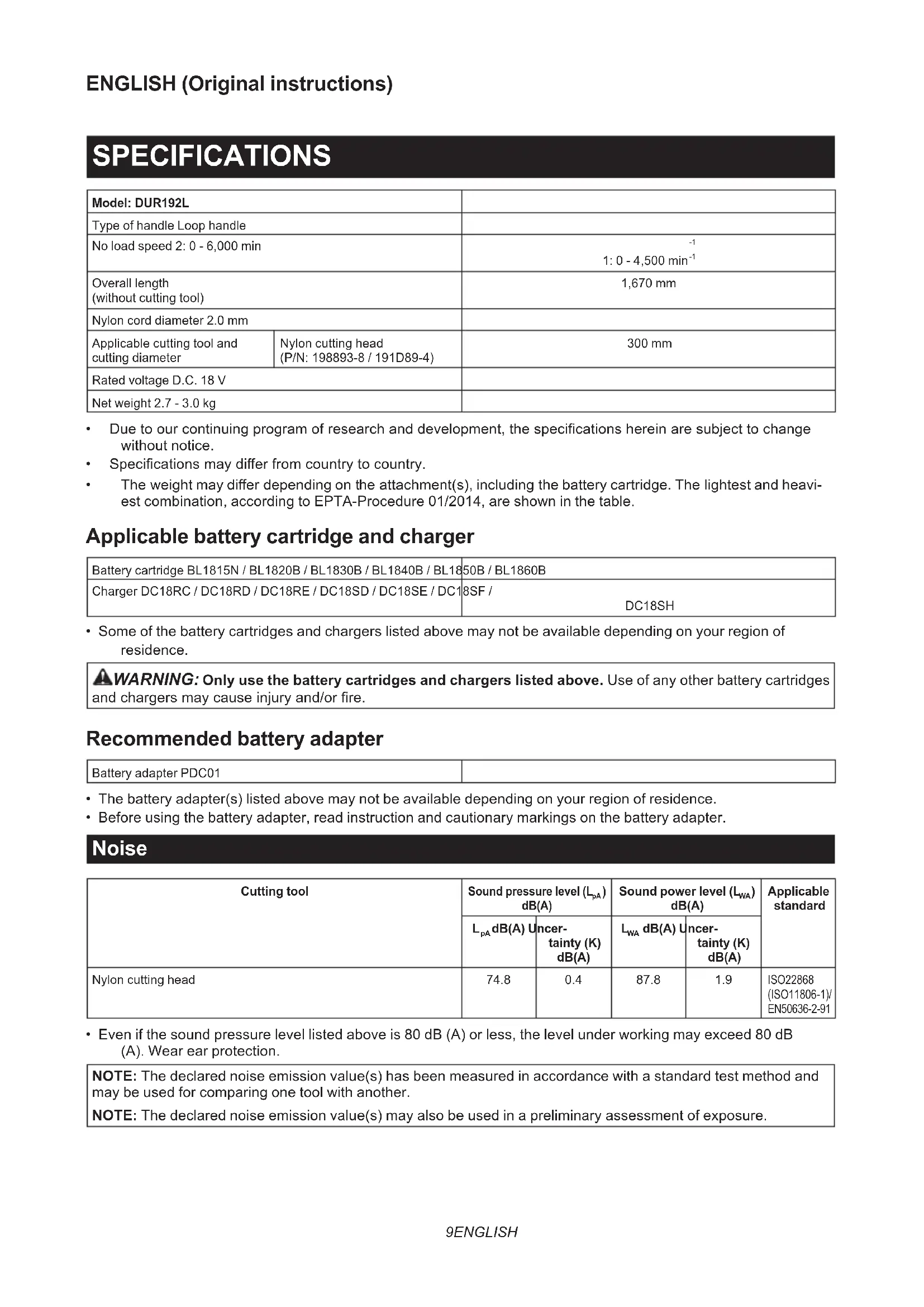

Overall length (without cutting tool) 1,670 mm Nylon cord diameter 2.0 mm Applicable cutting tool and cutting diameter Nylon cutting head (P/N: 198893-8 / 191D89-4) 300 mm Rated voltage D.C. 18 V Net weight 2.7 - 3.0 kg

• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange without notice.

• Specicationsmaydi󰀨erfromcountrytocountry.

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combination, according to EPTA-Procedure 01/2014, are shown in the table. Applicable battery cartridge and charger Battery cartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH

• Some of the battery cartridges and chargers listed above may not be available depending on your region of residence.

WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges

andchargersmaycauseinjuryand/orre. Recommended battery adapter Battery adapter PDC01

• The battery adapter(s) listed above may not be available depending on your region of residence.

• Before using the battery adapter, read instruction and cautionary markings on the battery adapter. Noise Cutting tool Sound pressure level (L

dB(A) Sound power level (L

• Even if the sound pressure level listed above is 80 dB (A) or less, the level under working may exceed 80 dB (A). Wear ear protection. NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure.10 ENGLISH

WARNING: Wear ear protection.

WARNING: The noise emission during actual use of the power tool can di󰀨er from the declared val-

ue(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Cutting tool Left hand Right hand Applicable standard

ISO22867 (ISO11806-1) NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can di󰀨er from the declared

value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety measures to protect the operator that are based on an estimation

of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Symbols The followings show the symbols which may be used for the equipment. Be sure that you understand their meaning before use. Take particular care and attention. Read instruction manual. 15m(50FT) Keep distance at least 15 m. Danger;beawareofthrownobjects. Never use metal and plastic blade. Wear eye and ear protection. Do not expose to moisture. Ni-MH Li-ion Only for EU countries Do not dispose of electric equipment or battery pack together with household waste material! In observance of the European Directives, on Waste Electric and Electronic Equipment and Batteries and Accumulators and Waste Batteries and Accumulators and their implementation in accordance with national laws, electric equipment and batteries and battery pack(s) that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility. EC Declaration of Conformity For European countries only The EC declaration of conformity is included as Annex A to this instruction manual. SAFETY WARNINGS General power tool safety warnings

WARNING: Read all safety warnings, instruc-

tions, illustrations and specications provided with this power tool. Failure to follow all instructions listedbelowmayresultinelectricshock,reand/or seriousinjury. Save all warnings and instruc- tions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.11 ENGLISH Important safety instructions for the tool

WARNING: Read all safety warnings and

all instructions. Failure to follow the warnings and instructionsmayresultinelectricshock,reand/or seriousinjury.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Save all warnings and instruc- tions for future reference. Intended use

1. This tool is only intended for cutting grass,

weeds, bushes and undergrowth. It should not be used for any other purpose such as edging or hedge cutting as this may cause injury. General instructions

1. Never allow people unfamiliar with these

instructions, people (including children) with reduced physical, sensory or mental capabil- ities, or lack of experience and knowledge to use the tool. Children should be supervised to ensure that they do not play with the tool.

2. Before starting the tool, read this instruction

manual to become familiar with the handling of the tool.

3. Do not lend the tool to a person with insu󰀩-

cient experience or knowledge regarding han- dling of brushcutters and string trimmers.

4. When lending the tool, always attach this

5. Handle the tool with the utmost care and

6. Never use the tool after consuming alcohol or

drugs, or if feeling tired or ill.

7. Never attempt to modify the tool.

8. Follow the regulations about handling of

brushcutters and string trimmers in your country. Personal protective equipment ►Fig.1

1. Wear protective goggles to protect yourself

from ying debris or falling objects.

2. Wear ear protection such as ear mu󰀨s to pre-

3. Wear proper clothing and shoes for safe

operation, such as a work overall and sturdy, non-slip shoes. Do not wear loose clothing or jewelry.Looseclothes,jewelryorlonghaircanbe caught in moving parts. Work area safety

1. Operate the tool under good visibility and day-

light conditions only. Do not operate the tool in darkness or fog.

2. Do not operate the tool in explosive atmo-

spheres, such as in the presence of ammable liquids, gases or dust. The tool creates sparks which may ignite the dust or fumes.

3. During operation, never stand on an unstable

or slippery surface or a steep slope. During the cold season, beware of ice and snow and always ensure secure footing.

4. During operation, keep bystanders or animals

at least 15 m away from the tool. Stop the tool as soon as someone approaches.

5. Never operate the tool while people, especially

children, or pets are nearby.

6. Before operation, examine the work area for

stones or other solid objects. They can be thrownandresultinseriousinjuryand/orproperty damage.

WARNING: Use of this product can create

dust containing chemicals which may cause respiratory or other illnesses. Some examples of these chemicals are compounds found in pesticides, insecticides, fertilizers and herbi- cides. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to lter out microscopic particles. Electrical and battery safety

1. Do not expose the tool to rain or wet condi-

tions. Water entering the tool will increase the risk of electric shock.

2. Do not use the tool if the switch does not

turn it on and o󰀨. Any tool that cannot be con- trolled with the switch is dangerous and must be repaired.

3. Prevent unintentional starting. Ensure the

switch is in the o󰀨-position before installing a battery pack, picking up or carrying the tool. Carryingthetoolwithyourngerontheswitchor energising the tool that have the switch on invites accidents.

4. Avoid dangerous environment. Don't use the

tool in dump or wet locations or expose it to rain. Water entering the tool will increase the risk of electric shock.

5. Do not dispose of the battery(ies) in a re.

The cell may explode. Check with local codes for possible special disposal instructions.

6. Do not open or mutilate the battery(ies).

Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

Do not charge battery in rain, or in wet locations.

8. Recharge only with the charger specied by

the manufacturer. A charger that is suitable for onetypeofbatterypackmaycreateariskofre when used with another battery pack.12 ENGLISH

9. Use power tools only with specically desig-

nated battery packs. Use of any other battery packsmaycreateariskofinjuryandre.

10. When battery pack is not in use, keep it away

from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery termi- nalstogethermaycauseburnsorare.

11. Under abusive conditions, liquid may be

ejected from the battery; avoid contact. If con- tact accidentally occurs, ush with water. If liquid contacts eyes, seek medical help. Liquid ejectedfromthebatterymaycauseirritationor burns. Putting into operation

1. Before assembling or adjusting the tool,

remove the battery cartridge.

2. Before installing the battery cartridge, inspect

the tool for damages, loose screws/nuts or improper assembly. If the cutting tool is bent or damaged, replace it. Check all control levers and switches for easy action. Clean and dry the handles.

3. Never attempt to switch on the tool if it is dam-

aged or not fully assembled. Otherwise serious injurymayresult.

4. Adjust the shoulder harness and hand grip to

suit the operator's body size if adjustable.

5. When inserting a battery cartridge, keep the

cutting attachment clear of your body and other object, including the ground. It may rotate whenstartingandmaycauseinjuryordamageto the tool and/or property.

6. Remove any adjusting key, wrench before

turning the tool on. An accessory left attached to a rotating part of the tool may result in personal injury.

7. The cutting tool has to be equipped with the

guard. Never run the tool with damaged guards or without guards in place!

8. Make sure there are no electrical cables, water

pipes, gas pipes etc. that could cause a hazard if damaged by use of the tool.

9. The condition of the cutting tool, protective

devices and shoulder strap must be checked before commencing work. Operation

1. In the event of an emergency, switch o󰀨 the

2. If you feel any unusual condition (e.g. noise,

vibration) during operation, switch o󰀨 the tool and remove the battery cartridge. Do not use the tool until the cause is recognized and solved.

3. The cutting attachment continues to rotate for

a short period after turning the tool o󰀨. Don't rush to contact the cutting attachment.

4. During operation, use the shoulder harness if

supplied with the tool. Keep the tool on your right side rmly.

5. Do not overreach. Keep proper footing and

balance at all times. Watch for hidden obsta- cles such as tree stumps, roots and ditches to avoid stumbling.

6. Always be sure of your footing on slopes.

8. Never work on a ladder or tree to avoid loss of

condition before continuing work. Check the controls and safety devices for malfunction. If there is any damage or doubt, ask our autho- rized service center for the inspection and repair.

10. Take a rest to prevent loss of control caused

by fatigue. We recommend taking a 10 to 20-min- ute rest every hour.

11. When you leave the tool, even if it is a short

time, always remove the battery cartridge. The unattended tool with the battery cartridge installed may be used by unauthorized person and cause serious accident.

12. If grass or branches get caught between the

cutting attachment and guard, always turn the tool o󰀨 and remove the battery cartridge before cleaning. Otherwise the cutting attach- ment may rotate unintentionally and cause serious injury.

13. Never touch moving hazardous parts before

the moving hazardous parts have come to a complete stop and the battery cartridge is removed.

14. If the cutting attachment hits stones or other

hard objects, immediately turn the tool o󰀨. Then remove the battery cartridge and inspect the cutting attachment.

15. Check the cutting attachment frequently

during operation for cracks or damages. Before the inspection, remove the battery cartridge and wait until the cutting attachment stops completely. Replace damaged cutting attachment immediately, even if it has only supercial cracks.

16. Never cut above waist height.

17. Before starting the cutting operation, wait until

the cutting attachment reaches a constant speed after turning the tool on.

18. When using a cutting tool, swing the tool

evenly in half-circle from right to left, like using a scythe.

19. Hold the tool by insulated gripping surfaces

only, because the cutting tool may contact hidden wiring. Cutting tool contacting a "live" wire may make exposed metal parts of the tool "live" and could give the operator an electric shock.

20. Do not start the tool when the cutting tool is

tangled with cut grass.

21. Before starting the tool, be sure that the cut-

ting tool is not touching the ground and other obstacles such as a tree.

22. During operation always hold the tool with

both hands. Never hold the tool with one hand during use.13 ENGLISH

23. Do not operate the tool in bad weather or if

there is a risk of lightning.

24. Operate the tool only if you are in good phys-

ical condition. Perform all work calmly and carefully. Use common sense and keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

25. Except in case of emergency, never drop

or cast the tool to the ground or this may severely damage the tool.

26. Never drag the tool on the ground when mov-

ing from place to place, the tool may become damaged if moved in this manner.

27. Don't force the tool. It will do the job better and

with less likelihood of a risk of injury at the rate for which it was designed. Cutting tools

1. Do not use a cutting tool which is not recom-

2. Use an applicable cutting attachment for the

job in hand. — Nylon cutting heads (string trimmer heads) are suitable for trimming lawn grass. — Never use other blades including metal multi-piecepivotingchainsandailblades.It mayresultinseriousinjury.

3. Only use the cutting tool that are marked with

a speed equal or higher than the speed marked on the tool.

4. Always keep your hands, face, and clothes

away from the cutting tool when it is rotating. Failuretodosomaycausepersonalinjury.

5. Always use the cutting attachment guard prop-

erly suited for the cutting attachment used.

6. Take care against injury from any device

tted for trimming the lament line length. After extending new cutter line always return the machine to its normal operating position before switching on. Vibration

1. People with poor circulation who are exposed

to excessive vibration may experience injury to blood vessels or the nervous system. Vibration may cause the following symptoms tooccurinthengers,handsorwrists:"Falling asleep" (numbness), tingling, pain, stabbing sen- sation, alteration of skin color or of the skin. If any of these symptoms occur, see a physician!

2. To reduce the risk of "white nger disease",

keep your hands warm during operation and well maintain the tool and accessories. Transport

1. Before transporting the tool, turn it o󰀨 and

remove the battery cartridge.

2. When transporting the tool, carry it in a hori-

zontal position by holding the shaft.

3. When transporting the tool in a vehicle, prop-

erly secure it to avoid turnover. Otherwise damage to the tool and other baggage may result. Maintenance

1. Have your tool serviced by our authorized

service center, always using only genuine replacement parts. Incorrect repair and poor maintenance can shorten the life of the tool and increase the risk of accidents.

2. Before doing any maintenance or repair work

or cleaning the tool, always turn it o󰀨 and remove the battery cartridge.

3. Always clean dust and dirt o󰀨 the tool. Never

use gasoline, benzine, thinner, alcohol or the like for the purpose. Discoloration, deformation or cracks of the plastic components may result.

4. After each use, tighten all screws and nuts.

5. Do not attempt any maintenance or repair not

described in the instruction manual. Ask our authorized service center for such work.

6. Always use our genuine spare parts and

accessories only. Using parts or accessories supplied by a third party may result in the tool breakdown, property damage and/or serious injury.

7. Request our authorized service center to

inspect and maintain the tool at regular interval.

8. Always keep the tool in good working condi-

tion. Poor maintenance can result in inferior per- formance and shorten the life of the tool.

9. Keep handles dry, clean and free from oil and

grease. Keep all cooling air inlets clear of debris.

10. After use, disconnect the battery cartridge

from the tool and check for damage. Storage

1. Before storing the tool, perform full clean-

ing and maintenance. Remove the battery cartridge.

2. Store the tool in a dry and high or locked loca-

tion out of reach of children.

3. Do not prop the tool against something, such

as a wall. Otherwise it may fall suddenly and causeaninjury. First aid

1. Always have a rst-aid kit close by.

Immediately replace any item taken from the rst aid kit.

2. When asking for help, give the following

information: — Place of the accident — What happened — Numberofinjuredpersons — Natureoftheinjury — Your name14 ENGLISH Important safety instructions for battery cartridge

Before using battery cartridge, read all instruc- tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge. Such conduct may result in a re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. For commercial transports e.g. by third parties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- ing an expert for hazardous material is required. Please also observe possibly more detailed national regulations. Tapeormasko󰀨opencontactsandpackupthe battery in such a manner that it cannot move around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- sive heat, explosion, or leak of electrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into the

terminals, holes, and grooves of the battery cartridge. It may result in poor performance or breakdown of the tool or battery cartridge.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines. It may result in a malfunction or breakdown of the tool or battery cartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causingres,personalinjuryanddamage.Itwill also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

Charge the battery cartridge with room tempera- ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Failuretoswitcho󰀨andremovethebatterycartridgemay resultinseriouspersonalinjuryfromaccidentalstart-up. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge. Failure to hold the tool and the battery cartridgermlymaycausethemtoslipo󰀨yourhands and result in damage to the tool and battery cartridge andapersonalinjury. ►Fig.3: 1. Red indicator 2. Button 3. Battery cartridge To remove the battery cartridge, slide it from the tool while sliding the button on the front of the cartridge. To install the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Insert it all the way until it locks in place with a little click. If you can see the red indicator on the upper side of the button, it is not locked completely. CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto you or someone around you. CAUTION: Do not install the battery cartridge forcibly. If the cartridge does not slide in easily, it is not being inserted correctly. Tool / battery protection system The tool is equipped with a tool/battery protection system. Thissystemautomaticallycutso󰀨powertothemotorto extend tool and battery life. The tool will automatically stop during operation and the indicator lamps light up if the tool is placed under one of the following conditions: ►Fig.4: 1. Indicator lamps Indicator lamps Protection status Color Lighted O󰀨 Blinking Green Overload Red Overheat Red Over- discharge Overload protection If the tool gets into one of the following situation, the tool automatically stops and the indicator lamp starts blinking in green: — The tool or battery is overloaded by entangled weeds or other debris. — The cutting tool is locked. — The main power button is turned on while the switch trigger is being pulled. In this situation, release the switch trigger and remove entangled weeds or debris if necessary. After that, pull the switch trigger again to resume. CAUTION: If you need to remove the entangled weeds on the tool or release the locked cutting tool, be sure to turn the tool o󰀨 before you start. Overheat protection for tool or battery When the tool or battery cartridge is overheated, the tool stops automatically and the indicator lamp lights up in red. Let the tool and/or battery cool down before turning the tool on again. Overdischarge protection When the battery capacity becomes low, the tool stops automatically. The indicator lamp starts blinking in red. If the tool does not operate even when the switches are oper- ated, remove the battery cartridge from the tool and charge it. Indicating the remaining battery capacity Only for battery cartridges with the indicator ►Fig.5: 1. Indicator lamps 2. Check button Press the check button on the battery cartridge to indi- cate the remaining battery capacity. The indicator lamps light up for a few seconds. Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. The battery may have malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly from the actual capacity. NOTE:Therst(farleft)indicatorlampwillbrink when the battery protection system works.16 ENGLISH Main power switch Tap the main power button to turn on the tool. Toturno󰀨thetool,pressandholdthemainpower buttonuntiltheindicatorlampsgoo󰀨. ►Fig.6: 1. Indicator lamps 2. Main power button NOTE:Thetoolwillautomaticallyturnedo󰀨ifitisleft without any operations for a certain period of time. Switch action

WARNING: For your safety, this tool is

equipped with lock-o󰀨 lever which prevents the tool from unintended starting. NEVER use the tool if it runs when you simply pull the switch trigger without pressing the lock-o󰀨 lever. Return the tool to our authorized service center for proper repairs BEFORE further usage.

WARNING: NEVER tape down or defeat pur-

pose and function of lock-o󰀨 lever. CAUTION: Before installing the battery car- tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released. Operating a tool with a switch that does not actuate properly can lead tolossofcontrolandseriouspersonalinjury. CAUTION: Never put your nger on the main power button and switch trigger when carrying the tool. The tool may start unintentionally and cause injury. NOTICE: Do not pull the switch trigger hard with- out pressing the lock-o󰀨 lever. This can cause switch breakage. To prevent the switch trigger from being accidentally pulled,alock-o󰀨leverisprovided.Tostartthetool, depressthelock-o󰀨leverandpulltheswitchtrigger. The tool speed increases by increasing pressure on the switch trigger. Release the switch trigger to stop. ►Fig.7: 1.Lock-o󰀨lever2. Switch trigger NOTE:Thetoolisautomaticallyturnedo󰀨afterthe tool is left for a certain period without any operations. Speed adjusting You can select the tool speed by tapping the main power button. Each time you tap the main power button, the level of speed will change. ►Fig.8: 1. Indicator lamps 2. Main power button Indicator lamps Mode Rotation speed High 0 - 6,000 min

Electric brake This tool is equipped with an electric brake. If the tool consistently fails to quickly stop after the switch trigger is released, have the tool serviced at our service center. CAUTION: This brake system is not a substi- tute for the protector. Never use the tool without the protector. An unguarded cutting tool may result inseriouspersonalinjury. Electronic function Constant speed control The speed control function provides the constant rota- tion speed regardless of load conditions. Soft start feature Soft start because of suppressed starting shock. ASSEMBLY

WARNING: Always be sure that the tool is

switched o󰀨 and battery cartridge is removed before carrying out any work on the tool. Failure to switcho󰀨andremovethebatterycartridgemayresult inseriouspersonalinjuryfromaccidentalstart-up.

WARNING: Never start the tool unless it is

completely assembled. Operation of the tool in a partially assembled state may result in serious per- sonalinjuryfromaccidentalstart-up. CAUTION: Do not disassemble the tool once you have installed all the main components. Installing main components Pipe assembly CAUTION: Avoid cutting the cable tie (nylon fas- tener) away until the folded pipes have been securely assembled.

1. Straighten the two-folded pipes, and then align the

Inserttheupperpipeintothejointwhileholdingdown the stopper pin. Make sure that the pin pops up through the stopper hole and securely locks the lower pipe. ►Fig.10: 1. Lower pipe 2. Stopper hole 3. Stopper pin

4. Cut the cable tie (nylon fastener), and remove it

from the tool. ►Fig.12: 1. Cable tie17 ENGLISH Handle

1. Loosen the hex socket head bolt on the handle.

►Fig.13: 1. Hex socket head bolt 2. Handle

2. Set the angle and position of the handle as shown

Loosen the hex socket head bolt on the handle. Move the handle to a comfortable working position, and then tighten the bolt. ►Fig.15: 1. Hex socket head bolt 2. Handle

Loosen the hex socket head bolt on the hanger. Move the hanger to a comfortable working position and then tighten the bolt. ►Fig.16: 1. Hanger 2. Hex socket head bolt Installing the protector

WARNING: Never use the tool without the

guard illustrated in place. Failure to do so can causeseriouspersonalinjury. CAUTION: Take care not to injure yourself on the cutter for cutting the nylon cord. Attach the protector to the clamp using bolts. ►Fig.17: 1. Hex socket head bolt 2. Clamp

3. Protector 4. Cutter

Installing the cutting tool CAUTION: Always use the supplied wrenches to remove or to install the cutting tool. CAUTION: Be sure to remove the hex wrench inserted into the tool head after installing the cutting tool. NOTE: The type of the cutting tool(s) supplied as the standard accessory varies depending on the countries. The cutting tool is not included in some countries. NOTE: Turn the tool upside down so that you can replace the cutting tool easily. Nylon cutting head NOTICE: Be sure to use genuine Makita nylon cutting head.

1. Insert the hex wrench through the hole in the

motor housing to lock the spindle. Rotate the spindle until the hex wrench is fully inserted. ►Fig.18: 1. Spindle 2. Motor housing 3. Hex wrench NOTE: The holes in the motor housing are on the left side and right side.

2. Place the nylon cutting head onto the spindle and

tighten it securely by hand. ►Fig.19:

1. Nylon cutting head 2. Spindle 3. Tighten 4. Loosen

3. Remove the hex wrench from the motor housing.

To remove the nylon cutting head, follow the installation procedures in reverse. Hex wrench storage CAUTION: Be careful not to leave the hex wrench inserted in the tool head. It may cause injuryand/ordamagetothetool. When not in use, store the hex wrench as shown in the guretokeepitfrombeinglost. ►Fig.20: 1. Hex wrench OPERATION Attaching the shoulder harness CAUTION: When you use the tool in combi- nation of the backpack-type power supply such as portable power pack, do not use the shoulder harness included in the tool package, but use the hanging band recommended by Makita. If you put on the shoulder harness included in the tool package and the shoulder harness of the back- pack-type power supply at the same time, removing thetoolorbackpack-typepowersupplyisdi󰀩cultin case of an emergency, and it may cause an accident orinjury.Fortherecommendedhangingband,ask Makita Authorized Service Centers. CAUTION: Always use the shoulder harness attached to the tool. Before operation, adjust the shoulder harness according to the user size to prevent fatigue. CAUTION: Before operation, make sure that the shoulder harness is properly attached to the hanger on the tool.

1. Wear the shoulder harness on your left shoulder.

2. Clasp the hook on the shoulder strap to tool's

working position. ►Fig.23 The shoulder harness features a means of quick release. Simply squeeze the sides of the buckle to release the tool from the shoulder harness. ►Fig.24: 1. Buckle18 ENGLISH Correct handling of the tool

WARNING: Always position the tool on your

right-hand side. Correct positioning of the tool allows for maximum control and will reduce the risk of seri- ouspersonalinjury.

WARNING: Be extremely careful to maintain

control of the tool at all times. Do not allow the tool to be deected toward you or anyone in the work vicinity. Failure to keep control of the tool couldresultinseriousinjurytothebystanderandthe operator.

WARNING: To avoid accident, leave more

than 15m (50 ft) distance between operators when two or more operators work in one area. Also, arrange a person to observe the distance between operators. If someone or an animal enters the working area, immediately stop the operation. CAUTION: If the cutting tool accidentally impacts a rock or hard object during operation, stop the tool and inspect for any damage. If the cutting tool is damaged, replace it immediately. Use of a damaged cutting tool may result in serious personalinjury. Correct positioning and handling allow optimum control andreducetheriskofinjury. ►Fig.25 When using a nylon cutting head (bump & feed type) The nylon cutting head is a dual string trimmer head provided with a bump & feed mechanism. To feed out the nylon cord, tap the cutting head against the ground while rotating. ►Fig.26: 1.Moste󰀨ectivecuttingarea NOTICE: The bump feed will not operate prop- erly if the nylon cutting head is not rotating. NOTE: If the nylon cord does not feed out while tapping the head, rewind/replace the nylon cord by following the procedures in the section for the maintenance. MAINTENANCE

WARNING: Always be sure that the tool is

switched o󰀨 and battery cartridge is removed before attempting to perform inspection or main- tenance on the tool.Failuretoswitcho󰀨andremove the battery cartridge may result in serious personal injuryfromaccidentalstart-up. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs,anyothermaintenanceoradjustmentshould be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Cleanthetoolbywipingo󰀨dust,dirt,orcuto󰀨grass with a dry cloth or one dipped in soapy water and wrung out. To avoid overheating of the tool, be sure to remove thecuto󰀨grassordebrisadheredtotheventofthe tool. Replacing the nylon cord

WARNING: Use only the nylon cord with

diameter specied in this instruction manual. Never use heavier line, metal wire, rope or the like. Failure to do so may cause damage to the tool andresultinseriouspersonalinjury.

WARNING: Always remove the nylon cutting

head from the tool when replacing the nylon cord.

WARNING: Make sure that the cover of the

nylon cutting head is secured to the housing properly as described in this instruction manual. Failure to properly secure the cover may cause the nyloncuttingheadtoyapartresultinginserious personalinjury. Replace the nylon cord if it is not fed any more. The method of replacing the nylon cord varies depending on the type of the nylon cutting head. 95-M10L ►Fig.27 96-M10L ►Fig.2819 ENGLISH TROUBLESHOOTING Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge. Battery problem (under voltage) Rechargethebattery.Ifrechargingisnote󰀨ective, replace battery. The drive system does not work correctly. Ask your local authorized service center for repair. Motor stops running after a little use. Battery's charge level is low. Rechargethebattery.Ifrechargingisnote󰀨ective, replace battery. Overheating. Stop using of tool to allow it to cool down. It does not reach maximum RPM. Battery is installed improperly. Install the battery cartridge as described in this manual. Battery power is dropping. Rechargethebattery.Ifrechargingisnote󰀨ective, replace battery. The drive system does not work correctly. Ask your local authorized service center for repair. Cutting tool does not rotate: stop the machine immediately! Foreignobjectsuchasabranchis jammedbetweentheguardandthe cutting tool. Removetheforeignobject. Cutting tool is loosely attached. Tighten the cutting tool securely. The drive system does not work correctly. Ask your local authorized service center for repair. Abnormal vibration: stop the machine immediately! One end of the nylon cord has been broken. Tap the nylon cutting head against the ground while it is rotating to cause the cord to feed. Broken, bent or worn cutting tool Replace the cutting tool. Cutting tool is loosely attached. Tighten the cutting tool securely. The drive system does not work correctly. Ask your local authorized service center for repair. Cutting tool and motor cannot stop: Remove the battery immediately! Electric or electronic malfunction. Remove the battery and ask your local authorized service center for repair. OPTIONAL ACCESSORIES

WARNING: Only use the recommended

accessories or attachments indicated in this man- ual. The use of any other accessory or attachment mayresultinseriouspersonalinjury. CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual. The use of any other accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center.

• Nylon cord (cutting line)
