H3TM 27TACE1S - Washing machine HOOVER - Free user manual and instructions

Product type	Washing machine
Brand	Hoover
Model	H3TM 27TACE1S
Energy class	A
Washing capacity	7 kg
Dimensions (H x W x D)	85 x 60 x 50 cm
Net weight	60 kg
Voltage	230 V
Frequency	50 Hz
Power	2000 W
Water pressure	0.05 - 0.8 MPa
Loading type	Front-load
Maximum spin speed	1200 rpm
Programs	Eco 40-60, Cotton, Synthetic, Delicate, Quick
Child lock	Yes
Door lock	Yes
Drum material	Stainless steel
Spin class	B
Noise level	75 dB
Special functions	Delayed start, full tank stop, cold wash

Frequently Asked Questions - H3TM 27TACE1S HOOVER

How to install the washing machine?

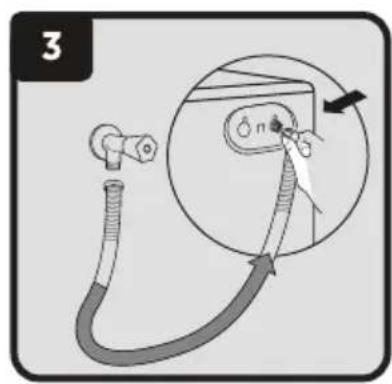

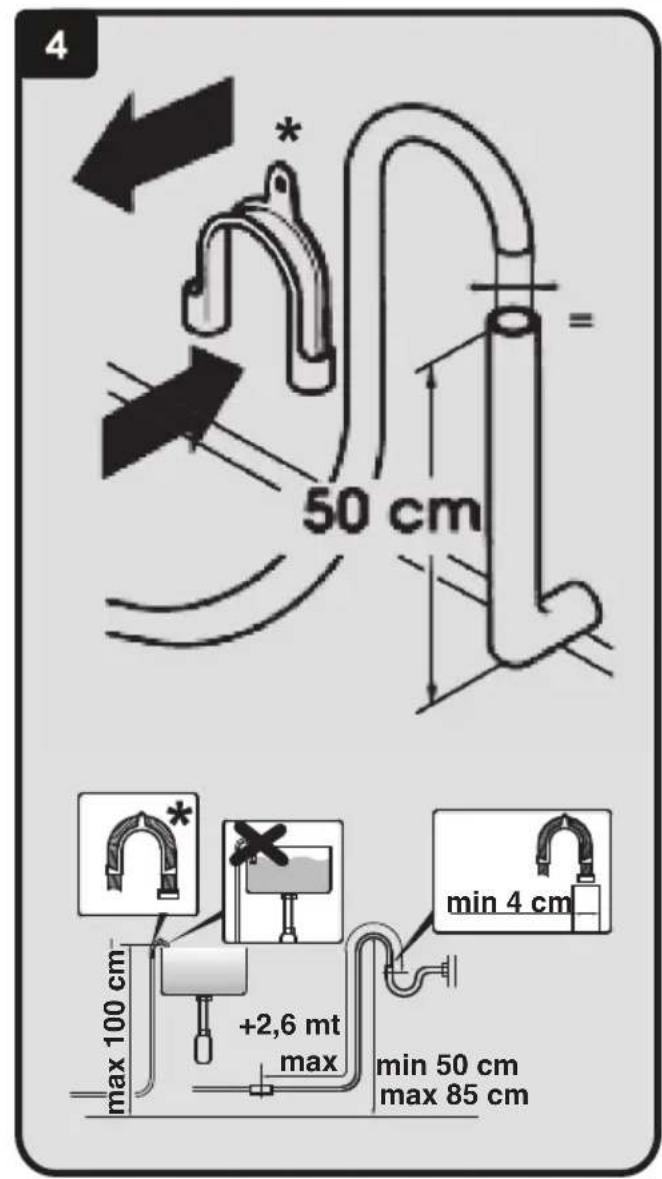

Make sure the machine is on a flat and stable surface. Connect the water inlet hose to the faucet (pressure 0.05-0.8 MPa) and the drain hose to the outlet. Plug the power cord into a grounded outlet. Refer to the manual for detailed instructions.

Which program to use for an eco wash?

Use the Eco 40-60 program for low-temperature washing (40°C or 60°C) with reduced water and energy consumption.

How to clean the filter?

Open the flap at the bottom right, unscrew the filter by turning counterclockwise. Remove debris and rinse it. Put it back in place. Check regularly to avoid drain problems.

What to do if the machine does not drain water?

Check that the drain hose is not kinked. Clean the drain filter as indicated in the previous question. If the problem persists, contact customer service.

How to deactivate the child lock?

Press the Temperature and Spin buttons simultaneously for 3 seconds until the child lock icon turns off.

Why does the machine vibrate?

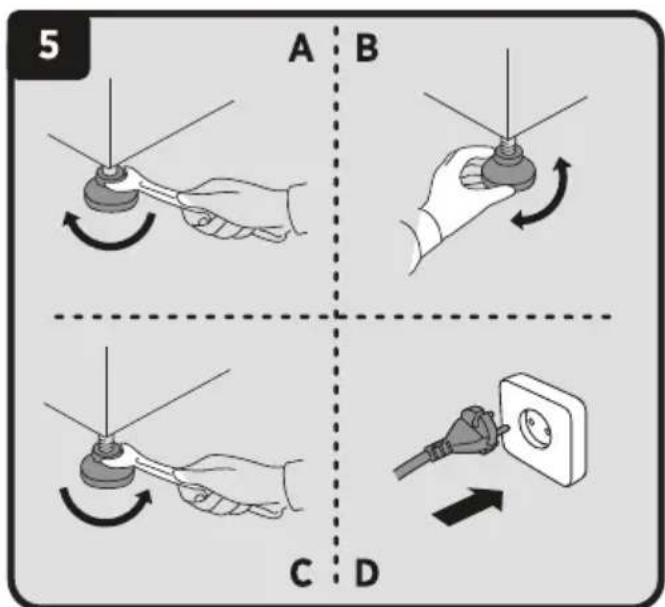

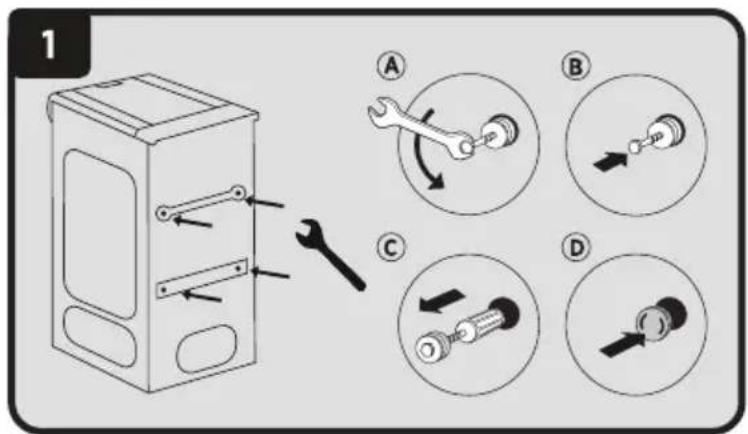

Check that the machine is level. Make sure the transport bolts have been removed. Distribute the laundry evenly in the drum. Overloading can cause vibrations.

How to use the delayed start?

Select the desired program, then press the Delayed Start button to choose the finish time. The machine will start automatically to finish at the chosen time.

Which detergent to use?

Use a detergent suitable for front-loading washing machines and your type of laundry. Avoid excessive foam. Follow the laundry detergent manufacturer's instructions.

How to reset the machine?

If the machine is stuck, unplug it for 10 minutes, then plug it back in. Select a program and cancel it with the Cancel/Stop button.

Where to find spare parts?

Contact Hoover customer service or check the manufacturer's website. Use only genuine parts to ensure safety and performance.

USER MANUAL H3TM 27TACE1S HOOVER

GENERAL SAFETY RULES

IT NORME GENERALI DI SICUREZZA 3
DE GENERELLE SICHERHEITSHINWEISE 6
EN GENERAL SAFETY RULES 9
ES NORMAS DE SEGURIDAD 12
FR RÉGLES GÉNÉRALES DE SECURITÉ 15
BG ObI IN IINPAIBNIA 3A B6E3OINACHOCT 18
HR INFORMACije O SIGURNOSTI I PREDOSTROZNOSTI 21
HU ALTALÁNOS BIZTONSÁGISZABÁLYOK 24
SL SPLOsNI VARNOSTNI UKREPI 27
SR OPSTASIGURNOSNA PRAVILA 30
CS ZAKLADNI BEZPECNOSTNI PRAVIDLA 33
PL OGOLNE ZASADY BEZPIECZENSTWA 36
RO REGULI GENERALE PRIVIND SIGURANTA 39
SK ZAKLADNÉ BEZPEČNOSTNÉ PRAVIDLA 42
UKR 3AΓΑΙbHI ΠΡΑΒΙΝΑ ΒΕ3ΠΕΚΟ 45
EL TENIKEO△HIEAΦAIA48
NL ALGEMENE VELIGHEIDSVOORSCHRIFTEN 51
PT REGRAS DE SEGURANCA GERAIS 54
DA GENERELLE SIKKERHEDSREGLER 57
SV ALLMÄNNASÄKERHETSFÖRESKRIFTER 60
YLEISET TURVALLISUUSOHJEET 63
NO GENERELLE SIKKERHETSREGLER 66

* A seconda del modello - Je nach Modell - According to the model - Segun modelo - Selon le modele - Cnopei moIeIa - Ovisno o modelu - A modelltol fuggoen - Glede na model - U zavisnosti od modela - Dle modelu - Zaleznosci od modelu - In functie de model - Podla modelu - BiinobiHo do moJI - Avaloya to o - Overeenkomstig het toestel - De accordo com o modelo I overensstemmelse med modellen - Beroende pa modell - Mallin mukaan kyseeessa - I henhold til modell - Modele gore - B 3abncmoCTn OT moJIeI

Only use the washing machine after

carefully reading these instructions. We recommend you always keep this manual on hand and in good condition for any future owners.

Environmental conditions

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

WEEE should not be treated as household waste;
WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

INFORMATION FOR THE TEST LABORATORIES

STANDARD PROGRAMMES

ACCORDING TO

(EU) No 1015/2010 e No 1061/2010

ECO 40-60 PROGRAMME

SETTING THE TEMPERATURE TO

40^ C

ECO 40-60 PROGRAMME

SETTING THE TEMPERATURE TO

60^

STANDARD PROGRAMME

ACCORDING TO

(EU) No 2019/2023

ECO 40-60 PROGRAMME

By placing the mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

GENERAL SAFETY RULES

• This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Farm houses;
• By clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments.

A different use of this appliance from household environment or from typical housekeeping functions, as commercial use by expert or trained users, is excluded even in the above applications. If the appliance is used in a manner inconsistent with this it may reduce the life of the appliance and may void the manufacturer's warranty. Any damage to the appliance or other damage or loss arising through use that is not consistent with domestic or household use (even if located in a domestic or household environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance

in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Children should be supervised to ensure that they do not play with the appliance.
Children of less than 3 years should be kept away unless continuously supervised.
- If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
- Only use the hose-sets supplied with the appliance for the water supply connection (do not reuse old hose-sets).
- Water pressure must be between 0.05 MPa and 0.8 MPa.
- Make sure carpets or rugs do not obstruct the base or any of the ventilation openings.
- After installation, the appliance must be positioned so that the plug is accessible.
- The maximum load capacity of dry clothes depends on the model used (see control panel).
- To consult the product technical specification please refer to the manufacturer website.

Electrical connections and safety instructions

• The technical details (supply voltage and power input) are indicated on the product rating plate
• Make sure that the electrical system is earthed, complies with all applicable law and that the (electricity) socket is compatible with the plug of the appliance. Otherwise, seek qualified professional assistance.
• The use of converters, multiple sockets or extension cords is strongly advised against

• Before cleaning or maintaining the washing machine, unplug the appliance and turn off the water tap.

• Do not pull on the power cord or appliance to unplug the machine.

WARNING:

water may reach very high temperatures during the wash cycle.

• Do not expose the washing machine to rain, direct sunlight or other weather elements. Protect from possible freezing.
• In the event of fault and/or malfunction, turn off the washing machine, close the water tap and do not tamper with the appliance. Immediately contact the Customer Service Centre and only use original spare parts. Failure to observe these instruction may jeopardise appliance safety.

NASTAVENIE TEPLOTY NA 60 °C

STANDARDN'Y PROGRAM PODLA

NARIADENIA

(EU) c. 2019/2023

PROGRAM ECO 40-60

STANDARDPROGRAMMER I HENHOLD TIL
