USER MANUAL SRZX105 PANASONIC

Preparations 7-8 Functions 9-14• White Rice, Jasmine, Multi Grain, Quick Cook, Brown Rice or Sticky Rice

Cleaning and maintenance

How to use adjustable steam basket / When the display shows as follows

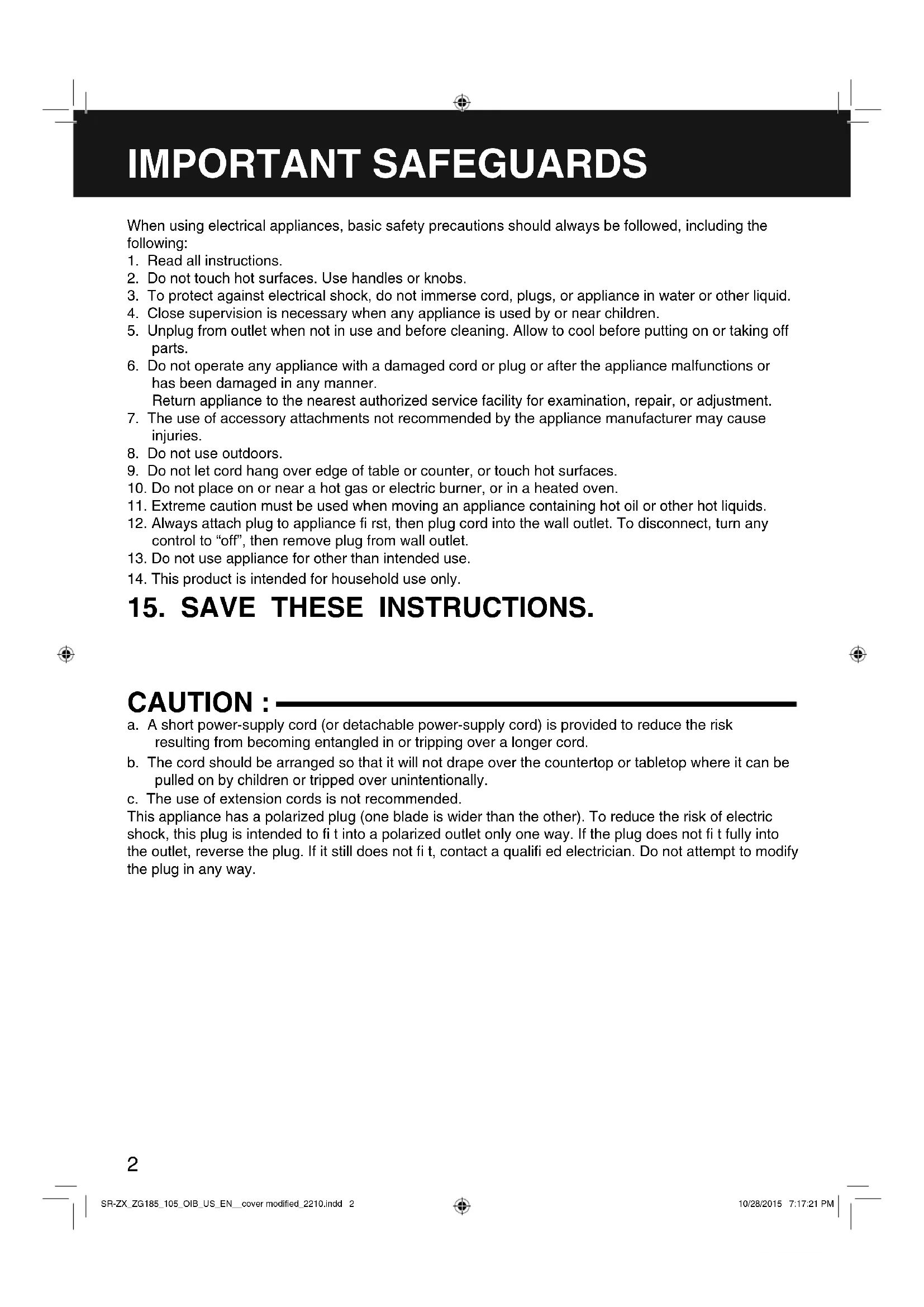

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electrical shock, do not immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or

has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.

12. Always attach plug to appliance fi rst, then plug cord into the wall outlet. To disconnect, turn any

control to “off”, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. This product is intended for household use only.

15. SAVE THESE INSTRUCTIONS.

CAUTION : a. A short power-supply cord (or detachable power-supply cord) is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord. b. The cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over unintentionally. c. The use of extension cords is not recommended. This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fi t into a polarized outlet only one way. If the plug does not fi t fully into the outlet, reverse the plug. If it still does not fi t, contact a qualifi ed electrician. Do not attempt to modify the plug in any way. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 2SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 2 10/28/2015 7:17:21 PM10/28/2015 7:17:21 PM3 Safety Precautions Must be followed! WARNING Indicates serious injury or death. CAUTION Indicates risk of injury or property damage. These symbols indicateprohibition.This symbol indicates requirementthat must be followed. WARNING Do not use the applianceif the power cord or power plug is damaged or the power plug is loosely connected to the power outlet.(It may cause an electricshock or fi re caused by short circuit).In order to prevent accidents or injuries to the users, other people and damage to property, please follow the instructions below. The following charts indicate the degree of damage caused by wrong operation. Do not plug or unplug thepower plug with wet hands.(It may cause an electricshock). Do not damage the power cord or power plug.Following actions are strictly prohibited.Modifying, placing near heatingelements, bending, twisting, pulling,putting heavy objects on top, andbundling the cord. (It may cause anelectric shock or fi re caused by shortcircuit).• If the supply cord is damaged,it must be replaced by a specialcord or assembly available from themanufacturer or its service agent. Do not insert any objects in the steam vent or gap.Especially metal objects such as pins or wires.(It may cause an electricshock or malfunction). This appliance is notintended for use by persons (including children) withreduced physical, sensoryor mental capabilities, orlack of experience and knowledge, unless theyhave been given supervisionor instruction concerninguse of the appliance by aperson responsible for theirsafety. Children should besupervised to ensure thatthey do not play with the appliance.(It may cause burn or injury). The symbols are classifi ed and explained as follows. Clean the power plug regularly.(A soiled power plug maycause insuffi cient insulation dueto the moisture, and may cause a fi re).• Unplug the power plug, and wipe with a dry cloth. Do not immerse the appliance inwater or splash it with water.(It may cause a fi re caused byshort circuit or electric shock).• Please enquire with an authorized dealer if water gets inside the appliance. Discontinue using the appliance immediately and unplug the power cord in cases of abnormal situations and breaking down.(It may cause smoking, a fi re or electric shock).• The power plug and the power cord become abnormally hot.• The power cord is damaged or power failure occurs when touched.• The main body is deformed or abnormally hot.• The unit gives out smoke or scorching smell.• There are cracks, looseness or wobbles of the appliance.• The cast heater is warped or the inner pan is deformed. Please make enquiries at a Panasonic authorized service center for immediate inspection and repair. Use only a power outlet ratedat a minimum of 10 amperes and alternating electric voltage at 120 volts.(Plugging other devices into thesame outlet may cause electricoverheating, which may cause afi re).• Use only an extended cord rated at 10 amperes minimum.(e.g. for abnormal situations or breaking down) Do not get your face closeto the steam vent or touchit with your hand. Keep thesteam vent out of reach ofsmall children.Steam vent(It may cause a burn). Do not modify, disassemble,or repair this appliance.(It may cause a fi re, electric shock or injury).• Please make enquiries at the storeor the repair department of anauthorized dealer. Insert the instrument plugand the power plug fi rmly.(Otherwise it may cause an electricshock and fi re caused by the heatthat may generate around theinstrument plug or the power plug).• Do not use a broken power plug or a loose power outlet. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 3SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 3 10/28/2015 7:17:21 PM10/28/2015 7:17:21 PM4 Safety Precautions Must be followed! CAUTION Do not use the appliance in the following places.• In an area where it may be splashed with water or near a heat source. (It may cause a fi re caused by short circuit or electric shock).• An unstable surface or carpet, electric carpet, table cloths (ethylene plastic) or other object that cannot resist high temperature. (It may cause an injury, burn or fi re).• Near a wall or furniture. (It may cause a discoloration or deformation). Do not expose the power plug to steam and do not let water spill on the connector of the power plug.• Do not expose the power plug to steam when it is plugged in. (It may cause afi re caused by short circuit). When using a cabinet with sliding table, use the appliance where the power plug cannot be exposed to steam. Be sure to hold the instrument plug or the power plug when unplugging. Do not pull the power cord.(Otherwise it may cause anelectric shock or fi re caused by short circuit). Unplug the power plug from thepower outlet when the applianceis not in use.(Otherwise it may cause anelectric shock and fi re caused byshort circuit due to the insulation deterioration). Do not touch heating elements while the appliance is in use or after cooking.Especially the castheater. (It may causea burn). Do not use the cord set (for instrument plug and power plug) that is not specifi ed for use with this appliance. Also do not transfer them.(It may cause an electric shock, leakage, and fi re). Heating element is subjected to residual heat after use. Please allow the appliance to cool down before cleaning it.(Touching hot elements maycause a burn). Do not touch the hook button while moving the appliance.(It may cause the outer lid to open, resulting in a burn). Be careful hot surface of stainless steel rim of upper frame. (SR-ZX185 / SR-ZX105)(It may cause a burn). (It may cause a burn and injury due to overheat or malfunction). Precaution for Use Please put in correct amountof rice and water and select functions correctly according tothe operating instructions.(So as to avoid overfl ow of rice water, half-cooked rice or scorched rice).Before using the appliance, theanti-tarnish paper between theinner pan and the cast heater should be removed.(So as to avoid poor cooking or fi re).Please always clean the foreign matters such as rice on the inner pan, cast heater and temperature sensor.• Do not tilt or overturnthe appliance. • Before cleaning, turnoff the power switchand pull out thepower plug.Do not put ingredients to becooked directly into the appliancein which no inner pan is placed. Do not cook without inner pan.(So as to prevent any impurities fromcausing failure).Do not cover the outer lid withcloth or other objects when theappliance is in use.(So as to avoid deformation, colorchange of the outer lid or failure).Avoid using the appliance underdirect sunlight.(So as to avoid color change).Do not scoop out rice with anymetal object.(So as to avoid scratching the inner pan coating and causing peeling of thecoating).When there is any overfl owof rice water from thesteam vent, pull out thepower plug immediatelyto disconnect the powersupply. Do not resume theuse until the rice water onthe power plug and theinstrument plug is cleaned with a dry cloth.The appliance is forhousehold use only. Do notuse it for any commercial orindustrial purposes or anypurposes other than cooking.When power failure occursduring the operation of theappliance, the cooking resultmay be affected.Foreign mattersCast heaterTemperaturesensorInner panT Do not use other pans than the one specifi ed.Do not let water spill on thepower plug of the power cord set.(This may result in electric shock). SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 4SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 4 10/28/2015 7:17:38 PM10/28/2015 7:17:38 PM7

Connect the power plug. Press or button for more than one second, then release the button after a beep sound. The time shows in the LCD starts to blink. Press or button to set the time (1 minute increment). Keeping the button pressed will make setting faster.

• 24:00 is replaced by 0:00.

• Error may occur in the Timer function if the current time has not been set properly.

• The time cannot be setup during operating state.

The time will be automatically set after leaving about 5 seconds. (LCD stops blinking).

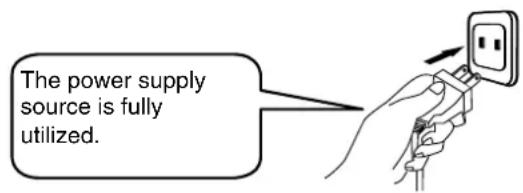

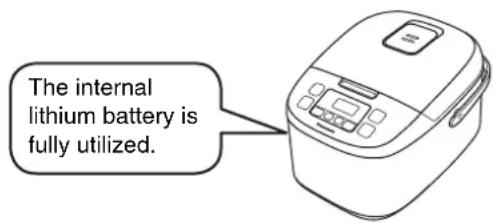

Lithium battery Power source for the clock When unplugged The internal lithium battery is fully utilized. Battery Replacement If lithium battery is fully utilized, please contact authorized service center for replacement. The life time of battery is around 5 years (At 20°C room temperature and plugged in 12 hours each day). When the battery is consumed, the following phenomenon will happen: When plugged The power supply source is fully utilized. Note: Do not put the lithium battery into the fi re, do not recharge, disassemble or heat the battery, etc.

• The clock becomes vague or disappears.

• Memory of preset time is lost.

• The clock can be used again when power plug is connected. (The clock resetting is required). This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material – special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 6SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 6 10/28/2015 7:17:48 PM10/28/2015 7:17:48 PM7 Preparations

Measure rice with the measuring cup provided.

• The volume of the measuring cup is about 180 mL.

• For the maximum quantity of rice to be cooked at once, refer to specifi cations in Page 19. Wash the rice till the water turns relatively clear.

Wash the rice quickly with plenty of water and stirring the rice lightly to wash it while changing water.

Repeat it for several times (wash the rice → pour out water), till the water turns relatively clear.

• In order to avoid scratching the non-stick coating on the inner pan surface, do not wash rice in the inner pan.

• Wash the rice thoroughly. Otherwise, rice crust may appear and the residual rice bran may affect the taste of the rice. Correct The cooking result may be affected Add the washed rice or other ingredients into the inner pan.

• Use water line on the inner pan to measure cooking quantity as follows :

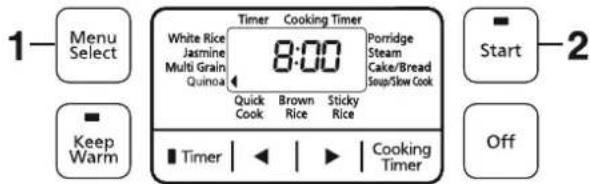

Function Water Line White Rice White Rice Jasmine Jasmine Rice Multi Grain Multi Grain Quinoa Refer to Page 10 Quick Cook White Rice Brown Rice Brown Rice Sticky Rice Sticky Rice Soup / Slow Cook White Rice Porridge Porridge

• In the Soup / Slow Cook function, the total amount of ingredients and water shall not exceed the maximum water line for “White Rice”.

• Dry the outside surface of the inner pan. If it is wet, it may cause noise while cooking. Any foreign matters between the inner pan and the cast heater may damage the unit.

• Please make sure that the inner pan is on leveled surface.

• Please measure water by aligning water line left side and right side.

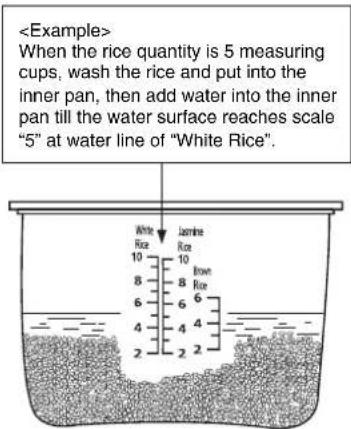

• If rice is too hard or too soft, please adjust water amount according to your personal taste. <Example>When the rice quantity is 5 measuringcups, wash the rice and put into theinner pan, then add water into the inner pan till the water surface reaches scale “5” at water line of “White Rice”. SR-ZX185 SR-ZG185 SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 7SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 7 10/28/2015 7:17:54 PM10/28/2015 7:17:54 PMATTENTION

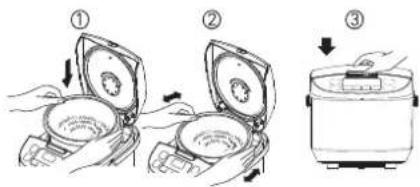

Preparations Put the inner pan into the body and close the outer lid.

In order to closely attach the bottom of inner pan to the cast heater, please rotate the inner pan along the direction indicated by the arrow 2 or 3 times.

Please check whether the inner lid and steam cap are properly set. (Refer to Page 16)

Close the outer lid until it clicks.

Please insert the instrument plug into the body fi rst.

Connect the power plug. Make sure that both plugs are tightly connected.

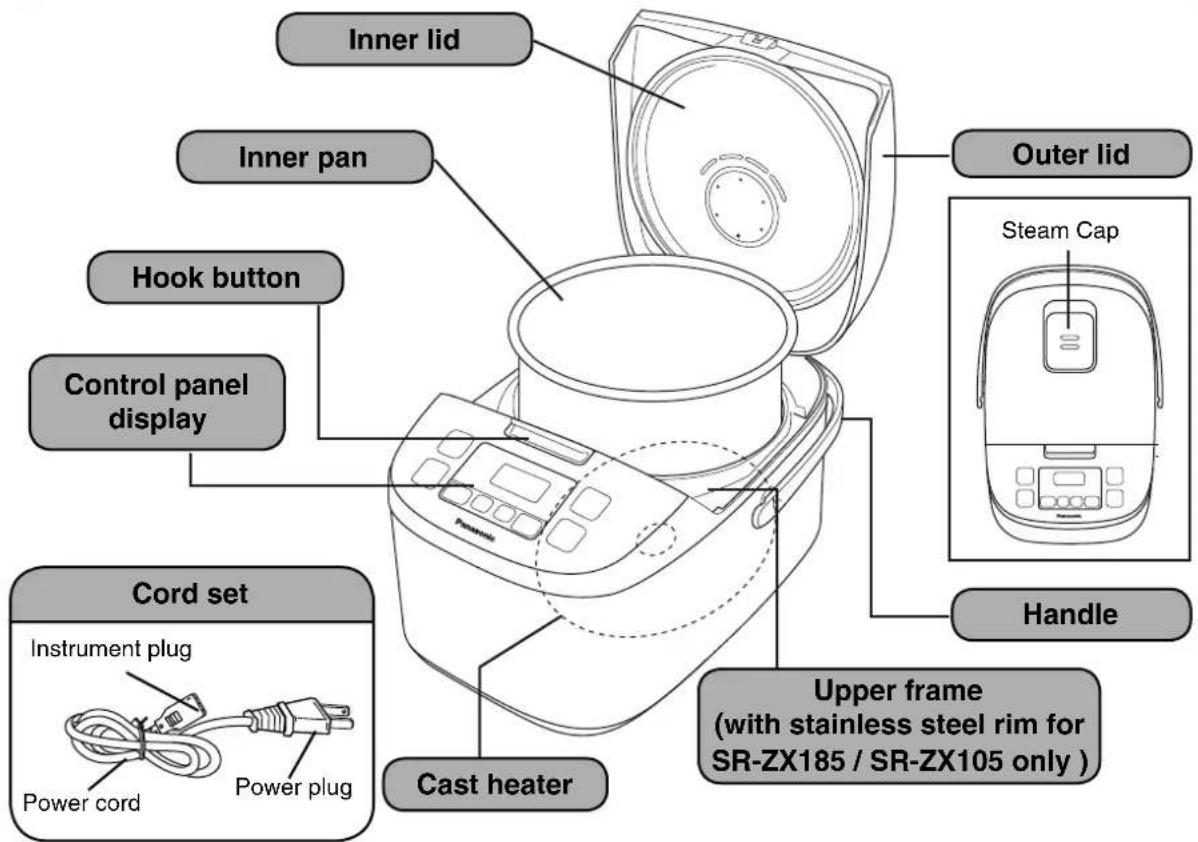

Power plugOutlet Body Instrument plug

• The table on the right shows the maximum allowable amount of white rice that can be cooked while steaming food in the adjustable steam basket.

• Reasonable time interval is recommended between subsequent cooking to ensure cooking result is normal.

• There is possibility of starch, spill over through steam vent if cooking is done using hard water (ie: untreated water). The maximum amount of rice (in measuring cups) Height of the adjustable steam basket Maximum amount of white rice SR-ZX185 SR-ZG185 SR-ZX105 SR-ZG105 Shallow 5 2 Deep 4 1 SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 8SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 8 10/28/2015 7:18:16 PM10/28/2015 7:18:16 PM9 Functions White Rice, Jasmine, Multi Grain, Quick Cook, Brown Rice or Sticky Rice Important Information• The amount of rice is specifi ed in specifi cations. (Page 19)• In the Quick Cook function, the rice may be harder or theremay be rice crust (Quick Cook function can be used for white rice).→ For better performance, please add some more water.→ For better performance, please stir and loosen the rice immediately and keep the rice warm for a few minutesafter the beep sound.*For brown rice, it takes about 2 hours to complete cooking. Operations (Cooking with the White Rice, Jasmine, Multi Grain, Quick Cook, Brown Rice or Sticky Rice function). Press button to point to White Rice, Jasmine, Multi Grain, Quick Cook, Brown Rice or Sticky Rice function.• The indicator blinks. Press button.• The indicator lights up and the cooking starts.• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

The cooking is over Stir and loosen the rice.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The indicator turns off and the indicator lights up automatically).• lf you want to preset the timer for White Rice, Jasmine, Multi Grain, Brown Rice or Sticky Rice, please refer to“Using the Timer” (Page 15).Keep Warm• When the cooking is over, all functions will turn toKeep Warm function automatically.But some functions are not recommended to use withKeep Warm function.Please press button to exit Keep Warm function.• You can keep the rice warm for up to 12 hours, so as notto affect the taste or cause unpleasant smell.• When in Keep Warm function, there may be some dropletsat the edge of the inner pan.• The rice taste may be affected if rice scoop is left in the electric rice cooker during Keep Warm function. Menu Keep Warm The result after kept warmWhite Rice No problem.Jasmine Multi Grain Quick Cook Quinoa Affects the taste or causes a strange smell. Flavor can be adversely affected.Brown Rice Sticky Rice Porridge It may become too thick.Cake / Bread Affects the taste or causes a strange smell.Soup / Slow Cook Steam ◯ : Can be used, × : Not recommend for use SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 9SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 9 10/28/2015 7:18:44 PM10/28/2015 7:18:44 PM10 Functions Quinoa Important Information• The amount of quinoa is specifi ed in specifi cations.(Page 19)• The amount of water for cooking is indicated below:Quinoa(Measuring cup)Water (Measuring cup)SR-ZX185SR-ZG185SR-ZX105SR-ZG1051 cup 2 cups 2 cups2 cups 4 cups - Operations (Cooking with the Quinoa function).Press button to point to Quinoa function. • The indicator blinks. Press button.• The indicator lights up and cooking starts.• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

The cooking is over Press button.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The indicator turns off and the indicator lights up automatically). However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warmfunction and unplug the power plug. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 10SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 10 10/28/2015 7:18:54 PM10/28/2015 7:18:54 PM11 Functions Porridge Important Information• The amount of rice is specifi ed in specifi cations. (Page 19)
• If using too much water, it may cause spill over throughsteam vent.• In order to have thicker porridge you may reduce the water amount according to your personal taste.• When the outer lid is opened during cooking, the amount of moisture condensation may be increased.• Take off and clean the steam cap after every use to preventany odours. Operations (Cooking with the Porridge function).Press button to point to Porridge function. • The indicator blinks. Press button.• The indicator lights up and cooking starts.• Before cooking is completed, the LCD display will show the remaining time in 1 minute decrement.

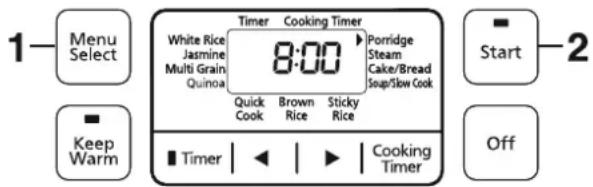

• lf you want to preset the timer for Porridge, please refer to “Using the Timer” (Page 15). The cooking is over Press button.
• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The indicator turns off and the indicator lights up automatically). However, we do not recommendusing the Keep Warm function as it may become too thick. Press the button to exit the Keep Warmfunction and unplug the power plug. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 11SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 11 10/28/2015 7:18:58 PM10/28/2015 7:18:58 PM12 Functions Steam Important Information• After boiling and complete evaporation of water, theelectric rice cooker automatically switches off.• If you want to abort steaming during cooking, press button.• When steaming food while cooking rice, it’s recommended to use Jasmine, Multi Grain or White Rice function with maximum quantity as described on Page 8.→ Do not open the outer lid while cooking.(Cooking result may not be satisfactory).• Please do not block the hole of the inner lid with food. Preparations

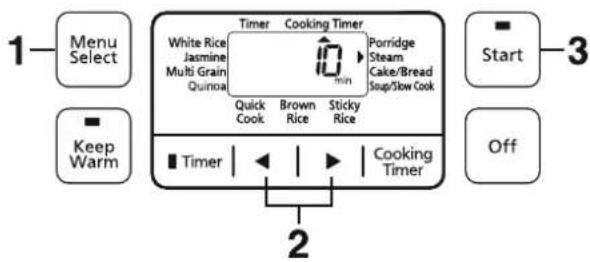

• Add the required amount of water.• Place the adjustable steam basket into the inner pan as shown.• Place foods to be steamed into the adjustable steam basket.• Close the outer lid. Correspondence between the amount of water and time of steamingCooking timeAmount of waterSR-ZX185SR-ZG185SR-ZX105SR-ZG105Less than 10 minutes 1 measuring cup 1 measuring cup10 ~ 30 minutes 2 measuring cups 2 measuring cups30 ~ 60 minutes 4 measuring cups 3 measuring cupsWaterAdjustablesteam basket Operations (Cooking with the Steam function).Press button to point to Steam function.
• The indicator and blink (as the default cooking time for Steam function).

Press button to set the cooking time as your desire.

• You can set the cooking time from 1 to 60 minutes (1 minute increment).
• Keeping the button pressed will make setting faster. Press button.• The indicator lights up and cooking starts.• After water is boiled, the LCD display will show remaining time in 1 minute decrement.

The cooking is over Press button.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The indicator turns off and the indicator lights up automatically). However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warmfunction and unplug the power plug. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 12SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 12 10/28/2015 7:19:02 PM10/28/2015 7:19:02 PM13 Functions Cake / Bread Important Information• The maximum allowable weight (total weight of theingredients) for Cake / Bread is 500 g. If the maximumallowable weight is exceeded, baking will not get bakedthoroughly.• Bread function performs only bake function. Please makea leavened dough with reference to recipe book. Preparations

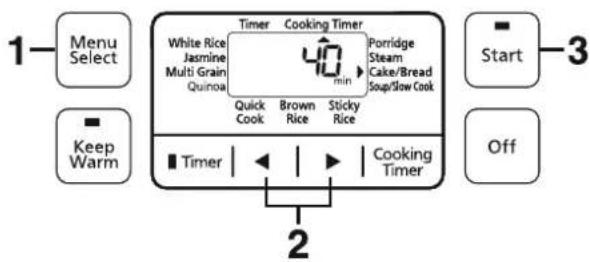

• Prepare Cake / Bread mix.
• For cake : Beat all the mixture as instructed in the recipe book. For bread : Knead all the mixture as instructed in the recipe book.• Coat the inner surface area (bottom and sides) of the inner pan with butter (or cooking oil), place the prepared ingredients there and close the outer lid. Operations (Cooking with the Cake / Bread function).Press button to point to Cake / Bread function. • The indicator and blink (as the default cooking time for Cake / Bread function). Press button to set the cooking time as your desire.• You can set the cooking time from 20 to 65 minutes (5 minutes increment). • Keeping the button pressed will make setting faster. Press button.• The indicator lights up and cooking starts.• The LCD display will show remaining time in 1 minute decrement.

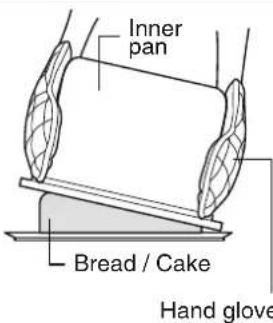

The cooking is over Press button.• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function. (The indicator turns off and the indicator lights up automatically). However, we do not recommend using the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warm function and unplug the power plug.• Bring out the inner pan and leave it cool for 2-3 minutes. Then put the inner pan upside down onto a tray or grill.• Decorate the cake surface as your desire.Inner pan Hand gloveBread / Cake SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 13SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 13 10/28/2015 7:19:13 PM10/28/2015 7:19:13 PM14 Functions Soup / Slow Cook Important Information• The maximum amount of ingredients and liquid forSoup / Slow Cook cannot exceed the maximumwater line for “White Rice”. Preparations

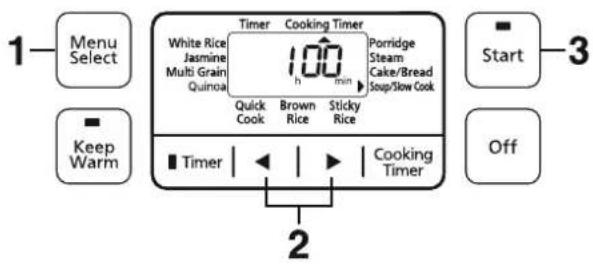

• Place all ingredients into the inner pan. • Close the outer lid. Operations (Cooking with the Soup / Slow Cook function).Press button to point to Soup / Slow Cook function. • The indicator and blink (as the default cooking time for Soup / Slow Cook function). Press button to set the cooking time as your desire.• You can set the cooking time from 1 to 12 hours (30 minutes increment). • Keeping the button pressed will make setting faster. Press button.• The indicator lights up and cooking starts.• The LCD display will show remaining time in 1 minute decrement.

The cooking is over Press button.

• When cooking is over, the electric rice cooker beeps and automatically switches to the Keep Warm function (The indicator turns off and the indicator lights up automatically). However, we do not recommendusing the Keep Warm function as it may affect the taste. Press the button to exit the Keep Warmfunction and unplug the power plug. SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 14SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 14 10/28/2015 7:19:21 PM10/28/2015 7:19:21 PM15 Using the Timer The presetting time is desired time for eating.• Time can be preset 24 hours in advance.ExampleIf the timer is set for 18:30, cooking will be completed at18:30.* When the preset timing is less than the required timingfor cooking, the electric rice cooker will start cooking assoon as button is pressed.※ Memory of preset time will be lost if battery power isfully utilized. Please contact authorized service centerfor replacement. Operations Press button to select function.

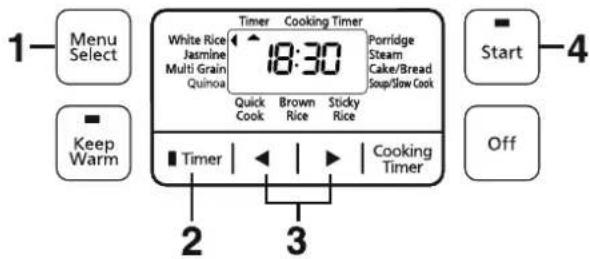

• Applicable functions for timer setting: FunctionWhite Rice Brown RiceJasmine Sticky RiceMulti Grain Porridge

Press button to select the timer setting.

• The fi rst time button is pressed, the previous timer setting will be displayed. The time and the indicator blink.

Press button to set desired time.

• The timer will advance 10 minutes each time.• Keeping the button pressed will make setting faster.

• The indicator turns off and the indicator lights up.• When cooking starts, the indicator turns off and the indicator lights up. • Timer setting can’t be used in the following functions :FunctionQuinoaQuick CookSteamCake / BreadSoup / Slow Cook

SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 15SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 15 10/28/2015 7:19:28 PM10/28/2015 7:19:28 PM16 Cleaning and maintenance

• Be sure to unplug and carry out these operations when the appliance is cooled down.

• Parts need to be cleaned after every use.

• Do not use cleaning objects such as benzine, thinners, cleansing powder or metal scrubbers. Remove the inner lid Hold the two tabs, then pull them towards you. Attach the inner lid

Insert the protruding part into the locker on the outer lid in a tilted way.

Press the tabs (both sides) inwards the outer lid side until the click sound is heard.

• Wash with a diluted dishwashing detergent and sponge. Protruding partLoad and unload tabs of inner lid Inner lid Inner pan If an object has become stuck to the temperature sensor / cast heater, slightly polish it off using fi ne sandpaper (of about # 600). Then wipe with a damp cloth. Temperature sensor / Cast heater Wipe with damp cloth. Upper frame Wash with a diluted dishwashing detergent and sponge and wipe off the external surface of the pan. Do not use scouring pad. Inner pan Wipe with a damp cloth.

Turn it counterclockwise and pull it out. Rubber seals (Do not remove) Attaching the steam cap

Match the positions of and .

Turn it clockwise until it locks.

Faced the steam cap upward, fi x it into the hole of outer lid. (Make sure the steam cap fi t securely to the outer lid). Important Information

• Residue that may remain in the steam cap could cause malfunctions. Please keep the area clean.

• Setting the steam cap incorrectly does not prevent the rice cooker from cooking rice, but may result in the rice being unevenly cooked due to steam leakage. Accessories Measuring cup Adjustable steam basket Rice scoop Porridge scoop

• Wash with a diluted dishwashing detergent and sponge. Do not pour water directly on the upper frame. Steam Cap SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 16SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 16 10/28/2015 7:19:34 PM10/28/2015 7:19:34 PM17 How to use adjustable steam basket / When the display shows as follows How to use adjustable steam basket Height adjustmentPut your thumb on the ring on the inner wall of the rotating part, lift and slightly turn it counterclockwise, andthen release your fi nger. The height of the adjustable steam basket will increase. To restore the previous size,hold the bottom of the rotating part with your palm, slightly turn it clockwise, and lift it up to clip.Fixed partRotating part DisassemblyFirstly, restore the adjustable steam basket to the initial state (shallow), turn it over on the table, and then pressdown fi rmly on the rotating part up to clip. Fixed part and rotating part will detach. AssemblyDirect the protrusion on the edge of the rotating part towards the groove on the inner wall of the fi xed part, and then press with force on the bottom of the rotating part up to clip. When the display shows as follows Display Problems and troubleshooting Following continuous 96 hours Keep Warm function, the power supply will automatically cut off. Press button to resolve the error. Contact the authorized service center for repair. U14 H05 H01 H02groove SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 17SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 17 10/28/2015 7:19:51 PM10/28/2015 7:19:51 PM18 Rice Cooking Details Cooking problems Keep Warm problems No power Strange sound occurs Too hard Undercooked Too soft Water overfl ow Burnt rice at bottom of inner pan Color change Bad smell Too dry Wrong rice and water proportion.

Pull out plug and check the socket. Sound occurs because of water that has stuck to inner pan. Inadequate washing of rice.

Foreign matters between inner pan and cast heater.

Cooking with a lot of oil.

The rice has been warmed more than 12 hours.

The outer lid is not securely closed.

The inner pan is not adequately washed.

The power cord is not connected to the socket securely.

Cake / Bread Baking Details Baking Cake / Bread problems No power Strange sound occurs Undone Cake / Bread Undercooked Cake / Bread Wet Cake / Bread The Cake / Bread sticks to the base of inner pan Bottom of the Cake / Bread burnt Not fl uffed Crumbly Too much dough.

Pull out plug and check the socket. Sound occurs because of water that has stuck to inner pan. Not enough mixing before baking.

Used with incompatible cake mix.

Used with cake mix that contains too much chocolate, sugar or fruit ingredients.

Outer lid not close while cooking.

Foreign matters between inner pan and cast heater.

Not enough butter or cooking oil applied to the bottom of the inner pan.

Cake / Bread left in the inner pan too long.

Inadequate mixing or mixed too long.

Wrong ingredient quantity.

• For power cord replacement and product repair, please contact Panasonic authorized service center.

• The design and specifi cations are subjected to change without prior notice. Function Cooking time (approximate) *

15 min Brown Rice 120 min Sticky Rice 40 min Porridge 60 min *1 Cooking time may vary depending on supply voltage, room temperature, kind of rice, cooking quantity, water quantity and water temperature. *2 Rice cooked (white rice at minumum cooking quantity) within 15 minutes. (Under Panasonic test method) SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 19SR-ZX_ZG185_105_OIB_US_EN__cover modified_2210.indd 19 10/28/2015 7:20:01 PM10/28/2015 7:20:01 PM20
