Product Type	LED/LCD Television
Brand	LG
Model	32LS345S
Screen Size	32 inches (81 cm)
Screen Resolution	HD (1366 x 768 pixels)
Backlighting	LED
Supported Video Formats	DivX, MPEG, Dolby Digital, HE-AAC
HDMI Connectors	Yes (number not specified, at least 1)
USB Connector	Yes
Antenna Input	RF (75 Ω)
SCART Socket	Yes
Component Input	Yes
Composite Input	Yes
CI Slot	Yes
Remote Control	Yes, with AAA batteries
VESA Wall Mount	200 x 100 mm (M4 screws)
Power Consumption	Variable, standby and energy saving mode
Power Supply Voltage	100-240 V AC
Approximate Weight	About 7 kg (without stand)
Approx. Dimensions (without stand)	73 x 44 x 8 cm
Screen Maintenance	Soft dry cloth, do not use chemicals
Energy Saving Function	Yes, ENERGY SAVING button on the remote control
Built-in User Guide	Yes, accessible via the menu

Frequently Asked Questions - 32LS345S LG

How to clean the TV screen?

First unplug the device. Use a soft dry cloth for dust. For stains, slightly dampen the cloth with clean water or a mild diluted detergent, then wipe immediately with a dry cloth. Never use chemicals, alcohol, or benzene.

What to do if the remote control does not work?

Check that the batteries are correctly inserted (respecting polarity) and that they are not worn. Make sure there is no obstacle between the remote control and the TV sensor. Move away from intense light sources. If the problem persists, replace the batteries.

How to connect an HDMI device?

Connect the HDMI cable to the HDMI port on the TV and to the device. Use a high-speed HDMI cable for optimal quality. The TV will automatically detect the source. You can change the source using the INPUT button on the remote control.

Why does my TV turn off automatically?

Check the timer settings (auto standby) in the Time menu. The TV also turns off after 15 minutes without a signal. If the problem persists, check the power cord and the electrical outlet.

What is the screen resolution?

The LG 32LS345S TV has an HD resolution of 1366 x 768 pixels. It can display 1080p content via HDMI, but the image will be adapted to the native resolution.

Can the TV be mounted on the wall?

Yes, use a VESA 200 x 100 mm compatible wall mount with M4 screws. Follow the mounting instructions and ensure the wall can support the weight. Unplug the TV before installation.

How to watch digital terrestrial TV (DTT)?

Connect an RF antenna (75 Ω) to the ANT IN port of the TV. Start an automatic channel search from the menu. If reception is poor, adjust the antenna or use an amplifier.

What to do in case of no picture and no sound?

Check that the TV is on and the power cord is properly plugged in. Try another electrical outlet. If the problem persists, contact customer service.

How to use the Energy Saving function?

Press the ENERGY SAVING button on the remote control to reduce screen brightness and save energy. You can also adjust the settings in the Picture menu.

What video formats are supported via USB?

The TV supports DivX, MPEG, Dolby Digital, HE-AAC formats. For DivX files, the device must be registered to play on-demand content. Use the 'My Media' menu to access files.

USER MANUAL 32LS345S LG

User's Guide Specification					Nam ng	Man ria jao
					GW Lee 01.30.12	HJ Shin 01.30.12	JO Kim 01.30.12
1. Model Description					Part No.	MFL67409503 (1210-REV07)
MODEL		22LS3500-ZA		BRAND	LG
SUFFIX		EU		Product Name	19/22/26/32LS35**
2. Printing Specification
1. Trim Size (Format): 182mm x 257 mm 2. Printing Colors • Cover: 1 COLOR (BLACK) • Inside: 1 COLOR (BLACK) 3. Stock (Paper) • Cover: Coated paper, Snow White 150 g/m² • Inside: Uncoated paper, 黑色/白 60 g/m² 4. Printing Method: Off-set 5. Bindery: Perfect bind 6. Language: Eng/Ger/Fre/Ita/Esp/Port/Dut/Grk (8) 7. Number of pages: 212 pages
Notes	This part contains Eco-hazardous substances (Pb, Cd, Hg, Cr6+, PBB, PBDE, etc.) within LG standard level, Details should be followed Eco-SCM management standard[LG(56)-A-2524]. Especially, Part should be followed and controlled the following specification. (1) Eco-hazardous substances test report should be submitted when Part certification test and First Mass Production. (2) Especially, Don't use or contain lead(Pb) and cadmium(Cd) in ink.
3. Special Instructions
(1) Origin Notification * LGEIN: Printed in Indonesia * LGEWA: Printed in U.K. * LGESP: Printed in Brazil * LGEMX: Printed in Mexico * LGEND/NP: Printed in China * LGEIL: Printed in India * LGEMA: Printed in Poland
4. Changes
8
7	Sep./13/12		MG Kang	EKLC900716	Added the 32/42LS341C-ZA, 32/42LS348C-ZA model.
6	Aug./22/12		Sungho Jo EKL	C801159	add the contents about protection cover (only 32LS345*) and change for some contents
5	Jul./16/12		Gowoon LEE	EKLC700991	Changed the CIC call no.
4	Jun./19/12		Gowoon LEE	EKLC601246	Added the broadcast system of analogue TV.
3	May/17/12		Gowoon LEE	EKLC501155	Added the LS3450 model.
2	Apr./10/12		Gowoon LEE	EKLC400782	Changed the screw of 19/22LS35 models.
1	02/20/12		Gowoon LEE	EKLC201853	Added the model(LS34**) and changed the screw standard of 32LS35**.
REV. NO.	MM/DD/YY		SIGNATURE	CHANGE NO.	CHANGE CONTENTS

P/NO. MFL67409503

Total pages: 212 pages

Pagination sheet

OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating your set and retain it for future reference.

LS35**

LS34**

CS46**

P/NO: MFL67409503 (1210-REV07)

Printed in Korea

TABLE OF CONTENTS

A-3 SETTING UP THE TV

A-3 Attaching the stand A-6 Tidying cables A-7 Not using the Desk-Type Stand

COMMON

LANGUAGE LIST

English Deutsch Français Italiano Espanol Portugues Nederlandsl EAAnyiKa

LANGUAGE

B-1 MAKING CONNECTIONS

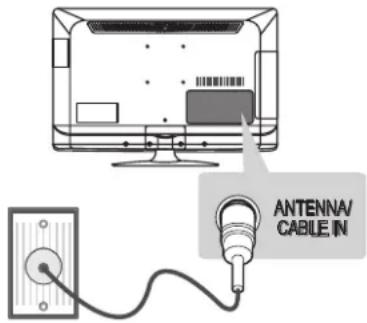

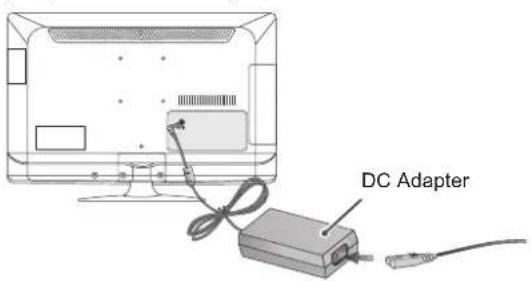

B-1 Antenna connection B-2 Satellite dish connection B-3 Adapter connection B-5 HDMI connection B-7 Component connection B-9 Composite connection B-10 USB connection B-11 CI module connection B-12 Euro Scart connection

COMMON

B-19 SPECIFICATIONS

SETTING UP THE TV

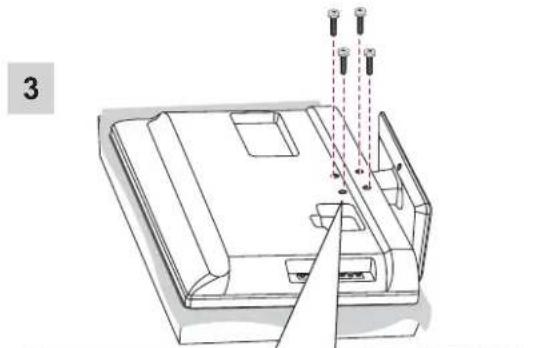

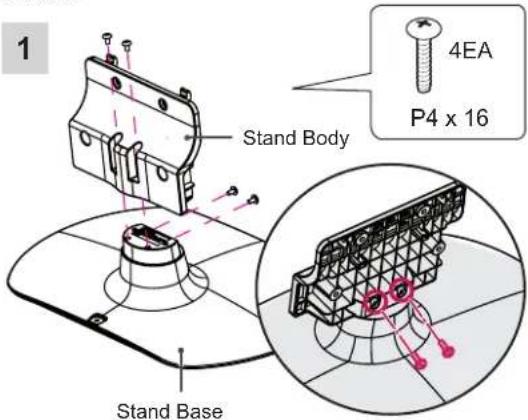

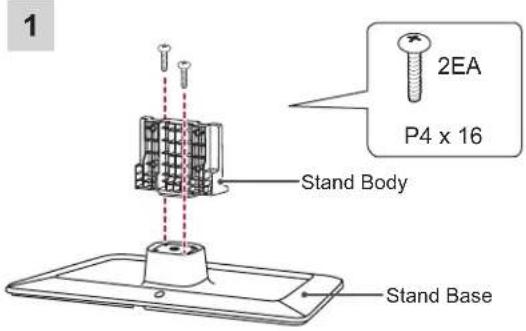

Attaching the stand

Image shown may differ from your TV. 19/22/26LS35**

1

32LS35**

2

2

3

3

Model 19/22LS35** 26LS35**
Standard screw P	4 x 16	M4	x 14
Number of screw	2EA 2EA

26CS46**

32/42CS46*, 32/42LS340

32LS345*, 32LS341*, 32LS348*

42LS345, 42LS341, 42LS348*

CAUTION

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. Make sure that the screws are inserted correctly and fastened securely. (If they are not fastened securely enough, the TV may tilt forward after being installed.) Do not use too much force and over tighten the screws; otherwise screw may be damaged and not tighten correctly.

NOTE

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

Tidying cables

Gather and bind the cables with the cable holder. (Only 19LS35**)

(Only 22/26LS35**)

(Only 32LS35, 32/42LS345, 32/42LS341, 32/42LS348*)

CAUTION

• Do not move the TV by holding the cable holder, as the cable holders may break, and injuries and damage to the TV may occur.

(Only 26/32/42CS46*, 32/42LS340)

1. Gather and bind the cables with the cable management. 2. Fix the cable management firmly to the TV.

Cable Management

NOTE

(Only 32LS345, 32LS341, 32LS348*)

• When removing the protection cover from the bottom of the TV, insert your fingers into the hole of the cover, hold firmly, and pull upwards towards you to remove.

Protection cover

CAUTION

• Do not move the TV by holding the cable management, as the cable management may break, and injuries and damage to the TV may occur.

Not using the Desk-Type Stand

(Only 26/32/42CS46, 32/42LS340, 32LS345, 32LS341, 32LS348)

• When installing the wall mounting bracket, use the protection cover. This will protect the opening from accumulating dust and dirt.

Push the supplied protection cover into the opening at the bottom of the TV until it locks in place.

Protection cover

OWNER'S MANUAL

LED LCD TV / LCD TV

Please read this manual carefully before operating

your set and retain it for future reference.

TABLE OF CONTENTS

3 LICENSES

3 OPEN SOURCE SOFTWARE NOTICE

4 SAFETY INSTRUCTIONS

10 INSTALLATION PROCEDURE

10 ASSEMBLING AND PREPARING

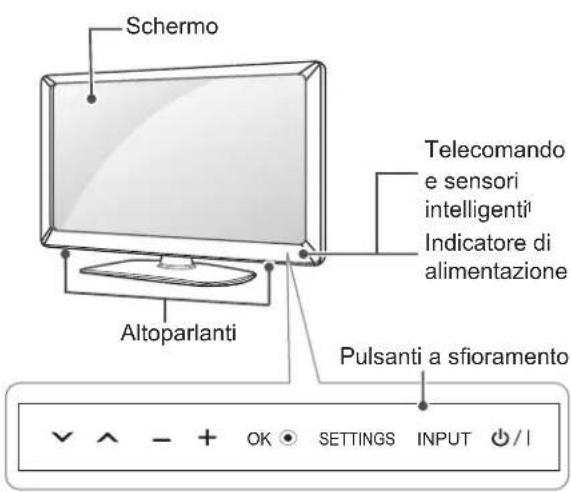

10 Unpacking 15 Parts and buttons 16 Lifting and moving the TV 17 Mounting on a table 19 Mounting on a wall

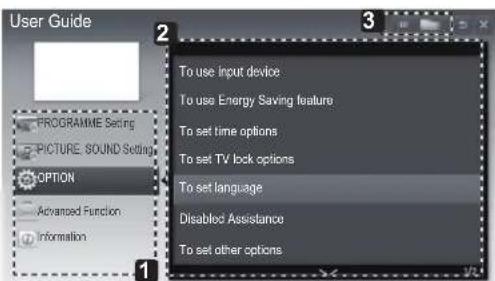

20 REMOTE CONTROL 21 USING THE USER GUIDE 22 MAINTENANCE 22 Cleaning your TV 22 - Screen, frame, cabinet and stand 22 - Power cord 22 TROUBLESHOOTING

WARNING

If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death.

CAUTION

If you ignore the caution message, you may be slightly injured or the product may be damaged.

NOTE

The note helps you understand and use the product safely. Please read the note carefully before using the product.

LICENSES

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

"DivX Certified® to play DivX® video up to HD 1080p, including premium content."

"DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license."

"Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274"

OPEN SOURCE SOFTWARE NOTICE

To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [e-mail]. This offer is valid for three (3) years from the date on which you purchased the product.

SAFETY INSTRUCTIONS

Please read these safety precautions carefully before using the product.

WARNING

• Do not place the TV and remote control in the following environments:
• A location exposed to direct sunlight
• An area with high humidity such as a bathroom
• Near any heat source such as stoves and other devices that produce heat
• Near kitchen counters or humidifiers where they can easily be exposed to steam or oil
• An area exposed to rain or wind
• Near containers of water such as vases

Otherwise, this may result in fire, electric shock, malfunction or product deformation.

• Do not place the product where it might be exposed to dust.

This may cause a fire hazard.

• Mains plug is the disconnecting device. The plug must remain readily operable.

• Do not touch the power plug with wet hands. Additionally, if the cord pin is wet or covered with dust, dry the power plug completely or wipe dust off.

You may be electrocuted due to excess moisture.

• Make sure to connect the power cable to the grounded current. (Except for devices which are not grounded.)

You may be electrocuted or injured.

Fix the power cable completely.

If the power cable is not fixed completely, a fire can break out.

• Ensure the power cord does not come into contact with hot objects such as a heater.

This may cause a fire or an electric shock hazard.

• Do not place a heavy object, or the product itself, on power cables.

Otherwise, this may result in fire or electric shock.

• Bend antenna cable between inside and outside building to prevent rain from flowing in.

This may cause water damaged inside the Product and could give an electric shock.

• When mounting a TV it on the wall, make sure not to install TV by hanging power and signal cables on the back of the TV. It may cause fire, electric shock.

Do not plug too many electrical devices into a single multiple electrical outlet. Otherwise, this may result in fire due to over-heating.

Do not drop the product or let it fall over when connecting external devices. Otherwise, this may result in injury or damage to the product.

Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

Do not let your children climb or cling onto the TV. Otherwise, the TV may fall over, which may cause serious injury.

Disposc of used batteries carefully to protect a child from eating them. Please seek Doctor- Medical Attention immediately if child consumes batteries.

Do not insert any metal objects/conductors (like a metal chopstick/cutlery/screwdriver) between power cable plug and input Wall Socket while it is connected to the input terminal on the wall. Additionally, do not touch the power cable right after plugging into the wall input terminal. You may be electrocuted. (Depending on model)

Do not put or store inflammable substances near the product. There is a danger of combustion/explosion or fire due to careless handling of the inflammable substances.

Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service centre.

Do not spray water on the product or scrub with an inflammable substance (thinner or benzene). Fire or electric shock accident can occur.

Do not allow a impact shock or any objects to fall into the product, and do not drop onto the screen with something. You may be injured or the product can be damaged.

Never touch this product or antenna during a thunder or lighting storm. You may be electrocuted.

Never touch the wall outlet when there is leakage of gas, open the windows and ventilate. It may cause a fire or a burn by a spark.

·Do not disassemble, repair or modify the product at your own discretion. Fire or electric shock accident can occur. Contact the service center for check, calibration or repair.

·If any of the following occur, unplug the product immediately and contact your local service centre. - The product has been impacted by shock - The product has been damaged - Foreign objects have entered the product - The product produced smoke or a strange smell This may result in fire or electric shock.

·If you don't intend to use the product for a long time, unplug the power cable from the product. Covering dust can cause a fire, or insulation deterioration can cause electric leakage, electric shock or fire.

·Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

Install the product where no radio wave occurs. - There should be enough distance between an outside antenna and power lines to keep the former from touching the latter even when the antenna falls. This may cause an electric shock. - Do not install the product on places such as unstable shelves or inclined surfaces. Also avoid places where there is vibration or where the product cannot be fully supported. Otherwise, the product may fall or flip over, which may cause injury or damage to the product. - If you install the TV on a stand, you need to take actions to prevent the product from overturning. Otherwise, the product may fall over, which may cause injury.

• If you intend to mount the product to a wall, attach VESA standard mounting interface (optional parts) to the back of the product. When you install the set to use the wall mounting bracket (optional parts), fix it carefully so as not to drop.
• Only use the attachments / accessories specified by the manufacturer.

• When installing the antenna, consult a qualified service man. This may create a fire hazard or an electric shock hazard.

• We recommend that you maintain a distance of at least 2 to 7 times the diagonal screen size when watching TV. If you watch TV for a long period of time, this may cause blurred vision.

Only use the specified type of battery. This could cause damage to the remote control.

• Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak.

• Make sure there are no objects between the remote control and its sensor.

• Signal from the remote control may be disturbed by sun light or other strong light. In this case, darken the room.

• When connecting external devices such as video game consoles, make sure the connecting cables are long enough. Otherwise, the product may fall over, which may cause injury or damage the product.

• Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet. (Do not use the power plug for switch.) It may cause mechanical failure or could give an electric shock.

• Please follow the installation instructions below to prevent the product from overheating.
• The distance between the product and the wall should be more than 10 cm.
• Do not install the product in a place with no ventilation (e.g., on a bookshelf or in a cupboard).
• Do not install the product on a carpet or cushion.
• Make sure the air vent is not blocked by a tablecloth or curtain.

Otherwise, this may result in fire.

• Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product.
• Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

• Prevent dust collecting on the power plug pins or outlet. This may cause a fire hazard.

• Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

• Do not press strongly upon the panel with a hand or sharp object such as nail, pencil or pen, or make a scratch on it.

• Avoid touching the screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.
• When cleaning the product and its components, unplug the power first and wipe it with a soft cloth. Applying excessive force may cause scratches or discolouration. Do not spray with water or wipe with a wet cloth. Never use glass cleaner, car or industrial shiner, abrasives or wax, benzene, alcohol etc., which can damage the product and its panel. Otherwise, this may result in fire, electric shock or product damage (deformation, corrosion or breakage).
• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if you turn off this unit by SWITCH.

• When unplugging the cable, grab the plug and unplug it. If the wires inside the power cable are disconnected, this may cause fire.

• When moving the product, make sure you turn the power off first. Then, unplug the power cables, antenna cables and all connecting cables. The TV set or power cord may be damaged, which may create a fire hazard or cause electric shock.

	·When moving or unpacking the product, work in pairs because the product is heavy. Otherwise, this may result in injury.
	·Contact the service center once a year to clean the internal parts of the product. Accumulated dust can cause mechanical failure.
	·Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
	·If the product feels cold to the touch, there may be a small "flicker" when it is turned on. This is normal, there is nothing wrong with product.
	·The panel is a high technology product with resolution of two million to six million pixels. You may see tiny black dots and/or brightly coloured dots (red, blue or green) at a size of 1 ppm on the panel. This does not indicate a malfunction and does not affect the performance and reliability of the product. This phenomenon also occurs in third-party products and is not subject to exchange or refund.
	·You may find different brightness and color of the panel depending on your viewing position(left/right/top/down). This phenomenon occurs due to the characteristic of the panel. It is not related with the product performance, and it is not malfunction.

• Displaying a still image (e.g., broadcasting channel logo, on-screen menu, scene from a video game) for a prolonged time may cause damage to the screen, resulting in retention of the image, which is known as image sticking. The warranty does not cover the product for image sticking. Avoid displaying a fixed image on your television's screen for a prolonged period (2 or more hours for LCD, 1 or more hours for Plasma).

Also, if you watch the TV at a ratio of 4:3 for a long time, image sticking may occur on the borders of the panel.

This phenomenon also occurs in third-party products and is not subject to exchange or refund.

Generated Sound

"Cracking" noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending on the product.

This generated sound does not affect the performance and reliability of the product.

NOTE

• Image shown may differ from your TV.
• Your TV's OSD (On Screen Display) may differ slightly from that shown in this manual.
• The available menus and options may differ from the input source or product model that you are using.
• New features may be added to this TV in the future.
• The TV can be placed in standby mode in order to reduce power consumption. The TV should be turned off if it will not be watched for some time, as this will reduce energy consumption.
• The energy consumed during use can be significantly reduced if the brightness level of the picture is reduced, and this will reduce the overall running cost.

INSTALLATION PROCEDURE

1. Open the package and make sure all the accessories are included. 2. Attach the stand to the TV set. 3. Connect an external device to the TV set.

ASSEMBLING AND PREPARATION

Unpacking

Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item.

CAUTION

• Do not use any unapproved items to ensure safety and product life span.
• Any damages or injuries caused by using unapproved items are not covered by the warranty.
• Some models have a thin film attached to the screen, and this must not be removed.

NOTE

• The items supplied with your product may vary depending on the model.
• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.
• For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm wide. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your TV's USB port.

^*A≤ 10 mm

Remote control and batteries (AAA) (See p. 20)	Owner's manual
Cable holder (Depending on model) (See p. A-6)	Polishing cloth (Depending on model) Use this to remove dust from the cabinet.
Adapter (Only 19/22/26LS35**) (See p. B-3)	Stand Screw 2EA, P4 x 16 (Only 19/22LS35**) (See p. A-3)
Stand Screw 2EA, M4 x 14 (Only 26LS35**) (See p. A-3)	Stand Screw 4EA, P4 x 16 4EA, M4 x 14 (Only 32LS35**, 42LS345*, 42LS341*, 42LS348*) (See p. A-3, A-5)
Stand Screw 8EA, M4 x 20 (Only 26/32/42CS46**, 32/42LS340*) (See p. A-4)	Stand Screw 2EA, P4 x 16 4EA, M4 x 20 (Only 32LS345*, 32LS341*, 32LS348*) (See p. A-5)
Desk-mount screw (Only 32LS35**, 26/32/42CS46**, 32/42LS34**) (See p. 17)	Power Cord
Protection cover (Only 26CS46**) (See p. A-7)	Protection cover (Only 32CS46**, 32LS340*) (See p. A-7)
Protection cover (Only 42CS46**, 42LS340*) (See p. A-7)	Protection cover (Only 32LS345*, 32LS341*, 32LS348*) (See p. A-7)
Isolator (Depending on model) (See p. 13)

Stand Body / Stand Base

(Only 19/22/26LS35**)

(See p. A-3)

Stand Body / Stand Base

(Only 32LS35**)

(See p. A-3)

Stand Body / Stand Base

(Only 26CS46**)

(See p. A-4)

Stand Body / Stand Base

(Only 32/42CS46* , 32/42LS340 )

(See p.A-4)

Stand Body / Stand Base

(Only 32LS345 , 32LS341 , 32LS348*)

(See p. A-5)

Stand Body / Stand Base

(Only 42LS345, 42LS341, 42LS348*)

(See p. A-5)

NOTE

• Antenna Isolator Installation Guide
• Use this to install the TV in a place where there is a voltage difference between the TV set and the GND of the antenna signal. If there is a voltage difference between the TV set and the GND of the antenna signal, the antenna contact might be heated and excessive heat might cause an accident.
• You can improve the safety when watching TV by efficiently removing power voltage from the TV antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid disconnecting the antenna isolator after installation.
• Before starting, be sure that the TV antenna is connected.

2. Connect to Set-Top box.

Connect one end of the isolator to the cable/antenna jack and the other to the TV set or set-top box.

"Equipment connected to the protective earthing of the building installation through the mains connection or through other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a cable distribution system has therefore to be provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN 60728-11)"

When applying the RF isolator, a slight loss of signal sensitivity can occur.

CAUTION

Power Cord Installation Guide

• If the power cord provided with the TV looks like the picture below, please ensure that it is inserted in the correct direction.

TV Power Cord

Correct Wrong

Parts and buttons

A type: 19/22/26/32LS35, 26/32/42CS46, 32/42LS340*

B type: 32/42LS345, 32/42LS341, 32/42LS348*

Screen

Screen

Buttons

Remote control and intelligent sensors

Power indicator

Speakers

Touch buttons

OK

SETTINGS

INPUT

Speakers

Remote control and intelligent sensors

Power indicator

Buttons

A type2

B type

Description

Scrolls through the saved programmes.

Adjusts the volume level.

OK

Selects the highlighted menu option or confirms an input.

SETTINGS S

Accesses the main menu, or saves your input and exits the menus.

INPUT

Changes the input source.

//

Turns the power on or off.

1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding environment. 2 A type buttons are touch sensitive and can be operated through simple touch with your finger.

Lifting and moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.

It is recommended to move the TV in the box or packing material that the TV originally came in. - Before moving or lifting the TV, disconnect the power cord and all cables. - When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area.

• When transporting a large TV, there should be at least 2 people.
• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.
• When transporting the TV, keep the TV upright. Never turn the TV on its side or tilt it towards the left or right.

Mounting on a table

1. Lift and tilt the TV into its upright position on a table.

• Leave a minimum of 10 cm of space from the wall for proper ventilation.

2. Connect the power cord to a wall outlet.

CAUTION

• Do not place the TV near or on sources of heat, as this may result in fire or other damage.

Securing the TV to a table

(Only 32LS35, 26/32/42CS46, 32/42LS34**) Fix the TV to a table to prevent it from tilting forward, damage, and potential injury.

To secure the TV to a table, insert and tighten the supplied screw on the rear of the stand.

WARNING

To prevent the TV from falling over, the TV should be securely attached to the floor/wall per installation instructions. Tipping, shaking, or rocking the TV may cause injury.

Adjusting the angle of the TV to suit view

(Only 32/42CS46**, 32/42LS340*) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view.

CAUTION

• When adjusting the angle of the product, watch out for your fingers. Personal injury may occur if hands or fingers are pinched. If the product is tilted too much, it may fall, causing damage or injury.

Securing the TV to a wall

(This feature is not available for all models.)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope. Make sure to keep the rope horizontal with the flat surface.

CAUTION

Make sure that children do not climb on or hang on the TV.

NOTE

• Use a platform or cabinet that is strong and large enough to support the TV securely.
• Brackets, bolts and ropes are not provided. You can obtain additional accessories from your local dealer.

Using the Kensington security system

(Depending on model)

The Kensington security system connector is located at the rear of the TV. For more information of installation and using, refer to the manual provided with the Kensington security system or visit http://www.kensington.com.

Connect the Kensington security system cable between the TV and a table.

Mounting on a wall

Attach an optional wall mount bracket at the rear of the TV carefully and install the wall mount bracket on a solid wall perpendicular to the floor. When you attach the TV to other building materials, please contact qualified personnel. LG recommends that wall mounting be performed by a qualified professional installer.

Make sure to use screws and a wall mount bracket that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

Separate purchase (Wall Mounting Bracket)

Model	19/22/26LS35**	32LS35**, 26/32CS46**, 32LS34**
VESA (A x B)	100 x 100 200 x	100
Standard screw	M4 M4
Number of screws	4	4
Wall mount bracket	LSW100B LSW1	100B
Model	42CS46**, 42LS34**
VESA (A x B)	200 x 200
Standard screw	M6
Number of screws	4
Wall mount bracket	LSW200BX LSW220BX

CAUTION

• Disconnect the power first, and then move or install the TV. Otherwise, electric shock may occur.
• If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel.
• Do not over-tighten the screws as this may cause damage to the TV and void your warranty. Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty.

NOTE

Use the screws that are listed in the VESA standard screw specifications. - The wall mount kit includes an installation manual and necessary parts. - The wall mount bracket is not provided. You can obtain additional accessories from your local dealer. The length of screws may differ depending on the wall mount. Make sure to use the proper length. - For more information, refer to the manual supplied with the wall mount.

REMOTE CONTROL

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly.

To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the + and - ends to the label inside the compartment, and close the battery cover. To remove the batteries, perform the installation actions in reverse.

CAUTION

• Do not mix old and new batteries, as this may damage the remote control.

Make sure to point the remote control toward the remote control sensor on the TV.

eONERGYTEAVINGNESS of the screen to reduce energy consumption.
TV / RAD detects Radio, TV and DTV programme.
GUIDE	Shows programme guide.
INFO Views the information of the current programme and screen.
☐RATIO	Resizes an image.
- INPARanges the input source.
LIST	Accesses the saved programme list.
Q.VIEW	Returns to the previously viewed programme.
SETTINGS	Accesses the main menus.
Q.MENU	Accesses the Quick menus.
Navigation buttons (up/down/left/right)	Scrolls through menus or options.
OK	Selects menus or options and confirms your input.
	Returns to the previous level.
EXIT	Clears on-screen displays and return to TV viewing.
FAV	Accesses your favourite programme list.
AD Switches the Audio Description on or off.
PAGE	Moves to the previous or next screen.
Coloured buttons	These access special functions in some menus. (Red, :Green, :Yellow, :Blue)
SUBTITLE	Recalls your preferred subtitle in digital mode.
Control buttons (I, , II, , «, »)	Controls the MY MEDIA menus, or the SIMPLINK compatible devices (USB,SIMPLINK).
TELETEXT BUTTONS	These buttons are used for teletext.

USING THE USER GUIDE

User Guide allows you to more easily access the detailed TV information.

1 Press SETTINGS to access the main menus. 2 Press the RED button to access the Customer Support menus. 3 Press the Navigation buttons to scroll to User Guide and press OK.

1 Shows the description of the selected menu. You can use the up/down arrow keys to move between pages. 2 Zooms in or out the screen.

1 Allows to select the category you want. 2 Allows to select the item you want. You can use the up/down arrow keys to move between pages. 3 Allows to browse the description of the function you want from the index.

MAINTENANCE

Cleaning your TV

Clean your TV regularly to keep the best performance and to extend the product lifespan.

CAUTION

• Make sure to turn the power off and disconnect the power cord and all other cables first.
• When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges.

Screen, frame, cabinet and stand

• To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
• To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth.

CAUTION

• Avoid touching the screen at all times, as this may result in damage to the screen.
• Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches and image distortions.
• Do not use any chemicals as this may damage the product.
• Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.

Power cord

Remove the accumulated dust or dirt on the power cord regularly.

TROUBLESHOOTING

Problem Solution
Cannot control the TV with the remote control.	Check the remote control sensor on the product and try again. Check if there is any obstacle between the product and the remote control. Check if the batteries are still working and properly installed (⊕ to⊕⊕).⊕
No image display and no sound is produced.	Check if the product is turned on. Check if the power cord is connected to a wall outlet. Check if there is a problem in the wall outlet by connecting other products.
The TV turns off suddenly.	Check the power control settings. The power supply may be interrupted. Check if the Auto sleep feature is activated in the Time settings. If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

USER MANUAL

LED-LCD-TV / LCD-TV

(Only 19/22/26LS35**)

(See p. A-3)

Stand body / Stand plate

(Only 32LS35**)

(See p. A-3)

Stand body / Stand plate

(Only 26CS46**)

(See p. A-4)

Stand body / Stand plate

(Only 32/42CS46*, 32/42LS340*)

(See p. A-4)

Stand body / Stand plate

(Only 32LS345 , 32LS341 , 32LS348*)

(See p. A-5)

Stand body / Stand plate

(Only 42LS345 , 42LS341 , 42LS348*)

(See p. A-5)

CAUTION

Option A: 19/22/26/32LS35 , 26/32/42CS46 , 32/42LS340*

Option B: 32/42LS345 , 32/42LS341 , 32/42LS348*

Stand body / Stand base

(Only 19/22/26LS35**)

(see p. A-3)

Support body / Support base

(only 32LS35**)

(see p. A-3)

Support body / Support base

(only 26CS46**)

(see p. A-4)

Support body / Support base

(only 32/42CS46**, 32/42LS340*)

(see p. A-4)

Support body / Support base

(only 32LS345*, 32LS341*, 32LS348*)

(see p. A-5)

Support body / Support base

(only 42LS345*, 42LS341*, 42LS348*)

(see p. A-5)

WARNING

Type A: 19/22/26/32LS35**, 26/32/42CS46**, 32/42LS340*

Type B: 32/42LS345*, 32/42LS341*, 32/42LS348*

(Solo 19/22/26LS35**)

(See p. A-3)

Type A: 19/22/26/32LS35**, 26/32/42CS46**, 32/42LS340*

Type B: 32/42LS345*, 32/42LS341*, 32/42LS348*

(Solo 19/22/26LS35**)

Type A: 19/22/26/32LS35, 26/32/42CS46, 32/42LS340*

Type B: 32/42LS345, 32/42LS341, 32/42LS348*

INSTRUCTION MANUAL LCD LED TV / LCD TV

Type A: 19/22/26/32LS35, 26/32/42CS46, 32/42LS340*

Type B: 32/42LS345, 32/42LS341, 32/42LS348*

Type A: 19/22/26/32LS35, 26/32/42CS46, 32/42LS340*

B-type: 32/42LS345 , 32/42LS341 , 32/42LS348*

7,295,673; 7,460,668; 7,515,710; 7,519,274

NOTE FOR OPEN SOURCE SOFTWARE

To obtain the source code under GPL, LGPL, MPL, and other open source licenses that are included in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers, and copyright notices are available for download.

TUTTOA: 19/22/26/32LS35 , 26/32/42CS46 , 32/42LS340*

B-type: 32/42LS345 , 32/42LS341 , 32/42LS348*

Do not touch the screen, as it may cause damage to the screen.

• It is recommended to move the TV in its original packaging. Before moving or lifting the TV, disconnect the power cord and all cables. When transporting the TV, it should be held upright to avoid damage.

Always hold the top and bottom parts of the TV frame. Do not hold the transparent part, the speaker, or the speaker grille.

• This section on MAKING CONNECTIONS mainly uses diagrams for the LS35** models.

Antenna connection

English

Connect the TV to a wall antenna socket with an RF cable (75 Ω).

NOTE

• Use a signal splitter to use more than 2 TVs.
• If the image quality is poor, install a signal amplifier properly to improve the image quality.
• If the image quality is poor with an antenna connected, try to realign the antenna in the correct direction.
• An antenna cable and converter are not supplied.

Satellite dish connection

(Only satellite models)

Connect the TV to a satellite dish to a satellite socket with a satellite RF cable (75Ω)

(Only 19/22/26LS35**)

1 Connect the antenna cable to the antenna input port on the TV. 2 Connect the DC adapter plug to the power input jack on the TV. 3 Connect the power cord to the DC adapter first, then plug the power cord into the wall power outlet.

CAUTION

• Please be sure to connect the TV to the DC power adapter before connecting the TV's power plug to a wall power outlet.

Transmits the digital video and audio signals from an external device to the TV. Connect the external device and the TV with the HDMI cable as shown. Choose any HDMI input port to connect. It does not matter which port you use.

NOTE

It is recommended to use the TV with the HDMI connection for the best image quality. - Use the latest High Speed HDMI™ Cable with CEC (Customer Electronics Control) function. - High Speed HDMI™ Cables are tested to carry an HD signal up to 1080p and higher. Supported DTV Audio: MPEG, Dolby Digital, Dolby Digital Plus, HE-AAC Supported HDMI Audio format: Dolby Digital, PCM (Up to 192 KHz, 32k/44.1k/48k /88k/96k/176k/192k, DTS Not supported.)

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with a component cable as shown.

NOTE

• If cables are not installed correctly, it could cause this image to display in black and white or with distorted colours.

Transmits analog video and audio signals from an external device to the TV. Connect the external device and the TV with the composite cable as shown.

Connect a USB storage device such as a USB flash memory, external hard drive, or a USB memory card reader to the TV and access the My media menu to use various multimedia files.

• Image shown may differ from your TV.

View the encrypted (pay) services in digital TV mode. This feature is not available in all countries.

• Check if the CI module is inserted into the PCMCIA card slot in the right direction. If the module is not inserted properly, this can cause damage to the TV and the PCMCIA card slot.

Euro Scart connection

Transmits the video and audio signals from an external device to the TV set. Connect the external device and the TV set with the euro scart cable as shown. To display images by using progressive scan, make sure to use the euro scart cable.

Output Type Current input mode	AV1 (TV Out1)
Digital TV Digital TV
Analogue TV, AV	Analogue TVComponent
HDMI

1 TV Out : Outputs Analogue TV or Digital TV signals.

NOTE

• Any Euro scart cable used must be signal shielded.

Connect various external devices to the TV and switch input modes to select an external device. For more information of external device's connection, refer to the manual provided with each device.

Available external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.

NOTE

• The external device connection may differ from the model.
• Connect external devices to the TV regardless of the order of the TV port.
• If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information on recording, refer to the manual provided with the connected device. Refer to the external equipment's manual for operating instructions.
• If you connect a gaming device to the TV, use the cable supplied with the gaming device.
• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate or adjust the brightness and contrast on the PICTURE menu until the picture is clear.
• In PC mode, some resolution settings may not work properly depending on the graphics card.

Product specifications may be changed without prior notice due to upgrade of product functions. For the power supply and power consumption, refer to the label attached to the product.

MODELS		19LS35** 22LS35** 26L	S35**
		19LS3500-ZA19LS350S-ZA19LS350T-ZA	22LS3500-ZA22LS350S-ZA22LS350T-ZA22LS3510-ZB22LS351T-ZB22LS3590-ZC	26LS3500-ZA26LS350S-ZA26LS350T-ZA26LS3510-ZB26LS351T-ZB26LS3590-ZC26LS359S-ZC26LS359T-ZC
Dimensions(W x H x D)	With stand (mm) 451.0 x 334.0 x 140.0	523.0 x 376.0 x 140.0	627.0 x 442.0 x 162.0
	Without stand (mm) 451.0 x 296.0 x 31.5	523.0 x 339.0 x 31.6 627.0 x 402.0 x 30.1
Weight	With stand (kg) 2.8 3.5 5.0
	Without stand (kg) 2 6 3.2 4.7
Power Consumption		32 W 35 W 50 W
Power requirement		DC 24V, 1.2A DC 24V, 1.4A DC 24V, 1.8A
MODELS		32LS35** 26CS46** 32CS46**
		32LS3500-ZA32LS350S-ZA32LS350T-ZA32LS3510-ZB32LS351T-ZB32LS3590-ZC32LS359S-ZC32LS359T-ZC	26CS460-ZA26CS460S-ZA26CS460T-ZA26CS465-ZA26CS466-ZA	32CS460-ZA32CS460S-ZA32CS460T-ZA32CS465-ZA32CS466-ZA
Dimensions(W x H x D)	With stand (mm) 755.0 x 530.0 x 239.0 663.0 x755.0 x 479.0 x 45.8 663.0	483.0 x 197.0 794.0 x 565 x 424.0 x 72.8 794.0 x 504	0 x 207.0
	Without stand (mm) 755.0 x 479.0 x 45.8 663.0		0 x 73.5
Weight	With stand (kg) 8.5 7.4 9.0
	Without stand (kg) 7 7 6.6 8.0
Power Consumption		60 W 100 W	110 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		42CS46** 32LS340* 42LS340*
		42CS460-ZA42CS460S-ZA42CS460T-ZA42CS465-ZA42CS466-ZA	32LS3400-ZC32LS340S-ZC32LS340T-ZC	42LS3400-ZC42LS340S-ZC42LS340T-ZC
Dimensions(W x H x D)	With stand (mm) 101.7.0 x 695.0 x 261.0 795.0 x 566.0 x 207.0 1018.0 x 696.0 x 261.0
	Without stand (mm) 1017.0 x 629.0 x 76.5 795.0 x 504.0 x 73.5 1018.0 x 629.0 x 76.5
Weight	With stand (kg) 15.1 9.1	14.7
	Without stand (kg) 13.5 8 1 13.1
Power Consumption		170 W	70 W 120 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		32LS345* 42LS345* 32	LS341*
		32LS3450-ZA	42LS3450-ZA
		32LS345S-ZA	42LS345S-ZA	32LS341C-ZA
		32LS345T-ZA	42LS345T-ZA
Dimensions(W x H x D)	With stand (mm) 738.0 x 501.0 x 185.0 972.0 x	635.0 x 212.0 738.0 x 501.0 x 185.0
	Without stand (mm) 738.0 x 438.0 x 86.0 972.0 x 571.0 x 86.0 738.0 x 438.0 x 86.0
Weight	With stand (kg) 7.5 11.8 7.5
	Without stand (kg) 6 9 10.7 6.9
Power Consumption		60 W 90 W 60 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz
MODELS		42LS341* 32LS348* 42LS348*
		42LS341C-ZA 32LS348C-ZA	42LS348C-ZA 42LS348C-ZA
Dimensions(W x H x D)	With stand (mm) 972.0 x 635.0 x 212.0 738.0 x	501.0 x 185.0 972.0 x 635.0 x 212.0
	Without stand (mm) 972.0 x 571.0 x 86.0 738.0 x 438.0 x 86.0 972.0 x 571.0 x 86.0
Weight	With stand (kg) 11.8 7.5 11.8
	Without stand (kg) 10.7 6.9 10.7
Power Consumption		90 W 60 W 90 W
Power requirement		AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz	AC 100-240 V~ 50 / 60 Hz

CI Module Size(W x H x D)		100.0 mm x 55.0 mm x 5.0 mm
Environment condition	Operating Temperature	0 °C to 40 °C
	Operating Humidity	Less than 80 %
	Storage Temperature	-20 °C to 60 °C
	Storage Humidity	Less than 85 %

	Satellite Digital TV1	Digital TV2	Digital TV	Analogue TV
Television system	DVB-T	DVB-T/T2	DVB-T	PAL/SECAM B/G/D/K
	DVB-C	DVB-C	DVB-C	PAL-I/I', SECAM L/L'3
	DVB-S/S2
Programme coverage	VHF, UHF	VHF, UHF		VHF: E2 to E12, UHF : E21 to E69, CATV: S1 to S20, HYPER: S21 to S47
	C-Band, Ku-Band
Maximum number of storable programmes	6,000	1,500
External antenna impedance	75 Ω

1 Only satellite models 2 Only DVB-T2 support models 3 Except for DVB-T2 support models

HDMI-DTV supported mode

Resolution Horiz	zontal Frequency (kHz)	Vertical Frequency (Hz)
720x480 31.469	31.5	59.9460
720x576 31.25 50
1280x720 37.5	44.9645	5059.9460
1920x1080 33.7	233.7528.12526.972733.7556.2567.4367.5	59.94605023.972430.005059.9460

HDMI-PC supported mode

Resolution Horizontal Frequency (kHz)		Vertical Frequency (Hz)
640x350 31.468	70.09
720x400 31.469	70.08
640x480 31.469	59.94
800x600 37.879	60.31
1024x768 48.363	60.00
1152x864 54.348	60.053
1360x768 47.712	60.015
1280x1024 63.981	60.020
1920x1080 67.506	60.00

Component port connecting information

Component ports on the TV Y P

B

PR

Video output ports on DVD player	Y	PB	PR
	Y B-Y	R-Y
	Y Cb	Cr
	Y Pb	Pr

Signal	Component
480i/576i O
480p/576p O
720p/1080i O
1080p O	(50 Hz / 60 Hz only)

Life's Good

Record the model number and serial number of the TV.

Refer to the label on the back cover and quote this information to your dealer when requiring any service.

MODEL

SERIAL

Digital Video

Broadcasting

Please contact LG First.

If you have any inquiries or comments, please contact LG customer information centre

www.lg.com

LG Customer Information Centre
Country	LG Service	Country	LG Service
Österreich	0 810 144 131 09	Nederlande 54
Belgie	015 200 255 800	Norgerd 10
Luxemburg	0032 15 200 255	Rolfshafen 4 54	54
Бulgaria	07001 54 54 808	Prüssel 154
Česka Rep.	810 555 810 031	Rohstoffe 2
Danmark	8088 5758 0850	Sibirienko
Suomi	0800 0 54 54 90	España 234
France	3220dtdLG ou tapez	Sverige	0770 54 54 54
Deutschland	01803 11 54 11 08	Schweiz 543
Емäða	801 11 200 900, 210 4800 564	United Kingdom	0844 847 5454
		Pocsnja	8 800 200 7676
Magyarország	06 40 54 54 54	Borotni 990
Éire	0818 27 6955 0	Köln 0000	000
Italia	199600099	Kazakhstan	8 8000 805 805, 2255(GSM)
Берапсь	8 820 0071 111
Latvija	80200201 8 800	Yakutstahn
Lietuva	880008081	Кыр themselves	8 0000 710 005
