SANDER Thank you for choosing BLACK+DECKER! PLEASE READ BEFORE RETURNING THIS PRODUCT FOR ANY REASON. If you have a question or experience a problem with your BLACK+DECKER purchase, go to http://www.blackanddecker.com/instantanswers If you can’t find the answer or do not have access to the Internet, call 1-800-544-6986 from 8 a.m. to 5 p.m. EST Mon. - Fri. to speak with an agent. Please have the catalog number available when you call.SAVE THIS MANUAL FOR FUTURE REFERENCE.VEA EL ESPANOL EN LA CONTRAPORTADA.INSTRUCTIVO DE OPERACIÓN, CENTROS DE SERVICIO Y PÓLIZA DE GARANTÍA. ADVERTENCIA: LÉASE ESTE INSTRUCTIVO ANTES DE USAR EL PRODUCTO.*Maximum initial battery pack voltage (measured without a workload) is 20 volts. The nominal voltage is 18.CATALOG NUMBER BDCMS202

WARNING: Read all safety

warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

REFERENCE The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery- operated (cordless) power tool.

SAVE THESE INSTRUCTIONS

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock. b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/ or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations. f) Dress properly. Do not wear loose Definitions: Safety Alert Symbols and Words This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risks of personal injury or property damage.

DANGER: Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided,

could result in death or serious injury. CAUTION: Indicates a potentially haz ard ous situation which, if not avoided, may result in minor or mod er ate injury. NOTICE: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may result in property damage.clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) BATTERY TOOL USE AND CARE

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. d) Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SPECIFIC SAFETY RULES

• Hold power tools by insulated gripping surfaces when performing an operation where the sanding pad may contact hidden wiring or its own cord. Contact with a “live” wire will make exposed metal parts of the tool “live” and shock the operator.

WARNING: ALWAYS use safety

glasses. Everyday eye glasses are NOT safety glasses. Also use face or dust mask if cutting operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

WARNING: Some dust created by

power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,

• crystalline silica from bricks and cement and other masonry products, and

• arsenic and chromium from chemically- treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap

and water. Allowing dust to get into your mouth, eyes, or lay on the skin may promote absorption of harmful chemicals.

Use of this tool can generate and/or disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.

• Sanding of lead-based paint is not recommended. See Sanding: Lead Based Paint for additional information before sanding paint.

• Clean your tool out periodically. Extension Cords When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord. SYMBOLS The label on your tool may include the following symbols. The symbols and their definitions are as follows: V .................. volts A ..................amperes Hz ................hertz W ................. watts min ..............minutes or AC ......alternating current or DC ...direct current

Sanding of lead based paint is NOT RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnant women. Since it is difficult to identify whether or not a paint contains lead without a chemical analysis, we recommend the following precautions when sanding any paint: PERSONAL SAFETY

• No children or pregnant women should enter the work area where the paint sanding is being done until all clean up is completed.

• A dust mask or respirator should be worn by all persons entering the work area. The filter should be replaced daily or whenever the wearer has difficulty breathing.

• NOTE: Only those dust masks suitable for working with lead paint dust and fumes should be used. Ordinary painting masks do not offer this protection. See your local hardware dealer for the proper (NIOSH approved) mask.

• NO EATING, DRINKING or SMOKING should be done in the work area to prevent ingesting contaminated paint particles. Workers should wash and clean up BEFORE eating, drinking or smoking. Articles of food, drink, or smoking should not be left in the work area where dust would settle on them. ENVIRONMENTAL SAFETY

• Paint should be removed in such a manner as to minimize the amount of dust generated.

• Areas where paint removal is occurring should be sealed with plastic sheeting of 4 mils thickness.

• Sanding should be done in a manner to reduce tracking of paint dust outside the work area.

CLEANING AND DISPOSAL

• All surfaces in the work area should be vacuumed and thoroughly cleaned daily for the duration of the sanding project. Vacuum filter bags should be changed frequently.

• Plastic drop cloths should be gathered up and disposed of along with any dust chips or other removal debris. They should be placed in sealed refuse receptacles and disposed of through regular trash pick-up procedures. During clean up, children and pregnant women should be kept away from the immediate work area.

• All toys, washable furniture and utensils used by children should be washed thoroughly before being used again.

SAVE THESE INSTRUCTIONS: This manual contains important safety instructions for battery chargers.

• Before using charger, read all5 individual extension contains at least the minimum wire size. Recommended Minimum Wire Size for Extension Cords Minimum Gage for Cord Sets Volts Total Length of Cord in Feet 120V 0-25 26-50 51-100 101-150 (0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m) Ampere Rating More Not more American Wire Gage Than Than 0 -6 18 16 16 14 6 -10 18 16 14 12 10 -12 16 16 14 12 12 -16 14 12 Not Recommended

• Do not place any object on top of charger or place the charger on a soft surface that might block the ventilation slots and result in excessive internal heat. Place the charger in a position away from any heat source. The charger is ventilated through slots in the top and the bottom of the housing.

• Do not mount charger on wall or permanently affix charger to any surface. The charger is intended to use on a flat, stable surface (i.e., table top, bench top).

• Do not operate charger with damaged cord or plug — have them replaced immediately.

• Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way. Take it to an authorized service center.

• Do not disassemble charger; take it to an authorized service center when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.

• Disconnect the charger from the outlet before attempting any cleaning. This will reduce the risk of electric shock. Removing the battery pack will not reduce this risk.

• NEVER attempt to connect 2 chargers together.

• The charger is designed to operate on standard household electrical power (120 Volts). Do not attempt to use it on any other voltage.

SAFETY WARNINGS and all instructions for the battery pack, charger and power tool. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. The battery pack is not fully charged out of the carton. Before using the battery pack and charger, read the safety instructions below. Then follow charging procedures outlined.

READ ALL INSTRUCTIONS

instructions and cautionary markings on charger, battery pack, and product using battery pack.

SHOCK HAZARD. Disconnect the charger from the AC outlet before cleaning. Dirt and grease may be removed from the exterior of the charger using a cloth or soft non-metallic brush. Do not use water or any cleaning solutions.

SHOCK HAZARD. Do not allow any liquid to get inside the charger. Electric shock may result.

BURN HAZARD. Do not submerge the battery pack in any liquid or allow any liquid to enter the battery pack. Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling. CAUTION: BURN HAZARD. To reduce the risk of injury, charge only BLACK+DECKER rechargeable battery packs. Other types of batteries may overheat and burst resulting in personal injury and property damage. CAUTION: Under certain conditions, with the charger plugged into the power supply, the charger can be shorted by foreign material.

• DO NOT attempt to charge the battery pack with any chargers other than those specified by the manufacturer. The charger and battery pack are specifically designed to work together.

• These chargers are not intended for any uses other than charging designated BLACK+DECKER rechargeable batteries. Any other uses may result in risk of fire, electric shock or electrocution.

• Do not expose charger to rain or snow.

• Pull by plug rather than cord when disconnecting charger. This will reduce risk of damage to electric plug and cord.

Make sure that cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.

• When operating a charger outdoors, always provide a dry location.

• If use of an extension cord is absolutely necessary outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

• An extension cord must have adequate wire size (AWG or American Wire Gauge) for safety. The smaller the gauge number of the wire, the greater the capacity of the cable, that is 16 gauge has more capacity than 18 gauge. When using more than one extension to make up the total length, be sure each6 OR CARRY BATTERY SO THAT METAL OBJECTS CAN CONTACT EXPOSED BATTERY TERMINALS.

FOR EXAMPLE, DO NOT PLACE BATTERY

IN APRONS, POCKETS, APPLIANCE BOXES, PRODUCT KIT BOXES, DRAWERS, ETC., WITH LOOSE NAILS, SCREWS, KEYS, ETC.

CONDUCTIVE MATERIALS SUCH AS KEYS, COINS, HAND APPLIANCES AND THE LIKE. THE

US DEPARTMENT OF TRANSPORTATION

AND WELL INSULATED FROM MATERIALS

1. Longest life and best performance can be obtained if

the battery pack is charged when the air temperature is between 65°F and 75°F (18°- 24°C). DO NOT charge the battery pack in an air temperature below +40°F (+4.5°C), or above +105°F (+40.5°C). This is important and will prevent serious damage to the battery pack.

2. The charger and battery pack may become warm to touch

while charging. This is a normal condition, and does not indicate a problem. To facilitate the cooling of the battery pack after use, avoid placing the charger or battery pack in a warm environment such as in a metal shed, or an uninsulated trailer.

If the battery pack does not charge properly: a. Check current at receptacle by plugging in a lamp or other appliance. b. Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights. c. Move charger and battery pack to a location where the surrounding air temperature is approximately 65°F - 75°F (18°- 24°C). d. If charging problems persist, take the tool, battery pack and charger to your local service center.

4. The battery pack should be recharged when it

fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE to use under these conditions. Follow the charging procedure. You may also charge a partially used pack whenever you desire with no adverse affect on the battery pack.

5. Foreign materials of a conductive

nature such as, but not limited to, steel wool, aluminum foil, or any buildup of metallic particles should be kept away from charger cavities. Always unplug the charger from the power supply when there

• NEVER force the battery pack into the charger. DO NOT modify the battery pack in any way to fit into a non- compatible charger as battery pack may rupture causing serious personal injury. Consult the chart at the end of this manual for compatibility of batteries and chargers.

• Do not incinerate the battery pack even if it is severely damaged or is completely worn out. The battery pack can explode in a fire. Toxic fumes and materials are created when battery packs are burned.

Do not charge or use battery in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Inserting or removing the battery from the charger may ignite the dust or fumes.

If battery contents come into contact with the skin, immediately wash area with mild soap and water. If battery liquid gets into the eye, rinse water over the open eye for 15 minutes or until irritation ceases. If medical attention is needed, the battery electrolyte for Li-ion batteries is composed of a mixture of liquid organic carbonates and lithium salts.

• Contents of opened battery cells may cause respiratory irritation. Provide fresh air. If symptoms persist, seek medical attention.

• Do not dispose of the battery in a fire. The cell may explode. Check with local codes for possible special disposal instructions.

• Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.

• Charge the battery packs only in BLACK+DECKER chargers.

• DO NOT splash or immerse in water or other liquids. This may cause premature cell failure.

• Do not store or use the appliance and battery pack in locations where the temperature may reach or exceed 105°F (40˚C) (such as outside sheds or metal buildings in summer).

is no battery pack in the cavity. Unplug charger before attempting to clean.

6. Do not freeze or immerse charger in

water or any other liquid.

WARNING: Shock hazard. Do not

allow any liquid to get inside charger.Never attempt to open the battery pack for any reason. If the plastic housing of the battery pack breaks or cracks, return to a service center for recycling. STORAGE RECOMMENDATIONS

1. The best storage place is one that is

cool and dry away from direct sunlight and excess heat or cold.

2. For long storage, it is recommended to

store a fully charged battery pack in a cool dry place out of the charger for optimal results. NOTE: Do not store the battery packs in a tool with the trigger switch locked on. Never tape the trigger switch in the ON position. NOTE: Battery packs should not be stored completely depleted of charge. The battery pack will need to be recharged before use. CHARGING PROCEDURE BLACK+DECKER chargers are designed to charge BLACK+DECKER battery packs. NOTE: To ensure maximum performance and life of lithium ion BATTERY PACKS:

• Charge the battery pack fully before first use.

• Recharge discharged batteries as soon as possible after every use.

• Do not discharge batteries fully.

1. Plug the charger into an appropriate

outlet before inserting the battery pack.

2. Insert the battery pack into the charger.

3. The green LED will flash indicating that

the battery is being charged.

The completion of charge is indicated by the green LED remaining on continuously. The pack is fully charged and may be used at this time or left on the charger.

LEAVING THE BATTERY IN THE

CHARGER The charger and battery pack can be left connected with the green LED glowing indefinitely. The charger will keep the battery pack fresh and fully charged. Description Catalog # These products use the batteries and chargers listed in the chart below. 20v Max** Lithium-Ion Battery: LBXR2020v Max** Lithium-Ion Battery: LBXR20BT20v Max** Type 1 22wh Lithium-Ion Battery: LB20Lithium 2 Amp Fast Charger: L2AFC Lithium 2 Amp Fast Charger: L2AFCBST20v Max** Lithium-Ion Battery Charger: LCS20 20v Max** Lithium-Ion Battery Charger: LCS20120v Max** Lithium-Ion Battery Charger: LCS162020v Max** Lithium-Ion Battery Charger: LCS200 FUNCTIONAL DESCRIPTION

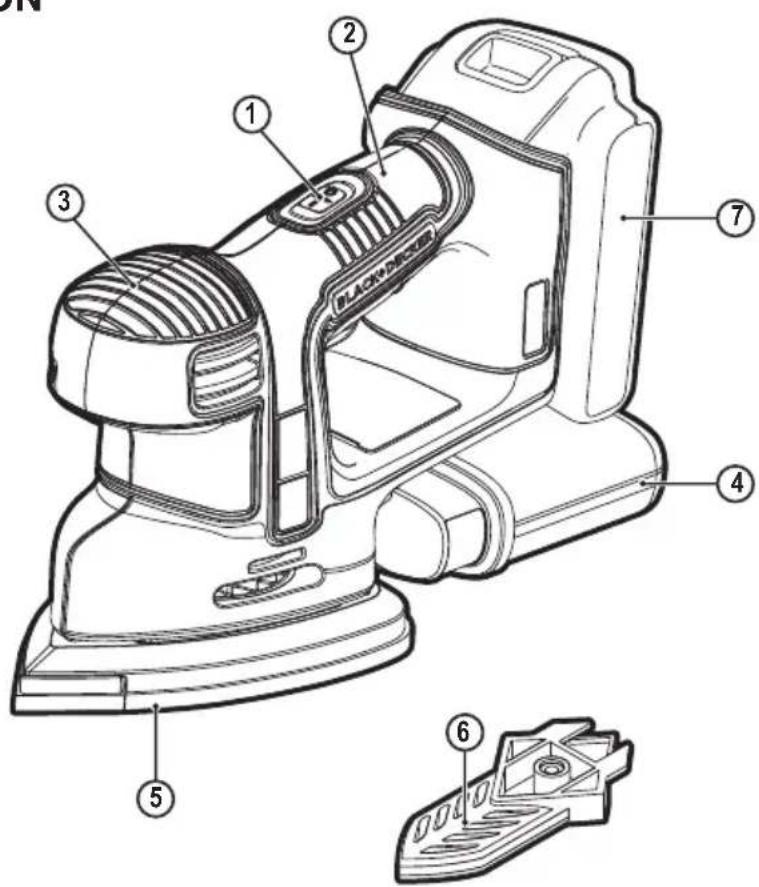

Tools required: PH1 Phillips screwdriver8 INTENDED USE Your BLACK+DECKER BDCMS20 sander has been designed for sanding wood, metal, plastics and painted surfaces. This tool is intended for consumer use only. OPERATING INSTRUCTIONS

WARNING: To reduce the risk of

serious personal injury, read and follow all important safety warnings and instructions prior to using this tool.

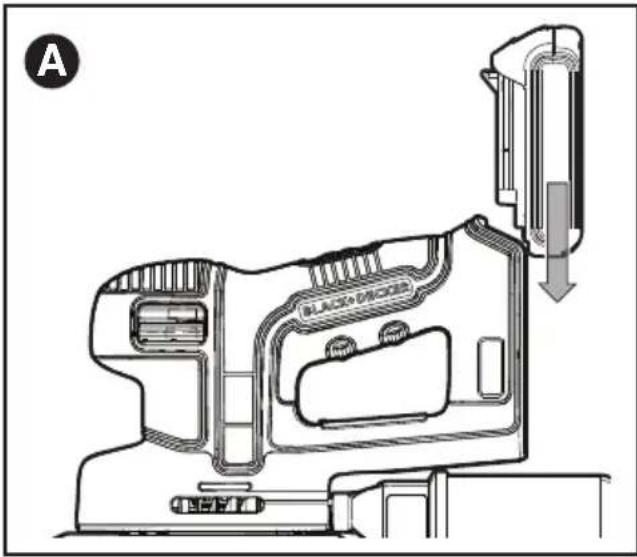

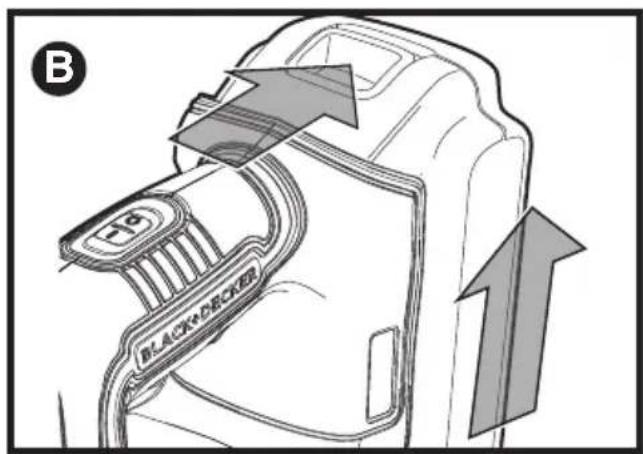

INSTALLING AND REMOVING THE

BATTERY PACK FROM THE TOOL

CAUTION: Make certain the switch is off prior to installing or removing the battery pack. TO INSTALL BATTERY PACK: Insert battery pack (7) into tool until fully seated and an audible click is heard (figure A). Make sure battery pack is fully seated and fully latched into position. TO REMOVE BATTERY PACK: Depress the battery release button in the back of the battery pack and pull battery pack out of tool (figure B). OPERATION NOTE: Do not rest fingers on platen during use. Move the sander in long sweeping strokes across the surface, letting the tool do the work. Light pressure is all that is required for sanding, polishing or scrubbing. Excessive pressure will slow the tool and produce inferior results. Check your work often, product is capable of removing material rapidly.

WARNING: Shock hazard. Under no

circumstances should this product be used near water. CAUTION: To reduce the risk of injury, turn off and remove the battery from the tool before making any adjustments or removing or installing attachments or accessories.

SWITCHING ON AND OFF

• To switch the tool “ON”, depress the on/off switch (1) at the forward position I.

• To switch the tool “OFF”, depress the on/ off switch (1) at the back position O. FITTING SANDING SHEET (FIG. C)

• Hold the tool with the sanding base facing upwards.

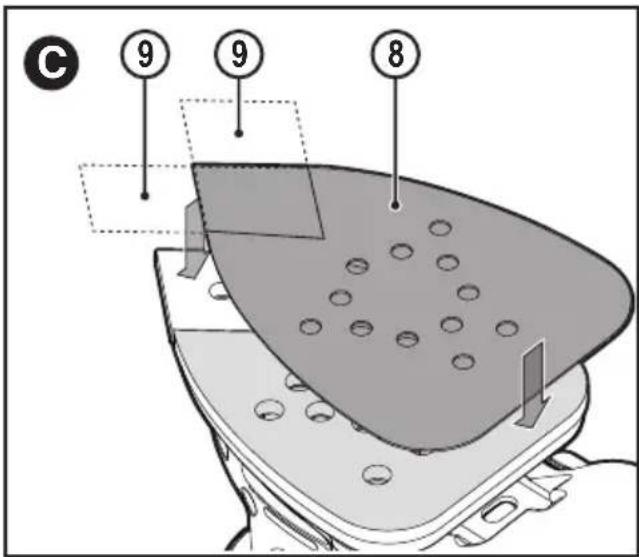

Place the sanding sheet (8) onto the sanding base, making sure that the holes in the sheet line up with the holes in the base. FITTING SANDING TIPS (FIG. C)

• Detach the two additional diamond-shaped tips (9) from the sanding sheet (8). NOTE: The diamond-shaped tip (10) can be reversed and replaced when worn.

• When the front part of the tip (9) is worn, detach it from the sheet, reverse it and press it onto the sanding base again.

• When the whole tip is worn, remove it from the sanding base and fit a new tip. NOTE: For optimal dust collection, ensure the correct type of sanding paper is used.

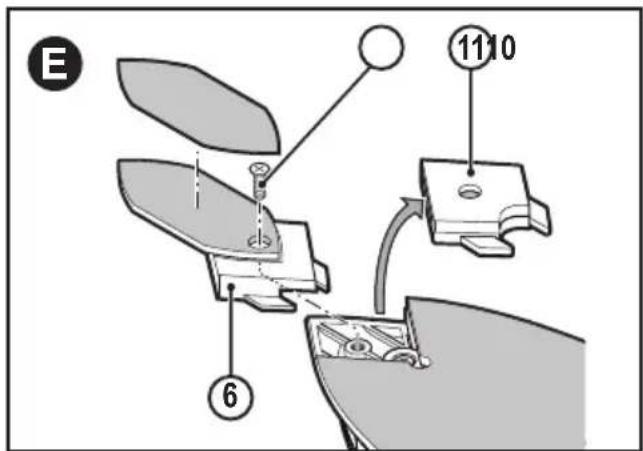

FINGER ATTACHMENT (FIG. D -

OPTIONAL ACCESSORY) The finger attachment is used for fine detail sanding.• Remove the screw (10).• Remove the diamond-shaped pad tip (11) from the base.• Fit the finger attachment (6) onto the sanding base as shown in Figure E.• Fit and tighten the screw.• Align the appropriate sanding sheet with the finger attachment.

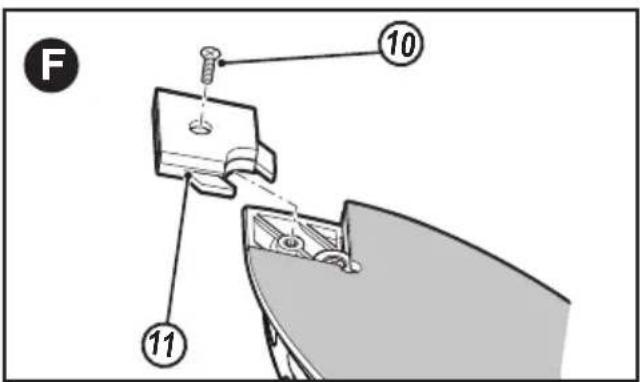

REPLACING DIAMOND SHAPED

• Replace the diamond shaped tip (11).• Replace and tighten screw (10).

FITTING AND REMOVING THE

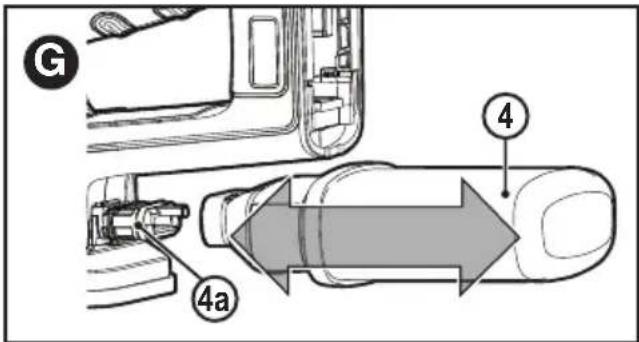

DUST CANISTER (FIG. G) CAUTION: To reduce the risk of injury, turn off and remove the battery from the tool before making any adjustments or removing or installing attachments or accessories. CAUTION: Respiratory hazard. Never operate this tool for wood sanding unless the dust canister is in place. Sanding dust exhaust may create a breathing hazard.

WARNING: Fire hazard.

Collected sanding dust from sanding surface coatings (polyurethane, linseed oil, etc.) can self-ignite in sander dust canister or elsewhere and cause fire. To reduce risk, empty canister frequently and strictly follow sander manual and coating manufacturer’s instructions.

WARNING: Fire hazard. When

working on metal surfaces, do not use the dust canister or a vacuum cleaner because sparks are generated. Wear safety glasses and a dust mask. Due to the danger of fire, do not use your sander to sand magnesium surfaces. Do not use for wet sanding. The dust collection canister (4) should be emptied after every 10 minutes of sanding.• Slide the dust canister (4) onto the connector (4a) and make sure that it is securely located.• To remove the dust canister, pull it to the rear and away from the rear end of the tool.

Let the tool work at its own pace. Do not overload.• Do not place your hands over the ventilation slots. Do not exert too much pressure on the tool. Regularly check the condition of the sanding sheet. Replace when necessary.• Always sand with the grain of the wood. When sanding new layers of paint before applying another layer, use extra fine grit.• On very uneven surfaces, or when removing layers of paint, start with a coarse grit. On other surfaces, start with a medium grit. In both cases, gradually change to a fine grit for a smooth finish. When sanding on a vertical surface, hold the back handle (2) for better grip and control

ACCESSORIES A variety of Mouse® accessories are available at extra cost. Listings per retailer may vary. Note: Use only sandpaper with holes in the same configuration as on the base of the sander. Sandpaper without holes will not allow dust to enter the canister.The hook and loop pad and individual bases are replaceable parts. If they become worn, contact your local service center. For more information call: 1-800-544-6986.

The use of any accessory not recommended for use with this tool could be hazardous.

G10 Item DescriptionDetail nger. For small hard-to-reach areas. The detail nger can be used for light sanding and for sanding into corners.(Part Number - X32214-XJ)240 grit sanding mesh.For a ne nish for large detail sanding.(Part Number - X39132-XJ)120 grit sanding mesh.For a medium nish for large detail sanding.(Part Number - X39127-XJ)80 grit sanding mesh.For a coarse nish for large detail sanding.(Part Number - X39122-XJ)240 grit large detail sanding sheet with two replacement tips.For a ne nish for large detail sanding.(Part Number - X31019-XJ)120 grit large detail sanding sheet with two replacement tips.For a medium nish for large detail sanding.(Part Number - X31009-XJ)60 grit large detail sanding sheet with two replacement tips.For a coarse nish for large detail sanding.(Part Number - X31039-XJ)120 grit detailed nger sanding sheet. For a medium nish for detailed sanding.(Part Number - X3277-XJ) MAINTENANCE Use only mild soap and damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid. IMPORTANT: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment should be performed by authorized service centers or other qualified service organizations, always using identical replacement parts. The RBRC

Seal The RBRC® (Rechargeable Battery Recycling Corp oration) Seal on the nickel cadmium, nickel metal hydride or lithium-ionbatteries (or battery packs) indicates that the costs to recycle these batteries (or battery packs) at the end of their useful life have already been paid by BLACK+DECKER. In some areas, it is illegal to place spent nickel cadmium, nickel metal hydride or lithium-ion batteries in the trash or municipal solid waste stream and the Call 2 Recycle® program provides an environmentally conscious alternative. Call 2 Recycle, Inc., in cooperation with BLACK+DECKER and other battery users, has established the program in the United States and Canada to facilitate the collection of spent nickel cadmium, nickel metal hydride or lithium-ion batteries. Help protect our environment and conserve natural resources by returning the spent nickel cadmium, nickel metal hydride or lithium-ion batteries to an authorized BLACK+DECKER service center or to your local retailer for recycling. You may also contact your local recycling center for information on where to drop off the spent battery. RBRC® is a registered trademark of Call 2 Recycle, Inc. This Class B digital apparatus complies with Canadian ICES-003. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This Class B digital apparatus complies with Canadian ICES-003. SERVICE INFORMATION All BLACK+DECKER Service Centers are staffed with trained personnel to provide customers with efficient and reliable power tool service. Whether you need technical advice, repair, or genuine factory replacement parts, contact the BLACK+DECKER location nearest you. To find your local service location, call: 1-800-544-6986 or visit www. blackanddecker.com

TWO-YEAR LIMITED WARRANTY

Black & Decker (U.S.) Inc. warranties this product to be free from defects in material or workmanship for a period of two (2) years following the date of purchase, provided that the product is used in a home environment. This limited warranty does not cover failures due to abuse, accidental damage or when repairs have been made or attempted by anyone other than Black+Decker and its Authorized Service Centers. A defective product meeting the warranty conditions set forth herein will be replaced or repaired at no charge in either of two ways: The first, which will result in exchanges only, is to return the product to the retailer from whom it was purchased (provided that the store is a participating retailer).Returns should be made within the time period of the retailer’s policy for exchanges. Proof of purchasemay be required. Please check with the retailer for its specific return policy regarding time limits for returns or exchanges. The second option is to take or send the product (prepaid) to a Black+Decker owned or authorized Service Center for repair or replacement at Black+Decker’s option. Proof of purchase may be required. Black+Decker owned and authorized service centers are listed online at www.blackanddecker.com. This warranty does not apply to accessories. This warranty gives you specific legal rights and you may have other rights which vary from state to state. Should you have any questions, contact the manager of your nearest Black+Decker Service Center. This product is not intended for commercial use, and accordingly, such commercial use of this product will void this warranty. All other guarantees, express or implied, are hereby disclaimed. LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, check country specific warranty information contained in the packaging, call the local company or see the website for such information. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

• Unit will not start. • Battery not installed properly. • Check battery installation.

• Battery not charged. • Check battery charging requirements.

• Battery will not charge. • Battery not inserted into charger . • Insert battery intocharger until green LED appears.

• Charger not plugged in. • Plug charger into a working outlet. Refer to “Important Charging Notes” for more details.

• Check current at receptacle by plugging in a lamp or other appliance.

• Check to see if receptacle is connected to a light switch which turns power off when you turn out the lights.

• Surrounding air tempera- • Move charger and tool to a surrounding ture too hot or too cold. air temperature of above 40 degree F (4.5°C) or below 105 degree F (+40.5°C).

• Dust is not • Sandpaper holes do not align. • Use Mouse

sandpaper with the being collected. appropriate hole configuration.

• Dust canister is full. • Separate dust canister and gently shake or tap to empty. For assistance with your product, visit our website www.blackanddecker.com for the location of the service center nearest you or call the BLACK+DECKER help line at 1-800-544-6986.

Application / Accessory Matrix

ACCESSORY RECOMMENDED APPLICATIONS / USES

MediuM grit sandpaper paint, Varnish, rust reMoVal Fine grit sandpaper surFace blending and Finishing extra Fine grit sandpaper sanding between coats oF paint or Varnish detail sanding tips corners / hard to reach places 1 ot polishing / stripping wool polishing Metals / stripping Varnish or urethane 4 ot Fine polishing wool Fine polishing, satin Finish on paint / Varnish / urethane grey FoaM pad applying and reMoVing polish white non-woVen pad light scrubbing red non-woVen pad heaVy scrubbing / rust reMoVal The pads described above may be available in kits where Mouse

PROBLÈME CAUSE POSSIBLE SOLUTION POSSIBLE

CÓMO INSTALAR Y SACAR LA
