USER MANUAL XType AMMB44E2GCB AMICA

INSTRUCTION MANUAL EN

UPUTSTVO ZA UPOTREBU SR

MANUAL DE USO ES

Microwave oven / Mikrowelle / Microondes / Magnetron / Mikrovlnátrouba / Mikrovlná rúra / Mikrotaliasnapeć / Microondas

AMMB44E2GCI X-TYPE

AMMB44E2GCB X-TYPE

AMMB44E2GCW X-TYPE

EN / SPECIFICATION DE / TECHNISCHE DATEN FR / SPECIFICATION NL / SPECIFICATION

Model Modell Modèle Model- AMB2025BS
Power supply Stromversorgung Alimentation électrique Vermogensparameters AC 230V / 50Hz
Operating frequency [MHz] Arbeitsfrequenz [Hz]		Fréquence de fonctionnement [Hz]	Bedrijfsfrequentie [Hz] 2450
Power Consumption [W] Stromaufnahme [W]		Consommation électrique [W]	Stroomverbruik [W] 1450
Nominal output power of microwaves [W]	Ausgangsennnleistung der Mikrowelle [W]	Puisance de sortie micro- ondes nominale [W]	Nominaal vermogen magnetron [W]	900
Nominal output power of grill [W]	Ausgangsennnleistung des Grills [W]	Puisance de sortie nominale du grill [W]	Nominaal uitgangsvermögen van de grill [W]	1000
Oven capacity [I]	Garraum [I]	Capacité de la cusinière [I]	Inhoud fornuis [I]	25
Turntable diameter [mm]	Durchmesser des Drehtellers [mm]	Diamètre plateau tournant [mm]	Draaiplateau-diameter [mm]	315
External Dimensions (H x W x D) [mm]	Außenmaße (HxBxT) [mm]	Dimensions extérieures (h x l x p) [mm]	Buitenafmetingen (h x b x d) [mm]	386 x 595 x 396
The oven is a built-in appliance	Das Gerät ist für den Einbau im Kühenschrank geeignet.	L'appareil est adapté aux meubles	Het apparaat is aangepast aan meubels	✓
Net weight [kg]	Nettogewicht / [kg]	Poids net / kg]	Netto gewicht / kg]	17,6

CS / TECHNICKÉ UDAJE SK / TECHNICKÉ UDAJE ES / DATOS TÉCNICOS SR / CNEUΦIKEAUNJA

EN - Table of contents

PRECAUTIONS 9

SAFETY INSTRUCTIONS FOR USE 10

INSTALLING THE PROTECTIVE CIRCUIT 14

COOKWARE

WARNING

MATERIALS THAT CANNOT BE USED IN A MICROWAVE OVEN 15

MATERIALS THAT CAN BE USED IN A MICROWAVE OVEN 16

SETTING UP YOUR 17

MICROWAVE OVEN 17

MICROWAVE OVEN ACCESSORIES 17

TURNTABLE INSTALLATION 17

UNPACKING

DISPOSAL OF OLD APPLIANCE 18

INSTALLING THE APPLIANCE 19

OPERATION

TROUBLESHOOTING

CLEANING

MOUNTING

WARRANTY AND AFTER SALES SERVICE 29

WARRANTY

15

15

18

20

26

26

27

29

GARANTIE, NACHVERKAUF-SERVICE

GARANTIE 53

FR - SOMMAIRE

MESURES DE PRUDENCE 55

INDICATIONS CONCERNANT LA SECURITE D'UTILISATION 56 INSTALLATION D'UN CIRCUIT DE PROTECTION 62

RECIPIENTS

63

MISE EN GARDE 63

MATÉRIAUX QU'IL NE FAUT PAS UTILISER DANS UN FOUR À MICRO-ONDES 63

MATÉRIAUX QUI PEUVENT ÉTRE UTILISÉS DANS UN FOUR À MICRO-ONDES 64

REGLAGE DU FOUR 65

NOMS DES ÉLÉMENTS D'ÉQUIPEMENT DU FOUR 65

INSTALLATION DU PLATEAU ROTATIF 65

DEBALLAGE

66

MISE HORS SERVICE 66

INSTALLATION DE L'APPAREIL 67

EXPLOITATION

68

ELIMINATION DES PANNES 75

NETTOYAGE

75

MONTAGE

76

GARANTIE, SERVICE APRES-VENTE 78

GARANTIE

78

NL - INHOUDSOPGAVE

VOORZORGSGMAATREGELEN

80

INSTALLATIE DRAAIPLATEAU

88

UITPAKKEN

89

INSTALLATIE VAN HET APPARAAT

90

BEDIENING

91

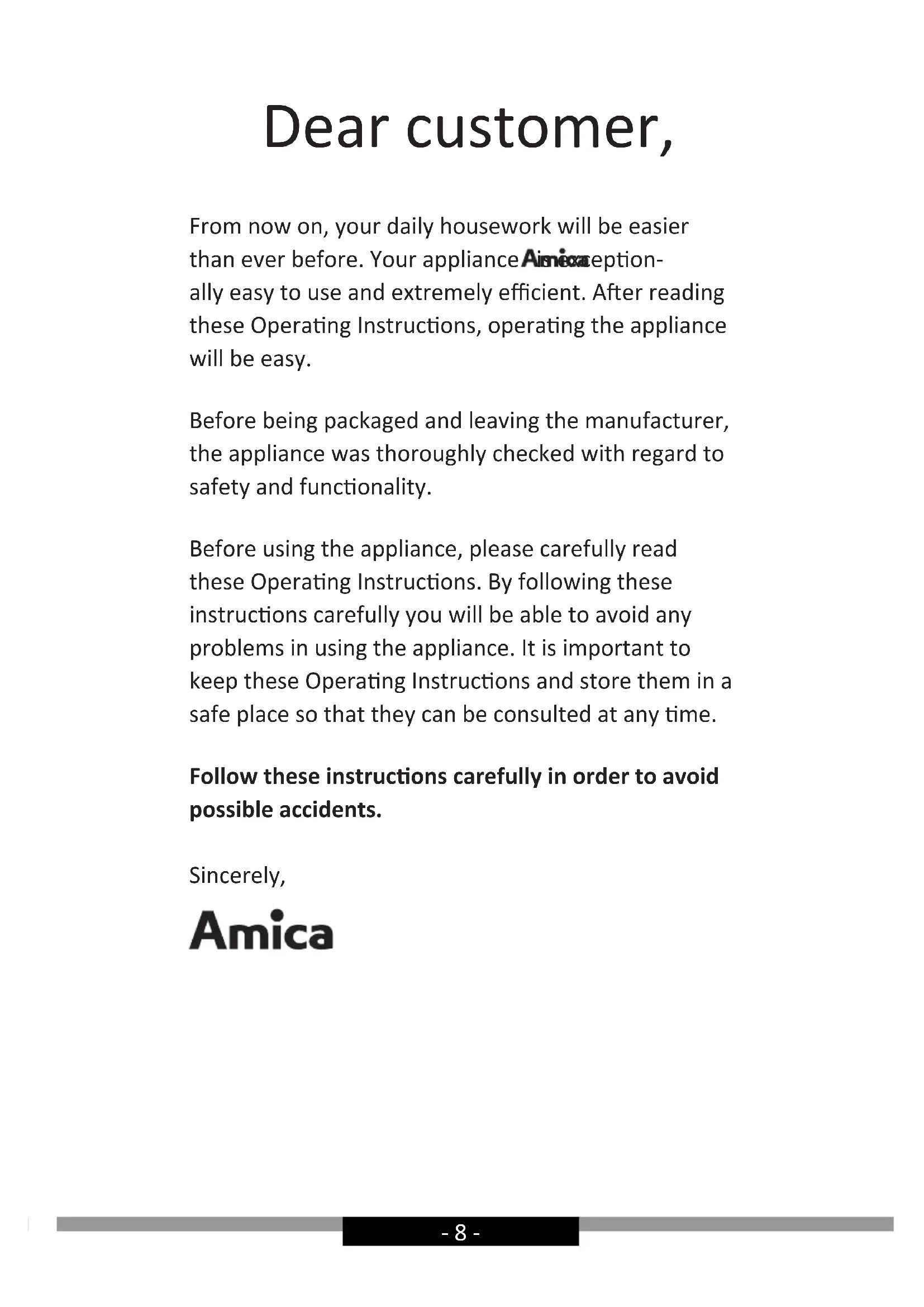

From now on, your daily housework will be easier than ever before. Your appliance Air-conditionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

Amica

PRECAUTIONS

• TO AVOID POSSIBLE OVER-EXPOSURE TO MICROWAVE ENERGY
• Do not attempt to operate the oven with the door open, because it may cause harmful exposure to microwave energy. Do not disable the safety interlocks, or attempt to circumvent them.
• Do not place anything between the front surface of the oven and the door or allow dirt or detergent residue to gather on sealing surfaces.

• Do not operate the oven if it is damaged. It is particularly important that the oven door is properly closed and that there is no damage to:

• Door (dents, cracks)

• Hinges and locks (broken, cracked or loose)
• Door seals and sealing surfaces
• Any adjustments, maintenance or repairs should only be entrusted to the manufacturer's properly qualified service personnel. In particular, the work associated with removing the cover that protects the user against microwave radiation.
• Keep the appliance and its power cord away from children under 8 years old.
• Microwave oven should not be placed in a cabinet*
• WARNING: The appliance and its accessible parts become hot during use. Avoid contact with hot parts. Children under the age of 8, should be kept away from the appliance, unless supervised by an adult person;
• Do not clean the appliance with steam
• Surfaces of the cabinet may become hot when the oven is operating;

SAFETY INSTRUCTIONS FOR USE

• READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
• To reduce the risk of fire, injury to people or exposure to excessive microwave energy when using the appliance, please observe the following basic safety rules:
• Read the Operating Instructions before using the appliance.
• Close supervision is needed to reduce the risk of fire inside the oven chamber.
• Use this appliance only for its intended purpose as described in the manual. Do not use corrosive chemicals in the appliance. Oven is specifically designed for heating or cooking food. It is not intended for industrial or laboratory use.
• WARNING: When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision due to the high temperatures generated;
• WARNING: Liquids and other foodstuffs may not be heated in sealed containers as the containers could explode;
• WARNING: This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.
• Use only cookware that is suitable for use in microwave ovens;

• When heating food in plastic or paper containers, pay special attention to the microwave oven as containers may ignite;

• If you see smoke or fire, turn off the appliance or unplug it from power and keep the door closed until the flames are smothered;

• Microwave heating of beverages can cause delayed boiling, therefore care should be taken when handling the container;
• Cleaning instructions for door seals and adjacent parts may be found in an appropriate section of this operating instructions.
• The oven must be cleaned regularly. Remove any deposits of food and leftovers
• Neglecting to keep the oven clean can damage the surface, which may adversely affect the durability of the appliance and cause dangerous situations
• Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.
• Before using the oven, test heat the grill heater (smoke can be given off through ventilation grid):
• switch on the ventilation in the room or open a window,
• • set the oven to heat the grill heater only for about 3 minutes without heating food.
• Oven must be placed on flat a surface.
• Turntable and rotating trolley unit should be in the oven during cooking. Carefully put cooked food on the turntable, and handle it carefully to avoid any breakage.
• Improper use of the browning plate may cause cracking of the turntable due to the high temperature.
• Only use bags for cooking in microwave ovens, which are correct size.
• Microwave oven has several in-built circuit breakers to prevent emission of radiation, while the door is open. Do not tamper with these circuit breakers.
• Do not operate the oven when empty. Operating the oven without food or dish with very low water content may result in fire, carbonization, arcing and damage to the internal chamber shell.
• Do not cook food directly on the turntable. Excessive local heating of turntable may cause its rupture.

• Do not heat baby bottles or baby food in the microwave. Uneven heating may occur and cause physical injury.

• Do not use narrow-necked containers such as bottles for syrups.

• Do not fry in deep fat in the microwave.
• Do not do home canning in a microwave oven because not always the entire contents of pot reaches boiling point.
• Do not use microwave oven for commercial purposes. This appliance is intended for use at home or in facilities, such as: kitchen for employees; in shops, offices and other working environments, use by the customers of hotels, motels and other residential facilities, in rural residential buildings, in the accommodation facilities;
• In order to avoid delayed boiling of hot liquids and beverages and the risk of burns, stir the liquid before placing the container in the oven and again in the middle of cooking time. Then leave the container in the oven for a short time and stir again before removing from oven chamber.
• Do not forget that there is a dish in the microwave oven to avoid burning due to excessive cooking.
• When the appliance is used in a combined mode, children can use the microwave oven only under adult supervision the high temperatures generated;
• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety. Children shall not play with the appliance.
• Do not overcook dishes
• Do not use the oven for storage. Do not store flammable objects inside the microwave oven, such as bread, cookies, paper products, etc. If lightning hits the power line, the oven may switch on automatically.
• Remove the wire clamps and metal fixtures from containers / paper or plastic bags before placing them in the oven.

• Microwave oven must be grounded. Only connect to a wall socket with the proper protective conductor. See "Installing the protective circuit."

• Some products, such as whole eggs (boiled or fresh), water, oil or grease, sealed containers and closed glass jars may explode and therefore should not be heated in the oven.

• Operating the microwave oven should be done with adult supervision at all times. Do not allow children to play with the appliance or have access to the controls.
• Do not operate the oven when its terminal strip or plug is damaged, it is not working properly, or if it has been damaged or dropped.
• Do not cover or block the air vents on the oven.
• Do not store or use the oven outdoors.
• Do not use the microwave oven near water, near the kitchen sink, in a damp room or near a swimming pool.
• Do not immerse the power cord or plug in water.
• Keep cord away from heated surfaces.
• Do not allow the connection cord hanging over the edge of a table or counter.
• The appliance must be used with mounted decorative frame*
• The inner cavity surface is hot after use of the microwave oven.
• Regularly check the oven and its power cord for damage. If there is any damage, do not use the oven
  Metallic containers for food and beverages are not allowed during microwave cooking
• Care should be taken not to displace the turntable when removing containers from the appliance

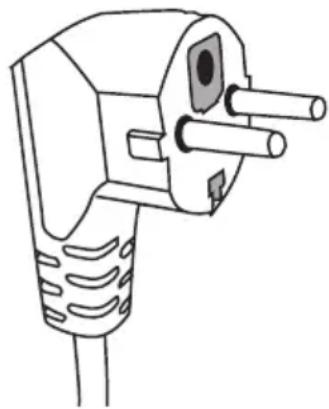

INSTALLING THE PROTECTIVE CIRCUIT

DANGER

Danger of electric shock when touched, some internal components may cause serious injury or death. Do not disassemble this appliance.

WARNING

Electric shock hazard. Improper use of earthing can cause electric shock. Do not insert the plug into the socket before the appliance is properly installed and grounded.

This appliance must be grounded. In the event of a short-circuit, earthing reduces the risk of electric shock. The appliance is equipped with earthing wire with an appropriate plug. The plug should be inserted into a properly installed and grounded outlet.

If you do not completely understand earthing instruction or you are unsure whether the appliance is properly grounded, please contact a qualified electrician or service technician.

f you must use an extension cord, use only a three-wire extension with an earthing connector...

The manufacturer shall not be liable for damage or injury resulting from connecting the microwave oven to a power source without a protective circuit or with a malfunctioning protection circuit.

A short power cord is provided to reduce the risk resulting from becoming entangled or tripping over a long cord.

If you use the extension cord:

• Extension cord must be capable of withstanding nominal current required by the appliance.
• Extension cord must be 3-wire with earthing,
• Extension cord should be so arranged as not to be hung by the table top where it could be pulled by children, or caught inadvertently.

COOKWARE

WARNING

Risk of injury. Tightly closed containers may explode. Closed containers must be opened and plastic bags pierced before cooking.

Materials that can be used and materials to be avoided in the microwave oven.

The use of some non-metallic cookware may not be safe in the microwave oven. If in doubt, you can check the cookware following this procedure.

Checking the cookware:

1 Fill the microwave-safe cookware with 1 cup of cold water (250 ml), and do the same with the test cookware.
2 Operate the oven with the maximum power for 1 minute.
3 Carefully touch the test cookware. If the test cookware is hot, do not use it in the microwave oven.
4 Do not exceed 1 minute cooking time.

Materials that cannot be used in a microwave oven

Type of cookware Comments

Aluminium tray	May cause an electric arc. Transfer food to microwave-safe cookware.
Cardboard box with metal handle	May cause an electric arc. Transfer food to microwave-safe cookware.
Metal or cookware with metal frame	Metal shields the food from microwave energy. Metal frame can cause an electric arc.
Metal closure - tightened May cause an electric arc and fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid in it when exposed to high temperatures.
Wood	Wood dries out when it is heated in the microwave oven and can crack or break.

Materials that can be used in a microwave oven

Type of cookware Comments

Browning plate Observe the manufacturer's instructions. The bottom of the browning plate must be at least 5 mm above the turntable. Improper use may cause cracking of the turntable.
Dinner dishes Suitable for microwave ovens only. Observe the manufacturer's instructions. Do not use cracked or chipped cookware.
Glass jars Always remove the lid. Use only for heating food to a suitable temperature. Most glass jars are not heat resistant and may explode.
Glassware Use only heat-resistant glassware in the microwave oven. Make sure that there are no metal frames. Do not use cracked or chipped cookware.
Bags for microwave cooking	Observe the manufacturer's instructions. Do not seal with metal clamps.
Paper plates and cups	Cut through to allow the steam to escape. Use only for short cooking / heating. Do not leave the oven unattended while cooking.
Paper towels Use to cover food to be heated to absorb fat. Use only for short cooking under constant surveillance.
Parchment paper Use as a cover to prevent splashing or as a container for evaporation.
Plastics Suitable for microwave ovens only. Should be labelled "for use in microwave ovens." Some plastic containers soften when the content is warmed up. Bags for microwave cooking and sealed plastic bags must be pierced or incised, or vented according to the directions on the package.
Plastic packaging Suitable for microwave ovens only. Use to cover food during cooking in order to maintain moisture. Do not let plastic packing touch the food.
Thermometers Suitable for microwave ovens only. (Temperature probes for meat and sugar).
Wax paper Used as a covering to prevent splashing and to keep moisture.

Cookware material Microwave
Barbecue grill
Combi Mode

Heat-resistant glass YES	YES	YES
Regular glass	NO NO NO
Heat-resistant ceramics	YES	NO NO
Microwave-safe plastic utensils	YES	NO NO
Kitchen paper	YES	NO NO
Metal container	NO	YES	NO
Metal rack (provided for the oven)*	NO	YES	NO
Aluminium foil and foil contain-ers	NO	YES	NO

Microwave oven accessories

Remove all packaging, both inside and outside the oven, before using the oven. The oven comes with the following accessories:

Turntable

1

Rotating trolley 1

Operating Instructions 1

Grilling rack 1*

A) Control Panel
B) System security lock - disconnects power to the oven when the door is opened during operation.
C) Rotating trolley
D) Turntable
E) Door inner protecting shield
F) Door

TURNTABLE INSTALLATION

1. Never compress or place the turntable upside down.*
2. When cooking, always use turntable and rotating
3. trolley.
4. For cooking or heating always put the food on the turntable.

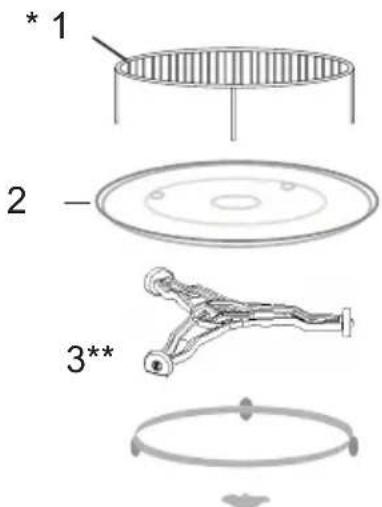

Individual fittings:

1. Grilling rack*
2. Turntable
3. Rotating trolley

• Available on selected models Note: The grilling rack supplied with the appliance should only be used when the appliance is set to "GRILL". Place the rack on the turntable.
  Trolley is available in selected models in two versions, depending on the model. These are not interchangeable.
  * Turnable existing according to the model. In this case, put food on Your own plate and put into the microwave oven.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are

100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INSTALLING THE APPLIANCE

• Remove all packaging materials and components.
• Check the oven for damage such as dents or door misalignment or breakage.
• Remove any protective film from the surface of the cabinet.
• Do not install the oven if it is damaged.

Do not remove the light brown mica cover bolted into the recess in order to shield the microwave magnetron.

Installing

1. The appliance is designed for household use only.
2. The appliance can be used only after fitting in kitchen furniture.
3. For fitting instructions, please refer to "Installation guide"*
4. Microwave oven should be installed in a cabinet with a width of 60 cm and a height of 85 cm from the kitchen floor*.
5. Assembly drawings at the end of the manual.

Do not remove the legs located in the bottom of the appliance*.

Blocking the inlet and outlet openings may damage the microwave oven.

Place the oven as far away from radio and television as possible. Operating microwave oven may cause interference to radio and television reception.

1. Insert the oven power plug into a standard household wall socket. Make sure beforehand whether voltage and frequency are the same as on the oven's rating plate.

WARNING: Do not install the oven on the gas hob or other heat producing appliance. In the event of such installation, the oven may be damaged and void the warranty.

OPERATION

Clock setting

After connecting the oven to the power supply, a flashing "00:00" will appear and you will hear a single beep.

1. Press or button to set the correct time (between 00:00 and 23:59.)
2. After setting the correct time, press The clock has been set.

Note:

1. To change the time, press and hold button for 3 seconds. The current time disappears and the display shows a flashing time digits. To set new time press or and press to confirm the setting.
2. When setting the clock, press and hold or change time by 10 min., each short press changes time by 1 minute.

Microwave Cooking

1. To start microwave cooking press button. The display shows a flashing "01:00" and the microwave icon appears. If no button is pressed for 10 seconds, the current power level is confirmed automatically.
2. To set the microwave power (from 100W to 900W) press , and then ± or set the power level.
3. To set the cooking time press then set the time using button. The maximum cooking time depends on the power level. If power is set to 900W, the maximum time is 30 minutes, for other power levels, it is 90 minutes.
4. Press to start cooking.

Microwave power table:

Microwave Cooking Power	100% 80%	50% 30% 10%
Display 900W 700W 450W 300W 100W

The table below presents the power level to be selected and dishes that may be prepared at this power level.

Power Dish
900 W	- Boiling of water, keeping food warm - Cooking of chicken, fish, vegetables
700 W	- Keep warm - Cooking of mushrooms, seafood - Cooking egg and cheese dishes
450 W - Cooking of rice, soup
300 W	- Defrosting - Melting chocolate and butter
100 W	- Defrosting delicate/fragile dishes - Defrosting food with irregular shapes - Ice softening - Dough proving

Function Operation mode
	Micro-wave		Microwave	Microwave Microwave function for cooking and heating vegetables, potatoes, rice, fish and meat.
	Warming up		Forced air circulation	Blowing hot air With hot air you can prepare meals in the same way as in a conventional oven. Microwave function is not active. It is recommended to preheat the oven before putting the dish into the oven.
			Roaster with fan	Grill with fan This function is used for even cooking of dishes and simultaneous browning of the skin.
			Lower heater with forced air circulation	Lower heater + forced air circulation is useful for baking dishes such as pizza, moist cake, fruit cake, sponge cake
			Grill	Grill The grill is particularly useful for cooking thin cuts of meat and fish.
	Combi function		Forced air circulation	Microwave + hot air For quick baking of dishes.
			Roaster with fan	Microwave + grill with fan is useful for the preparation of small cuts of meat, fish or vegetables, and even browning of skin.
			Lower heater with forced air circulation	Microwave + lower heater + forced air circulation is useful for dishes that require rapid cooking and heating of the dish
			Grill	Microwave +Grill This function is used for rapid cooking and simultaneous browning of the dish skin (also baked dishes). Microwave and grill on at the same time. Microwaves cook the food and grill bakes it.
AUTO	Automatic programs		P01 - P13	Programs for automatic cooking (13 predefined programs) can be used for cooking many types of meat. Select the type of food and its weight.
			d01 - d03	Defrosting by weight (3 predefined pro-grams). Specify the weight of the food to be defrosted

Grill function

1. Press to activate the heating function, symbol will light up on the display.
2. Press to select the grill function. Default grill power is set to level 3. After selecting the grill function, the display shows symbol.
3. Press <to set the desired grill power level.
4. Press or adjust the grill power level from 1 to 3.
5. Press to set the time. Default cooking time is 10 minutes. Press or to select the desired time from 10 to 90 minutes.
6. Press to start the cooking process.

Cooking with forced air circulation function

1. Press to activate forced air circulation function, symbol will light up on the display.
2. Press to select the forced air circulation function. Default cooking temperature is 180^ . After selecting the forced air circulation function, the display shows symbol.
3. Press to set the desired temperature.
4. Press or 制 set the temperature from 50 ^ C to 230^ .
5. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 minutes to 5 hours.
6. Press to start the cooking process.

Cooking with the grill function with fan

1. Press to activate the heating function, symbol will light up on the display.
2. Press to select the grill with fan function. Default cooking temperature is 180^ . After selecting the grill with fan function, the display shows symbol.
3. Press to set the desired temperature.
4. Press or set the temperature from 100 ^ C to 230^ C .
5. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 minutes to 5 hours.
6. Press to start the cooking process.

Cooking with the lower heater with forced air circulation function

1. Press to activate the heating function, symbol will light up on the display.

2. Press to select the lower heater with forced air circulation function. Default cooking temperature is 180^ . After selecting the lower heater with forced air circulation function, the display shows symbol.

3. Press to set the desired temperature.

4. Press or set the temperature from 100 ^ C to 230^ .
5. Press to set the cooking time. Default cooking time is 10 minutes. Press or to select the desired time from 10 minutes to 5 hours.
6. Press to start the cooking process.

Cooking with combi function (microwave and grill)

1. Press to activate combi function (microwave + grill), and symbols will light up on the display.
2. Press to select combi function (microwave + grill). Default grill power is set to level 3. After selecting the grill function, the display shows symbol.
3. Press <to set the desired grill power level.
4. Press or adjust the grill power level from 1 to 3.
5. To set the microwave power (from 100W to 700W) press , and then or 出 set the power level. The default power level is 300W.
6. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 to 90 minutes.
7. Press to start the cooking process.

Cooking with combi function (microwave + forced air circulation)

1. Press to activate combi function (microwave + forced air circulation), and symbols will light up on the display.
2. Press to select combi function (microwave + forced air circulation). Default grill power is set to level 3. After selecting the grill function, the display shows symbol.
3. To set the temperature (from 50^ to 230^ ), press then to set the temperature.
4. To set the microwave power (from 100W to 700W) press , and then + or set the power level. The default power level is 300W.
5. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 to 90 minutes.
6. Press to start the cooking process.

Cooking with combi function (microwave + grill with fan)

1. Press to activate heating function, and symbols will light up on the display.
2. Press to select the grill with fan function. Default cooking temperature is 180^ . After selecting the grill with fan function, the display shows symbol.
3. Press <to set the desired temperature.
4. Press or to set the temperature from 100 ^ C to 230^
5. To set the microwave power (from 100W to 700W) press , and

then or set the power level. The default power level is 300W.

1. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 to 90 minutes.
2. Press to start the cooking process.

Cooking with combi function (microwave + lower heater + forced air circulation)

1. Press to activate combi function (microwave + lower heater + forced air circulation), and symbols will light up on the display.
2. Press to select combi function (microwave + lower heat- er + forced air circulation). Default cooking temperature is 180^ After selecting the air circulation function, the display shows symbol.
3. To set the temperature (from 100^ to 230^ ), press , then
4. To set the microwave power (from 100W to 700W) press , and then + or set the power level. The default power level is 300W.
5. Press to set the cooking time. Default cooking time is 10 minutes. Press or select the desired time from 10 to 90 minutes.
6. Press to start the cooking process.

Defrosting by weight

1. Press to activate defrosting by weight function.
2. Press or select D01 - meat or D02 - vegetables.
3. Press
4. Press or to select weight of the dish 200g - 1000g (D01 - any kind of meat) or 100g - 500g (D02 - any kind of vegetables).
5. Press to start the defrosting process.

Defrosting by time

1. Press to activate defrosting by time function.
2. Press or select D03.
3. Press
4. Press or select the defrosting time (maximum time is 90 min.)
5. Press to start the defrosting process.

Cooking with predefined programs

The appliance has 13 predefined cooking programs. After selecting the program, set the weight of the dish. Power and temperature are set automatically.

1. Press Auto activate auto function.
2. Press Auto to Select a predefined program P01-P13.
3. Press
4. Press or to select the weight of the dish [g]
5. Press to start the cooking process.

Predefined programs table:

Program	Category Dish
P01**	Vegetables Fresh vegetables
P02**	Side dishes Potatoes - peeled/cooked
P03*	Side dishes Potatoes - baked
		Turn food after beep. The next stage of combi cooking starts automatically.
P04	Poultry/fish Portions	of chicken/fish
		Turn food after beep. The next stage of combi cooking starts automatically.
P05*	Baking Cake
P06*	Baking Apple pie
P07*	Baking Quiche
P08**	Warming up Drink/soup
P09**	Warming up Dish on a plate
P10**	Warming up Sauce/stew/dish
P11*	Frozen food Frozen pizza
P12*	Frozen food Frozen chips
P13*	Frozen food Frozen lasagne

• Programs with * symbol have a keep warm step. During this step, the cooking time is stopped and the keep warm symbol appears on the display. An alarm indicated the end of keeping warm time, and the symbol flashes.
• rograms with ^** symbol only use the microwave function.

Keep warm function

Keep warm function may be activated after selecting functions: forced air circulation, air circulation, combi (microwave + forced air circulation), combi (microwave + air circulation).

1. Press, the display will show symbol.
2. Press to start. When the correct temperature is reached, you will hear three beeps. The keep warm function may be terminated by opening the door or pressing

Note: Keep warm function only works after selecting the above functions. During keep warm function, microwave function is off.

Child Lock

To set the Child Lock: When the appliance is in a standby mode, press and hold for 3 seconds - you will hear a long beep indicating that the Child Lock is on, and symbol will appear on the display.

To deactivate Child Lock: When the Child Lock is on, press and hold for 3 seconds - you will hear a long beep indicating that the Child Lock is off, and symbol will disappear from the display.

TROUBLESHOOTING

Microwave oven interferes with the TV reception	Television and radio reception may be disrupted when the microwave oven is operating. The same applies to small household appliances such as a blender, vacuum cleaner and electric fan. This is normal.
Dimmed oven lighting.	When cooking with low microwave power, oven light may be dimmer. This is normal.
Condensation forms on the door, hot air comes out through vents.	When cooking, steam can be released from food. Most of the steam escapes through the vents. However some steam can collect in the form of condensation on cooler parts, such as oven door. This is normal.

Fault Possible cause How to correct

Oven does not start.	Power cord unplugged or not plugged properly into the socket.	Pull the plug and put it back in after 10 seconds.
	Blown fuse or tripped circuit breaker.	Replace the fuse or turn on the circuit breaker (any repairs by producers service only).
	Problem with the power outlet.	Check the outlet by plugging in other appliance.
The oven does not heat.	The door is not closed properly.	Close the door fully.
Turntable makes noise when oven operates.	Rotating ring or bottom of the oven dirty.	See "Microwave oven maintenance".

CLEANING

Before cleaning, make sure the oven is disconnected from the power source.

a) After use, clean the inside of the microwave oven with a damp cloth. b) Clean the accessories in the normal way in soapy water.
c) Dirty door frame, seal and adjacent elements should be cleaned gently with a damp cloth. When cleaning the surface of the oven door, use only mild soap or detergent applied with a sponge or soft cloth.

When cleaning glass door, do not use any abrasive cleaners or sharp metal washers, as this may cause scratches on the surface and damage the glass.

In order to clean the inner cavity: put half a lemon in a bowl, add 300ml of water and turn on the microwave oven at 100% power for 10 minutes. After cleaning, disconnect the microwave oven from the power and wipe the inside with a soft, dry cloth.

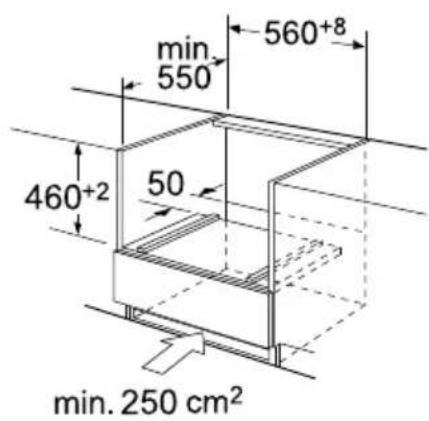

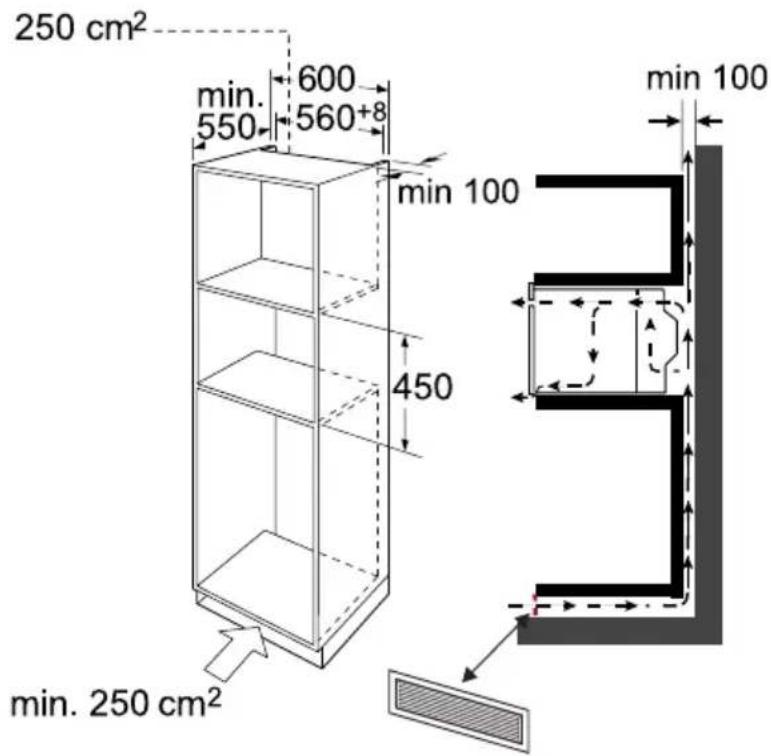

MOUNTING

1. The appliance is designed for household use only.
2. This oven is intended for installation in a cabinet only. It is not intended to operate as a free-standing appliance on a countertop or for use inside cabinets.
3. The cabinet cannot have a back wall. At the back of the appliance there must be sufficient gap to allow the air flow

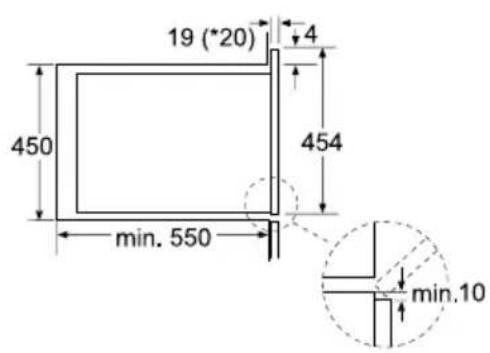

4. The rear edge of the base/installation shelf must be mounted at least 100mm from the wall (there must be a gap behind the appliance)
5. The cabinet must have a vent at the front of at least 250cm^2

Notes:

• Vents and air-flow gap cannot be covered.
• The correct operation of the appliance is guaranteed by proper installation in the cabinet.
• The cabinets must be made of materials resistant to high temperatures (up to 90^ ).
• The appliance is equipped with a plug and may be connected only to a properly installed wall outlet with a protective earthing, the plug must be easily accessible after the appliance is properly installed.
• Mains voltage must correspond to the voltage indicated on the nameplate.
• The use of adapters, splitters or extension cords is not allowed. Overloading may cause fire.

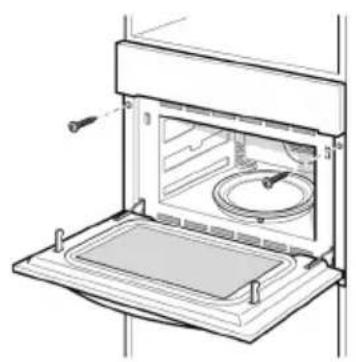

Carefully place the appliance in the cavity, ensure that it is at equal distance from the side walls of the cabinet. Open the door of the appliance and fix it with screws supplied with the appliance. Ensure that the power cord is not squashed by the cabinet parts

WARRANTY AND AFTER SALES SERVICE

Warranty

The manufacturer shall not be held liable for any damage caused by improper use of the product.

Service

• The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. For safety reasons, repairs should be referred to professionals.
• Repairs carried out by unqualified persons may seriously endanger the appliance user.
  The minimum warranty period for the appliance offered by the manufacturer, importer or authorized representative is given in the warranty card.
• The warranty shall be void if you make any independent adaptations or alterations, tamper with seals or other appliance safety devices or its parts or interfere with the appliance contrary to operating instructions.

In the event of appliance malfunction, request assistance or repair.

If your appliance needs repair, please contact the service centre. Please see website for address and contact details of our service centre. Before contacting us, please have ready the appliance serial number, which can be found on the identification sticker: For your convenience, please write it down below:

Certificate of compliance CE and UKCA

The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives and analogous UK requirements:

• The Low Voltage Directive 2014/35/EC / Electrical Equipment (Safety) Regulations 2016.
• Electromagnetic Compatibility Directive 2014/30/EC / Electromagnetic Compatibility Regulations 2016.
• ErP Directive 2009/125/EC / The Ecodesign for Energy-related Products Regulations 2010 (as amended) for the applicable implementing measures which apply in Great Britain and Northern Ireland, respectively.

and therefore the product has been marked with C and symbols and the Declaration of Conformity, the Manufacturer has drawn up the declaration and is available to the competent authorities regulating the market.

VOORZORGSGMAATREGELEN

INSTALLATIE DRAAIPLATEAU

INSTALLATIE VAN HET APPARAAT

Microwave oven accessories

Nazivi elementata opreme peci

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

INSTALLACIJA UREDAJA

• Ukloniti sve materijale i elemente pakovanja.
• Proveriti da li vrata peci nemaju ulubljenja, da nisu pomaknuta ili polomljena.
• Ukloniti svu zašitnu foliju sa povrsine ormarica.
• Peć ne montirati, ako je oštećena.

Ne skidati svetlo smeu plocu od liskuna koja je vijcima pričvrsćena na peć u cilju zaslanjanja magnetrona.

Montaža

Note: Keep warm function only works after selecting the above functions. During keep warm function, microwave function is off.

Bloqueo de padres
