INSTRUCTION MANUAL

GUIDE D'UTILISATION

For Use Only With DEWALT DW746 Table Saw

DeWALT high performance industrial tools are made for America's toughest industrial and construction applications. The design of every tool in the line - from drills to sanders to table saws - is the result of rigorous use on job sites and throughout industry. Each tool is produced with painstaking precision using advanced manufacturing systems and intense quality control. Every tool is checked before it leaves the factory to make sure that it meets your standards for durability, reliability and power. DeWALT Built Job site Tough... WE GUARANTEE IT.

Hardware Included with the DW7460 Mobile Base

Items Included

(2) End Bracket
(2) Side Support
(1) Castor sub-assembly
(2) Wheel
(2) Wheel Housing
(1) Extension Lever
(1) Hardware bag

Tools needed

• (2) 13mm or 1/2 open end wrench or socket wrench
  (1) Standard Pliers

Necessary Hardware

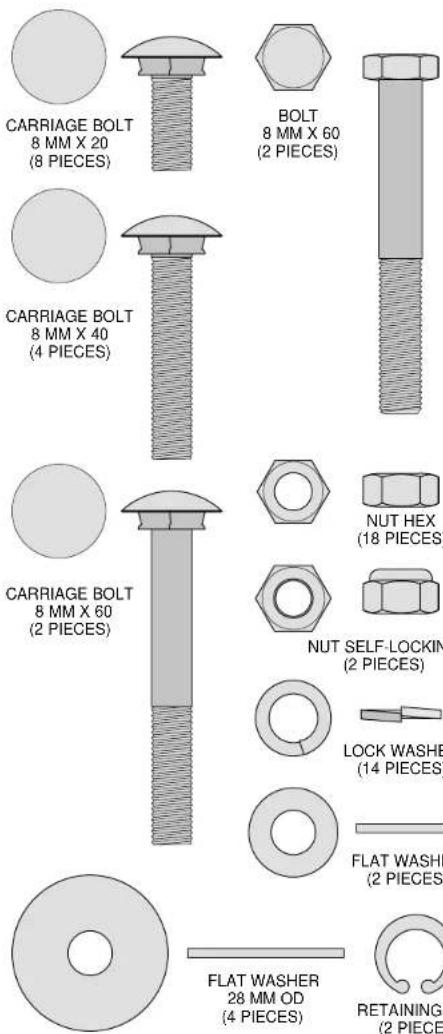

Your hardware bag contains all the necessary nuts, bolts, and washers to assemble the components included with the DW7460 Mobile Base and to attach it to the DW746 Woodworker's Table Saw. To make assembly of your mobile base easier, match the nuts, bolts, and washers with the hardware chart. Before each step, check your hardware against the chart and identify the pieces you need.

Assembly

PLEASE READ ENTIRE ASSEMBLY SECTION BEFORE PROCEEDING.

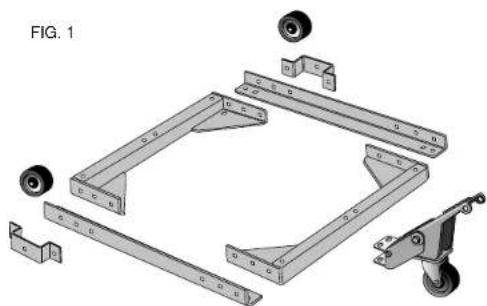

STEP 1. Unpack parts and lay out per Figure 1.

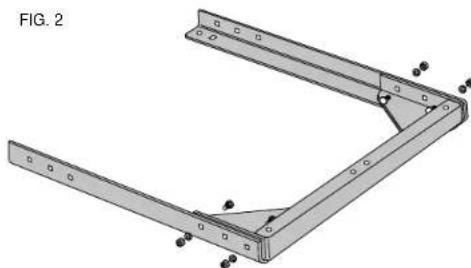

STEP 2. Assemble side supports to an end bracket (Fig. 2).

You will need: 4 - 8 x 20mm carriage bolts
4-8mm lock washers
4-8mm nuts

Add carriage bolts from the inside and secure each

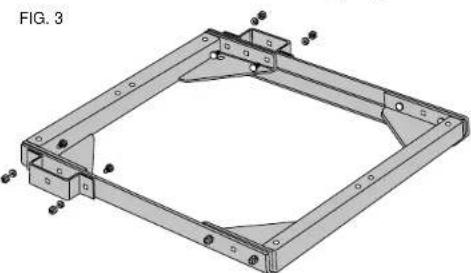

STEP 3. Assemble wheel housings and remaining end bracket (Fig. 3).

You will need: 4 - 8 x 20mm carriage bolts

4 - 8mm lock washers

4-8mm nuts

Align wheel housings and remaining end bracket to the side rails. Add carriage bolts from the inside and secure each with a lock washer and nut. Finger tighten.

STEP 4. Lay base on flat surface to insure assembly is square and level. Securely tighten all hardware.

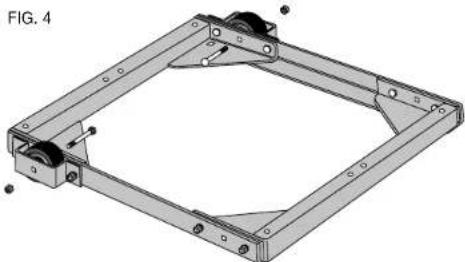

STEP 5. Assemble wheels into housings (Fig. 4).

You will need: 2 - 8 x 60mm carriage bolts
2-8mm self-locking nuts

Add carriage bolts from the inside and secure each with a self-locking nut. Do not over tighten, wheels should spin freely.

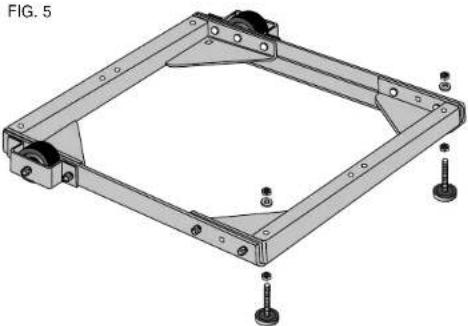

STEP 6. Attach adjusting feet (Fig. 5).

You will need: 2 - adjusting feet

2-8mm flat washers
4-8mm hex nuts

Add an M8 hex nut, to the adjusting foot and thread all the way down to the foot. From the bottom, place the feet through the hexagonal holes in the side rails, opposite end of the wheels. Hex nuts on feet should be recessed into hexagonal sockets in side rails. It may be necessary to loosen the 8mm × 20 carriage bolts to align the hex nuts to the sockets. Secure each foot with washer and hex nut.

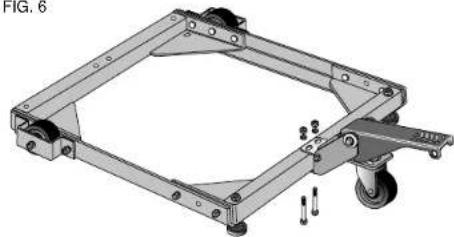

STEP 7. Attach Castor sub-assembly (Fig. 6).

You will need: 2 - 8 x 60mm hex head bolts

2-8mm lock washers

2-8mm nuts

Slide sub-assembly over the square tube and align with the two holes between the adjusting feet. Add hex headbolts from the bottom and secure each with a lock washer and nut. Tighten securely.

FIG.6

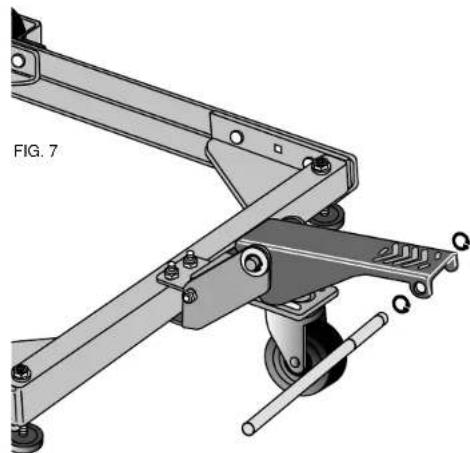

STEP 8. Attaching extension lever (Fig. 7).

(If you do not have a 52" Rail System skip this step)

You will need: 1 - Extension Lever

2 - Retaining Rings

Add a retaining ring to the middle ring groove in the extension lever. Place extension lever through the tabs on the foot pedal as shown. Add second retaining ring to end of extension lever to lock in place.

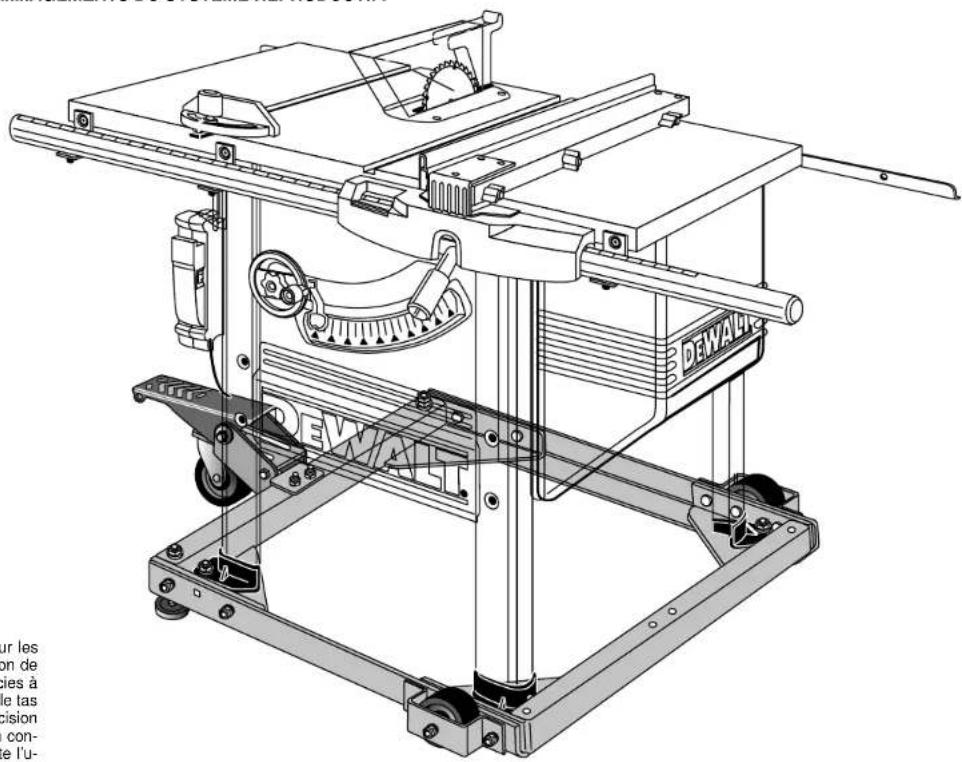

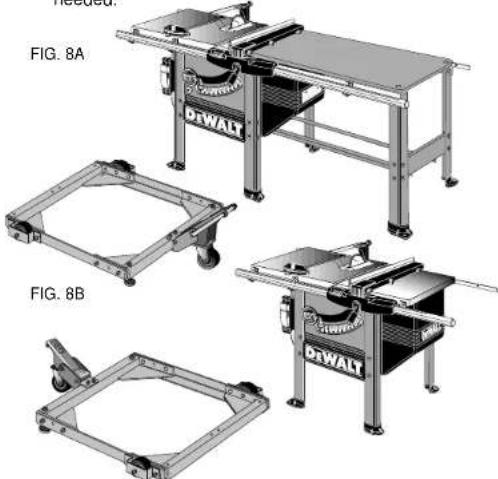

STEP 9. Orientation of base. (Fig. 8). If your saw has a 52" Rail System the base must be placed under the saw with the castor assembly to the right side, with the extension lever in place (Fig. 8A). With any other accessory or with a stock saw the castor assembly should be to the left (Fig 8B), extension lever is not needed.

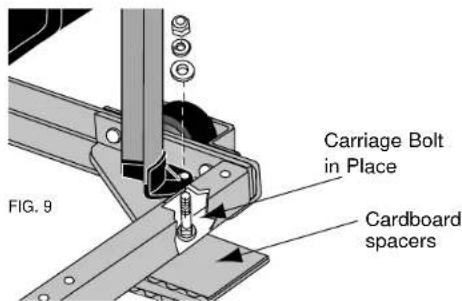

STEP 10. Add bolts and spacers under base. (Fig. 9).

You will need: 4 - 8 x 40mm carriage bolts

8 - Cardboard spacers (User supplied) From the underside of the base place a carriage bolt through the square hole in each corner of the base. Place two cardboard spacers (approximately 5/16" thick) under the head of each carriage bolt. The spacer will hold the carriage bolts in place as you add the saw.

STEP 11. Place saw on base. Use extreme caution when lifting. Use two people to lift saw. Insure that castor assembly is in disengaged position (see Operation section). Carefully lift the saw and place it over the carriage bolts, through the round holes in the feet, and onto the base.

STEP 12. Secure base to saw (Fig. 9).

You will need: 4 - 8mm (28mm OD) flat washers
4 - 8mm lock washers
4-8mm nuts

Insure that the square portion of the 8 × 40mm carriage bolts are still engaged to your square holes in the base (try spinning the bolt with your fingers.) Add a flat washer, lock washer, and nut to each bolt and tighten securely. Roll the saw over and off the cardboard spacers.

Operation

To move your saw, depress the foot pedal to engage the castor assembly (Fig. 10A). Saw can now be easily moved to a new location.
- Disengage castor assembly by raising the foot pedal (Fig. 10B), allowing the adjusting feet to contact the floor surface.
Always disengage the castor assembly and make sure the mobile base is in full contact with the floor before you operate your DW746 Woodworker's Table Saw.

FIG. 10A FIG. 10B

Adjusting saw level: Your mobile base can be leveled to the floor by raising or lowering the adjusting feet. Move the saw to the location you wish to use it. Disengage the castor assembly. If the saw rocks on the floor, the adjusting foot not touching the floor can be lowered or the foot in contact can be raised to compensate.
Adjusting stabilizing legs: If you have stabilizing legs in place, for the slide table accessory, it will be necessary to adjust them for use with the mobile base.

STEP 1. Remove one leg at a time. Do not remove both legs at the same time. With the table saw installed on the mobile base, remove the hardware holding a stabilizing leg in place. Remove the leg and reverse it so that the slots with the ID mark between them are now down. Place leg back over the M8x55 hardware. Secure leg in place with removed hardware. Tighten loosely. Repeat for the second stabilizing leg.
STEP 2. Adjust stabilizing leg height by sliding them down until they contact the floor. Tighten hardware securely.
