Product Type	Active amplified speaker
Configuration	2-way
Woofer	10 inches (254 mm)
Tweeter	1 inch compression driver (25 mm)
Amplifier	Class D, RMS power 200 W
Frequency Response	65 Hz - 20 kHz
Maximum Sound Pressure Level	121 dB SPL
Audio Input	1 x XLR female
Audio Output	1 x XLR male (Link)
Volume Control	Potentiometer with Line/Mic scale
LED Indicators	Signal (green) / Limit (red)
Power Supply	100-240 V~, 50/60 Hz
Fuse	Replaceable (rating indicated on device)
Ventilation	Active (fan)
Mounting	Standard 35 mm pole mount
Enclosure	Molded polypropylene
Weight	Approximately 12.5 kg
Dimensions (W x H x D)	Approximately 320 x 520 x 300 mm

Frequently Asked Questions - TX210 ALTO

How to connect a microphone to the TX210?

Use an XLR cable to connect the microphone to the INPUT. Set the Volume knob using the MIC indicator scale. Gradually increase the volume while monitoring the LIMIT LED: if it lights up red, reduce the volume.

How to connect a mixing console?

Connect the console output to the INPUT of the TX210 with an XLR cable. Use the LINE indicator scale of the Volume knob. Do not exceed the 0 dB position to avoid damaging the speaker. Monitor the LIMIT LED.

What to do if the LIMIT LED lights up red?

The red LIMIT LED indicates the output limiter is activated. Immediately decrease the volume of the audio source or the Volume knob to avoid damaging the speaker. The LED should turn green or turn off.

Can I suspend the TX210 speaker?

No, the TX210 is not designed for suspension. Use only a suitable speaker stand. For suspended applications, use the Truesonic (TS) or Black series from Alto Professional.

How to install the TX210 on a stand?

Place the stand on a flat, stable surface. Fully extend the tripod legs. Insert the stand tube into the speaker socket. Ensure the stand can support the weight (approximately 12.5 kg). Keep cables away to avoid tripping hazards.

What cables to use to connect multiple speakers?

Use a standard XLR cable to connect the LINK output of the first speaker to the INPUT of the second speaker. The signal is transmitted in parallel.

How to clean the TX210?

Unplug the speaker before cleaning. Use a dry, soft cloth to wipe the surface. Do not use chemical or abrasive products that could damage the enclosure.

What to do if the fuse is damaged?

Unplug the speaker. Lift the fuse holder tab under the power input. Replace the fuse with one of the same rating (printed under the input). Using an incorrect fuse may damage the device.

Can I use the TX210 outdoors?

Yes, but with caution. Avoid exposure to rain or humidity. In strong winds, stabilize the stand with additional weights (sandbags). Do not attach banners that could catch the wind.

How to adjust volume for an instrument with preamp?

If your instrument has an active preamplifier, treat it as a line source. Use the LINE scale of the Volume knob and do not exceed 0 dB. Monitor the LIMIT LED to avoid saturation.

USER MANUAL TX210 ALTO

ALTO PROFESSIONAL

TX208 TX212 TX210 TX215

User Guide

English (2 - 8)

Guía del usuario

Español (9 – 15)

Guide d'utilisation

Français (16 - 22)

Guida per l'uso

Italiano (23 - 29)

Benutzerhandbuch

Deutsch (30 - 36)

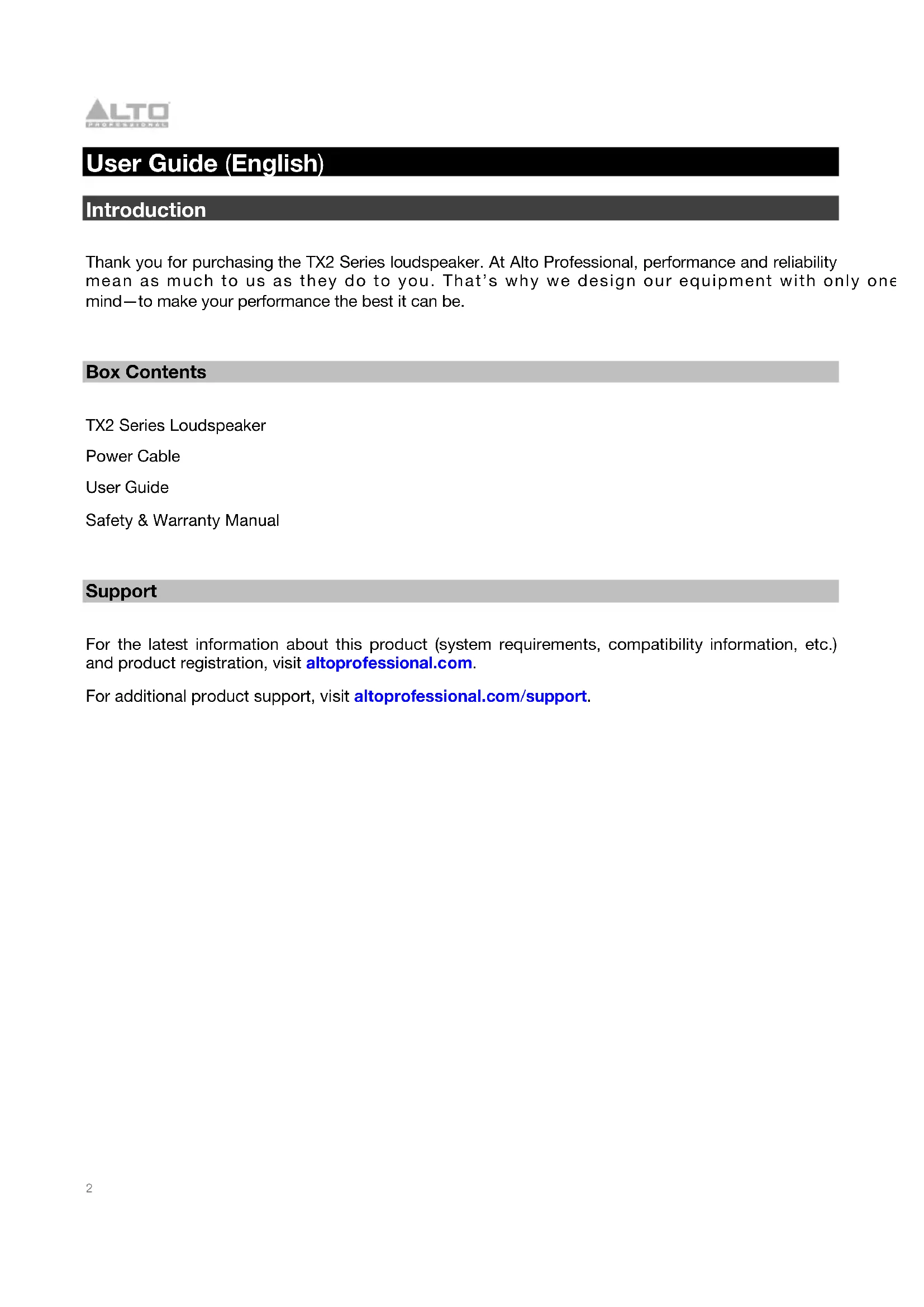

User Guide (English)

Introduction

Thank you for purchasing the TX2 Series loudspeaker. At Alto Professional, performance and reliability mean as much to us as they do to you. That's why we design our equipment with only one mind—to make your performance the best it can be.

Box Contents

TX2 Series Loudspeaker

Power Cable

User Guide

Safety & Warranty Manual

Support

For the latest information about this product (system requirements, compatibility information, etc.) and product registration, visit altoprofessional.com.

For additional product support, visit altoprofessional.com/support.

Important Safety Precautions

Please note: Alto Professional and inMusic are not responsible for the use of its products or the misuse of this information for any purpose. Alto Professional and inMusic are not responsible for the misuse of its products caused by avoiding compliance with inspection and maintenance procedures. Please also refer to the included safety and warranty manual for more information.

Caution: To reduce the risk of electric shock, do not connect a TX2 Series loudspeaker to a power outlet while the grille is removed.

Stand-Mounting

Important: Do not suspend a TX2 Series loudspeaker. It is not designed for suspended applications. We recommend our Truesonic (TS) Series or Black Series loudspeakers for suspended applications instead.

• Always install loudspeakers in accordance with applicable electrical and building codes.
- Install the loudspeaker according to its maximum weight. Check the specifications of your stand or pole to ensure it can support the loudspeaker's weight. Also, observe all safety precautions specified by the manufacturer.
- Do not mount multiple loudspeakers on the same stand or pole.
- Always verify that the stand or pole is on a flat, level, and stable surface. Also, fully extend the legs of tripod-style stands, and ensure its legs do not present a trip hazard.
- Inspect the stand (or pole and associated hardware) before each use and do not use equipment with worn, damaged, or missing parts.
- Always be cautious in windy, outdoor conditions. You may need to place additional weight (e.g., sandbags) on stand's base to improve stability. Do not attach banners or similar items to any part of a loudspeaker system. Such attachments could act as a sail and topple the system.
- Unless you are confident that you can handle the loudspeaker's weight, ask another person to help you lift it onto the stand or pole.
- Make sure your cables are out of the way of performers, production crew, and audience so they will not trip over them, pulling the loudspeaker off the stand or pole.

Sound Level

Permanent hearing loss may be caused by exposure to extremely high noise levels. The U.S. Occupational Safety and Health Administration (OSHA) has specified permissible exposures to certain noise levels. According to OSHA, exposure to high sound pressure levels (SPL) in excess of these limits may result in hearing loss. When using equipment capable of generating high SPL, use hearing protection while such equipment is under operation.

Hours per day	SPL (dB)	Example
8	90	Small
6	92	Train
4	95	Subway
3	97	High-level
2 100 Classical music concert
1.5	102	Riveting
1	105	Machine
0.5	110	Airport
0.25 or less 115 Rock concert

Setup

Volume Control (TX208 & TX210 only)

The TX208 and TX210 loudspeakers accept both line-level and mic-level audio sources. Before connecting your audio source, turn the Volume knob to the minimum position (fully counter-clockwise).

0 dB SIGNAL LIMIT | ○ | ○ | POWER LINE MIC VOLUME

Line-Level Audio Source

When using an audio source such as a mixer, CD/MP3 player or audio preamp, follow the outer/Line level band indicator.

If the Signal Limit LED is on, do not advance the Volume knob any further. Doing so may damage your TX2 loudspeaker.

In most circumstances, you will not need to turn the volume beyond 0 dB.

If your audio source has unusually low output, you may turn the Volume knob past 0 dB, but not past the Signal Limit indicator (as explained above).

0 dB SIGNAL LIMIT | ○ | ○ | I POWER LINE MIC VOLUME SIGNAL LIMIT | ○

Mic-Level Audio Source

Important: If you are using an instrument with active preamp, treat the instrument as a line-level audio source (as explained above).

When using a microphone or instrument audio source, follow the inner/Mic level band indicator.

Because the mic and instrument level is typically lower than a line level, you can use the full rotation of the Volume knob.

As you turn up the Volume knob, please observe the Signal Limit indicator. If the Signal Limit LED is on, do not advance the Volume knob any further. Doing so may damage your TX2 loudspeaker.

0 dB SIGNAL LIMIT | ○ | ○ | POWER LINE MIC VOLUME SIGNAL LIMIT | ○

Examples

Items not listed under Introduction > Box Contents are sold separately.

Note: These examples show the rear panel used by the TX212 and TX215 models, though all four models in the TX2 Series have the same input and output.

Example A: Two Loudspeakers

Connect each of your mixer's main outputs to the input on a TX2 loudspeaker. If you are using a TX208 or TX210, do not turn the Volume knobs past the 0 dB position. If you are using a TX212 or TX215, make sure the input selectors are set to Line.

Mixer Power Outlet Power Outlet

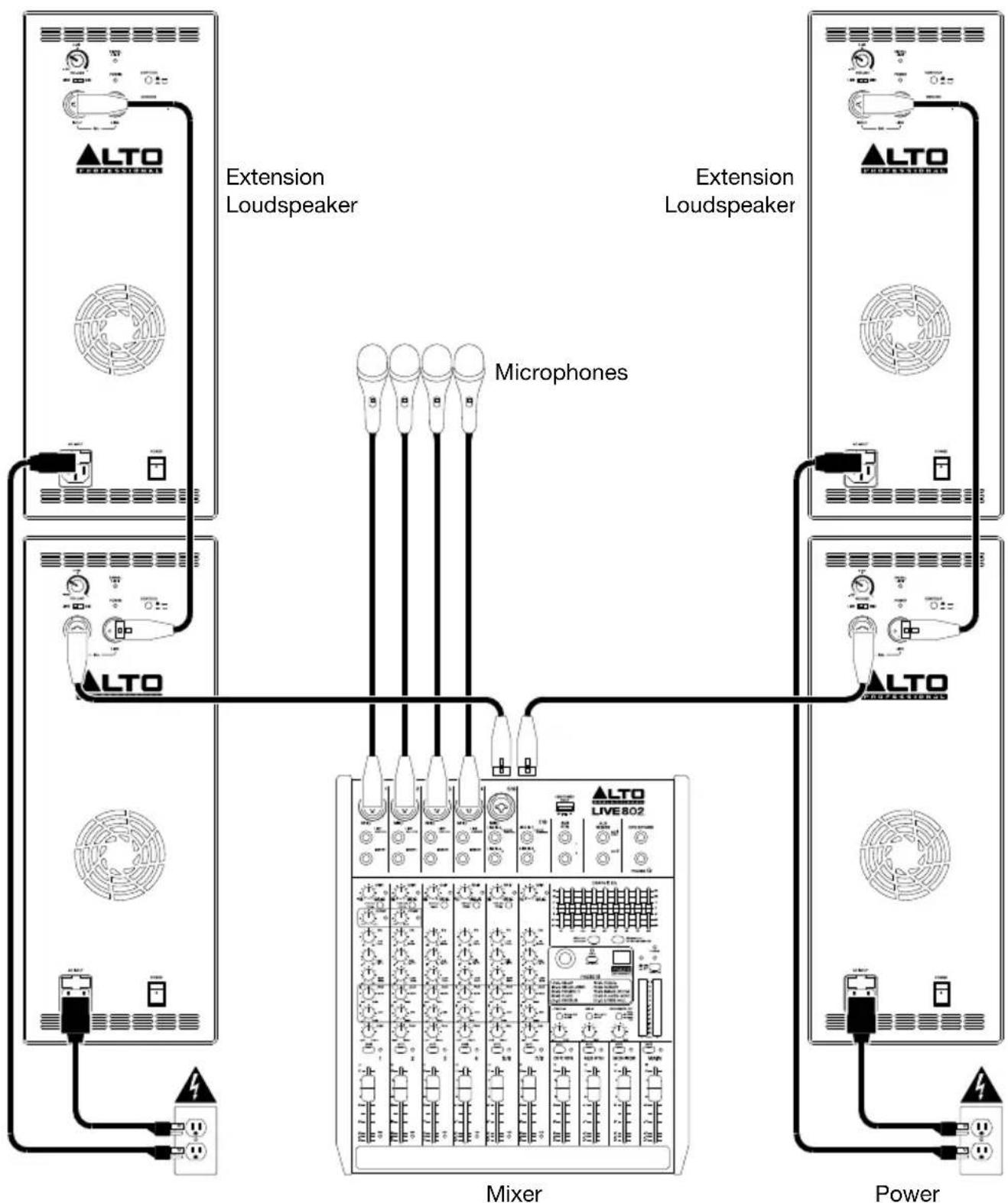

Example B: Two loudspeakers + Two extensions

Connect each of your mixer's main outputs to the input on a TX2 loudspeaker. If you are using a TX208 or TX210, do not turn the Volume knobs past the 0 dB position. If you are using a TX212 or TX215, make sure the input selectors are set to Line. Connect each of your TX2 loudspeakers' mix outs to the inputs of your extension loudspeakers.

Features

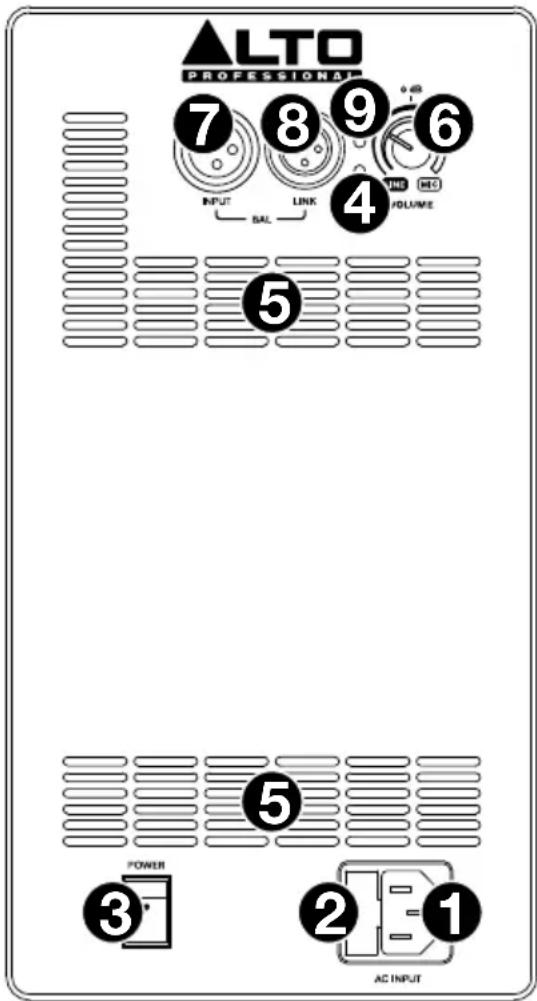

Rear Panel: TX208 & TX210

1. AC Input: Use the included power cable to connect this input to a power outlet. Make sure the Power Switch is set to off when connecting or disconnecting the cable.
2. Fuse: If the unit's fuse is broken, lift this tab to replace the fuse. Replace it with a fuse with an appropriate rating (printed under the unit's power cable input). Using a fuse with an incorrect rating can damage the unit and/or fuse.
3. Power Switch: Use this switch to power the loudspeaker on or off. Make sure the Volume knob is set to its minimum (counterclockwise) position before turning it on.
4. Power LED: This LED lights up when the loudspeaker is on.
5. Cooling Vent: Keep the area in front of this vent clear from obstructions. The fan behind the vent cools the amplifier, preventing overheating.
6. Volume: Turn this knob to adjust the loudspeaker's volume.

When using an audio source such as a mixer, CD/MP3 player or audio preamp, follow the outer/Line level band indicator. In most circumstances, you will not need to turn the volume beyond 0 dB. If your audio source has unusually low output, you may turn the Volume knob past 0 dB, but not past the Signal Limit indicator.

When using a microphone or instrument audio source, follow the inner/Mic level band indicator. Because the mic and instrument level is typically lower than a line level, you can use the full rotation of the Volume knob.

Please see Setup > Volume Control to learn more.

1. Input: Use a standard XLR cable (not included) to connect your audio source to this input. Make sure to set the Volume knob to the correct position.
2. Mix Out: Use a standard XLR cable (not included) to connect this output to the input of another loudspeaker (i.e., another TX2 loudspeaker).
3. Signal/Limit LED: This LED lights up green when an audio signal is sent to the loudspeaker—it flashes at lower levels and lights solidly at higher levels. The LED lights up red when output limit/protection is active—if the LED is lit red continuously, reduce the volume of your audio source.

ALTO PROFESSIONAL 7 8 9 6 INPUT BAL LINK NO NO 4 FOLUWE 5 POWER 3 2 1 AC INPUT

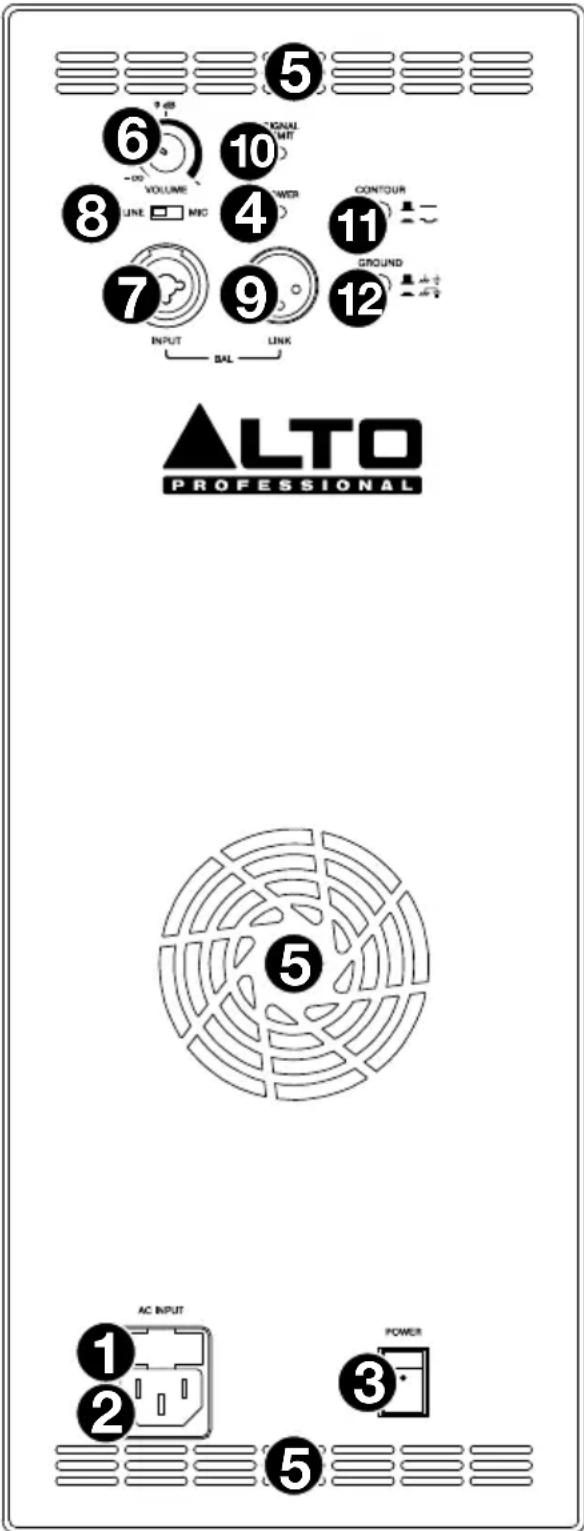

Rear Panel: TX212 & TX215

1. AC Input: Use the included power cable to connect this input to a power outlet. Make sure the Power Switch is set to off when connecting or disconnecting the cable.
2. Fuse: If the unit's fuse is broken, lift this tab to replace the fuse. Replace it with a fuse with an appropriate rating (printed under the unit's power cable input). Using a fuse with an incorrect rating can damage the unit and/or fuse.
3. Power Switch: Use this switch to power the loudspeaker on or off. Make sure the Volume knob is set to its minimum (counterclockwise) position before turning it on.
4. Power LED: This LED lights up when the loudspeaker is on.
5. Cooling Vent: Keep the area in front of this vent clear from obstructions. The fan behind the vent cools the amplifier, preventing overheating.
6. Volume: Turn this knob to adjust the loudspeaker's volume.
7. Input: Use a standard XLR or 1/4" (6.35 mm) TRS cable (not included) to connect your audio source to this input. Make sure to set the Input Selector to the correct position.
8. Input Selector: Set this switch to the Line position when using a line-level audio source connected to the Input. Set this switch to the Mic position when using a microphone connected to the Input.
9. Mix Out: Use a standard XLR cable (not included) to connect this output to the input of another loudspeaker (i.e., another TX2 loudspeaker).
10. Signal/Limit LED: This LED lights up green when an audio signal is sent to the loudspeaker—it flashes at lower levels and lights solidly at higher levels. The LED lights up red when output limit/protection is active—if the LED is lit red continuously, reduce the volume of your audio source.
11. Contour: Engage (depress) this button to emphasize low and high frequencies by +3 dB. Disengage (raise) the switch for a flatter response for live performance or for maximum output.
12. Ground Switch: Engage (depress) this switch to reduce hum or noise.

5 6 10 VOLUME LINE MIC POWER 4 9 CONTOUR 11 GROUND 7 INPUT BAL LINK 12 ALTO PROFESSIONAL 5 AC INPUT 1 2 POWER 3 5

SIGNAL LIMIT I O O I POWER 0 dB LINE MIC VOLUME

0 dB SIGNAL LIMIT I O O I POWER LINE MIC VOLUME

0 dB SIGNAL LIMIT I O O I POWER LINE MIC VOLUME

0 dB SIGNAL LIMIT I O O I POWER LINE MIC VOLUME

Line-Level-Audioquelle

SIGNAL LIMIT 0 dB LINE MIC VOLUME

Mic-Level Audioquelle

0 dB SIGNAL LIMIT I O O I POWER LINE MIC VOLUME

0 dB SIGNAL LIMIT I O O I POWER LINE MIC VOLUME

SIGNAL LIMIT I O

Technical Specifications

Specifications are subject to change without notice.

TX208

System Type	2-way active ported loudspeaker
Drivers	Low-Frequency: 8.0" (203 mm) driver, 1.5" (38 mm) voice coilHigh-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
Amplifier	300 watts (peak), 150 watts (continuous), Class D power
Horn Coverage	90° horizontal x 60° vertical (nominal)
Frequency Response	75 Hz - 20 kHz (-3 dB)
Crossover Frequency	2.5 kHz
Max SPL	113 dB @ 1 m
Connectors	(1) XLR balanced input (Line/Mic)(1) XLR output (Link)(1) IEC power cable input
Controls	Power switch, volume control knob
Indicators	(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power	Connection: IECVoltage: 100 V, 110-120 V, or 220-240 V; 50/60 Hz, switchableFuse: 100-120V T1.6AL AC250V or 220-240V T800mAL AC250VConsumption: 150 W
Protection	Thermal, overload analog limiter/compressor
Enclosure	Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting/Installation	Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth)	16.6" x 10.7" x 9.7"422 x 272 x 252 mm
Weight	13.9 lb.6.3 kg

TX210

System Type	2-way active ported loudspeaker
Drivers	Low-Frequency: 10.0" (254 mm) driver, 1.5" (38 mm) voice coilHigh-Frequency: 1.0" (25 mm) titanium-diaphragm compression driver, 1.0" (25 mm) voice coil
Amplifier	300 watts (peak), 150 watts (continuous), Class D power
Horn Coverage	90° horizontal x 60° vertical (nominal)
Frequency Response	75 Hz - 20 kHz (-3 dB)
Crossover Frequency	2.5 kHz
Max SPL	116 dB @ 1 m
Connectors	(1) XLR balanced input (Line/Mic)(1) XLR output (Link)(1) IEC power cable input
Controls	Power switch, volume control knob
Indicators	(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power	Connection: IECVoltage: 100 V, 110-120 V, or 220-240 V; 50/60 Hz, switchableFuse: 100-120V T1.6AL AC250V or 220-240V T800mAL AC250VConsumption: 150 W
Protection	Thermal, overload analog limiter/compressor
Enclosure	Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 1 handle on top
Mounting/Installation	Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth)	18.2" x 11.3" x 10.9"462 x 287 x 277 mm
Weight	16.7 lb.7.6 kg

TX212

System Type	2-way active ported loudspeaker
Drivers	Low-Frequency: 12.0" (305 mm) driver, 2.0" (51 mm) voice coilHigh-Frequency: 1.0" (25 mm) neodymium compression driver, 1.0" (25 mm) voice coil
Amplifier	600 watts (peak), 300 (continuous), Class D power
Horn Coverage	90° horizontal x 60° vertical (nominal)
Frequency Response	70 Hz - 20 kHz (-3 dB)
Crossover Frequency	2.5 kHz
Max SPL	118 dB @ 1 m
Equalization	Contour switch with low- and high-frequency +3 dB boost
Connectors	(1) XLR/TRS 1/4" (6.35 mm) balanced input (Line/Mic)(1) XLR output (Link)(1) IEC power cable input
Controls	Power switch, volume control knob, contour switch, ground-lift switch
Indicators	(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power	Connection: IECVoltage: 100 V, 110–120 V, or 220–240 V; 50/60 Hz, switchableFuse: 100–120V T4AL AC250V or 220–240V T2AL AC250VConsumption: 260 W
Protection	Thermal, overload analog limiter/compressor
Enclosure	Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation	Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth)	23.7" x 15.0" x 13.7"602 x 381 x 348 mm
Weight	31.3 lb.14.2 kg

TX215

System Type	2-way active ported loudspeaker
Drivers	Low-Frequency: 15.0" (381 mm) driver, 2.0" (51 mm) voice coilHigh-Frequency: 1.0" (25 mm) neodymium compression driver, 1.0" (25 mm) voice coil
Amplifier	600 watts (peak), 300 (continuous), Class D power
Horn Coverage	90° horizontal x 60° vertical (nominal)
Frequency Response	65 Hz - 20 kHz (-3 dB)
Crossover Frequency	2.2 kHz
Max SPL	119 dB @ 1 m
Equalization	Contour switch with low- and high-frequency +3 dB boost
Connectors	(1) XLR/TRS 1/4" (6.35 mm) balanced input (Line/Mic)(1) XLR output (Link)(1) IEC power cable input
Controls	Power switch, volume control knob, contour switch, ground-lift switch
Indicators	(2) power LEDs (1 front panel, 1 rear panel), clip limiter LED
Power	Connection: IECVoltage: 100 V, 110–120 V, or 220–240 V; 50/60 Hz, switchableFuse: 100–120V T4AL AC250V or 220–240V T2AL AC250VConsumption: 260 W
Protection	Thermal, overload analog limiter/compressor
Enclosure	Injection-molded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)
Mounting/Installation	Standard 36 mm pole socket, wedge monitor
Dimensions (height x width x depth)	24.7" x 15.2" x 14.6"627 x 386 x 371 mm
Weight	32.34 lb.14.67 kg

Trademarks & Licenses

Alto Professional is a trademark of inMusic Brands, Inc., registered in the U.S. and other countries. All other product names, company names, trademarks, or trade names are those of their respective owners.

altoprofessional.com
