USER MANUAL DVX-11A SONY

Operating Instructions US

Mode d'emploi FR

The model and serial numbers are located on the bottom of the unit.

Record these numbers in the space provided below.

Refer to these numbers whenever you call upon your Sony dealer regarding this product.

Model No. DVX-11A Serial No.

For installation and connections, see the supplied installation/connections manual.

To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment.

Table of Contents

Welcome! 4
Precautions 5
Playable discs 5
Location of controls. 8
Menu displays 10
Resetting the unit. 12

Player

Playing discs 12
Resuming playback -Resume play. 14
Checking the running time Time information. 15
Searching a specific point on a disc — Scan/Slow-motion play/List 16
Using the menus on DVDs 17
Using PBC functions —PBC (Playback control) 18
Playing in various modes — Repeat play/Search play. 18

Sound Adjustments

Changing the audio channels. 20

Picture adjustments

Changing the angles 21
Displaying the subtitles 22
Magnifying pictures. 22

Other Function

Locking discs Parental control 23

Settings and Adjustments

Using the Setup menu 26
Setting the display language or sound track — Language setup 27

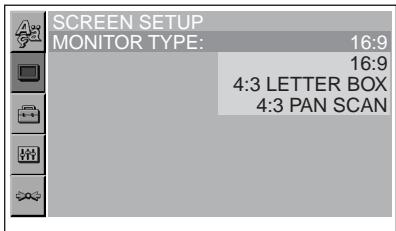

Setting the screen — Screen setup. 27
Custom settings
— Custom setup 28
Audio settings - Audio setup 29

Additional Information

Maintenance 29
Removing the unit. 30
Notes on discs 31
Notes on MP3 files. 31
Specifications 33
Troubleshooting 34
Error displays 36
Glossary 36
Language code list 38
Index 39

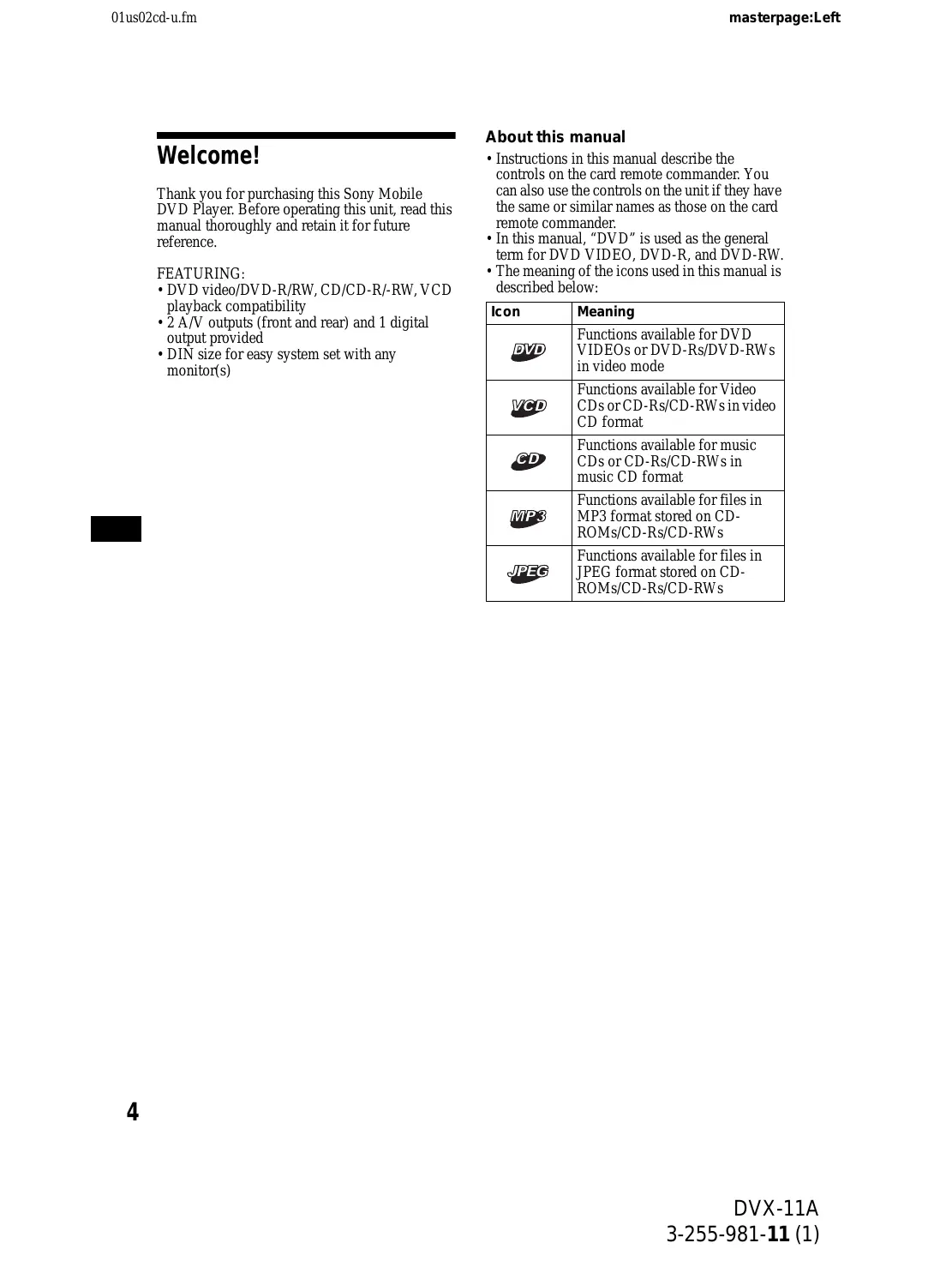

Welcome!

Thank you for purchasing this Sony Mobile DVD Player. Before operating this unit, read this manual thoroughly and retain it for future reference.

FEATURING:

DVD video/DVD-R/RW, CD/CD-R/-RW, VCD playback compatibility
- 2 A/V outputs (front and rear) and 1 digital output provided
- DIN size for easy system set with any monitor(s)

About this manual

• Instructions in this manual describe the controls on the card remote commander. You can also use the controls on the unit if they have the same or similar names as those on the card remote commander.
• In this manual, "DVD" is used as the general term for DVD VIDEO, DVD-R, and DVD-RW.
• The meaning of the icons used in this manual is described below:

Icon	Meaning
DVD	Functions available for DVD VIDEOS or DVD-Rs/DVD-RWs in video mode
VCD	Functions available for Video CDs or CD-Rs/CD-RWs in video CD format
CD	Functions available for music CDs or CD-Rs/CD-RWs in music CD format
MP3	Functions available for files in MP3 format stored on CD- ROMs/CD-Rs/CD-RWs
JPEG	Functions available for files in JPEG format stored on CD- ROMs/CD-Rs/CD-RWs

Precautions

If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer.

For drivers

• Do not use the custom functions while driving, or perform any other function which could divert your attention from the road.
• If your car was parked in direct sunlight, allow the unit to cool off before operating it.

On safety

• Comply with the Traffic Laws in your country.
• For your safety, the monitor connected to the FRONT VIDEO OUT turns off automatically when the parking brake is not applied.

Preventing an accident

The pictures appear only after you park the car and set the parking brake.

When the car starts moving, the pictures coming from the FRONT VIDEO OUT automatically disappear after displaying the following caution.

The monitor connected to the REAR VIDEO OUT is available while the car is in motion. The pictures on the screen are turned off, but CD/MP3 sound can be heard.

For your safety, the video is blocked.

Do not operate the unit or watch the monitor while driving.

Moisture condensation

On a rainy day or in a very damp area, moisture condensation may occur inside the lenses and display of the unit. Should this occur, the unit will not operate properly. In such a case, remove the disc and wait for about an hour until the moisture has evaporated.

To maintain high sound quality

Be careful not to splash juice or other soft drinks onto the unit or discs.

Playable discs

Format of discs
DVD	DVD VIDEO	DVD VIDEO
	DVD R W	DVD R
Video CD	COMPACT DISC DIGITAL VIDEO	VIDEO CD
Audio CD/ CD-R/CD-RW	COMPACT DISC DIGITAL AUDIO	COMPACT DISC DIGITAL AUDIO TEXT
	COMPACT DISC DIGITAL AUDIO Recordable	COMPACT DISC DIGITAL AUDIO ReWritable
CD-R/CD-RW (MP3/JPEG)	COMPACT DISC DIGITAL AUDIO Recordable	COMPACT DISC DIGITAL AUDIO ReWritable
	COMPACT DISC Recordable	COMPACT DISC ReWritable

"DVDVIDEO,"DVD-R"and "DVD-RW" are trademarks.

DVD

A DVD contains both audio and visual data. A 12 cm (4^7 / 10 in) disc can hold 7 times the amount of data contained in a CD-ROM, which equals to 4 consecutive hours of playing time (8 hours for double-sided discs). DVDs are divided into 4 types: single sided single layer, single sided double layer, double sided single layer, and double sided double layer.

Video CD (VCD)

A Video CD can contain both audio and visual data on a disc the same size as a regular Audio CD. The playing time is 74 minutes for a standard 12cm (4^7 / 10 in) CD.

Audio CD

An Audio CD containing audio data. The playing time is 74 minutes for a standard 12cm (4^7 / 10 in) CD.

CD-Recordable (CD-R)

With a CD-R, you can edit audio data. You can write information on a CD-R only once.

CD-Rewritable (CD-RW)

With a CD-RW, you can edit audio data. You can write information on a CD-RW again and again.

CD-Extra

A CD-Extra has two sections (sessions) for audio and data respectively. You can only play the section of audio on this unit.

Notes

• This unit conforms to the NTSC color system. A disc recorded in a color system other than NTSC, such as PAL or SECAM, cannot be played.
• You can play DVD-Rs/DVD-RWs and CD-Rs/CD-RWs designed for audio with this unit. However, depending on the recorded conditions, you cannot play some discs.
• The discs listed below cannot be played on this unit: -8 cm (3 in) discs
• CD-ROM (the data other than the MP3 or JPEG files)
  -CD-G
• Photo-CD
• VSD (Video single disc)
  DVD-ROM
  DVD-RAM
  DVD-Audio
  Active-Audio (Data)
  -CD-Extra (Data)
• Mixed CD
  -SVCD (Super Video CD)
  DVD-RW recorded in VR mode

Note on transparent discs

12cm (4^7 / 10 in) discs containing of only an inner 8cm (3 in) data portion (the rest is transparent) cannot be played on this unit.

Music discs encoded with copyright protection

This unit is designed to play back discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection are marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable and recordable by this product.

Region code

This system is used to protect software copyrights.

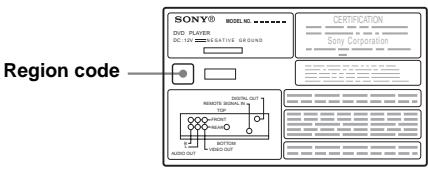

The region code is located on the bottom of the unit, and only DVDs labeled the identical region code can be played on this unit.

DVDs labeled can be also played on this unit.

If you try to play any other DVD, the message "Cannot play this disc." will appear on the monitor screen. Depending on the DVD, no region code may be labeled even though playing the DVD is prohibited by area restrictions.

Note on playback operations of DVDs and VCDs

Some playback operations of DVDs and VCDs may be intentionally set by software producers. Since this unit plays DVDs and VCDs according to the disc contents the software producers designed, some playback features may not be available. Also, refer to the instructions supplied with the DVDs or VCDs.

Copyrights

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents, other intellectual property rights owned by Macrovision Corporation, and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved.

"DTS," "DTS Digital Surround" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.

Location of controls

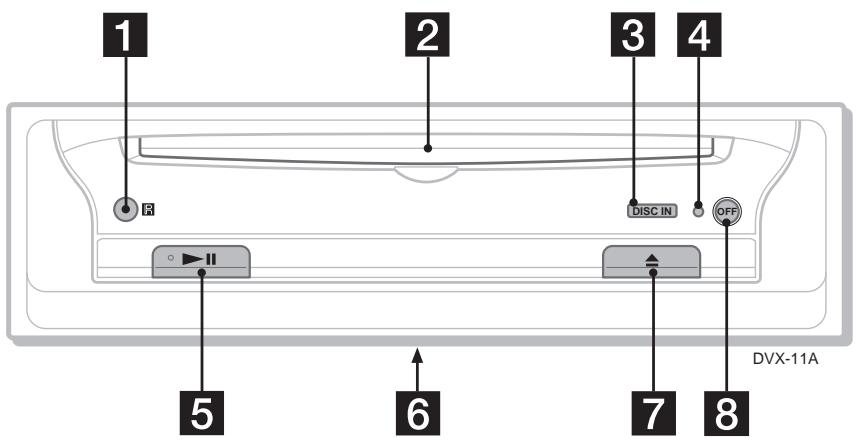

Front panel

1 Receptor for the card remote commander
2 Disc slot
3 DISC IN indicator

Lights up in blue when a disc is stored.

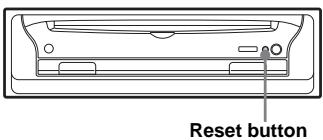

4 Reset button
5 II (play/pause) button*1
6 Signal select switch

(Located on the bottom of the unit) See "Operating the unit via connected monitor" in the Installation/Connections manual.

7 (eject) button
OFF button*2

1 Use the tactile dot as a reference when operating the unit.
2 Warning when installing in a car without the ACC (accessory) position on the ignition key switch

Be sure to press and hold OFF on the unit until the key illuminations in blue go off. Otherwise, the unit does not turn off and this causes battery drain.

Note

If the unit is turned off by pressing OFF for 2 seconds, press on the unit to turn on the unit first. In this case, the card remote commander is not available to turn on the unit.

Tip

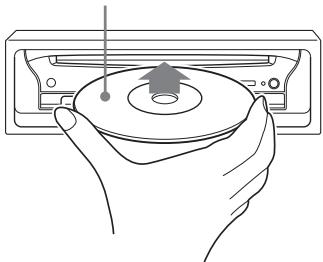

You can eject the disc any time whether the unit is turned on or not, but you can insert the disc only when the unit is turned on.

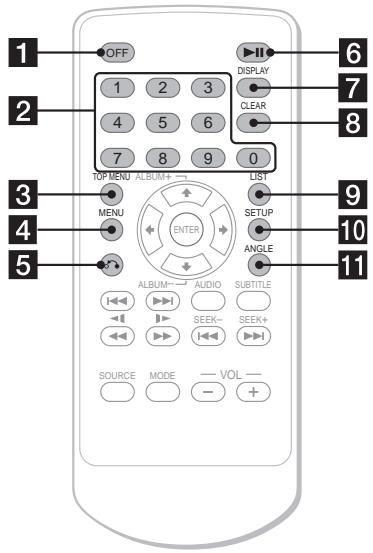

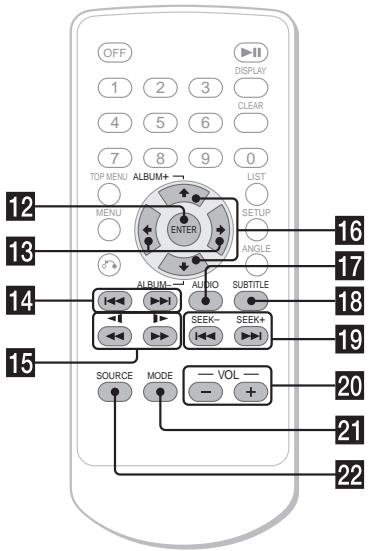

Card remote commander RM-X129

For the unit operations:

1 OFF button
2 Number buttons
3 TOP MENU button

Displays the top menu on a DVD.

4 MENU button

Displays the menu on a disc.

5 (return) button
Returns to the previous display, or previous operation.
6 II (play/pause) button

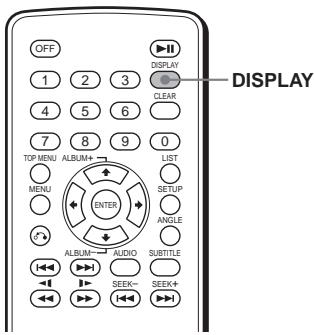

7 DISPLAY button

Displays current playback status and text information.

8 CLEAR button

Cancels the numbers entered.

9 LIST button

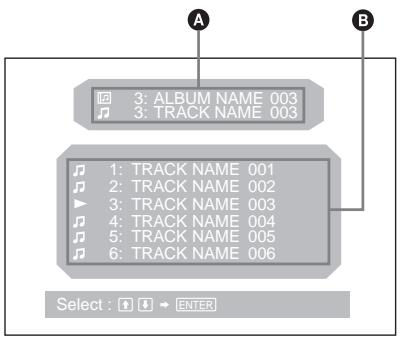

Displays the list of playback items.

10 SETUP button

Displays the Setup menu and Play mode menu.

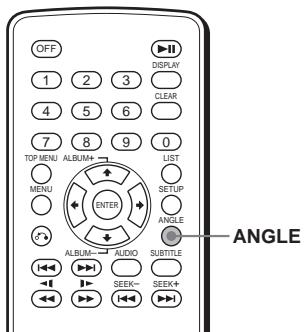

11 ANGLE button

Changes the viewing angle.

12 ENTER button

Applies a setting.

13 / buttons

Move the cursor, or turn the pages.

14 I▶/▶(previous/next) buttons
15 (search/slow) buttons
16↑ALBUM+/↓ ALBUM- buttons

Move the cursor, or select the album.

17 AUDIO button

Changes the audio output.

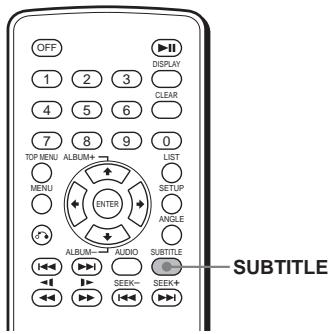

18 SUBTITLE button

Changes the subtitle language.

For the Media center/receiver XAV-7W operations:

These buttons control the optional Media center/ receiver XAV-7W which is connected to this unit.

19 ISEEK-//ISEEK+ buttons
20 VOL + / - buttons
21 MODE button
22 SOURCE button

Note

If the unit is turned off by pressing OFF for 2 seconds, press on the unit to turn on the unit first. In this case, the card remote commander is not available to turn on the unit.

Tip

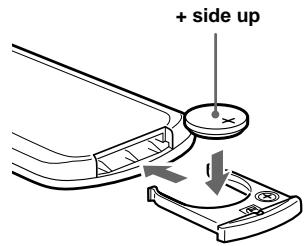

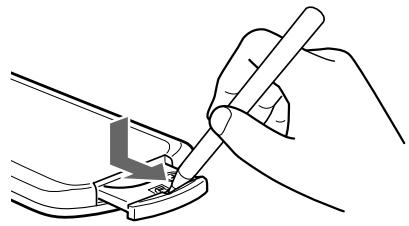

Refer to "Replacing the lithium battery" for details on how to replace the batteries (page 30).

Menu displays

Use the menus of this unit to adjust the various functions and settings for playback.

The displaying menu differs depending on the status of the unit.

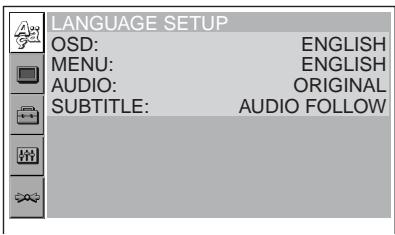

Setup menu

Appears when pressing while playback is stopped.

To select the item

Press / / / , then press ENTER.

To turn off the Setup menu

Press

Example: When "LANGUAGE SETUP" is selected.

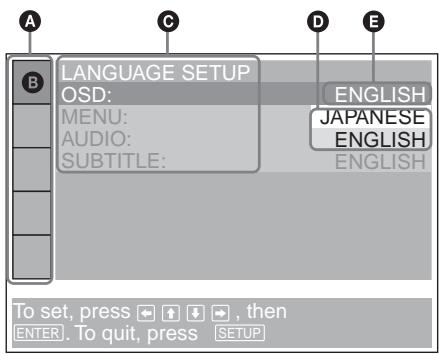

A Setup items
Selected item
Setting items
Options
Current setting

Play mode menu

Appears when pressing (SETUP) during playback.

To select the item

Press / / then press ENTER.

To turn off the Play mode menu

Press

Note

The items on the menu, and the operation procedures differ depending on the disc.

Example: When playing a DVD

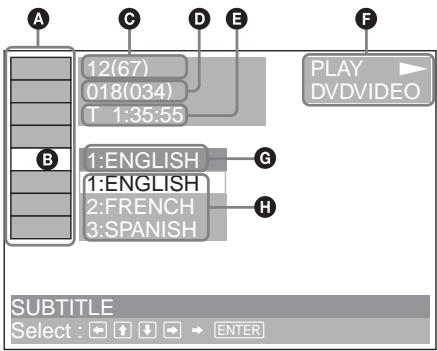

A Play mode items
B Selected item
Title number1/Total title number1
Chapter number*2/Total chapter number*2
Elapsed playback time
Playback status (▶PLAY, ¶PAUSE, etc.)/Disc format
Current setting
Options

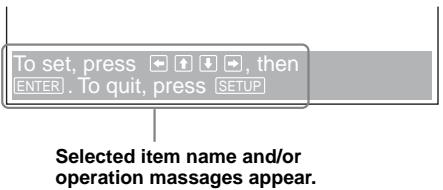

Operation message

Menu operations differ depending on the item selected, and the buttons to be used appear on the bottom of the menu display to assist your operations.

Tip

"Operation not possible" appears when the function is not available.

Setup items

LANGUAGE SETUP (page 27)

Switches the languages.

SCREEN SETUP (page 27)

Selects the screen modes.

CUSTOM SETUP (page 28)

Sets the playback operations.

AUDIO SETUP (page 29)

Adjusts the output sound.

RESET (page 26)

Resetssallsetupitems.

Play mode items

TITLE, TRACK (page 19)

Selects the title, or track to be played.

CHAPTER (page 19)

Selects the chapter to be played.

ALBUM (MP3) (page 19)

Selects the album to be displayed.

ALBUM (JPEG) (page 19)

Selects the image album to be displayed.

TRACK (page 19)

Selects the track to be played.

IMAGE (page 19)

Selects the image to be displayed.

TIME (page 15)

Checks the elapsed time and the remaining playback time.

AUDIO (page 20)

Changes the audio setting.

SUBTITLE (page 22)

Displays the subtitles.

Changes the subtitle language.

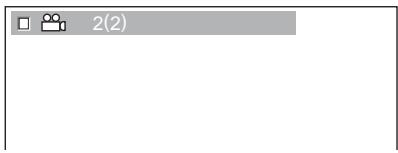

ANGLE (page 21)

Changes the angle.

CENTER ZOOM (page 22)

Magnifies the picture.

REPEAT (page 18)

Plays the entire disc (all titles/all tracks/ all albums) repeatedly, or one chapter/ track/album repeatedly.

Tip

When "REPEAT" is activated, or "ANGLE" is available, its check-box lights up in green (e.g.

Resetting the unit

Before operating the unit for the first time, or after replacing the car battery or changing the connections, you must reset the unit. Press the reset button with a pointed object, such as a ballpoint pen.

Notes

• Pressing the reset button will erase some stored settings.
• The unit performs initial setting for about 10 seconds after you press the reset button. During this period, do not insert a disc, otherwise the unit may not be reset.

Player

Playing discs

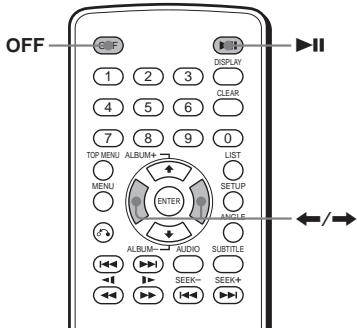

VIP3 JPEG

Depending on the disc, some operations may be different or restricted.

Refer to the operating instructions supplied with your disc.

1 Turn on your monitor, then select the input source on your monitor corresponding to this unit.

When using audio equipment:

Turn on the audio equipment, and select the appropriate channel for this unit.

2 Insert a disc.

Playback side down

Playback starts automatically (Depending on the disc, press to start playback).

A menu may appear on the screen when a DVD or VCD is inserted.

For details on these menus, see page 17 for DVDs, and page 18 for VCDs.

When "MP3/JPEG" on "CUSTOM SETUP" is set to "JPEG," a slide show starts automatically when JPEG files are on the disc (page 28).

Each time you press , the image rotates every 90^

Notes

• If a large-size image is rotated, it may take longer to display.
• A JPEG file is designed to be optimally displayed at 640 × 480 pixels. If displayed in another size, picture shift (to the left or right) may occur.

When the disc is inserted

Press to start playback.

To stop playback/to turn off the unit

Press OFF

Tip

You cannot insert a disc while the unit is turned off.

Display items on the CD/MP3 playback

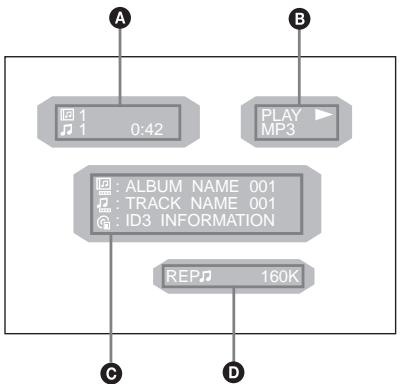

A Album number*2/Track number/ Elapsed playback time
3 Playback status (▶PLAY, ¶PAUSE, etc.)/Disc format
Disc name ^1 /Album name ^2 /Track name/ ID3 tag information (ver.1 only) ^2
Playback mode/Bit rate2*3

1 "NO DISC NAME" or "NO TRACK NAME" appears when the disc or track has no name.
2 Appears only when MP3 files are played.
*3 No indication when VBR (Variable bit rate) is applied.

To scroll the text information

Press

Note

* appears in place of the letters other than the alphabet and numbers.

Notes on DVDs with a DTS sound track

The DTS audio signal is being output at all times, a loud noise may come out from the speakers if you connect the unit to the audio equipment without a DTS decoder. This may cause damage to the speakers, or affect your ears.

The playback order of MP3 files

The playback order of albums and tracks (MP3 files) recorded on a disc is as follows:

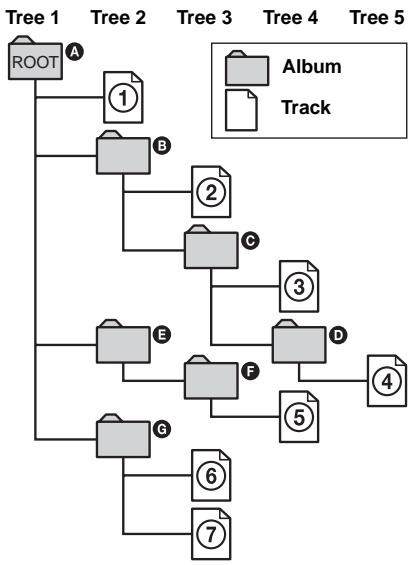

Structure of disc contents

When the disc stored MP3 files is inserted, the tracks are played sequentially from ① through ⑦ as numbered. Any sub-albums/tracks contained within a currently selected album take priority over the next album in the same tree. (Example:

contains D so 4 is played before ⑤

In the MP3 albums list that appears when you press LIST, the albums are arranged in the following order: A B C D F

6.Albums that do not contain tracks (such as album E) do not appear in the list.

Notes

• The playback order may differ depending on the writing software.
• The playback order may not be applicable if a total number of albums and tracks on the disc are over 512.
• The unit can play up to 256 albums. Albums more than first 256 albums cannot be recognized on this unit.

Tips

• If you add numbers (01, 02, 03, etc.) to the front of the track file names, the tracks will be played in that order.
• Since a disc with many trees takes longer to start playback, it is recommended that you create albums of no more than two tree levels.

continue to next page

To	Operation

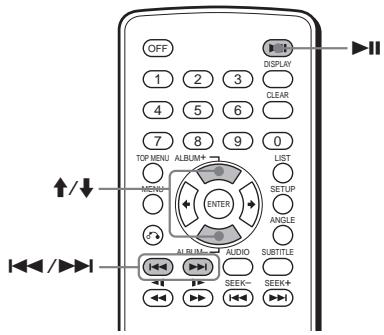

Pause	Press▶■
Resume play after pause	Press▶■
Go to the next chapter, track, or scene in continuous play mode	Press▶■
Go back to the previous chapter, track, or scene in continuous play mode	Press▶■
Go to the next album	Press▲*
Go to the previous album	Press▼*
Stop play and remove the disc	Press▲

• Available only when MP3 or JPEG files are played.

Resuming playback

—Resume play DVD VCD

The unit stores the point where you stopped playback for up to 20 discs, and starts resuming playback even after the unit is turned off, or the disc being played is ejected.

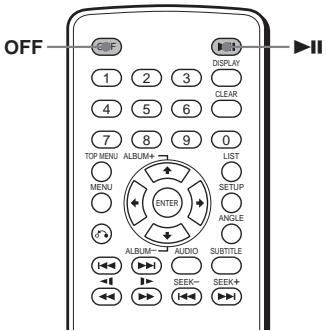

1 During playback, press OFF to stop.
2 Press II to resume playback.

Playback starts from the point stopped in step 1.

To play from the beginning

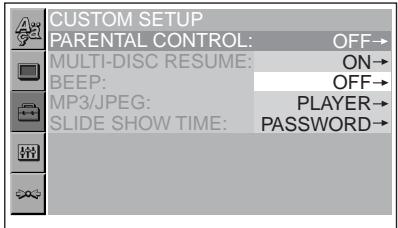

After setting "MULTI-DISC RESUME" in "CUSTOM SETUP" to "OFF" (page 28), press to eject the disc, then insert the disc again. Select the desired chapter on the DVD menu or the Top menu depending on the disc.

Notes

• MP3 playback will start from the beginning of the last track that was played.
  To use the resume playback, make sure that "MULTI-DISC RESUME" in "CUSTOM SETUP" is set to "ON" (page 28).
• When storing a resume point for the 21st disc, the stored resume point for the 1st disc is cleared automatically.
• The resume playback is canceled when the setting for the parental controls is changed.
  Depending on the disc or scene, you cannot use the resume playback.
• If parental control is applied, the resume playback function dose not work. In this case, payback starts from the beginning of the disc when you insert the disc.

Tip

When CD, MP3 files, or JPEG files are played, the unit tentatively stores the resume point for the disc being played. Once the unit is turned off or the disc is ejected, the stored resume point for the disc is cleared.

Checking the running time

Time information DVD VCD JPEG

You can check the playing time and remaining time of the current title, chapter, or track.

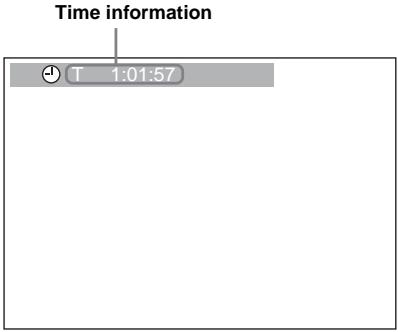

1 During playback, press DISPLAY. The current playback information appears.

2 Press DSPL repeatedly to switch the time information.

Time information differs depending on the disc as follows:

DVD:

"T **: **: **" - Elapsed playing time of the current title

"T-::**" - Remaining time of the current title

"C ******* - Elapsed playing time of the current chapter

"C-::*" - Remaining time of the current chapter

VCD (without PBC functions):

"T * : * " - Elapsed playing time of the current track

"T-:*" - Remaining time of the current track

"D *:" - Elapsed playing time of the current disc

"D-:" - Remaining time of the current disc

JPEG:

Album number

Image number

Searching a specific point on a disc

— Scan/Slow-motion play/List

You can quickly locate a specific point on a disc by monitoring the picture, playing back slowly, or selecting from the list.

Note

Depending on the DVD/VCD, you may not be able to perform some of the operations described.

Locating a point quickly

—Scan DVD VCD CD MP3

During playback, press and hold or , and release at the desired point.

If you press and hold the button, searching speed increases.

Note

You cannot hear audio while searching.

Playing at slow speed

— Slow-motion play BVP VCD

You can play a disc at various slow speeds.

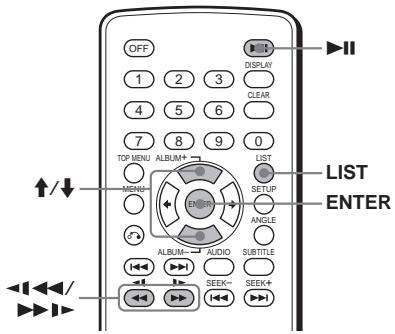

1 Press II to pause playback.
2 Press and hold or

Slow playback starts.

• Available only when a DVD is played.

To return to normal playback Press

Notes

• You cannot hear audio during slow-motion play.
• Depending one the disc, pictures may be distorted during slow-motion play.

Selecting an album and track

List CD WF3 JPEG

You can locate the desired contents on the list of albums, and tracks/images.

1 During playback, press LIST repeatedly to display the desired list.

Each time you press LIST, the list changes as follows:

Album list* Track/Image list

Normal play mode Album list*

• Appears only when MP3/JPEG files are played.

2 Press ↑/↓ to select the desired item (Album, Track, Image), then press ENTER.

Playback starts. When the album is selected, playback of the 1st track/image on the album selected starts.

Display items on the list

Current track/album*1/image*2 number and name
3 The track/album*1/image*2 names

1 Appears only when a MP3 file is played.
2 Appears only when a JPEG file is played.

Note

" * " appears on the list in place of characters other than alphabet and numbers.

Using the menus on DVDs

With some DVDs you can use the original menu, such as Top menu and DVD menu.

If the DVD contains several titles of tracks and scenes, you can use the Top menu to select the desired title, and start playing.

If the DVD contains more comprehensive Menu items such as the audio languages, subtitle languages, titles, and chapters, etc., you can use the DVD menu to select the desired item, and start playing.

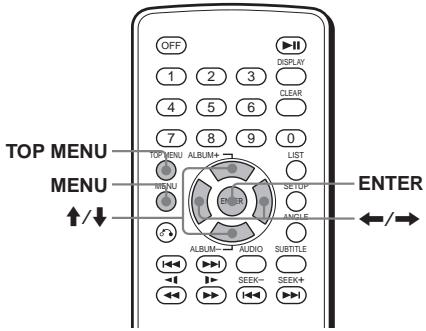

1 During a DVD playback, press
TOP MENU or MENU.
The DVD menu or Top menu appears.
The contents of the menu differ depending on the disc.
2 Press / / , or the number buttons to select the desired item, then press ENTER.

Note

The items on the menu, and the operation procedures differ depending on the disc.

Using PBC functions

PBC (Playback control) VCD

The PBC menu assists your operation interactively while a PBC compatible VCD is played.

1 Start playing a PBC compatible VCD. The PBC menu appears.

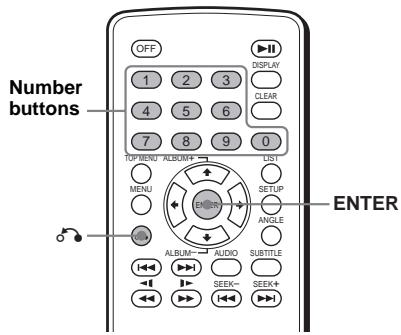

2 Press the number buttons to select the desired item, then press ENTER.
3 Follow the instructions in the menu for interactive operations.

To return to the previous display Press

Playing without the PBC function

1 During playback, press OFF.
2 Press the number buttons to select the desired item, then press ENTER.

"Play without PBC" appears and playback starts. The PBC menu does not appear during playback.

Notes

• The items on the menu, and the operation procedures differ depending on the disc.
• During PBC playback, the track number, playback time, etc., are not displayed in the Play mode menu.

Tip

To resume PBC playback, eject the disc once, and insert again. PBC playback starts.

Playing in various modes

— Repeat play/Search play

You can set the following play modes:

• Repeat Play (page 18)
  Search Play (page 19)

Notes

• The selected play mode is canceled when the disc being played is ejected or the unit is turned off.
• When playing VCD with the PBC function on, Repeat play is not available.

Playing repeatedly

—Repeat play DVD VCD CD MP3 JFEG

The unit can repeat a title, chapter, or track when the item being played reaches the end.

The following repeat options are available:

• TITLE (Title Repeat) - to repeat the current title.
• CHAPTER (Chapter Repeat) - to repeat the current chapter.
• TRACK (Track Repeat) - to repeat the current track/image.
• ALBUM (Album Repeat) - to repeat the tracks/ images in the current album.

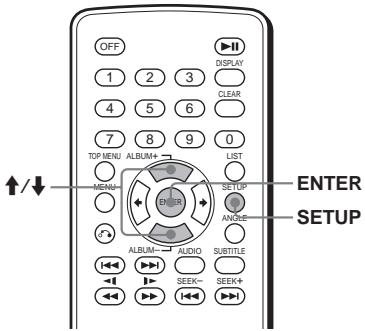

1 During playback, press (SETUP). The Play mode menu appears.
2 Press ↑/↓ to select "REP," then press ENTER.

The Play mode options appear.

3 Press / to select the desired option, then press ENTER.

Repeat play starts.

To return to normal play

Select "OFF" in step 3.

To turn off the Play mode menu Press

Tip The repeat options differ depending on the disc.

Starting playback from the point selected

Search play DVD VCD CD MP3 JPEG

You can quickly locate a desired point by specifying the title, chapter, track.

The following search options are available depending on the disc:

DVD:

TITLE starts playing from the selected title.
- CHAPTER starts playing from the selected chapter.

VCD:

• TRACK starts playing from the selected track.

CD:

• TRACK starts playing from the selected track.

MP3:

ALBUM starts playing from the selected album.
- TRACK starts playing from the selected track.

JPEG:

ALBUM starts playing from the selected album.
- IMAGE starts playing from the selected image.

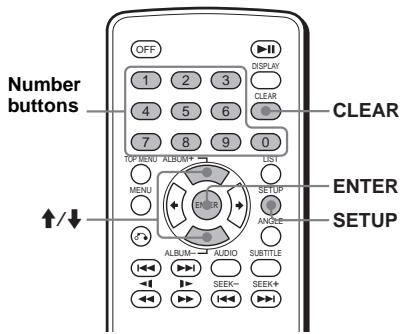

1 During playback, press

The Play mode menu appears.

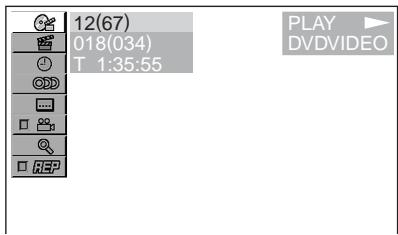

2 Press ↑/↓ to select the desired search item, then press ENTER.

The search items differ depending on the disc.

The number in parentheses indicates the total number of items selected.

3 Press the number buttons to enter title number, chapter number, track number, or the elapsed time of the title, or track.

To clear the numbers already input, press CLEAR

4 Press ENTER

Playback starts from the selected point.

To turn off the Play mode menu

Press SETUP

Sound Adjustments

Changing the audio channels

BVD VCD

When playing a DVD recorded in multiple audio formats (PCM, Dolby Digital, or DTS), you can change the audio format. If the DVD is recorded with multilingual tracks, you can also change the language.

With VCDs, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers. For example, when playing a disc containing a song with the vocals on the right channel and the instruments on the left channel, you can hear the instruments from both speakers by selecting the left channel.

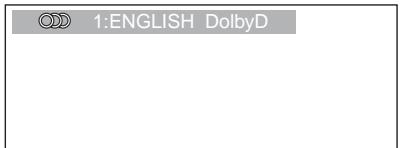

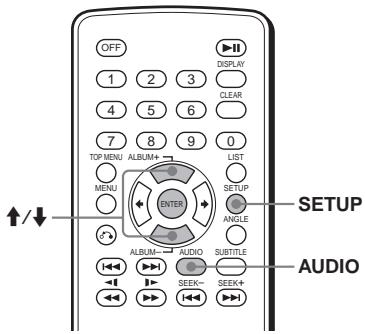

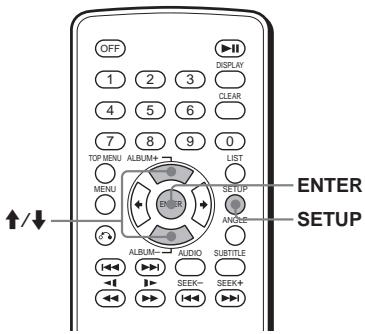

During playback, press (AUDIO) repeatedly to select the desired audio channels.

Audio sound settings differ depending on the disc as follows:

DVD:

The audio language switches among the available languages.

When 4 digits appear, input the language code corresponding the desired language (page 38).

When the same language is displayed two or more times, the DVD is recorded in multiple audio formats.

VCD:

STEREO*: Standard stereo sound

1/L: Left channel sound (monaural)

2/R: Right channel sound (monaural)

• The default setting

Tip

You can also change the settings by selecting "AUDIO" in the Play mode menu (page 10).

Checking the program format FVD

You can check the number of channels and component position on the DVD being played.

During playback, press

The Play mode menu appears.

Press / to select "ODD" (AUDIO), then press ENTER.

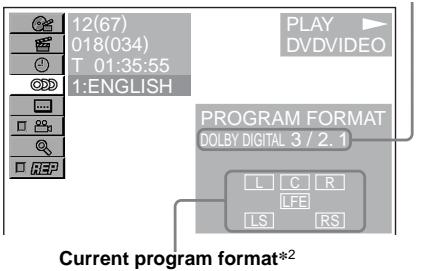

The program format appears.

Current audio format*1

The letters in the program format display represent the following sound components and its positions:

L:Front(left)
R:Front(right)
c:Center
LS:Rear(left)
RS:Rear(right)
S:Rear (monaural): The rear component of the Dolby Surround processed signal and the Dolby Digital signal
LFE:Low Frequency Effect signal

When "DOLBY DIGITAL" is applied, the program format name and channel numbers appear as follows:

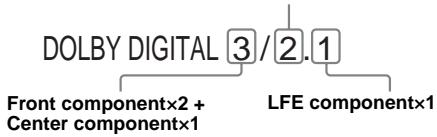

Example: Dolby Digital 5.1 ch

Rear component×2

1 "PCM," "DTS," or "DOLBY DIGITAL" appears depending on the disc.
2 Appears only when the "DOLBY DIGITAL" format is applied.

To turn off the Play mode menu

Press

Tip

For Dolby Digital and DTS, "LFE" is always enclosed in a solid line regardless of the LFE signal component being output.

Picture adjustments

Changing the angles

You can change the viewing angle if various angles (multi-angles) for a scene are recorded on a DVD.

Press ANGLE repeatedly to select the desired angle number.

The angle changes.

Tip

You can also change the viewing angle by selecting "ANGLE" in the Play mode menu (page 10).

Note

Depending on the DVD, you cannot change the angles even if multi-angles are recorded.

Displaying the subtitles DVD

You can turn on or off the subtitle, or change the subtitle language if subtitles in one or more language are recorded on the DVD.

1 During playback, press SUBTITLE.
The subtitle language appears.
2 Press SUBTITLE repeatedly to select the desired language, then press

ENTER

01:ENGLISH

The available languages differ depending on the disc.

When 4 digits appear, input the language code corresponding to the desired language (page 38).

To turn off the subtitle

Press SUBTITLE repeatedly to select "OFF."

Tip

You can also change the subtitle language by selecting "SUBTITLE" on the Play mode menu (page 10) or the DVD menu (page 17).

Note

Depending on the DVD, you cannot change (or turn off) the subtitles even if multilingual subtitles are recorded.

Magnifying pictures DVD VCD

You can magnify pictures.

1 During playback, press .

The Play mode menu appears.

2 Press ↑/↓ to select “O” (CENTER ZOOM), then press ENTER.

The current option appears.

3 Press ↑/↓ to select the desired option (ZOOM×1, ×1.5, ×2, ×3), then press ENTER.

The picture is magnified.

• The picture become grainy.

To shift the frame position

After magnifying the picture, press / / .

To restore the original scale

Select "ZOOM×1" in step 3.

To turn off the Play mode menu

Press

Notes

• Depending on the DVD, you may not be able to change the magnification.
• Resume Play (page 14) restores the last magnification, but the last frame position is cleared.
• In the Play mode menu, a picture is always displayed in normal size. The picture can magnified when the Play mode menu is turned off.

Other Function

Locking discs

Parental control

You can lock the desired disc, or set playback restrictions according to a predetermined level such as viewer age. Restricted playback scenes are blocked or replaced with different scenes when a parental control compatible DVD is played.

Setting the parental control on FyD

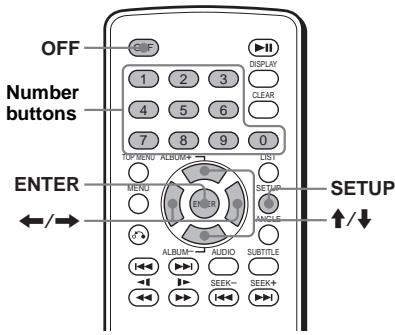

1 Press while playback is being stopped. The set up menu appears.
2 Press / to select " ^ 一 " (CUSTOM SETUP), then press ENTER. The setting items appear.
3 Press ↑/↓ to select “PARENTAL CONTROL,” then press ENTER. The parental control options appear.

4 Press ↑/↓ to select “ON →,” then press ENTER.

The password setting display appears.

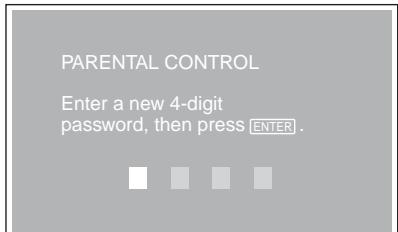

5 Press the number buttons to enter your password, then press ENTER. The conformation display appears.
6 To confirm, press the number buttons to enter your password again, then press ENTER. Parental control is set.

To turn off the Setup menu

Press (SETUP).

To set the parental control off

1 Press (SETUP) while playback is being stopped.

The set up menu appears.

2 Press ↑/↓ to select “” (CUSTOM SETUP), then press ENTER.

The setting items appear.

3 Press ↑/↓ to select “PARENTAL CONTROL,” then press ENTER.

The parental control options appear.

4 Press ↑/↓ to select “OFF →,” then press ENTER.

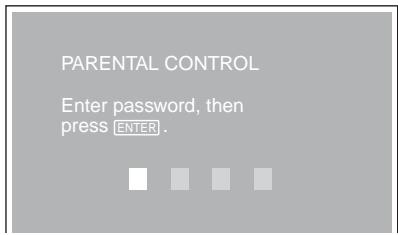

The display to enter your password appears.

5 Press the number buttons to enter your password, then press ENTER.

"Parental control is canceled" appears.

If a wrong number is entered, press to move the cursor and enter the number again.

Changing the area and its movie rating level DVD

You can set the restriction levels depending on the area and its movie ratings.

1 Press (SETUP) while playback is being stopped.

The set up menu appears.

2 Press ↑/↓ to select “ ” (CUSTOM SETUP), then press ENTER.

The setting items appear.

3 Press ↑/↓ to select “PARENTAL CONTROL,” then press ENTER.

The parental control options appear.

4 Press ↑/↓ to select "PLAYER →," then press ENTER.

When the parental control is already set to on, the display to enter your password appears.

To change the settings, enter your password number, then press ENTER.

If a wrong number is entered, press to move the cursor and enter the number again.

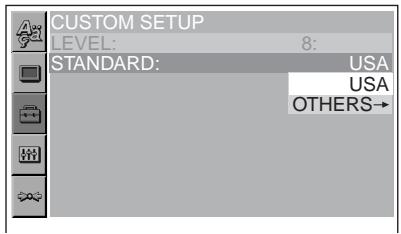

5 Press ↑/↓ to select "STANDARD," then press ENTER.

The standard options appear.

6 Press ↑/↓ to select the desired area to apply its movie ratings, then press

ENTER.

The area is selected.

When you want to select the standard on the "Area code list" (page 25), select "OTHERS ; then enter its code number using the number buttons.

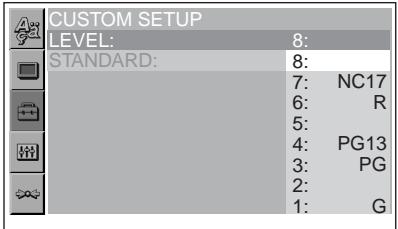

7 Press ↑/↓ to select “LEVEL,” then press ENTER.

The rating options appear.

The lower the number, the stricter the restriction level.

8 Press ↑/↓ to select the desired rating, then press ENTER.

Parental control setting is complete.

To turn off the Setup menu

Press

Note

When you play discs which do not have the parental control, playback cannot be restricted on this unit.

Area code list

Standard	Code number
Argentina	2044
Australia	2047
Austria	2046
Belgium	2057
Brazil	2070
Canada	2079
Chile	2090
China	2092
Denmark	2115
Finland	2165
France	2174
Germany	2109
India	2248
Indonesia	2238
Italy	2254
Japan	2276
Korea	2304
Malaysia	2363
Mexico	2362
Netherlands	2376
New Zealand	2390
Norway	2379
Pakistan	2427
Philippines	2424
Portugal	2436
Russia	2489
Singapore	2501
Spain	2149
Sweden	2499
Switzerland	2086
Thailand	2528
United Kingdom	2184

Changing the password

1 Press (SETUP) while playback is being stopped.

The Setup menu appear.

2 Press ↑/↓ to select “” (CUSTOM SETUP), then press ENTER.

The setting items appear.

3 Press ↑/↓ to select “PARENTAL CONTROL,” then press ENTER.

The parental control options appear.

4 Press ↑/↓ to select "password →," then press ENTER.

The display to enter your password appears.

5 Press the number buttons to enter your 4-digit password, then press ENTER.

When a wrong number is entered, press to move the cursor and enter the number again.

6 Press the number buttons to enter a new 4-digit password, then press ENTER.

7 To confirm, press the number button to enter your new 4-digit password again, then press ENTER.

To return to the previous display Press

To turn off the Setup menu

Press SETUP

Settings and Adjustments

Using the Setup menu

By using the Setup menu, you can make various adjustments to items, such as picture and sound. You can also set a language for the subtitle and the on-screen display, among other things. For details on each setup items, see pages from 27 to 29.

Note

Playback settings stored in the disc take priority over the Setup menu settings and not all the functions described may work.

Basic operation

Example: When you want to change the aspect ratio ("MONITOR TYPE") to "4:3 PAN SCAN."

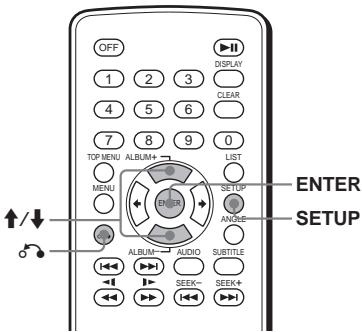

1 Press (SETUP).

The Setup menu appears.

2 Press ↑/↓ to select “□” (SCREEN SETUP), then press ENTER.

The setup display appears.

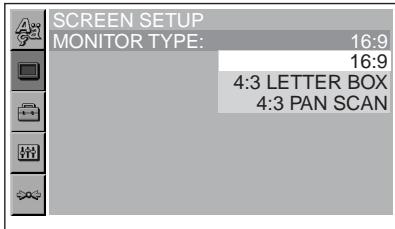

3 Press ↑/↓ to select "MONITOR TYPE," then press ENTER.

The monitor type options appear.

4 Press ↑/↓ to select "4:3 PAN SCAN," then press ENTER.

The setting becomes effective and setup is complete.

To return to the previous display Press

To turn off the Setup menu Press (SETUP).

To reset all the setting items

—Reset

1 Select “ ←” (RESET) in step 2, then press ENTER.
2 Press ↑/↓ to select “YES,” then press ENTER.

All the settings on the Setup menu return to the default settings.

To cancel resetting

Select "NO" in step 2.

Note

Do not turn off the unit while resetting the Setup menu item as it takes a few seconds to complete.

Setting the display language or sound track

— Language setup

"LANGUAGE SETUP" allows you to set the desired language for the on-screen display or sound track accordingly.

Select "A" (LANGUAGE SETUP) in the Setup menu, then select the desired setting item. For details on the setup procedures, see "Using the Setup menu" (page 26).

OSD (On-Screen Display)

Switches the display language on the screen.

MENUBVD

Switches the language for the menu on the disc.

AUDIO DVD

Switches the language of the sound track. When you select "ORIGINAL," the language given priority in the disc is selected.

SUBTITLE DVD

Switches the language of the subtitle recorded on the disc.

When you select "AUDIO FOLLOW," the language for the subtitles changes according to the language you selected for the sound track.

Tip

If you select "OTHERS " in "MENU," "SUBTITLE," and "AUDIO," select and enter a language code from "Language code list" (page 38) using the number buttons.

Note

When you select a language in "MENU," "SUBTITLE," or "AUDIO" that is not recorded on the disc, one of the recorded languages will be automatically selected.

Setting the screen

— Screen setup

"SCREEN SETUP" allows you to adjust the setting for the connected monitor.

Select "☑" (SCREEN SETUP) in the Setup menu, then select the desired setting item. For details on the setup procedures, see "Using the Setup menu" (page 26).

The setting items with ** in the tables below are the default settings.

MONITOR TYPE

Selects the aspect ratio of the connected monitor (4:3 standard or wide).

16:9*	Displays the wide picture. Select this when you connect a wide-screen monitor or a monitor with a wide mode function.
4:3 LETTERBOX	Displays a wide picture with bands on the upper and lower portions of the screen. Select this when you connect a 4:3 screen monitor.
4:3 PAN SCAN	Displays a wide picture on the entire screen and automatically cuts off the portions that do not fit. Select this when you connect a 4:3 screen monitor.

16:9

4:3 LETTER BOX

4:3 PAN SCAN

Note

Depending on the DVD, "4:3 LETTER BOX" may be selected automatically instead of "4:3 PAN SCAN," and vice versa.

Custom settings

Custom setup

"CUSTOM SETUP" allows you to set the playback conditions of this unit.

Select "..." (CUSTOM SETUP) in the Setup menu, then select the desired setting item.

For details on the setup procedures, see "Using the Setup menu" (page 26).

The setting items with ** in the tables below are the default settings.

PARENTAL CONTROL DvD

Sets the playback restrictions so that the unit will not play inappropriate discs or scenes (page 23).

ON→	Sets the parental control on.
OFF→*	Sets the parental control off.
PLAYER→	Sets the restriction standard and its level.
password→	Sets a new 4-digit password.

MULTI-DISC RESUME DVD

Stores resume playback points for up to 20 different discs.

ON*	Stores the resume settings in memory for up to 20 discs. (The settings remain in memory even if you select “OFF.”)
OFF	Cancels storing the resume settings in memory. Playback restarts at the resume point only for the current disc in the unit.

Note

If parental control is applied, the resume playback function dose not work. In this case, payback starts from the beginning of the disc when you insert the disc.

BEEP

Switches the beep setting on or off.

ON*	Turns the beep on.
OFF	Turns the beep off.

MP3/JPEG MP3 JPEG

Sets the priority when MP3 files and JPEG files are on the same disc.

MP3*	Takes priority over JPEG files when playing.
JPEG	Takes priority over MP3 files when playing.

Sets the time for displaying images on the disc.

5sec	Switches the images every 5 seconds.
10sec*	Switches the images every 10 seconds.
20sec	Switches the images every 20 seconds.
40sec	Switches the images every 40 seconds.
60sec	Switches the images every 60 seconds.
FIXED	Cancels switching the images.

Audio settings

Audio setup

"AUDIO SETUP" allows you to adjust the sound according to playback conditions and connected equipment.

Select "H" (AUDIO SETUP) in the Setup menu, then select the desired setting item.

For details on the setup procedures, see "Using the Setup menu" (page 26).

The setting items with " * " in the tables below are the default settings.

AUDIO ATT (attenuation)

Reduces the audio output level if the playback sound is distorted.

This setting affects the outputs of FRONT/REAR AUDIO OUT.

OFF*	Normally, select this position.
ON	Reduces the audio output level. Select this if the playback sound from the speakers is distorted.

AUDIO DRC (Dynamic Range Control)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to "AUDIO DRC."

This setting affects the outputs of FRONT/REAR AUDIO OUT.

STANDARD*	Normally select this position.
WIDE	Gives you the feeling of being at a live performance.
RANGE

DOWNMIX DVD

Switches the method for mixing down to 2 channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see "Checking the program format" (page 20). This setting affects the output of FRONT/REAR AUDIO OUT.

SURROUND*	Select this when the unit is connected to an audio component that conforms to Dolby Surround (Pro Logic).
NORMAL	Select this when the unit is connected to an audio component that does not conform to Dolby Surround (Pro Logic).

Additional Information

Maintenance

Fuse replacement

When replacing the fuse, be sure to use one matching the amperage rating stated on the original fuse. If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after replacement, there may be an internal malfunction. In such a case, consult your nearest Sony dealer.

Warning

Never use a fuse with an amperage rating exceeding the one supplied with the unit, as this could damage the unit.

continue to next page

Replacing the lithium battery

Under normal conditions, batteries will last approximately 1 year. (The service life may be shorter, depending on the conditions of use.) When the battery becomes weak, the range of the card remote commander becomes shorter. Replace the battery with a new CR2025 lithium battery. Use of any other battery may present a risk of fire or explosion.

Notes on lithium battery

• Keep the lithium battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor.
• Wipe the battery with a dry cloth to assure a good contact.
• Be sure to observe the correct polarity when installing the battery.
• Do not hold the battery with metallic tweezers, otherwise a short-circuit may occur.

WARNING

Battery may explode if mistreated.
Do not recharge, disassemble, or dispose of in fire.

Removing the unit

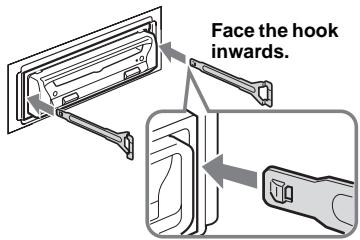

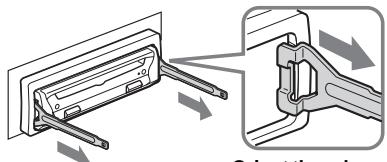

1 Remove the protection collar.

Engage the release keys together with the protection collar.

Orient the release key correctly.

Pull out the release keys to remove the protection collar.

2 Remove the unit.

Insert both release keys together until they click.

Pull the release keys to unseat the unit.

Slide the unit out of the mounting.

Notes on discs

• To keep the disc clean, do not touch the surface. Handle the disc by its edge.
• Keep your discs in their cases or disc magazines when not in use. Do not subject the discs to heat/high temperature. Avoid leaving them in parked cars or on dashboards/rear trays.

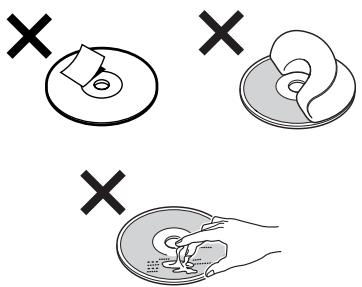

• Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used, causing a malfunction, or may ruin the disc.

• Do not use any discs with labels or stickers attached as this may cause inability to read data correctly (e.g., playback skipping, or no playback) due to heat shrinking of a sticker or label causing a disc to warp.
• Discs with non-standard shapes (e.g., heart, square, star) cannot be played on this unit. Attempting to do so may damage the unit. Do not use such discs.
• Before playing, clean discs with a commercially available cleaning cloth. Wipe each disc from the center out. Do not use solvents such as benzine, thinner, commercially available cleaners, or antistatic spray intended for analog discs.

Notes on MP3 files

MP3 (MPEG 1 Audio Layer-3) is a standard technology and format for compressing a sound sequence. The file is compressed to about 1/10 of its original size. Sounds outside the range of human hearing are compressed while the sounds we can hear are not compressed.

Notes on discs

You can play MP3 files recorded on CD-ROMs, CD-Rs, and CD-RWs.

The disc must be in the ISO 9660^*1 level 1 or level 2 format, or Joliet or Romeo in the expansion format.

You can use a disc recorded in Multi Session ^2 .

^*1 ISO 9660 Format

The most common international standard for the logical format of files and folders on a CD-ROM.

There are several specification levels. In Level 1, file names must be in the 8.3 format (no more than 8 characters in the name, no more than 3 characters in the extension ".mp3") and in capital letters. Folder names can be no longer than 8 characters. There can be no more than 8 nested folder levels. Level 2 specifications allow file names up to 31 characters long.

Each folder can have up to 8 trees.

For Joliet or Romeo in the expansion format, make sure of the contents of the writing software, etc.

*2 Multi Session

This is a recording method that enables adding of data using the Track-At-One method. Conventional CDs begin at a CD control area called the Lead-in and end at an area called Lead-out. A Multi Session CD is a CD having multiple sessions, with each segment from Lead-in to Lead-out regarded as a single session.

continue to next page

Notes

• With formats other than ISO 9660 level 1 and level 2, folder names or file names may not be displayed correctly.
• When naming, be sure to add the file extension ".mp3" to the file name.
• If you put the extension ".mp3" to a file other than MP3, the unit cannot recognize the file properly and will generate random noise that could damage your speakers.

• The following discs take a longer time to start playback.

• a disc recorded with a complicated tree structure.

• a disc recorded in Multi Session.
• a disc to which data can be added.

Specifications

System

Laser

Signal format system

Semiconductor laser

NTSC

Audio characteristics*

Frequency response

DVD:

5Hz to 22kHz (± 0.5 dB)

CD:

2Hz to 20kHz (± 0.5dB)

Signal-to-noise ratio

102 dB (AUDIO OUT L/R jacks only)

Harmonic distortion

0.003%

Wow and flutter

Less than detected value

(± 0.001% WPEAK)

• Measured from the AUDIO OUT jacks.
  When you play PCM sound tracks with a 96 kHz sampling frequency, the output signals from the DIGITAL OUT jack are converted to 96 kHz sampling frequency.

General

Outputs

AUDIO OUT L/R:

Phono jack/2 Vrms/

10 kilohms

VIDEO OUT:

Phono jack/1.0 Vp-p/

75 ohms

DIGITAL OUT:

Optical output jack/

-18 dBm (wave length: 660 nm)

Power requirements

12 V DC car battery

(negative ground)

Dimensions

Approx. 178× 50× 170mm

(7^1 / 8 × 2 × 6^3 / 4 in)

(w/h/d)

Mounting dimensions

Approx. 182× 53× 155mm

(7^1 / 4 × 2^1 / 8 × 6^1 / 8 in)

(w/h/d)

Mass

Approx. 1.2kg

(2 lb 11 oz)

Operating temperature

-10^ to 55^

(14°F to 131°F)

Operating humidity

25% to 80%

Supplied accessories

Card remote commander

RM-X129

Parts for installation and

connections (1 set)

Optional accessories

Overhead Monitor

XVM-R75,XVM-R70

Headrest Monitor

XVM-H65

Media Center/Receiver

XAV-7W

RCA pin cord

RC-64 (2m) , RC-65 (5m)

Optical cable

RC-97 (2m) 985 m

Optical adapter

XA-D211

Note

This unit cannot be connected to a digital preamplifier or an equalizer which is Sony BUS system compatible.

Design and specifications are subject to change without notice.

Troubleshooting

The following checklist will help you remedy problems you may encounter with your unit. Before going through the checklist below, check the connection and operating procedures.

Power

No power is being supplied to the unit.

• The power connection has not been made correctly.
  Check the connection. If everything is in order, check the fuse.
• The car does not have an ACC position.
  Insert a disc to turn on the unit.


There is no picture/picture noise appears.

• A connection has not been made correctly.
• Check the connection to the connected equipment, and set the input selector of the equipment to the source corresponding to this unit.
• The disc is dirty, flawed, or deteriorated.
• The unit is installed at an angle of more than 20^ .
• The unit is not installed in a sturdy part of the car.
• The monitor is connected to the FRONT AUDIO/VIDEO OUT, and the parking cord (Light green) is not connected to the parking brake switch cord, or the parking brake is not applied.

Picture does not fit in the screen.

The aspect ration is fixed on the DVD.

Sound

There is no sound/sound skips/sound cracks.

• A connection has not been made correctly.
• Check the connection to the connected equipment, and set the input selector of the equipment to the source corresponding to this unit.
• The disc is dirty, flawed, or deteriorated.
• The unit is installed at an angle of more than 20^ .
• The unit is not installed in a sturdy part of the car.
• The unit is in pause playback mode, or in slow playback mode.
• The unit is in fast forward mode, or in fast reverse mode.
• The settings for the outputs are not made correctly.

Sound is noisy.

Keep cords and cables away from each other.

Sound distortion occurs.

Set "AUDIO ATT" in "AUDIO SETUP" to "ON" (page 29).

The sound volume is low.

Set "AUDIO ATT" in "AUDIO SETUP" to "OFF" (page 29).

Operation

The remote does not function.

• There are obstacles between the remote and the unit, or the remote receptor.
• The distance between the card remote commander and the unit is too far.
• The card remote commander is not pointed at the remote sensor, or the receptor on the unit properly.
• The batteries in the card remote commander are weak.

The unit does not respond.

Press the reset button.

The contents of the settings have been erased.

• The reset button is pressed.
• The battery has replaced, or the power cord is disconnected.
• The power connection has not been made correctly.

No beep sound when pressing buttons.

→Set "BEEP" in "CUSTOM SETUP" to "ON" (page 28).

A disc cannot be loaded.

• Another disc is already loaded.
• The ignition key switch of the car is set to the OFF position.

The unit does not start playing.

• The disc is inserted upside down.
  Insert the disc with the playback surface down.
• The disc inserted is not applicable.
• The DVD inserted is not applicable due to the region code.
• Moisture has condensed inside the unit.
• The DVD-R, DVD-RW, CD-R, or CD-RW inserted is not finalized.

MP3 files cannot be played.

• Recording was not performed according to the ISO 9660 level 1 or level 2 format, or the Joliet or Romeo in the expansion format.
• The MP3 file does not have the extension ".mp3".
• Files are not stored in MP3 format.
• The unit cannot play files stored in MP3PRO format.
• The unit cannot play files stored in a format other than the MPEG1 Audio Layer 3.
• Both MP3 and JPEG files are stored on the disc.

Set "MP3/JPEG" in "CUSTOM SETUP" to "MP3" (page 28).

The JPEG files cannot be played.

• JPEG files do not have the extension“.jpg.”
• Files are not stored in JPEG format.
• Both MP3 and JPEG files are stored on the disc.
  Set "MP3/JPEG" in "CUSTOM SETUP" to "JPEG" (page 28).

The title of the MP3 audio album or track is not correctly displayed.

The player can only display numbers and alphabet. Other characters are displayed as *

The disc does not start playing from the beginning.

Resume play has taken effect (page 14).

Playback stops automatically.

While playing discs with an auto pause signal, the unit stops playback at the auto pause signal.

You cannot perform certain functions.

Depending on the disc, you may not be able to perform operations such as Stop, Search, Slow-motion play, or Repeat play. For details, see the operating manual supplied with the disc.

The language for the sound track cannot be changed.

• Use the DVD menu instead of the direct selection button on the card remote commander (page 17).
• Multilingual tracks are not recorded on the DVD being played.
• The DVD prohibits the changing of the language for the sound track.

The subtitle language cannot be changed or turned off.

• Using the DVD menu instead of the direct selection button on the card remote commander (page 17).
• Multilingual subtitles are not recorded on the DVD being played.
• The DVD prohibits the changing of the subtitles.

The angles cannot be changed.

• Use the DVD menu instead of the direct selection button on the card remote commander (page 17).
• Multi-angles are not recorded on the DVD being played.
• The DVD prohibits changing of the angles.

Error displays

The following indications appear when a malfunction occurs in the unit.

Cannot play this disc.

• The disc is not compatible with this unit.
• The DVD is prohibited for playback due to the different region code.

No MP3 or JPEG file

The disc contains no MP3/JPEG file.

Read error

• The unit cannot read the data due to some problem.
• The data is damaged or corrupted.

Please Press RESET.

The unit cannot operate due to some problem.

Press the reset button.

If these solutions do not help improve the situation, consult your nearest Sony dealer.

Glossary

Chapter

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Dolby Digital

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same 5.1 discrete channels of high quality digital audio found in Dolby Digital cinema audio systems. Good channel separation is realized because all of the channel data are recorded discretely and little deterioration is realized because all channel data processing is digital.

Dolby Surround (Pro Logic)

Audio signal processing technology that Dolby Laboratories developed for surround sound. When the input signal contains a surround component, the Pro Logic process outputs the front, center and rear signals. The rear channel is monaural.

DTS

Digital audio compression technology that Digital Theater Systems, Inc. developed. This technology conforms to 5.1-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same 5.1 discrete channels of high quality digital audio.

Good channel separation is realized because all of the channel data is recorded discretely and little deterioration is realized because all channel data processing is digital.

DVDVIDEO

A disc that contains up to 8 hours of moving pictures even though its diameter is the same as a CD.

The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB.

The picture data uses the MPEG 2 format, one of the worldwide standards of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.

Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided with the DVD.

DVD-RW

A DVD-RW is a recordable and rewritable disc with the same size as the DVD VIDEO. The DVD-RW can be recorded in two different modes: VR mode and Video mode. VR (Video Recording) mode enables various programming and editing functions, some of which are limited in the case of Video mode. Video mode complies with DVD VIDEO format and can be played on other DVD players while a DVD-RW recorded in VR mode can only be played on DVD-RW compliant players. The "DVD-RW" appearing in this manual, and the on-screen displays refer to DVD-RWs in VR mode.

Film based software, Video based software

DVDs can be classified as Film based or Video based software. Film based DVDs contain the same images (24 frames per second) that are shown at movie theaters. Video based DVDs, such as television dramas or sit-coms, displays images at 30 frames (or 60 fields) per second.

JPEG (Joint Photographic Expert Group)

Under the auspices of the International Organization for Standardization (ISO), JPEG is defined as a universal standard format for digital compression and decompression of still images for use in computer related systems. Usually, the compression rate is variable before visible degradation occurs. Still images are compressed about 1/10 to 1/100 original size.

Title

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Track

Sections of a picture or a music feature on a CD orVIDEO CD (the length of a song).

Language code list

The language spellings conform to the ISO 639: 1988 (E/F) standard.

Code Language	Code Language	Code Language	Code Language
1027 Afar	1183 Irish	1347 Maori	1507 Samoan
1028 Abkhazian	1186 Scots Gaelic	1349 Macedonian	1508 Shona
1032 Afrikaans	1194 Galician	1350 Malayalam	1509 Somali
1039 Amharic	1196 Guarani	1352 Mongolian	1511 Albanian
1044 Arabic	1203 Gujarati	1353 Moldavian	1512 Serbian
1045 Assamese	1209 Hausa	1356 Marathi	1513 Siswati
1051 Aymara	1217 Hindi	1357 Malay	1514 Sesotho
1052 Azerbaijani	1226 Croatian	1358 Maltese	1515 Sundanese
1053 Bashkir	1229 Hungarian	1363 Burmese	1516 Swedish
1057 Byelorussian	1233 Armenian	1365 Nauru	1517 Swahili
1059 Bulgarian	1235 Interlingua	1369 Nepali	1521 Tamil
1060 Bihari	1239 Interlingue	1376 Dutch	1525 Telugu
1061 Bislama	1245 Inupiak	1379 Norwegian	1527 Tajik
1066 Bengali; Bangla	1248 Indonesian	1393 Occitan	1528 Thai
1067 Tibetan	1253 Icelandic	1403 (Afan)Oromo	1529 Tigrinya
1070 Breton	1254 Italian	1408 Oriya	1531 Turkmen
1079 Catalan	1257 Hebrew	1417 Punjabi	1532 Tagalog
1093 Corsican	1261 Japanese	1428 Polish	1534 Setsswana
1097 Czech	1269 Yiddish	1435 Pashto; Pushto	1535 Tonga
1103 Welsh	1283 Javanese	1436 Portuguese	1538 Turkish
1105 Danish	1287 Georgian	1463 Quechua	1539 Tsonga
1109 German	1297 Kazakh	1481 Rhaeto-	1540 Tatar
1130 Bhutani	1298 Greenlandic	Romance	1543 Twi
1142 Greek	1299 Cambodian	1482 Kirundi	1557 Ukrainian
1144 English	1300 Kannada	1483 Romanian	1564 Urdu
1145 Esperanto	1301 Korean	1489 Russian	1572 Uzbek
1149 Spanish	1305 Kashmiri	1491 Kinyarwanda	1581 Vietnamese
1150 Estonian	1307 Kurdish	1495 Sanskrit	1587 Volapük
1151 Basque	1311 Kirghiz	1498 Sindhi	1613 Wolof
1157 Persian	1313 Latin	1501 Sangho	1632 Xhosa
1165 Finnish	1326 Lingala	1502 Serbo-Croatian	1665 Yoruba
1166 Fiji	1327 Laothian	1503 Singhalese	1684 Chinese
1171 Faroeese	1332 Lithuanian	1505 Slovak	1697 Zulu
1174 French	1334 Latvian; Lettish	1506 Slovenian
1181 Frisian	1345 Malagasy

1703 Not specified

Index

Numeric

16:9 27

4:3 LETTER BOX 27

4:3 PAN SCAN 27

A

Album (ALBUM) 19

Angle (ANGLE) 21

Area code list 25

Attenuation (AUDIO ATT) 29

Audio (AUDIO) 20, 27

Audio setup (AUDIO SETUP) 29

B

Beep (BEEP) 28

C

Card remote commander 9

Chapter (CHAPTER) 19

Custom setup (CUSTOM SETUP) 28

D

Display item

CD/MP3 playback 13

List 17

Play mode menu 10

Setup menu 10, 26

Downmix (DOWNMIX) 29

DRC (Dynamic range control) (AUDIO DRC) 29

DVD menu 17, 27

F

Fuse 29

1

Image (IMAGE) 19

J

JPEG (MP3/JPEG) 28

L

Language code list 38

Language setup (LANGUAGE SETUP) 27

Lithium battery 30

Locating

Fast forward 14

Fast reverse 14

List 16

Scan 16

Slow-motion play 16

M

Monitor type (MONITOR TYPE) 27

MP3 (MP3/JPEG) 28

0

OSD 27

P

Parental control (PARENTAL CONTROL) 23, 28

PBC (Playback control) 18

Play mode menu 10

Program format 20

R

Region code 6

Repeat play (REPEAT) Album 18

Chapter 18

Title 18

Track 18

Reset (RESET) 26

Reset button 12

Resume play (MULTI-DISC

RESUME)14,28

s

Screen setup (SCREEN SETUP) 27

Search play 19

Setup menu 10, 26

Slide show time (SLIDE SHOW TIME) 28

Subtitle (SUBTITLE) 22, 27

T

Time information (TIME) 15

Title (TITLE) 19

Top menu 17

Track (TRACK) 19

U

Usable discs 5

Z

Zoom (CENTER ZOOM) 22

Avertissement

D'ÉLECTROCUTION, INSÉREZ

ENTIÈREMENT LA LAME LARGE DE LA

FICHE DANS LA FENTE

CORRESPONDANTE.

Table des matieres

For your safety, the video is blocked.

MULTI-DISC RESUME DVD VCD

AUDIO ATT (atténuation)

Cannot play this disc.

JPEG (Joint Photographic Expert Group)

ELECTRICA, HAGA COINCIDIR LA PATA

MÁS ANCHA DE LA CLAVIJA CON EL

ENCHUFE CORRESPONDIENTE E

INSERTELA COMPLETAMENTE.

Table de contenido

For your safety, the video is blocked.

VCD (sin sistemas PBC):

Aparece "Parental control is canceled".

Subtitle (SUBTITLE) 22, 27

T
