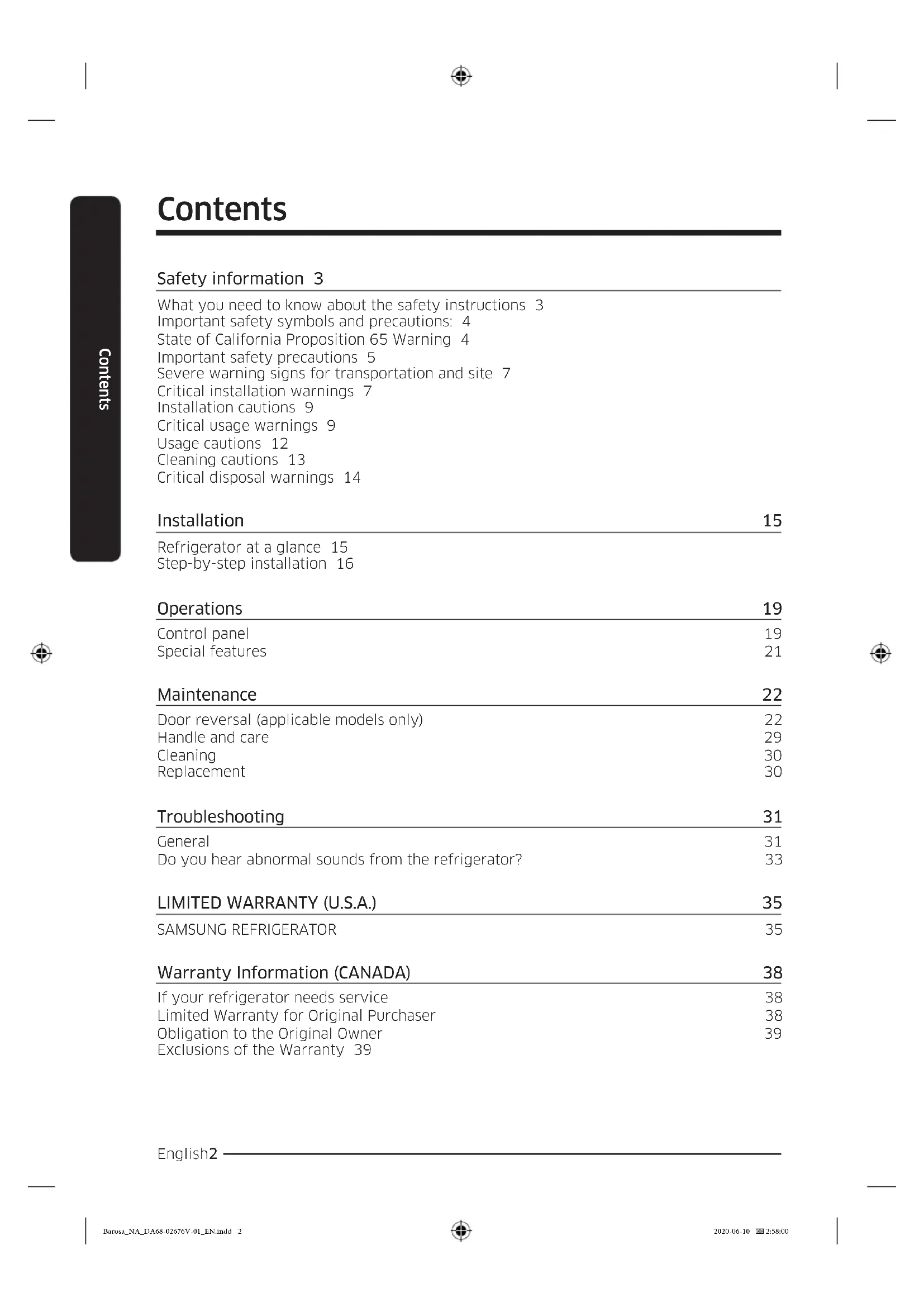

USER MANUAL RL1505SBASR SAMSUNG

Refrigerator User manual Free Standing Appliance Barosa_NA_DA68-02676V-01_EN.indd 1 2020-06-10 2:58:00English2 Contents Contents Safety information 3 What you need to know about the safety instructions 3 Important safety symbols and precautions: 4 State of California Proposition 65 Warning 4 Important safety precautions 5 Severe warning signs for transportation and site 7 Critical installation warnings 7 Installation cautions 9 Critical usage warnings 9 Usage cautions 12 Cleaning cautions 13 Critical disposal warnings 14 Installation 15 Refrigerator at a glance 15 Step-by-step installation 16 Operations 19 Control panel 19 Special features 21 Maintenance 22 Door reversal (applicable models only) 22 Handle and care 29 Cleaning 30 Replacement 30 Troubleshooting 31 General 31 Do you hear abnormal sounds from the refrigerator? 33

LIMITED WARRANTY (U.S.A.) 35

SAMSUNG REFRIGERATOR 35 Warranty Information (CANADA) 38 If your refrigerator needs service 38 Limited Warranty for Original Purchaser 38 Obligation to the Original Owner 39 Exclusions of the Warranty 39 Barosa_NA_DA68-02676V-01_EN.indd 2 2020-06-10 2:58:00English 3 Safety information Safety information Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efciently. What you need to know about the safety instructions

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Because the following instructions cover various models, the characteristics of your refrigerator may differ slightly from the refrigerator described in this manual.

• If you have any question, contact us at 1-800-SAMSUNG or nd help and information online at www.samsung.com.

• Refrigerant squirting out of the pipes could ignite or cause an eye injury. When refrigerant leaks from the pipe, avoid any naked ames and move anything ammable away from the product and ventilate the room immediately. - Failing to do so may result in re or explosion.

• Improper use of the grounding plug can result in a risk of electric shock. If it is necessary to use an extension cord, use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked rating of the extension cord should be AC 115-120 V, 10 A, or more. If a grounding adapter is used, make sure the receptacle box is fully grounded. Barosa_NA_DA68-02676V-01_EN.indd 3 2020-06-10 2:58:00English4 Safety information Safety information Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols. WARNING Hazards or unsafe practices that may result in severe personal injury, property damage, and/or death. CAUTION Hazards or unsafe practices that may result in severe personal injury and/or property damage. NOTE Useful information that helps users understand or benet from the refrigerator. These warning signs are here to prevent injury to you and others. Please follow them carefully. After reading this section, keep it in a safe place for future reference. State of California Proposition 65 Warning WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. Barosa_NA_DA68-02676V-01_EN.indd 4 2020-06-10 2:58:00English 5 Safety information Important safety precautions Warning; Risk of re / ammable materials WARNING

• R-600a is used as a refrigerant. This product contains ammable gas (Refrigerant R-600a), contact your local authority in regard to safe disposal of this product.

• In order to avoid the creation of a ammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every 8 g of R-600a refrigerant inside the appliance.

• The installation location should not be exposed to direct sunlight and not placed near any electric appliance or heat source, e.g. stove, oven or hob, radiator, etc.

• If you use two products side by side, for safety reason, be sure to use certied products in explosive gas atmospheres.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard.

• The socket must be easily accessible so that the appliance can be quickly disconnected from the supply in an emergency. It must be outside the area of the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a ammable propellant in this appliance.

• New hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.

• When positioning the appliance, ensure the supply cord is not trapped or damaged.

• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Barosa_NA_DA68-02676V-01_EN.indd 5 2020-06-10 2:58:00English6 Safety information Safety information WARNING

• Fill with potable water only.

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Do not damage the refrigerant circuit.

• Do not use electrical appliances inside the food storage compartments of The appliance, unless they are of the type recommended by the manufacturer.

• Connect to potable water supply only. WARNING

• Risk of child entrapment. Before you throw away your old refrigerator or freezer: - Take off the doors. - Leave the shelves in place so that children may not easily climb inside. This appliance is intended to be used in household and similar applications such

• staff kitchen areas in shops, ofces and other working environments;

• farm houses and by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments;

• catering and similar non-retail applications. Barosa_NA_DA68-02676V-01_EN.indd 6 2020-06-10 2:58:01English 7 Safety information Severe warning signs for transportation and site WARNING

• When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. - Refrigerant leaking from the pipe work could ignite or cause an eye injury. If a leak is detected, avoid any naked ames or potential sources of ignition and air the room in which the appliance is standing for several minutes. - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also ammable. Critical installation warnings WARNING

• Do not install the refrigerator in a damp location or place where it may come in contact with water. - Deteriorated insulation on electrical parts may cause an electric shock or re.

• Do not place this refrigerator in direct sunlight or expose it to the heat from stoves, room heaters, or other appliances.

• Do not plug several appliances and the refrigerator into the same multiple power strip. The refrigerator should always be plugged into its own individual electrical outlet which has a voltage rating that matches the voltage listed on the refrigerator’s rating plate. - This provides the best performance and also prevents overloading of house wiring circuits, which could overheat the wires and cause a re hazard.

• If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock or re.

• Do not use a power cord that has cracks or abrasion damage along its length or at either end.

• Do not bend the power cord excessively or place heavy objects on it.

• Do not pull or excessively bend the power cord.

• Do not twist or tie the power cord.

• Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power cord between objects, or push the power cord into the space behind the appliance.

• When moving the refrigerator, be careful not to roll over or damage the power cord. - This may result in an electric shock or re.

• Never unplug your refrigerator by pulling on the power cord. Always grip the plug rmly and pull straight out from the outlet. - Damage to the cord may cause a short-circuit, re, and/or electric shock.

• Do not install this appliance near a heater or ammable material.

• Do not install this appliance in a location where gas may leak. - This may result in an electric shock or re. Barosa_NA_DA68-02676V-01_EN.indd 7 2020-06-10 2:58:01English8 Safety information Safety information

• This refrigerator must be properly located and installed in accordance with the instructions in this manual before you use it.

• Connect the power plug in the proper position with the cord hanging down. - If you connect the power plug upside down, the wire can get cut off and cause a re or electric shock.

• Make sure that the power plug is not crushed or damaged by the back of the refrigerator.

• Keep the packing materials out of reach of children. - There is a risk of death from suffocation if a child puts the packing materials on his or her head.

• The appliance must be positioned so that the plug is accessible after installation. - Failing to do so may result in an electric shock or re due to electric leakage.

• Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or to water (rain drops). - Deteriorated insulation on electrical parts may cause an electric shock or re.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact a Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. - This may result in an electric shock, re, problems with the product, or injury.

• You need to remove all the protective plastic lm before you initially plug the product in.

• Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children’s reach.

• The refrigerator must be safely grounded. - Always make sure that you have grounded the refrigerator before attempting to investigate or repair any part of the appliance. Power leakages can cause severe electric shock.

• Never use gas pipes, telephone lines, or other potential lightning attractors as an electrical ground. - You must ground the refrigerator to prevent any power leakages or electric shocks caused by current leakage from the refrigerator. - Current leakage may result in an electric shock, re, explosion, or problems with the product.

• Plug the power plug into the wall socket rmly. Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re.

• Only a qualied technician or service company should be allowed to change the fuse in the refrigerator. - Failing to do so may result in an electric shock or personal injury. Barosa_NA_DA68-02676V-01_EN.indd 8 2020-06-10 2:58:01English 9 Safety information Installation cautions CAUTION

• Allow sufcient space around the refrigerator and install it on a at surface. - Keep the ventilation space in the appliance enclosure or mounting structure clear of obstructions.

• After you have installed the refrigerator and turned it on, allow the appliance to stand for 2 hours before loading it with food.

• It is strongly recommended you have a qualied technician or service company install the refrigerator. - Failing to do so may result in an electric shock, re, explosion, problems with the product, or injury.

• Overloading one door may make the refrigerator fall, causing physical injury. Critical usage warnings WARNING

• Do not insert the power plug into a wall socket with wet hands. - This may result in an electric shock.

• Do not store articles on the top of the appliance. - When you open or close the door, the articles may fall and cause personal injury and/or material damage.

• Do not insert hands, feet, or metal objects (such as chopsticks, etc.) into the bottom or the back of the refrigerator. - This may result in an electric shock or injury. - Any sharp edges may cause a personal injury.

• Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite.

• Do not put a container lled with water on the refrigerator. - If spilled, there is a risk of re or electric shock.

• Do not keep volatile or ammable objects or substances (benzene, thinner, propane gas, alcohol, ether, LP gas, and other such products) in the refrigerator. - This refrigerator is for storing food only. - This may result in re or explosion.

• Children should be supervised to ensure that they do not play with the appliance. - Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• Do not let children hang on the door or door bins. A serious injury may occur.

• Do not let children go inside the refrigerator. They could become trapped. Barosa_NA_DA68-02676V-01_EN.indd 9 2020-06-10 2:58:01English10 Safety information Safety information

• Do not insert your hands into the area under the appliance. - Any sharp edges may cause personal injury.

• Do not store pharmaceutical products, scientic materials, or temperature sensitive products in the refrigerator. - Products that require strict temperature controls must not be stored in the refrigerator.

• Do not place or use electrical appliances inside the refrigerator/freezer, unless they are of a type recommended by the manufacturer.

• If you smell smoke, pull out the power plug immediately, and then contact a Samsung Electronics service center.

• If large amounts of dust or water enter the refrigerator, disconnect the power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of re.

• Do not let children step on a drawer. - The drawer may break and cause them to slip.

• Do not leave the doors of the refrigerator open while the refrigerator is unattended and do not let children enter the refrigerator.

• Do not allow babies or children to go into a drawer. - It can cause death from suffocation by entrapment or personal injury.

• Do not overll the refrigerator with food. - When you open the door, an item may fall out and cause personal injury or material damage.

• Do not spray volatile material such as insecticide onto the surface of the appliance. - As well as being harmful to humans, it may also result in an electric shock, re, or problems with the product.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - It may cause a personal injury or material damage.

• Do not use or place any substances sensitive to temperature such as ammable sprays, ammable objects, dry ice, medicine, or chemicals near or inside the refrigerator.

• Do not use a hair dryer to dry the inside of the refrigerator. Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance. This may result in an electric shock, re, problems with the product, or injury. Do not put a container lled with water on the appliance. - If spilled, there is a risk of re or electric shock.

• Never stare directly at the UV LED lamp for long periods of time. - This may result in eye strain due to the ultraviolet rays. Barosa_NA_DA68-02676V-01_EN.indd 10 2020-06-10 2:58:01English 11 Safety information

• Do not put a fridge shelf into the refrigerator upside down. The shelf stopper will not work. - The glass shelf could fall and cause personal injury.

• Keep ngers out of “pinch point” areas. Clearances between the doors and cabinet are necessarily small. Be careful when you open the doors if children are in the area.

• If a gas leak is detected, avoid any naked ames or potential sources of ignition, and air the room in which the appliance is standing for several minutes. - Do not touch the appliance or power cord. - Do not use a ventilating fan. - A spark may result in an explosion or re.

• Use only the LED Lamps provided by the manufacturer or its service agents.

• Bottles should be stored tightly together so that they do not fall over or out.

• This product is intended only for the storage of food in a domestic environment.

• Never put ngers or any objects into the water dispenser outlet, ice chute, or ice maker bucket. - This can cause a personal injury or material damage.

• Do not attempt to repair, disassemble, or modify the refrigerator yourself. - Unauthorized modications can cause safety problems. To reverse an unauthorized modication, we will charge the full cost of parts and labor.

• Do not use any fuse (such as cooper, steel wire, etc.) other than a standard fuse.

• If your refrigerator needs to be repaired or reinstalled, contact your nearest Samsung service center. - Failing to do so may result in an electric shock, re, problems with the product, or injury.

• If the interior or exterior LED lamp has gone out, contact your nearest Samsung service center.

• If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact a Samsung service center. - Failing to do so may result in an electric or re hazards.

• Pull the power plug out of the socket before changing the interior lamps of the refrigerator. - Otherwise, there is a risk of electric shock.

• If you experience difculty changing a non-LED light, contact a Samsung service center.

• If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center.

• Plug the power plug into the wall socket rmly.

• Do not use a damaged power plug, damaged power cord, or loose wall socket. - This may result in an electric shock or re. Barosa_NA_DA68-02676V-01_EN.indd 11 2020-06-10 2:58:01English12 Safety information Safety information Usage cautions CAUTION

• Do not re-freeze frozen foods that have thawed completely.

• Use only the ice maker provided with the refrigerator.

• To get the best performance from the product: - Do not place food too close to the vents at the rear of the refrigerator as this can obstruct free air circulation in the refrigerator compartment. - Wrap food up properly or place it in airtight containers before putting it into the refrigerator. - Please observe maximum storage times and expiration dates of frozen goods.

• Do not put glass containers or bottles or carbonated beverages into the freezer. - The container may freeze and break, and this may result in injury.

• Service Warranty and Modication. - Any changes or modications performed by a 3rd party on this nished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modications.

• Do not block the air vents inside the refrigerator. - If the air vents are blocked, especially with a plastic bag, the refrigerator can be over cooled. If a cooling period lasts too long, the water lter may break and cause water leakage.

• If the refrigerator is disconnected from the power supply, you should wait for at least ve minutes before plugging it back in.

• If large amounts of water enter the refrigerator, pull out the power plug and contact a Samsung service center.

• Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

• Fill the water tank and ice cube trays with potable water only (tap water, mineral water, or puried water). - Do not ll the tank with tea, juice, or a sports drink. They can damage the refrigerator.

• If the refrigerator is ooded, shut off the power to the refrigerator and contact your nearest Samsung service center. - There is a risk of electric shock or re.

• Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difcult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry. - Examples of vegetable oil: olive oil, corn oil, grape-seed oil, etc. Barosa_NA_DA68-02676V-01_EN.indd 12 2020-06-10 2:58:01English 13 Safety information Cleaning cautions CAUTION

• Do not spray water directly on the inside or outside of the refrigerator. - There is a risk of re or electric shock.

• Do not use a hair dryer to dry the inside of the refrigerator.

• Do not place a lighted candle in the refrigerator to remove bad odors. - This may result in an electric shock or re.

• Do not spray cleaning products directly on the display. - Printed letters on the display may come off.

• If any foreign substance such as water has entered the appliance, unplug the power plug and contact your nearest Samsung service center. - Failing to do so may result in an electric shock or re.

• Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of re or electric shock.

• Do not clean the appliance by spraying water directly onto it.

• Do not use benzene, thinner, or Clorox (bleach) to clean the refrigerator. - They may damage the surface of the appliance and may cause a re.

• Never put ngers or any objects into the dispenser outlet. - This can cause a personal injury or material damage.

• Before cleaning or performing maintenance, unplug the appliance from the wall socket. - Failing to do so may result in an electric shock or re.

• Use a clean sponge or soft cloth and a mild detergent in warm water to clean the refrigerator.

• Do not use abrasive or harsh cleansers such as window sprays, scouring cleansers, ammable uids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, door and interior liners, and gaskets. - These can scratch or damage the material.

• Do not clean glass shelves or covers with warm water when they are cold. Glass shelves and covers may break if exposed to sudden temperature changes or impacts such as bumping or dropping. Barosa_NA_DA68-02676V-01_EN.indd 13 2020-06-10 2:58:01English14 Safety information Safety information Critical disposal warnings WARNING

• Children trapped inside a refrigerator can hurt themselves or suffocate to death.

• Please dispose of the packaging material from this product in an environmentally friendly manner.

• Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal.

• This product contains R-600a, a ammable gas, which is used as the refrigerant. Contact your local authorities regarding safe disposal of this product.

• When disposing of this refrigerator, remove the door/door seals and door latch so that small children or animals cannot become trapped inside. Children should be supervised to ensure that they do not play with the appliance. - If trapped inside, the child could be injured or suffocate to death.

• Cyclopentane is used in the insulation. The gases in the insulation material require a special disposal procedure. Please contact your local authorities in regard to the environmentally safe disposal of this product.

• Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. - If a child places a bag over his or her head, the child could suffocate. Barosa_NA_DA68-02676V-01_EN.indd 14 2020-06-10 2:58:01English 15 Installation Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING

• Use the refrigerator only for its intended purpose as described in this manual.

• Any servicing must be performed by a qualied technician.

• Dispose of the product packaging material in compliance with the local regulations.

• To prevent electric shock, unplug the power cord before servicing or replacements. Refrigerator at a glance The actual image and provided component parts of the refrigerator may differ, depending on the model and the country.

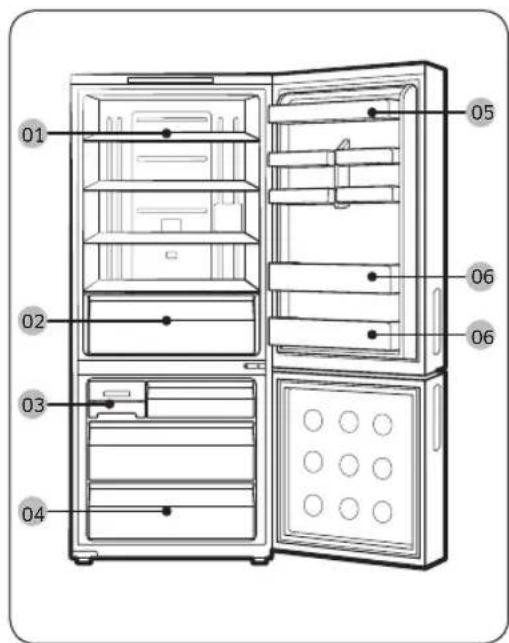

01 Fridge shelves 02 Fridge drawer 03 Twist ice maker 04 Freezer drawers 05 Egg tray 06 Door bins Barosa_NA_DA68-02676V-01_EN.indd 15 2020-06-10 2:58:01English16 Installation Installation Step-by-step installation STEP 1 Select a site Select a site that:

• Has a solid, level surface without carpeting or ooring that may obstruct ventilation

• Is away from direct sunlight

• Has adequate room for opening and closing the door

• Is away from any heat sources

• Provides room for maintenance and servicing

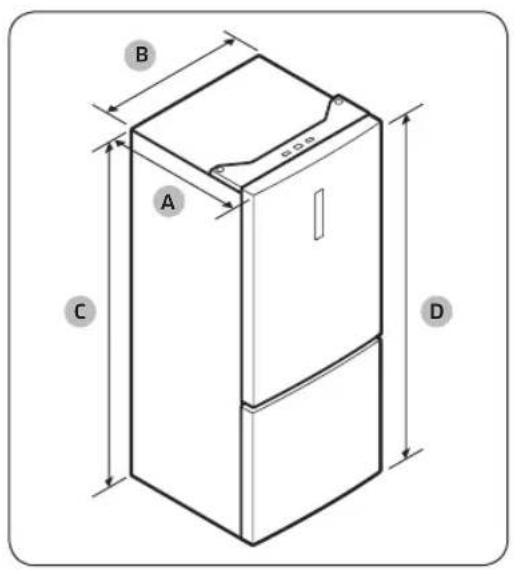

• Has a temperature range between 50 °F (10 °C) and 109 °F (43 °C) NOTE To facilitate moving your refrigerator to its nal location, be sure to measure the width and height of doorways, thresholds, ceilings, stairways, and anything else that needs to be taken into consideration to ensure you can move your refrigerator safely. The following diagram illustrates the exact height and depth (factory specications) of your refrigerator. Clearance See the following pictures and tables for space requirement for installation.

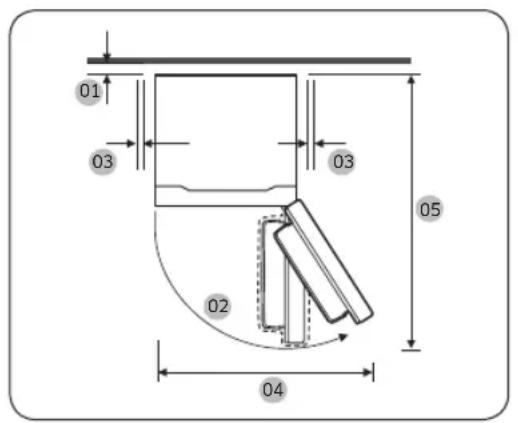

more than 2" (50 mm) recommended 02 120° 03 at least 2" (50 mm) 04 43⅛" (1093.5 mm) 05 52¼" (1326.7 mm) NOTE The measurement in the above table may differ, depending on the measuring method. STEP 2 Flooring

• The surface to install the refrigerator must support a fully loaded refrigerator.

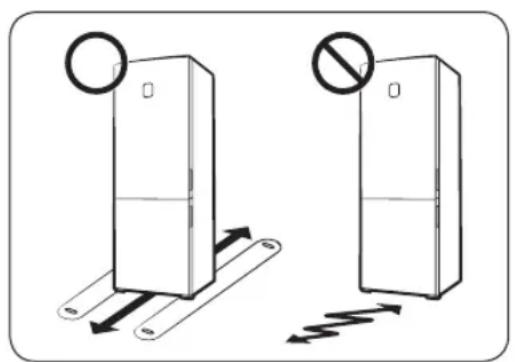

• To protect the oor, put a large piece of cardboard on each foot of the refrigerator.

• Once the refrigerator is in its nal position, do not move it unless necessary to protect the oor. If you have to, use a thick paper or cloth such as old carpet along the movement path. Barosa_NA_DA68-02676V-01_EN.indd 17 2020-06-10 2:58:01English18 Installation Installation STEP 3 Adjust the levelling legs CAUTION

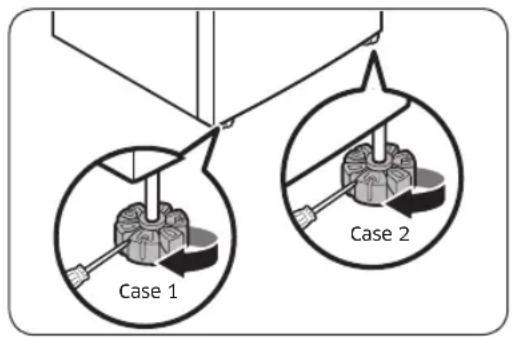

• The refrigerator must be levelled on a at, solid oor. Failing to do so can cause damage to the refrigerator or physical injury.

• Levelling must be performed with an empty refrigerator. Make sure no food items remain inside the refrigerator. If the front of the appliance is slightly higher than the rear, the door can be opened and closed more easily. Case 1 Case 2 Case 1) The appliance tilts down to the left. Turn the left adjusting leg in the direction of the arrow until the appliance is level. Case 2) The appliance tilts down to the right. Turn the right adjusting leg in the direction of the arrow until the appliance is level. STEP 4 Initial settings By completing the following steps, the refrigerator should be fully functioning.

1. Plug the power cord into the wall socket to turn the refrigerator on.

2. Open the door, and check if the interior light lights up.

3. Set the temperature to the coldest setting, and wait for about an hour. Then, the freezer

should be slightly chilled, and the motor should be running smoothly.

4. Wait until the refrigerator reaches the set temperature. The refrigerator is now ready

for use. STEP 5 Final check When installation is complete, conrm that:

• The refrigerator is plugged into an electrical outlet and grounded properly.

• The refrigerator is installed on a at, level surface with a reasonable clearance from the wall or the cabinet.

• The refrigerator is level and is sitting rmly on the furniture.

• The door opens and closes freely, and the interior light turns on automatically when you open the door. Barosa_NA_DA68-02676V-01_EN.indd 18 2020-06-10 2:58:02English 19 Operations Operations Control panel

• To ensure optimal performance, we recommend setting the temperature to -2 °F (-19 °C) for the freezer, and 38 °F (3 °C) for the fridge.

• The temperature in the refrigerator may rise if you open the door frequently or put a large amount of food into the refrigerator.

• The display of the main panel turns on only if the door is opened and turns off if the door is closed. 01 Door Alarm / °F °C (3 sec) Door Alarm You can set the alarm for a reminder. If the door is left open for more than 2 minutes, the alarm will sound with the Alarm indicator blinking. You can toggle to enable and disable the alarm by pressing Door Alarm. °F °C You can also use the Door Alarm button to switch the temperature scale between Celsius and Fahrenheit. To switch the temperature scale, press and hold Door Alarm for 3 seconds to change the current temperature scale. Barosa_NA_DA68-02676V-01_EN.indd 19 2020-06-10 2:58:02English20 Operations Operations 02 Freezer / Power Freeze (3 sec) Freezer The Freezer button can be used to set the freezer temperature. Available temperatures are between 5 °F (-15 °C) and -8 °F (-23 °C). Power Freeze Power Freeze uses maximum fan speed to speed up the freezing process. The freezer keeps running at full speed for 50 hours and then returns to the previous temperature.

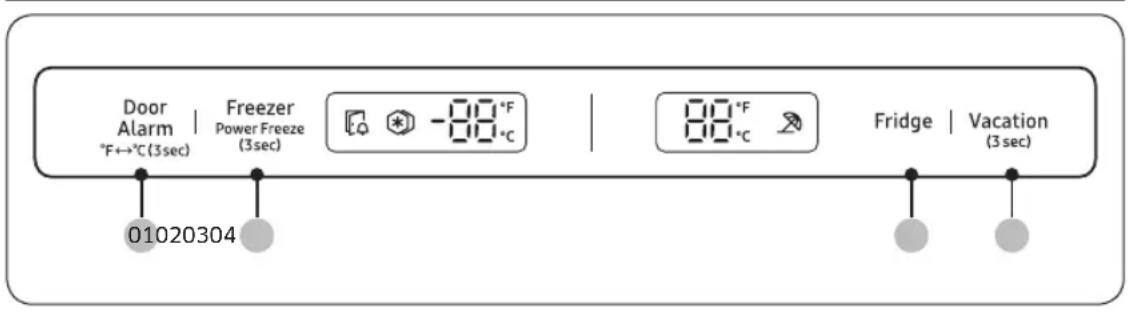

• To activate Power Freeze, press and hold Freezer for 3 seconds to select Power Freeze. The corresponding indicator ( ) lights up, and the refrigerator will speed up the freezing process for you.

• To deactivate Power Freeze, press and hold Freezer for 3 seconds again. The freezer returns to the previous temperature setting, and the indicator turns off.

• To freeze large amounts of food, activate Power Freeze for at least 20 hours before putting food in the freezer. NOTE Using Power Freeze increases power consumption. Make sure you turn it off and return to the previous temperature if you do not intend to use it. 03 Fridge To adjust the fridge temperature, press Fridge to select the corresponding temperature. You can change the temperature between 34 °F (1 °C) and 44 °F (7 °C). 04 Vacation (3 sec) If you are going on vacation or a business trip, or if you do not intend to use the fridge for an extended time, use the Vacation mode.

• To activate Vacation mode, press and hold Vacation for 3 seconds. The Vacation On indicator ( ) turns on while the display of the fridge temperatures will turn off. The fridge temperature will be controlled under 59 °F (15 °C), but the freezer remains active as previously set.

• To deactivate Vacation mode, press and hold Vacation again for 3 seconds. The fridge temperature will return to the previous setting. NOTE

• Make sure to remove foods in the fridge compartment before using Vacation mode.

• The Vacation mode will be disabled if you adjust the temperature. Barosa_NA_DA68-02676V-01_EN.indd 20 2020-06-10 2:58:02English 21 Operations Special features Your refrigerator and its special functions may differ from the images and functions presented in this section depending on your model and country. Ice making (applicable models only) Twist ice maker

1. Open the freezer door, and slide open

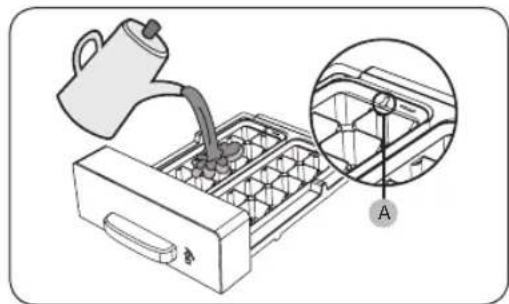

2. Fill the tray with water up to the

maximum level (A) marked on the inner rear of the tray.

3. Slide the tray back into position.

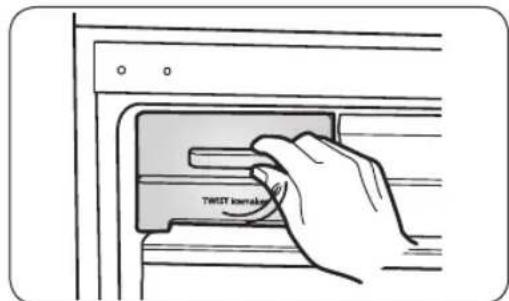

NOTE The ice making time depends on your temperature settings. Twist the lever rmly in the clockwise direction until the tray twists slightly. NOTE

• Make sure the ice bucket is in place under the ice tray.

• Take out the bin by slightly twisting and pulling to the front. Barosa_NA_DA68-02676V-01_EN.indd 21 2020-06-10 2:58:02English22 Maintenance Maintenance Door reversal (applicable models only) WARNING

• Tilting/laying the refrigerator requires minimum of 2 people.

• Disconnect power source and water line before reversing the doors.

• If the unit is allowed to lay on its back or side for more than an hour, let it stand for 15 minutes after it is returned to the upright position before plugging it in. Tools required (not provided) Phillips screwdriver Flat-head screwdriver ⁄" (11 mm) spanner ⅜" (10 mm) socket wrench ⁄" (5 mm) Allen wrench Accessories (provided) Top-left hinge cover Screw covers (2) CAUTION Throughout the entire reversing procedure, keep all the small parts (screws, caps, etc.) of the refrigerator away from children or infants for safety reasons. NOTE

• Samsung recommends that reversing of the door opening is only completed by Samsung approved Service providers. This will be on a chargeable basis at the customer expense.

• Before reversing the doors, put a protective material (such as a cardboard box) on the oor where you can safely place the removed parts, preventing any damage throughout the whole process. Barosa_NA_DA68-02676V-01_EN.indd 22 2020-06-10 2:58:03English 23 Maintenance Reversing the door

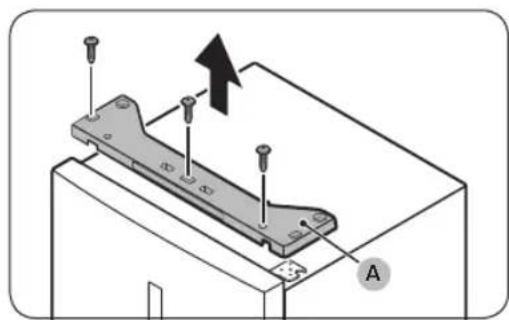

1. With the fridge door closed, use a

Phillips screwdriver to remove the screws fastening the top cover (A).

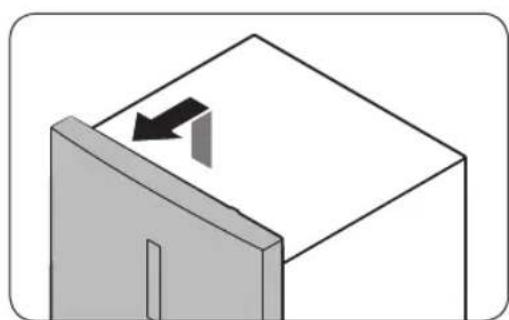

2. Gently lift the top cover (A) and place it

on top of the refrigerator. - Be careful when you lift the top cover (A). There is a wire connected underneath it.

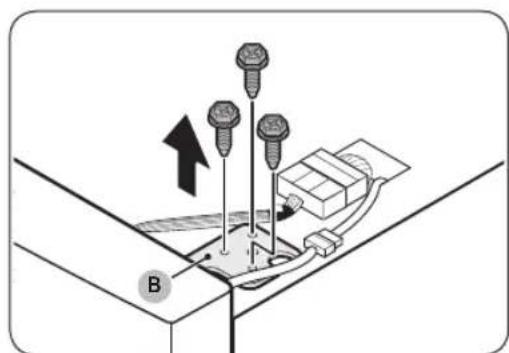

remove the screws fastening the top hinge (B). Then, remove the top hinge (B) from the fridge door.

4. Lift the fridge door to remove it from

the middle hinge. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door. Barosa_NA_DA68-02676V-01_EN.indd 23 2020-06-10 2:58:03English24 Maintenance Maintenance

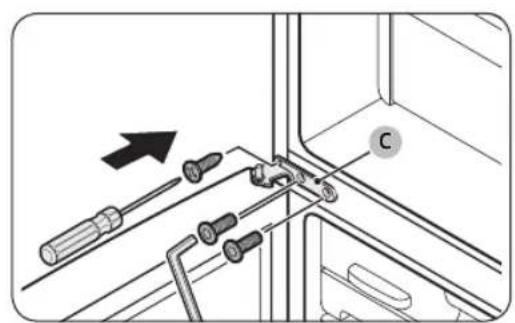

5. Use a Phillips screwdriver and Allen

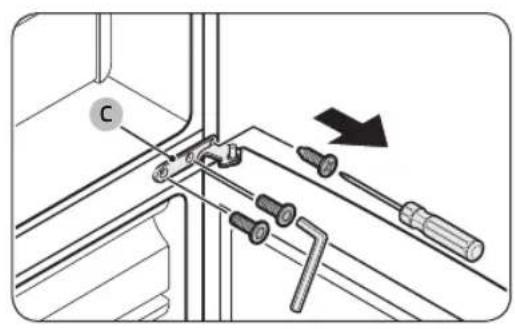

wrench (⁄" / 5 mm) to remove the screws fastening the middle hinge (C).

6. Remove the middle hinge (C) from the

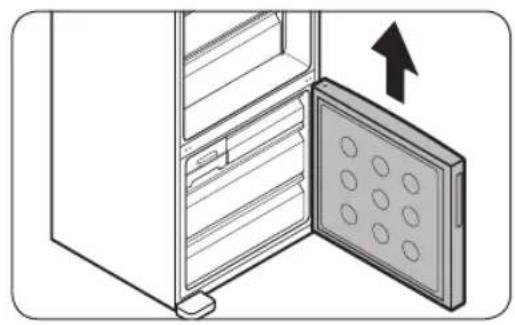

7. Lift the freezer door to remove it from

the bottom hinge. CAUTION The door is heavy. To prevent damage or injury, use caution while removing the door.

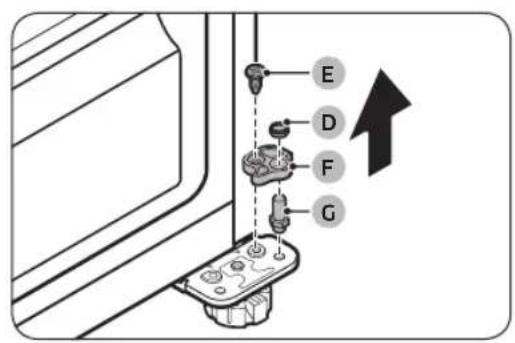

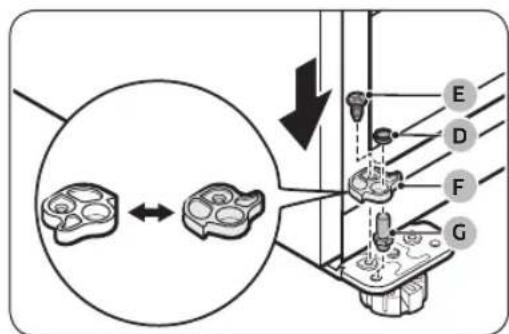

screw (E), auto guide (F), and shaft (G) from the right bottom hinge plate in that order. - Use a Phillips screwdriver for the screw (E), and a spanner (⁄" / 11 mm) for the shaft (G).

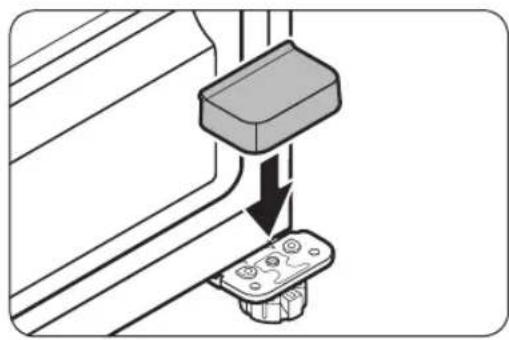

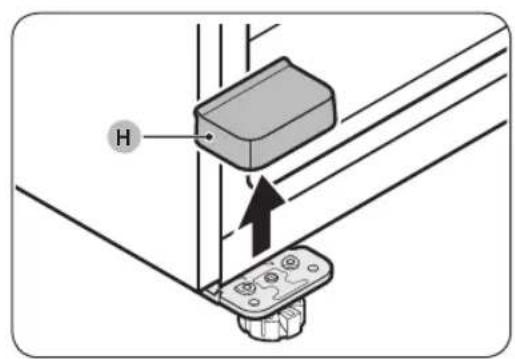

10. Put the bottom hinge cover (H) on the

screw (E), and bottom hinge washer (D) onto the left bottom hinge plate in that order. - Use a Phillips screwdriver for the screw (E), and a spanner (⁄" / 11 mm) for the shaft (G).

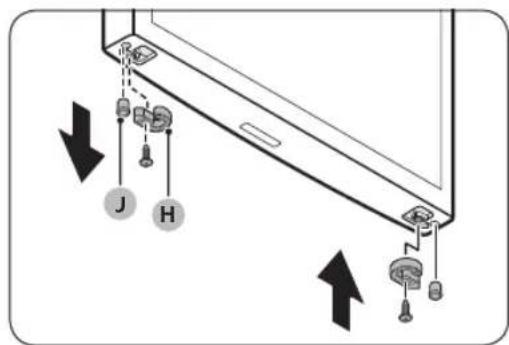

remove the door stopper (H) and the grommet (J). Then, put them on the opposite side of the door. - Use a Phillips screwdriver to remove or tighten the screw fastening the door stopper (H).

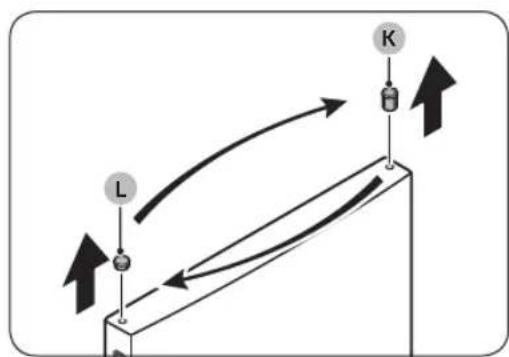

14. Remove the middle hinge screw covers

and put them on the opposite side.

16. Put the middle hinge (C) into the

grommet on the top of the freezer door and fasten it with the screws using a Phillips screwdriver and Allen wrench (⁄" / 5 mm).

a Phillips screwdriver to remove the screws.

18. Remove the door stopper (M), door

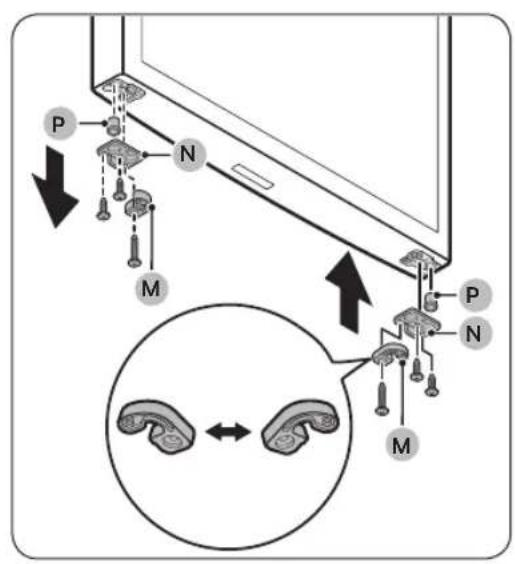

stopper bracket (N), and grommet (P). Then, put them on the opposite side of the door.

19. Fasten the door stopper bracket (N) and

door stopper (M) with the screws using a Phillips screwdriver. - One screw is longer than the other two. Use the longer screw to fasten the door stopper (M). Barosa_NA_DA68-02676V-01_EN.indd 26 2020-06-10 2:58:04English 27 Maintenance

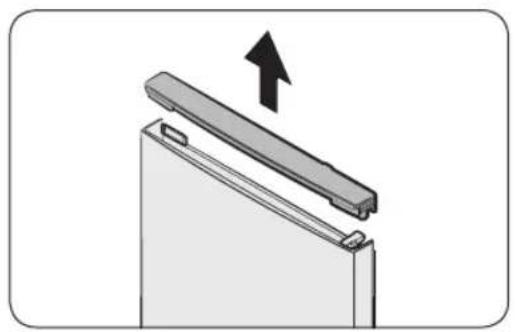

20. Remove the door cover on the top of

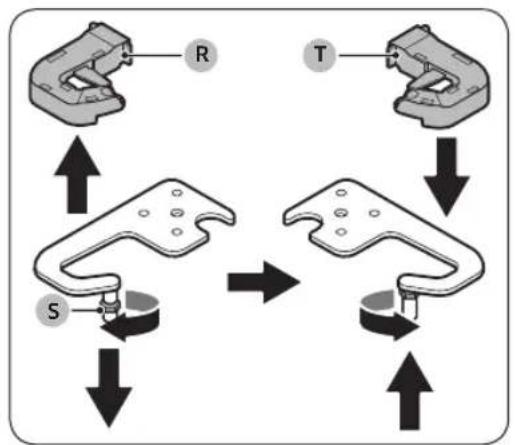

door, and then remove the top-right hinge cover (R) from the top hinge. NOTE Keep the removed part in a safe place for later use.

cover (T) to the top hinge.

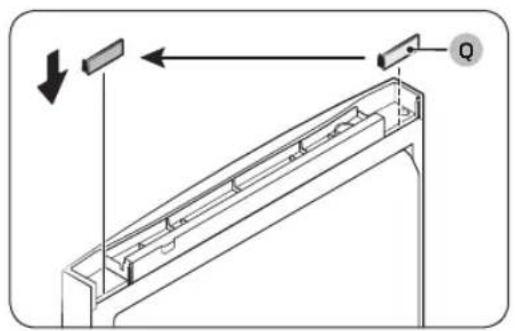

25. Remove the door hinge cover (Q) and

put it on the opposite side of the door. Barosa_NA_DA68-02676V-01_EN.indd 27 2020-06-10 2:58:04English28 Maintenance Maintenance

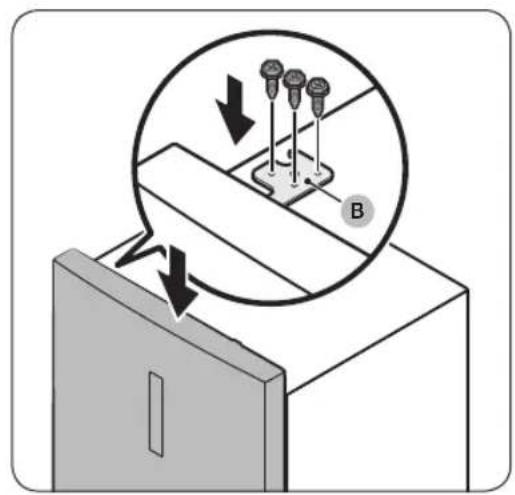

26. Put the top hinge on the top-left side of

the fridge door, and then assemble the door cover back.

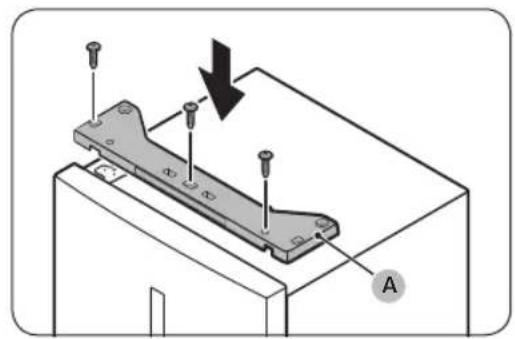

29. With the fridge door closed, put the

top cover (A) back. Fasten the top cover (A) with the screws using a Phillips screwdriver.

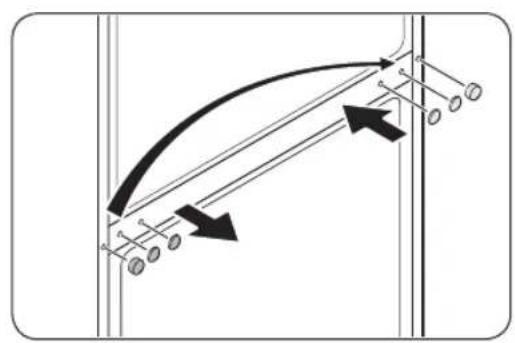

30. Detach the fridge and the freezer door

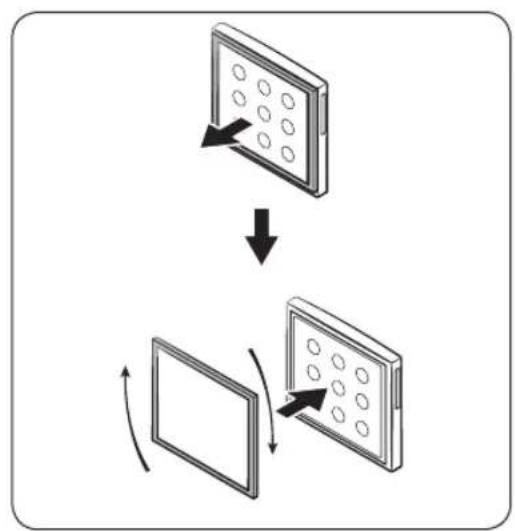

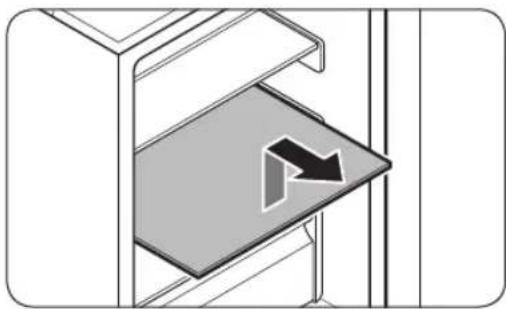

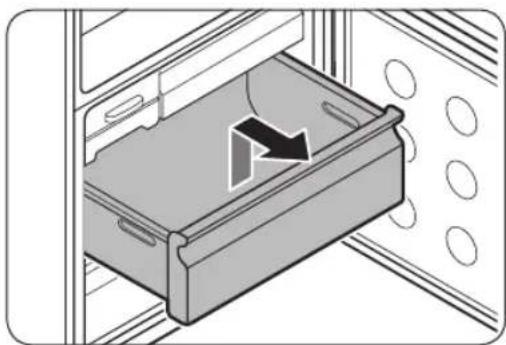

gaskets and then attach them after rotating them 180°. Barosa_NA_DA68-02676V-01_EN.indd 28 2020-06-10 2:58:04English 29 Maintenance Handle and care Shelves Slightly lift up the rear side of the shelf to pull out. CAUTION Do not put the shelves upside down or backwards. There is a risk of falling. Fridge door bin / Variety door bin Hold the bin with both hands, and then lift up to remove. CAUTION To prevent accidents, empty the bins before removing. Fridge drawer / Freezer drawer Gently lift up the front of the drawer and slide out. Barosa_NA_DA68-02676V-01_EN.indd 29 2020-06-10 2:58:04English30 Maintenance Maintenance Cleaning Interior and exterior WARNING

• Do not use benzene, thinner, or home/car detergent such as Clorox™ for cleaning purposes. They may damage the surface of the refrigerator and cause a re.

• Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

1. Unplug the power cord.

2. Use a moistened, soft, lint-free cloth or paper towel to clean the refrigerator’s interior

3. When done, use a dry cloth or paper towel to dry well.

4. Plug in the power cord.

Replacement LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service centre. WARNING The lamps are not user-serviceable. Do not attempt to replace a lamp yourself. This can cause electric shock. Barosa_NA_DA68-02676V-01_EN.indd 30 2020-06-10 2:58:04English 31 Troubleshooting Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution Fridge/freezer does not operate. Fridge/freezer temperature is warm.

• Power cord is not plugged in properly.

• Properly plug in the power cord.

• Temperature control is not set correctly.

• Set the temperature lower.

• Refrigerator is located near a heat source or direct sunlight.

• Keep the refrigerator away from direct sunlight or a heat source.

• Not enough clearance between refrigerator and sides/rear.

• Make sure to secure at least

2.5 inches (5 cm) of space

from the rear and side walls of the cabinet.

• Vacation mode is activated. • Deactivate vacation mode.

• The refrigerator is overloaded. Food is blocking the refrigerator vents.

• Do not overload the refrigerator. Do not allow food to block ventilation. Fridge/freezer is over-cooling.

• Temperature control is not set correctly.

• Set the temperature higher. Interior wall is hot.

• Refrigerator has heat-proof piping in the interior wall.

• To prevent condensation from forming, the refrigerator has heat-proof piping in the front corners. If the ambient temperature rises, this equipment may not work effectively. This is not a system failure. Barosa_NA_DA68-02676V-01_EN.indd 31 2020-06-10 2:58:04English32 Troubleshooting Troubleshooting Odors Symptom Possible causes Solution Refrigerator has odors.

• Clean the refrigerator and remove any spoiled food.

• Food with strong odors.

• Make sure strong smelling food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the vents.

• Food is blocking the vents.

• Make sure no food blocks the refrigerator vents. Frost on interior walls.

• Door is not closed properly.

• Make sure food does not block the door. Clean the door gasket. Fruits or vegetables are frozen.

• Fruits or vegetables are stored in the Fresh/Chef Zone.

• The Fresh/Chef Zone is only for meat/sh. Condensation Symptom Possible causes Solution Condensation forms on the interior walls.

• If door is left open, moisture enters the refrigerator.

• Remove the moisture and do not open the door for a long time.

• Food with high moisture content.

• Make sure food is wrapped airtight. Barosa_NA_DA68-02676V-01_EN.indd 32 2020-06-10 2:58:04English 33 Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal.

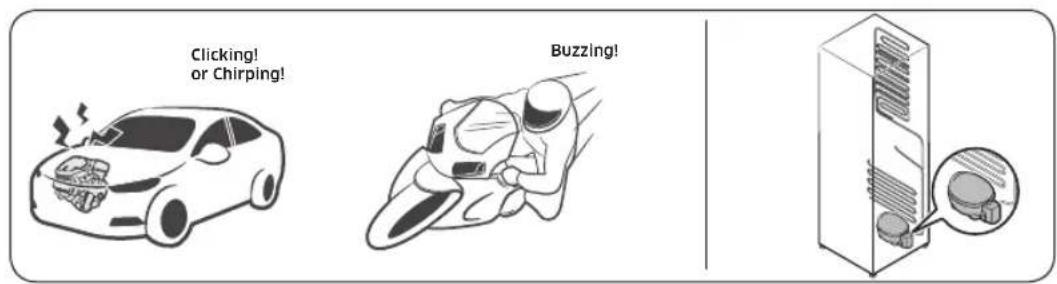

• When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting. As the operation stabilizes, the sounds will decrease. Clicking! or Chirping! Buzzing!

• While the fan is operating, these sounds may occur. When the refrigerator reaches the set temperature, no fan sound will occur. SSSRRR!Whir!

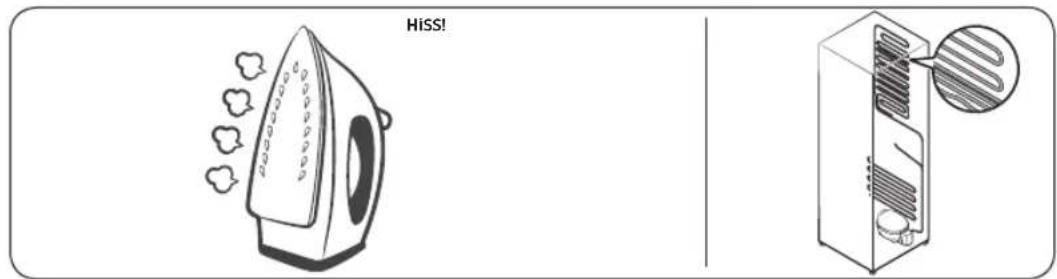

• During a defrost cycle, water may drip on the defrost heater, causing sizzling sounds. HiSS! Barosa_NA_DA68-02676V-01_EN.indd 33 2020-06-10 2:58:05English34 Troubleshooting Troubleshooting

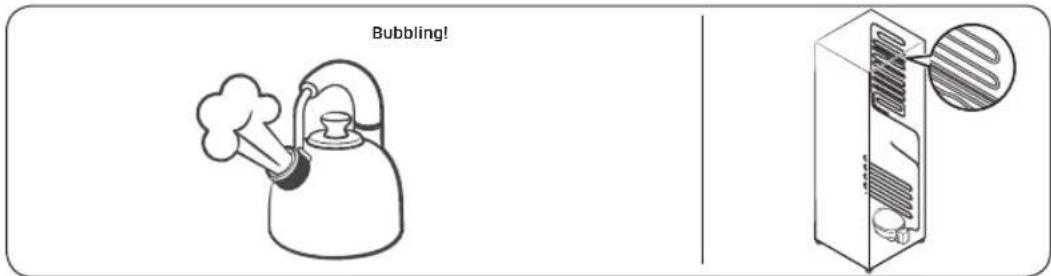

• As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling!

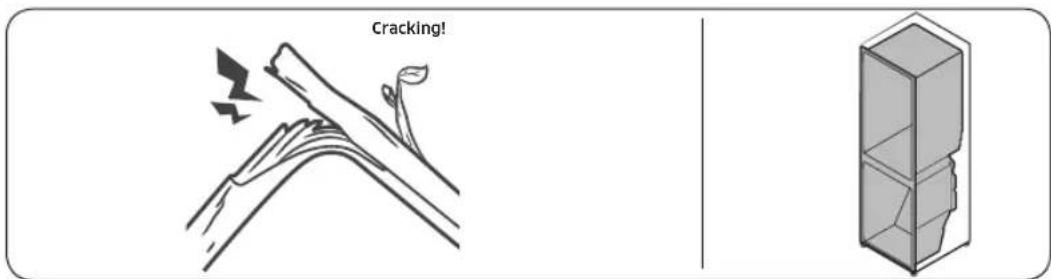

• As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working. Cracking!

• For ice maker models: When the water valve opens to ll the ice maker, buzzing sounds may occur.

• Due to pressure equalizing when opening and closing the refrigerator door, whooshing sounds may occur. Barosa_NA_DA68-02676V-01_EN.indd 34 2020-06-10 2:58:05English 35 LIMITED WARRANTY (U.S.A.) SAMSUNG REFRIGERATOR LIMITED WARRANTY TO ORIGINAL CONSUMER PURCHASER WITH PROOF OF PURCHASE This SAMSUNG brand product, as supplied and distributed by Samsung Electronics America, Inc. (SAMSUNG) and delivered new, in the original carton to the original consumer purchaser, is warranted by SAMSUNG against manufacturing defects in materials or workmanship for the limited warranty period of: One (1) year parts and labor Five (5) years parts and labor on Sealed Refrigeration System Only (Compressor, Evaporator, Condenser, Drier, and Connecting Tubing) Ten (10) years part and Five (5) years labor on Digital Inverter Compressor Only This limited warranty is valid only on products purchased and used in the United States that have been installed, operated, and maintained according to the instructions attached to or furnished with the product. To receive warranty service, the purchaser must contact SAMSUNG at the address or phone number provided below for problem determination and service procedures. Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center to receive warranty service. SAMSUNG will provide in-home service within the contiguous United States during the warranty period at no charge, subject to availability of SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service. To receive in-home service, product must be unobstructed and accessible to the service agent. During the applicable warranty period, a product will be repaired, replaced, or the purchase price refunded, at the sole option of SAMSUNG. SAMSUNG may use new or reconditioned parts in repairing a product, or replace the product with a new or reconditioned product. Replacement parts and products are warranted for the remaining portion of the original product’s warranty or ninety (90) days, whichever is longer. All replaced parts and products are the property of SAMSUNG and you must return them to SAMSUNG. Barosa_NA_DA68-02676V-01_EN.indd 35 2020-06-10 2:58:05English36 LIMITED WARRANTY (U.S.A.) This limited warranty covers manufacturing defects in materials or workmanship encountered in normal household, noncommercial use of this product and shall not cover the following: damage that occurs in shipment, delivery, installation, and uses for which this product was not intended; damage caused by unauthorized modication or alteration of the product; product where the original factory serial numbers have been removed, defaced, changed in any way, or cannot be readily determined; cosmetic damage including scratches, dents, chips, and other damage to the product’s nishes; damage caused by abuse, misuse, pest infestations, accident, re, oods, or other acts of nature or God; damage caused by use of equipment, utilities, services, parts, supplies, accessories, applications, installations, repairs, external wiring or connectors not supplied or authorized by SAMSUNG; damage caused by incorrect electrical line current, voltage, uctuations and surges; damage caused by failure to operate and maintain the product according to instructions; in-home instruction on how to use your product; and service to correct installation not in accordance with electrical or plumbing codes or correction of household electrical or plumbing (i.e., house wiring, fuses, or water inlet hoses). The cost of repair or replacement under these excluded circumstances shall be the customer’s responsibility. Visits by an authorized servicer to explain product functions, maintenance or installation are not covered by this limited warranty. Please contact SAMSUNG at the number below for assistance with any of these issues.

EXCLUSION OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. Barosa_NA_DA68-02676V-01_EN.indd 36 2020-06-10 2:58:05English 37

LIMITATION OF REMEDIES

YOUR SOLE AND EXCLUSIVE REMEDY IS PRODUCT REPAIR, PRODUCT REPLACEMENT, OR REFUND OF THE PURCHASE PRICE AT SAMSUNG’S OPTION, AS PROVIDED IN THIS LIMITED WARRANTY. SAMSUNG SHALL NOT BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO TIME AWAY FROM WORK, HOTELS AND/OR RESTAURANT MEALS, REMODELING EXPENSES, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specic rights, and you may also have other rights, which vary from state to state. SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc. 85 Challenger Road Ridgeeld Park, NJ 07660 1-800-SAMSUNG (726-7864) www.samsung.com/us/support Barosa_NA_DA68-02676V-01_EN.indd 37 2020-06-10 2:58:05English38 Warranty Information (CANADA) If your refrigerator needs service Do not hesitate to call any Samsung Authorized Service Center nearby giving them your name, address and telephone number if your product is not functioning properly. Limited Warranty for Original Purchaser This Samsung product is warranted by Samsung Electronics Canada Inc. (hereafter referred to as SECA) against manufacturing defects in material or workmanship for the following periods: Labor : 1 year (in-home) Parts : 1 year Inverter Compressor : 10 years (Part only) SECA further warrants that if this product fails to operate properly within the specied warranty period and the failure is due to improper workmanship or defective material, SECA will repair or replace the product at its option. In-home service is not available in all areas. Contact us to nd out if in-home service is currently available in your area by using the contact information at the back of this warranty. All warranty repairs or part replacements must be performed by a SECA Authorized Service Center. (To nd the nearest SECA Service Center, call 1-800-SAMSUNG (7267864) or visit our web site at www.samsung.com/ca) Barosa_NA_DA68-02676V-01_EN.indd 38 2020-06-10 2:58:05English 39 Obligation to the Original Owner The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase. It must be presented to a SECA Authorized Service Center at the time service is requested before warranty services are rendered. On all carry-in models, transportation to and from the Authorized Service Center is the responsibility of the customer. Exclusions of the Warranty This warranty does not cover damage due to accident, re, ood, and/or other Acts of God, misuse, incorrect line voltage, improper installation, improper or unauthorized repairs, commercial use, or damage that occurs during shipping. Customer adjustments which are explained in this owners manual are not covered under the terms of this warranty. This warranty will automatically be voided for any unit found with a missing or altered serial number. This warranty is valid only on products purchased and used in Canada.
