USER MANUAL 522HDR60S HUSQVARNA

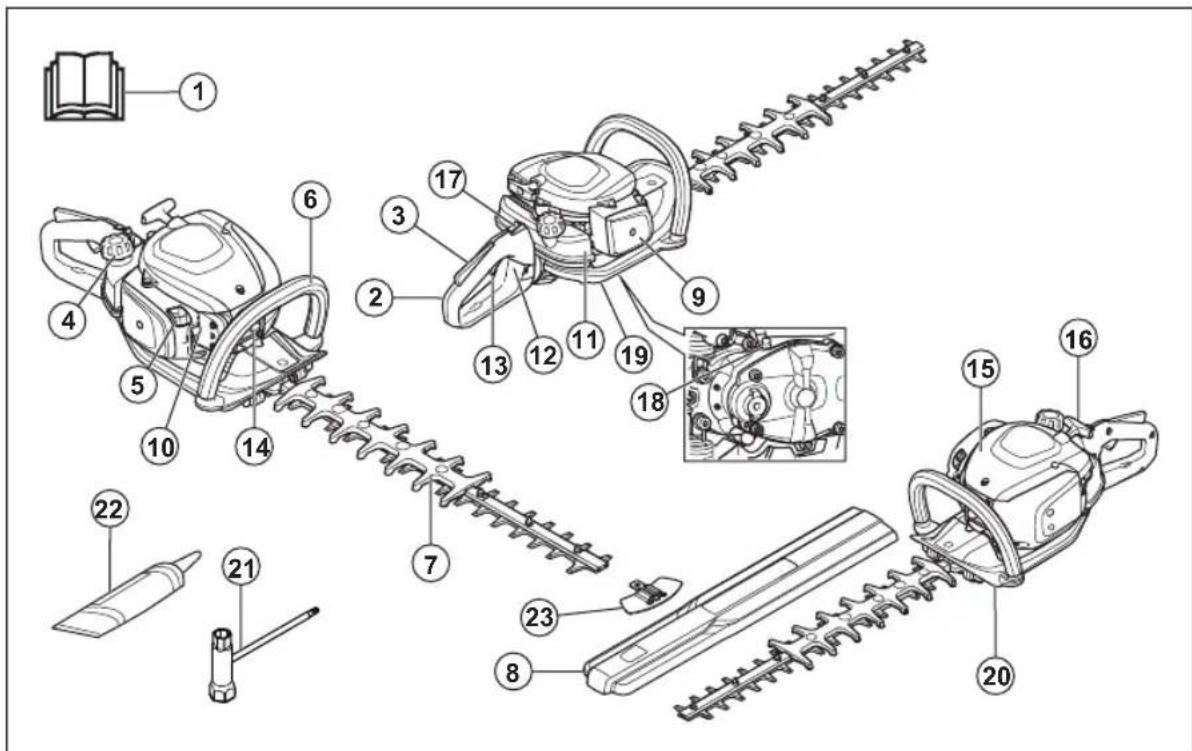

3. Throttle trigger lockout

7. Blade and blade guard

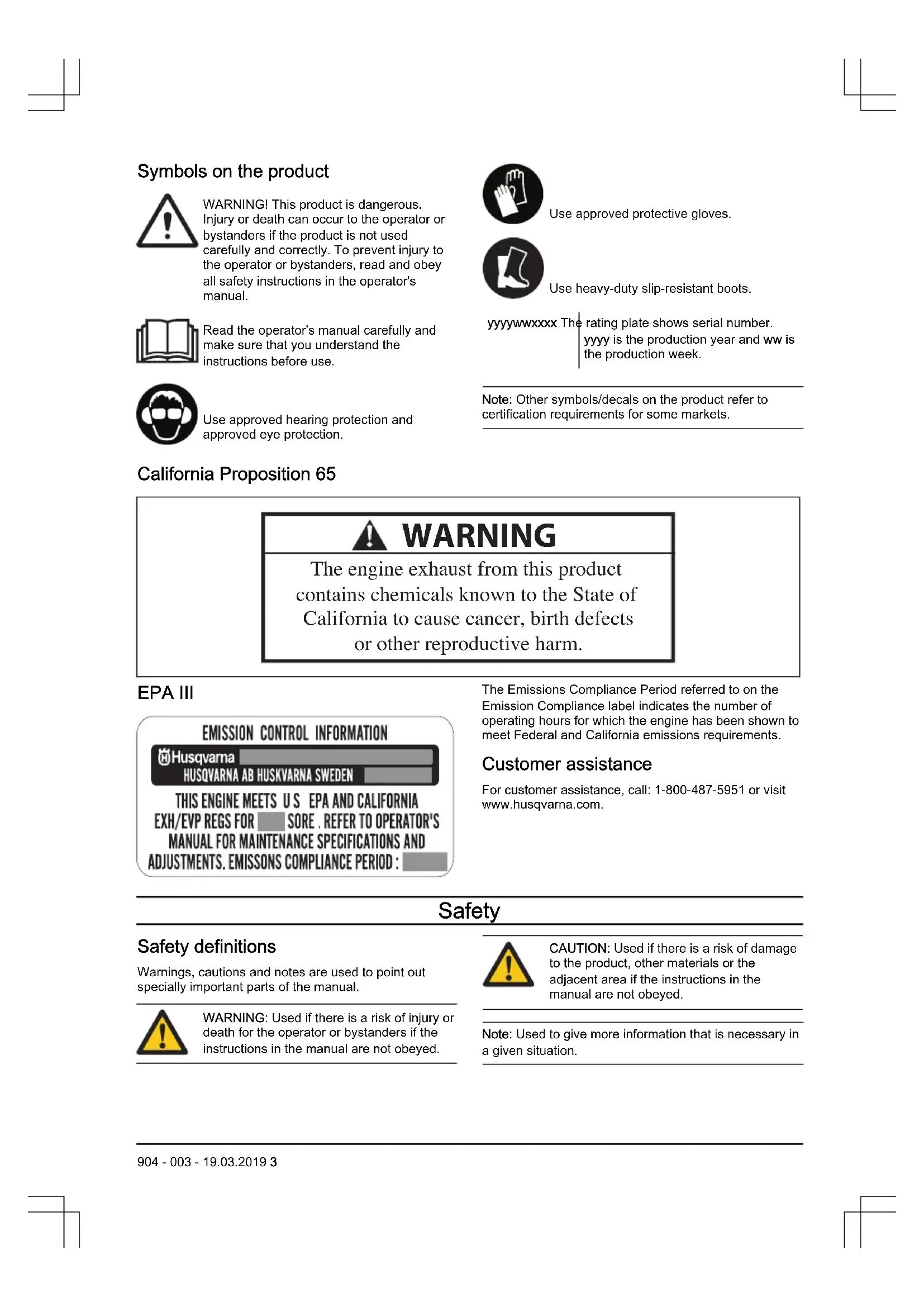

Product description The product is a hedge trimmer with a combustion engine. Intended use Use the product to cut branches and twigs. Do not use the product for other tasks. 2 904 - 003 - 19.03.2019Symbols on the product WARNING! This product is dangerous. Injury or death can occur to the operator or bystanders if the product is not used carefully and correctly. To prevent injury to the operator or bystanders, read and obey all safety instructions in the operator's manual. Read the operator's manual carefully and make sure that you understand the instructions before use. Use approved hearing protection and approved eye protection. Use approved protective gloves. Use heavy-duty slip-resistant boots. yyyywwxxxx The rating plate shows serial number. yyyy is the production year and ww is the production week. Note: Other symbols/decals on the product refer to certification requirements for some markets. California Proposition 65 WARNING The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. EPA III The Emissions Compliance Period referred to on the Emission Compliance label indicates the number of operating hours for which the engine has been shown to meet Federal and California emissions requirements. Customer assistance For customer assistance, call: 1-800-487-5951 or visit www.husqvarna.com. Safety Safety definitions Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or

death for the operator or bystanders if the instructions in the manual are not obeyed. CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed. Note: Used to give more information that is necessary in a given situation.

904 - 003 - 19.03.2019 3General safety instructions

WARNING: Read the warning instructions

that follow before you use the product.

• Incorrect or careless use of a hedge trimmer can turn it into a dangerous tool that can cause serious or even fatal injury. It is extremely important that you read and understand the contents of this operator’s manual.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

• Overexposure to vibration can lead to circulatory damage or nerve damage in people who have impaired circulation. Contact your doctor if you experience symptoms of overexposure to vibration. Such symptoms include numbness, loss of feeling, tingling, pricking, pain, loss of strength, changes in skin color or condition. These symptoms normally appear in the fingers, hands or wrists. The risk increases at low temperatures.

• If you encounter a situation where you are uncertain how to proceed you should ask an expert. Contact your dealer or your service workshop. Avoid all usage which you consider to be beyond your capability.

• Keep in mind that the operator is responsible for accidents or hazards occurring to other people or their property.

• Never allow anyone else to use the product without first ensuring that they have understood the contents of the operator’s manual.

• Never allow children to use or be in the vicinity of the product. As the product is equipped with a springloaded stop switch and can be started by low speed and force on the starter handle, even small children under some circumstances can produce the force necessary to start the product. This can mean a risk of serious personal injury. Therefore remove the spark plug cap when the product is not under close supervision.

• Store the product out of reach of children.

• Never use the product if you are tired, if you have drunk alcohol, or if you are taking medication that could affect your vision, your judgement or your co- ordination.

• Never use a product that is faulty. Carry out the checks, maintenance and service instructions described in this manual. Some maintenance and service measures must be carried out by trained and qualified specialists. Refer to instructions under the heading Maintenance.

• Never use a product that has been modified in any way from its original specification. Safety instructions for operation

WARNING: Read the warning instructions

that follow before you use the product.

• Never use the product in extreme weather conditions such as severe cold, very hot and/or humid climates.

• Faulty blades can increase the risk of accidents.

• Ensure that no-one comes closer than 15 m / 50 ft while you are working.

• Observe your surroundings and make sure that there is no risk of people or animals coming into contact with the cutting equipment.

• Inspect the working area. Remove any objects that could be thrown out.

• Always ensure you have a safe and stable working position.

• Never leave the product unsupervised with the motor running.

• Make sure that your hands and feet do not come near the cutting unit when the engine is running.

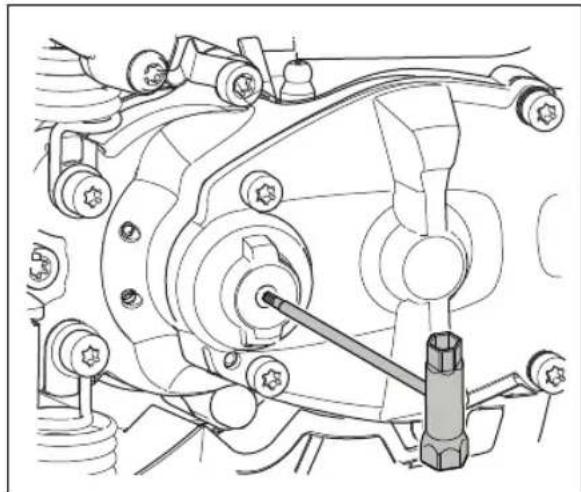

• If anything jams in the blades while you are working, switch off the engine and wait until it has stopped completely before cleaning the blades. Disconnect the HT lead from the spark plug. Refer to

examine the blades on page 13

• When the engine is switched off, keep your hands and feet away from the cutting unit until it has stopped completely.

• Watch out for stumps of branches that can be thrown out during cutting.

• Listen out for warning signals or shouts when you are wearing hearing protection. Always remove your hearing protection as soon as the engine stops.

• Never work from a ladder, stool or any other raised position that is not fully secured.

• Always use both hands to hold the product. Hold the product in front of your body.

• If any foreign object is hit or if vibrations occur stop the product immediately. Disconnect the HT lead from the spark plug. Check that the product is not damaged. Repair any damage.

• Ensure that the spark plug cap and ignition lead are undamaged to avoid the risk of electric shock.

• Check that all nuts and screws are tight.

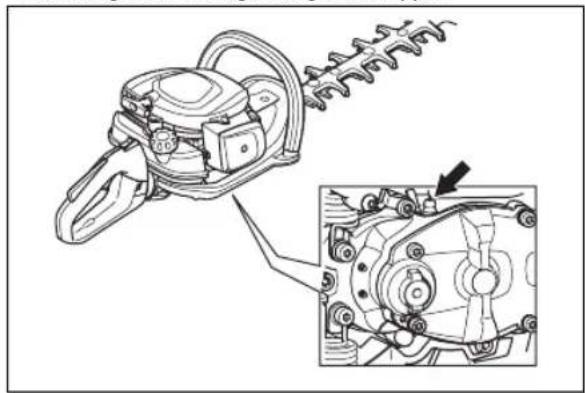

• Make sure the gear housing is lubricated correctly. Refer to To lubricate the gear housing on page 13

• The gear housing gets hot when the product has been in use. To avoid burning yourself do not touch the gear housing.

• All covers and guards must be fitted before starting.

• The transport guard should always be fitted to the cutting unit when the product is not in use.

WARNING: Read the warning instructions

that follow before you use the product.

• Always use approved personal protective equipment when you use the product. Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.

• Use approved hearing protection that provides adequate noise reduction. Long-term exposure to noise can result in permanent hearing impairment.

• Use approved eye protection. If you use a visor, you must also use approved protective goggles. Approved protective goggles must comply with the ANSI Z87.1 standard in the USAs or EN 166 in EU countries.

• Use gloves when necessary, for example when you attach, examine or clean the cutting equipment.

• Use sturdy non-slip boots or shoes.

• Use clothing made of a strong fabric. Always use heavy, long pants and long sleeves. Do not use loose clothing that can catch on twigs and branches. Do not wear jewelry, short pants, sandals or go with bare feet. Put your hair up safely above shoulder level.

• Keep first aid equipment close at hand. Safety devices on the product

WARNING: Read the warning instructions

that follow before you use the product.

• Do not use a product with defective safety devices.

• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent. To do a check of the throttle trigger lockout

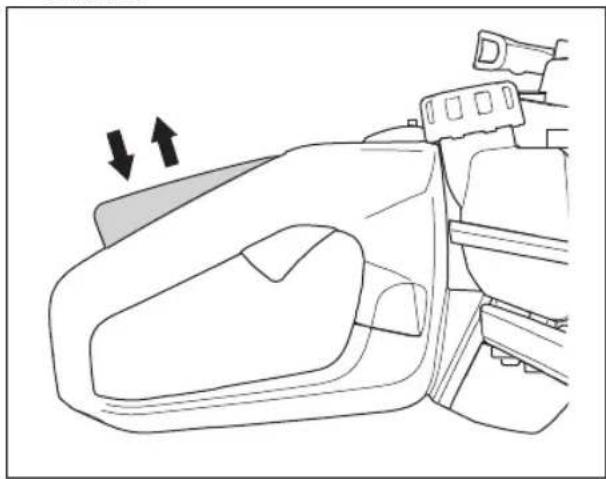

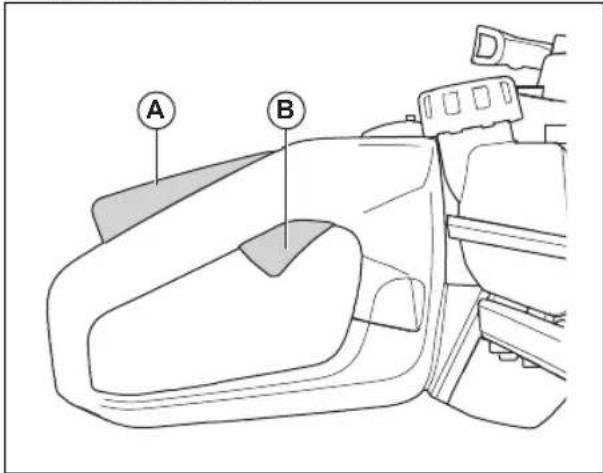

1. Make sure that the throttle trigger lockout (A) and

throttle trigger (B) move freely and that the return spring works correctly. A B

904 - 003 - 19.03.2019 52. Push down the throttle trigger lockout and make sure

that it goes back to its initial position when you release it.

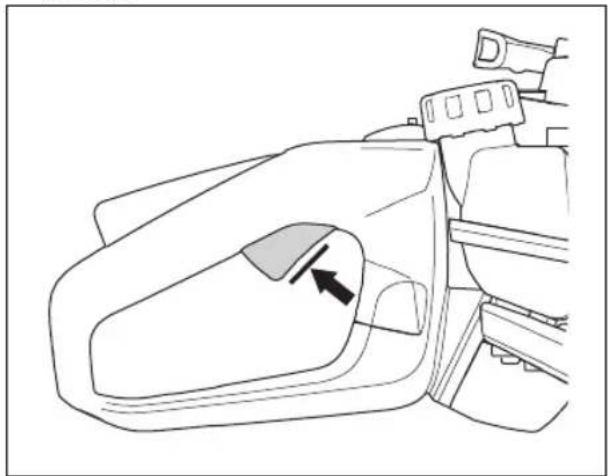

3. Make sure that the throttle trigger is locked at the

idle position when the throttle trigger lockout is released.

4. Start the product and apply full throttle.

5. Release the throttle trigger and make sure that the

blades stop and stay stationary.

If the blades move when the throttle trigger is in the idle position, then the carburetor idle speed must be adjusted. Refer to To adjust the idle speed on page 11

To do a check of the stop switch

1. Start the engine.

2. Push the stop switch to the stop position and make

sure that the engine stops.

The stop switch automatically goes back to start position. To prevent accidental start, remove the spark plug cap from the spark plug when you assemble or do maintenance on the product. To do a check of the hand guard The hand guard prevents injuries from the blades.

2. Make sure that the hand guard is attached correctly.

3. Examine the hand guard for damages.

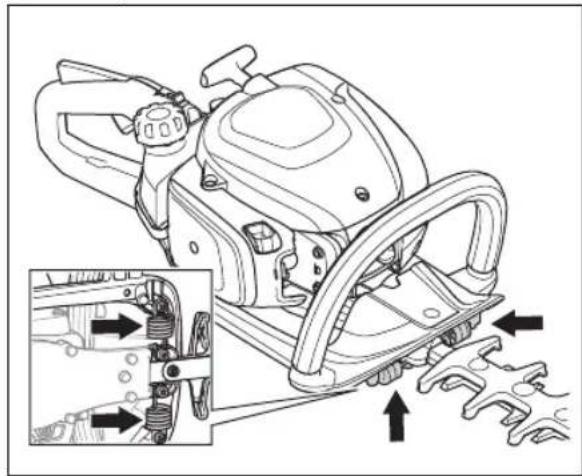

To do a check of the vibration damping system The vibration damping system decreases vibration in the handles. Vibration damping units operate as a separation between the product body and the handle unit.

1. Do a visual check for deformation and damage.

2. Make sure that the vibration damping units are

correctly attached. To do a check of the muffler

Do not operate the product without a muffler or a defective muffler. A defective muffler can increase the noise level and the risk of fire. Do not use the product without, or with a broken, spark arrester screen. The spark arrester screen must be replaced if it is damaged.

WARNING: The mufflers become very hot

during and after operation, also at idle speed. CAUTION: If the spark arrester screen is frequently blocked it can be a sign that performance of the catalytic converter is decreased. Turn to your servicing dealer to examine the muffler. A blocked spark arrester screen will cause overheating and result in damage to the cylinder and piston. 6 904 - 003 - 19.03.2019WARNING: The inner surfaces of the muffler contain chemicals that can cause cancer. Be careful not to touch these elements if the muffler is damaged. The muffler keeps the noise levels to a minimum and points the exhaust fumes away from the operator. A muffler with a catalytic converter decrease harmful exhaust gases.

2. Do a visual check for damage and deformation.

3. Make sure that the muffler is correctly attached to

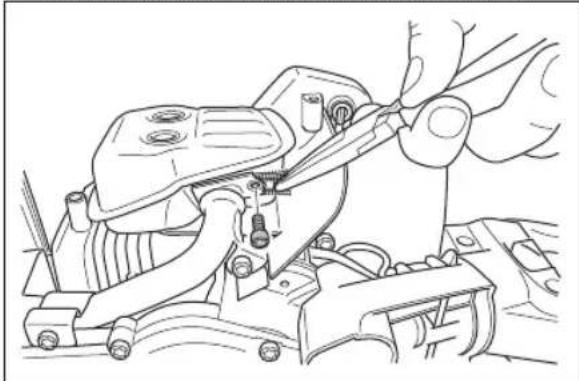

4. Clean the spark arrester screen with a wire brush.

To do a check of the blades and blade guard The outer part of the blades has the function of a blade guard. The blade guard prevents cut injuries.

1. Stop the engine and make sure that the blades stop.

2. Remove the spark plug cap from the spark plug.

3. Put on protective gloves.

4. Make sure that the blade and blade guard is not

damaged or bent. Always replace a damaged or bent blade, or a damaged blade guard.

5. Make sure that the screws to the blades and blade

guard are tight. Fuel safety

WARNING: Read the warning instructions

that follow before you use the product.

• Do not start the product if there is fuel or engine oil on the product. Remove the unwanted fuel/oil and let the product dry.

• If you spill fuel on your clothing, change clothing immediately.

• Do not get fuel on your body, it can cause injury. If you get fuel on your body, use soap and water to remove the fuel.

• Do not start the product if the engine has a leak. Examine the engine for leaks regularly.

• Be careful with fuel. Fuel is flammable and the fumes are explosive and can cause injuries or death.

• Do not breathe in the fuel fumes, it can cause injury. Make sure that there is a sufficient airflow.

• Do not smoke near the fuel or the engine.

• Do not put warm objects near the fuel or the engine.

• Do not add the fuel when the engine is on.

• Make sure that the engine is cool before you refuel.

• Before you refuel, open the fuel tank cap slowly and release the pressure carefully.

• Do not add fuel to the engine in an indoor area. Not sufficient airflow can cause injury or death because of asphyxiation or carbon monoxide.

• Tighten the fuel tank cap fully. If the fuel tank cap is not tightened, there is a risk of fire.

• Move the product a minimum of 3 m / 10 ft from the position where you filled the tank before a start.

• Do not fill the fuel tank fully. Heat causes the fuel to expand. Keep a space at the top of the fuel tank. Safety instructions for maintenance

WARNING: Read the warning instructions

that follow before you use the product.

• Stop the engine and make sure that the cutting equipment stops. Let the product become cool before you do the maintenance.

• Disconnect the spark plug cap before you do the maintenance.

• The exhaust fumes from the engine contain carbon monoxide, an odourless, poisonous and very dangerous gas that can cause death. Do not run the product indoors or in closed spaces.

• The exhaust fumes from the engine are hot and can contain sparks. Do not run the product indoors or near flammable material.

• Accessories and changes to the product that are not approved by the manufacturer, can cause serious injury or death. Do not change the product. Always use original accessories.

• If the maintenance is not done correctly and regularly, there is an increased risk of injury and damage to the product.

• Only do the maintenance as this operator's manual recommends. Let an approved Husqvarna service agent do all other servicing.

• Let an approved Husqvarna service agent do servicing on the product regularly.

• Replace damaged, worn or broken parts.

WARNING: Read and understand the safety

chapter before you use the product. Fuel This product has a two-stroke engine. CAUTION: Incorrect type of fuel can result in engine damage. Use a mixture of gasoline and two-stroke oil. Premixed fuel

• Use Husqvarna premixed alkylate fuel of a good quality, for best performance and extension of the engine life. This fuel contains less harmful chemicals compared to regular fuel, which decreases harmful exhaust fumes. The quantity of remains after combustion is lower with this fuel, which keeps the components of the engine more clean. To mix fuel Gasoline

• Use good quality unleaded gasoline with a maximum of 10% ethanol contents. CAUTION: Do not use gasoline with an octane grade less than 90 RON/87 AKI. Use of a lower octane grade can cause engine knocking, which causes engine damages.

• We recommend that you use gasoline of a higher octane grade for work with continuously high rpm. Two-stroke oil

• For best results and performance use Husqvarna two-stroke oil.

• If Husqvarna two-stroke oil is not available, use a two-stroke oil of good quality for air-cooled engines. Speak to your servicing dealer to select the correct oil. CAUTION: Do not use two-stroke oil for water-cooled outboard engines, also referred to as outboard oil. Do not use oil for four-stroke engines. To mix gasoline and two-stroke oil Gasoline, liter Two-stroke oil, liter 2% (50:1)

US gallon US fl. oz. 1 2 ½ 2 1/2 6 ½ 5 12 ⅞ CAUTION: Small errors can influence the ratio of the mixture drastically when you mix small quantities of fuel. Measure the quantity of oil carefully and make sure that you get the correct mixture.

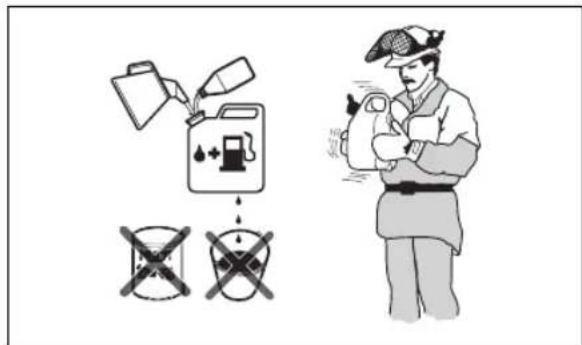

1. Fill half the quantity of gasoline in a clean container

2. Add the full quantity of oil.

3. Shake the fuel mixture.

4. Add the remaining quantity of gasoline to the

5. Carefully shake the fuel mixture.

CAUTION: Do not mix fuel for more than 1 month at a time. 8 904 - 003 - 19.03.2019To fill the fuel tank

1. Clean the area around the fuel tank cap.

2. Shake the container and make sure that the fuel is

3. Tighten the fuel tank cap carefully.

4. Move the product 3 m/10 ft or more away from the

refueling area and fuel source before starting. Note: To see where the fuel tank is on your product, refer to Product overview on page 2

1. Remove the nut and the bolt on the blade tip.

2. Install the blade tip protection on the blade tip.

3. Install the bolt and tighten it to 7 Nm.

4. Install the nut and tighten it to 5 Nm.

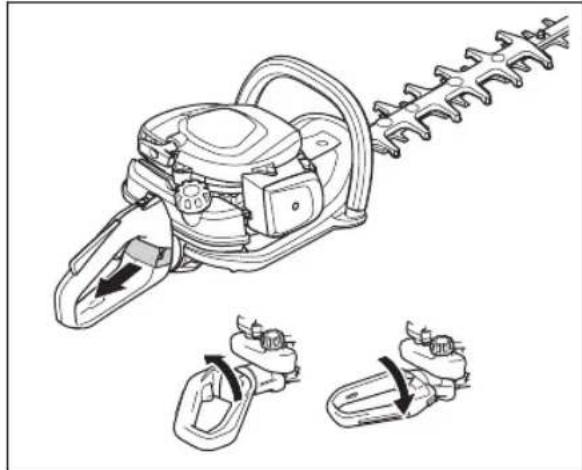

To adjust the handle The rear handle can be adjusted into 3 positions.

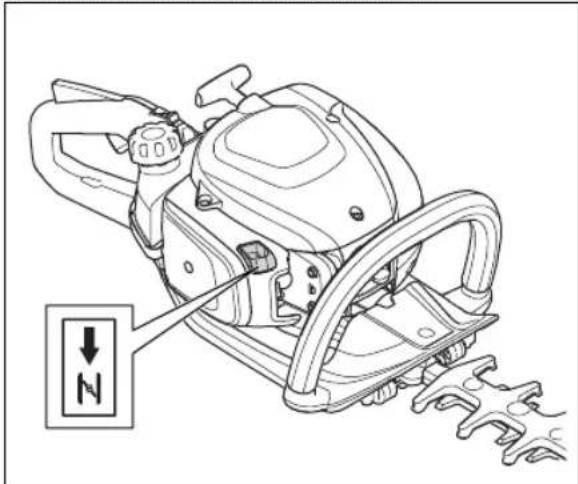

• Release the handle lock and turn the handle. To start the product with a cold engine

1. Pull the choke control to choke position.

2. Push the air purge bulb approximately 6 times or

until the bulb starts to fill with fuel. It is not necessary to fill the air purge bulb fully.

3. Hold the body of the product on the ground with your

left hand. Do not step on the product.

4. Pull the starter rope handle slowly with your right

hand until you feel some resistance, then pull the starter rope handle quickly and with force.

WARNING: Do not wind the starter rope

around your hand. CAUTION: Do not pull the starter rope to full extension and do not let go of the starter rope handle.

5. Continue to pull the starter rope handle until the

engine fires, then push the choke control to its initial position.

6. Continue to pull the starter rope handle until the

7. Push and release the throttle trigger to set the

engine to idle speed.

8. Push the throttle trigger gradually to increase the

9. Make sure that the engine runs smoothly.

To start the product with a warm engine

1. Hold the body of the product on the ground with your

left hand. Do not step on the product.

904 - 003 - 19.03.2019

92. Pull the starter rope handle slowly with your right

hand until you feel some resistance, then pull the starter rope handle quickly and with force. Continue until the engine starts. Note: For more information about how to start the product, refer to To start the product with a cold engine on page 9

• Move the stop switch to the stop position to stop the engine. CAUTION: The stop switch automatically goes back to run position. To operate the product

1. Start near the ground and move the product up

along the hedge when you cut the sides. Make sure that the body of the product does not touch the hedge.

WARNING: Make sure that the front of

the cutting equipment does not touch the ground.

2. Adjust the speed to align with the work load.

3. Hold the product near your body for a stable work

4. Be careful and operate the product slowly.

Maintenance Introduction

WARNING: Read and understand the safety

chapter before you do maintenance on the product. Maintenance schedule Maintenance Before operation After 40

Clean the external surface. After each operation. Clean the muffler, exhaust pipe and engine from leaves, dirt and unwanted lubri- cant. After each operation. Make sure that the cutting attachment does not move at idle speed. X Do a check of the stop switch. X 10 904 - 003 - 19.03.2019Maintenance Before operation After 40

Examine the cutting attachment and the cutting attachment guard for damages and cracks. Replace if it is damaged.

Examine the hand guard for damages and cracks. Replace if it is damaged. X Do a check of the throttle trigger lockout and the throttle trigger. X Examine the engine, the fuel tank and the fuel lines for leaks. X Tighten nuts and screws. X Examine the fuel filter for contamination and the fuel hose for cracks and other defects. Replace if necessary.

Examine the starter and the starter rope for damages. X Clean the air filter. Replace if it is necessary. X Examine the vibration damping units for damages and cracks. X Examine the spark plug, refer to To examine the spark plug on page 12 . X Clean the cooling system. X Clean the external surface of the carburetor and the area around it. X Clean or replace the spark arrester mesh. X Clean the inner surface of the fuel tank. X Examine the spark plug. X Make sure that the gear housing is filled with grease. X To adjust the idle speed

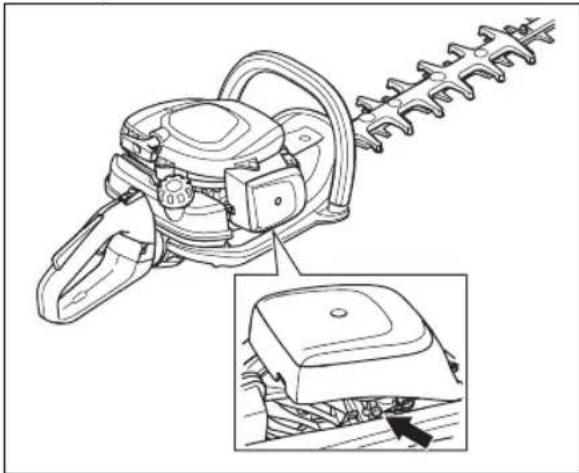

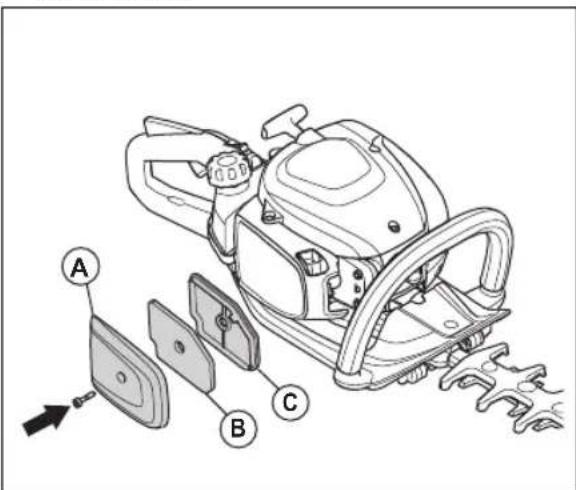

1. Clean the air filter and attach the air filter cover.

2. Start the product, refer to

To start the product with a cold engine on page 9

3. Turn the idle adjustment screw T clockwise until the

cutting attachment starts to move.

4. Turn the idle adjustment screw counterclockwise

until the cutting attachment stops.

WARNING: If the cutting attachment

does not stop when you adjust the idle speed, speak to your nearest servicing dealer. Do not use the product until it is correctly adjusted or repaired. Note: The idle speed is correct when the engine operates smoothly in all positions. Refer to Technical data on page 14 for the recommended idle speed. To clean the cooling system The cooling system keeps the engine temperature down. The cooling system includes the cooling fins on the cylinder and the starter housing. CAUTION: The air intake between the fuel tank and crankcase is easily blocked by leaves. Clean the air intake fully.

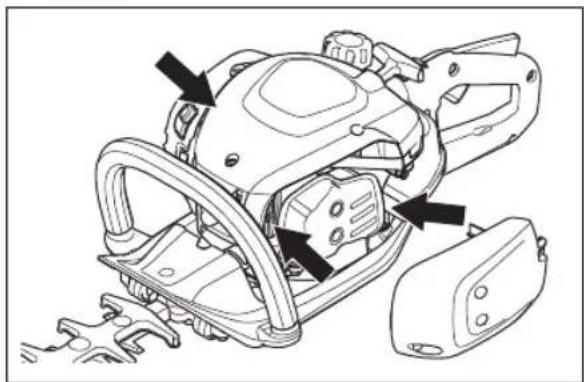

1. Clean the cooling system with a brush weekly or

more frequently if it is necessary.

904 - 003 - 19.03.2019 112. Make sure that the cooling system is not dirty or

blocked. To examine the spark plug CAUTION: Always use the recommended spark plug type. Incorrect spark plug type can cause damage to the product.

• Examine the spark plug if the engine is low on power, is not easy to start or does not operate correctly at idle speed.

• To decrease the risk of unwanted material on the spark plug electrodes, obey these instructions: a) Make sure that the idle speed is correctly adjusted. b) Make sure that the fuel mixture is correct. c) Make sure that the air filter is clean.

• If the spark plug is dirty, clean it and make sure that the electrode gap is correct, refer to Technical data on page 14

• Replace the spark plug if it is necessary. To clean the air filter Clean the air filter regularly from dirt and dust. This prevents carburetor malfunctions, starting problems, loss of engine power, wear to engine parts and more fuel consumption than usual.

1. Remove the air filter cover (A).

2. Remove the foam filter (B) and the felt filter (C) from

3. Replace the felt filter (C).

4. Clean the foam filter (B) with warm soap water.

Note: An air filter that is used for a long time can not be fully cleaned. Replace the air filter regularly and always replace a defective air filter.

5. Make sure that the foam filter (B) is dry.

6. Apply air filter oil to the foam filter (B). Refer to

apply oil to the air filter on page 12

7. Clean the inner surface of the air filter cover (A). Use

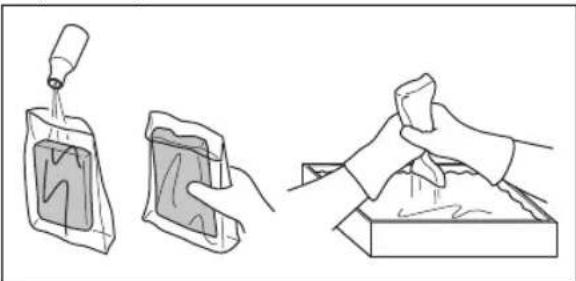

compressed air or a brush. To apply oil to the air filter CAUTION: Always use Husqvarna special air-filter oil. Do not use other types of oil.

WARNING: Put on protective gloves. The

air-filter oil can cause skin irritation.

1. Put the air filter in a plastic bag.

2. Put the oil in the plastic bag.

3. Rub the plastic bag to supply the oil equally across

4. Push the unwanted oil out of the air filter while in the

• Use Husqvarna special grease. Speak to your servicing dealer for more information about recommended grease.

• Add the grease through the grease nipple. CAUTION: Do not fill the gear housing fully. To clean and lubricate the blades

1. Clean the blades from unwanted materials before

and after you use the product.

2. Lubricate the blades before long periods of storage.

Note: Speak to your servicing dealer for more information about recommended cleaning agents and lubricants. To examine the blades

1. Remove the cap on the gear housing.

2. Make sure that the blades move freely. Put the

combination wrench in the gear housing and turn clockwise and counterclockwise.

3. Examine the edges of the blades for damages and

Transportation, storage and disposal Transportation and storage

• Always allow the product to cool down before storage.

• For storage and transportation of the product and fuel, make sure that there are no leaks or fumes. Sparks or open flames, for example from electrical devices or boilers, can start a fire.

• Always use approved containers for storage and transportation of fuel.

• Empty the fuel before transportation or before long- term storage. Discard the fuel at an applicable disposal location.

• Attach the transport guard during transportation and storage.

• Remove the spark plug cap from the spark plug.

• Attach the product during transportation. Make sure that it cannot move.

• Clean and do servicing on the product before long- term storage.

Note: This Annex is intended primarily for the consumer or occasional user. IMPORTANT:This product is compliant with U.S. EPA Phase 3 regulations for exhaust and evaporative emissions. To ensure EPA Phase 3 compliance, we recommend using only genuine Husqvarna brand replacement parts. Use of non-compliant replacement parts is a violation of federal law.

YOUR WARRANTY RIGHTS AND OBLIGATIONS

The EPA (U.S. Environmental Protection Agency), CARB (California Air Resources Board), Environment Canada and Husqvarna Forest & Garden are pleased to explain the exhaust and evaporative emissions control system’s warranty on your 2019-2020* small off-road engine. In California, new equipment that use small off- road engines must be designed, built, and equipped to meet State's stringent anti-smog standards. Husqvarna Forest & Garden must warrant the emissions control system on your small off-road engine for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of your small off-road engine or equipment leading to the failure of the emissions control system. Your emission control system may include parts such as the carburetor or fuel- injection system, the ignition system, catalytic convertor, fuel tanks, fuel lines (for liquid fuel and fuel vapors), fuel caps, valves, canisters, filters, clamps and other associated components. Also included may be hoses, belts, connectors, and other emission-related assemblies. Where a warrantable condition exists, Husqvarna Forest & Garden will repair your small off- road engine at no cost to you including diagnosis, parts and labor.

MANUFACTURER′S WARRANTY COVERAGE

The exhaust and evaporative emissions control system on your small off-road engine is warranted for two years. If any emissions-related part on your small off-road engine is defective, the part will be repaired or replaced by Husqvarna Forest & Garden.

OWNER′S WARRANTY RESPONSIBILITIES

• As the small off-road engine owner, you are responsible for performance of the required maintenance listed in your operator’s manual. Husqvarna Forest & Garden recommends that you retain all receipts covering maintenance on your small off-road engine, but Husqvarna Forest & Garden cannot deny warranty solely for the lack of receipts or your failure to ensure the performance of all scheduled maintenance.

• As the small off-road engine owner, you should however be aware that Husqvarna Forest & Garden may deny you warranty coverage if your small off- road engine or a part has failed due to abuse, neglect, or improper maintenance or unapproved modifications.

• You are responsible for presenting your small off- road engine to a Husqvarna Forest & Garden distribution center or service center as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days. If you have any questions regarding your warranty rights and responsibilities, you should contact Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WARRANTY COMMENCEMENT DATE

The warranty period begins on the date the engine or equipment is delivered to an ultimate purchaser.

Husqvarna Forest & Garden warrants to the ultimate purchaser and each subsequent owner that the engine or equipment is designed, built, and equipped so as to conform with all applicable regulations adopted by EPA and CARB, and is free from defects in materials and workmanship that causes the failure of a warranted part for a period of two years.

REPAIR OR REPLACEMENT OF PARTS: Repair or replacement of any warranted part under the warranty must be performed at no charge to the owner at a warranty station. Warranty services or repairs will be provided at all Husqvarna Forest & Garden distribution centers that are franchised to service the subject engines. Throughout the emissions warranty period of two years, Husqvarna Forest & Garden must maintain a supply of warranted parts sufficient to meet the expected demand for such parts. WARRANTY PERIOD: Any warranted part that is scheduled for replacement as required in the maintenance schedule, is warranted for the period of time prior to the first scheduled replacement point for that part. If the part fails prior to the first scheduled replacement, the part will be repaired or replaced by Husqvarna Forest & Garden at no cost. Any such part repaired or replaced under warranty is warranted for the remainder of the period prior to the first scheduled replacement point for the part. Any warranted part that is not scheduled for replacement as required in the maintenance schedule, is warranted for two years. If any such part fails during the period of warranty coverage, it will be repaired and replaced by Husqvarna Forest &

904 - 003 - 19.03.2019

15Garden at no cost. Any such part repaired or replaced under the warranty is warranted for the remaining warranty period. Any warranted part that is scheduled only for regular inspection in the maintenance schedule will be warranted for a period of two years. A statement in such written instructions to the effect of ”repair or replace as necessary” will not reduce the period of warranty coverage. Any such part repaired or replaced under warranty will be warranted for the remaining warranty period. DIAGNOSIS: The owner must not be charged for diagnostic labor that leads to the determination that a warranted part is in fact defective, provided that such diagnostic work is performed at a warranty station. CONSEQUENTIAL DAMAGES: Husqvarna Forest & Garden is liable for damages to other engine components proximately caused by a failure under warranty of any warranted part.

EMISSION WARRANTY PARTS LIST

1. Carburetor and internal parts.

2. Intake pipe, airfilter holder and carburetor bolts.

3. Airfilter and fuelfilter covered up to maintenance

4. Spark Plug, covered up to maintenance schedule.

6. Fuel tank, fuel line (for liquid fuel and vapor hoses),

All failures caused by abuse, neglect or improper maintenance are not covered. ADD -ON OR MODIFIED PARTS: Add-on or modified parts that are not exempted by CARB or EPA may not be used. The use of any non-exempted add-on or modified parts will be grounds for disallowing a warranty claim. Husqvarna Forest & Garden will not be liable to warrant failures of warranted parts caused by the use of a non-exempted add-on or modified part.

If you have any questions regarding your warranty rights and responsibilities, you should contact your nearest authorized servicing dealer or call Husqvarna Forest & Garden in USA at 1-800-487-5951, in CANADA at 1-800-805-5523 or send e-mail correspondence to emissions@husqvarnagroup.com.

WHERE TO GET WARRANTY SERVICE

Warranty services or repairs are provided through all Husqvarna Forest & Garden authorized servicing dealers.

MAINTENANCE, REPLACEMENT AND REPAIR OF
