USER MANUAL LC 247Li HUSQVARNA

EN Operator's manual 7-22

BG PbkoBoDCTBO 3a ekcnnoataun 23-42

CS Navod k použiti 43-59

DA Brugsanvisining 60-75

Safety instructions for maintenance. 13

Assembly. 14

Operation. 15

Maintenance. 16

Troubleshooting. 18

Transportation, storage and disposal. 19

Technical data. 20

EC Declaration of Conformity. 22

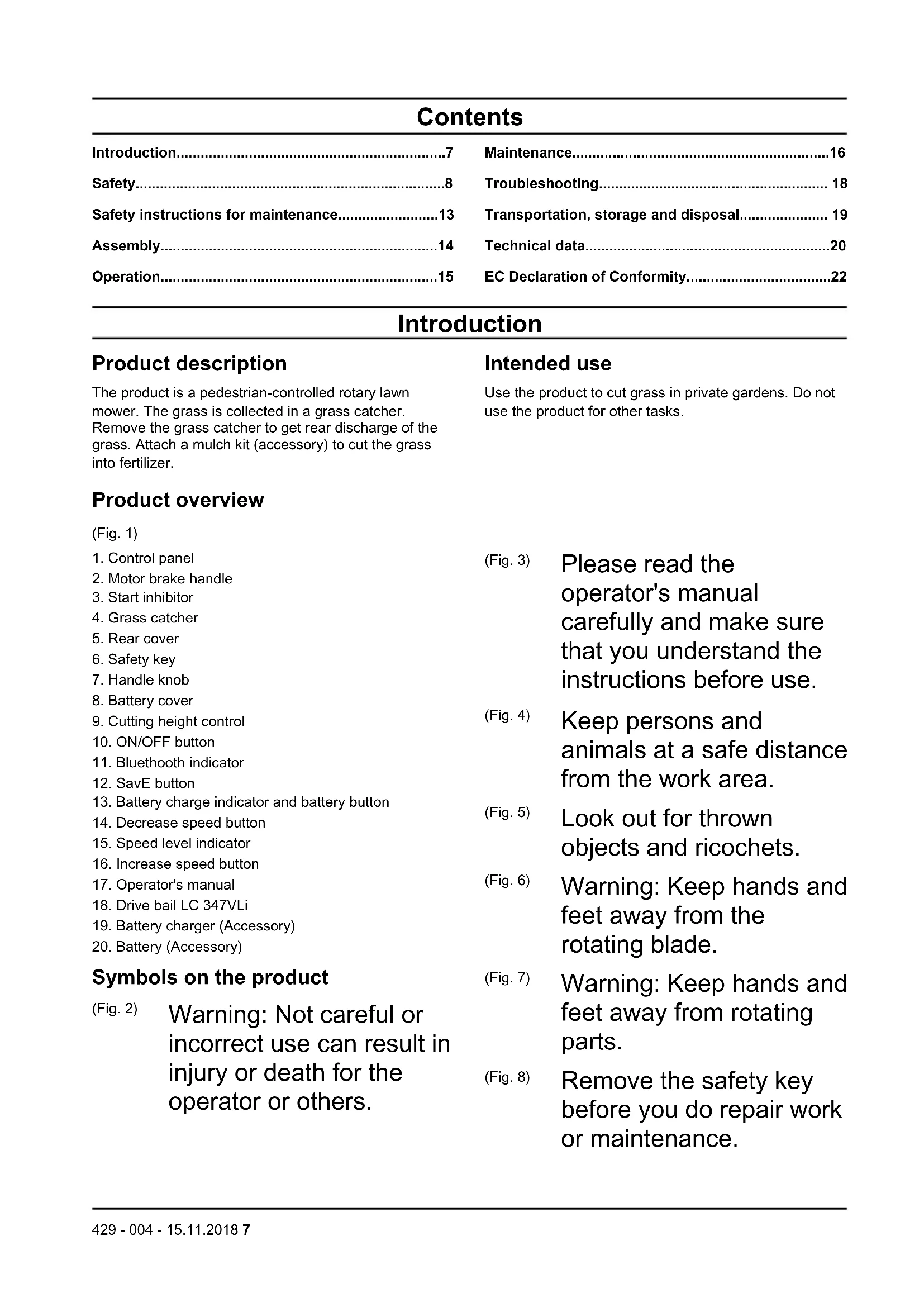

Introduction

Product description

The product is a pedestrian-controlled rotary lawn mower. The grass is collected in a grass catcher. Remove the grass catcher to get rear discharge of the grass. Attach a mulch kit (accessory) to cut the grass into fertilizer.

Product overview

(Fig. 1)
1. Control panel
2. Motor brake handle
3. Start inhibitor
4. Grass catcher
5. Rear cover
6. Safety key
7. Handle knob
8. Battery cover
9. Cutting height control
10. ON/OFF button
11. Bluetooth indicator
12. SavE button
13. Battery charge indicator and battery button
14. Decrease speed button
15. Speed level indicator
16. Increase speed button
17. Operator's manual
18. Drive bail LC 347VLi
19. Battery charger (Accessory)
20. Battery (Accessory)

Symbols on the product

(Fig. 2) Warning: Not careful or incorrect use can result in injury or death for the operator or others.

Intended use

Use the product to cut grass in private gardens. Do not use the product for other tasks.

(Fig. 3)

Please read the operator's manual carefully and make sure that you understand the instructions before use.

(Fig. 4)

Keep persons and animals at a safe distance from the work area.

(Fig. 5)

Look out for thrown objects and ricochets.

(Fig. 6)

Warning: Keep hands and feet away from the rotating blade.

(Fig. 7)

Warning: Keep hands and feet away from rotating parts.

(Fig. 8)

Remove the safety key before you do repair work or maintenance.

(Fig. 9) IPX1 - Drip protected

(Fig. 10) Do not expose to rain

(Fig. 11) The product agrees with applicable EC directives.

(Fig. 12) Noise emission to the environment according to the European Community's Directive. The product's emission is specified in the Technical data chapter and on the label.

(Fig. 16) Start procedure: push ON/OFF button, loosen start inhibitor, push motor brake handle down.

(Fig. 13) Release motor brake handle to stop.

(Fig. 14) Slow

(Fig. 15) Fast

Note: Other symbols/decals on the product refer to certification requirements for some markets.

Product liability

As referred to in the product liability laws, we are not liable for damages that our product causes if:

• the product is incorrectly repaired.
• the product is repaired with parts that are not from the manufacturer or not approved by the manufacturer.
• the product has an accessory that is not from the manufacturer or not approved by the manufacturer.
• the product is not repaired at an approved service center or by an approved authority.

Safety

Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

General safety instructions

WARNING: Read the warning instructions that follow before you use the product.

• This product is dangerous if used incorrectly or if you are not careful. Injury or death can

occur if you do not obey the safety instructions.

• This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this product.

Always be careful and use your common sense. If you are not sure how to operate the product in a special situation, stop and speak to

your Husqvarna dealer before you continue.

• Keep in mind that the operator will be held responsible for accidents that involve other persons or their property.
• Keep the product clean. Make sure that you can clearly read signs and decals.
• Do not let a person use the product unless you make sure that they read and understand the contents of the operator's manual.
• Do not let a child operate the product.
• Do not let a person, without knowledge of the instructions, operate the product.
• Always monitor a person, with decreased physical capacity or mental capacity, that uses the product. A responsible adult must be there at all times.
• Do not use the product if you are tired, ill, or under the influence of alcohol, drugs or medicine. This has a negative effect on your vision, alertness, coordination and judgment.
• Do not use the product if it is defective.
• Do not change this product or use it if it is possible that it has been changed by others.

Work area safety

WARNING: Read the warning instructions that follow before you use the product.

• Remove objects such as branches, twigs and stones from the work area before you use the product.
• Objects that hit against the cutting equipment can eject and cause damage to persons and objects. Keep bystanders and animals at a safe distance from the product.
• Never use the product in bad weather such as fog, rain, strong winds, intense cold and risk of lightning. To use the product in bad weather or in moist or wet locations is tiring. Bad weather can cause dangerous conditions, such as slippery surfaces.
• Look out for persons, objects and situations that can prevent safe operation of the product.
• Look out for obstacles, such as roots, stones, twigs, pits and ditches. Long grass can hide obstacles.

• To cut grass on slopes can be dangerous. Do not use the product on ground that slopes more than 15^ .

• Operate the product across the face of slopes. Do not move up and down.

• Be careful when you go near hidden corners and objects that prevent a clear view.

Work safety

WARNING: Read the warning instructions that follow before you use the product.

Use this product to cut grass lawns only. It is not permitted to use it for other tasks.
Use personal protective equipment. Refer to Personal protective equipment on page 11.
Make sure that you know how to stop the motor quickly in an emergency.
- Do not operate the product in rain or wet conditions. The risk of electrical shock increases if water enters the product.
- Do not operate the product unless the blade and all covers are attached correctly. An incorrectly attached blade can come loose and cause personal injury.
- Make sure that the blade does not hit objects such as stones and roots. This can do damage to the blade and bend the motor shaft. A bent axle causes heavy vibration and a very high risk that the blade becomes loose.

• If the blade hits an object or if vibrations occur, stop the product immediately. Stop the motor, turn the safety key to 0 and remove the battery. Examine the product for damages. Repair damages or let an authorised service agent do the repair.
• Never attach the motor brake handle permanently to the handle when the motor is started.
• Put the product on a stable, flat surface and start it. Make sure that the blade does not hit the ground or other objects.
  Always stay behind the product when you operate it.
• Let all the wheels stay on the ground and keep 2 hands on the handle when you operate the product. Keep your hands and feet away from the rotating blades.
• Do not tilt the product when the motor is started.
• Be careful when you pull the product rearward.
• Never lift up the product when the motor is started. If you must lift the product, first stop the motor, turn the safety key to 0 and remove the battery.

• Do not walk rearward when you operate the product.

• Stop the motor when you move across areas without grass, for example paths made of gravel, stone and asphalt.

• Do not run with the product when the motor is started. Always walk when you operate the product.
• Stop the motor before you change the cutting height. Never make adjustments with the motor started.
• Never let the product stay out of view with the motor started. Stop the motor and make sure that the cutting equipment does not rotate.

Safety instructions for operation

Personal protective equipment

WARNING: Read the warning instructions that follow before you use the product.

Personal protective equipment cannot fully prevent injury but it decreases the degree of injury if an accident does occur. Let your dealer help you select the right equipment.
Use heavy-duty slip-resistant boots or shoes. Do not use open shoes or go with bare feet.
Use heavy, long pants.
Use protective gloves when necessary, for example when

you attach, examine or clean the cutting equipment.

Safety devices on the product

WARNING: Read the warning instructions that follow before you use the product.

• Do not use a product with defective safety devices.
• Do a check of the safety devices regularly. If the safety devices are defective, speak to your Husqvarna service agent.

To do a check of the cutting cover

The cutting cover decreases vibrations in the product and decreases the risk of injury from the blade.

• Examine the cutting cover to make sure that there are no damages such as cracks.

Safety key

The safety key is below the battery lid. The safety key connects the battery that supplies the motor with power.

• Start and stop the motor to do a check of the safety key.
• If the safety key operates correctly, the motor can only start when the safety key is in position 1.

(Fig. 17)

Motor brake handle

The motor brake handle stops the motor. When the motor brake handle is released, the motor stops.

To do a check of the motor brake, start the motor and then release the motor brake handle. If the motor does not stop in 3 seconds, let an approved Husqvarna service agent adjust the motor brake.

(Fig. 18)

To examine the start inhibitor

Do a check of the start inhibitor to make sure that it prevents operation of the motor.

1. Push the motor brake handle in the direction of the handlebar. The start inhibitor stops the movement.
2. Push the start inhibitor out. (Fig. 19)
3. Release the start inhibitor and make sure that it goes back to its initial position.

Battery safety

WARNING: Read the warning instructions that follow before you use the product.

• Use Husqvarna rechargeable batteries as a power supply for related Husqvarna products only. To prevent injury, do not use the battery as a power supply for other devices.
• Do not use non-rechargeable batteries.
• Risk of electrical shock. Do not connect the battery terminals to keys, coins, screws or other metal. This can cause a short circuit of the battery.
• Do not put objects into the air slots of the battery.
• Keep the battery away from sunlight, heat or open flame. The battery can explode and cause burns and/or chemical burns.
• Keep the battery away from rain and wet conditions.
• Keep the battery away from microwaves and high pressure.
• Do not try to disassemble or break the battery.

• If the battery leaks, do not let the liquid touch your body or eyes. If you have touched the liquid, clean the area with a large quantity of water and get medical aid.
  Use the battery in temperatures between -10^ and 40^ .

• Do not clean the battery or the battery charger with water. See To clean the product on page 17.

• Do not use a defective or damaged battery.
• Keep batteries in storage away from metal objects such as nails, coins, jewellery.

Battery charger safety

WARNING: Read the warning instructions that follow before you use the product.

Use the QC battery chargers to charge Husqvarna replacement batteries only.
- Risk of electrical shock or short circuit. Do not put objects into the air slots of the charger. Do not try to disassemble the battery charger. Do not connect the charger terminals to metal objects. Use an approved mains socket.
This product produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the

medical implant manufacturer before operating this product.

Regularly make sure that the power cord of the battery charger is not damaged and that there are no cracks in it.
- Do not lift the battery charger by the power cord. To disconnect the battery charger from a mains socket, pull out the plug. Do not pull the power cord.
- Keep the power cord and extension cables away from water, oil and sharp edges. Make sure that the cable is not pinched in doors, fences or equivalent. It can cause the charger to become energized.
- Do not clean the battery charger with water.
The battery charger can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the battery charger in a safe way and understand the hazards involved. Children shall not play with the battery charger. Cleaning and user maintenance shall not be made by children without supervision.

• Do not charge non-rechargeable batteries in the battery charger.
• Do not use the battery charger near flammable materials or materials that can cause corrosion. Do not cover the battery charger. Pull out the plug to the battery charger if there is smoke or fire.
• Do not use a defective or damaged battery charger.
• Only charge the battery indoors in a room with good airflow and away from sunlight. Do not charge the battery in wet conditions.

Safety instructions for maintenance

WARNING: Read the warning instructions that follow before you use the product.

• To prevent accidental start during maintenance, turn the safety key to 0 and remove the

battery. Wait at minimum 5 seconds before you start the maintenance.

• Do the maintenance work correctly to increase the lifetime of the product and

decrease the risk of accidents. Let an approved service agent do the professional repairs. Speak to your nearest service agent for more information.

• Only do the maintenance work written in this operator's manual. More extensive work must be done by an approved service agent.
• Put on heavy duty gloves when you use the cutting equipment. The blade is very sharp and cuts can easily occur.

• Keep the cutting edges sharp and clean for the best and safest performance.

• Let your service agent regularly examine the product and make necessary adjustments and repairs.

• Replace damaged, worn or broken parts.
• Obey the instructions for how to change accessories. Only use accessories from the manufacturer.
• When not in operation, keep the product, battery and battery charger apart in a dry, indoor and locked area. Make sure that children and persons that are not approved cannot get access to the product, battery or battery charger.

Assembly

Introduction

WARNING: Before you assemble the product, read the safety chapter.

WARNING: To prevent accidental start during assembly, turn the safety key to 0, remove the battery and wait at minimum 5 seconds.

To assemble the handle

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product. (Fig. 20)
3. Set the handle height in one of the 2 available positions.
4. Move the knobs up in the direction of the handle until they stop and you hear a click. (Fig. 21)
5. Tighten the knobs fully.

To assemble the grass catcher

1. Attach the grass catcher frame to the grass bag with the rigid part of the bag on the bottom. Keep the handle of the frame on top of the grass bag. (Fig. 22)
2. Attach the bottom section of the grass catcher frame in the groove on the bottom of the grass catcher.
3. Attach the grass bag to the grass catcher frame with the clips. (Fig. 23)
4. Lift the rear cover.
5. Attach the grass catcher to the top edge of the chassis.
6. Put the lower part of the grass catcher into the grass discharge channel. (Fig. 24)

To assemble the mulch plug (accessory)

1. Lift up the rear cover and remove the grass catcher.
2. Put the mulch plug into the discharge channel. (Fig. 25)
3. Replace the blade with the mulch blade that is supplied in the mulch kit. Refer to Technical data LC 247Li, LC 347VLi on page 20.

Operation

Introduction

WARNING: Before you operate the product, you must read and understand the safety chapter.

To set the product in operation position

1. Fold the handle to upright position. (Fig. 26)
2. Move the knobs up in the direction of the handle until they stop and you hear a click. (Fig. 21)
3. Tighten the knobs fully.

To set the cutting height

The cutting height can be adjusted in 6 levels.

1. Move the cutting height lever down to decrease the cutting height.
2. Move the cutting height lever up to increase the cutting height. (Fig. 27)

CAUTION: Do not set the cutting height too low. The blades can hit the ground if the surface of the lawn is not level.

Battery

WARNING: Before you use the battery, you must read and understand the safety chapter. You must also read and understand the operator's manual for the battery and the battery charger.

Battery status

The display shows the remaining battery capacity and if there are problems with the battery. The battery capacity is shown for 5 seconds after the product is switched off or the battery indicator button is pressed. The warning symbol on the battery is on when an error has occurred. See Battery on page 18.

(Fig. 28)

LED lights	Battery status
All LEDs are lit Fully charged (75-100%)
LED 1, LED 2, LED 3 are lit	The battery is 50%-75% charged
LED 1, LED 2 are lit The battery is 25%-50% charged
LED 1 is lit The battery is 0%-25% charged.

LED lights Battery status
LED 1 flashes The battery is empty. Charge the battery.

To charge the battery

Charge the battery before the first use. The battery is only 30% charged when supplied to the customer.

Note: The battery charger must be connected to the voltage and frequency specified on the rating plate.

The battery does not charge if the battery temperature is above 50^ . The battery charger decreases the temperature of the battery before it starts to charge.

1. Connect one end of the power cord for the battery charger into the socket of the battery charger.
2. Connect the other end of the power cord for the battery charger in an grounded mains socket. The LED on the battery charger flashes green one time. (Fig. 29)
3. Put the battery in the battery charger. The green light on the charger comes on when the battery is correctly connected to the battery charger. (Fig. 30)
4. When all LEDs on the battery have come on the battery is fully charged. Charge the battery for maximum 24 hours.
5. To disconnect the battery charger from the mains socket, pull the plug, not the power cord.
6. Remove the battery from the battery charger.

Battery charging status

A Husqvarna Li-ion battery can be charged or used at all charging levels. The battery is not damaged. A fully charged battery will not decrease its charge when the battery is left in the charger.

LED display	Charging status
LED 1 flashes 0%-25%
LED 1 is lit, LED 2 flashes	25%-50%
LED 1, LED 2 are lit, LED 3 flashes	50%-75%
LED 1, LED 2, LED 3 are lit, LED 4 flashes	75%-100%
LED 1, LED 2, LED 3, LED 4 are lit	Fully charged

To start the product

1. Put a charged battery in battery compartment number 1 below the battery lid. For longer operation time, put a second charged battery in battery compartment number 2.
2. Turn the safety key to 1. (Fig. 17)
3. Stay behind the product.
4. Press the ON/OFF button (A) on the control panel and the green LED (B) comes on. (Fig. 31) When you press the ON button, the two bars of the battery indicator come on and show the levels of the two batteries. After 2-3 seconds the battery indicator for the battery not in operation goes off. The bar of the battery in operation is shown for a longer time. (Fig. 32)
5. Loosen the start inhibitor. (Fig. 19)
6. Push the motor brake handle in the direction of the handlebar. (Fig. 33)

To use the drive on the wheels (LC 347VLi)

• Pull the drive bail in the direction of the handlebar to start the drive. (Fig. 34)
• Press + and - on the control panel to set the drive speed in 4 steps. (Fig. 35)
• Release the drive bail to disengage the drive, for example when you go near an obstacle.

To use the SavE function

The product has a battery saving function (SavE) that gives longer operation time.

1. Press the SavE button (A) to start the function. The green LED comes on. (Fig. 36)
2. Press the SavE button again to stop the function. The green LED (B) goes out.

The SavE function stops automatically if the ground conditions make it necessary to have a higher output. The SavE function starts automatically when the ground conditions let it.

High load function

When the product cuts long or wet grass, the motor automatically increases rpm. The motor goes back to standard mode when high load is not necessary.

To stop the product

The product stops automatically if you do not operate it for 10 minutes. Always turn the safety key to 0 before you let the product out of view.

1. Release the motor brake handle to stop the motor. (Fig. 18)
2. Press the ON/OFF button (A) on the control panel and the green LED (B) goes out. (Fig. 31)
3. Open the battery lid and turn the safety key to 0. (Fig. 37)
4. To remove the battery, press the two release buttons and pull out the battery. (Fig. 38)
5. Charge the battery if it is weak. For more information, refer to To charge the battery on page 15.

To get a good result

• Always use a sharp blade. A blunt blade gives an irregular result and the cut surface of the grass becomes yellow. A sharp blade also uses less energy than a blunt blade.
• Do not cut more than 13 of the length of the grass. Cut first with the cutting height set high. Examine the result and lower the cutting height to an applicable level. If the grass is very long, drive slowly and cut 2 times if necessary.
• Cut in different directions each time to prevent stripes in the lawn.

To cut grass without a grass catcher or mulch plug attached

• Lift up the rear cover and remove the grass catcher.
• If a mulch plug and a mulch blade are attached, remove them.
• Close the rear cover before you operate the product.

When you operate the product, the cut grass discharges below the rear cover.

Maintenance

Introduction

WARNING: Before you do maintenance, you must read and understand the safety chapter.

For all servicing and repair work on the product, special training is necessary. We guarantee the availability of professional repairs and servicing. If your dealer is not a service agent, speak to them for information about the nearest service agent.

Maintenance schedule

The maintenance intervals are calculated from daily use of the product. The intervals change if the product is not used daily.

For maintenance identified with * see instructions in Safety devices on the product on page 11.

	Each use	Monthly	Each season
Do a general inspection X
Clean the product X
Do a check of the start inhibitor * X
Make sure that the safety devices on the product are not defective * X
Examine the cutting equipment X
Examine the cutting cover * X
Do a check of the motor brake handle * X
Make sure that the ON/OFF button operates correctly and is not defective X
Examine the battery for damage X
Do a check of the battery charge X
Make sure that the release buttons on the battery operates correctly and that the battery locks into the product	X
Examine the battery charger for damage and make sure that it operates correctly.		X
Examine the connections between the battery and the product. Also examine the connection between the battery and the battery charger.			X

Bluetooth connection

This product has a Bluetooth connection. Speak to your Husqvarna dealer for more information or read more at www.husqvarna.com. The LED, below the Bluetooth symbol, comes on when you are connected to the product.

(Fig. 39)

To do a general inspection

• Make sure that the nuts and screws on the product are tightened.
• Make sure that the cables on the product are not in a position where they can get damaged.

To clean the product

• Clean plastic parts with a clean and dry cloth.
• Do not use water to clean the product. Water can enter the battery or the motor and cause short circuit or damage to the product.
• Do not use a high pressure washer to clean the product.
• Do not flush water directly on the motor.
• Use a brush to remove leaves, grass and dirt.

To examine the cutting equipment

WARNING: To prevent accidental start, turn the safety key to 0, remove the battery and wait a minimum 5 seconds.

WARNING: Use protective gloves when you do maintenance on the cutting equipment. The blade is very sharp and cuts can easily occur.

1. Examine the cutting equipment for damage or cracks. Always replace a damaged cutting equipment.
2. Look at the blade to see if it is damaged or blunt.

Note: It is necessary to balance the blade after it is sharpened. Let a service center sharpen, replace and balance the blade. If you hit an obstacle that causes the product to stop, replace the damaged blade. Let the service center estimate if the blade can be sharpened or must be replaced.

To remove and replace the blade

1. Lock the blade with a block of wood. (Fig. 40)
2. Remove the blade bolt.
3. Remove the blade.
4. Examine the blade support and blade bolt to see if there are damages.
5. Examine the motor shaft to make sure that it is not bent.
6. When you attach the new blade, point the angled ends of the blade in the direction of the cutting cover. (Fig. 41)

7. Make sure that the blade is aligned with the center of the motor shaft.

8. Lock the blade with a block of wood. Attach the spring washer and tighten the bolt and washer with a torque of 23-28 Nm. (Fig. 42)

9. Pull the blade around by hand and make sure that it turns freely.

WARNING: Use heavy duty gloves. The blade is very sharp and cuts can easily occur.

1. Start the product to do a test of the blade. If the blade is not correctly attached, there is vibration in the product or the cutting result is unsatisfactory.

Troubleshooting

Battery

LED on the battery Possible faults Possible procedure
The green LED is flashing	The battery voltage is low Charge the battery. SeeTo charge the battery on page 15.
The error LED flashes The battery is weak Charge the battery. SeeBattery on page 18.
The temperature in the work environ-ment is too high or too low	Use the battery in temperatures between -10°C and 40°C.
Overvoltage Check that the mains voltagethe same as onthe rating plate on the product.
Remove the battery from the battery charger. Wait 5 seconds and try again to charge the battery. If the problem continues, speak to an authorised service agent.
The error LED is on Celldifference too much (1V) Speak to an approved service agent.

Battery charger

LED on the battery charger	Possible faults Possible procedure
The error LED flashes	The temperature in the work environment is too high or too low	Use the battery charger in temperatures between 5°C and 40°C.
The error LED is on	speak to an approved service agent

Control panel

For problems, other than those in this section, speak to your service agent.

Keypad Error code	(Num- ber of flashes)	Possible faults Possible action
Error LED flashes 3	The motor is overloaded	ed Increase the cutting height. See To set the cutting height on page 15.
	5 The motor speed drops too much, and the motor stops
	10 The motor control is too hot Stop the motor and wait until it has be- come cool
	2 The blade is blocked	ed To prevent accidental start turn the safe- ty key to 0, remove the battery and wait a minimum 5 seconds. Make sure that the blade can rotate freely. If the prob- lem continues, speak to an authorised service agent
	9 Battery error or no signal from battery		Put the battery in the product correctly and examine the battery connector. If the error LED on the battery flashes, see Battery on page 15.
The product stops 8	The battery is weak Charge the battery. See	To charge the battery on page 15.
	0 Battery connector failure Examine the battery connector

Transportation, storage and disposal

Introduction

WARNING: To prevent unintentional start during transport turn the safety key to "0", remove the battery and wait at least 5 seconds.

To set the product in transport position

1. Loosen the lower knobs.
2. Move the knobs to the lower end of the grooves on the left and the right side of the product. (Fig. 20)
3. Fold the handle forward. (Fig. 43)
4. Remove the grass catcher.

Transportation

• The Dangerous Goods Legislation requirements apply to the contained Li-ion batteries.
• For commercial transports special requirements on package and labels must be obeyed.
• Make sure that you obey the regulations for dangerous material when you prepare the product for transport. Local regulations can apply.

• Always remove the battery for transport.

• Put tape on the battery connectors and make sure that the battery cannot move around during transport.

• Attach the product during transport.

Storage

• Always remove the battery for storage.
• To prevent accidents, make sure that the battery is not connected to the product during storage.
• Keep the battery charger in a closed and dry space.
• Keep the battery and the battery charger in a dry space where there is no moisture or frost.
• Disconnect the battery from the battery charger during storage.
• Do not keep the battery where static electricity can occur. Do not keep the battery in a metal box.
• Keep the battery where the temperature is between 5^ and 25^ and out of sunlight.
• Keep the battery charger where the temperature is between 5^ and 45^ and out of sunlight.
  Make sure that the battery is charged to 30% - 50% before you put it in storage for long periods.
• Keep the product, battery and battery charger in a locked area out of reach for children and not approved persons.
• Clean the product and do a complete servicing before you put the product in storage for a long time.

Disposal

Symbols on the product or the packaging of the product indicate that this product cannot be handled as domestic waste. It must be submitted to an appropriate recycling station for the recovery of electrical and electronic equipment.

By ensuring that this product is taken care of correctly, you can help to counteract the potential negative impact

on the environment and people that can otherwise result through the incorrect waste management of this product. For more detailed information about recycling this product, contact your municipality, your domestic waste service or the shop from where you purchased the product.

(Fig. 44)

Technical data
Technical data LC 247Li, LC 347VLi

	LC 247Li LC 347VLi
Cutting motor
Motor type BLDC (brushless) 36V BLDC (brushless) 36V
Motor speed - SavE, rpm 2600 2600
Motor speed - Nominal, rpm 3000 3000
Motor speed - High load, rpm 3500 3500
Motor output - max. kW 1.2 1.2
Motor output - Nominal, kW 0.75 0.75
Drive motor
Motor output - Nominal, kW N/A 0.25
Self walk speed, km/h N/A 3.0-4.5
Speed adjustment levels N/A 4
Weight
Weight without battery, kg 24 26
\( Battery^{1} \)
Type of battery	Husqvarna Battery Series	Husqvarna Battery Series
Battery runtime
Battery runtime, min, (free run) with SavE activated, with oneHusqvarna 5.2 Ah battery (Bli200).	43 43
Battery runtime, min, (free run) with standard mode activated, with one Husqvarna 5.2 Ah battery (Bli200).	30 30
Noise emissions2
Sound power level, measured dB (A)	92 92
Sound power level, guaranteed LWA dB (A)	93 93
\( Sound~levels^{3} \)
Sound pressure level at the operator's ear, dB (A) 79 79
Vibration levels4
Handle, m/s2	0.42 0.42
Cutting
Cutting height, mm 20-75 mm 20-75 mm
Cutting width, cm 47 47
Blade Collect 590 59 34-10 Collect 590 59 34-10
Bagger capacity, litre 55 55

Approved batteries Type Battery capi-	ty, Ah	Voltage, V Weight, lb/kg
BLi20 Lithium-ion 4.0 36 2.6/1.2
BLi150	Lithium-ion 4.2 36	2.8/1.3
BLi200	Lithium-ion 5.2 36	2.8/1.3

Approved chargers for the specified batteries, BLi	Input voltage, V	Frequency, Hz	Power, W
QC80	100-240	50-60	100
QC330	100-240	50-60	330

EC Declaration of Conformity

EC Declaration of Conformity

Husqvarna AB, SE-561 82 Huskvarna, Sweden, tel: [phone], declares that the lawn mower

Husqvarna LC247Li, LC347VLi from the year 2017 and onwards, complies with the requirements of the COUNCIL'S DIRECTIVE:

of June 8, 2011 on the "restriction of use of certain hazardous substances" 2011/65/EU
of May 17, 2006 "relating to machinery" 2006/42/EC
of February 26, 2014 "relating to electromagnetic compatibility" 2014/30/EU
of May 8, 2000 "relating to the noise emissions in the environment" 2000/14/EC

Information relating to noise emissions, see Technical data.

The following standards have been applied:

EN 60335-1:2012+A11:2014, EN 60335-2-77:2010, EN 62233:2008, EN 55014-1:2006/+A1:2009/+A2:2011, EN 55014-2:2015

If not otherwise stated, the above listed standards are the latest published versions.

Notified body: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL, United Kingdom has performed conformity assessment according to Annex VI of directive 2000/14/EC and issued a certificate with the number:71429

Huskvarna, 2017-12-01

Claes Losdal, Development Manager/Garden Products (Authorized representative for Husqvarna AB and responsible for technical documentation)

CopepkHne

BbBeJeHne. 23

Be3onachocct. 25

Hnctpykun 3a 6e0nacnoct np TeXnuecko

obcnyxbane 31

MoHTax. 32

Onepaun 33

PndpBkKa 35

OTcTpaHbAhe Ha npo6Jemn. 37

TpaHcnpTupaHe,cbxpaHene n 3XbpbPnHe. 38

Texnueckn daHHN 39

Deknapaun3a cboTBeTCTBne Ha EO. 42

BbVeDeHne

OnncanHe Ha npOdyKta

PpOdykTbTe neWexoHa potaunHn kocauka.

TpeBaTa ce cBbnpa B KOw 3a TpeBa.CbaNeTe KOWa 3a TpeBa,3a Da ce NOpUyn 3aJHO pa3TOBapBaHe Ha TpeBaTa. NocTabeTe KOMNKeT 3a MyJnpuAne (DOnbJIHInTeJIHa npHaJdJIeKHOCT),3a Da HapeXKeTe TpeBaTa B Topa.

Пре徳назачени

I3noJ3BaIte npOdyKta, 3a da Kocnte TpeBa WacTHn rpaDHH. He n3noJ3BaIte npOdyKta 3a dpyrN 3aDaun.

06u npereHa npodykta

(Φn.r.1)
1.ПултзaynpabNeHne
2. PboKoXBaTka 3a cnpaUkata Ha DbIrataTeIa
3.Инхибетастуранe
4. Kow 3a TpeBa
5.3aENkanak
6. KIIOU 3a 6e3oNaCHOCT
7. Bbptraa ce pkoXBaTaKa
8. Kanak Ha 6aTepeyTa
9. YnpabJIeHHe Na BnCOuHHaTa Ha p3aHe
10. ByToH 3a BKJ./M3KJ.
11. Bluetooth nHdkKaTOp
12. ByToH SavE
13.Индкаторза зарян ha akymyatopaи 6утон 3a akymyatopa
14. Bytoh 3a HamaIbAhe Ha ckopoCTTa
15.ИнданаTopза ckopoocТа
16. ByToH 3a yBeJInuIyBaHa He KaKOpocTtA
17.Инстукцяза ekcnloataцьn
18.Дрьжka 3a 3aДВИЖВаHe LC 347VLi
19.3apAnHO yCTpoiCTBO 3a aKymyIaTOp (PpHnAdneKHOCT)
20. AkymyNatop (PpHnHaIeJxHocT)

CnmboN Bbpxy MaunHaTa

(Фи.2) Прдупждени: HenpeДпа3лвOTO nIи He npaBnHOTO

I3PON3BaHe MoKe Da IOBBeDe Do HapaHbAHe IIN CMBpT Ha OpepaTopa IIN dpyrXopa.

(ФИг.3)

PpOyTeTe BHNMaTeJHOpbKOBoDCTBOTO 3a OepaTopa n ce yBepTe, Ye pa36npaTe INHCTpyKcNITe, Ppei Da N3NoJ3BaTe MaunHaTa.

(Φn.4)

ДрьжTe xopataи ЖИВОТнITE Ha 6e3OЯсно pa3CTOЯне OT pa6OTHaTa 30Ha.

(ΦnΓ.5)

PanaTe ce ot otckauaun npedmetn n pIKoWeTn.

(Фиг.6)

IpeDynpexKdeneHne: IpbXTe pbcTe n

KpaKaTa Cn daJeU OT BbptTua Ce HOX.

(Φnrg.10) He n3naIaIte Ha IbXd

(Фи.1) To3n npoDyKT e B CbOTBETCTBHe C npINIOXIMITE dIpeKTHBn Ha EO.

(Фиг.12)шумов emucnв OKonhaTа cpeaВ cbOTBeTCTBne CДиpeKTnBaTа Ha Ebponeckata obuHocT EmncnteHa npOdyKta ca nocoeyn B pa3deJa 3a TexHueCKn XapaKtepNCTNKn N ha Ta6eIkata.

(Фиг.16) Прочedlyра по CTаrtиранe:Натисны 6уToHa ON/OFF (ВКЛ./ИЗКЛ.),разхларе Инхибntopa 3a CTартуранe,Натисны рькoxвatkaТа на спирачкata на ДВигаTeЯ Надoly.

(Фи.13) OcBo6oJeTe pBkoXBaTKaTa Ha cnpaKaTa Ha DBnraTeJ3a cnnpaHe.

(ФИ.14) BaBHo

(ФИг.15) Бьрзо

3a6eJekka: OctaHaJIte CmBONn/CTnKepn Ha MaunHaTa Ce OTHacrT Do n3nCKBaHn r No OTHOHeHne Ha cePTnΦnKaTu 3a onpeJeIeHn na3apu.

OTROBOPHOCT 3a Bpei, npuHHeHn OT CTOKN

KaTTo e nocOyeHO 3aKOHnTe 3a OTROBOPHOCT 3a BpeN, pInuHHeH NT CTOKN, Hne He HOCm OTROBOPHOCT 3a UeTN, pInuHHeH NT HaUNI npOdyKT, aKO:

• npOdyKTbTe HEnpabNInHO peMOHTnpaH.
• pOdykTbTepeMOHTnpaH C yactN, KONTo He ca OT npOn3BOOnTeJIyIIN He ca ODo6peHn OT npOn3BOOnTeJI.
• npOdykTbT mMa npHnAdIeXHoCT, KOrTO He e OT npOn3BOoNTeJI nII He e ODo6peHa ot npOn3BOoNTeJI.
• npOdykTbT He e peMoHTnpaH B Odo6peh cepBn3EH cHTbp INN OT Odo6peh opraH.

Бezoachoct

IeHnucn 3a 6e3oNaCHOCT

PpeDynpexKdEHHa3aHbHMmaHne H6eJeknCe n3noJI3BaT 3a yka3BaHe Ha Oco6eHO BaxKn Yactn Ha HHCTpykCnIraTa.

NPEyPExEHE: N3noJ3Ba ce, aKo Ima OnaCHOCT OT HapaHbAHe IIN CMbPT 3a OepaTopa IIN 3a OKOJIHnte, aKO He ce CnAsBt INHCTpyKuInTe B pKOBODCTBOTO.

BHIMAHHE: IV3non3Ba ce, ako mma ONaCHOCT OT NOBpeKdAHe Ha MaunHaTa, dpyn MaTePnAnu NIn CbceDHaTa 30Ha, aKO He ce cna3BaT INHCTpykUnTe B pbKOBOdCTBOTO.

3a6eIeKka: N3noI3Ba ce 3a npedocTbAne Ha noBueye HnΦopMaun, KOTo e Heo6xOIMa B daDeHa CNTyaun.

06и nHctpyKuIN 3a 6e3oNaCHOCT

PNEyPExEHNe: PpOeTeTe CNeDbauHte PpeDyPepEnTENyKa3aHnA, PpeN da n3No3BaTe MaunHaTa.

To3n npOdykTe e onaceH, aKo Ce n3POn3Ba HEnpaBnIHO nIaKO He CTe BHNMaTeJIHN. Hecna3BaHeTo Ha HHCTpyKcInTe 3a 6e30NaChOcT MoKe Da DoBeDe Do HapaHЯBaHe nIi CmbpT.
Ta3n MaunHa Cb3daBa eJekTpomarHHTHO NOJe NOBpeMe Ha pa6ota. Pn HraKoUcNoBna TOBa NOJe MOKe Da INHepePeppa C aKTNBn NIN PaCnBn MeDnCnHCKn NMJaHTaHTn. 3a Da HAmajnte pNcKa OT TeJko NIn CMbPTOHOCHO HapaHЯBaHe, Hne npenopbYBaMe INuTa C MeDnCnHCKn NMJaHTn Da

ROBOPT CJIeKapr cN I
IPOIN3BOIDNTeJIaHa
MeDnUHcKnI MMIIaHT, PpeDn
da 3aNoUHaT da pa6OTr C
Ta3N MaUNHa.

BnHaIbTe BnMaTeHn I NOxOJaTe pa3ymHo. Ako He cTe cnrypHn KaK da pa6OTte C npOdykTa npi CneuaJHa cnTyauZna, CnpTe N ce obbpHeTe KbM Ba7nja Dnilbp Ha Husqvarna, npedn Da npoDbJxnte.
- Имайтейпраздвид, че onepaTopbT HOCN OTROBOPHOCT 3a HeцactHn CnyauH, BKIOUVAuДpyrH Xopa IJI N TExHOTO IMyIeCTBO.
- ПдьраиTe npoДуКТa чСТ. YвереTe ce, Que pa3ЧИтateяCHO 3HaцNTe n CTиkeрпTe.
He n03B0JBAaTe Ha KOrOTo I da e da pa6OTn C npOdyKta, DOKaTO He ce yBepnte, ye e npOyeI n pa36paI CbDbPjXaHneTo Ha INHCTpyKcYraTa 3a EKCnNoaTaun.
He no3B0JBAIte Ha deca da pa6oTc npOdyKta.
He no3B0JaBaiTe Ha Iuca, KOnTO He ca 3aNo3HaTn C

HCTpyKcInTe,da pa6OTc npOdykTa.

Bnharn ha6IIOdaBaIte Iuca c HamaJIeH 0n3NueCKn IInyMCTBeH KaNaIHTet, KOnTO n3NoJ3BaT npOdyKta. Ppe3 UJATO BpeMe Tp8Ba Da npncbCTBa OTROBopeH Bb3paCTeH.
He n3noI3BaIte npOdykTa, aKO cTe yMOpEHn, 6oJIHn IJI INoD Bb3dEiCTBnETo Ha aJkoXoJ, HApKOTuIcN IJI INeKapCTBa. TOBa CbCTOarHne OKa3Ba OTPuCaTeJIHO Bb3dEiCTBnE Bbpxy BaSeTo 3peHne, 6dnteJIHoCT, KOOpDiHaCuIy I npeUeHka.
He n3noJ3BaIte npOdyKta, aKO e HEn3npaBeH.
He npomehyTe To3n npodukT nHn He rO n3noJ3BaITe, aKo nMa BepoTHocT ToJ da e 6nI npomehen OT dpyr.

БezonaachoctHa pa6oThaTo6JIaCT

PpeDyPExDEHNE: PpoyeTeCneDbauuTe npdeynpeDteHn yka3aHna,npeDa n3no3BaTe MaunHaTa.

• OТстране Трета CBИКATO KLOHи,пьчи и Камьни OT pa6OTHaTа 3OHa,прdi NaI3ПОЛЗВaTe ПрODYКТa.
  Obektte, konTO ce ydprT B pexeToO o6OpyDbaHe, MOraT da 6bDaT n3XBbPJIeHn I da npuHrT hapaHraBaHe Ha

JIucaTa N UeTu Ha
IpeDMeTnte. DpbjXTe
CTpaHnUHnTe Ha6JIIOaTeNn I
JKNBOTHnTe Ha 6e3ONaCHO
pa3CToAHnE OT npOdyKta.

Hnkora He n3noJ3BaIte npOdykTa B looBpeMe -- HanpIMep npi MbIa, DbXd, CINHN BeTPOBE, MHORO CNJeH CTyN IN PnCK OT MbJHNI. I3noJ3BaHeTo Ha npOdykTa B looBpeMe IJI N Bbpxy BlaJHNI JIN MOKpn TepeHne E n3MOpHTeJHo. LooTO BpeMe MoKe Da Cb3daDe OpanCHuCNoBna, KaTO HApIMep XJIb3raBN IOBbPxHOCTN.
BHHMaBaITe 3a Jnca, npEdmEt n CNTyaCnN, KOITOMoRat Da ca npuHa 3a HamaJIyBaHe Ha 6e3OpacHaTa pa6Ota Ha npOdyKTA.
BHMaBaIte 3a npenTCTBn KaTO KOpEN, KaMbHn, KIOHN, AMN N KaHaBKn. IbIraTa TpeBa MoKe Da Kpne npenTCTBnA.
KocheTo Ha TpeBa Ha cKnIoH MoXe Da 6bJe onaCHO. He pa6oTeTe C npOdykTa, KOrato HAKIOHbT Ha NOBbpxHOCTTa e NOBuee ot 15^
I3no3BaTe npOyKTa HanpeuHo Ha cKnOHa. He ce DnJxKeTe HaRoPe n HaDoJy.

BHMaBaTe, KOrato npemHaBaTe NOKpa3aKpNBaT bIIn I npeDMeTu, KOINTO cKpNBaT 3pnteHHTo Bn noJe.

Бezonaachocт пи pa6oTa

PNEyPExEHNe: PpoyeTe cIeBaaNTe npdynpaTeHn yka3aHna, npdi n3non3BaTe MaHHata.

I3noJ3BaIe To3n npOdyKT camo 3a KocHe Ha MopabN. He ce dOnycka n3NoJ3BaHepTo My 3a dpyrN ueJIi.
I3noJ3BaIte IInuHn npedna3Hn cpeIcTba.BuxTe IInuHn npedna3Hn cpeIcTba Ha cTpaHnua 28.
- YBepTe ce, Ye 3HaTe KaK 6bP30 Da cnpTe DBruratEn npu abapnHa cnTuacn.
He n3noJ3BaIte npOdyKta npn DbXd nIIN BnaRa. OnaChocTt a OT TOKOB yIap ce NOBnShaBa npn HABIn3aHe Ha BOda B npOdyKta.
He pa6oTeTe c npOdykTa, DOKaTO HOXbT N BCnUKN KaIauN He Ce MOHTnpaT npaBnIHO. HEnpaBnIHO MOHTnpaHnT HOx MoJKe Da ce pa3XJa6n I da npuHn TeJeCha nOBpeDa.
YBepTe Ce,Ye HOXbT HMa DaCe yDpy B OBeKTn,KaTO HanpImep KaMbHn N KopeHN. ToBa MoKe Da DoBeDe Do NoBpeDa Ha HoJa N Do OrbBaHe Ha DByCEKcNoHHn

BaJHa DvIraTeJIa. OrBHaTata OC npEiN3BnKBa CnJIHn Bn6paun N IMa MHOro TOnJaMa OnaCHOCT HOXbT Da Ce pa3xJa6n.

Ako HoxbT ce ydapn B HЯKaBb OBeKT nIe Ce nOlyuAT Bn6paun, CnpTe BeDHa r npOyKta. CnpTe DnRaTeJrT, 3aBbPTeTe KJIoua 3a 6e3OpacHocT Ha O nOTcTaHanTe aKymylaTopa. PpOBepTe npOyKta 3a NobpeDi. PemOnTpauTe NOBpeDnTe nIi NtBpcTe OTOpN3npan cepBN3 3a TOBa.
Hnkora He npikpenTe pBkoXBaTKaTa 3a cnupaKaTa Ha dBnraTeJIa 3a NOCTOHHO BbpxU dpbXkKaTa, KOraTo DnbratJIeT e CTapTnpaH.
- Пocтавete прodyкta Вьрху CTабилна, paВна NOВьрхноCTI rO CTapTupaite. YBepete ce, Ye HOжБТ He ce ДОпираВ 3eMaTa ИПИ BДPyrN npedmetn.
BnHa n cToIe 3aI npOdyKta, KOrato I0 N3POn3BaTe.
BcnuKn KoJIeNa TpI6Ba Da 6bDaT Ha 3eMaTa N Da 1bpxKeTe DpbXKaTa C 2 PbUe, KOrato pa6OTNe C npOdykTa. DpbXTe PbUeTe N KpaKaTa Cn DaJeu OT BbPTaIe Ce OCTpIeTa.

He haKnaHnTe npOdykTa npN CTapTnpaH DvrgateJ.
Бьдete BнмateJIHn, KOraTo IbPNaTe npOdyKta Ha3aI.
Hnkora He noBdnraIte npOdykTa npi cTaptnpaH dBnraTeI. Ako ce hanoJn da BdnrAte npOdykTa, nbpBO cnpete DnirataJIe, 3aBbPTeTe KJIoua 3a 6e3OpacHocT ha O n OTCTpaHeTe aKymyJatopa.
He ce IbIXeTe Ha3aI npi pa6oTa c npOdyKTA.
Cnpete DvraTeJ, KOraTo npemHaBaTe npe3 0bIacTn 6e3 TpeBa, KaTO HApPImep NbTEKn OT YaKbJ, KaMbK I acfpaNT.
He TnuaTe c npOdykTa, DOKaTO dBNraTeJIaT pa6OTn. BInaRn XoJeTe, KOraTo pa6OTnTe C npOdykTa.
Cnpete DBrTaTeJn, npeDn da npomehnte BncoUnHaTa Ha p3aHe. Hnkora He peryInpaTe npn cTapTnpaH DBrTaTeJn.
Hnkora He octabray Te npodykta 6e3 Ha30p, KOrato DBrnt Pa6OTn. Cnpete DBrntn Ce yBepTe,Ye peXeToO o6OpyDbAHe He ce Bbptn.

HHTepBaJIte 3a TexHnuecko 6cJyKbaHe ca
H3YNCJIeHN B 3aBNCIMOCT OT eKeJdHeBHata yNtpe6a Ha
npOdyKTa. HHTepBaJIte ce npOMeHrT, aKO npOdyKTbT
He ce n3NON3Ba exEHDHeBHO.

3a TexHnuecko 06cnyKbaHe, MapKnpaHo Cbc *, BnKTe HNCTpyKuNTe B PnncnocO6JIeHn 3a 6e3onacHOCT Ha MaunHaTa Ha cTpaHnca 28.

Udpeget organ: 0359, Intertek Testing and

Certification Ltd. Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL, United Kingdom har gennemfort

overensstemmelsesvurdering i bilag VI til direktiv

Koivotoinevoç φopéac: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL, United Kingdom

TpayaTOIOeI aioyON TnS Omuoppwos
ouawva Te To npapptma VI nS ObnyiaC 2000/14/EK
kai exEIKoWoeI TIOTTOINTIKo e apiO:71429

Huskvarna, 2017-12-01

Claes Losdal, avantu /Poiovta kniou (EgouioofoivocavintipooawtoCnsHusqvarna AB kai uteuyuvoc yia tnv texviikn TKmuon)

Contidente

Introduccion. 115

Seguridad 116

Tehnilised andmed. 146

Attention : projections et ricochets.

(Fig. 6)

Certification Ltd. Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL, United Kingdom provelo je

kontrolu kvalitete sukladno prilogu VI direktive

Organo competente: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton

Certification Ltd. Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL, United Kingdom ir veicis atbilstibas

novertesanusakanarDivektivas200/14/EKVI

LED-display Laadstatus
LED 1 knippert 0%-25%
Led 1 brandt, led 2 knippert	25%-50%
Led 1 en led 2 branden, led 3 knippert	50%-75%
Led 1, led 2 en led 3 bran-den, led 4 knippert	75%-100%
Led 1, led 2, led 3, led 4 branden	Volledig opgeladen

Product starten

Kontrollorgan: 0359, Intertek Testing and Certification

Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5

Organismul notificat: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL, United Kingdom a efectuat

evaluarea conformitatei conform Anexei VI la Directiva 2000/14/CE si a eliberat un certificat cu numarul: 71429

Huskvarna, 2017-12-01

Claes Losdal, Director de Dezvoltare/Produse de gradina (repectant autorizat al Husqvarna AB si responsabil cu documentata tehnica)

CopepkHne

BVeJeHne. 358

Be30nachoctb. 359

Hnctpykunno TeXnke 6e30nacHOCTN BO BpeMaTexnueckoro 06cnyKuBaHna. 367

C6opka. 368

369

Texnueckoe obcnyxnbHne. 371

Ponck nyctpaHHe HncnpaBHOCTeI 372

TpaHcnpTIpOBka, xpaHeHne n yTuIn3aunna.374

TexHHueckne daHHbIe. 375

ДeКларачи COOTBETCTBNEC. 378

BVeDeHne

Onncannne n3dennn

N3dene npedctabnaretcoo newexohypoTOpHyra30HOKocnky.Tpaba co6npaetcB TtpaBOc6bOPHNK.CHMITE pABOC6bOPHNK,TO6bl Tpaba OT6paCbIbaIacbHa3aJ.YCTAHOBNTe KOMPJIeKT DJIMyJIbUPOBaHHA (DOONHHTeJIbHA pINHaIeXHOCTb),TO6blNCNOJB3OBA TbCKoWeHHYIO Tpaby B KaueCTBe yDObpeHHa.

Ha3naueHne

I3dene npedHa3NaeH O nA CTpnKKn TpaBbIB
yactHBix caJax. 3anpeaetcra nCnoJIb3OBaTb I3dene
InI dpynx BnOob pa60T.

063op n3deJnna

(Pnc.1)
1. NaheB ynpabNeHn
2. RykoRTKa MOTOPHOro TOPM03a
3. OrpauHnHTenb 3anycka
4. TpaBoc6opHnK
5.3aHnKa KpbIwka
6.ПпedoхpaHnteHbHbI KlnOu
7. PerjTOp pyKoTkn
8. KpbiWka aKKymyTota
9. Pbyar peryynpobkN BbICOTbl CTpnxKn
10. Khonka BkN./BbIKN.
11.ИнданаTop Bluethooth
12. Khonka «SavE»
13.ИндикаторзардаakkymyлгетораиКногпakkymyлгетopa
14. Khonka yMeHbWeHnckopocTn
15. INDINKATOP ypoBnCKOPOCTN
16. Khonka yBennuHnA cKOpocTn
17. RykoBoDCTBO no 3Kcnnyatau
18. Péttn pynbOda LC 347VLi
19.3apraHoe yctpoiCTBO aKKymyIaTopa (npHaJneKHOCTb)
20. AkkyMnyTop (npHaJneKHOCTb)

YcIOBHeIe 06O3HaueHnHa n3dJIu

(Pnc.2) PpeDynpexKdEHe: He6peXHa nIi

HeppaBnIbHa
3KcPJIyatauM MoKeT
PnIBeCTN K TpaBMe Nn
Cmeptn Opepatopa Nn
dpynx nuc.

(Puc.3) Ipeed hauaIom pa6oTbI BHNMaTeJIbHo IpoUHTaIe pyKOBODCTBO IO 3KcIIyatauIN y6eINTecb, YTO IOHMaTe npNBedeHHbIe 3deCb IHCTpyKcN.

(Puc.4) CJIeInte 3a Tem, YTO6bIB 3OHe npOBeDeHnRA pa6OT He 6blIO NOCTOpOHnIX JIODei INN XNBOTbIX.

(Pnc.5) BepeHntecb OTCKaKNBaHOx PpeMToB n pIKoWeTOB.
(Pnc.6) PpeDynpexKdene:He npn6nnkaTe pykn nInn HOrn K BpaauoUeMyca HOxU.
(Pnc.7) PpeDynpexKdEHe: He np6JIxkaIe pyKn IInn HOrn K BpaUaIOUmCyaCTaM.
(Pnc.8) 13BJIeKNTe IpeOxpaHITeIbHbI KJIIOUpeI BbIOJHeHnEM peMOHTa INI TeXHnueCKOrO O6cIyJxBaHna.
(Pnc.9) IPX1-3aunTa oT 6pbI3r
(Pnc.10) He octabJIaTb IOd DOxKdEm
(Pnc.1) DaaHHe n3dJeIne OTBeUaET Tpe6OBAHNm COOTBETCTByIOxN X dInpeKTHB EC.
(Pnc.12) N3nyeHne 7yMa B OkpykaOu cypeDy cornacHo DnpeKtBBe Ebponeckoro Coo6ueCTBa. 3BykoBoe n3nyeHne daHHoro

n3dJIy npBVeDeHO B pa3deNe "TexHueckne daHHbIe" n Ha nacnopTHoI TabJNcKe.

(Pnc.16) IpoeDypa 3anycka: HaxMMTe KHONky BkI./ BblKl., pa3bIOKnpyte orpaHnUHTeB 3anycka, npJxMMTe pyKoTky MOTOPHO TOpMo3a.

(Pnc.13) IЯ octaHOBKn OTnycntte pyKoTky MOTOPHOrTOpMo3a.

(Pnc.14) MeDneHNO

(Pnc.15) BbICTpo

PnmeaHne:pyrncnmbolb/HakneynHa n3deNn OTHOCATcK CneunabHBIM Tpe6oBaHnAeCepTnФkaun Ha onpeJeHHbIX pbIHkax.

OTBetCTBeHHOCTb N3rTOBNTeJIa

B COOTBeTCTBmC 3aKoHaMn O6 OTBeTCTBeHHocTN 13ROTOBNTeJI Mbl He Hecem OTBeTCTBeHHocTN 3a yUep6, BbI3BaHHbI 3kCnPyatauNeH aWero N3dJIINBA pe3yJbTaTe:

• HeHaДлЕжацero peMoHTa ИЗдELЯ;
• nCNoB3OBAHnI dIpeMOHTa I3DeIINr HeOpnIHnHaNbHbIX DeTaJIe NII DeTaJIe, HeoIO6peHHbIX npOn3BODInTeIeM;
• INCNOJb3OBAHnHeOpuHnHaNbHbIX DoONHnTeJIbHbIX npHaJdIeXHocTeI nII npHaJdIeXHocTeI, HeoO6peHHbIX npOn3BOJntEm;
• peMOHTa I3dEJIINB HeaABTOpI3OBAHHOM CepBnCHOM CeHTpe INIIN HeKBaIINΦIuPObAHHbIM CneuaJIInCTOM;

Бe3onaCHOCTb

HnctpykunnoTexnke 6e3onacHOCTN

PpeDynpexKeHn, npEoocTepeKeHn n npImeuaHn nCNoJb3yIOCTcIaBbIeHnOco6o Baxhbx NyHKTOB pykoBOdCTBa.

PNEyNPEXKDEHNE:IcnoJb3yeTcra, KOrda Heco6JIIODeHne IHCTpyKcni pyKOBOdCTBa MOKeT pINBecTI K TpaBMam

IIN CMEpTN OepaTopa IIN HaxOJaXxCRAJOM NocToPOHHNX JNU.

BHIMAHNE: NcnoJb3yeTcR, KOrda HecobJIOeHne INcTpyKuIN pyKOBOdCTBa MOKeT npVBecTN K NOBpeXDeHN U3JeNIA, dpynX MaTePnaNoB uIN npIneraUoIeN Teppntopnn.

06uHe HnCtpyKcHn No TexHnKe 6e3OpacHoCTn

NPEyPExEHN:BO6aTeHOM
npraKe npouHTaTe cneIouzne
nHCTpyKuIN NO TEXHke 6e3oNaCHOCTN,
npexJe Cem npictynatb K 3KcNnyatauIN
n3dJIIn.

• Пи HeбржнOM ИПИ НЕправINьHOM obpaшени N3ДeЛпЕ мОжET OKa3aTbСЯ ОпаСныIM INHCTpyMeHTOM. HecobлЮдене INHCTpyKци ПО ТхнIKE 6e3ОпаСнOCTN МожET пИВecТи K TраВмam ИПИ CмeрТи.
  BoBpempa60tbI daHhoe n3dJIne CO3daeT 3JIeKTPomarHHTHOe noJe. B OnppeJelenHHbIX o6CToTeJIbCTBax 3TO NOJe MOxET CO3DaBaTb NOMExnДЯ PaccNBbIX N aKTINBbIX MeINcHckNX IMPnaHTaTOB. B ZeJIx CHNKeHnRA pNCKa cepBe3HOJ IN CMePteJIbHOJ TpaBMbl JInCAm C MeINcHckIMN ImPnaHTaTAMN peKOMeHNyETcR npOKOHcyJbTnPOBaTbcra C BpaQOM IN3rOTOBNTeJIeM IMPnaHTaTa, IpexJe Yem npNCTUpaTB K 3KcNpyaTuZn DaHHoro n3deJIy.
  BydTe BceIa oCTOpOxHbI npKOBODCTByITEcB 3dpaBbIM

cMbICJOM. EcIn Bbl He yBepenbl, KaK npaBnIbHO 3KcNlyaTnpOBaTB n3dJIne B ONpeJeHNo CNTyaUu, PpeKpaTnte pa6Otu IN PpOKOHcyNbTnpuYTeCb CO CBOIM dInlepoM Husqvarna, PpeXde Yem pOdoJXITb.

ПOMHHTe:OTBeTCTBHeHHOCTb3a abapn, yrpoXaHOUne dpyrIM IIOJAM INI IN IX IMyUeCTBy, Hecet OpepaTop.
CoepKnte n3dJIne B uNcToTe. CJeInte 3a TeM, UTO6bl 3HaKn I HaKJIeIKN 6bIIIN JERKO YHTaEMbIMN.
He pa3pewaTe NOIb3OBaTbCra I3DeJIneM IIOJAM, He y6eINBUncB ChauJa B TOM, YTO OHN IPOuHTaII N IOHJI N COdepXaHHe pyKOBODCTBa nO 3KcPnlyaTaU.
He no3BOJyTe DeTm nCNoIb3OBaTb N3dJIne.
He pa3pewaTe NOJb3OBaTbCra n3dJeIneM IIOJAM, KOTOpBie He 3HaKOMbl C DaHHbIMn IHCTpyKcIyMaN.
He ocTaBJaIe 6e3 npncMOTpa JIOJeN C om3nueCKmN nIN yMCTBeHHbIMN HApUWeHnA Mn, nCNoJIb3yUOxN n3dEJIne. OHI DOJXHbI NOCTOARHNO

HaxoIntcnoI npncmotpom B3pocnoro.

HnB Koem cnyuae He
NcNoJIb3yIte n3dJIne,ecNI
Bbl yCTaII,6OJIbHbI nII
HaxoJNTEcB IOd
BO3DeiCTBnEM CnIrpTHoro,
HapKOTnueCKNX BeIeCTB IJI
JIekapCTBeHHbIX npenapaTOB.
3TO MOxET NOBJIyTb Ha BaIe
3peHne,peakuHO,
KOOpDInHaCuIO IJI N OceHky
DeiCTBNTeJIbHOCTN.
3aPpeucaetcIncnoJb3OBaTb n3deJIne,ecnIOHO NOBpeKdEHO.
3anpeuaeTcB Hocntb B n3dJIne MoNΦnKaunn nn INCNoIb3OBaTb N3dJIne,ecNI Bbl NOO3peBaTe, YTO B erO KOHCTpyKcuIO BHeceHbI n3MeHEny dpyrMMn INuamn.

TexHnka 6e3oNaChOCTn Ha pa6oyem MecTe

NPEyPExEHN:BO6aTeHOM
npraKe npouHTaTe cneDyoUe
HCTpyKuIN NO TEXHke 6e3OanCHOCTN,
npexJe Yem npnctynatb K 3KcnnyatauIN
n3dJIy.

• Ybepnte BETBn, cyb, KaHn n npOyHe NOCTOPOHnE npedMeTbI n3 pa6oey 30hbl nepei Naayom 3KcNpyaTaunn n3dJIyra.
• Праздмétы, ударяюшеса оpeжушии Инстумент, могутбыть OTброшени, чTOпразвetedд К ТраВмам Или

IOBpeKdEHNIO NMyuIeCTBa. CJeDHTe 3a TeM, YTO6bI NOCTOPOHHe INuca N XINBOTHbIE HAXOJINcB Ha 6e3OpacHom pacCToHn OT n3dJIy.

HnB Koem cnyae He nCNoIb3yIte n3dJIne npi He6IaIopnpTnIbIX nOroIbIX ycIOBnIx,HaIpIMep,B TymaH,doXdb,piN CnIbHOM BeTpe,Hn3Knx Tempeatypax I pncKe ydaPa moHNn. 3KcIpyatauia n3deJnA npi PLOXIX nOroIbIX ycIOBIAx IIN Ha cbIpbIX yUacTKaX yTOMnteIbHa.PloXne nOroDhble ycIOBnMaOryT CO3DaBaTb ONaChbIe ycIOBnI dJa pa6oTbl,HaIpIMep, CKoJIb3KNe NOBepXHOCTN.
CJIeIte 3a BO3MOxHbIM NOBHeHnEM NOCTOPOHHX IINu, PpeMeTOB INY yCNOBn, KOToPbIE MOryT IpeNtCTBOBaTb 6e3OpaCHOJ 3KcIIyaTaUIn N3DeJIy.
CJIeITe 3a BO3MOxHbIM NOBHeHEm IpeTCTBn, TaKnx KaK KOpHn, KaMHN, cyb8, yMbI nII pBbl. BbICOKa TpaBa MOxET CkpbIBaTb npenrTCTBn.
CTPnKKa TpaBbHa cKnOHe MoXeT npeIcTaBnIaTb onaChocTb.3anpeuaeTcY nCNoIb3OBaTb n3dJIne Ha

yuaCTkax C yKIOHOM 6OJee 15^

IcnoIb3yIte n3dJIe ne IonepeK IOBepxHOCTn cKIOHa. He npedeBnraITeCb BBepx n BHN3 IIO IOBepxHOCTn cKIOHa.
- Пюягай Te ocobую octopoxhoctb npi np6JIxKeHn K cKpbITbIM n3 BnIMOCTn IOBOPOTam nIIN npeДмetam, KOToPbIe MOryT 3aTpudHЯTb ob3Op.

TexHnka 6e3onacHocTn

NPEyPExEHEB:BO6aTeHbHom npAKe npoHTaIte cIeDyUcne INCTpyKcNnNoTexHke 6e3OanCHOCTn, npexJe Cem npicTynatb K 3Kcnnyatau n3dJIy.

BnIky. He TAHnte 3a Ka6eJb NITaHnY.

He donyckaite kohtaKa6eIaHTaHnYudHHTeJIc BODo,MacOMNIIcOCTpbIMKpaAMN. Y6eIntecb,yTO Ka6eJIb HepepeablenDbepbIO, KaNTKOIT.D.B npOTNBOMClyuae 3apJdHoe yCTpOietBOMOXET OKa3aTbcra IOHaPRAKeHNEM.
3aPpeuaeTcYnCTntb aKKyMylAToP n 3apJdHoe yCTpO'CTBO BODoI.
-Детистарше8лétилцac OгранчehнblIMn ФизческимN,сEHСОрнblIMN ИЛИ yMCTBEHHblIMN CNoOC6HOctaMn IJIIN HeIOCTaTKOM ONbITAи 3HaHIn MOrYT NcNoIb3OBaTb 3apYdHoe yCTpoiCTBO TOLbKO IOD NaI3OpOM IJIIN B cIyuae IpeOCTaBJIeHnI INCTpyKcI INTHOCITbHO 6e3OpaCHOJ 3KcIIyaTaUIN O6OpuDObAHnI BO3MOxHbIX pNcKOB. He I03BOJMyTe DeTAM nIgPaTb C 3apYdHIM yCTpoiCTBOM. OuchTkaи TeXHnueckoe 6cIyXnBaHne IOnlb3OBaTeJIem He DoJIxHbl IpoBoIDNTbcA DeTbMn 6e3 HaI3Opa.
He nbitaTeCb 3apXkaTb OndHopa3OBbie

aKKymyJIaTOpHbIe 6aTapeN B 3apJHOM yCTpoiCTBe.

3aPpeuaeTcIncNoIb30BaTb 3apdHoe yctpoiCTBO B6IIN3n IeKOBocPJIaMeHЯUxxCra MaTePnaIOB IN MaTePnaIOB, KOToPbIe Bbl3bIBaOT Koppo3nIO. He NaKpbIbAitte 3apdHoe yctpoiCTBO. BItauntE Bnky 3apdHoro yctpoiCTBa n3 po3eTKN BClyuae NOBHeNJa DbIMa INI OrHJ.

3aPpeuaeTcNcNoIb3OBaTb HeNCppaBHOe NIN NOBpeJdeHHOe 3apJdHOe yCTpoiCTBO.
3apjkaTe aKKymyIaTOp TOJIbKO B XOPOsO npOBeTpnaEMOM NOMEueHn VBdAIn OT COJHeuHbIX Lyuei. 3anpeuaTcra 3apjkaTb aKKymyIaTOp B yCIOBnX BBICOKoBlaJxHOCTN.

Ponck nyctpaHne HeNCnpaBHOCTeI

AkkymyTop

"0", n3BnEKeIte aKKyMylTOp nNoDoxdTe

He MeHee 5 cekyHd.

YcTaHOBka N3dEJIb B TpaHCnOpTHoe NOJoxeHne

1.Ocna6bTe HxKHe pyuKn.
2.Перемец Te pyкиВнжнe ПОJOKeHЯВ na3ax cJIeBoi n npaBoi CTopoHbI n3dEIny.(Pnc.20)
3.CnoKnte pykoTky BnepeD.(Pnc.43)
4. CHIMITE TpaBOc6OpHNK.

TpaHcnpTnpoBka

HaIHTn-NOHHbIe aKKyMnyTOpbI B KOMnJIeKeTe N3dEINpaCnpocTpahraHOTc Tpe6oBaHN, npedbAIBMaBleK ONaChbIM TObapam.
- Co6IIOdaIte cneuaJIbHbIe Tpe6ObaHnI K nepeBO3Ke KOMMepueckm TpaHCnOpTOM, yKa3aHHbIe Ha yNaKOBKe I npIbIkax.
-Пи NOДROTOВКЕ ИЗДELЯ K TраHCNOPTIPOBKE TцаTeьн ВьлОняТe BCE Tpe6OBaHЯ,прдьAЯБМьE K ONaCHbIM BeIecTBaM.МoryT TaKKe npIMeHЯTbCЯ Tpe6OBaHЯ MeCTHOrO 3akOHoDaTeNbCTBa.
-Перед Транспоровский Всегда ИЗБлескайта AkКуМУЯТОр.
3akneTe pa3bembl akymyIaTopaJeHToN 3akpenTe aKymyIaTOp TaKIM o6pa3oM, YTO6bI BO Bpemr TpaHCnOpTnpOBKn OH He MO rCmecNTbCra.
- HadejHo 3aKpeNte n3deJne Ha BpeMra TpaHcnpTnpoBKn.

XpaHeHne

-Перед Транспоровский Всерда ИЗБлескайта AkКуМЛЯТOP.
-Bo n36eKahne HeCuaCTbIX CnyaEB npn NOMeUeHm N3JeJna Ha xpaHeHne y6eINTecb, YTO B HEM HET AKKyMylTopa.
XpaHnte 3apJdHoe ycTpoiCTBO B 3akpyITOM n cyxom NOMEueHIn.
XpaHnTe aKKyMnyTOp n 3apJHoe yCTpoNCTBO B CyXOM OTaJIbAeMOM NOMEueHEN.
XpaHnte aKKymyTOp OTdJIbHOOT 3apJHOrO yCTpoiCTBa.
- He donyckaetc xpaheHne aKKymyIaTopa B MeCTax, rDe BO3MOXHO BO3HNKHOBeHne CTaTNUeCKOTo 3NeKtpnueCTBa. HeJb38 xpaHntb aKKymyIaTop B MetaTNNueCKo Kopo6Ke.
XpaHnTe aKKymyIaTOp npu TeMnepaType B npeIenax ot 5^ do 25^ n He noDbepraTe BO3dEiCTBnIO npmBix COInHeuHbIX Nyuei.
XpaHnTe 3apAidHOe yctpoIcTBO npI TeMnepaType B npedeJax ot 5^ do 45^ n He noBepraTe BO3dEiCTBnIO pIpMbIX COJIHeuHbIX Iyuei.
-Передnomeшениakумлгетандпелhoe xpaHeHne y6eDntecb,чTo OH zapяженdo 30-50%.
XpaHnTe n3deJIne, aKkMyJnTOp n 3apAnHoe yCTpoiCtBO B 3anePToM NomeuEHHN, BHe Doctyna

TeH NnC, He HMEIOUX COOTBeTCTByIOUero pa3peuhen.
- PpeI nOmeIeHnEM I3dEInna Ha IaIITeIbHoE XpaHEnHe OuNCTIte erO OT 3aRpy3HeHn I npOBeIte NOnHoe ObcnyKubHne.

yTnJn3aun

06o3haueHna Ha 3deJn nn erO yNAKOBke
yKa3bIbAIOT, YTO DaHHoe n3deJIne He MOKeT 6bITb
yTuJIIN3NpOBaHO B KaueCTBe 6bITOBbIX OTXODOB. OHO
doJNXO 6bITb NepeDaHO B COOTBeTCTByUOni NPyHKT dJIa
pepepa60TK n3eKTPnueCKoro n 3NeKTPoHHoro
obOpyIDOBaHn.

06ecneuB HaJnEkaUyO yTIN3aUIO DaHNOrO
N3eJIa, BbI NOMOXTe IpeoTbPaTtB NOTEHuaNBHOe
OTPiaTeJIbHOe BInraHHe Na OKpyXaIOUcpey IN
3dOpOBBe JIODei, KOTOpoe HNaYe MoTIO 6bITb
NocJeCTBnEM HePpABnIBHOy TIN3aUIN. BoJeE
NODpO6HyIO INΦOpMaUIO O nepepaOTke daHNOrO
N3eJIa NOyUHTe B TopoDCKom UnpaBNeHN, y
CnyKbI, 3aHmAoUeIcR nepepaOTkoB 6bITOBbIX
OTxOIOB NIOBO MaRa3HNe, rIe Bbl npno6peIN 3dJIeNE.

(Pnc. 44)

TexHnueckne daHHbIe

TexHnueckne daHHbIe LC 247Li, LC 347VLi

PpIMHeHOTcCJeDyUOuNe cTaNdApTbI:

EN 60335-1:2012+A11:2014, EN 60335-2-77:2010, EN 62233:2008, EN 55014-1:2006/+A1:2009/+A2:2011, EN 55014-2:2015

Ecn He yka3aHO nHaue, nopa3yMeBaTcnoCneHnra ony6NIKOBAHna peDaKun cTaHapTOB.

3apernctpnpoBaHHa opraHn3aun: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5 8NL, United Kingdom npon3BeJa OueHKy COOTBETCTBnA CORnaCHO npinIOxHeNIO VI K DInpeKtNbE 2000/14/EC n BbInycTnla ceptnfikat Homep:71429

Huskvarna, 2017-12-01

Knaec IocdaI, DnpekTop oTdeI pa3pa6ToK/CaIOBa TExnka (YnoJIHOMOeHHbI npEcdTaBtJIb HUsqvarna AB nOTBeTCTBeHHbI 3a TexHneCKyIO DokymeHTaUHO)

141400, MockOBCKaO6n., Γ. XmKu, yI.
JIeHHrpaDcKa, BlaJeHne 39, cTpoEHe 6, 3JaHne II
3TaK 4, OB02_04, TeJeΦoH rOpRyEe JInHn
8-800-200-1689

Obsah

Uvod. 379

Bezpečnost 380

Certification Ltd. Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL, United Kingdom vykonal

posudzovanie zbody podla prilohy VI smernice

Priglaseni organ: 0359, Intertek Testing and Certification Ltd. Davy Avenue, Knowlhill, Milton

Keynes, MK5 8NL, United Kingdom je opravil oceno skladnosti v skladu s Prilogo VI k Direktivi 2000/14/ES in izdal certifikat s stevilko:71429

Huskvarna, 2017-12-01

Anmalt organ: 0359, Intertek Testing and Certification

Ltd. Davy Avenue, Knowlhill, Milton Keynes, MK5

BnKOpNCToByTe ceTnΦiKOBaHi eJeKTPnHi pO3eTKI.

Пд чс роботи цьог Виробу yTBOPIOCTbCЯ eNeKTPomarHIThe nOle. Ze nOle moKe 3a DeяКИX yMOB B3aEMODiAryn 3 aKTINBHIMN Ch nacNBHMn MeDnHIMn imPnAHTaTam. O6 3MeHINTn pN3IK TjKkIX a6o CmepTeIbHnx TpaBM, peKOMeHdUeMo OCobam i3 MeDnHIMn imPnAHTaTamn npOKOHcYbTyBaTnCS 3i CBOIM liKapem i Bnpo6Hnikom MeDnHoro imPnAHTaTy nepei NOyATKOM ekCnPyataciI ZbOROBnPO6y.

• Perylnapno nepebiprte shhup xNBleHn 3apdHOro npncTroIO Ha npedMet NOsKOJxEh Ta TpiuH.
  3a6bOpHЯETbcraPiDiimatn 3apdHnI npncTpi, TpMaIOUH NOrO 3a ShHyp XnBJIeHHa. So6 BiD'EDHaTHn 3apdHnI npncTpiB iD HAcTIHHoI PO3eTKN, BNTaRHiTb 5HTeNCeJIbHy BnIKy. Y XODHOMy pa3i He TjaRHiTb 3a 5Hyp XnBJIeHHa.
  TpimaiTe uHyp XnBJIeHHa Ta noDobKyuBaui Ha 6e3neuHi BIDCTaHI BiD BOi, MaCTnI i roCTpIX npEIMetIB.

Ipekehntecy, 0ka6eHb He 3daBneHo DBePIma, oropoxe o a6o iHsmm npedmetam. Y taKomy BnpaDky 3apAHN pncTpiIM MOKe OINHTscn PiHa nppyroIO.

3a6oponeHOMTNI 3apAHN npictpiBODOIO.
-ДiTиВiKOM BiД 8 pOKiB Ta OcO6n 3 O6mExKeHIMN φi3nUHMN, C6HCoPHNM a6o NCxIXuHIMN MOJINBOCTaMn a6o OC6b,Як He MaIOTb DOCBiDy Ta 3HaHb,MOKUTb BVKOpNCTOBvBATn 3apYdHn IprncTpii JnWe NiD HaraJdOM a6o NiCJI HaJeXHoRo IHCTpykTaJxUoDo 6e3neuHOrO Ioro BVKOpNCtAHnR,3a yMOBn PO3ymiHHa HmN IOB'3aHnx i3 TaKIM BVKOpNCtAHnRm Pn3NKiB. DiTam 3a6OpOHaETbcr rpatn i3 3apArdHm PrncTpoE.M. DiTam 3a6OpONaETbcra YnCTHTn 3apArdHn IprncTpii i

3dIiSchIOBaTNI IoroTexHicHe 6e3HaJy.

He hamaraTecs 3apJxKATn oHopa30Bi 6aTapei 3a DOnOMoTO 3apJdHOrO npNCTPOH.
3abopohyctbcbnKOpncTOBvBaTn 3apdHn npncptpi nobn3y Ierko3aMnCTnx a60 Kopo3iHnX MaTePiaJIIB. 3aboponeHo hakpVBaTn 3apdHn npncptpi. Ppn noRbI dIMy Ch BOrHIO BNTrHiTb WTeNcSeIb 3apdHoro npncptpo 3 po3eTKn.
He BnKOpncToBvIe 3apAHN npNcTpIi i3 O3HaKaMn NOsKOJxEHHa.
3apjkaTn akymyIaTOp cniD tijbkN B do6pe npoBITpHOBaHNx npMiuSeHHaX Ta noJani BiD coHyaHoro cbiTla. He 3apjkaTe akymyIaTOp y BOJOrOMy cepedobuNi.

IpaBnlaTexhikn6e3neKnPiJ qac o6cnyroByBaHHa

NONEPENKHH: NepHnKpo3noaTu BnKOpNCtAHNBAPO6y, yBaXHO npOuNTaTe HabeHeHnKHe nOpeJKeHH.

UcynenHHeCnpaBHOCTeI
AkymyJrTop

Ypa3i BnHnKHeHH npo6IeM, He HabeDeHx ycbomy po3di, 3BepHiTbca B ceHTp 0cCnyroByBaHH.

TexhiHi xapaKTepeNCTnKN
Texhihi dahi LC 247Li, LC 347VLi
