Product type	Steam iron
Brand	Clatronic
Model	DB 3705
Power supply	220-240 V ~, 50-60 Hz
Power	2200-2600 W
Protection class	I
Net weight	approx. 1.2 kg
Water tank capacity	approx. 350 ml (max)
Soleplate type	Ceramic soleplate
Ironing functions	Dry ironing, steam ironing, vertical steam, steam shot, spray
Thermostat	Gradual adjustment with positions OFF, • (silk), •• (wool), ••• (cotton/linen), MAX
Steam regulator	3 positions (1, 2, 3) + 0
Self-cleaning function	SELF CLEAN button
Cable type	Flexible power cord
Intended use	Domestic ironing of clothing and textiles
Recommended water type	Distilled water only
Safety	Unplug before filling, hot surface, do not immerse, do not leave unattended
Maintenance and cleaning	Clean with a dry or slightly damp cloth, do not use abrasive products
Repairability	Do not repair yourself, contact an authorized technician; power cord must be replaced by the manufacturer or its after-sales service
Included accessories	Measuring cup

Frequently Asked Questions - DB 3705 CLATRONIC

What type of water to use in the Clatronic DB 3705 iron?

Use only distilled water. Never use battery water, dryer water, or water with additives (starch, perfume, fabric softener) to avoid deposits and stains.

What to do if water leaks from the soleplate?

This can happen if the temperature is too low for steam. Set the thermostat at least to the •• (wool) symbol. If the problem persists, empty the tank and let it heat dry.

How to use the vertical steam function?

Hang the garment on a hanger. Set the thermostat to MAX. Hold the iron 3-5 cm from the fabric and intermittently press the steam shot button (13). Never direct the steam jet towards a person.

How to clean the iron soleplate?

After complete cooling, wipe the soleplate with a slightly damp cloth. For deep cleaning, use the SELF CLEAN function: fill the tank halfway, heat to max, unplug, hold the iron horizontally over a sink and keep the SELF CLEAN button pressed while shaking it until empty.

Can I use the iron without steam?

Yes, set the steam control (12) to 0 and choose the temperature suitable for the fabric. For delicate fabrics (silk, synthetic), use a low temperature.

What does the indicator light mean?

The indicator (3) lights up when the iron is heating and turns off when the set temperature is reached. You can then start ironing.

How to fill the tank during use?

Set the steam control to 0, place the iron vertically on a heat-resistant surface, turn off the iron (thermostat to OFF), unplug, open the cover and pour distilled water up to the MAX mark (about 350 ml). Close and plug back in.

The iron does not heat up, what to do?

Check that the thermostat is not set to OFF. Make sure the cord is properly plugged in and the socket works. If the problem persists, contact an authorized technician.

How to store the iron after use?

Turn the thermostat to OFF, unplug the cord, empty the water tank and let it cool completely before storing. Place the iron vertically on its base in a safe place, out of reach of children.

The iron has fallen or appears damaged, what to do?

Do not use it anymore. Unplug it and contact an authorized after-sales service. Do not attempt to repair it yourself.

USER MANUAL DB 3705 CLATRONIC

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in These Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

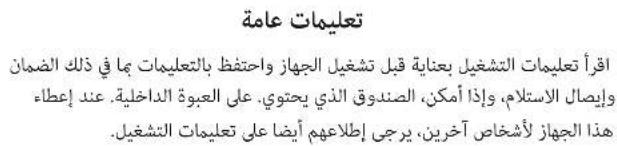

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

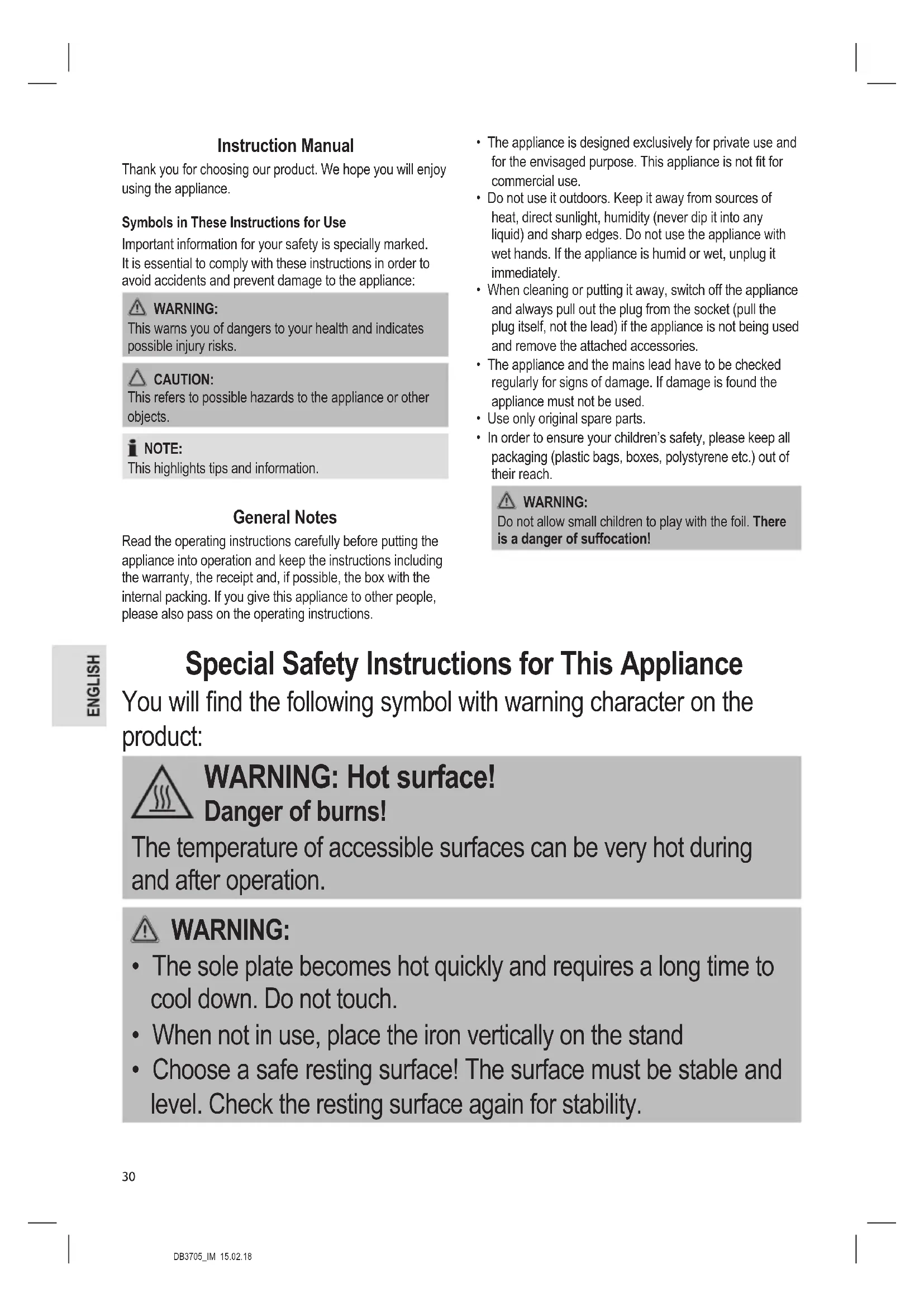

Special Safety Instructions for This Appliance

You will find the following symbol with warning character on the product:

WARNING: Hot surface!

Danger of burns!

The temperature of accessible surfaces can be very hot during and after operation.

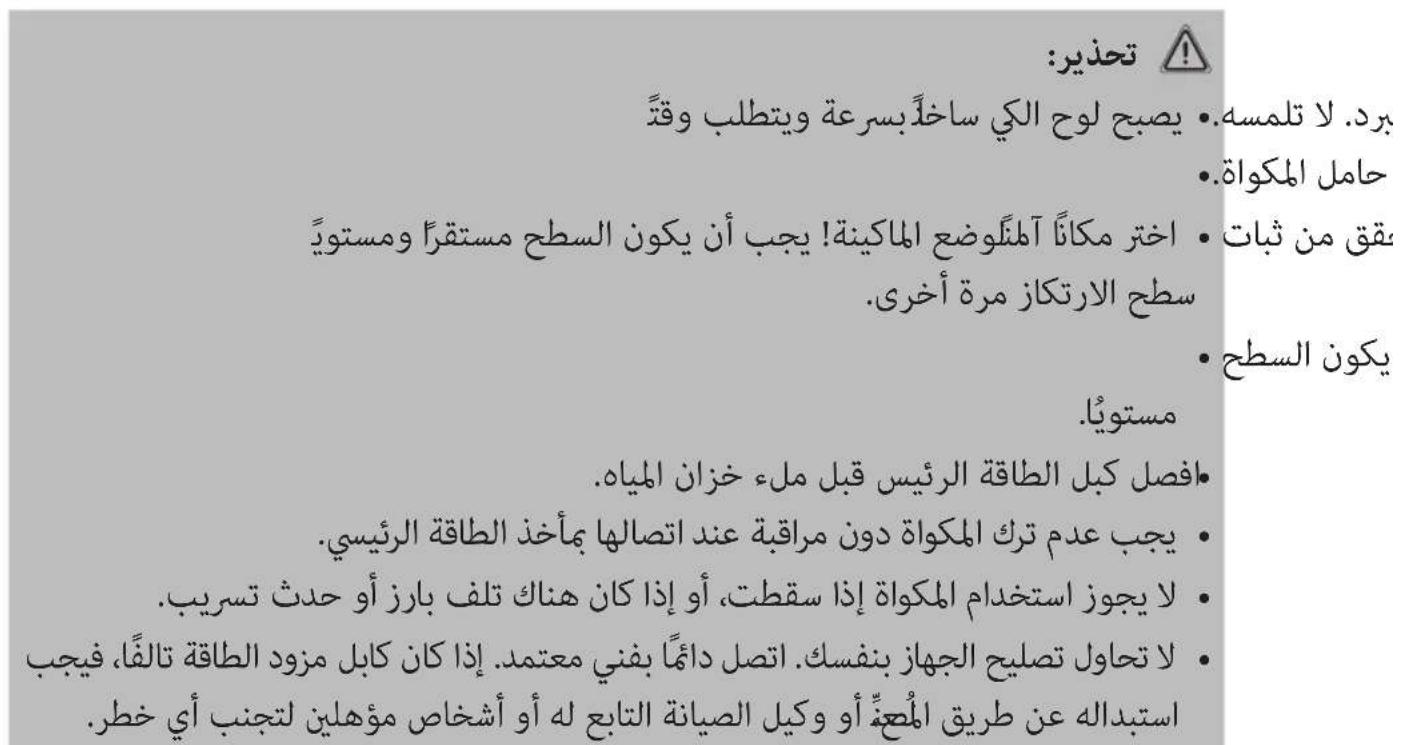

WARNING:

• The sole plate becomes hot quickly and requires a long time to cool down. Do not touch.
• When not in use, place the iron vertically on the stand
• Choose a safe resting surface! The surface must be stable and level. Check the resting surface again for stability.

WARNING:

• The iron must be used and rested on a stable, heat-resistant surface. The surface should be level.
• Before filling the water tank remove the mains lead.
• The iron must not be left unsupervised while it is connected to the mains.
• The iron may not be used if it has been dropped, if there is visible damage or if it leaks.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When turning on or cooling down, the iron and its cord must be out of reach of children who are younger than 8 years.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  Children shall not play with the appliance.
• Cleaning and user maintenance shall not be performed by children.
• This appliance is not designed to be immersed in water during cleaning. Please follow the instructions that we have included for you in the chapter on "Cleaning".
• The tank should only be filled up to the maximum mark. Do not overfill! Maximum water filling quantity: approx. 350 ml .
• Please use only distilled water.

Intended Use

This appliance is used for ironing clothes and textiles.

It is intended for household use.

Any other use is regarded as not intended and may even result in damage to property or personal injury.

Overview of the Components

1 Flexible line cord entry
2 Stand
3 Control lamp
4 Transparent water tank
5 Temperature control markings
6 Ceramic sole plate
7 Continuously adjustable temperature regulator
8 SELF CLEAN button
9 Steam control markings
10 Spray nozzle
11 Filler opening for the water tank
12 Steam volume regulator
13 Steam jet button
14 Spray button
15 Handle

Not Shown

Measuring cup

Notes on Use

Unpacking

• Remove any protective foils and stickers from the sole plate.
• Please unwind the lead completely.

Electrical Connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The maximum power consumption of the appliance is 2600 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this appliance is too powerful.

Temperature Control on the Iron (7)

The symbols on the control correspond to the following settings:

OFF

off

(synthetics, rayon, silk)

low temperature (ironing without steam)

• (wool) medium temperature

Cotton, linen) high temperature

MAX

maximum temperature

• Turn woollen clothes inside out to avoid shiny spots on the fabric due to steam ironing. In addition, lay a thin cotton cloth onto the fabric.
• Select a low temperature setting for fabrics with additional surface treatment and iron them inside out.

OTE:

The iron heats up faster than it cools down. Start ironing with the lowest temperature setting.

Water

• Please use only distilled water.
• Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.
• This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the sole plate.

Operation

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without Steam

NOTE:

1. Sort out the garments according to their ironing temperatures.
2. Always set the temperature control to "OFF" before connecting the appliance to a power point, or before disconnecting it. Please follow the temperature control markings (5).

3. Set the steam control (12) to the "0" position, following the steam control markings (9).

4. Place the iron on its stand.

5. Only connect the appliance to a properly installed safety socket.

6. Set the temperature on the temperature control (7). If you have sensitive items to iron, please begin with the lowest temperature.

NOTE:

The control lamp (3) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.

Steam Ironing

WARNING:

The iron expels a large quantity of hot steam. Danger of burns.

NOTE:

• For this a high temperature is needed. Turn the temperature control (7) at least to the "●●" symbol.

• If the temperature is too low water may leak from the sole plate.

• Fill the water tank with distilled water. The tank volume is ca. 350ml . Fill the water tank to the max marking only.

• Place the iron with the sole plate in an upright position on a heat resistant surface.

• Open the water tank cover upwards.
• Fill the water reservoir at the refill opening (11). Use the supplied measuring cup.

• Close the water tank cover again.

• Use the steam control (12) to adjust the amount of steam. Set the control to positions "1", "2" or "3".

• The steam volume regulator audibly engages in the respective position.
• Steam escapes as soon as the iron is in a horizontal position.
• Extra steam can be added with the steam jet function . Press the steam jet button (13) intermittently.

- Spray Function (

In order to moisten a section of a garment to be ironed, press the spray button (14) intermittently.

- Vertical Steam Function

This can be used to produce a jet of steam in a vertical direction.

WARNING:

Never direct the steam jet at people. Risk of burning!

1. Hang your laundry on a clothes hanger and move the iron to approximately 3 - 5 cm away.
2. Set the temperature control (7) to "MAX" position.
3. Press the steam jet button (13) intermittently.

NOTE:

If the amount of steam emitted is too little, wait until the appliance heats up again.

- How Can I Replenish the Water During Operation?

1. Set the steam control to the "0" position.
2. Place the iron with the sole plate in an upright position on a heat resistant surface.
3. Tum the appliance off by setting the temperature control knob to the "OFF" position.
4. Remove the mains plug from the socket.
5. Open the lid of the refill inlet and carefully pour in the water.
6. Do not exceed the maximum line as marked on the water reservoir.
7. Close the lid of the tank.

When You Have Finished

1. Always turn the temperature control to "OFF" after use and remove the mains plug. The control lamp goes off.
2. Empty the water tank in order to prevent the contents of the tank leaking.
3. Allow the appliance to cool down before you put it away.

Self-Cleaning

1. Half fill the water tank with water.
2. Heat the appliance up to its maximum temperature. After the control lamp goes off remove the appliance from the mains supply.
3. Now hold the iron horizontally over a sink. Press and hold the SELF CLEAN button (8). Now rock the appliance backwards and forwards until the tank is empty.
4. Place the appliance back on its stand and heat it up again. To clean the base now iron over a clean cotton cloth.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
• Wait until the appliance has cooled down completely!
• Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Clean the casing with a slightly damp cloth.
• Clean the sole plate and the rest with a slightly damp cloth.

Technical Data

Model: DB 3705
Power supply: 220-240V~, 50-60Hz
Power consumption: 2200-2600 W
Protection class: I
Net weight: approx. 1.2kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the Symbol "Dustbin"

Protect our environment; electrical appliances do not belong in household waste.

Use the collection points for the disposal of electrical equipment and submit your electrical and electronic equipment to these points that you will no longer use.

You help reduce the potential impact of incorrect disposal on the environment and human health.

You contribute to recycling, and other forms of recycling of electrical and electronic equipment.

Information concerning the disposal of appliances can be obtained from your local or municipal authorities.

Instrukcja obslugi

Regulator temperature na zelezaku (7)

Symbole na regulatorze odomiwadaja nastepujacym usta-wieniom:

OFF

wyf.

Cnmbonbl npmeHemble B daHHOM pyKOBOCTBe noJIb3OBaTeIa

BaxhIbe pekomehdaun nOObecneueHnBaWei 6e3- onachoctn o6o3haueHbIOOCo6eHHOMy.Oba3aTeNbHO cNeuTte 3TNM pekomehdaunm,UTo6blpeDToBpaNTb HechacThb cnUaynnnoNOnMKy n3dennr:

PENEYIPPEXDEHNE:

PpeDynpexkaet 6 onaChocTn dIra 3IopOBbI N BO3MOK-HOM PNCKe IOnyueHn TpaBMbl.

BHIMAHNE:

Yka3bIbaeHa BO3MOxHyO ONaCHOCTb IIN3dJIIMN IN dpynx OKpyxaIOxN ppeDMTOB.

ПИМЕЧАЙ:

JaetcoBebuHOpMaIIO.

06üne 3ameuahn

Ipeed hauanom 3KcNpyataun np6opba BHnMaTeIbHO npouHTaIe npuHaermyIO nHCTpykUIO NO 3KcNpyataum I COxpaHHTe ee B HAdexHOM MecTe, BmecTe C rapaHTnHBIM TaHOHOM,KaccOBbIM YekOM N,PO BO3MOXHOCTN,KAPTOHHO

Kopo6koI cynaKOBOHbIM MaTePnAion. EcIn DaTe KoMy-1n6o NOnONb3OBaTcR np6Opom, O6ra3aTeNbHO daTBeB pNDAuY daHHyU INCTpyKuIO NO EKcnnyatauIN.

-Поьзупесь пибором только чстным образим и по ha3haЧeHHIO. Пибор He прдha3haЧeHДЯ KMМерчecKOrO ИСПЛьЗВАИ.
He noIb3yIeTcB np6Opom nOd OTKpbITbIM He6OM. PpeDoxpaHnTe np6Op OT kApbl, PpMbx COInHehblx LyueN, BnaXHOCTn (Hn B Koem cnyaae He norgpykaite ero B BoY) n yapob 06 octpble yrbl. He npKacaiTecb K np6Opby BnaXHbIM pykam. Ecn np6Op byBnaXHHncra nn HAOK, TyT Xe BbIbTe BuIKy n3 po3eKn.
- Iocne 3Kcnpnyatau,MOHTaxe npnHaNEXHOCTei, YIcTKe ININ PONOMKe pnp6opa Bcerda BbIHMaTe BUNKy n3 po3ETKn (TaNITe 3a BNkY,a He 3a Ka6eJIb).
-ПибориКабeьсетeвогиNTaHINHeo6xOIMOp epyIapnOобспeДОВаТьHaHaJIuNueСпeДOB NOBpeKdENIA.ПиObHApUKeHINNOBpeXdEHNЯNoJIb3OBAtbcr ПибopOM3anpeUaTbcR.
Vicnoj3yuteToIbKOopnHaJIbHbe3aIaCTN.
- V3 coo6paqhen 6e3onacchoctn dIy dTeen He octabTlne IexaTb ynaKOBky (PiactNKOBbie MeWK, KapTOH, neHONlaCT n T.D.) 6e3 npncmOTpa.

PENEYUNPEXDEHNE:

He no3B0JIaTe DeTm nIpaTb c nonn3tnneHOBOI nIeHko. Onachoctb ydyub!

Oco6bIe yka3aHnI NO TexHnke 6e3OpacHOCTN dIy 3TOrO yCTpOiCtBa

Ha n3dennn nmeotc sceyuoune npedynpejdaoune cunboJ:

I P E D U N P E X K D E H N E:

• Перацтков BCERда ВьИнмайт e BnIky n3 po3eTKI!
  -ДаиTe эл ektpo npnbopу nOJIHOCTbIO OCTbITb!
• Hn B Koem cnyae He Okyhaite dIy qNCTKn np6op B Body. 3To MoXeT 6bITb pUHHOJ 3JIeKTPnueckoro yDapa nII IOnjapa.

BHIMAHNE:

He nOJIb3yIte npOBIoUHbIe 5ETKn IIN dpYrIe UapanaJouuNe npEmdTebl.
He nCnoJIb3yIe CnJIbHbIe IIN cApaNaIOUne YnCTa-

• PpOtpTe KOpNc cyxO TpAknKoI.
• PpOtpnTe nOIOuBv yTOra n NOBepxHOCTb NODcTaBKn CJIeKKa BnAxAHoi TprIkoN.

TexHnueckne daHHbIe

Modelb: DB 3705

Подач ha npяжен: 220-240B\~,50-60T MoHocTh h BxoJe: 2200-2600BaTT

1s 1s s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s 1s

1

y 1000

:

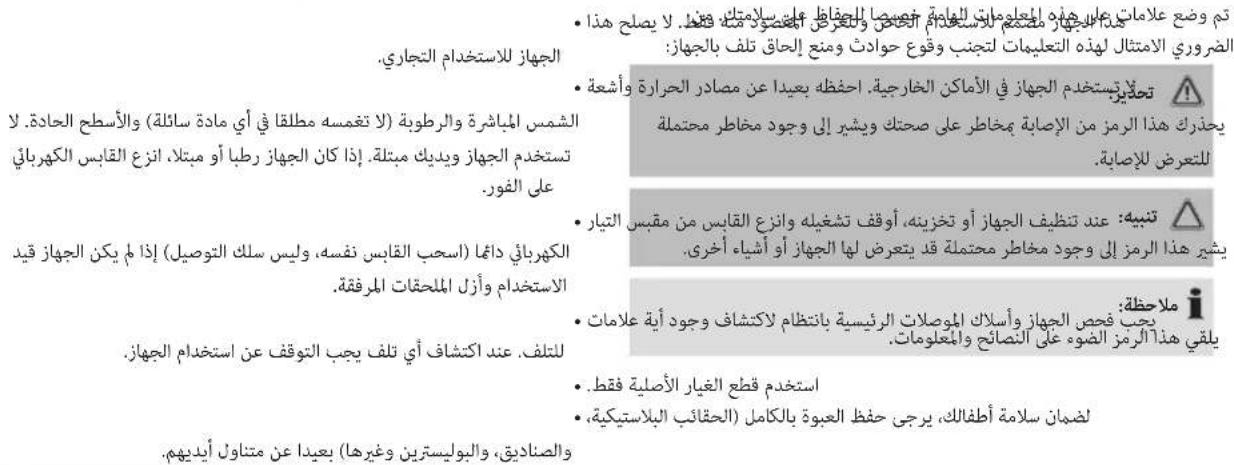

olal 0s oai lao j. aigbdo aiaj6o jolall ao jg53.11
.

.

jab = ub

. MAX a 001 b1 j3 350 1j2a
01,00 p 000 g0g 00g 00g 00g 00g 00g .1
. 2
.

.5j

：

Jlab

8

Zlogy zao zao zao yao 10000000000000000000000000000000

IolglalogbI

Jaa 2018 2020 2021

Jglll111 16 gj jj jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

1.53; 2.40; a.25

glg jg 15 gge 08jogj

3b^2 ≥ 0 ,即 b > 1

jg jglis y, sall sao y

(7)algslj 0jol jol alo jol o

aaii iiey gao kaoi joo jgai

Jz

OFF

cuiyuiuuiyui 3 jayaiiia

jj101uuaaui jaaoo jqoll lio

gaae aeg gag aadaiy jzjg jzjg jzjg jzjg

aaiyolgcllauu

Cui561 1e zoIc oJz

j61 J511 1

019d

S_ OBC = 12 · CO · BC = 12 × CD × 3

0jJ 400

6

jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaiy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy jaliy

（）SELFCLEANj8

joll jscoll 9

a 10

11

luljuaa 12

0 j 13

1 14

15

0g 20

S1 = 12 · ( r1^2 + r2^2 + r3^2)

jlll lloolw

:duu uus jorj g a dlaa lgl

.0000 1

GARANTIEKARTE

warranty card · garantiekaart · carte de garantie · scheda di garanzia · tarjetá de garantía · cartao de garantía · garantikort · karta gwarancyjna · zárucín list · karta jamstva · carte de garantie · fapahuonHNA KapTa · zárucýn list · garancijski list · garanciajegy · rapahtiHmΦopMynp · fapaHTiHbI TaNoh

jiaozhaoyi

DB 3705

24 Monate Garantie gemäß Garantieerklung 24 months warranty according to warranty declaration 24 maanden garantie volgens garantieverklung 24 mois de garantie selon la déclaration de garantie 24 messi di garanzia seconde la dichiarazione di garanzia 24 meses de garantia de acuardo con la déclaración de garantia 24 menedes garantiat hemehold til garantibetingensene 24 misesc gwarancjna podastowie odwiadczenia gwarancjnego - zaruka 24 meseicpu podle prohlase n o zarue 24 mesecno jamstvo u skladu s jarnstvenom deklaraciujm 24 luni garantie conform déclaratie de garanje 24 mecaa rapanu a cbotertcne c rapahunohata dekpanaqrn 24-mesaçna zaruka podfa vyhlasenia o zaruke 24-mesecnagarcjna, skladno z garancijskjo ijavo 24 honap garancia a garancafeltetelekben leirtak szerint rapanr Ha 24 micui bIDNOIBHO BAI npo rapaHTIO - rapaHTN 24 mecaa cornaco 3aBBNEHBM rapanthnIMnpaBnAM

Kaufdatum, Handelstermtpelt. Unterschied - date of purchase, dealer stamp, signature - aankoepdatum, dealstermtpelt, handfleckening - date d'achat, tampon du concessionaire, signature - data de acquistao, timbo del riveridatore, fema - fecha de compra, sello del distribuidor, firma - data de compria, carimbo do distribuidor, assinatua - kjusdata, forhandstermtpelt, signatur - data zakupu, piezec (spradewacy, podisdat zumakoupli, nadiko prodejece, podisp - datum kupovine, big trovca, potosis - data de achilie, stampila furnizoruliu, semnatura - Data na nikkayra, Tneia na Ppokayra, Tpoknc - datum nikkau, pecliatka obchodnica/ predajcu, podisp - datum nukaku, Big trovca, podisp - visalas datuma, kereskedod behegejce, alaraks - data npnabekhen, nevata npnabekau, niznc - Data npnobepeten, Ilamran npnabeku, Npncnc

CAtRONICINTERNATIONAL GMBH

www.clatronic-germany.de
