USER MANUAL CVG6WW CANDY

06.07.22 FR diline logo eklendi/ Logo added to FR language.HOBS

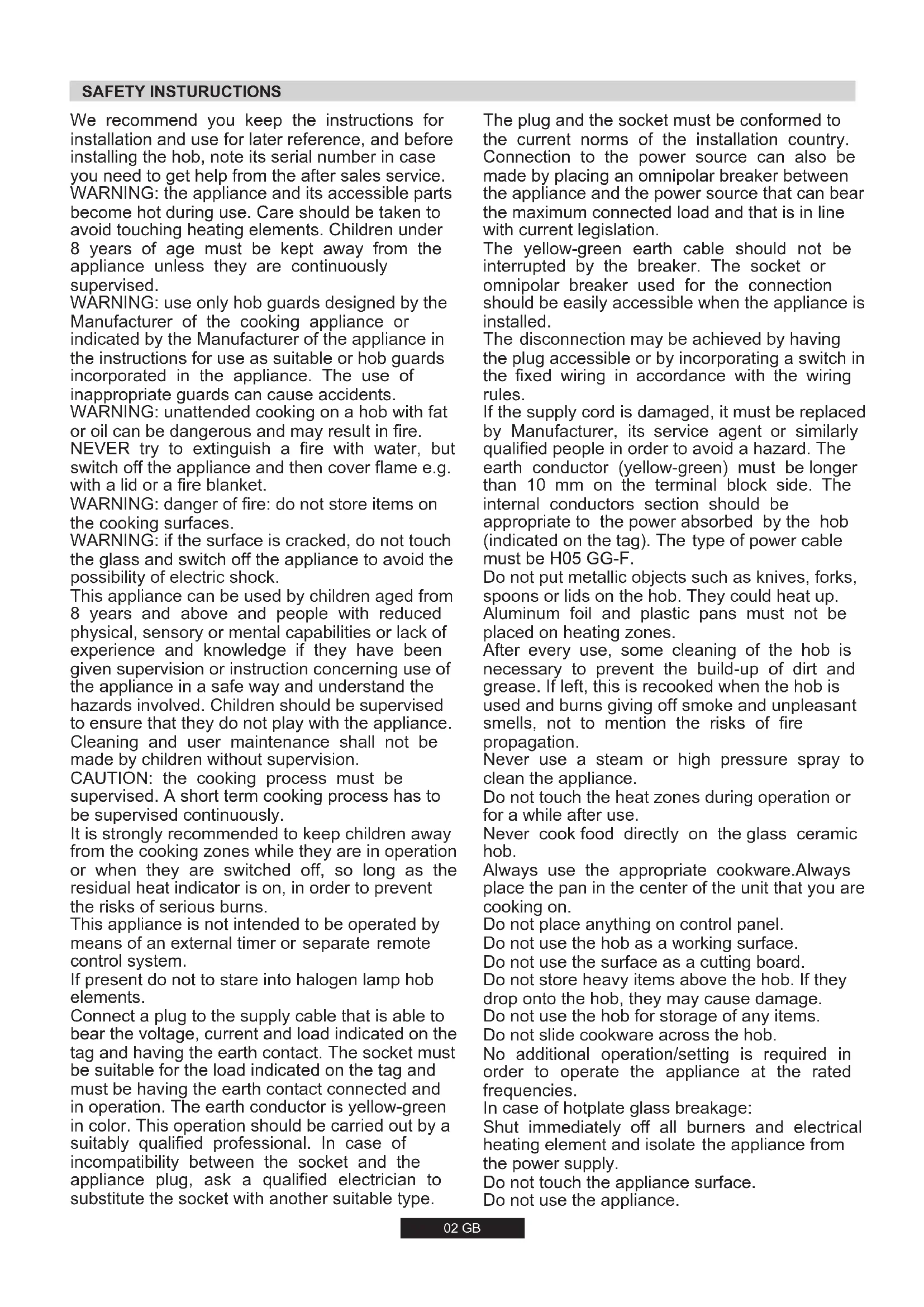

HR 6902 GB SAFETY INSTURUCTIONS We recommend you keep the instructions for installation and use for later reference, and before installing the hob, note its serial number in case you need to get help from the after sales service.

WARNING: the appliance and its accessible parts

become hot during use. Care should be taken to avoid touching heating elements. Children under 8 years of age must be kept away from the appliance unless they are continuously supervised.

WARNING: use only hob guards designed by the

Manufacturer of the cooking appliance or indicated by the Manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

WARNING: unattended cooking on a hob with fat

or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

WARNING: danger of fire: do not store items on

the cooking surfaces.

WARNING: if the surface is cracked, do not touch

the glass and switch off the appliance to avoid the possibility of electric shock. This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously. It is strongly recommended to keep children away from the cooking zones while they are in operation or when they are switched off, so long as the residual heat indicator is on, in order to prevent the risks of serious burns. Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in color. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. If present do not to stare into halogen lamp hob elements. This appliance is not intended to be operated by means of an external timer or separate remote control system. Always use the appropriate cookware.Always place the pan in the center of the unit that you are cooking on. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. If the supply cord is damaged, it must be replaced by Manufacturer, its service agent or similarly qualified people in order to avoid a hazard. The earth conductor (yellow-green) must be longer than 10 mm on the terminal block side. The internal conductors section should be appropriate to the power absorbed by the hob (indicated on the tag). The type of power cable must be H05 GG-F. Never use a steam or high pressure spray to clean the appliance. Do not touch the heat zones during operation or for a while after use. Shut immediately off all burners and electrical heating element and isolate the appliance from the power supply. Do not store heavy items above the hob. If they drop onto the hob, they may cause damage. Do not use the hob for storage of any items. Never cook food directly on the glass ceramic hob. Do not slide cookware across the hob. Do not use the appliance. Do not use the surface as a cutting board. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules. Aluminum foil and plastic pans must not be placed on heating zones. Do not use the hob as a working surface. Do not touch the appliance surface. Do not put metallic objects such as knives, forks, spoons or lids on the hob. They could heat up. Do not place anything on control panel. In case of hotplate glass breakage: After every use, some cleaning of the hob is necessary to prevent the build-up of dirt and grease. If left, this is recooked when the hob is used and burns giving off smoke and unpleasant smells, not to mention the risks of fire propagation. No additional operation/setting is required in order to operate the appliance at the rated frequencies. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.03 GB The hob may be installed in any worktop which is heat resistant to a temperature of 100°C, and has a thickness of -45 mm. The 25 dimensions of the insert to be cut out of the worktop are in shown in Figure 2. Metal objects in the drawer may reach high temperatures due to air recirculation. It is therefore recommended to use an intermediate wood panel. The distance between the hob and any other unit or appliance above it (e.g. An extractor hood) must be no less than 70 cm . (Figure 4) The Hob unit is fitted by attaching the Fixing Clamps supplied, using the holes at the base of the unit. If a hob of 60 cm is fitted above an oven which is not equipped with fan cooling system it is recommended that openings are created within the built in furniture to ensure correct air circulation. When there is an accessible space between the built-in hob and the cavity below, a dividing wall made of insulating material should be inserted (wood or a similar material) (Figure 3). The size of these openings must be at least 300 cm2 and placed as shown in Figure 5. If the Hob is fitted next to a cabinet on either side, the distance between the Hob and the cabinet must be at least ; while 17 cm (see Figure 2) the distance between the hob and the rear wall must be at least .70 mm Important - The diagram in figure 1 shows how the sealant should be applied.

1.2. SUITABLE LOCATION If a hood can not be installed, an electric fan should be fitted to an outside wall or window to ensure that there is adequate ventilation. This appliance must be installed in accordance with the regulations in force and only used in a well ventilated space. Read the instructions before installing or using this appliance. A gas-powered cooking appliance produces heat and humidity in the area in which it is installed. For this reason you should ensure good ventilation either by keeping all natural air passages open or by installing an extractor hood with an exhaust flue. Intensive and prolonged use of the appliance may require extra ventilation, such as the opening of a window or an increase in speed of the electric fan, if you have one. The electric fan should be able to carry out a complete change of air in the kitchen 3-5 times every hour. The installer should follow the relevant national standards.

2. ELECTRICAL CONNECTION (FOR U.K. ONLY)

Warning - this appliance must be earthed

CONNECT TO SPUR TERMINAL

This appliance is designed for domestic use only. Connection to the main supply must be made by a competant electrician, ensuring that all current regulations concerning such installations are observed. Brown Wire Live Connection Blue Wire Neutral Connection Note: We do not advocate the use of earth leakage devices with electric cooking appliances installed to spur points because of the «nuisance tripping» which may occur. You are again reminded that the appliance must be correctly earthed, the manufacturer declines any responsibility for any event occurring as a result of incorrect electrical installation. The appliance must only be connected to a suitably rated spur point, a 3 pin 13 amp plug/socket is not suitable. A double pole switch must be provided and the circuit must have appropriate fuse protection. Further details of the power requirement of the individual product will be found in the users’ instruction and on the appliance rating plate. In the case of built-in product you are advised, should you wish to use a longer cable than the one supplied, that a suitably rated heat resistant type must be used. Green & Yellow Wire Earth Connection The wiring must be connected to the mains supply as follows: 2.1. ELECTRICAL CONNECTION Check the data on the rating plate, located on the outside of the unit, to ensure that the supply and input voltage are suitable. Before connection, check the earthing system. By Law, this appliance must be earthed. If this regulation is not complied with, the Manufacturer will not be responsible for any damage caused to persons or property. If a plug is not already attached, fit a plug appropriate to the load indicated on the rating plate. The earth wire is coloured yellow/green. The plug should always be accessible. Where the Hob is connected direct to the electricity supply, a circuit breaker must be fitted. The earth wire ( green and yellow coloured ) must be at least 10 mm longer than the live and neutral wires. The section of the cable used must be of the correct size in relation to the absorbed power of the hob. Please check rating plate for the power details and ensure that the power supply cord is of the type 3x0.75 mm² H05 GG-F. If the power supply cord is damaged this is to be replaced by a qualified engineer so as to prevent any potential risk. LIVE EARTH NEUTRAL

Power Cable Brown Wire Green/Yellow Wire Blue Wire Mains Supply If an appliance is not fitted with a supply cord and a plug, or with other means for disconnection from the supply mains having a contact separation in all poles that provide full disconnection under overvoltage category III conditions, the instructions shall state that means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

1. INSTRUCTIONS FOR THE INSTALLER

INSTALLING A DOMESTIC APPLIANCE CAN BE A COMPLICATED OPERATION WHICH IF NOT CARRIED OUT CORRECTLY, CAN SERIOUSLY AFFECT CONSUMER SAFETY. IT IS FOR THIS REASON THAT THE TASK SHOULD BE UNDERTAKEN BY A PROFESSIONALLY QUALIFIED PERSON WHO WILL CARRY IT OUT IN ACCORDANCE WITH THE TECHNICAL REGULATIONS IN FORCE. IN THE EVENT THAT THIS ADVICE IS IGNORED AND THE INSTALLATION IS CARRIED OUT BY AN UNQUALIFIED PERSON, THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR ANY TECHNICAL FAILURE OF THE PRODUCT WHETHER OR NOT IT RESULTS IN DAMAGE TO GOODS OR INJURY TO INDIVIDUALS. Use only pipes,washers and sealing washers which comply with the relevant national standards. A: 1/2 Male Adaptor Cylindirical The rating plate on the hob shows the type of gas with which it is designed to be used. Connection to the mains gas supply or gas cylinder should be carried out after having checked that it is regulated for the type of gas with which it will be supplied. If it is not correctly regulated see the instructions in the following paragraphs to change gas setting. For liquid gas (cylinder gas) use pressure regulators which comply with the relevant national standards. The flexible tube shall be fitted in such a way that it cannot come into contact with a moveable part of the housing unit (e.g. a drawer) and does not pass through any space where it may become crushed/ kinked or damaged in any way. These instructions are for qualified personnel, installation of equipment must be in line with the relevant national standard. (For U.K. only: by law the gas installation\commissioning must be carried out by a "Gas Safe" installer) All work must be carried out with the electricity supply disconnected. When connecting the hob to the gas supply via use offlexible hoses please ensure that the maximum distance covered by the hose does not exceed 2 metres. For some models a conic link is furnished to outfit for the installation in the countries where this type of link is obligatory; in picture 8 it is pointed out how to recognize the different types of links (CY = cylindrical, CO = conic). In every case the cylindrical part of the link has to be connected to the hob. To prevent any potential damage to the hob please carry out the installation following this sequence (picture 6): 1)As illustrated, assemble parts in sequence: C: 1/2 Female Gas Adaptor Conical-Cylindirical or B: 1/2 Seal 3)Attach fitting C to mains gas supply using rigid copper pipe or flexible steel pipe. 2)Tighten the joints with the spanner, remembering to twist the pipes into position. Cylindirical-Cylindirical

To adapt the Hob for use with different types of gas, carry out the following instructions:

• Insert on hexagonal spanner (7 mm) into the burner support (Figure7)

• Unscrew the injector and replace it with one suitable for the gas to be used (see gas type table)

• Remove the grids and burners

2.4. REGULATING THE MINIMUM FLAME

Using a small «Terminal» type screwdriver the regulating screw can be adjusted as in Figure 9. Turning the screw clockwise reduces the gas flow, whilst turning it anticlockwise increases the flow – Use this adjustment to obtain a flame of approximately 3 to 4 mm in length and then replace the control knob. When you have carried out the new gas regulation, replace the old gas rating plate on your appliance with one (supplied with hob) suitable for the type of gas for which it has been regulated. After lighting the burners, turn the control knob to the minimum setting and then remove the knob (this can easily be removed by applying gentle pressure). When the gas supply available is LPG - the screw to set the idle flame must be turned (clockwise) to the end stop.

3. USE OF HOB - USER INSTRUCTIONS

This appliance must only be used for the purpose for which it is intended, domestic cooking, and any other use will be considered improper and could therefore be dangerous. The Manufacturer will not be responsible for any damage or loss resulting from improper use. If you are using Cast Iron Grids; underneath the grid, position of it is stated. Be sure for the exact grid is used in correct position. Before using burner, be sure, grid perimeters center the burner as below figure. Table A Burner Type Ø pan/pot (cm) AUX

Before cleaning the hob, ensure the appliance has cooled down. Remove the plug from the socket or (if connected directly) switch off the electricity supply. Cleaning and user maintenance shall not be made by children without supervision The burners can be cleaned with soapy water. To restore their original shine, use a household stainless steel cleaner. After cleaning, dry the burners and replace. When cleaning the enamelled, varnished or chrome sections, use warm soapy water or a non caustic detergent. For stainless steel use an appropriate cleaning solution. It is important the Burners are replaced correctly. Never use abrasives, corrosive detergents, bleaching agents or acids. Avoid any acid or alkaline substances (lemon, juice, vinegar etc.) on the enamelled, varnished or stainless steel sections. If over the years the gas taps become stiff to turn it is necessary to lubricate them.

WARNING: If a flame is accidentally extinguished, turn the knob

to the off position and do not attempt to re-ignite if for at least 1 minute. Such operation must be carried out only by qualified Service Engineers. The gas burner should be regulated so that the flame does not overlap the base of the pan. Vessels with a concave or convex base should not be used.

Warning: If gas can be smelt in the vicinity of this appliance turn off

the gas supply to the appliance and call the engineer directly. Do not search for a leak with a naked flame. IMPORTANT: carry out a final check for leaks on the pipe connections using a soapy solution. NEVER USE A FLAME. Also, make sure that the flexible pipe cannot come into contact with a moving part of the cabinet (eg.adrawer) and that it is not situated where it could be damaged.

3.1. USING THE GAS BURNER

° push in and turn the knob anticlockwise to the larger flame symbol For best results, use cooking vessels with a flat surface. The size of the surface should match the gas burner side as follows. Table A. Prior to switching on the gas hob ensure that the burners and burner caps are correctly placed within their position. This hob is fitted with electronic ignition to ignite the burner. To ignite the burners carry out the following: and keep pushed 5 s after ignition. °place a lighted match or lighter close to the burner The ignition system will continue to generate sparks as long as the control knob is being pressed

Warning: If there is no electricity on appliance to ignite the burner a

match or a lighter should be used carring out the following: °Push in and turn the knob anticlockwise to the larger flame symbol and keep pushed 5 s after ignition.

Warning: In any case If after 5 s the burner has not lit, stop operating

the device and wait at least 1 min before attempting a further ignition of the burner.

This appliance has been designed for non-professional, i.e. domestic, use. Table 1 - The WEEE should be taken to dedicated collection areas managed by the town council or a registered company. This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem; it is essential to follow a few basic rules: - The WEEE should not be treated as domestic waste; In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalent type and has the same functions as the purchased appliance.

• that the gas supply is not faulty.

• that the plug is correctly inserted and fused; Before calling out a Service Engineer please check the following: If the fault cannot be detected: Switch off the appliance and call the After Service Centre. DO NOT TAMPER WITH THE APPLIANCE. Chromed grids and burners have a tendency to discolour with use. This does not jeopardize the functionality of the hob. Chromed grids and burners Our After Sales Service Centre can provide spare parts if required. Burner Plate Burner Type FFD AUX 1kW SR 1,75 kW R 2,7 kW DC 4 kW MONO Nominal Heat Input G20/20 mbar G30/28-30 mbar Installation Class Voltage V/Frequency Hz Electrical Input Power Electric Ignition Product Dimension

Where possible use lid to cover the pan. Regulate the flame to not overlap the diameter of the pan.

SAVING AND RESPECTING THE ENVIRONMENT

220-240V 50/60Hz The appliance complies with European Directive 2009/142/EC (GAD) and starting from 21/04/2018 with Gas Appliances Regulation 2016/426 (GAR). By placing the mark on the product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

54.3% MEDIUM %58.1 II2HS3B/P II2EK3B/P G30/G31 30/30mbar 3B/PG30/G31 30/30mbar 3B/PG20 20mbar 2HG30/G31 50/50mbar 3B/P G20 20mbar 2EG25.3 25mbar 2KG20 20mbar 2HG25.1 25mbar 2SG20 20mbar 2EG30/G31 37/37mbar 3B/P G20 20mbar 2EG30/G31 50/50mbar 3B/P G20/G25 20/25mbar 2E+G30/G31 28-30/37mbar 3+G20 20mbar 2HG30/G31 28-30/37mbar 3+G20 20mbar 2HG30/G31 30/30mbar 3B/P42840192 • A4 • 07.2022 • Rev_A GB - IE The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of con sumption, without prejudice to the characteri stics relating to safety or function.
