USER MANUAL CHTOS 484W36N CANDY

KAZ KOELKAST NLThank you for purchasing this product. Before using your refrigerator, please carefully read this instruction manual in order to

ximize its performance. Store all documentation for subsequent usage or other owners. This product is intended solely for household use or similar applications such as: - the kitchen area for personnel in shops, offices and other working environments - on farms, by clientele of hotels, motels and other environments of a residential t ype - at bed and breakfasts (B&B)

For catering services and similar applications not for retail sale. This appliance must be used on ly for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions. The refrigerator contains a refrigerant gas (R600a: isobutene) and insulating gas (cyclopentane), with high compatibility with the env ironment, that are, however, inflammable. We recommend that you follow the following regulations so as to avoid situations dangerous to you: Before performing any operation, unplug the power cord from the power socket. x The refri geration s

stem positioned behind and inside the applia nce c ontains refri gerant. There fore, a void dama ging the tubes.

If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames. Open the window and let air into the room. Then call a service center to ask for repair. x Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes. x Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water. x Do not install the appliance near heaters or inflammable materials. x Do not use extension cords or adapters.

er cord or touch the plug with wet hands.

Do not damage the plug and/or the power cord; this could cause electrical shocks or fires. x It is recommended to keep the plug clean, any excessive dust SAFETY INFORMATION ENGLISH 1residues on the plug can be the cause fire.

Do not use mechanical devices or other equipment to hasten the defrosting process. x Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

Do not use or store inflammable sprays, such as spray paint, near the appliance, it could cause an explosion or fire. x Do not use electrical appliances

tor age compartments, unless they are of the type recommended by the manufacturer.

Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

tore medici ne or re search material s in the appliance. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks. x Maintain the

gs in the appliance enclosure or in the built-in structure, free of obstruction. x Do not place objects and/or containers filled with water on the top of the appliance.

Do not perform repairs on this appliance. All interventions must be performed solely by qualified personnel.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge; provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

Childre n s hould not play

ith the appliance. Clea ning and user maintena nce s hould not be made by children without supervision

“FOR appliances without a 4-star compartment: this refrigerating appliance is not suitable for freezing foodstuffs”

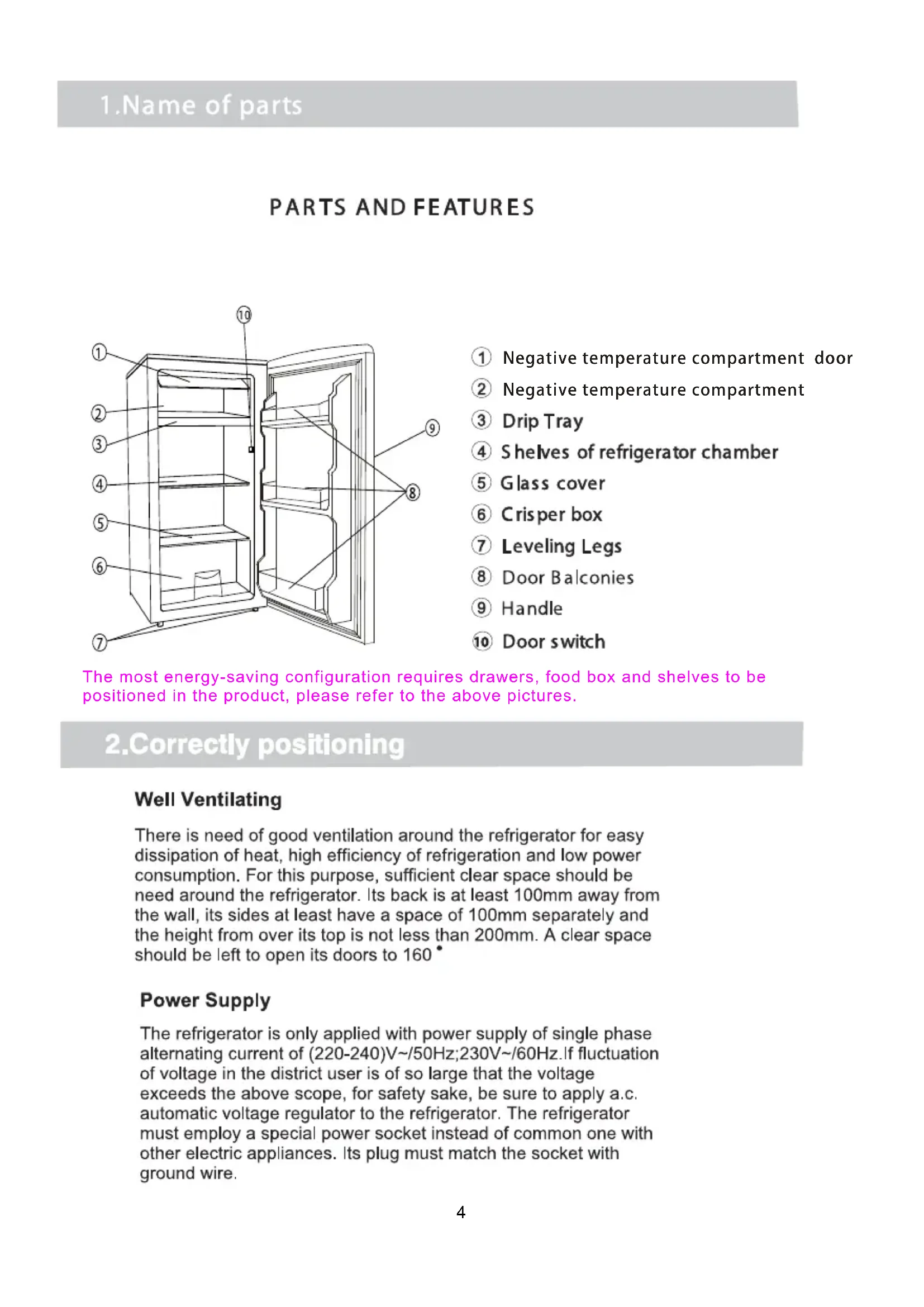

FOR a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance”3Negative temperature compartment door Negative temperature compartment

The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.tray tray

• It’s suggested to set the temperature at 4°C in the fridge compartment, and, whether possible, at -18°C in the freezer compartment.

• For most food categories, the longest storage time in the fridge compartment is achieved with colder temperatures. Since some particular products (as fresh fruits and vegetables) may be damaged with colder temperatures, it is suggested to keep them in the crisper drawers, whenever present. If not present, maintain an average setting of the thermostat.

• For frozen food, refer to the storage time written on the food packaging. This storage time is achieved whenever the setting respects the reference temperatures of the compartment (one-star -6°C, two stars -12°C, three stars -18°C)Temperature setting recommendation

• Information above give users recommendation of temperature setting.

7HPSHUDWXUH6HWWLQJ5HFRPPHQGDWLRQ

- extended temperate (SN): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’; - temperate (N): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C’; - subtropical (ST): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C’; - tropical (T): ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C’;5678GUARANTEE Minimum guarantee is: 2 years for EU Countries, 3 years for Turkey, 1 year for UK, 1 year for Russia, 3 years for Sweden, 2 years for Serbia, 5 years for Norway, 1 year for Morocco, 6 months for Algeria, Tunisia no legal warranty required.

This symbol indicates the coldest area of your fridge. This area is usually defi ned by the fruit and vegetable compartment(s) at the bottom and the symbol shown here at the top.

2. TEMPERATURE INDICATOR

In order to help you set your fridge properly, we have included a temperature control dial which will monitor the temperature in the area defi ned as the coldest. CAUTION: The indicator was designed to function exclusively in your fridge. It is not possible to use it in another fridge or for any other purposes. TEMPERATURE CONTROL By using the temperature control dial you will be able to check on a regular basis that the temperature of the coldest area is correct. If this is not the case, it will be necessary to change the position of the thermostat.

3. FOOD HYGIENE AND FRIDGE MANAGEMENT RULES

A good use of the fridge and the compliance with food hygiene rules contribute to improving food storage. Clean the internal part of the fridge regularly with delicate products or with water and disinfectant in order to combat bacteria effectively. Remove all food packaging before placing it in the fridge (for instance yoghurt carton packages). Wrap the products systematically in order to avoid mutual contamination. Do not place any kitchenware or other containers inside the fridge after having already used them prior to washing up (for instance, spoons or knives contaminated by food). Wait for foodstuffs to have completely cooled down prior to storage (e.g. soups). Limit the number of door openings and in any case do not leave the doors open for a long time, in order to prevent the fridge temperature from rising. Place the foodstuffs so that the air may fl ow freely throughout the entire fridge. Store the foodstuffs according to their nature inside the appropriate compartments and in particular, place the following items in the coldest area: meat, poultry, cold meats or sausages, ready-made dishes, mixed salads, egg or cream based pastry products, fresh pasta, dough, pizza, fresh products and cheeses made of whole or pasteurised milk, ready-made legumes sold without plastic bag and more generally all fresh products with use-by date and associated with storage temperatures lower or equal to + 4°C.
