USER MANUAL FCXP645X E0E CANDY

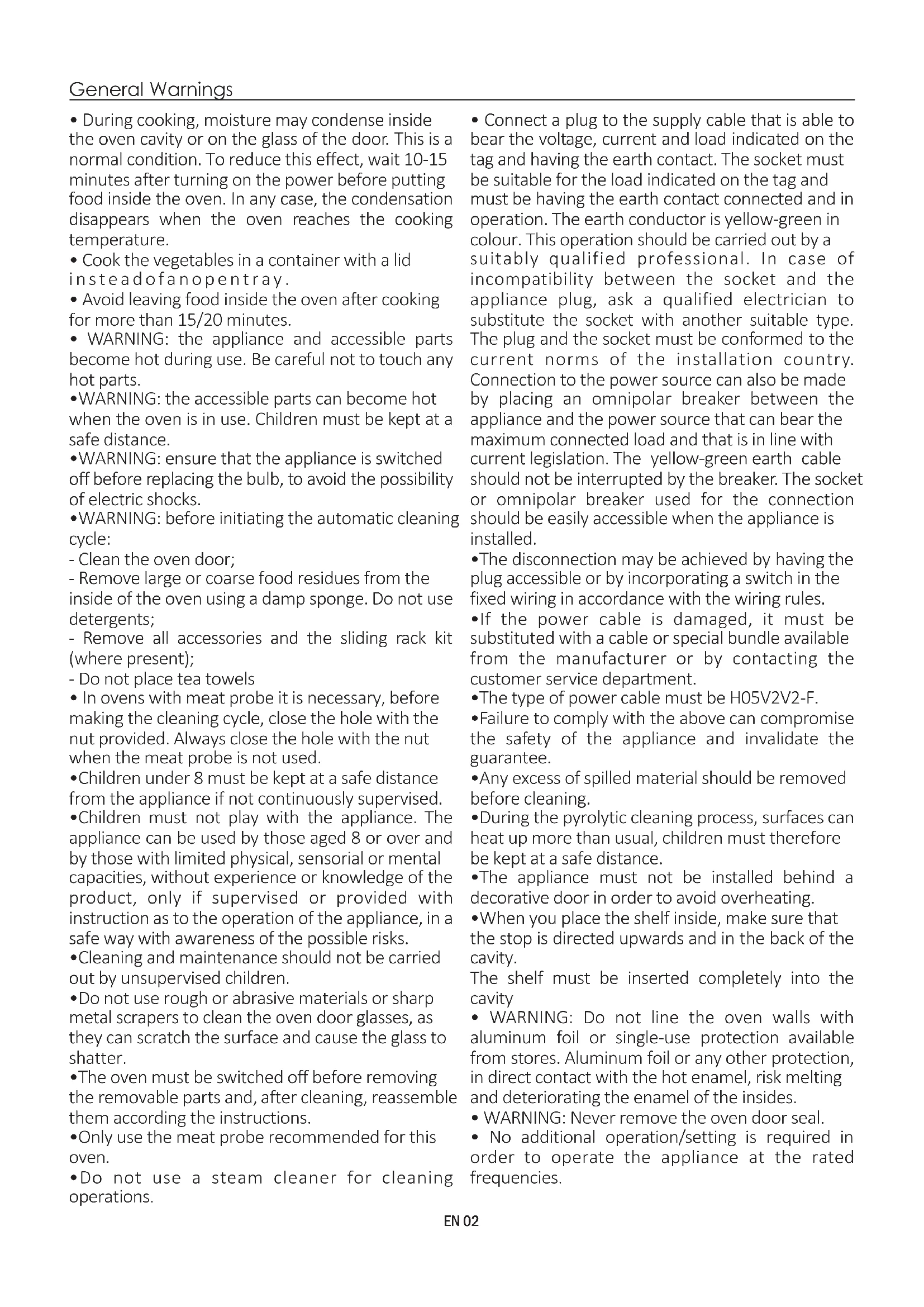

• Do not use rough or abrasive materials or sharp metal scrapers to clean the oven door glasses, as they can scratch the surface and cause the glass to shatter.

• WARNING: before initiating the automatic cleaning cycle:

• In ovens with meat probe it is necessary, before making the cleaning cycle, close the hole with the nut provided. Always close the hole with the nut when the meat probe is not used.

• Cook the vegetables in a container with a lid insteadofanopentray. - Clean the oven door; - Remove all accessories and the sliding rack kit (where present);

• WARNING: ensure that the appliance is switched off before replacing the bulb, to avoid the possibility of electric shocks. - Do not place tea towels

• Children under 8 must be kept at a safe distance from the appliance if not continuously supervised.

• Children must not play with the appliance. The appliance can be used by those aged 8 or over and by those with limited physical, sensorial or mental capacities, without experience or knowledge of the product, only if supervised or provided with instruction as to the operation of the appliance, in a safe way with awareness of the possible risks.

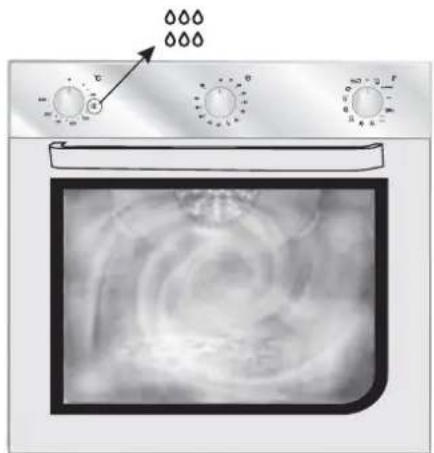

• During cooking, moisture may condense inside the oven cavity or on the glass of the door. This is a normal condition. To reduce this effect, wait 10-15 minutes after turning on the power before putting food inside the oven. In any case, the condensation disappears when the oven reaches the cooking temperature.

• WARNING: the appliance and accessible parts become hot during use. Be careful not to touch any hot parts.

• The type of power cable must be H05V2V2-F.

• Do not use a steam cleaner for cleaning operations.

• Any excess of spilled material should be removed before cleaning. The shelf must be inserted completely into the cavity

• Only use the meat probe recommended for this oven.

• WARNING: the accessible parts can become hot whentheovenisinuse.Childrenmustbekeptata safe distance.

• WARNING: Never remove the oven door seal.

• Failure to comply with the above can compromise the safety of the appliance and invalidate the guarantee.

• The appliance must not be installed behind a decorative door in order to avoid overheating.

• No additional operation/setting is required in order to operate the appliance at the rated frequencies.

• During the pyrolytic cleaning process, surfaces can heat up more than usual, children must therefore be kept at a safe distance.

• When you place the shelf inside, make sure that the stop is directed upwards and in the back of the cavity.

• The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.

• Avoid leaving food inside the oven after cooking for more than 15/20 minutes.

• Connect a plug to the supply cable that is able to bear the voltage, current and load indicated on the tag and having the earth contact. The socket must be suitable for the load indicated on the tag and must be having the earth contact connected and in operation. The earth conductor is yellow-green in colour. This operation should be carried out by a suitably qualified professional. In case of incompatibility between the socket and the appliance plug, ask a qualified electrician to substitute the socket with another suitable type. The plug and the socket must be conformed to the current norms of the installation country. Connection to the power source can also be made by placing an omnipolar breaker between the appliance and the power source that can bear the maximum connected load and that is in line with current legislation. The yellow-green earth cable should not be interrupted by the breaker. The socket or omnipolar breaker used for the connection should be easily accessible when the appliance is installed.

• The oven must be switched off before removing the removable parts and, after cleaning, reassemble them according the instructions. - Remove large or coarse food residues from the inside of the oven using a damp sponge. Do not use detergents; •If the power cable is damaged, it must be substituted with a cable or special bundle available from the manufacturer or by contacting the customer service department.

• WARNING: Do not line the oven walls with aluminum foil or single-use protection available from stores. Aluminum foil or any other protection, in direct contact with the hot enamel, risk melting and deteriorating the enamel of the insides.

• Cleaning and maintenance should not be carried out by unsupervised children. EN 02General Instructions

1.1 Safety indications

1.2 Electrical safety

1.6 Declaration of compliance

4.1 General notes on cleaning

• Removing and cleaning wire racks

• Removal of the oven window

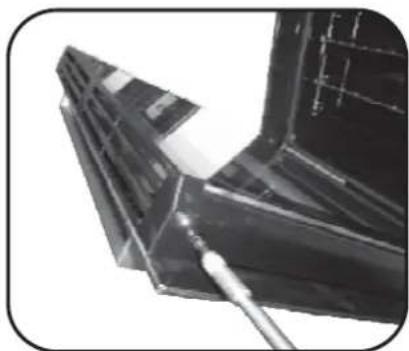

• Removal and cleaning of the glass door

• Changing the bulb Oven Cleaning and Maintenance

Summary EN 031. General Instructions We thank you for choosing one of our products. For the best results with your oven, you should read this manual carefully and retain it for future reference. Before installing the oven, take note of the serial number so that you can giveit to customer service staff if any repairs are required. Having removedthe oven from its packaging, check that it has not been damaged during transportation. If you have doubts, do not use the oven and refer to a qualified technician for advice. Keep all of the packaging material (plastic bags, polystyrene, nails) out of the reach of children. When the oven is switched on for the first time, strong smelling smoke can develop, which is caused by the glue on the insulation panels surrounding the oven heating for the first time. This is absolutely normal and, if it occurs, you should wait for the smoke to dissipate before putting food in the oven. The manufacturer accepts no responsibilityin cases where the instructionscontained in this document are not observed. NOTE: the oven functions, properties and accessories cited in this manual will vary, depending on the model you havepurchased.

1.1 Safety Indications

- do not pull on the powercableto disconnect the plug from the socket;Only use the oven for its intended purpose, that is only for the cooking of foods; any other use, for example as a heat source, is considered improper and therefore dangerous.The manufacturercannot be held responsible for anydamageresultingfromimproper, incorrector unreasonable usage. The use of any electrical appliance implies the observance of some fundamentalrules: - do not touch the appliance with wetor damp hands or feet; - in generalthe use of adaptors,multiple socketsand extensioncables is not recommended; - in case of malfunction and/or poor operation,switchoffthe appliance and do not tamper with it.

1.2 Electrical Safety

ENSURE THAT AN ELECTRICIAN OR QUALIFIED TECHNICIAN MAKES THE ELECTRICAL CONNECTIONS. The power supply to which the oven is connected must conform with the laws in force in the country of installation. The manufacturer accepts no responsibility for any damage caused by the failure to observe these instructions. The oven must be connected to an electrical supply with an earthed wall outlet or a disconnector with multiple poles, depending on the laws in force in the country of installation. The electrical supply should be protected with suitable fuses and the cables used must have a transverse section that can ensurecorrectsupplyto the oven. CONNECTION - the settingof the disconnector. The grounding wire connected to the oven's earth terminal must be connectedtothe earth terminal of the powersupply. WARNING NOTE: as the oven could require maintenance work, it is advisable to keep another wall socket available so that the oven can be connected to this if it is removed from the space in which it is installed. The power cable must only be substituted by technical service staff or by technicians with equivalentqualifications. - power voltageindicated on the gauge; The oven is supplied with a power cable that should only be connected to an electrical supply with 220-240 Vac 50 Hz power between the phases or between the phase and neutral. Before the oven is connected to the electricalsupply, it is important to check: Before connecting the oven to the power supply, ask a qualified electrician to check the continuity of the power supply's earth terminal. The manufacturer accepts no responsibility for any accidents or other problems caused by failure to connect the oven to the earth terminal or by an earth connectionthat has defective continuity.

Do not line the oven walls with aluminium foil or single-use protection available from stores. Aluminium foil or any other protection, in direct contact with the hot enamel, risks melting and deteriorating the enamel of the insides. In order to prevent excessive dirtying of your oven and the resulting strong smokey smells, we recommend not using the oven at very high temperature. It is better to extend the cooking time and lower the temperature a little. In addition to the accessories supplied with the oven, we advise you only use dishes and baking moulds resistant to very high temperatures. After each use of the oven, a minimum of cleaning will help keep the oven perfectly clean.

The manufacturers have no obligation to carry this out. If the assistance of the manufacturer is required to rectify faults arising from incorrect installation, this assistance is not covered by the guarantee. The installation instructions for professionally qualified personnel must be followed. Incorrect installation may cause harm or injury to people, animals or belongings. The manufacturer cannot be held responsible for such harm or injury. The oven can be located high in a column or under a worktop. Before fixing, you must ensure good ventilation in the oven space to allow proper circulation of the fresh air required for cooling and protecting the internal parts. Make the openings specified on last page according to the type of fitting.

1.5 Waste management and environmental protection

- the WEEE should not be treated as domestic waste; This appliance is labelled in accordance with European Directive 2012/19/EU regarding electric and electronic appliances (WEEE). The WEEE contain both polluting substances (that can have a negative effect on the environment) and base elements (that can be reused). It is important that the WEEE undergo specific treatments to correctly remove and dispose of the pollutants and recover all the materials. Individuals can play an important role in ensuring that the WEEE do not become an environmental problem;it is essential to follow a fewbasic rules: In many countries, domestic collections may be available for large WEEEs. When you buy a new appliance, the old one can be returned to the vendor who must accept it free of charge as a one-off, as long as the appliance is of an equivalenttype and has the same functions as the purchasedappliance.

SAVING AND RESPECTING THE ENVIRONMENT

Where possible, avoid pre-heating the oven and always try to fill it. Open the oven door as infrequently as possible, because heat from the cavity disperses every time it is opened. For a significant energy saving, switch off the oven between 5 and 10 minutes before the planned end of the cooking time, and use the residual heat that the oven continues to generate. Keep the seals clean and in order, to avoid any heat dispersal outside of the cavity. If you have an electric contract with an hourly tariff, the "delayed cooking" programme makes energy saving more simple, moving the cookingprocesstostartatthe reduced tarifftime slot. - the WEEE should be taken to dedicated collection areas managed by the towncouncilor a registeredcompany. EN 042

1.6 Declaration of compliance

The parts of this appliance that may come into contact with foodstuffscomplywith the provisions of EEC Directive89/109.With this the Candy Hoover Group, declares that this appliance markedwith complies with the essential requirements of the Directive2014/53/EU.To receive a copy of the declaration of conformity, please contact themanufacturer at: www.candy-group.com.By placing the mark on this product,we are confirming compliance toall relevant European safety, health and environmental requirementswhich are applicable in legislation forthis product.

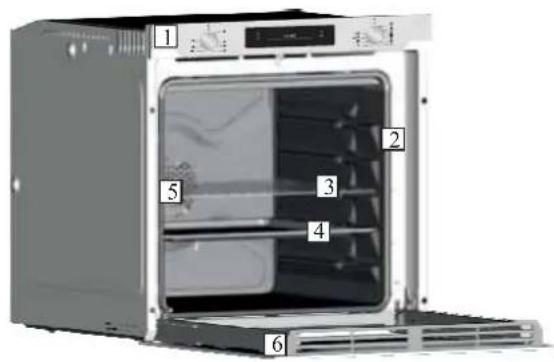

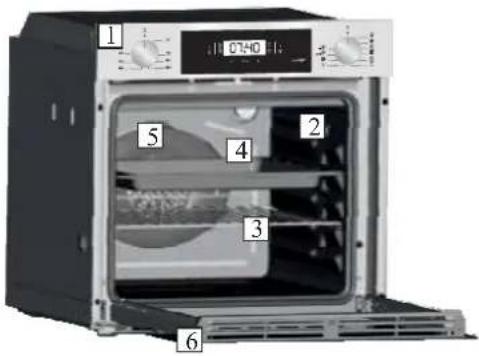

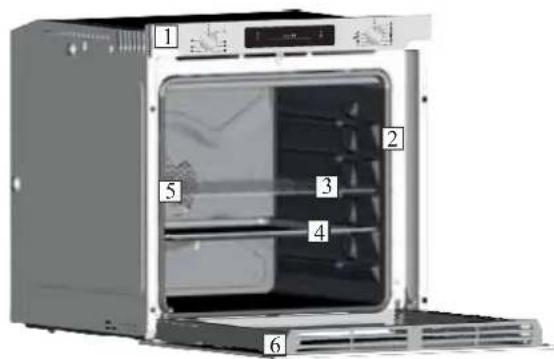

2. Product Description

(lateral wire grid if included)

2.2 Accessories (According to model)

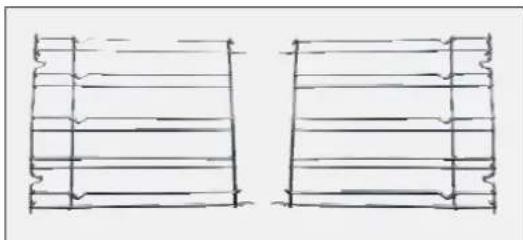

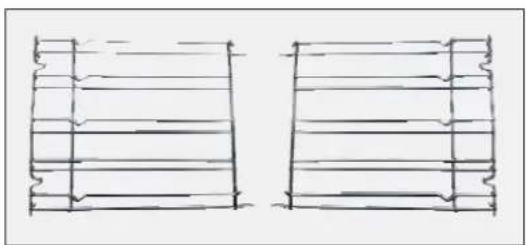

Collects the residues that drip during the cooking of foods on the grills. Lateral wire grids

Lateral wire grid if included.

Clean the oven before using for the first time. Wipe over external surfaces with a damp soft cloth. Wash all accessories and wipe inside the oven with a solution of hot water and washing up liquid. Set the empty oven to the maximum temperature and leave on forabout 1 hour, this will remove any lingering smells of newness.PRELIMINARYCLEANING EN 05 Metal grill

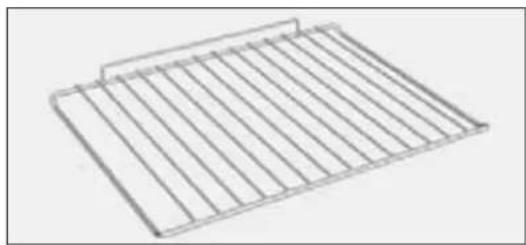

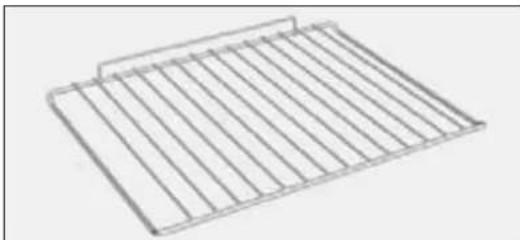

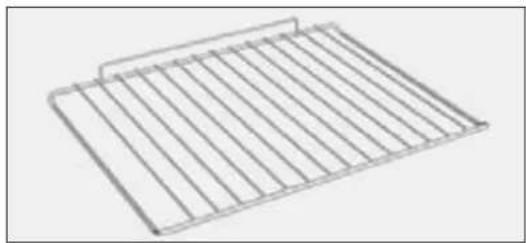

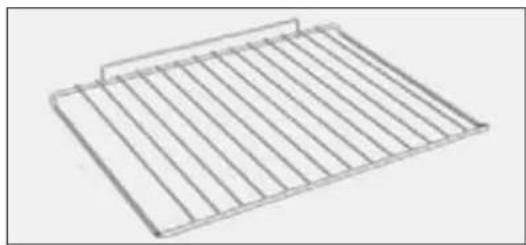

Holds baking trays and plates.10

3. Use of the Oven (According to model)

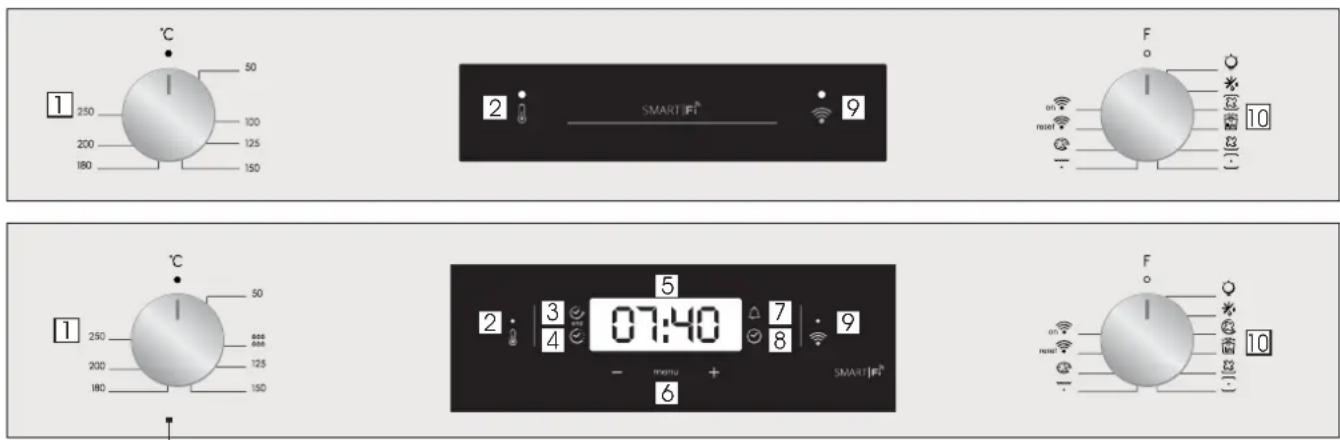

3.1 Display description

WARNING : the first operation to carry out after the oven has been installed or following the interruption

of power supply (this is recognizable the display pulsating and showing ) is setting the correct time. This is achievedasfollows. 12:00 The bottomright LED flashes at the same time ( ).

• Set time with buttons."-" "+"

• PushtheMenubutton or than the clock is setted.wait5seconds ATTENTION: The oven will only operate settingtheclock

6. LCD display adjustment controls

NOTE HOW TO USEKEY LOCK•Child Lock function is activated bytouching Set (+) for a minimum ofseconds. From this moment on allother function are locked and thedisplay will flash STOPand preset timeintermittently.3 sec intervals•Child Lock function is deactivated by touching touchpad Set (+) again for a minimum of seconds. From thismoment on all functions areselectableagain.

• Push the central button 3 times•Press the buttons "-" "+" to setthe required time•Release all the buttons
• When the set time has elapsed, an audible alarm isactivated this alarm will stop on itsown, however it can be stoppedimmediately by pressinganybutton.full stop after•Sounds an alarm at the end of theset time.•During the process, the displayshows the remaining time.•Allows to use the oven as alarm clock (could be activated either with operating the oven or with out operatingthe oven)

• Press the buttons "-" or "+"to set the lenghtof cooking required
• Push the central button1 times
• Release all buttons•Select the cooking function with theoven function knob, the temperatureyou want to cook with the thermostatknob. NOTE: If the oven is switched off or the lamp is functioning, the cooking time schedule function will not work.

• It allows to preset the cooking time requiredfor the recipechosen.
• To check how long is left to run press the MENU button 1 time.
• To alter/change the preset time press MENU and "-" "+" buttons.

• Push any button to stop the signal. Push the central button to return to the clock function.•At the end of the program the program gives 3 warning signals and “End” appears on the display.Set the function selector switch to "0" to returntothe clock function.
• At the time set, the oven will switch off. To switch off manually, turn the ovenfunction selector to position O. •To check the preset time push the centralbutton 2 times•Enables you to set the end ofcookingtime•To modify the preset time press buttonsMENU+ "-" "+"•Press the buttons "-" "+" to set the time at which you wish the oven toswitchoff
• Pushthe centralbutton times2
• Releasethe buttonsNOTE: If the oven is switched off orthe lamp is functioning, the cooking time schedule function will not work.
• Select the cooking function with theoven function knob, the temperatureyou want to cook with the thermostatknob.•This function is typically used with“cooking time” function.
• At the end of the cooking set time, the oven will switch off automatically and an audible alarm will ring. For exampleif the dish has to be cooked for 45 minutes and needs to be ready by12:30, simply select the requiredfunction, set the cooking time to 45 minutes and the end of cooking time to 12:30.
• Cooking will start automatically at 11:45 (12:30 minus 45 mins) and will continueuntil the pre-set end-of-cooking-time,when the oven will switch itself offautomatically.END OFCOOKINGCOOKING TIME MINUTEMINDER EN 06

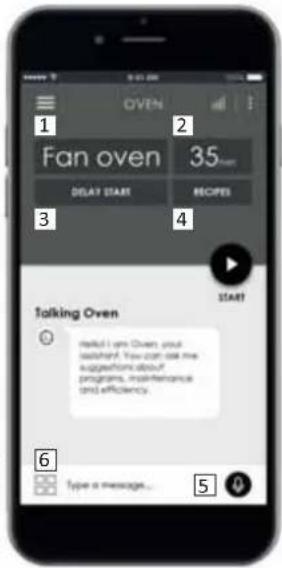

2 91. Program selection / 2. Program duration / 3. Cooking start setting / 4- Dedicated recipes selection / 5. Offline and vocal assistant /

6. Tips, suggestions and online user manual

If the enrollment is successful, the oven will be controlled by remote and the Wi Fi icon will switch on. If the enrollment is unsuccessful, Wi Fi will switch off and the oven will be reset. Note: For both Wi Fi positions, the touch buttons do not work. Note: Install the App on your device before starting enrolling For all the details related to the link between app and product, refer to the Quick Guide.

• WiFion:Wi Fi is switched on only if the oven is already enrolled to your device. In this position the oven will be only controlled by remote. Wi Fi has two different positions on the cooking selector: To proceed with a new enrollment the cooking program selector has to be turned out from Wi Fi reset position and moved again on it.

ELETTRONICA ZERO WIFI FUNCTION

• WiFireset:After leaving the selector on Wi Fi reset for 30”, Bluetooth will switch on and you will be able to enroll the oven to your device within 5’. Note: It is important to establish a good Wi-Fi signal strength between the home router and the appliance. When the oven is trying to connect to router the icon will blink 3” on and 1” off, when it is already connected the icon will switch on. The Quick Guide is available on: go.candy-group.com/candy-ov Note: The device where the App is installed must have Bluetooth activated EN 07 T °C Suggested

Function Dial Function (Depends on the oven model) LAMP: Turns on the oven light. GRILL: usethe grill with the door closed. The top heating element is used alone and you can adjust the temperature. Five minutes preheating is required to get the elements red- hot. Success is guaranteed for grills, kebabs and gratin dishes. White meats should be put at a distance from the grill; the cooking time is longer, but the meat will be tastier. You can put red meats and fish fillets on the shelf with the drip tray underneath. The oven has two grill positions: Grill: 2140 W Barbecue: 3340 W Allow about tenminutes extrawhen cookingfoodsat the same time. FAN COOKING: We recommend you use this method for poultry, pastries, fish and vegetables. Heat penetrates into the food better and both the cooking and preheating times are reduced. You can cook different foods at the same time with or without the same preparation in one or more positions.This cookingmethod gives evenheat distribution and the smells arenot mixed. DEFROST: When the dial is set to this position. The fan circulates air at room temperature around the frozen food so that it defrosts in a few minutes withoutthe proteincontent of the food being changed or altered. Place the shelf in the bottom position. It preventsfoodfrom drying and encouragesrising in cakes,bread dough and other bottom-cookedfood. FAN+ LOWER ELEMENT: The bottom heating element is used with the fan circulating the air inside the oven. This method is ideal for juicy fruit flans, tarts,quiches and pâté.

CONVENTIONAL COOKING: Both top and bottom heating elements are used. Preheat the oven for about ten minutes. This method is ideal for all traditionalroastingand baking. For seizing red meats,roastbeef, leg of lamb, game,bread, foil wrapped food (papillotes), flaky pastry. Placethe food and itsdish ona shelfin midposition. PIZZA:With this function hotair circulatedin theoven to ensure perfect result fordishes suchas pizza or cake.

The function allows you to cook in a healthier way, by reducing the amount of fat or oil required. Thanks to the use of the grill and fan combined with a pulsating cycle of air, it will retain the moisture content of the food, grilling the surface and using a shorter cookingtime, withoutcompromisingon taste. ""COOK LIGHT Try all your recipesand reduce theamount of dressingyou usually use and experiencethe lightness ofthis newfunction! It is particularly suitable for cooking meat, roasted vegetables and omelettes. The cycle of pulsed air keeps the humidity inside the oven and the moisture contentof thefood,preserving the nutritional values andensuring arapiduniformcooking process.

WIFI ON: Oven allows wificonnection.

WIFI RESET:It allows wifi connection to berestarted. *Tested in accordance with the CENELEC EN 60350-1 used for definition of energy class. For detailed information about HOW TO CONNECT your simply-Fi appliance and HOW TO USE it at its best,go to http://www.candysimplyfi.com CANDYSIMPLY-FI:

FANASSISTEDGRILL :use the turbo-grill withthe doorclosed. The top heating element is used with the fan circulating the air inside the oven. Preheating is necessary for red meats but not for white meats. Ideal for cooking thick food items, whole pieces such as roast pork, poultry, etc. Place the food to be grilled directly on the shelf centrally, at the middle level. Slide the drip tray under the shelf to collect the juices. Make sure that the food is not too close to the grill. Turn the food over halfway through cooking.4. Oven cleaning and maintenance

4.1 General notes on cleaning

GLASS PARTS If dirty,thesealcanbecleanedwithaslightly damp sponge. The lifecycle of the appliance can be extended through regular cleaning. Wait for the oven to cool before carrying out manual cleaning operations. Never use abrasive detergents, steel wool or sharp objects for cleaning, so as to not irreparably damage the enamelled parts. Use only water, soap or bleach-based detergents(ammonia). DRIP PAN OVENWINDOW SEAL It is advisable to clean the glass window with absorbent kitchen towel after every use of the oven. To remove more obstinate stains, you can use a detergent-soakedsponge,well wrung out, and then rinse with water. Clean accessories with a wet, soapy sponge before rinsing and drying them: avoidusing abrasive detergents. If greasy residues remain, immerse the pan in water and detergent. Alternatively, you can wash the pan in the dishwasher or use a commercial ovendetergent. Never put a dirty pan back into the oven. ACCESSORIES After using the grill, remove the pan from the oven. Pour the hot fat into a container and wash the pan in hot water, using a sponge and washing-up liquid. EN 08

2. Set the ovenfunction to Static( )or Bottom ( )heater

5. After30 minutes switchoff the program and allow the oven to cool down.

Warning: Make sure that the appliance is cool before you touch it.

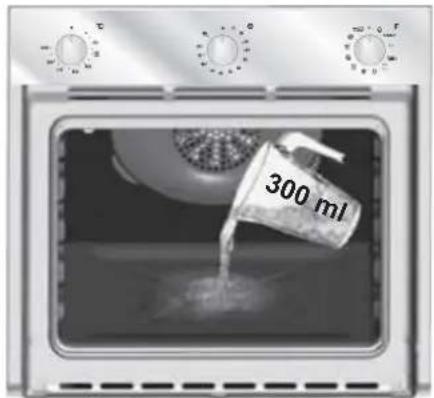

Use distilledor drinkable water.

6. When the appliance is cool, clean the inner surfaces of the oven with a cloth.

Caremust be taken with all hot surfaces as there is a risk of burns. 300 ml

3- Afterthe cleaning process installthe wire racksin reverse order.

2- To clean the wire racks either put them in the dishwasheror use a wet sponge, ensuring that they are dried afterwards.

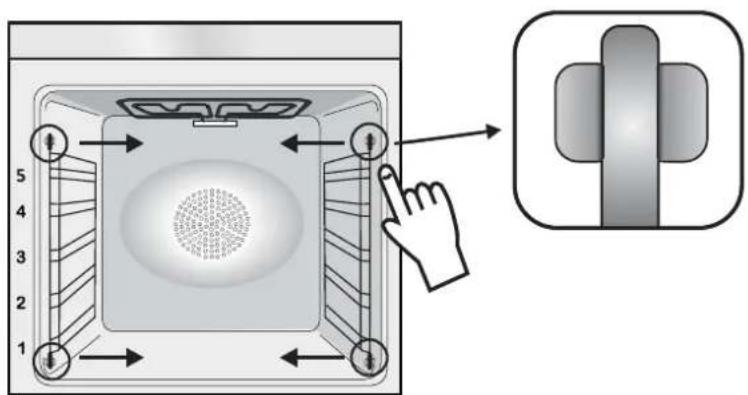

1- Removethe wireracksby pulling them in the direction of the arrows(see below)

REMOVINGAND CLEANING WIRE RACKS

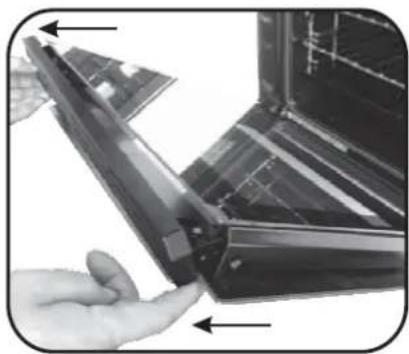

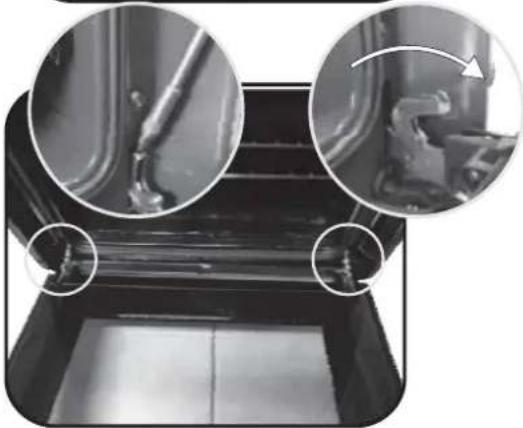

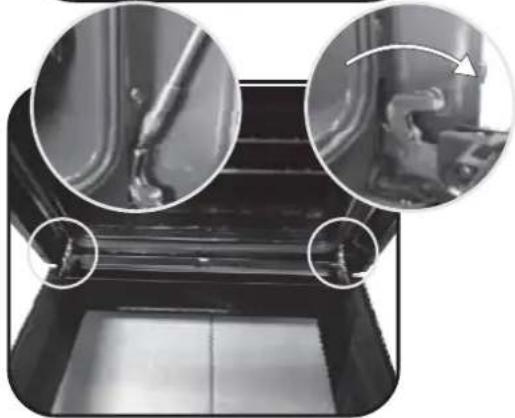

1. Open the front window.

2. Open the clamps of the hinge housing on the right and left side of the frontwindow by pushing them downwards.

3. Replacethe window by carrying out the procedurein reverse.LOW-E

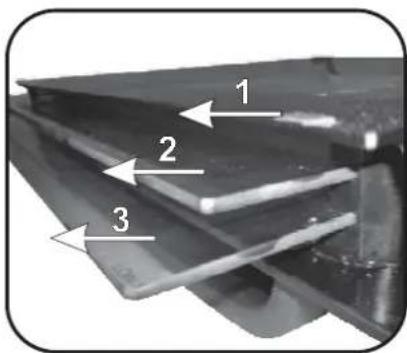

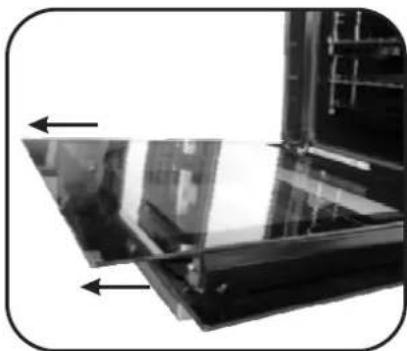

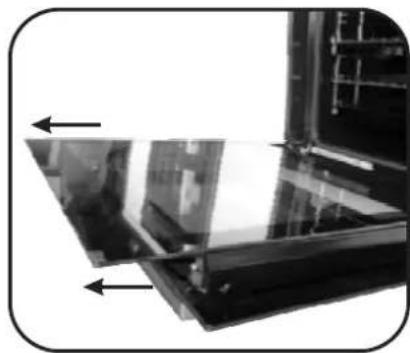

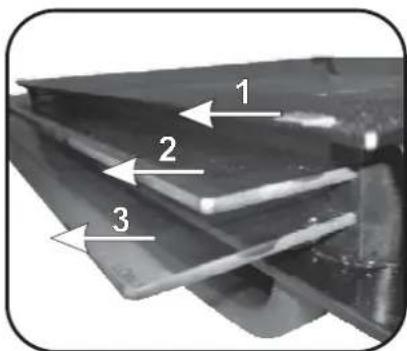

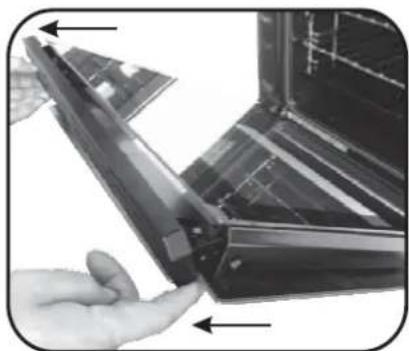

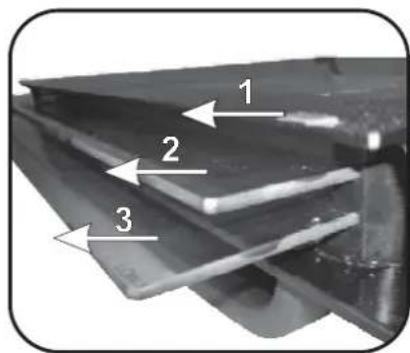

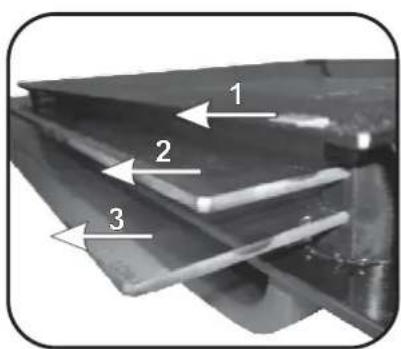

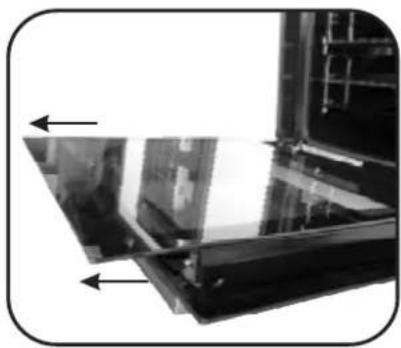

5.6. Remove the glass, carefully extractingitfrom the ovendoor(NB:inpyrolyticovens,alsoremovethesecond and thirdglass(ifpresent)).

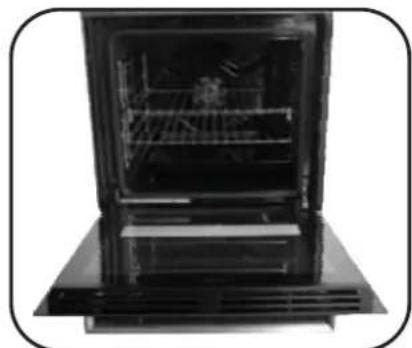

1. Open the ovendoor.

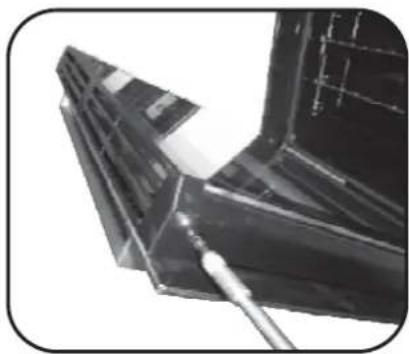

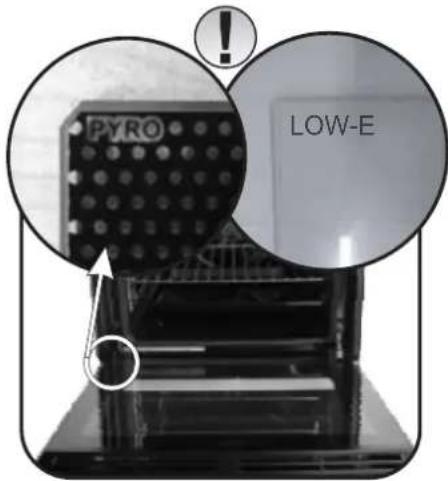

On all glass, the indication "Low-E" must be legible and positioned on the left side of the door, close to the left-hand lateral hinge. In this way, the printed label of the first glass will be inside the door.

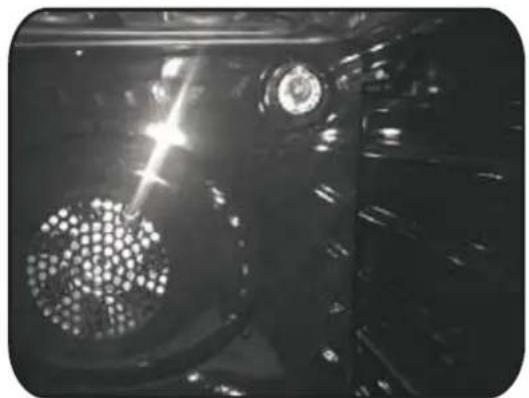

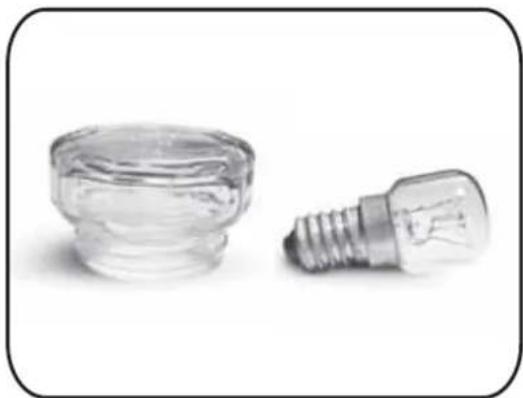

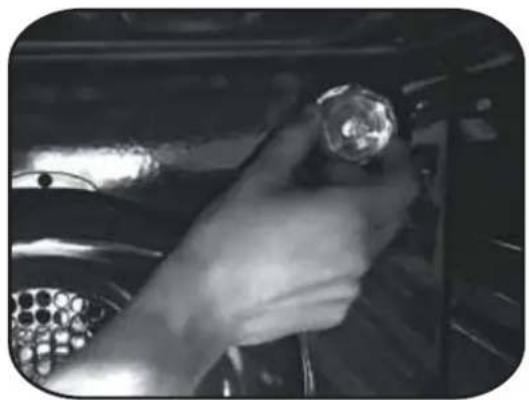

EN 09CHANGING THE BULB

1. Disconnecttheovenfrom the mains supply.

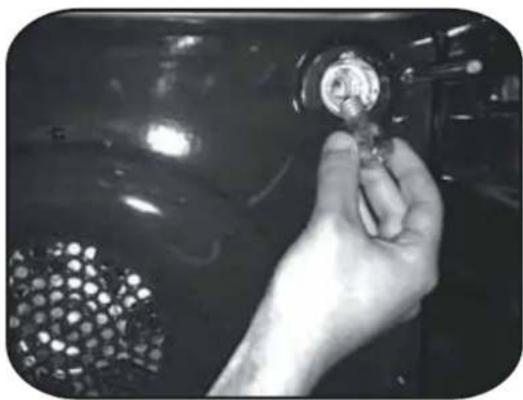

2. Undo the glass cover, unscrewthebulbandreplace it with a new bulb of the same type.

3. Once the defective bulb is replaced,replace the glass cover.

PROBLEM POSSIBLE CAUSE SOLUTION

The oven does not heat up The clock is not set Set the clock A cooking function and temperature has not been set Ensure that the necessary settings are correct The oven does not heat up Steam and condensation on the user interface panel Clean with a microfiber cloth the user interface panel to remove the condensation layer No reaction of the touch user interface EN 10Güvenlik uyarıları

PROBLEMA POSSIBLE CAUSE SOLUTION

1.6 Declaration of compliance

PROBLEMA POSSÍVEL CAUSA SOLUÇÃO

(lateral wire grid if included)

6. LCD display adjustment controls

1.6 Declaration of compliance

1.6 Declaration of compliance

560 mm590 mm42827150 • 55 gr- A4 • 03.2019 • Rev_F The manufacturer will not be responsible for any inaccuracy resulting from printing or transcript errors contained in this brochure. We reserve the right to carry out modifications to products as required, including the interests of consumption, without prejudice to the characteristics relatingto safety or function.
