To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

The laser component in this product is capable of emitting radiation exceeding the limit for Class 1.

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior.

АЯ46

Don't throw a battery, dispose it as the injurious wastes.

Precautions

On safety

• Caution — The use of optical instruments with this product will increase eye hazard.
• Should any solid object or liquid fall into the cabinet, unplug the player and have it checked by qualified personnel before operating it any further.

On power sources

• Before operating the player, check that the operating voltage of the player is identical with your local power supply. The operating voltage is indicated on the nameplate at the rear of the player.
• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.
• If you are not going to use the player for a long time, be sure to disconnect the player from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• AC power cord must be changed only at the qualified service shop.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.
• Do not place the player on a soft surface such as a rug that might block the ventilation holes on the bottom.
• Do not place the player in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock.

On using the stabilizer (only for CDP-XB930 and CDP-XB930E)

- Be sure to use the supplied stabilizer. If you use any other stabilizer, you may damage the player.

On operation

- If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about an hour until the moisture evaporates.

On adjusting volume

- Do not turn up the volume while listening to a portion with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level portion is played.

On cleaning

- Clean the cabinet, panel and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On transportation

- Be sure to remove the CD and the stabilizer.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Welcome!

Thank you for purchasing the Sony Compact Disc Player. Before operating the unit, please read this manual thoroughly and retain it for future reference.

About This Manual

The instructions in this manual are for models CDP-XB930, CDP-XB930E, and CDP-XB630. The CDP-XB930 is the model used for illustration purposes. Any difference in operation is clearly indicated in the text, for example, "CDP-XB930 only."

Conventions

• Instructions in this manual describe the controls on the player.
  You can also use the controls on the remote if they have the same or similar names as those on the player.
• The following icons are used in this manual:

Indicates that you can do the task using the remote.

Indicates hints and tips for making the task easier.

TABLE OF CONTENTS

Getting Started

Unpacking 4
Hooking Up the System 4

Playing a CD 6

Playing CDs

Using the Display 8
Locating a Specific Track or a Particular Point in a Track 10

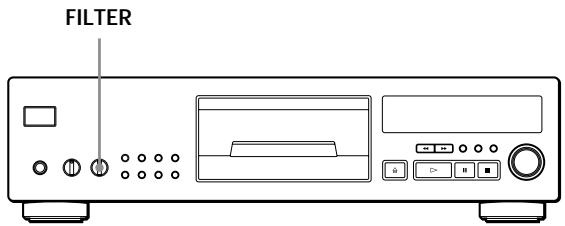

Customising the Sound of Your Music (Digital Filter Function) (only for CDP-XB930 and CDP-XB930E) 11
Playing Tracks Repeatedly 12
Playing in Random Order (Shuffle Play) 13

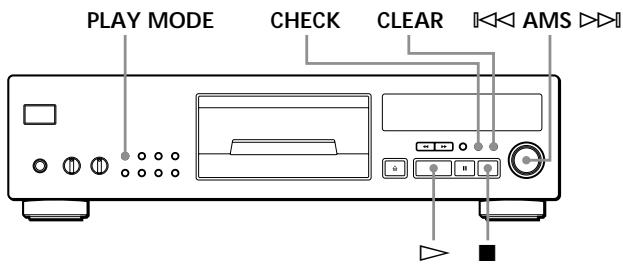

Creating Your Own Programme (Programme Play) 13

Recording From CDs

Recording Your Own Programme 15
Recording a CD by Specifying Tape Length (Time Edit/Just Edit) ..... 16
Fading In or Out.... 17
Useful Tips for Recording 18

Additional Information

Notes on CDs 19
Troubleshooting 19
Specifications 20

Index

Index 21

Unpacking

Check that you received the following items:

• Audio connecting cord (1)
- Remote commander (remote) (1)
• R6 (size AA) batteries (2)
• Stabilizer (1) (only for CDP-XB930 and CDP-XB930E)

Inserting batteries into the remote

You can control the player using the supplied remote. Insert two R6 (size AA) batteries by matching the + and – on the batteries to the diagram inside the battery compartment.

Insert the negative (−) end first, then push in and down until the positive (+) end clicks into the position.

When using the remote, point it at the remote sensor R on the player.

Diagram showing battery charging process with two batteries moving from a remote to a closed battery (no text or symbols)

When to replace batteries

With normal use, the batteries should last for about six months. When the remote no longer operates the player, replace all the batteries with new ones.

Notes

• Do not leave the remote near an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you don't use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Hooking Up the System

Overview

This section describes how to hook up the CD player to an amplifier. Be sure to turn off the power of each component before making the connections.

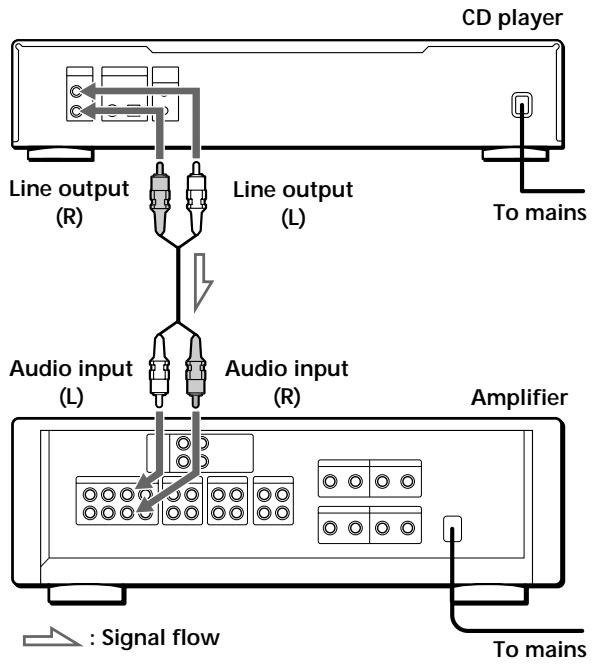

CD player Line output (R) Line output (L) To mains Audio input (L) Audio input (R) Amplifier : Signal flow To mains

What cords will I need?

■When making analog hookups

• Audio cord (supplied) (1)

White (L) Red (R) White (L) Red (R)

■ When making digital hookups

• Optical cable POC-15 (not supplied)

- Coaxial cable (not supplied) (only for CDP-XB930 and CDP-XB930E)

Hookups

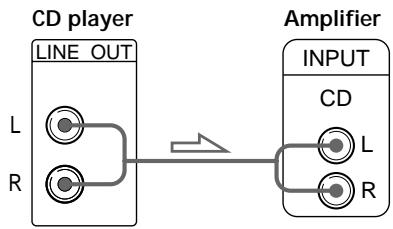

■When making analog hookups

When connecting an audio cord, be sure to match the colour-coded cord to the appropriate jacks on the components: Red (right) to Red and White (left) to White. Be sure to make connections firmly to avoid hum and noise.

You can adjust the output level to the amplifier

Press LINE OUT LEVEL + / - on the remote. You can reduce the output level up to -20dB .

When you reduce the output level, "FADE" appears in the display.

When you turn off the player, the output level automatically returns to the maximum level.

Note

If you press the LINE OUT LEVEL + / - buttons on the remote while recording, the recording level will change even when it is preset on the tape deck, etc.

■When making digital hookups

You can avoid deterioration of the signal during transmission, since the music signal output through the digital output connectors retains digital form.

You can connect a digital component such as a digital amplifier, D/A converter, DAT or MD. When you connect a DAT or MD, you can make digital recordings from CDs.

Note that you cannot use the following functions when making this connection:

• Fading in or out (see page 17)
• Time Fade (see page 17)
- Adjusting the output level using the LINE OUT LEVEL + / - buttons on the remote (see above)

- If you have a digital component with an optical digital input connector

Connect the component via the DIGITAL OUT (OPTICAL) connector using the optical cable (not supplied). Take off the cap and plug in the optical cable.

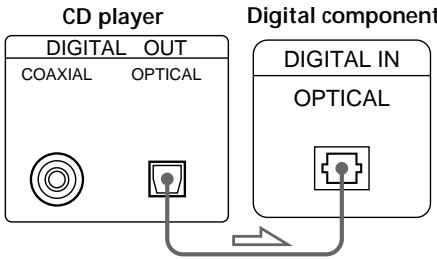

CD player DIGITAL OUT COAXIAL OPTICAL Digital component DIGITAL IN OPTICAL

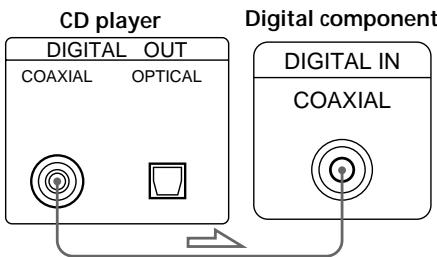

- If you have a digital component with a coaxial digital input connector (CDP-XB930 and CDP-XB930E only)

Connect the component via the DIGITAL OUT (COAXIAL) connector using the coaxial cable (not supplied).

CD player DIGITAL OUT COAXIAL OPTICAL Digital component DIGITAL IN COAXIAL

Note

When you connect via the DIGITAL OUT connector, noise may occur when you play CD software other than music, such as a CD-ROM.

If you have a Sony component with the CONTROL A1 II (or CONTROL A1) jack

Connect the component via the CONTROL A1 II jack. You can simplify the operation of audio systems composed of separate Sony components. For details, refer to the supplementary “CONTROL-A1 II Control System” instructions.

Connecting the mains lead

Connect the mains lead to a wall outlet.

Removing the warning from the disc tray (CDP-XB930 and CDP-XB930E only)

The warning, "Do not touch the lens inside," is put inside the disc tray at the factory.

Before using the player, you must remove this warning. Turn on the player, and press

OPEN/CLOSE, and remove the warning.

Where do I go next?

Now you're ready to use your player.

If you aren't familiar with how to play CDs, go to the section "Playing a CD" on page 6.

Then, go to the following sections for other operations.

Playing a CD

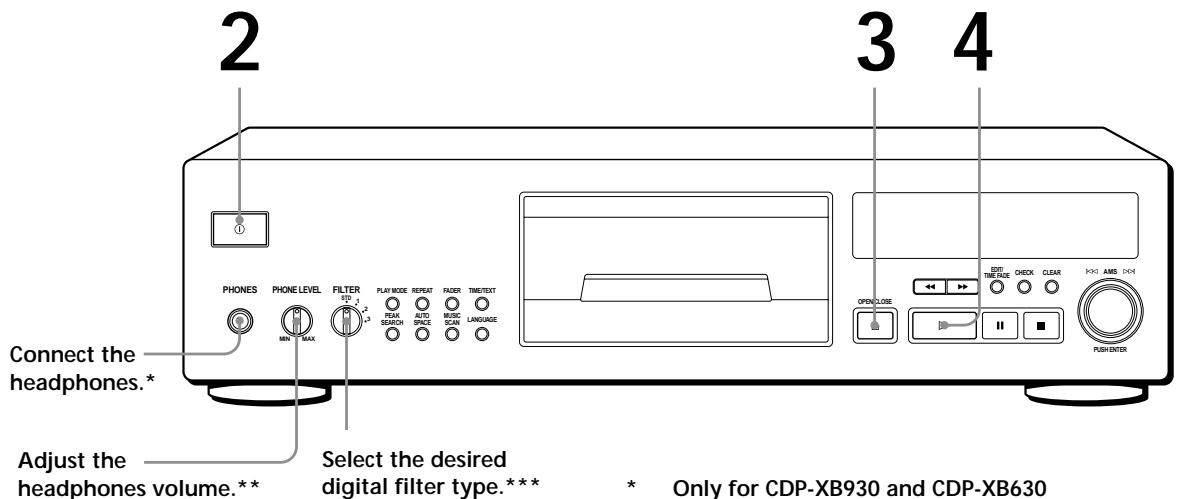

2 3 4 PHONES PHONE LEVEL FILTER PLAY MODE REPEAT FADER TIME/TEXT MIN MAX 1 2 PEAK AUTO MUSIC SEARCH AURO SPACE SCAN LANGUAGE Connect the headphones.* Select the desired digital filter type.*** Adjust the headphones volume.** Only for CDP-XB930 and CDP-XB630

* Only for CDP-XB930 and CDP-XB630
** Only for CDP-XB930
*** Only for CDP-XB930 and CDP-XB930E

- See pages 4 – 5 for the hookup information.

If you turn on the player with a CD in the tray

You can start playing automatically from the beginning of the CD. If you connect a commercially available timer, you can start playing the CD at any time you want.

If “- NO STABI -” appears in the display (only for CDP-XB930 and CDP-XB930E)

Place the supplied stabilizer on the CD.

If you do not, this indication appears.

Note

In Step 3, do not place two or more CDs at the same time. If you do so, you may damage the discs and/or the player.

1 Turn on the amplifier and select the CD player position.
2 Press ① to turn on the player.
3 Press ≜ OPEN/CLOSE, and place a CD on the tray.

• CDP-XB930 and CDP-XB930E

Line drawing of a hand holding a CD inside a device (no text or symbols)

With the label side up

Line drawing of a hand using a tool to press or adjust a circular component on a device (no text or symbols present)

Place the supplied stabilizer on the CD with the smaller hole side facing up.
- CDP-XB630

Diagram of a mechanical assembly with tool and component (no text or symbols)

With the label side up

4 Press ▷. The disc t

The disc tray closes and the player plays all the tracks once (Continuous Play).

Adjust the volume on the amplifier.

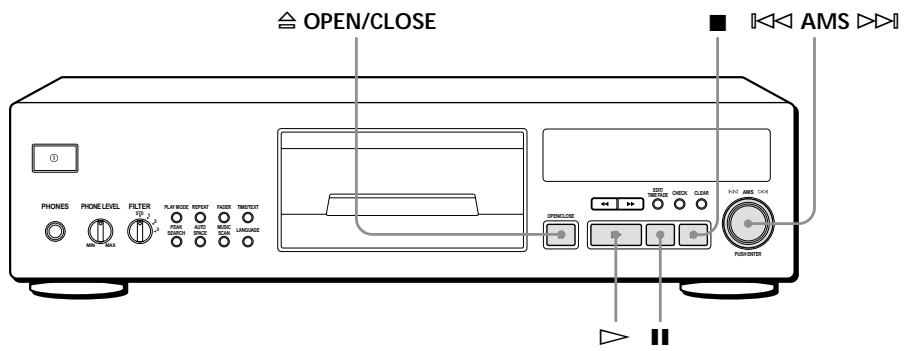

To stop playback

Press ■.

OPEN/CLOSE PHONES PHONE LEVEL FILTER PLAY/ORDER REPEAT NAME ORDER OFFICE ORDER CHANGE AMS >>> PUSHERS OPEN/CLOSE OFFICE ORDER CHANGE AMS >>> PUSHERS

When you want to	You need to
Pause	Press ||
Resume play after pause	Press || or ▷
Go to the next track	Turn ◀◀ AMS ▷▶ clockwise
Go back to the preceding track	Turn ◀◀ AMS ▷▶ counterclockwise
Stop play and remove the CD	Press ≜ OPEN/CLOSE

Using the Display

You can check information about the disc using the display.

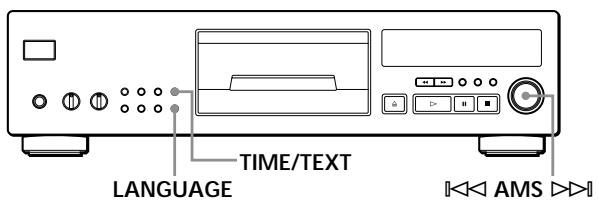

LANGUAGE TIME/TEXT AMS

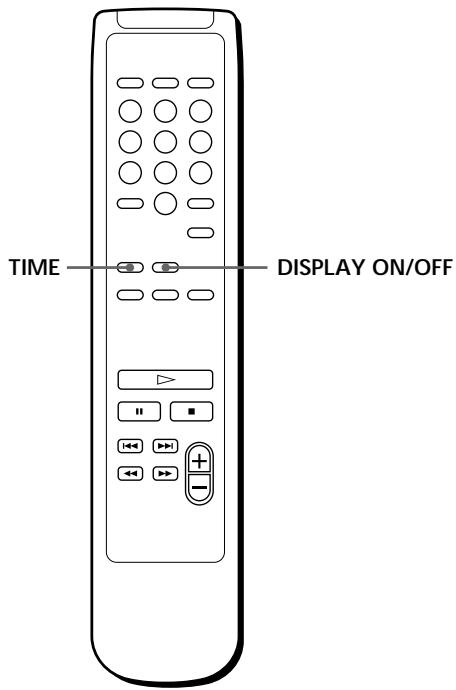

TIME DISPLAY ON/OFF

Checking the total number and playing time of the tracks

Press TIME/TEXT (or TIME on the remote) before you start playing.

The display shows the total number of tracks, total playing time and music calendar.

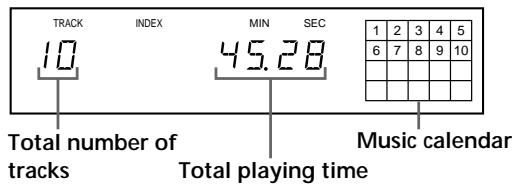

TRACK INDEX MIN SEC 10 45.28 Total number of tracks Total playing time Music calendar 1 2 3 4 5 6 7 8 9 10

While in Shuffle Play mode ("SHUFFLE" appears in the display; see page 13), a one-second access time blank is added between each track. This increase is automatically added to the total playing time in the display.

The information also appears when you press

OPEN/CLOSE to close the disc tray.

Display information while playing a disc

While playing a disc, the display shows the current track number, index number, playing time and music calendar.

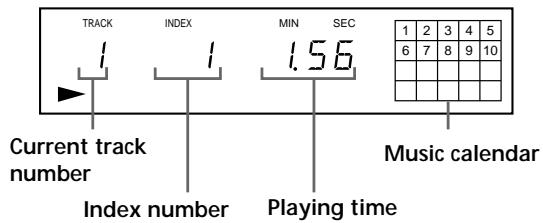

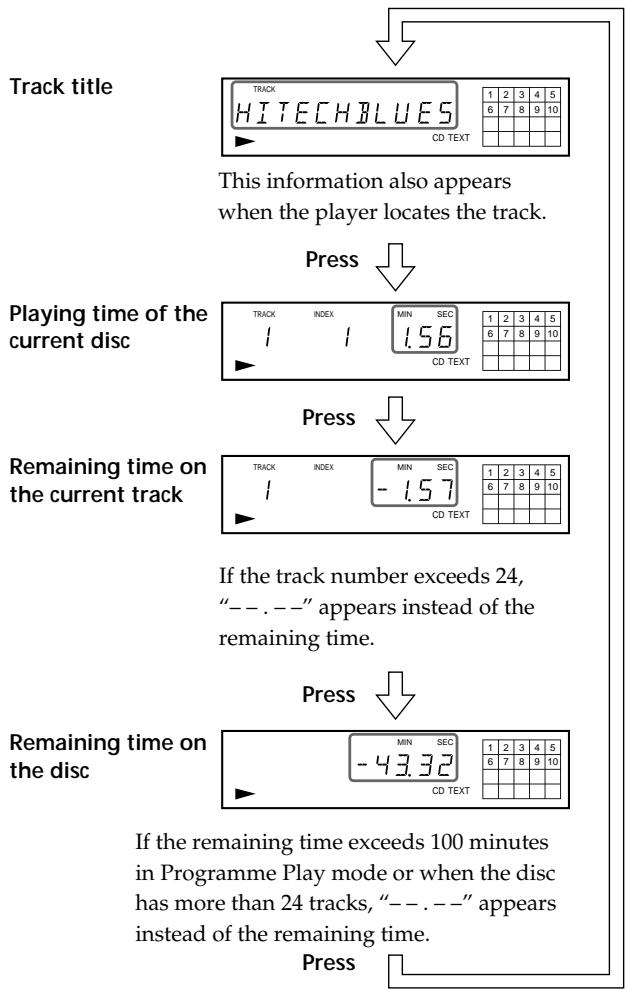

TRACK INDEX MIN SEC Current track number Index number Playing time Music calendar 1 2 3 4 5 6 7 8 9 10

The track numbers in the music calendar disappear after they are played.

Checking the remaining time

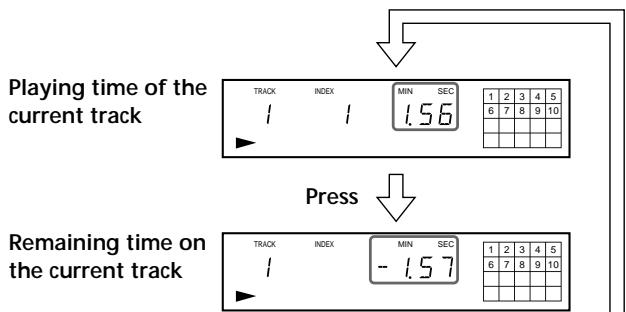

Each time you press TIME/TEXT (or TIME on the remote) while playing a disc, the display changes as shown in the chart below.

Playing time of the current track Press Remaining time on the current track

If the track number exceeds 24, “-- .--” appears instead of the remaining time.

Press Remaining time on the disc MIN SEC -43.32 1 2 3 4 5 6 7 8 9 10

If the remaining time exceeds 100 minutes in Programme Play mode or when the disc has more than 24 tracks, “-- .--” appears instead of the remaining time.

Press

Checking the information of CD TEXT discs

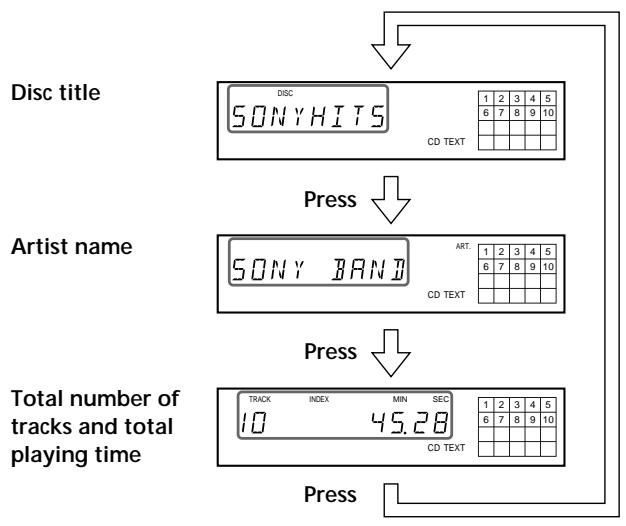

CD TEXT discs have information, such as the disc titles or artist names, memorised in a blank space on the discs where, on normal discs, there is no information. The display shows the CD TEXT information of the disc so that you can check the current disc title, artist name and track title. When the player detects CD TEXT discs, the “CD TEXT” indication appears in the display. If your CD TEXT disc has multi language capacity, “CD TEXT” and “MULTI” indications appear in the display. If you want to check the information in another language, refer to “Checking the information of CD TEXT discs in other languages” on page 9. Each time you press TIME/TEXT (or TIME on the remote), the display changes as shown in the chart below.

• Before you start playing

- While playing a disc

If a title or name has more than 12 characters, the first 12 characters will light up after the title or name scrolls by in the display.

Notes

• The display may not show all the characters depending on the disc.
• This player can only display the disc titles, track titles and artist names from CD TEXT discs. Other information cannot be displayed.

Checking the information of CD TEXT discs in other languages

You can change the displayed language if your CD TEXT disc has multi language capacity. When the player detects such a CD TEXT disc, "CD TEXT" and "MULTI" appear in the display.

If the player cannot read the language memorised in a CD TEXT disc, the display shows "" after the player detects the disc.

1 Before playing a CD TEXT disc, press LANGUAGE.
"SELECT LANG" and the current operating language appear in the display.
2 Turn ◀◀◀ AMS ▷▶▶ until the language you want to select appears in the display.
3 Push ◀◀ AMS ▷▶ to select the language. "READING TEXT" appears momentarily, then the display shows the new selected language.
4 Press TIME/TEXT (or TIME on the remote) repeatedly until the information you want to check appears (see page 9).

Notes

• If your CD TEXT disc is not equipped with other languages, "CAN'T SELECT" appears in the display when you press the LANGUAGE button.
• If you press LANGUAGE while playing a CD TEXT disc, the current operating language appears momentarily.
• The operating language you have selected remains until you turn off the power.

Turning off indications in the display

Each time you press DISPLAY ON/OFF on the remote while playing a disc, the display turns off and on alternately.

Even when the display is turned off, the display turns on if you pause or stop play. When you resume play, the display turns off again.

Before you start playing, when you press DISPLAY ON/OFF to turn off the display, "DISPLAY OFF" appears, and when you press the button to turn on the display, "DISPLAY ON" appears.

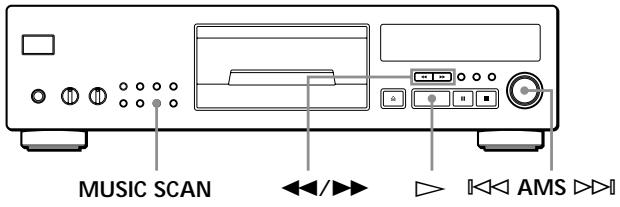

Locating a Specific Track or a Particular Point in a Track

You can quickly locate any track while playing a disc using the AMS (Automatic Music Sensor) on the player or number buttons on the remote.

You can also locate a particular point in a track while playing a disc.

MUSIC SCAN ◄◄/►► ► ◄◄ AMS ►►►

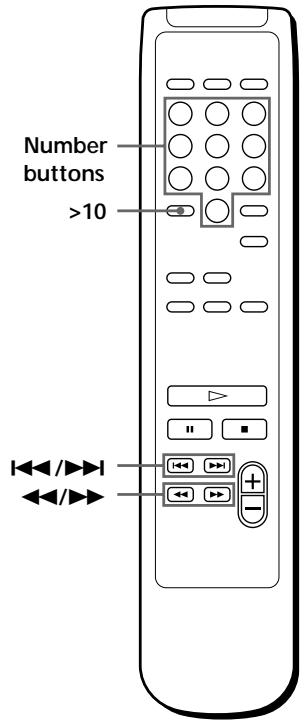

Number buttons >10

To locate	You need to
The next or succeeding tracks	Turn ◀◀ AMS ▶▶clockwise until you find the track. When using the remote, press ▶▶repeatedly until you find the track.
The current or preceding tracks	Turn ◀◀ AMS ▶▶counterclockwise until you find the track. When using the remote, press ◀◀ repeatedly until you find the track.
A specific track directly	Turn ◀◀ AMS ▶▶until you find the track number you want. When using the remote, press the number button of the track.
By scanning each track for 10 seconds (Music Scan)	Press MUSIC SCAN. When you find the track you want, press ▷to start playing the track.
A point while monitoring the sound	Press ▶▶(forward) or ◀◀(backward) and hold down until you find the point.
A point quickly by observing the display during pause	Press ▶▶(forward) or ◀◀(backward) and hold down until you find the point. You will not hear the sound during the operation.

When you directly locate a track numbered over 10

Press >10 first, then the corresponding number buttons.

To enter "0," use button 10.

Example: To play track number 30

Press >10 first, then 3 and 10.

You can extend the playing time during Music Scan

Press MUSIC SCAN repeatedly until the playing time you want (10, 20 or 30) appears in the display. Each time you press the button, the playing time changes cyclically.

Note

If “- OVER -” appears in the display, the disc has reached the end while you were pressing ▶▶. Press ◀◀ or turn ◀◀◀ AMS ▶▶◀ counterclockwise to go back.

Customising the Sound of Your Music (Digital Filter Function) (Only for CDP-XB930 and CDP-XB930E)

By selecting the type of filter you want, you can adjust the sound to match your system, your speakers, etc. This player has four types of filters: "STD (Standard)," "1," "2" and "3."

FILTER

Types of Digital Filter	Sound image
STD (Standard)	• wide ranging• ample spatial representation
1	• clear• smooth sound reproduction
2	• high clarity• strength
3	• warm• deep

Set the FILTER control to the digital filter type you want. The display shows the digital filter type you select.

If you change the type of digital filter during play, the sound will be interrupted momentarily.

Notes

• The Digital Filter function primarily changes characteristics outside the audible frequency. They cannot affect changes within the audible frequency such as those provided by the tone controls of the amplifier. Therefore, with certain combinations of hardware and software, there may be no noticeable effect after switching the filter.
• If you change the type of digital filter during Peak Search (See page 18), the type of filter appears in the display when Peak Search is finished.

Playing Tracks Repeatedly

You can play tracks repeatedly in any play mode.

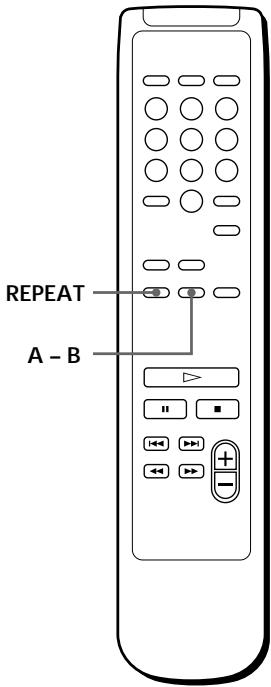

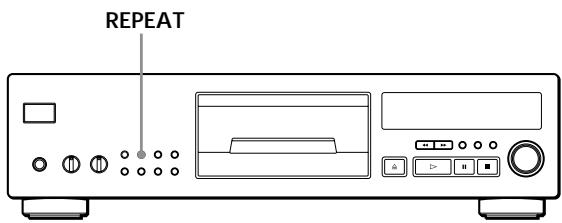

REPEAT

REPEAT A - B

Press REPEAT while playing a disc.

"REPEAT" appears in the display. The player repeats the tracks as follows:

When the disc is played in	The player repeats
Continuous Play (page 6)	All the tracks
Shuffle Play (page 13)	All the tracks in random order
Programme Play (page 13)	The same programme

To cancel Repeat Play

Press REPEAT twice.

Repeating the current track (Repeat 1)

You can repeat only the current track in any play mode.

While the track you want is being played, press REPEAT repeatedly until “REPEAT 1” appears in the display.

To cancel Repeat 1

Press REPEAT.

Repeating a Specific Portion (A←→B Repeat)

You can play a specific portion in a track repeatedly.

This might be useful when you want to memorize lyrics.

Note that you cannot repeat a portion extending to two tracks.

1 While playing a disc, press A – B on the remote when you find the starting point (point A) to be played repeatedly.

"A-" of "REPEAT A-" flashes in the display.

2 When you reach the ending point (point B), press A - B again.

"REPEAT A-B" appears. The player plays this specific portion repeatedly.

To cancel A←→B Repeat

Press REPEAT.

Setting a new starting point

You can move the repeating portion ahead by changing the starting point.

1 Press A – B while the player is repeating the specific portion. The ending point B becomes the new starting point A. "A-" of "REPEAT A-" flashes in the display.

2 When you reach the ending point (point B), press A - B again.

"REPEAT A-B" appears. The player repeats between the new starting and ending points.

When you want to restart from the starting point A

Press during A B Repeat.

Playing in Random Order (Shuffle Play)

You can have the player "shuffle" tracks and play in a random order.

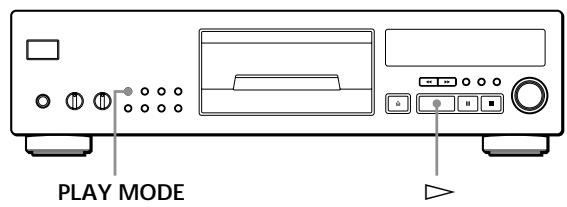

PLAY MODE

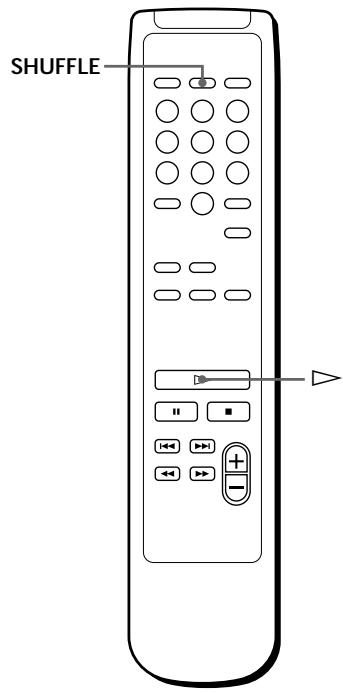

SHUFFLE

1 Press PLAY MODE repeatedly until "SHUFFLE" appears in the display. When using the remote, press SHUFFLE.
2 Press ▷ to start Shuffle Play. The [ ] indication appears while the player is "shuffling" the tracks.

To cancel Shuffle Play

Press PLAY MODE twice.

When using the remote, press CONTINUE.

You can start Shuffle Play while playing

Press PLAY MODE repeatedly until "SHUFFLE" appears in the display. When using the remote, press SHUFFLE. Shuffle Play starts from the current track.

Creating Your Own Programme (Programme Play)

You can arrange the order of the tracks on a disc and create your own programme. The programme can contain up to 24 tracks.

PLAY MODE CHECK CLEAR AMS

Creating a programme on the player

1 Press PLAY MODE repeatedly until "PROGRAM" appears in the display before you start playing.
2 Turn ◀◀ AMS ▷▶ until the track number you want appears in the display.

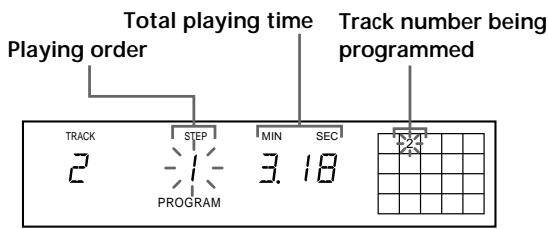

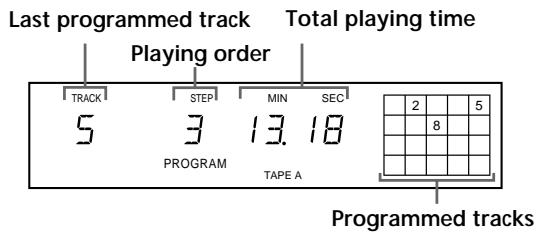

Total playing time Playing order Track number being programmed 2 STEP MIN SEC1 PROGRAM 3.18

3 Push ◀◀◀ AMS ▷▶▶ to select the track.

If you've made a mistake

Press CLEAR, then repeat Steps 2 and 3.

4 Repeat Steps 2 and 3 to programme the tracks in the order you want.
5 Press ▷ to start Programme Play.

To cancel Programme Play

Press PLAY MODE.

When tracks, which aren't numerically consecutive on the disc, are programmed consecutively (i.e. 1, 3, 5 etc.)

A one-second access time blank is added between the tracks.

The programme remains until erased (see page 15) or until you press △OPEN/CLOSE

The programme you have created remains even after the Programme Play mode ends or you select another play mode.

Notes

• The total playing time doesn't appear in the display when it exceeds 100 minutes.
• If you programme a track numbered over 24, “-- .--” appears instead of the total playing time.
• "PROGRAM FULL" appears in the display when you try to add a track to a programme which already contains 24 tracks.

Creating a programme using the remote

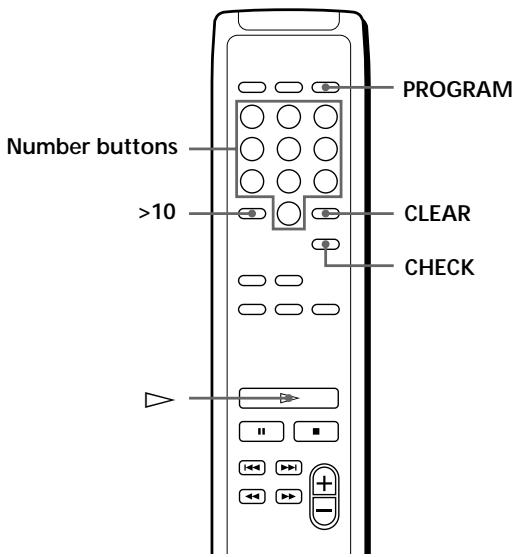

Number buttons >10 PROGRAM CLEAR CHECK

1 Press PROGRAM before you start playing. "PROGRAM" appears in the display.

2 Press the number buttons of the tracks you want to programme in the order you want.

Example: To programme the tracks 2, 8 and 5. Press the number buttons in the order 2, 8 and 5.

To select a track with a number over 10

Use >10 button (see page 11).

If you've made a mistake

Press CLEAR, then press the correct track number.

3 Press ▷ to start Programme Play.

To cancel Programme Play

Press CONTINUE.

You can check the total playing time while programming using the remote (Programme Edit)

To select a track, press ◀◀◀ or ▶▶▶ and check the total playing time. Then press PROGRAM to confirm your selection.

Notes

• The total playing time doesn't appear in the display when it exceeds 100 minutes.
• If you programme a track numbered over 24, “-- .--” appears instead of the total playing time.
• "PROGRAM FULL" appears in the display when you try to add a track to a programme which already contains 24 tracks.

Checking the track order

You can check your programme before or after you start playing.

Press CHECK.

Each time you press this button, the display shows the track number in the programmed order. After the last track in the programme, the display shows “- END -” and returns to the original display. If you check the order after you start playing, the display shows only the remaining track numbers.

Changing the track order

You can change your programme before you start playing.

To	You need to
Erase a track	Press CHECK until the track you don’t want appears in the display, then press CLEAR
Erase the last track in the programme	Press CLEAR. Each time you press the button, the last track will be cleared.
Add tracks to the end of the programme	Turn ◀◀ AMS ▷▶ until the track number you want to add appears, then push ◀◀ AMS ▷▶.When using the remote, press the number buttons of the tracks to be added.
Erase the whole programme completely	Hold down CLEAR until “CLEAR” appears in the display. Create a new programme following the programming procedure.

Recording Your Own Programme

You can record the programme you've created on a tape, DAT or MD. The programme can contain up to 24 tracks.

By inserting a pause during programming, you can divide the programme into two for recording on both sides of a tape.

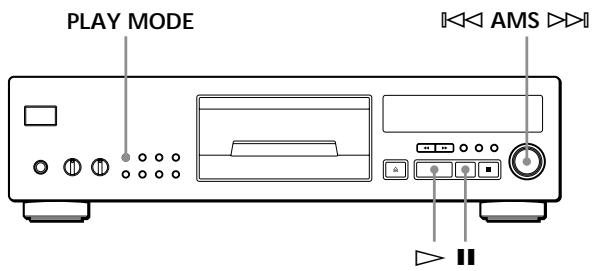

PLAY MODE AMS

1 Create your programme (for side A when recording on a tape) while checking the total playing time indicated in the display.
Follow Steps 1 to 4 in “Creating a programme on the player” on page 13 or Steps 1 and 2 in “Creating a programme using the remote” on page 14.
"TAPE A" appears in the display.

2 When you record on both sides of the tape, press Ⅱ to insert a pause.

"P" and "TAPE B" appear in the display and the playing time is reset to "0.00."

When you record on one side of the tape or on a DAT or MD, skip this step and go to Step 4.

A pause is counted as one track

You can programme up to 23 tracks when you insert a pause.

3 Repeat Step 1 to create the programme for side B.

4 Start recording on the deck and then press ▷ on the player.

When you record on both sides of the tape, the player pauses at the end of the programme for side A.

5 When you record on side B, reverse the tape and press ▷ or || on the player to resume playing.

To check and change your programme

See page 15.

"TAPE A" appears while checking the programme for side A and "TAPE B" appears while checking the programme for side B.

When tracks, which aren't numerically consecutive on the disc, are programmed consecutively (i.e. 1, 3, 5 etc.)

A one-second access time blank is added between the tracks.

Recording a CD by Specifying Tape Length (Time Edit/Just Edit)

You can have the player create a programme that will fit the length of the tape. Select one of the following options:

• Time Edit: automatically creates a programme, keeping the original order of the disc. However, when the remaining time becomes shorter than the next succeeding track, the player automatically programmes a track which is nearly equal to the remaining time.
• Just Edit: automatically arranges the track order to fit the tape length.

The programme may contain up to 24 tracks (a pause inserted between tracks is counted as one track). Note that tracks numbered over 24 cannot be programmed in this feature.

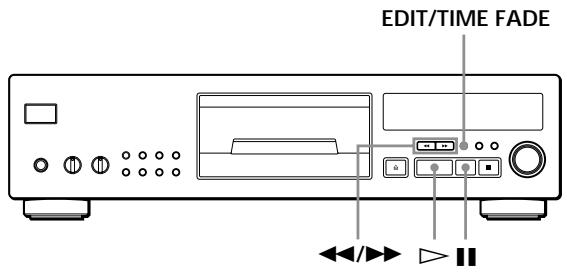

EDIT/TIME FADE

1 Press EDIT/TIME FADE before you start playing as follows:

• To select Time Edit, press the button until "EDIT" appears and "A" of "TAPE A" flashes in the display.
• To select Just Edit, press the button until "JUST EDIT" appears and "A" of "TAPE A" flashes in the display.

2 Press ◀◀ or ▶▶ to specify the tape length. Each time you press these buttons, the display changes as shown below with the tape length of one side.

When you select "HALF"

The player divides the total playing time of the disc in half, keeping the original order (only in Time Edit). Note that you cannot select “HALF” when the disc has more than 24 tracks.

3 Press EDIT/TIME FADE to have the player create the programme.
The music calendar shows the tracks to be recorded. "B" of "TAPE B" flashes in the display.

4 When you record on both sides of the tape, press EDIT/TIME FADE again.

The player inserts a pause, then creates the programme for side B. The display shows the programmed tracks.

When you record on one side of the tape or on a DAT or MD, skip this step.

5 Start recording on the deck and then press ▷ on the player.

When you record on both sides of the tape, the player pauses at the end of the programme for side A.

6 When you record on side B, reverse the tape and press ▷ or || on the player to resume playing.

To cancel Time Edit/Just Edit

Press PLAY MODE.

When using the remote, press CONTINUE.

You can specify the tape length freely in Step 2

You can set the tape length using ◀◀◀ AMS ▷▶◀.

Example: When the tape length of one side is 30 minutes and 15 seconds

1 To set the minutes, turn ◀◀ AMS ▷▶ until "30" appears in the display, then push ◀◀ AMS ▷▶.
2 To set the seconds, turn ◀◀ AMS ▷▶ until "15" appears in the display, then push ◀◀ AMS ▷▶.

When tracks, which aren't numerically consecutive on the disc, are programmed consecutively (i.e. 1, 3, 5 etc.)

A one-second access time blank is added between the tracks.

To check and change your programme

See page 15.

Fading In or Out

You can manually fade in or out to prevent tracks from starting or ending abruptly.

Note that you cannot use this effect when you use the DIGITAL OUT (OPTICAL/COAXIAL) connector.

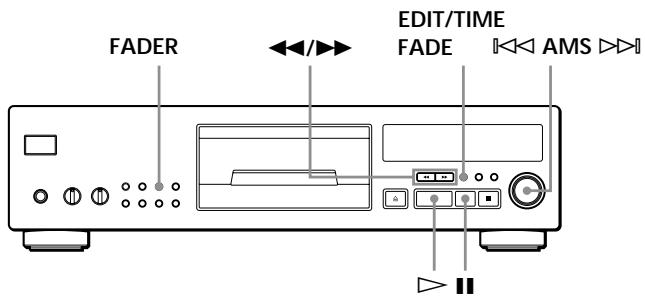

FADER EDIT/TIME FADE AMS

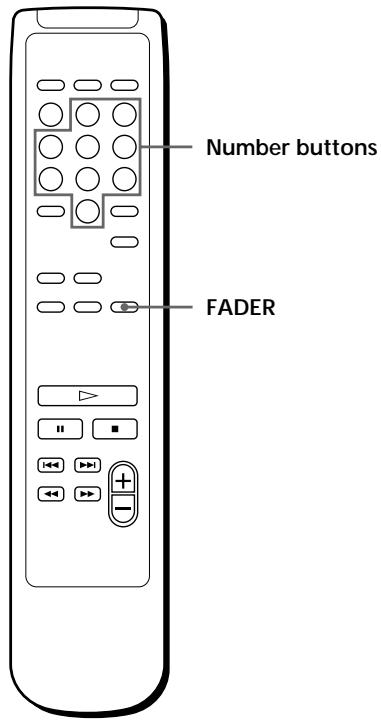

Number buttons FADER

Fading in or out at the point you want

To	Press FADER
Start play fading in	During pause. “FADE” flashes. Then play fades in.
End play fading out	When you want to start fading out. “FADE” flashes. Then play fades out and the player pauses.

Fading time lasts for 5 seconds. If you press FADER during Music Scan (page 11), fade out time changes to 2 seconds.

Changing the fading time

You can change the fading time from 2 to 10 seconds before fading in or out. If you don't change it, fading lasts for 5 seconds.

1 Before you start playing, press FADER.
2 Turn ◀◀ AMS ▷▶ until the time you want appears in the display. When using the remote, press the number buttons to specify the fading time.

Notes

• The fading time is reset to 5 seconds when you turn off the player.
• If you press FADER during Music Scan (page 11), fade out time changes to 2 seconds.

Fading out at the specified time (Time Fade)

You can have the player fade out automatically by specifying the playing time. Once you set the time fade, it works twice, that is, the play fades out at the end of both sides of a tape.

1 Press EDIT/TIME FADE repeatedly before you start playing until "T.FADE" and "TAPE A" appear in the display.
2 Press ◀◀ or ▶▶ to specify the playing time. Each time you press these buttons, the display changes as shown below with the tape length of one side.

When you select "HALF"

The player sets the playing time to a half of the total playing time.

3 Press ▷ to start playing.

At the specified time the play fades out and the player pauses. "TAPE B" appears in the display.

4 To record on side B, reverse the tape and press ▷ or ▪ on the player to resume playing.

Again, the play fades out at the specified time.

To cancel Time Fade

Press EDIT/TIME FADE.

You can freely specify the recording time

See "You can specify the tape length freely in Step 2" on page 16.

You can change discs during Time Fade

If the play ends before the specified fade-out time, (for example, when you record CD-singles on a tape) you can change the disc. The specified fade-out time is counted only during playing.

You can fade in to resume playing in Step 4

After you reverse the tape, press FADER.

Notes

• Time Fade will be cancelled if you press ◀◀ or ▶▶ during the operation.
• "HALF" does not appear when the disc has more than 24 tracks.

Useful Tips for Recording

Using these functions makes recording CDs more convenient.

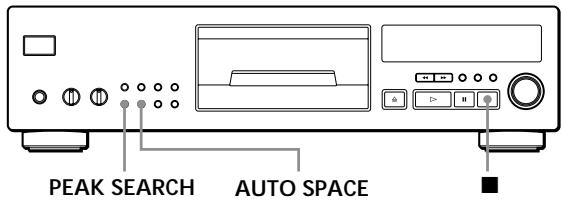

PEAK SEARCH AUTO SPACE

Adjusting the Recording Level (Peak Search)

The player locates the highest level among the tracks to be recorded to let you adjust the recording level before you start recording.

1 Before you start playing, press PEAK SEARCH. "PEAK" flashes in the display and the player starts scanning the disc searching for the highest peak level.
After scanning all the tracks, the player repeats the portion with the highest peak level.

2 Adjust the recording level on the deck.

3 Press ■ on the player to stop Peak Search. "PEAK" disappears from the display.

Note

The portion with the highest level may differ every time you try the adjustment on the same disc. The difference is, however, so slight that you won't find any problem in adjusting the recording level precisely.

Inserting a blank space between tracks (Auto Space)

When the space between tracks is too short for the AMS function to work, you can insert a blank space of 3 seconds between each track while playing. This enables easy location of tracks using the AMS function of the deck.

Press AUTO SPACE.

"AUTO SPACE" appears in the display.

To cancel Auto Space

Press AUTO SPACE.

Note

If you use the Auto Space function when recording, for example, a medley or symphony, the sound may be interrupted where the track number changes. It happens when the track numbers are assigned in the middle of the piece.

Notes on CDs

On handling CDs

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, nor leave it in a car parked in direct sunlight as there can be considerable rise in temperature inside the car.
• Do not use any commercially available stabilizer and/or disc protector. If you do, the disc and the player may be damaged.
  • After playing, store the disc in its case.

On placing CDs on the disc tray

- Make sure the disc is positioned securely on the tray's spindle. If not, it may damage the player or the disc.

On cleaning

- Before playing, clean the disc with a cleaning cloth. Wipe the disc from the centre out.

Illustration of hands using a tool to cut or mark a circular object with arrows indicating direction (no text or symbols)

- Do not use solvents such as benzine, thinner, commercially available cleaners or anti-static spray intended for vinyl LPs.

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

There's no sound.

→Check that the player is connected securely.
→Make sure you operate the amplifier correctly.
→Adjust the output level with LINE OUT LEVEL +/- on the remote.
→When you use the headphones, adjust the volume with PHONE LEVEL (only for CDP-XB930).

The CD does not play.

There's no CD inside the player (“- NO DISC -” appears). Insert a CD.
→There's no stabilizer on the CD (“- NO STABI -” appears). Place the stabilizer on the CD (only for CDP-XB930 and CDP-XB930E).
→Place the CD with the label side up on the disc tray correctly.
→Clean the CD (see page 19).
→Moisture has condensed inside the player. Remove the disc and leave the player turned on for about an hour (see page 2).

The recording level has changed.

→The recording level changes if you press the LINE OUT LEVEL +/- buttons on the remote during recording.

The remote does not function.

→Remove the obstacles in the path of the remote and the player.
→Point the remote at the remote sensor R on the player.
→Replace all the batteries in the remote with new ones if they are weak.

Specifications

Compact disc player

Laser	Semiconductor laser ( = 780 nm)Emission duration: continuous
Laser output	Max 44.6 W * This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up block with 7 mm aperture.
Frequency response	2 Hz to 20 kHz ± 0.5 dB
Signal-to-noise ratio	CDP-XB930: More than 113 dBCDP-XB630: More than 102 dB
Dynamic range	CDP-XB930/XB930E: More than 99 dBCDP-XB630: More than 98 dB
Harmonic distortion	CDP-XB930/XB930E: Less than 0.0025%CDP-XB630: Less than 0.0035%
Channel separation	CDP-XB930: More than 105 dBCDP-XB630: More than 100 dB

Outputs

	Jack type	Maximum output level	Load impedance
LINE OUT	Phono jacks	2 V (at 50 kilohms)	Over 50 kilohms
DIGITAL OUT (OPTICAL)	Optical output connector	-18 dBm	Wave length: 660 nm
DIGITAL OUT (COAXIAL) (only for CDP-XB930 and CDP-XB930E)	Coaxial output connector	0.5 Vp-p (at 75 ohms)	75 ohms
PHONES (only for CDP-XB930 and CDP-XB630)	Stereo phone jack	10 mW	32 ohms

General

Power requirements	220 V – 230 V AC, 50/60 Hz
Power consumption	CDP-XB930/XB930E: 15 WCDP-XB630: 11 W
Dimensions (approx.)(w/h/d)	CDP-XB930/XB930E:430 × 117 × 290 mm(17 × 4 5/8 × 11 1/2 in.) incl. projecting partsCDP-XB630: 430 × 115 × 290 mm(17 × 4 5/8 × 11 1/2 in.) incl. projecting parts
Mass (approx.)	CDP-XB930/XB930E: 6.0 kg(15 lbs 10 oz)CDP-XB630: 4.8 kg(10 lbs 9 oz)

Supplied accessories

Audio cord (2 phono plugs - 2 phono plugs) (1)

Remote commander (remote) (1)

R6 (size AA) batteries (2)

Stabilizer (1) (only for CDP-XB930 and CDP-XB930E)

Index

A, B

A↔B Repeat 12

AMS 10

Auto Space 18

Automatic Music Sensor. See AMS

C

CD TEXT 9

Connecting 4

Continuous Play 6

CONTROL A1 II 5

D

Digital Filter 11

E

Editing. See Recording

F, G

Fading 17

Time Fade 17

H, I

Half disc (HALF) 16

Handling CDs 19

Hookups 4

overview 4

J, K

Just Edit 16

L

Locating

by monitoring 11

by observing the display 11

by scanning 11

directly 11

using AMS 11

M, N, O

Music Scan 11

P, Q

Peak Search 18

Playback

Continuous Play 6

Programme Play 13

Repeat Play 12

Shuffle Play 13

Programme 13

changing 15

checking 15

for recording 15

Programme Edit 14

R

Recording 15

a programme 15

using Just Edit 16

using Time Edit 16

Remaining time 8

Remote control 4

Repeat 1 12

Repeating

a specific portion 12

all 12

the current track 12

S

Scanning. See Music Scan

Searching. See Locating

Selecting the language 9

Shuffle Play 13

T

Time Edit 16

Time Fade 17

Total playing time 8

Troubleshooting 19

Turning off the display 10

U, V, W, X, Y, Z

Unpacking 4

Names of controls

Buttons

A-B 12

AUTO SPACE 18

CHECK 15

CLEAR 15

CONTINUE 13

DISPLAY ON/OFF 10

EDIT/TIME FADE 16,17

FADER 17

LANGUAGE 10

LINE OUT LEVEL +/- 5

MUSIC SCAN 11

Number 11

合 OPEN/CLOSE 6

PEAK SEARCH 18

PLAY MODE 13

PROGRAM 14

REPEAT 12

SHUFFLE 13

TIME 8

TIME/TEXT 8

▷ 7

11 7

7

◀◀/▶▶ 11

11

10 11

Switch

① 6

Connector

DIGITAL OUT (COAXIAL) 5

DIGITAL OUT (OPTICAL) 5

Control

FILTER 11

PHONE LEVEL 6

Jack

LINE OUT 5

PHONES 6

Others

Disc tray 6

Display 8

AMS 7

R 4

AVERTISSEMENT

Diagram showing battery charging process: moving from a remote to a closed battery (no text or symbols)

Blanc (L) Rouge (R) Blanc (L) Rouge (R)

DIGITAL OUT COAXIAL OPTICAL DIGITAL IN OPTICAL

DIGITAL OUT COAXIAL OPTICAL DIGITAL IN COAXIAL

Remarque

Line drawing of a hand holding a CD inside a file organizer (no text or symbols)

Line drawing of a hand using a tool to press or install a CD into a device (no text or symbols present)

Diagram of a mechanical assembly with hands operating a component (no text or symbols visible)

REPEAT A - B

PLAY MODE CHECK CLEAR AMS

Illustration of a hand holding a CD or DVD disc with arrows indicating direction (no text or symbols)

DIGITAL OUT (COAXIAL) 5

DIGITAL OUT (OPTICAL) 5

Commande

FILTER 11

PHONE LEVEL 6

Prise

LINE OUT 5

PHONES 6

Autres

Diagram showing a remote control device with two batteries and a battery pack, no text or symbols present

Illustration showing a hand using a CD to clean or adjust a CD inside a box, with no text or symbols present.

Illustration of a hand using a tool to press or install a component on a device (no text or symbols visible)

REPEAT A - B

PLAY MODE CHECK CLEAR AMS

Illustration of hands using a tool to cut or mark a circular component (no text or symbols present)

DIGITAL OUT (COAXIAL) 5

DIGITAL OUT (OPTICAL) 5

Controles

FILTER 11

PHONE LEVEL 6

Tomas

LINE OUT 5

PHONES 6

Otros

Bandeja de discos 6

Visor 8

AMS 7

R 4
