USER MANUAL Camedia D395 OLYMPUS

■Before using your camera, read this manual carefully to ensure correct use.

■ We recommend that you take test shots to get accustomed to your camera before taking important photographs.

In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual.

■ For more details on connecting the camera to a PC and installing the provided software, refer to the "Software Installation Guide" (included in the CD-ROM package).

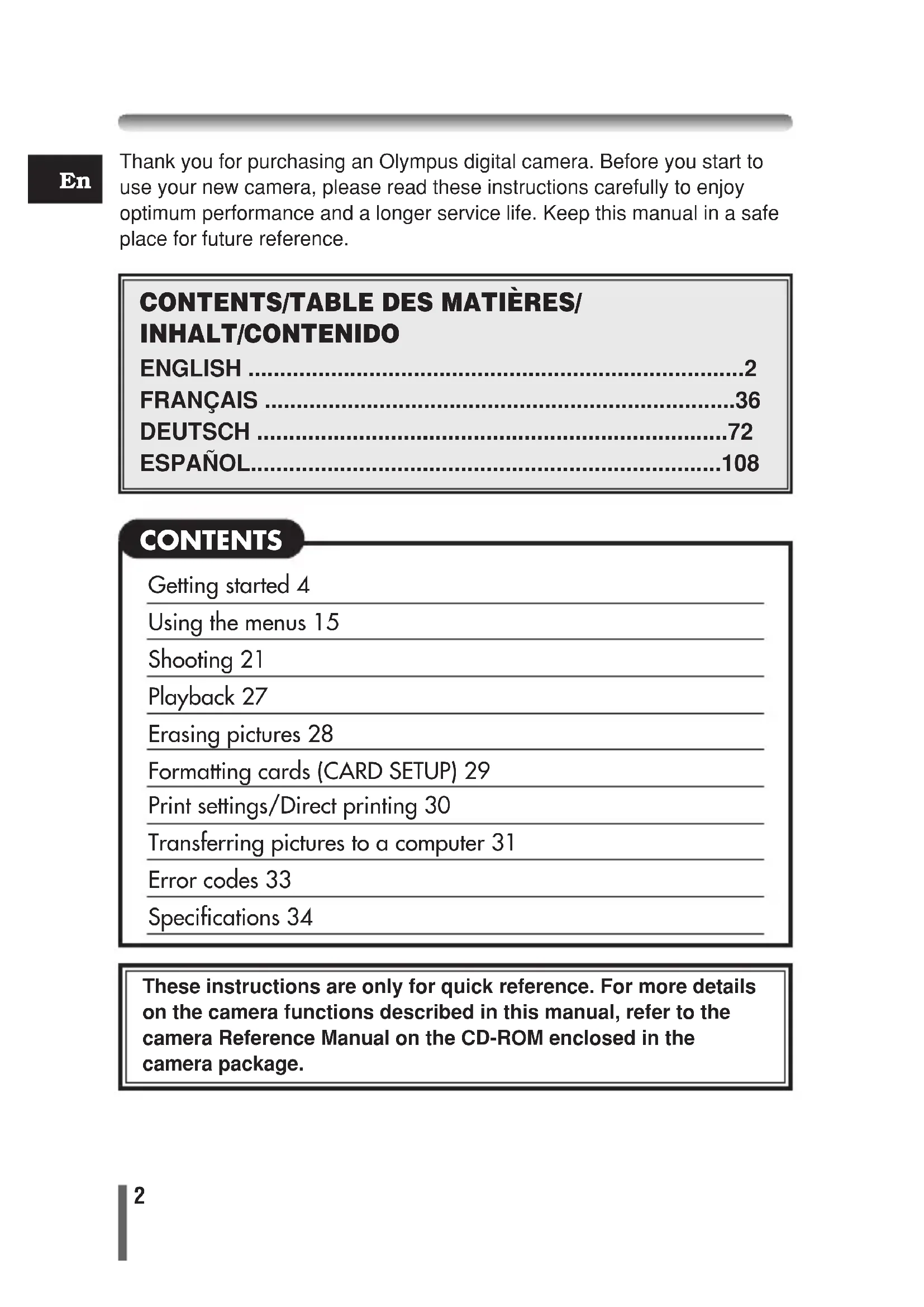

Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.

CONTENTS/TABLE DES MATIÈRES/ INHALT/CONTENIDO

ENGLISH 2

FRANÇAIS ....36

DEUTSCH 72

ESPAÑOL....108

CONTENTS

Getting started 4

Using the menus 15

Shooting 21

Playback 27

Erasing pictures 28

Formatting cards (CARD SETUP) 29

Print settings/Direct printing 30

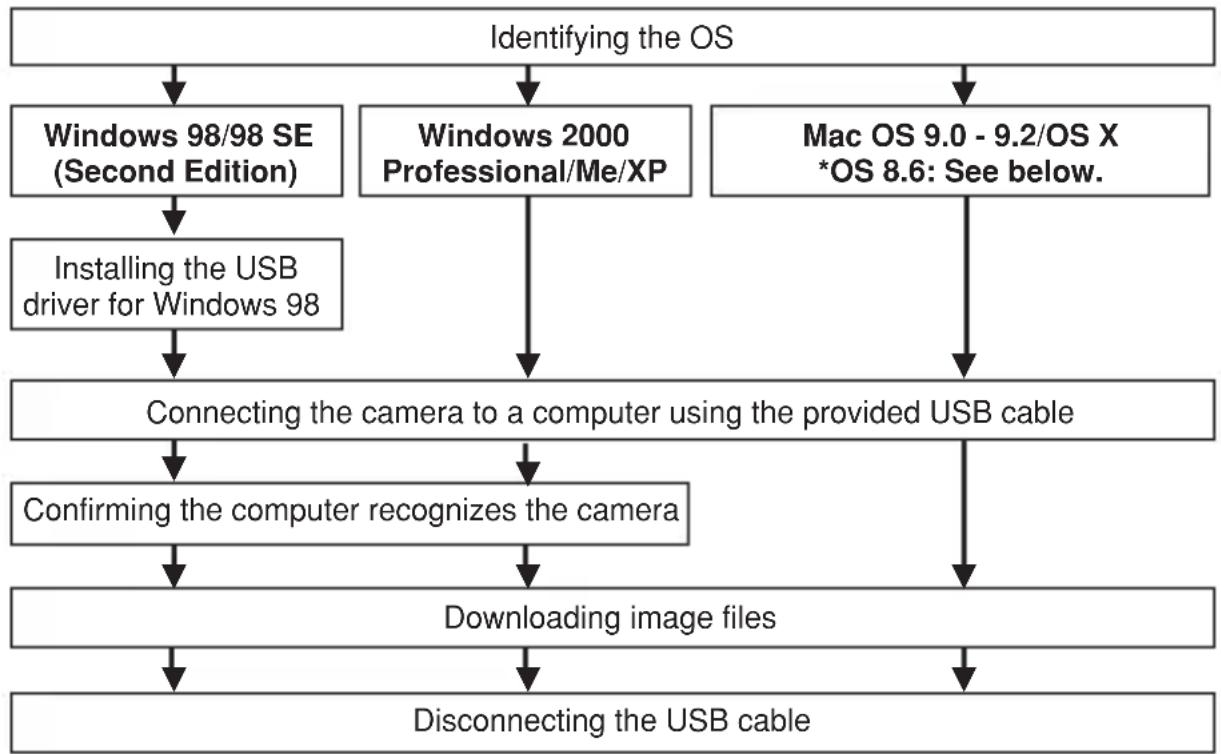

Transferring pictures to a computer 31

Error codes 33

Specifications 34

These instructions are only for quick reference. For more details on the camera functions described in this manual, refer to the camera Reference Manual on the CD-ROM enclosed in the camera package.

For customers in North and South America

For customers in USA

Declaration of Conformity

Model Number : D-395/C-160

Trade Name : OLYMPUS

Responsible Party : Olympus America Inc.

Address : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Telephone Number : 1-631-844-5000

Tested To Comply With FCC Standards

FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection.

“CE” mark cameras are intended for sales in Europe.

Trademarks

•IBM is a registered trademark of International Business Machines Corporation.
- Microsoft and Windows are registered trademarks of Microsoft Corporation.
•Macintosh is a trademark of Apple Computer Inc.
- All other company and product names are registered trademarks and/or trademarks of their respective owners.
- The standards for camera file systems referred to in this manual are the “Design Rule for Camera File System/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

Getting started

En

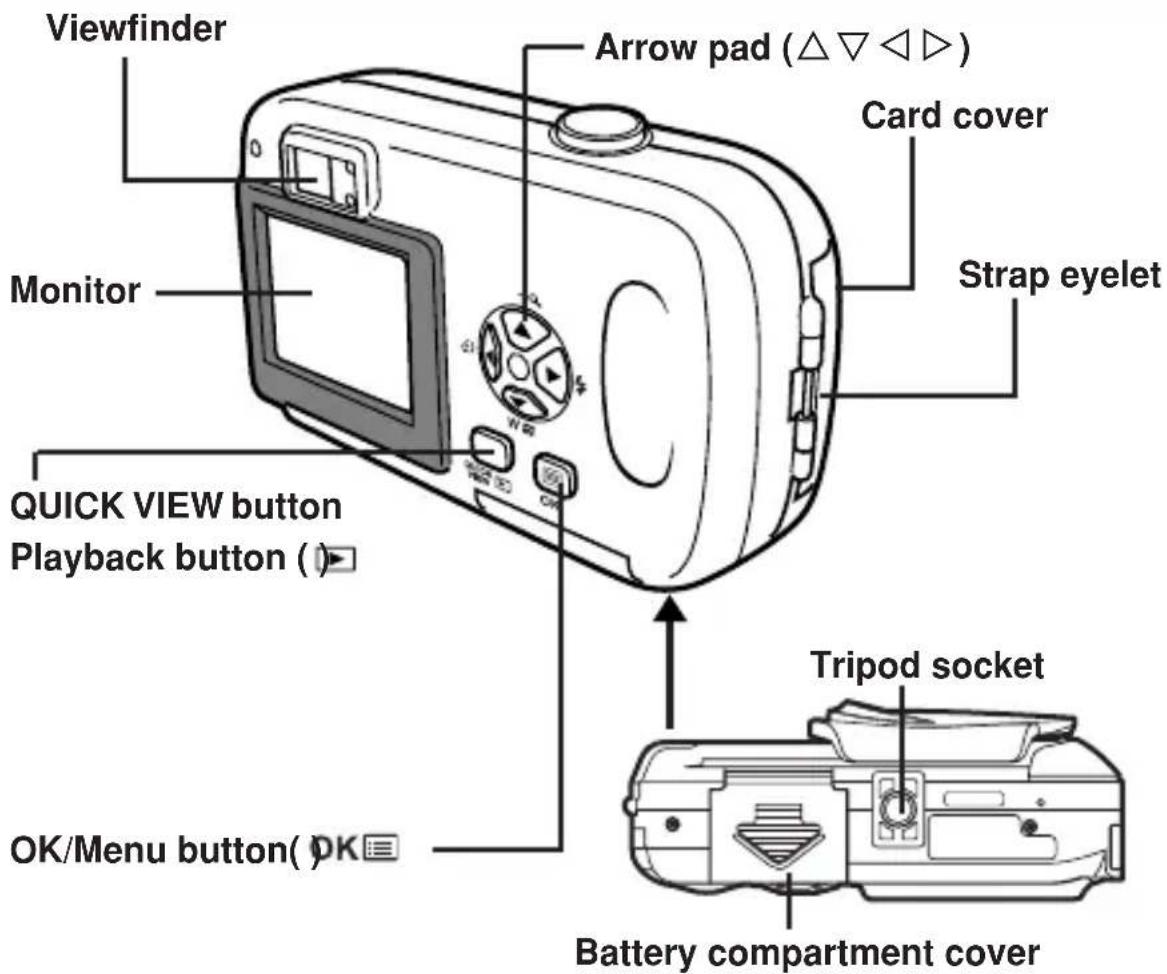

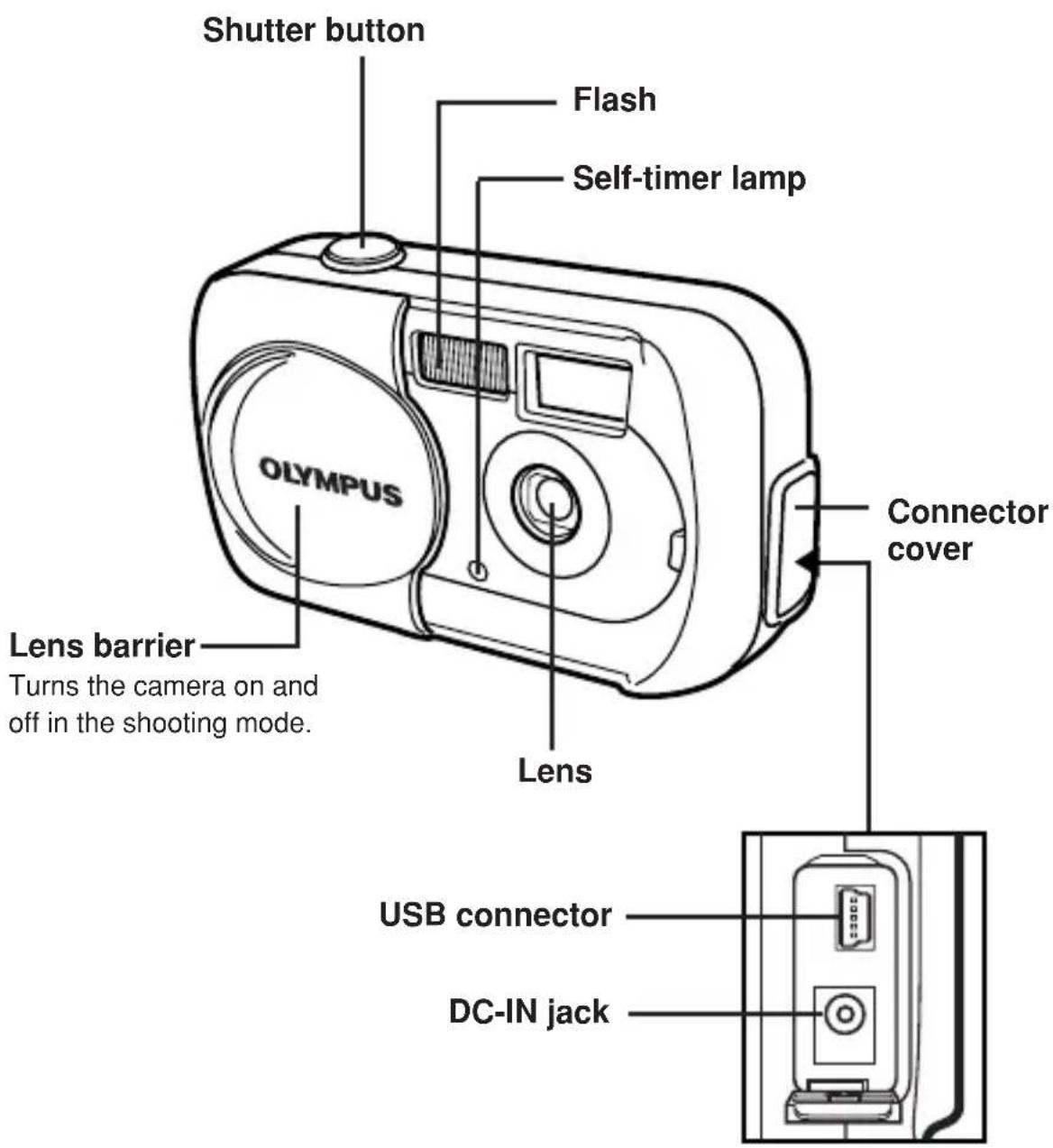

Names of parts

Shutter button Flash Self-timer lamp Olympus Lens barrier Turns the camera on and off in the shooting mode. Lens Connector cover USB connector DC-IN jack

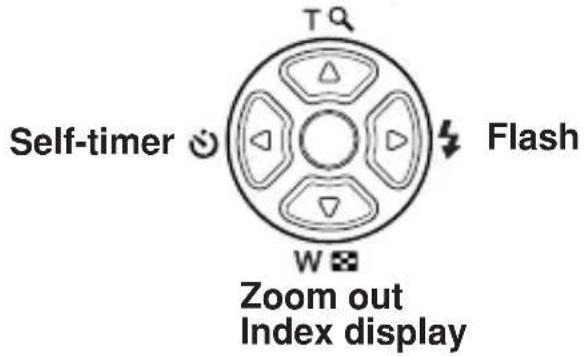

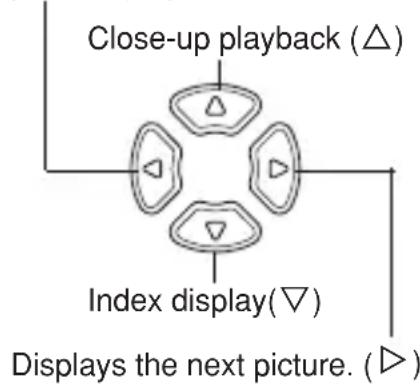

Arrow pad

Simply press a button (△/▽/◀/▷) to directly select zoom in/out, flash or self-timer. Buttons are also used to navigate the various menu items.

Zoom in Close-up playback

Self-timer 🔊 T Q Flash W Zoom out Index display

Viewfinder Arrow pad (△▽ ◀◀) Card cover Monitor Strap eyelet QUICK VIEW button Playback button ( ▶ Tripod socket OK/Menu button( OK Battery compartment cover

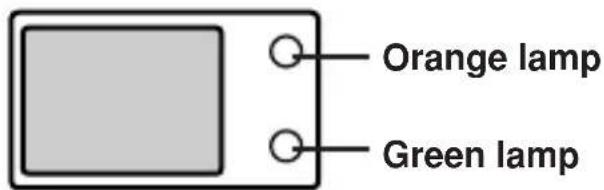

Viewfinder

Orange lamp Green lamp

En

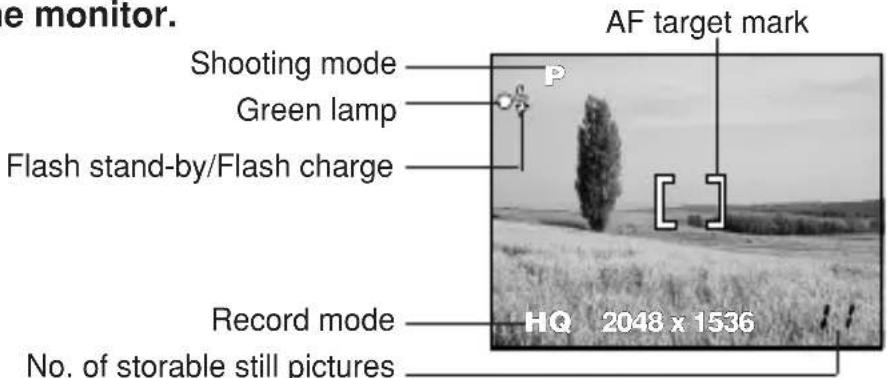

Monitor indications

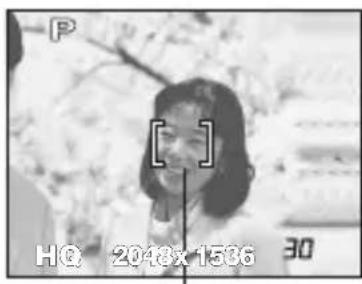

●Shooting mode

1 2 7 P +2.0 8 9 10 11 HQ 2048x1536 12 13 14

	Items Indications
1	Battery check ,
2	Shooting mode	[70W7] [67K] , [80A4] [70K]
3	Exposure -2.0 - +2.0 compensation
4	Spot metering mode	[5732]
5	White balance , , ,	[8472] [XSO3] [S45A] [1C46]
6	AF target mark [ ]
7	Green lamp
8	Flash standby (lit)Camera movement warning (Bli / Flash charge)	[IMAGE]
9	Macro	[479]
10	Flash mode , ,
11	Self-timer	[648]
12	Record mode SHQ, HQ, SQ1, SQ2
13	Resolution(number of pixels)	2048 x 1536, 1024 x 768,640 x 480, etc.
14	Number of storable still picturesSeconds remaining for movies	1111"

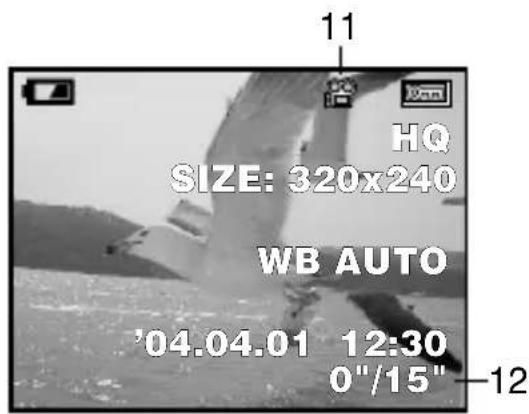

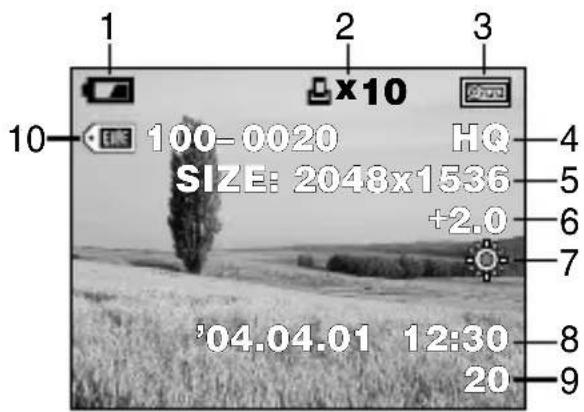

-Playback mode

INFO setting allows you to select how much information to display on the monitor. Screens when the information display is set to ON are shown below.

10 x10 100-0020 HQ SIZE: 2048x1536 +2.0 '04.04.01 12:30 20

11 HQ SIZE: 320x240 WB AUTO '04.04.01 12:30 0"/15" 12

Still picture Movie

	Items Indications
1	Battery check,
2	Print reservation x10Number of prints	[ETDR]
3	Protect	[ALHW]
4	Record mode SHQ, HQ, SQ1,	SQ2
5	Number of pixels 2048 x 1536,	1024 x 768,640 x 480, etc.
6	Exposure -2.0 – +2.0compensation
7	White balance WB AUTO, , ,	[SZZB] [DTW] [HWC] [TWS]
8	Date and time '04.04.01 12:30
9	Frame number 12
10	File number	100-0020
11	Movie mode	[ZZ47]
12	Playing time/Total recording time	0"/15"

Note

•The indications that appear on a movie picture that has been selected and displayed from the index display are different from those that appear when the movie picture is displayed using the movie playback function.

En

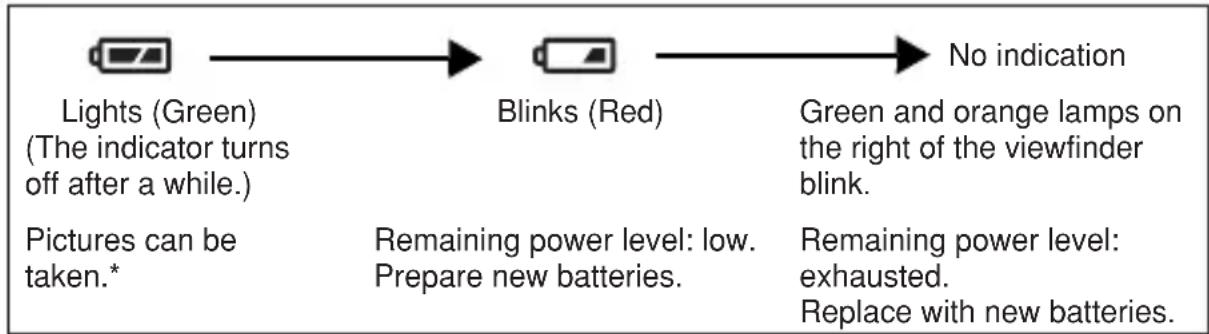

●Battery check

If the remaining battery power is low, the battery check indication on the monitor changes as follows when the camera is turned on or while the camera is in use.

* The amount of energy the camera uses varies greatly on how the camera is operated. Battery power may finish without displaying any warning, causing the camera to turn off.

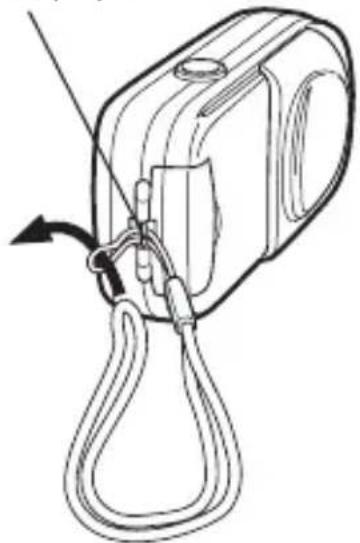

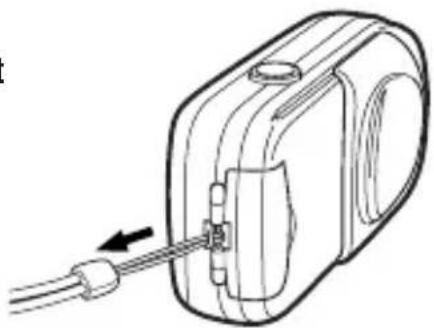

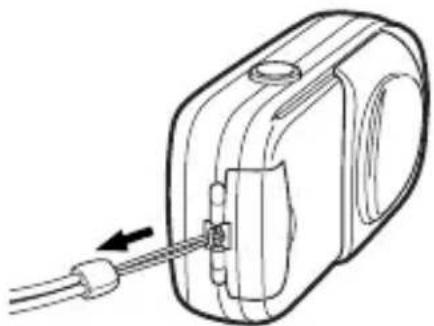

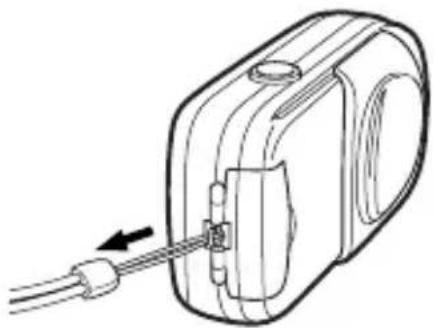

Attaching the strap

1 Thread the short end of the strap through the strap eyelet.

•The strap can only enter from the lens side.

2 Thread the long end of the strap through the loop that has already gone through the eyelet.

3 Pull the strap tight, making sure that it is securely fastened and does not come loose.

Strap eyelet

Line drawing of a mechanical device with rope and hook, no text or symbols present

Line drawing of a device with a cable inserted, showing internal components and an arrow indicating direction (no text or symbols)

Note

- Be careful with the strap when you carry the camera, as it can easily catch on stray objects, causing injury or damage.

- Attach the strap correctly following the procedure so that the camera does not fall off. If the strap is attached incorrectly and the camera falls off, Olympus is not responsible for any damages.

En

Loading batteries

Use one CR-V3 lithium battery pack, or two AA (R6) NiMH batteries or alkaline batteries.

Important

• CR-V3 lithium battery packs cannot be recharged.
• Do not peel the label on a CR-V3 lithium battery pack.
  •Manganese (zinc-carbon) batteries cannot be used.

1 Make sure that:

•The lens barrier is closed.
•The monitor is off.
•The lamps on the right of the viewfinder are off.

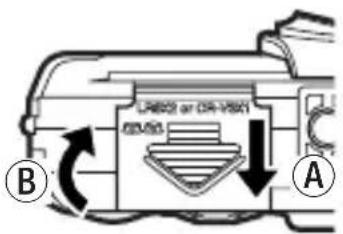

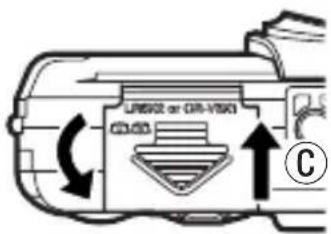

2 Slide the battery compartment cover in the direction of Ⓐ(the direction indicated by the mark on the cover), and lift it up in the direction of Ⓑ.

LPGS or OR-V601 RPGS A B

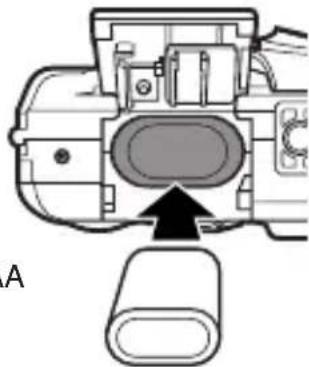

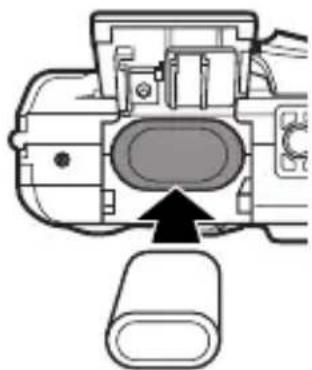

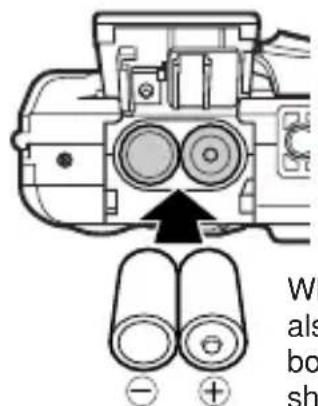

3 Insert batteries in the direction shown in the illustration.

When using AA (R6) batteries

When using a CR-V3 lithium battery pack

W als bo sh - +

LINESE or GRAV-001 RUM

When using AA (R6 batteries), also refer to the mark on the bottom of the camera that shows the correct way to insert batteries.

Diagram of a camera internal structure with an arrow pointing to a component (no text or symbols present)

4 Close the battery compartment cover so that it pushes batteries down inside. While pressing the mark, slide the cover in the direction of Ⓒ.

- If you have difficulty closing the battery compartment cover, do not force it. With the battery compartment cover in place, press down firmly the mark firmly and push in direction ©.

UNLESS OR CHS-VS/03 CHS-03 C

Inserting/Removing a card

"Card" in this manual refers to the xD-Picture Card. The camera uses the card to record pictures.

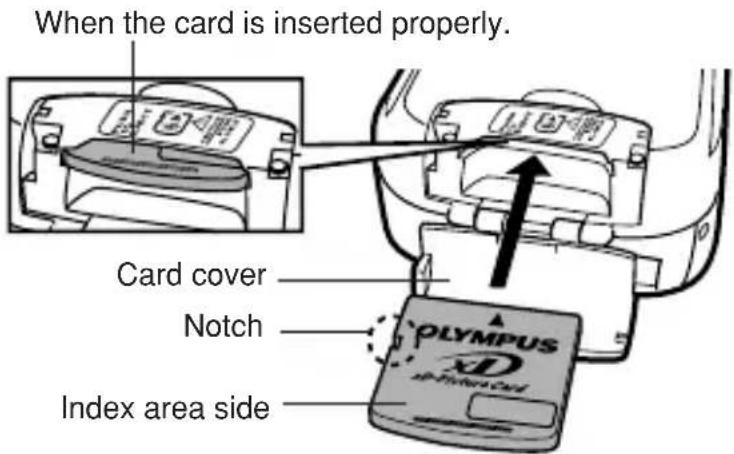

- Inserting a card

1 Make sure that:

•The lens barrier is closed.
•The monitor is off.
•The lamps on the right of the viewfinder are off.

2 Open the card cover.

3 Face the card the correct way and insert it into the card slot as shown.

• Insert the card while keeping it straight.
• When the card is inserted fully, you will feel it lock into place.

- Inserting the card the wrong way or at an angle could damage the contact area or cause the card to jam.

- If the card is not inserted all the way, data may not be written to the card.

4 Close the card cover.

When the card is inserted properly. Card cover Notch Index area side OLYMPUS XP-100000000000000000000000000000000000000000000000000000000000000000000000000000000

-Removing the card

1 Make sure that:

•The lens barrier is closed.
•The monitor is off.
•The lamps on the right of the viewfinder are off.

2 Open the card cover.

3 Push the card all the way in to unlock it, then let it return slowly.

•The card is ejected a short way and then stops.

4 Hold the card straight and pull it out.

5 Close the card cover.

En

Power on/off

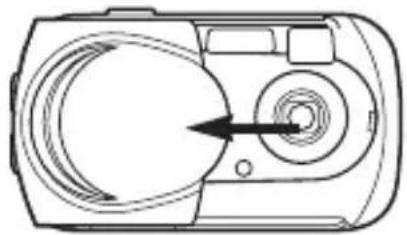

- When shooting pictures

Power on: Open the lens barrier.

The monitor turns on, and the camera turns on in the shooting mode.

Power off: Close the lens barrier.

The monitor and the camera turn off.

Line drawing of a camera with an arrow pointing to the lens (no text or symbols)

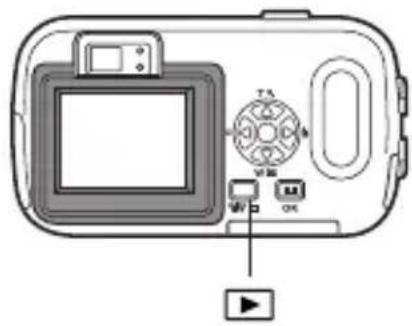

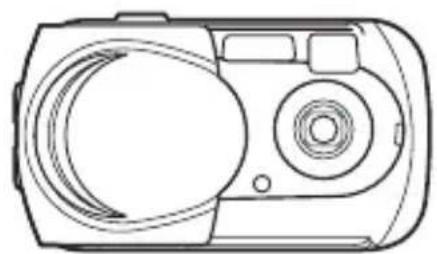

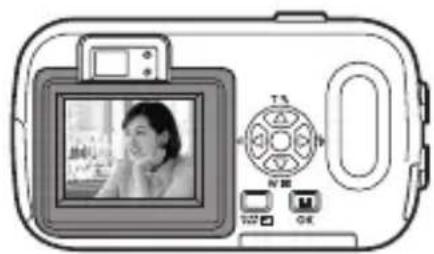

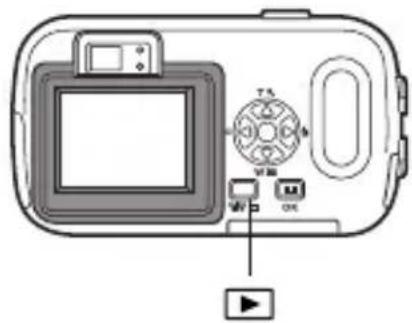

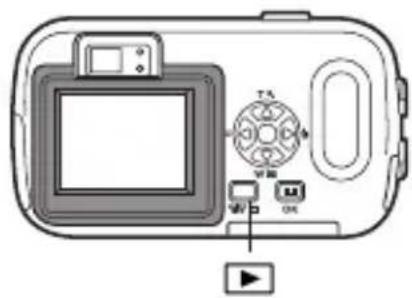

- When playing back pictures

Power on: Press with the lens barrier closed.

The camera turns on in the playback mode. The monitor turns on and the last picture taken is displayed.

Power off: Press

The monitor and the camera turn off.

Diagram of a digital camera with labeled buttons and an play button, showing screen, keypad, and control panel.

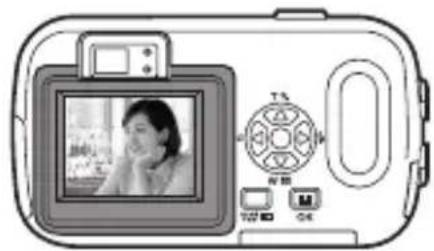

Press (QUICK VIEW) while in the shooting mode. The camera immediately enters the playback mode and displays the last picture taken.

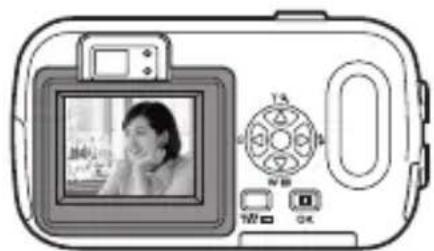

●Power on

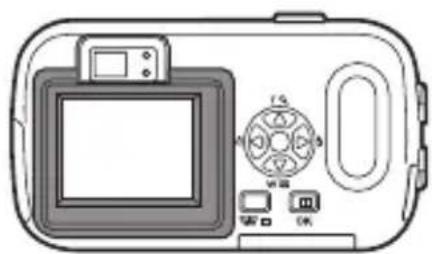

Line drawing of a digital camera with lens and screen (no text or symbols)

Illustration of a digital camera with a screen displaying a person's photo and control buttons (no text or symbols)

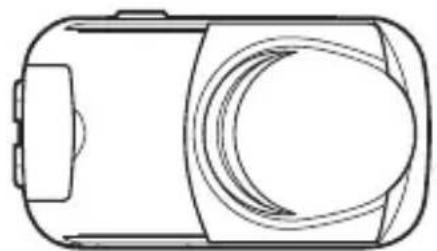

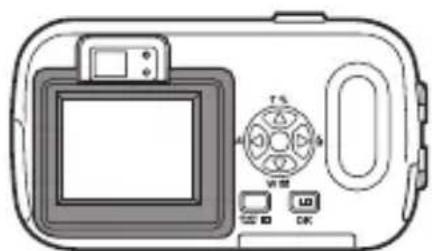

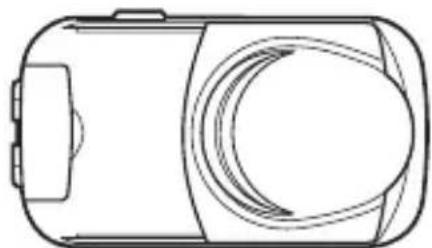

●Power off

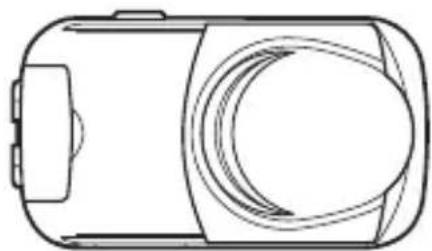

Top-down line drawing of a cylindrical device with a circular lens (no text or symbols)

Front view of a digital camera with display, control panel, and buttons (no text or symbols visible)

Selecting a language

You can select a language for on-screen display.

Available languages vary depending on the area where you purchased this camera.

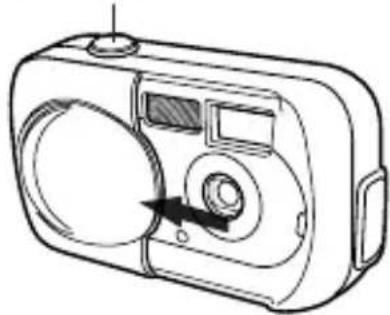

1 Open the lens barrier fully.

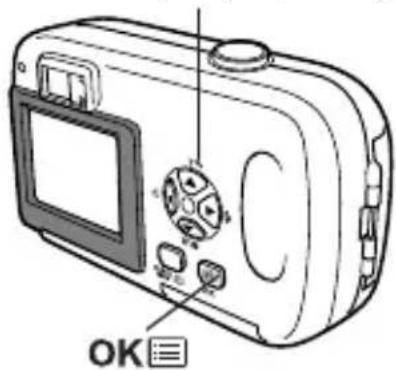

2 Press OK

•The top menu is displayed.

Arrow pad ( )

OK

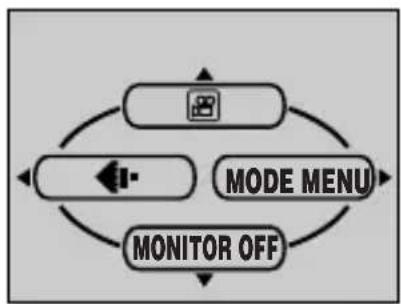

3 Press ▷ on the arrow pad to select MODE MENU.


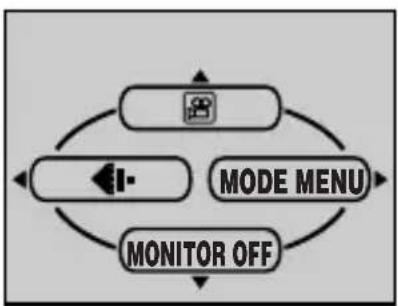

Top menu

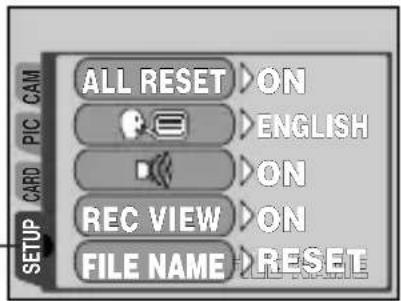

4 Press to select the SETUP tab, then press .

CAM ALL RESET >ON PIC >ENGLISH CARD >ON REC VIEW >ON FILE NAME >RESET

SETUP tab

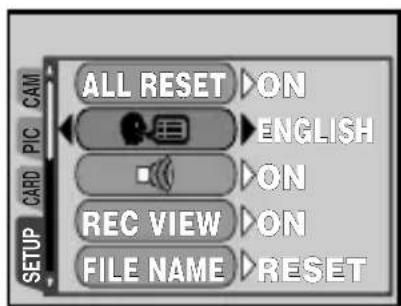

5 Press △▽ to select 🔒, then press ▷.

•The green frame moves to the selected item.

CAM ALL RESET ▶ON PIC ▶ENGLISH CARD ▶ON REC VIEW ▶ON FILE NAME ▶RESET SETUP

En

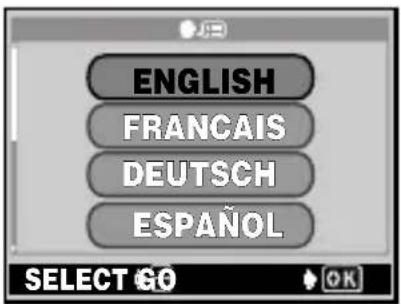

6 Press △▽ to select a language, then press OK.
7 Press again to exit the menu.

ENGLISH FRANÇAIS DEUTSCH ESPAÑOL SELECT GO OK

8 Close the lens barrier to turn the camera off.

Setting the date and time

1 Open the lens barrier fully.
2 Press OK.

•The top menu is displayed.

3 Press ▷ on the arrow pad to select MODE MENU.
4 Press △▽ to select the SETUP tab, then press ▷.
5 Press △▽ to select ⊙, then press ▷.

•The green frame moves to the selected item.
6 Press △▽ to select one of the following date formats: Y-M-D (Year/Month/Day), M-D-Y (Month/Day/Year), D-M-Y (Day/ Month/ Year). Then press ▷.

• Move to the year setting.
  •The following steps show the procedure used when the date and time settings are set to Y-M-D.
  7 Press △▽ to set the year, then press ▷ to move to the month setting.

• To move back to the previous setting, press ◀.
  •The first two digits of the year are fixed.
  8 Repeat this procedure until the date and time are completely set.

- The camera only displays the time in the 24-hour time system. ("2 pm" would be "14:00".)

9 Press OK.

- For a more accurate setting, press when the time hits 00 seconds. The clock starts when you press the button.

10 Close the lens barrier to turn the camera off.

Using the menus

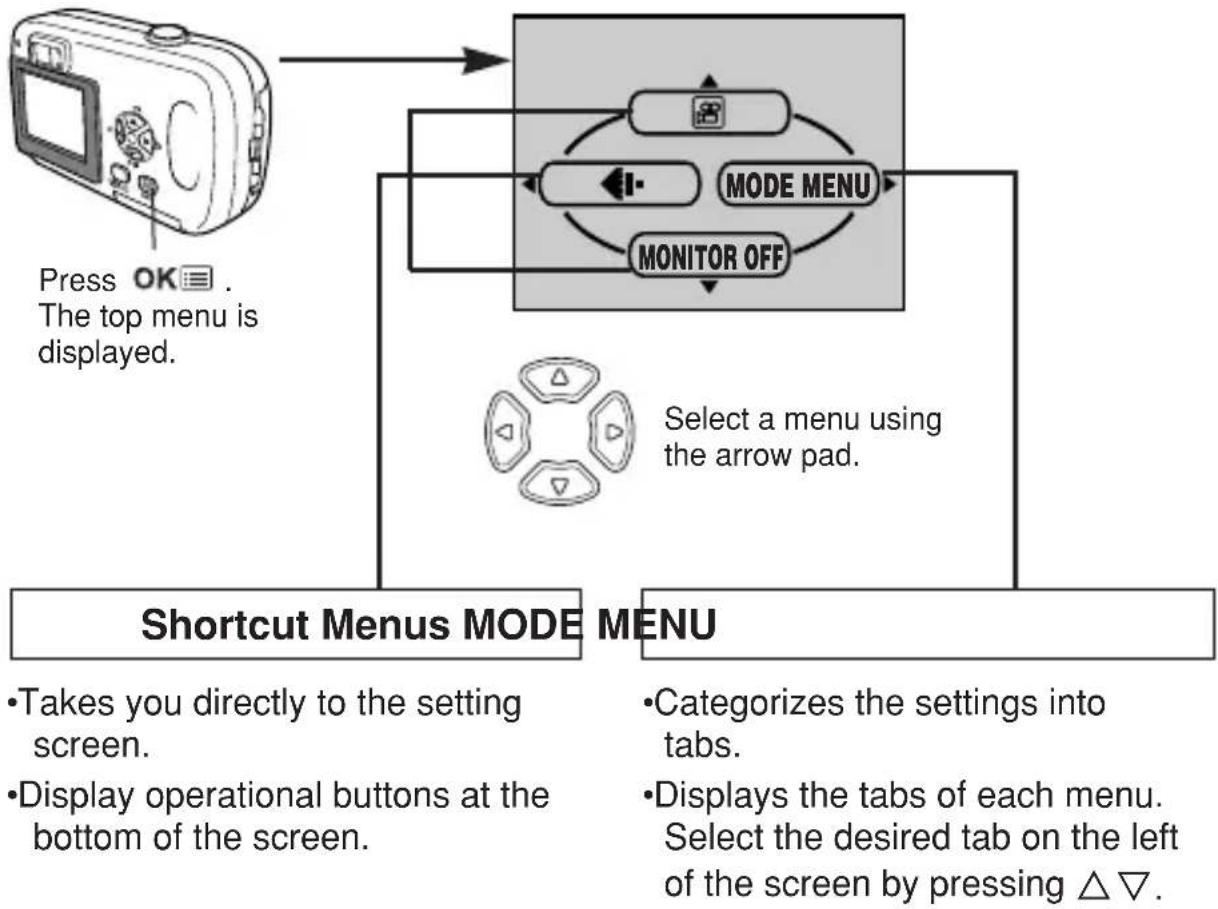

Menu items

When you turn on the camera and press ,the top menu is displayed on the monitor. The functions of this camera are set from the menus. This chapter explains the types of menu items that this camera has and how they work, using shooting mode screens.

How to use the mode menu

1 Press OK to display the top menu. Press ▷.
2 Press to select a tab, then press .
3 Press to select an item, then press .
4 Press △▽ to select a setting. Press OK to complete setting. Press again to exit the menu and return to shooting.

En

Shortcut menus

●Shooting mode

Records movies. This icon appears when the menu is displayed in the still picture shooting mode.


A simple press of the shutter button gives you optimal exposure and focus for general photography. This icon appears when the menu is displayed in the movie recording mode.

Sets the image quality and resolution.

Still picture : SHQ, HQ, SQ1, SQ2

Movie : HQ, SQ

MONITOR ON/MONITOR OFF

Note that "MONITOR ON" is displayed when the monitor is turned off.

Sets whether or not the monitor is turned on when the camera is turned on.

-Playback mode

Runs through all saved pictures one after another as a slide show. This icon appears when the menu is displayed while a still picture is played back.

MOVIE PLAYBACK

Plays back movies. This icon appears when the menu is displayed while a movie frame is played back.

INFO

Displays all the shooting information on the monitor.

ERASE

Erases the selected still picture or movie.

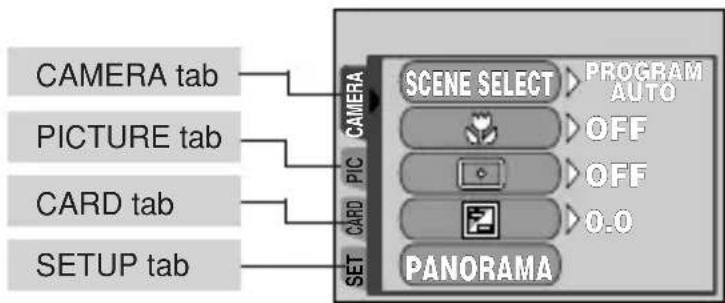

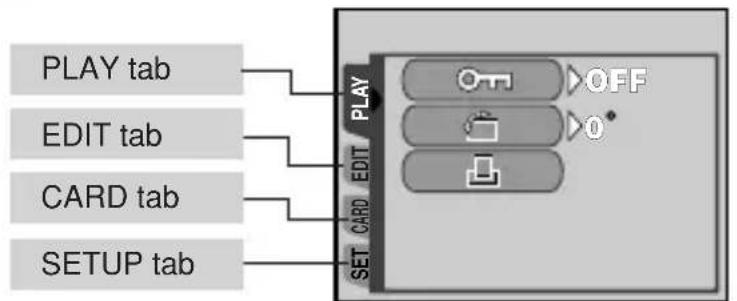

Mode menus

The MODE MENU is divided into tabs. Press to select a tab and display the associated menu items.

These instructions are only for quick reference. For more details on the camera functions described in this manual, refer to the camera Reference Manual on the CD-ROM enclosed in the camera package.

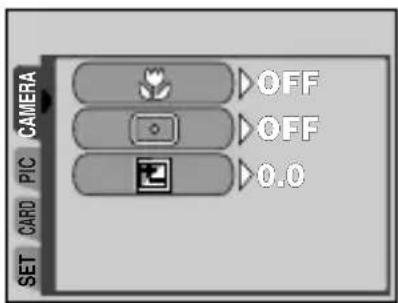

●Shooting mode

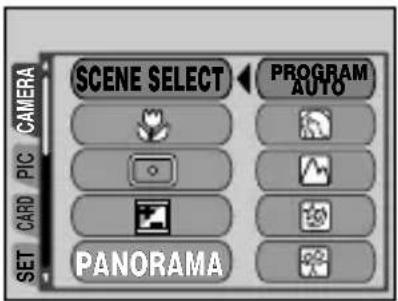

CAMERA tab PICTURE tab CARD tab SETUP tab CAMERA SCENE SELECT > PROGRAM AUTO OFF OFF 0-0 PANORAMA

Still picture Movie

CAMERA SET CARD PIC OFF OFF 0.0

CAMERA tab
SCENE SELECT Selects the shooting mode fromPROGRAM AUTO(program auto),portrait),(landscape),night scene) or(self portrait).
	Allows you to shoot as close as 20 cm (0.7 ft.) to your subject.
	Meters light only in the center of the picture plane to determine exposure.

En

CAMERA tab
	Adjusts the brightness of the picture.
PANORAMA Allows	panorama pictures to be taken with Olympus CAMEDIA-brand cards.
2 IN 1 Combines two	still pictures taken in succession and stores them as a single picture.

PICTURE tab
WB	Sets the appropriate white balance according to the light source.

CARD tab
CARD SETUP	Formats a card.

SETUP tab
ALL RESET Selects	whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
	Turns the beep sound (used for warnings, etc.) on and off.
REC VIEW Selects	whether to display pictures on the monitor while saving them to a card.
FILE NAME Chooses how to name files and folders of pictures.
PIXEL MAPPING Checks the CCD and image processing functions for errors.
	Adjusts the brightness of the monitor.
	Sets the date and time.

-Playback mode

PLAY tab EDIT tab CARD tab SETUP tab PLAY OFF EDIT SET CARD

PLAY SET CARD EDIT ON OFF

Still picture Movie

PLAY tab
	Protects pictures from accidental erasure.
[ZXX7]	Rotates pictures 90 degrees clockwise or counterclockwise.
	Stores print reservation information on the card.

EDIT tab
BLACK&WHITE Creates a black and white picture and saves it as a new picture.
SEPIA Creates a sepia-toned picture and saves it as a new picture.
	Makes the file size smaller and saves it as a new picture.
INDEX Creates an index picture of a movie in 9 frames.

CARD tab
CARD SETUP Formats the card, erasing all image data stored on it.

En

SETUP tab
ALL RESET Selects	whether to keep the current camera settings when you turn off the power.
	Selects a language for on-screen display.
	Turns the beep sound (used for warnings, etc.) on and off.
	Adjusts the brightness of the monitor.
[1Y3W]	Sets the date and time.
[2Y20]	Selects the number of frames in the index display.

Shooting

Shooting modes

This camera shoots still pictures and movies. In the still picture shooting mode, select a shooting mode from 7 PROGRAM AUTO, depending on shooting conditions and the effect you want. The factory default setting is PROGRAM AUTO (PROGRAM AUTO). You are able to shoot normally even if you do not select a shooting mode.

●PHOTO Still picture shooting

Lets you take still pictures. You can select a more specific shooting mode depending on the scenes you want to shoot.

●Movie recording

Lets you record movies. You cannot record movies with sound.

■Still picture shooting modes

PROGRAM AUTO (factory default setting)

Used for regular photography. The camera automatically makes settings for natural color balance. Other functions, such as the flash mode, can be adjusted manually.

Portrait shooting

Suitable for taking a portrait-style shot of a person. The camera automatically sets the optimal shooting conditions.

Landscape shooting

Suitable for taking photos of landscapes and other outdoor scenes. The camera automatically sets the optimal shooting conditions.

Night-Scene shooting

Suitable for taking photos of landscapes and people in the evening or at night. The camera sets a slower shutter speed than is used in normal shooting. If you take a picture of a street at night in any other mode, the lack of brightness will result in a dark picture with the background underexposed and without details. In this mode, the true appearance of the street is captured. The camera automatically sets the optimal shooting conditions. We recommend that you set the flash mode to AUTO.

Black-and-white photo of a smiling woman at night with illuminated city lights in the background (no visible text or symbols)

Normal shooting and flash on

Black-and-white photo of a smiling woman in front of a city skyline at night (no visible text or symbols)

Night-Scene shooting and flash on

En

Self Portrait shooting

Enables you to take a picture of yourself while holding the camera. Point the lens towards yourself and the focus will be locked on you. The camera automatically sets the optimal shooting conditions.

Line drawing of a person taking a selfie with a camera (no text or symbols)

Selecting shooting modes

1 Open the lens barrier fully. •The monitor turns on and the subject is displayed.
2 Press OK. •The top menu is displayed.
3 In the top menu, press ▷ to select MODE MENU.

- Movie recording: Press to select 📐.

4 Press △▽ to select the CAMERA tab, then press ▷.
5 Press △▽ to select SCENE SELECT, then press ▷.
6 Press △▽ to select a mode from PROGRAM AUTO , , , , , then press OK.

- Press again to exit the menu.

CAMERA SET CARD PANORAMA SCENE SELECT PROGRAM AUTO

Taking still pictures using the monitor


En

1 Open the lens barrier fully.

• Slide the lens barrier fully open until it clicks.
  •The monitor turns on and the subject is displayed.

Shutter button

Line drawing of a portable electronic device with a circular dial and control panel (no text or symbols)

2 Decide the composition while looking at the image on the monitor.

e monitor. Shooting mode Green lamp Flash stand-by/Flash charge Record mode No. of storable still pictures AF target mark HQ 2048 x 1536

3 Press the shutter button gently (halfway) to adjust the focus.

• When the focus and exposure are locked, the green lamp lights steadily. (focus lock)
• If the mark lights, the flash fires automatically.

4 Press the shutter button all the way (fully).

•The camera takes the picture, and a beep sounds.
- When the green lamp next to the viewfinder stops blinking, you can take the next picture.
•The orange lamp next to the viewfinder starts blinking when the pictures are being saved to the card.

How to lock the focus

When shooting a hard-to-focus subject, point the camera at an object about the same distance away as the subject. Press the shutter button halfway. Keeping the shutter button pressed halfway, recompose your shot. Press the shutter button fully.

P [ ] HQ 2048x1536 30

AF target mark

En

Recording movies

1 Open the lens barrier fully.
2 Press OK.

•The top menu is displayed.

3 Press △ to select .

• Movie recording is set and the camera returns to the shooting mode.
• The mark and the total recordable time depending on the card memory capacity are displayed on the monitor.

4 Decide the composition while looking at the image on the monitor.

5 Press the shutter button halfway.

•The focus is locked.

6 Press the shutter button fully to start recording.

•The orange lamp on the right of the viewfinder lights.
- The camera always sets the best exposure, even if the subject moves.
- During movie recording, lights red and the time you can shoot is displayed.

7 Press the shutter button again to stop recording.

•The orange lamp blinks while the movie is stored on the card.
- When the remaining recording time has been used up, recording stops automatically.

Zoom (Digital zoom)

1 Open the lens barrier fully.
2 Press △.

- The zoom levers are displayed on the monitor. The subject is magnified by 1.3 times.

3 Press while looking at the image on the monitor.

• Each time you press , the zoom magnification changes in the following sequence:

1 time → 1.3 times → 1.6 times → 2.0 times → 2.5 times.
•Each time you press , the zoom magnification changes in the following sequence:
2.5 times → 2.0 times → 1.6 times → 1.3 times → 1 time.
- The zoom magnification changes continuously while holding down or .

4 Take the picture.

Using the flash

En

Select the flash mode best suited to the light conditions and the effect you want to achieve.

1 Open the lens barrier fully.
2 Press ▷( 4 .

•The current flash setting is displayed on the monitor.

3 Press ▷ again to set the flash mode.

• Each time you press ▷, the flash mode changes in the following sequence:

"AUTO" – "Red-eye reduction" – "Fill-in flash" – "Flash off".

4 Press the shutter button halfway.

- When the flash fires, the orange lamp lights steady.

5 Press the shutter button fully to take the picture.

●Auto-flash (No indication)

The flash fires automatically in low light or backlight conditions.

To shoot a subject with backlight, position the AF target mark over the subject.

●Red-eye reduction flash ( )

The light from the flash may make the subject's eyes appear red in the picture. The red-eye reduction flash mode reduces this phenomenon by emitting pre-flashes before firing the regular flash. This helps accustom the subject's eyes to the bright light and minimizes the red-eye phenomenon.

●Fill-in flash ( )

The flash fires regardless of the available light. This mode is useful for eliminating shadows on the subject's face (such as shadows from tree leaves), in a backlight situation, or for correcting the color shift produced by artificial lighting (especially fluorescent light).

●Flash off ( )

The flash does not fire even in low light conditions. Use this mode in situations where flash photography is not desired or is prohibited. You can also use this mode when you want to shoot a natural-looking twilight or night scene.

En

Self-timer shooting

This function lets you take pictures using the self-timer. Fix the camera securely on a tripod or set it on a level surface for self-timer shooting. This function is useful for taking pictures where you want to be included in the photograph.

1 Open the lens barrier fully.
2 Press ◀( 😊 ).

•The current selftimer setting is displayed on the monitor.

3 Press ◀ again to set the self-timer mode.

- The setting changes between ⏻ OFF and ⏻ ON each time ◀ is pressed.

When the self-timer mode is selected, is displayed on the monitor.

4 Take the picture. Press the shutter button to start the timer and take the picture.

•The self-timer lamp lights for approximately 10 seconds, then starts blinking. After blinking for approximately 2 seconds, the picture is taken.
•The self-timer mode is automatically canceled after one shot.

Viewing still pictures

En

1 Press with the lens barrier closed.

•The monitor turns on and displays the last picture taken. (Single-frame playback)

2 Use the arrow pad to play back other pictures.

3 Press to cancel playback.

•The monitor and camera turn off.

Displays the previous picture. (◀)

Close-up playback (△) Index display(▽) Displays the next picture. (▷)

Viewing movies

1 Press with the lens barrier closed.

•The monitor turns on.

2 Use the arrow pad to display the picture with 📊

3 Press OK

•The top menu is displayed.

4 Press △ to select MOVIE PLAYBACK.

5 Press △▽ to select PLAYBACK, then press OK.

•The movie is played back.

•After playback, the menu is displayed.

PLAYBACK : Plays back the entire movie again.

FRAME BY FRAME

: Plays back the movie manually one frame at a time.

EXIT : Leaves the movie playback mode.

Press to select from PLAYBACK, FRAME BY FRAME or EXIT, then press

OK.

- When FRAME BY FRAME is selected

△ : Displays the first frame of the movie.

∇: Displays the last frame of the movie.

▷: Displays the next frame. The movie can be displayed continuously by holding the button down.

◀: Displays the previous frame. The movie can be displayed continuously in reverse by holding the button down.

OK: Displays the MOVIE PLAYBACK menu.

En

Protecting pictures

0

You are recommended to protect important pictures to avoid accidentally erasing them. Protected pictures cannot be erased by the single-frame/all-frame erase function.

1 Press with the lens barrier closed.

•The monitor turns on.

2 Use the arrow pad to display the picture you want to protect.

3 Press OK.

•The top menu is displayed.

4 In the top menu, select MODE MENU → PLAY → on , and press ▷.

5 Press △▽ to select ON, then press OK.

• To cancel protection, select OFF.

Erasing pictures

Recorded pictures can be erased. There are two types of erase: Single-frame erase, which erases only the picture that is displayed on the monitor, and all-frame erase, which erases all the pictures on the card.

Single-frame erase

This function erases the picture that is displayed on the monitor.

1 Press with the lens barrier closed.

•The monitor turns on.

2 Use the arrow pad to display the picture you want to erase.

3 Press OK.

•The top menu is displayed.

4 Press ▽ to select ERASE.

5 Press △▽ to select YES, then press OK.

•The picture is erased and the menu is closed.

This function erases all the pictures on the card.

1 In the playback mode top menu, select MODE MENU → CARD → CARD SETUP, and press ▷.
2 Press △▽ to select ⏻ ALL ERASE, then press OK.
3 Press △▽ to select YES, then press OK.

- All the pictures are erased. Protected pictures are not erased.

Formatting cards (CARD SETUP)

This function lets you format a card. Formatting prepares cards to receive data. Before using non-Olympus cards or cards which have been formatted on a PC, you must format the card with this camera.

All existing data, including protected pictures, are erased when the card is formatted. Make sure that you save or transfer important data to a PC before formatting a used card.

1 In the top menu, select MODE MENU → CARD → CARD SETUP, and press ▷.

• Shooting mode: The FORMAT screen is displayed.
  -Playback mode: The CARD SETUP screen is displayed.

2 If the Ⓣ FORMAT screen is displayed, press △▽ to select YES.

- If the CARD SETUP screen is displayed, press to select T FORMAT, then press OK.

When the FORMAT screen appears, press to select YES.

3 Press OK

•The BUSY bar is displayed and the card is formatted.

Print settings/Direct printing

En

With print reservation (DPOF)

DPOF is short for Digital Print Order Format. DPOF is the format used to record automatic print information from digital cameras. If a card containing print reservation data is taken to a print shop that supports the DPOF format, the pictures can be printed according to the DPOF reservations. Or pictures can be printed out at home on a personal DPOF-compatible printer.

All-frame reservation

Use this feature to print all pictures stored on the card. Select the desired number of prints and whether you want the date and time included.

Single-frame reservation

Use this feature to print only selected pictures. It is also used to change the reserved number of prints and the date/time settings. Display the frame to be printed and select the desired number of prints.

Resetting the print reservation data

This function allows you to reset all the print reservation data for pictures stored on the card.

Direct printing (PictBridge)

By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly without the use of a computer.

PictBridge is the standard for connecting digital cameras and printers of different makers and printing out pictures directly.

PRINT Prints the selected picture.

ALL PRINT Prints all the pictures stored on the card.

MULTI PRINT Prints one picture in multiple layout format.

ALL INDEX Prints an index of all the pictures stored on the card.

PRINT ORDER Prints the pictures according to the print reservation data on the card. If no print reservations have been made, this option is not available.

Options for the print mode and other settings

Available options for some settings such as the print mode and paper size may differ depending on the type of printer. For details, refer to the instruction manual of your printer.

For more details, refre to the camera Reference Manual on the CD-ROM enclosed in the camera package.

Transferring pictures to a computer

By connecting the camera to a computer with the provided USB cable, images on a card can be transferred to the computer. Some OS's (operating systems) may need a special setup when connecting to the camera for the first time. Follow the chart below. For details on the procedures in the chart, refer to the “Reference Manual” on the CD-ROM and the “Software Installation Guide” (included in the CD-ROM package).

* Even if your computer has a USB connector, data transfer may not function correctly if you are using one of the operating systems listed below or if you have an add-on USB connector (extension card, etc.).

●Windows 95/NT 4.0

●Windows 98/98 SE upgrade from Windows 95

●Mac OS 8.6 or lower (except Mac OS 8.6 equipped with USB MASS Storage support 1.3.5 installed at the factory)

●Data transfer is not guaranteed on a home-built PC system or PCs with no factory installed OS.

Note

• You can view images using: graphics applications that support the JPEG file format (Paint Shop Pro, Photoshop, etc.); Internet browsers (Netscape Communicator, Microsoft Internet Explorer, etc.); CAMEDIA Master software; or other software. For details on using commercial graphics applications, refer to their instruction manuals.
• QuickTime is needed for playing back movies. QuickTime is included on the provided software CD.
• If you want to process images, make sure to download them to your computer first. Depending on the software, image files may be destroyed if the images are processed (rotated, etc.) while they are on the card.

En

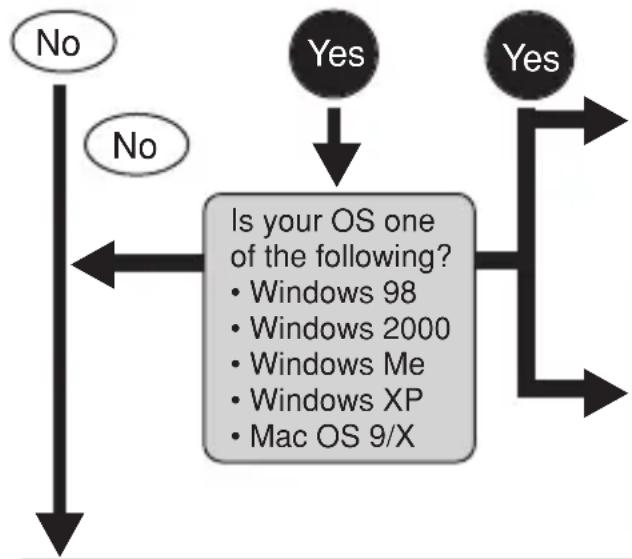

For other OS users

Users running other OS cannot use the provided USB cable to connect the camera directly to a computer.

● Windows 95 ● Windows NT ● Mac OS before OS 9

You can download images directly to your computer using an optional PC card adapter.

Does your computer have a USB interface? Is there a port marked on your computer?

Connect the camera directly to your computer using the provided USB cable.

Use an optional USB reader/writer. * Certain card readers may not be compatible with Mac OS X. Check the Olympus website for the most up-to-date compatibility information.

Does your computer have a built-in PC card slot?

Use the optional PC card adapter.

* Not supported by Windows NT4.0 or lower

Consult your nearest Olympus representative.

For more details on the camera functions described in this manual, refer to the camera Reference Manual on the CD-ROM enclosed in the camera package.

For more details on PC connections, refer to the “Software Installation Guide” (included in the CD-ROM package).

Error codes

Monitor indication	Possible cause	Corrective action
NO CARD	The card is not inserted, or it cannot be recognized.	Insert a card or insert a different card. If the problem persists, format the card. If the card cannot be formatted, it cannot be used.
CARD ERROR	There is a problem with the card.	This card cannot be used. Insert a new card.
WRITE PROTECT	Writing to the card is prohibited.	Read-only has been set using a computer. Use the computer again to cancel the read-only setting.
CARD FULL	The card is full. No more pictures can be taken or no more information such as print reservation can be recorded.	Replace the card or erase unwanted pictures. Before erasing, download important images to a PC.
NO PICTURE	There are no pictures on the card.	The card contains no pictures. Record pictures.
PICTURE ERROR	There is a problem with the selected picture, so it cannot be played back on this camera.	Use image processing software to view the picture on a PC. If that cannot be done, the image file is damaged.
	The card is not formatted.	Format the card. All existing data are erased when the card is formatted.
CARD-COVER OPEN	The card cover is open.	Close the card cover.

Specifications

En

Product type : Digital camera (for shooting and displaying)

Recording system

Still picture : Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable : Exif 2.2, Digital Print Order Format (DPOF),

standards PRINT Image Matching II, PictBridge

Movie : QuickTime Motion JPEG support

Memory : xD-Picture Card (16 - 512MB)

No. of storable : Approx. 6 frame (SHQ: 2048 x 1536 pixels)

pictures/No. of pixels Approx. 20 frames (HQ : 2048 x 1536 pixels)

(on a 16 MB card) Approx. 76 frames (SQ1: 1024 x 768 pixels)

Approx. 165 frames (SQ2: 640 x 480 pixels)

No. of effective : 3,200,000 pixels

pixels

Image pickup : 1/2.7" CCD solid-state image pickup, 3,340,000

device pixels (gross)

Lens : Olympus lens 5 mm (equivalent to 33 mm lens on

35 mm camera),

f2.8, 5 elements in 4 groups

Photometric system : Center-weighted average light metering,

Spot metering

Shutter speed : 2 to 1/800 sec.

Shooting range : 0.5 m (1.6 ft.) to ∞ (normal)

0.2 m (0.7 ft.) to ∞ (macro mode)

Viewfinder : Reverse Galilean viewfinder

Monitor : 1.5" TFT* color LCD display, 120,000pixels

Outer connector : DC-IN jack, USB connector (mini-B)

Automatic calendar : 2000 – 2099

system

* A color monitor using a transistor made from thin-film.

Operating environment

Temperature : 0^ C to 40^ C ( 32^ F to 104^ F) (operation)

-20^ C to 60^ C ( -4^ F to 140^ F) (storage)

Humidity : 30% to 90% (operation)/ 10% to 90% (storage)

Power supply : Two AA (R6) alkaline batteries or

NiMH batteries

One lithium CR-V3 battery pack

AC adapter (optional)

●Manganese (zinc-carbon) batteries cannot be used.

Dimensions : 110 mm (W) x 62 mm (H) x 37.5 mm (D)

(4.3" × 2.4" × 1.5")

(excluding protrusions)

Weight : 154 g (0.3 lb.) (without battery and card)

SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT ANY NOTICE OR OBLIGATION ON THE PART OF THE MANUFACTURER.

Adresse : 2 Corporate Center Drive, Melville, New York

11747-3157 U.S.A.

Line drawing of a hanging device with rope and angle indicator (no text or symbols)

Line drawing of a mechanical device with a cable inserted, showing internal components and an arrow indicating direction (no text or symbols)

Remarque

Technical diagram of a mechanical component with an arrow indicating direction and a close-up view labeled 'L1802 or ON-1350'.

Diagram of a mechanical component with an arrow pointing to a specific part (no text or symbols present)

Line drawing of a digital camera with an arrow indicating direction (no text or symbols)

Diagram of a digital camera with labeled buttons and screen, showing control panel and play button

Line drawing of a digital camera with lens and screen (no text or symbols)

Illustration of a digital camera with a screen displaying a photo and control buttons (no text or symbols)

●Mise hors-tension

Line drawing of a cylindrical device with a circular lens and side ports (no text or symbols)

Front view of a digital camera module with display, control panel, and buttons (no text or symbols visible)

CAM PIC CARD SETUP ALL RESET ▶ON ENGLISH REC VIEW ▶ON FILE NAME ▶RESET

Black-and-white photo of a smiling woman in front of a city skyline at night (no visible text or symbols)

Black-and-white photo of a smiling woman in front of a city skyline at night (no visible text or symbols)

Line drawing of a person taking a selfie with a camera (no text or symbols)

Line drawing of a portable electronic device with a circular dial and control knob (no text or symbols)

HQ 2048x1536 30

Normes applicables: Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching II, PictBridge

Anschrift :2 Corporate Center Drive, Melville,

New York 11747-3157 U.S.A.

Telefonnummer :1-631-844-5000

Line drawing of a rope being lifted by a hanging device (no text or symbols)

Line drawing of a device with a cable inserted, showing internal components and an arrow indicating direction (no text or symbols)

Technical diagram of a mechanical device with two circular components and an arrow indicating direction (no text or symbols)

LIMITS or ON-VAN 60.00

Mechanical component diagram showing internal structure with a black arrow pointing to a specific part (no text or symbols present)

Line drawing of a digital camera with an arrow pointing to the lens (no text or symbols)

T5 W: 1 OK ▶ hme

Line drawing of a digital camera with lens and screen (no text or symbols)

Illustration of a digital camera with a screen displaying a photo and control buttons (no text or symbols visible)

•Ausschalten

Line drawing of a cylindrical device with a circular lens and side ports (no text or symbols)

Front view of a digital camera with display, control knob, and buttons (no text or symbols visible)

PLAY SET CARD EDIT On OFF Movie

Black-and-white photo of a smiling woman at night with city lights in the background (no visible text or symbols)

Black-and-white photo of a smiling woman in front of a city skyline at night (no visible text or symbols)

Line drawing of a person taking a selfie with a camera (no text or symbols)

P [ ] HQ 2048x1536 30

AF-Markierung

Movie-Aufnahme

Line drawing of a mechanical device with rope and hanging hook (no text or symbols)

Line drawing of a mechanical device with a cable inserted, showing internal components and an arrow indicating direction (no text or symbols)

Nota

Technical diagram of a mechanical device with circular components and an arrow indicating direction (no text or symbols)

U802 x 01.130 (空き)

Diagram of a mechanical component with an arrow pointing to a cylindrical part (no text or symbols present)

Line drawing of a camera with an arrow pointing to the lens (no text or symbols)

Diagram of a digital camera with labeled buttons and an play button, showing screen, keypad, and control panel.

Line drawing of a digital camera with lens and screen (no text or symbols)

Illustration of a digital camera with a screen displaying a photo, showing control panel and buttons (no text or symbols)

- Apagado

Line drawing of a cylindrical device with a circular lens and rectangular body (no text or symbols)

Front view of a digital camera with display screen and control buttons (no text or symbols)

CAM ALL RESET ▶ON PIC ▶ENGLISH CARD ▶ON REC VIEW ▶ON FILE NAME ▶RESET

CAM ALL RESET ON PICK ENGLISH CARD ON REC VIEW ON FILE NAME RESET

Black-and-white photo of a smiling woman at night with illuminated city lights in the background (no visible text or symbols)

Black-and-white photo of a smiling woman in front of a city skyline at night (no visible text or symbols)

Line drawing of a person taking a selfie with a camera (no text or symbols)

Sp

Line drawing of a vintage digital camera with an open lid and control knob (no text or symbols)

P [ ] HQ 2048x1536 30

Conector exterior : Jack DC-IN, conector USB (mini-B)

Sistema de : 2000 – 2099

calendario

automático

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS AMERICA INC.

Two Corporate Center Drive, Melville, NY 11747-3157, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

E-Mail: [e-mail]

Olympus software updates can be obtained at: http://www.olympus.com/digital

Olympus Europa GmbH

Premises/Goods delivery: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel. +49 40 - 23 77 3-0 / Fax: [phone]

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com

or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg,

Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United

Kingdom

*Please note some (mobile) phone services/provider do not permit access or request an additional prefix to +800 numbers.

For all not listed European Countries and in case that you can't get connected to the above mentioned number please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)
