Product type	External magneto-optical disk drive
Brand	Sony
Model	RMO-S594-DW
Maximum capacity per disc	2.6 GB (1024 bytes/sector) or 2.3 GB (512 bytes/sector)
Interface	SCSI-2 (Small Computer System Interface-2)
Rotation speed	3600 rpm
Average seek time	25 ms
Continuous transfer rate	2.03 - 4.06 MB/s (1024 bytes/sector); 1.78 - 3.56 MB/s (512 bytes/sector)
Buffer memory (cache)	4 MB
Error rate	10^-12 (with ECC error correction)
Power supply	100-240 V AC, 50/60 Hz
Power consumption	0.60 - 0.35 A max
Dimensions (W x H x D)	211 x 70 x 293 mm
Weight	5.1 kg
Compatible disc formats	Sony 5.25-inch magneto-optical discs conforming to ISO standards (650 MB to 2.6 GB)
Key functions	Rewritable write/read/erase, automatic disc type detection, direct overwrite (1.5 to 2 times faster than previous generations)
Cabinet maintenance	Clean with a soft, dry cloth or slightly dampened with soapy water. Do not use solvent.
Disc cleaning	Use the Sony MOA-D51 cleaning kit (sold separately) at least every three months.
Safety	Use the approved power cord. Do not block the ventilation slots. Write protection via slide switch on the cartridge.
Included accessories	Power cord, emergency eject tool, instruction manual
Options	Sony MO discs (DOM, EDM, CWO), MOA-C08 SCSI cable, MOA-D51 cleaning kit
Serviceability	Manual ejection via emergency tool. Standard components (SCSI cables, discs). If problems occur, contact your dealer.

Frequently Asked Questions - RMO-S594-DW SONY

How to connect the RMO-S594-DW drive to a computer?

Use a SCSI cable (e.g., Sony MOA-C08, sold separately) to connect the drive to the host computer. Make sure all devices are turned off before connecting cables. If the drive is the last in the SCSI chain, set the termination switch (selector F) to '1' on the rear panel.

What types of discs are compatible with this drive?

The RMO-S594-DW accepts Sony 5.25-inch magneto-optical discs, including DOM (direct overwrite rewritable), EDM (rewritable), and CWO (write-once) series. Capacities range from 650 MB to 2.6 GB depending on format and sector type (512 or 1024 bytes).

How to manually eject a cartridge if the EJECT button does not work?

Turn off the drive. Insert the provided emergency eject tool (or a straightened paper clip) straight into the emergency eject hole on the front to trigger the manual ejection mechanism. Caution: the tool tip is sharp; handle with care.

How to set the SCSI ID of the drive?

The SCSI ID is set on the rear panel using the '+' and '-' buttons of the SCSI ID selector. The default is '0'. Make sure the computer is off before changing the ID and that no other device uses the same ID.

What to do if the BUSY indicator blinks orange every 2 seconds?

This blinking indicates internal overheating. Improve ventilation around the drive, e.g., by clearing the ventilation slots. If the problem persists, turn off the drive and contact your dealer.

How to enable write protection on a disc?

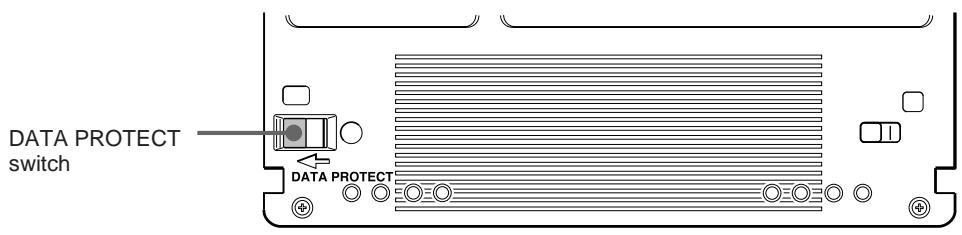

Slide the red DATA PROTECT switch on the cartridge to the left (lock position). In read-only mode, writing and erasing are impossible. To disable, return the switch to its original position.

What precautions should be taken when cleaning the drive and discs?

For the cabinet, use a soft, dry cloth or slightly damp (soapy water). Avoid alcohol and benzene. For discs, use only the Sony MOA-D51 cleaning kit (sold separately) at least every three months to prevent read/write errors.

How to install the drive correctly?

Place the drive horizontally (±5° tolerance), in a location free from humidity, high temperatures, dust, and vibration. Ensure good ventilation by not blocking the slots. Use a 100-240 V AC power outlet with the supplied power cord.

What to do in case of data loss or malfunction?

The manufacturer does not guarantee data safety; always perform regular backups. In case of malfunction, turn off the drive, unplug it, and contact your dealer. Do not attempt to disassemble the device yourself.

How to optimize data transfer speed?

Use discs compatible with 1024-byte sector format for maximum throughput (up to 4.06 MB/s). Enable the write cache memory via function switch C to '1' (caution: do not turn off power before write cache completes). Make sure SCSI termination is correctly configured.

USER MANUAL RMO-S594-DW SONY

The model and serial numbers are located on the bottom of the unit. Record the serial number in the space provided below.

Refer to them whenever you call upon your Sony dealer regarding this product.

Model No. RMO-S594-DW, RMO-S591-DW

Serial No.

Information

For the customer in the U.S.A.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device requires shielded interface cables to comply with FCC emission limits.

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

CAUTION

As the laser beam used in the RMO-S594-DW/S591-DW is harmful to the eyes, do not attempt to disassemble the unit.

Refer servicing to qualified personnel only.

This label is affixed inside the unit.

DANGER LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.

DANGER RADIATIONS DU LASER EN CAS D'OUVERTURE. EVITER TOUTE EXPOSITION DIRECTUE A TO FAISCEAU.

VORSICHT LASERSTRAHUNG, WEN ABDECKUNG, GEOFFNET. NICT FROM STRAHL AUSETZEN.

4-630-960-01

CAUTION:

TO PREVENT ELECTRIC SHOCK, DO NOT USE THIS POLARIZED AC PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

This MO disk unit is classified as a CLASS 1 LASER PRODUCT.

The CLASS 1 LASER PRODUCT

label is located on the bottom exterior.

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

NOTICE

Use the power cord set approved by the appropriate testing organization for the specific countries where this unit is to be used.

LUOKAN 1 LASERLAITE KCLASS 1 LASER APPARAT

VAROITUS!

Location and Function of Parts 7

Front Panel 7

Rear Panel. 8

Chapter 2 Getting Started

Component and Accessory Check List .. 9

Connecting the Disk Unit 10

Setting the SCSI ID. 11

Setting the Disk Unit's Functions 11

Chapter 3 Using the Disk Unit

Inserting a Disk Cartridge 13

Ejecting a Disk Cartridge 14

Chapter 4 Precautions

On the Disk Unit 15

Safety Considerations 15

Damage Prevention 15

Other Points Requiring Attention 16

On the Disk Cartridges 16

Protecting Your Data 17

Cleaning 17

Cleaning a Disk 17

Appendix

Specifications 18

Disk Unit 18

Optional Accessories 19

Using this Guide

This guide covers the use and operation of the RMO-S594-DW/S591-DW Magneto-Optical Disk Unit (called the "disk unit" thereafter). Do not attempt to use the disk unit without first carefully reading this guide. When finished, keep it handy for future reference.

The guide is divided into the following sections.

Chapter 1 Introduction

This chapter contains a general overview of the RMO-S594-DW/S591-DW disk unit, touching upon its features, system configuration, and the location and function of its parts.

Chapter 2 Getting Started

This chapter explains how to connect the disk unit to the host computer and other SCSI peripheral devices. It also explains how to set the disk unit's functions and the SCSI ID. Refer to this chapter when setting up the disk unit.

Chapter 3 Using the Disk Unit

In this chapter, you learn how to turn on the disk unit, and how to insert and eject a disk cartridge. Refer to this chapter when you are ready to actually begin using the disk unit.

Chapter 4 Precautions

This chapter contains precautions regarding the use and operation of the disk unit and magnetooptical disk cartridges.

It also discusses cleaning of disks.

Be sure to refer to this chapter before using the disk unit.

Appendix

The Appendix contains an explanation of the disk unit's main specifications.

Notes:

• The manufacturer disclaims all responsibility for any losses incurred through malfunction or use of this product.
• The manufacturer does not warrant the security of data stored using this product. To guard accidental data loss, frequent backup of important data is highly recommended.
• Reproduction of the contents of this manual, in whole or in part, is prohibited.

Chapter 1 Introduction

Overview

Features

The RMO-S594-DW/S591-DW Magneto-Optical Disk Unit has the following features:

• Magneto-optical technology enables repeated writing and erasing of data on the disk.
• The disk unit automatically senses the type of disk being inserted, enabling the free use of both 650-Mbytes (594-Mbytes), 1.3-Gbytes (1.2-Gbytes) and 2.6 Gbytes (2.3 Gbytes) disks indifferently.
• Direct-Overwrite MO disks can be used. The writing performance of this disk unit is 1.5 to 2.0 times faster than that of the earlier MO Disk Unit.
• A maximum of 2.6 Gbytes (1,024 bytes/sector) or 2.3 Gbytes (512 bytes/sector) of data can be written on the two sides of a 5.25-inch magneto-optical disk. This is equivalent to about 1600–1800 times the capacity of a conventional 3.5-inch floppy disk (2HD).

• Any disk conforming to the internationally accepted CCS (continuous/composite servo) or CCW (continuous composite write-once) format can be used in this disk unit.

• This disk unit employs SCSI-2 (Small Computer System Interface-2).

• The 3,600min^-1 (3,600 rpm) high-speed spindle motor enables data transfer rates of 2.03 - 4.06 Mbytes/s (1,024 bytes/sector) or 1.78 - 3.56 Mbytes/s (512 bytes/sector).
• The low-profile, light-weight optical pick-up yields average seek times of 25ms.
• Use of a highly reliable error correction code (ECC) system keeps the error rate as low as 10^-12 .
• Optimum operation environment is provided through use of a large, 4MB(S594-DW)/1MB(S591-DW) buffer and optimized cache control algorithm. (Write cache can be enabled or disabled. For details, see "Setting the Disk Unit's Functions" on page 11.)

Compatible Disks

The RMO-S594-DW/S591-DW can use the following Sony 5.25-inch MO Disks:

Standard	Sector format	Type*	Capacity	Sony equivalent
ISO/IEC CD 14517	1024 bytes/sector	R/W(DW)	Approx. 2.6 G bytes	DOM-2600B
ISO/IEC CD 14517	512 bytes/sector	R/W(DW)	Approx. 2.3 G bytes	DOM-2300B
ISO/IEC CD 14517	1024 bytes/sector	R/W	About 2.6 G bytes	EDM-2600B
ISO/IEC CD 14517	512 bytes/sector	R/W	About 2.3 G bytes	EDM-2300B
ISO/IEC 13549	1024 bytes/sector	R/W	About 1.3 G bytes	EDM-1300B
ISO/IEC 13549	512 bytes/sector	R/W	About 1.2 G bytes	EDM-1200B
ISO/IEC 10089	1024 bytes/sector	R	About 650 M bytes	EDM-650B
ISO/IEC 10089	512 bytes/sector	R	About 600 M bytes	EDM-600B
ISO/IEC CD 14517	1024 bytes/sector	WO	About 2.6 G bytes	CWO-2600B
ISO/IEC CD 14517	512 bytes/sector	WO	About 2.3 G bytes	CWO-2300B
ISO/IEC 13549	1024 bytes/sector	WO	About 1.3 G bytes	CWO-1300B
ISO/IEC 13549	512 bytes/sector	WO	About 1.2 G bytes	CWO-1200B
ISO/IEC 11560	1024 bytes/sector	R	About 650 M bytes	CWO-650B
ISO/IEC 11560	512 bytes/sector	R	About 600 M bytes	CWO-600B

^*R / W(DW) :Rewritable(Direct-Overwrite MO), R/W:Rewritable(MO), WO:Write Once, R:Read Only

System Configuration

The disk unit should be used with a host computer equipped with SCSI.

A maximum of seven peripheral devices can be linked in a daisy chain on the SCSI bus, and controlled with SCSI-2 commands.

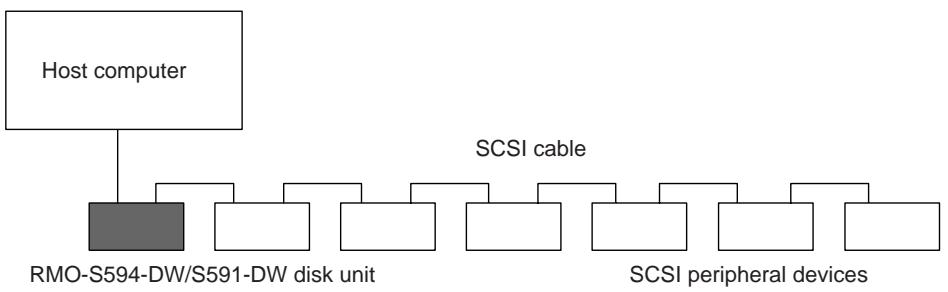

Fig. 1-1: System Configuration Example

Front Panel

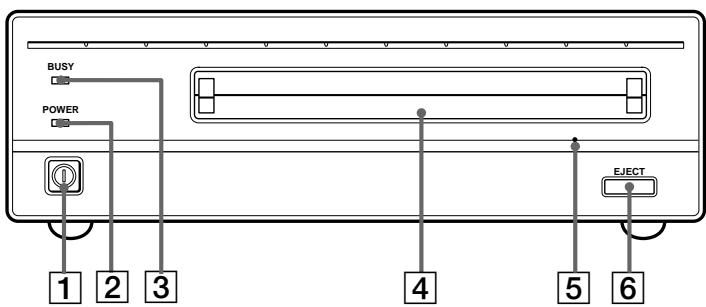

Fig. 1-2: Front View

1 POWER switch

Push the button to turn the power on and off. The power is on when the button is in the depressed position, and off when fully protruding.

2 POWERindicator

The green lamp lights up when the power is turned on.

3 BUSY indicator

As this disk is inserted and the drive becomes ready for read/write operation, the BUSY indicator turns green. The orange lamp lights up when the disk unit is accessing or writing data. This lamp flashes on and off at about 2-second intervals when the unit overheats, regardless of whether or not a disk is being accessed.

4 Disk insertion slot

Insert the disk cartridge into this slot. Refer to the section "Inserting a Disk Cartridge" on page 13 for more information.

Emergency eject hole

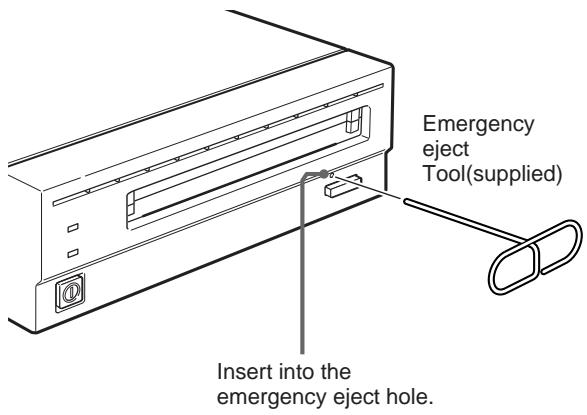

If the disk cartridge cannot be ejected using the EJECT button turn off the power and insert the supplied emergency eject tool into this hole to trip the emergency eject mechanism. Refer to the section "What to do if the disk does not eject" on page 14 for further details.

EJECT button

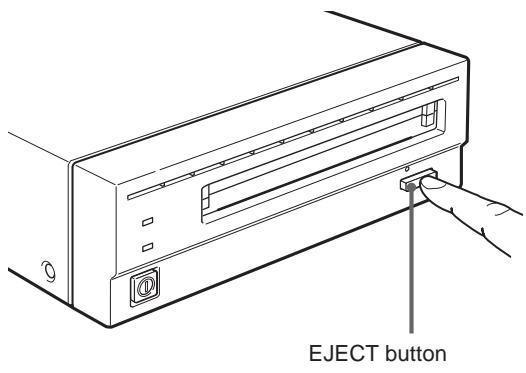

Press this button to eject the disk cartridge from the disk unit. The EJECT button is disabled with the function switch or software settings prohibit ejection. When the write cache is enabled, it may take a few moments (up to 45 seconds) for the disk to eject because data in the cache must first be written to the disk.

Rear Panel

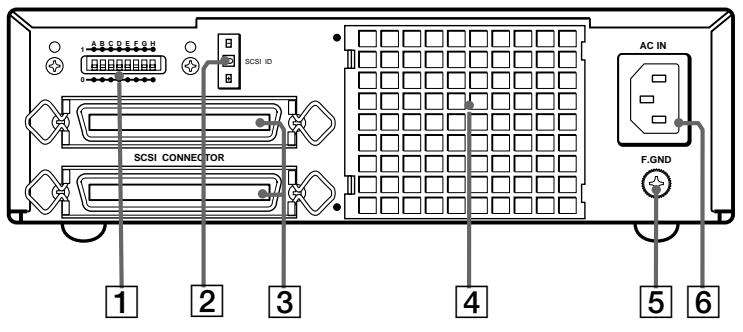

Fig 1-3: Rear View

Function switches

Use this switches to set the disk unit's functions in accordance with the host computer and software being used. Refer to the section "Setting the Disk Unit's Functions" on page 11 for more information.

2 SCSI ID switch

Use these switches to set the SCSI ID. Push the “-” button to lower the ID number; push the “+” button to raise the ID number. Refer to the section “Setting the SCSI ID” on page 11 for more information.

3 SCSI connectors

Plug SCSI cables (sold separately) linking the host computer and other SCSI peripherals into these connectors.

Note:

If the disk unit is the last device on the SCSI chain, set function switch F to "1" to turn on the internal terminator. When it is not the last device, make sure that the terminator is off (switch F is set to "0").

4 Air duct

The air for cooling the disk unit flows through this duct, so be careful not to block its surface or impede the outflow.

F.GND (frame ground) terminal

Connect the ground terminals of other devices to the disk unit's frame ground.

6 AC IN (AC power) connector

Connect the supplied AC power cord to this connector.

Chapter 2 Getting Started

Before setting up your RMO-S594-DW/S591-DW Magneto-Optical Disk Unit, check to see that you have all the required components and accessories. Then, connect the disk unit to the host computer and any other SCSI peripherals

you may be using. After checking to see that all the connections have been properly made, set the SCSI ID using the SCSI ID switch and the disk unit's functions using the function switches.

Component and Accessory Check List

Upon opening the carton, check to see that you have all of the components and accessories listed below. Contact your dealer immediately if you find any missing or damaged items.

• RMO-S594-DW/S591-DW Magneto-Optical Disk Unit
• AC power cord
  Emergency eject tool
• User's Guide
• Guide to Safe Use (Safety Precautions)

RMO-S594-DW/S591-DW Magneto-Optical Disk Unit

Emergency eject tool

AC Power cord
Fig 2-1: Items in the Package

Connecting the Disk Unit

You can hook up a maximum of seven SCSI peripheral devices to a single host computer through its SCSI bus.

Use either of the following Sony SCSI cable (sold separately) to connect the disk unit.

• MOA-C08 (80 cm, full pitch full pitch)

Notes:

• Before connecting the disk unit, be sure to turn off the disk unit and all other devices on the SCSI chain.
• If the disk unit is the last device on the SCSI chain, set the function switch F on the rear panel to "1" to turn on the internal terminator. When it is not the last device, make sure that the terminator is off (function switch F is set to "0").
• The total length of the SCSI cables connected to a SCSI chain must not exceed six meters (19 feet 8 1/4 inches).

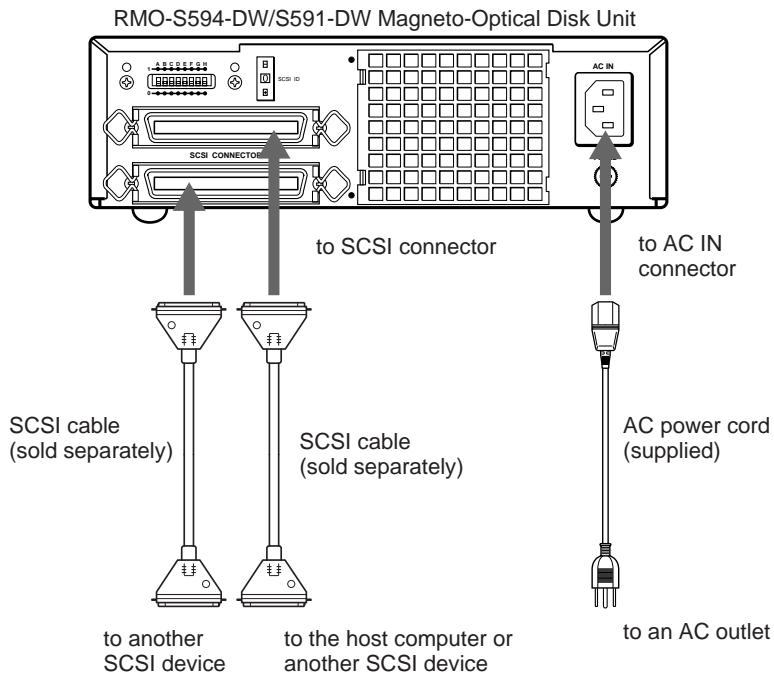

Fig 2-2: Connecting the RMO-S594-DW/S591-DW

Setting the SCSI ID

The factory default setting for the SCSI ID is "0." If necessary, this ID number can be changed using the SCSI ID switch on the rear panel. Be sure to turn off the power before making any changes. Pushing the "+" button raises the ID number; pushing the "-" button lowers the ID number.

Notes:

• The disk unit will not operate properly unless the SCSI ID has been set correctly.
• Make sure to select a SCSI ID that has not been assigned to another SCSI device.

Fig 2-3: SCSI ID Switch

Setting the Disk Unit's Functions

Use function switches (A-H) on the rear panel to select the disk unit's functions in accordance with the host computer and software you are using. Be sure to turn off the power before setting the switches.

Fig 2-4: Function Switches

This disk unit is equipped with a write cache. When the write cache is enabled, never turn off the disk unit power without making sure that all data has been written to the disk from cache memory. Data will be lost if you turn off the power before all data in cache memory has been written to the disk.

Before powering off the disk unit, be sure to eject the disk. Ejecting the disk writes data from cache memory to the disk.

Note:

Even though the drive will flush data periodically to the disk, data may be lost in the case of a power failure.

Table 2-1: Function Switch Settings

Switch	Function
	1	0
A	Parity check	SCSI parity check is disabled.	SCSI parity check is enabled.
B	Device type	Peripheral device type 00H(Direct Access Device)	Peripheral device type 07H(Optical Memory Device)
C	Write cache control	Disable write cache.	Enable write cache.
D	Fast SCSI control	Fast SCSI compatible	Not Fast SCSI compatible
E	Force verify	All write operations are verified.(with a verify pass)	All write operations are normal operations.(without a verify pass)
F	Terminator	The internal terminator is on.	The internal terminator is off.
G	Auto spin up	Inserting a disk does not causes the spindle motor to rotate.	Inserting a disk causes the spindle motor to rotate.
H	Manual eject	Disk catridge cannot be ejected by pressing the EJECT button.	Disk cartridge can be ejected by pressing the EJECT button

Factory setting

Inserting a Disk Cartridge

Use the following Sony 5.25-inch MO disks in your RMO-S594-DW/S591-DW disk unit.

DOM-2600B (1,024 bytes/sector, 2.6 Gbytes)
DOM-2300B (512 bytes/sector, 2.3 Gbytes)
EDM-2600B (1,024 bytes/sector, 2.6 Gbytes)
EDM-2300B (512 bytes/sector, 2.3 Gbytes)
EDM-1300B (1,024 bytes/sector, 1.3 Gbytes)
EDM-1200B (512 bytes/sector, 1.2 Gbytes)
CWO-2600B (1,024 bytes/sector, 2.6 Gbytes)
CWO-2300B (512 bytes/sector, 2.3 Gbytes)
CWO-1300B (1,024 bytes/sector, 1.3 Gbytes)
CWO-1200B (512 bytes/sector, 1.2 Gbytes)

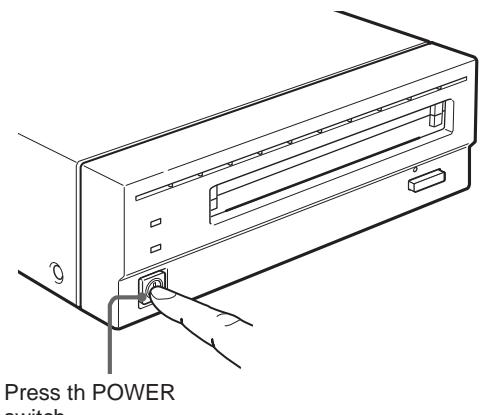

1 Press the POWER switch located on the left side of the front panel.

This turns on the disk unit and causes the POWER indicator to light up.

Fig 3-1: Turning on the Disk Unit

2 Start up the host computer. Refer to the manual supplied with the host computer for the start up procedure.

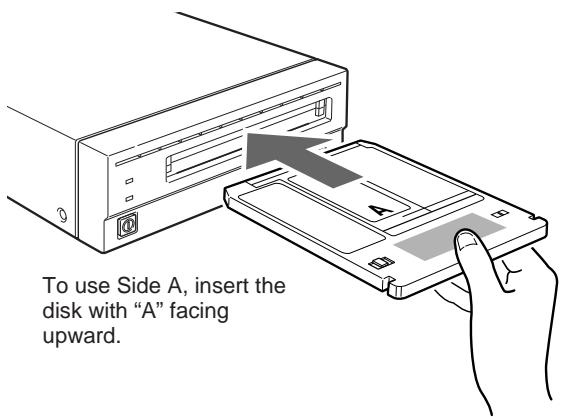

3 Insert a disk cartridge with the side you want to use facing upwards.

Fig 3-2: Inserting a Disk Cartridge

4 Access or write data on the disk using software commands on the host computer. The BUSY indicator lights up while the unit is accessing the disk.

What to do if the disk unit stops operating

When the temperature in the disk unit exceeds the preset level, the BUSY indicator starts flashing on and off at about 2-second intervals, regardless of whether or not a disk is being accessed, and the disk unit stops operating. If this happens, you should improve the ventilation of a setting area.

If the disk unit still refuses to operate, unplug the unit and contact your dealer.

Ejecting a Disk Cartridge

Eject the disk cartridge either by using software commands or by pressing the EJECT button.

Fig 3-3: Ejecting the Disk Cartridge Using the EJECT button

Note

Do not attempt to eject a disk cartridge while the BUSY indicator is lit orange (except when it is flashing at about 2-second intervals due to overheating). Ejecting the disk while it is being accessed may cause data write errors or may result in loss of data.

Also, it may take a few moments (up to 45 seconds) for the disk to eject when the write cache is enabled, because data in the cache must first be written to the disk.

What to do if the disk does not eject

The disk cartridge may not come out, even when you press the EJECT button or use a software command, under the following conditions:

• The eject function has been disabled using the function switch or a software command;
• The host computer is not functioning properly;
• The disk unit has been turned off (due to a power failure, etc.); or
• Something is wrong with your disk unit itself.

When you cannot eject the disk cartridge using the EJECT button or software commands, remove it as follows.

1 Turn off the disk unit if the power is still on.
2 Insert the emergency eject tool (or a paper clip) straight into the emergency eject hole to trip the manual ejection mechanism.

Fig 3-4: Inserting the Emergency Eject Tool

This should cause the disk cartridge to eject.

Caution

The tip of the emergency eject tool is sharp. When handling the tool, please be careful to avoid injury.

On the Disk Unit

Safety Considerations

Power supply

• Be sure to use 100 - 240V AC.
• Do not share the AC outlet with any other power-consuming equipment such as copying machines or shredders.

AC power cord

• Be careful not to place or drop heavy object on the power cord, or subject it to anything that may damage it.
• When unplugging the cord from an AC outlet, be sure to grasp the plug itself. Pulling on the cord may cause damage to the internal wiring.
• Unplug the unit when not using it for long period of time.

Handling the emergency eject tool

The tip of the emergency eject tool is sharp. When handling the tool, please be careful to avoid injury. Do not use the tool for any purpose other than ejecting disks.

Damage Prevention

■ Do not subject the disk unit to shock or vibration

Dropping the unit or subjecting it to strong impact may damage the disk unit.

Setting position

The disk unit is designed to be used in the horizontal position. Do not position it at an angle.

■ Location requirements

Careful consideration should be given to the following in selecting a site to install or store your disk unit.

Avoid the following conditions:

High humidity
- High temperatures
- Direct sunlight
Dust
Strong vibration
- Wide temperature fluctuations

■ Ventilation

Care should be exercised to prevent the internal mechanisms of the disk unit from overheating. Be careful not to clog or block the vent, or place the unit in an area with poor ventilation. The disk unit may stop operating altogether if the internal temperature becomes too high.

Condensation

Avoid subjecting the disk unit to extremes in temperature. If, for example, the disk unit is moved suddenly from a very cold location to a warm one, moisture from condensation may form within the unit due to the quick rise in ambient temperature. If a sudden change in the temperature cannot be avoided, wait for an hour or more before using the disk unit. Inserting a disk cartridge into the mechanism when moisture is present may cause damage to both the disk and the disk unit. Remove the disk cartridge immediately if you suspect any condensation problems. The moisture should evaporate quickly if the disk unit is left on without a disk inserted.

■ Moving the disk unit

Be sure to remove the disk cartridge when the disk unit is not being used. Also never move or transport the unit with the disk cartridge still inserted.

While in operation, the disk rotates at a high speed. Moving the disk unit at such a time may disturb the spinning disk and cause it to be damaged. Always remove the disk cartridge before moving your disk unit.

If problems occur

If any problems occur, turn off the power and unplug the disk unit, contact your dealer.

On the Disk Cartridges

• Do not drop the disk cartridge or subject it to any violent shocks or vibration.
• Do not disassemble the disk cartridge. It is a precision component and has been carefully adjusted at the factory prior to shipment.
• Do not open the disk cartridge's shutter manually or touch the disk inside. The shutter is designed to open automatically when the cartridge is inserted into the disk unit.
• Do not use the cartridge under ambient conditions of high humidity or wide temperature fluctuations. Moisture from condensation may make it impossible to read or write data.
• Avoid inserting and ejecting the disk cartridge more than is necessary.
• Always eject and remove the disk cartridge from the disk unit after using it.

Other Points Requiring Attention

Electrical noise

The high-frequency signal generated by the disk unit may cause interference or static on other electrical appliances such as radios, televisions and audio tuners. If this should occur, move the disk unit a little farther away from the affected appliance.

■ Maintenance

Clean the cabinet with a dry soft cloth, or with a soft cloth lightly moistened with a mild detergent solution. Do not use any type of solvent, such as alcohol or benzine, which may damage the finish.

Storing disk cartridges

• Store the disk cartridges in their cases.
• Do not leave the cartridges exposed to direct sunlight or excessive heat, like on the dashboard or in the glove compartment of an automobile. Do not store the disk cartridges under the following conditions.

-Excessive dust and debris
- Exposure to direct sunlight
-Near a heat source
-High humidity

Protecting Your Data

The magneto-optical disk cartridges are equipped with a DATA PROTECT switch (red tab) to prevent accidental erasure of data on the disk or inadvertent writing of unwanted data. Slide this switch in the direction of the arrow as illustrated below to enable the write protect function.

You can still read the data contained on the disk, but will not be allowed to write on or erase the disk. Return the switch to its original position to disable the write protect.

Make it a practice to leave the write protection enabled when you do not foresee the need to write on the disk.

Fig 4-1: Write Inhibit Position

Cleaning

Cleaning a Disk

Dust and stains may accumulate on MO disks when they are used for a long period of time. To avoid resultant data read/write errors, use an optional disk cleaner. To maintain the high performance and prolong the useful life of your MO disk, cleaning at least once every three months is recommended.

Disk cleaning accessories

Use the following Sony disk cleaning kit or disk cleaner(sold separately).

• MOA-D51 Disk Cleaning Kit
• Do not use any other type of disk cleaner as it may cause data read/write errors due to the differences in disk surface characteristics. For cleaning instructions, refer to the manual supplied with each cleaning accessory

Attention:

In the disk unit, preventive measures are taken to guard against dust. It is unnecessary to clean the optical lens of your disk unit. Using a lens cleaning cartridge may damage the disk unit.

Specifications

Disk Unit

Performance

Capacity (formatted)

Per disk

2.6 Gbytes (ZCAV 1,024 bytes/sector)
2.3 Gbytes (ZCAV 512 bytes/sector)
1.3 Gbytes (ZCAV 1,024 bytes/sector)
1.2 Gbytes (ZCAV 512 bytes/sector)

Per side

1.3 Gbytes (ZCAV 1,024 bytes/sector)
1.15 Gbytes (ZCAV 512 bytes/sector)
652.3 Mbytes (ZCAV 1,024 bytes/sector)
595.6 Mbytes (ZCAV 512 bytes/sector)

Rotation speed

3,600min^-1 (3,600 rpm)

User data transfer rate

Continuous transfer rate

2.03-4.06 Mbytes/s

(maximum, 1,024 bytes/sector)

1.78 - 3.56 Mbytes/s

(maximum, 512 bytes/sector)

Burst transfer rate

maximum 5Mbytes/s (synchronous)

Host interface

SCSI-2 (Small Computer System Interface-2)

ANSI X3.131-1994

Operating environment

Installation

Horizontal (± 5^)

Temperature

Operating

5^ to 40^(41^ to 104^)

gradient 10^ / h or 18^ / h)

Non-operating

• 30^ to 60^(-22^ to 140^)

Relative humidity

Operating

10% to 85% (no condensation)

Non-operating

10% to 90%

Laser

Type

Semiconductor AlGaInP laser

Wavelength

685nm± 10nm

Maximum output

30mW

Power supply and others

Power supply

100 - 240 V AC ±10%, 50/60 Hz ±5%

Current drain

0.60 - 0.35 A max

Maximum external dimensions (excluding

protruding parts and air duct)

211 × 70 × 293 ~mm(W / H / D)

(8 3/8 x 2 7/8 x 11 5/8 inches)

Weight

5.1kg (11.3 lb.)

Accessories

AC power cord (1)

Emergency eject tool(1)

User's Guide (1)

Design and specifications are subject to change without notice.

Optional Accessories

Direct Overwite MO disks

DOM-2600B (1,024 bytes/sector, 2.6 Gbytes)

DOM-2300B (512 bytes/sector, 2.3 Gbytes)

MO disks

EDM-2600B (1,024 bytes/sector, 2.6 Gbytes)

EDM-2300B (512 bytes/sector, 2.3 Gbytes)

EDM-1300B (1,024 bytes/sector, 1.3Gbytes)

EDM-1200B (512 bytes/sector, 1.2 Gbytes)

Continuous composite write-once disks

CWO-2600B (1,024 bytes/sector, 2.6 Gbytes)

CWO-2300B (512 bytes/sector, 2.3 Gbytes)

CWO-1300B (1,024 bytes/sector, 1.3 Gbytes)

CWO-1200B (512 bytes/sector, 1.2 Gbytes)

SCSI cables

MOA-C08 (80 cm, full pitch full pitch)

MOA-D51 Disk Cleaning Kit

Règles de sécurité

NOTICE

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

4-627-223-01

Achtung
